The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

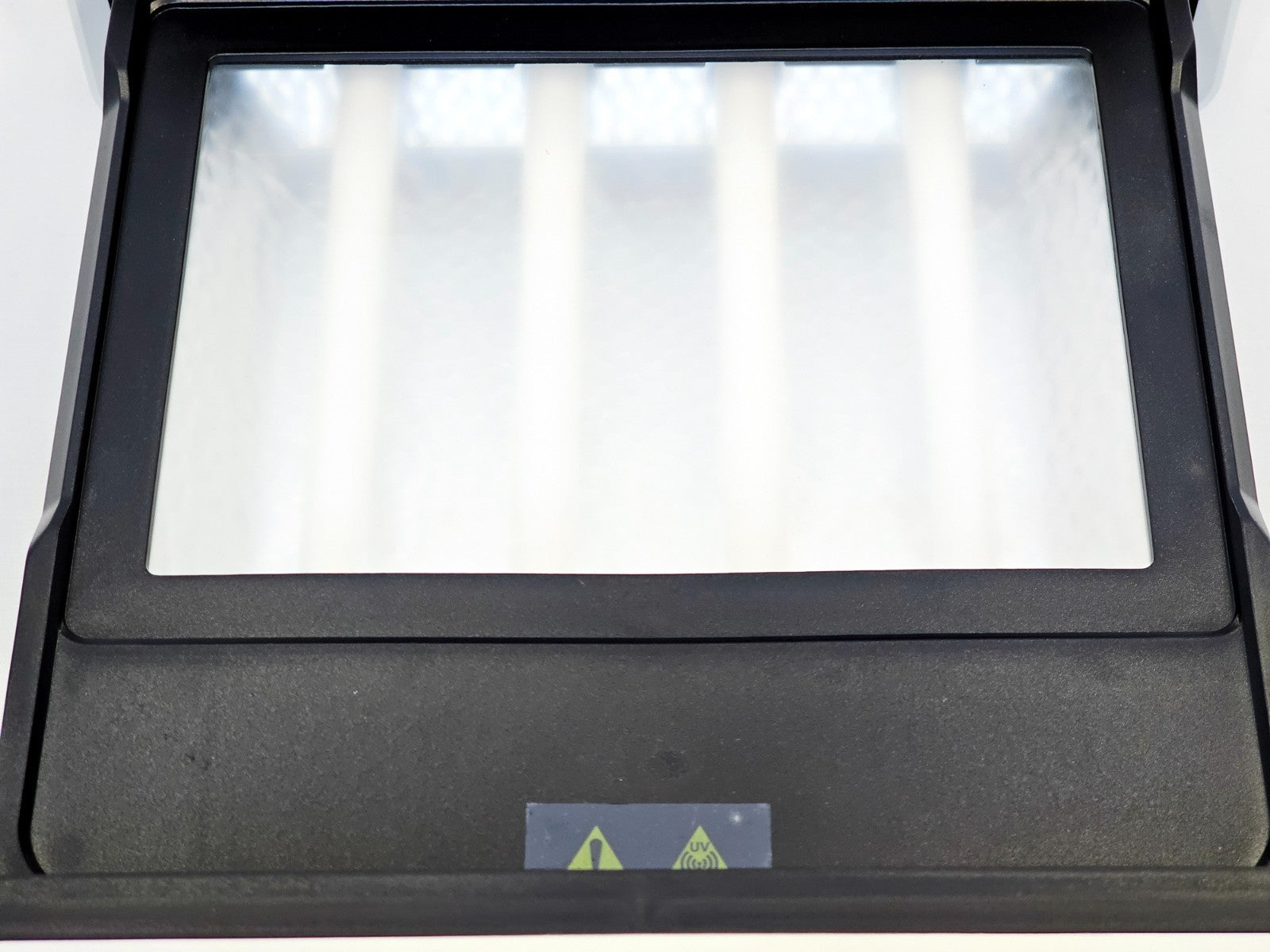

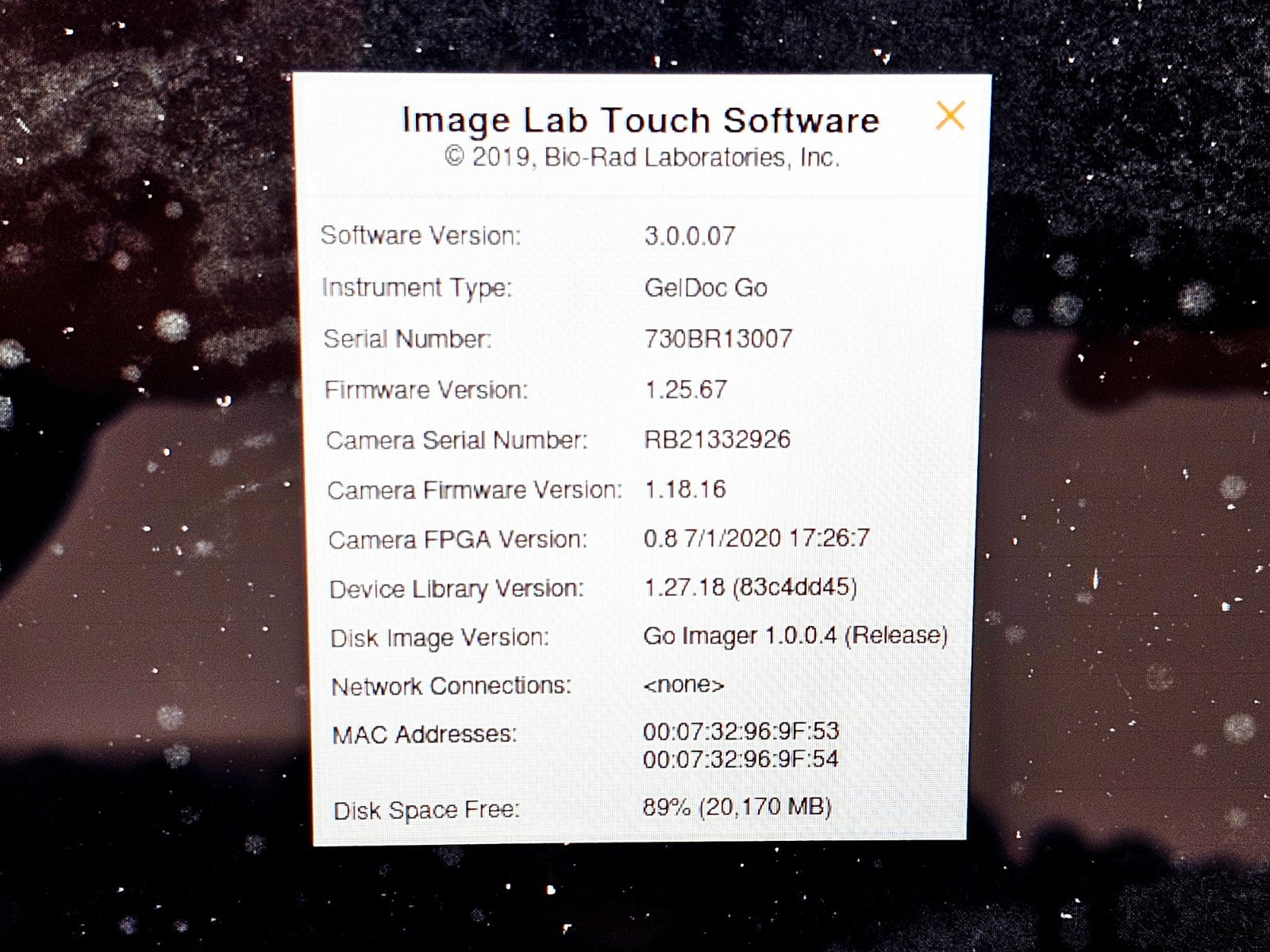

This Bio-Rad GelDoc Go Gel Imaging System (Cat. No. 12009077) is in excellent cosmetic condition and has been fully tested and confirmed working. The unit boots correctly, runs Image Lab Touch Software v3.0.0.07, and the camera and UV/Stain-Free transilluminator are fully functional.

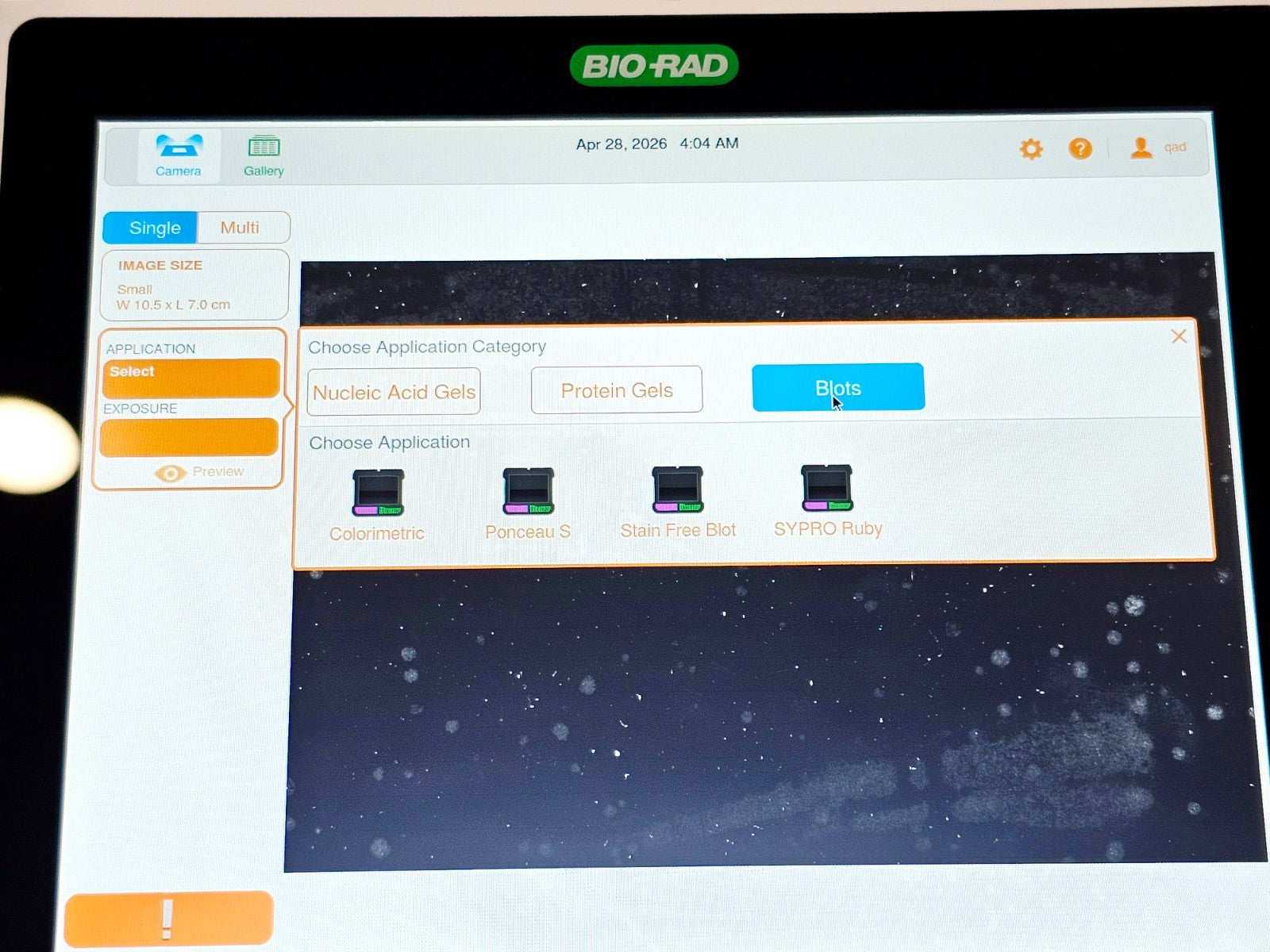

The system supports a comprehensive range of imaging applications across three categories:

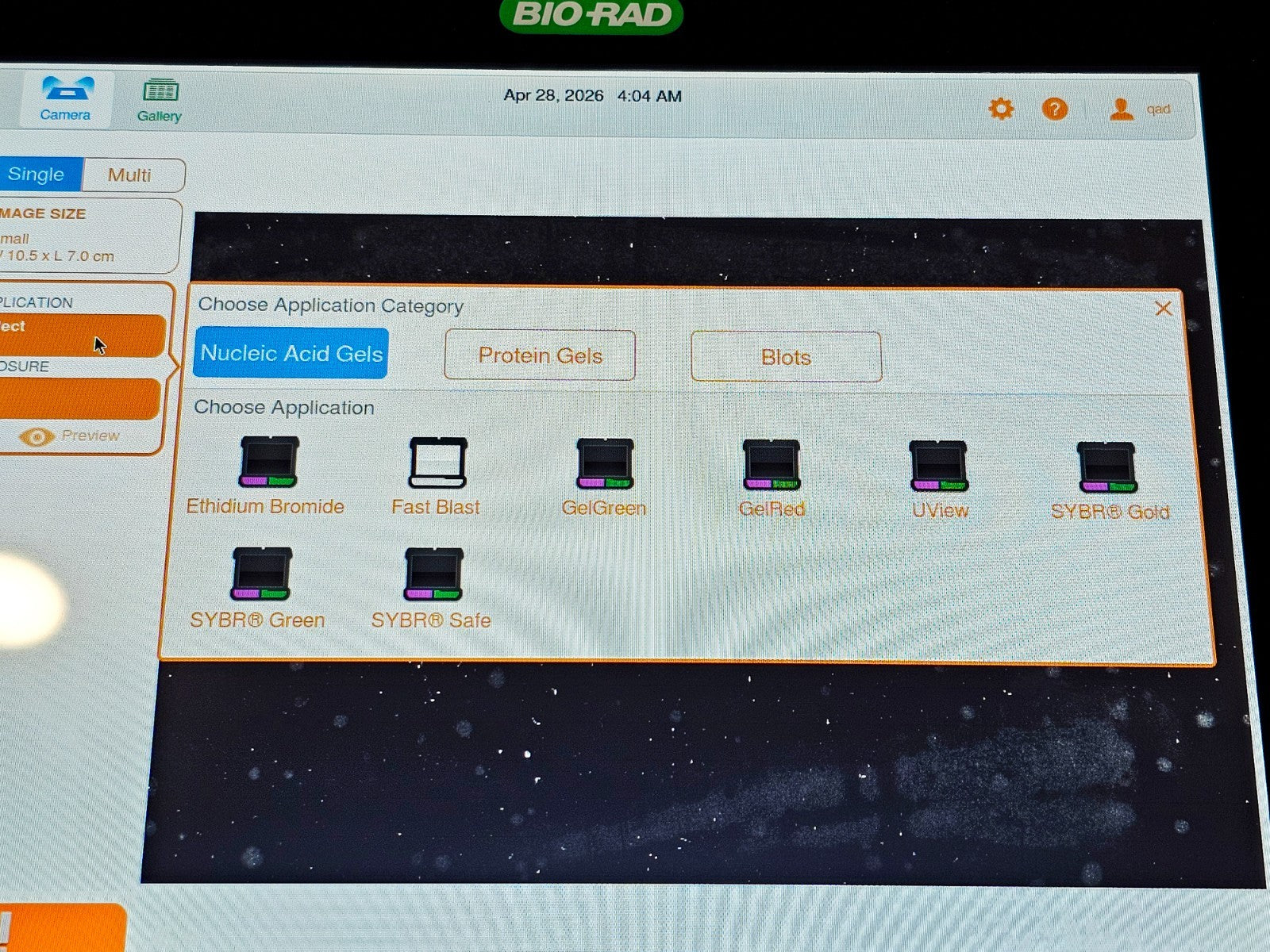

Nucleic Acid Gels: Ethidium Bromide, Fast Blast, GelGreen, GelRed, UView, SYBR Gold, SYBR Green, SYBR Safe

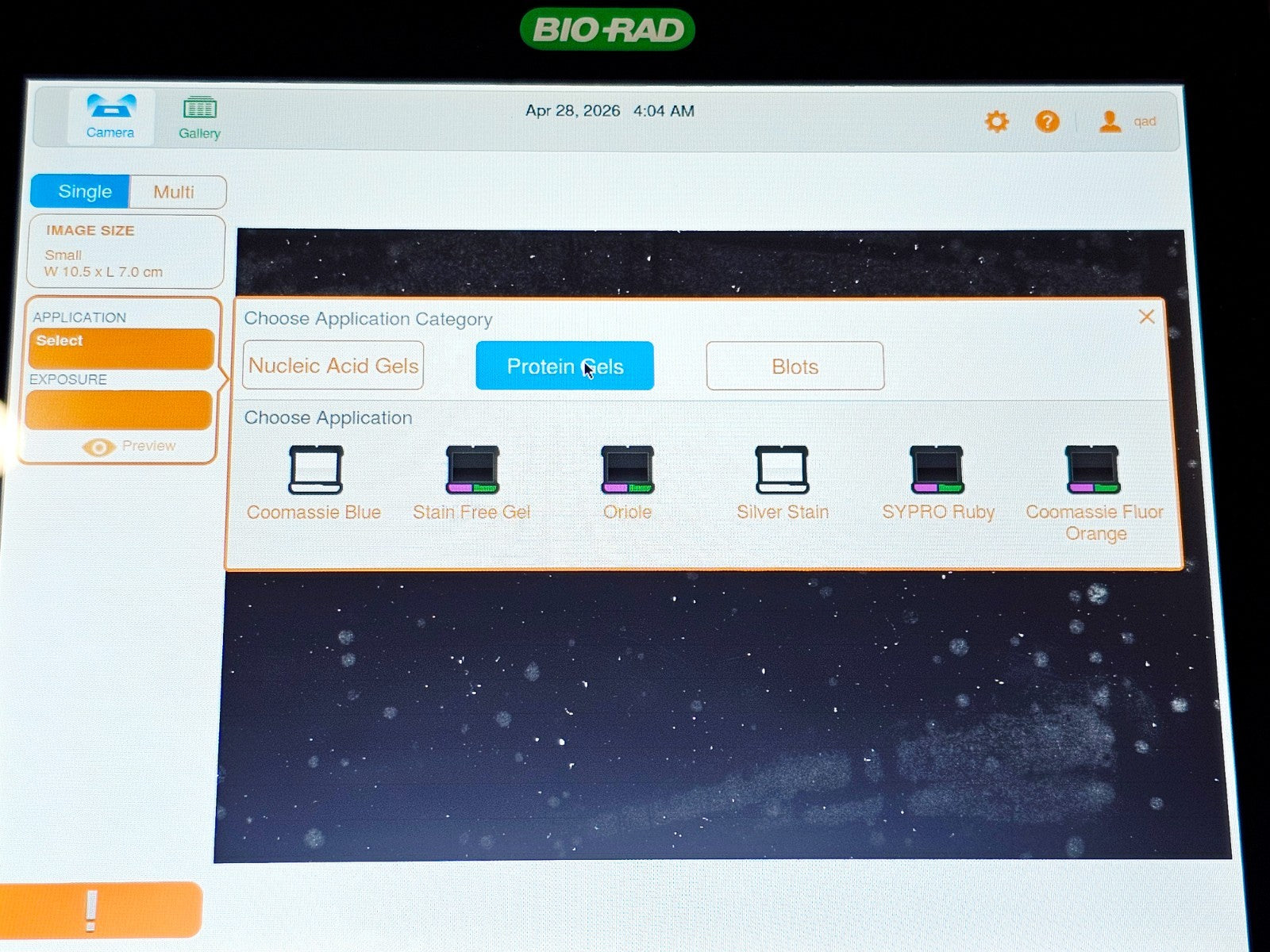

Protein Gels: Coomassie Blue, Stain Free Gel, Oriole, Silver Stain, SYPRO Ruby, Coomassie Fluor Orange

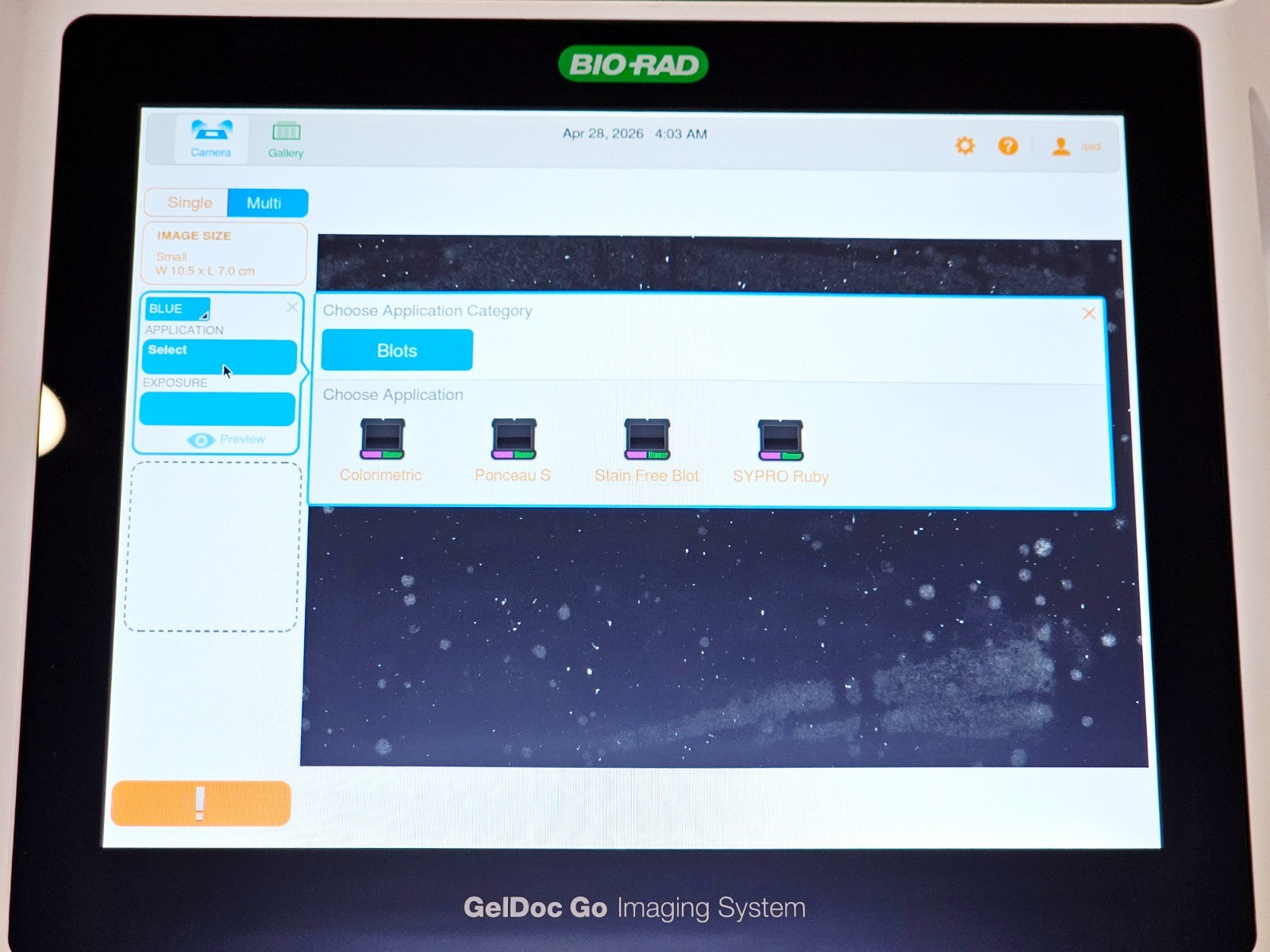

Blots: Colorimetric, Ponceau S, Stain Free Blot, SYPRO Ruby

This listing includes the following items:

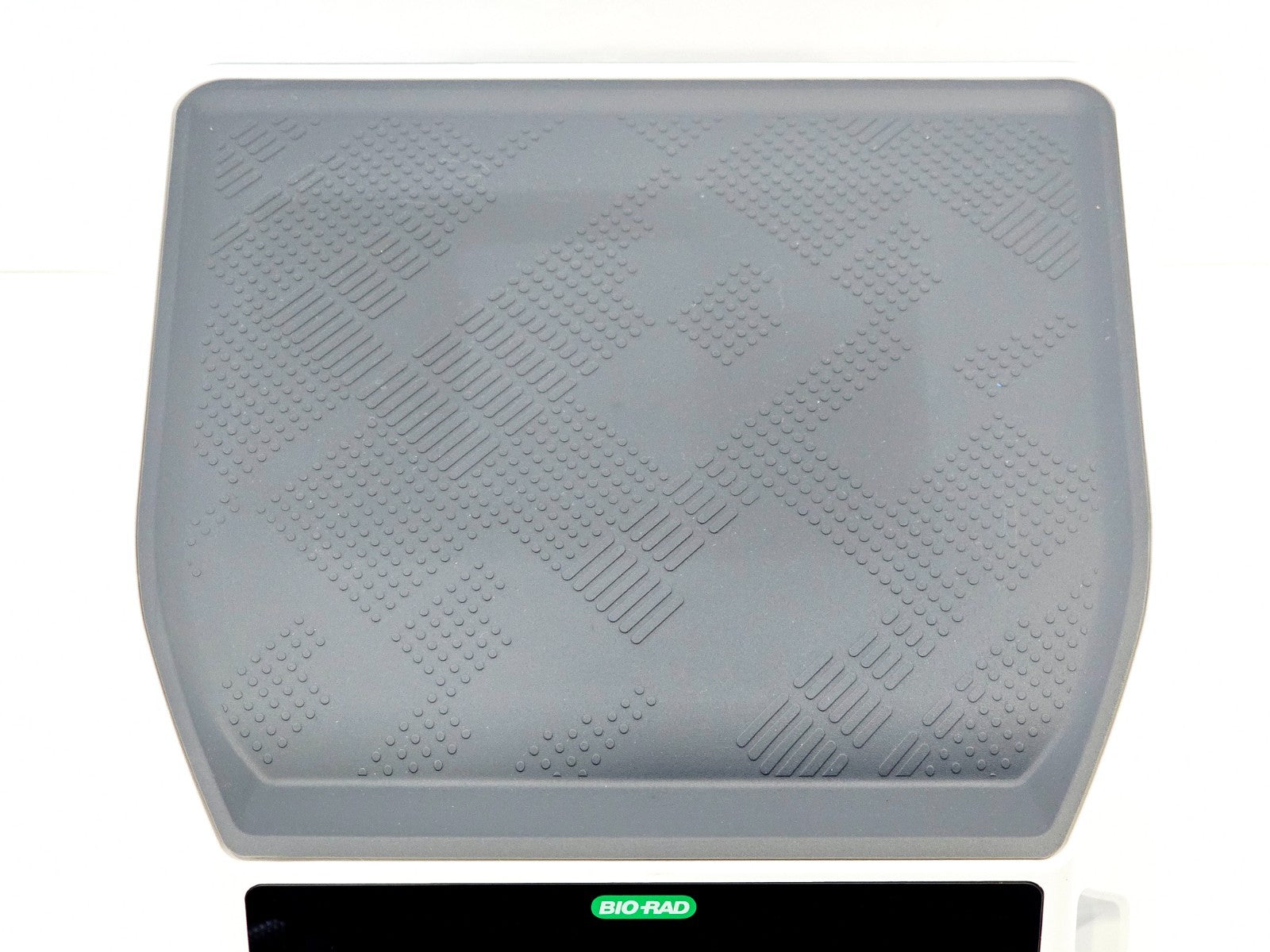

• Bio-Rad GelDoc Go Imaging System (main unit)

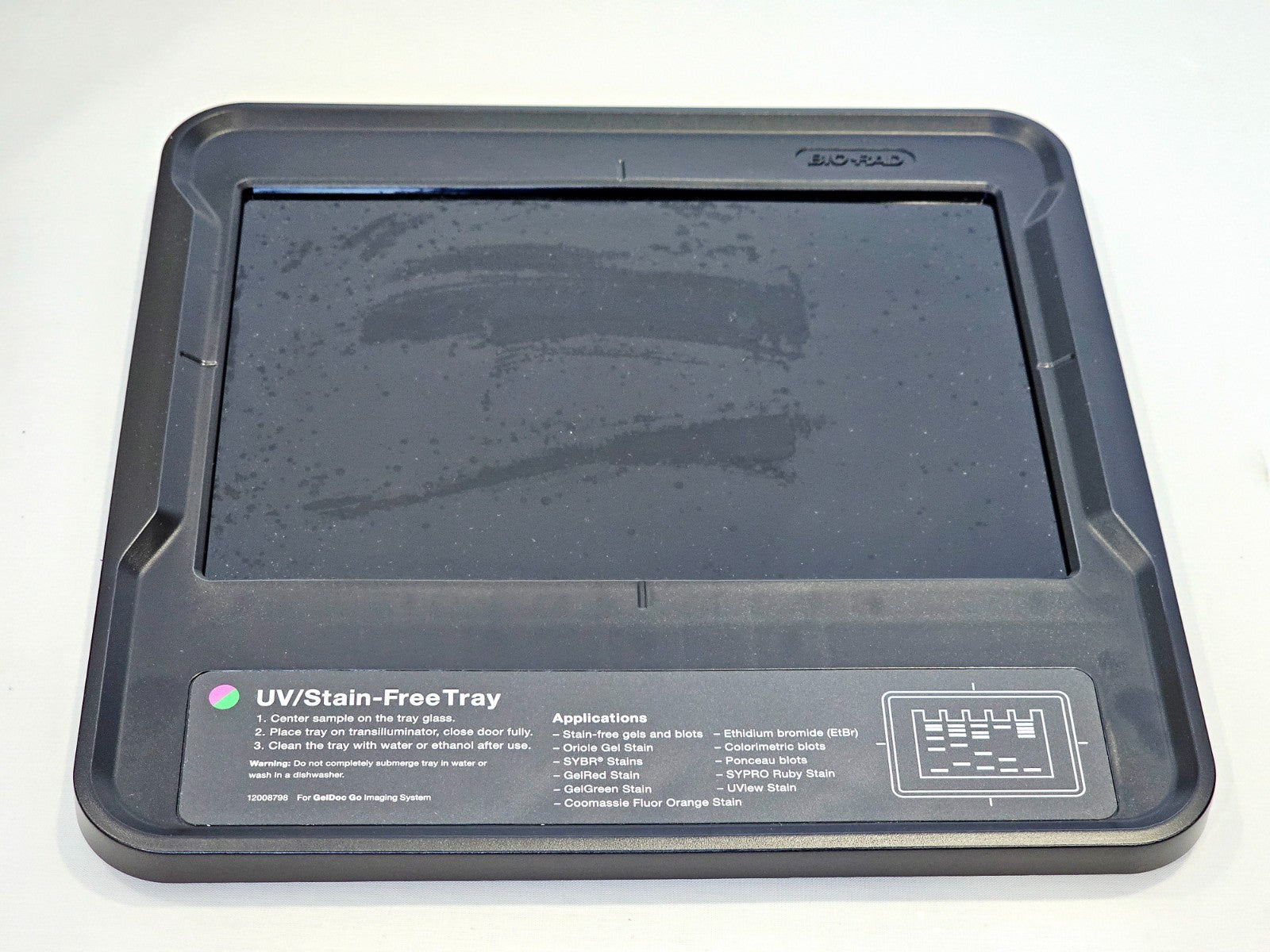

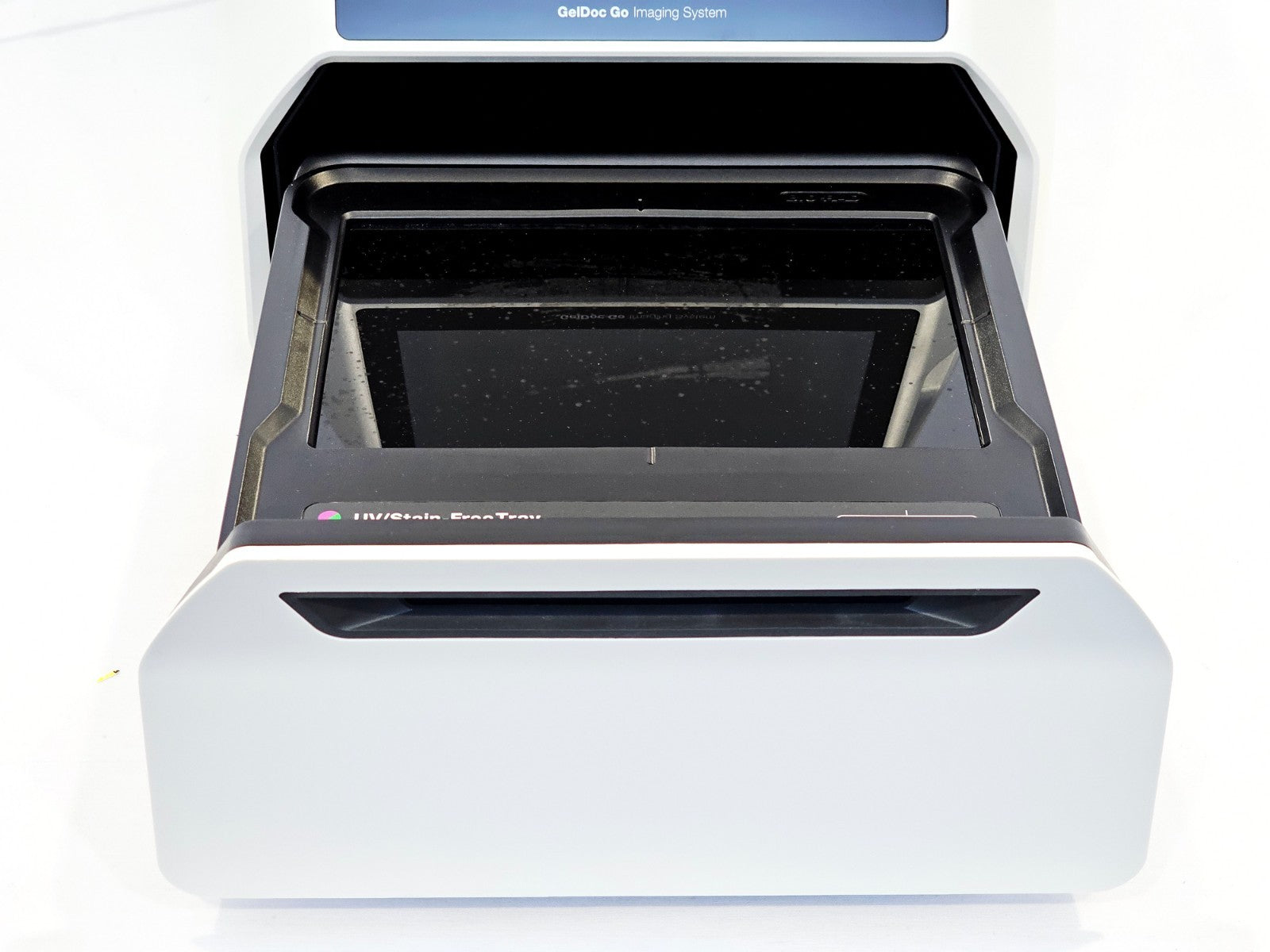

• UV/Stain-Free Imaging Tray (Cat. No. 12008798)

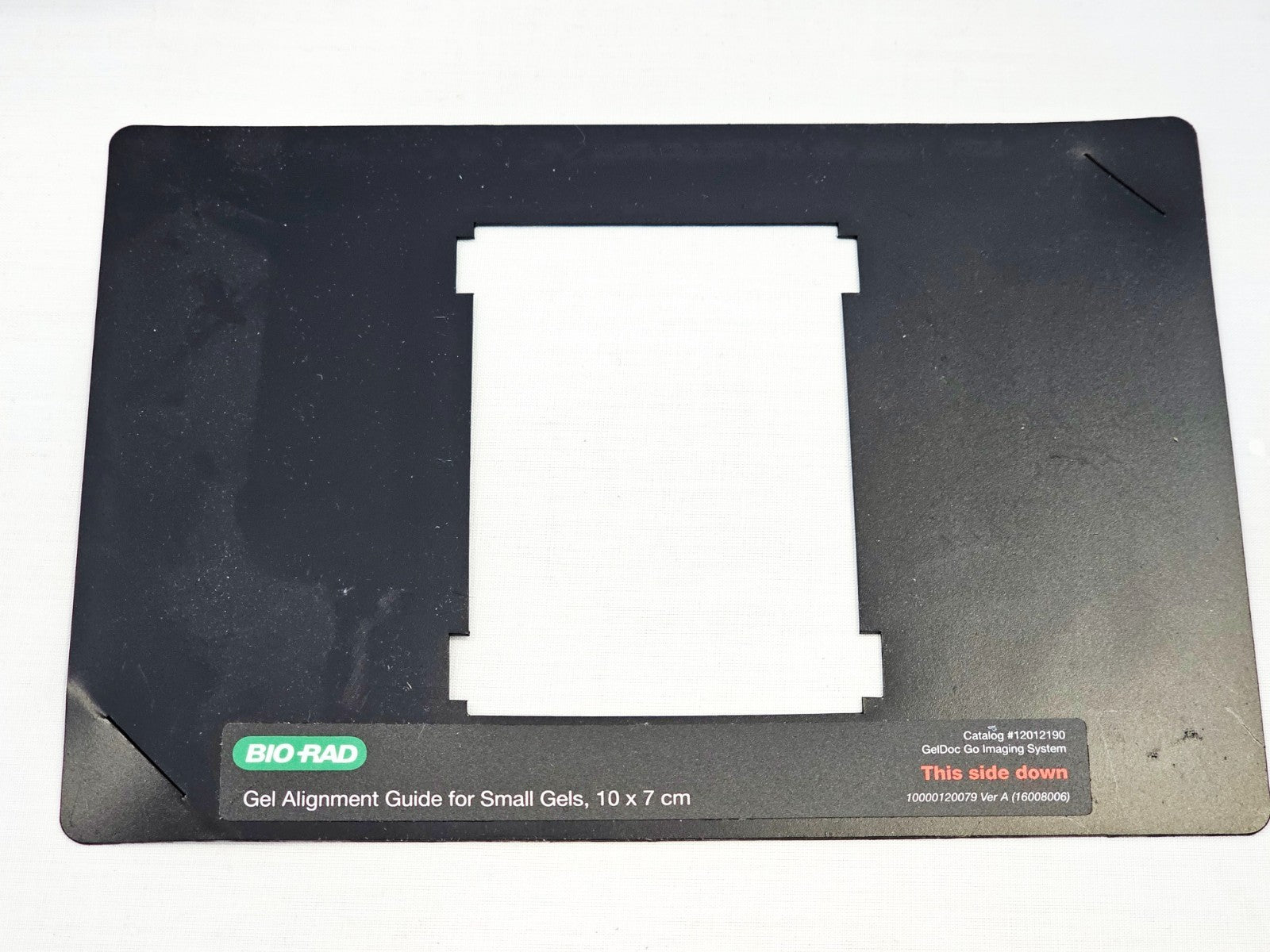

• Gel Alignment Guide for Small Gels, 10 x 7 cm (Cat. No. 12012190)

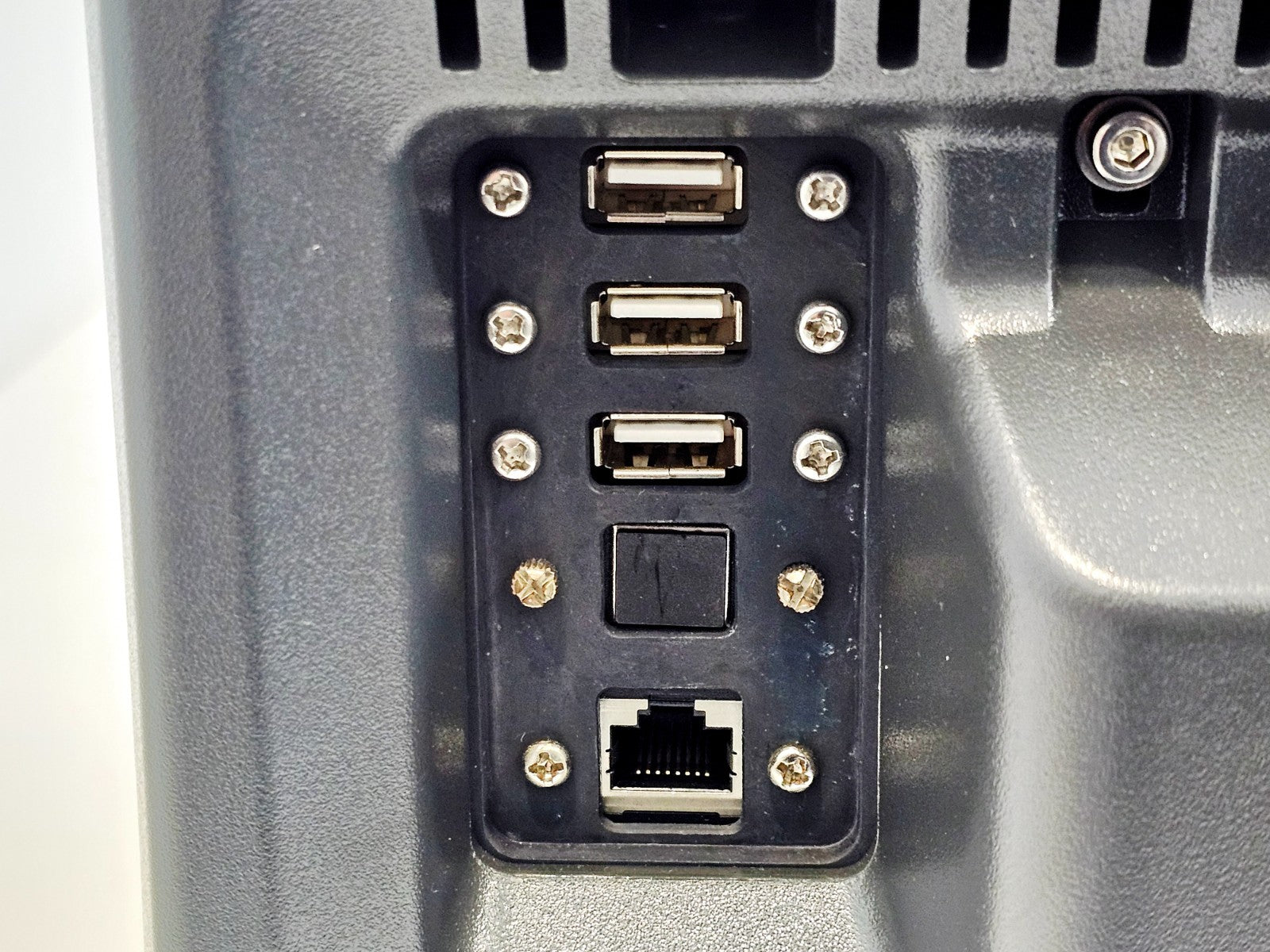

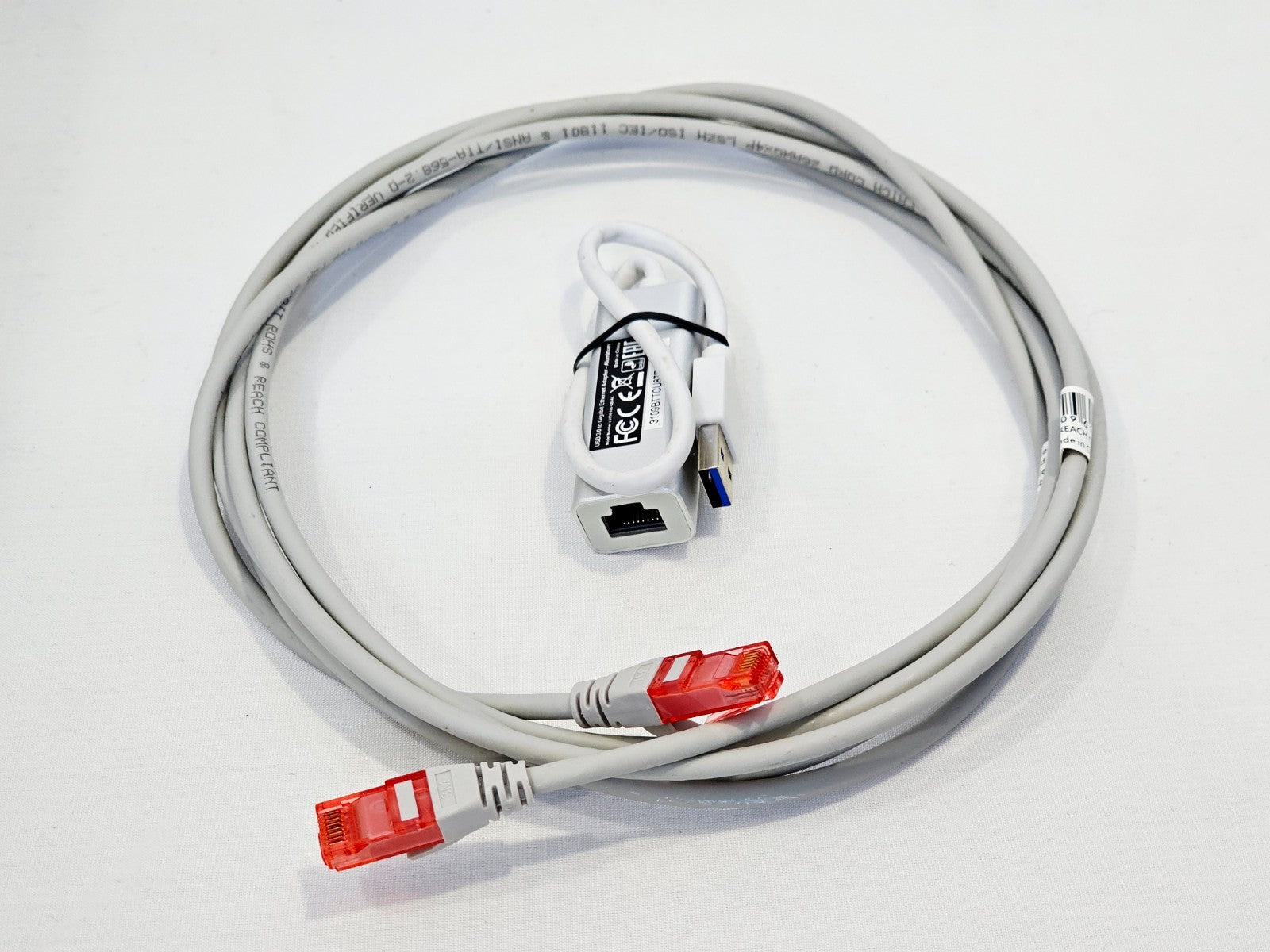

• Ethernet (RJ45) patch cable
• USB 3.0 to Gigabit Ethernet adapter

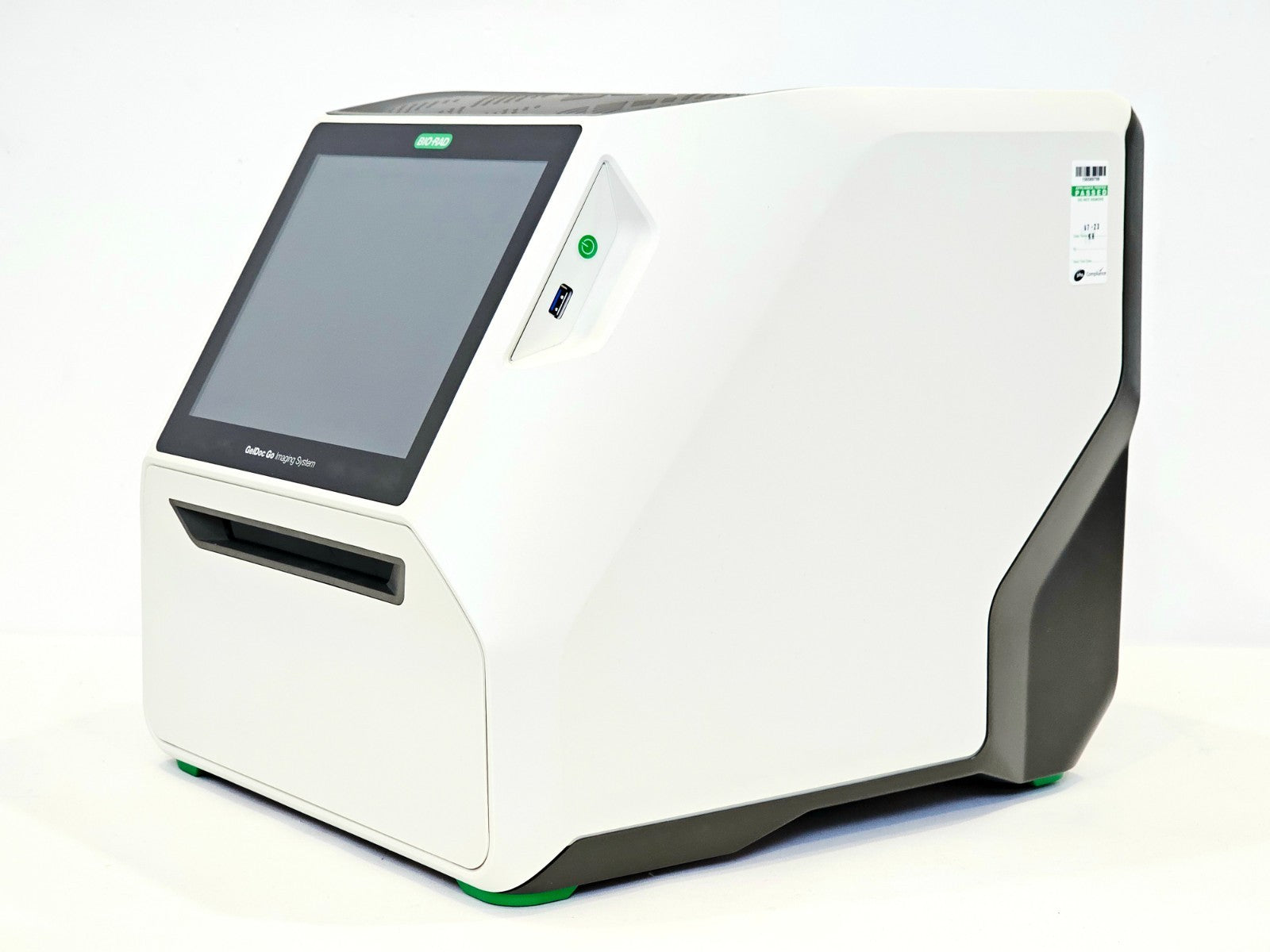

The Bio-Rad GelDoc Go Gel Imaging System is a compact, benchtop gel documentation solution that delivers high-resolution, publication-quality images of nucleic acid gels, protein gels, and colorimetric blots in three simple steps. Designed around Bio-Rad's patented QuickSight CMOS camera technology and Smart Tray system, the GelDoc Go automatically configures excitation source and software settings when a tray is inserted, eliminating manual adjustments to filters, lenses, or lighting.

Key highlights:
- QuickSight 6.3 MP CMOS scientific camera for high sensitivity, resolution, and acquisition speed
- Smart Tray technology: insert a tray and imaging parameters configure automatically
- Images up to four mini gels simultaneously with advanced optical design

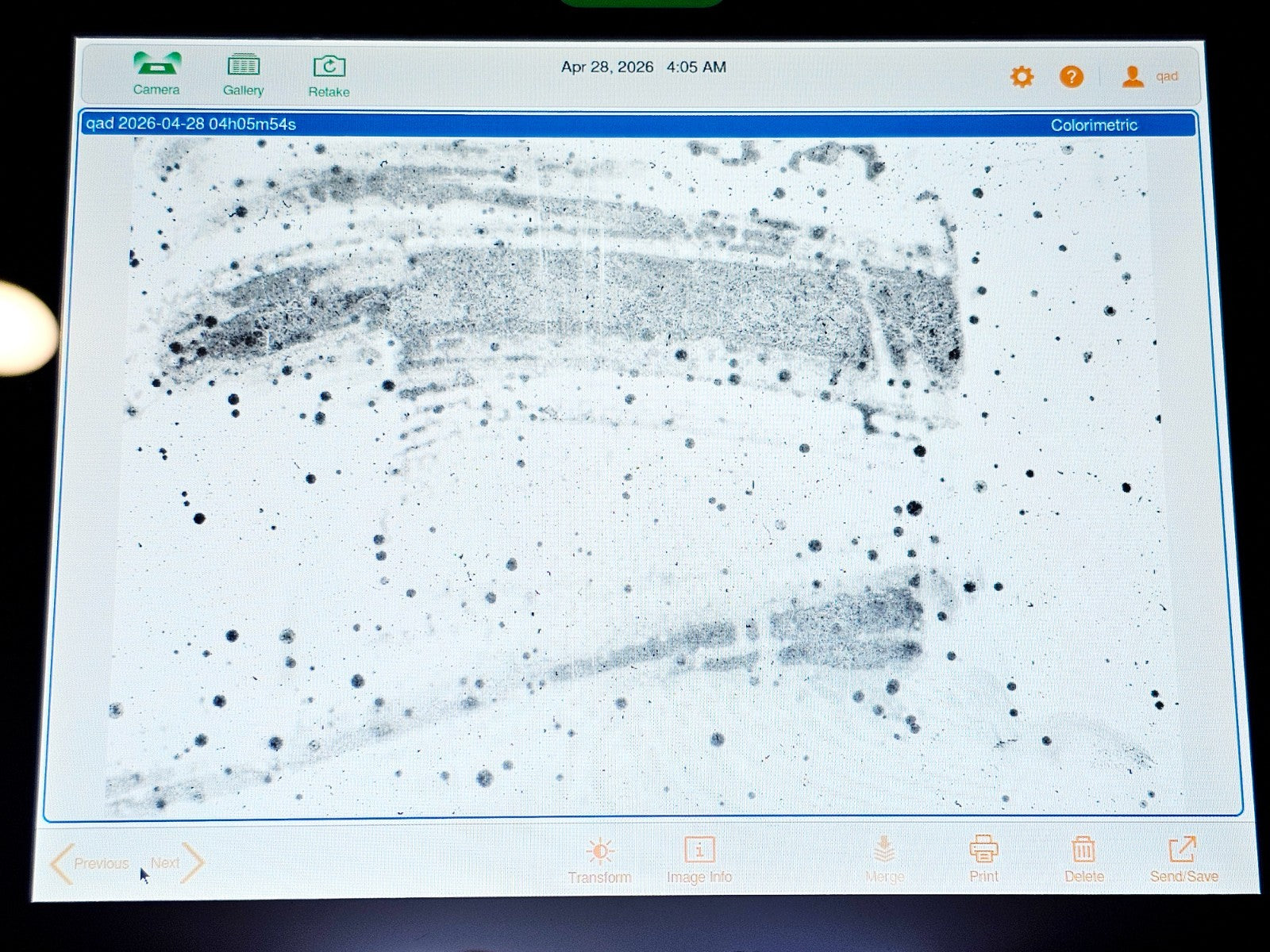

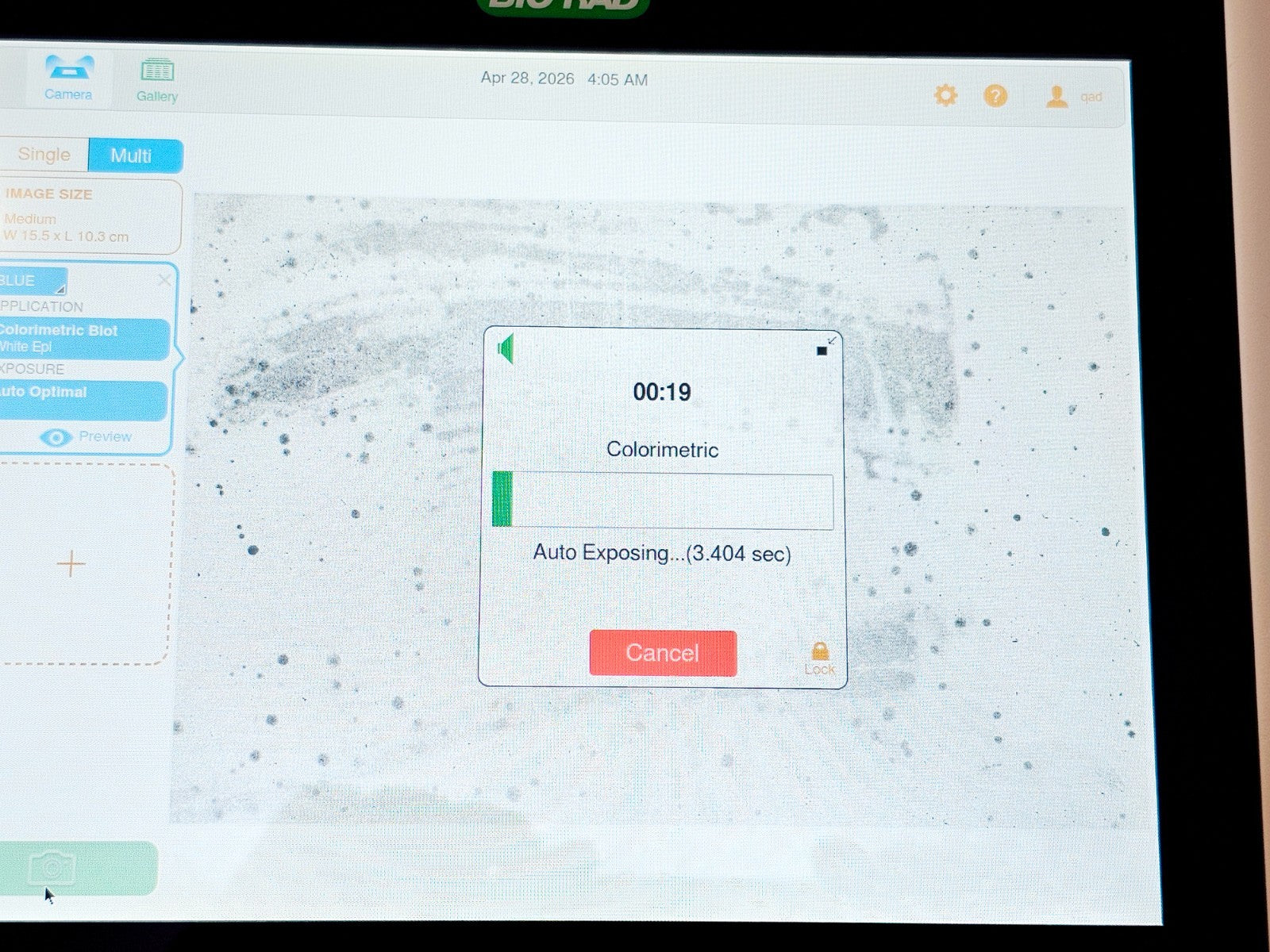

- Onboard Image Lab Touch Software: capture, annotate, and export images without an external computer
- Compatible with Image Lab Desktop Software for deep 1-D analysis, band quantification, and regulatory compliance tools
- Interchangeable tray system supports UV/stain-free, white epi (colorimetric), trans-white, and trans-blue illumination modes
- Compact footprint suitable for virtually any laboratory bench
- 9.7-inch multi-touch display, user account management, and secure data export

Detector: 6.3 MP CMOS (QuickSight Camera)
Pixel size: 2.4 x 2.4 μm
Bit depth: 65,536 gray levels (16-bit)
Dynamic range: >3.5 orders of magnitude
Maximum imaging area (W x H): 21 x 14 cm
Display: 9.7 in. (24.64 cm), 1024 x 768 px, multi-touch
Excitation sources: Trans-UVB, Epi-white (standard); Trans-white, Trans-blue (optional trays)
Emission filter: 535–645 nm
Data output: 16-bit or 8-bit SCN, TIFF, JPEG

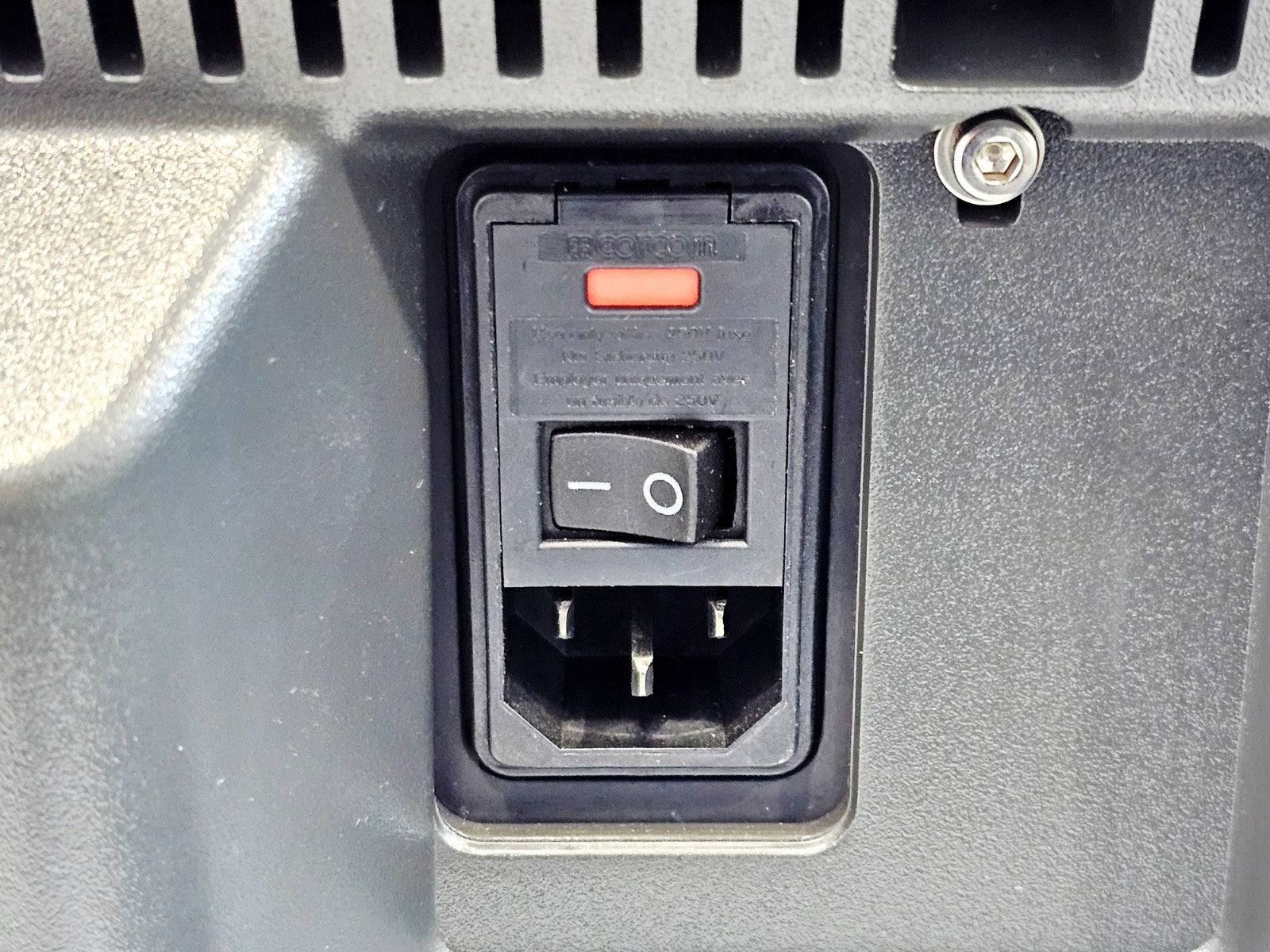

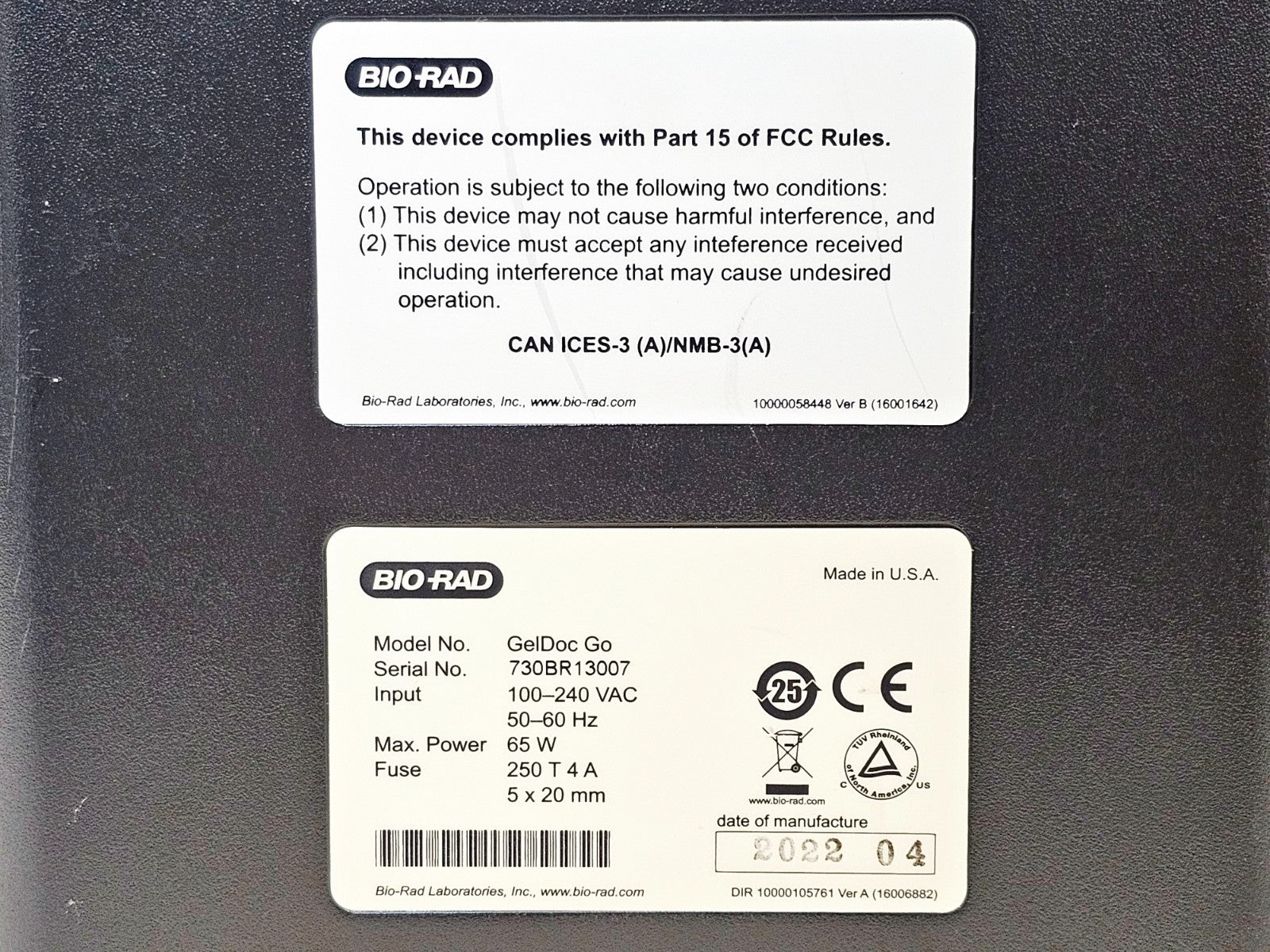

Operating voltage: 100–240 VAC, 50–60 Hz
Max. power: 65 W
Dimensions (D x W x H): 44.8 x 36.0 x 35.3 cm
Weight: ~16 kg
Operating temperature: 10–28°C
Operating humidity: 20–80% RH (non-condensing)
Catalogue number: 12009077

Bio-Rad GelDoc datasheet: Download PDF
