Condition: Used

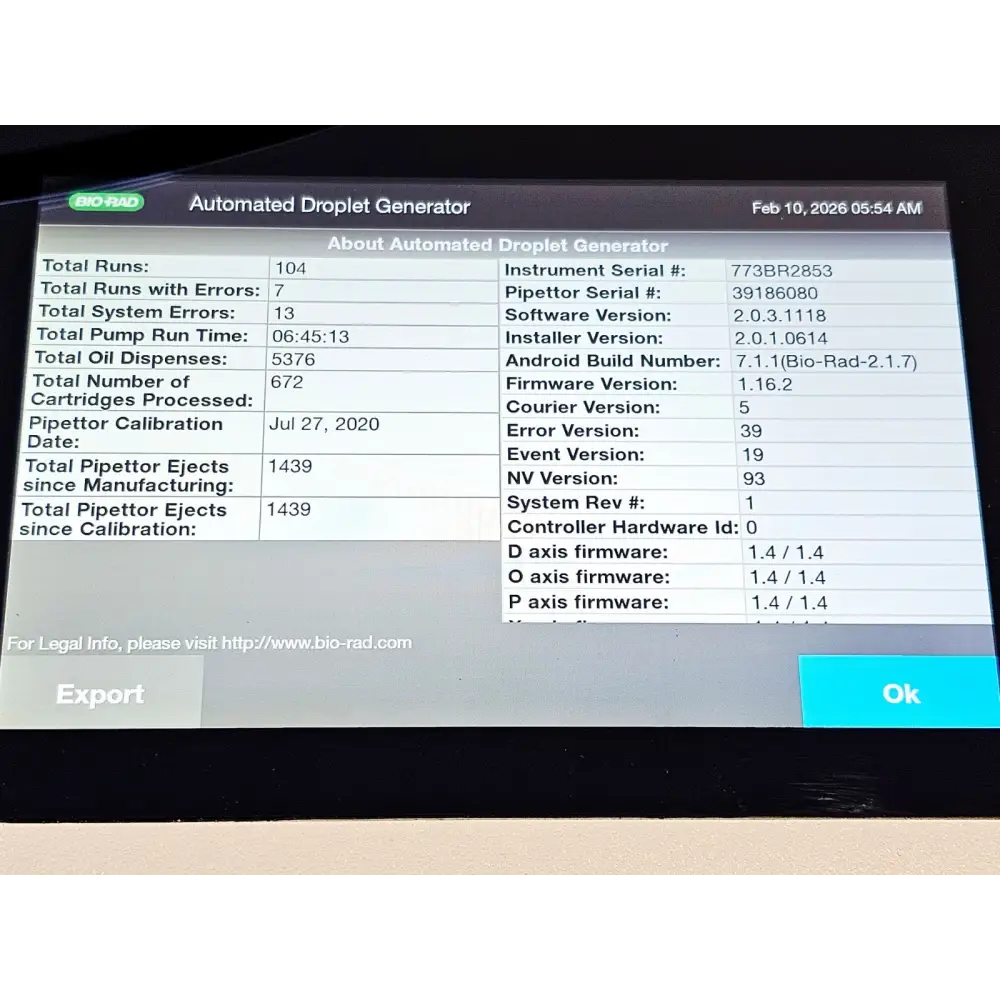

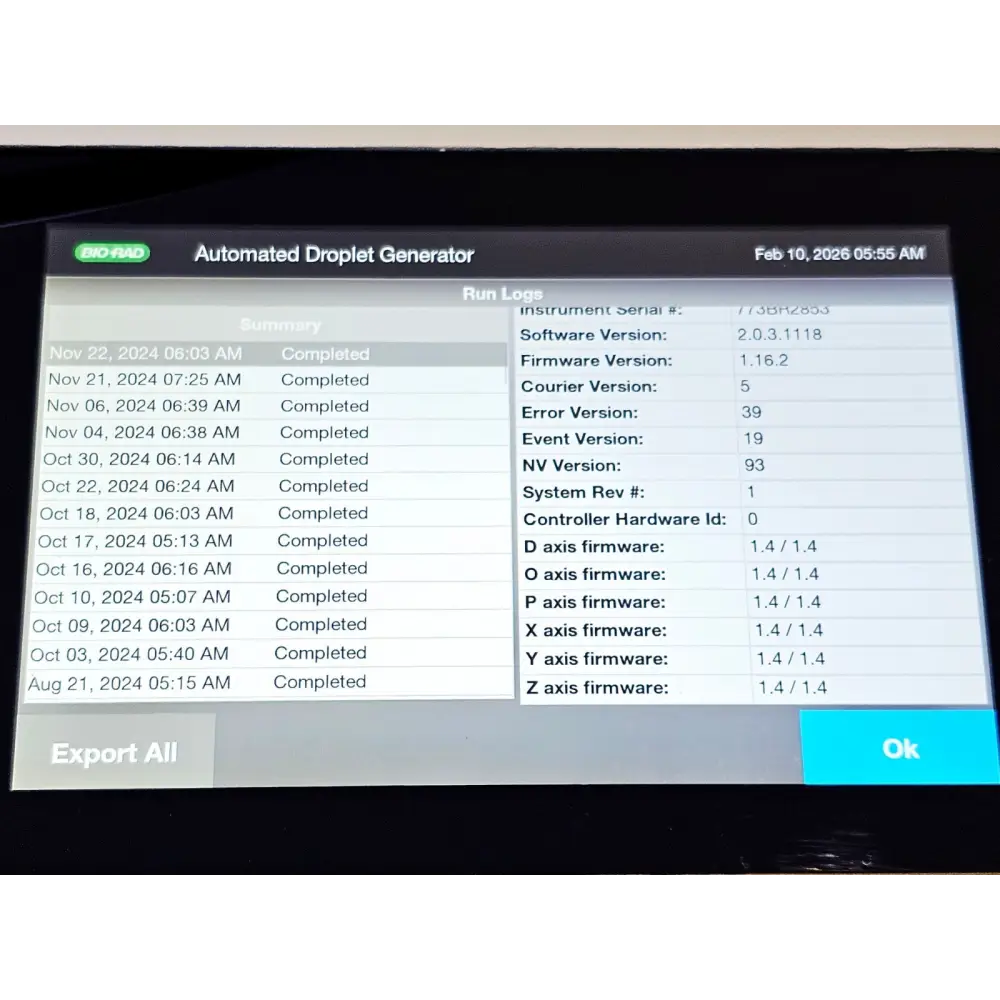

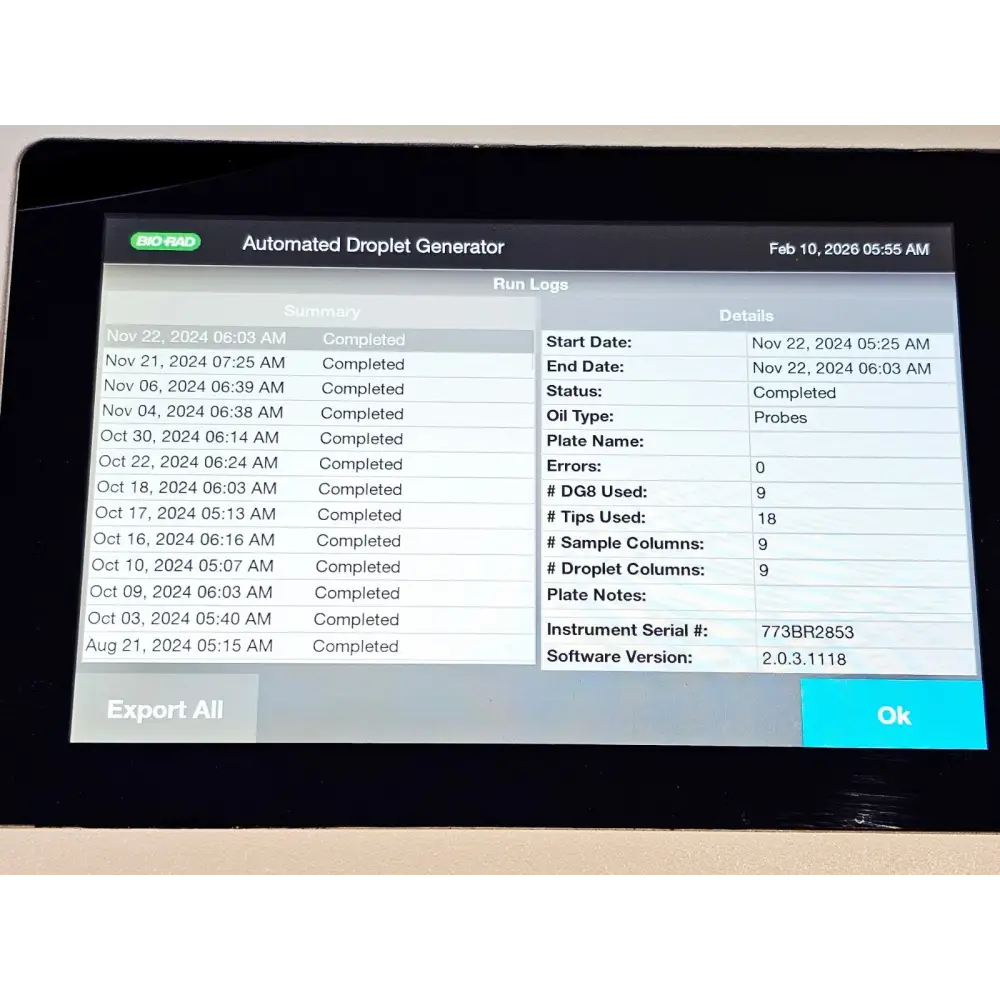

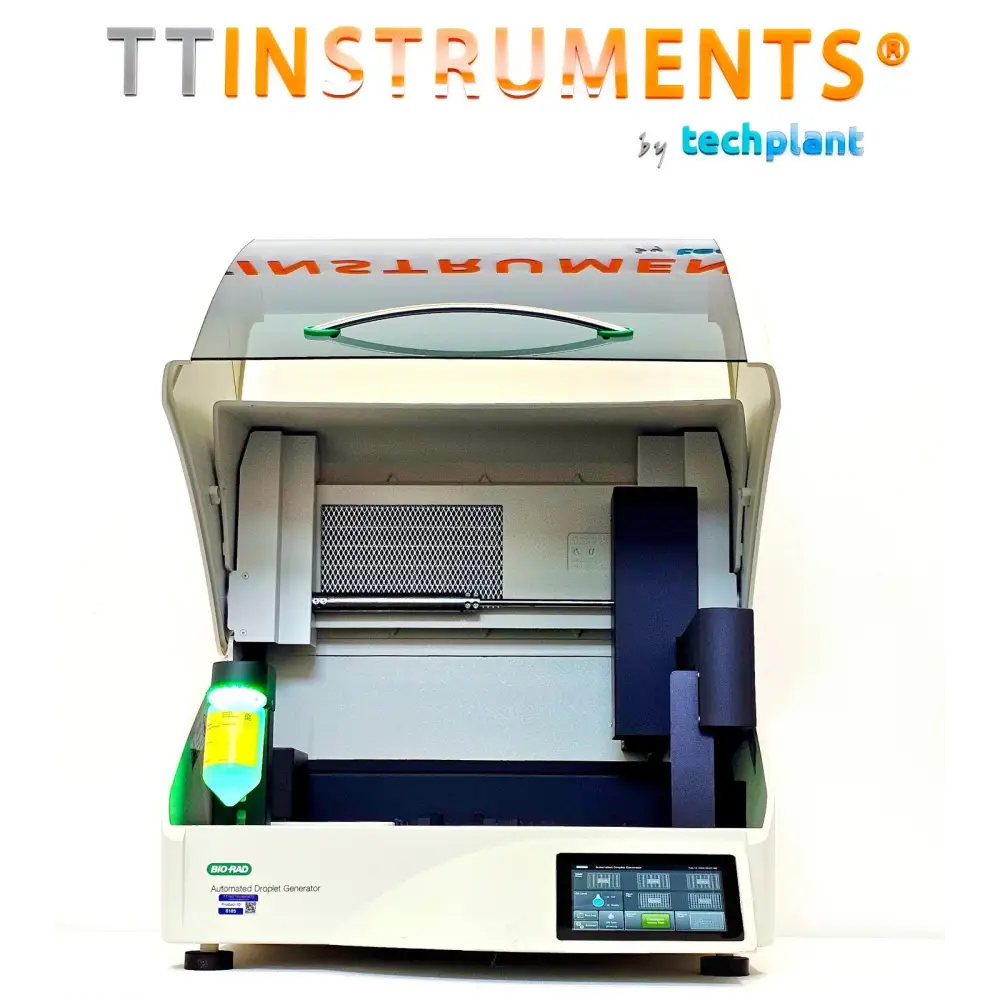

This Bio-Rad AutoDG Automated Droplet Generator (Cat. #1864101) was manufactured in June 2021 (serial number 773BR2853) and removed from a working laboratory environment. With only 104 runs on the counter, this instrument has seen very light use and represents an excellent opportunity to acquire a near-new AutoDG at a significant saving. A bottle of Automated Droplet Generation Oil for Probes is included, though please note this expired in March 2025. INSTRUMENT WILL BE SHIPPED ON A PALLET. PLEASE CONTACT US FOR AN ACCURATE SHIPPING QUOTE PRIOR TO PLACING AN ORDER.

Included in the sale:

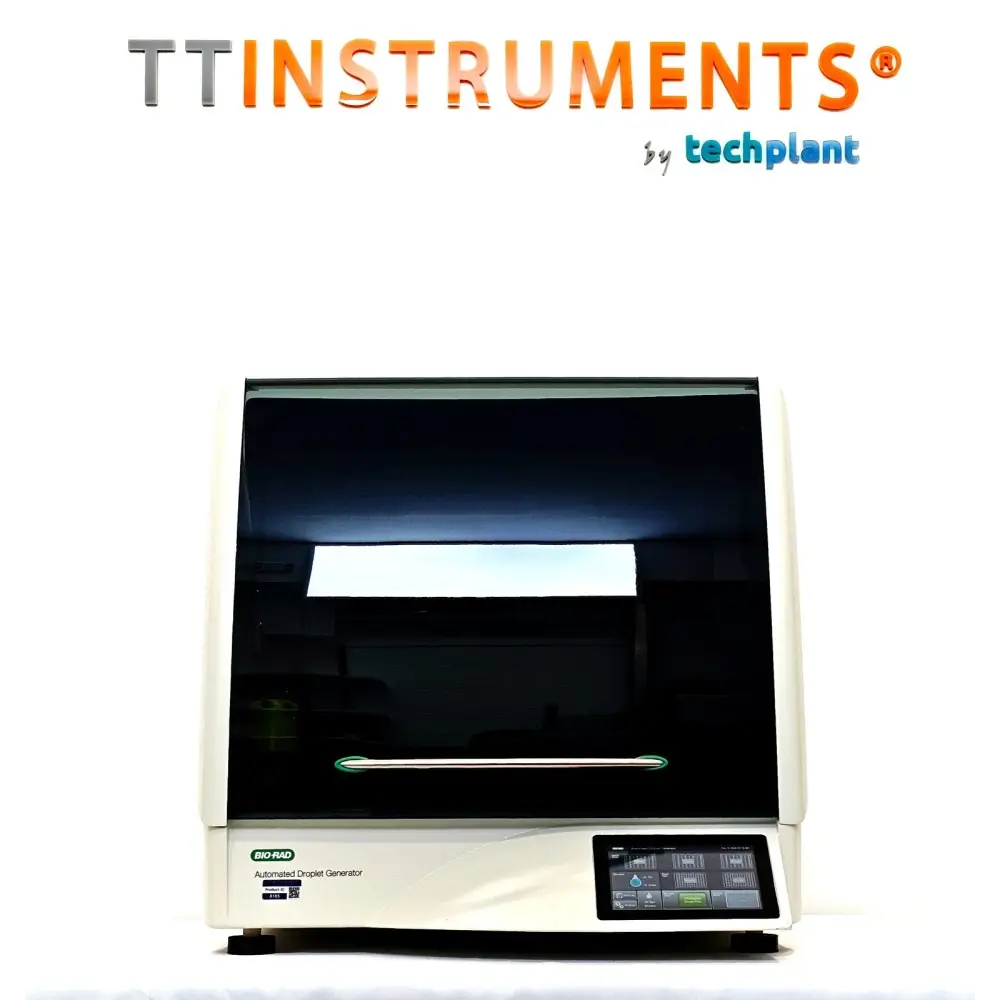

• Bio-Rad AutoDG Automated Droplet Generator (Cat. #1864101)

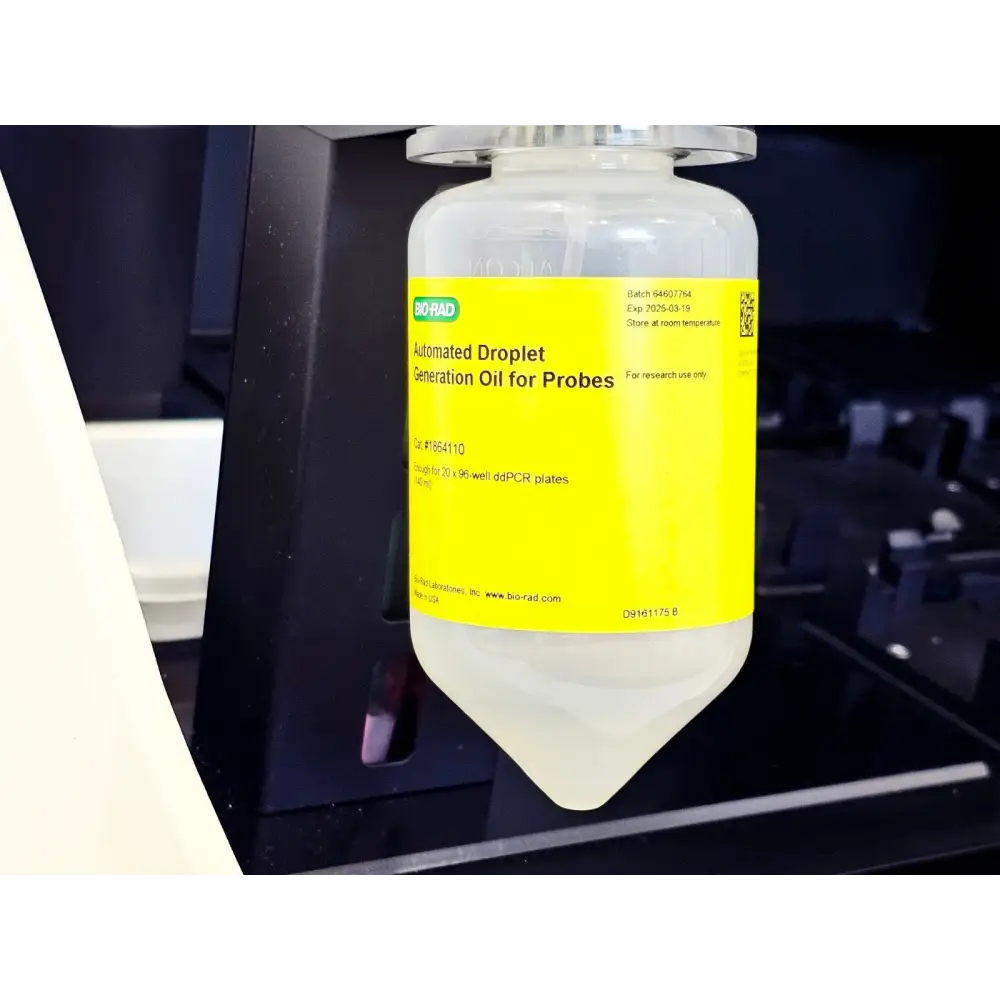

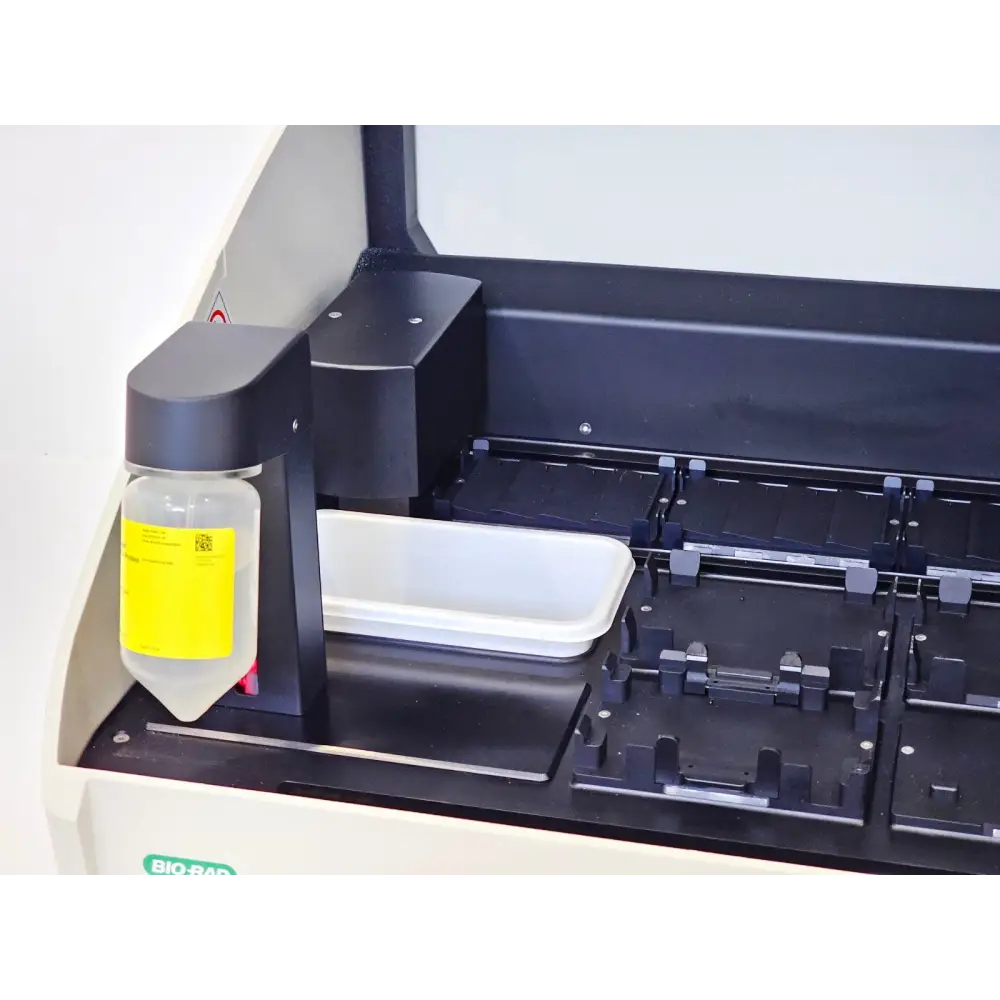

• Automated Droplet Generation Oil for Probes (expired March 2025)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Bio-Rad Automated Droplet Generator (AutoDG, Cat. #1864101) is a benchtop laboratory instrument designed to automate the droplet generation step of the Droplet Digital PCR (ddPCR) workflow. It partitions each sample in a 96-well PCR plate into approximately 20,000 uniform, nanoliter-sized droplets in which nucleic acid molecules are randomly distributed. Every droplet serves as an individual PCR reaction vessel within Bio-Rad's ddPCR system. After automated droplet generation, the plate is sealed with the PX1 Plate Sealer, PCR is run to endpoint in a compatible thermal cycler, and the resulting droplets are analysed using a QX600 or QX200 Droplet Reader.

Key Features:
- Eliminates user-to-user variability by producing consistent droplet counts across users and plates
- Minimal hands-on time: less than 5 minutes to load; droplet generation requires no supervision
- Generates droplets for 96 ddPCR reactions in under 45 minutes
- One AutoDG instrument can sustain 4–5 Droplet Readers running continuously
- Large colour touch-screen interface with LED lighting guides setup and consumable loading
- User-definable plate layout in increments of 8 wells for flexible run configuration
- HEPA-filtered enclosure reduces contamination risk and allows placement in any lab environment
- Compatible with both QX600 and QX200 ddPCR workflows
- Automation-friendly consumables with SBS standard access

Typical Applications:
- Copy number variation analysis
- Rare mutation and sequence detection
- Gene expression analysis
- Next-generation sequencing library quantification
- Environmental monitoring
- Food testing and GMO detection
- Cancer biomarker studies

Technical Specifications:
Catalog Number: 1864101
Sample Throughput: Up to 96 samples per run
Droplets per Sample: ~20,000 uniform nanoliter-sized droplets
Run Time: Under 45 minutes for a full 96-well plate
Hands-On Load Time: Less than 5 minutes
Plate Format: 96-well PCR plate
Plate Layout: User-definable in increments of 8 wells

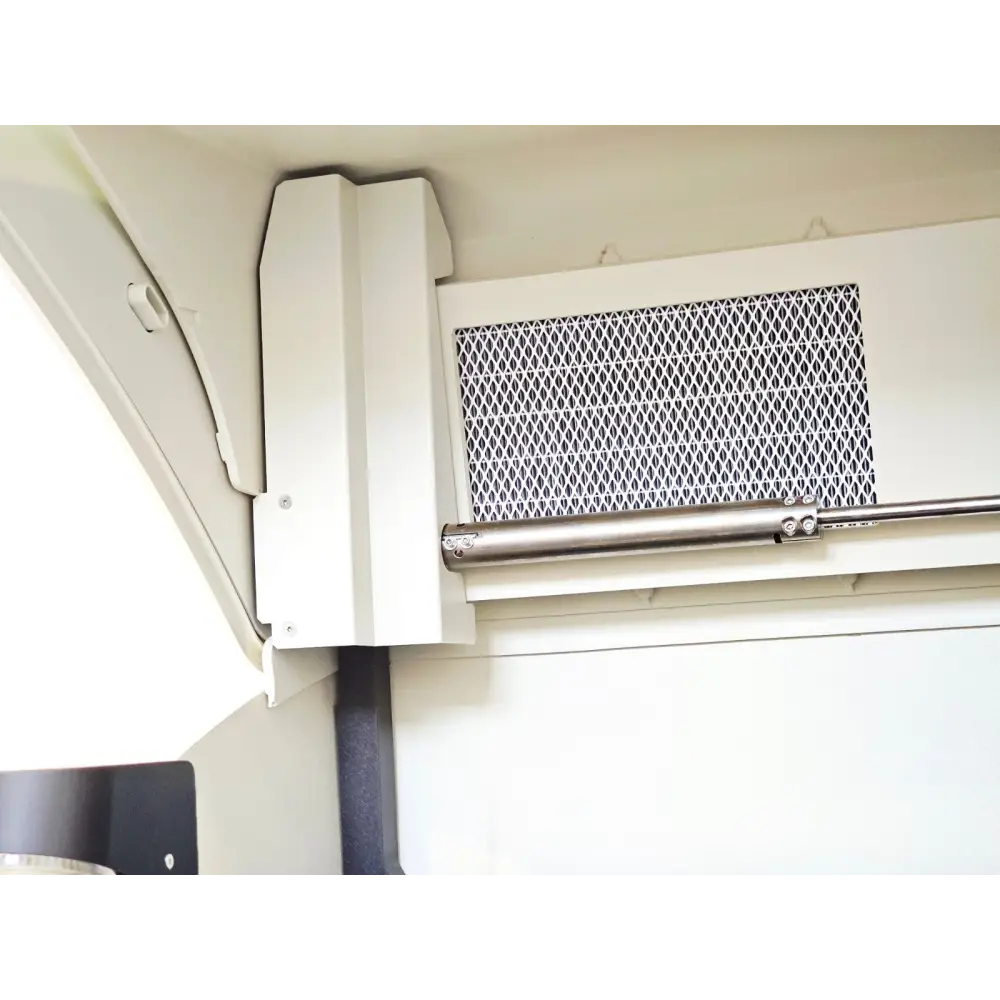

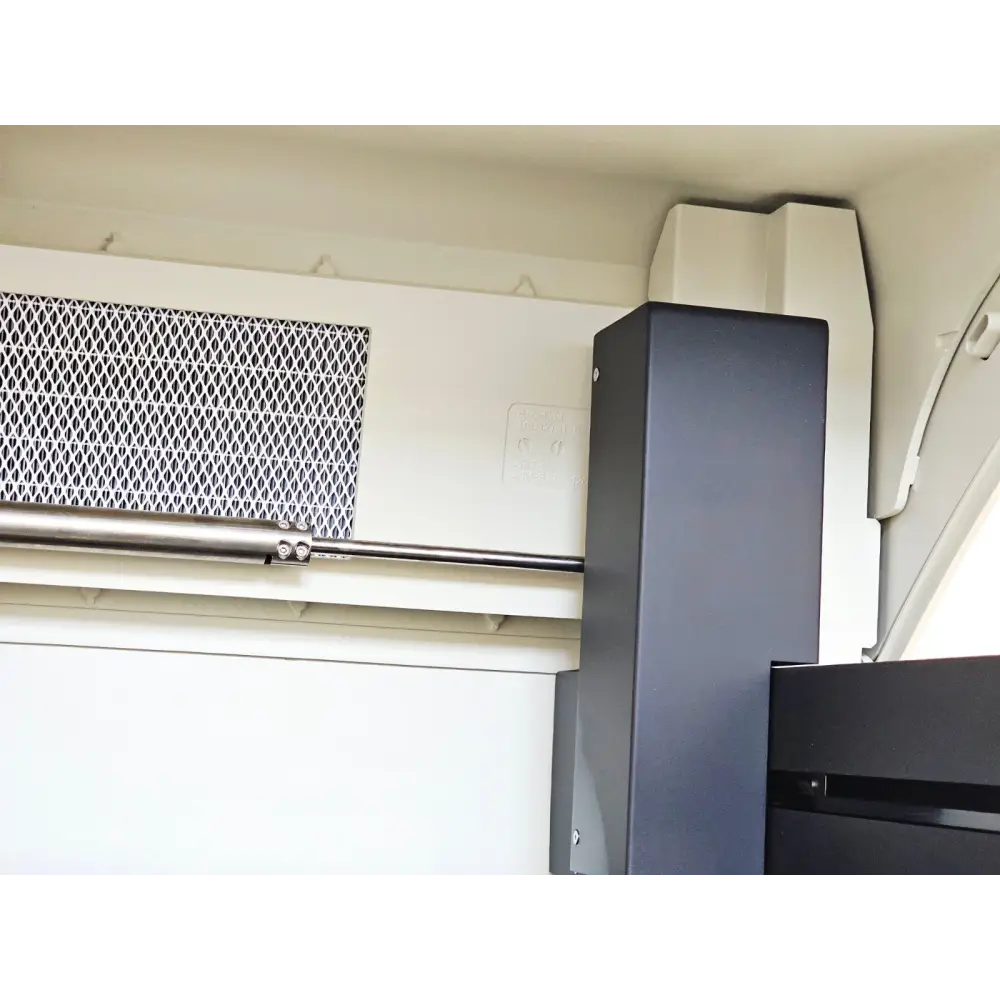

Enclosure: HEPA-filtered

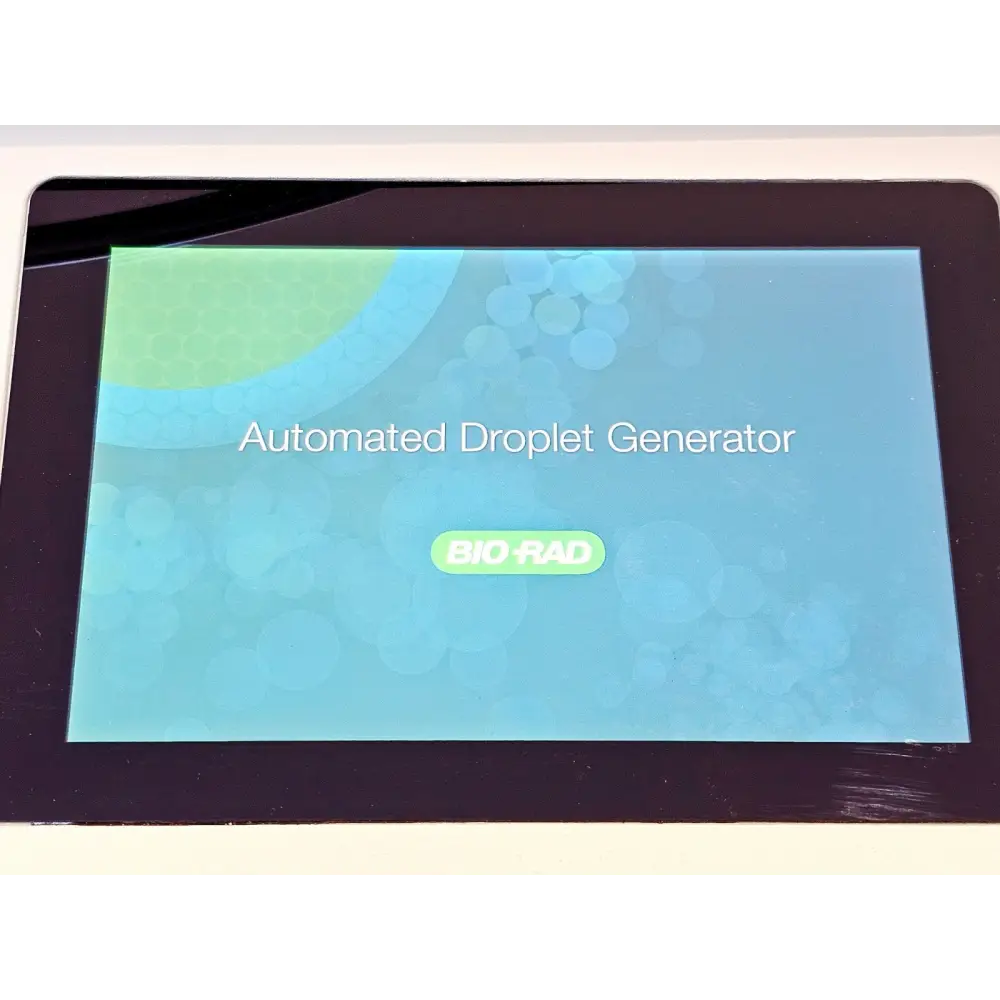

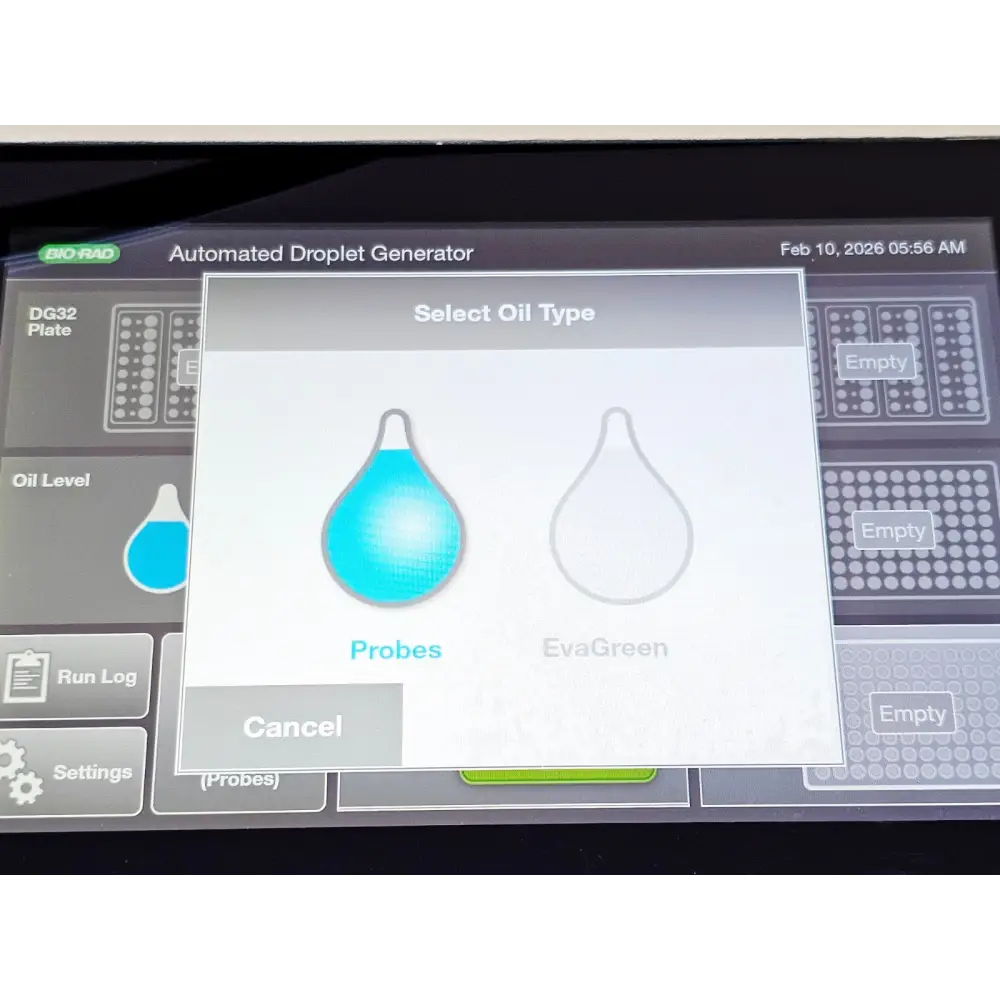

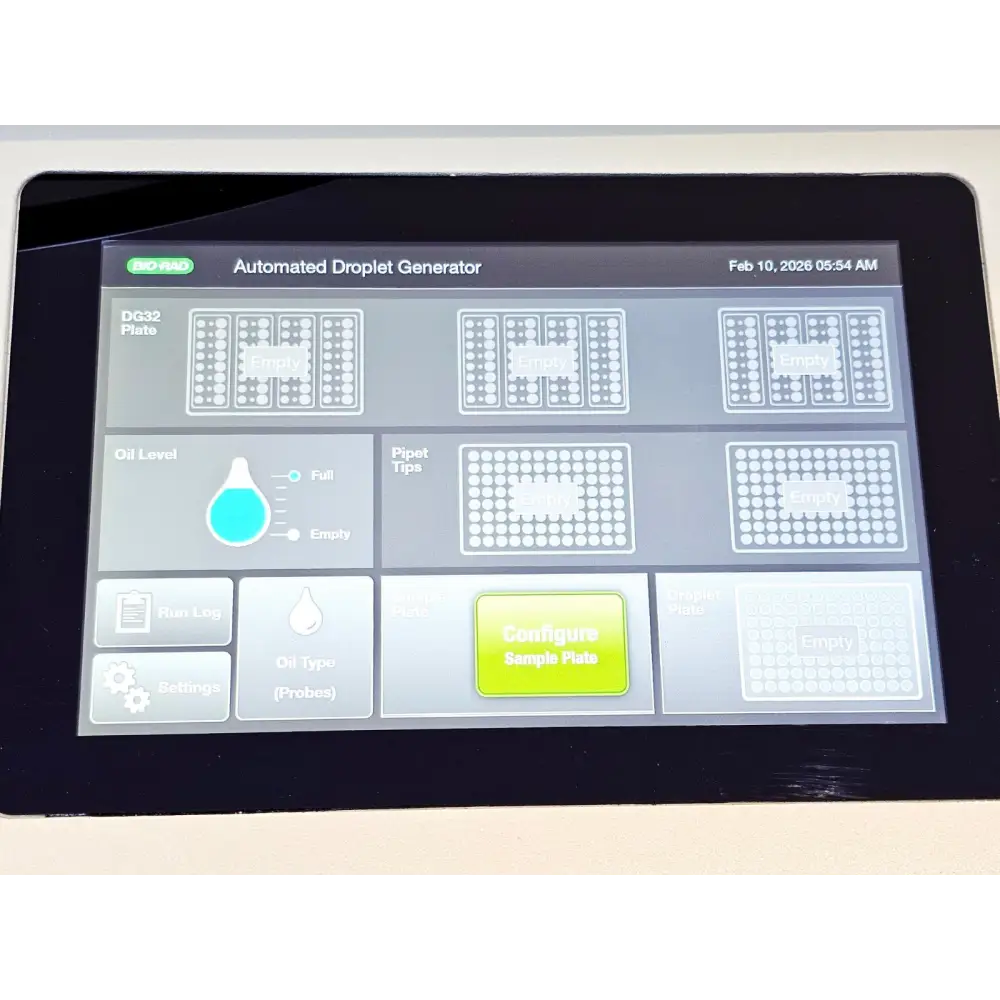

Interface: Large colour touchscreen with LED deck lighting

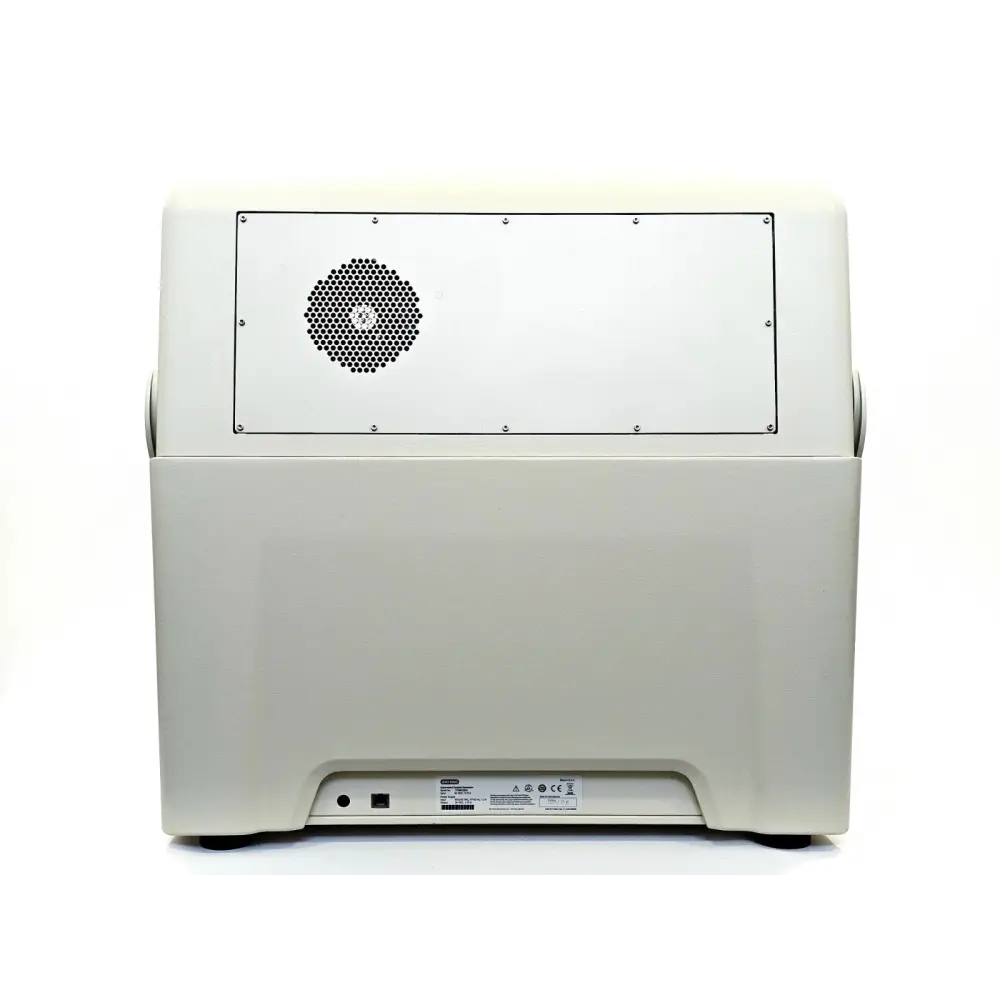

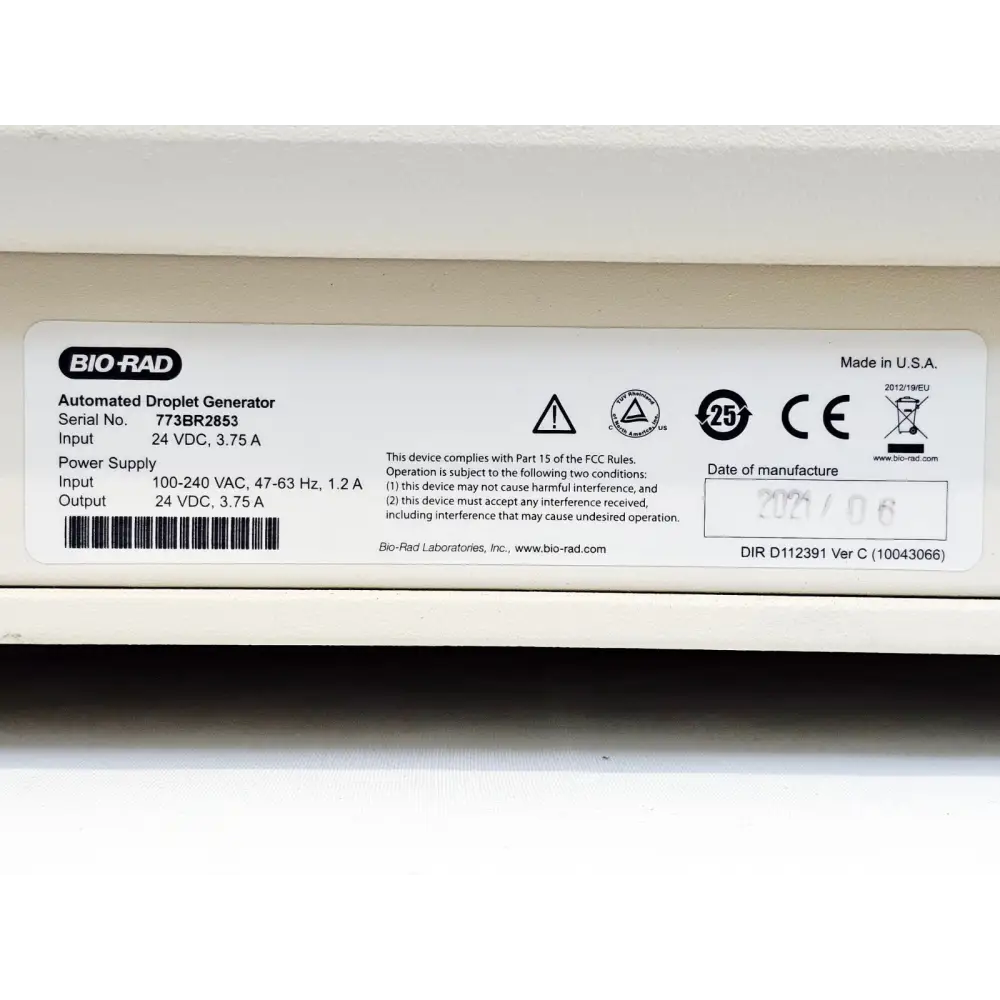

Power Input (Instrument): 24 VDC, 3.75 A
Power Supply Input: 100–240 VAC, 47–63 Hz, 1.2 A
Power Supply Output: 24 VDC, 3.75 A
Country of Manufacture: USA
Compatibility: QX200 and QX600 Droplet Digital PCR Systems
Required Accessories: PX1 PCR Plate Sealer; C1000 Touch or PTC Tempo Deepwell Thermal Cycler with 96-Deep Well Reaction Module; DG32 Droplet Generation Cartridges; Automated Droplet Generation Oil (Probes or EvaGreen); AutoDG Pipet Tips and Waste Bin

Automated Droplet Generator Instruction Manual (Catalog #186-4101) — full user and operation guide: Download PDF

QXDx AutoDG Droplet Digital PCR System Instruction Manual — full system operation and specifications guide: Download PDF
