Condition: Used

Bio Molecular Systems Mic MIC-2+HRM 2-channel real-time qPCR cycler, tested and fully functional. This is the high resolution melt (HRM) model, offering enhanced thermal uniformity for demanding SNP and mutation analysis applications.

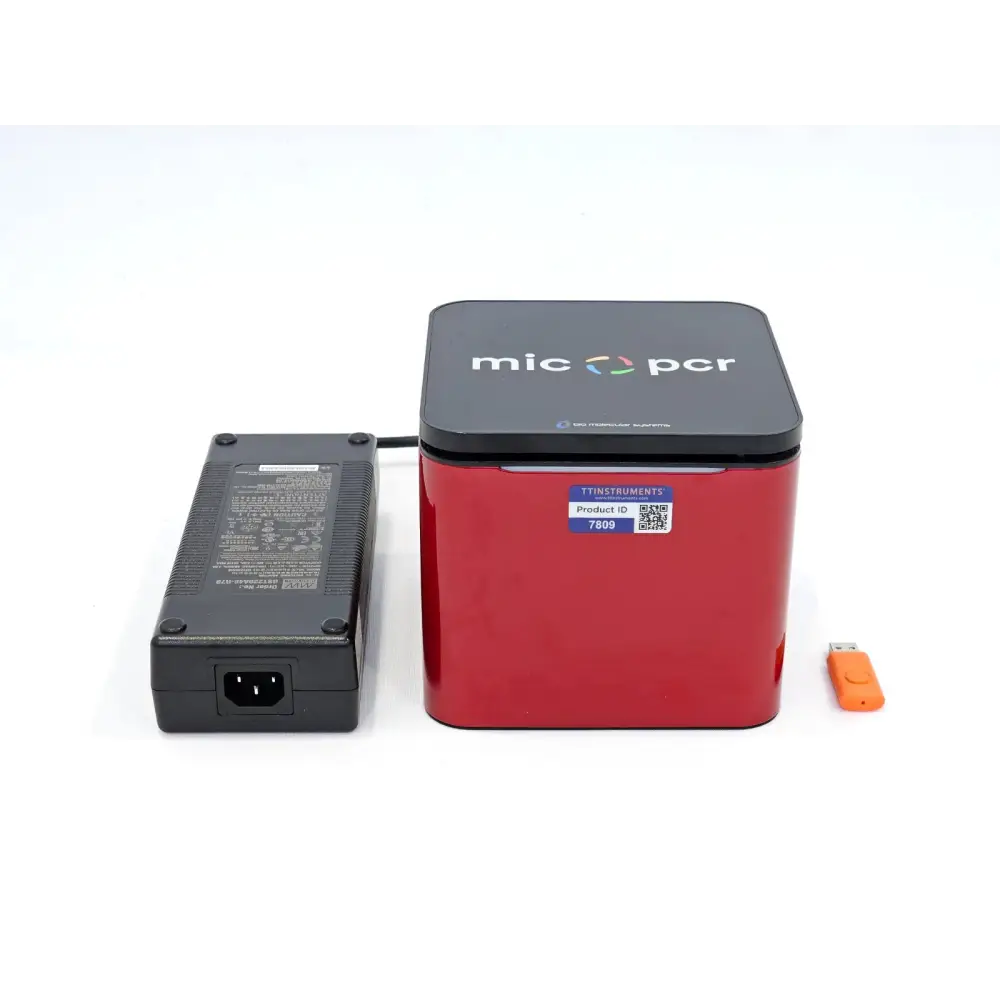

Included in the sale:
• 1x BMS Mic qPCR Cycler MIC-2+HRM
• Power supply
• USB stick with software

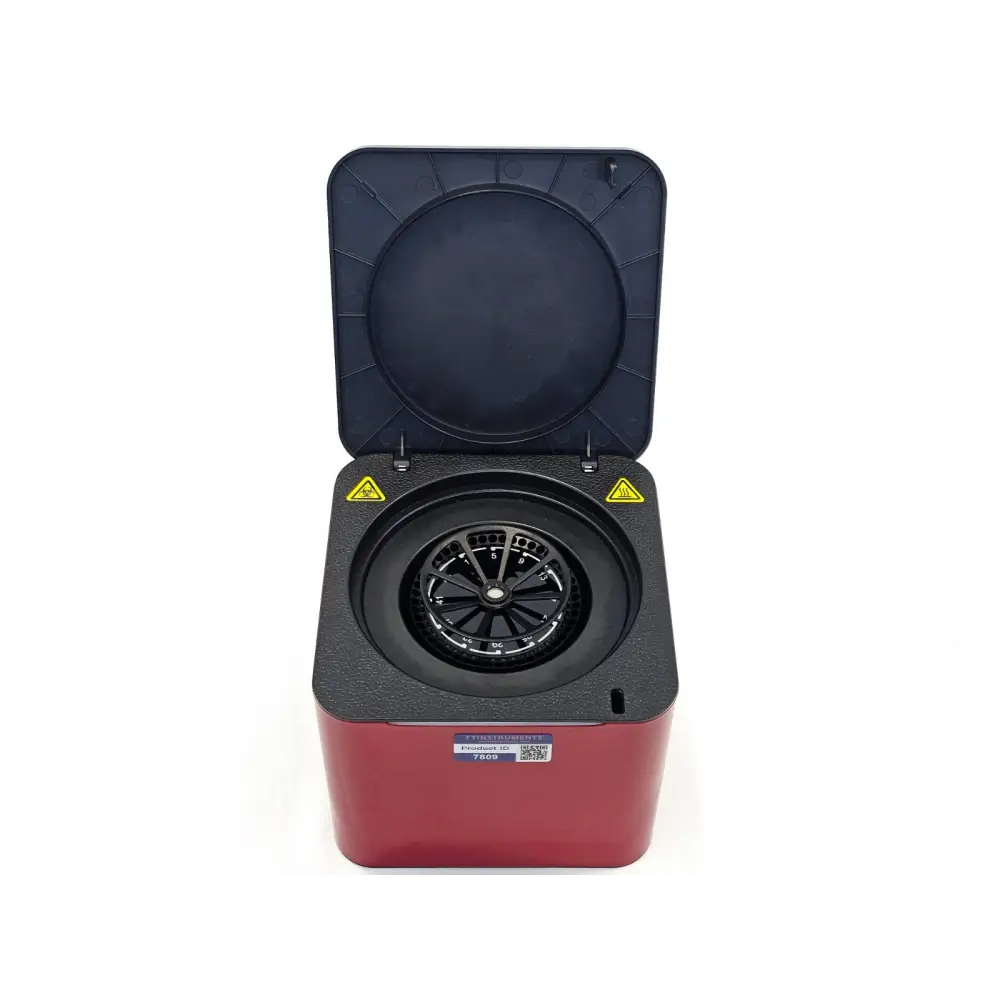

The Bio Molecular Systems Mic is the world's first Magnetic Induction Cycler (MIC) for real-time qPCR. Designed and manufactured in Australia, the Mic uses patented magnetic induction technology to achieve rapid heating and fan-forced air cooling, enabling 35 cycles in under 25 minutes and typical runs completed in under 40 minutes. Its unique spinning aluminium rotor ensures unsurpassed temperature uniformity during both dynamic and static operations, eliminating the variability inherent in conventional block-based thermal cyclers.

The Mic MIC-2+HRM is the 2-channel High Resolution Melt configuration, suited to applications including SNP genotyping, mutation screening, allele prevalence determination, DNA fingerprinting, DNA methylation analysis, and species identification. The fixed optical path uses independent high-intensity LEDs and photodiode detectors per channel, acquiring all channels simultaneously with no optical alignment, calibration, reference dyes, or crosstalk compensation required.

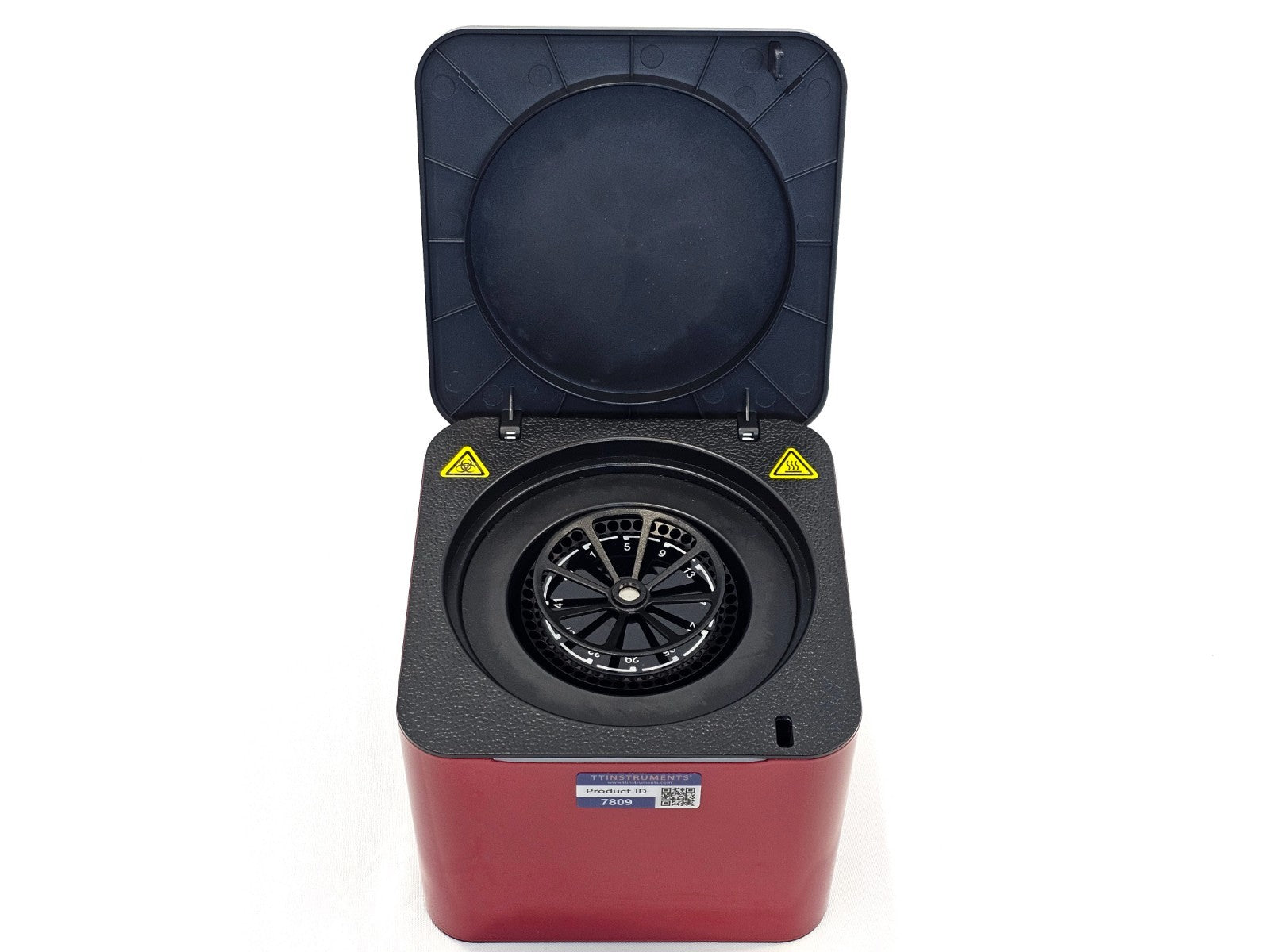

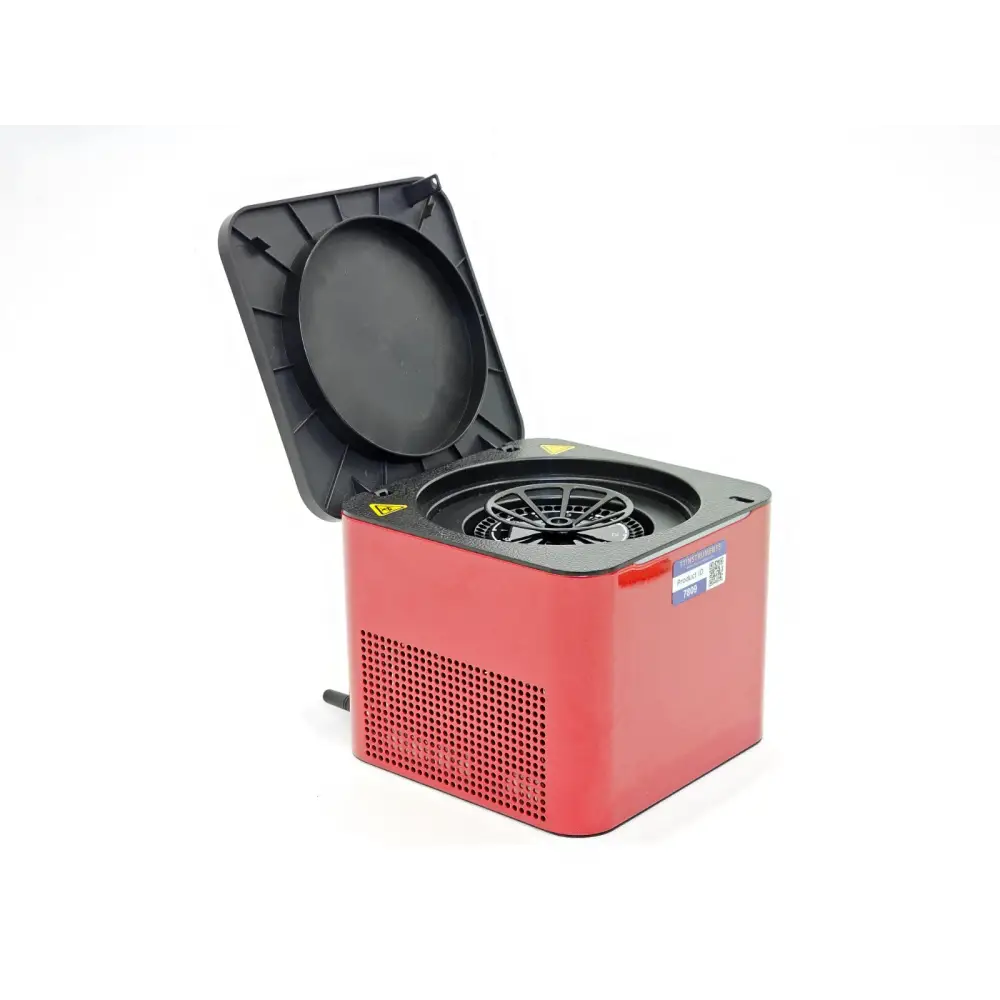

The system accommodates 48 samples using 0.1 mL strips of four tubes with pre-loaded oil overlay, eliminating the need for a heated lid. The rotary design centrifuges samples at the start of each run to remove bubbles and prevent condensation. Up to 10 Mic instruments can be operated from a single PC via USB 2.0 or Bluetooth, and up to 10 runs (480 samples total) can be combined into a single analysis dataset. The analysis software is designed to meet MIQE specifications and provides statistical analysis immediately upon run completion.

Key Specifications:
Heating Technology: Patented magnetic induction
Cooling Technology: Fan-forced air
Sample Capacity: 48 (0.1 mL strips of 4 tubes)
Reaction Volume Range: 5–30 µL
Temperature Input Range: 40–99°C
Temperature Accuracy: ±0.25°C
Well-to-Well Temperature Uniformity: ±0.05°C (HRM units)
Heating Ramp Rate: 4°C/s
Cooling Ramp Rate: 3°C/s
Equilibration Time: Zero seconds (all wells simultaneously)
Channels: 2 (Green: Ex 465 nm / Em 510 nm; Yellow: Ex 540 nm / Em 570 nm)
Detectors: Photodiode per channel
Excitation Sources: High-energy LED per channel
HRM Option: Yes (licensed)

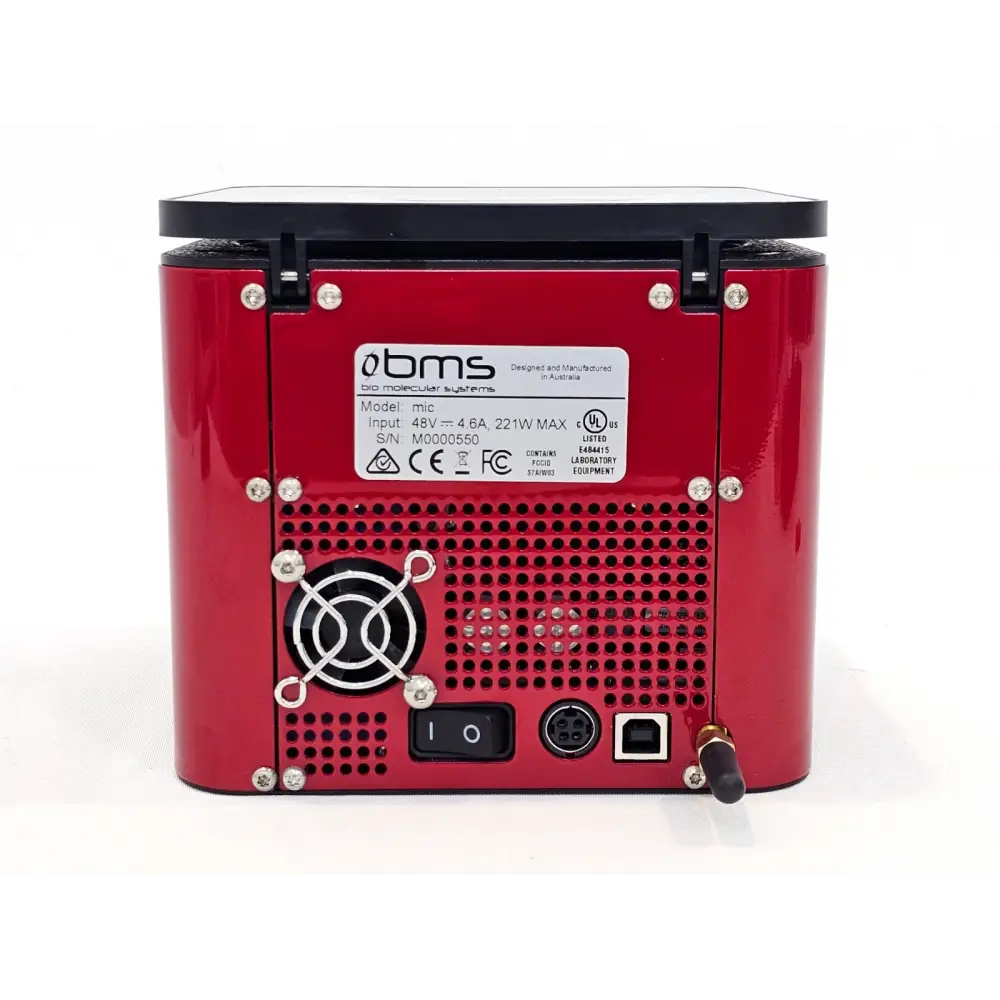

Connectivity: USB 2.0 and Bluetooth
Power Input: 100–240 VAC, 50/60 Hz
Dimensions (W × D × H): 150 × 150 × 130 mm (lid open to 265 mm)
Weight: ~2.1 kg
Software: MIQE-compliant analysis software (supplied on USB); supports Relative Quantification, Absolute Quantification, HRM, Genotyping, Allelic Discrimination, and Identifier modules
Multi-instrument Control: Up to 10 instruments per PC
Intended Use: Research Use Only — molecular biology, medical, agricultural, forensic, and life science applications
