Condition: Used

A used AYA Instruments OM-H/P3C (P75.3C) dual-range Hall effect current probe, covering 10 A to 7500 A AC/DC with a voltage output of 2 mV/A (1000 A range) or 0.2 mV/A (7500 A range). Suitable for industrial and laboratory current measurement applications.

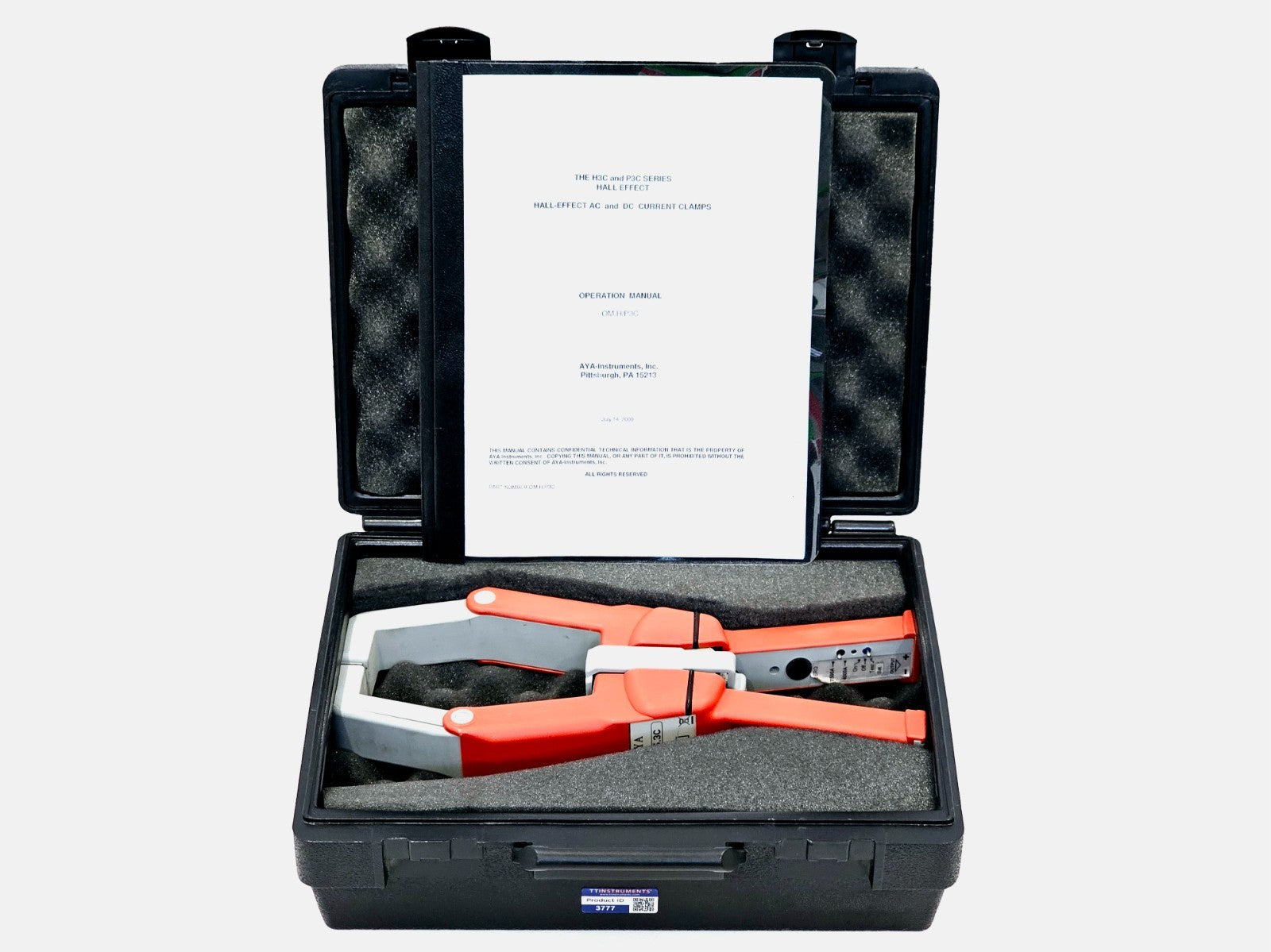

Included in the sale:
• AYA Instruments OM-H/P3C Current Probe
• Hard carry case

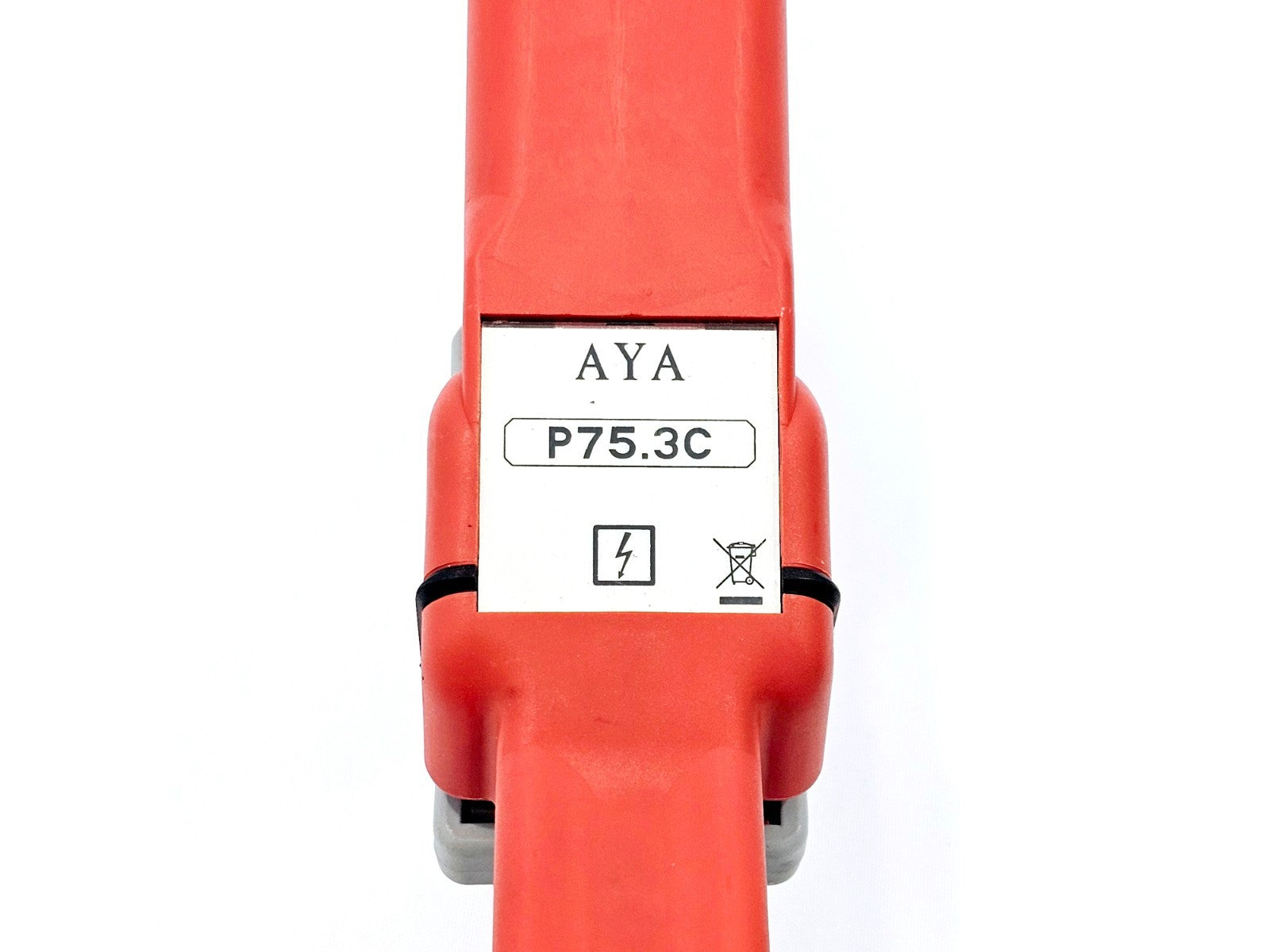

The P75.3C is a clamp-type AC/DC current probe developed by Universal Technic and distributed by AYA Instruments under the OM-H/P3C designation. It uses Hall effect technology to enable accurate, non-intrusive measurement of both AC and DC currents without breaking the circuit. The probe is compatible with multimeters, data recorders, and power analysers, making it suitable for industrial power monitoring, energy auditing, laboratory testing, and busbar current measurement applications. Its dual-range design and wide measuring span make it one of the most versatile large-format clamp probes available.

Technical Specifications:

Current Ranges: 1000 A and 7500 A
Measuring Range: 10 A to 7500 A (AC/DC)

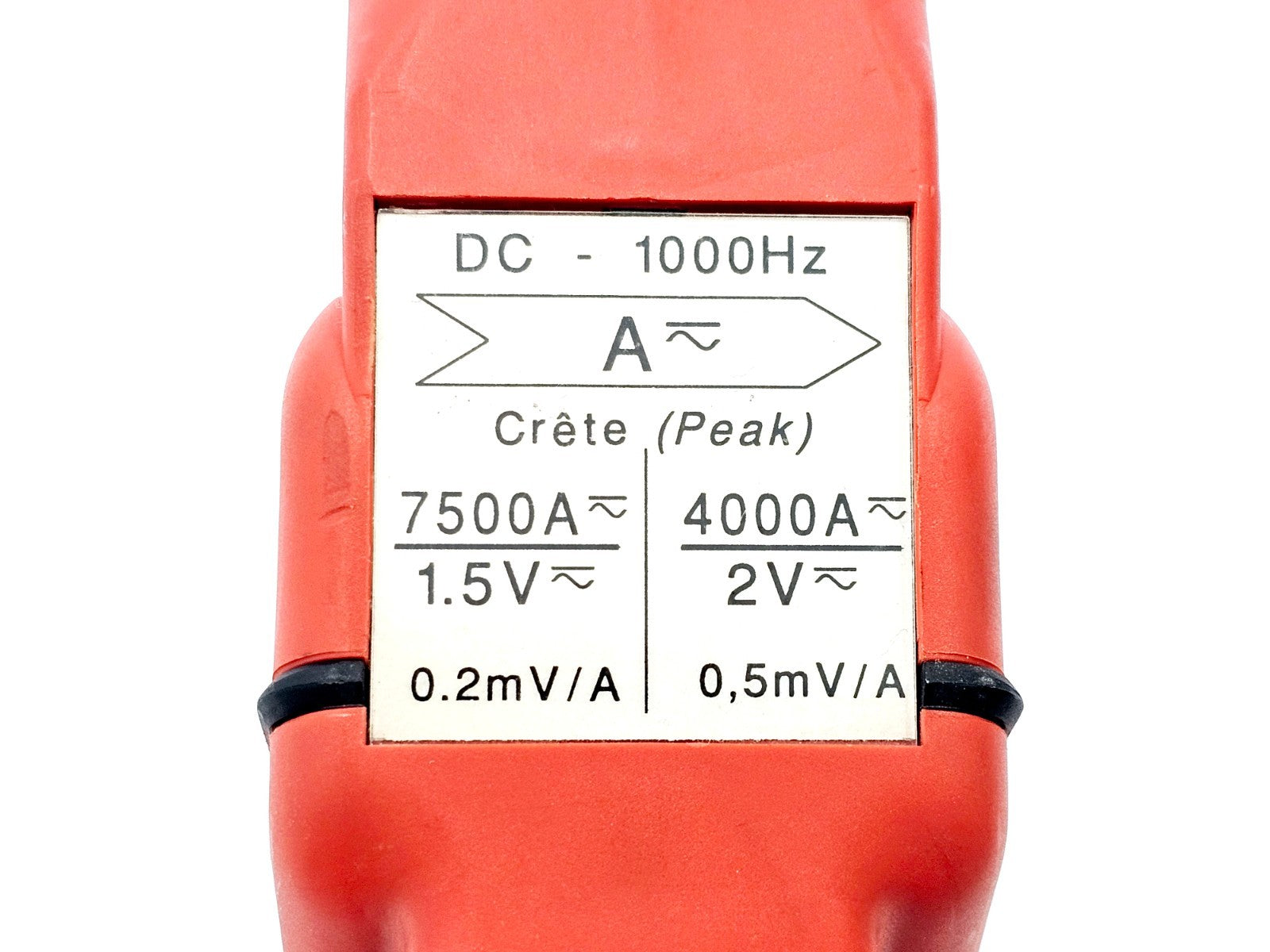

Output Sensitivity: 2 mV/A (1000 A range), 0.2 mV/A (7500 A range)
Load Impedance: ≥ 100 kΩ
Frequency Range: DC to 1 kHz
Working Voltage: 600 V AC RMS or DC
Conductor Position Sensitivity: 0.5% @ 50 Hz
Adjacent Conductor Error: ≤ 10 mA/A @ 50 Hz

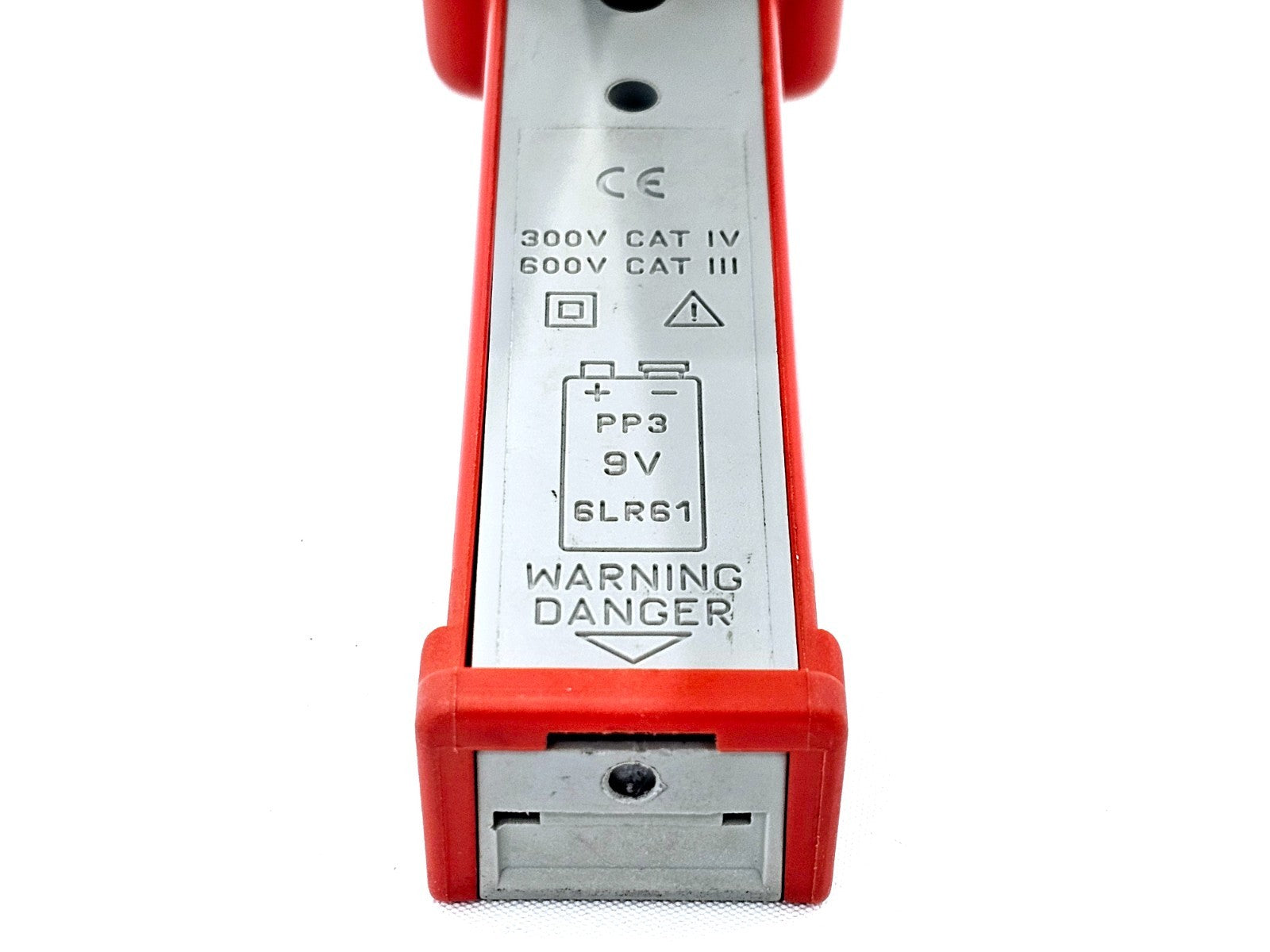

Power Supply: 9V Alkaline battery, approximately 75 hours autonomy, low battery indicator

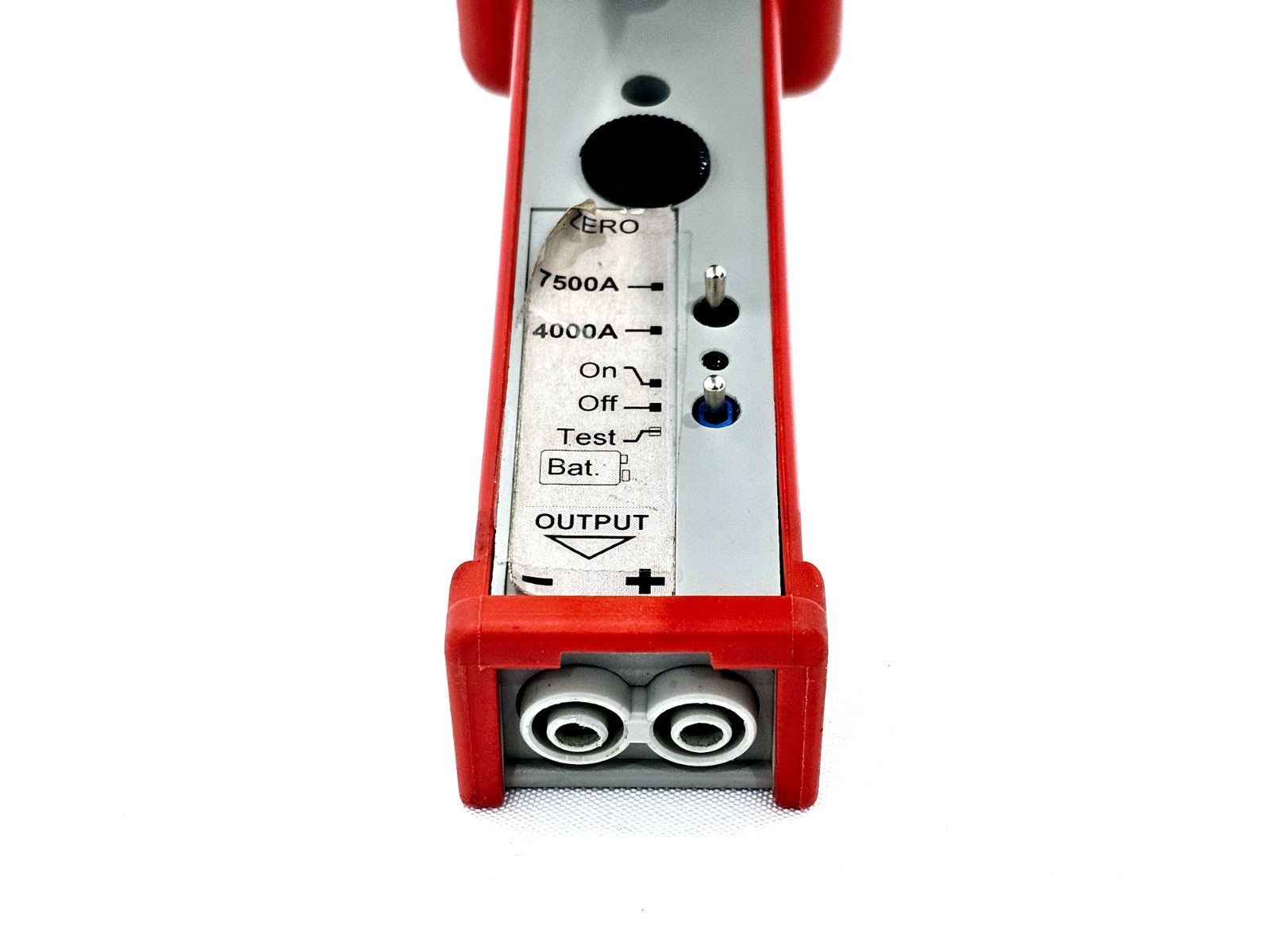

Output Zero: Manual thumbwheel adjustment

Accuracy — 1000 A Range:
10 to 100 A: 2% + 4 mV (phase error: not specified)
100 to 500 A: 1.5% + 4 mV (phase error: < 1°)
500 to 1200 A: 1% + 4 mV (phase error: < 0.5°)

Accuracy — 7500 A Range:
100 to 500 A: 2% + 3 mV (phase error: 2°)
500 to 2000 A: 1.5% + 3 mV (phase error: 1.5°)
2000 to 7000 A: 1% + 3 mV (phase error: 1.5°)
7000 to 7500 A: 5% + 10 mV (phase error: 2°)

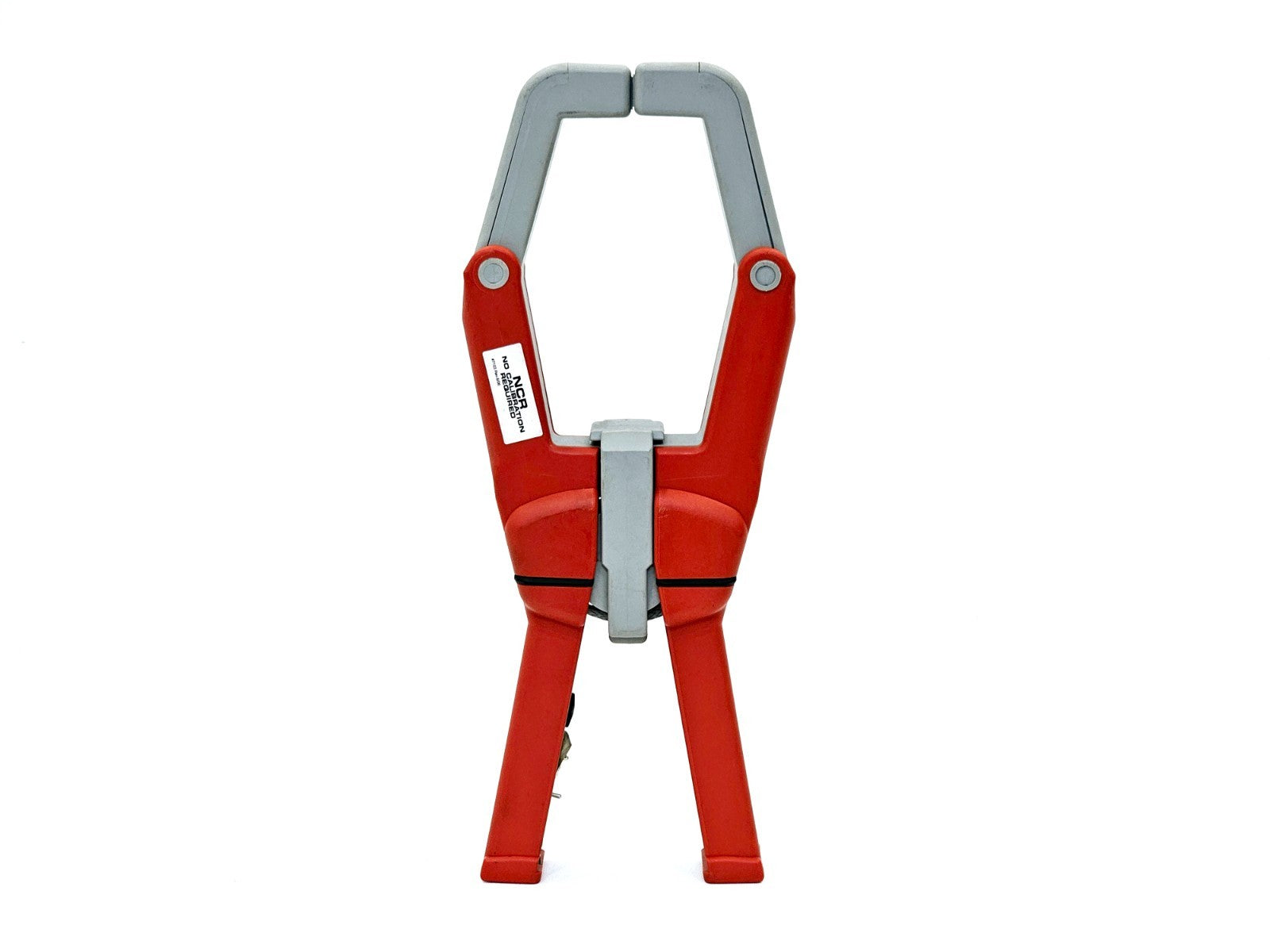

Typical conductor aperture: up to 80 mm (100 x 64 mm and 122 x 54 mm jaw configurations)
Power supply options: Internal 9V battery or external DC supply
Outputs: Voltage (mV) suitable for 4 mm safety sockets

Universal Technic P75.3C Current Probe Datasheet — 1000A/2V & 7500A/1.5V (PDF): Download PDF

AYA Instruments PC Series Datasheet — AC/DC Hall Effect Large Clamps (PDF): Download PDF

Pacific Test Equipment — Universal Technic PC Series 7500A Hall Effect Probe Datasheet (PDF): Download PDF
