Condition: Used

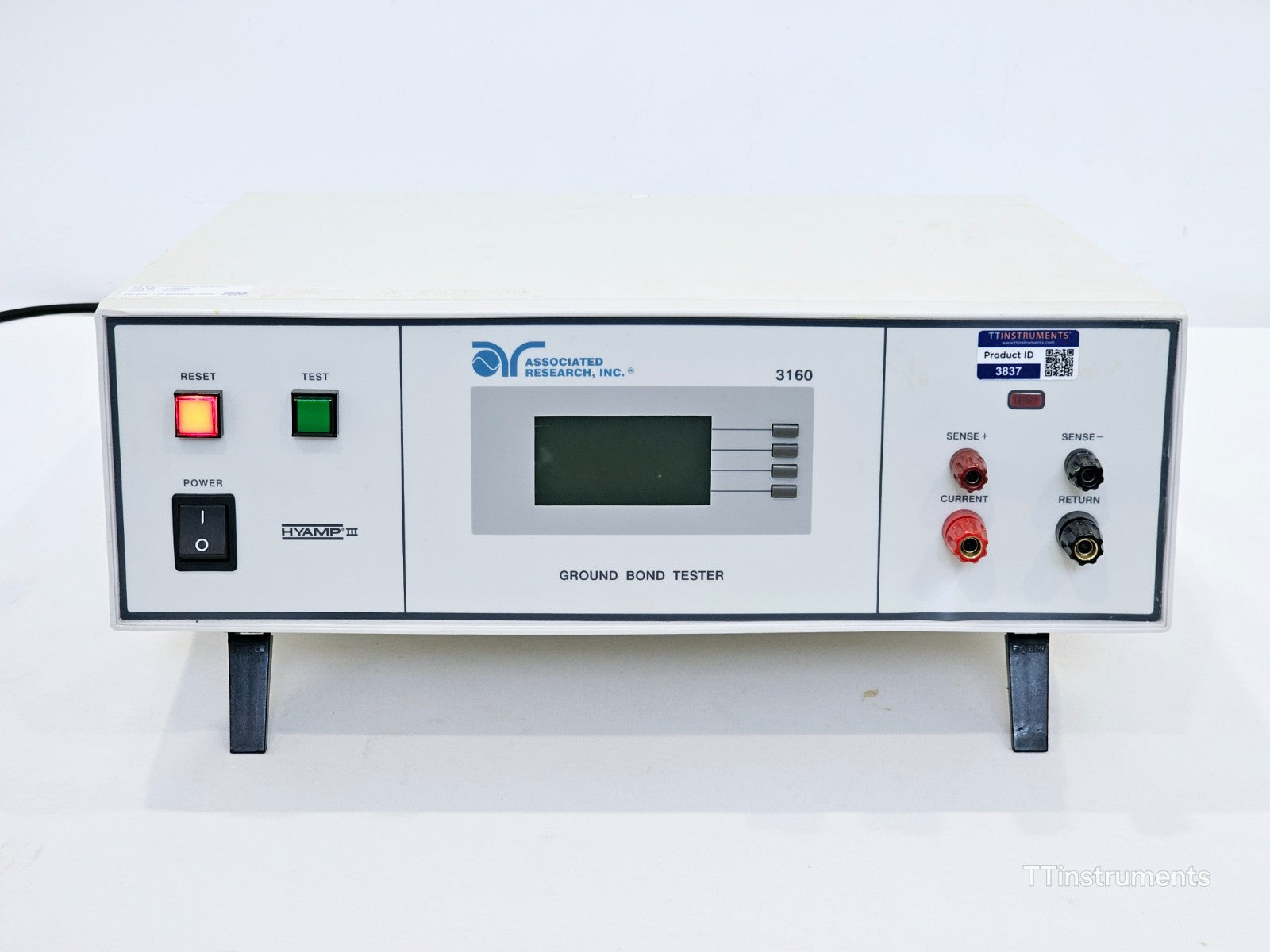

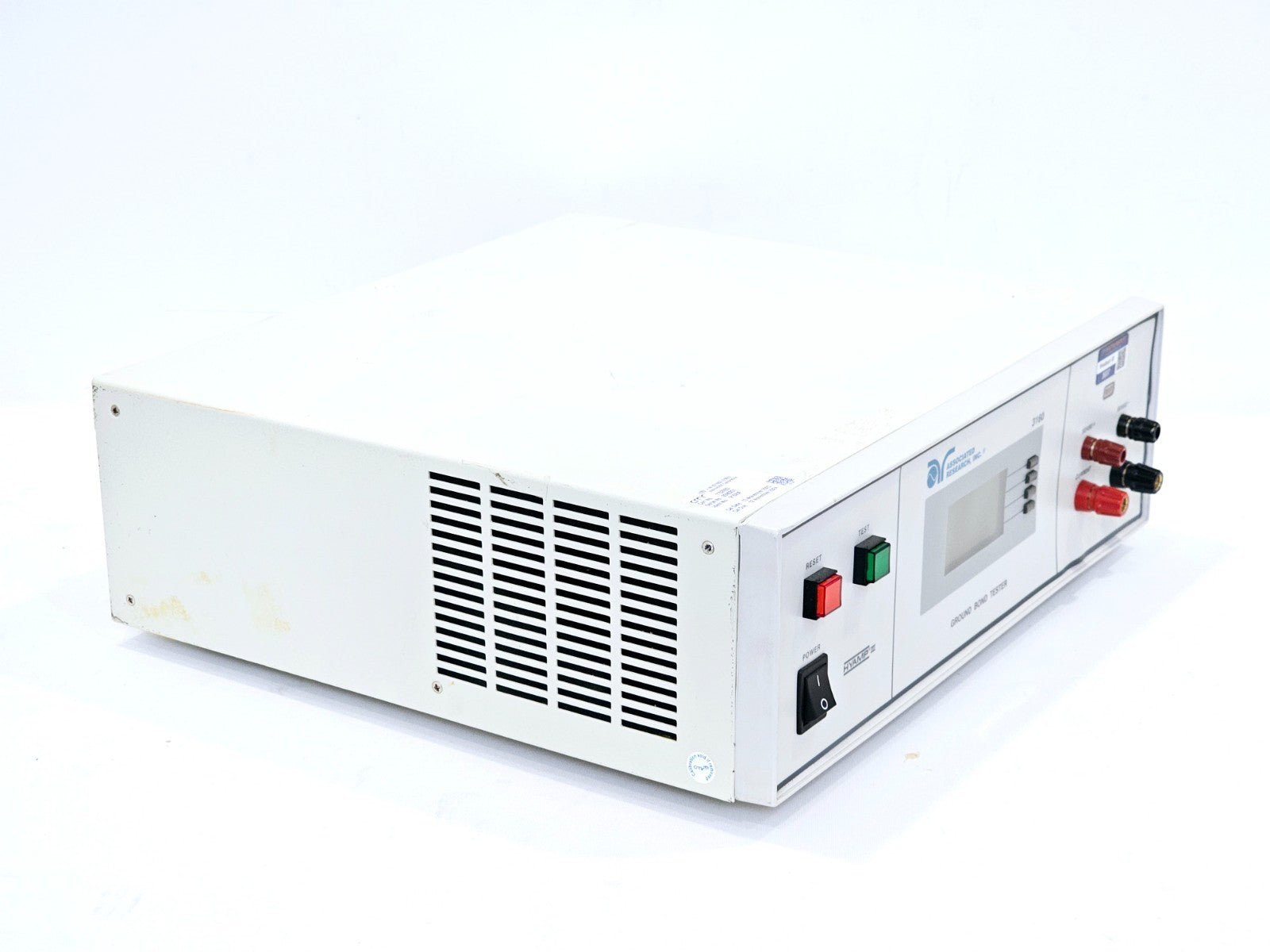

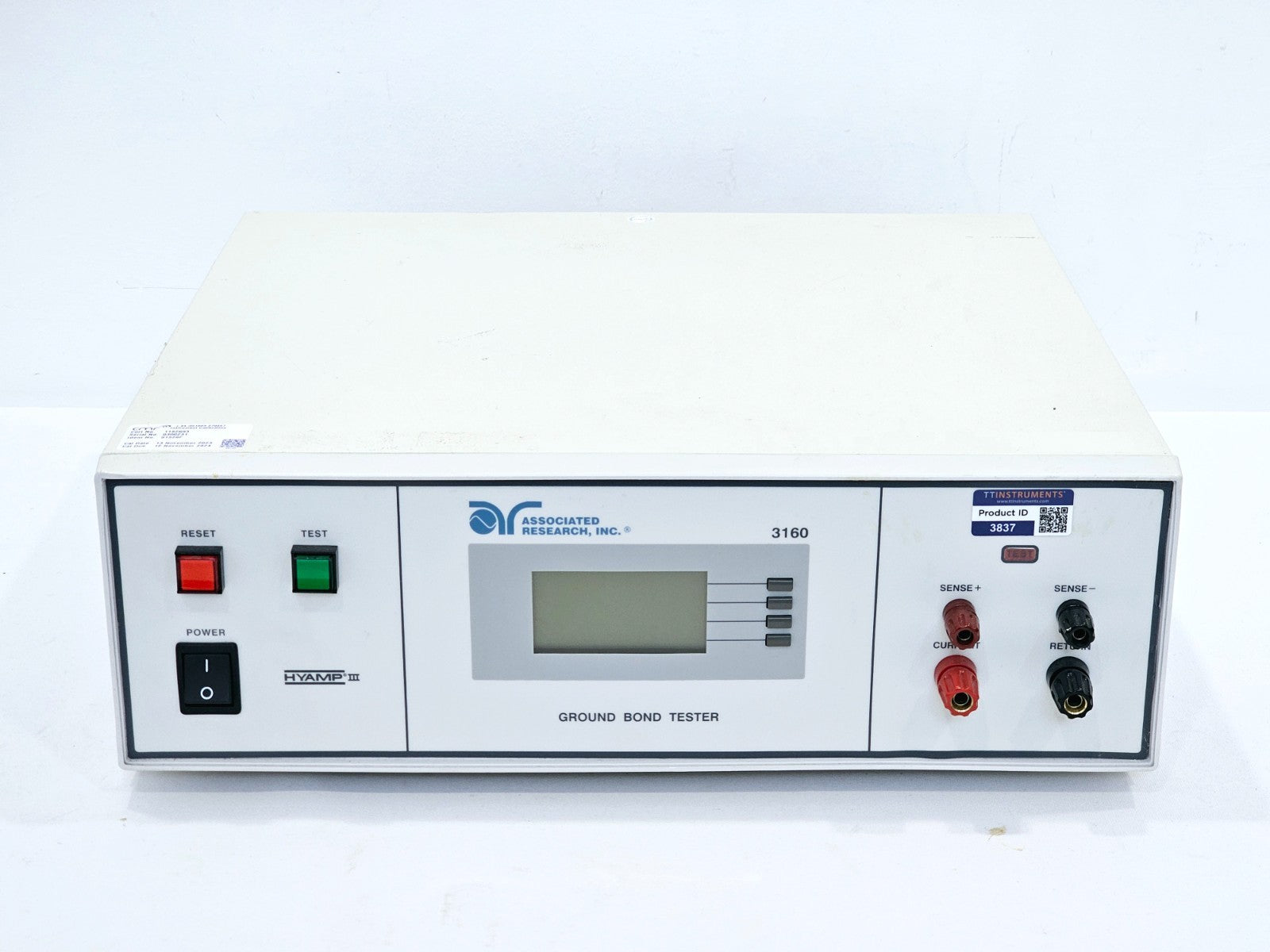

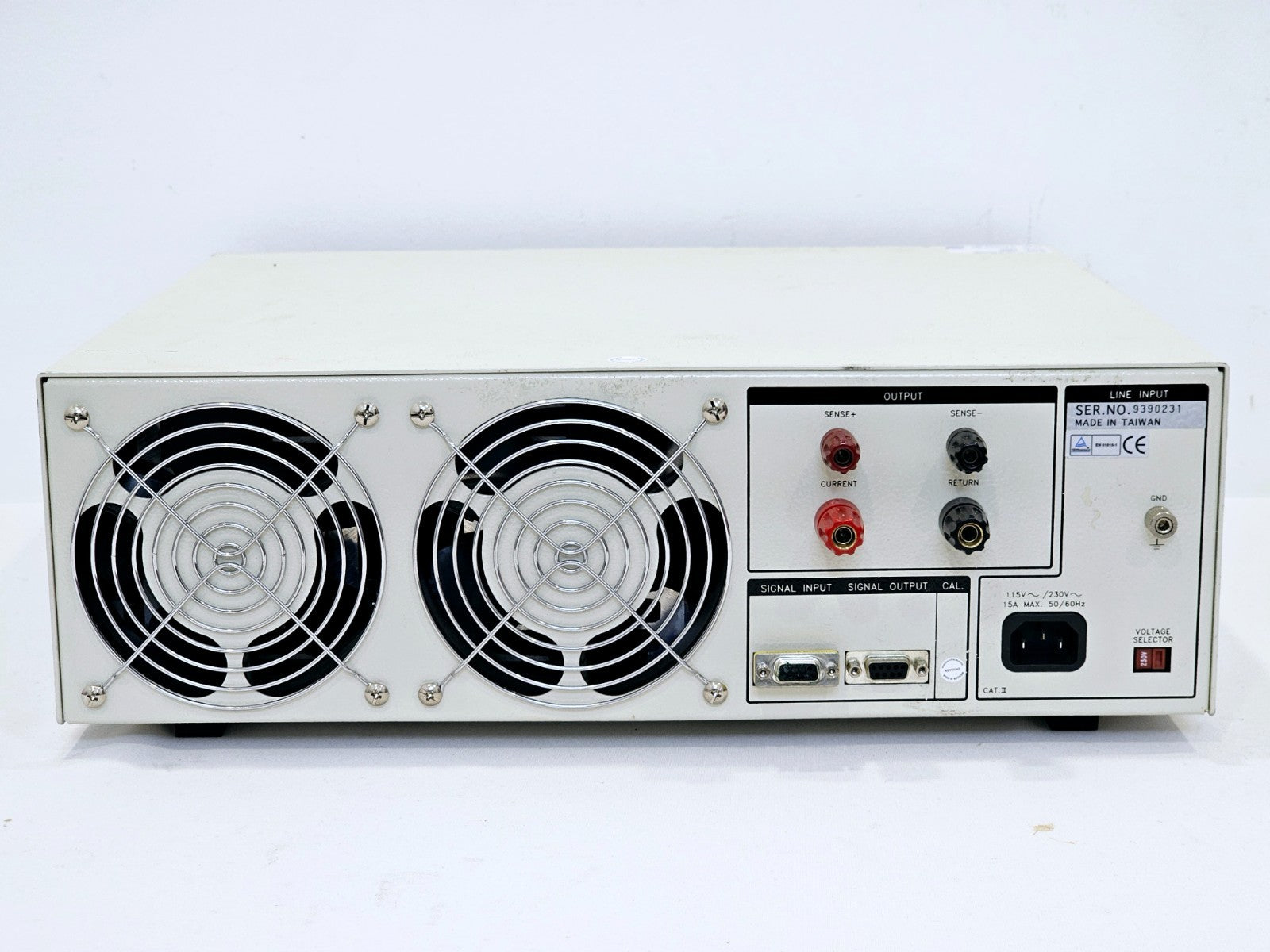

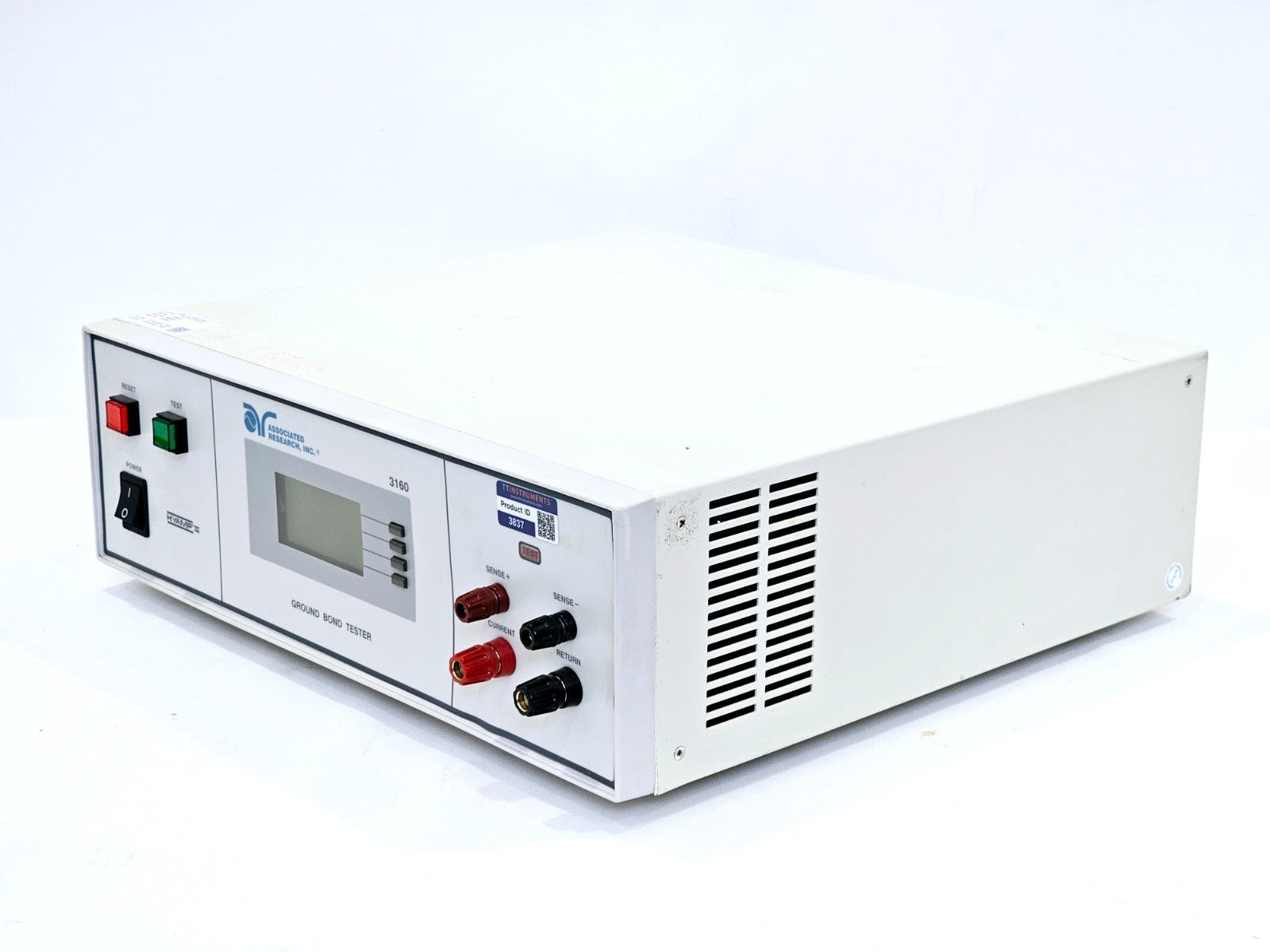

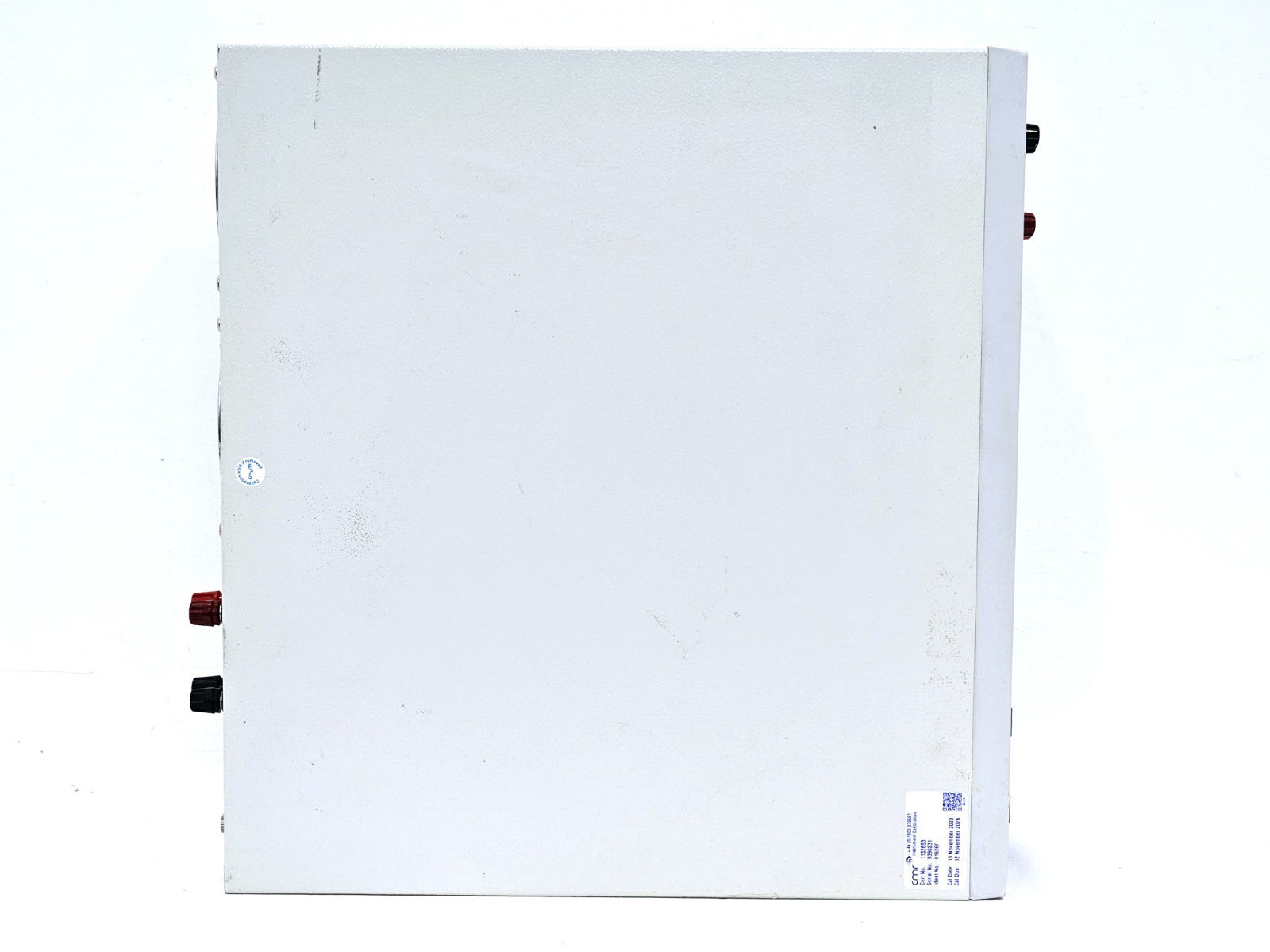

The Associated Research HYAMP III 3160 is a used ground bond tester supplied as the instrument only. It is a microprocessor-controlled unit with an enhanced graphic LCD and intuitive menu system, capable of delivering 1–60 A AC ground bond test current for products with higher input current ratings.

Included in the sale:
• HYAMP III 3160 Ground Bond Tester

The Associated Research HYAMP III 3160 is a microprocessor-controlled ground bond tester and the highest-current model in the HYAMP III series, designed for electrical safety compliance testing of products with higher input current ratings. It features an enhanced graphic LCD with an intuitive menu system that guides operators from set-up through to results, eliminating the need for cryptic abbreviations. The patented VERI-CHEK® feature prompts users through steps to validate the instrument's operation, while CAL-ALERT® automatically alerts the operator when recalibration is due.

The 3160 delivers a regulated AC output across the full 1–60 A range at a fixed 9 V AC, and employs four-wire (Kelvin) measurement with milliohm offset capability to cancel contact and lead resistance, ensuring accurate ground bond results. An electronic dwell timer provides consistent, repeatable test durations. Up to 10 memory programs (with 3 steps per memory) allow test parameters to be stored and recalled quickly for production-line efficiency. PLC remote control via dual 9-pin D-type connectors enables fully automated test integration.

The instrument can be used stand-alone or interconnected with an Associated Research HYPOT III hipot tester to form a comprehensive electrical safety compliance test system, with sequential (G→W) or simultaneous (G+W) test modes available.

Functional Specifications — Model 3160:
Input Voltage: 115/230 VAC ± 10%, user selectable
Input Frequency: 50/60 Hz ± 5%
Fuse: 15.0 A, slow-blow, 250 V AC
Output Current Range: 1.00–60.00 A AC
Output Current Resolution: 0.01 A
Output Voltage (fixed): 9 V AC
Current Accuracy: ± (1% of reading + 0.2 A)
Voltage Accuracy: ± (1% of reading + 0.02 V)
Resistance Accuracy: ± (2% of reading + 0.003 Ω)
Dwell Time Range: 0.5–1000 seconds
Dwell Time Resolution: 0.1 seconds
Dwell Time Accuracy: ± (0.1% of reading + 0.05 seconds)
Measurement Method: 4-wire (Kelvin)
Memory Programs: 10 memories, 3 steps per memory

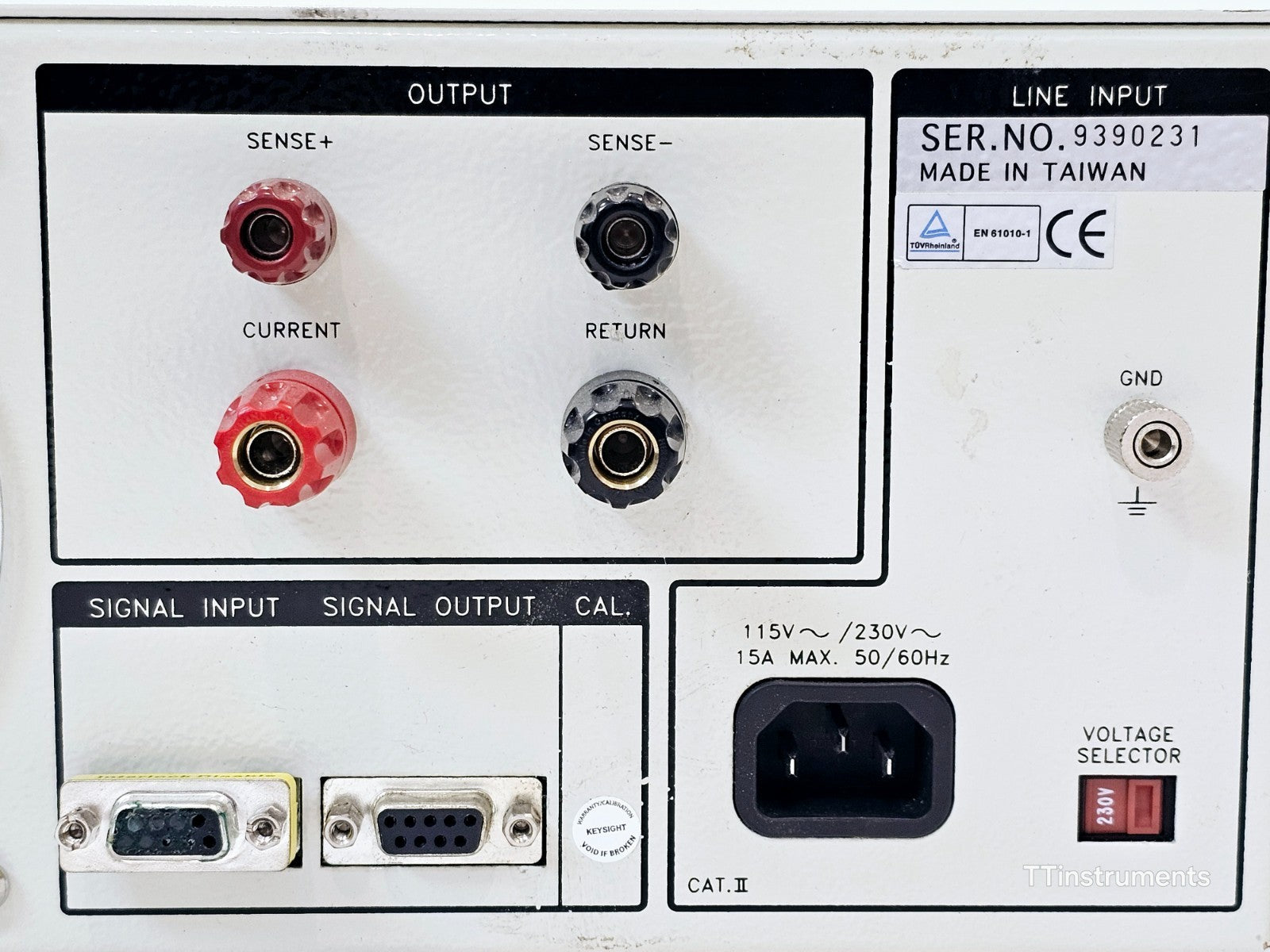

Remote Control: PLC via dual 9-pin D-type connectors (Test, Reset, Interlock, Withstand Processing)
Operating Temperature: 5–40 °C (41–104 °F)
Relative Humidity: Up to 80% R.H. (non-condensing)
Safety Standards: UL 61010-1:2012, UL 61010-2-030:2012, CAN/CSA-C22.2 No. 61010-1
Display: Enhanced graphic LCD
Key Features: VERI-CHEK® operation validation, CAL-ALERT® calibration reminder, electronic dwell timer, milliohm offset, PLC remote control, HYPOT III interconnect capability

Associated Research HYAMP III Models 3140 & 3160 Operation and Service Manual (PDF) — via hik-consulting.pl archive: Download PDF

Associated Research HYAMP III Product Brochure (PDF) — via dqm.it: Download PDF
