Condition: Used

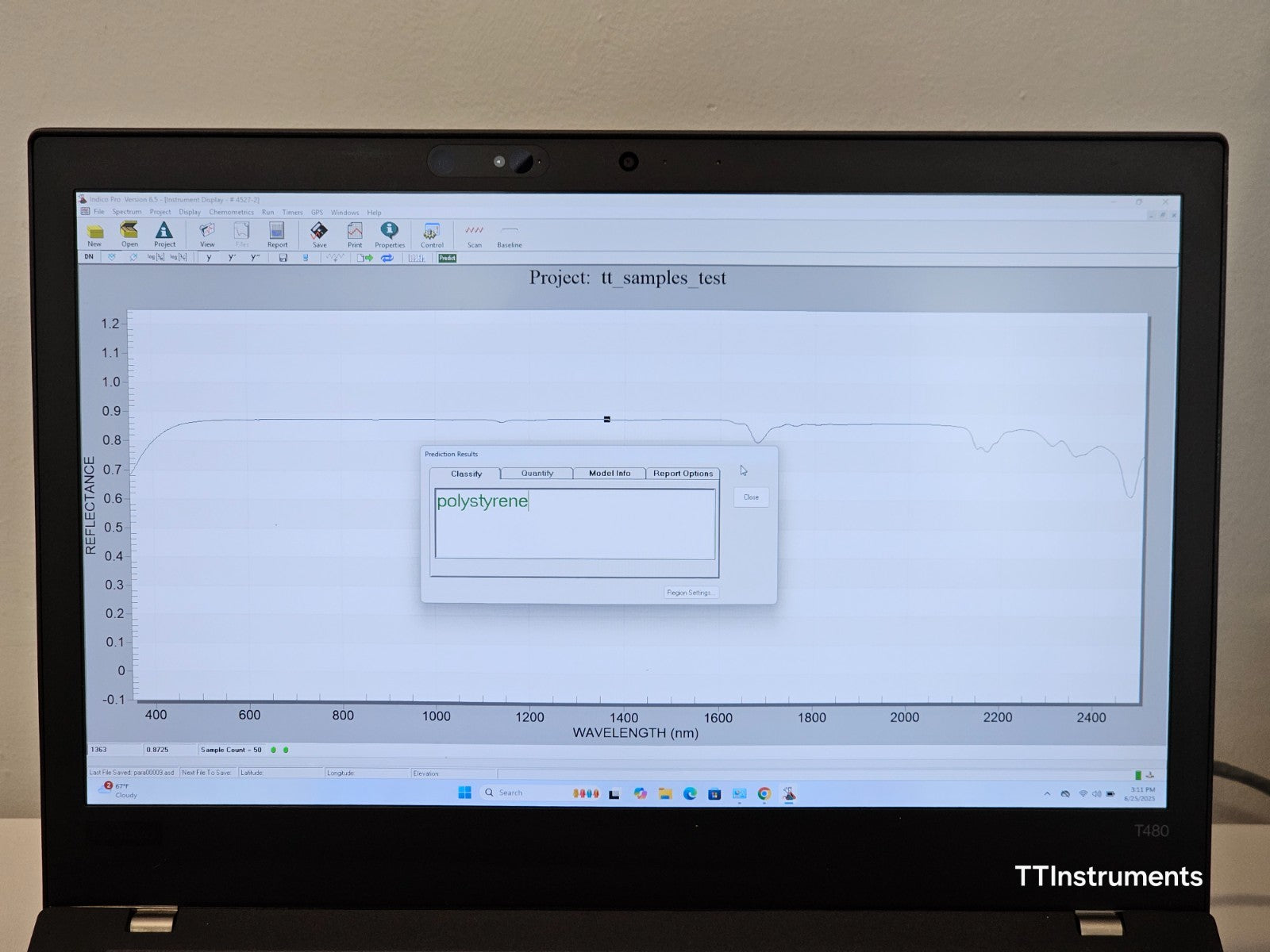

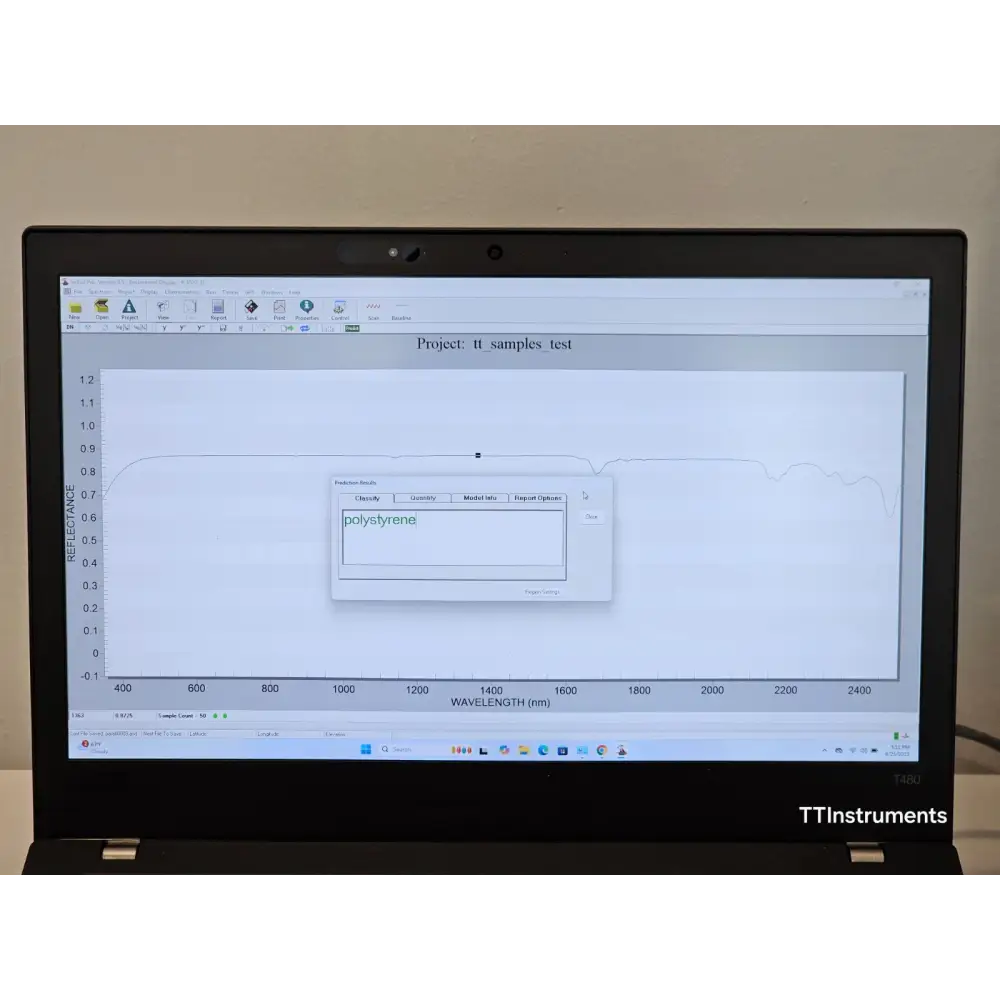

Tested and fully functional. Cosmetic imperfections are present but do not affect performance. A sample project was set up to detect polystyrene and paracetamol with successfully accurate results. Supplied as a complete field-ready system including a Lenovo ThinkPad T480 laptop with pre-installed Indico Pro software, power solutions, and a rugged Pelican transit case.

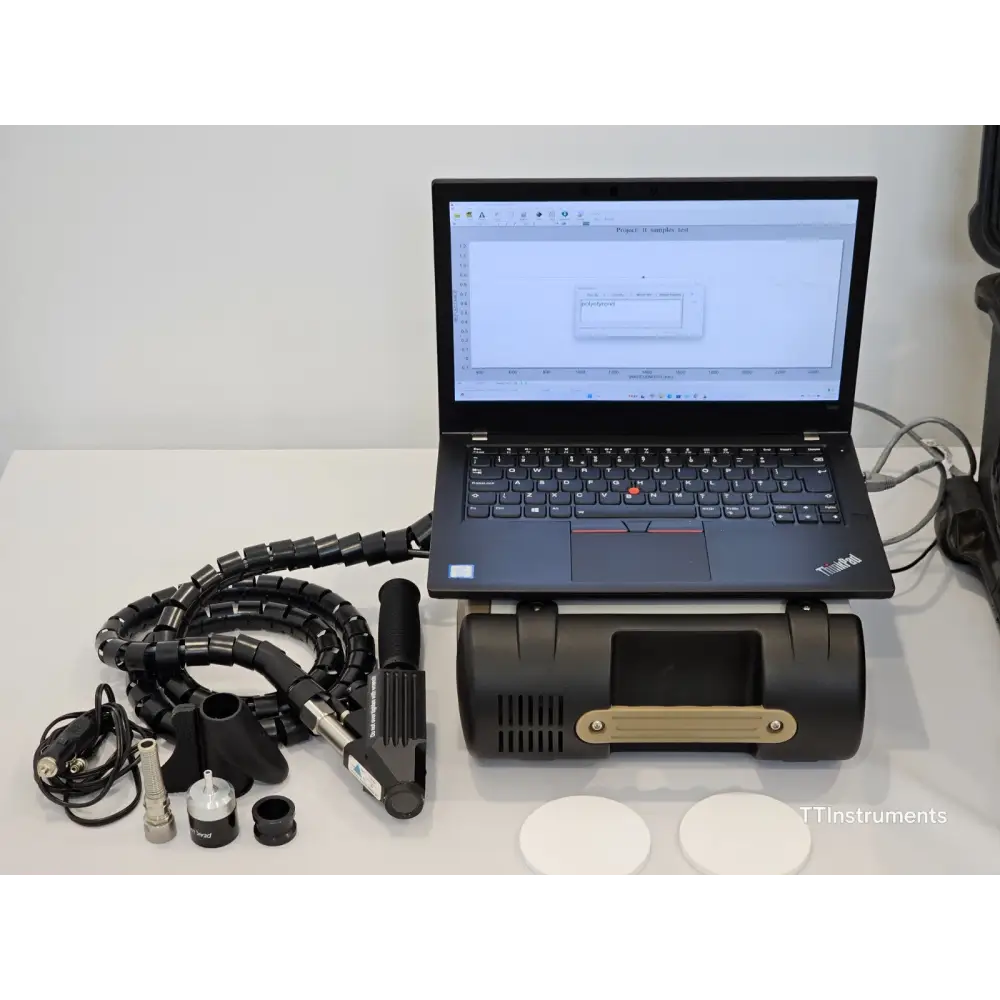

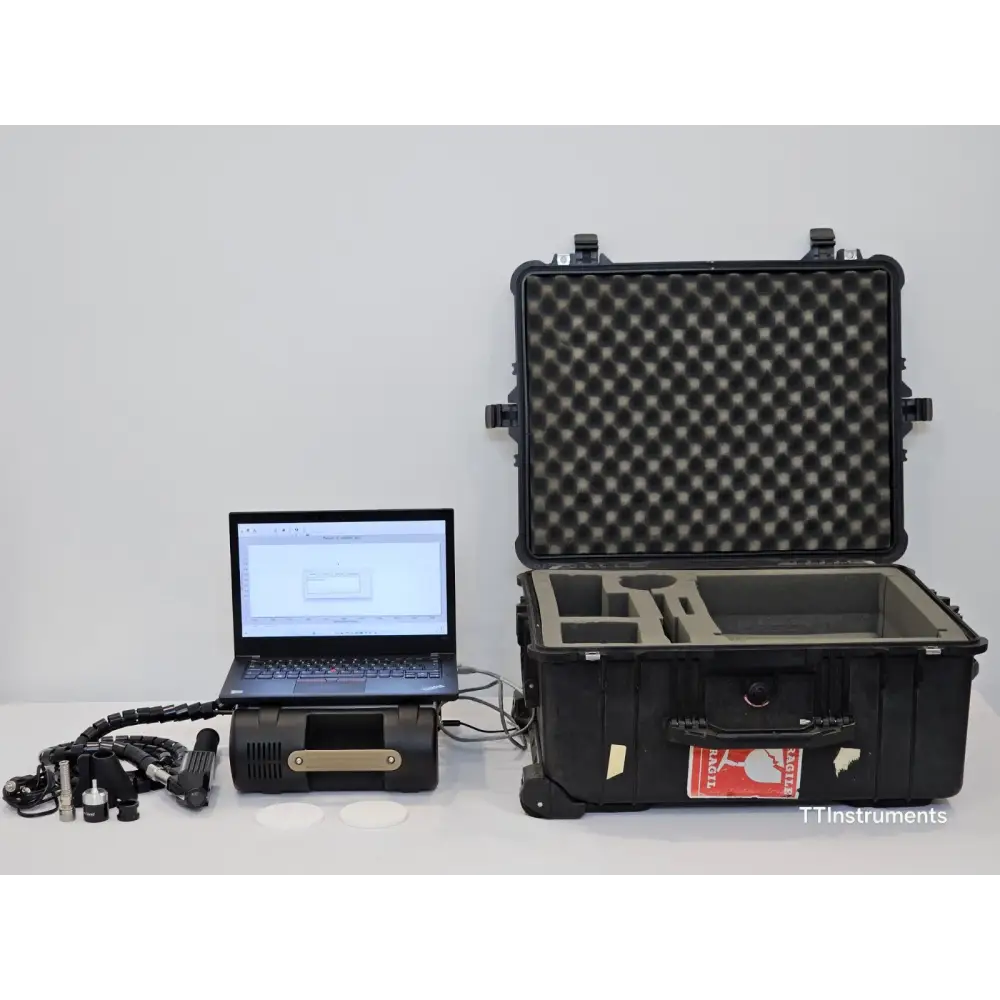

Included with this unit:

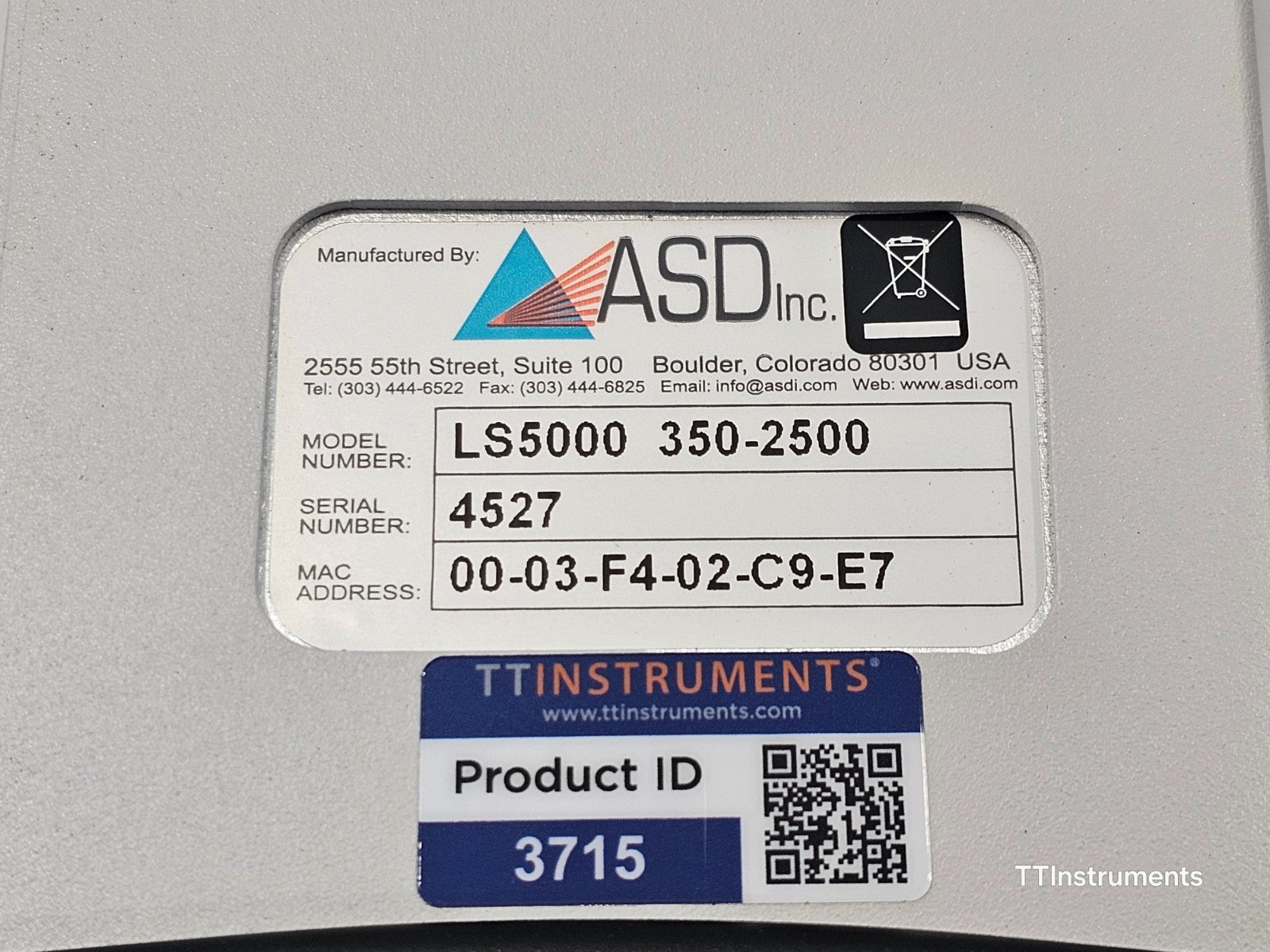

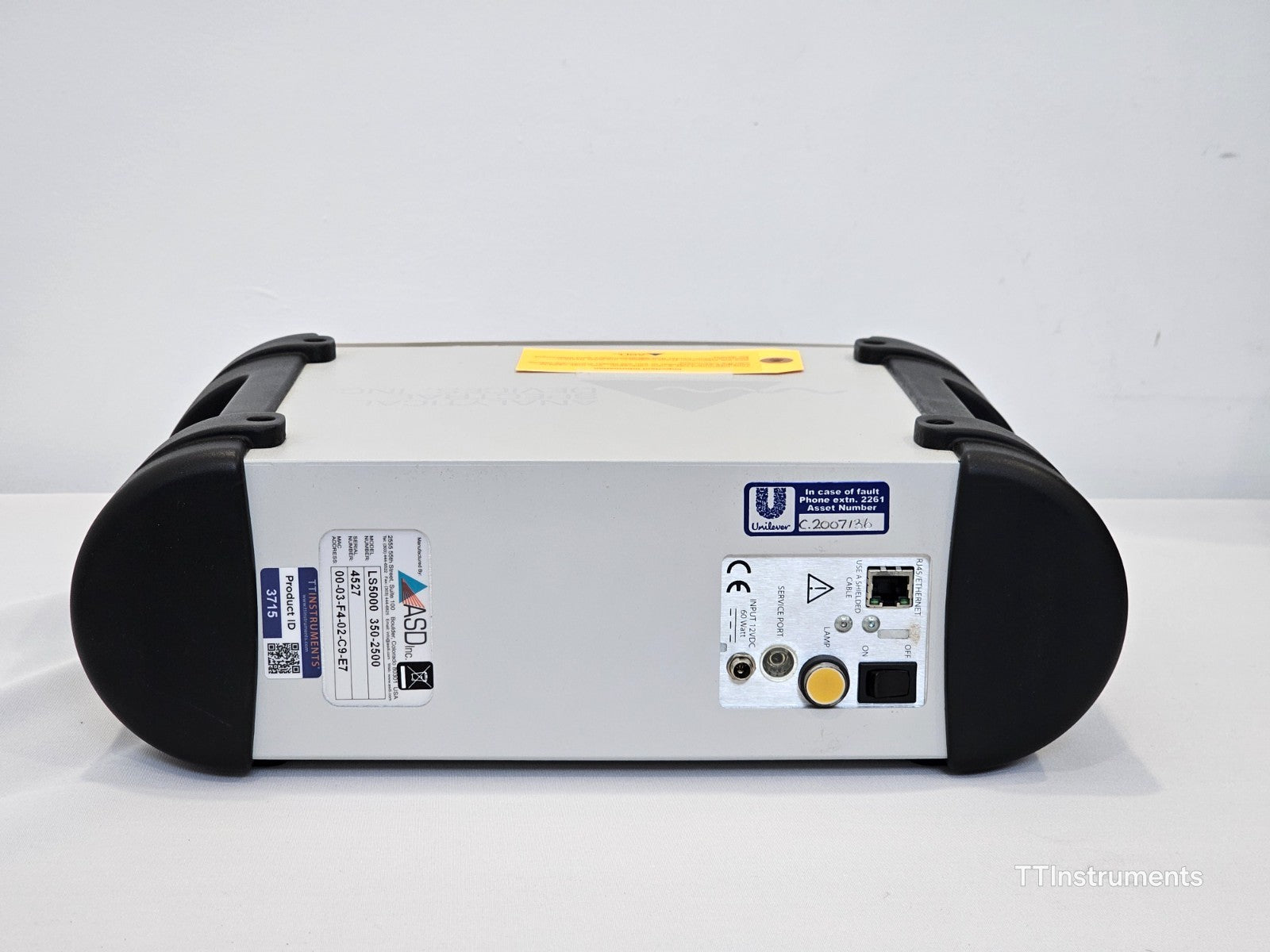

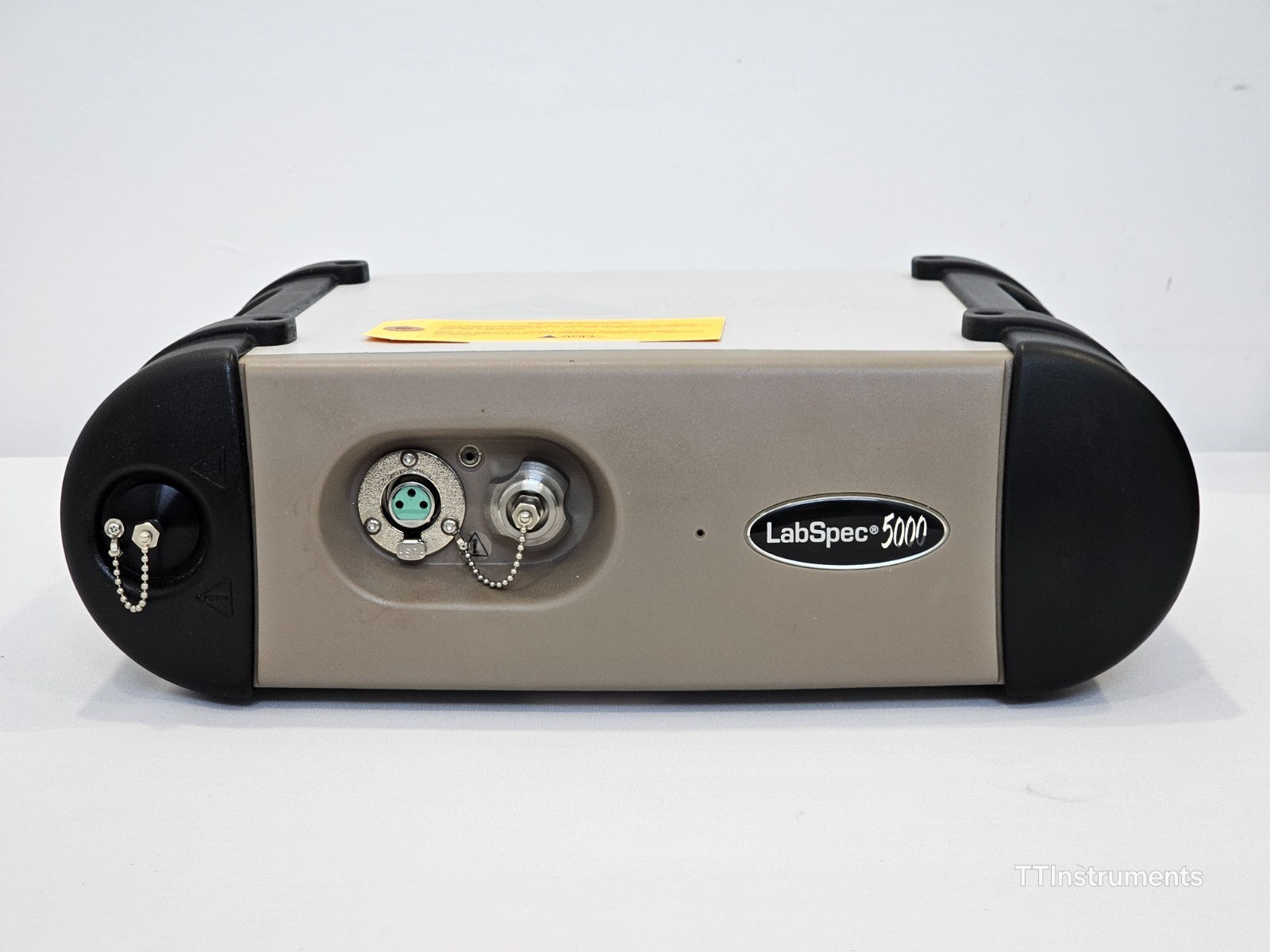

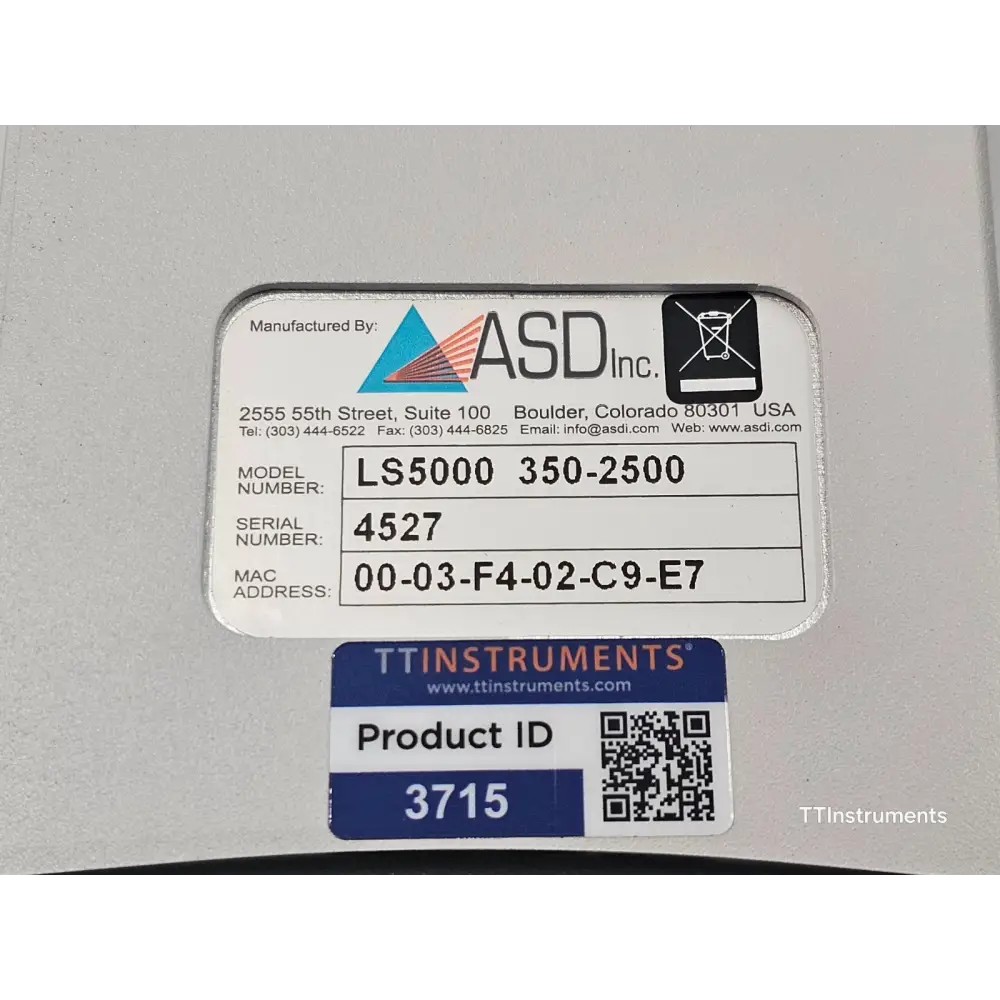

• ASD LabSpec 5000 spectrometer (LS5000 350-2500)

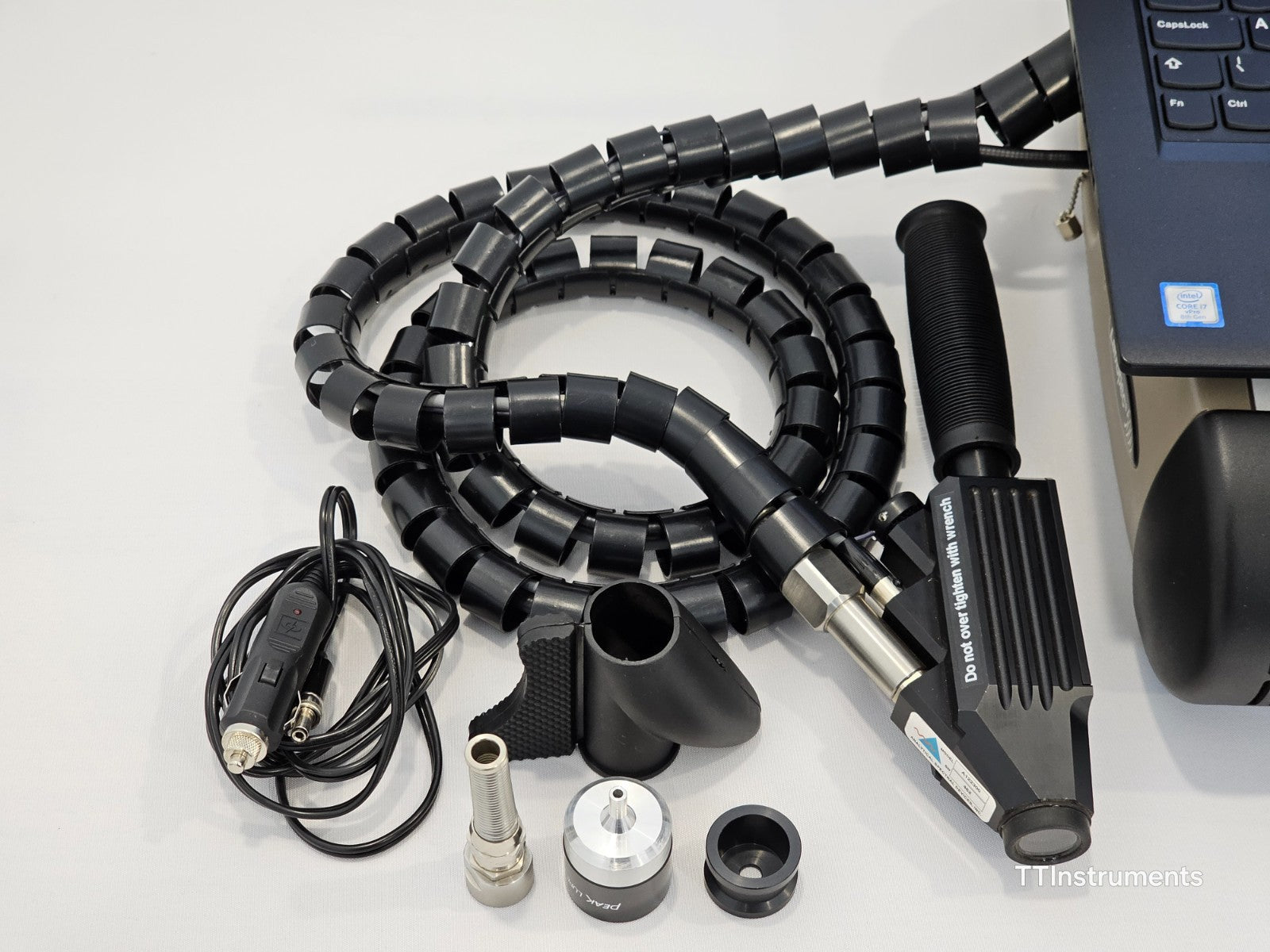

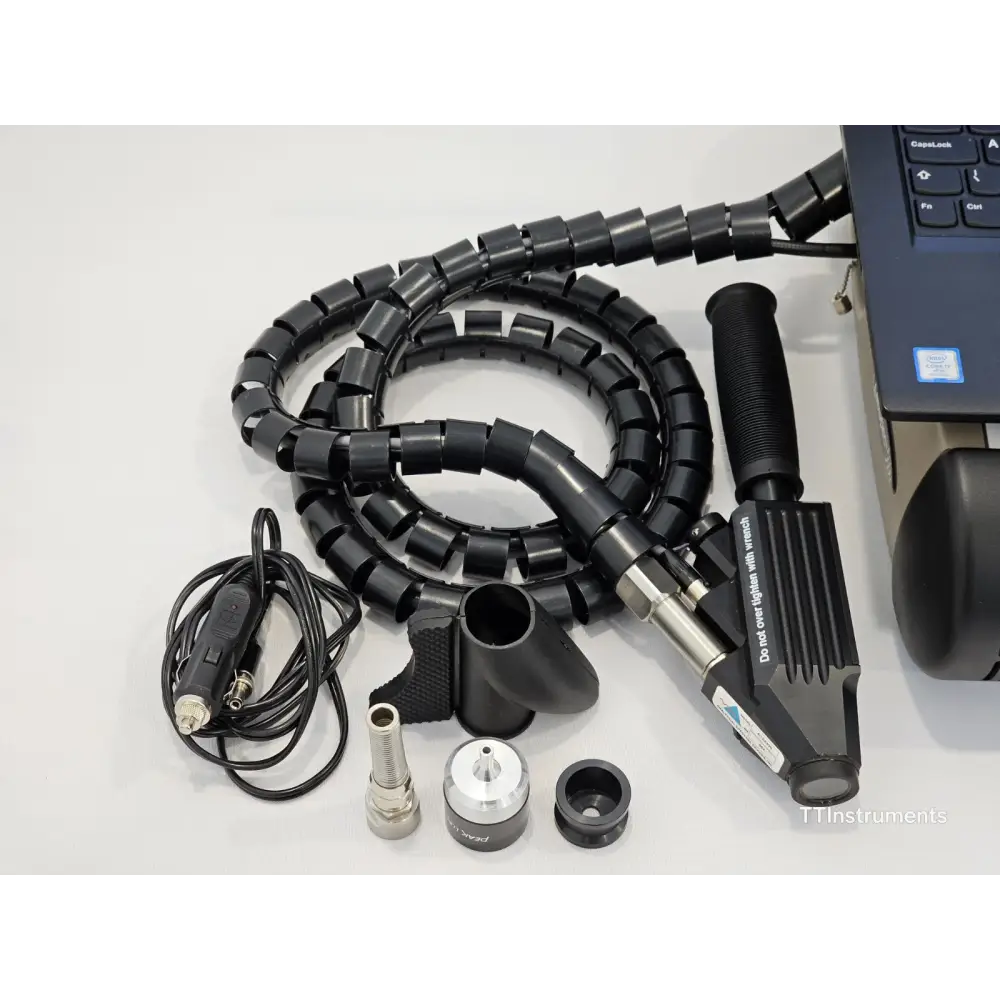

• Hand-held contact probe & pistol grip attachment (A122300)
• Flexible gooseneck fibre harness
• 2x white Spectralon reference disks

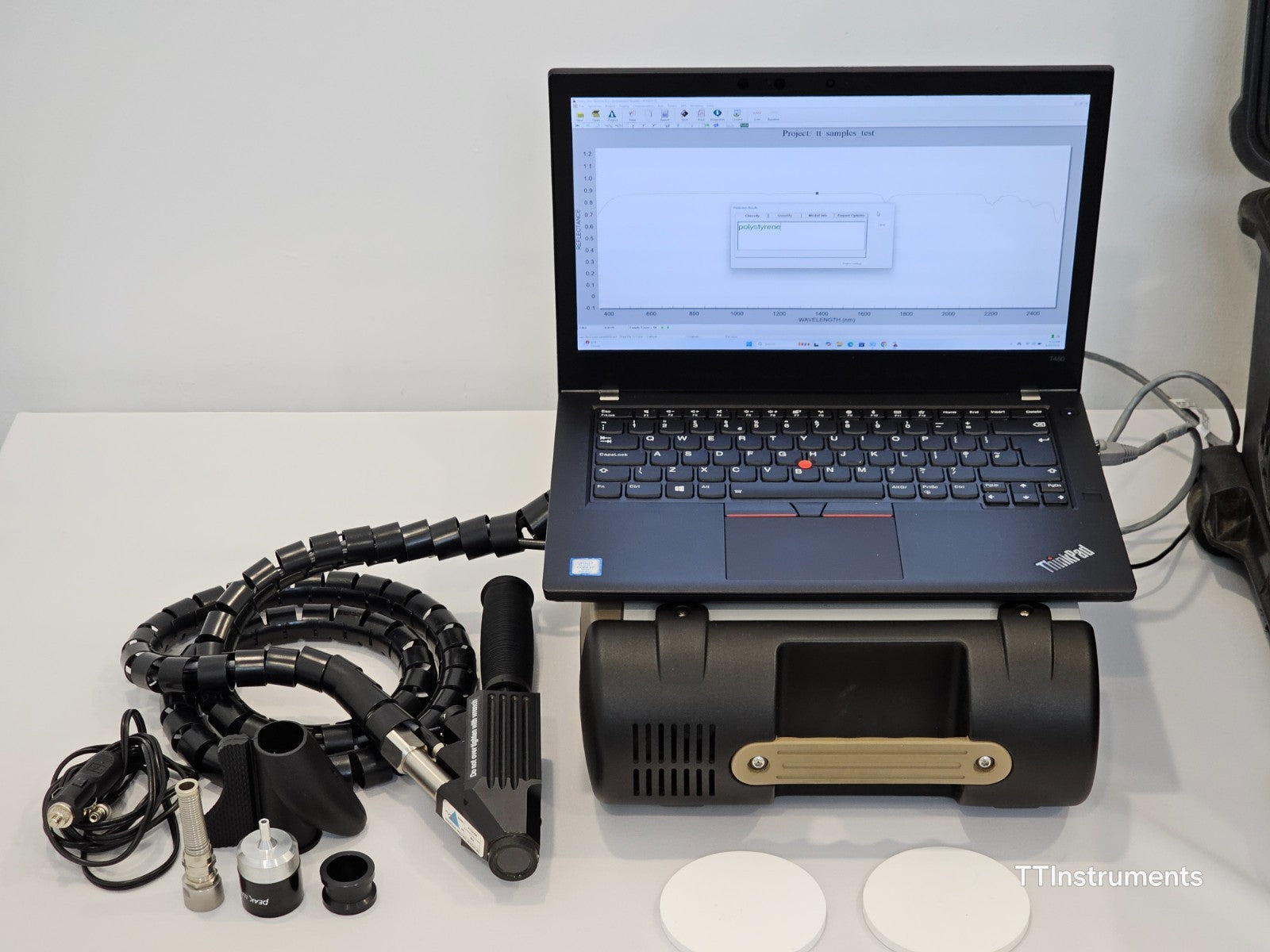

• Lenovo ThinkPad T480 laptop with pre-installed Indico Pro software
• Shielded ethernet crossover cable

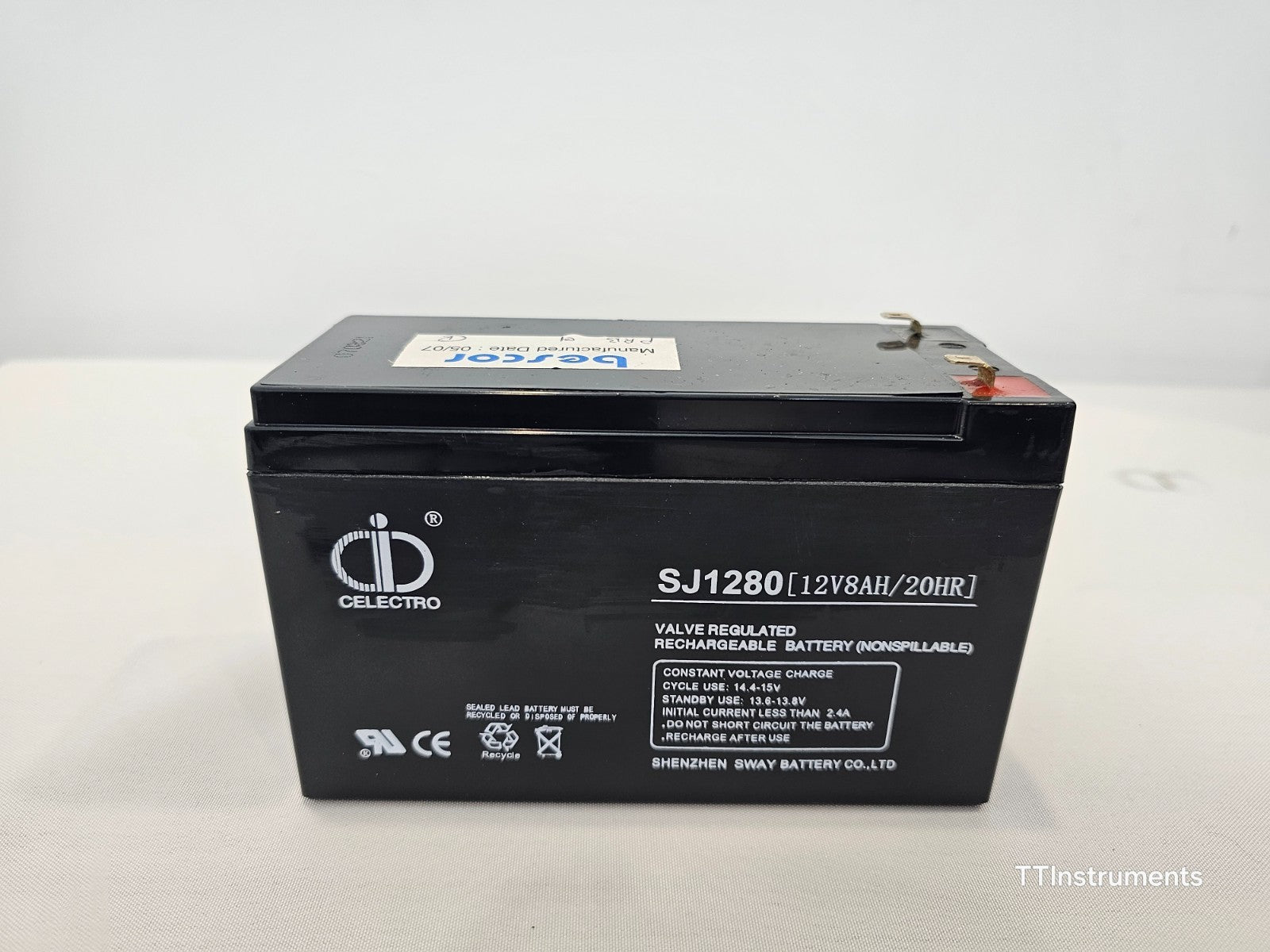

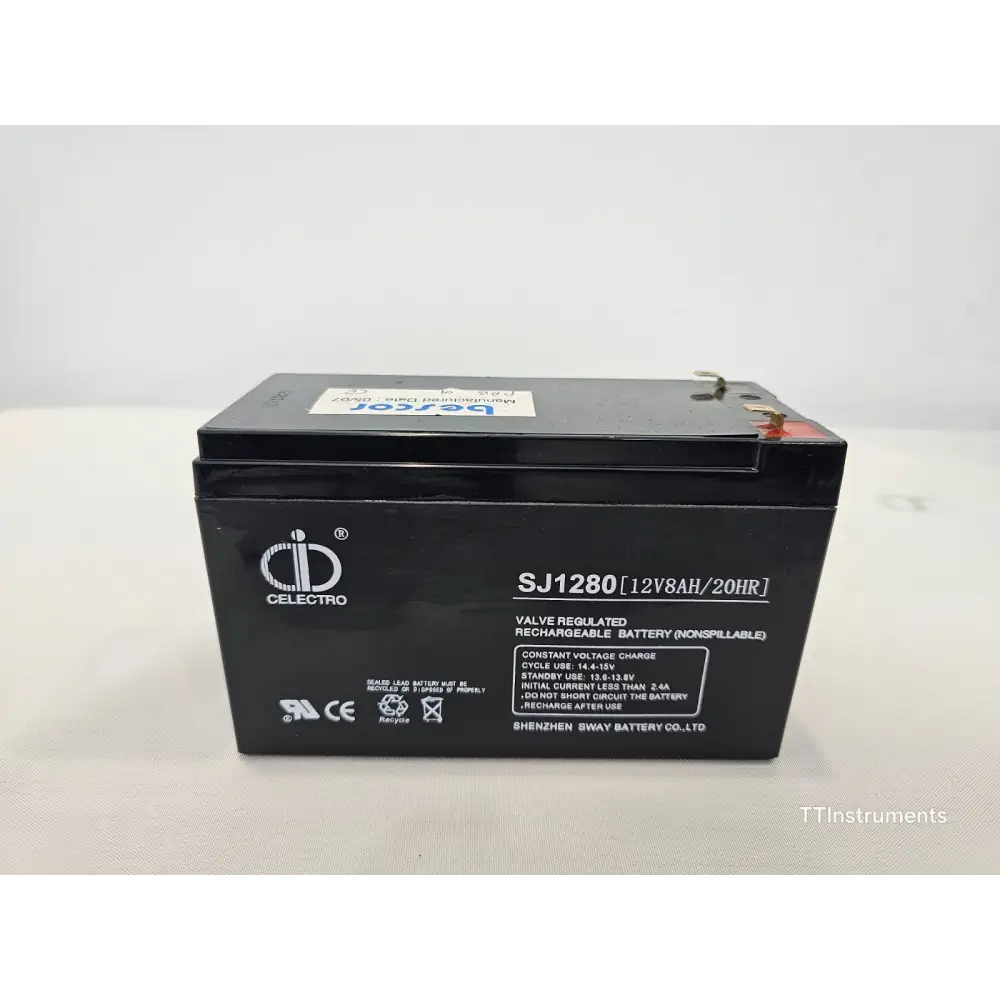

• Celectro 12V 8AH rechargeable battery (SJ1280)
• 12V 60W AC adapter & vehicle cigarette lighter power lead

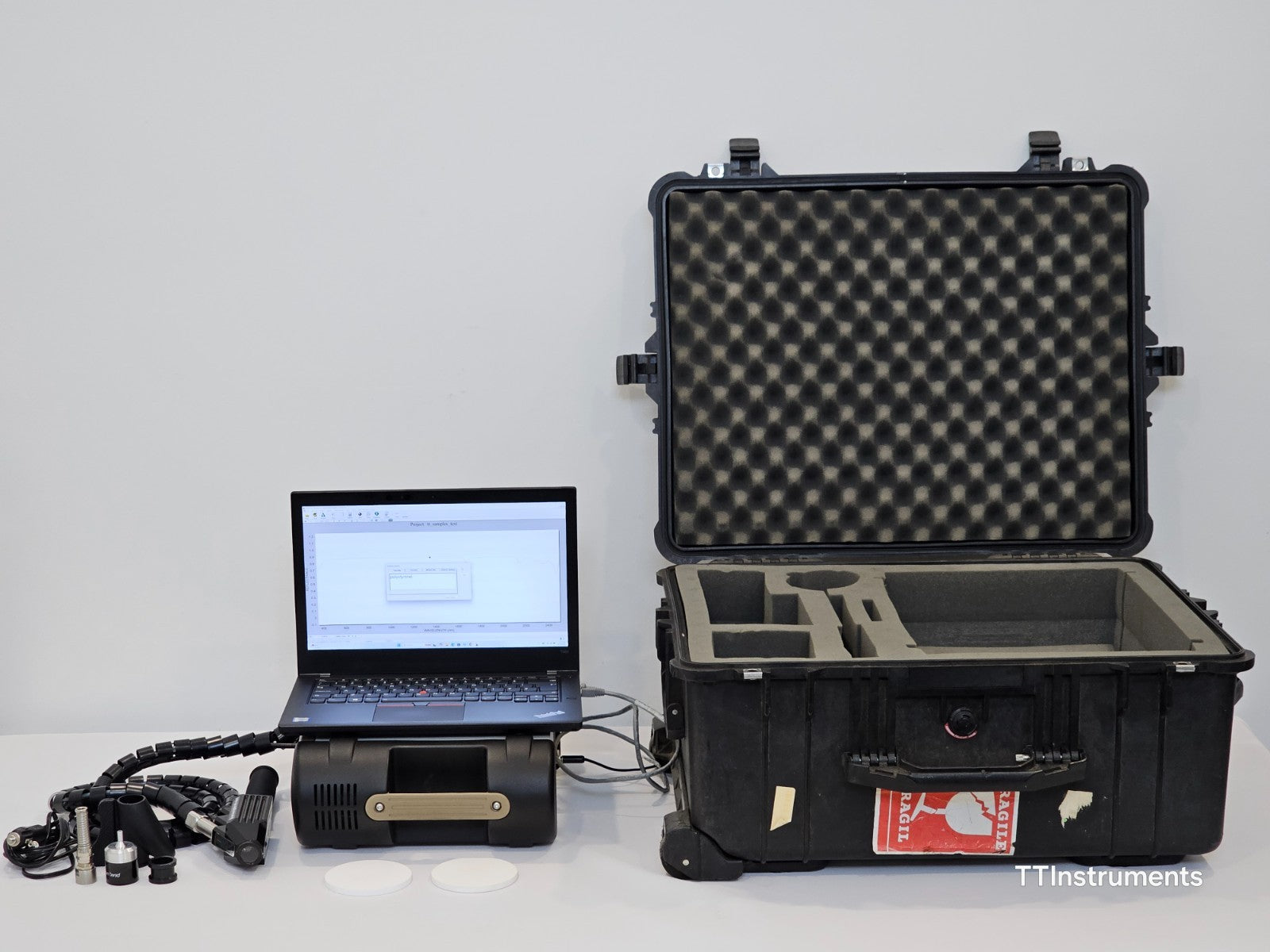

• Rugged wheeled Pelican transit case with custom foam
• All pictured cables and dust caps

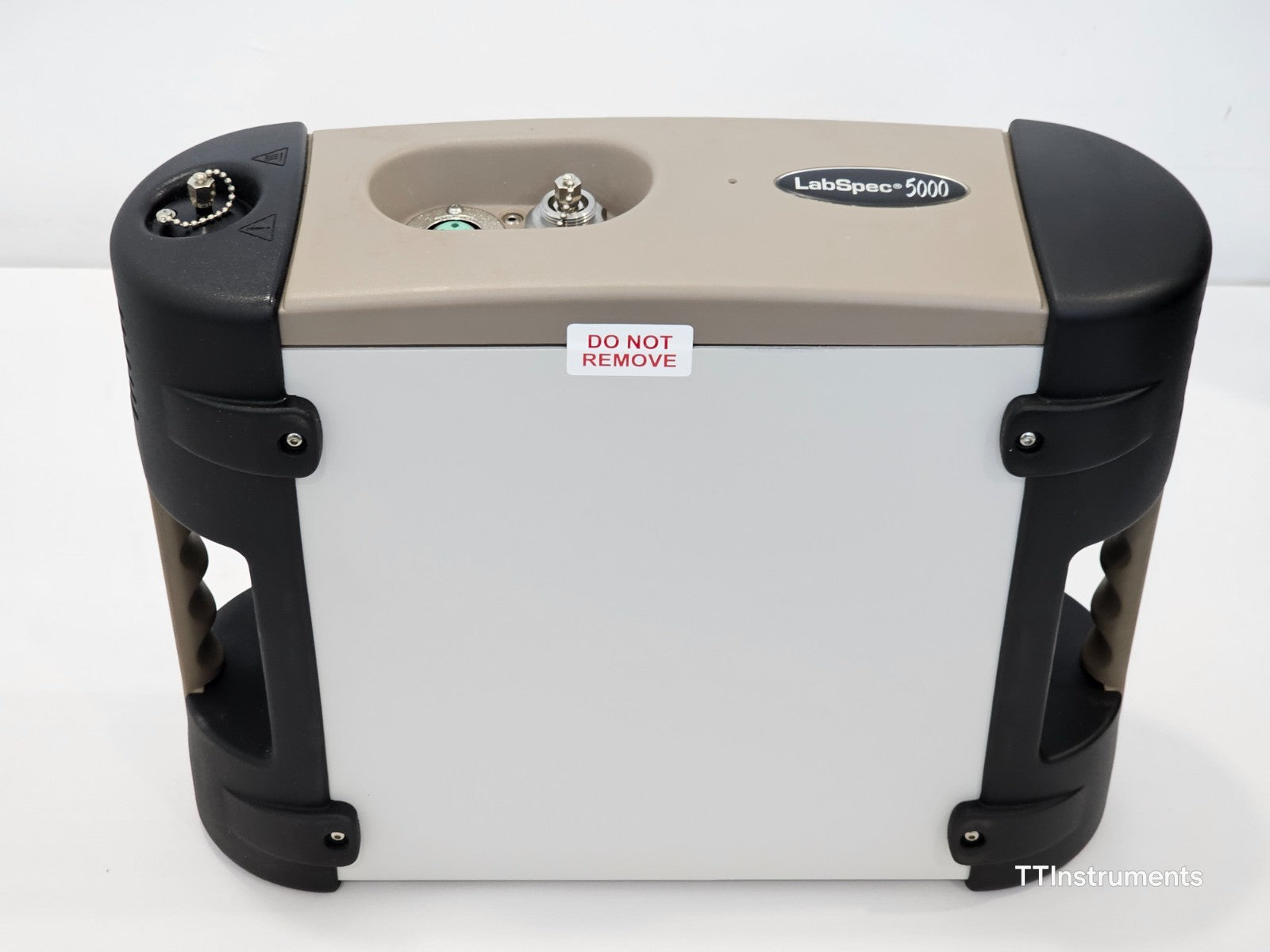

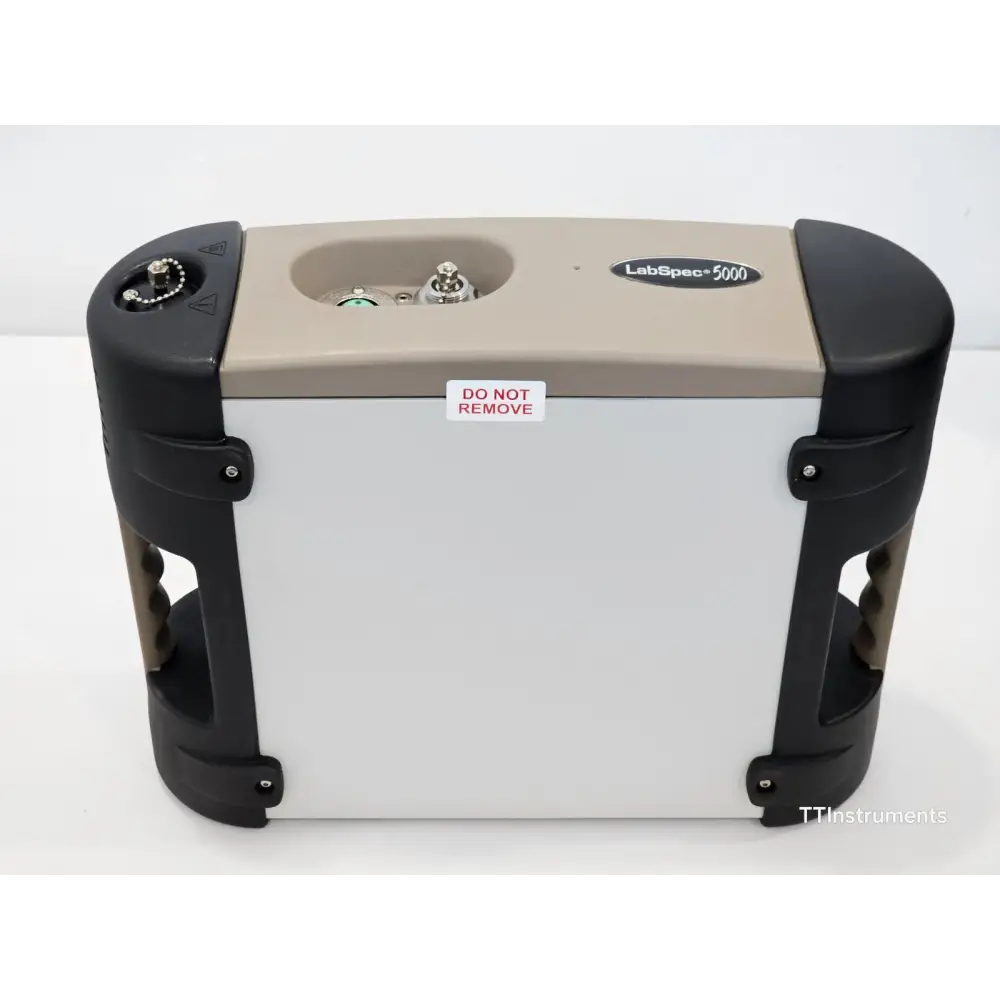

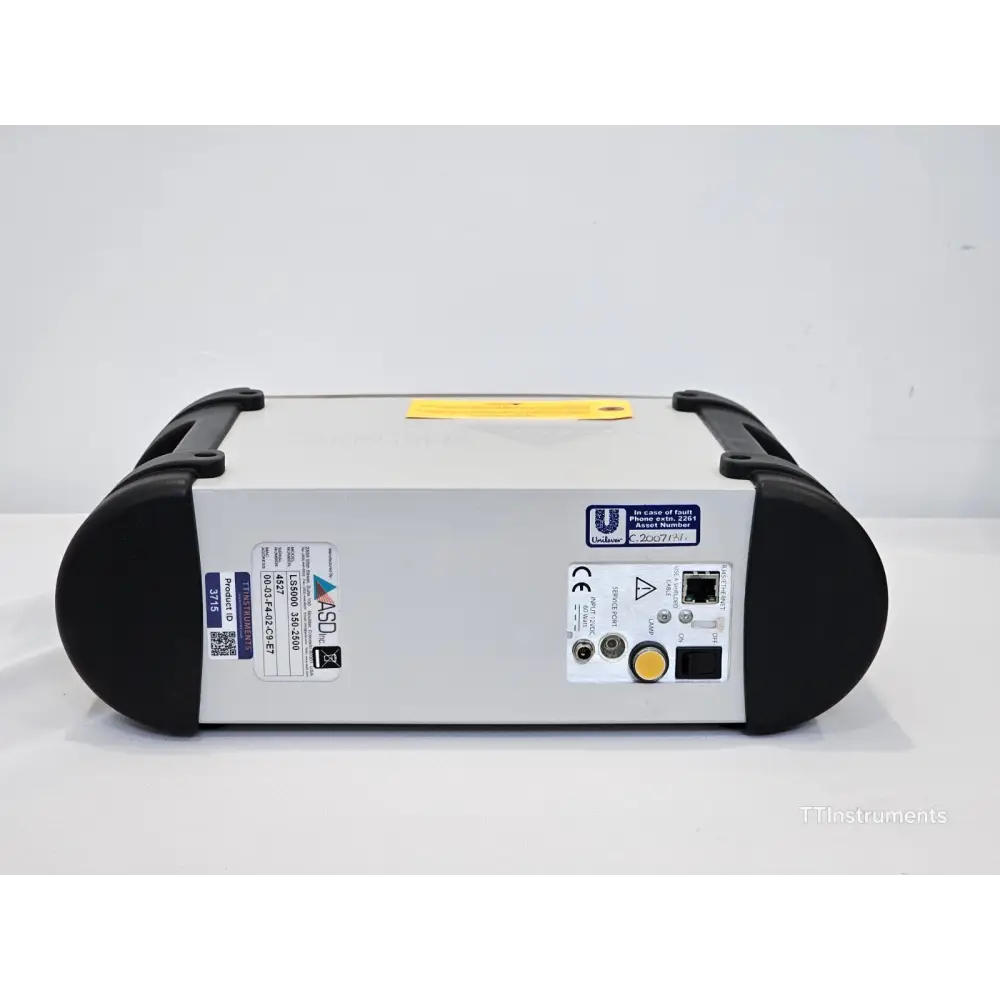

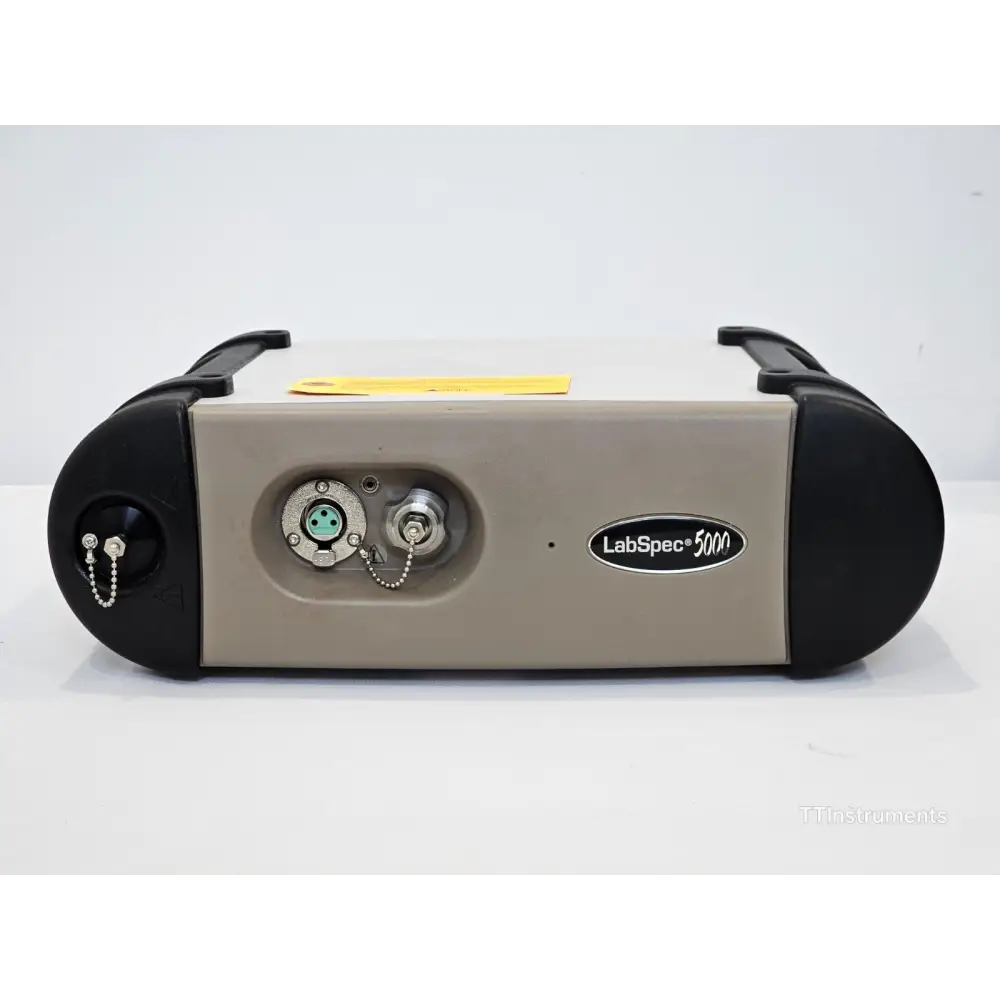

The ASD LabSpec 5000 (LS5000) is an ultra-rugged, truly portable, post-dispersive Vis/NIR spectrometer manufactured by Analytical Spectral Devices, Inc. (ASD), now part of Malvern Panalytical / SciAps. It is designed for demanding industrial, manufacturing, laboratory, and field environments where research-grade spectral materials measurement is required. The instrument features a hybrid post-dispersive optical design with high sensitivity and extremely low stray-light, making it well suited to both qualitative and quantitative applications across solids, powders, slurries, and liquids. The LabSpec 5000 supports Ethernet and optional wireless connectivity, and is compatible with ASD Indico Pro and LabVIEW software for automated and autonomous operation. Its rugged, non-slip urethane end-cap housing and expanded operating temperature range make it reliable even in extreme environments. Standard SMA 905 fibre optic connectors and a wide array of sampling accessories provide maximum application flexibility.

Key application areas include pharmaceutical analysis and anti-counterfeit verification, raw materials identification and quality control, agriculture and food analysis (grain, seed, dairy, biofuels), plastics and petrochemicals, forestry and paper products, mineralogy, moisture analysis, and industrial process control.

Technical Specifications (Model 5000):
Spectral Range: 350–2500 nm
Spectral Resolution (VNIR): 3 nm @ 700 nm
Spectral Resolution (SWIR): 10 nm @ 1400 nm / 2100 nm
Sampling Interval: 1.377 nm @ 350–1050 nm; 2 nm @ 1000–2500 nm
Scanning Time: 100 milliseconds
Detectors: One fixed reflective holographic diffraction grating with 512-element silicon photodiode array (VNIR) + 2x fast-scanning reflective holographic diffraction gratings with TE-cooled graded-index InGaAs photodiode sensor (SWIR); high-order blocking filters; internal shutters; ASD proprietary DriftLock® automatic offset correction
Photometric Noise @ 0 AU (RMS, Transmission Probe): 50 µAU (350–1050 nm); 30 µAU (1000–1800 nm); 60 µAU (1800–2500 nm)

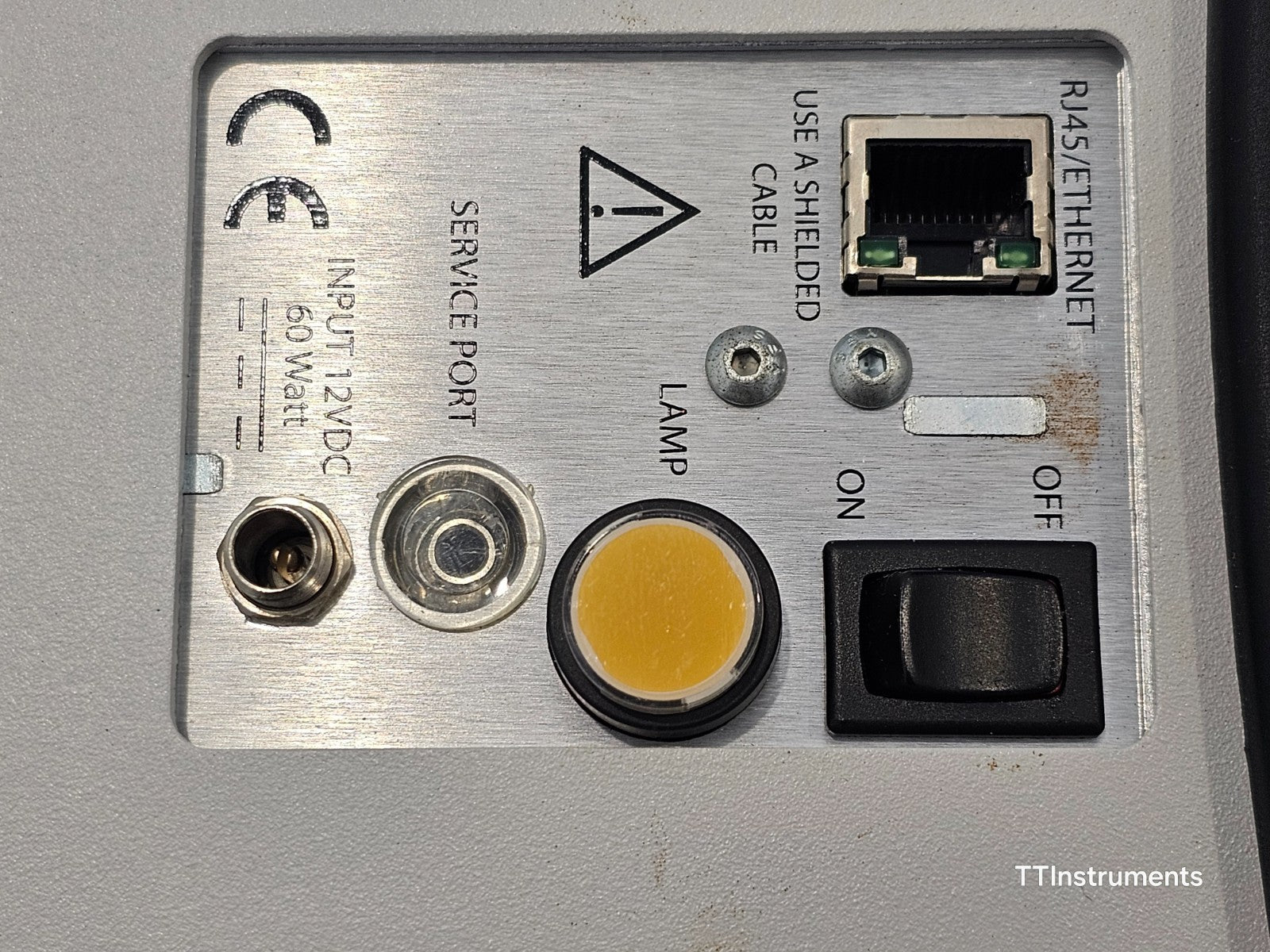

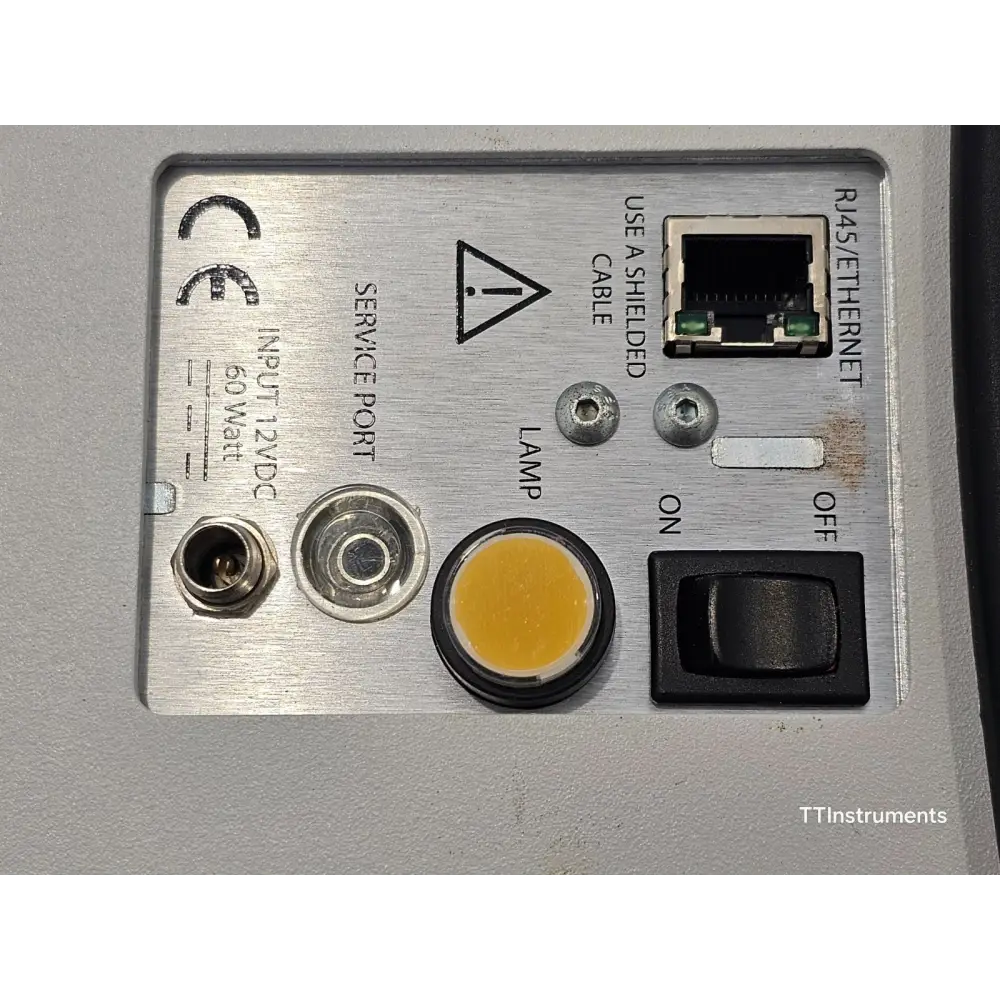

Connectivity: 10/100Base-T Ethernet interface
Fibre Optic Connector: SMA 905 (user-replaceable)
Light Source: Internal halogen lamp
Power: 12V DC Lead Acid Gel Cell battery (up to 9 hours); 90–240VAC 50/60Hz external AC adapter (auto-selecting)
Weight: 12.3 lbs (5.6 kg)
Operating Temperature: 0–40°C
Software: ASD Indico Pro; LabVIEW compatible
Additional Features: Embedded Remote Trigger port; enhanced remote diagnostics; NIR Cooled InGaAs TurboScanner™ technology

ASD Technical Guide (3rd Ed.) — comprehensive spectroradiometry and LabSpec product technical reference: Download PDF

ASD LabSpec 4 Standard-Res product brochure PDF — specifications and application overview (closest current generation datasheet): Download PDF

ASD Accessories User Manual (Document 600544 Rev. C) — contact probe, fibre optic and sampling accessory guide: Download PDF
