Condition: Used

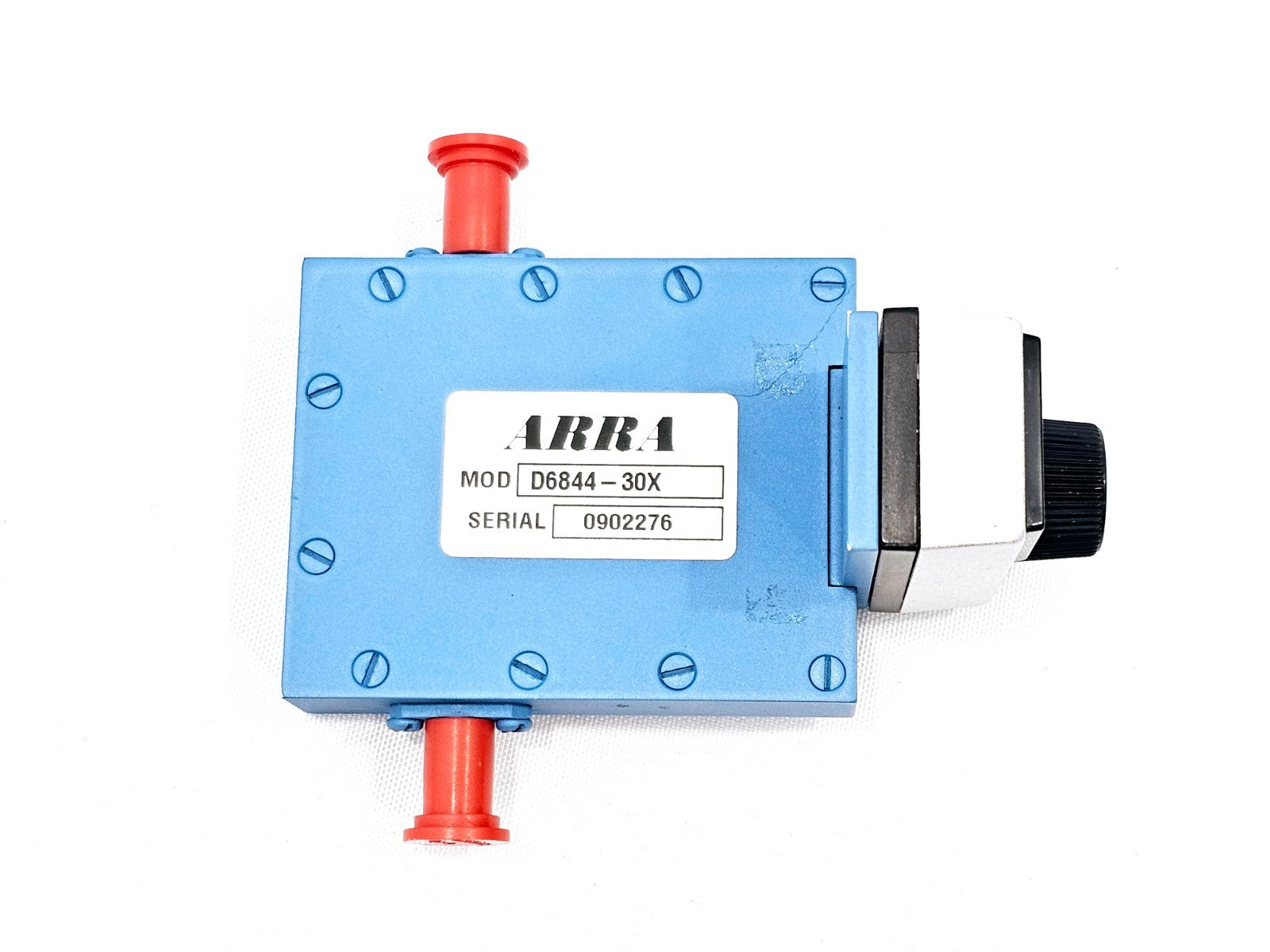

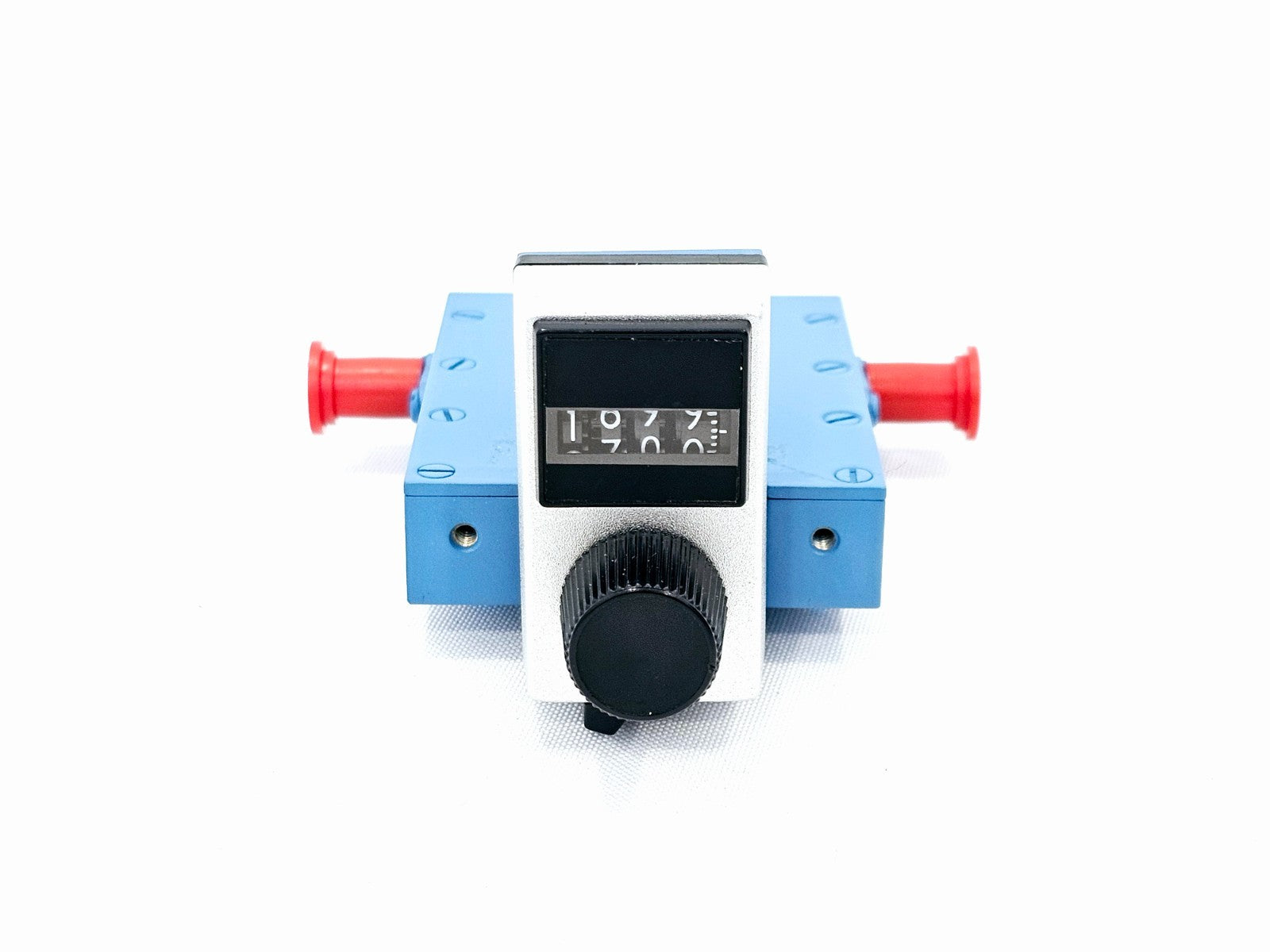

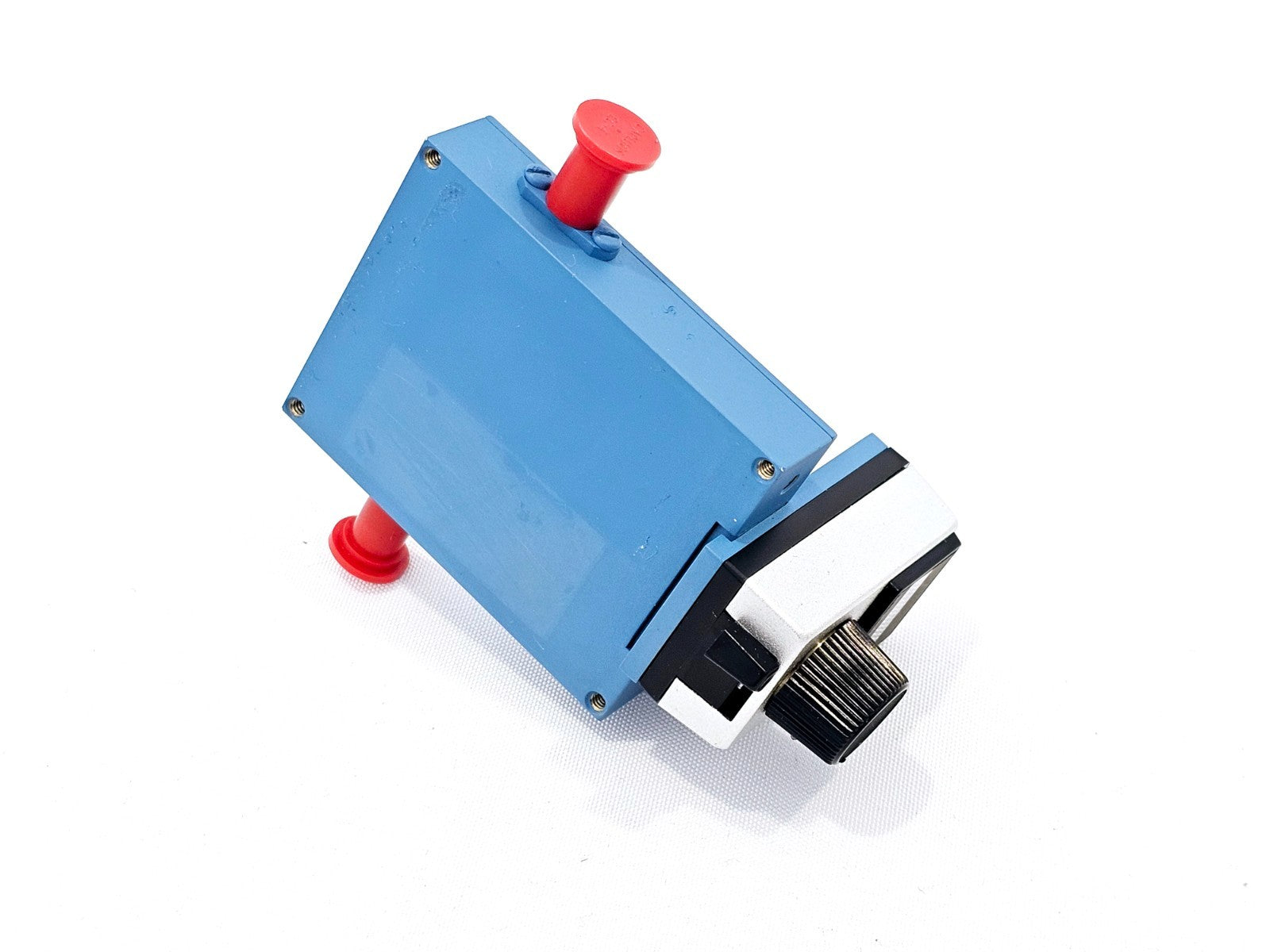

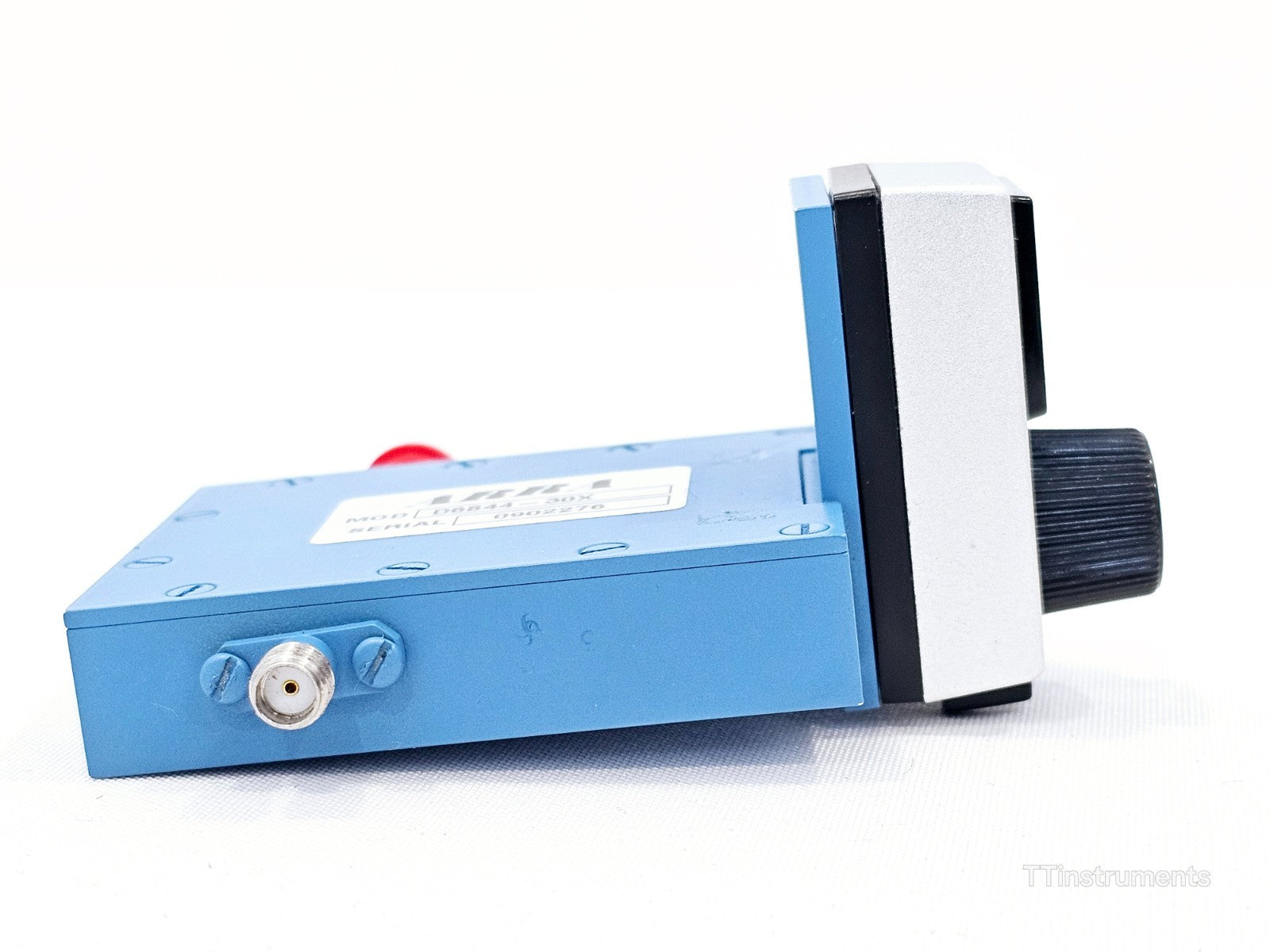

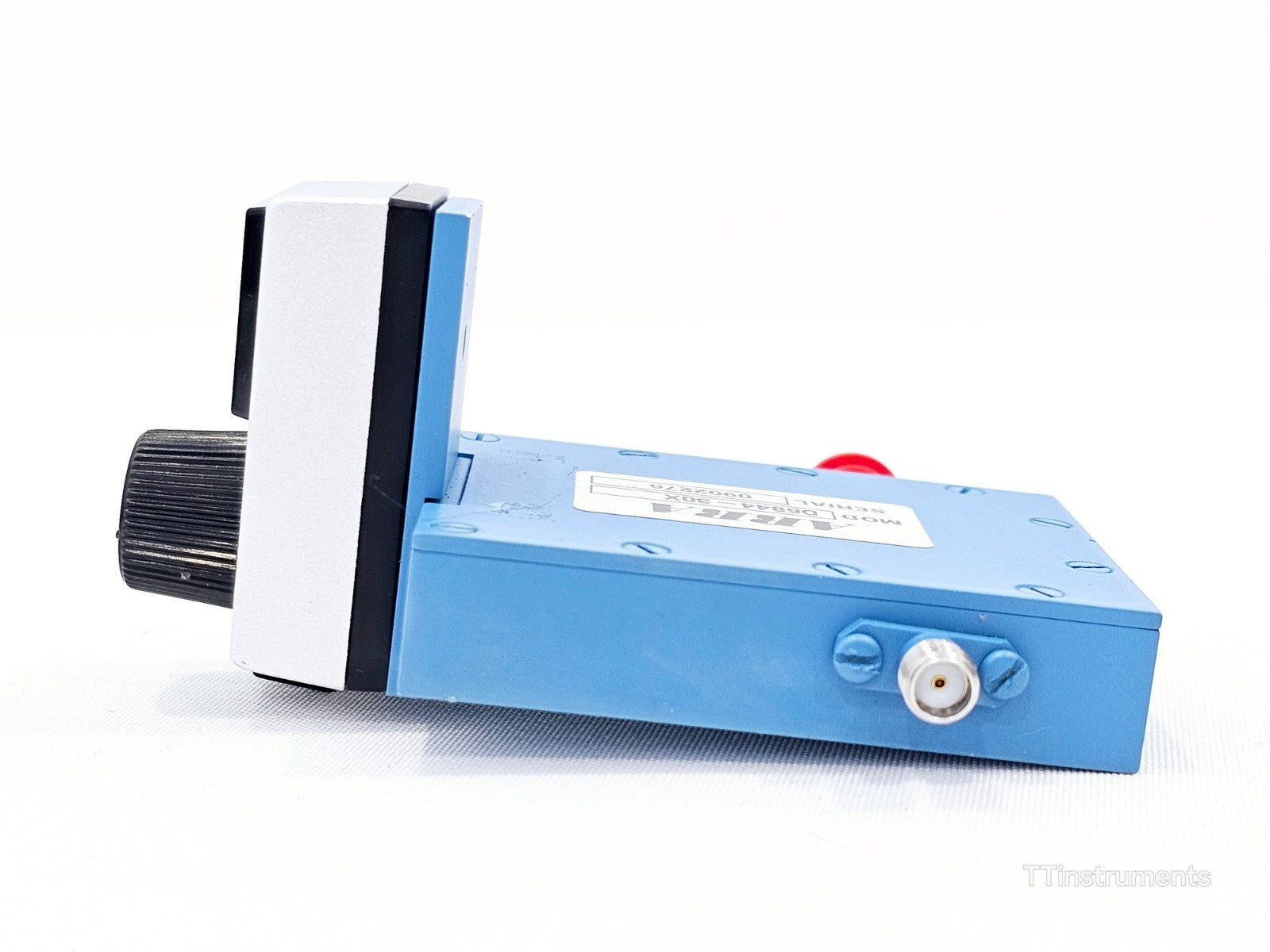

The ARRA D6844-30X is a used mid-size continuously variable attenuator in excellent condition. It covers 7.0–11.0 GHz with a 30 dB attenuation range, 0.50 dB maximum insertion loss, and a maximum VSWR of 1.50. The standard Form Factor 4061 package features a non-translating 1/4" diameter shaft with lock nut. The 'X' suffix denotes SMA female connectors.

Supplied as pictured. Included items as described:
• ARRA D6844-30X variable attenuator unit

The ARRA D6844-30X is part of ARRA's mid-size continuously variable coaxial attenuator series, covering a frequency range of 0.5 to 18 GHz across the product family. The D6844 series specifically covers 7.0 to 11.0 GHz. ARRA (Antenna & Randome Research Associates) has been a global innovator in designing and manufacturing coaxial and waveguide components for over 60 years, supplying commercial and military customers worldwide.

Attenuation is achieved in a non-contacting manner using ARRA's proprietary dissipative materials, providing wear-free performance and high reliability. Units operate over extremely wide temperature ranges with little change in attenuation characteristics. The standard Form 4061 package is ideal for applications where attenuation can be set, then locked and left for long periods. Panel-mount (P prefix), turns-counting (T prefix), and digital counter (D prefix) variants are also available.

The D6844-30X is a level-set model qualified for military applications. Full attenuation is achieved in less than 20 turns of the 1/4" shaft.

Key Specifications:
Frequency Range: 7.0–11.0 GHz
Attenuation Range: 30 dB
Insertion Loss (Max): 0.50 dB
VSWR (Max): 1.50:1
Attenuation Resettability: 0.1 dB or better
Average Power Rating: 3 W
Peak Power Rating: 3 kW
Connectors: SMA female (X suffix)
Operating Temperature: -55 to +85°C
Standard Form Factor: 4061
Shaft: Non-translating 1/4" diameter with lock nut
Full Attenuation Turns: Less than 20
Military Qualification: Qualified for all types of military applications
Quality Standard: MIL-Q-9858A and MIL-I-45208

Typical applications include laboratory bench use, system integration testing, radar and electronic warfare signal chain development, satellite communications, and any X-band RF/microwave application requiring precise, repeatable signal level control.

Please refer to the manufacturers website for more information.
