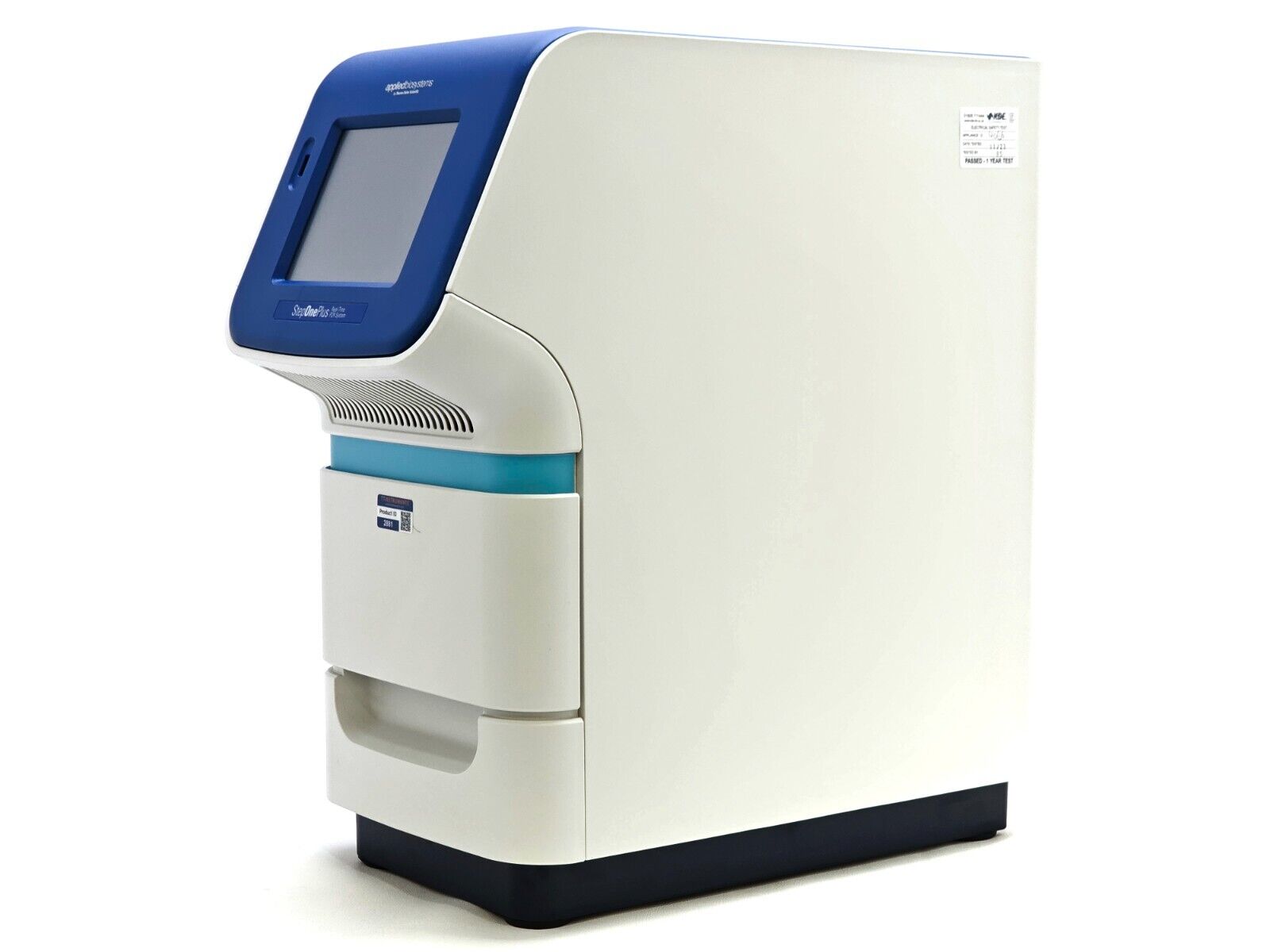

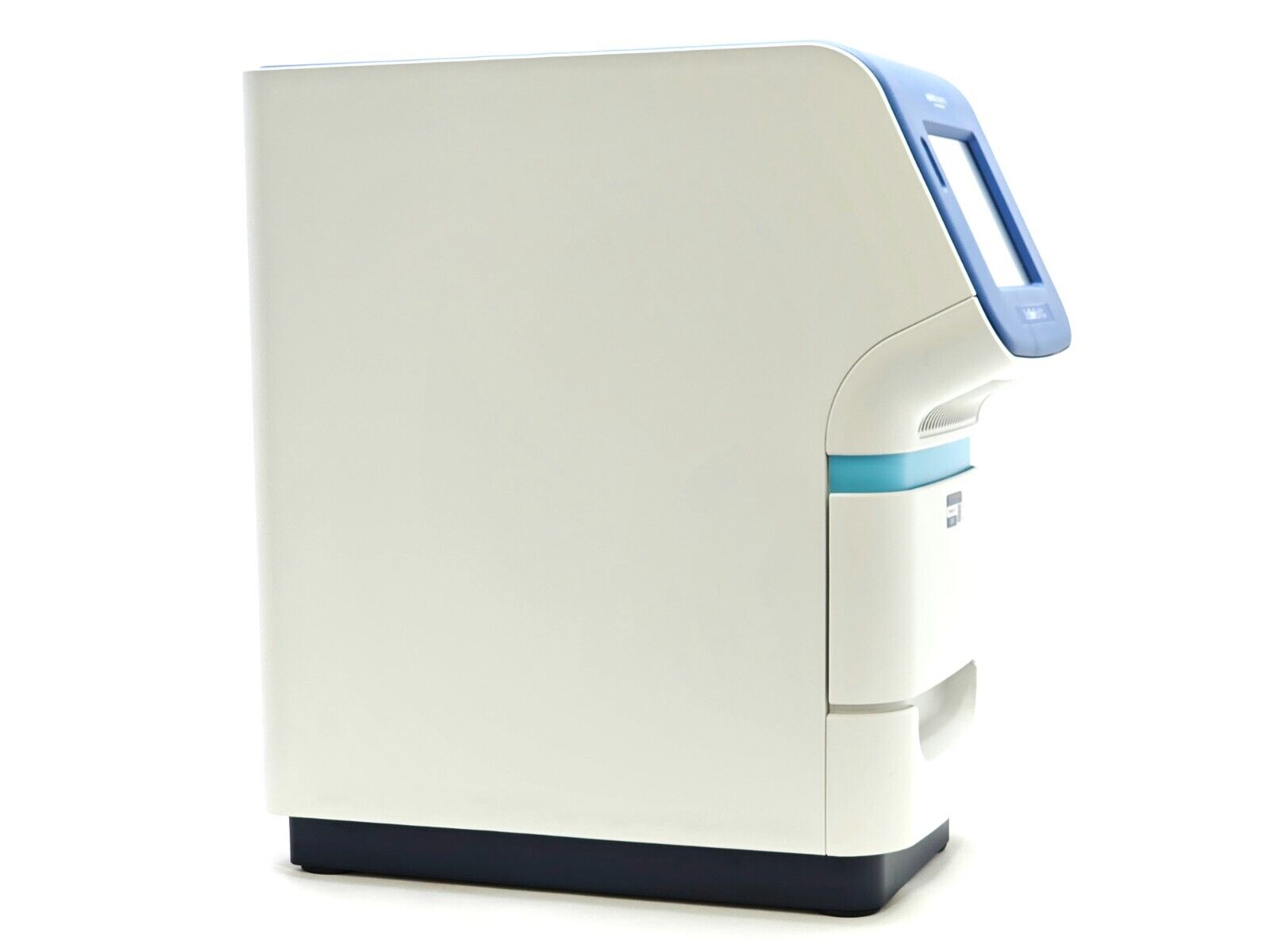

Applied Biosystems StepOnePlus Real-Time PCR System 96-Well 4376592 MFD 2020

Condition: Used

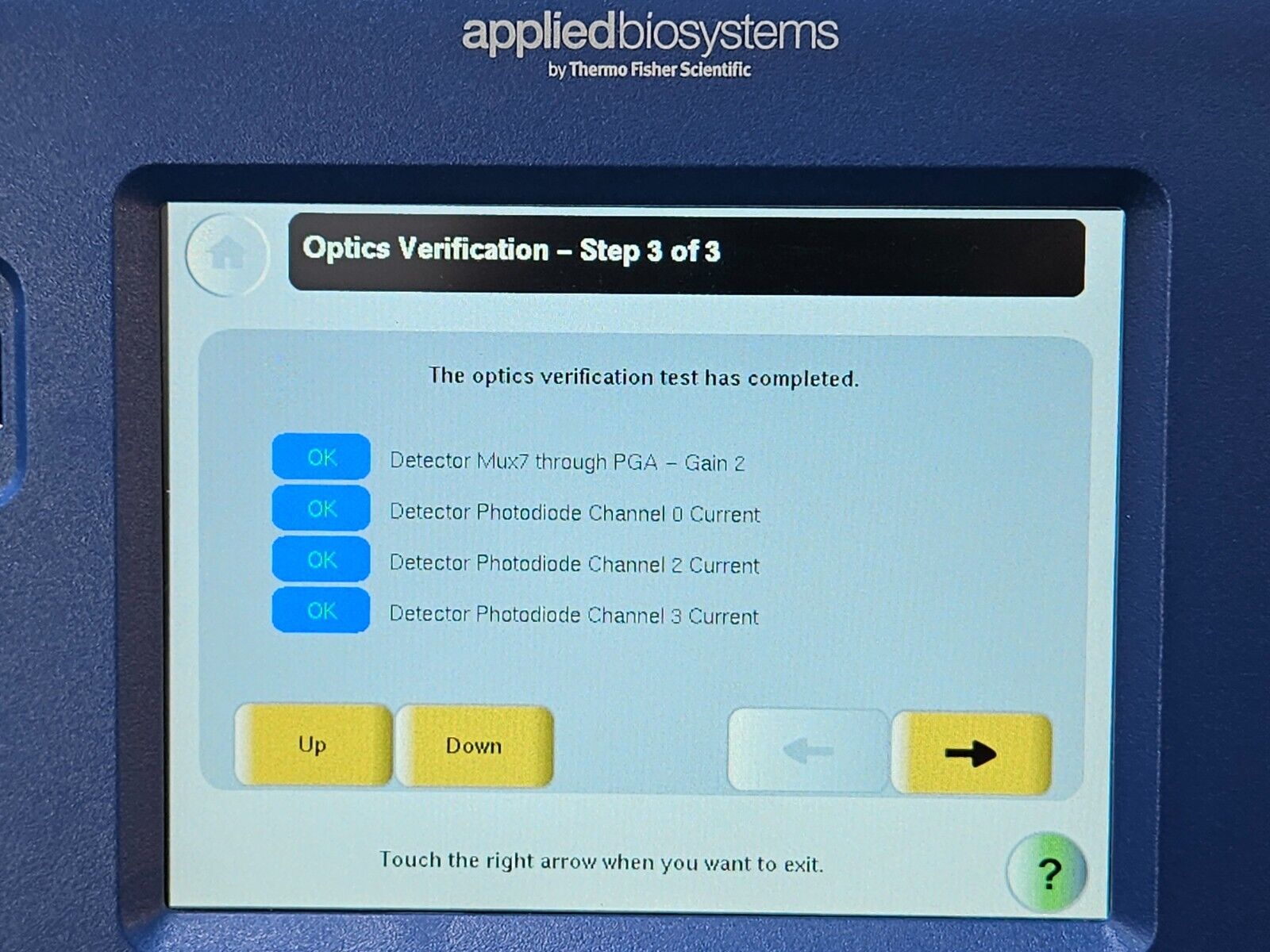

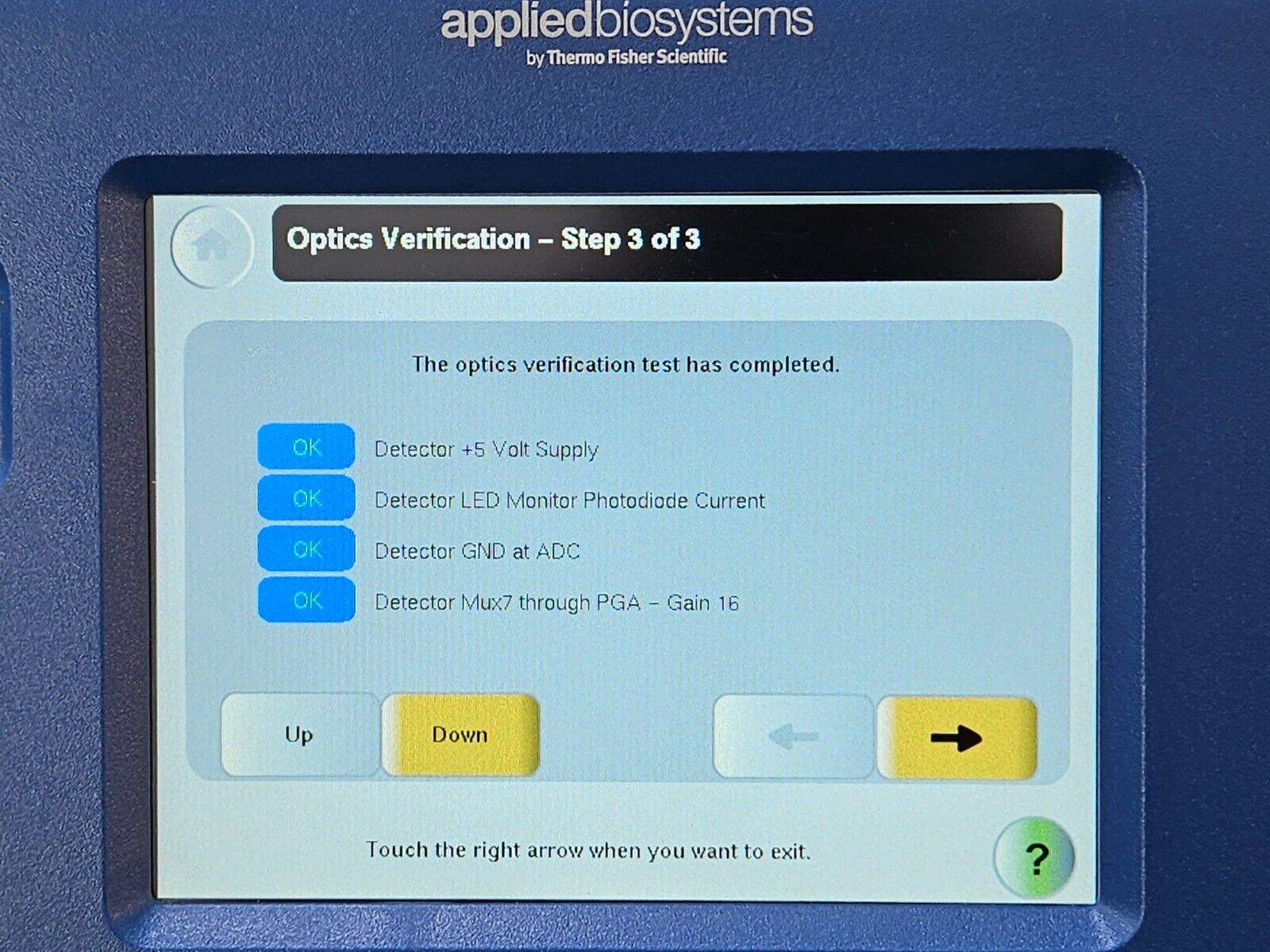

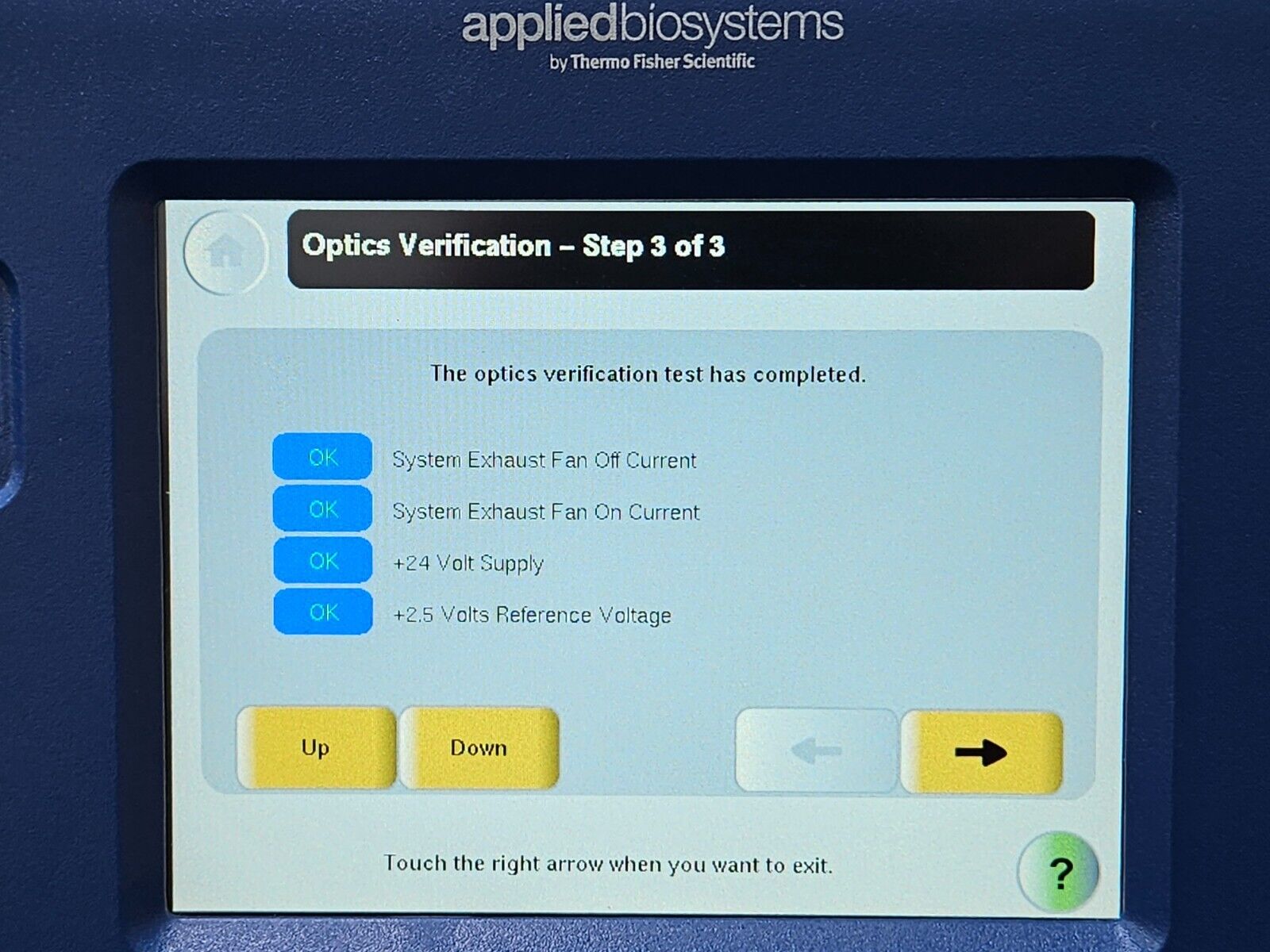

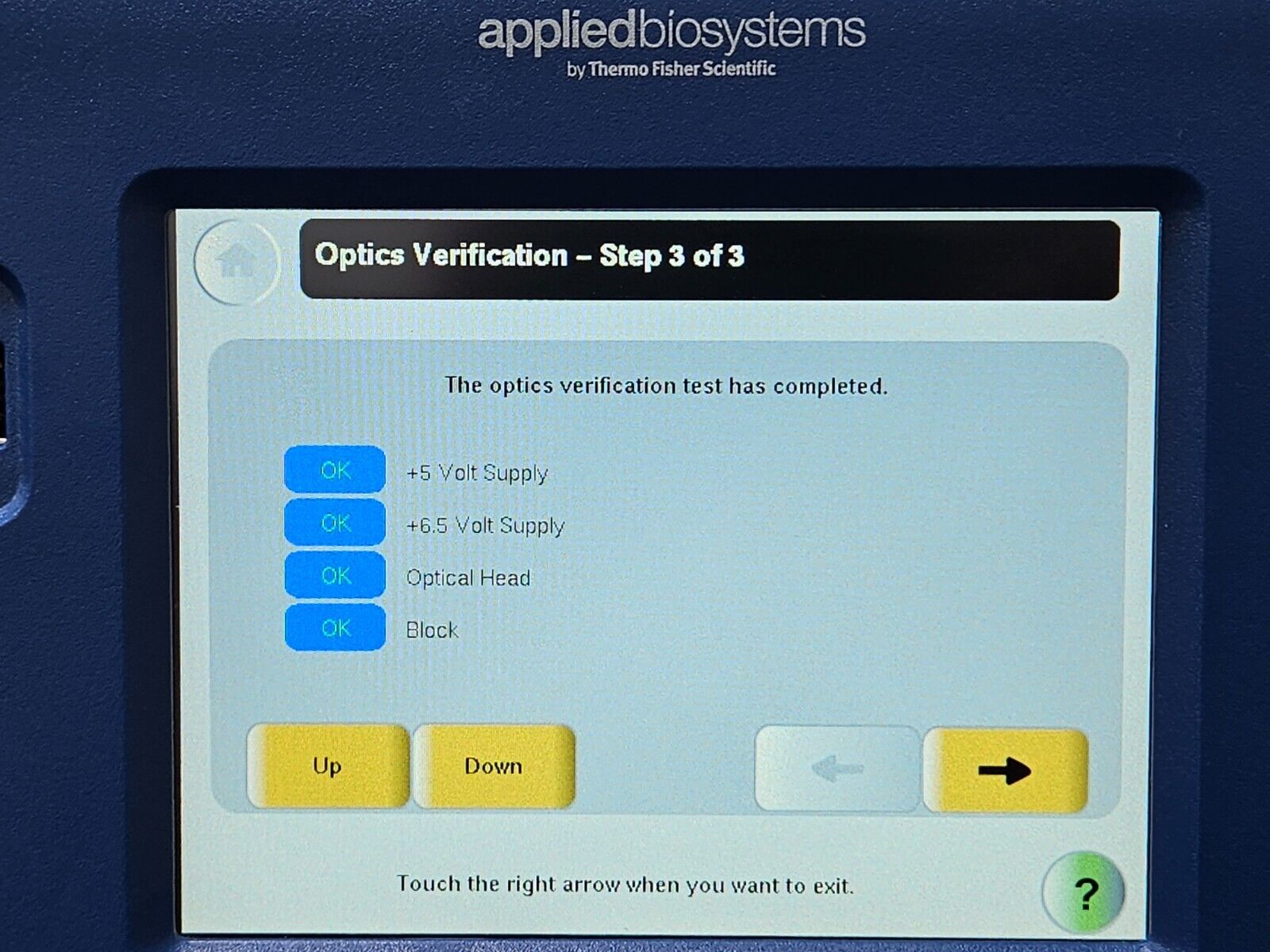

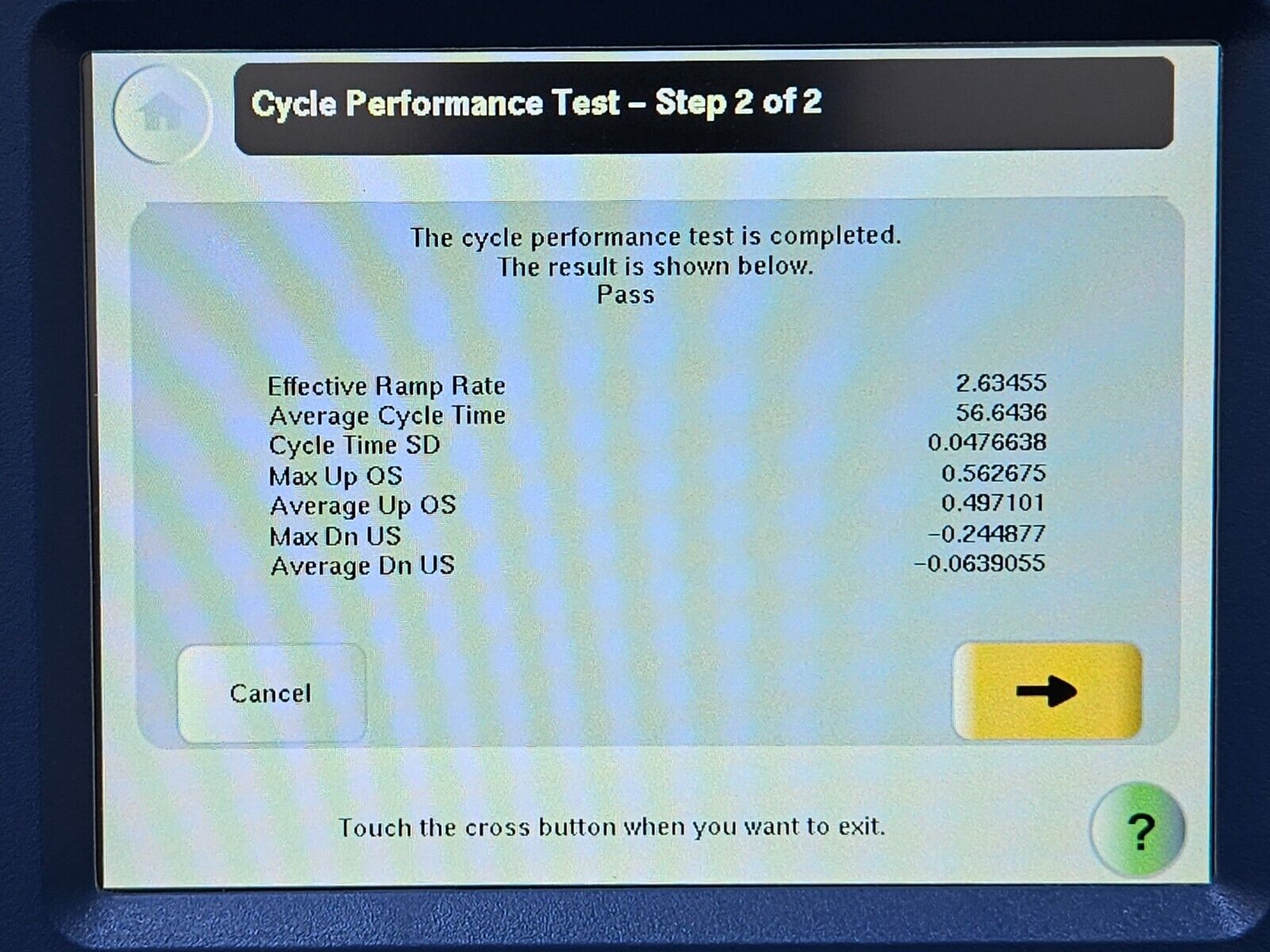

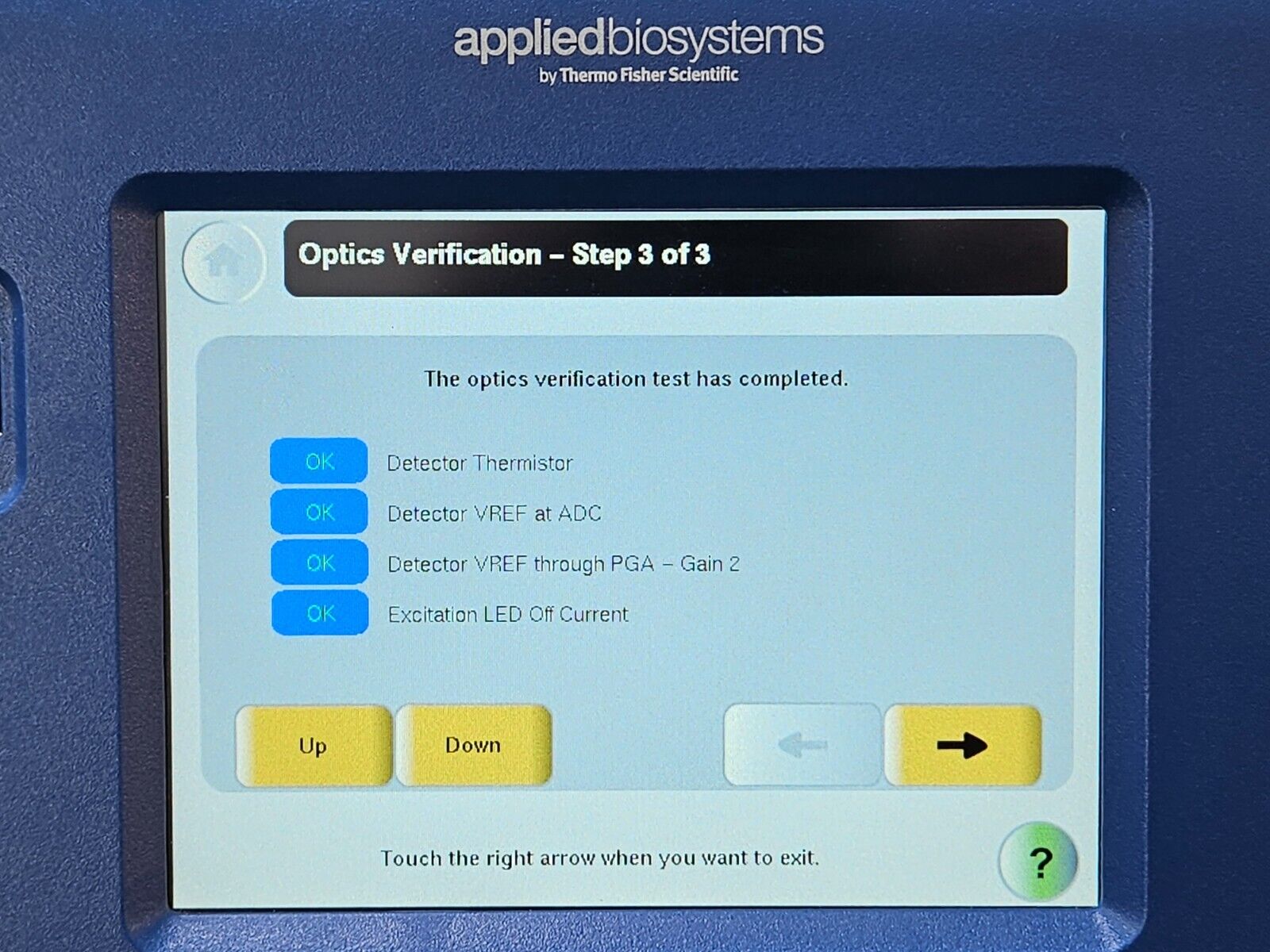

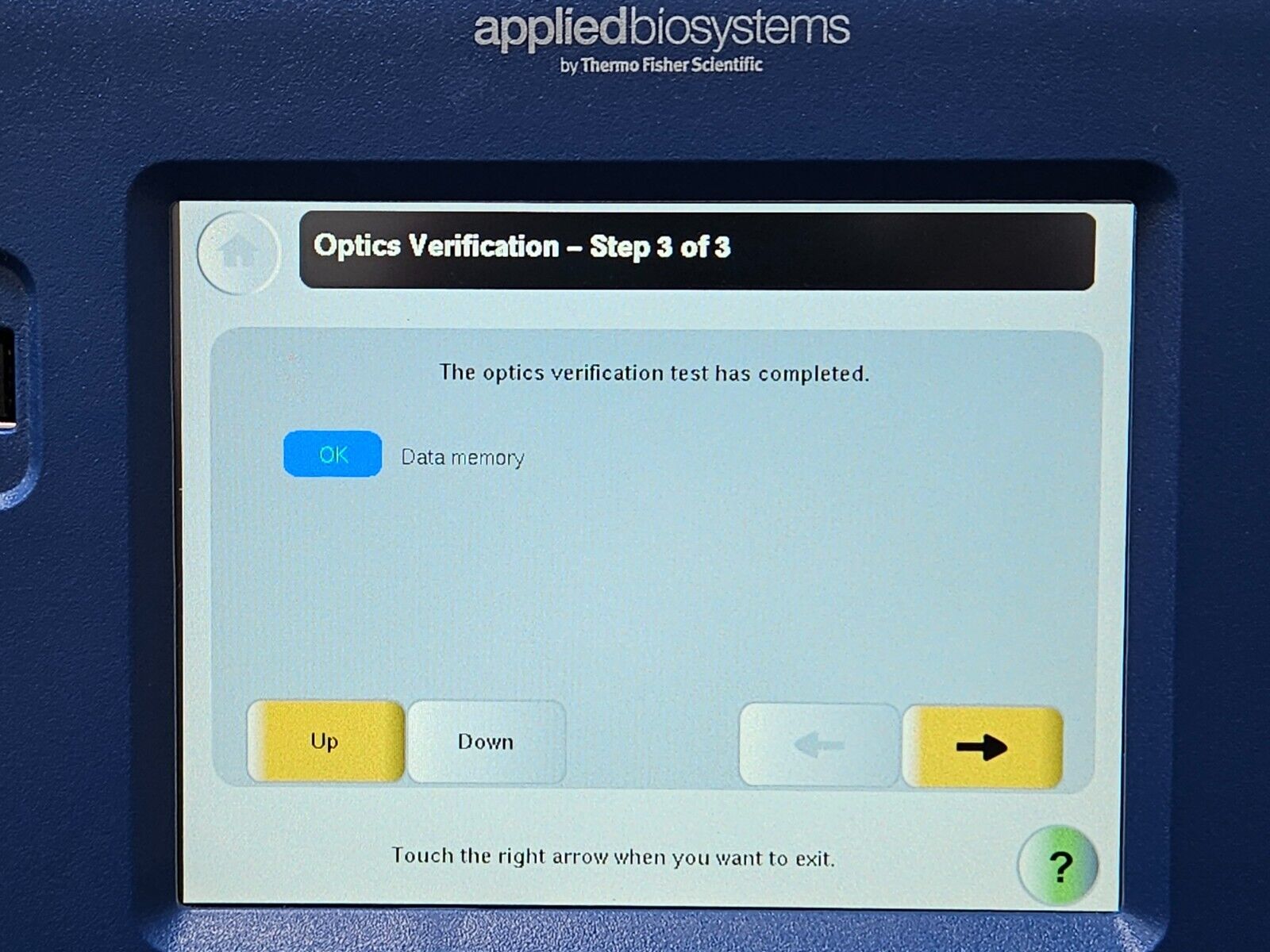

This Applied Biosystems StepOnePlus 96-well real-time PCR system (cat. no. 4376592) was manufactured in 2020 and is in excellent condition — tested and working. Sourced from a laboratory closure and supplied with cycle performance test results and optical verification test results.

What's included:

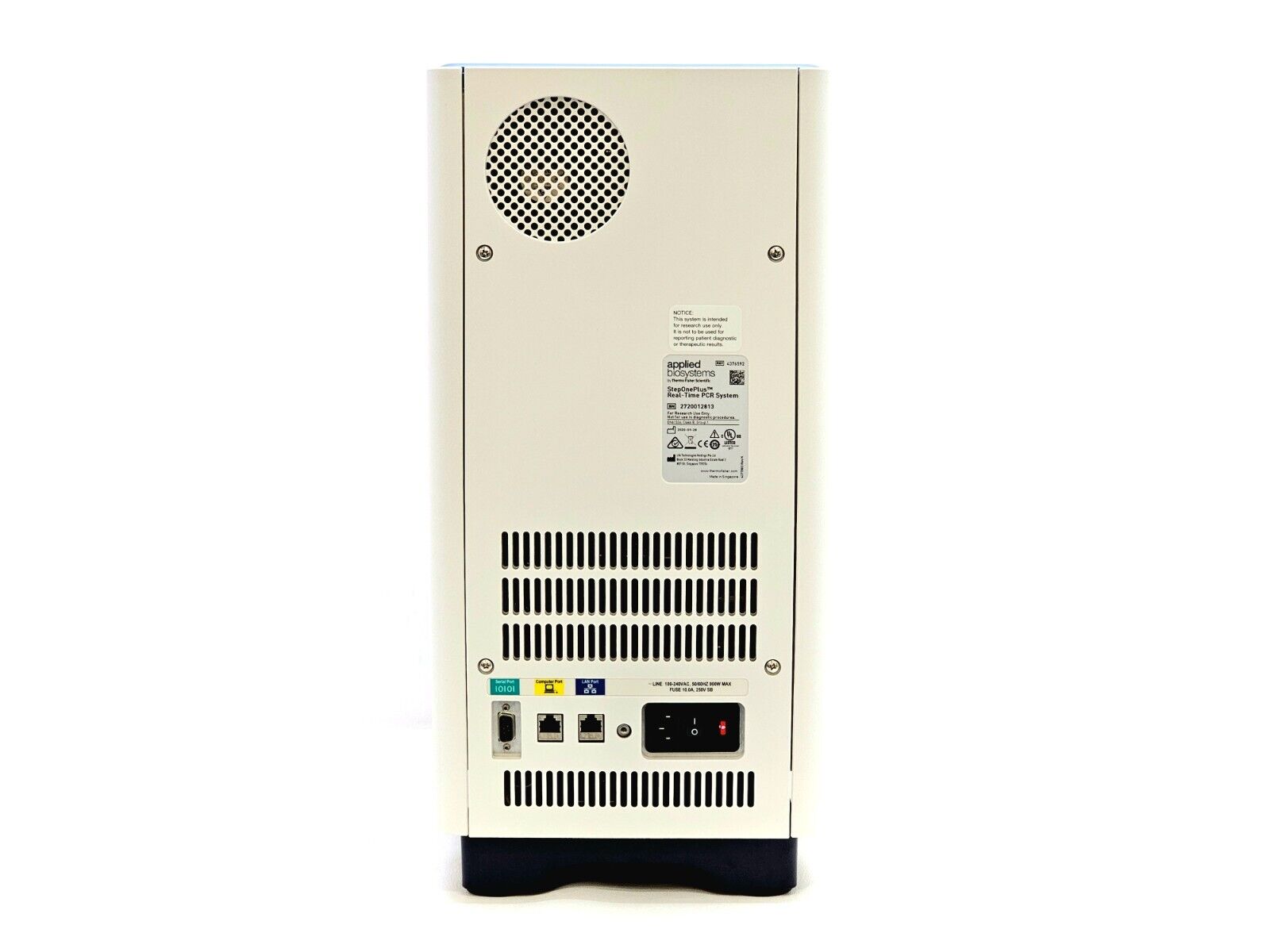

• StepOnePlus 96-well Real-Time PCR System
• Latest StepOne PC software on USB stick

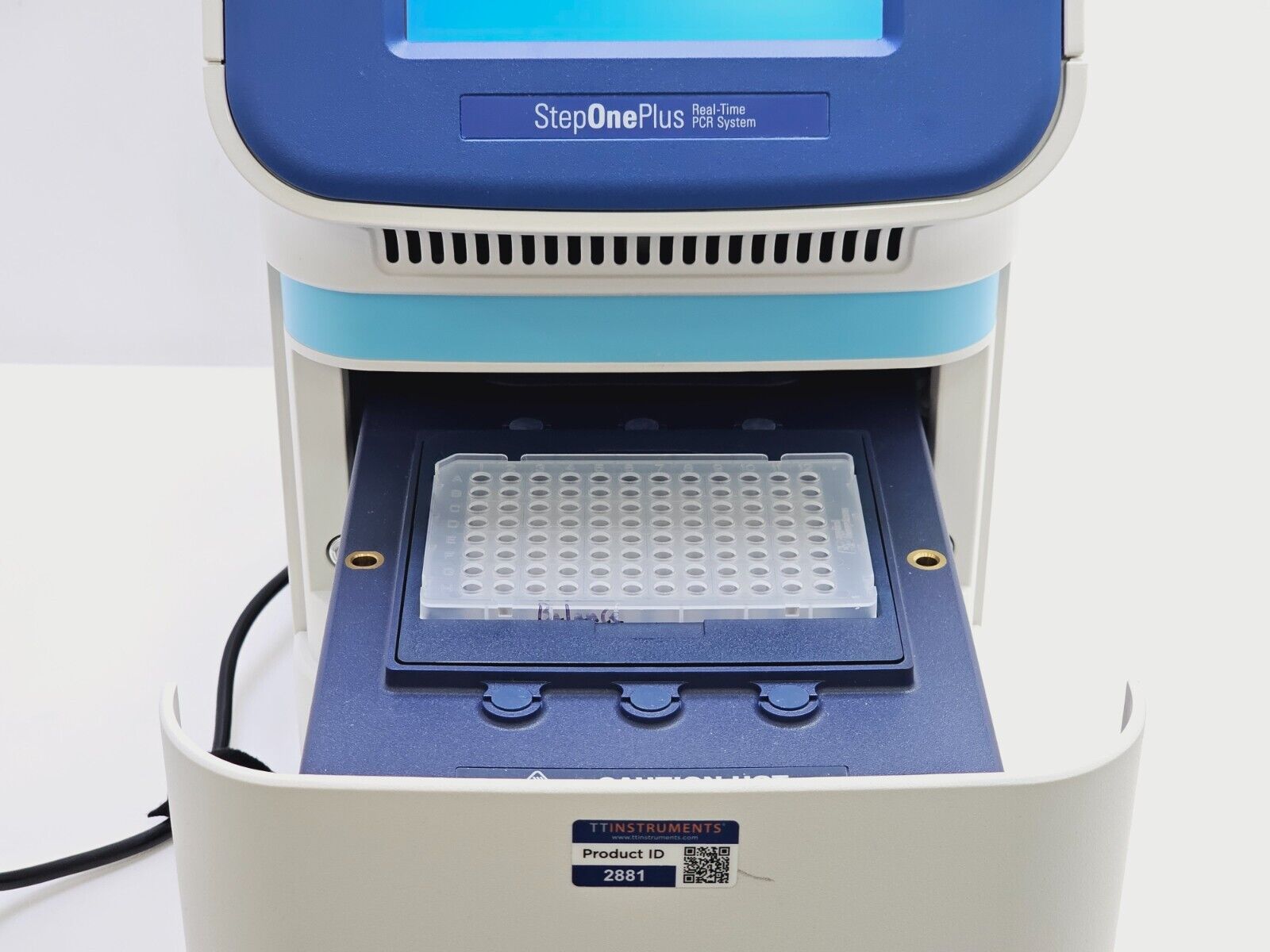

• 1x empty reaction plate
• 1x LAN cable (for PC connectivity)
• 1x power lead

The Applied Biosystems StepOnePlus Real-Time PCR System is a 96-well quantitative PCR instrument designed to deliver precise, quantitative real-time PCR results for a wide variety of genomic research applications. Suitable for both novice and experienced users, the system is factory-calibrated for optical and thermal accuracy and ships ready to use out of the box.

The StepOnePlus utilises a long-life LED-based 4-colour optical system capable of recording fluorescence from FAM/SYBR Green, VIC/JOE, NED/TAMRA, and ROX dyes. It can discriminate between two populations of 5,000 and 10,000 template copies of a TaqMan assay with 99.7% confidence and features a linear dynamic range of greater than 9 log units with single-copy sensitivity.

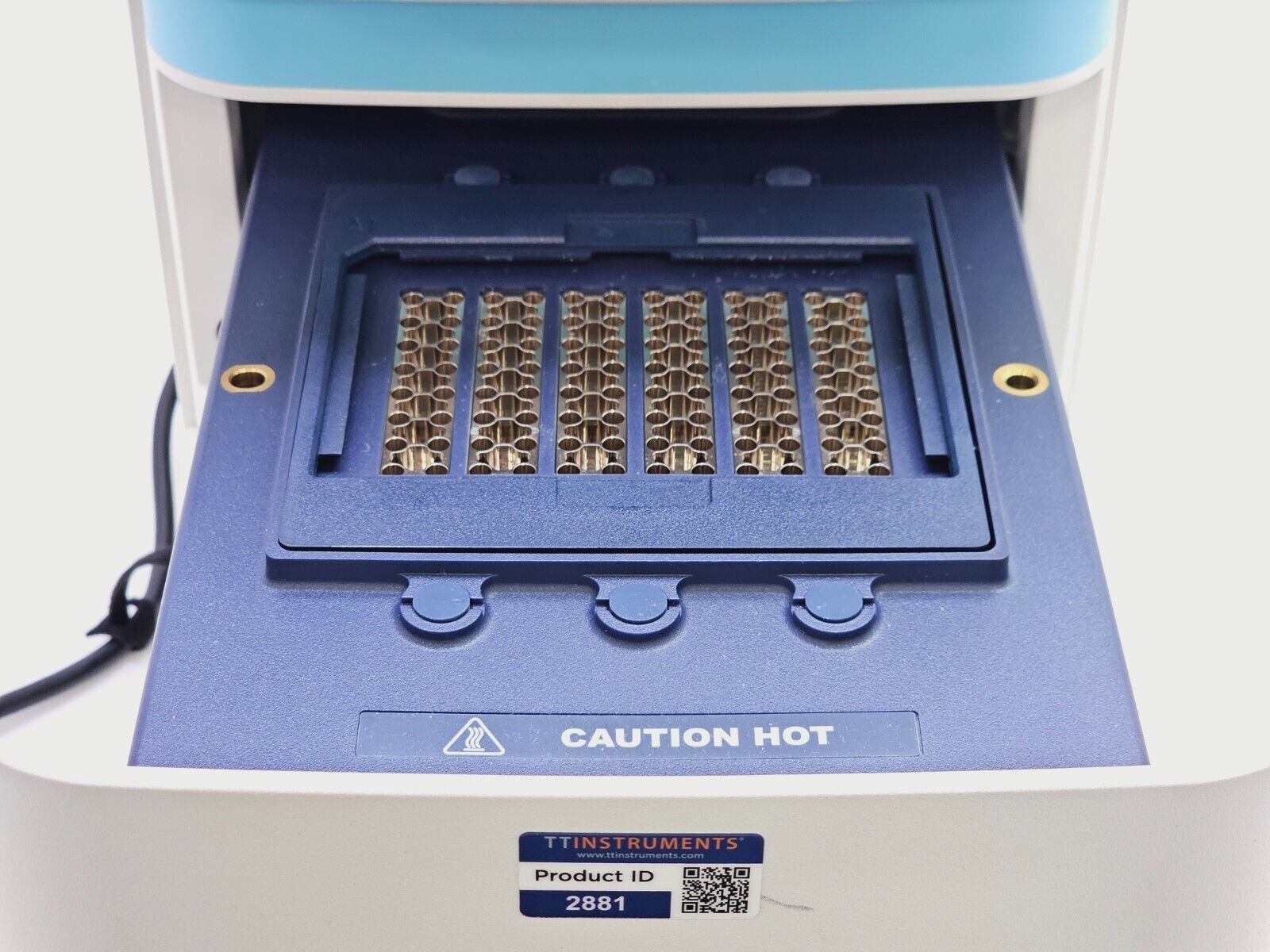

The VeriFlex Block technology provides 6 independently controllable thermal zones across the 96-well block, enabling convenient PCR optimisation without additional instruments. The system supports both Fast (<40 min) and Standard (<2 hr) run modes and can be operated standalone (PC-free), connected directly to a PC, or via a networked LAN connection.

The included StepOne Software provides full instrument control, data collection, and analysis, including High Resolution Melt (HRM) analysis, and supports export in RDML format for MIQE guideline compliance.

Supported Applications:
Gene Expression Analysis (Comparative Ct and Standard Curve)
SNP Genotyping
Presence/Absence Detection
MicroRNA Expression
Viral Load Analysis
Translocation Analysis
High-Resolution Melt (HRM) Analysis
Relative Standard Curve Analysis

Key Specifications:
Catalogue Number: 4376592
Format: 96-well plate, 8-tube strips, 0.1 ml tubes
Capacity: 96 x 0.1 ml tubes / 12 x 8-tube strips / 1 x 96-well plate
Reaction Volume Range: 10–30 µl (up to 40 µl for standard curve experiments)
Sample Ramp Rate: Fast mode ±2.2°C/s; Standard mode ±1.6°C/s
Temperature Range: 4°C to 100°C
Thermal Accuracy: ±0.25°C (35°C to 95°C of display temperature)
Sensitivity: 1 copy
Dynamic Range: >9 log units
Run Time (Fast): <40 minutes (40-cycle PCR)
Run Time (Standard): <2 hours (40-cycle PCR)
Optical System: LED-based, 4-colour fluorescence detection
Supported Dyes: FAM/SYBR Green, VIC/JOE, NED/TAMRA, ROX
Display: LCD touchscreen, 6.5 in VGA (640 x 480), 32K colours
Dimensions: 24.6 cm (W) x 42.7 cm (D) x 51.2 cm (H)
Weight: 53 lbs (approx. 24 kg)

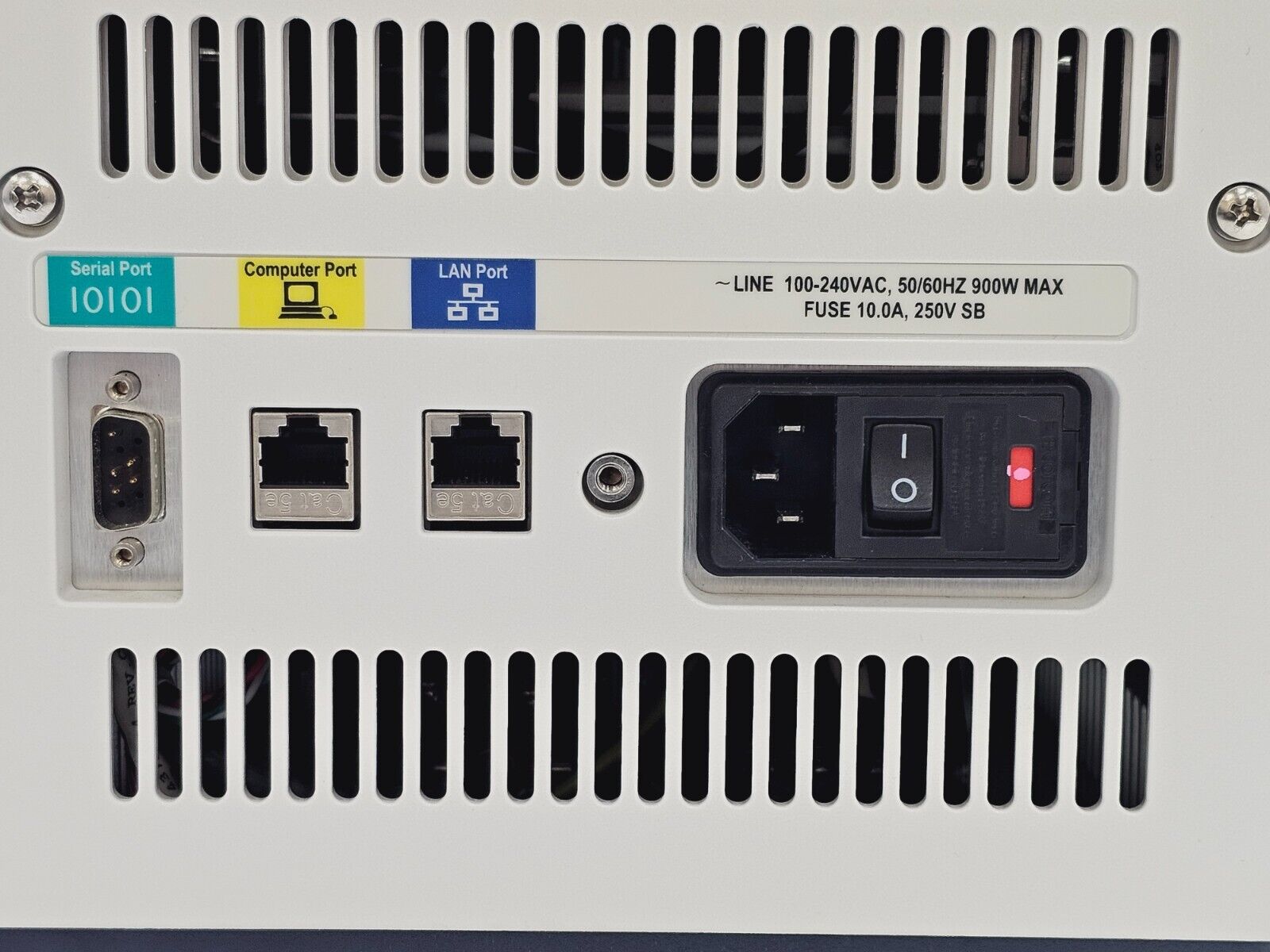

Connectivity: USB, LAN
Operating System: Windows XP / Windows 7 compatible
For Research Use Only. Not for use in diagnostic procedures.

Applied Biosystems StepOne and StepOnePlus Real-Time PCR Systems — Official Product Brochure (Thermo Fisher): Download PDF

Applied Biosystems StepOne and StepOnePlus Real-Time PCR Systems — Product Brochure (gene-quantification.de mirror): Download PDF

Applied Biosystems StepOne and StepOnePlus Real-Time PCR Systems — Installation, Networking and Maintenance Guide (Thermo Fisher): Download PDF

Applied Biosystems StepOne and StepOnePlus Real-Time PCR Systems — Getting Started Guide (Fisher Scientific): Download PDF
