Condition: Used

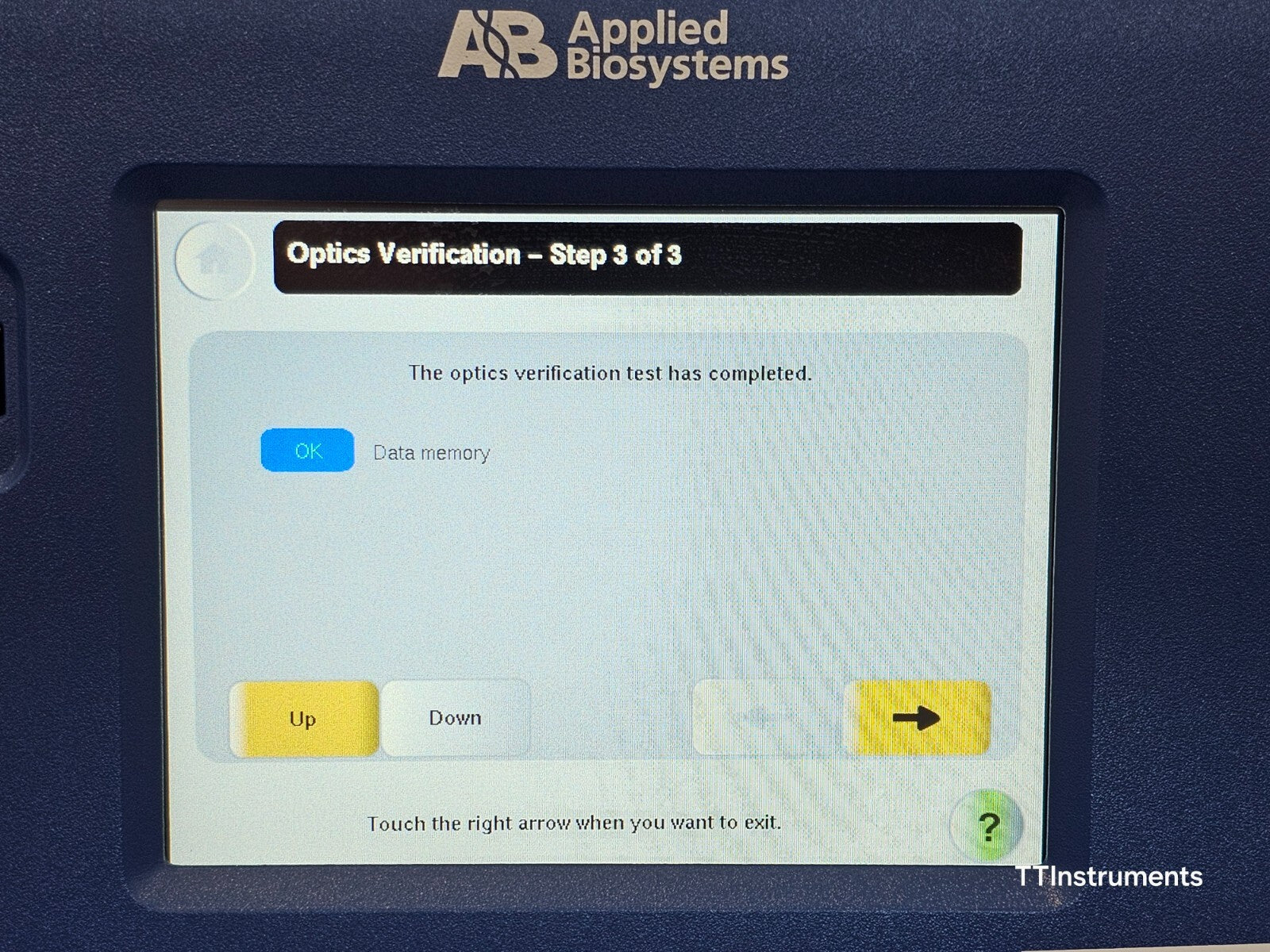

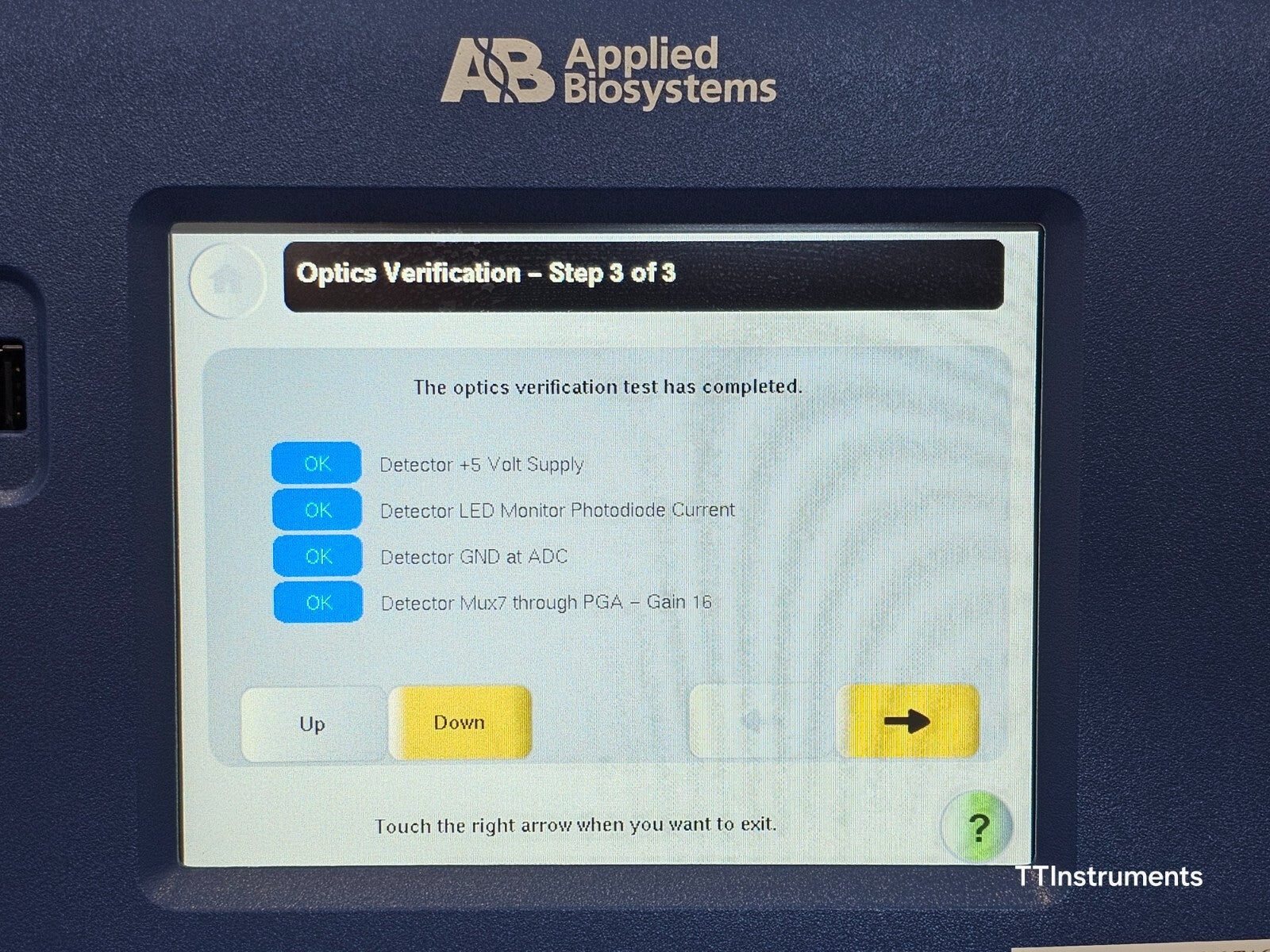

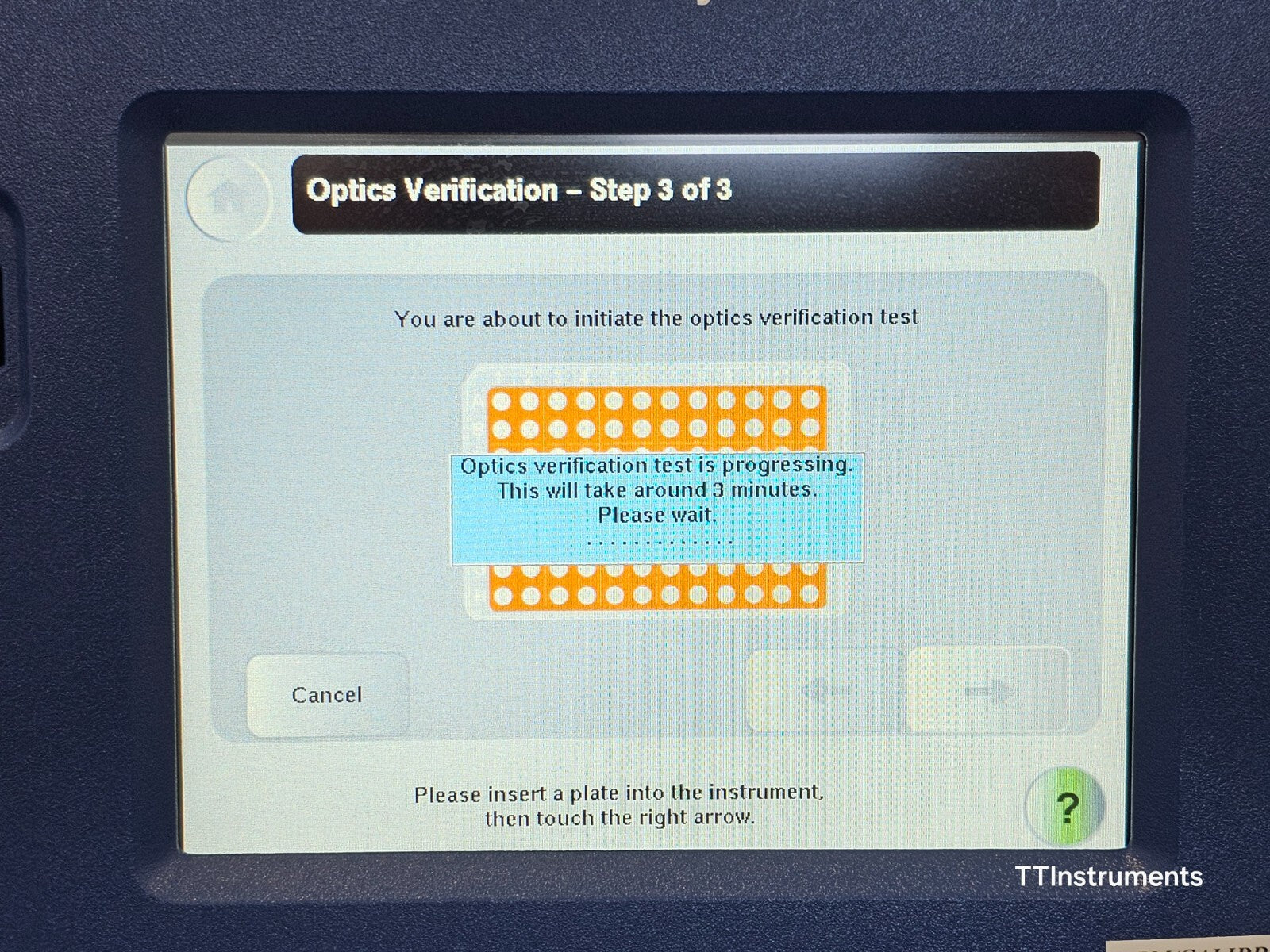

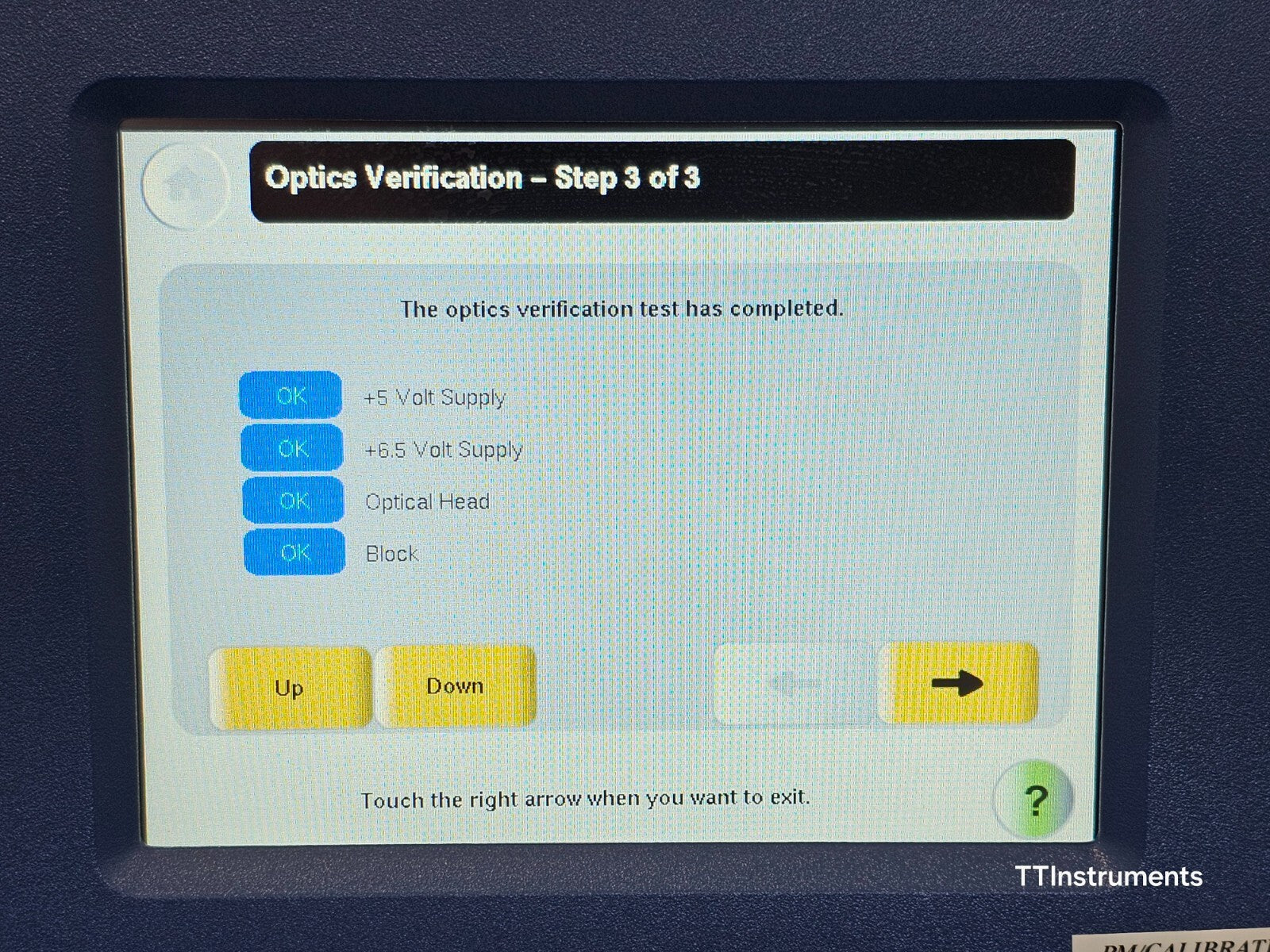

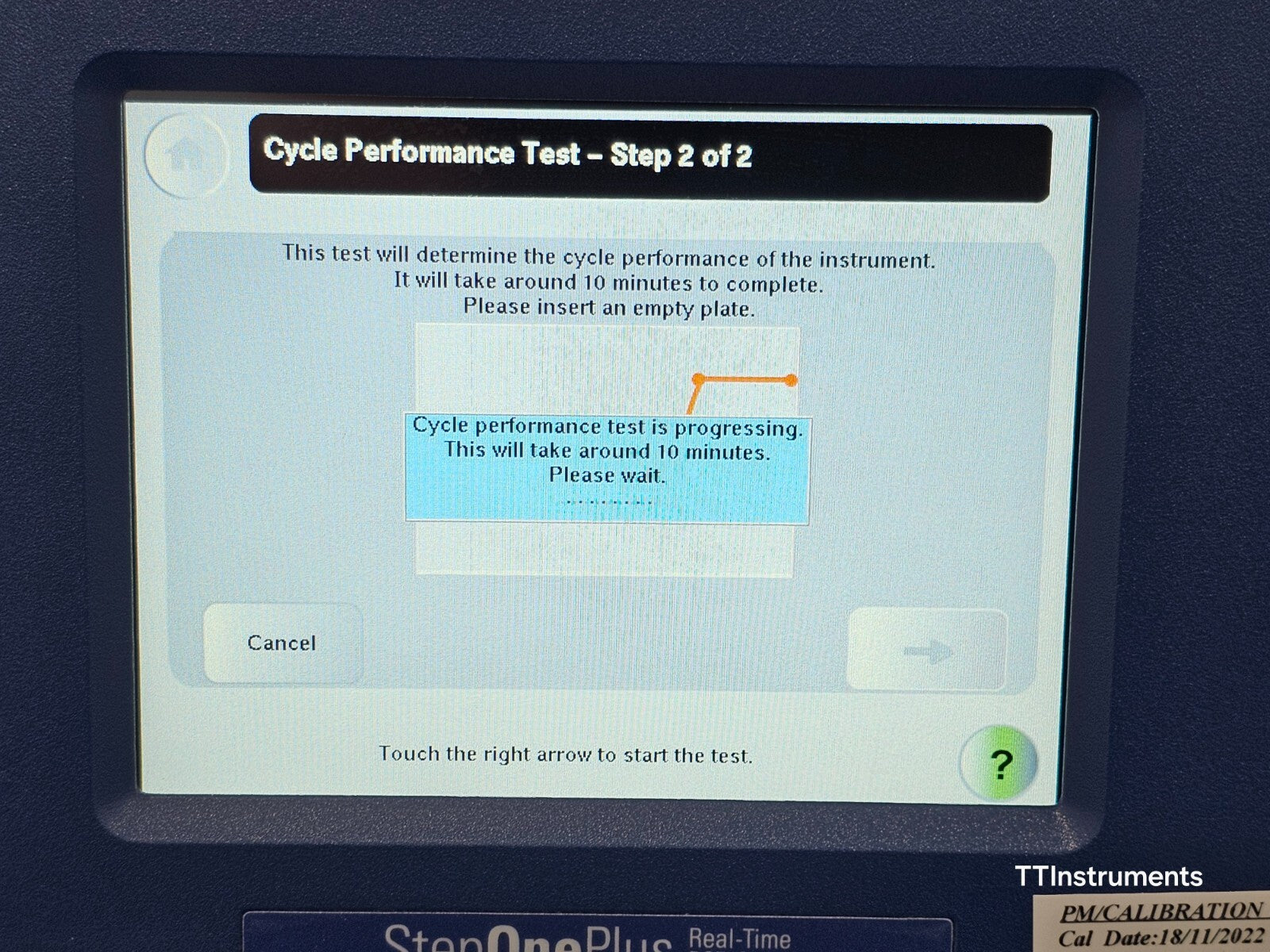

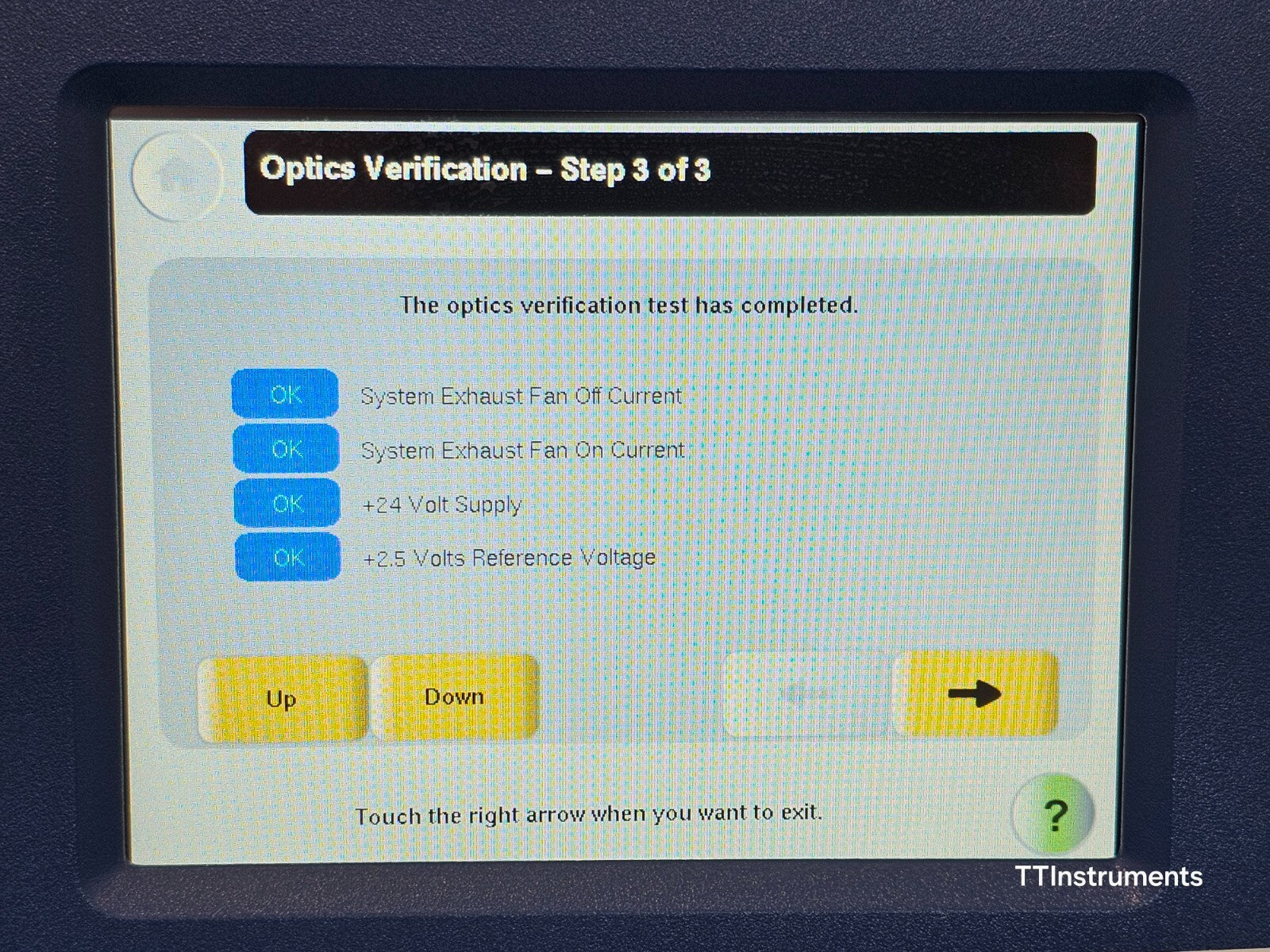

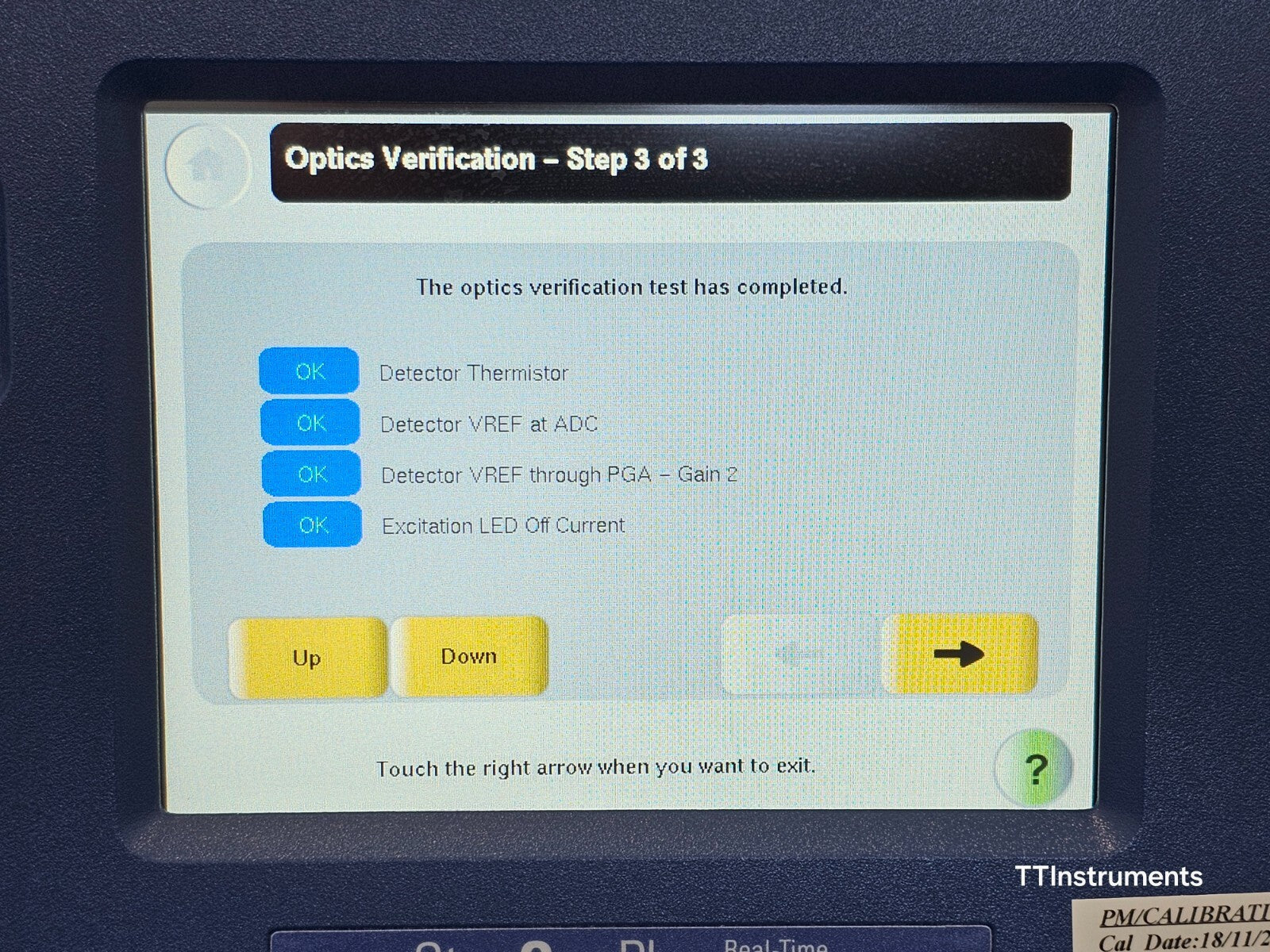

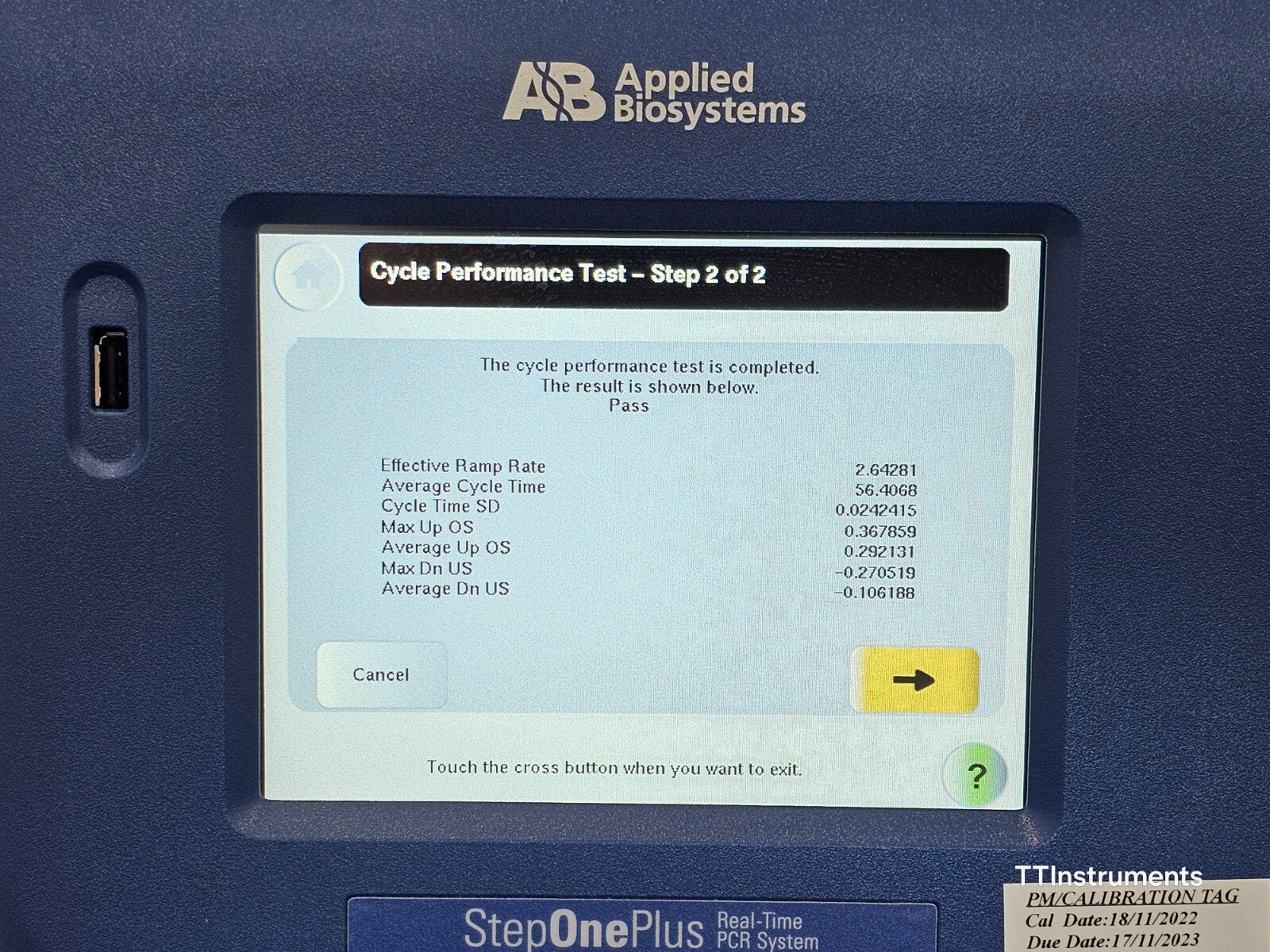

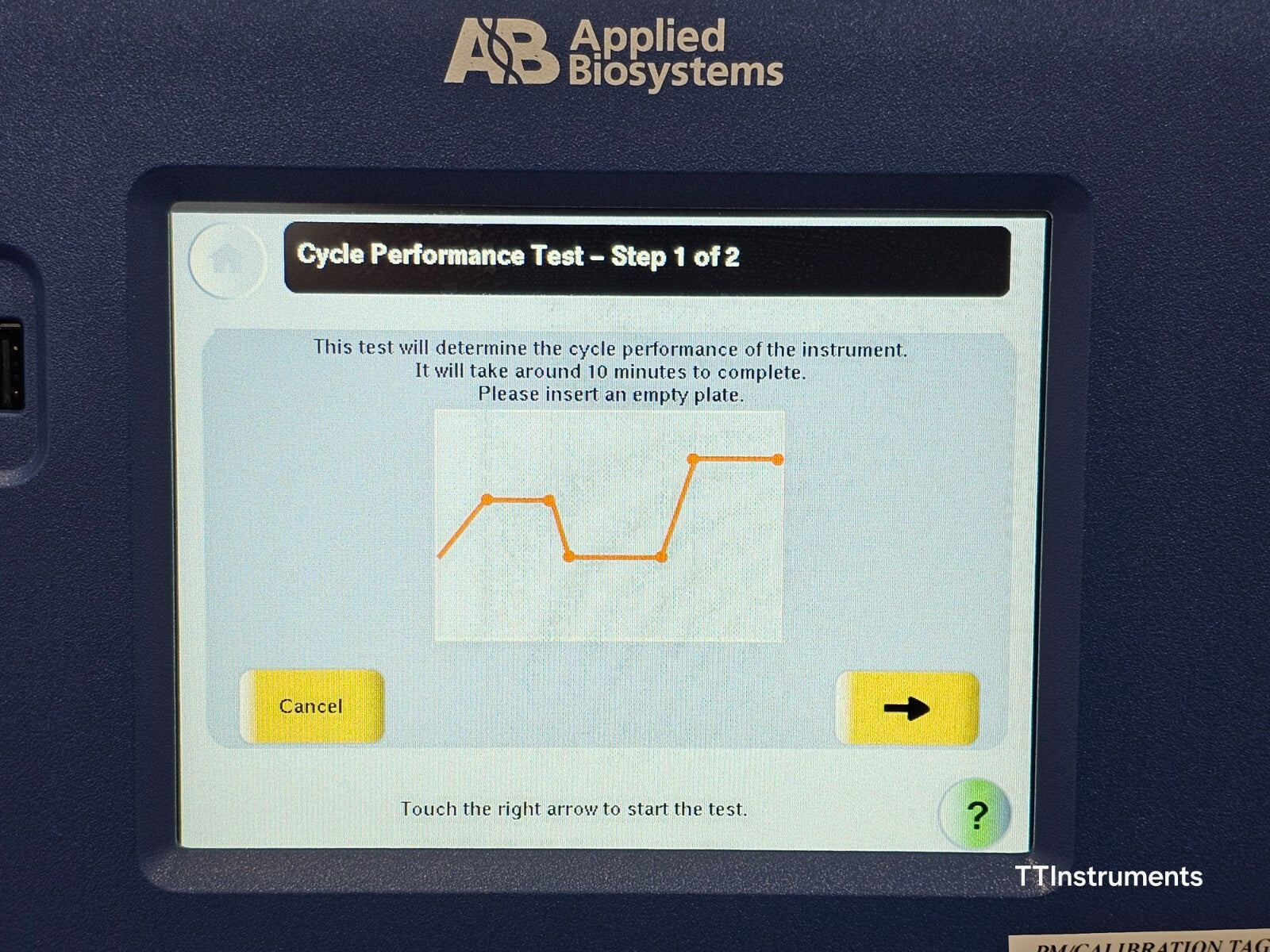

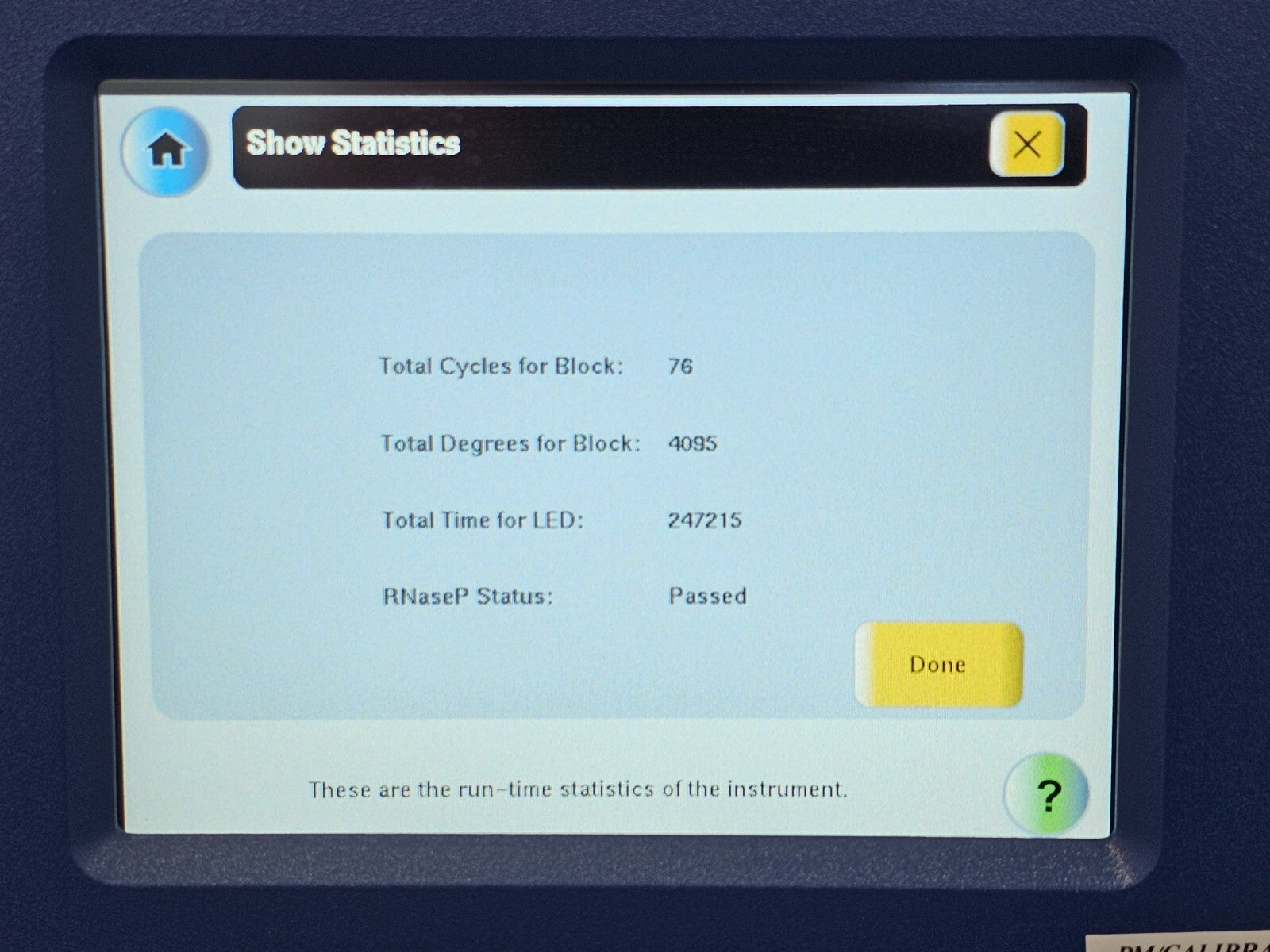

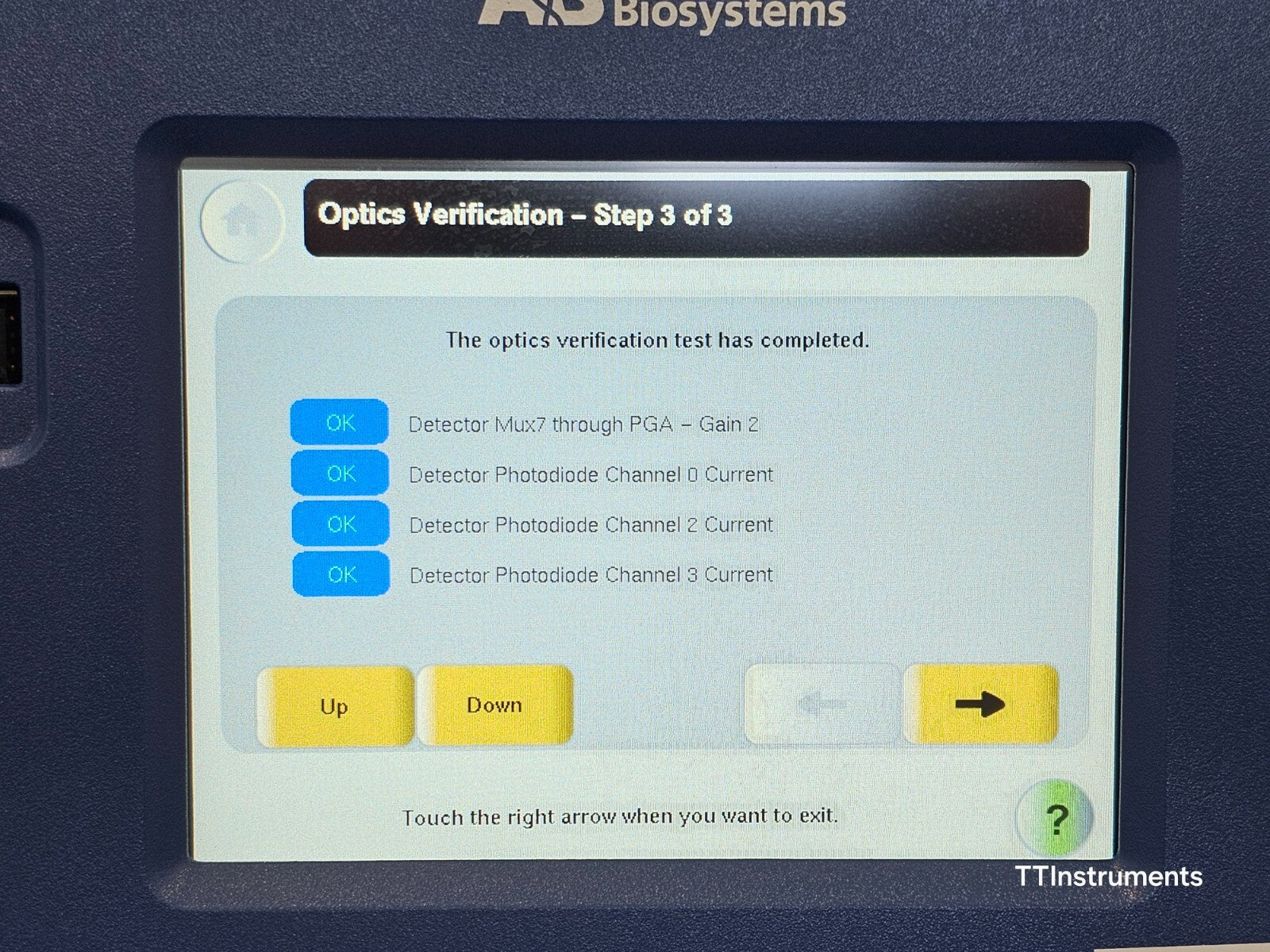

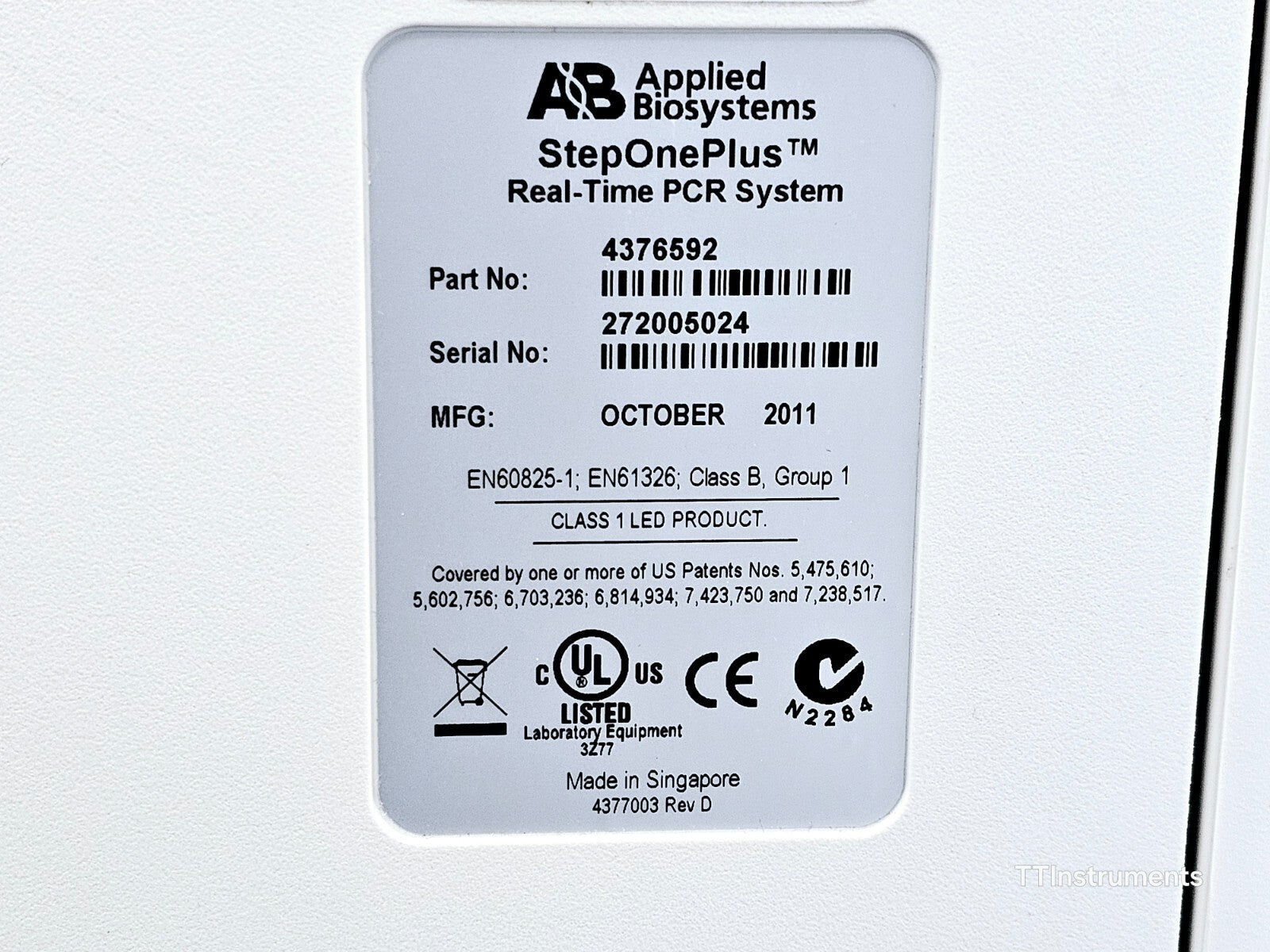

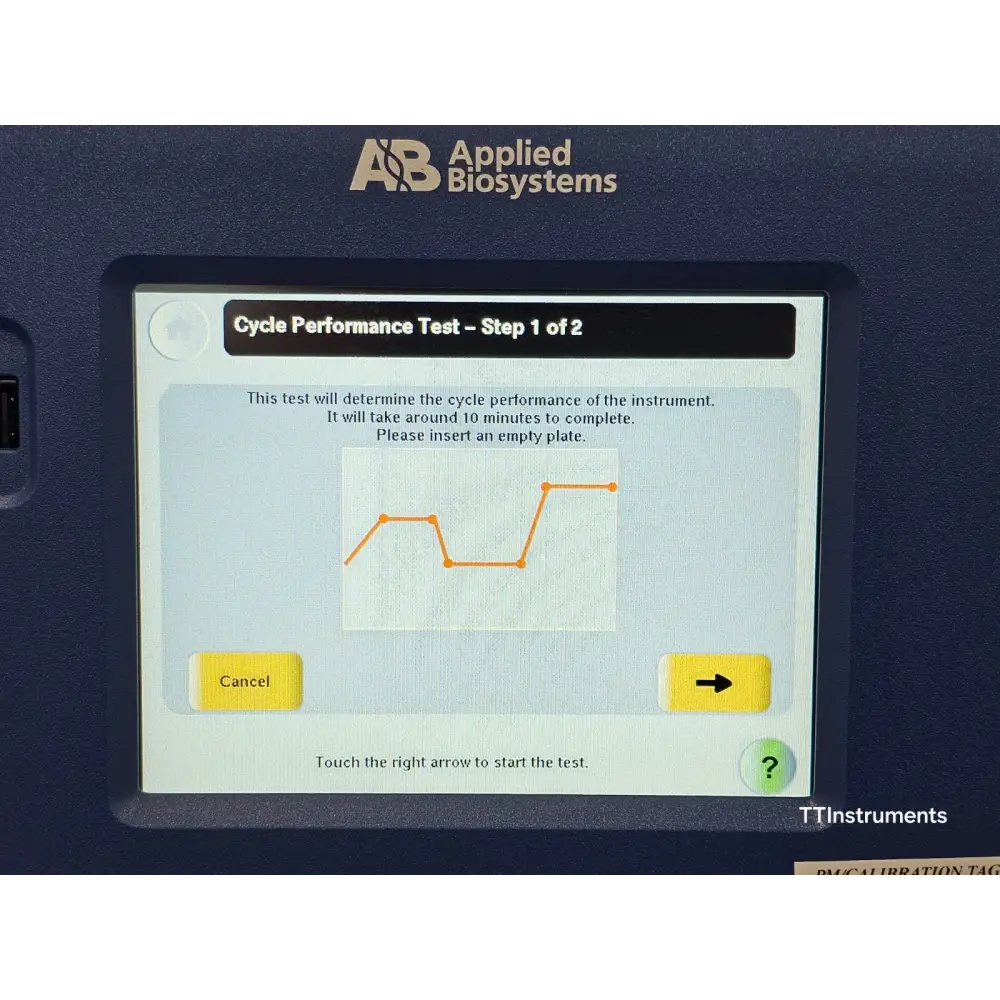

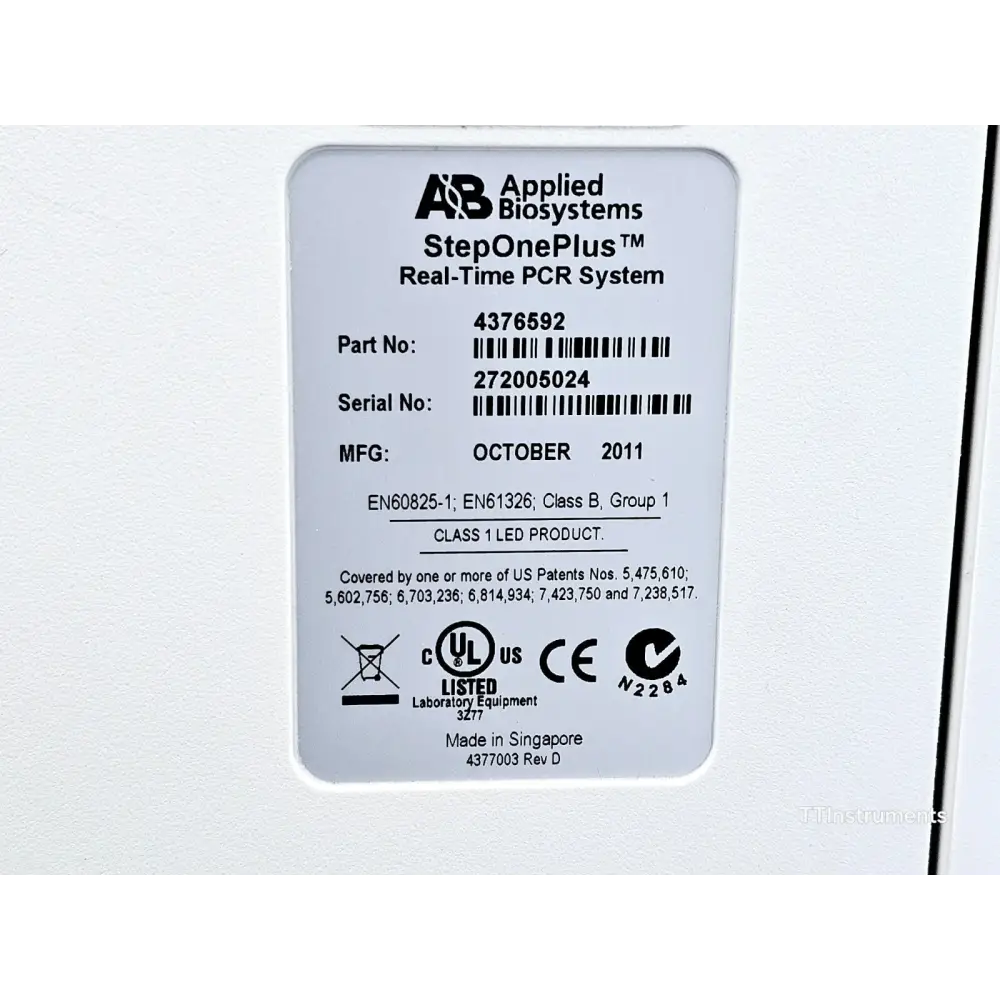

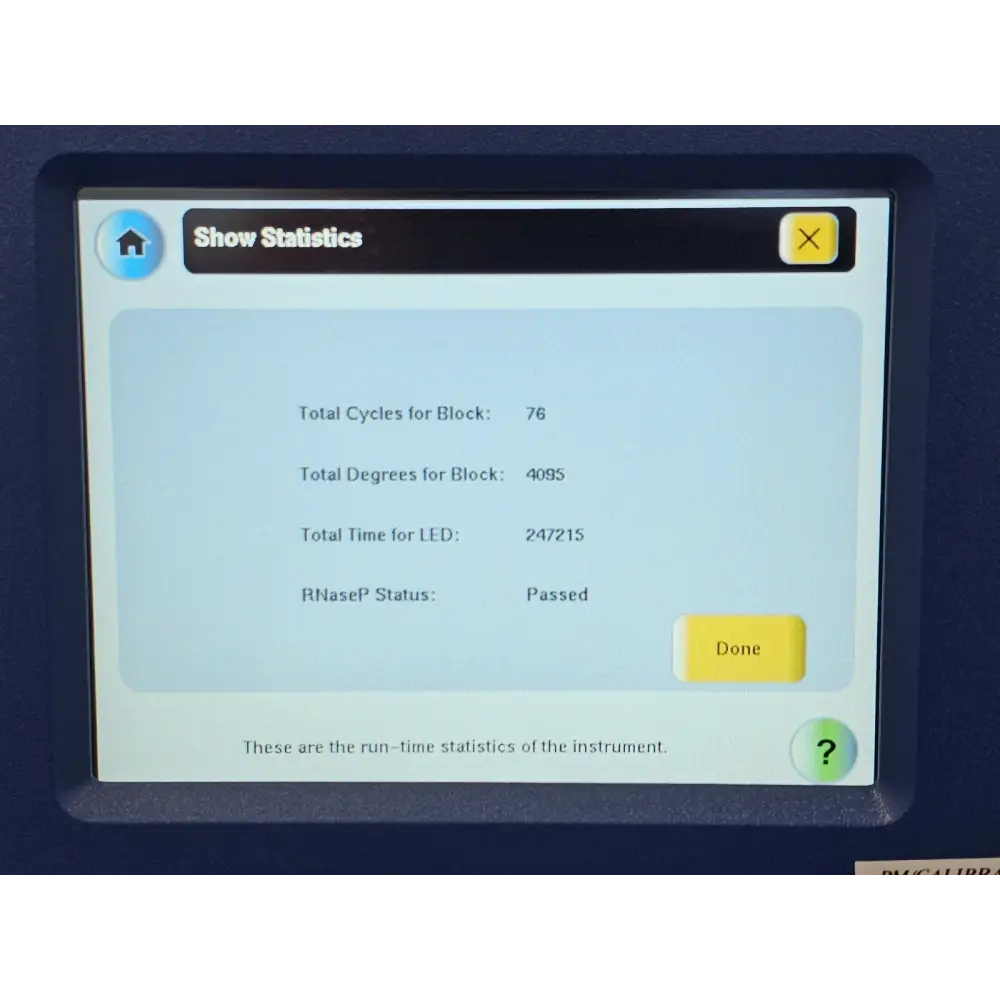

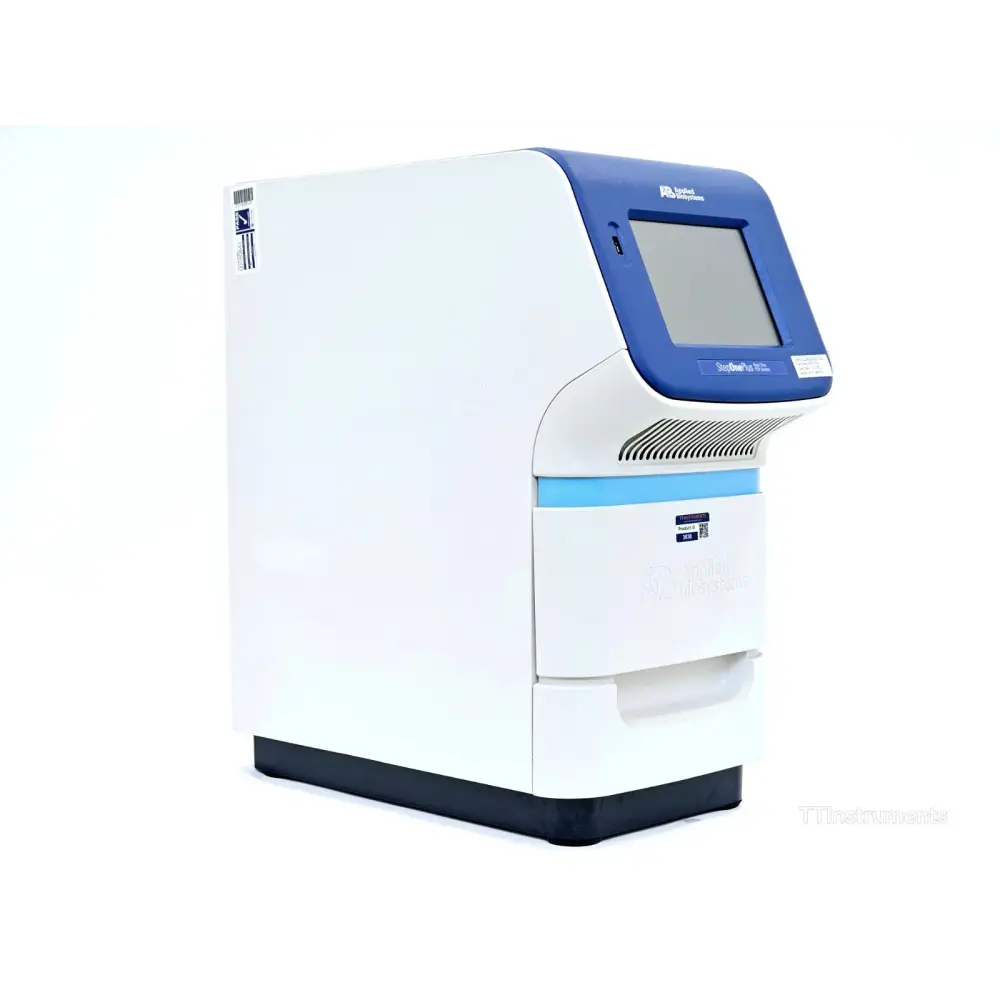

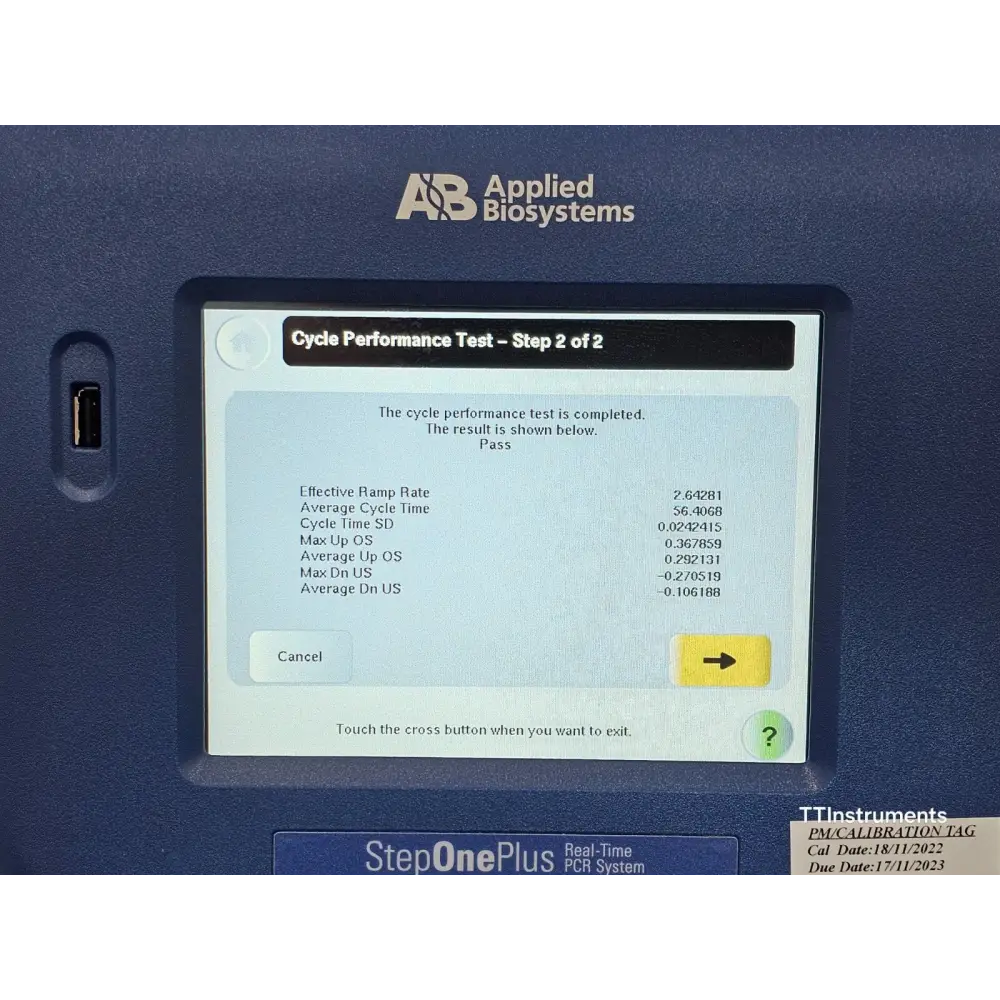

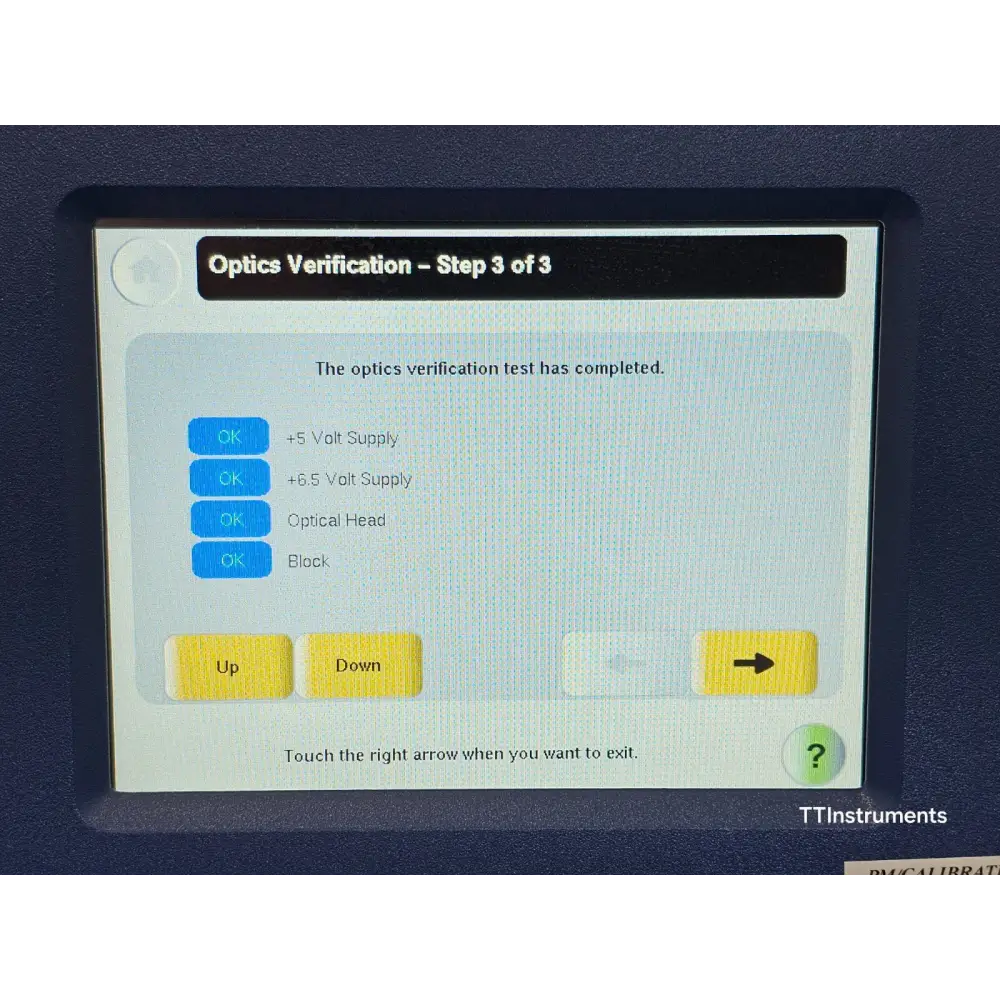

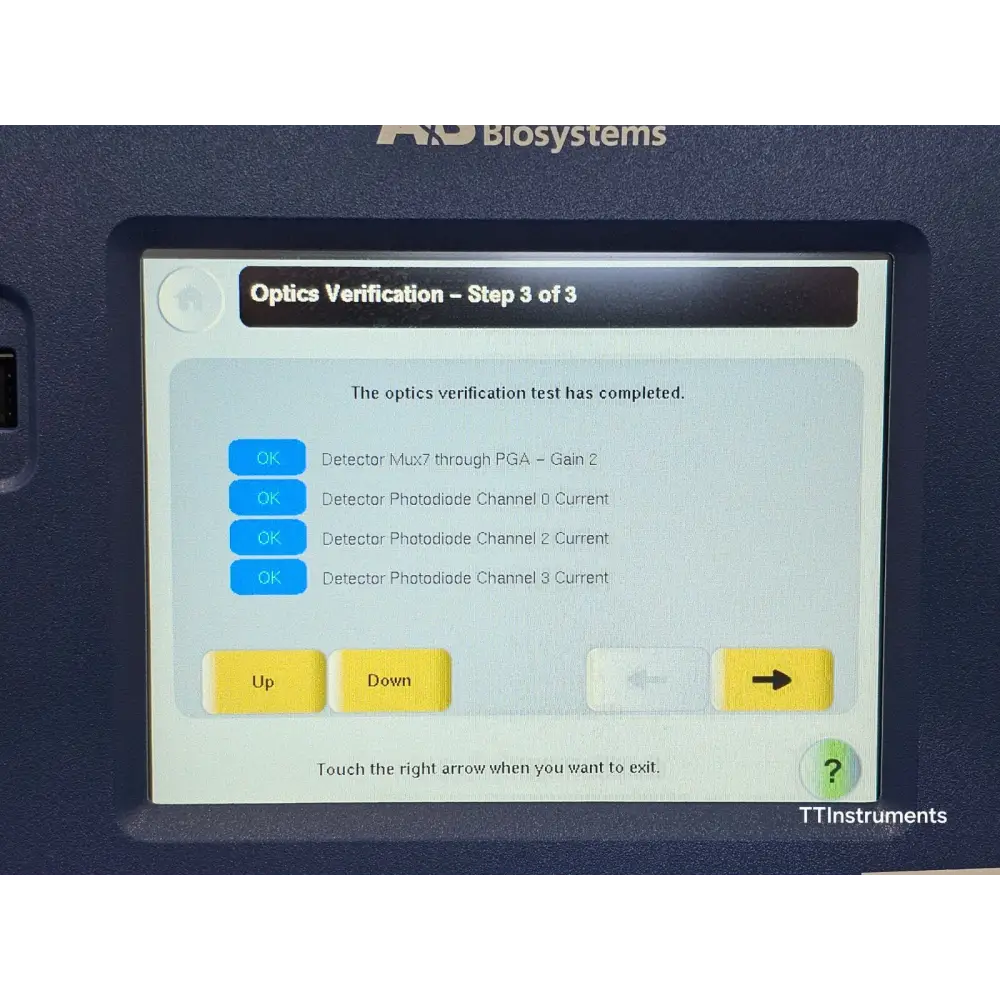

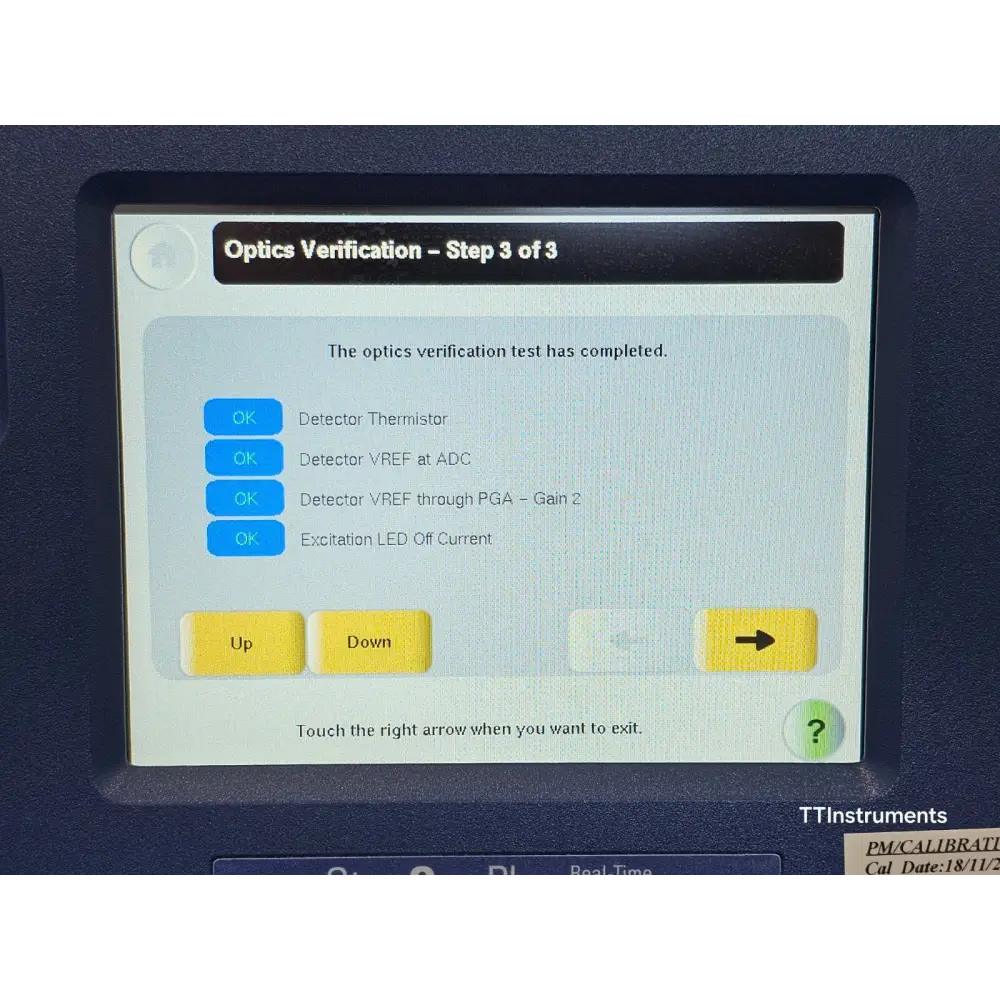

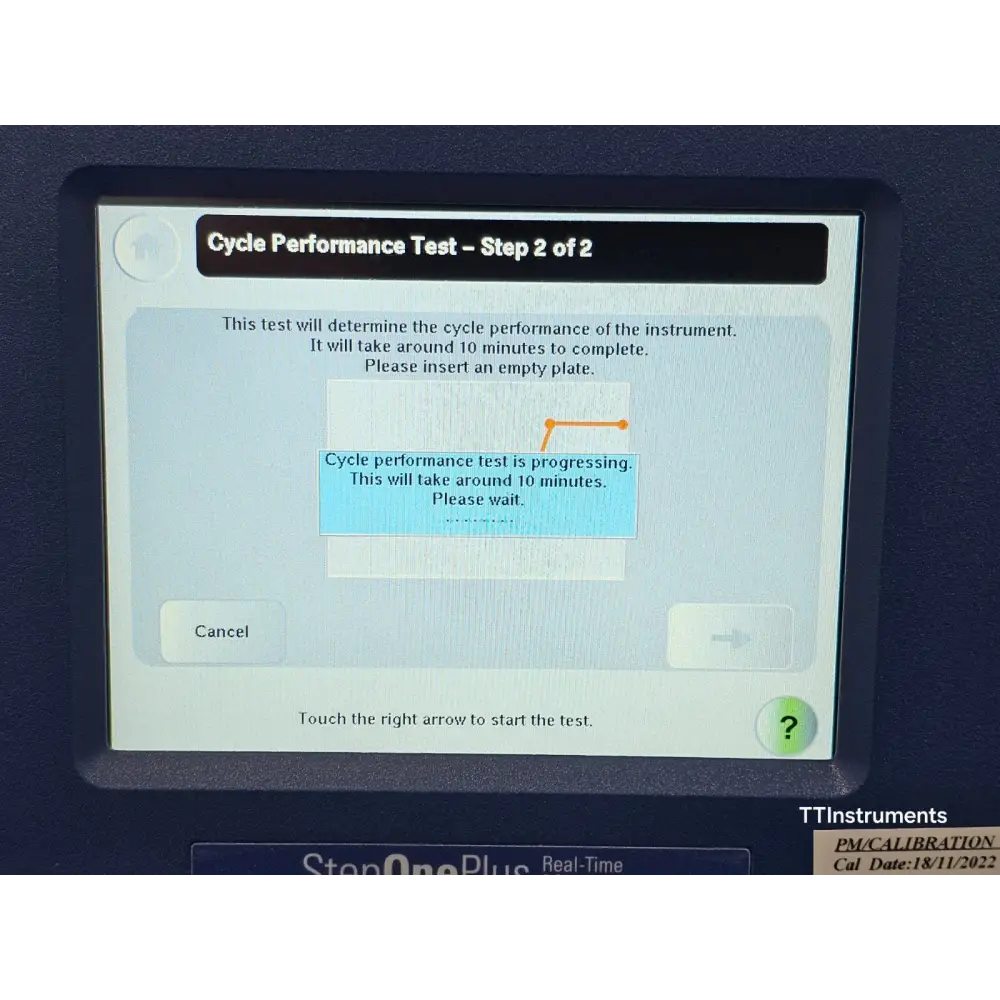

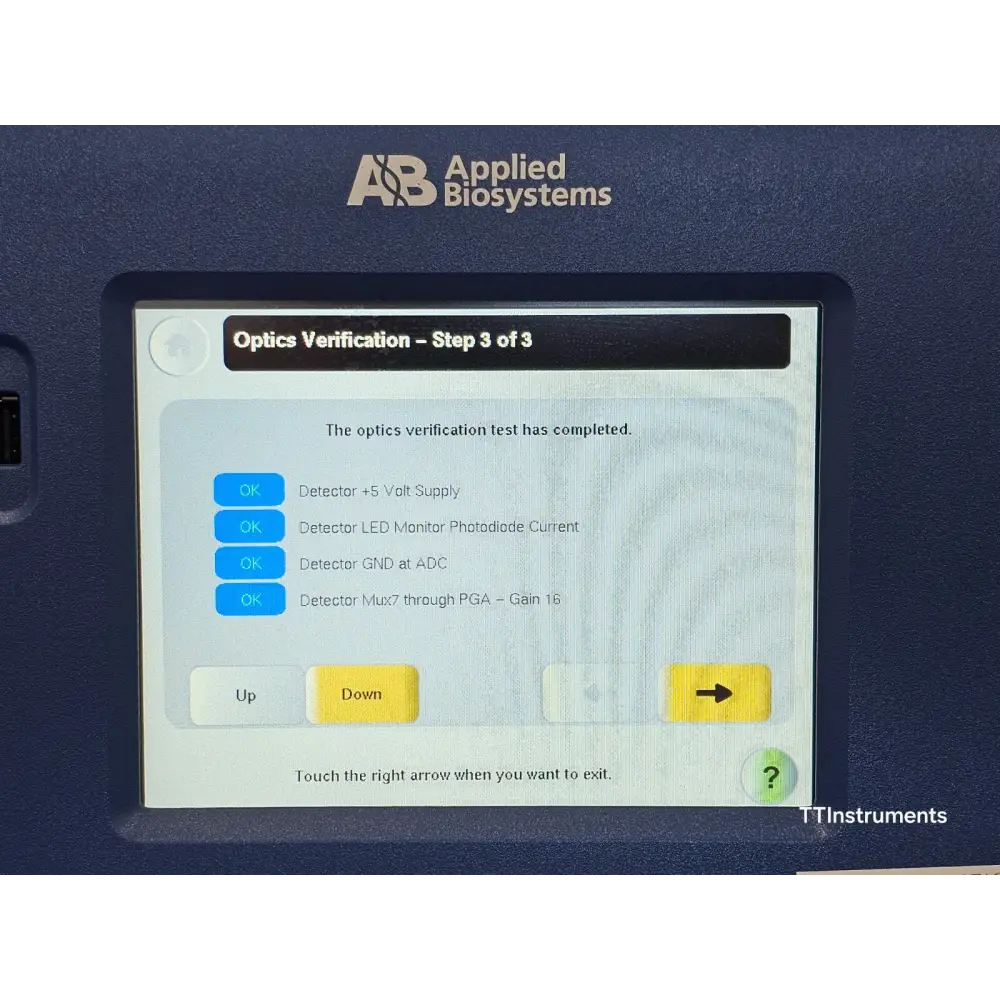

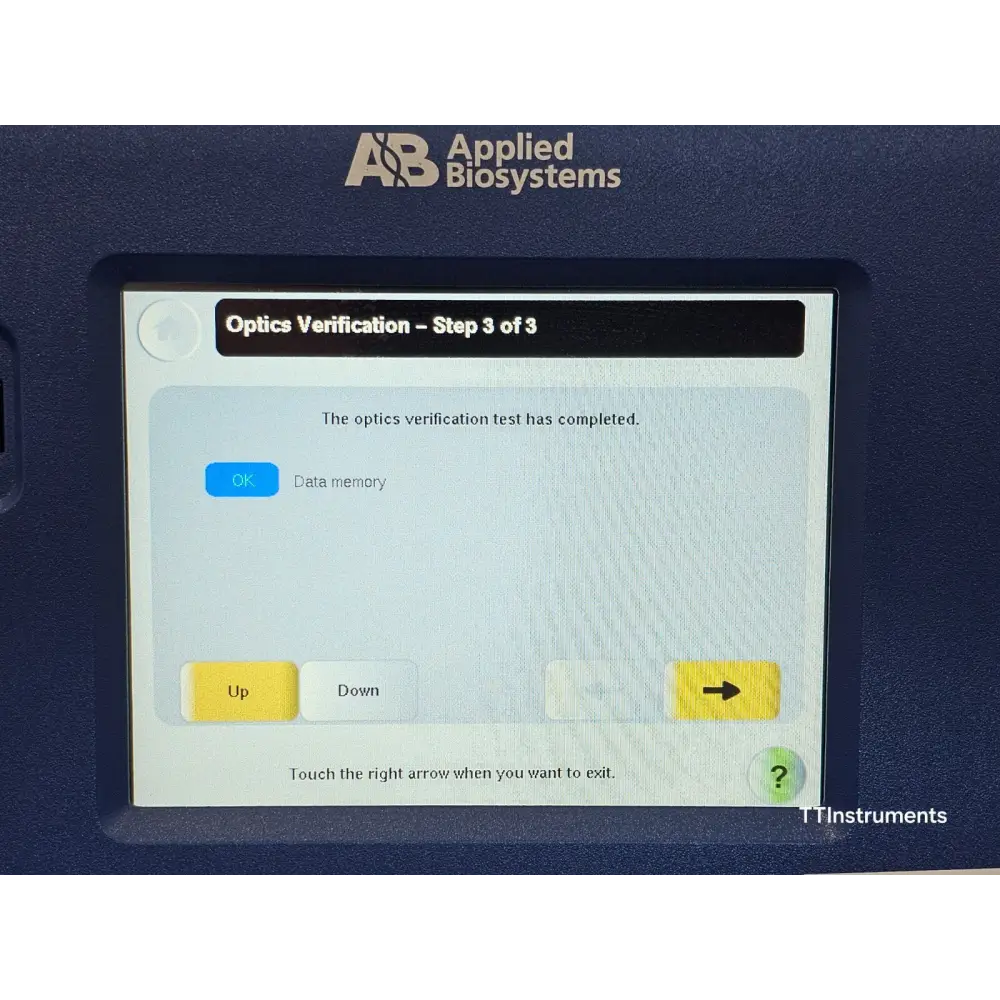

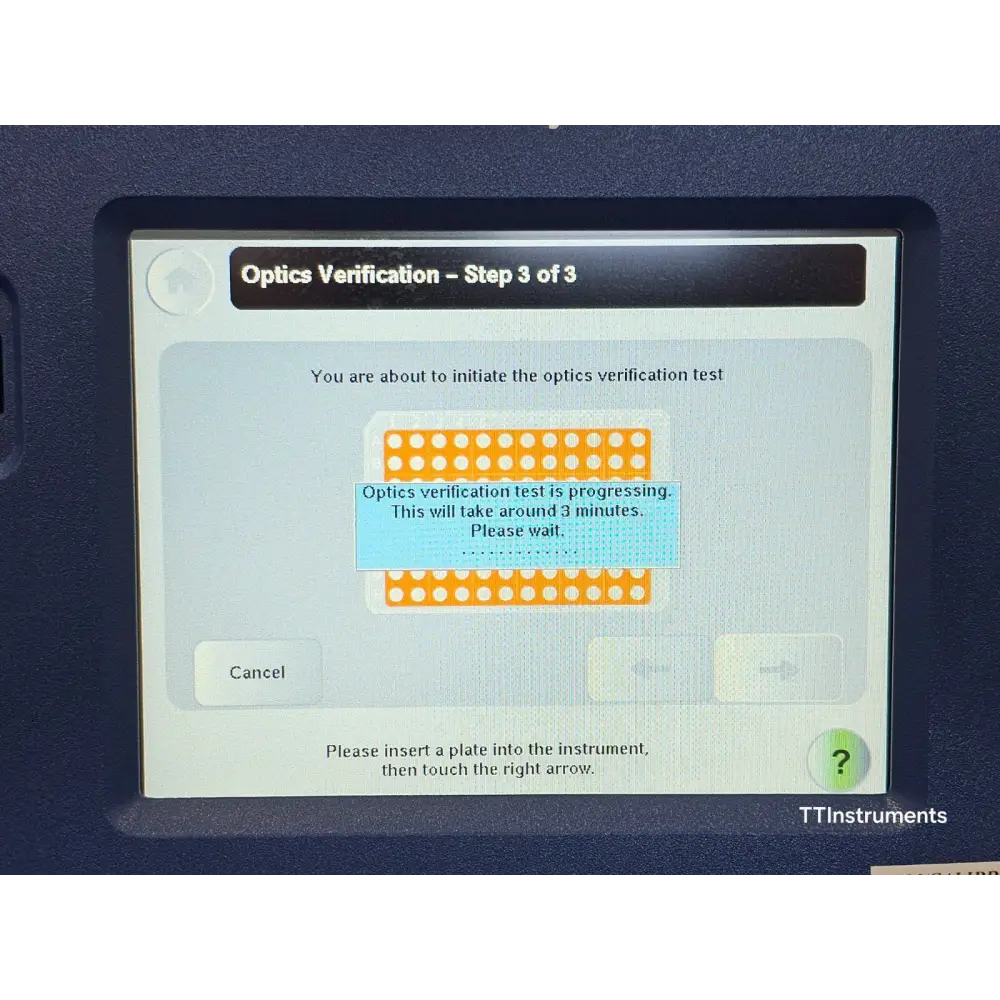

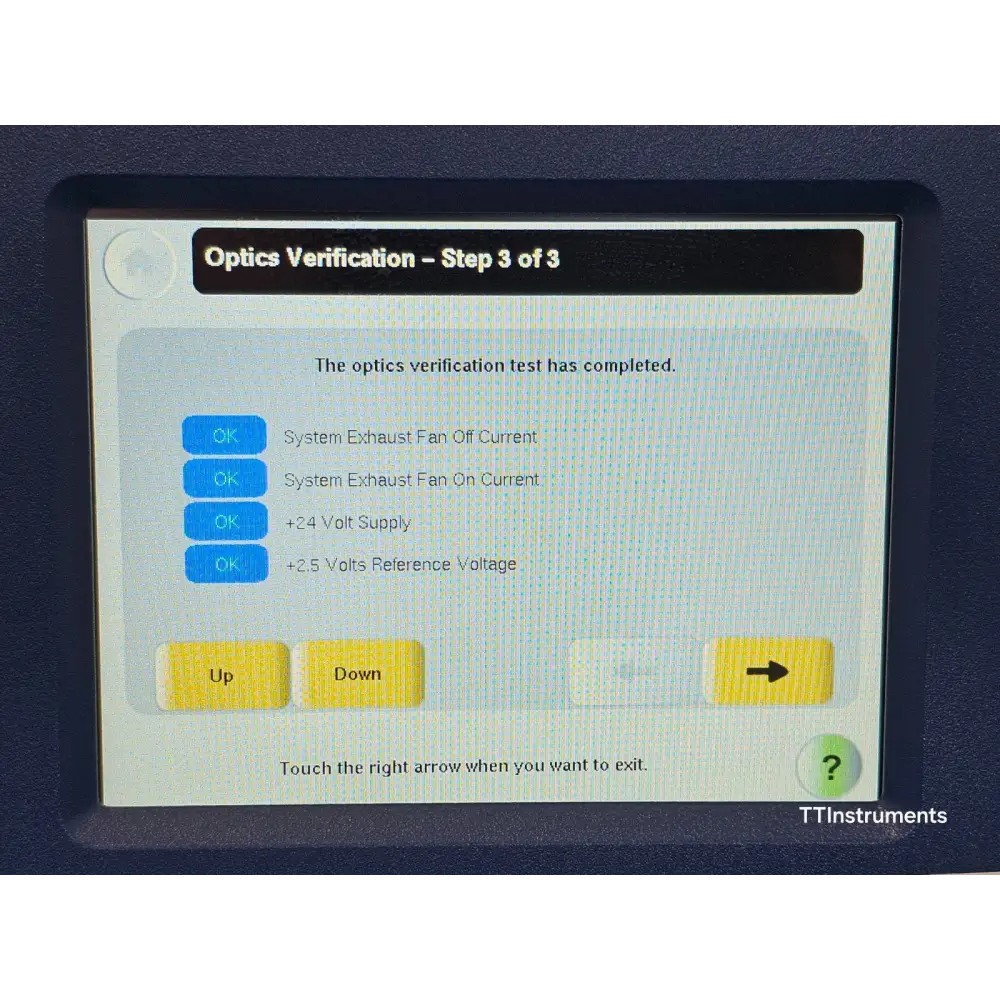

This Applied Biosystems StepOnePlus Real-Time PCR System (4376592) is in excellent condition with a very low cycle count, indicating minimal usage. It has undergone comprehensive testing including cycle performance and optical verification, and has passed all assessments. The instrument was manufactured in 2011.

Included in the sale:
• Applied Biosystems StepOnePlus Real-Time PCR System (4376592)
• Power cable

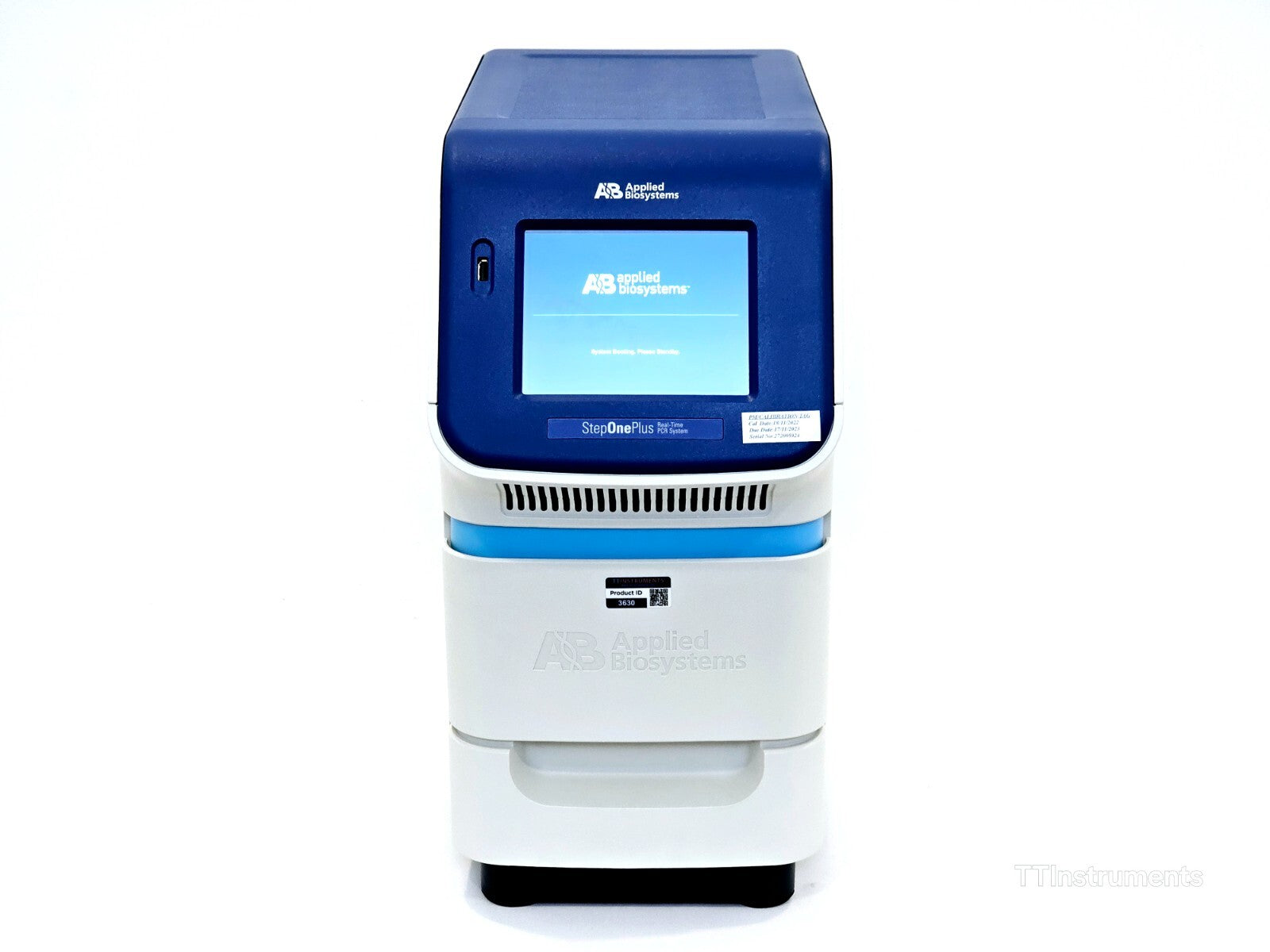

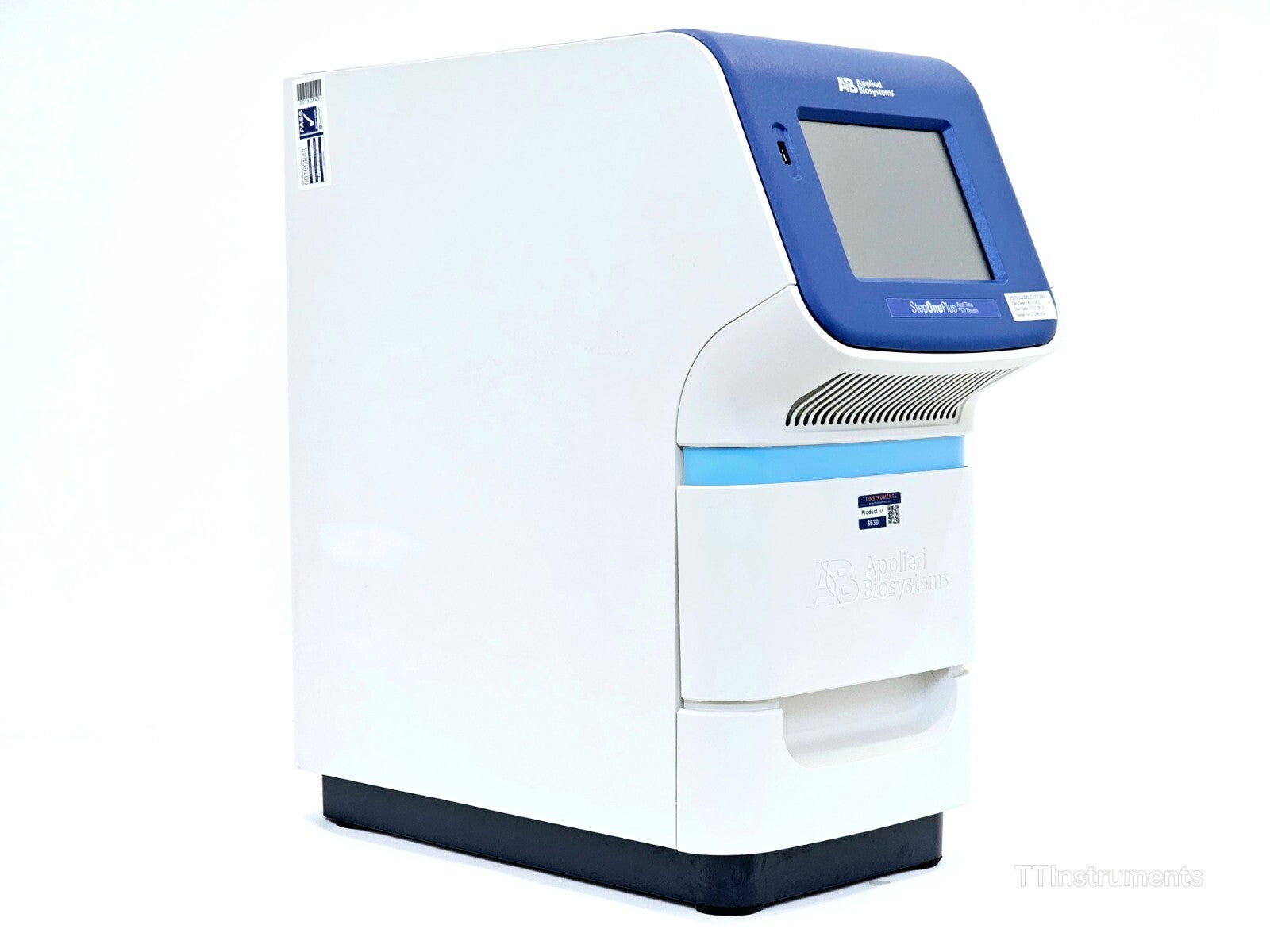

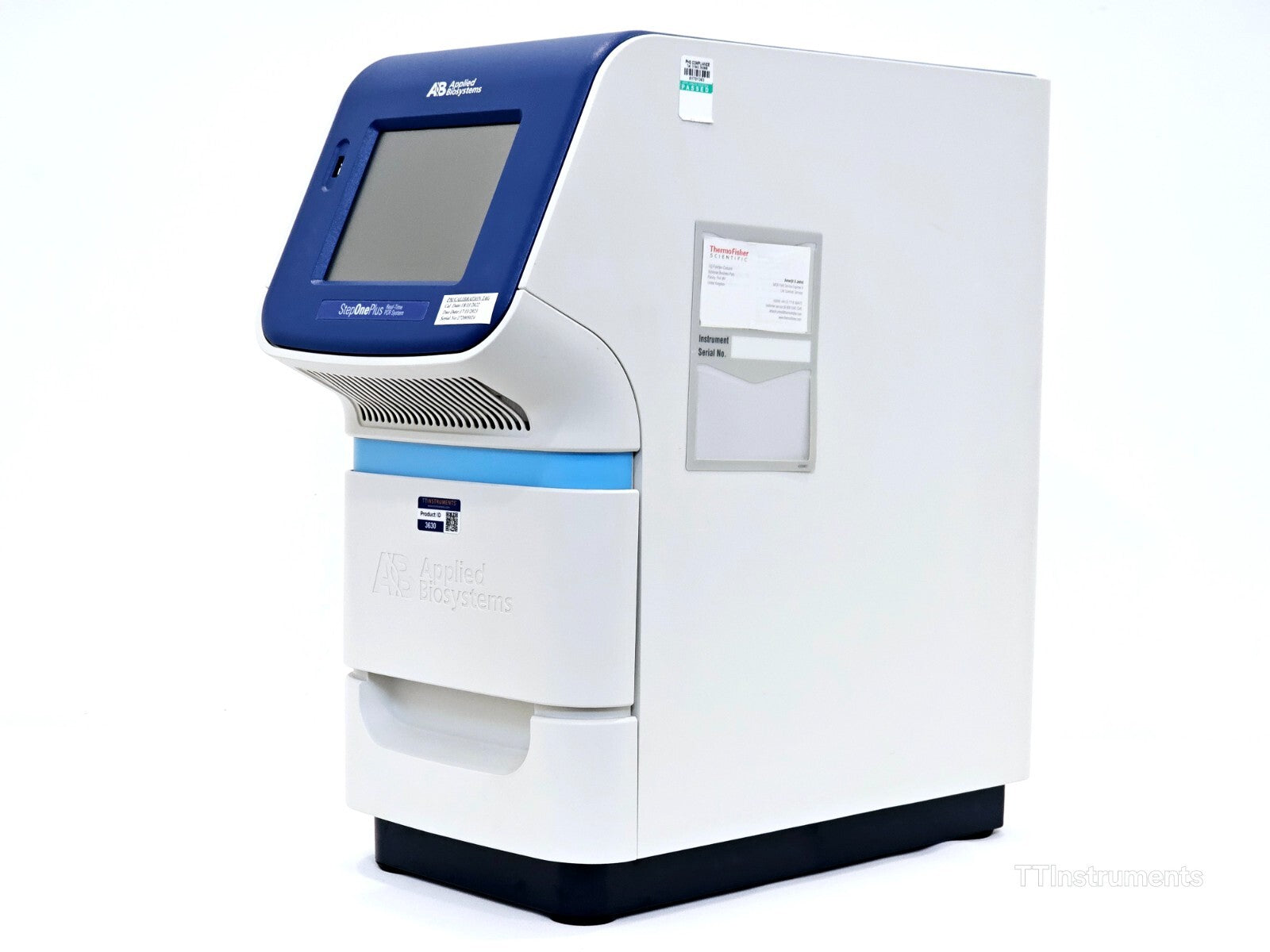

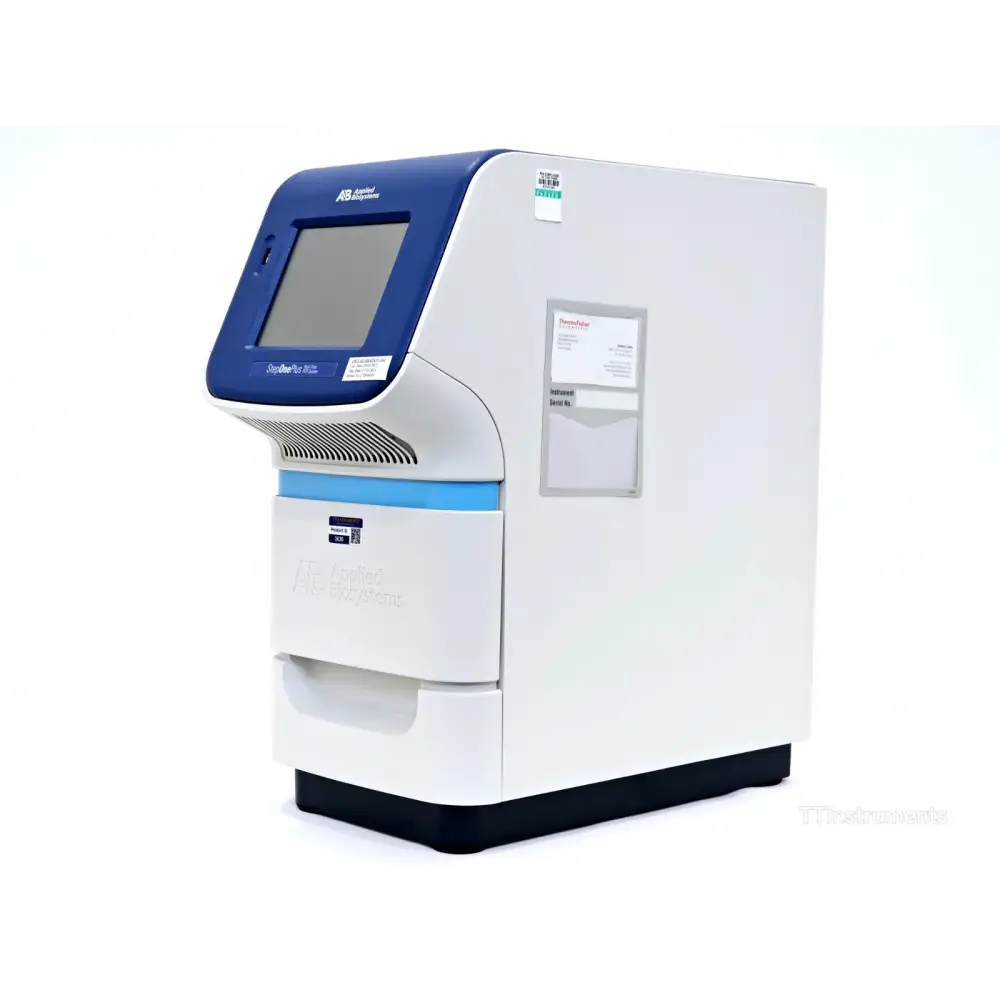

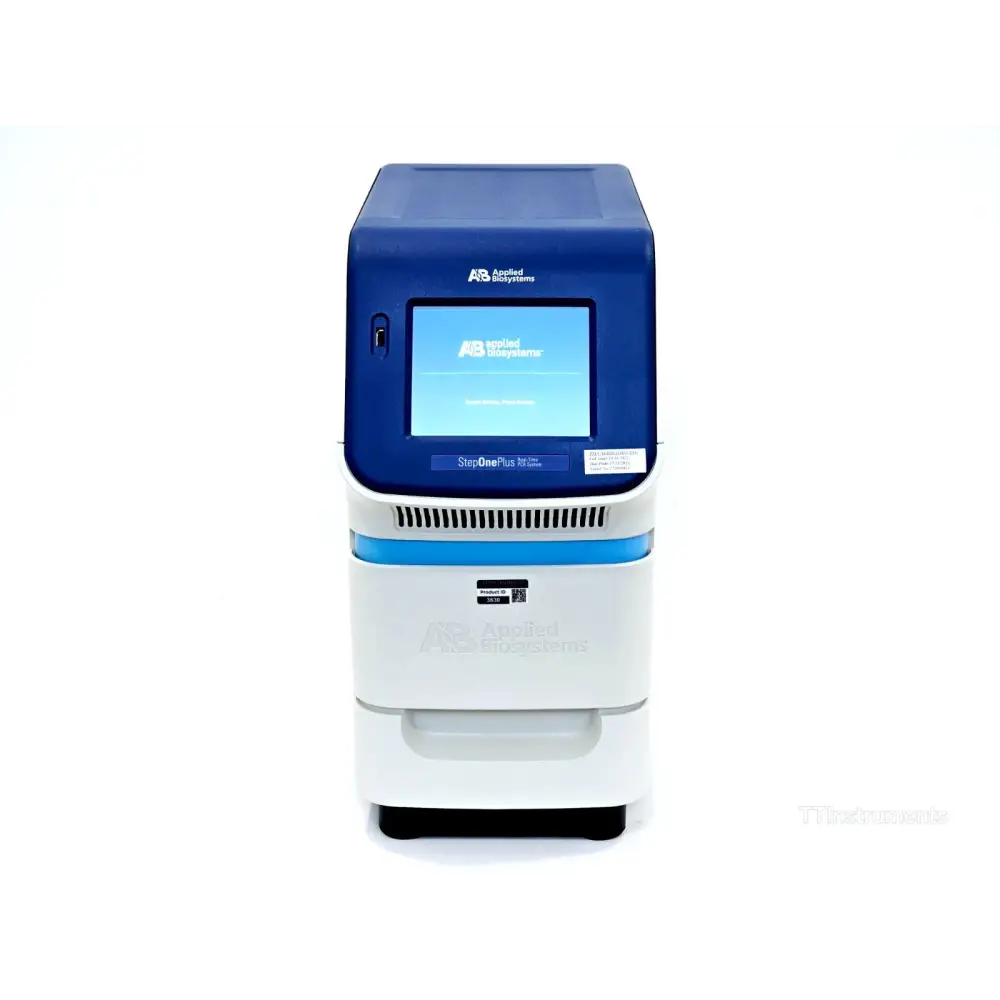

The Applied Biosystems StepOnePlus Real-Time PCR System is a 96-well, 4-colour quantitative real-time PCR instrument designed for both first-time and experienced users. Utilising a robust LED-based optical system, the StepOnePlus delivers precise, quantitative real-time PCR results for a variety of genomic research applications including gene expression analysis, SNP genotyping, pathogen detection, viral load analysis, miRNA expression, and translocation analysis.

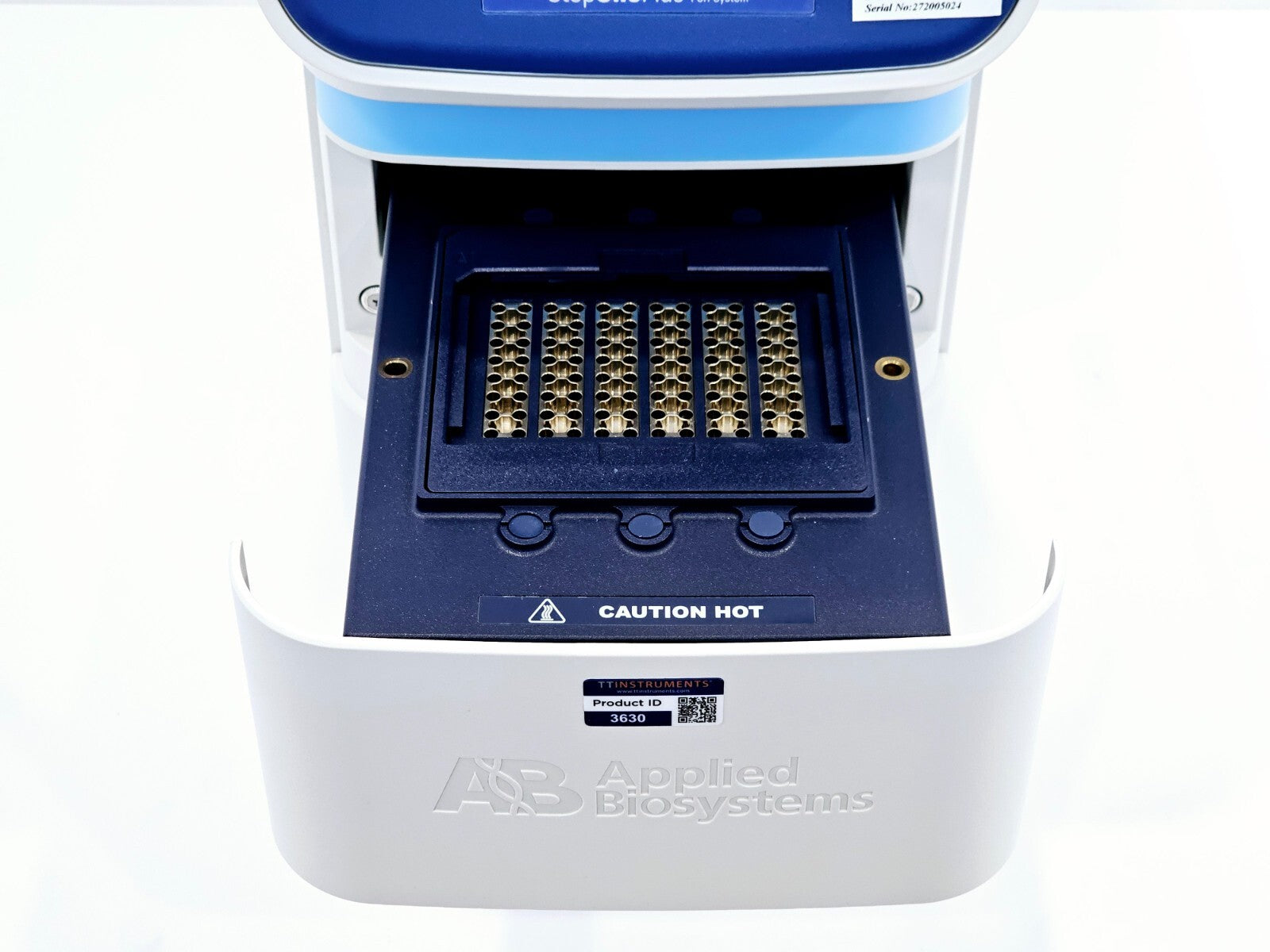

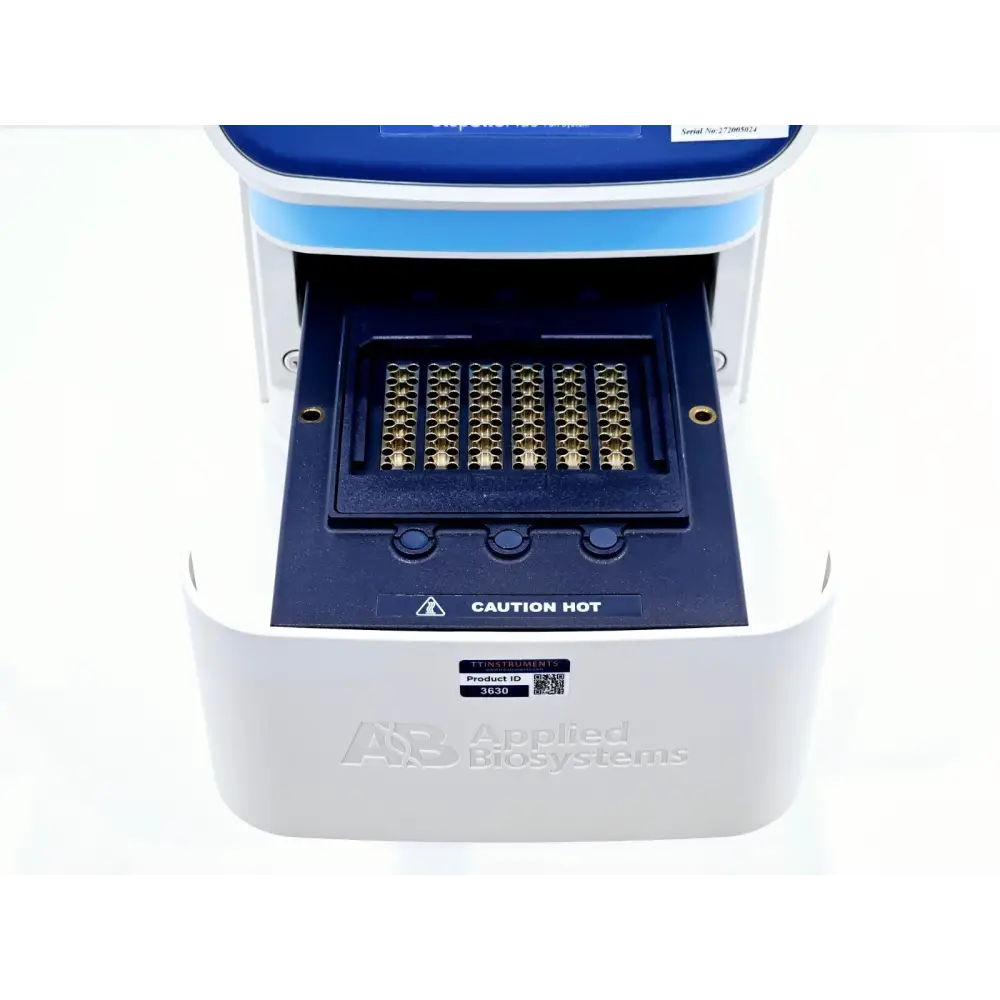

The system features VeriFlex Block technology, providing six independently controllable temperature zones to optimise thermal cycling conditions for primers and probes annealing at different temperatures. The long-life blue LED excitation source illuminates all 96 wells simultaneously and is rated for up to ten years of continuous use, virtually eliminating the need for replacement. Fluorescence emission is detected through filters on a photodiode across four channels.

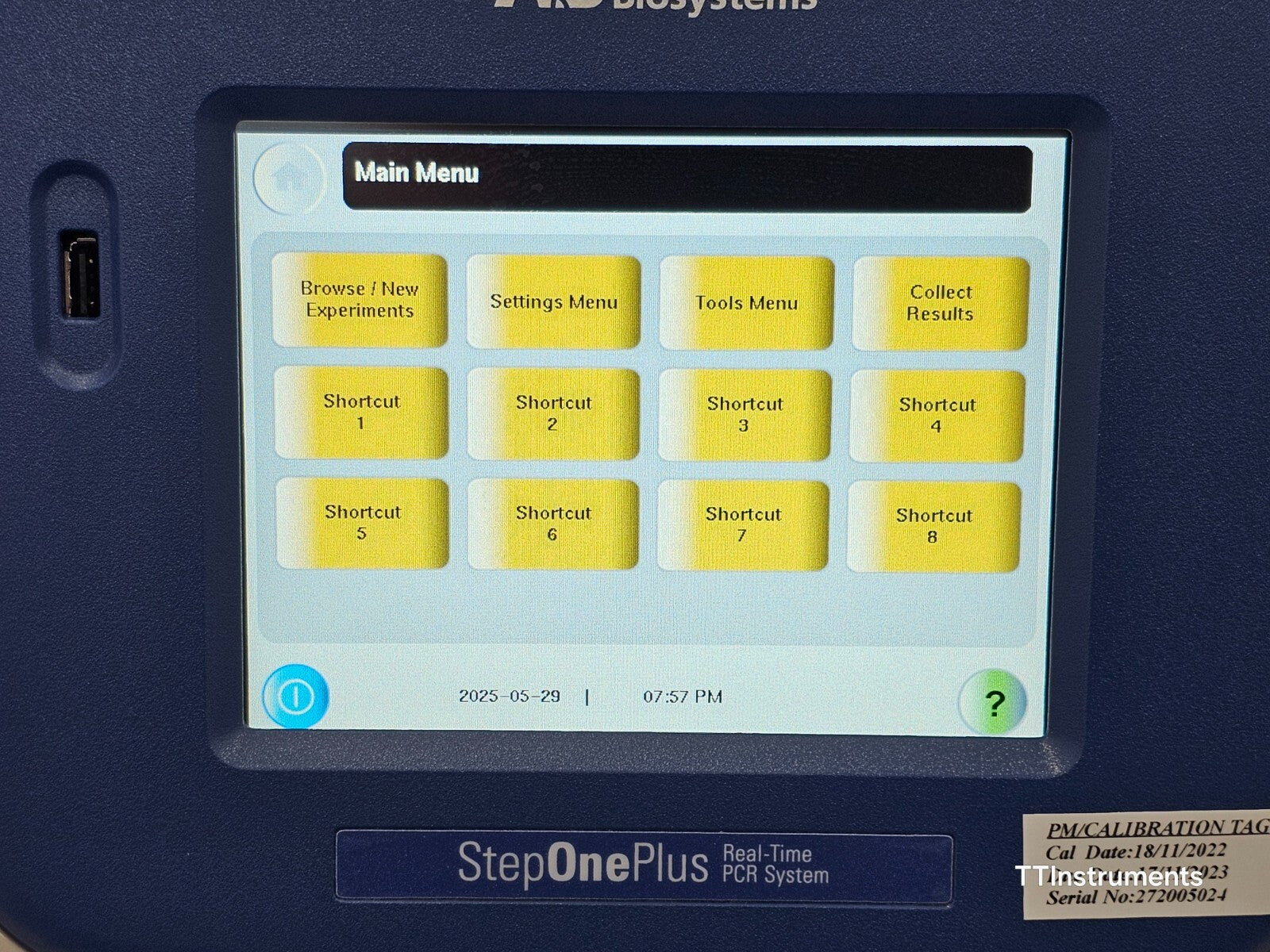

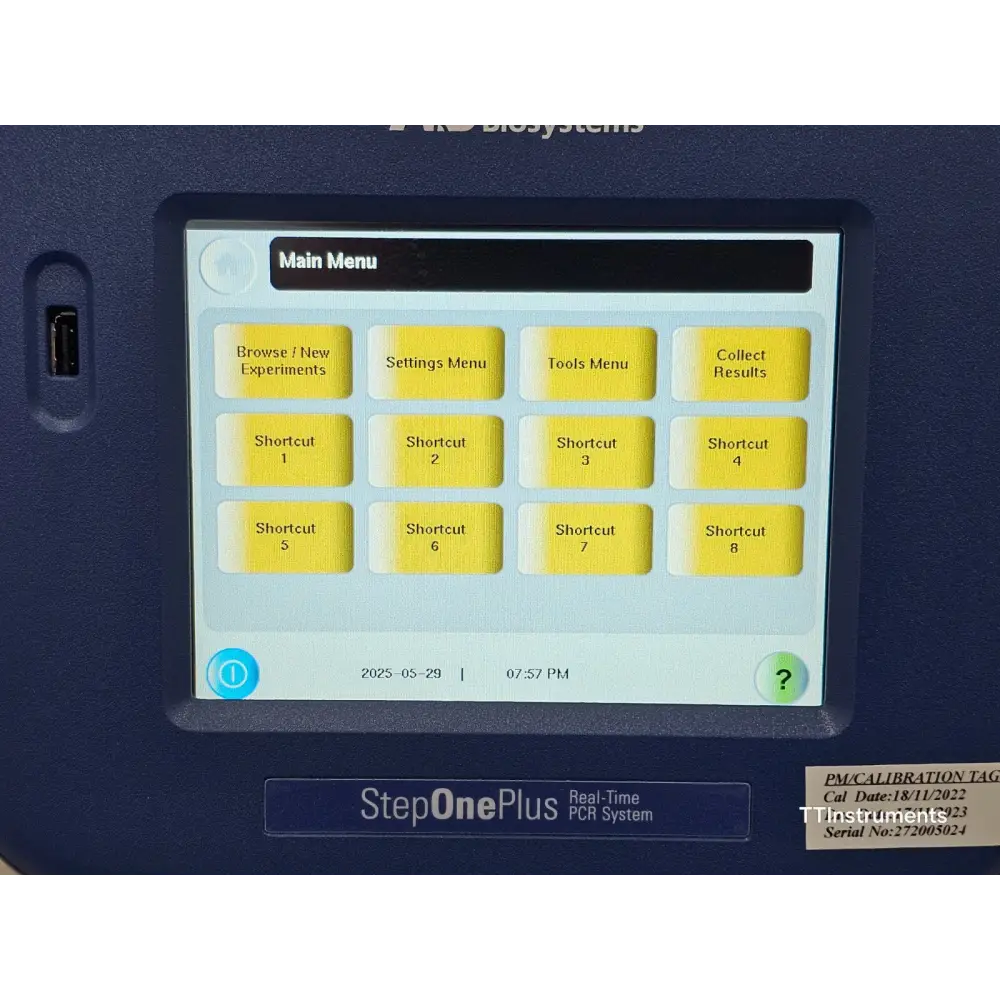

The StepOnePlus supports both fast and standard cycling modes and can be operated as a standalone instrument (PC-free), via a directly connected PC, or via a PC connected to a local area network (LAN) for remote monitoring and email notification. Each system is factory-calibrated for optical and thermal accuracy. The StepOne Software supports multiple analysis methods including Comparative Ct, Standard Curve, Relative Standard Curve, Genotyping/Presence-Absence, Melt Curve Analysis, and High-Resolution Melt (HRM) with optional software package.

Key Specifications:
Format: 96-well plate, 8-tube strips, 0.1 mL tubes
Capacity: 96 x 0.1 mL tubes / 12 x 8-tube strips / 1 x 96-well plate
Number of Colours: 4
Supported Dyes: FAM/SYBR Green I, VIC/JOE, NED/TAMRA, ROX
Reaction Volume Range: 10–30 µL (standard curve experiments: up to 40 µL)
Temperature Range: 4°C to 100°C
Thermal Accuracy: ±0.25°C (35°C to 95°C)
Thermal Uniformity: ±0.50°C (35°C to 95°C)
Sample Ramp Rate (Fast Mode): ±2.2°C/s
Sample Ramp Rate (Standard Mode): ±1.6°C/s
Run Time (Fast Mode): <40 minutes (40-cycle PCR)
Run Time (Standard Mode): <2 hours (40-cycle PCR)
Sensitivity: 1 copy
Dynamic Range: >9 log units
Display: 6.5-inch VGA LCD touchscreen (640 x 480, 32K colours)
Thermal Cycling System: Peltier-based with VeriFlex Block technology (6 independently controlled zones)

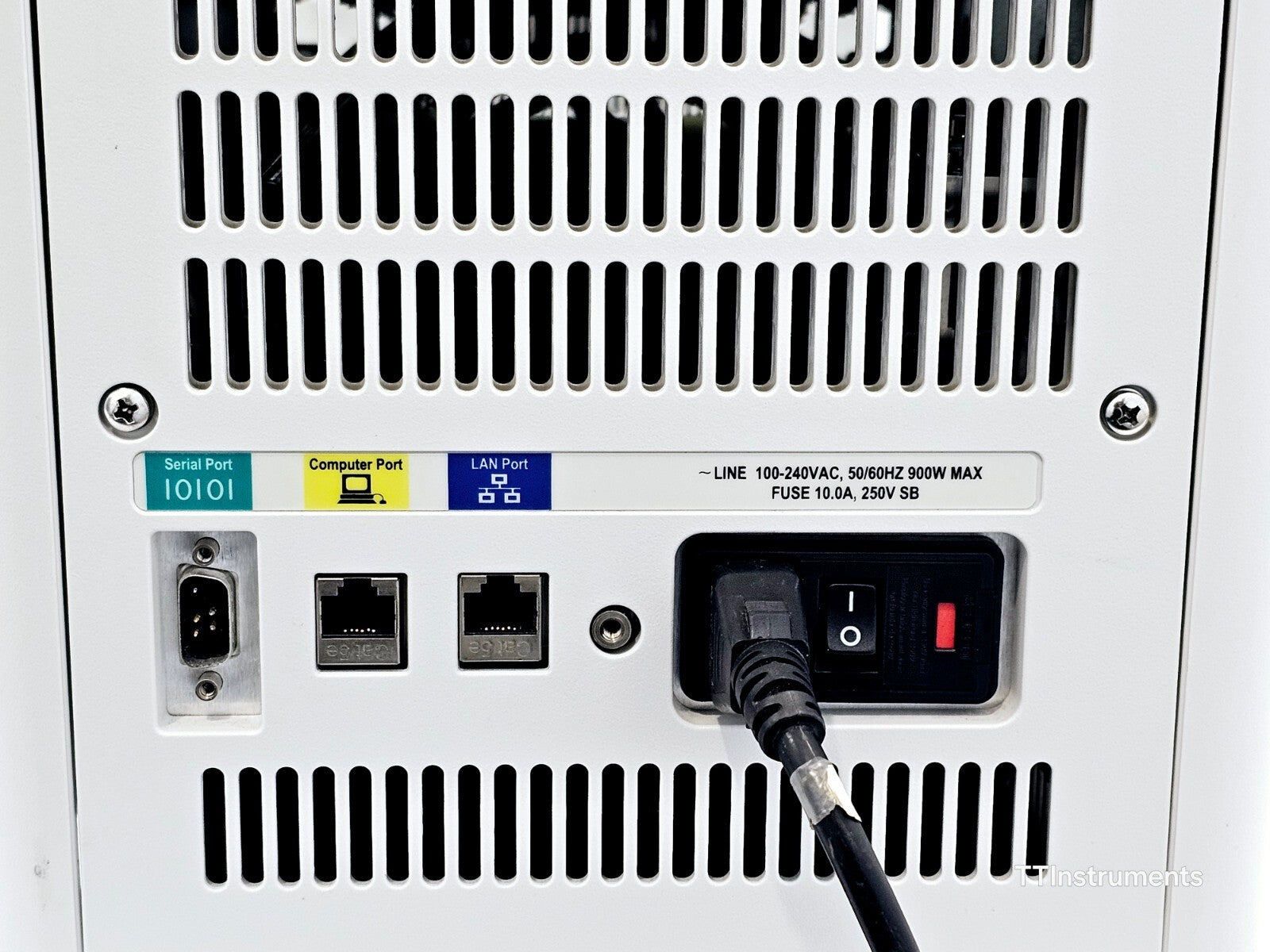

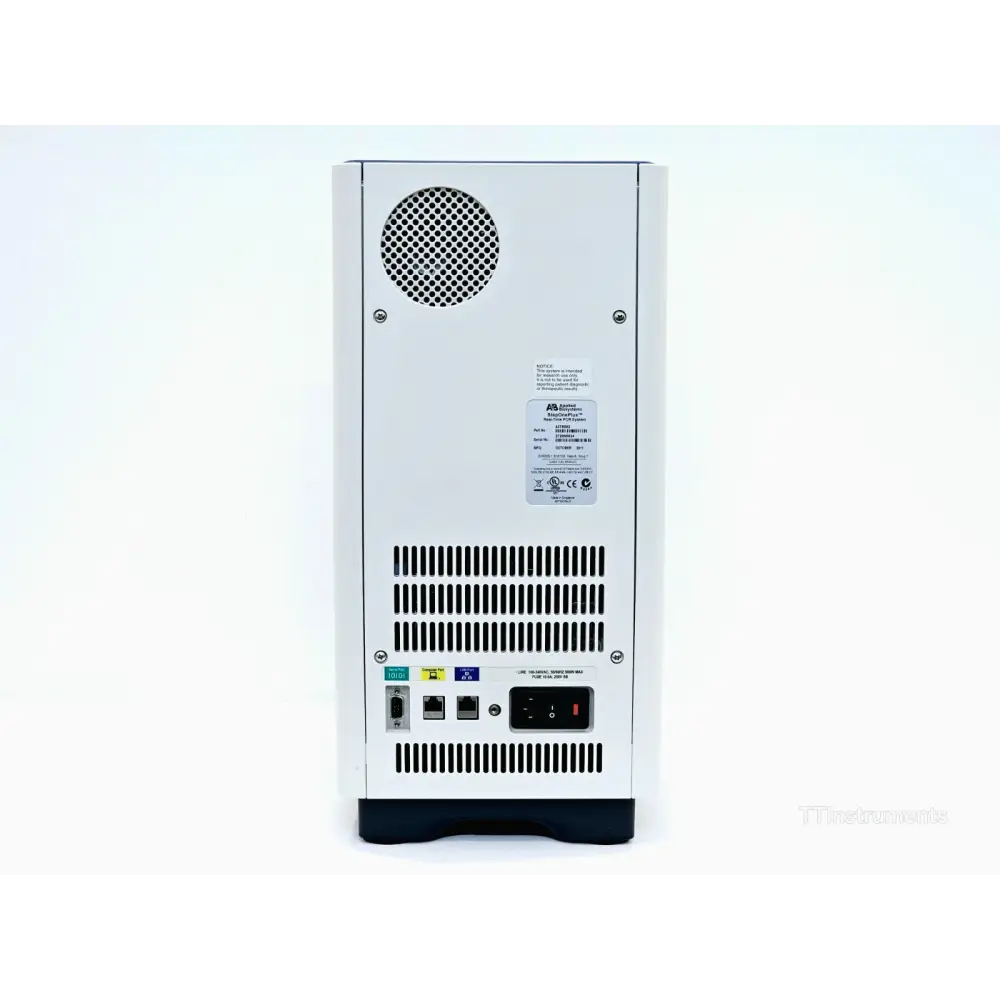

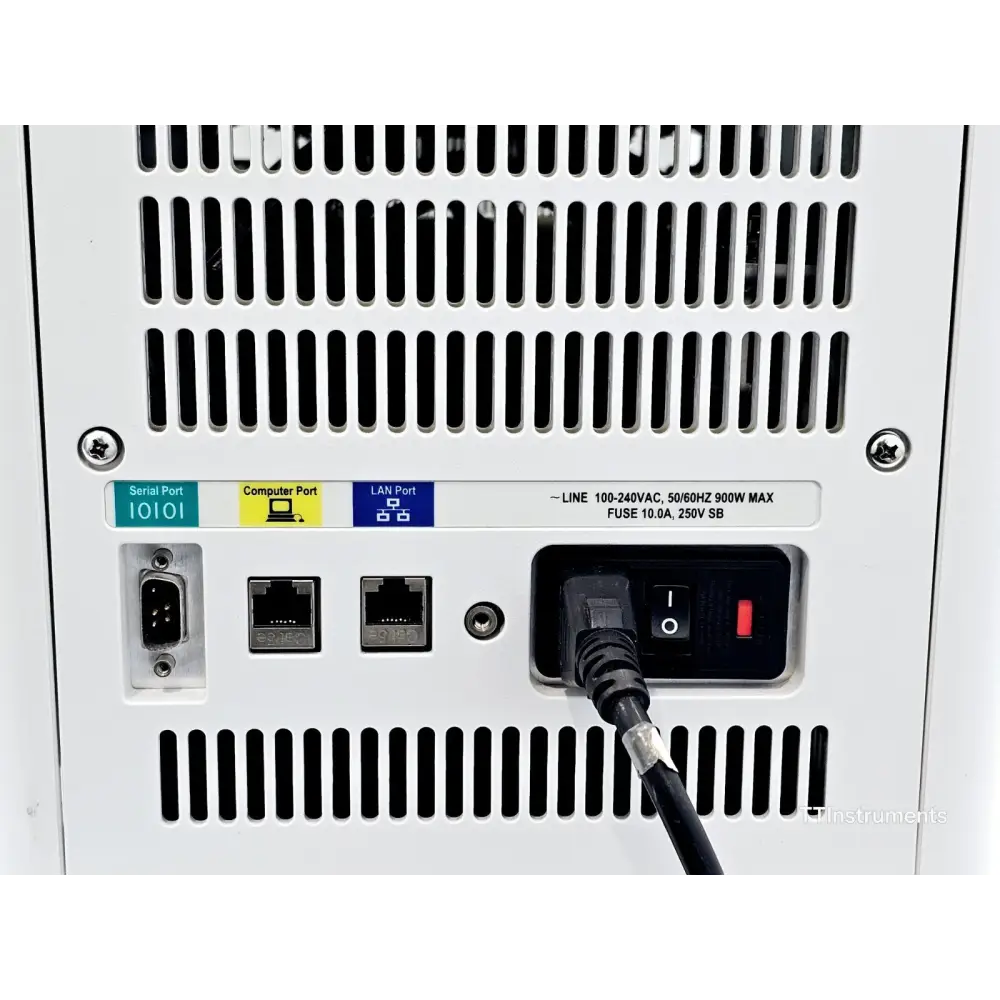

Connectivity: USB, Ethernet (LAN), PC-free standalone operation
Data Export Formats: JPEG, Excel, PowerPoint, RDML
Dimensions (W x H x D): 24.6 x 51.2 x 42.7 cm (9.7 x 20.2 x 16.8 in)
Weight: 24 kg (53 lb)
Applications: Gene Expression Analysis, SNP Genotyping, Pathogen Detection, Viral Load Analysis, miRNA Expression, Translocation Analysis, Protein Expression
For Research Use Only. Not for use in diagnostic procedures.

Applied Biosystems StepOne and StepOnePlus Real-Time PCR Systems — Official Product Brochure (Thermo Fisher / documents.thermofisher.com): Download PDF

Applied Biosystems StepOne and StepOnePlus Real-Time PCR Systems — Getting Started Guide for Standard Curve Experiments (Thermo Fisher): Download PDF

Applied Biosystems StepOne and StepOnePlus Real-Time PCR Systems — Installation, Networking and Maintenance Guide (Fisher Scientific): Download PDF

Applied Biosystems StepOne and StepOnePlus — User Bulletin (RNA-to-Ct workflows, Fisher Scientific): Download PDF

StepOne and StepOnePlus Real-Time PCR Systems — Product Specification Sheet (gene-quantification.de mirror): Download PDF

Applied Biosystems StepOne and StepOnePlus Real-Time PCR Systems — Getting Started Guide for Standard Curve Experiments (Thermo Fisher tools mirror): Download PDF
