Condition: Used

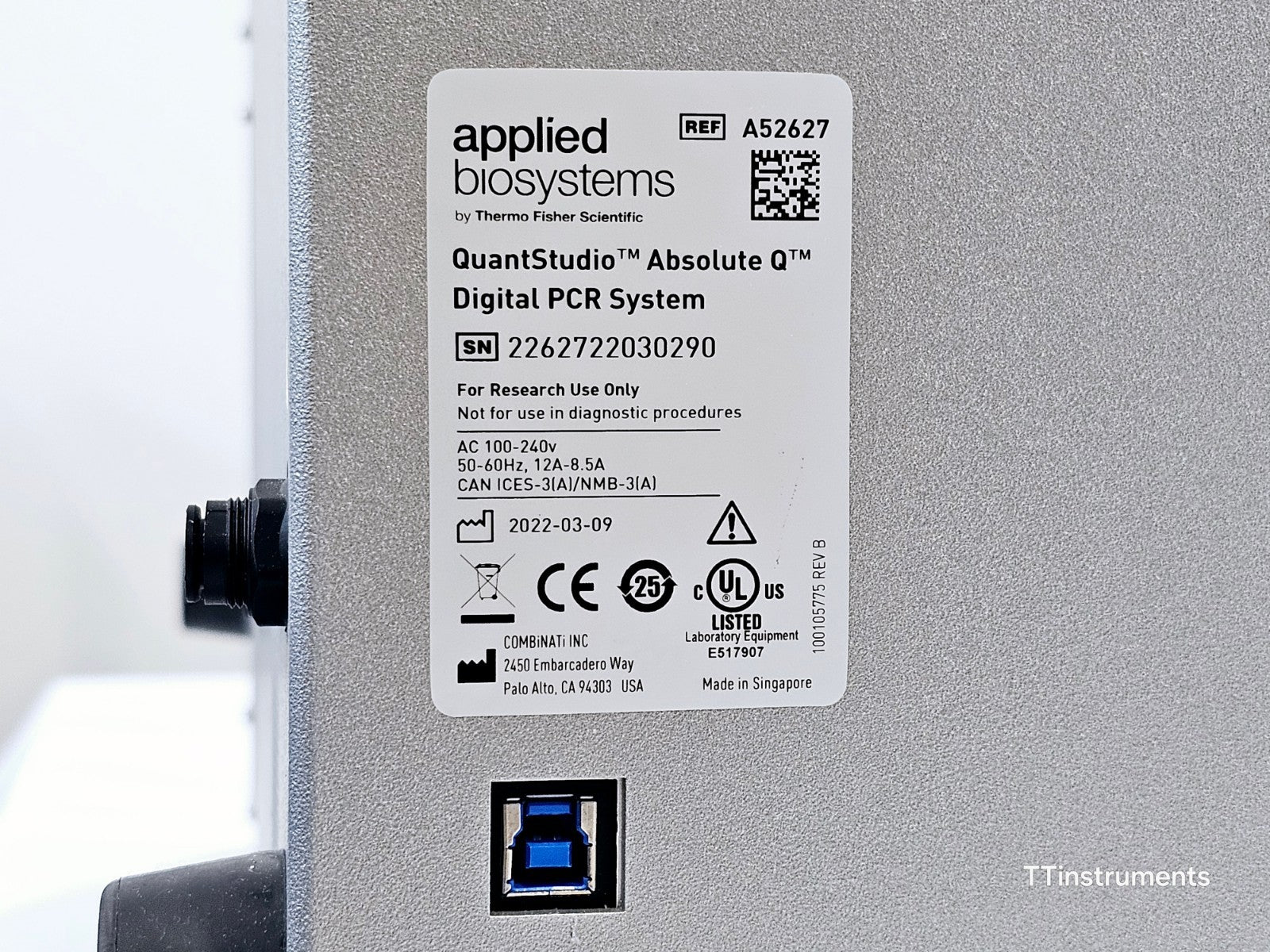

This Applied Biosystems QuantStudio Absolute Q Digital PCR System (REF A52627, manufactured 2022) has been tested and confirmed functional. Minor cosmetic imperfections are present but do not affect performance. The system is supplied with a dedicated PC running QuantStudio Absolute Q software and a MAP16 Digital PCR Kit. Due to its size and weight, the unit will be shipped on a pallet — please contact us for an accurate shipping quote prior to ordering.

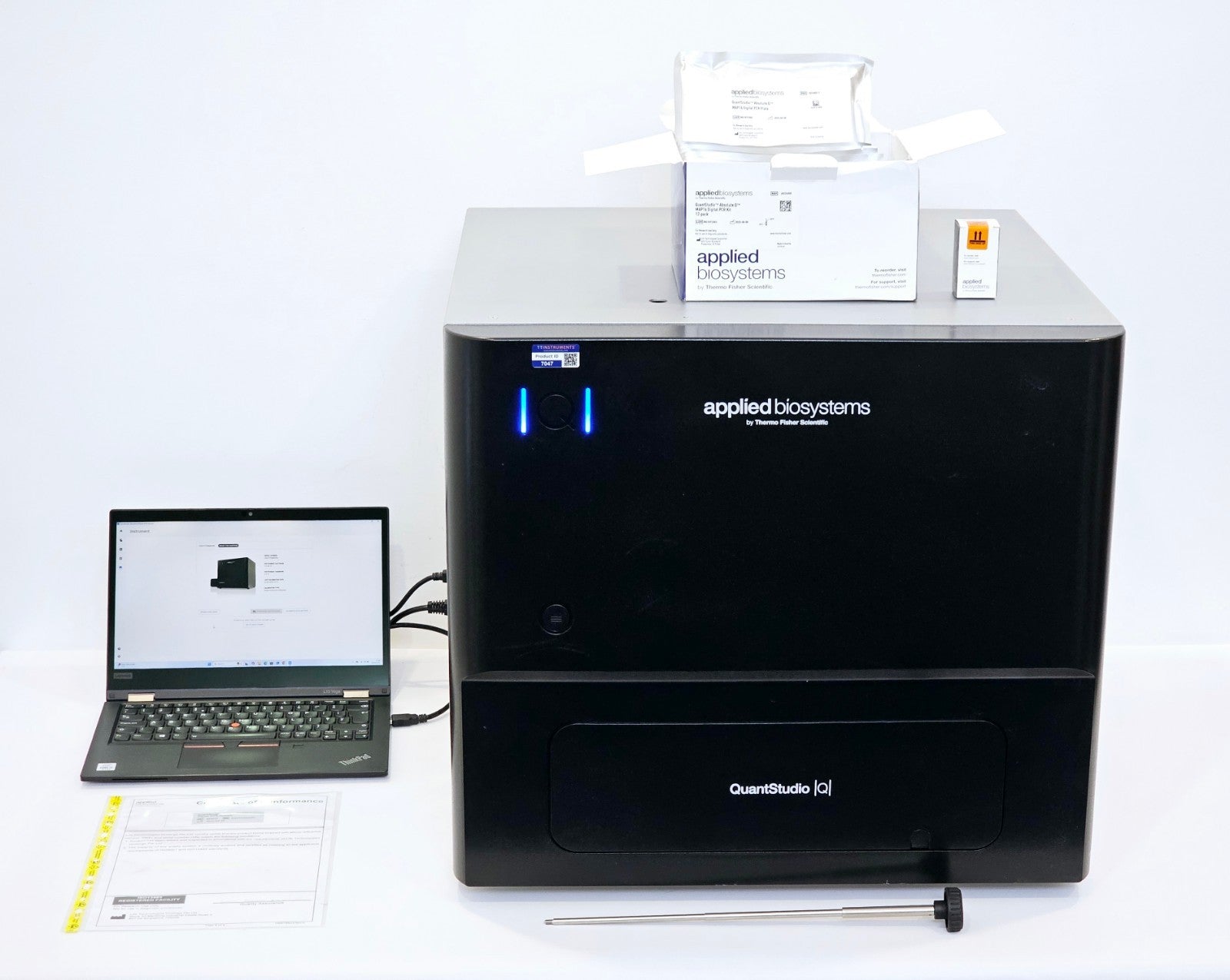

Included in the sale:

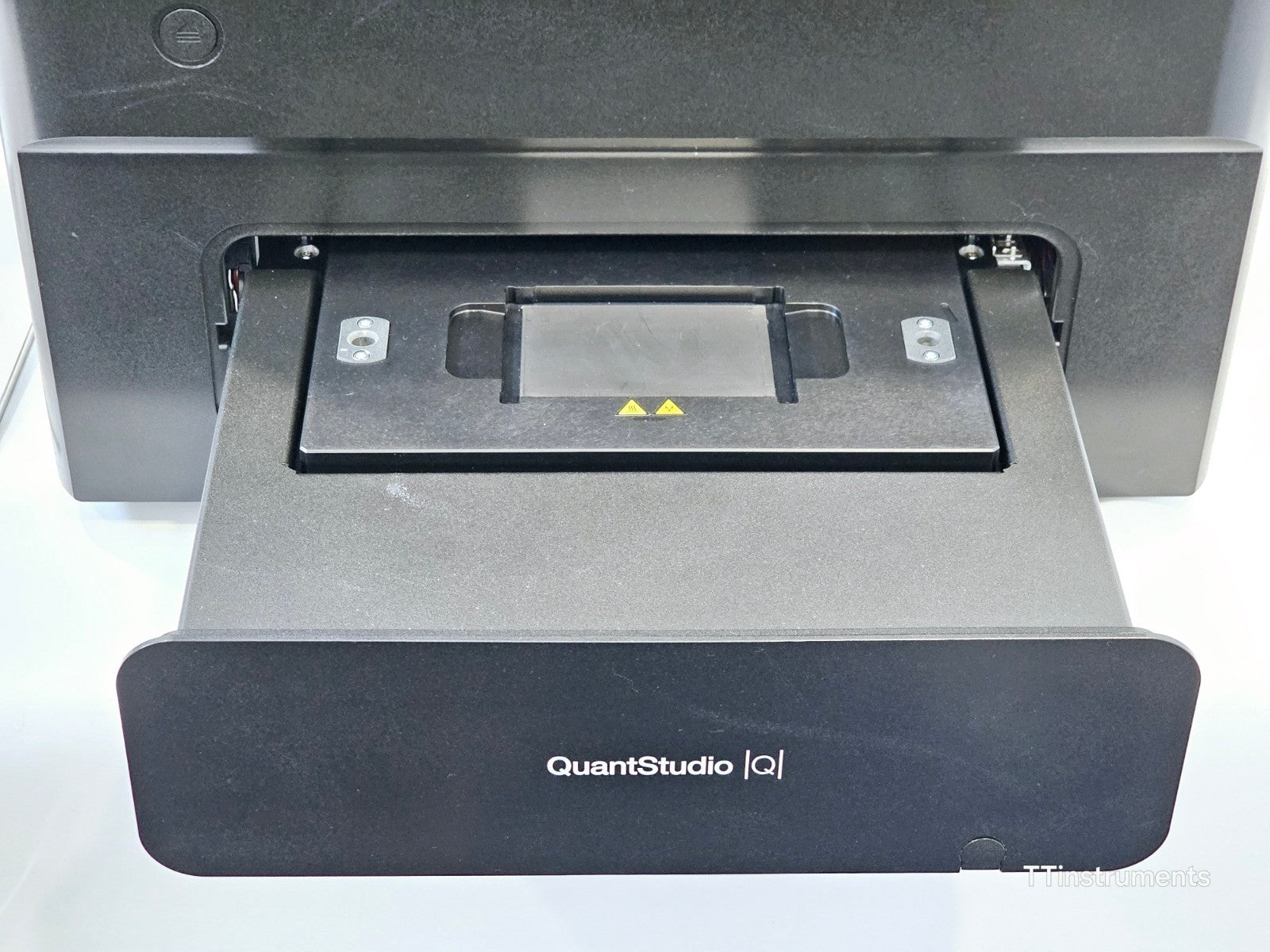

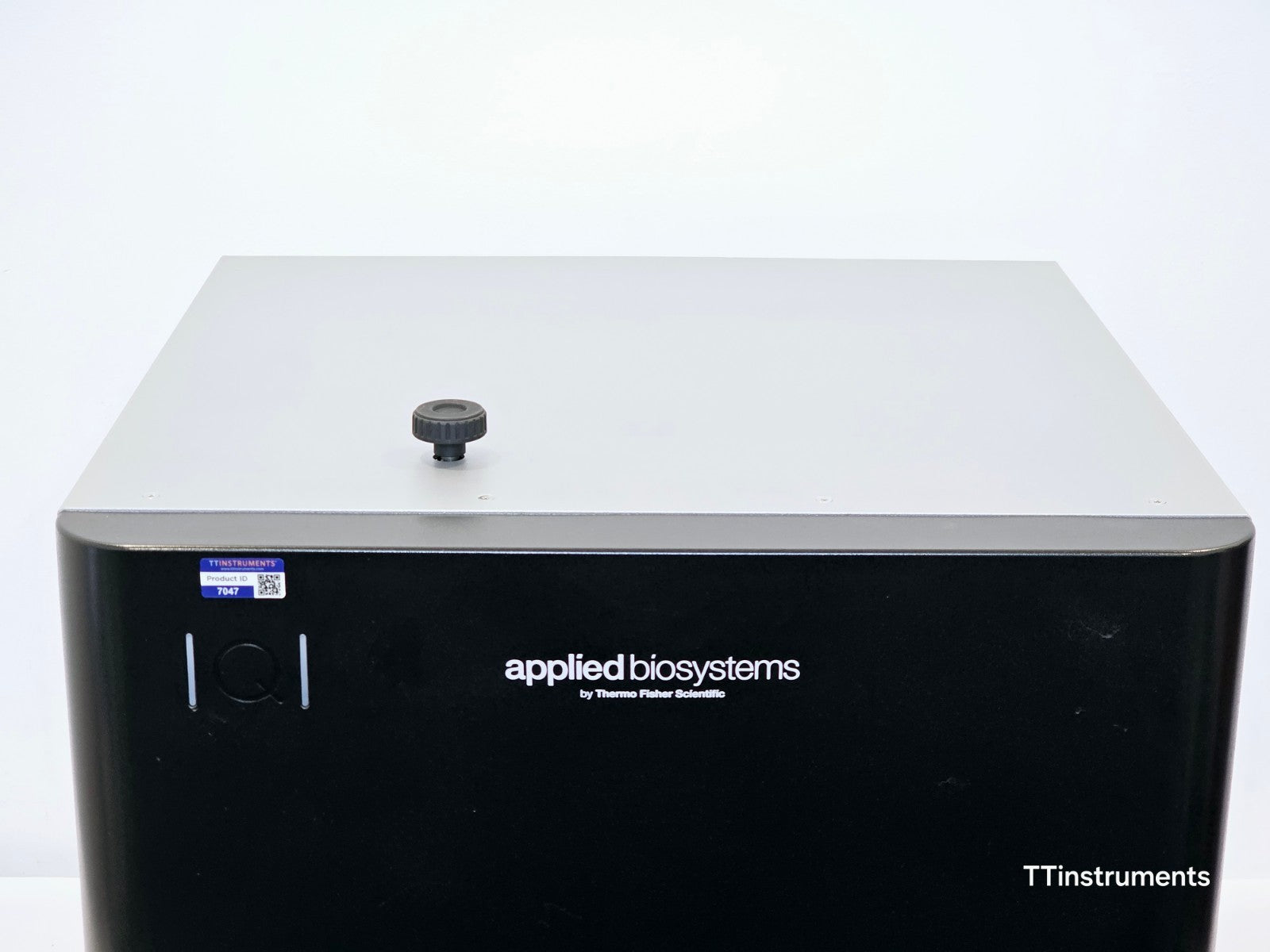

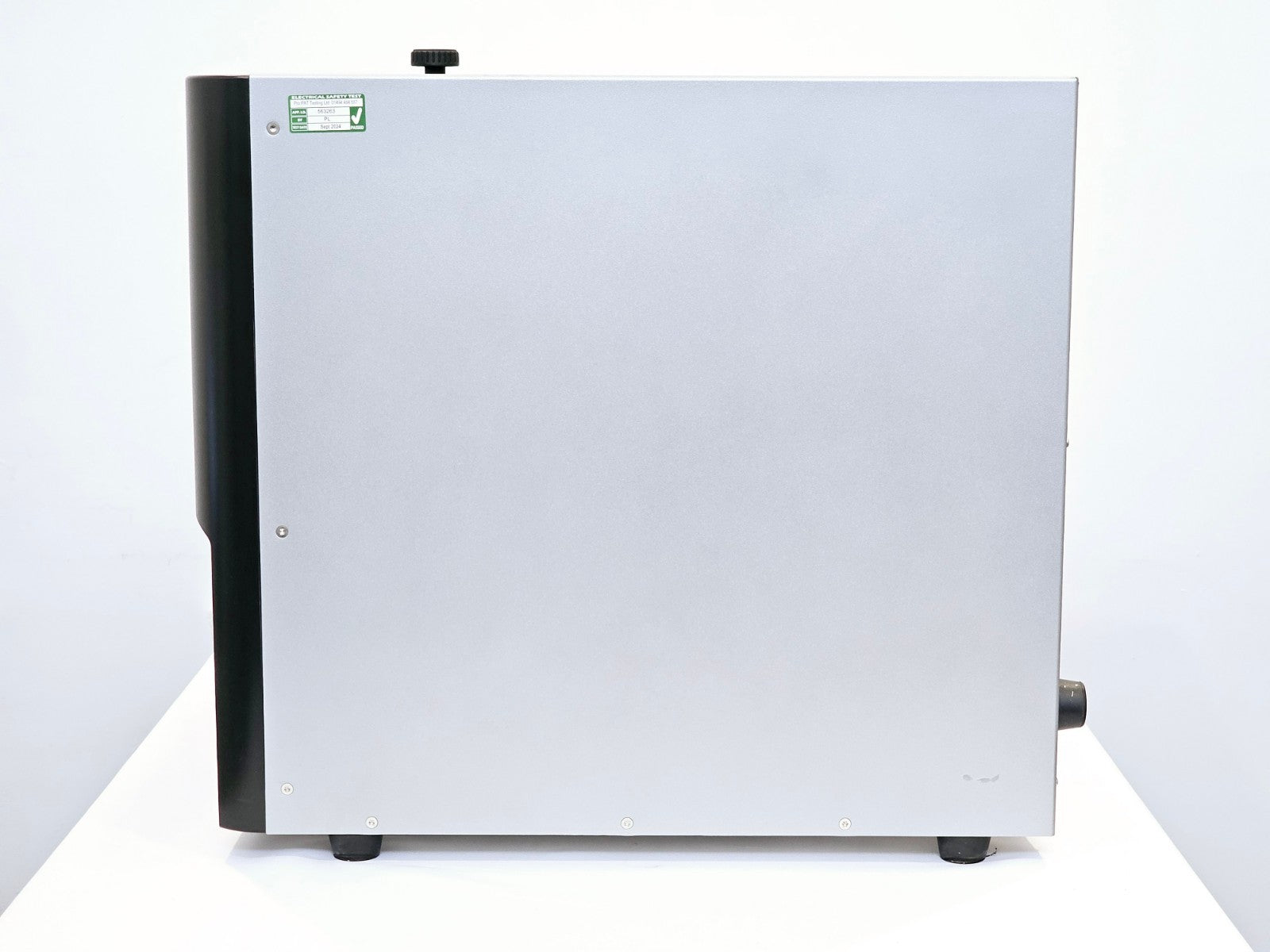

• Applied Biosystems QuantStudio Absolute Q Digital PCR Machine

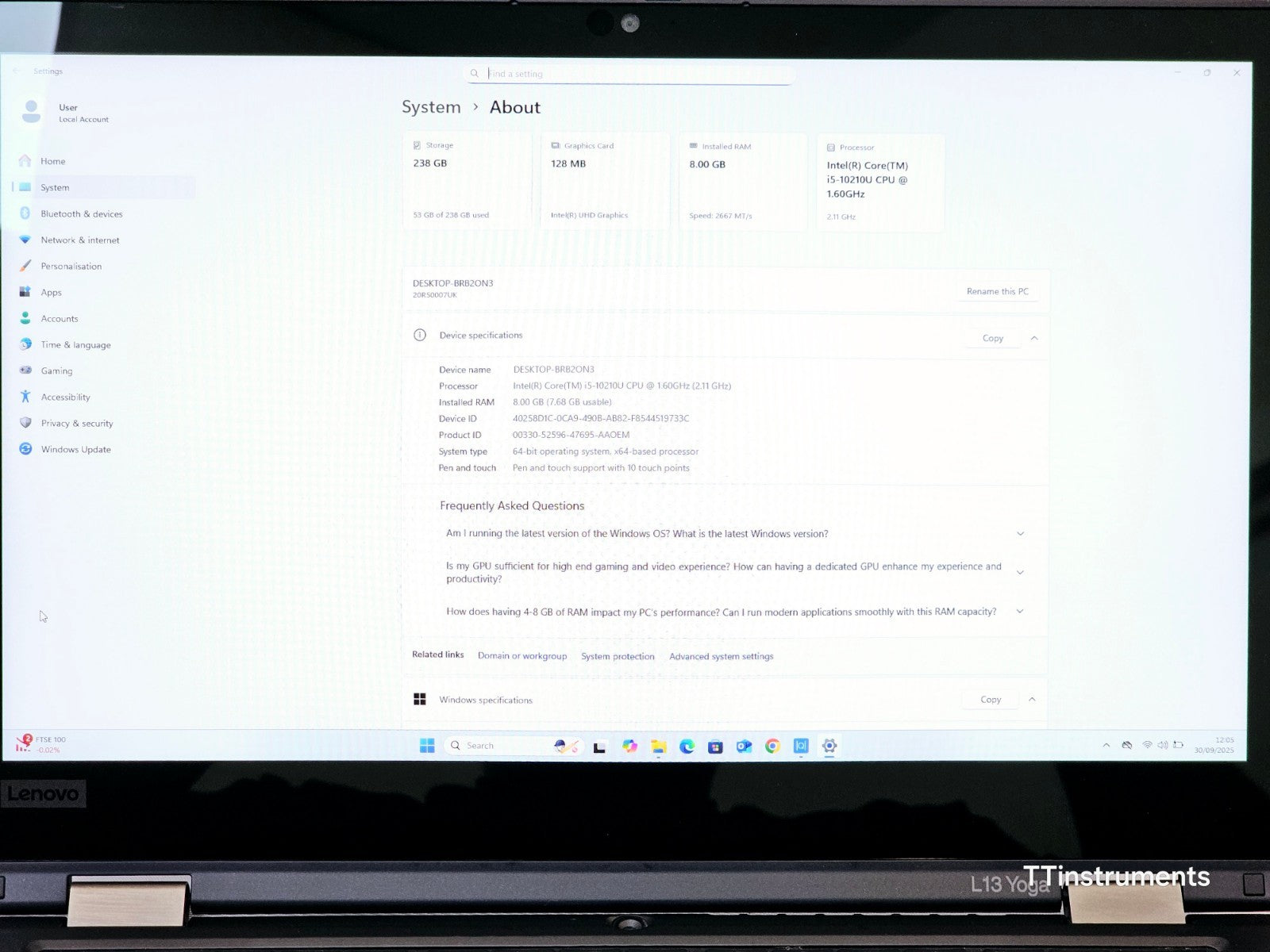

• PC with QuantStudio Absolute Q Software

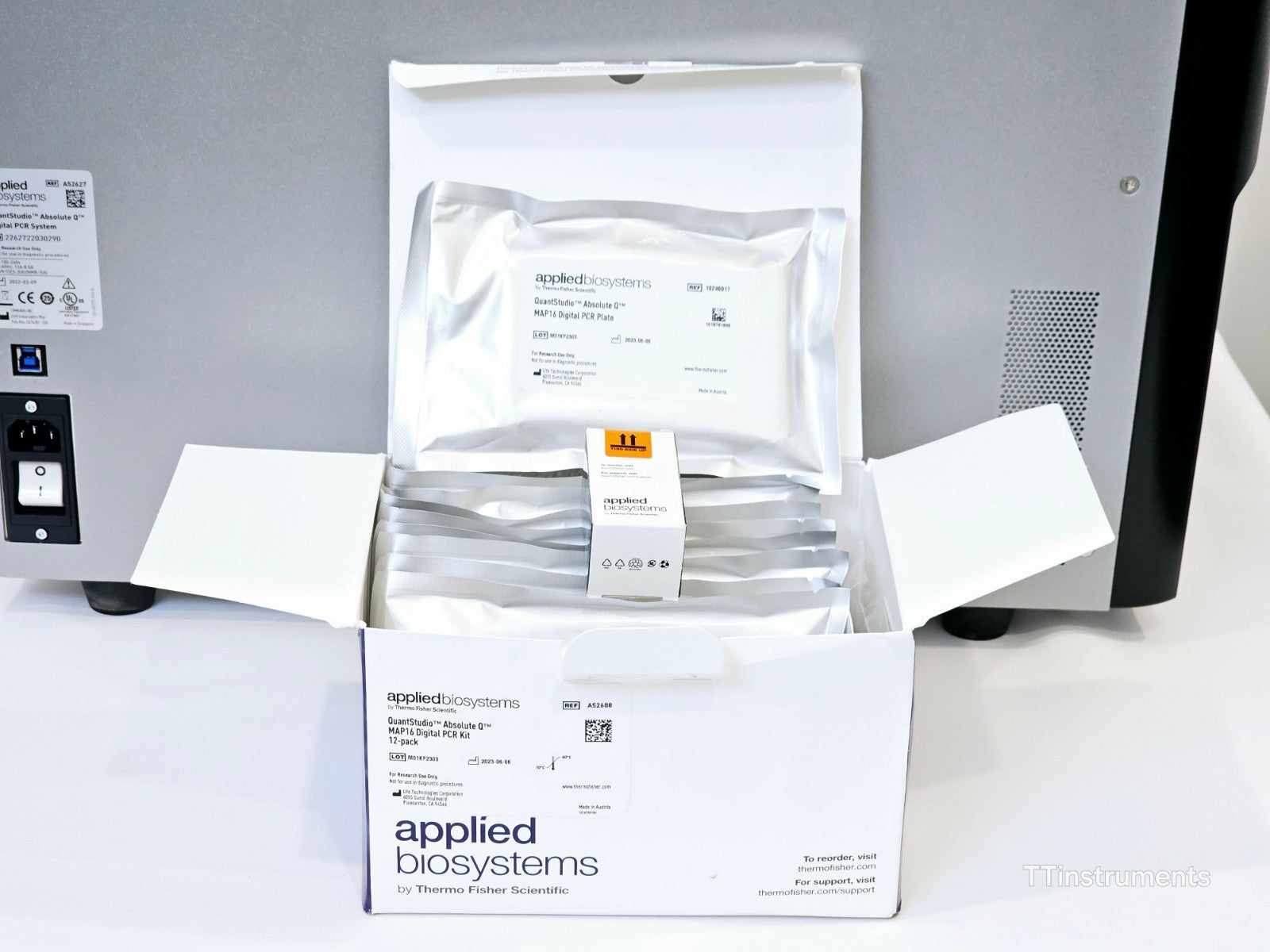

• MAP16 Digital PCR Kit
• Isolation Buffer 3ml

The Applied Biosystems QuantStudio Absolute Q Digital PCR System is a plate-based digital PCR (dPCR) platform powered by proprietary Microfluidic Array Plate (MAP) technology. All steps required for dPCR — compartmentalisation, thermal cycling, and data acquisition — are integrated into a single instrument. The workflow mirrors a familiar qPCR process, requiring only one hands-on step of under five minutes, with results available in as little as 90 minutes.

The MAP16 plate uses microinjection-moulded technology to distribute samples across over 20,480 fixed-volume microchambers per reaction, analysing over 95% of the loaded sample volume — significantly higher than the 25–60% typical of other dPCR platforms. The system supports up to 4-plex detection across 5 optical channels (ROX used as QC reference), enabling multiple targets to be measured per sample simultaneously.

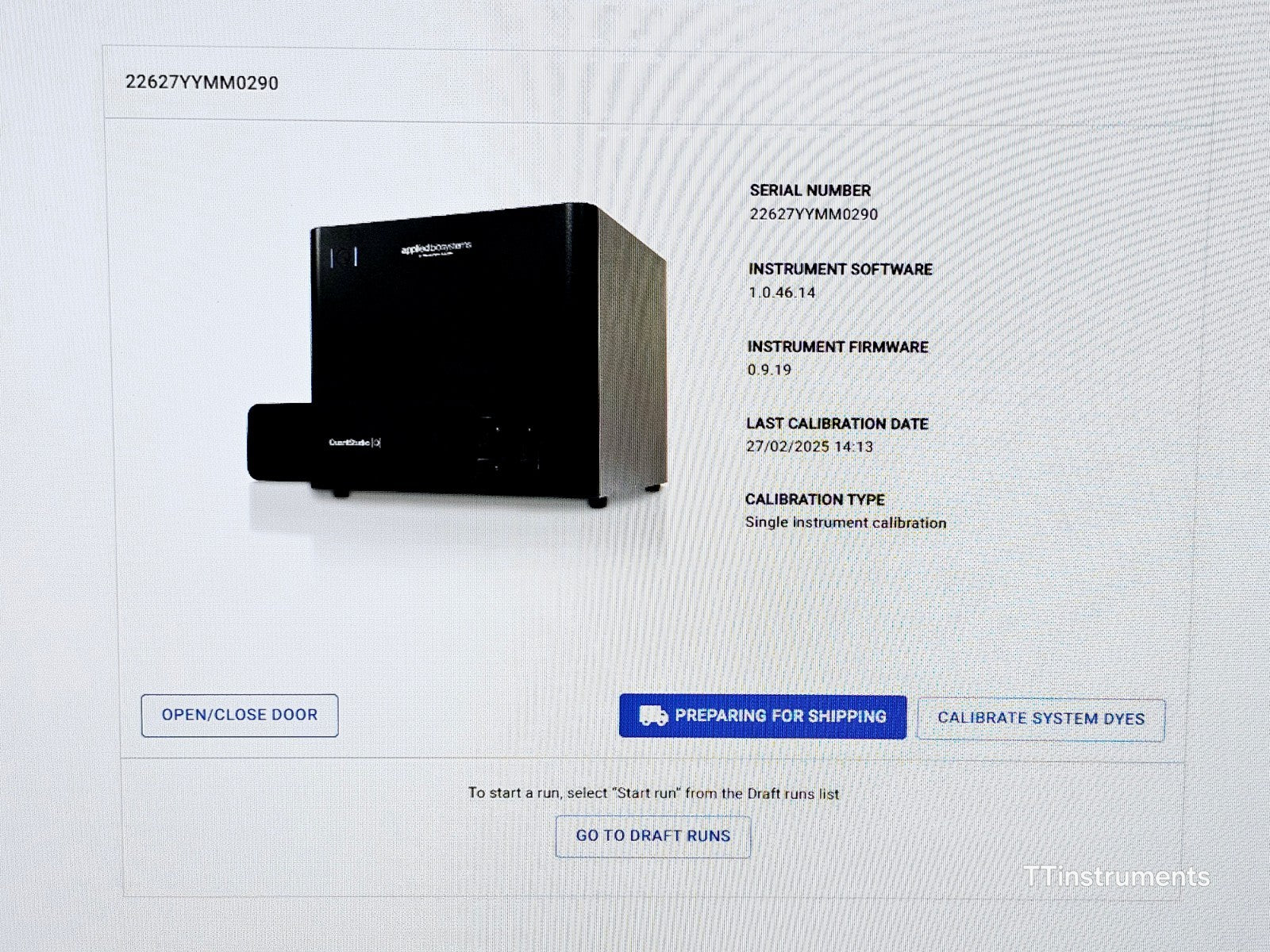

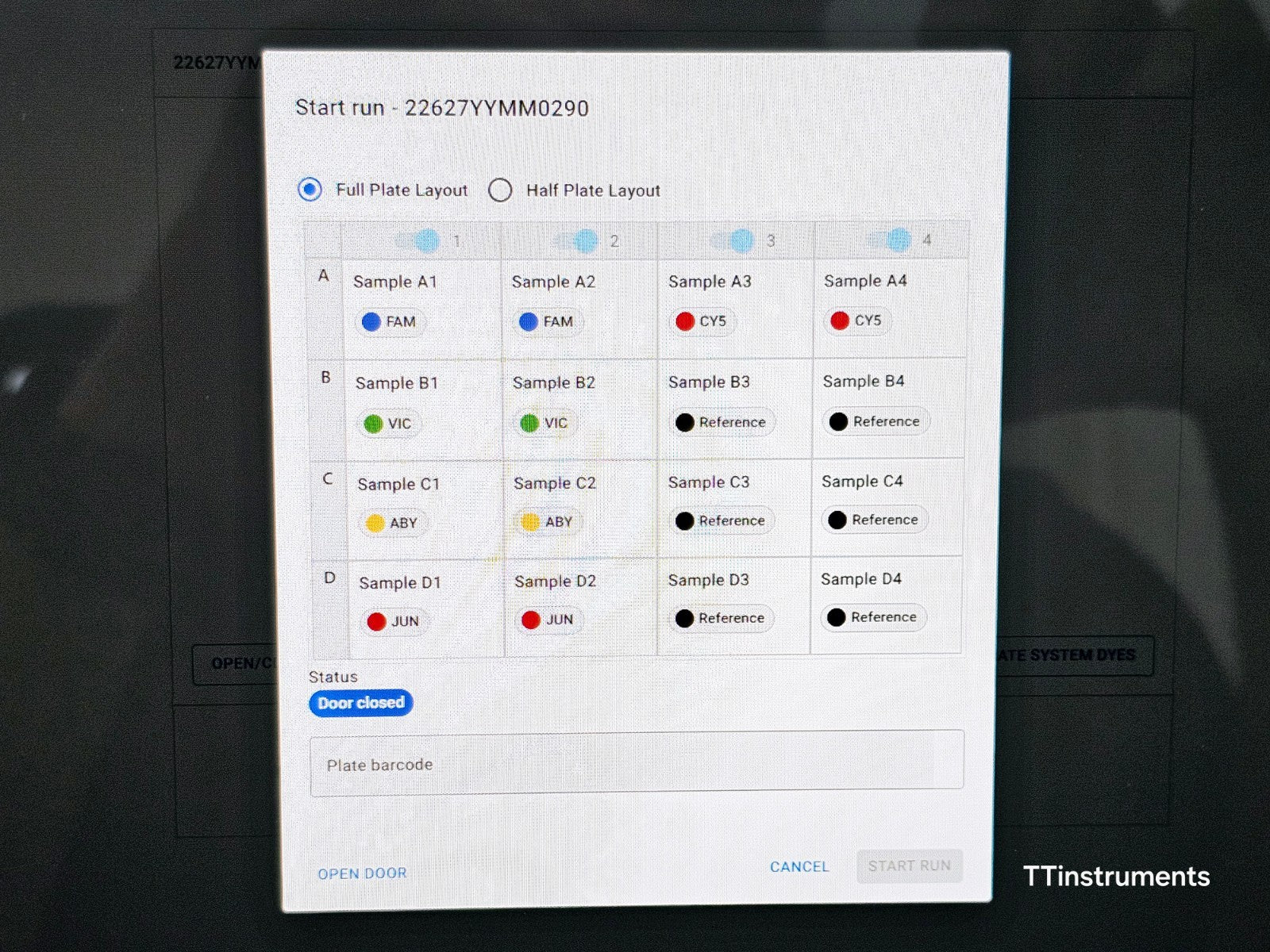

The QuantStudio Absolute Q Digital PCR Software provides intuitive experiment setup, real-time monitoring, and comprehensive data analysis with security, auditing, and e-signature features to support 21 CFR Part 11 compliance. Applications include liquid biopsy and oncology mutation detection, viral titer quantification, wastewater surveillance, gene expression, copy number variation, and rare variant detection.

For Research Use Only. Not for use in diagnostic procedures.

Performance Specifications:
Compatible Dyes: FAM, VIC, HEX, ABY, ROX, JUN, Cy5
Multiplexing: Up to 4 targets (5 optical channels; ROX used for QC reference)
Dynamic Range: 5 orders of magnitude
Sensitivity: 1–100,000 copies
Precision: ±10%
Sample Throughput: Up to 16 samples per run (arrays run in multiples of 4)
Microchambers per Reaction: 20,480
Sample Utilisation: >95%
Run Time: <90 minutes
Hands-on Time: <5 minutes

System Specifications:
Dimensions (unpacked, L x W x H): 62 x 60 x 54 cm
Dimensions (packaged, L x W x H): 82.6 x 94 x 89.9 cm
Weight: Approx. 60 kg (132 lb)

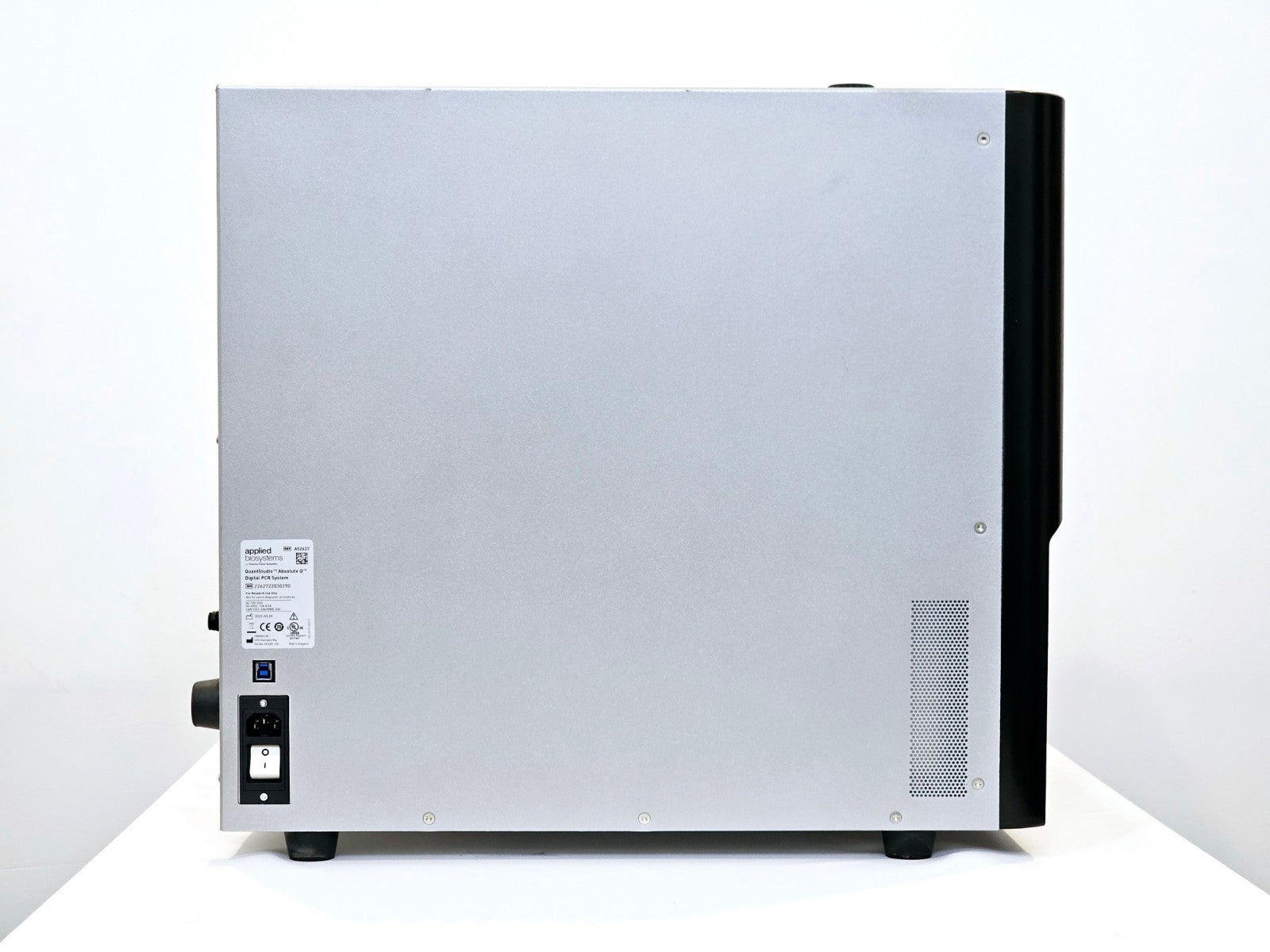

Connections: Power, USB 3.0 (to dedicated PC)
Cooling Mode: Forced convection
Illumination: Red, blue, green high-powered LED
Optical Channels: 5 (fixed configuration)
Power Input: 100–240 VAC, 50–60 Hz
Power Rating: 1,200–1,600 W
Rated Current: 12 A (110 V) / 8.5 A (230 V)
Maximum Noise Level: 70 dB
Dedicated PC Operating System: Microsoft Windows 10 (64-bit) or later
Dedicated PC Model: Dell OptiPlex XE3 Tower

Official specification sheet for the QuantStudio Absolute Q Digital PCR System — performance and system specifications: Download PDF

QuantStudio Absolute Q Digital PCR System product brochure from Thermo Fisher Scientific: Download PDF

QuantStudio Absolute Q Digital PCR Starter Kit User Guide (Pub. No. MAN0025653): Download PDF

Applied Biosystems QuantStudio Absolute Q Digital PCR System product brochure distributed by Fisher Scientific: Download PDF
