Condition: Used

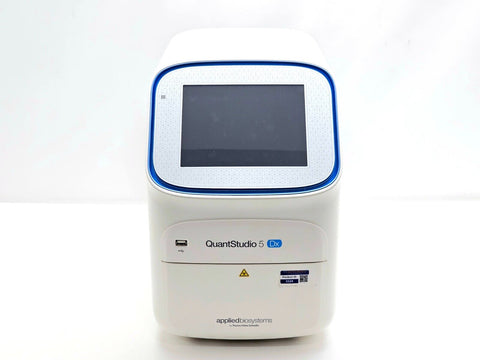

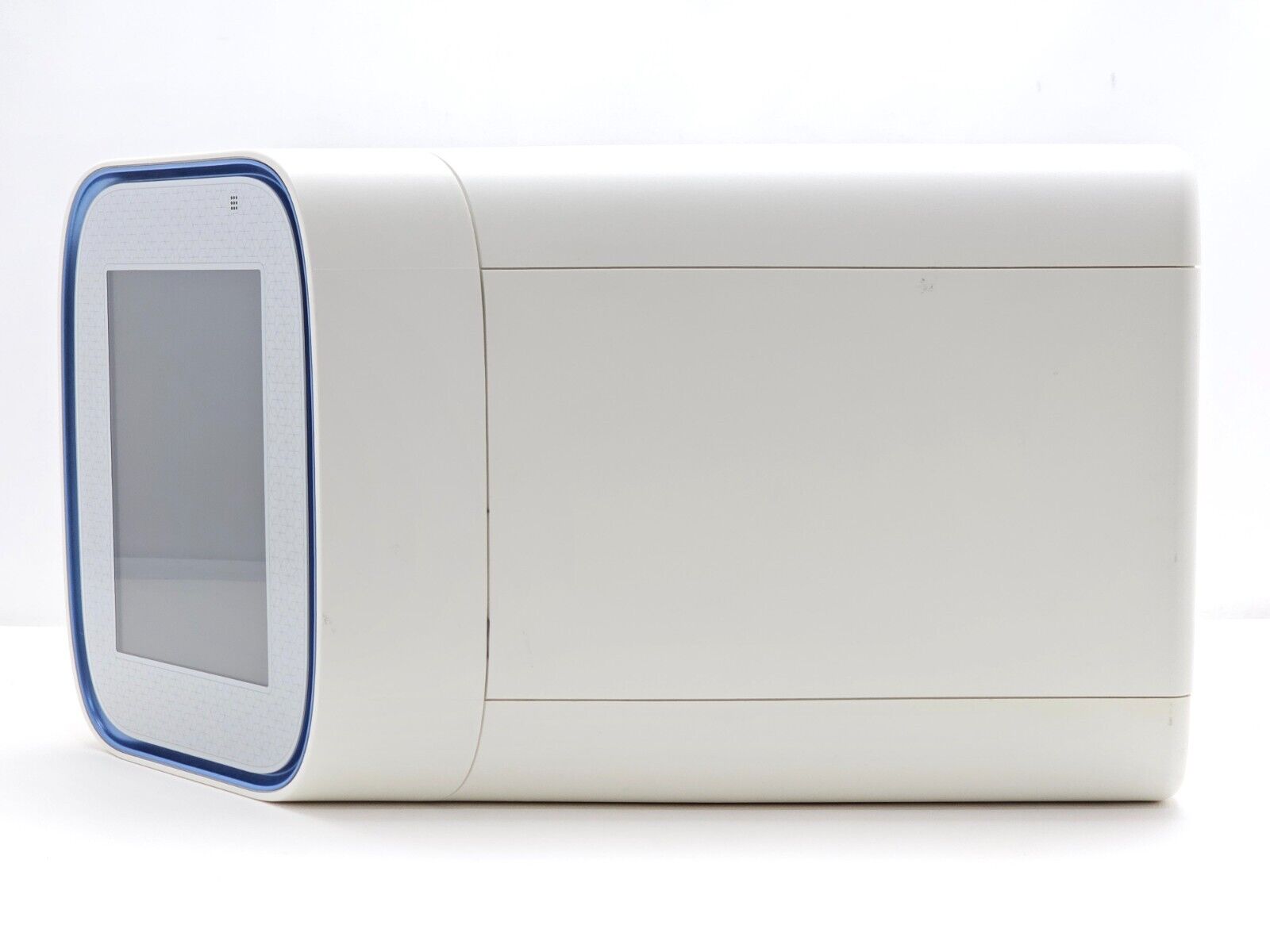

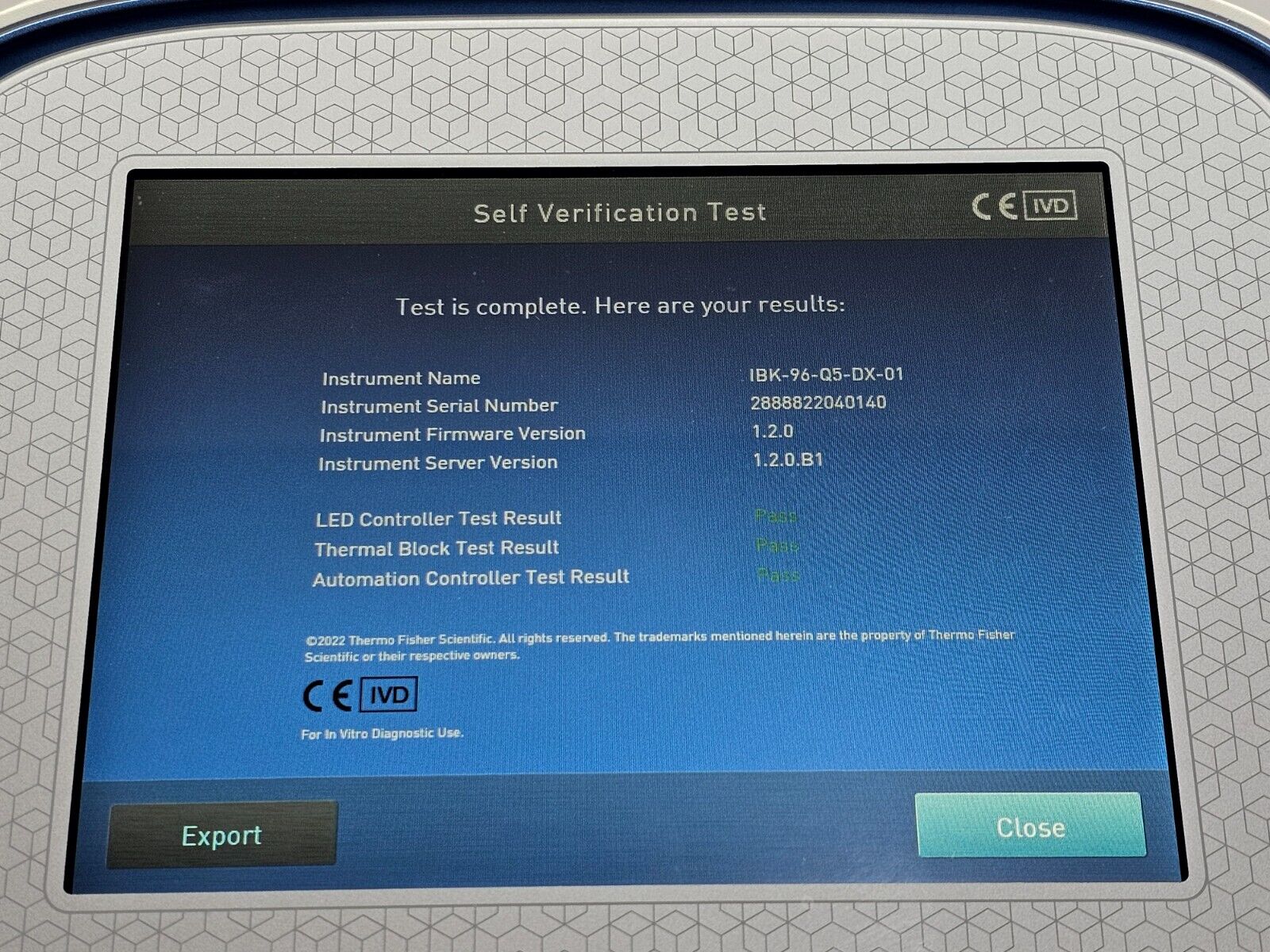

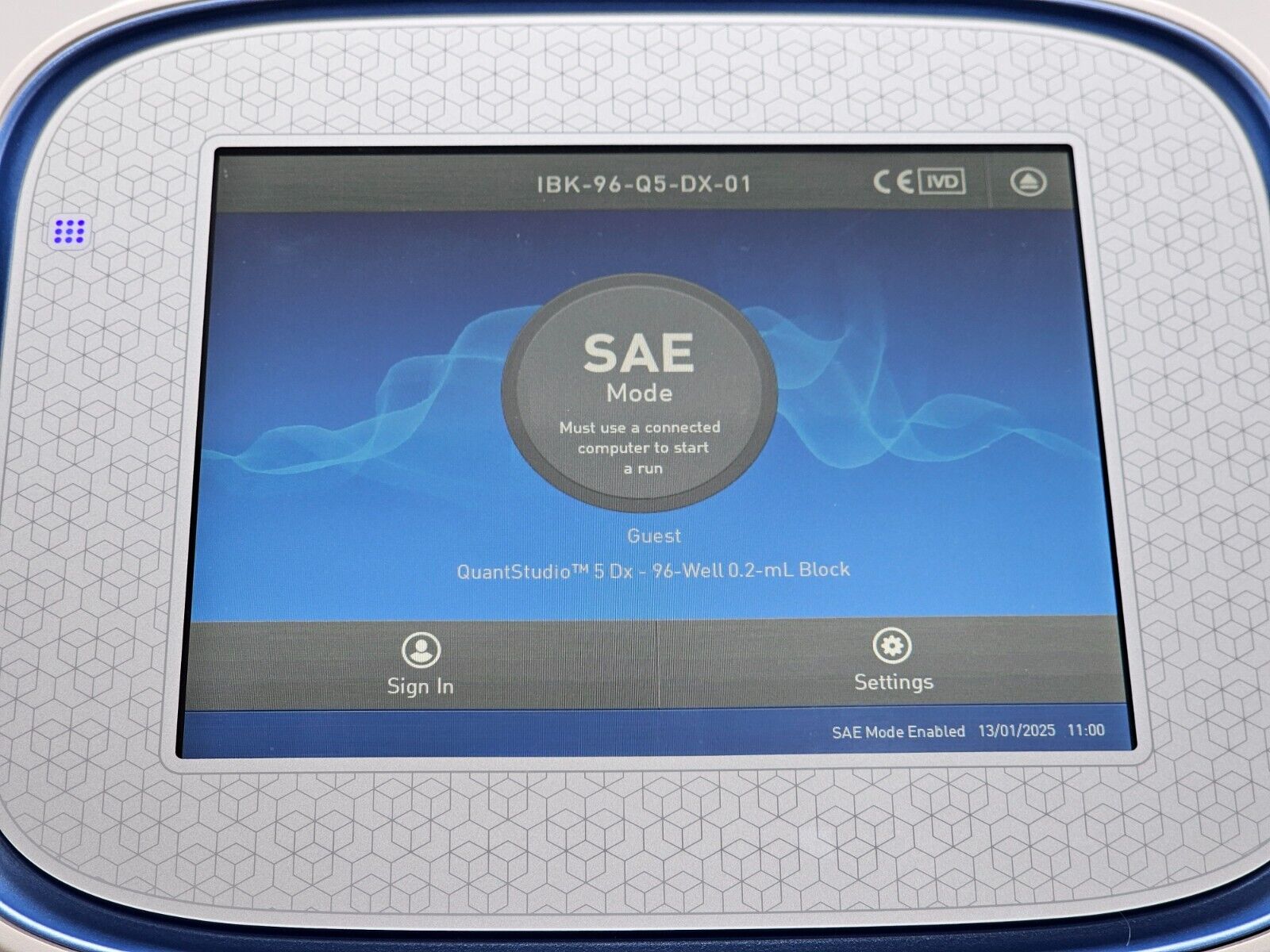

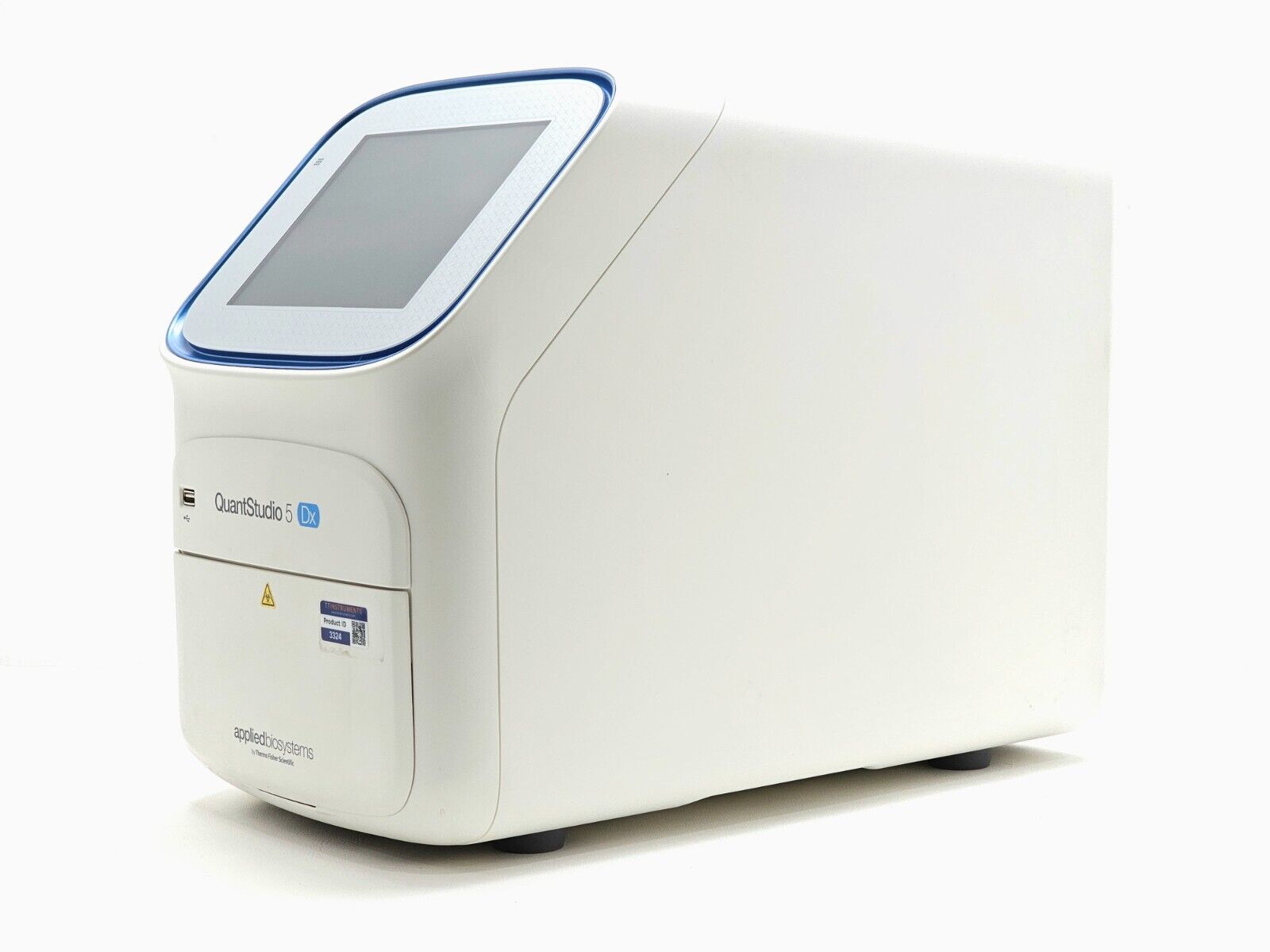

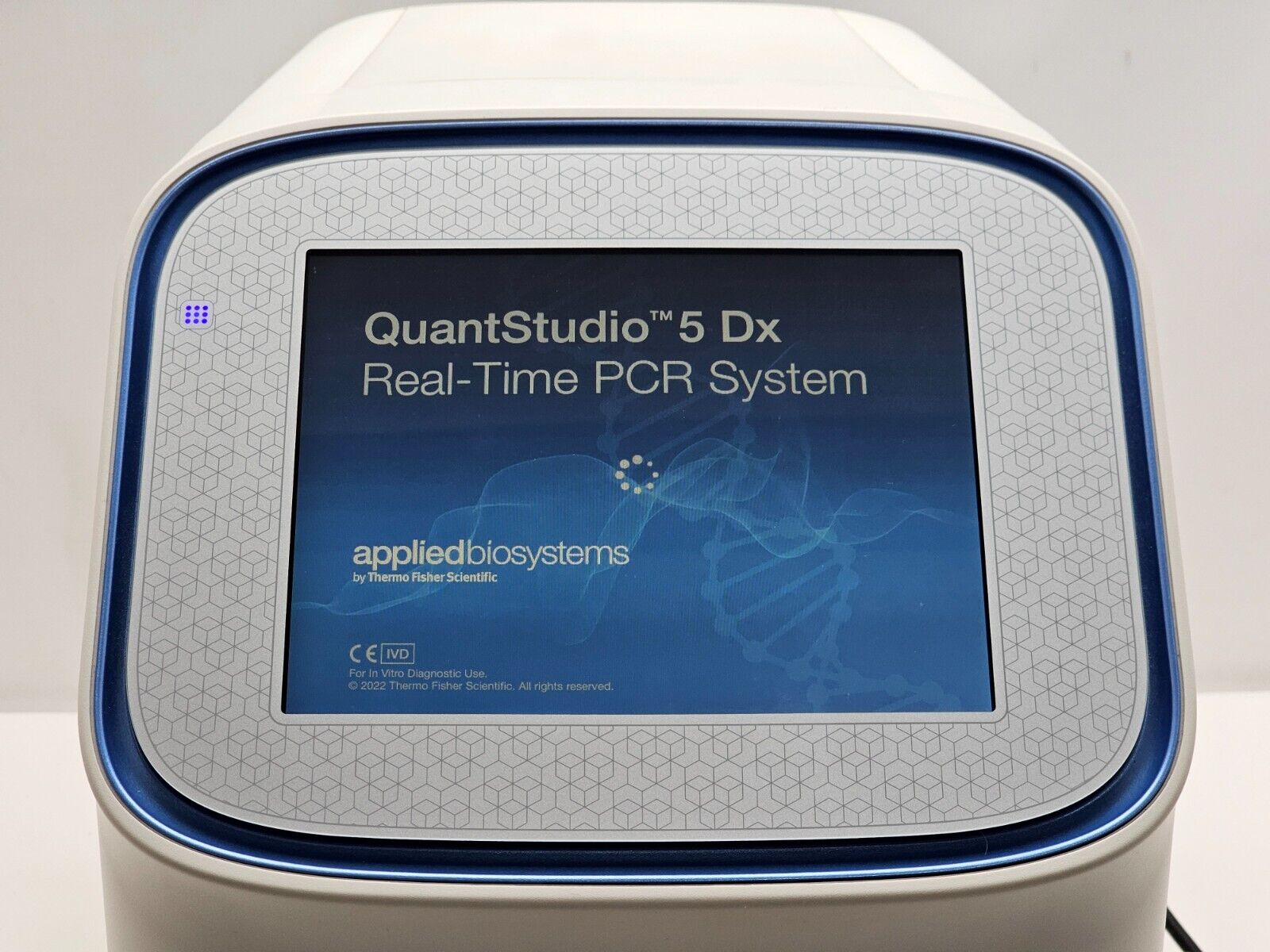

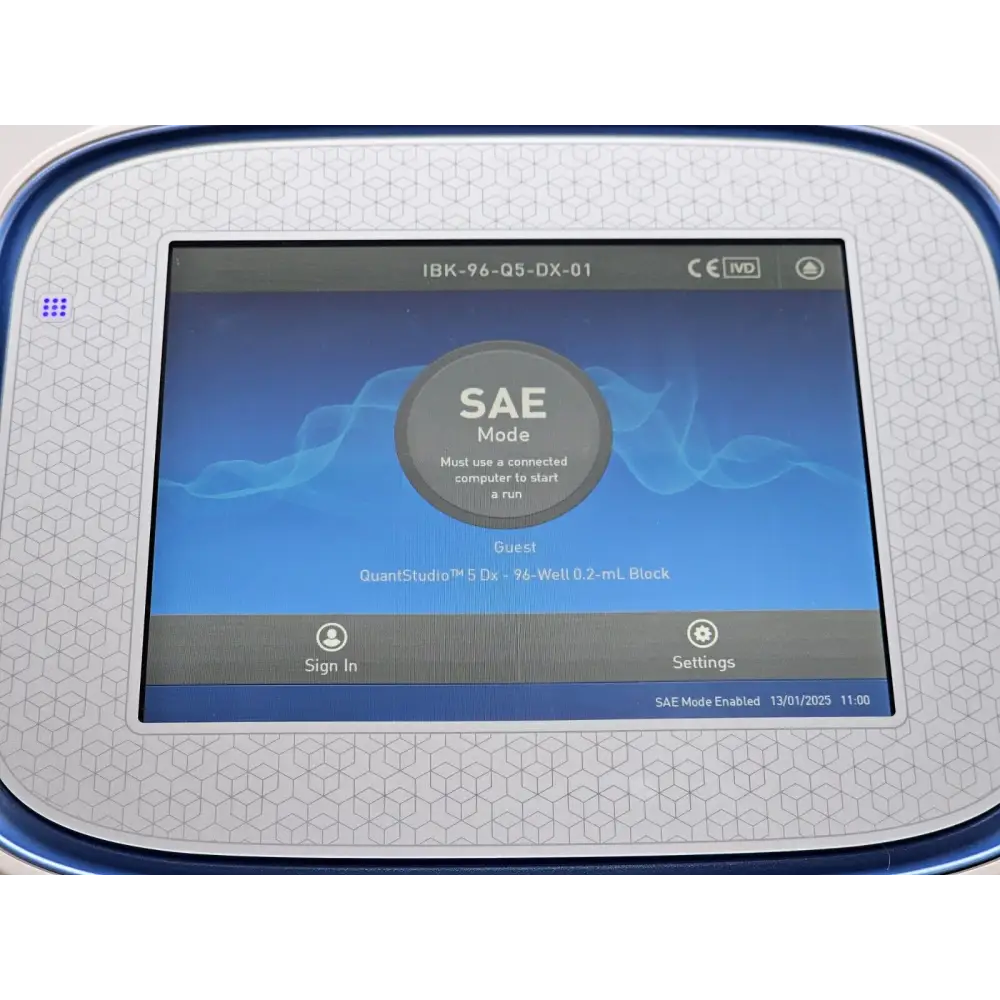

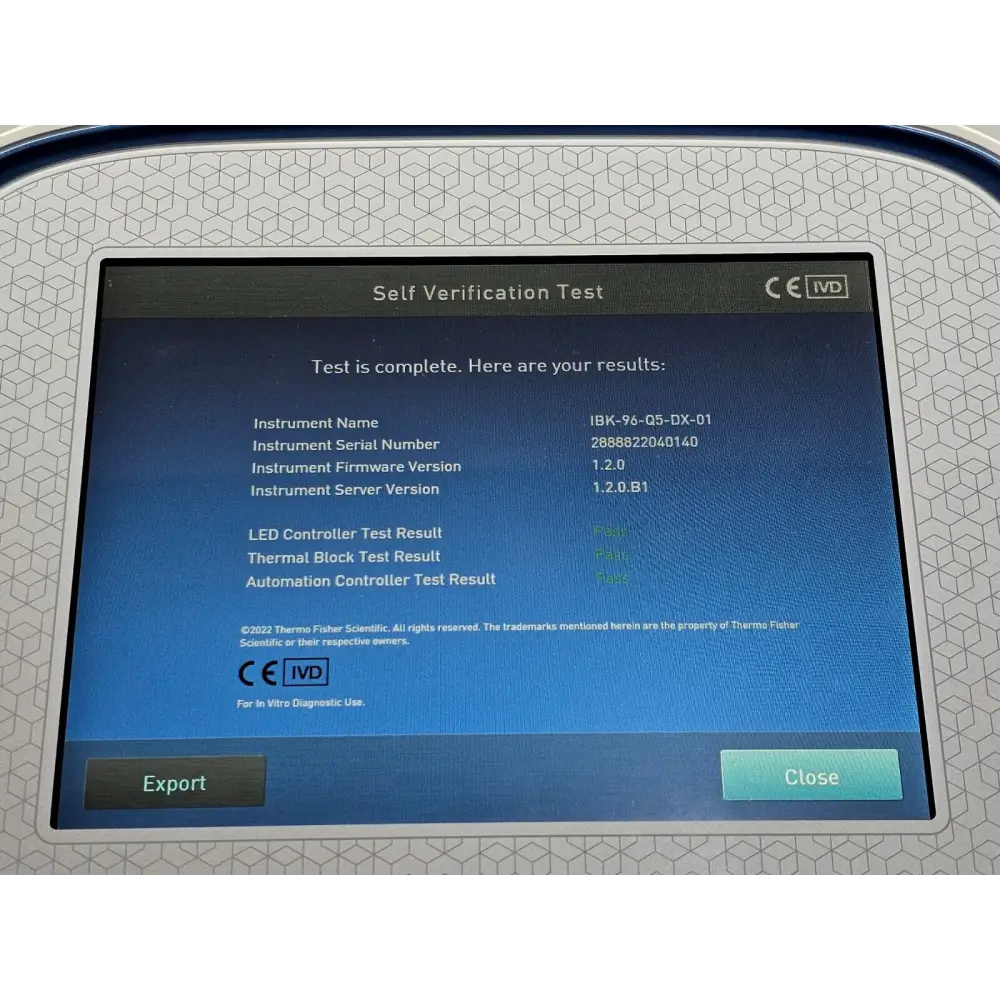

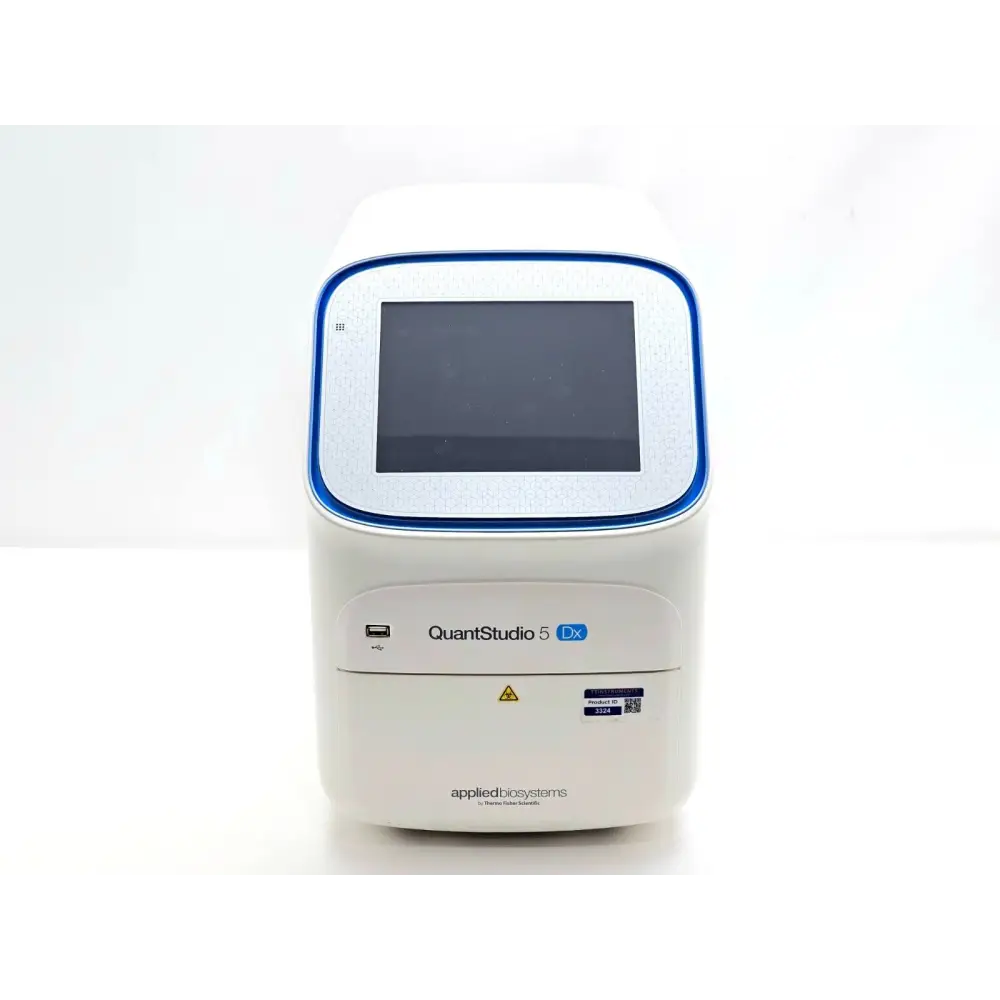

This Applied Biosystems QuantStudio 5 Dx Real-Time PCR instrument was manufactured in 2022 and is in excellent condition, passing the on-board self-test. The system is currently operating in SAE (Security, Auditing and E-signature) mode — a PIN-protected access control mode required for IVD regulatory compliance. Running experiments requires a valid user or admin PIN to log in; TT Instruments does not hold the current PIN credentials for this instrument. Prospective buyers are advised to confirm suitability before ordering.

What is typically included with this product (per listing description):

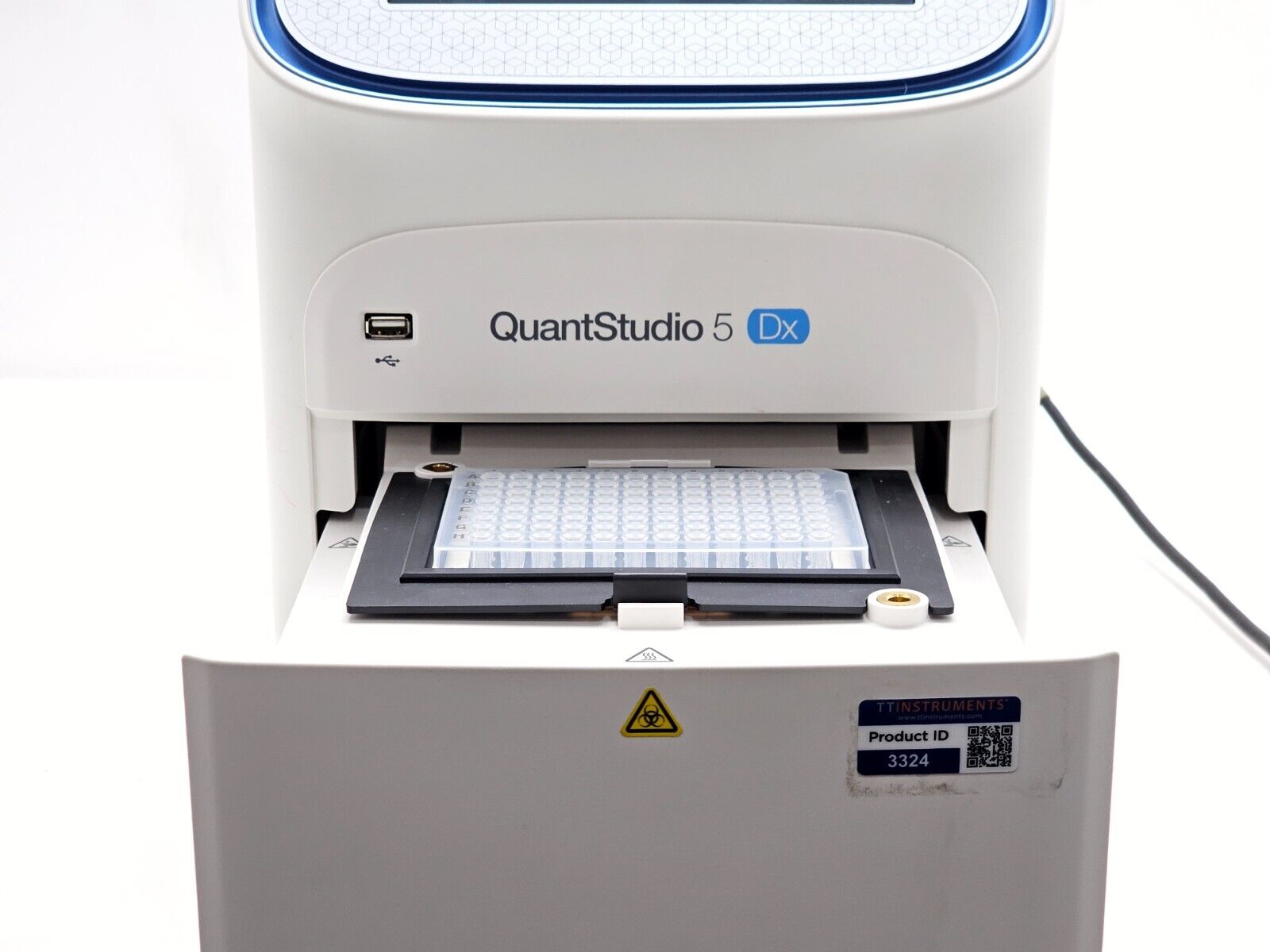

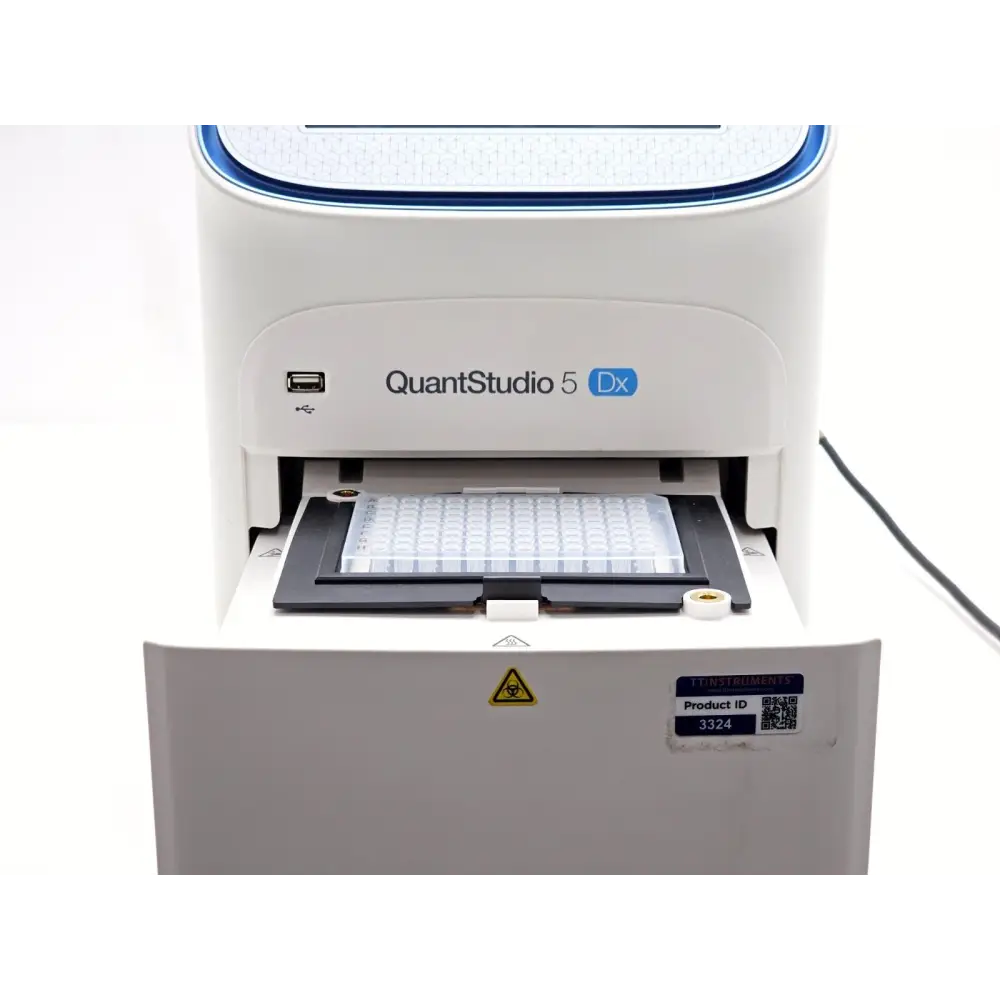

• QuantStudio 5 Dx instrument (96-well, 0.2 mL block)

The Applied Biosystems QuantStudio 5 Dx Real-Time PCR System is an in vitro diagnostic (IVD) quantitative PCR system designed for clinical and hospital laboratories and assay developers. It supports both Test Development (DEV) and In Vitro Diagnostic (IVD) operating modes within a single software interface, helping to minimise the risk of operating in the wrong mode. The system is both US-IVD and CE-IVD, IVDR compliant.

Key features include OptiFlex technology, which decouples excitation and emission filters across 6 channels (with up to 21 filter combinations) for optimised fluorescent dye performance and reliable multiplexing. VeriFlex thermal blocks allow precise independent temperature control across six zones of the 96-well sample block, delivering consistent and reproducible PCR amplification. The instrument detects differences in target quantity as small as 1.5-fold in singleplex reactions, with 10 logarithmic units of linear dynamic range.

The QuantStudio 5 Dx Dx software includes Security, Auditing and E-signature (SAE) features to support compliance with 21 CFR Part 11 and EU IVD regulations. The IVD test menu restricts operation to authorised IVD tests only, reducing the risk of accidental misuse. Subsequent IVD dye calibrations are user-enabled to minimise ongoing operating costs.

Technical Specifications (96-well, 0.2 mL block):
Block Format: 96-well plate, 0.2 mL
Reaction Volume Range: 10–100 µL
Maximum Heating Rate: 6.5°C/sec
Cooling Rate: 3.66°C/sec
Temperature Range (Block): 4–99.9°C
Heated Cover Temperature Range: 50–110°C
Temperature Zones: 6 independent VeriFlex zones
Optical Channels: 6 decoupled filters, up to 21 combinations
Excitation/Emission Range: 450–680 nm / 500–730 nm
Light Source: Bright white LED (median lifetime >5 years)
Multiplex Capability: Up to 6 targets
Run Time: Less than 30 minutes (typical)
Dye Compatibility: FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ, Cy5.5
Sensitivity: 1.5-fold change detection in singleplex reactions
Dynamic Range: 10 logarithmic units

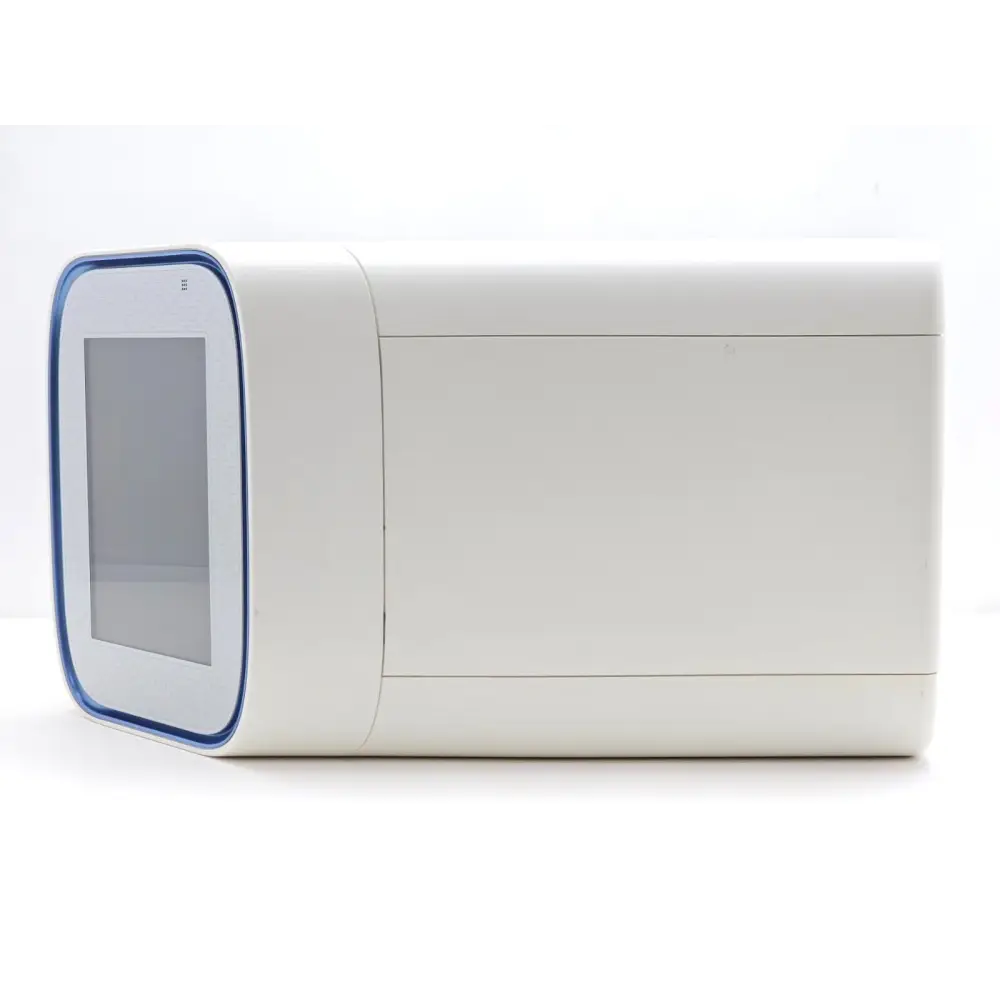

Dimensions: 27 W x 50 D x 40 H cm
On-Board Memory: 10 GB

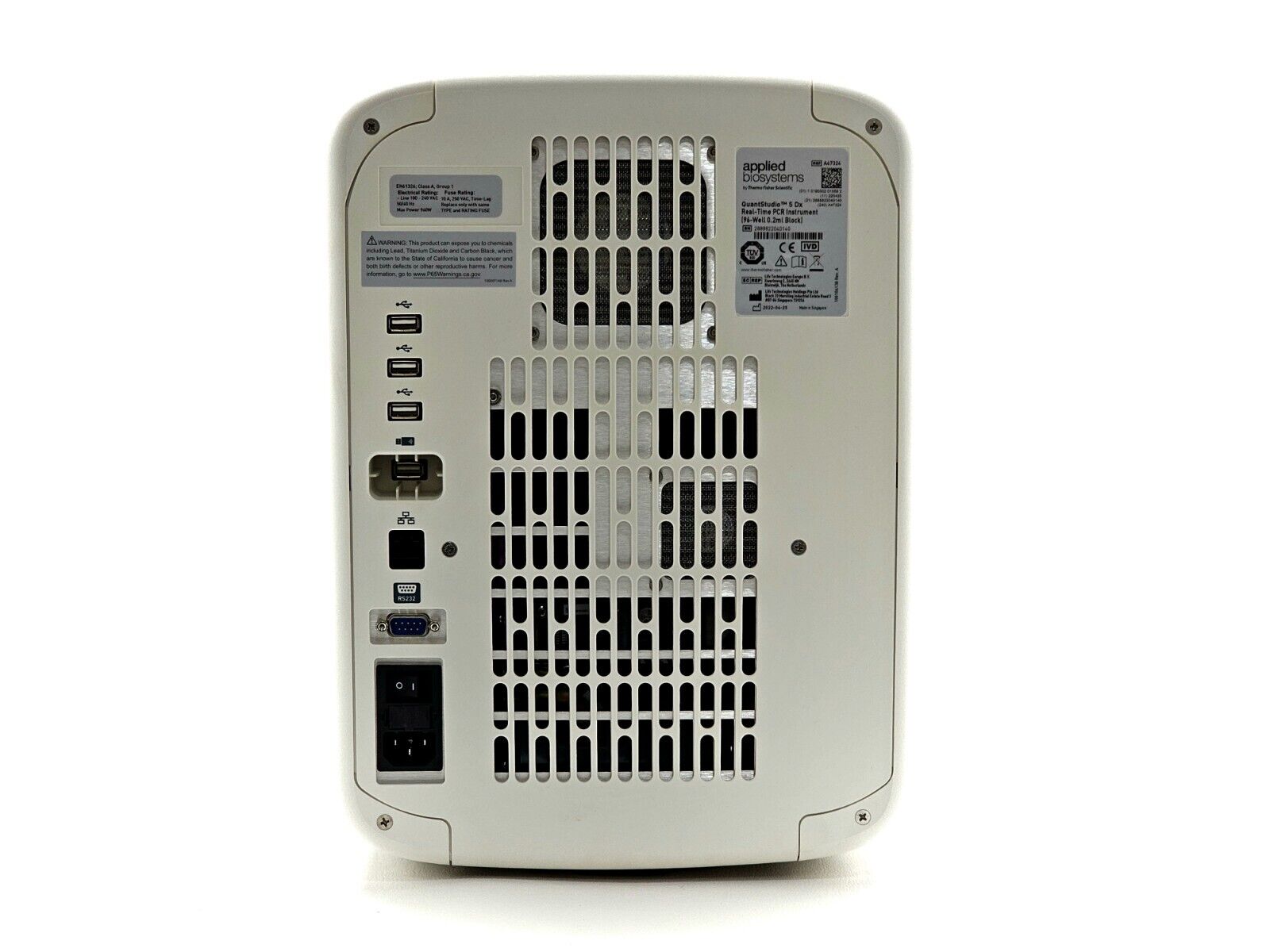

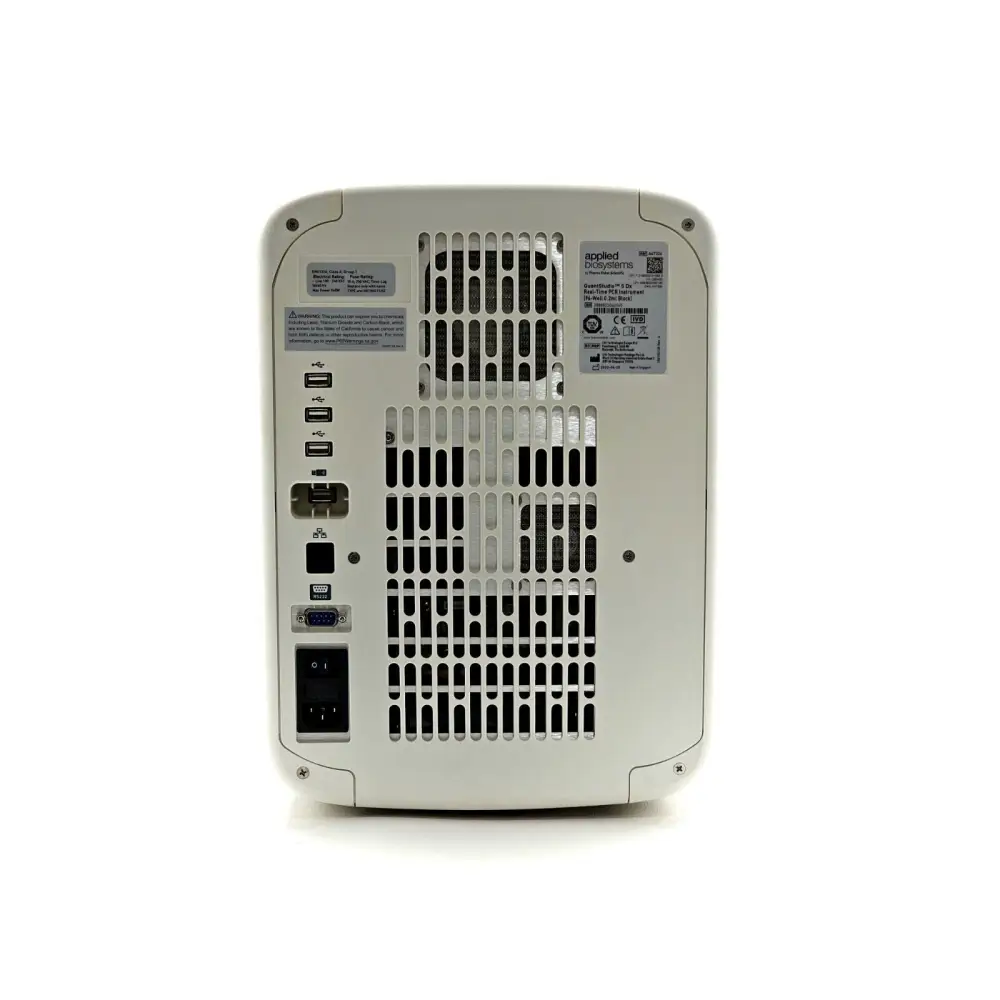

Connectivity: USB, Ethernet
Regulatory Status: CE-IVD (IVDR), US-IVD
Software Modes: Test Development (DEV) and In Vitro Diagnostic (IVD)
Compliance: 21 CFR Part 11, SAE (Security, Auditing, E-signature)

Typical Applications: Pathogen detection (viruses, bacteria, fungi), gene expression analysis, SNP genotyping, mutation analysis, companion diagnostic development, clinical molecular diagnostics.

QuantStudio 5 Dx Real-Time PCR System — Official Specification Sheet (Thermo Fisher): Download PDF

QuantStudio 3 and 5 Real-Time PCR Systems — Specification Sheet (Fisher Scientific): Download PDF

QuantStudio 3 and 5 Real-Time PCR Systems — Installation, Use and Maintenance Guide (User Manual): Download PDF

QuantStudio 5 Dx US-IVD Sole Source Reference Document (Thermo Fisher Americas): Download PDF

QuantStudio 5 Dx Assay Developer Reference Document (Thermo Fisher Americas): Download PDF
