Condition: Used

The AOIP RN 5306 is a used portable safety ohmmeter dedicated to the measurement and control of electro-pyrotechnical devices. It features automatic range adjustment across 2-wire and 4-wire modes, hardware-enforced current limiting for operator safety, and an IP 65-rated rugged housing suited to extended field deployment. Yearly calibration is recommended to verify all safety functions remain within specification.

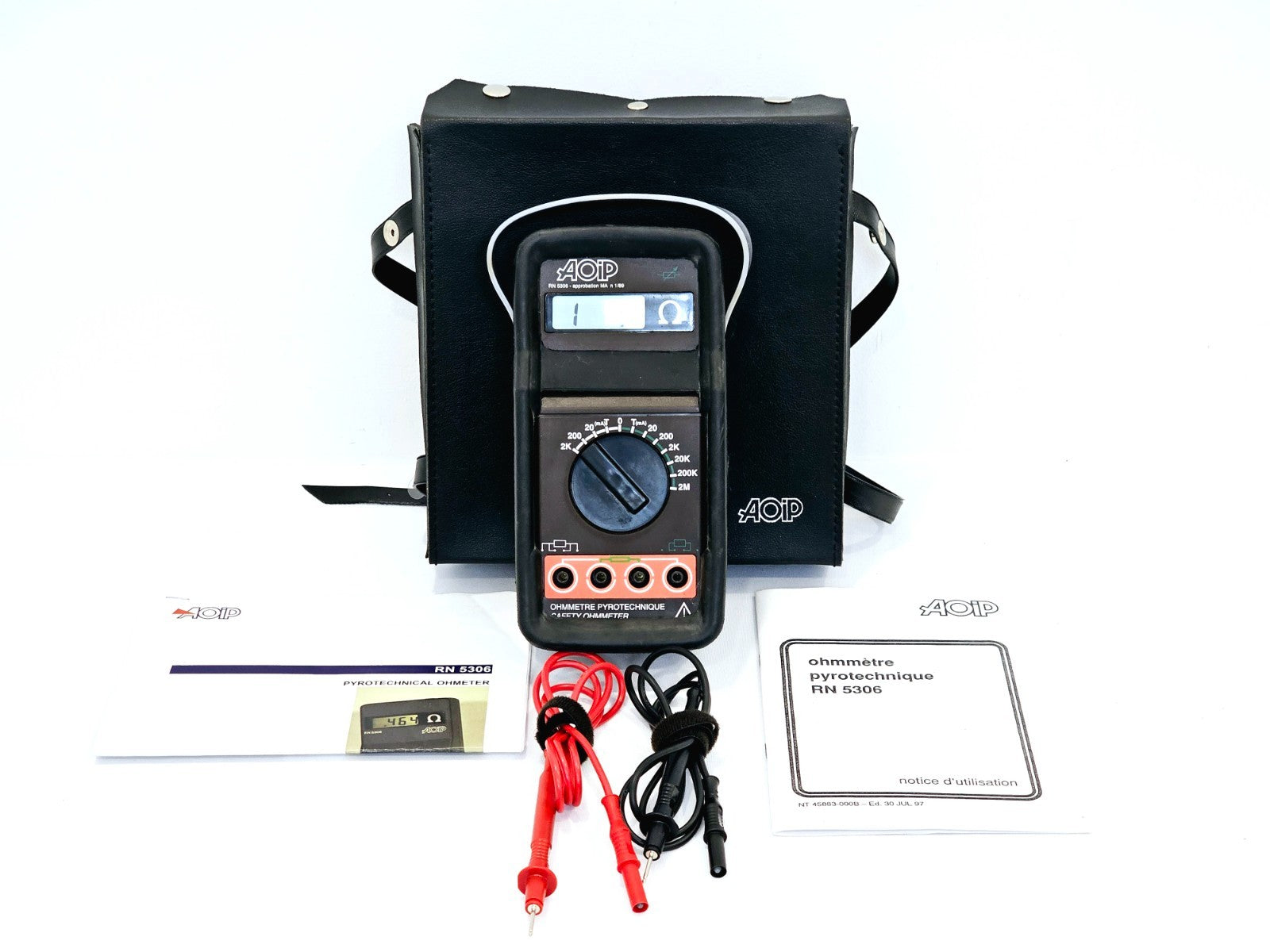

Typically included with this product:
• Protection rubber case
• Pair of measuring cables

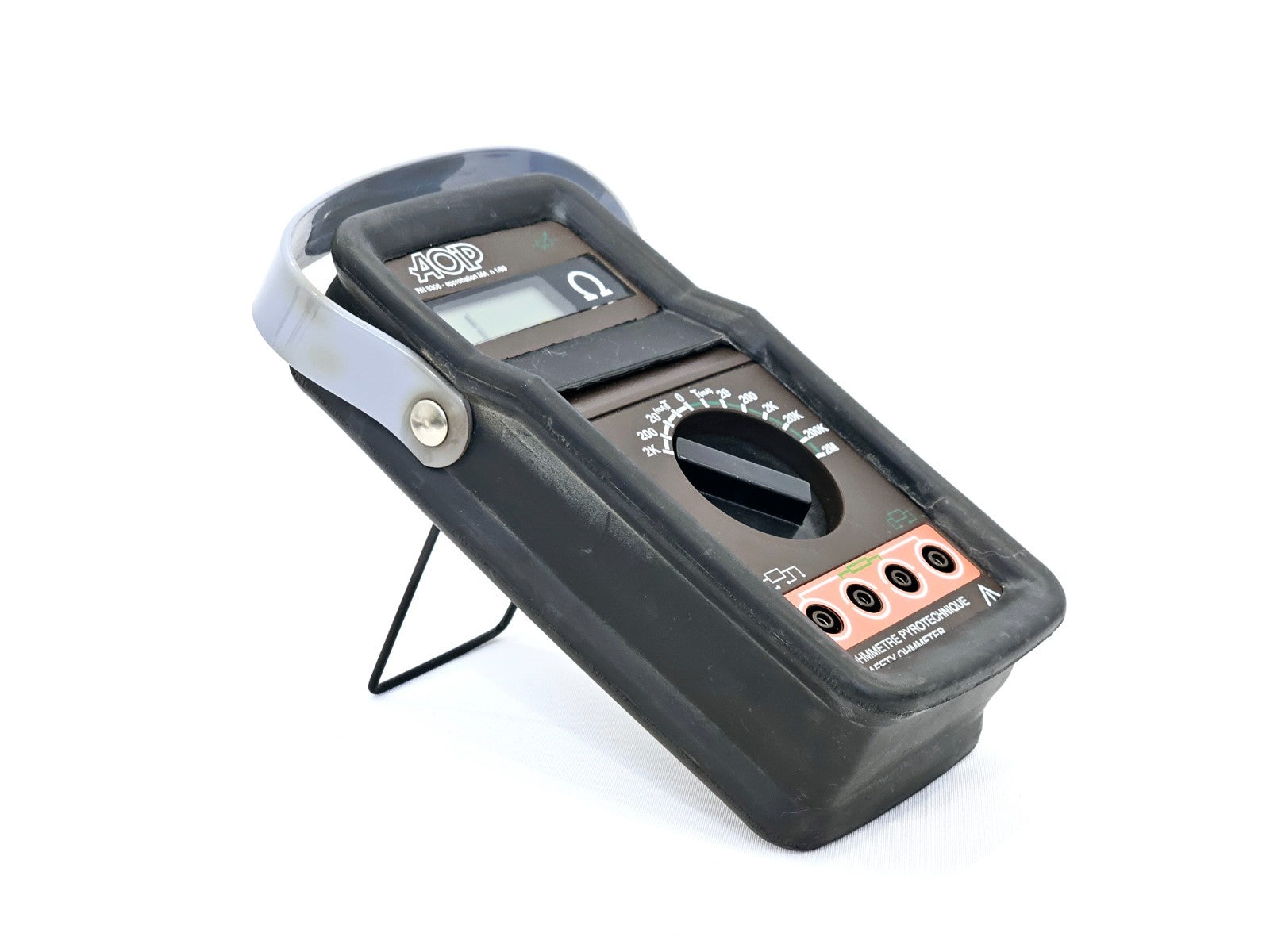

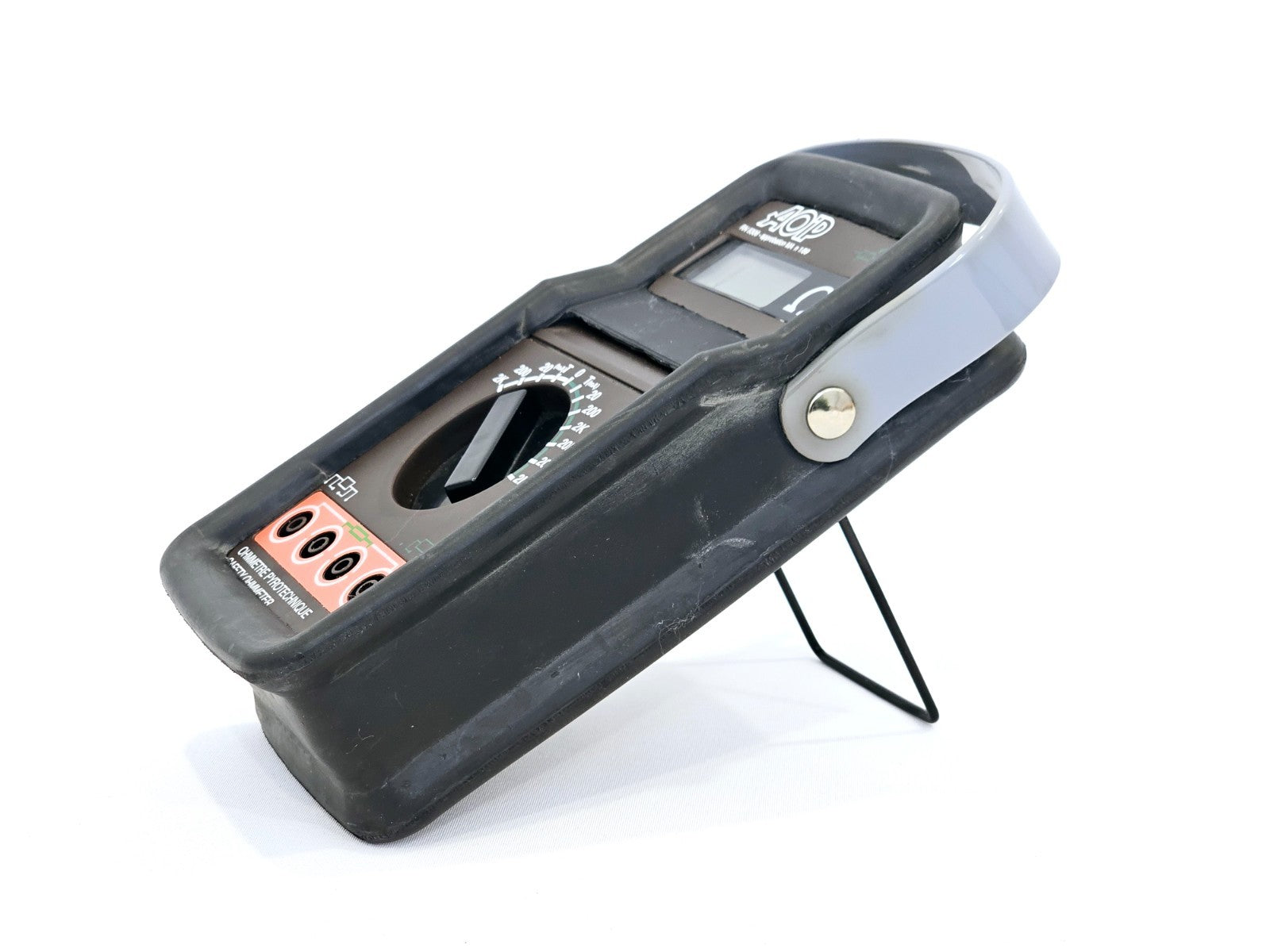

The AOIP RN 5306 is an onsite portable rugged safety ohmmeter dedicated to the control and testing of electro-pyrotechnical devices and initiators. It is designed to provide all necessary safety conditions required for resistance measurements where operator safety is critical, making it suitable for use in pyrotechnical, aerospace, defence, and demolition environments.

The instrument supports both 2-wire and 4-wire measurement configurations with automatic range selection, enabling accurate low-resistance continuity testing while eliminating the influence of lead resistance in 4-wire mode.

Key safety features ensure the instrument cannot inadvertently trigger pyrotechnic devices:
— Terminal voltage is kept below 1 V in open circuit
— Before measurement commences, current is maintained below 0.5 mA
— In the event of a single internal fault, current is always limited to less than 5 mA
— In the event of two simultaneous internal faults, current never exceeds 10 mA

The rugged IP 65-rated housing protects against dust ingress and water jets, making the RN 5306 suitable for harsh field conditions. Its lightweight construction and exceptional battery autonomy of up to 400 hours make it ideal for prolonged onsite use without access to mains power.

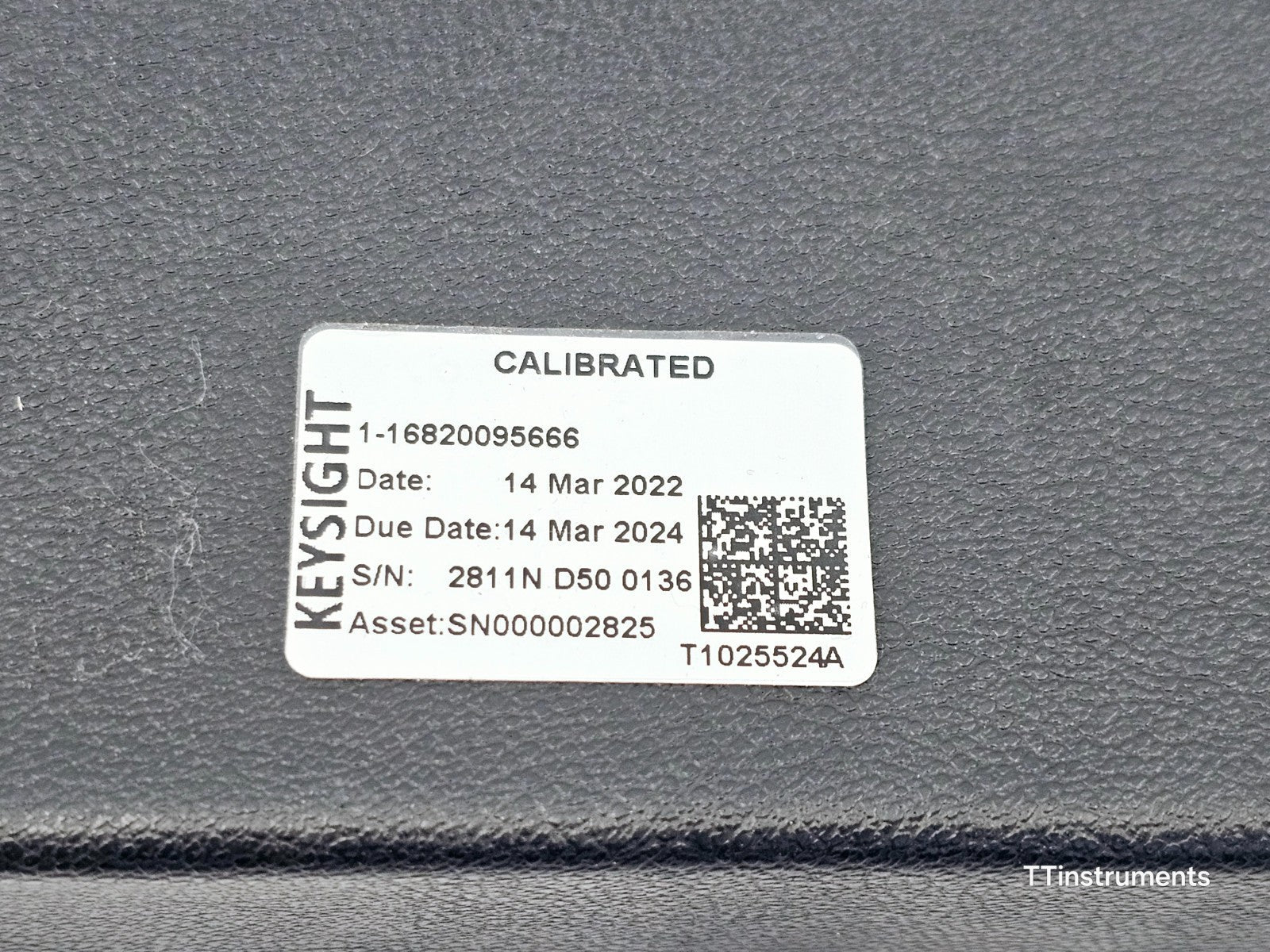

Annual calibration and safety function verification is recommended by the manufacturer.

Technical Specifications:
Measurement Type: Resistance (ohmmeter)
Configuration: 2-wire and 4-wire
Minimum Resolution: 10 mΩ (0.01 Ω)
Measurement Range (4-wire): 20 Ω / 200 Ω / 2 kΩ
Measurement Range (2-wire): 20 Ω / 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ
Accuracy: 0.3% of reading
Display Resolution: 2000 counts
Open-Circuit Terminal Voltage: <1 V
Max Current Before Measurement: <0.5 mA
Max Current (single internal fault): <5 mA
Max Current (two simultaneous faults): <10 mA
Range Selection: Automatic
IP Rating: IP 65
Battery Autonomy: Up to 400 hours
Standard Accessories: Protection rubber case, pair of measuring cables
Recommended Calibration Interval: Annual
Application: Electro-pyrotechnical device testing, defence, aerospace, demolition

AOIP RN 5306 product datasheet (English) — hosted on AOIP French support server: Download PDF
