Condition: Used

Anritsu WR229 waveguide calibration kit, tested and fully functional. Cosmetic imperfections are present but do not affect performance. Comprises four precision banded waveguide calibration components covering the 3.30–4.90 GHz WR229 band.

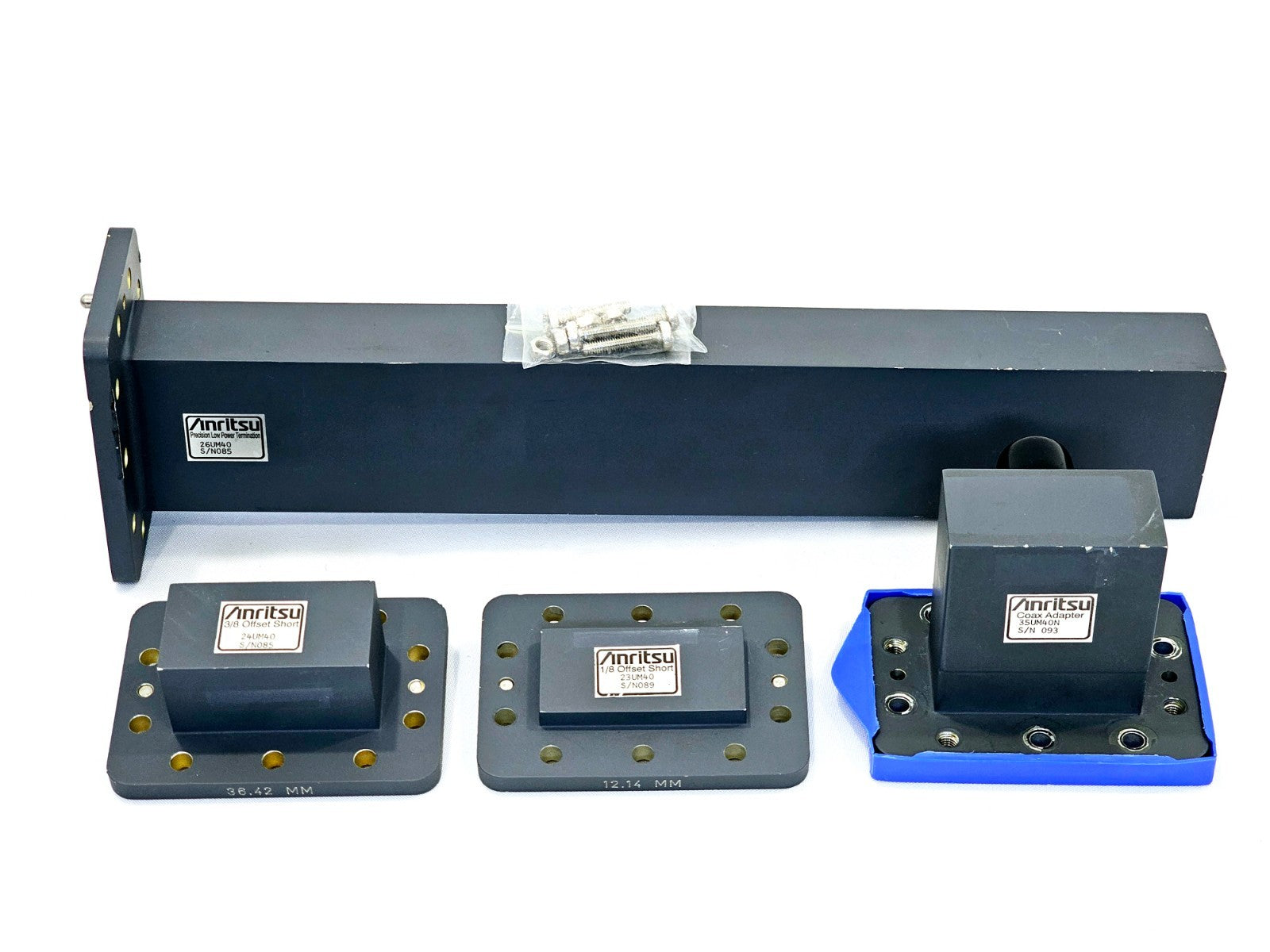

Included in the sale:

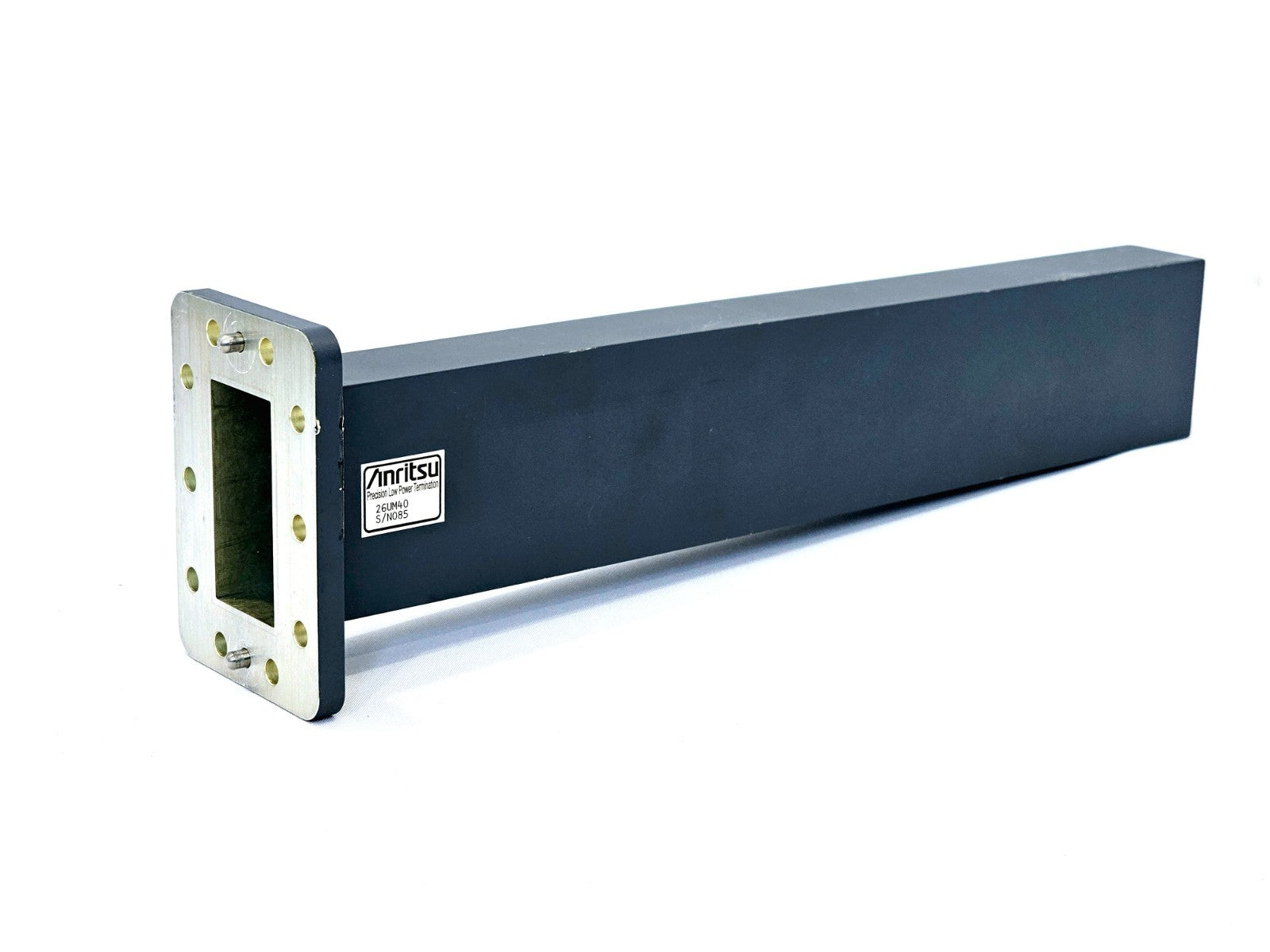

• Anritsu 26UM40 (precision waveguide load)

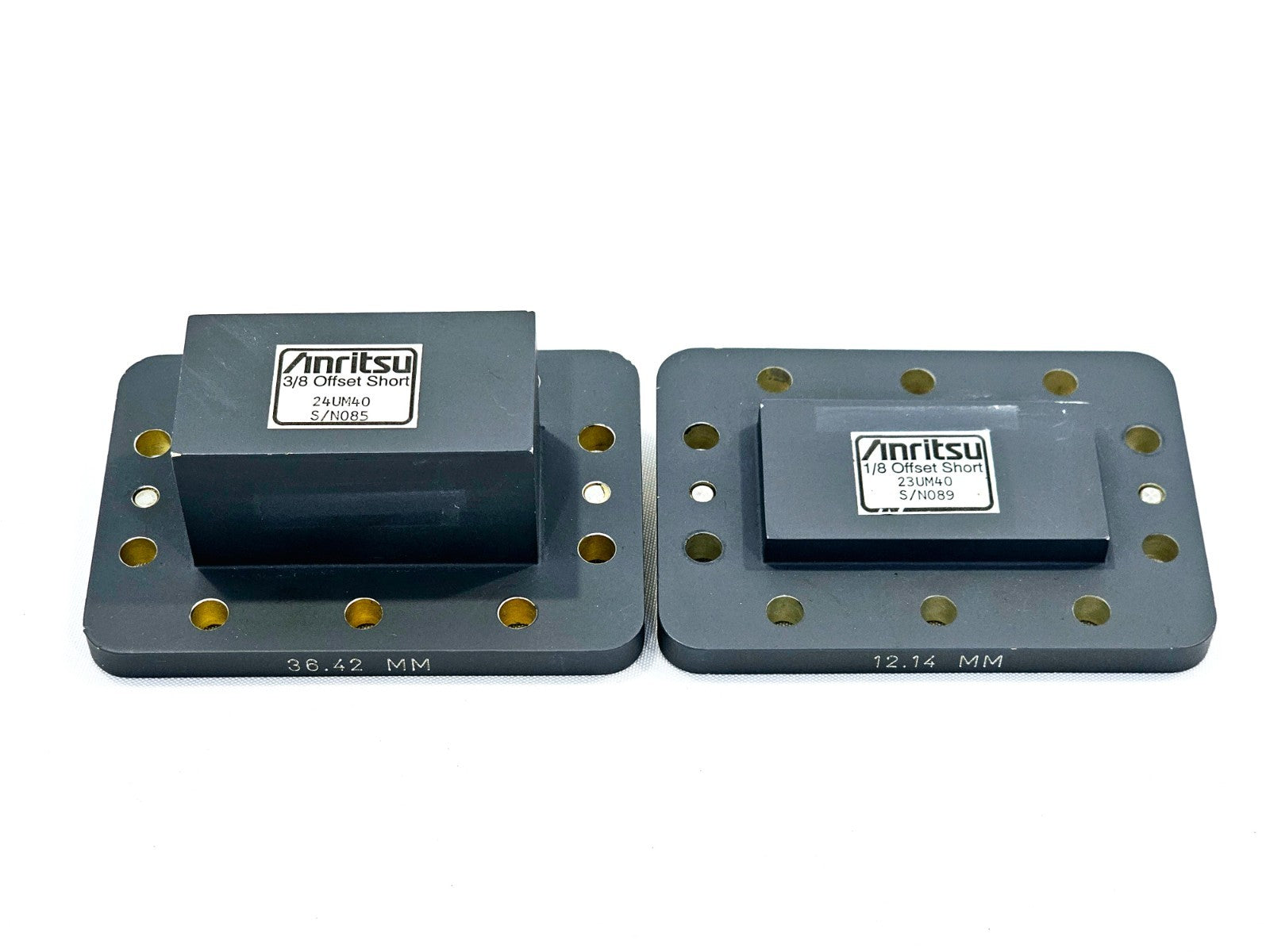

• Anritsu 24UM40 (3/8 offset short, metric)
• Anritsu 23UM40 (1/8 offset short, metric)

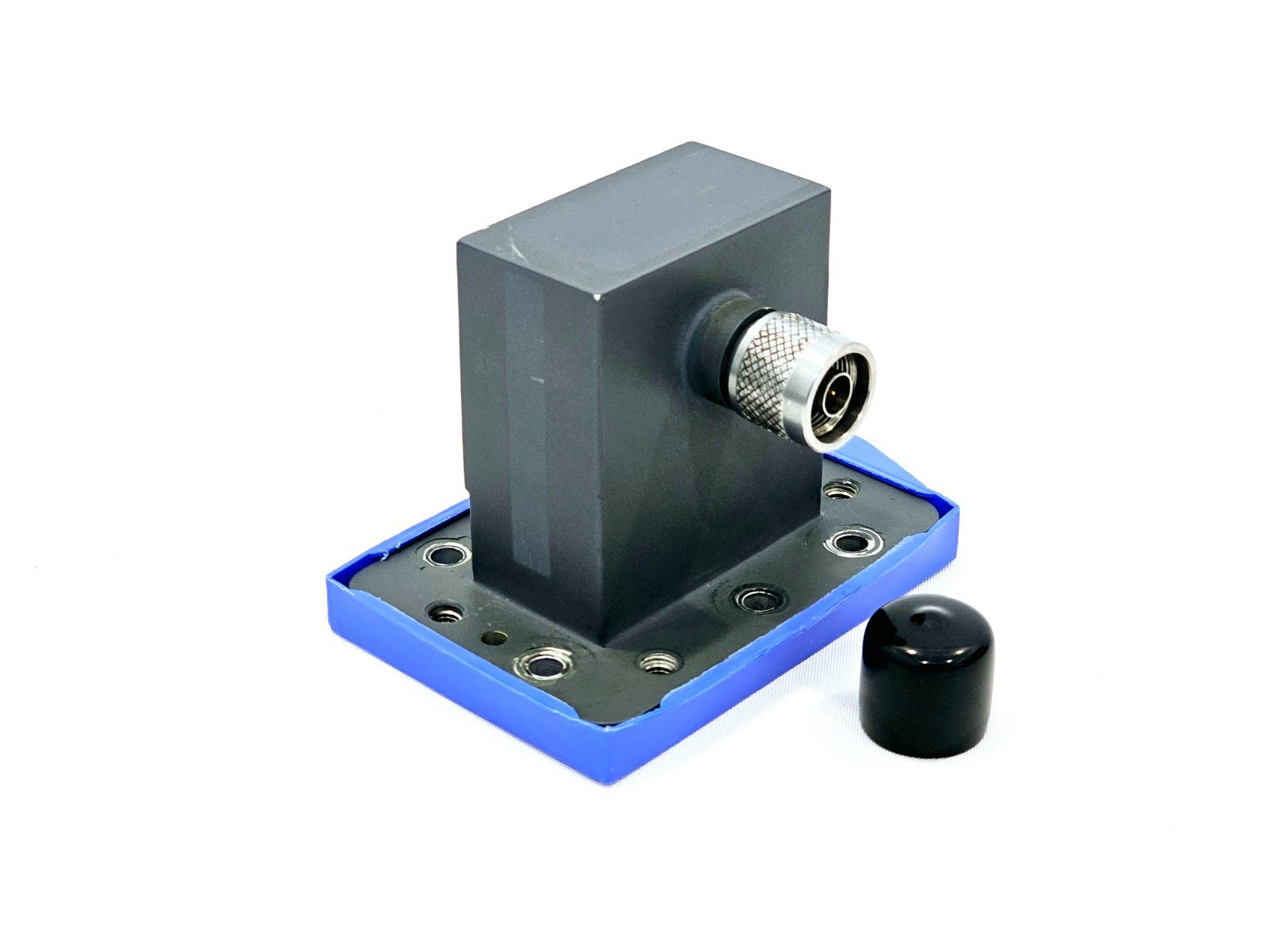

• Anritsu 35UM40N (precision waveguide-to-coaxial adapter)

Anritsu WR229 Waveguide Calibration Kit — Component Overview

The Anritsu 23 Series are 1/8 offset shorts: banded waveguide components used for waveguide calibrations. The 24 Series are 3/8 offset shorts: banded waveguide components used for waveguide calibrations. The 26 Series are precision loads: banded waveguide components used for waveguide calibrations. The 35U Series precision adapters transform standard waveguide to coaxial N and K Connector interfaces, enabling convenient microwave coaxial measurements.

Waveguide calibrations require an alternative approach to coaxial SOLT (Short-Open-Load-Thru) because an open waveguide standard is generally not highly reflective; offset shorts are the accepted substitute. Calibration methods supported include SSLT (Short-Short-Load-Thru) and LRL/LRM (Line-Reflect-Line / Line-Reflect-Match).

Component Specifications (24UM40-R):
Series: 24 (3/8 Offset Short, Metric)
Frequency Range: 3.3 GHz – 4.9 GHz
Waveguide Designation: WR229
Offset Length: 36.1 mm
Cutoff Frequency: 2.577 GHz

Waveguide Dimensions (WR229):
Internal Width: 58.166 mm (2.290 in)
Internal Height: 29.083 mm (1.145 in)
Operating Frequency Range: 3.30 – 4.90 GHz
Cutoff Frequency: 2.577 GHz

Calibration Methods Supported: SSLT, LRL, LRM
Component Series Compatibility: Anritsu 23, 24, 26, and 35U banded waveguide families
Application: VNA and VNMS 12-term error-corrected waveguide measurements
