Condition: Used

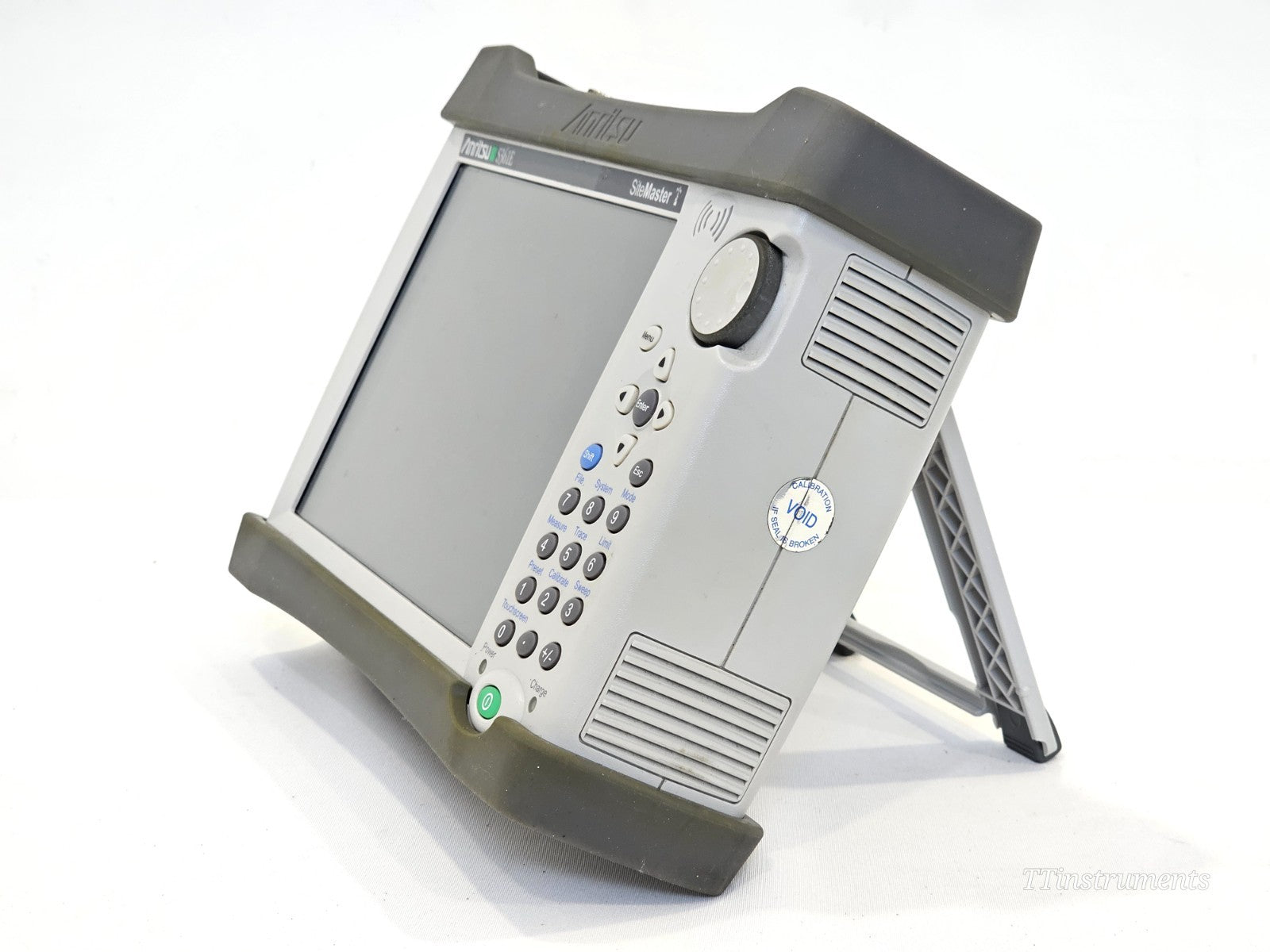

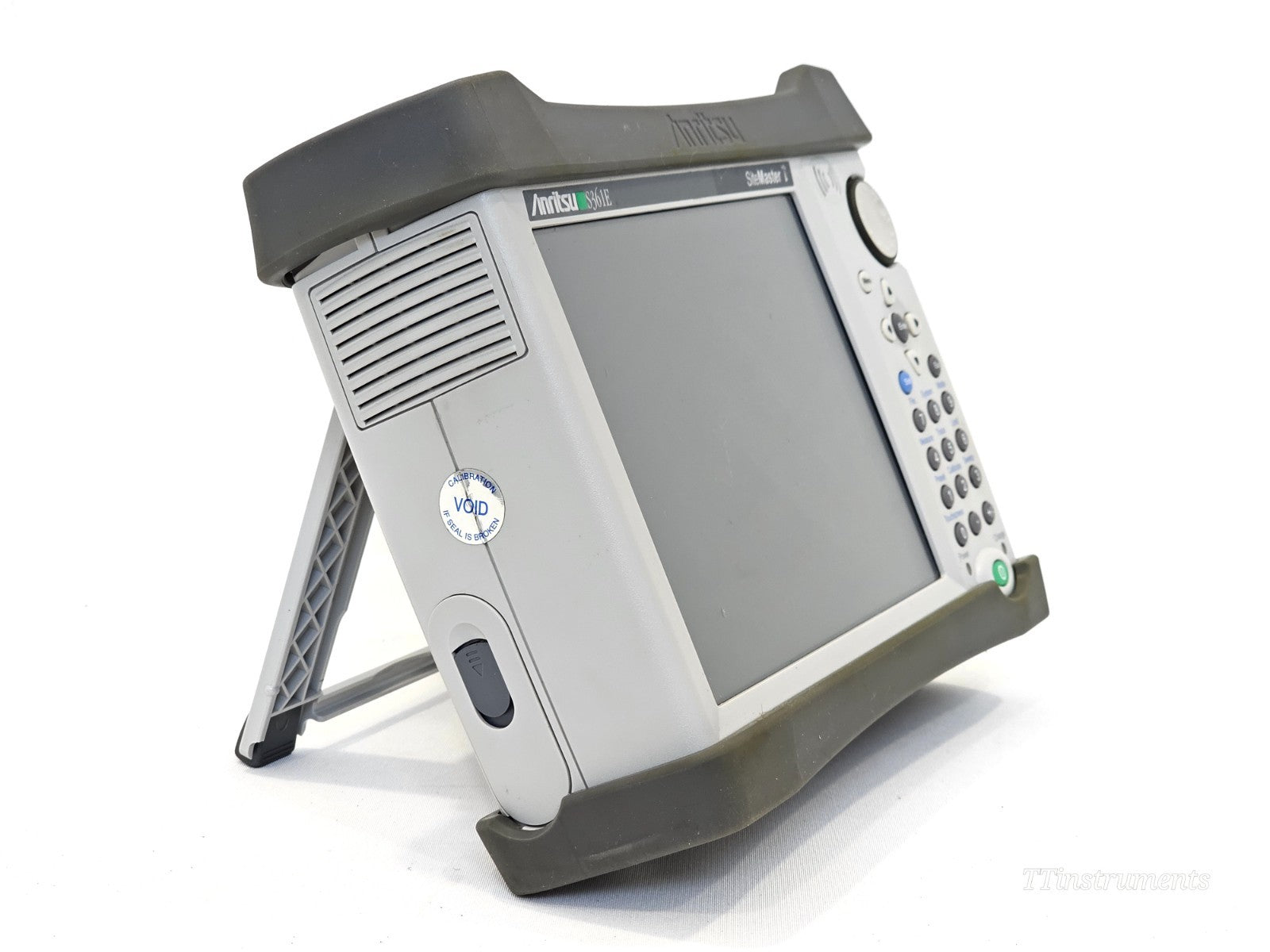

This Anritsu S361E SiteMaster Cable & Antenna Analyzer is offered in good working condition and is supplied with the Anritsu OSLN50-1 precision Open/Short/Load calibration kit (DC–6 GHz, N-male), a selection of connectors and loads, a carry box, and a power adapter.

Included in the sale:

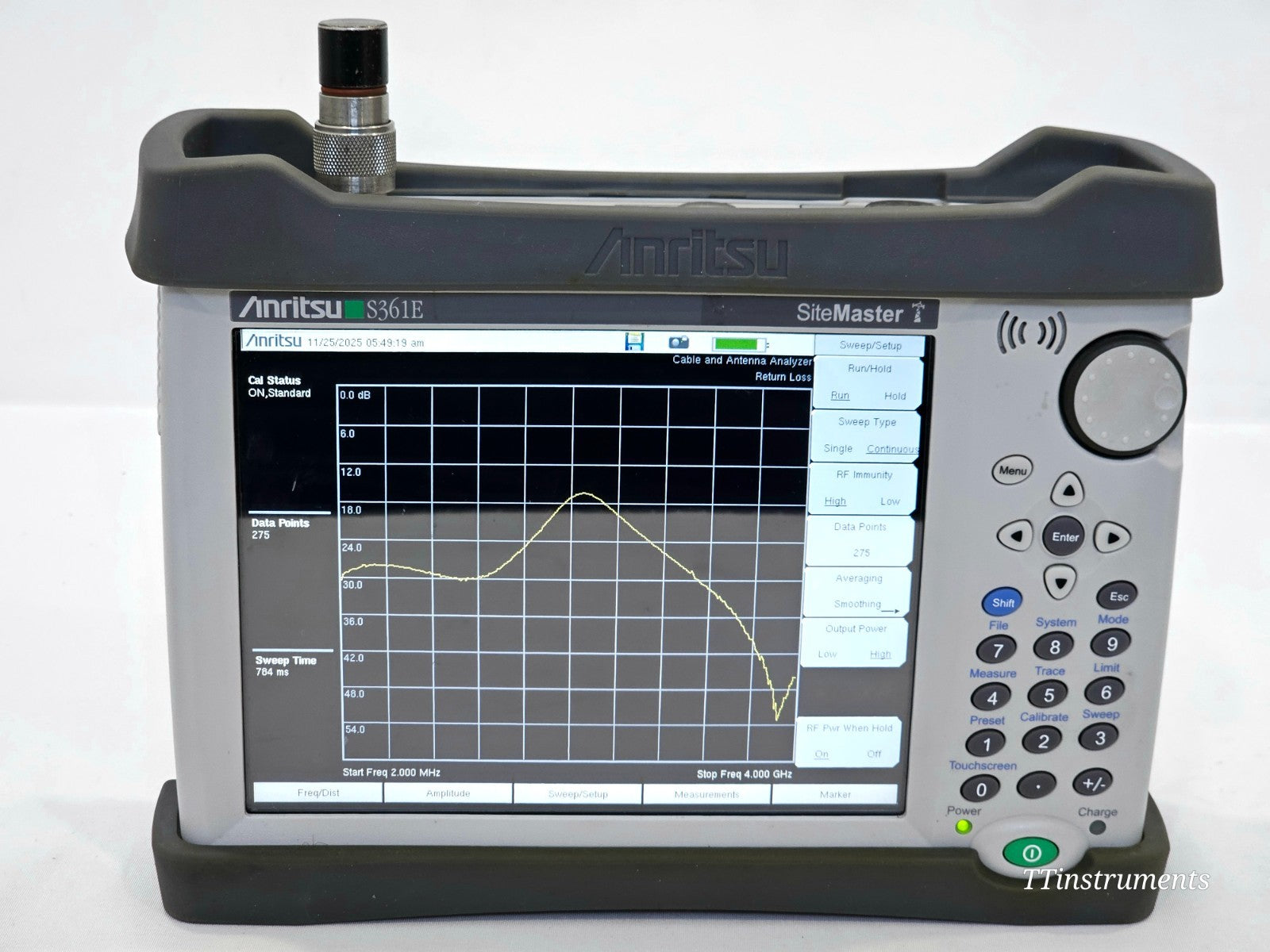

• Anritsu S361E SiteMaster Cable & Antenna Analyzer

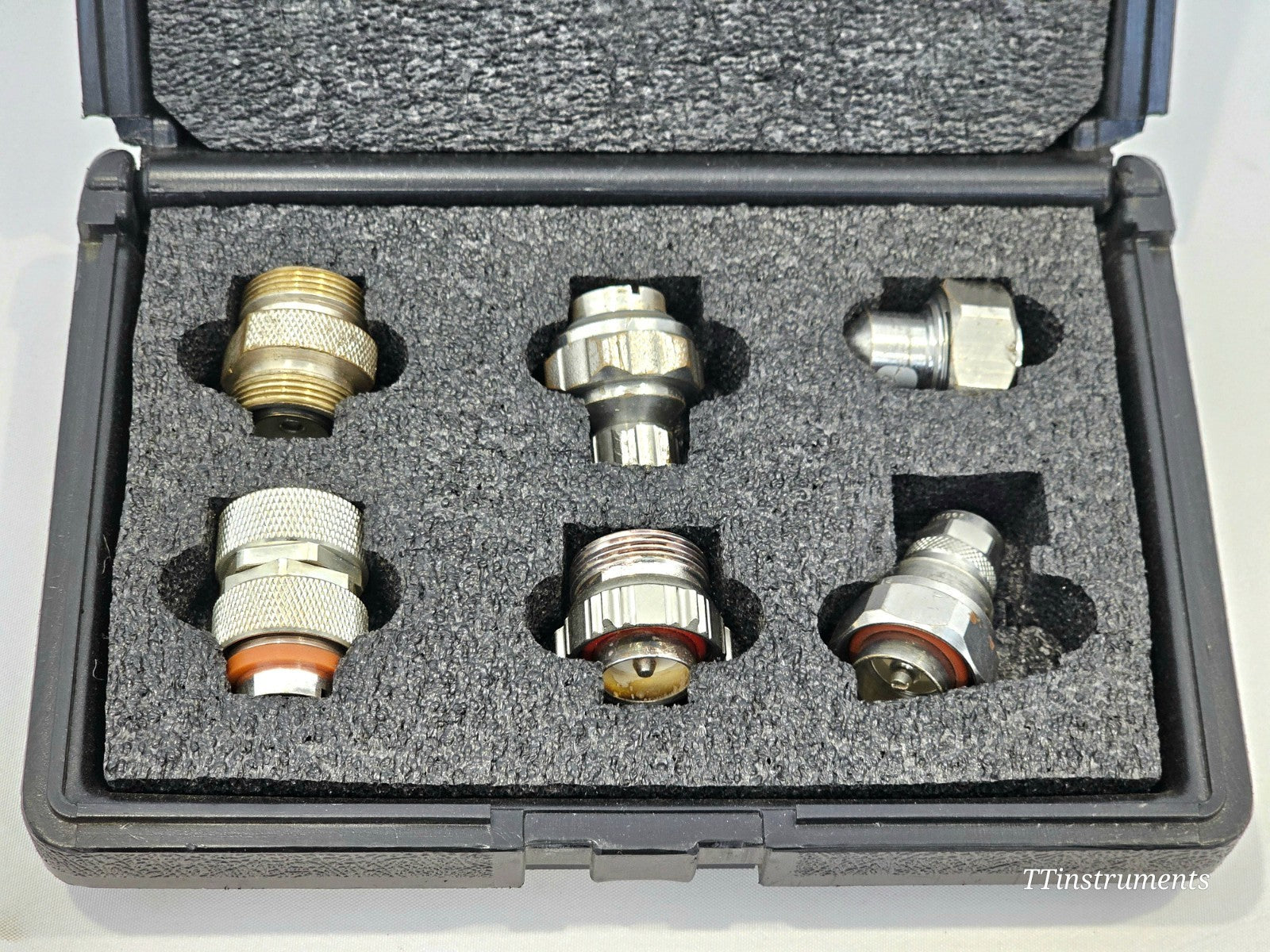

• Anritsu OSLN50-1 OSL Calibration Kit (DC–6 GHz, N-male)

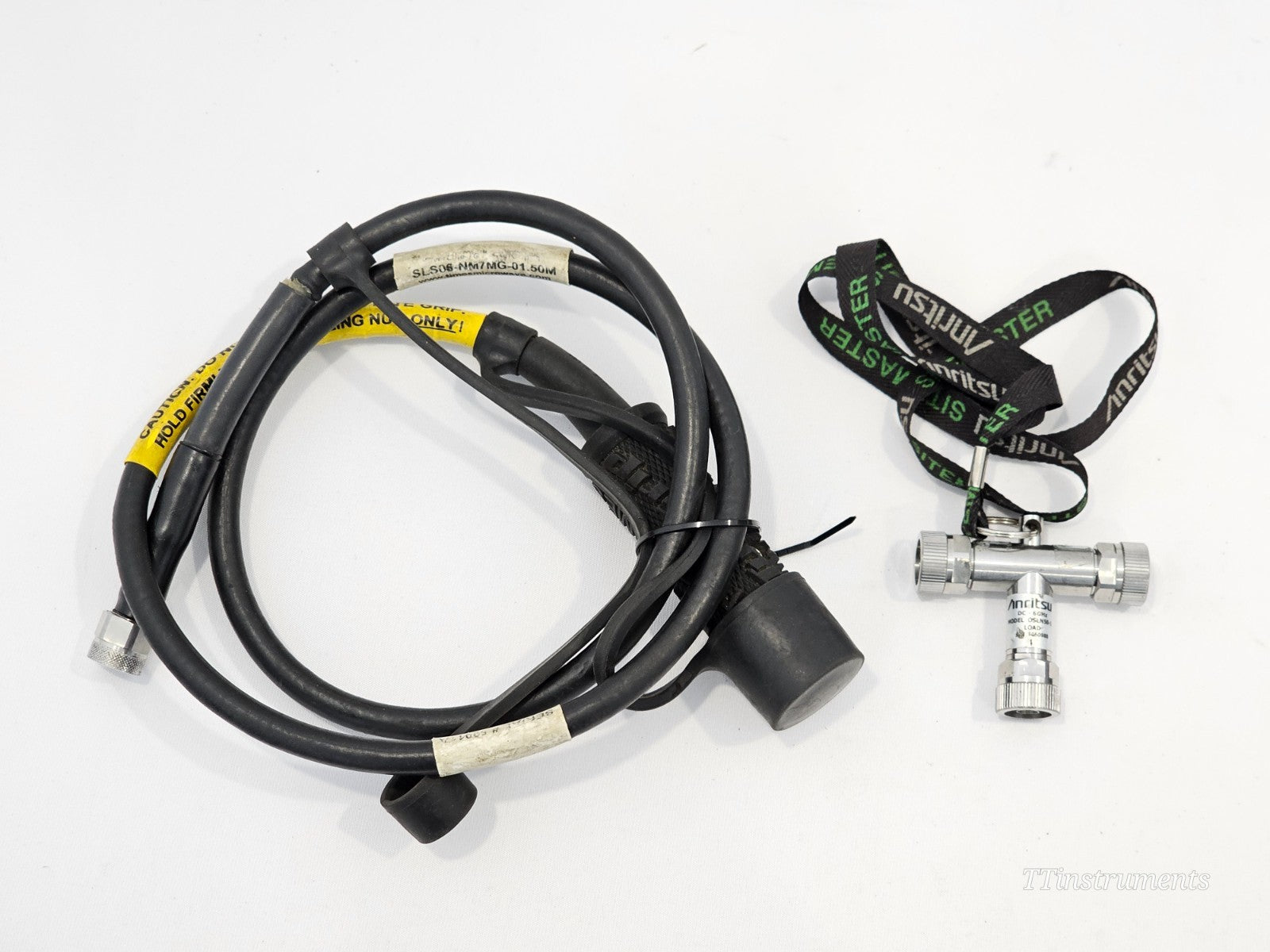

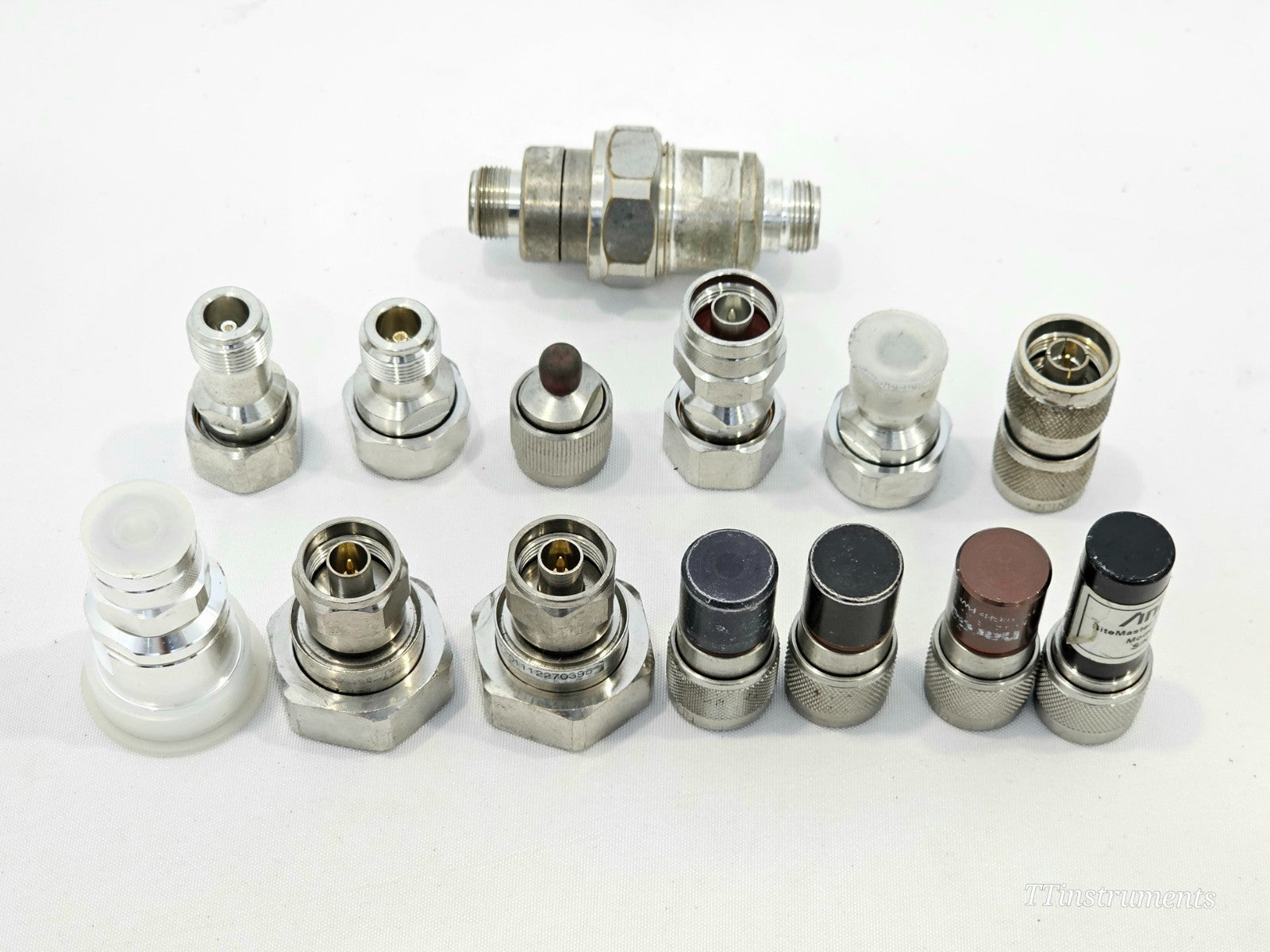

• Various connectors and loads
• Carry box
• Power adapter

The Anritsu S361E is an eighth-generation compact handheld Cable and Antenna Analyzer designed for the installation and maintenance of wireless networks. It delivers high performance and extensive capabilities for field technicians working on antenna tower systems, base stations, and RF infrastructure.

The S361E performs comprehensive 1-port reflection measurements and, with optional 2-port transmission capability, can also characterise insertion loss and gain through devices. It supports OSL, InstaCal, and FlexCal calibration methods, with OSL calibration providing a corrected directivity of up to 42 dB.

Key Specifications:
Frequency Range (Cable & Antenna Analyzer): 2 MHz to 6.0 GHz
Display: 8.4-inch full-colour touchscreen, daylight viewable
Measurements: Return Loss, VSWR, Cable Loss, DTF (Distance-to-Fault), Smith Chart, One-port Phase
Return Loss Range: 0 dB to 60 dB, 0.01 dB resolution
Calibration Methods: OSL (42 dB directivity), InstaCal (38 dB directivity), FlexCal
Data Points (selectable): 137, 275, 551, 1102, 2204 points per sweep
Sweep Speed: 1.00 ms per data point (return loss), 1.25 ms per data point (DTF)
Max DTF Range: Up to 1500 metres / 4921 feet
Frequency Resolution: 1 kHz (RF immunity set to low)
Frequency Accuracy: ±0.5 ppm

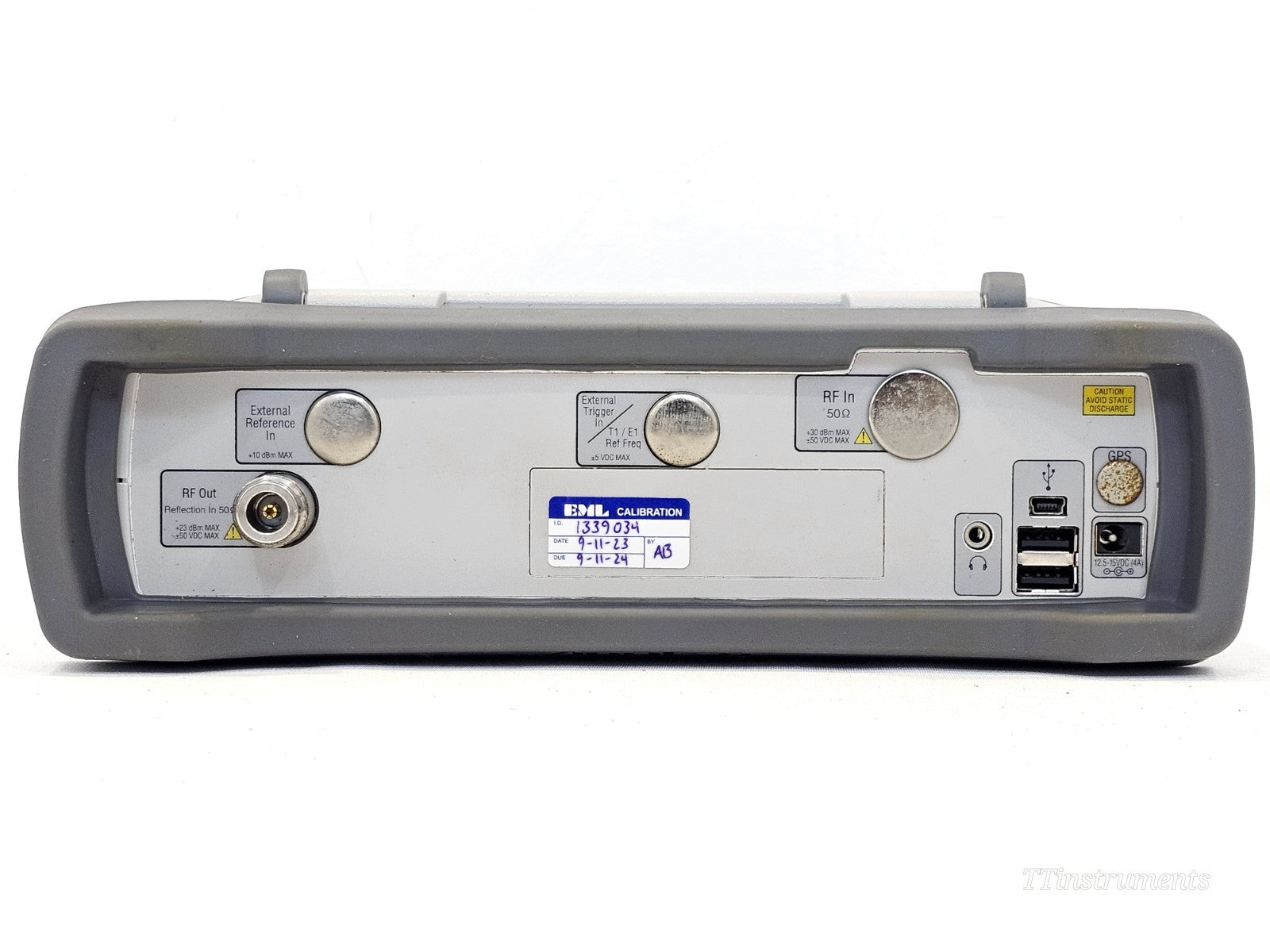

Connector Type: Type-N (female)
Battery Type: Lithium-Ion
Battery Life: Approximately 4.5 hours
Dimensions: 10.7 x 7.8 x 3.6 in (272 x 198 x 91 mm)
Weight: 4.4 lbs (approx. 2 kg)
Connectivity: USB; Ethernet (with Option 413)
Programming: SCPI via USB or Ethernet

Optional capabilities include 2-Port Transmission Measurement (Option 21), Bias-Tee 32V internal (Option 10), Ethernet Connectivity (Option 413), GPS, and interference analysis.

The OSLN50-1 included with this instrument is Anritsu's precision N-male Open/Short/Load calibration kit rated DC to 6 GHz, providing 50-ohm impedance and 42 dB directivity for use with the SiteMaster test port.

Anritsu S331E/S332E/S361E/S362E SiteMaster Technical Data Sheet (PN: 11410-00484 Rev BB): Download PDF

Anritsu S331E/S332E/S361E/S362E SiteMaster Technical Data Sheet (alternate version): Download PDF

Anritsu S331E/S332E/S361E/S362E Site Master Maintenance Manual (PN: 10580-00253K): Download PDF

Anritsu S331E/S332E/S361E/S362E SCPI Programming Manual (PN: 10580-00256AA): Download PDF

Anritsu OSLN50-1 OSL Calibration Kit Specification Sheet: Download PDF
