Condition: Used

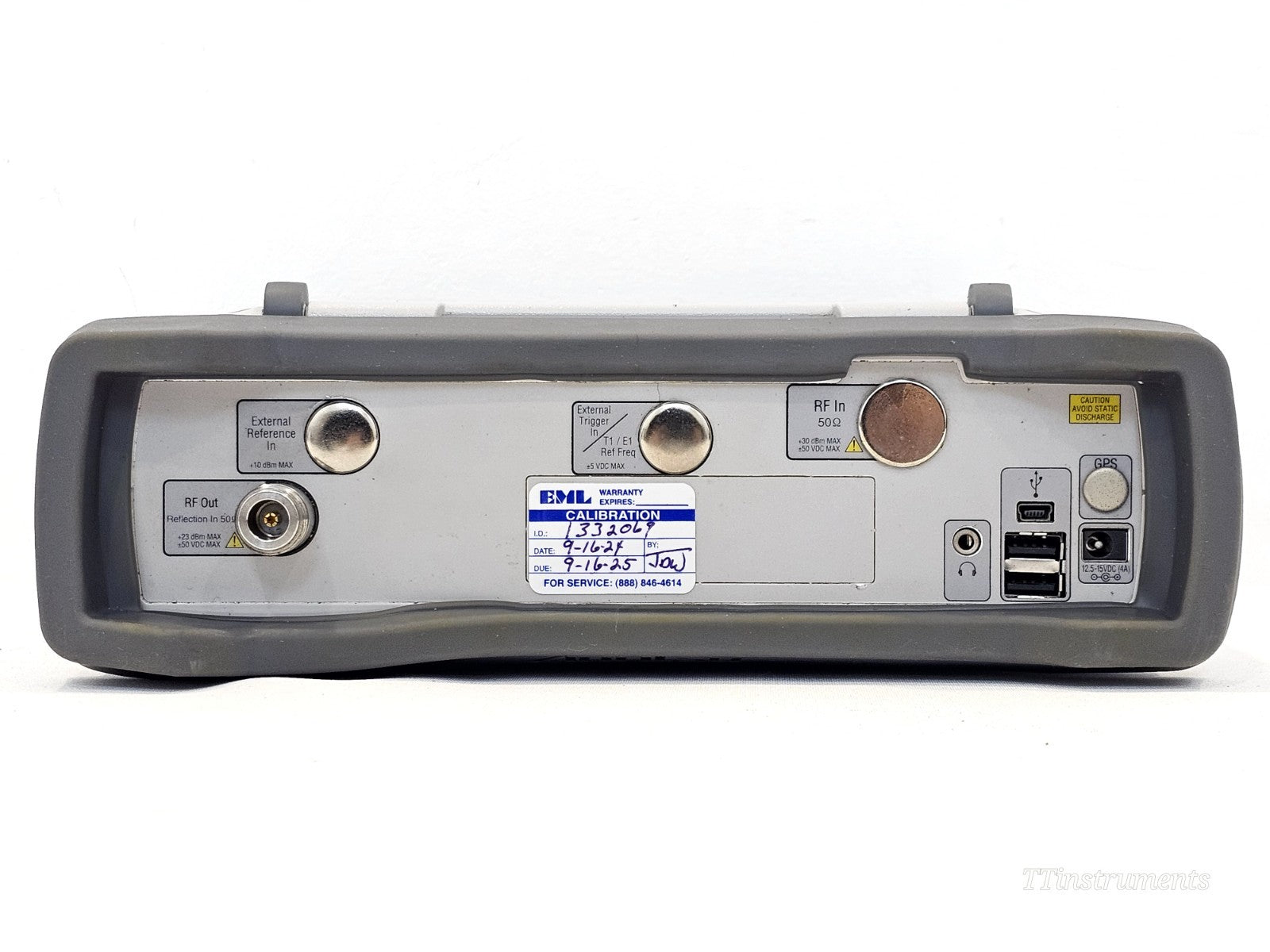

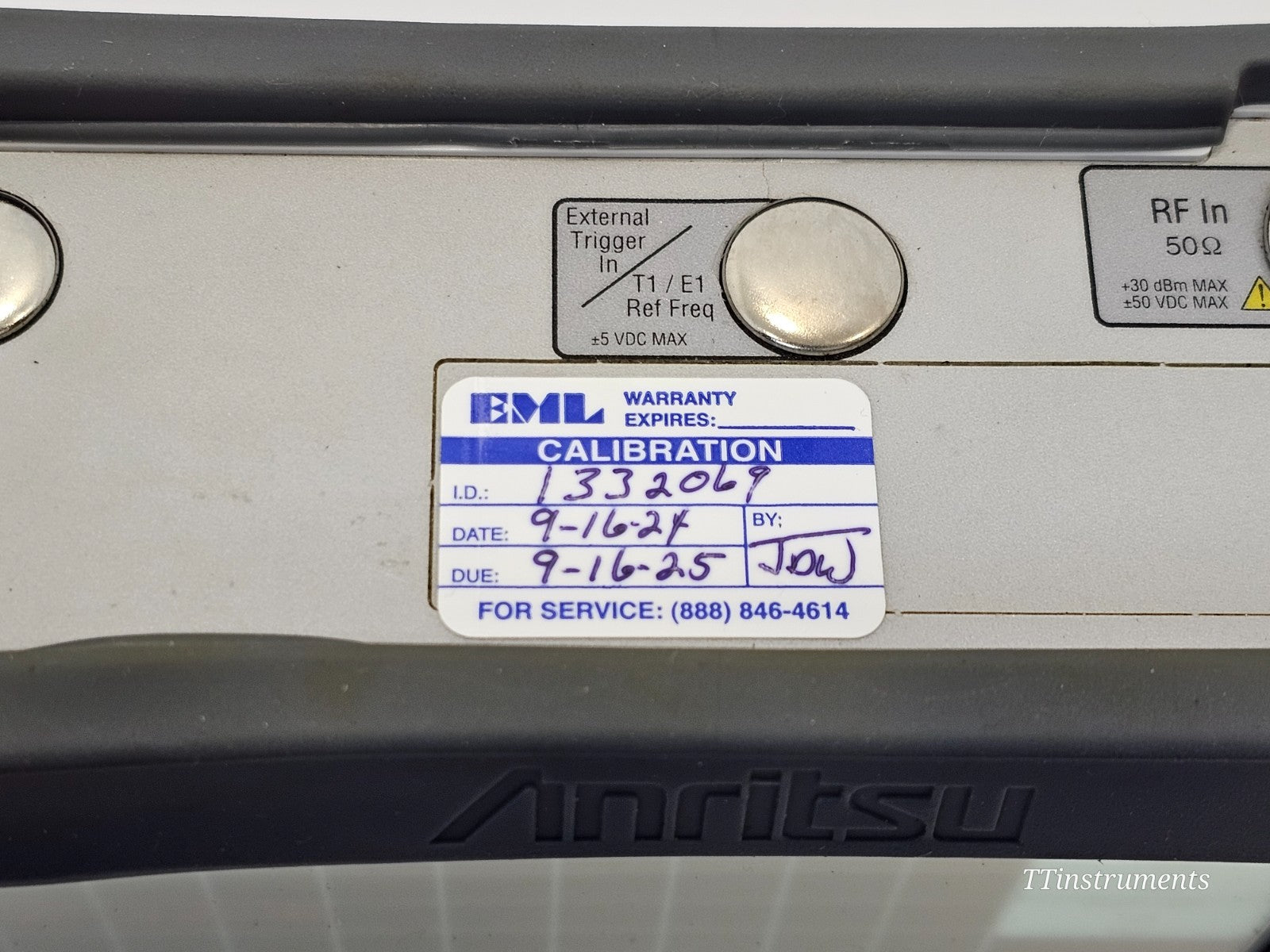

This Anritsu S331E SiteMaster cable and antenna analyzer is offered in good working condition with calibration expired September 2025. The kit includes the OSLN50A-8 Open/Short/Load calibration kit, two RF cables, and a power adapter, all supplied in the original carry box.

Included in the sale:
• Anritsu S331E SiteMaster Cable & Antenna Analyzer
• OSLN50A-8 Open/Short/Load (OSL) calibration kit

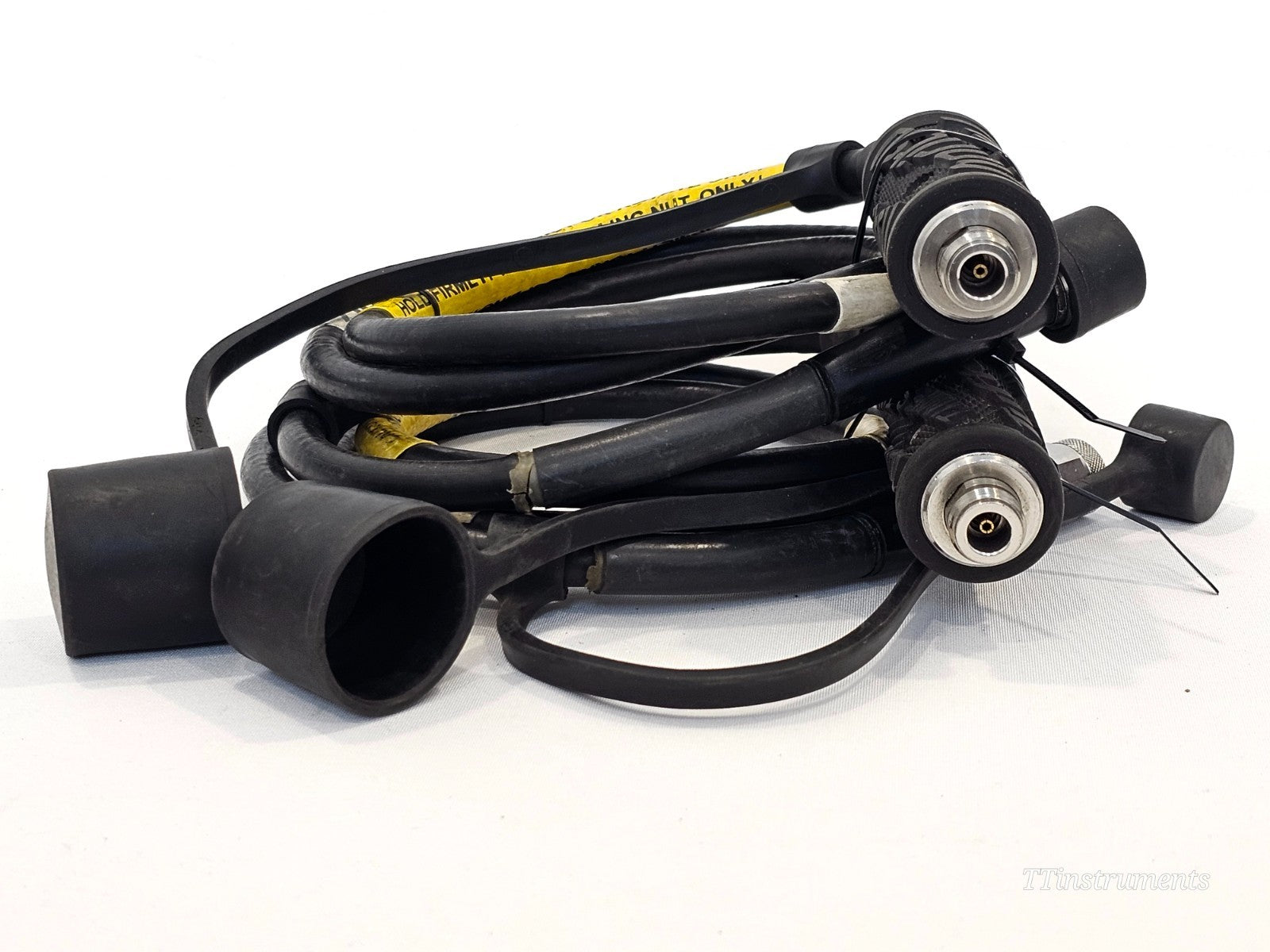

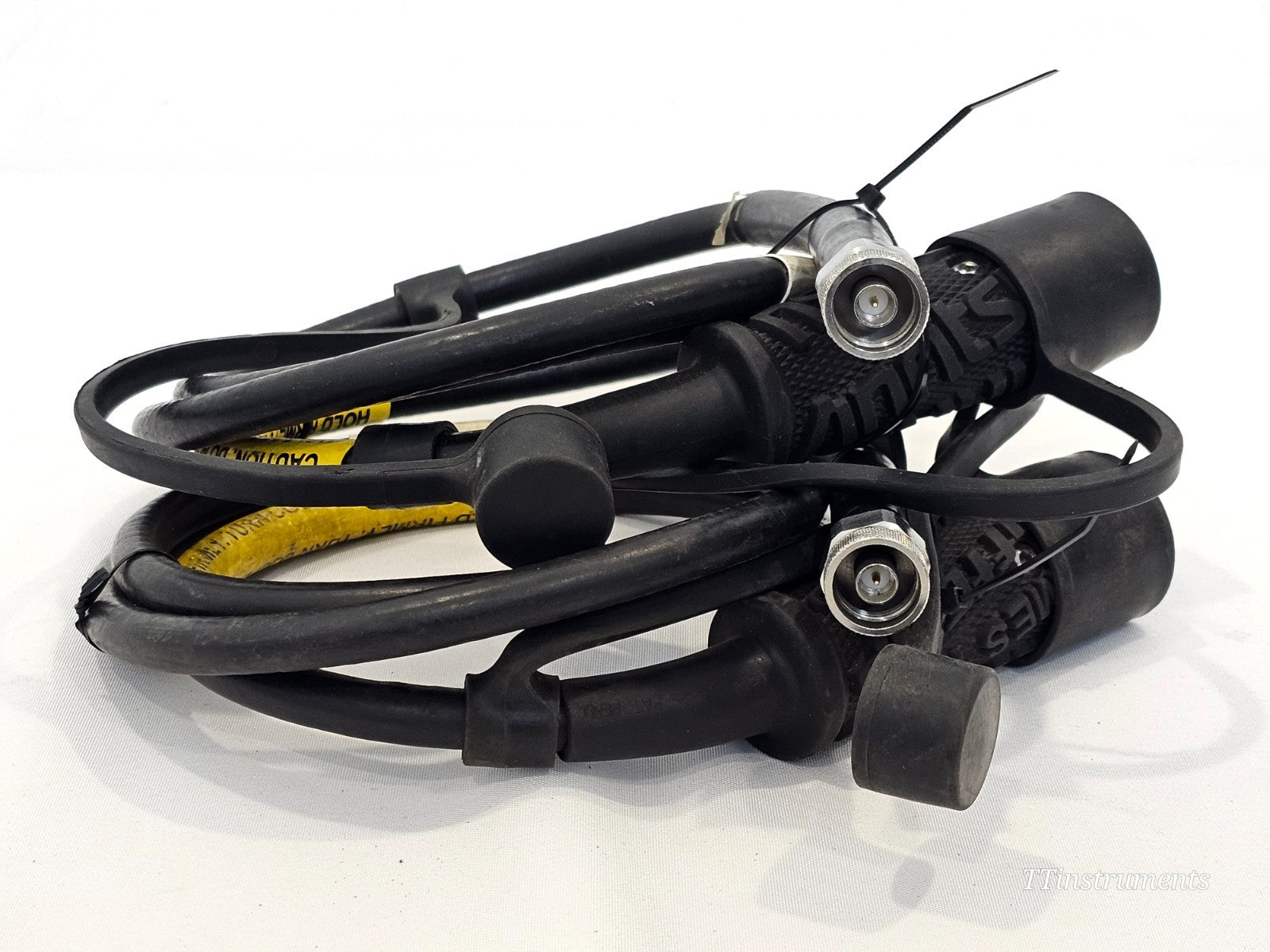

• 2 x RF cables
• Power adapter
• Carry box

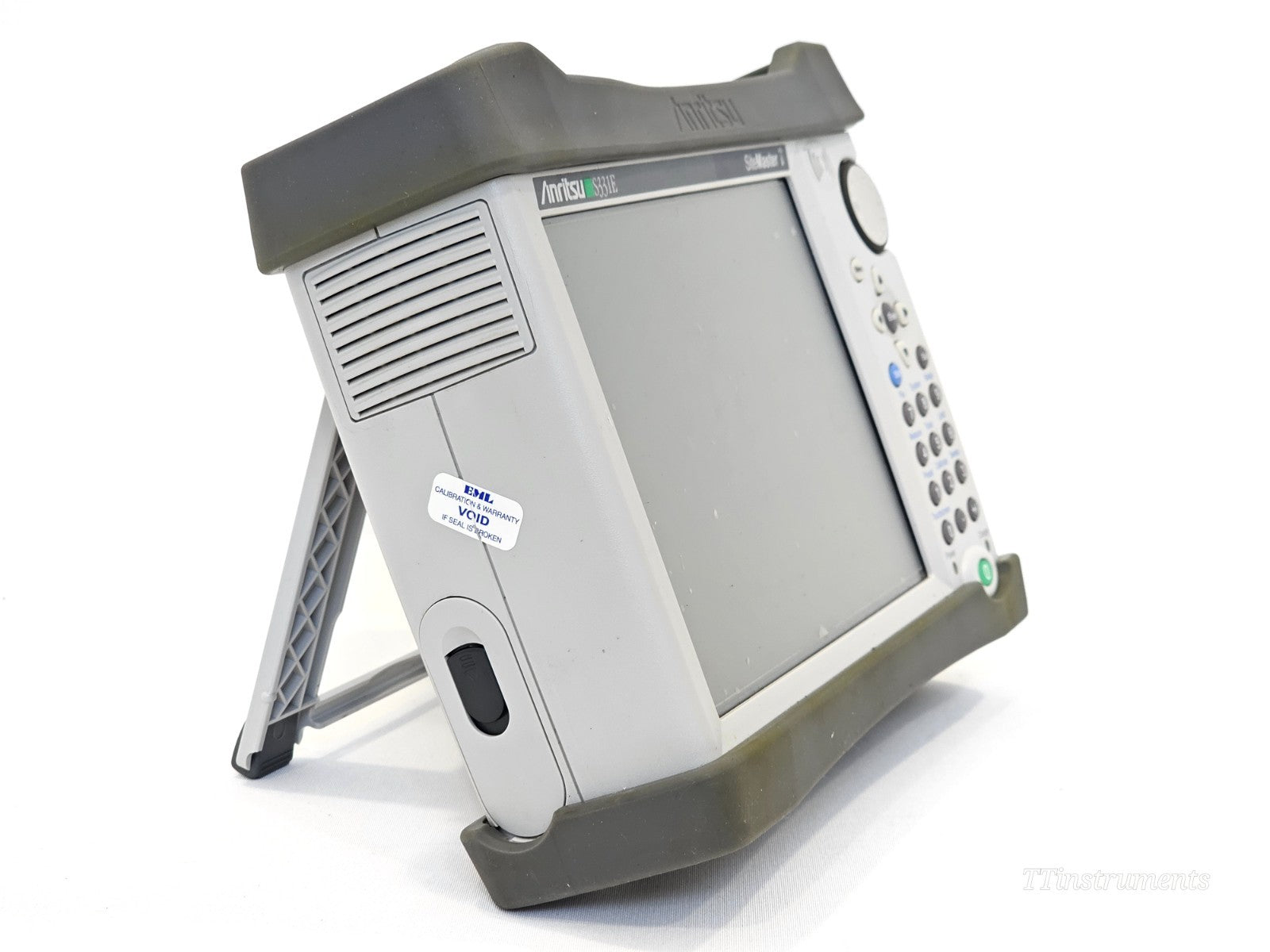

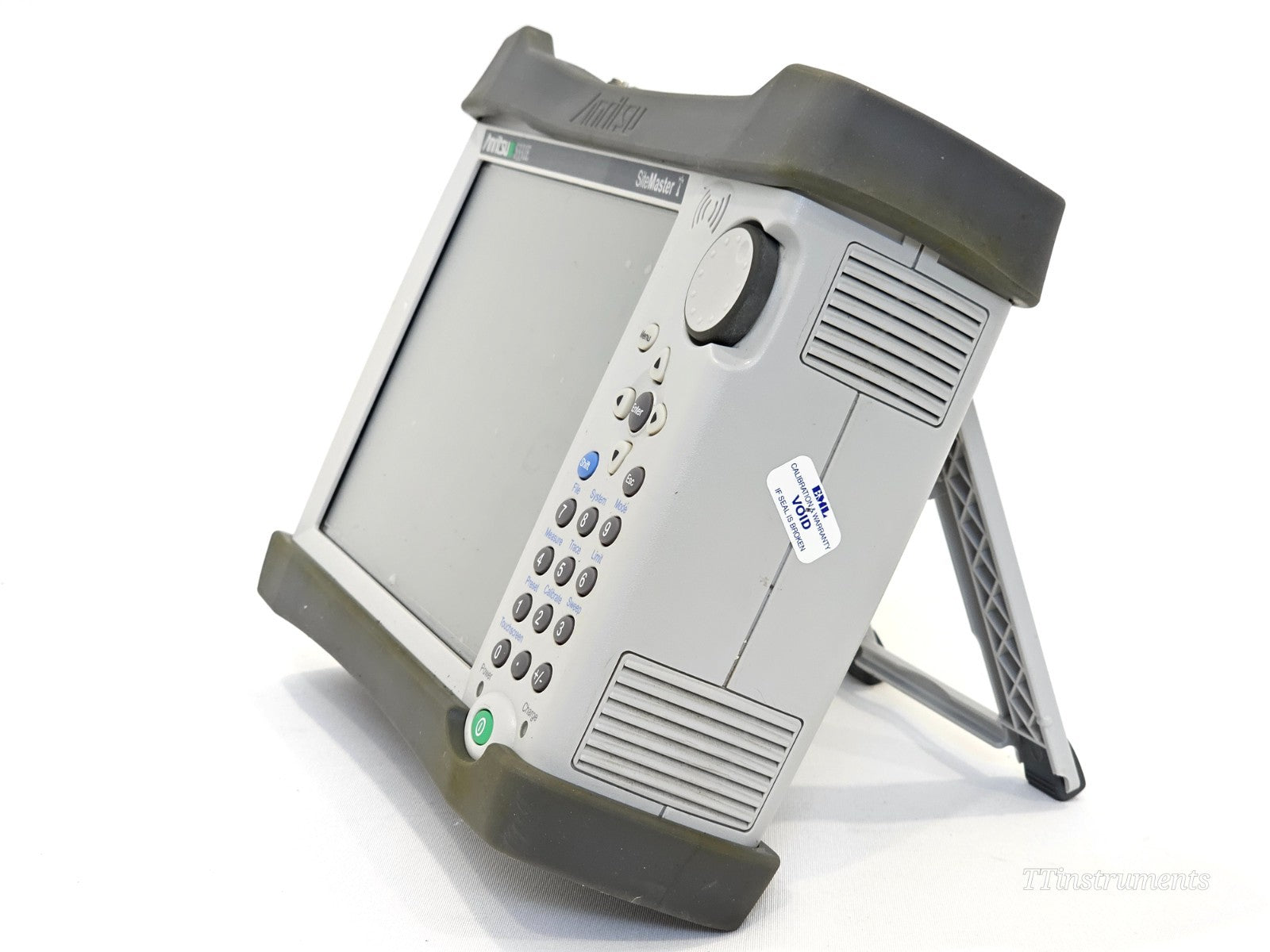

The Anritsu Site Master S331E is the eighth-generation compact handheld Cable and Antenna Analyzer, featuring the highest performance and most capabilities ever offered by Anritsu in a compact handheld tester. Designed for installation and maintenance of wireless networks — including legacy, 3G, and 4G infrastructure — it is the preferred tool for wireless service providers, contractors, installers, military, aerospace and defence, and public safety applications.

The S331E eliminates the need to carry multiple instruments by combining cable and antenna analysis, optional spectrum analysis, 2-port transmission measurement, and more in a single rugged field-ready unit. The easyTest Tools feature allows experienced users to create and deliver on-screen work instructions for less-experienced cable and antenna sweepers, improving accuracy and repeatability.

Key Specifications:
Frequency Range (Cable & Antenna Analyzer): 2 MHz to 4 GHz
Display: 8.4-inch daylight-viewable resistive touchscreen, single or dual measurement
Dimensions: 273 mm x 199 mm x 91 mm (10.7 in x 7.8 in x 3.6 in)
Weight: 2.71 kg (6.0 lb)
Battery Life: Approximately 4 hours continuous (field-replaceable Li-Ion)
Operating Temperature: -10°C to +55°C
Sweep Speed: 1 ms/data point (typical)
Measurements: Return Loss (RL), VSWR, Cable Loss, Distance-to-Fault (DTF), Phase, Smith Chart
Calibration Methods: OSL, InstaCal, FlexCal
Bias Tee: 32 V internal (Option 10)
Connectivity: USB, optional Ethernet (Option 411)
Data Storage: Internal memory and USB flash drive; file formats .stp, .dat, .vna, .csv, .jpg
Spectrum Analyzer Option: 9 kHz to 4 GHz (optional, S332E model)
2-Port Transmission Measurement: Optional (Option 21), high and low power levels
PC Software: Anritsu Tool Box — Line Sweep Tools (LST), Master Software Tools (MST), easyTest Tools

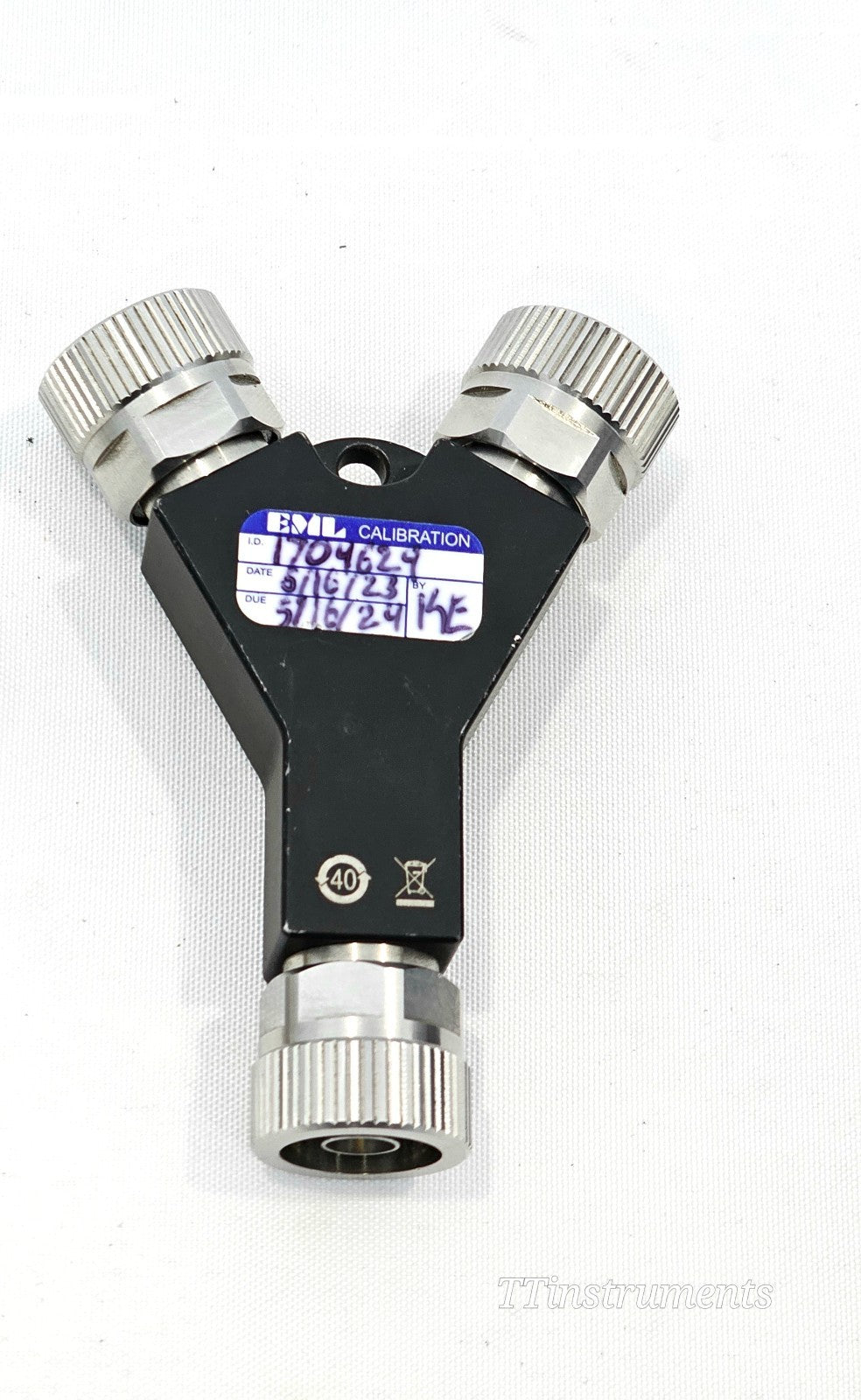

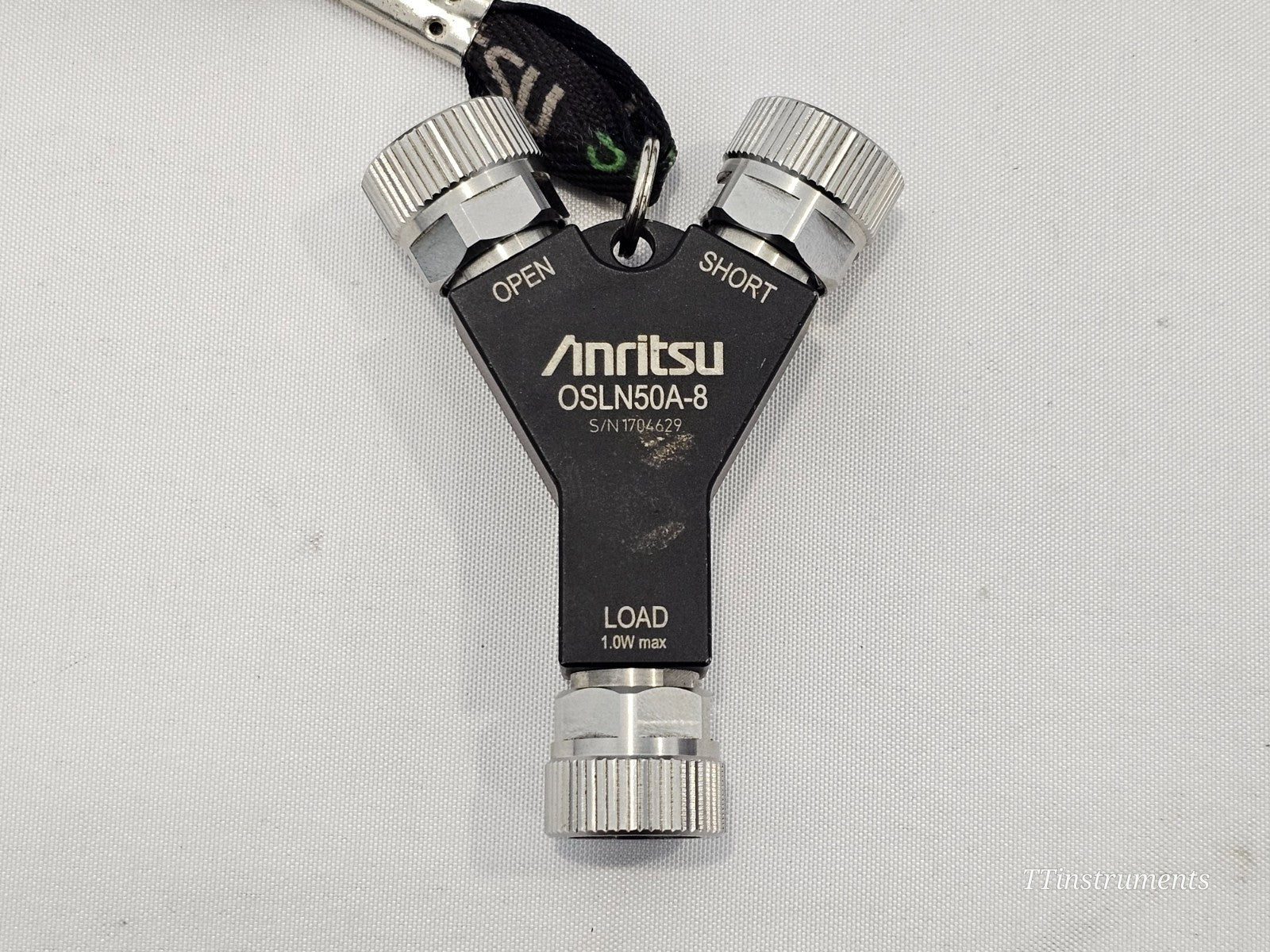

Included Accessory — OSLN50A-8 Open/Short/Load Calibration Kit:
Connector Type: Type N Male
Frequency Range: DC to 8 GHz
Impedance: 50 Ohm
Standards: Open, Short, Load reflection standards in a single compact unit
Recommended Calibration Interval: 1 year
Designed for field and laboratory use

Anritsu S331E/S332E/S361E/S362E Site Master Technical Data Sheet (official Anritsu CDN): Download PDF

Anritsu S331E/S332E/S361E/S362E Site Master Technical Data Sheet (TestEquity hosted): Download PDF

Anritsu S331E Site Master User Guide (S331E/S332E/S361E/S362E): Download PDF

Anritsu S331E Datasheet — TestEquipmentHQ hosted copy: Download PDF

Anritsu OSL Series Calibration Kit Guide (covers OSLN50A-8): Download PDF
