Condition: Used

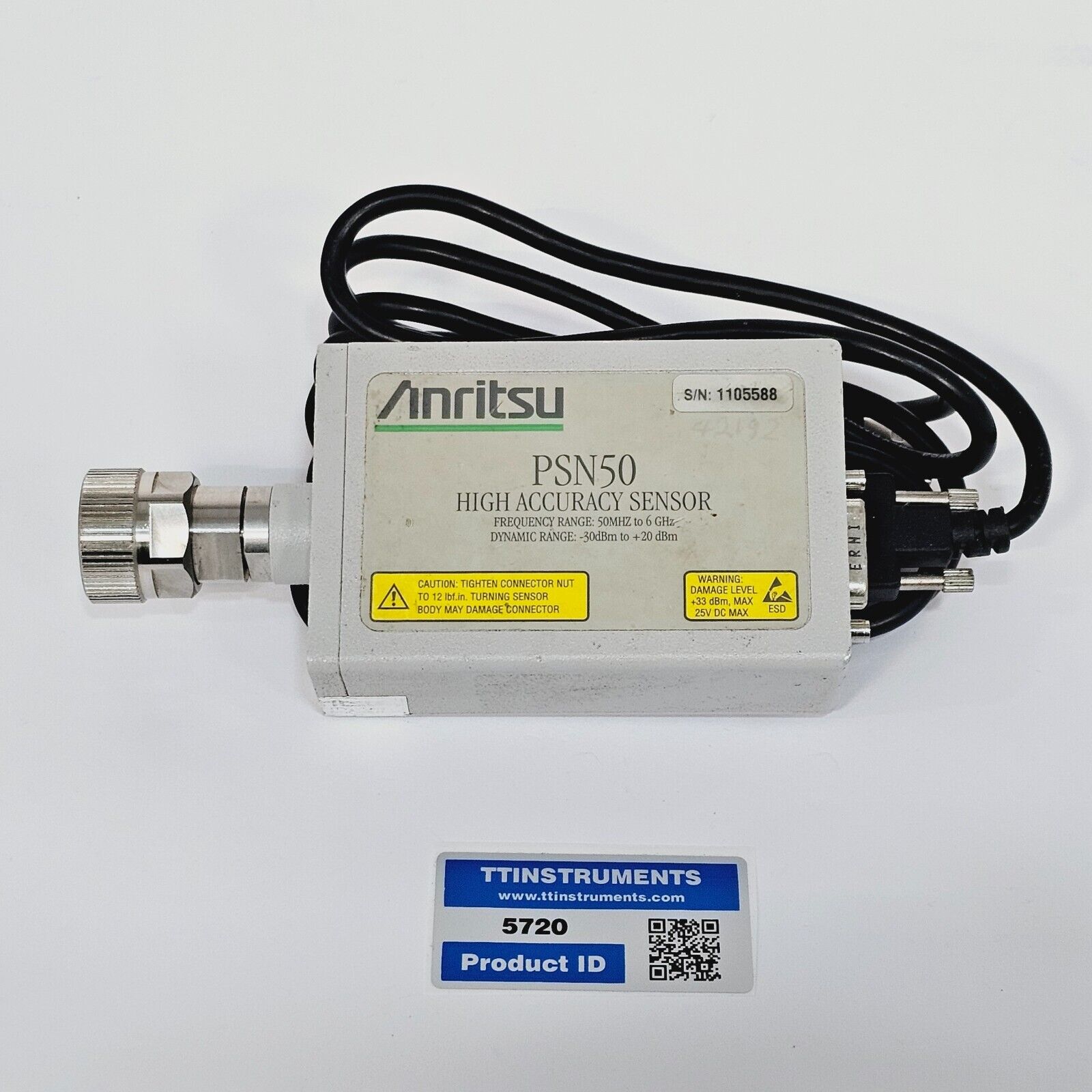

The Anritsu PSN50 is a high accuracy average power sensor designed for use with Anritsu BTS Master, Site Master, and Spectrum Master handheld instruments (requiring Option 19). It delivers true RMS power measurements from 50 MHz to 6 GHz across a wide range of CW and modulated signal types.

Typically includes:
• PSN50 power sensor unit

The Anritsu PSN50 High Accuracy Power Sensor (Average) is a dual-path diode sensor designed to provide true RMS power measurements across a wide frequency and dynamic range. Its measurement capability is intended to mimic that of a traditional thermal (thermo-electric) power sensor, making it ideal for measuring average power of CW, modulated RF waveforms such as 3G, 4G, OFDM, GSM/EDGE, CDMA/EV-DO, WCDMA/HSDPA, WiMAX, TD-SCDMA, and multi-tone signals. The PSN50 connects to Anritsu BTS Master and Spectrum Master portable instruments via USB, and to legacy handheld products via RS-232. It is powered directly over the USB interface. Self-calibration is supported via the optional PSN50 CalXpert software utility.

Frequency Range: 50 MHz to 6 GHz
Measurement Range: -30 dBm to +20 dBm
Dynamic Range: 50 dB

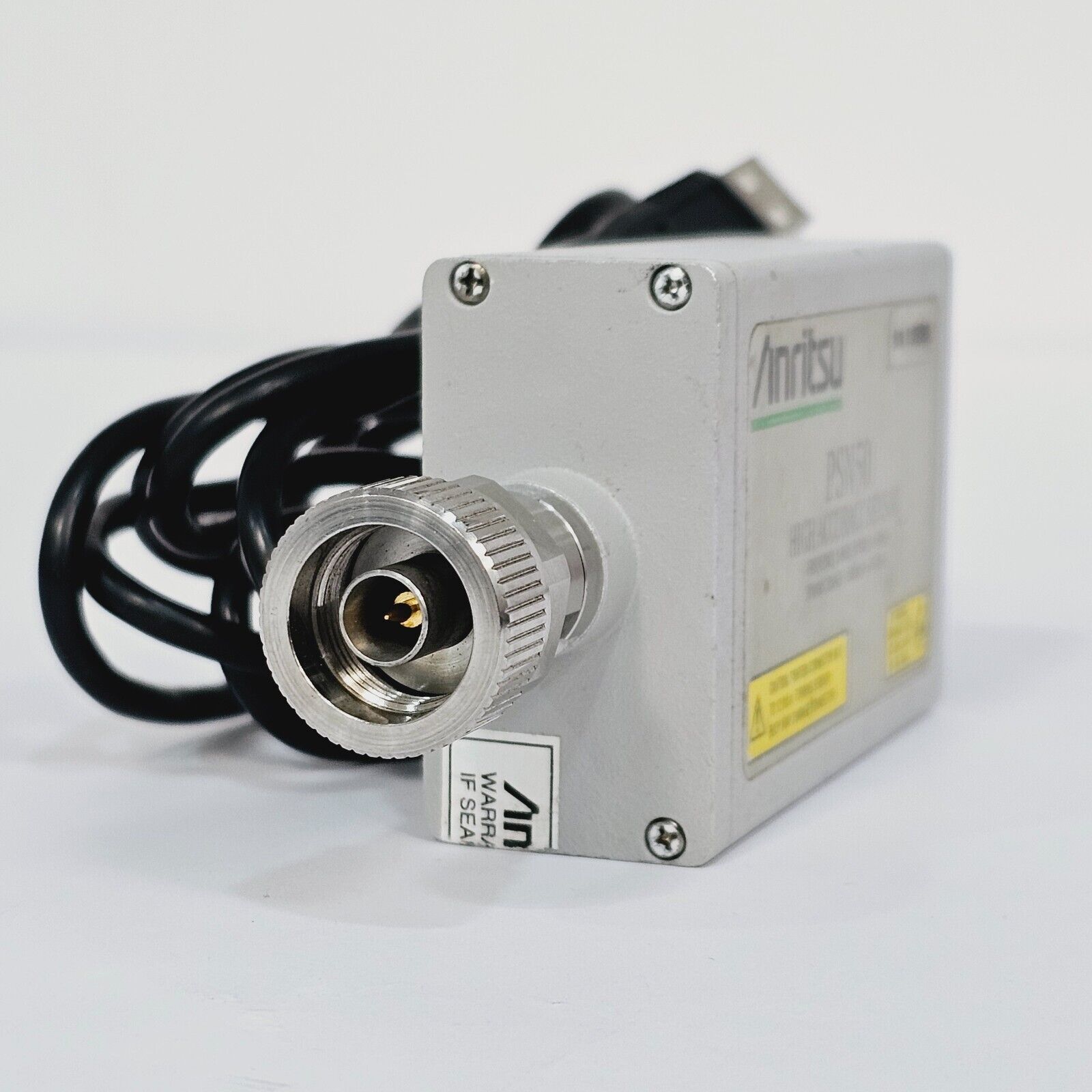

Input Connector: Type N, male, 50 Ω
Max Input Without Damage: +33 dBm, ±25 VDC
Input Return Loss (50 MHz to 2 GHz): ≥26 dB
Input Return Loss (2 GHz to 6 GHz): ≥20 dB

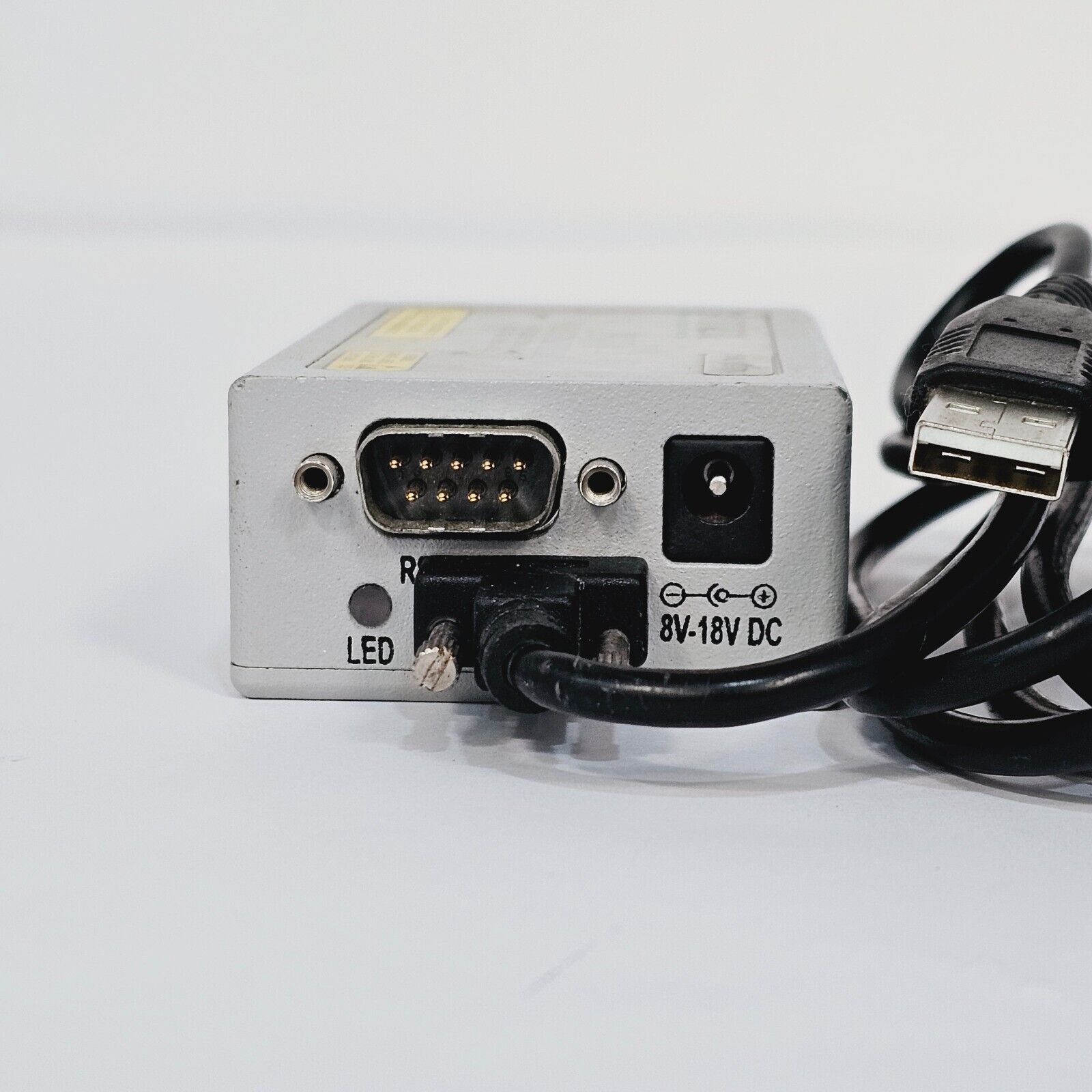

Interfaces: Mini-B USB (USB 2.0 compatible, 12 Mbps); RS-232 Serial
Power Supply: Bus-powered via USB
Operating Temperature: 0 °C to 50 °C
Max Continuous Input Power: 150 W (load VSWR ≤3:1)
Calibration: PSN50 CalXpert software utility supported

Anritsu PSN50 Technical Data Sheet (PDF) — via AccuSource Electronics: Download PDF

Anritsu PSN50 CalXpert Software User Guide (PDF) — official Anritsu CDN: Download PDF

Anritsu PSN50 Product Manual (PDF) — via ATEC: Download PDF
