Anritsu Optical Power Meter ML9001A with MA9712A Power Sensor & Cable
Model: ML9001A / MA9712A
Condition: Used
In stock: 0
SKU: 6272 6E04
- Fiber Optics
- Loss Testers & Fault Locators
- Power Meters
Choose options









Condition: Used
This Anritsu ML9001A optical power meter is in good condition and is supplied complete with the MA9712A optical power sensor and connecting cable, forming a ready-to-use optical power measurement solution.

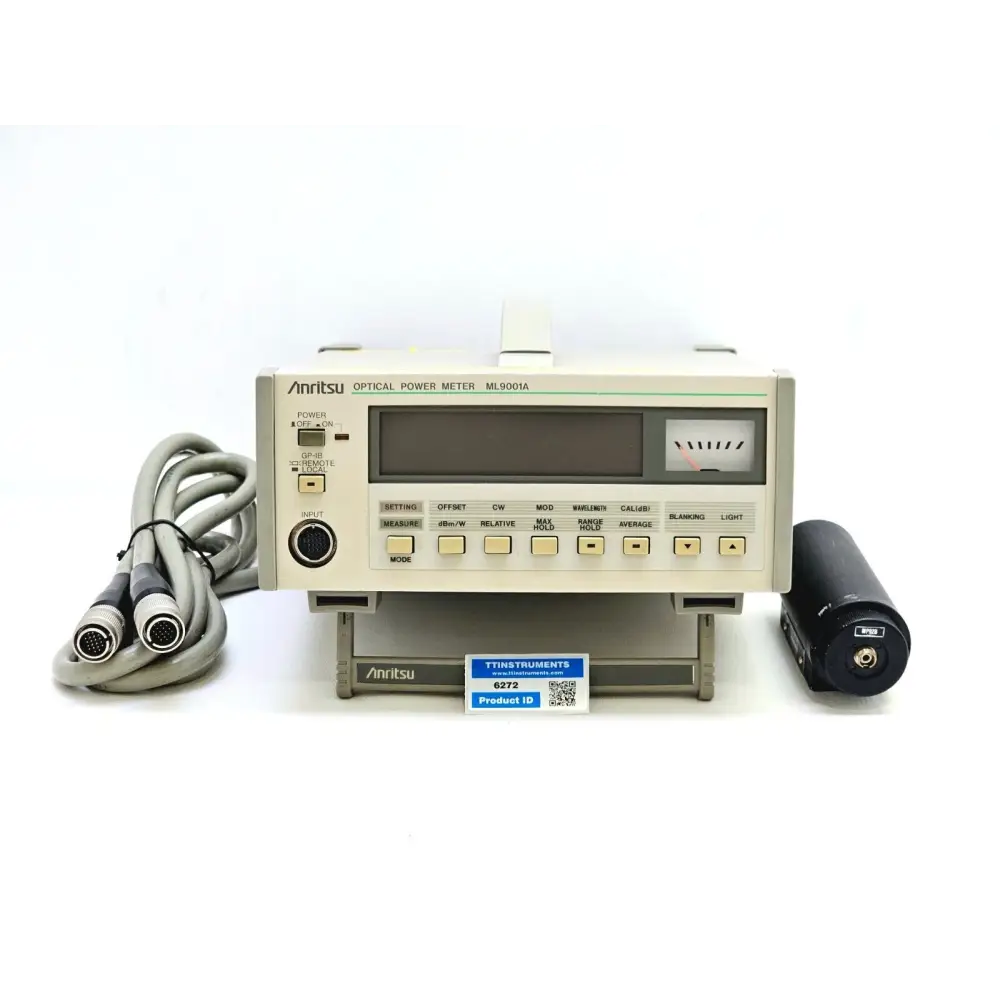

Included with this unit:

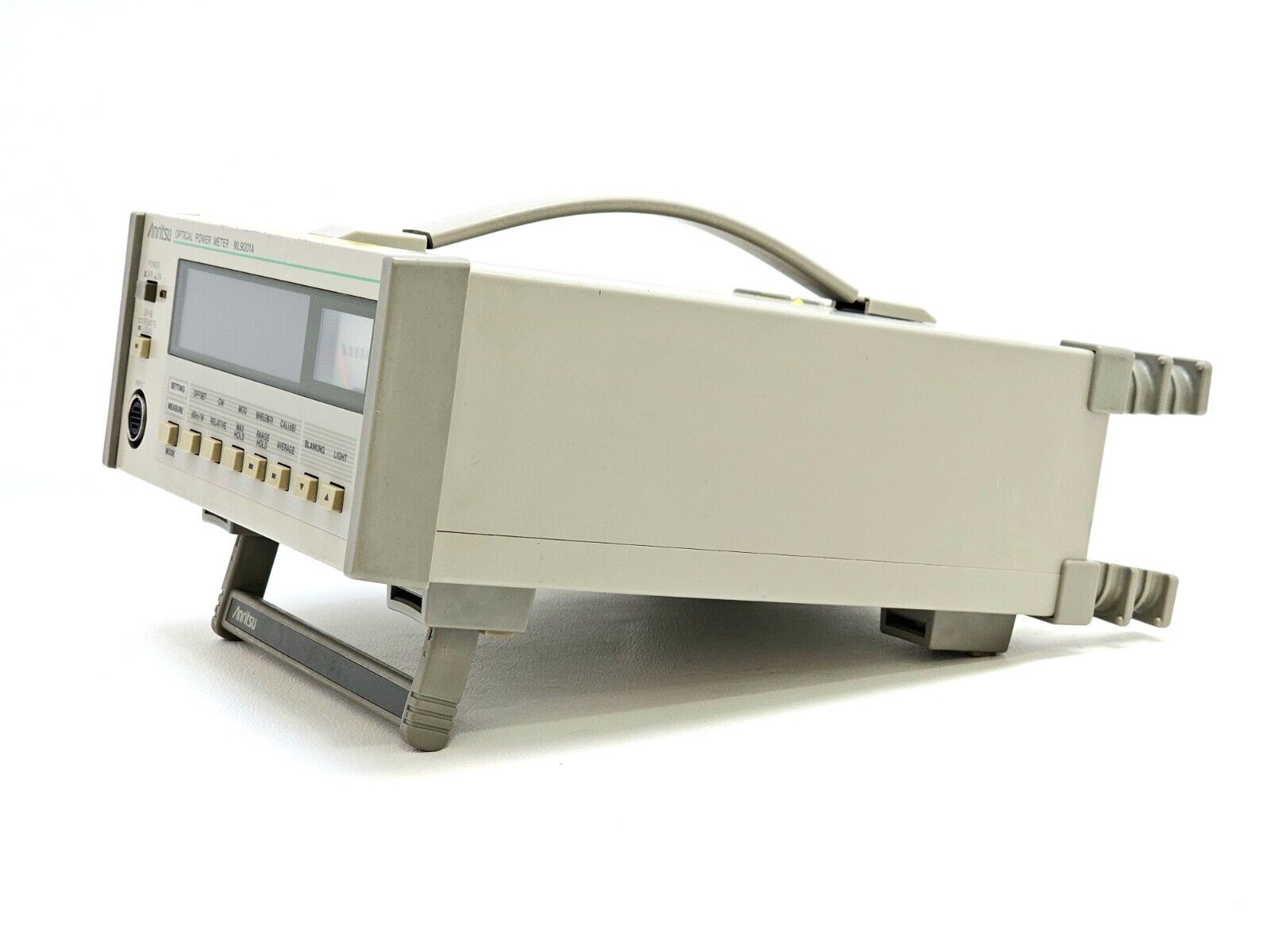

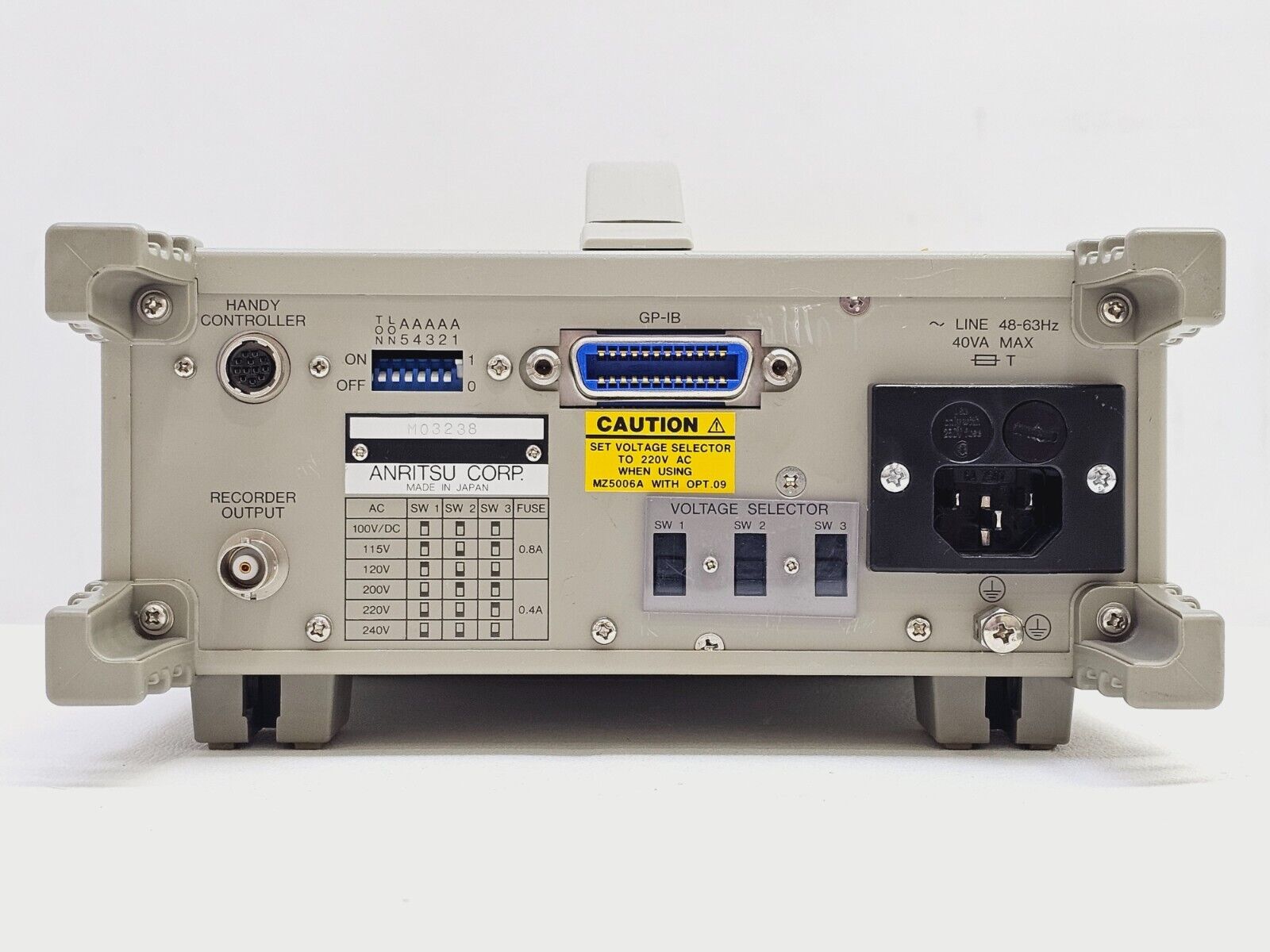

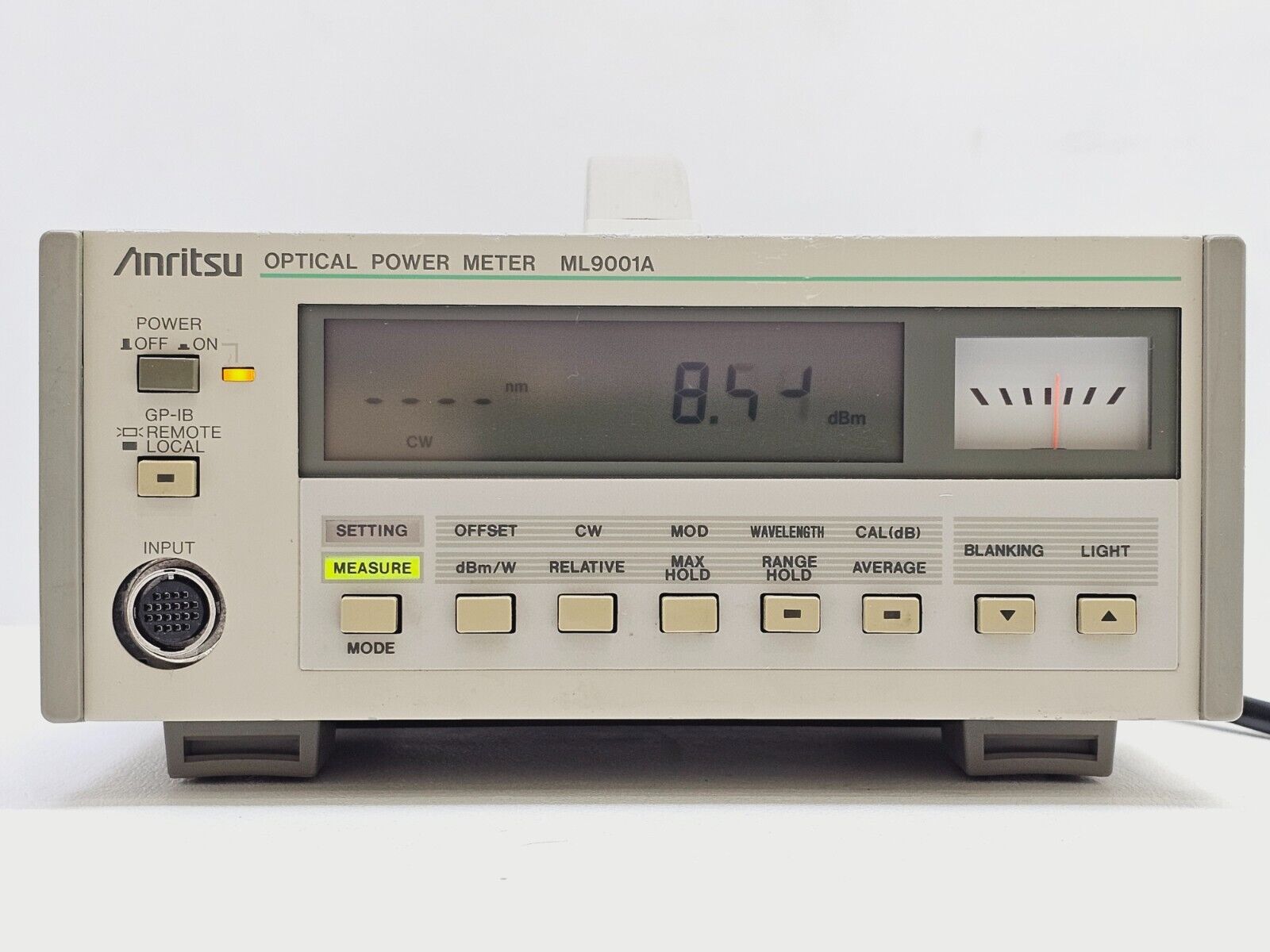

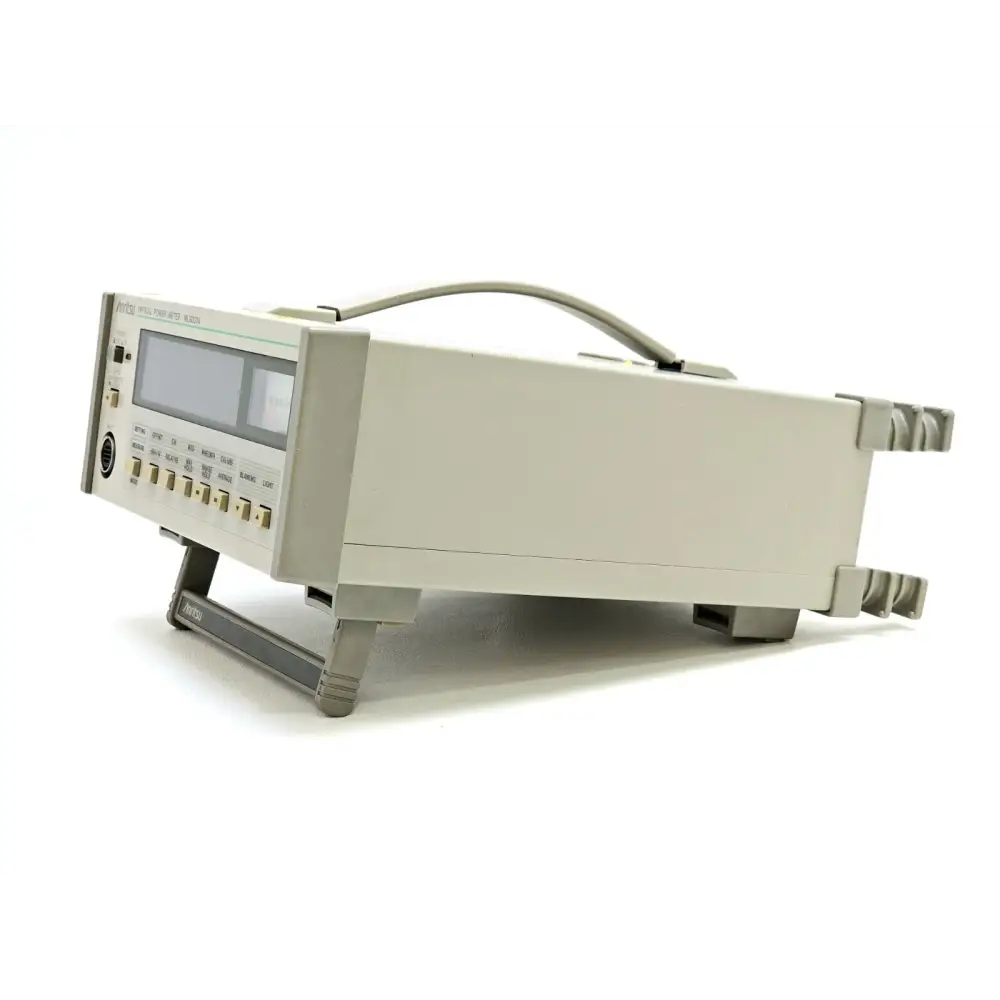

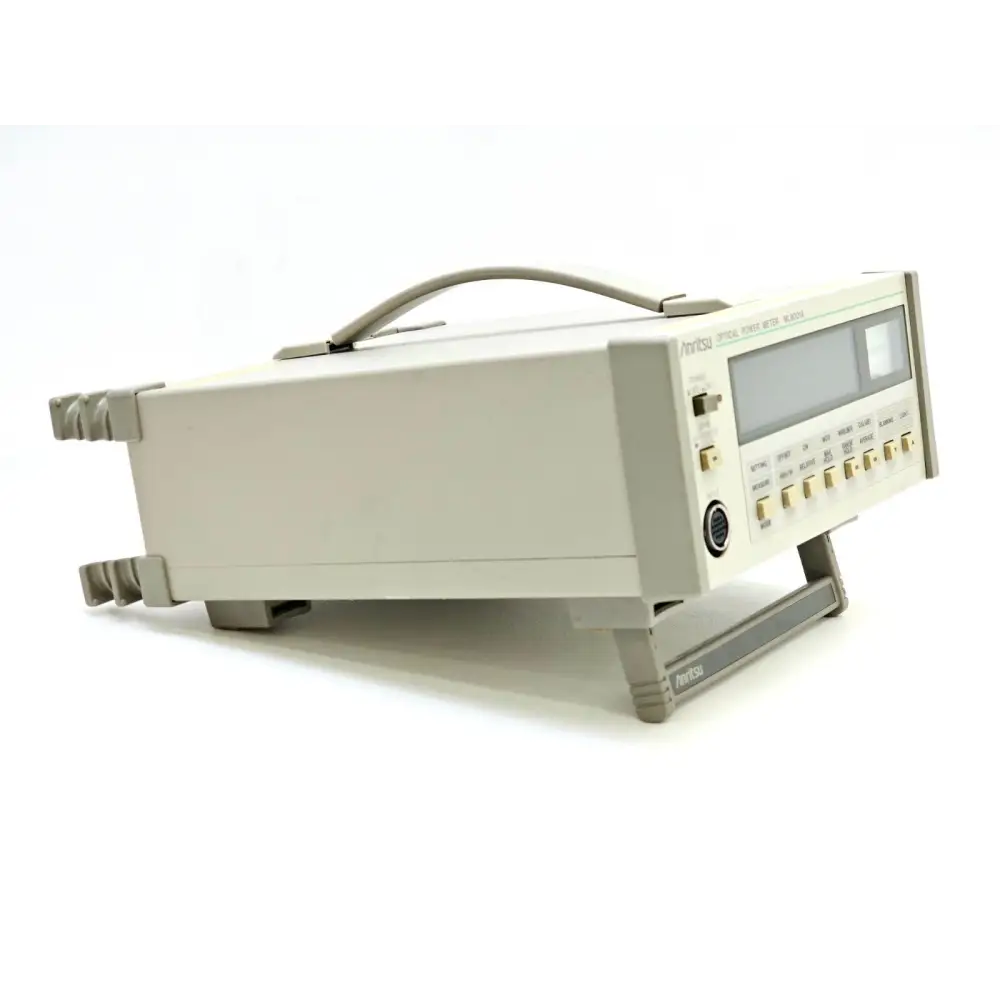

• Anritsu ML9001A optical power meter (main frame)

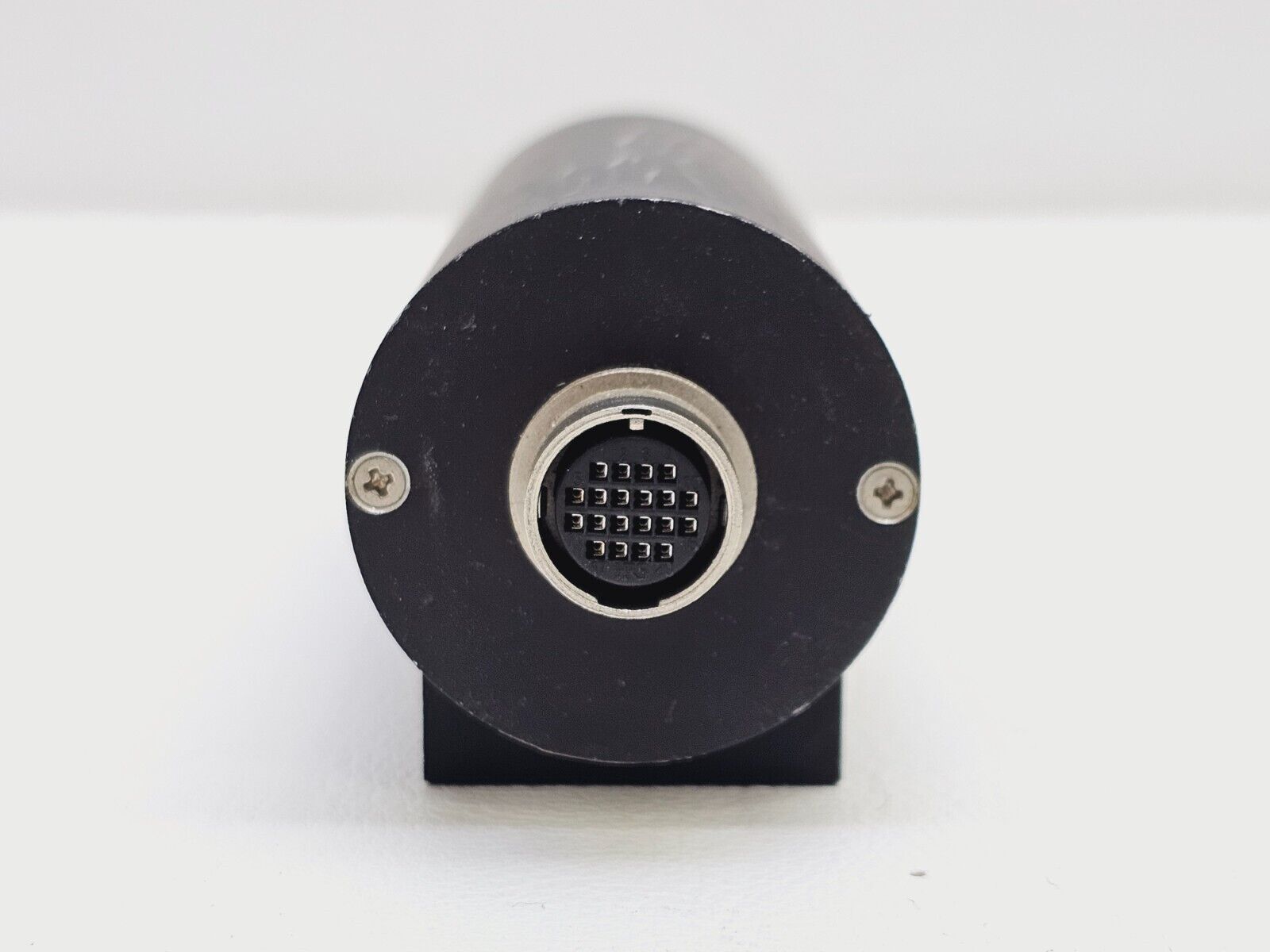

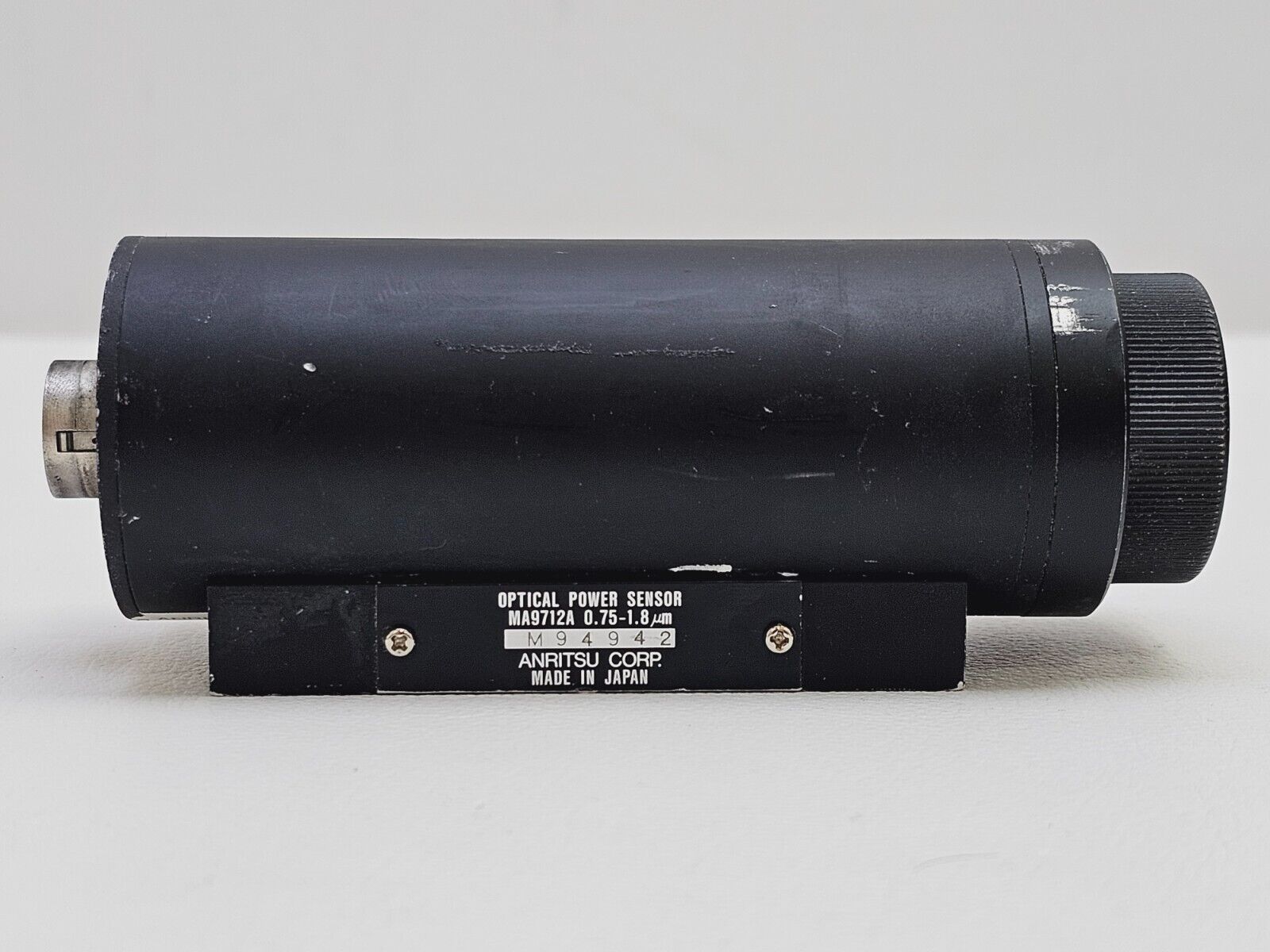

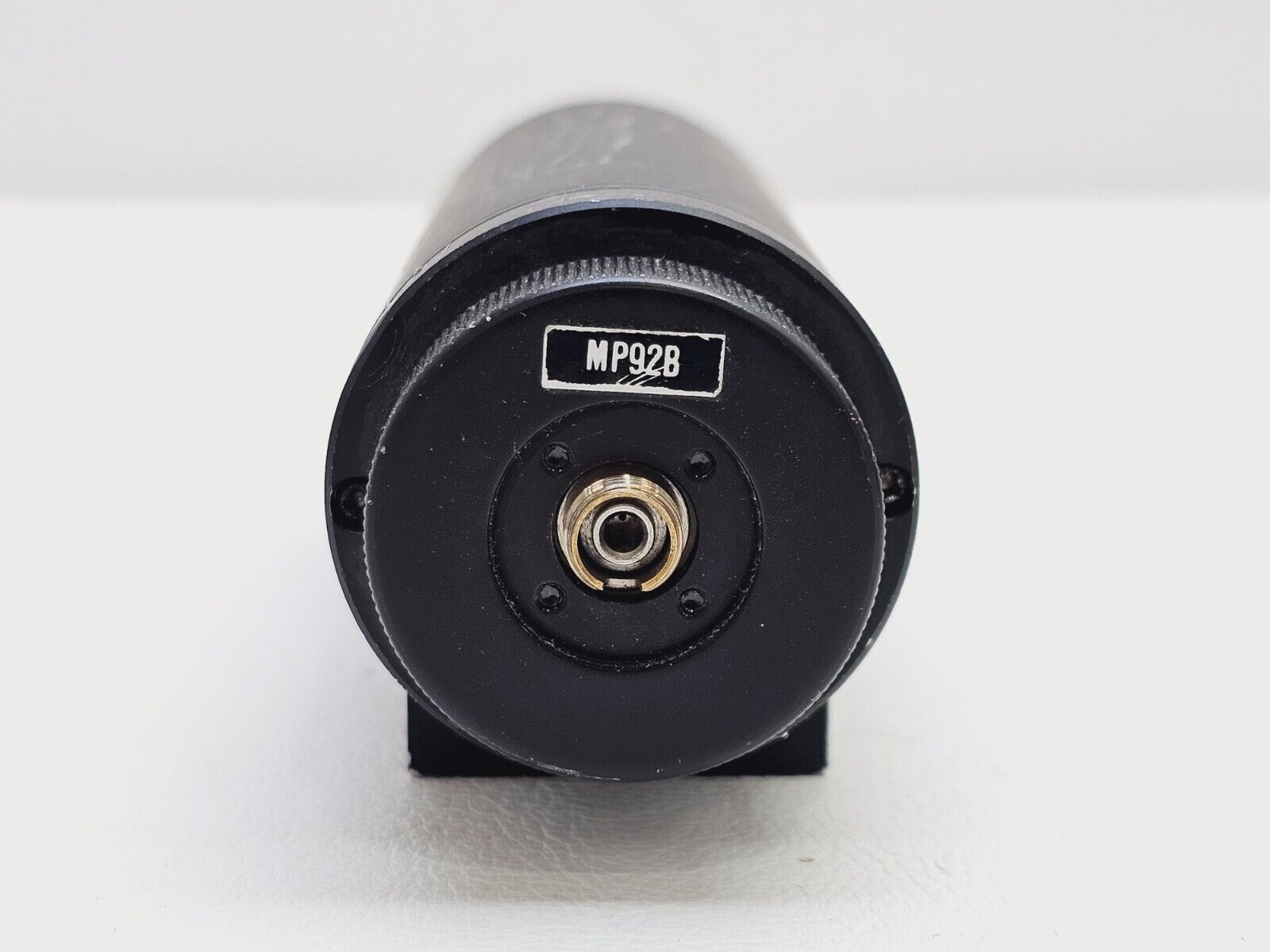

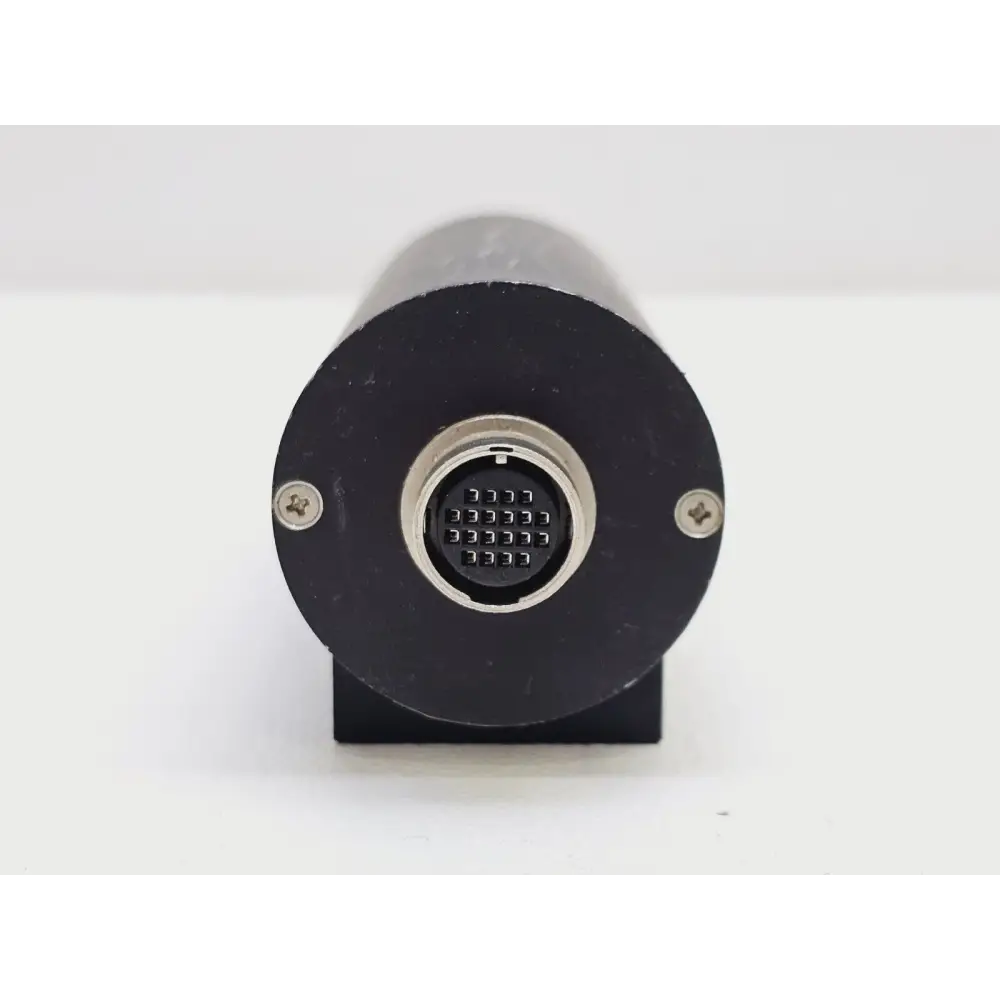

• Anritsu MA9712A optical power sensor

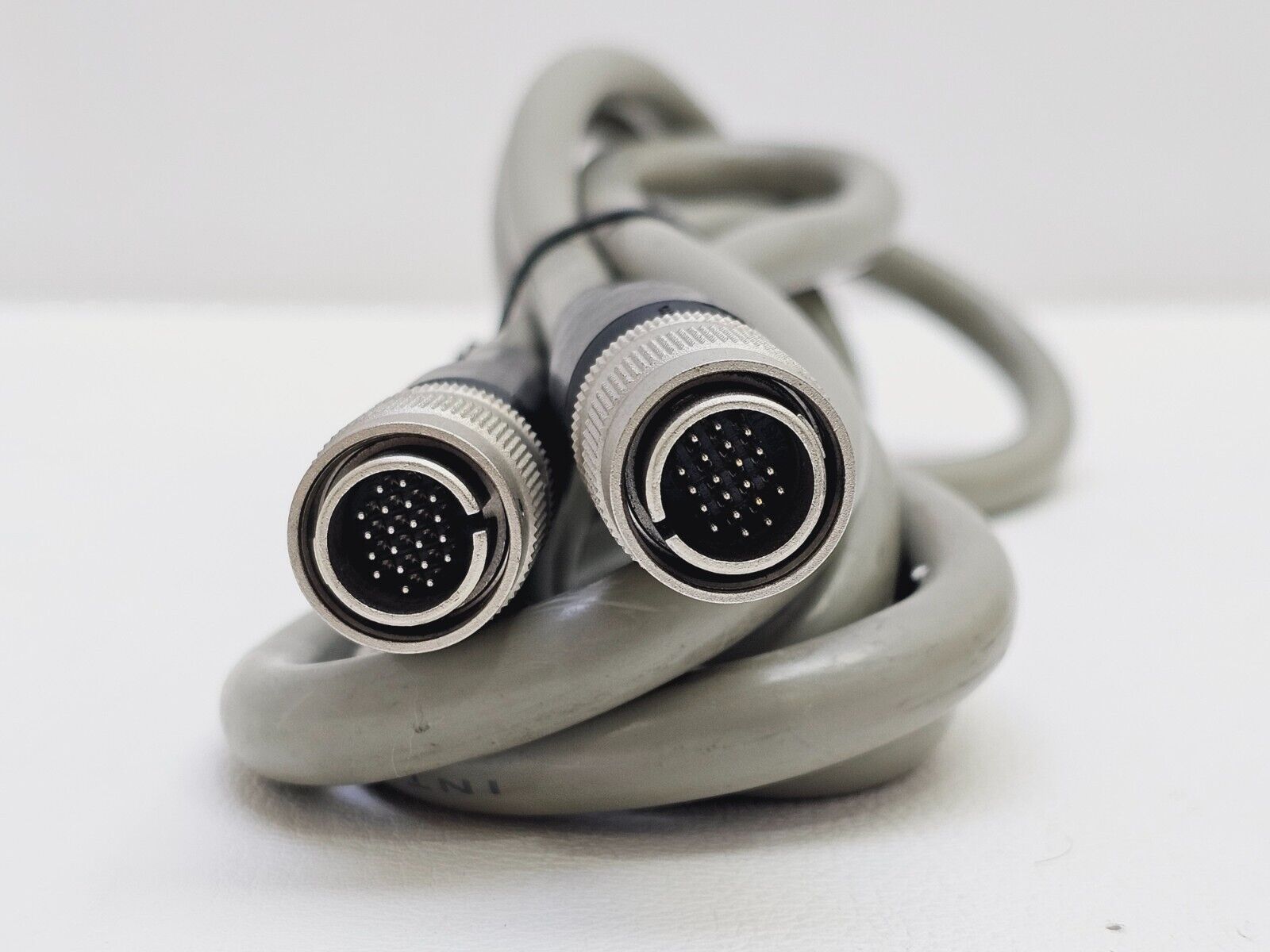

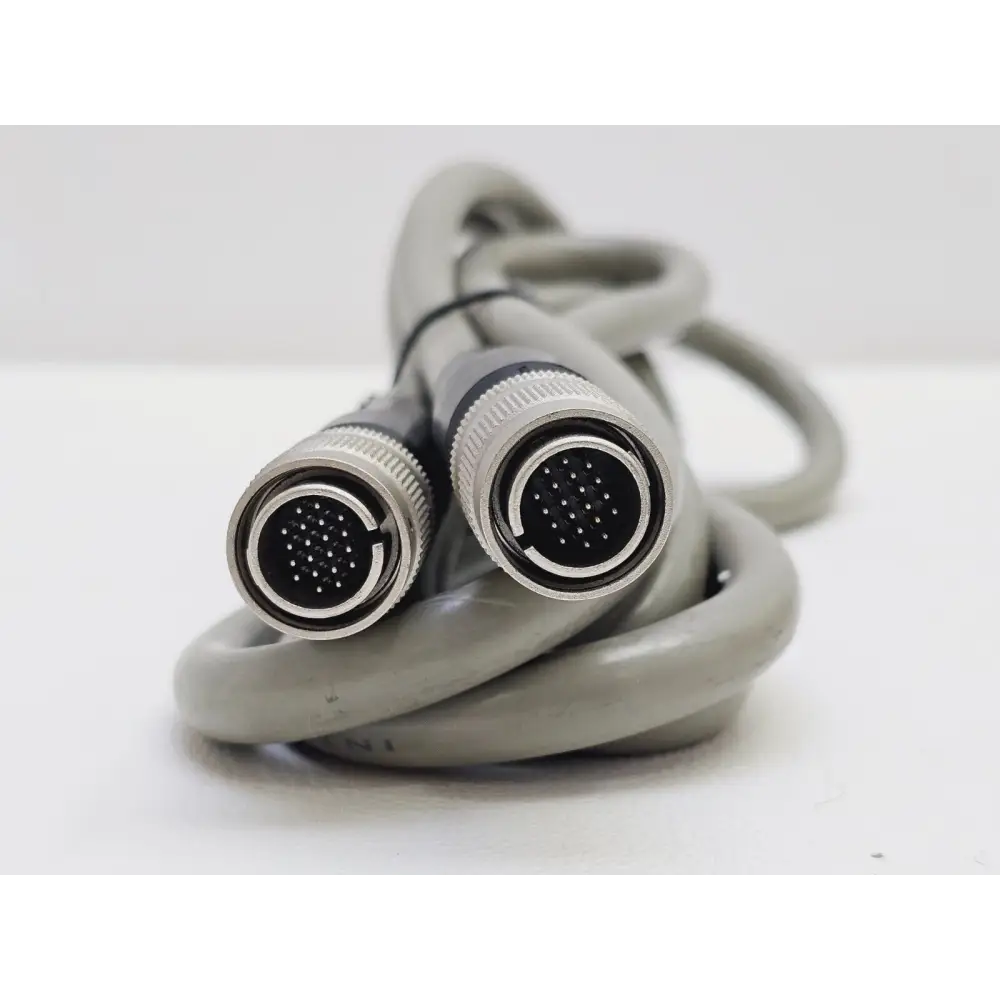

• Sensor connecting cable
The Anritsu ML9001A is a single-channel digital-display optical power meter that ensures accuracy and linearity over a wide wavelength range, greatly improving measurement reliability. Measurements can be made over a wide level range from –100 to +20 dBm because internal reflection in the power sensors has been suppressed. The ML9001A features many functions that make it easier to use than conventional optical power meters, and can be used for all optical power measurements including optical fibre loss measurement and optical device performance evaluation.
The ML9001A accurately and automatically calibrates all power sensors within the specified wavelength range and ensures ±5% accuracy at –23 dBm with ±0.15 dB linearity. With GPIB, it can measure at 30 ms/point, reducing measurement time to less than 50% of conventional automatic measurement. The instrument supports up to 1000 data points via GPIB. It can be stacked with the Anritsu MG9001A Stabilised Light Source to quickly configure a high-performance optical loss test set. The optical connectors of all power sensors accept adapters, allowing the ML9001A to be quickly used with various optical connector types.
ML9001A Main Frame Specifications:

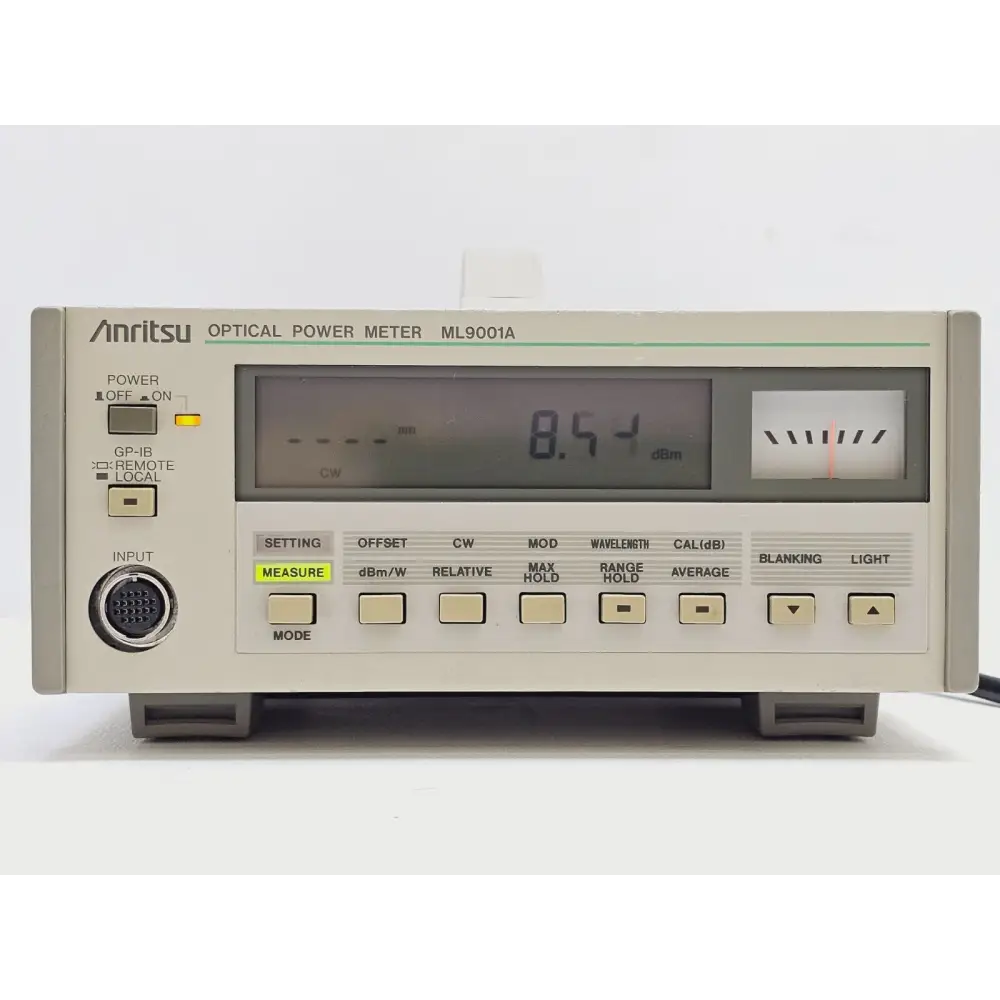

Display: Single-channel digital display
Measurement Level Range: –100 to +20 dBm
Measurement Accuracy: ±5% (at –23 dBm reference)
Linearity: ±0.15 dB (–23 dBm reference value)
GPIB Measurement Speed: 30 ms/point
GPIB Data Storage: Max. 1000 data points
Dimensions: 213 (W) x 88 (H) x 251 (D) mm
Mass: ≤4 kg (without sensor unit)
EMC: EN55011:1991 Group 1 Class A; EN50082-1:1992

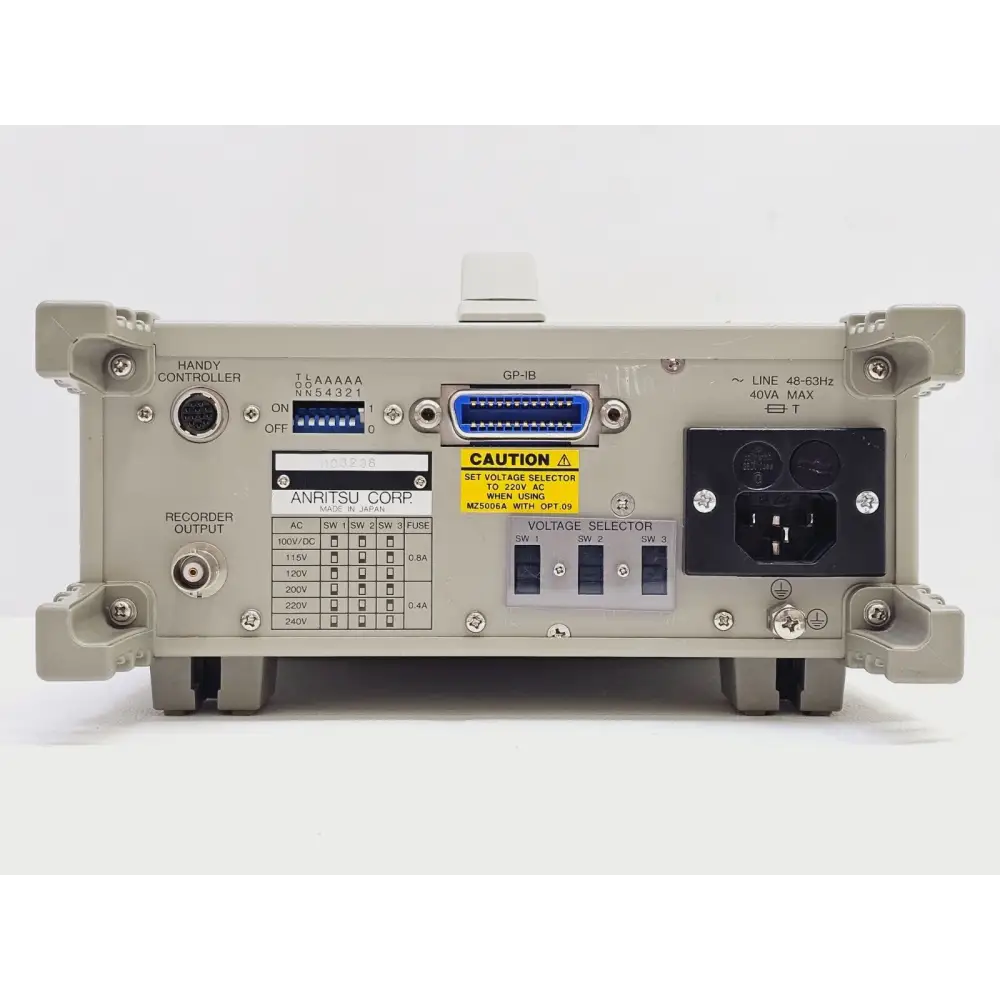

Power Supply: 100/115/120/200/220 Vac (+10/–15%), 240 Vac (+4/–15%), 50/60/400 Hz

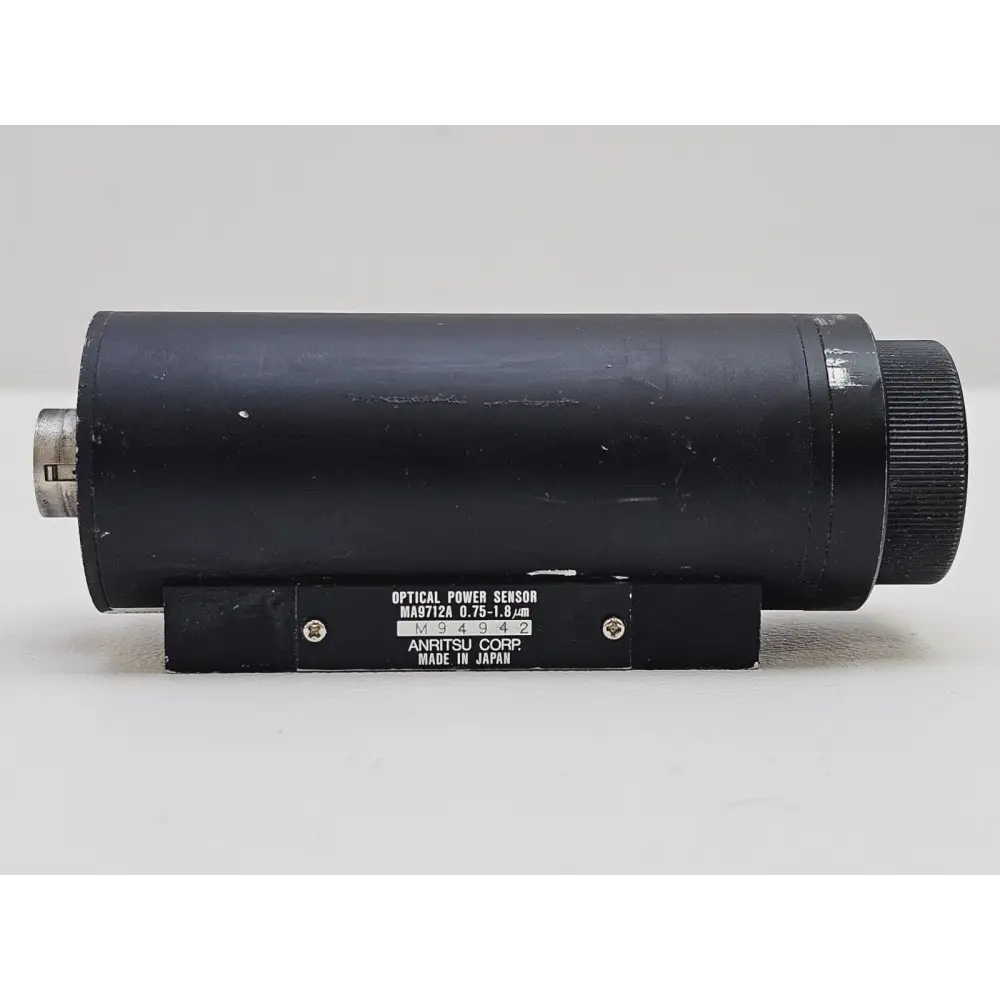

MA9712A Optical Power Sensor Specifications:
Wavelength Range: 0.75 to 1.8 µm
Detector Element: Ge photodiode
Active Area Diameter: 5 mm
Input Type: Direct to photodiode
Optical Power Measurement Range (Continuous Light): –60 to +10 dBm (1 nW to 10 mW)
Optical Power Measurement Range (Modulated Light): –70 to +7 dBm (0.1 nW to 5 mW)

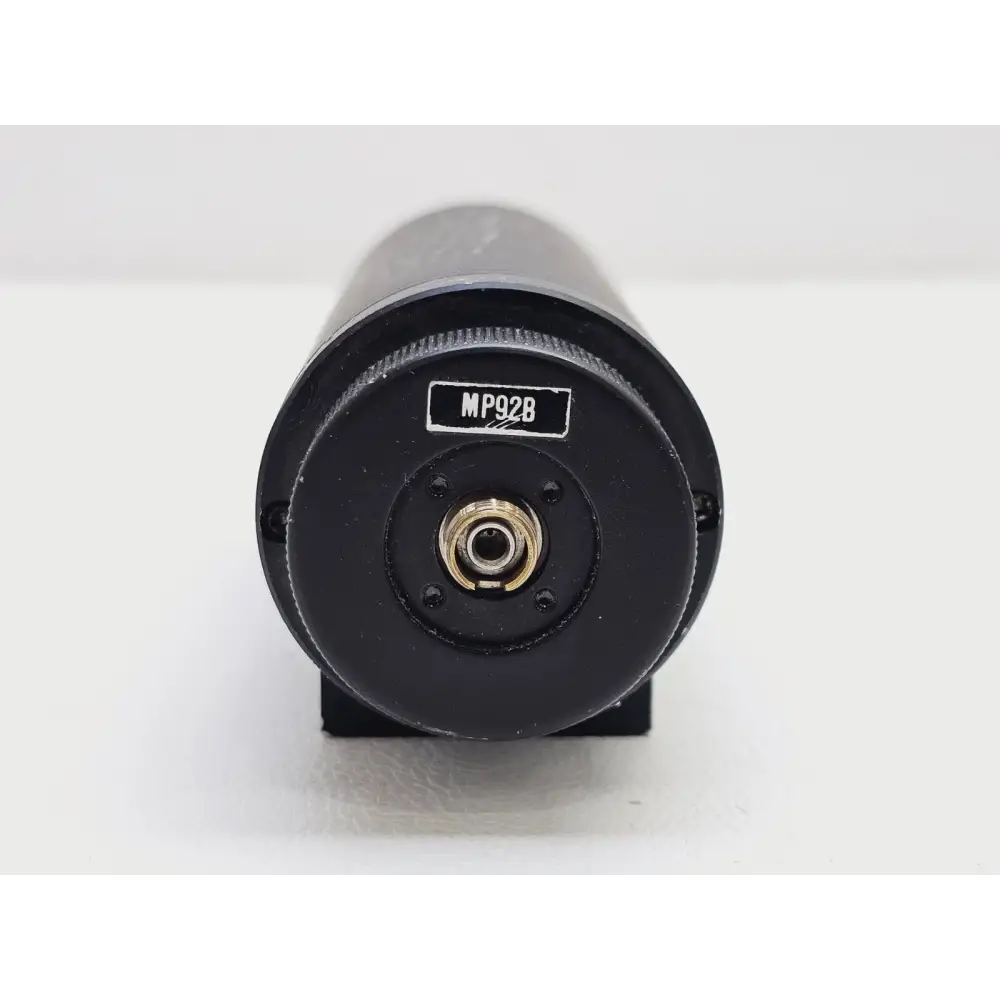

Optical Connector: FC (standard)
Dimensions: 42 (W) x 47 (H) x 110 (D) mm
Mass: ≤500 g
Anritsu ML9001A Optical Power Meter Datasheet (TestEquipmentHQ): Download PDF
Anritsu ML9001A Optical Power Meter Datasheet (Anritsu / KCusercontent mirror): Download PDF
Anritsu ML9001A Optical Power Meter Operation Manual (repeater-builder mirror): Download PDF
Product Overview
Condition: Used
This Anritsu ML9001A optical power meter is in good condition and is supplied complete with the MA9712A optical power sensor and connecting cable, forming a ready-to-use optical power measurement solution.
Included with this unit:
• Anritsu ML9001A optical power meter (main frame)
• Anritsu MA9712A optical power sensor
• Sensor connecting cable
Manufacturer's Description
The Anritsu ML9001A is a single-channel digital-display optical power meter that ensures accuracy and linearity over a wide wavelength range, greatly improving measurement reliability. Measurements can be made over a wide level range from –100 to +20 dBm because internal reflection in the power sensors has been suppressed. The ML9001A features many functions that make it easier to use than conventional optical power meters, and can be used for all optical power measurements including optical fibre loss measurement and optical device performance evaluation.
The ML9001A accurately and automatically calibrates all power sensors within the specified wavelength range and ensures ±5% accuracy at –23 dBm with ±0.15 dB linearity. With GPIB, it can measure at 30 ms/point, reducing measurement time to less than 50% of conventional automatic measurement. The instrument supports up to 1000 data points via GPIB. It can be stacked with the Anritsu MG9001A Stabilised Light Source to quickly configure a high-performance optical loss test set. The optical connectors of all power sensors accept adapters, allowing the ML9001A to be quickly used with various optical connector types.
ML9001A Main Frame Specifications:
Display: Single-channel digital display
Measurement Level Range: –100 to +20 dBm
Measurement Accuracy: ±5% (at –23 dBm reference)
Linearity: ±0.15 dB (–23 dBm reference value)
GPIB Measurement Speed: 30 ms/point
GPIB Data Storage: Max. 1000 data points
Dimensions: 213 (W) x 88 (H) x 251 (D) mm
Mass: ≤4 kg (without sensor unit)
EMC: EN55011:1991 Group 1 Class A; EN50082-1:1992
Power Supply: 100/115/120/200/220 Vac (+10/–15%), 240 Vac (+4/–15%), 50/60/400 Hz
MA9712A Optical Power Sensor Specifications:
Wavelength Range: 0.75 to 1.8 µm
Detector Element: Ge photodiode
Active Area Diameter: 5 mm
Input Type: Direct to photodiode
Optical Power Measurement Range (Continuous Light): –60 to +10 dBm (1 nW to 10 mW)
Optical Power Measurement Range (Modulated Light): –70 to +7 dBm (0.1 nW to 5 mW)
Optical Connector: FC (standard)
Dimensions: 42 (W) x 47 (H) x 110 (D) mm
Mass: ≤500 g
Resources
Anritsu ML9001A Optical Power Meter Datasheet (TestEquipmentHQ): Download PDF
Anritsu ML9001A Optical Power Meter Datasheet (Anritsu / KCusercontent mirror): Download PDF
Anritsu ML9001A Optical Power Meter Operation Manual (repeater-builder mirror): Download PDF
