Condition: Used

The Anritsu ML9001A is a used single-channel optical power meter in good condition with no accessories included. It is suited to optical fibre loss measurement and optical device testing applications requiring high accuracy and wide dynamic range.

Included with this unit:
• ML9001A main unit only
• No accessories included

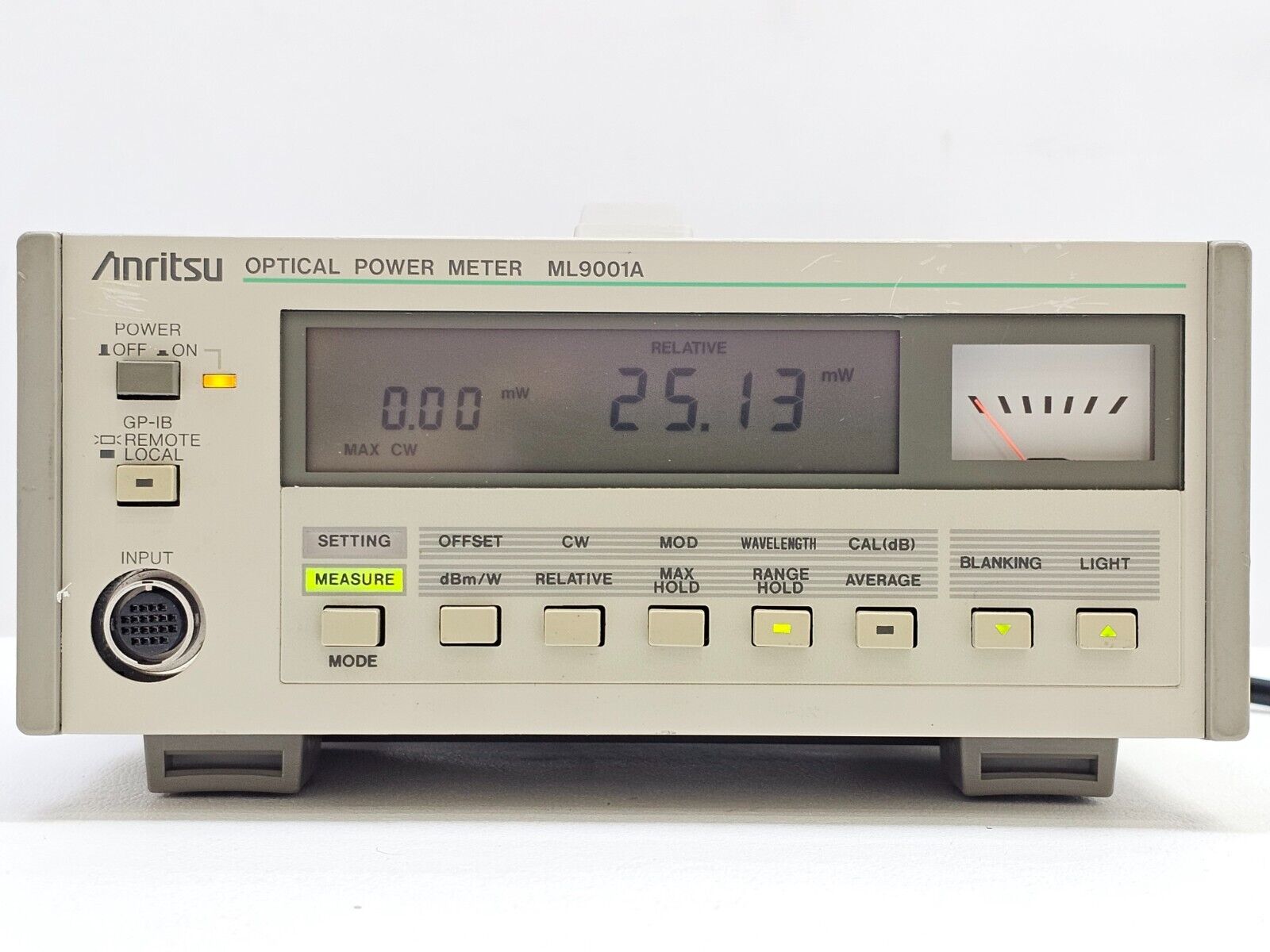

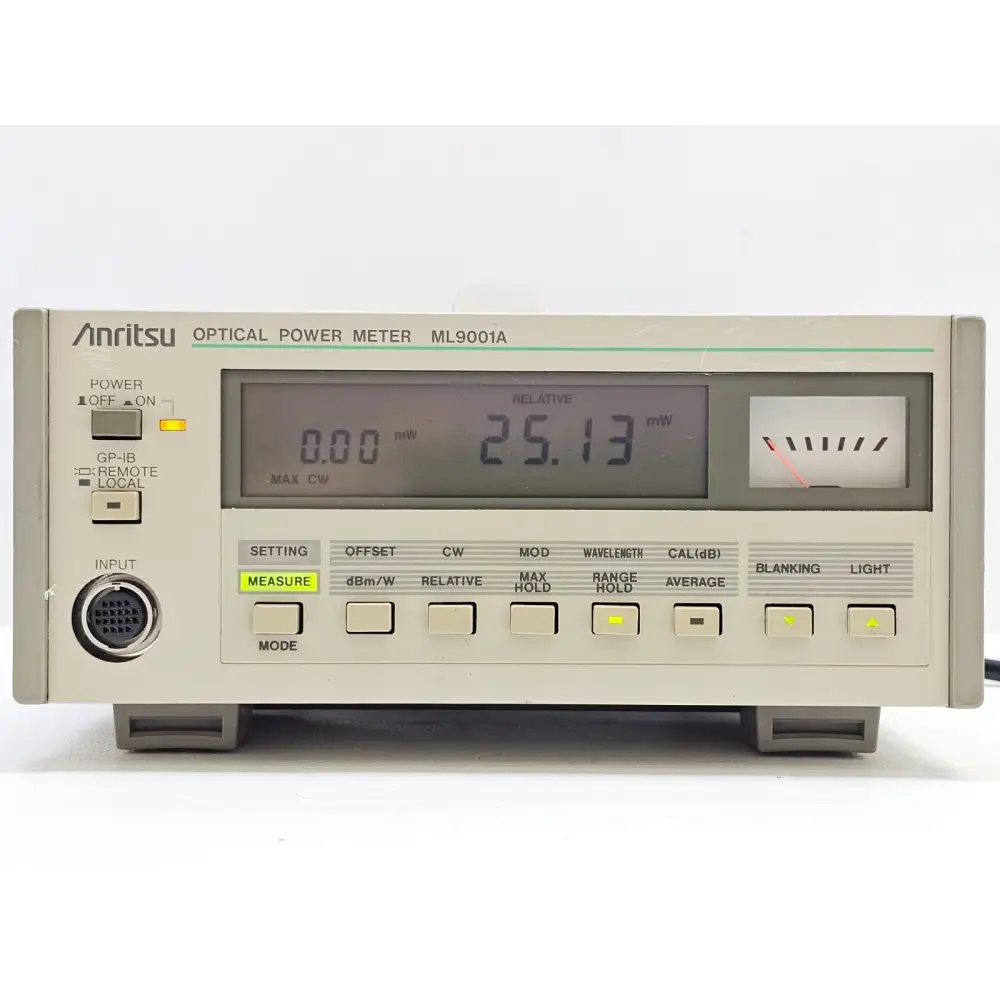

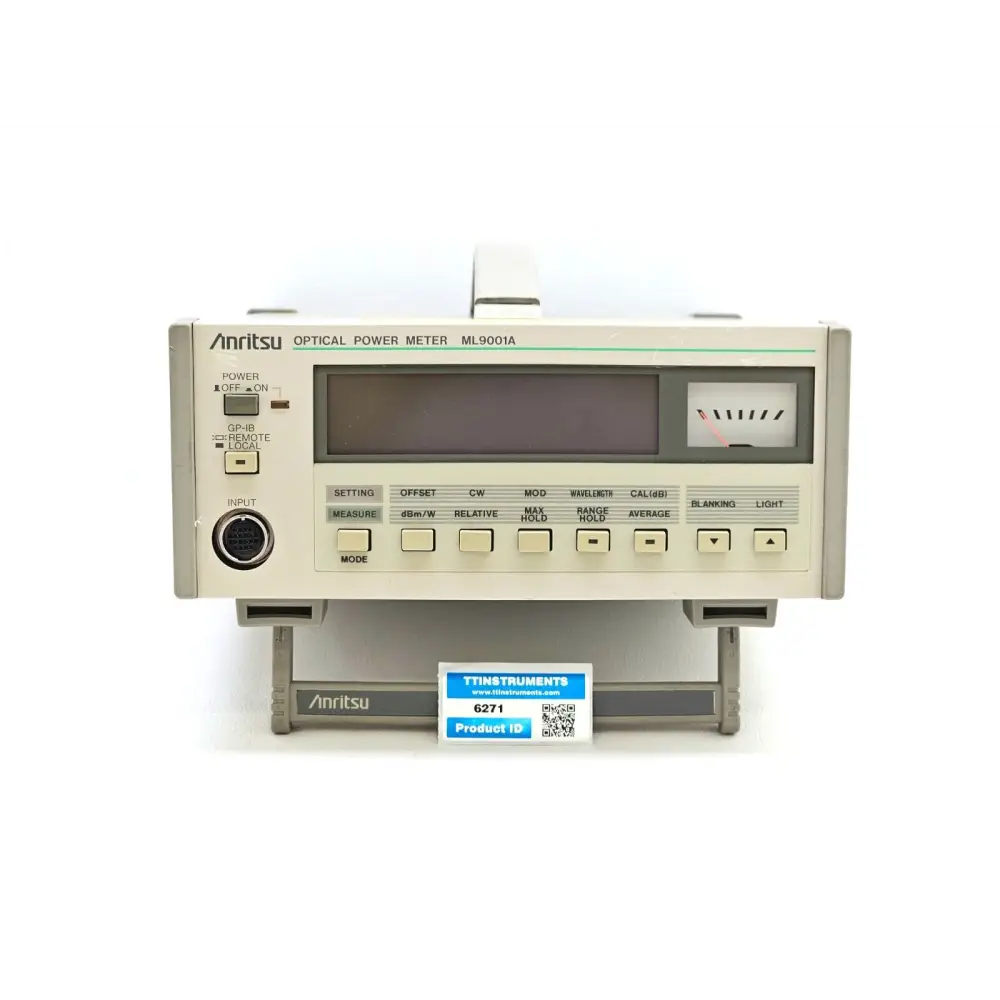

The Anritsu ML9001A is a single-channel digital-display optical power meter designed to ensure accuracy and linearity over a wide wavelength range, greatly improving measurement reliability. Measurements can be made over a wide level range due to suppressed internal reflection in the power sensors. The instrument offers improved basic performance and many functions that make it easier to use than conventional power meters.

The ML9001A automatically and accurately calibrates all connected power sensors within the specified wavelength range. It supports modulated light measurement with 12 selectable modulation frequencies including 270 Hz. The optical connector adaptor system allows connectors to be quickly interchanged for use with various fibre types. Internal coating on the power sensors suppresses reflected light, reducing measurement errors in beam measurement applications.

When stacked with the Anritsu MG9001A Stabilised Light Source, the ML9001A forms a high-performance optical loss test set. It is also compatible with the MG9002A for simultaneous loss measurement of up to twelve cores in multi-core fibre cables.

Key Specifications:
Instrument Type: Single-channel digital-display optical power meter
Measurement Level Range: –100 to +20 dBm
Accuracy: ±5% at –23 dBm
Linearity: ±0.15 dB (–23 dBm reference)
GPIB Measurement Speed: 30 ms/point
GPIB Data Storage: Up to 1000 data points
Modulation Frequencies: 12 frequencies including 270 Hz
Optical Connector: FC (standard); adaptor system for interchange
Supported Fibre: Core diameter up to 62.5 µm, NA up to 0.29

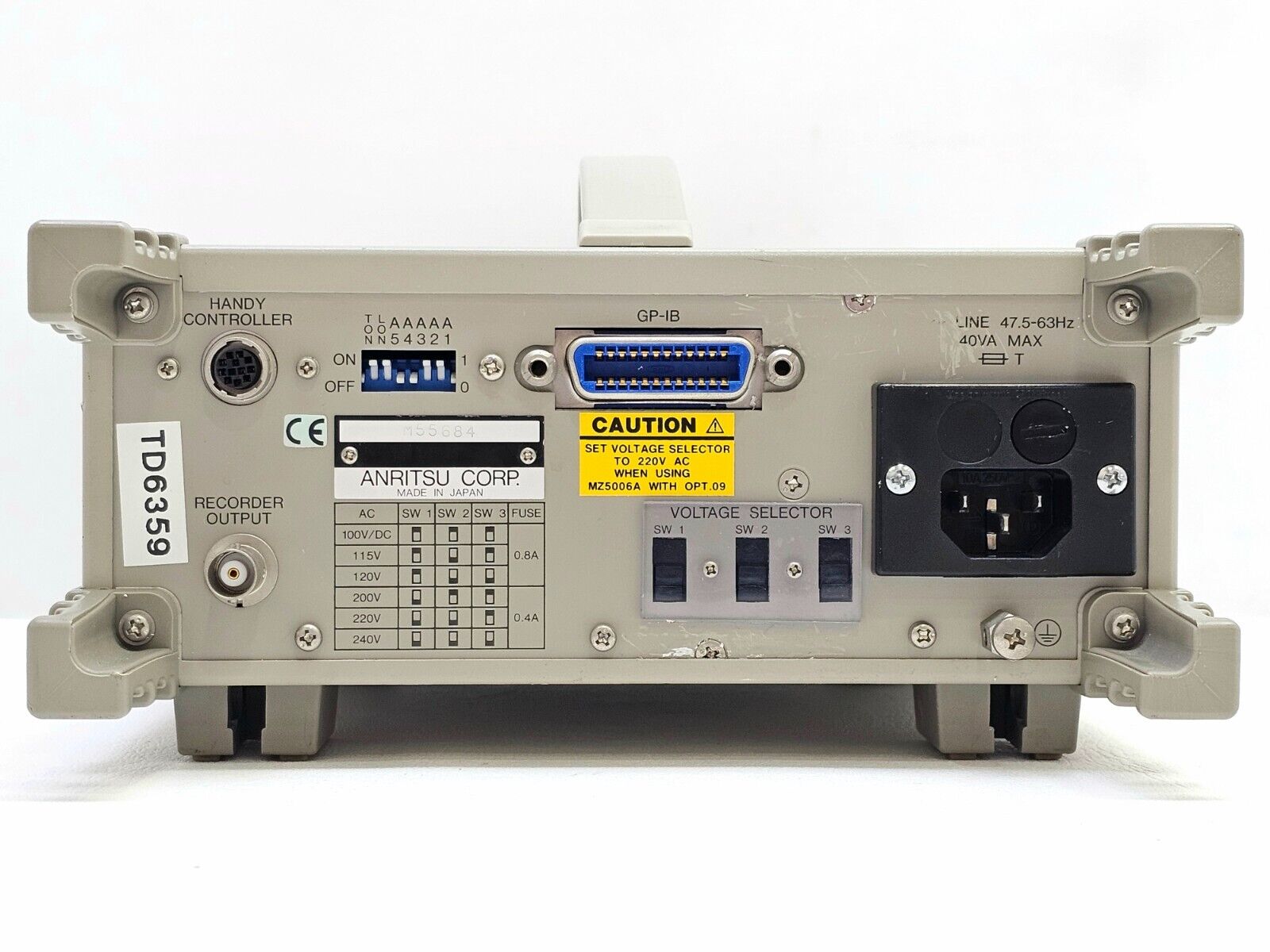

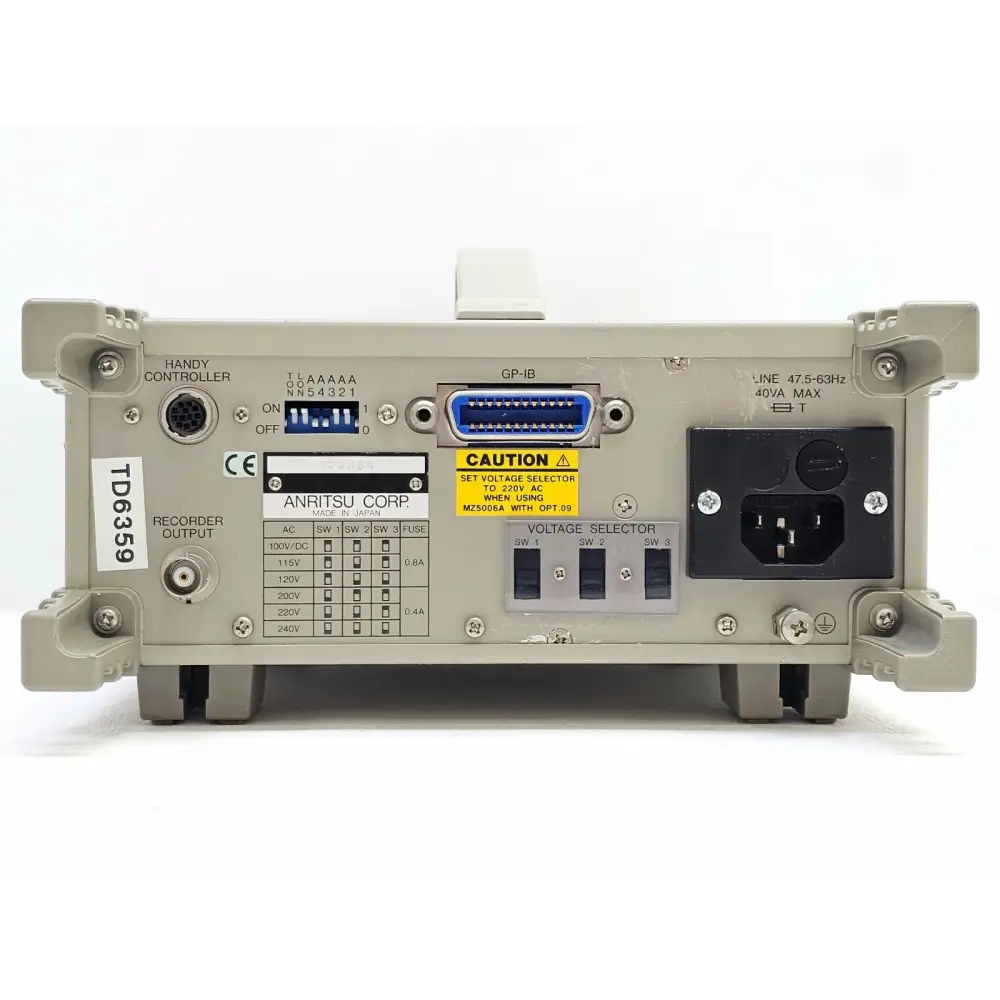

Interface: GPIB
Applications: Optical fibre loss measurement, optical device performance evaluation, multi-core cable loss measurement
Compatible Accessories: MA9411A, MA9612A optical power sensors; MG9001A/MG9002A stabilised light sources

Anritsu ML9001A Optical Power Meter Datasheet (PDF): Download PDF

Anritsu ML9001A Optical Power Meter Data Sheet – Optical Measuring Instruments (PDF): Download PDF

Anritsu ML9001A Operation Manual (PDF) – repeater-builder.com: Download PDF
