Anritsu MT8221B BTS Master 10/31/44/65

Condition: Used

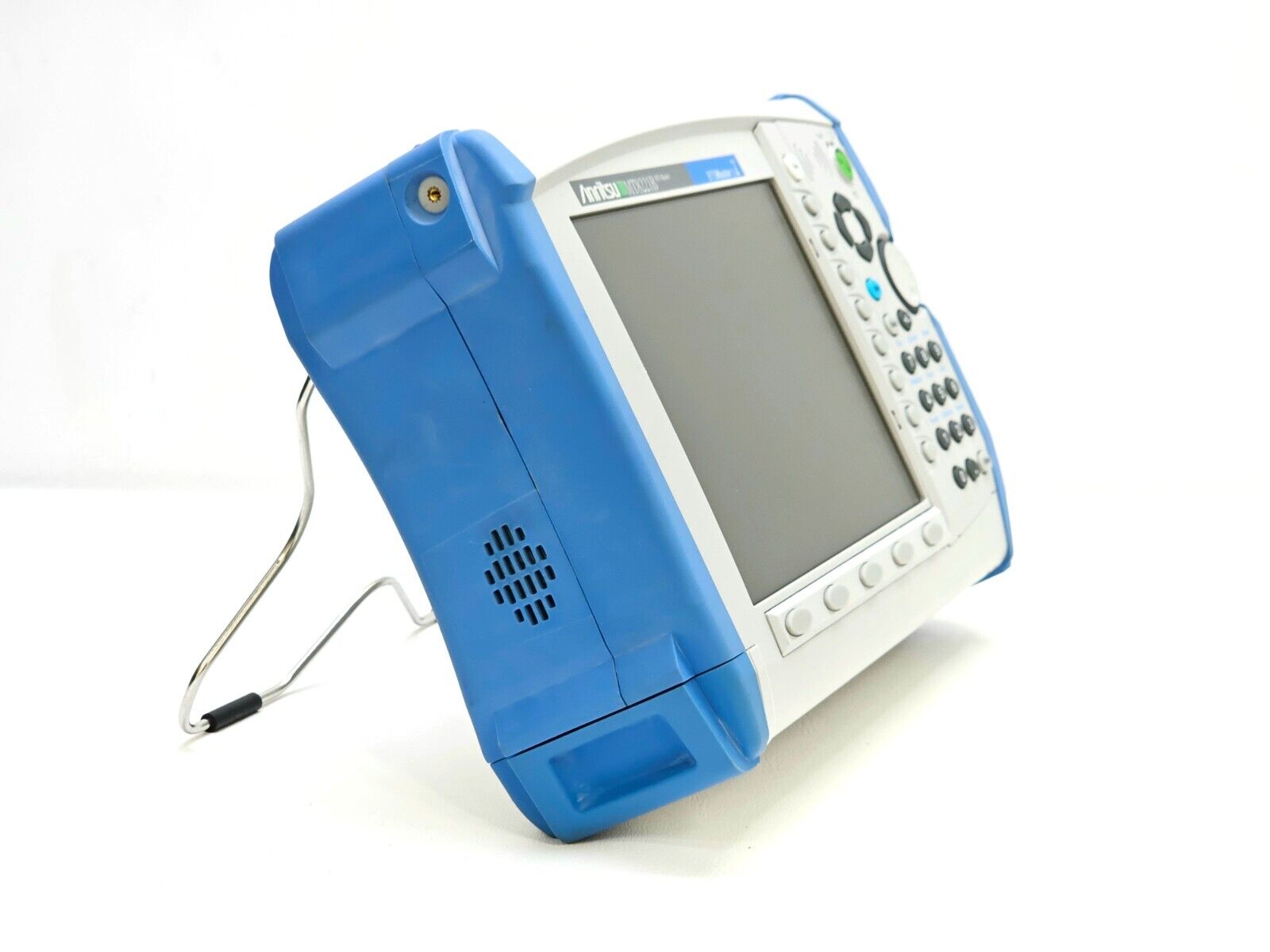

This Anritsu MT8221B BTS Master is a used handheld base station analyzer configured with Options 10, 31, 44, and 65, adding High Voltage Bias Tee, GPS Receiver, W-CDMA/HSDPA signal analysis, and LTE demodulation capability to the base platform. Supplied as pictured — please refer to product images for cosmetic condition.

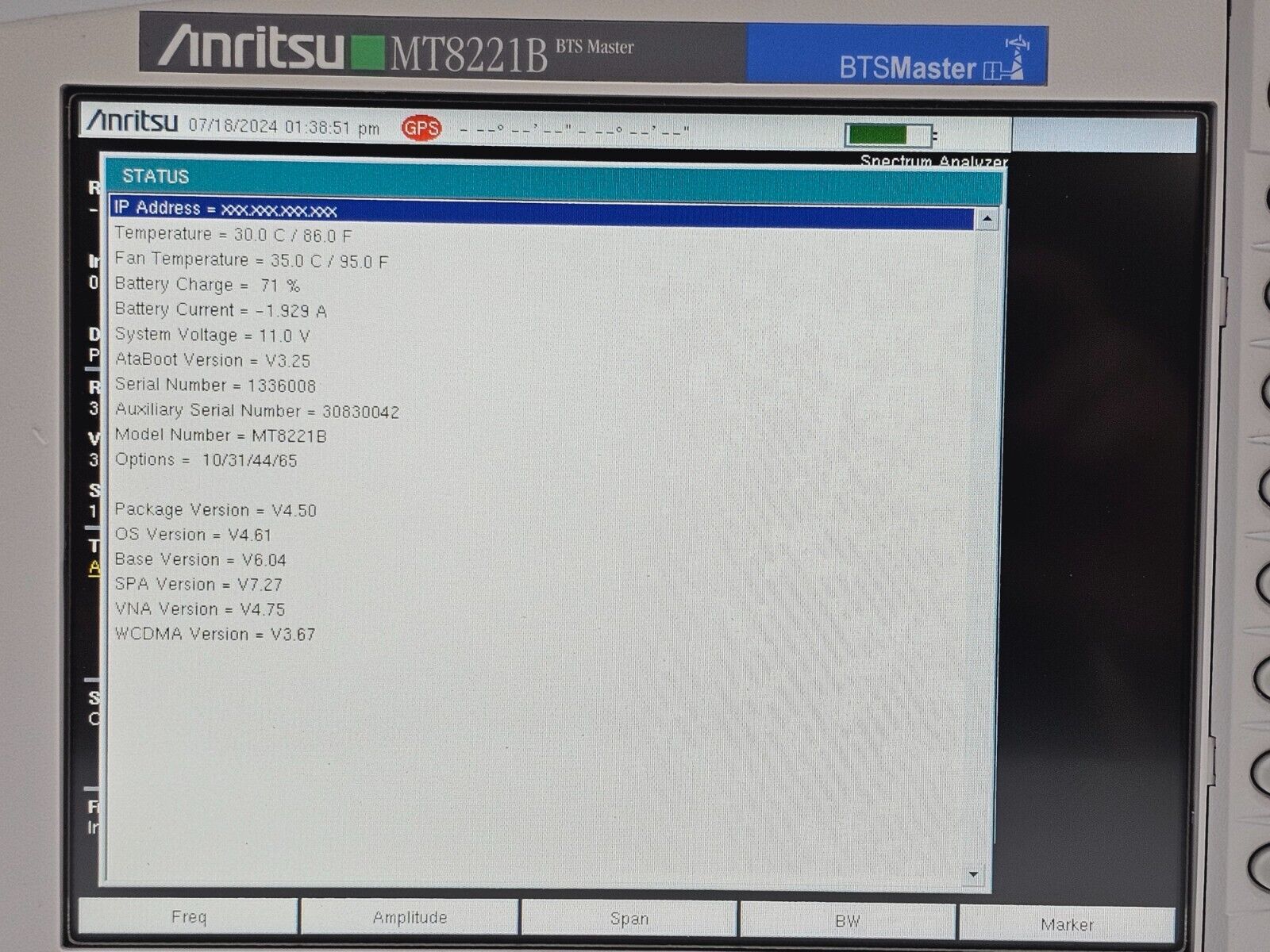

Active licensed options on this instrument:
• Option 10 — Cable and Antenna Analyzer High Voltage Bias Tee
• Option 31 — GPS Receiver
• Option 44 — W-CDMA/HSDPA Signal Analyzer
• Option 65 — LTE Signal Analyzer

The Anritsu MT8221B BTS Master is a high-performance handheld base station analyzer designed for the installation, commissioning, and maintenance of wireless networks. It consolidates over 30 measurement functions into a single portable instrument, supporting 2G, 3G, 4G/LTE and WiMAX networks.

The platform provides 20 MHz demodulation bandwidth to support LTE bandwidths from 1.4 to 20 MHz, along with a 30 MHz Zero-Span IF Output for external demodulation of wideband signals. An optional Vector Signal Generator (VSG) enables comprehensive receiver testing with the ability to generate two modulated signals plus noise.

Key Features:
• Integrated cable and antenna analyzer, spectrum analyzer, and power meter
• 1-port and 2-port cable and antenna analysis with VSWR, return loss, cable loss, DTF, phase, and gain
• 2-port dynamic range >80 dB; 2-port gain measurement uncertainty <0.45 dB
• RF immunity: +17 dBm on-channel, +10 dBm on-frequency
• OSL and FlexCal calibration; internal 32 V Bias Tee

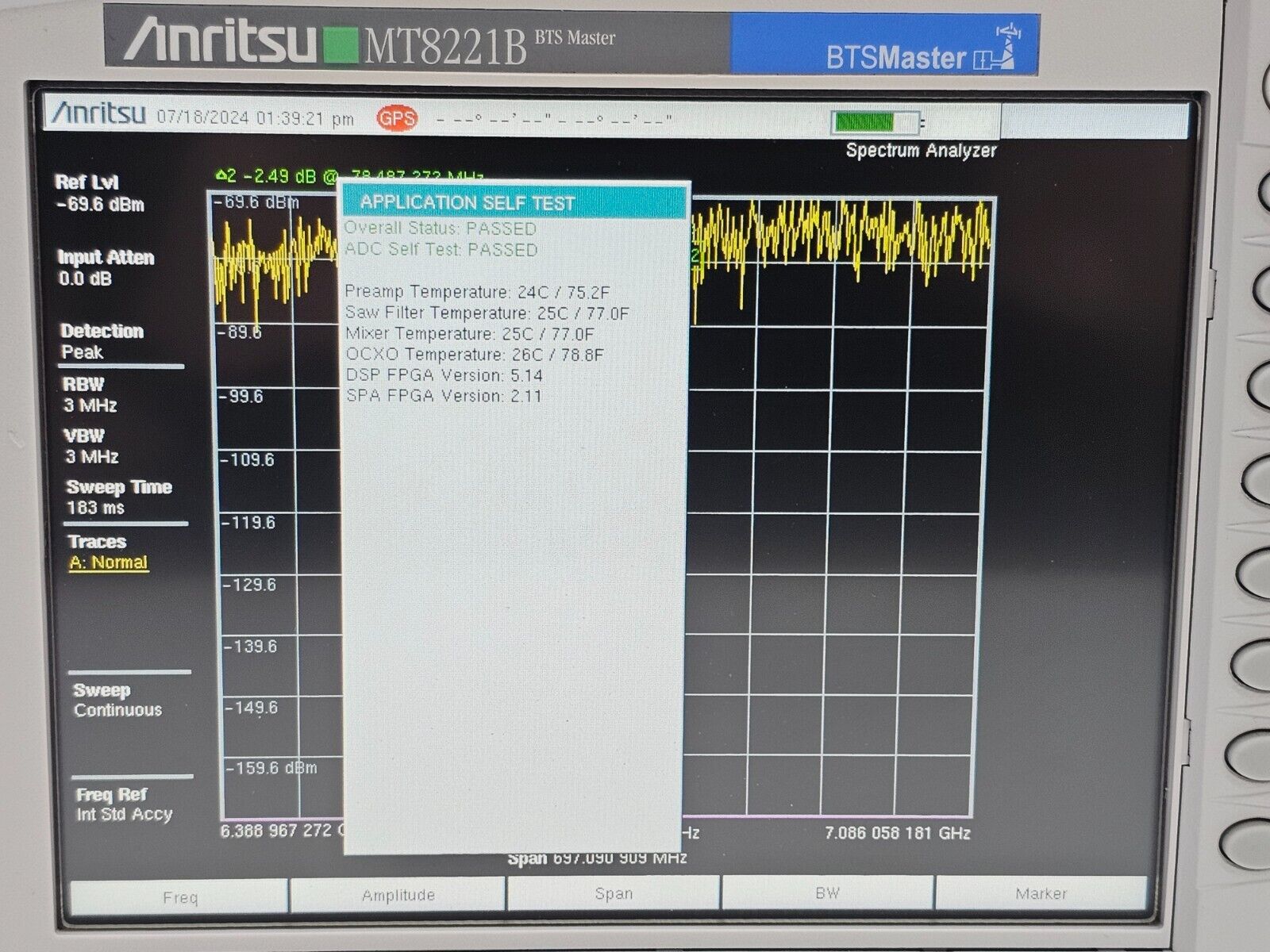

• Synthesizer-based spectrum analyzer with interference analysis, channel scanning, spectrogram, and gated sweep
• Transmitter/demodulation analysis for LTE, W-CDMA/HSPA+, GSM/GPRS/EDGE, TD-SCDMA/HSPA+, CDMA, EV-DO, Fixed WiMAX, Mobile WiMAX, and DVB-T/H
• GPS location information stamped on stored traces
• Daylight-viewable high-resolution colour LCD
• Internal memory and USB flash drive storage for traces and setups
• Anritsu Master Software Tools (MST) PC software for data post-processing, report generation, and remote access

Technical Specifications:
Cable and Antenna Analyzer Frequency Range: 400 MHz to 4.0 GHz
Spectrum Analyzer Frequency Range: 150 kHz to 7.1 GHz
Power Meter Frequency Range: 10 MHz to 7.1 GHz
LTE Demodulation Bandwidth: 20 MHz (supports 1.4 to 20 MHz LTE bandwidths)
IF Output Bandwidth: 30 MHz Zero-Span
2-port Dynamic Range: >80 dB
2-port Gain Measurement Uncertainty: <0.45 dB
RF Immunity (on-channel): +17 dBm
RF Immunity (on-frequency): +10 dBm
Internal Bias Tee Voltage: 32 V
DTF Data Points: 137, 275, 551
Battery Operation Time: Approximately 2.5 hours
DC Operation: 12 V external DC (simultaneous battery charging)
Dimensions: 315 mm x 211 mm x 94 mm (12.4 in x 8.3 in x 3.7 in)
Weight: 4.9 kg (10.8 lb)
Display: Daylight-viewable high-resolution colour LCD
Data Storage: Internal memory and USB flash drive

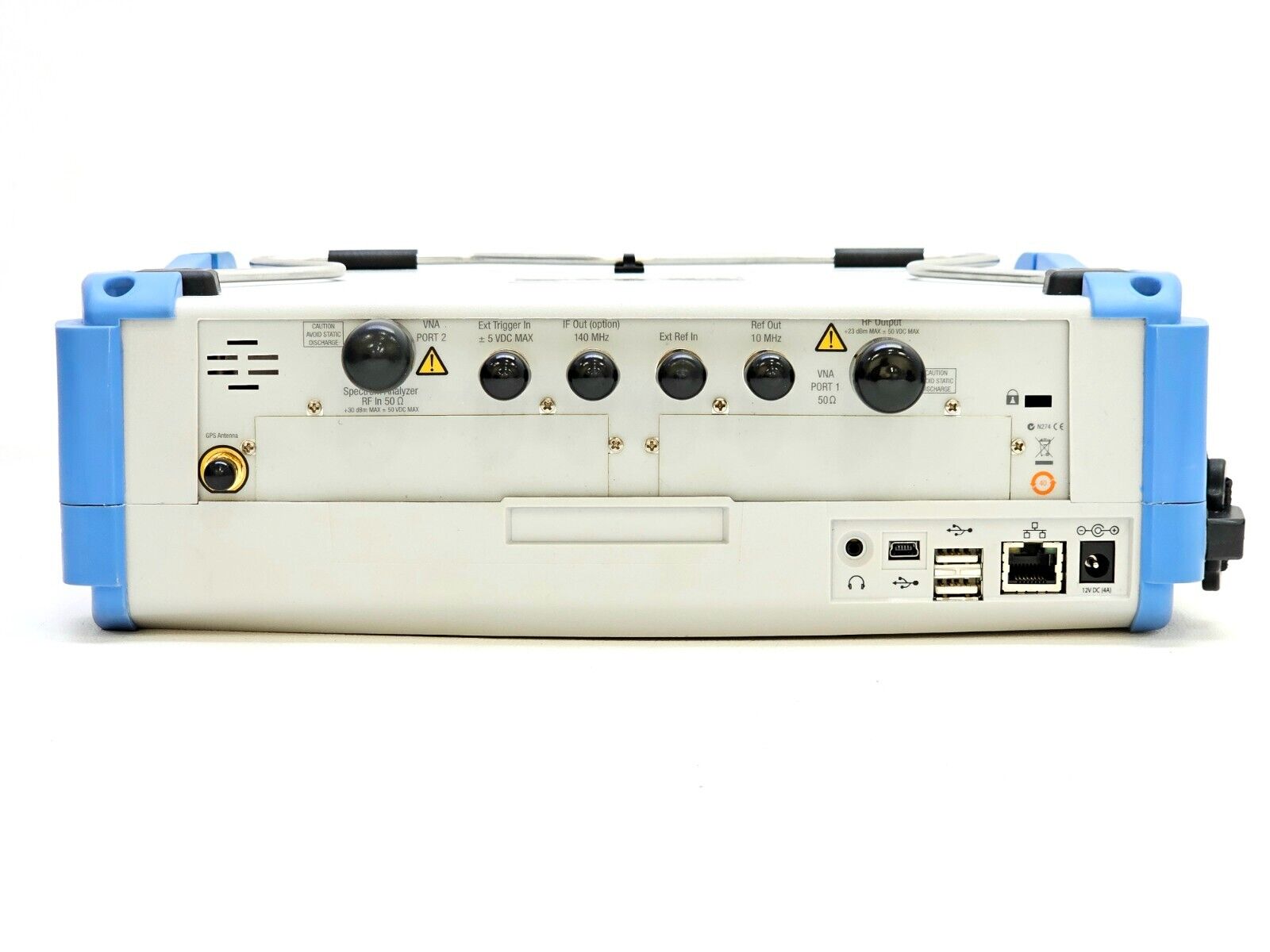

Connectivity: USB and Ethernet
Warm-up Time: <5 minutes

Signal Standards Supported:
LTE FDD/TDD, W-CDMA/HSPA+, GSM/GPRS/EDGE, TD-SCDMA/HSPA+, CDMA, EV-DO, Fixed WiMAX, Mobile WiMAX, DVB-T/H

Standard Accessories (typically included with instrument):

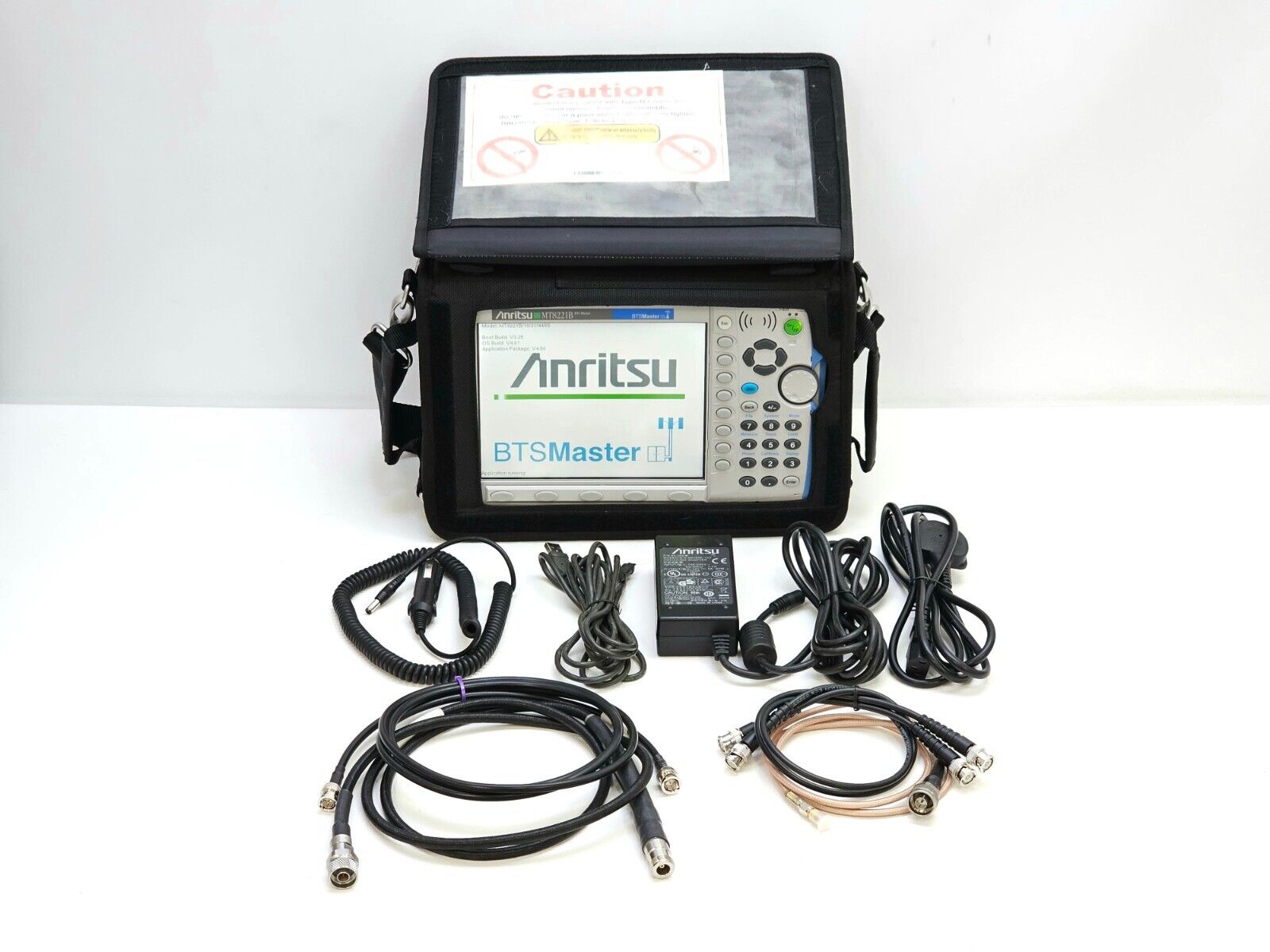

BTS Master User Guide, Soft Carrying Case, MST CD (Master Software Tools), Rechargeable Li-Ion Battery, AC/DC Power Supply, Automotive 12 V DC Adapter

Anritsu MT8221B / MT8222B BTS Master User Guide (official Anritsu PDF): Download PDF

Anritsu MT8221B BTS Master Technical Data Sheet / Specifications (via testequipmenthq): Download PDF

Anritsu MT8221B BTS Master Full Specifications Sheet — 28 pages (via aaatesters): Download PDF

Anritsu MT8221B BTS Master Product Data Sheet (via accusrc): Download PDF
