Condition: Used

This Anritsu MT1000A Network Master Pro with MU100010A 10G Multirate Module is offered in excellent working condition, complete with SFPs, carry bag, power adapter and cables. Three software options are active, enabling dual-channel operation across multi-rate, 10G Ethernet and STM-64/OC-192 interfaces.

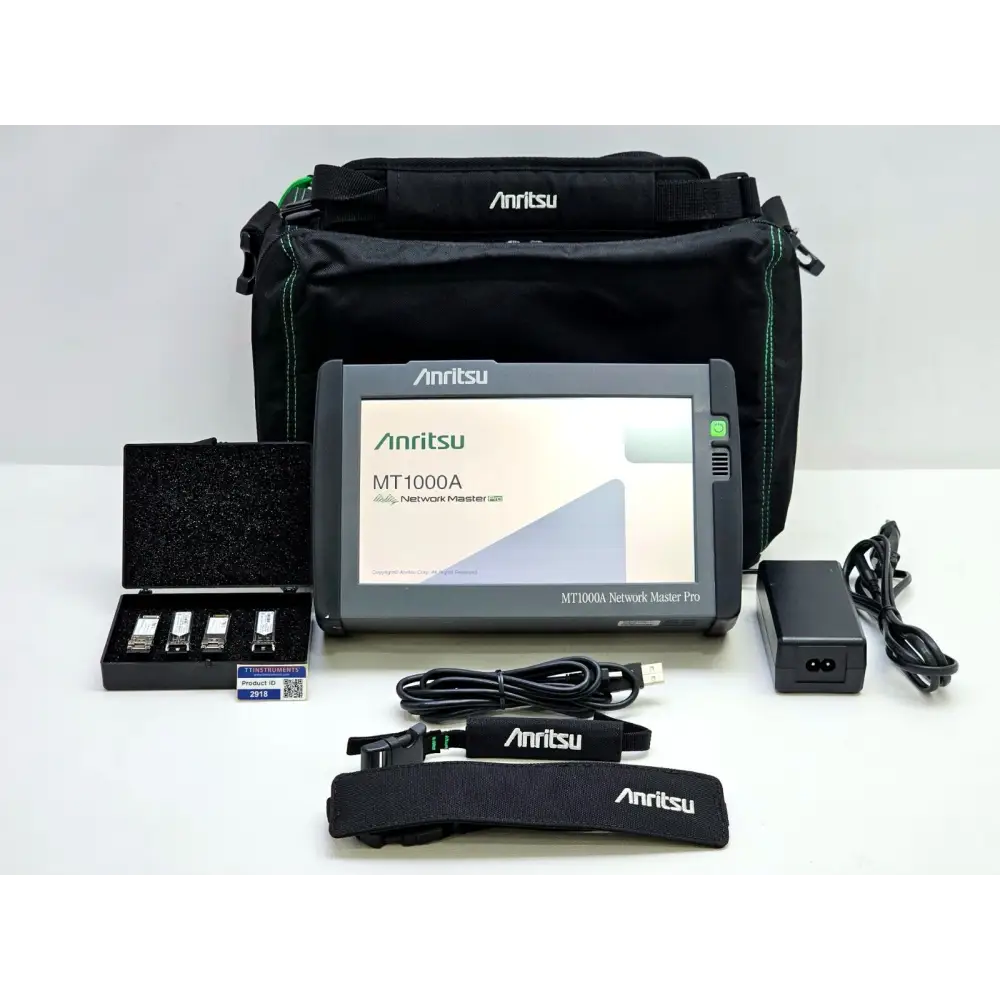

Included in the sale:

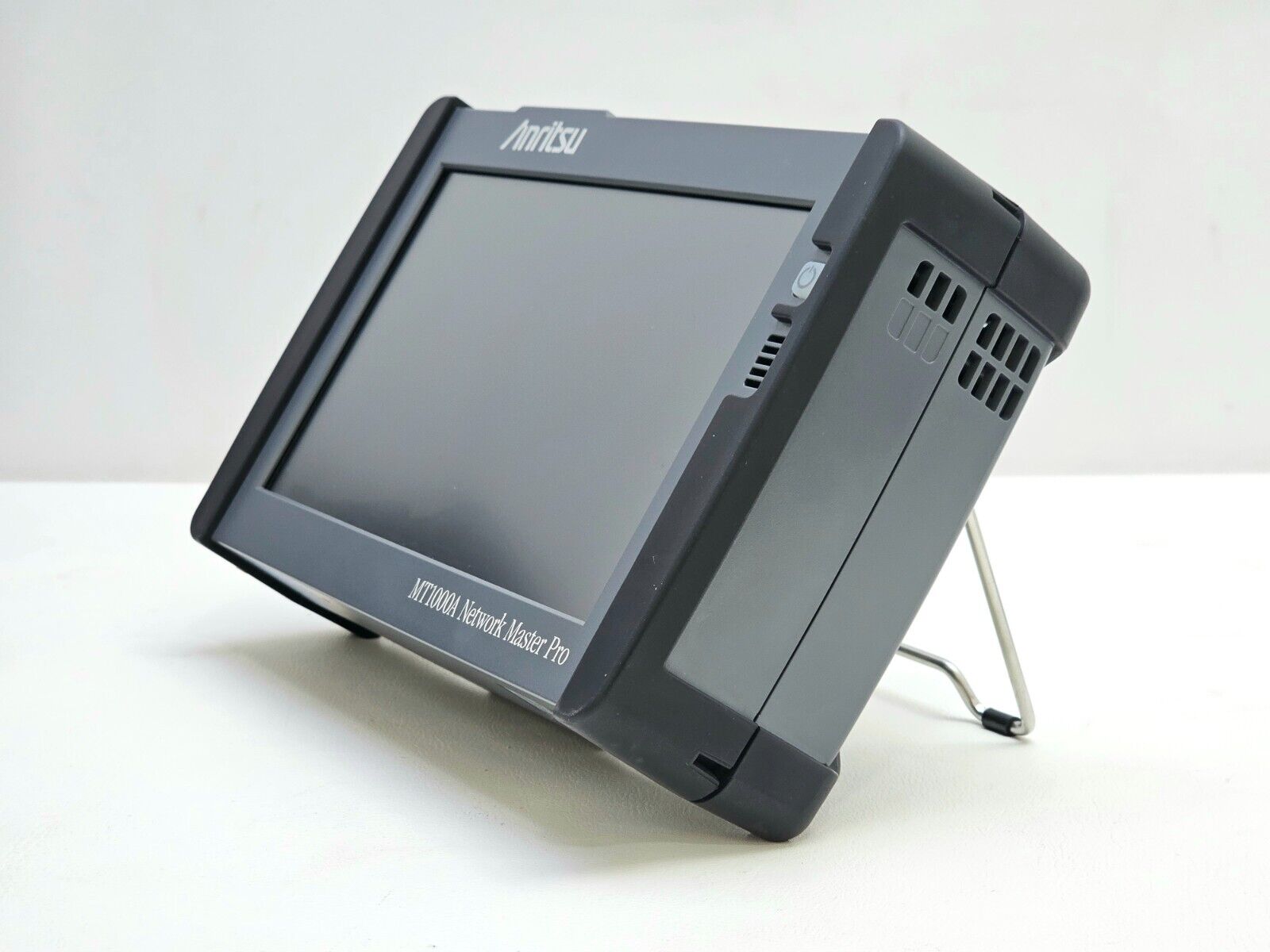

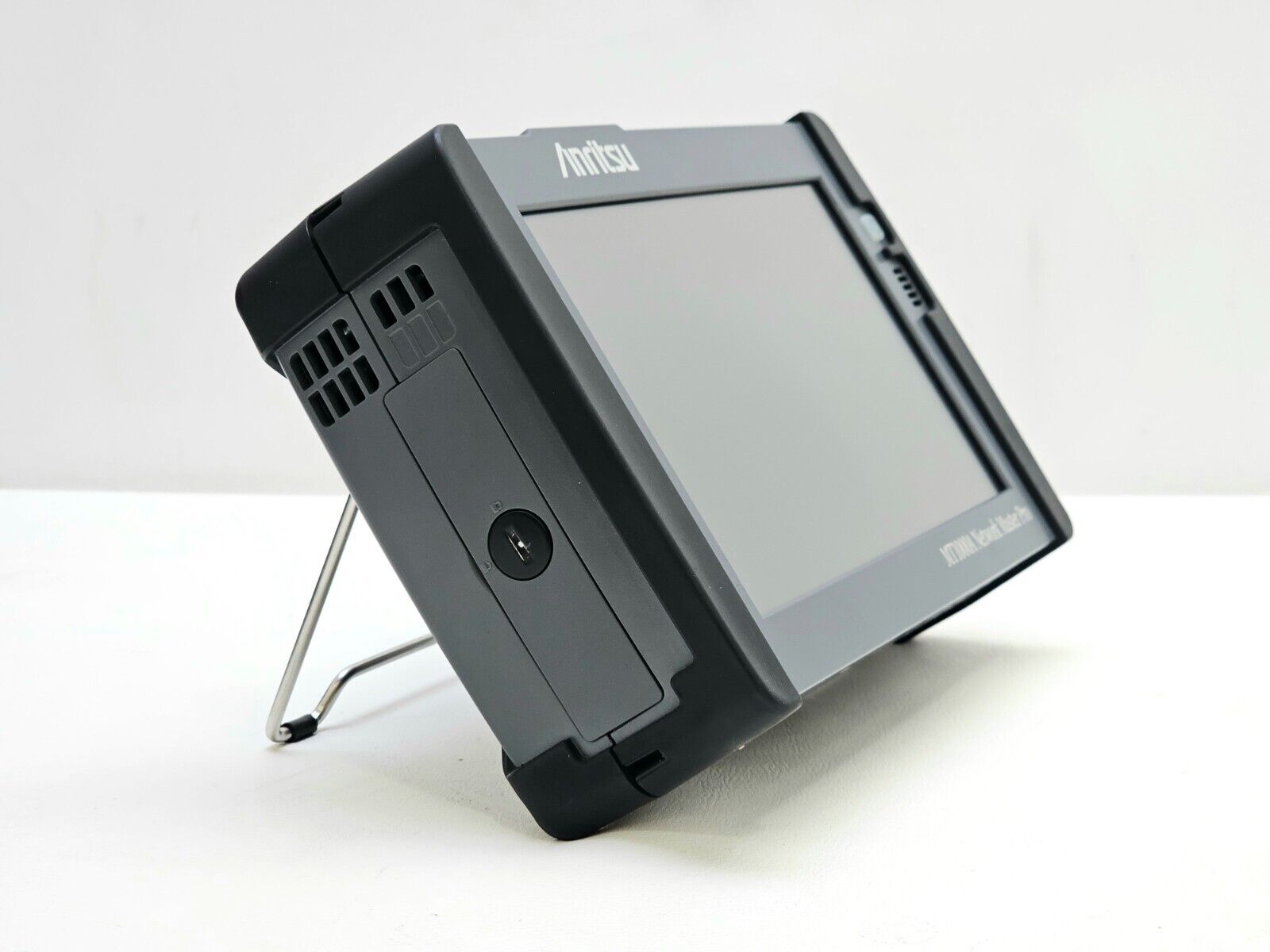

• MT1000A Network Master Pro mainframe

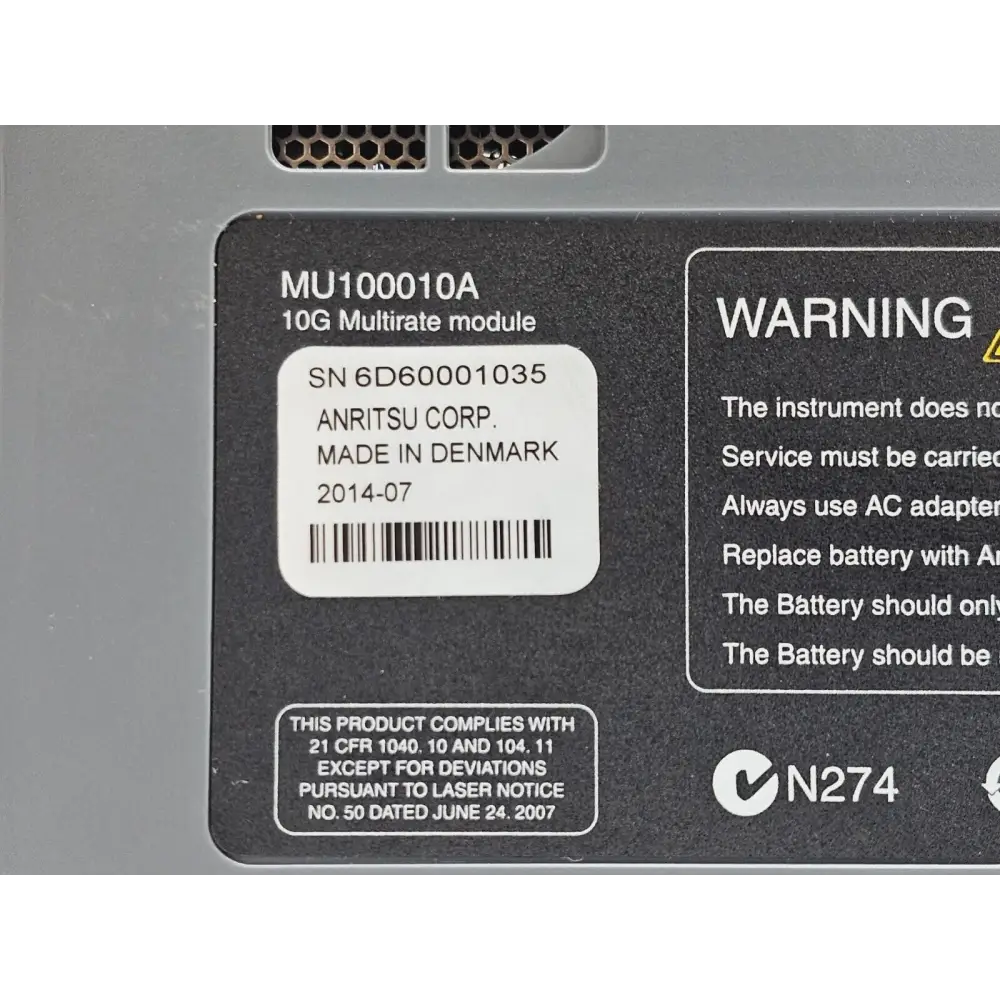

• MU100010A 10G Multirate Module

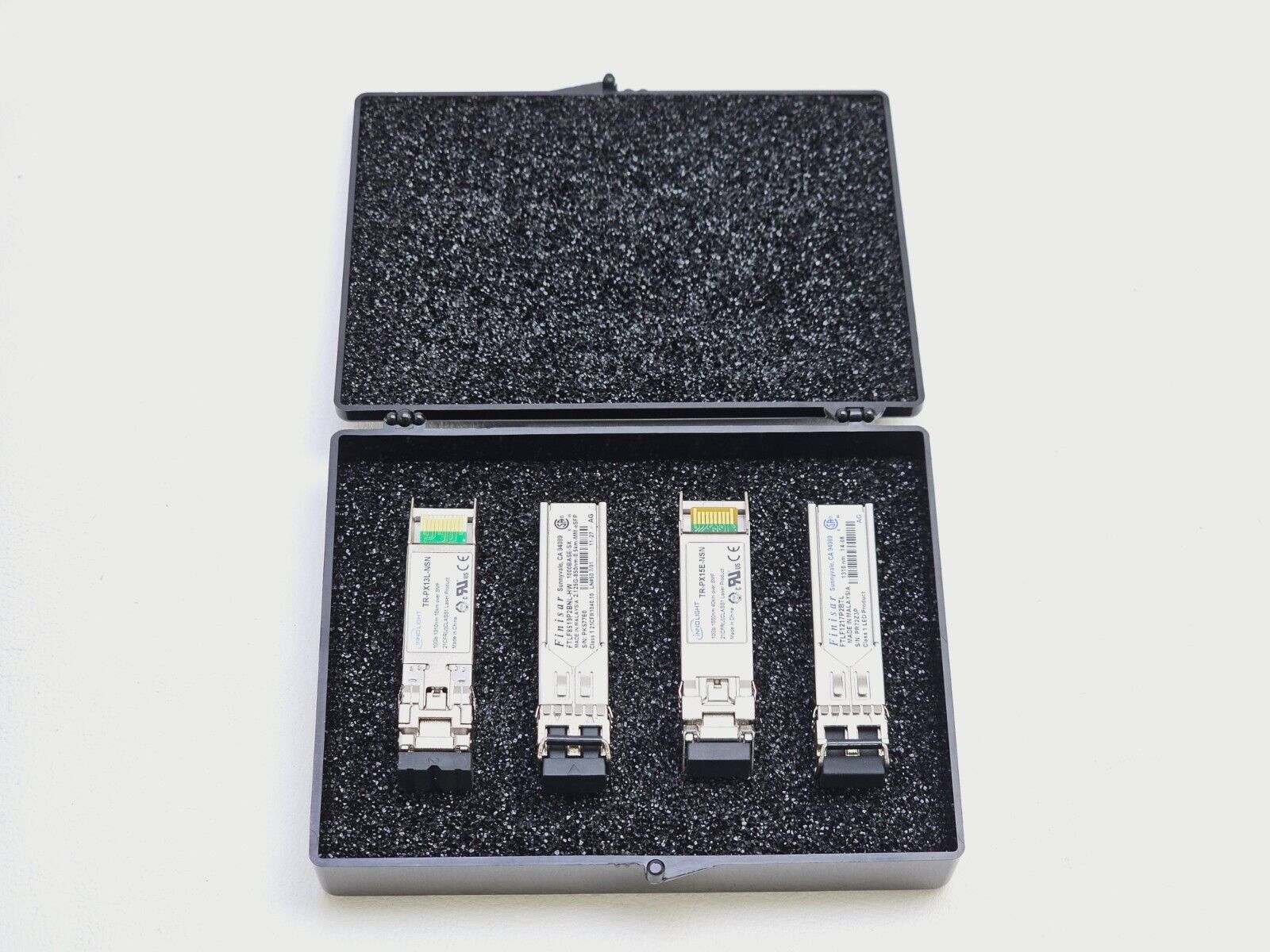

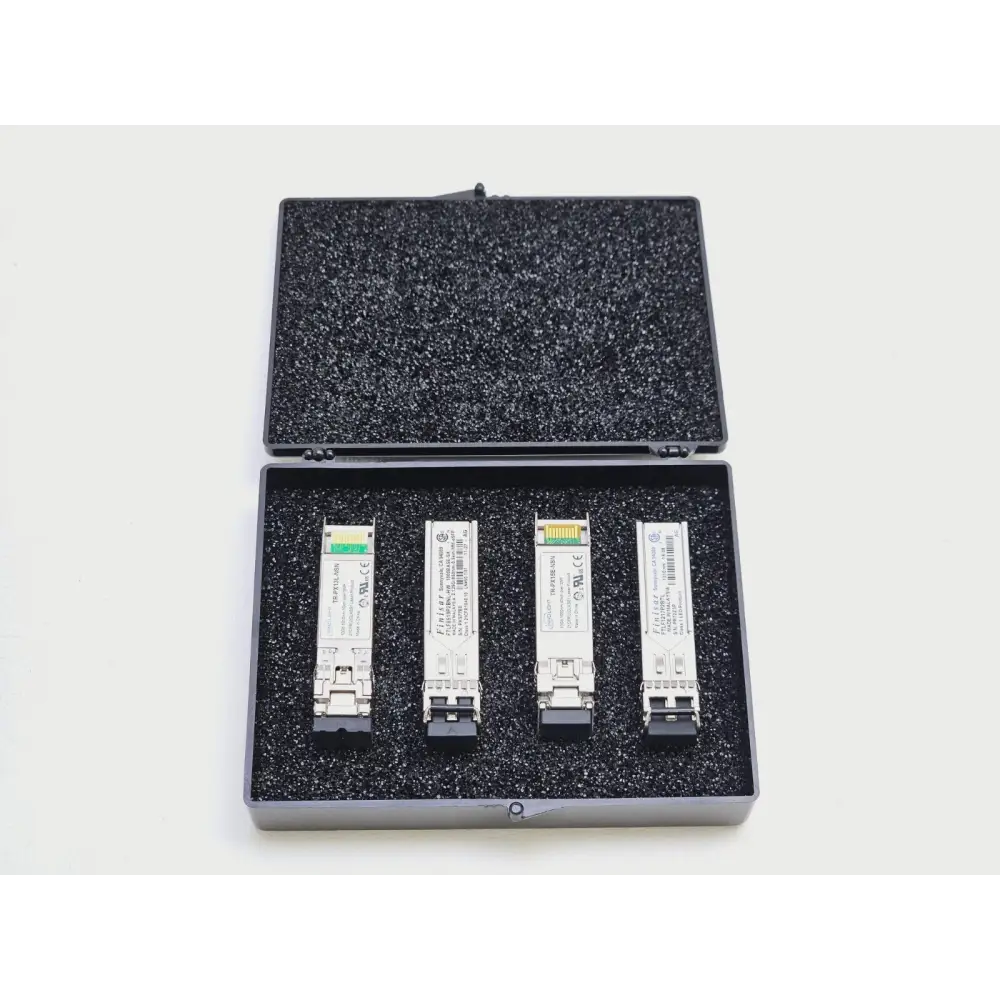

• SFPs with bag
• Carry bag
• Power adapter
• Cables

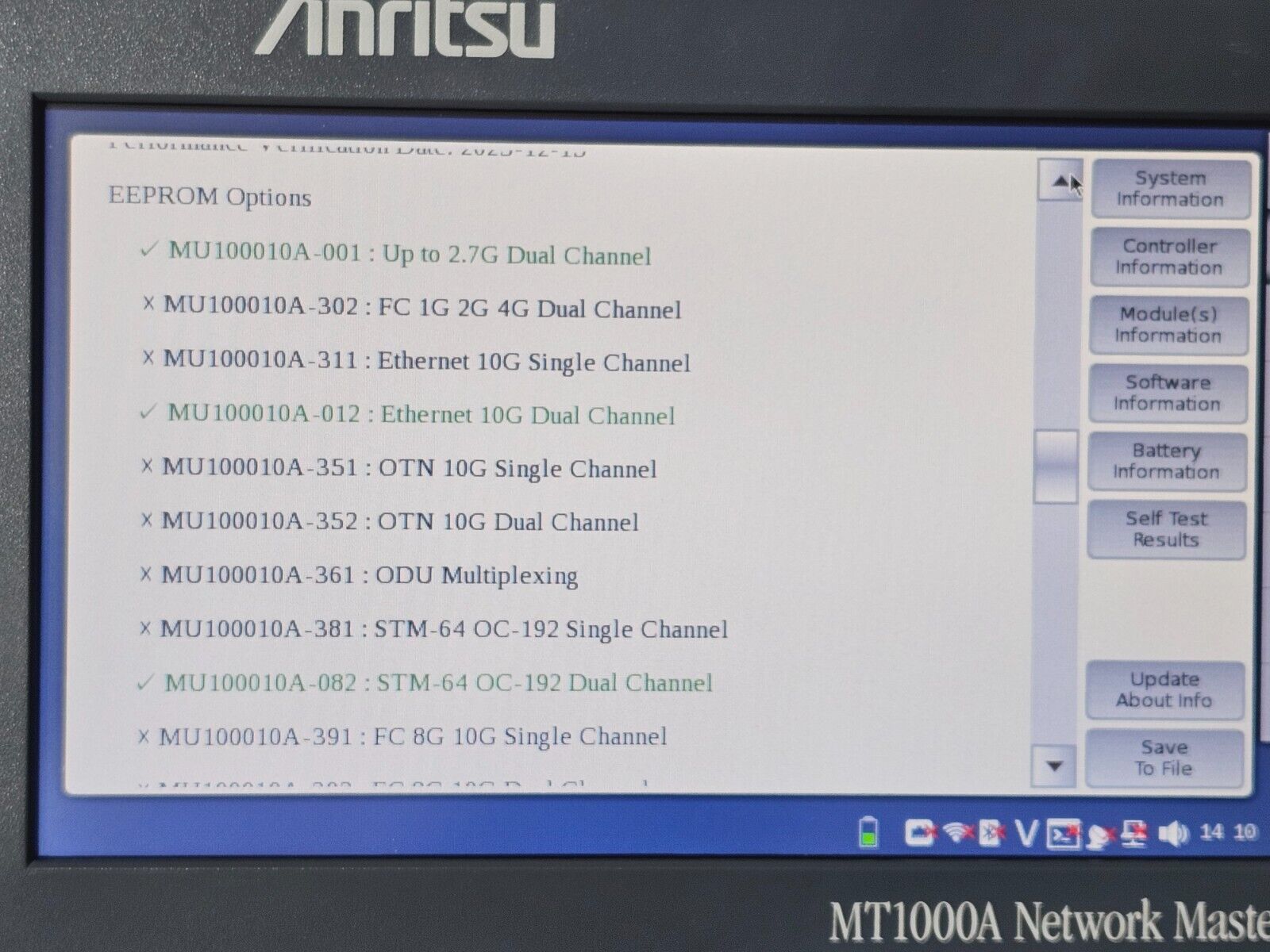

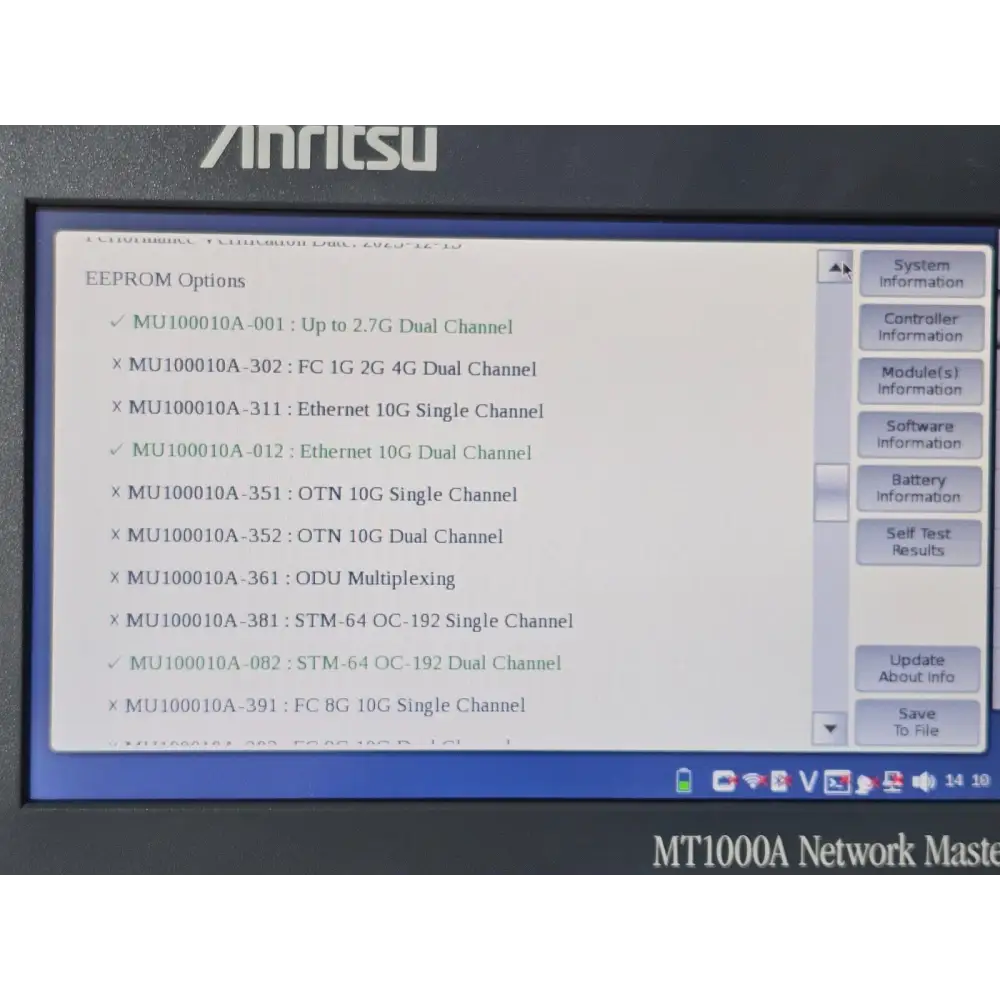

Installed options:
• MU100010A-001 — Up to 2.7G Dual Channel
• MU100010A-012 — 10G Ethernet Dual Channel
• MU100010A-082 — STM-64 OC-192 Dual Channel

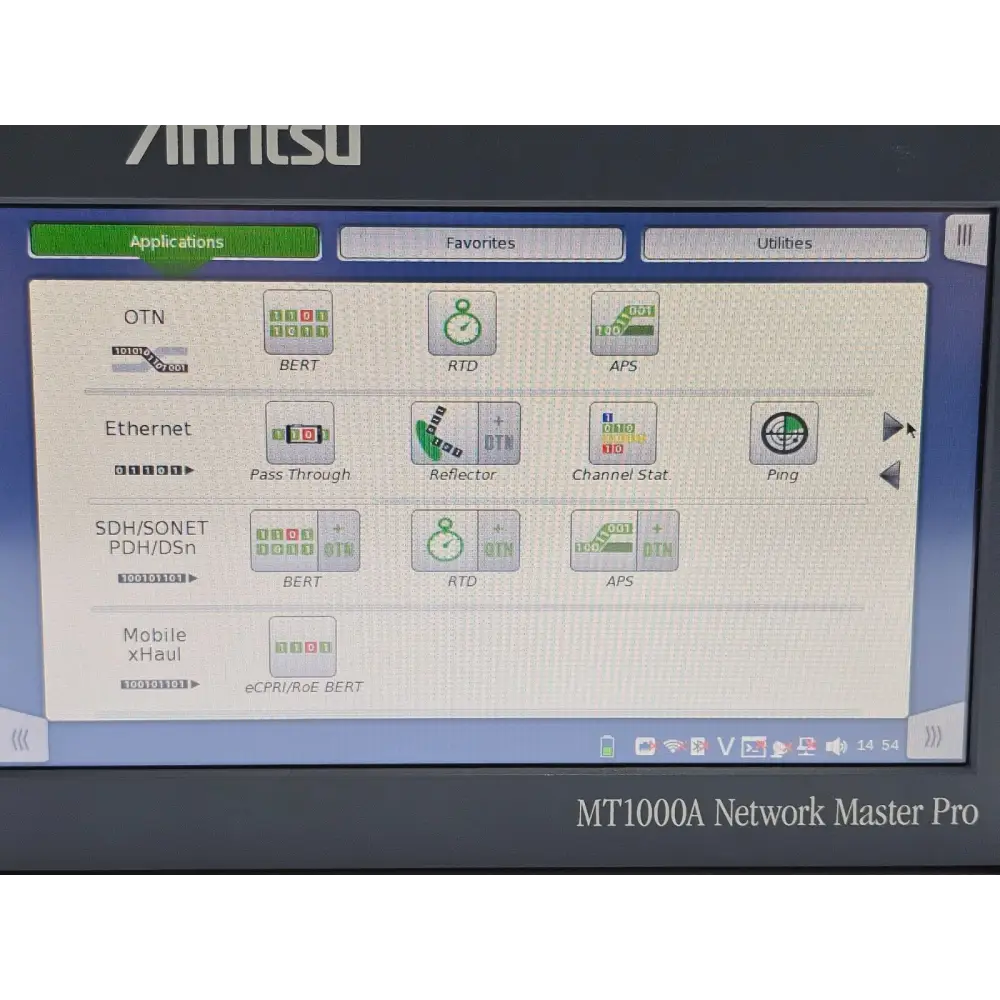

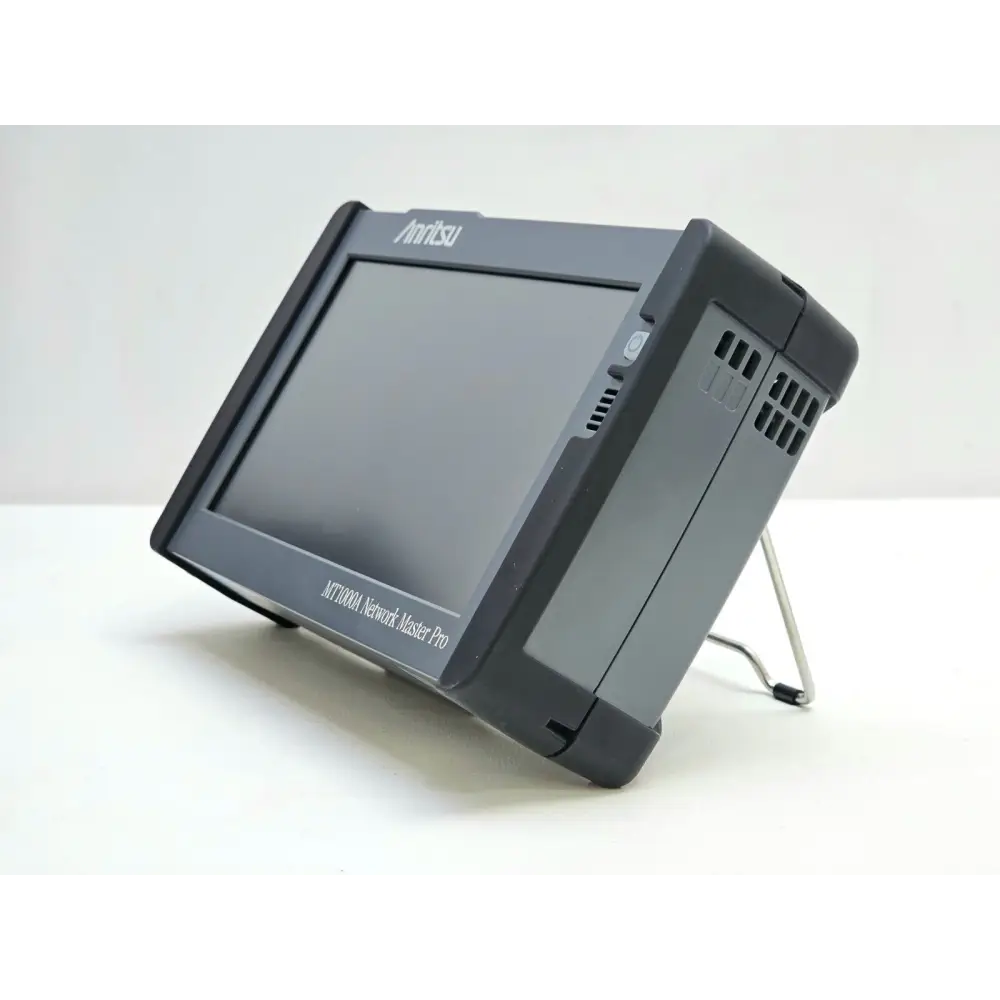

The Anritsu Network Master Pro MT1000A is a compact, battery-powered, field-portable transport tester designed for installation and maintenance (I&M) of communication networks. When fitted with the 10G Multirate Module MU100010A, it supports network technologies with speeds ranging from 1.5 Mbps to 10 Gbps. The instrument features a 9-inch active TFT colour touchscreen (800 x 480 resolution) and an intuitive GUI for fast on-site operation. It can be powered by a replaceable intelligent 10.8 V Li-Ion battery (up to 4 hours operation) or via AC adapter for long-duration testing. Connectivity includes LAN, WLAN (Wi-Fi), Bluetooth and three USB ports.

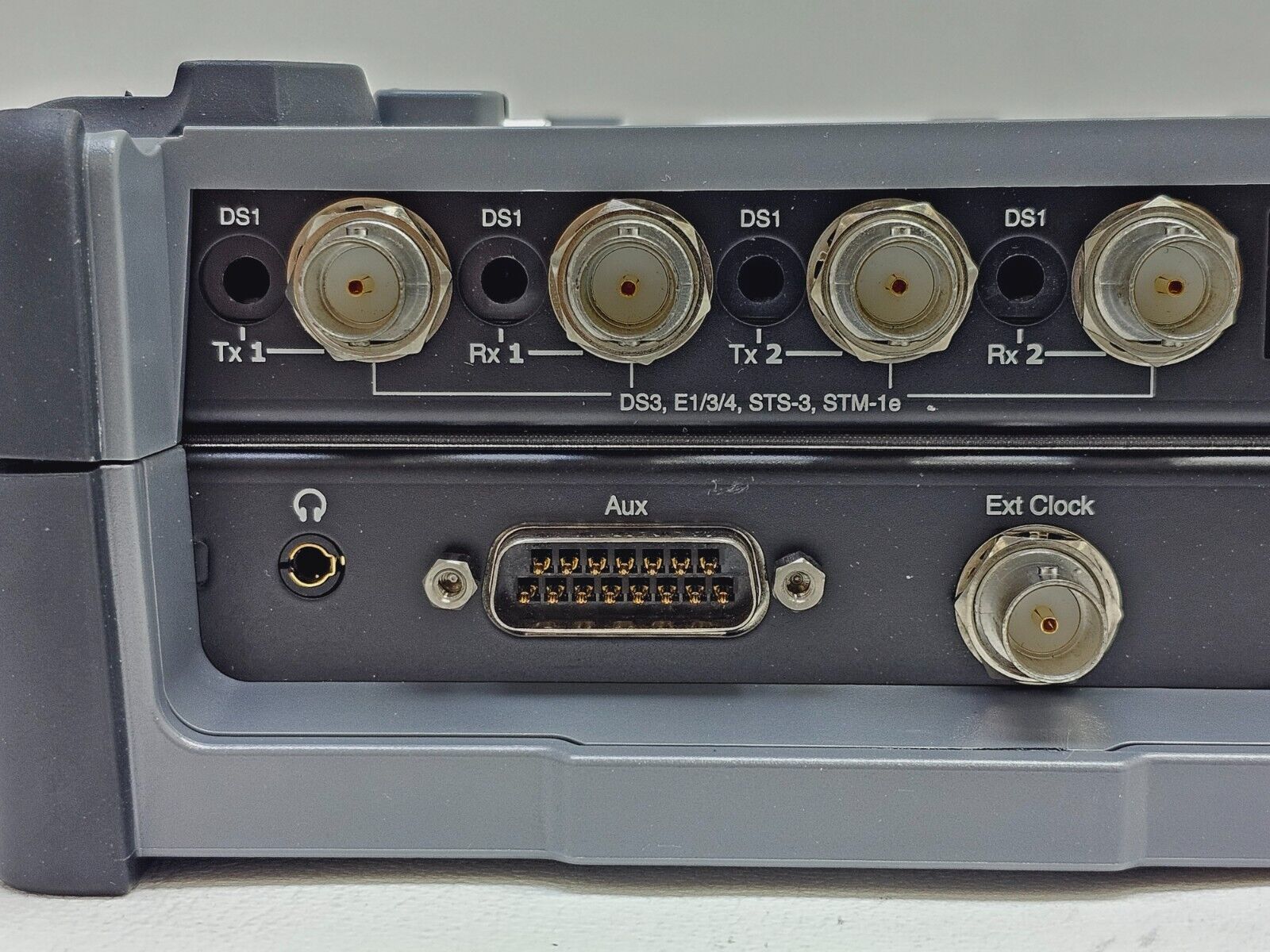

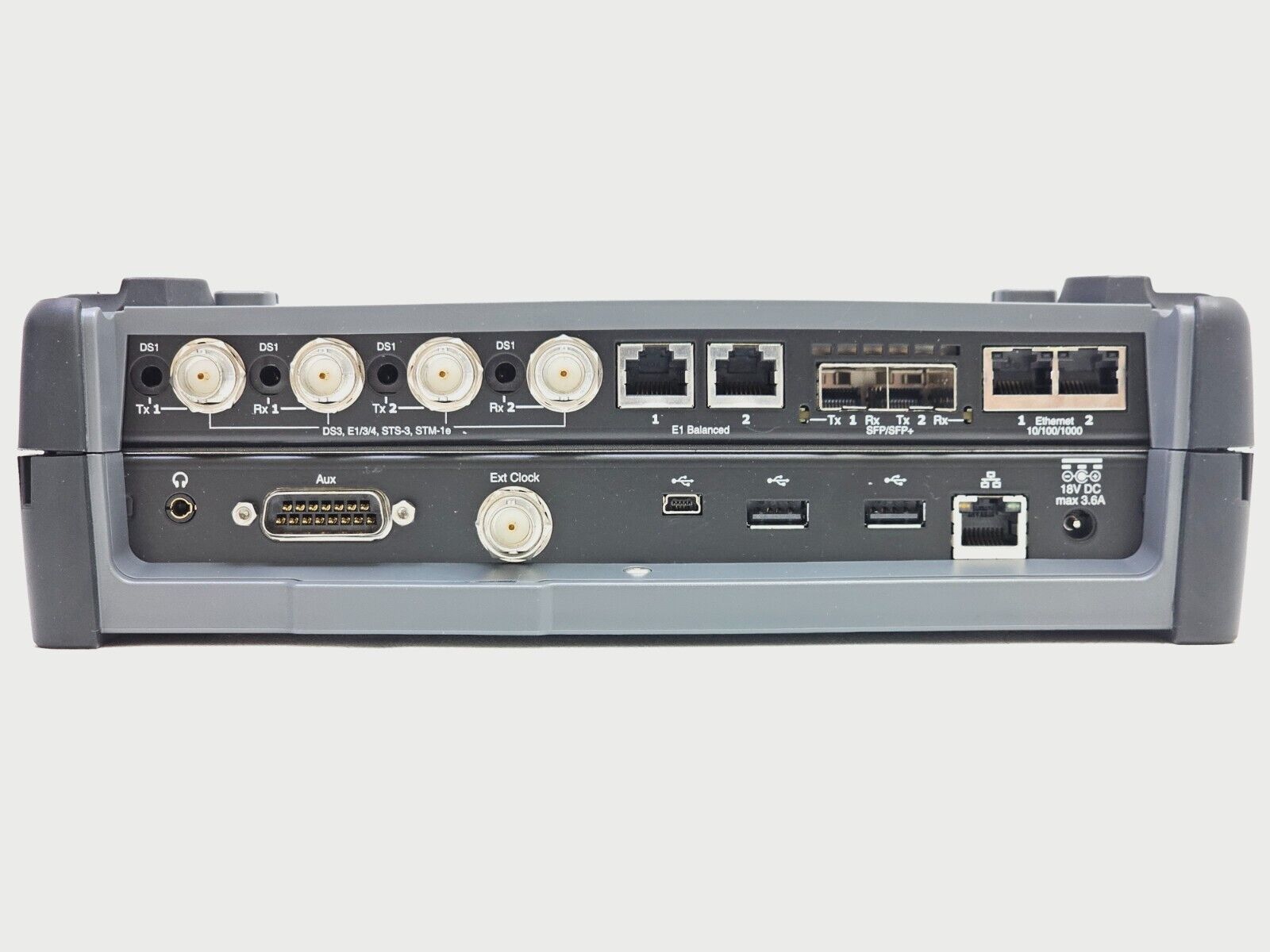

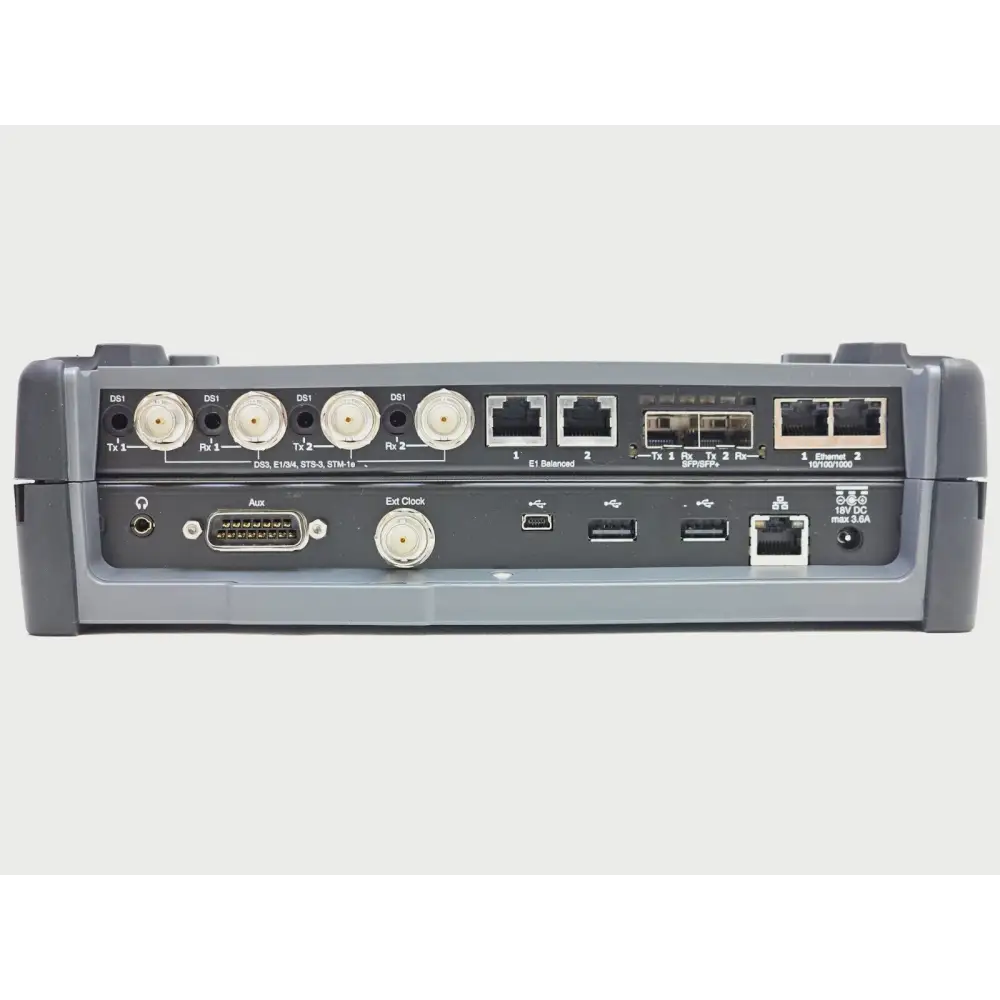

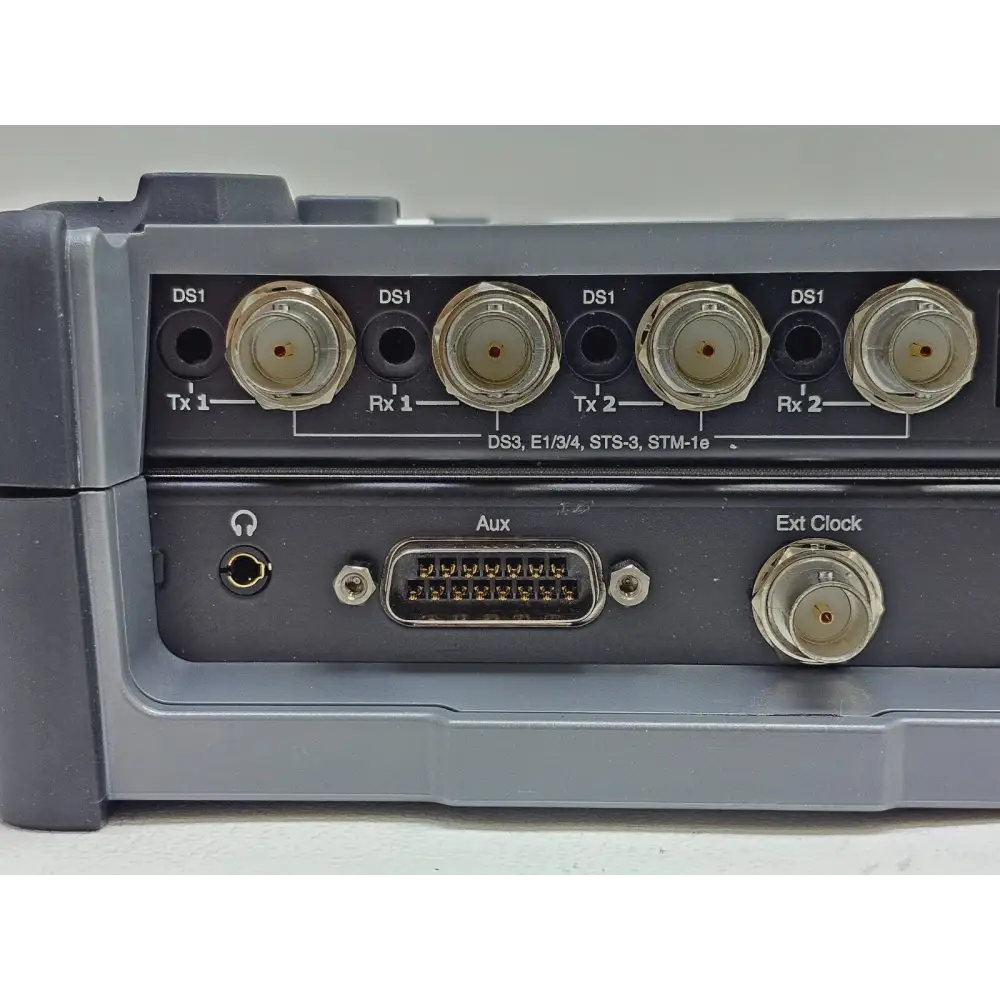

The MU100010A module provides two ports, each with both optical (SFP/SFP+) and electrical interfaces, enabling simultaneous dual-channel or bi-directional measurements at all supported rates and interfaces. Optional software protocols are field-upgradeable, allowing the tester to grow with evolving network requirements.

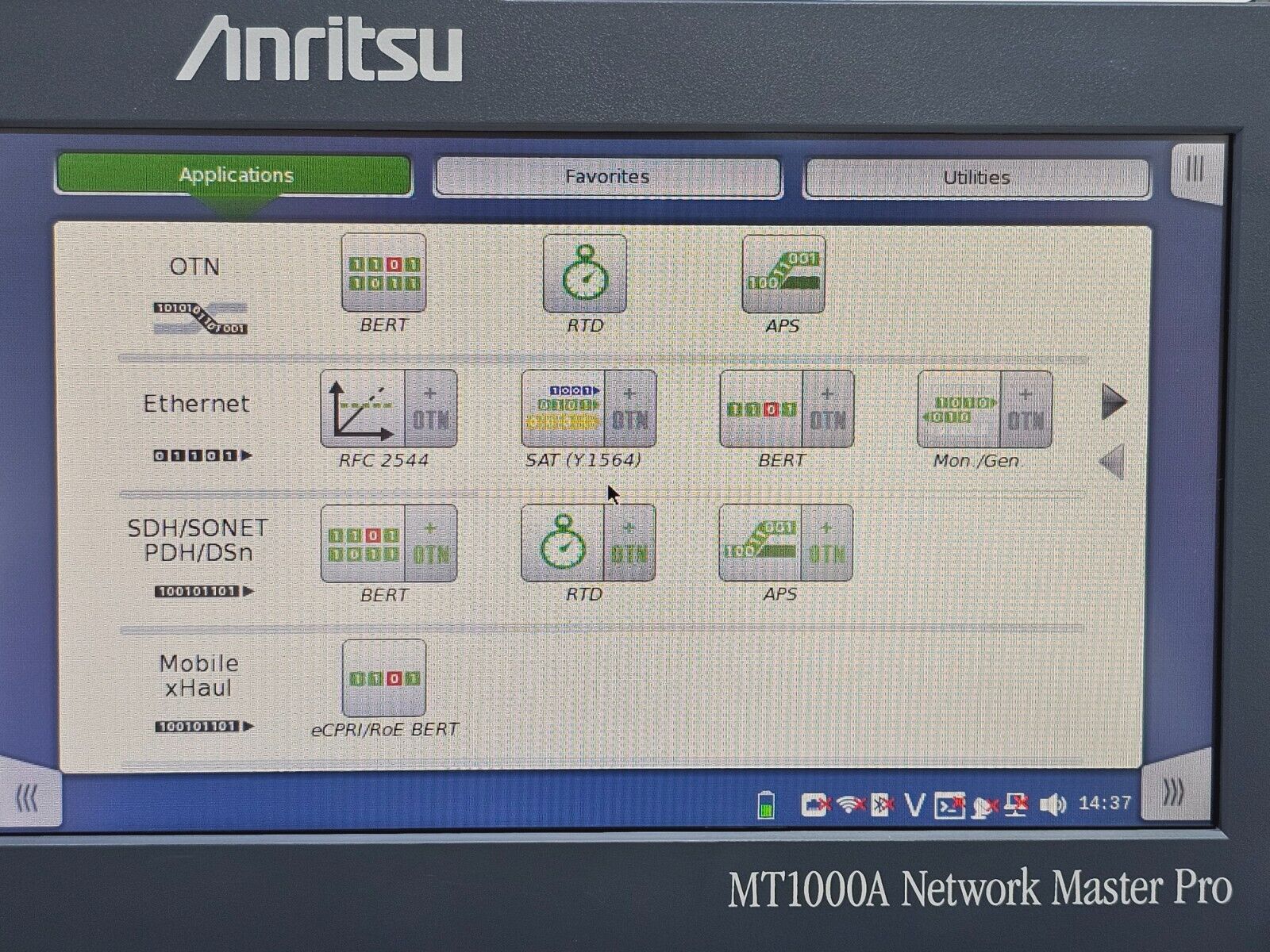

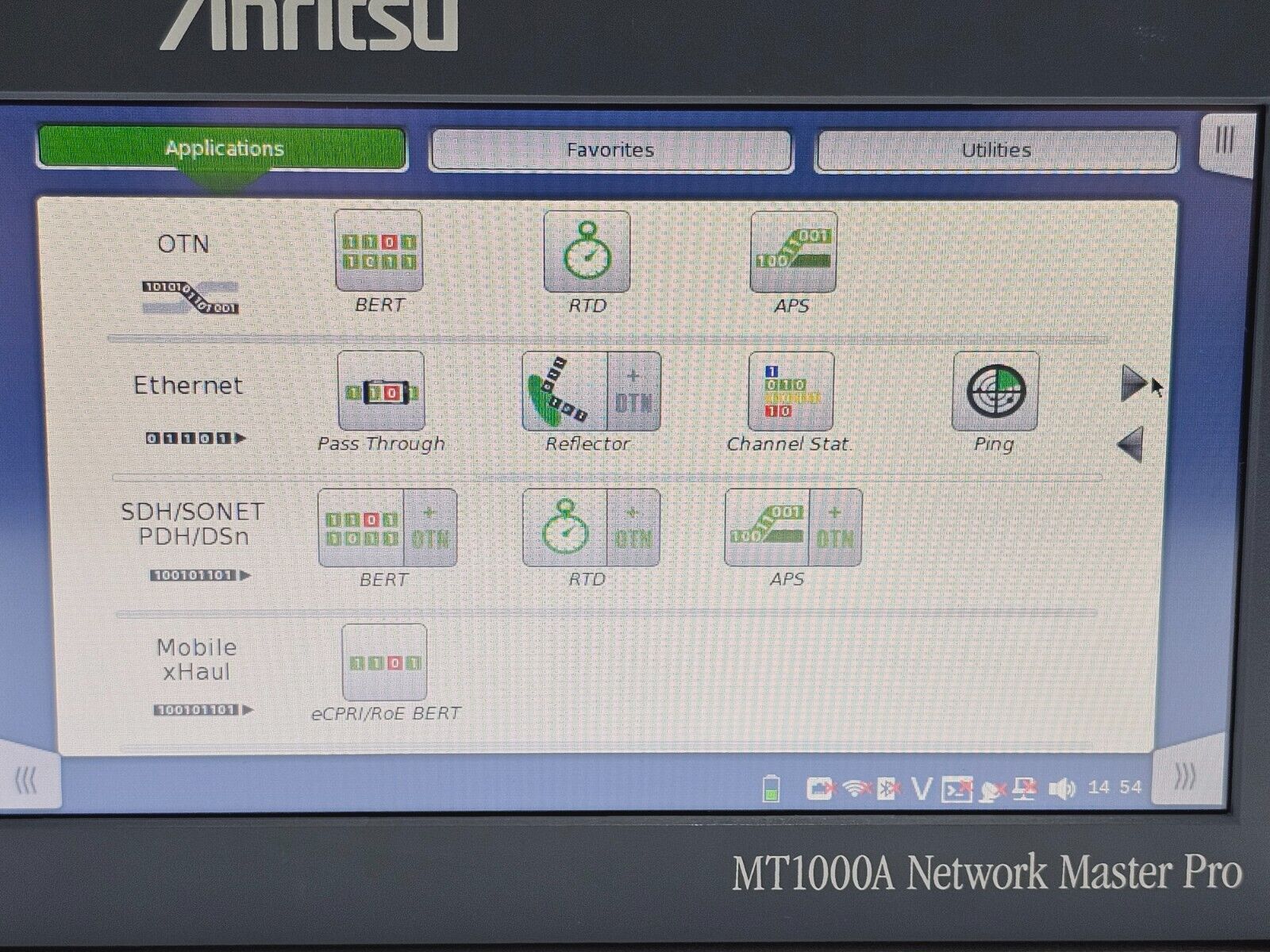

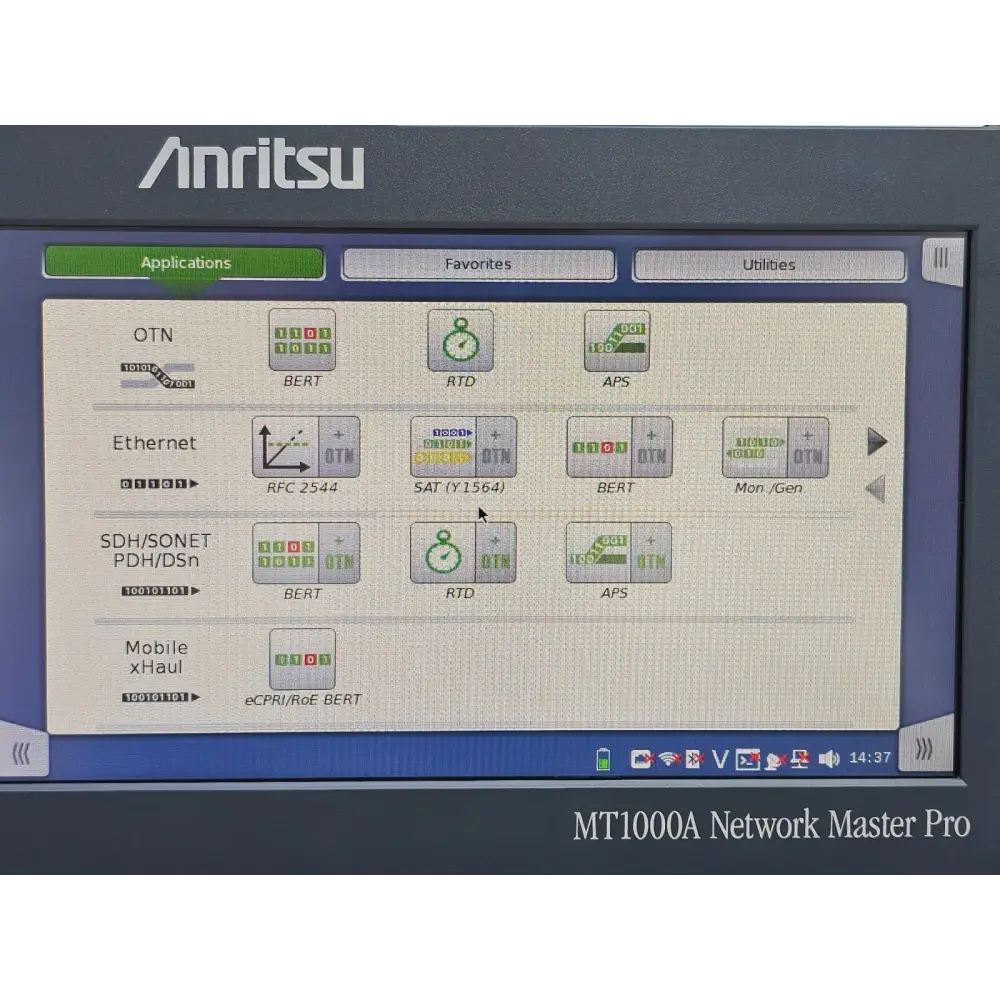

Key application areas:
- Metro and core network OTN installation and maintenance
- Carrier Class Ethernet installation and troubleshooting
- Mobile backhaul and fronthaul installation and verification
- SDH/SONET network testing
- Storage Area Networking (SAN) testing
- Optical connector inspection (IEC 61300-3-35 PASS/FAIL)

Technical Specifications (MT1000A + MU100010A):

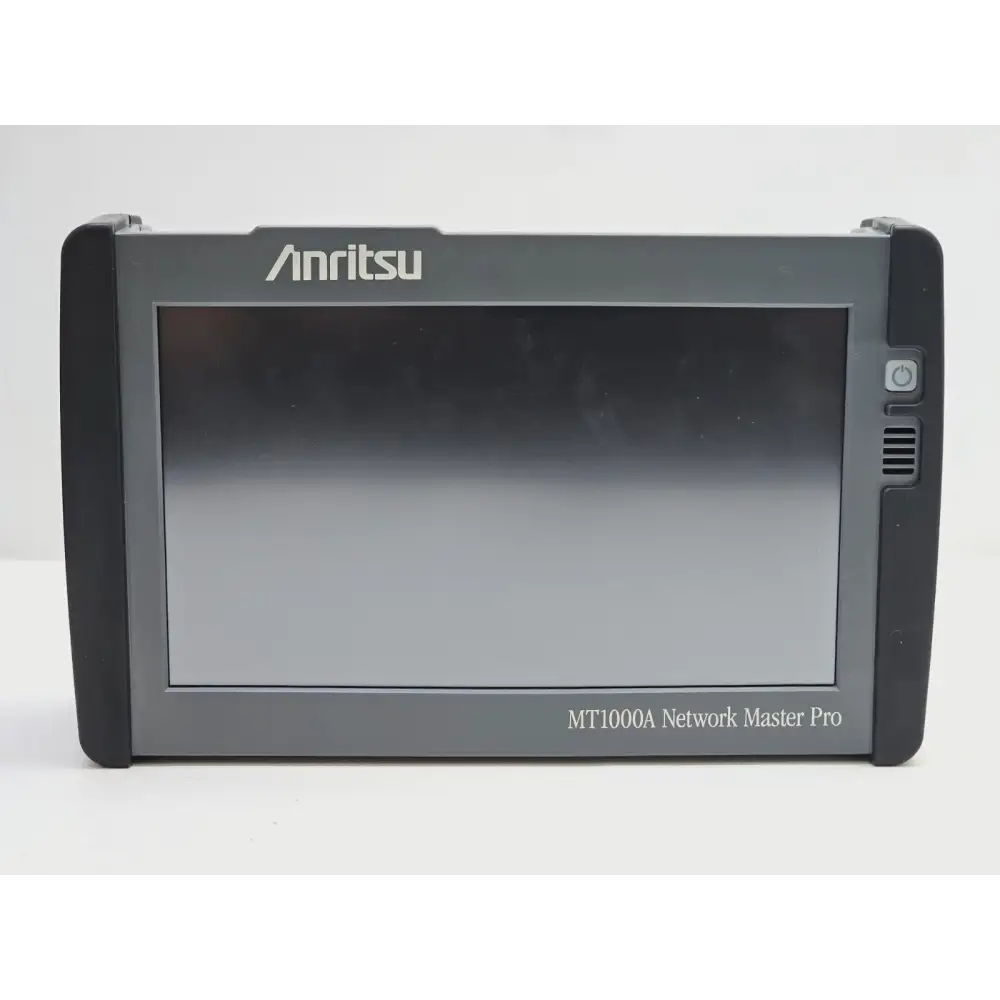

Display: 9-inch active TFT touchscreen, 800 x 480 resolution
Test Speed Range: 1.5 Mbps to 10 Gbps (MU100010A)

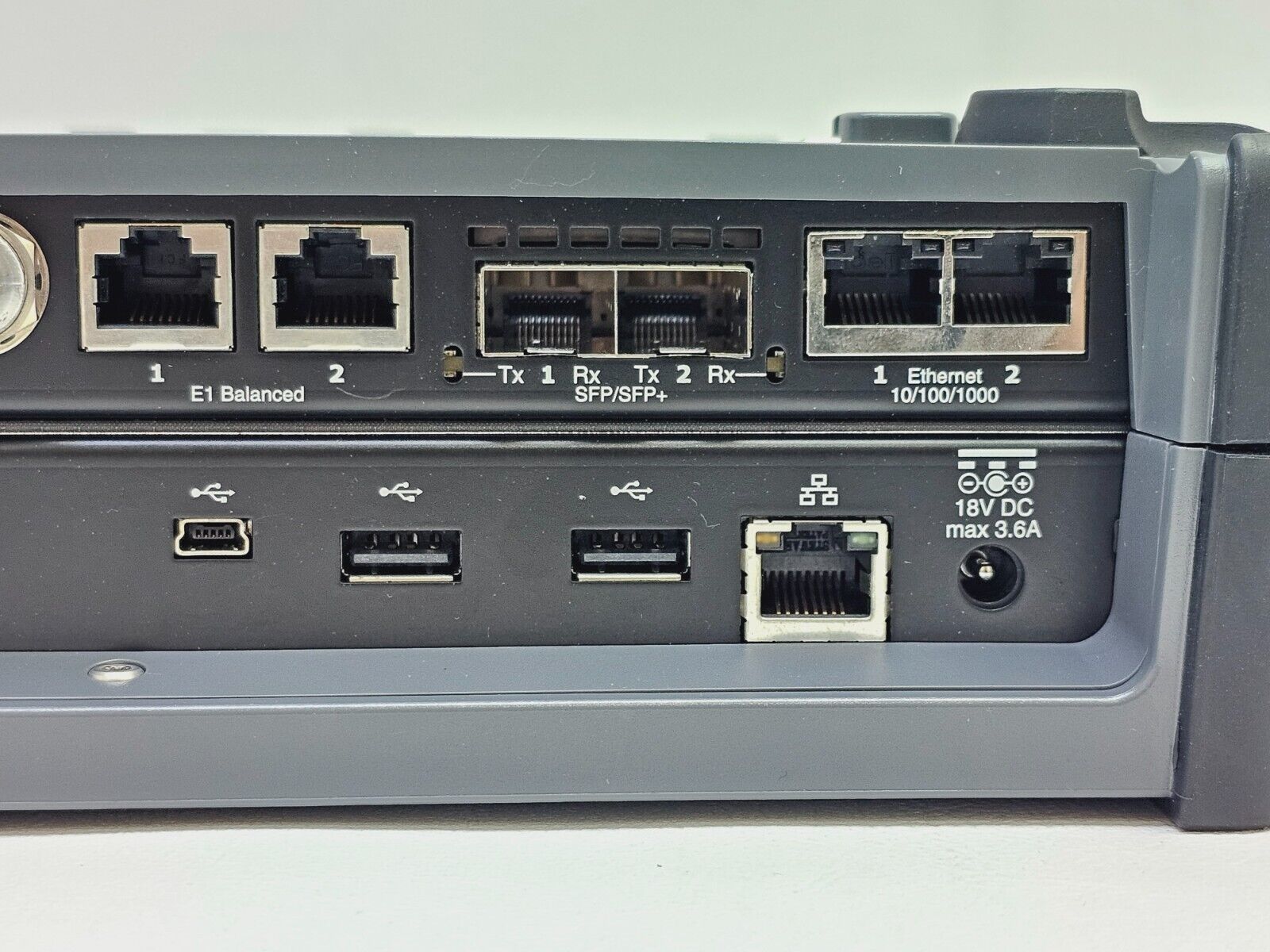

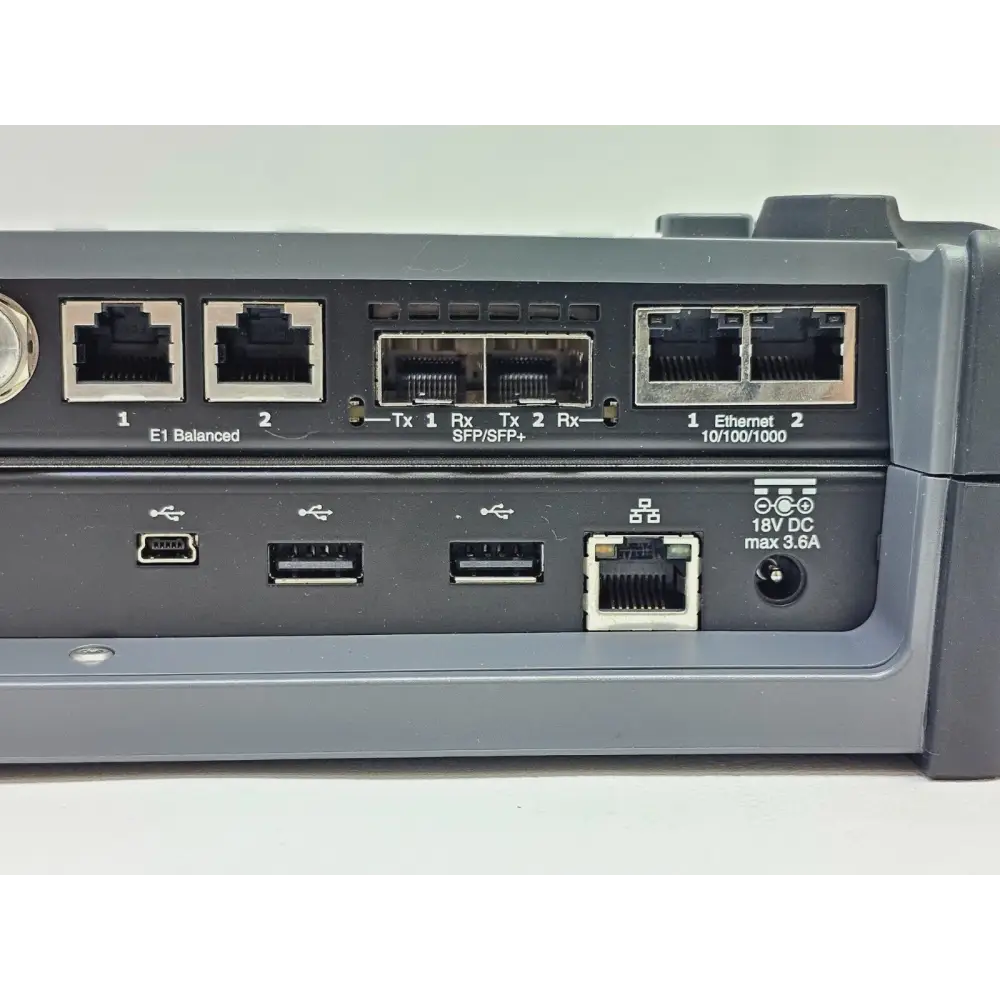

Ports: 2 x dual electrical/optical (SFP/SFP+) ports
OTN Standards: OTU2f (11.318 Gbps), OTU2e, OTU2, OTU1f, OTU1e, OTU1 (2.666 Gbps); ODU0, ODUflex, ODU1, ODU2 including multistage mapping
Ethernet: 10 Mbps to 10 GbE; RFC 2544, Y.1564 (SAT), RFC 6349; Ethernet OAM; SyncE; IEEE 1588v2 PTP; MPLS-TP; PBB; Multistream; Q-in-Q
SDH/SONET: STM-64/OC-192, STM-16/OC-48, STM-4/OC-12, STM-1/OC-3
PDH/DSn: E1, E3, E4, DS1, DS3
Fibre Channel: 1GFC, 2GFC, 4GFC, 8GFC, 10GFC with OTN embedding
Clock Accuracy: STRATUM 3 compliant

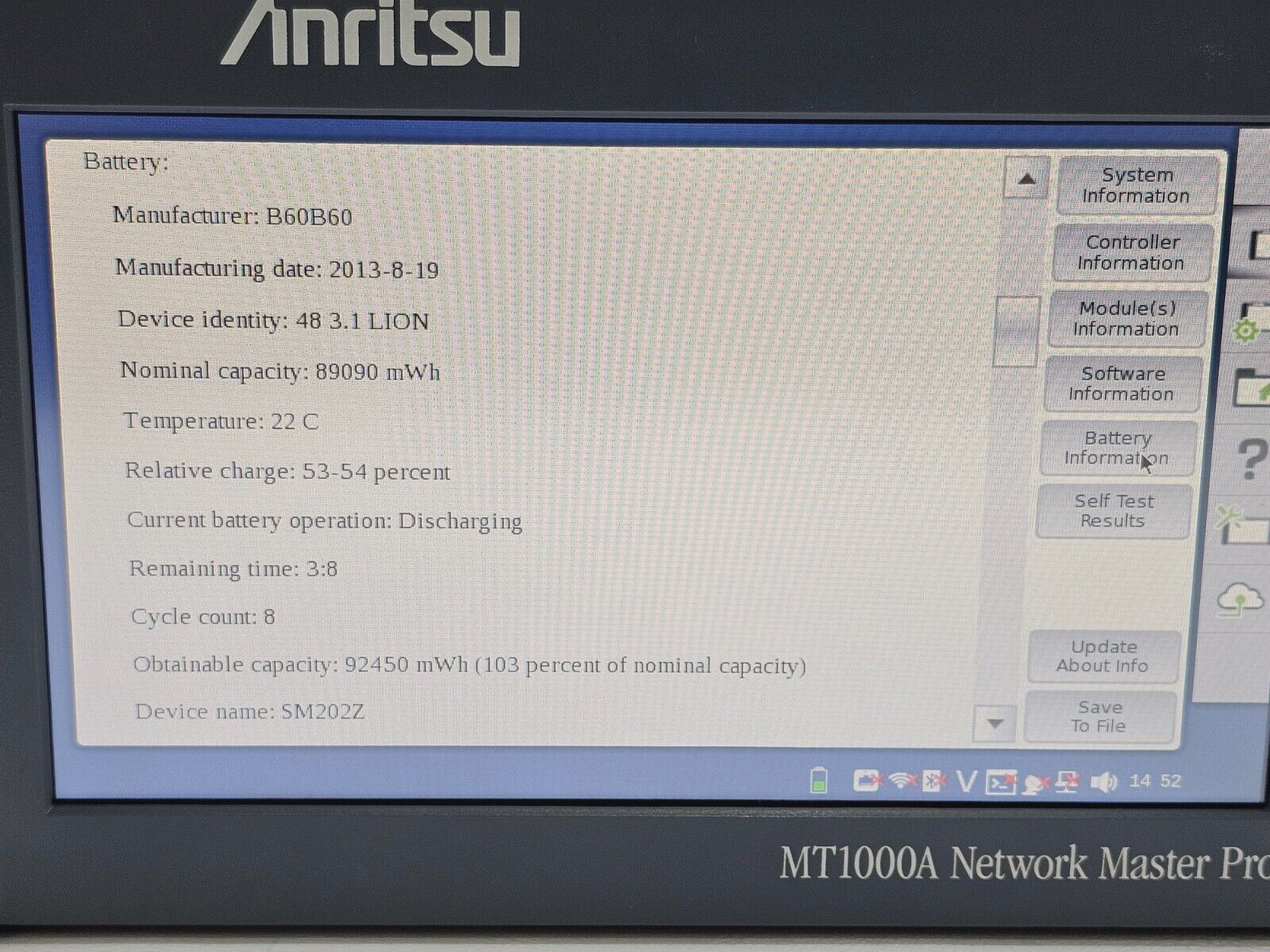

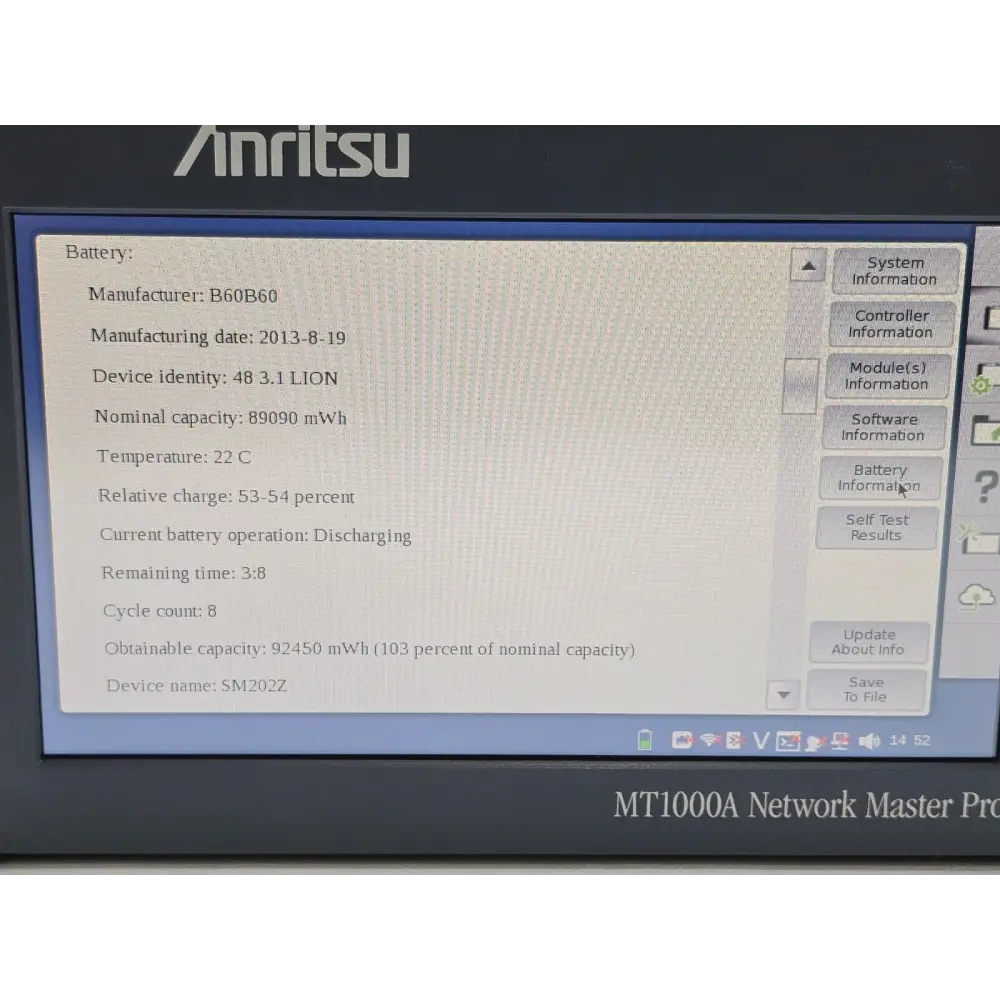

Battery: 10.8 V Intelligent Li-Ion, up to 4 hours operation
Weight: 2.7 kg
Dimensions: 257 x 164 x 77 mm
Operating Temperature: 0°C to +50°C
Connectivity: LAN, WLAN (Wi-Fi), Bluetooth, 3 x USB
Power Input: 18 V DC via AC mains adapter

Anritsu MT1000A & MU100010A/MU100011A Network Master Pro — Official Product Brochure (PDF): Download PDF

Anritsu MT1000A Network Master Pro — Datasheet (PDF): Download PDF

Anritsu MT1000A MU100010A Network Master Pro — Operation Manual (PDF, Talley): Download PDF
