Condition: Used

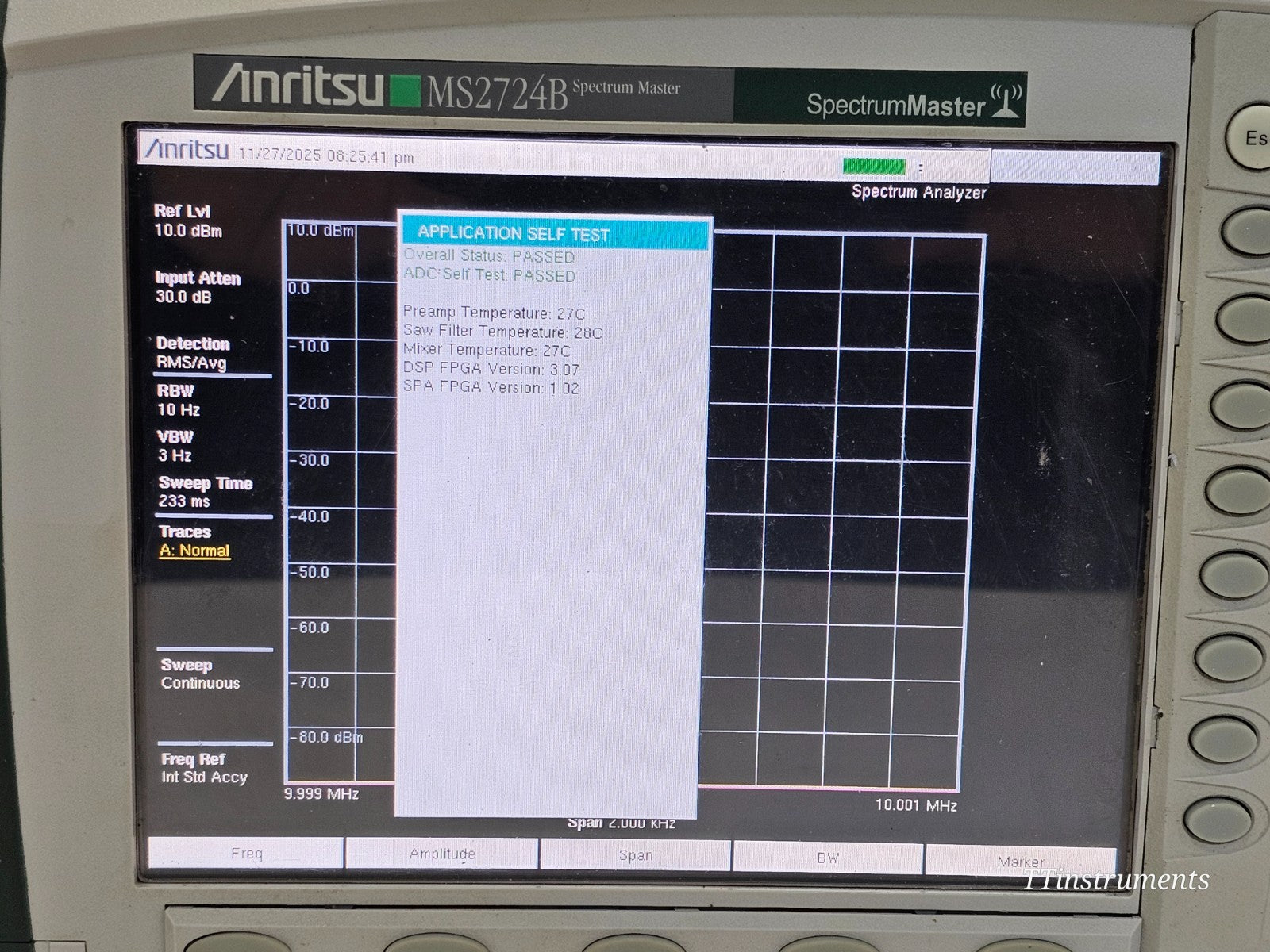

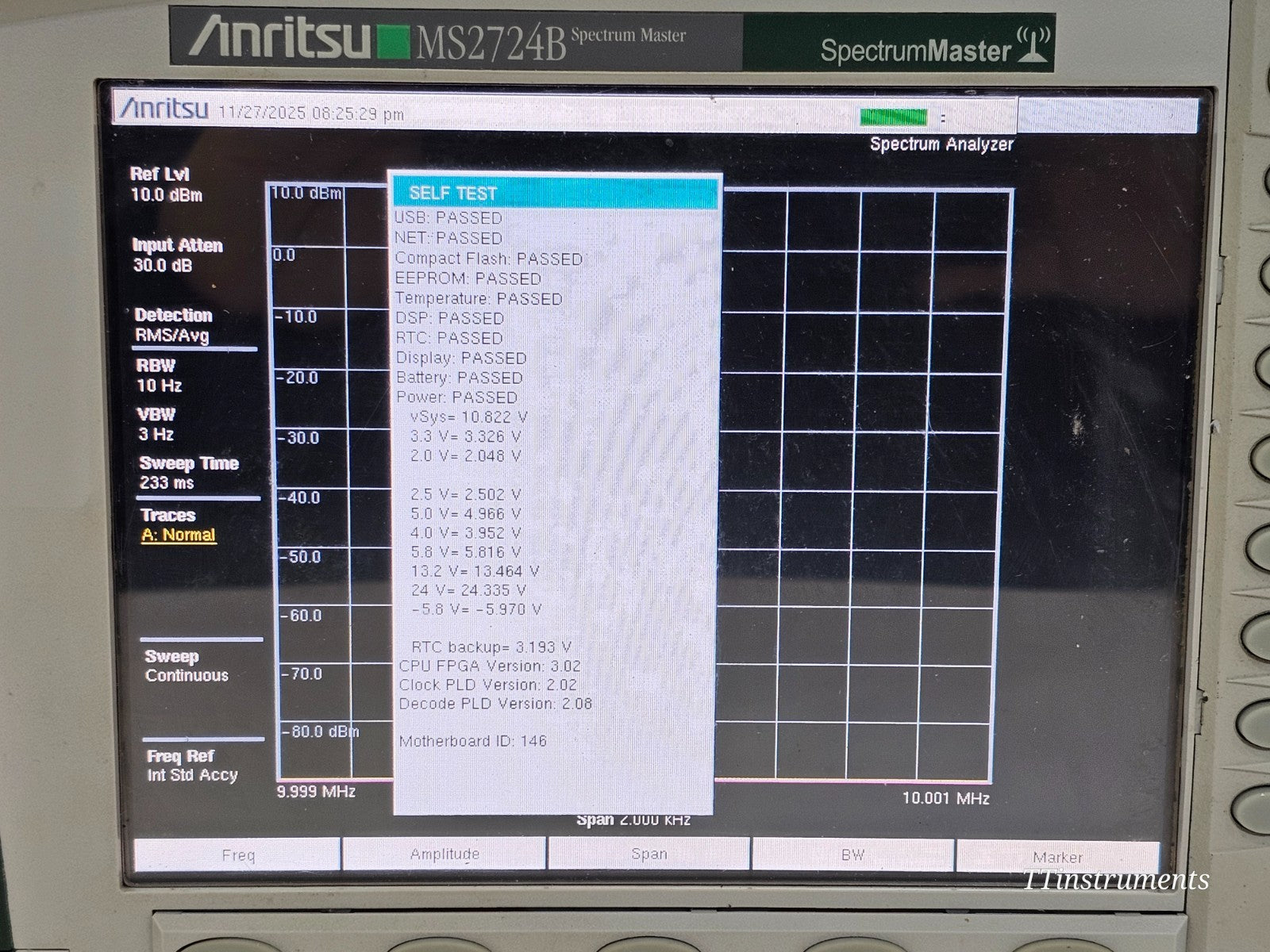

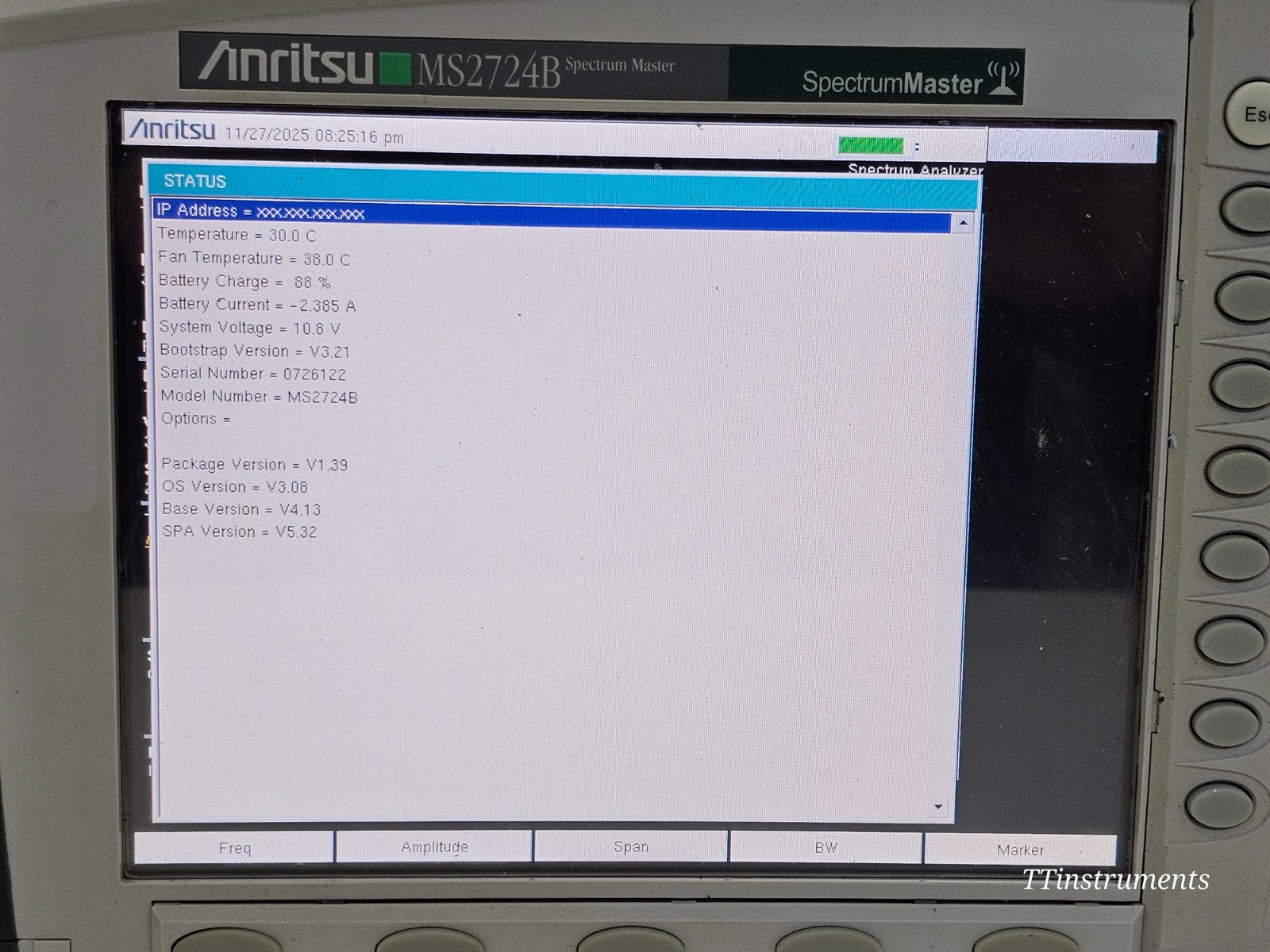

This Anritsu MS2724B Spectrum Master is offered in used condition. Cosmetic condition is noted as not very good. All internal self-tests pass. No further functional tests have been conducted beyond self-test, and the reduced price reflects this. Sold as seen with no returns accepted.

What is typically included (as described):
• Anritsu MS2724B Spectrum Master unit

The Anritsu MS2724B Spectrum Master is a high-performance, ultra-portable handheld spectrum analyzer providing continuous frequency coverage from 9 kHz to 20 GHz. Designed for wireless professionals, it delivers the performance required for the most demanding measurements in harsh RF and physical environments. Applications include spectrum monitoring, broadcast proofing, interference analysis, RF and microwave measurements, regulatory compliance, Wi-Fi and wireless network testing, and cellular base station analysis including 3G, GSM/GPRS/EDGE, W-CDMA/HSDPA, CDMA, EV-DO, TD-SCDMA, WiMAX, and 802.11a.

The MS2724B is equally suited to field use and bench work, weighing approximately 3.4 kg (7.5 lb) and offering over 2 hours of battery life from its rechargeable Li-Ion battery.

Key Specifications:
Frequency Range: 9 kHz to 20 GHz
Resolution Bandwidth (RBW): 1 Hz to 3 MHz
Video Bandwidth (VBW): 1 Hz to 3 MHz
Displayed Average Noise Level (DANL): –159 dBm in 1 Hz RBW at 1 GHz
Phase Noise: –104 dBc/Hz typical at 10 kHz offset at 2 GHz
Dynamic Range: >101 dB in 1 Hz RBW
Amplitude Range: DANL to +30 dBm
Amplitude Error: ±0.5 dB typical
Input Attenuator: 0 to 65 dB (automatic or manual)
Built-in Preamplifier: Yes (up to 4 GHz)
Detection: True RMS, quasi-peak, CISPR bandwidths
Demodulation: AM, FM, SSB (built-in)
Frequency Accuracy (with GPS): <±25 ppb

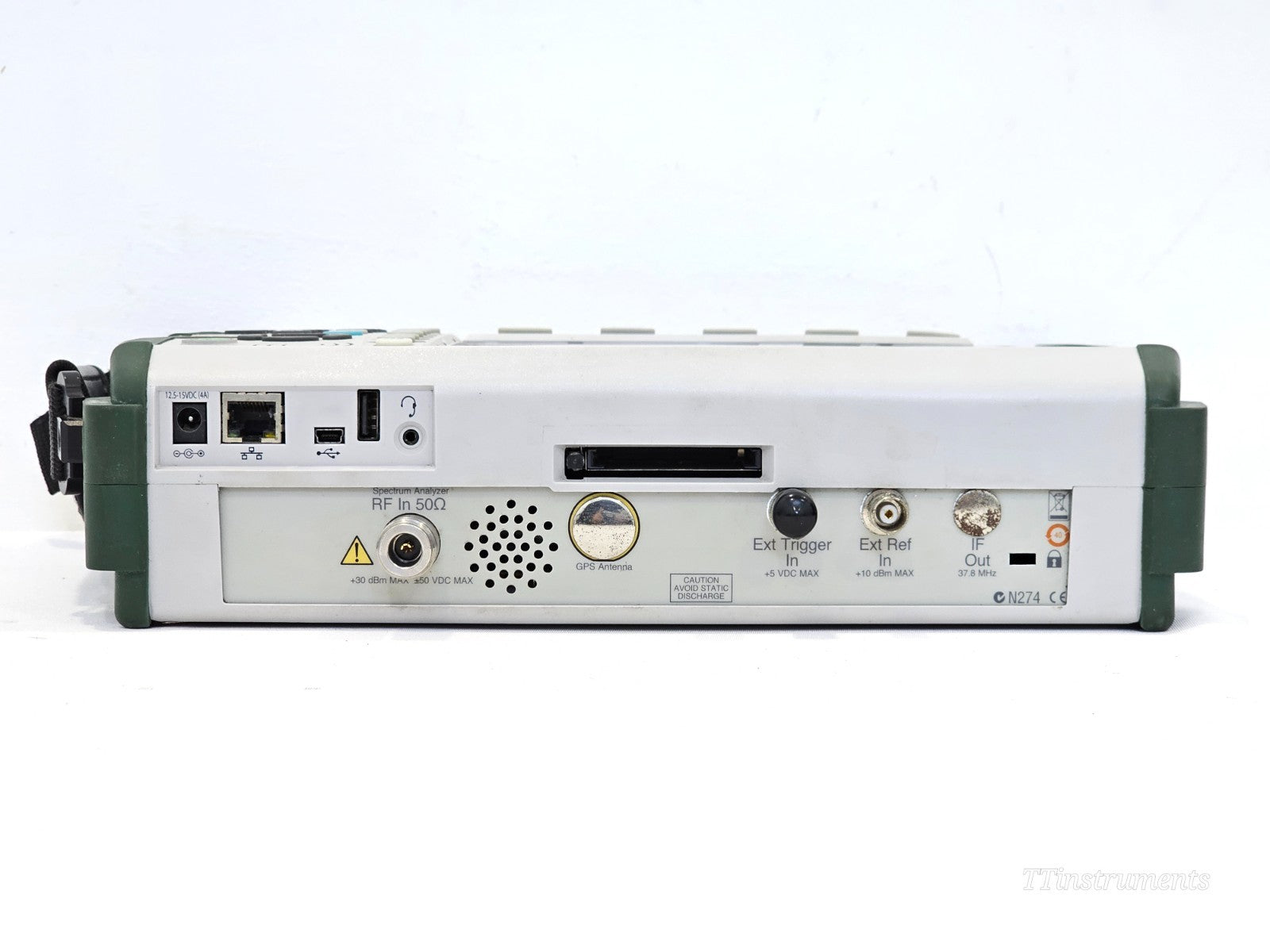

Connectivity: Ethernet 10/100 Base-T, USB, Compact Flash
Dimensions: 313 x 211 x 77 mm
Weight: 3.4 kg (7.5 lb)
Operating Temperature: –10 °C to +55 °C
Battery Life: 2+ hours
Display: Sunlight-readable colour LCD
Languages: English, Chinese, French, German, Japanese, Spanish, Korean, Italian

Smart measurements built in include channel power, adjacent channel power ratio (ACPR), occupied bandwidth, carrier-to-interference ratio (C/I), and field strength. Up to six markers (with delta markers) can be displayed simultaneously. Remote programming is supported via SCPI over Ethernet. Compact Flash or USB Flash drives allow storage of an unlimited number of traces and setups.

Available options include interference analyzer with spectrogram and RSSI (Option 25), GPS receiver (Option 31), channel scanner, IQ demodulation hardware, high-accuracy power meter, and various cellular/WiMAX signal analyser options.

Anritsu MS2724B Spectrum Master Technical Data Sheet (PDF): Download PDF

Anritsu MS2724B Spectrum Master Datasheet — TestEquipmentHQ (PDF): Download PDF

Anritsu Spectrum Master MS2721B/MS2723B/MS2724B User Guide (PDF): Download PDF

Anritsu Spectrum Master MS2723B/MS2724B Maintenance Manual (PDF): Download PDF

Anritsu Spectrum Analyzer Measurement Guide — Interference Analyzer, Channel Scanner, IF Output (PDF): Download PDF

Anritsu MS2724B Specifications Sheet — AAATesters (PDF): Download PDF

Anritsu MS2724B Spectrum Master Datasheet — NSCA Technologies (PDF): Download PDF
