Condition: Used

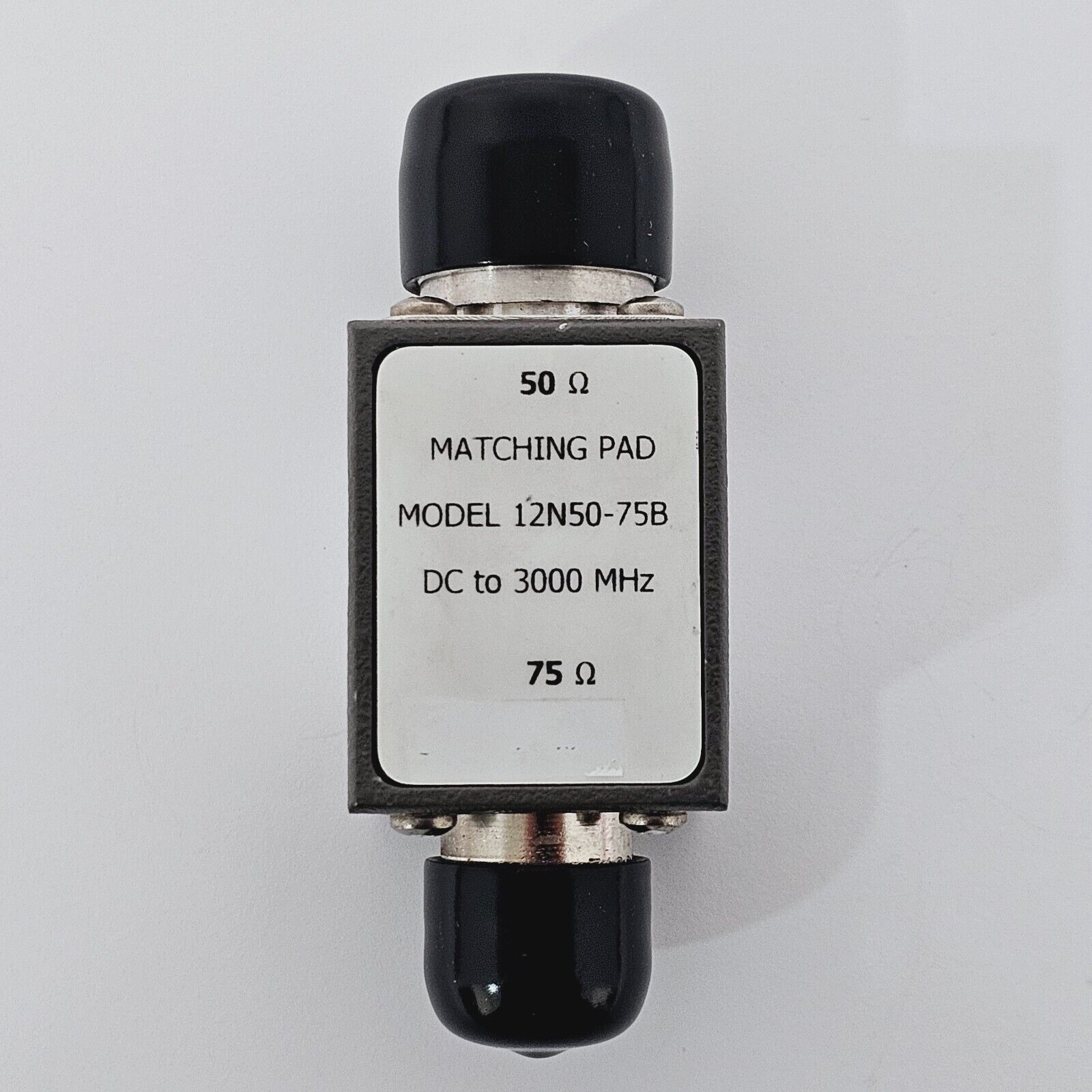

The Anritsu 12N50-75B is a used 50 ohm matching pad designed to interface 50 ohm test equipment with 75 ohm cable television and broadcast RF systems. Operating from DC to 3000 MHz, it uses a two-resistor network for reliable bidirectional impedance conversion.

What is typically included:

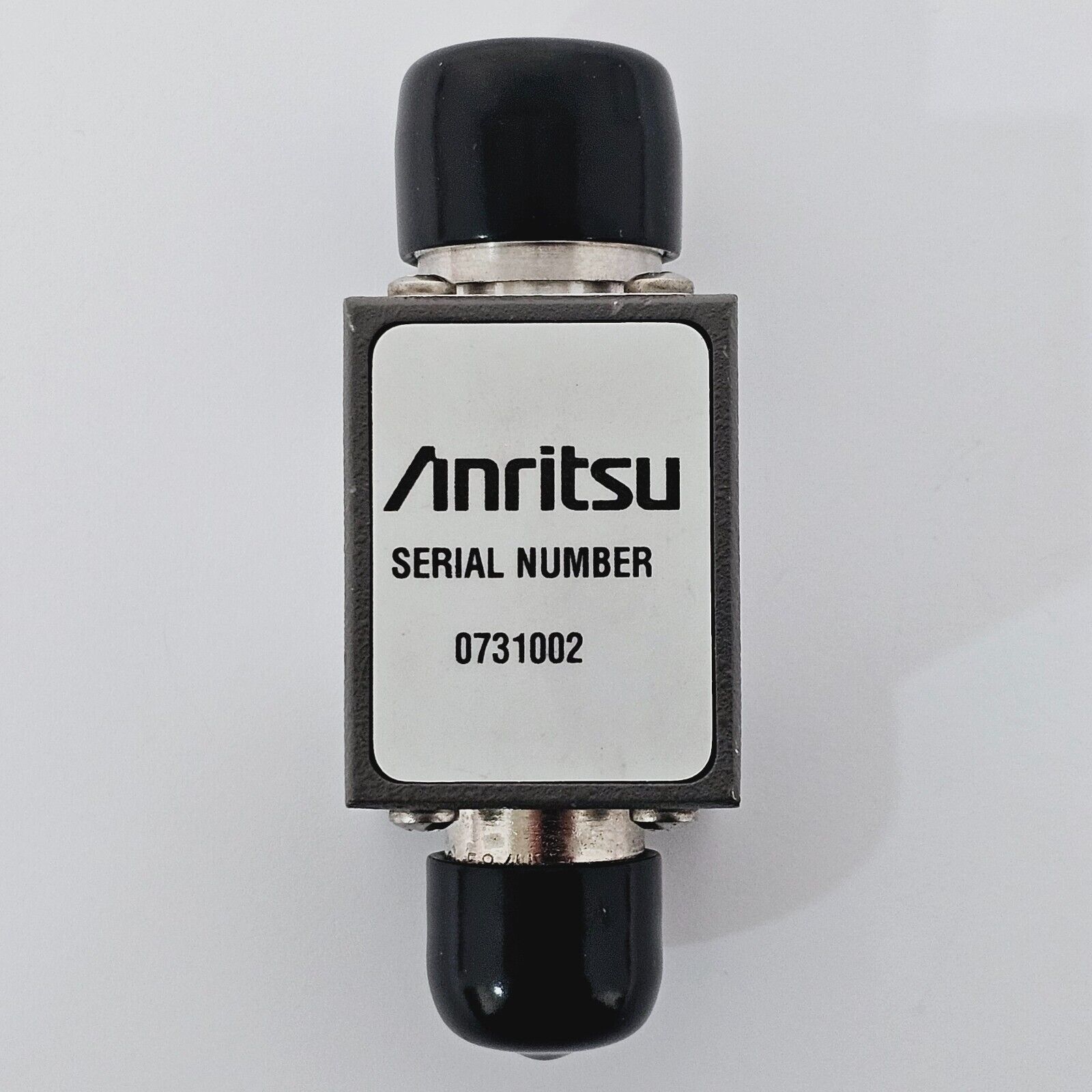

• Anritsu 12N50-75B matching pad

The Anritsu 12N50-75B is part of Anritsu's 12 Series Matching Pads, designed to interface measurement equipment with differing impedance systems. It employs a two-resistor network to provide accurate and reliable impedance transformation between 50 ohm and 75 ohm RF circuits, or 75 ohm to 50 ohm circuits, in either direction.

This accessory is widely used with Anritsu handheld spectrum analysers, site masters, and cable and antenna analysers to enable measurements on 75 ohm CATV, broadcast, and satellite distribution systems using 50 ohm test ports. The pad is pre-programmed and recognised by compatible Anritsu instruments to automatically apply the correct loss offset.

Frequency Range: DC to 3000 MHz
Impedance: 50 Ω to 75 Ω (bidirectional)

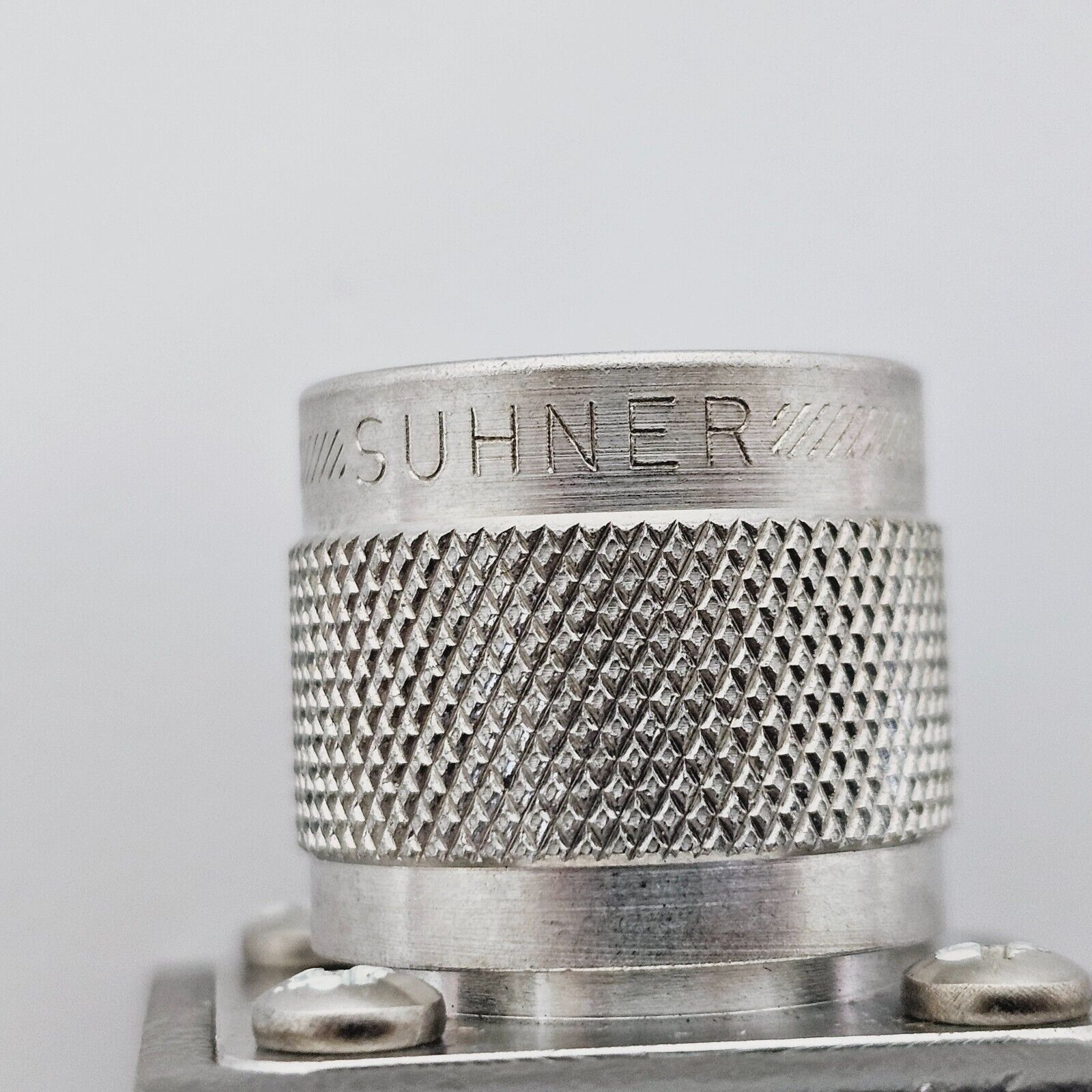

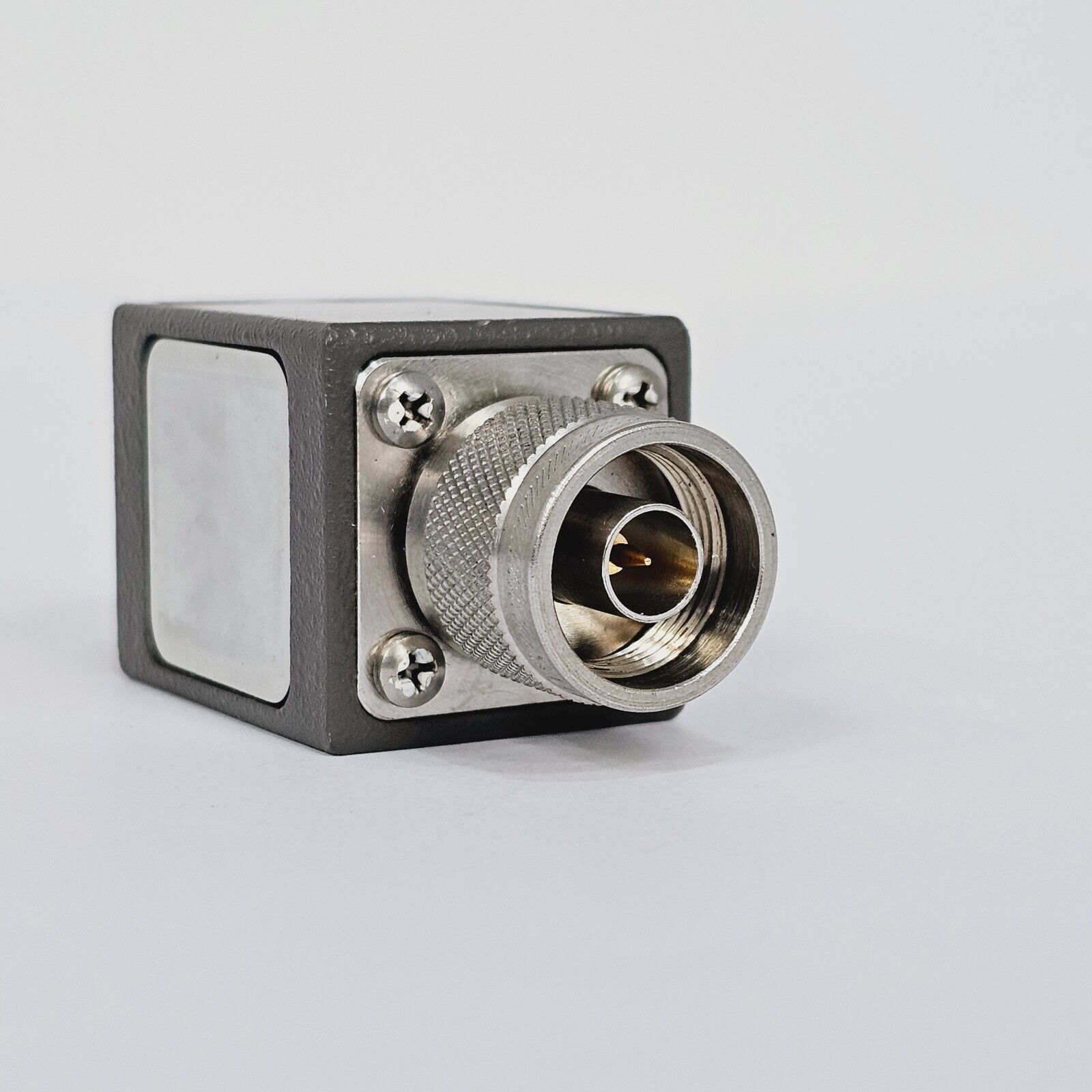

Connector (Input): N-type Male (50 Ω)

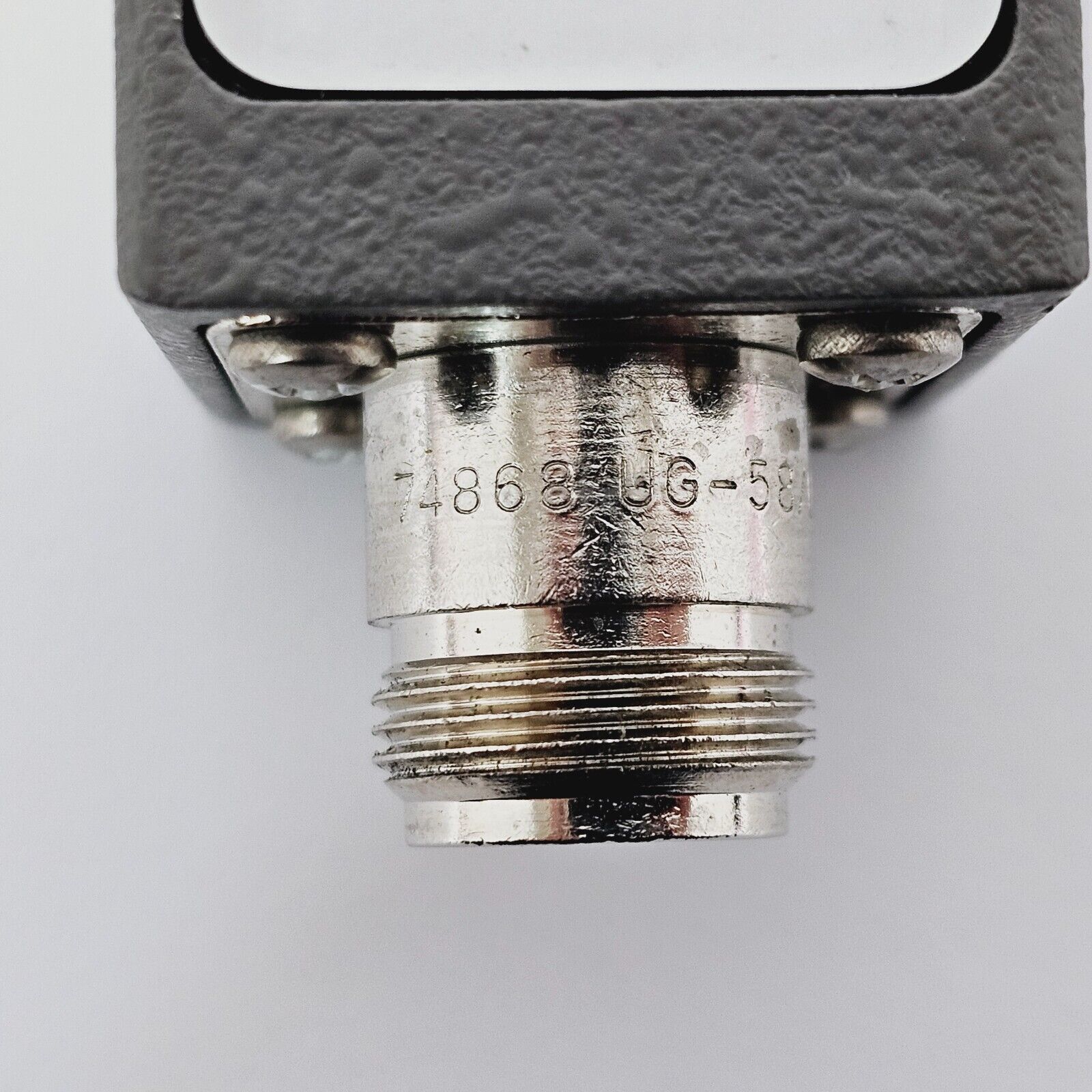

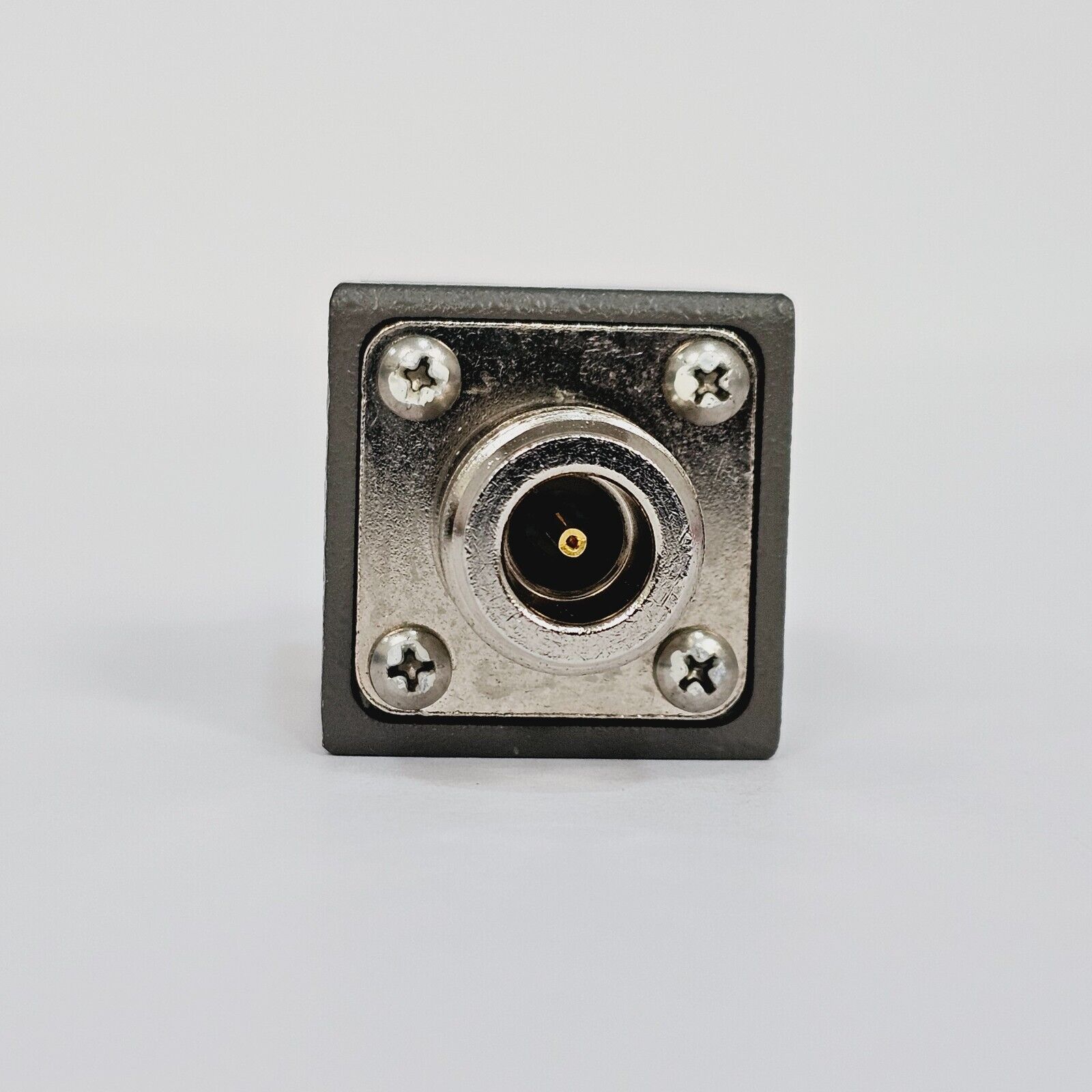

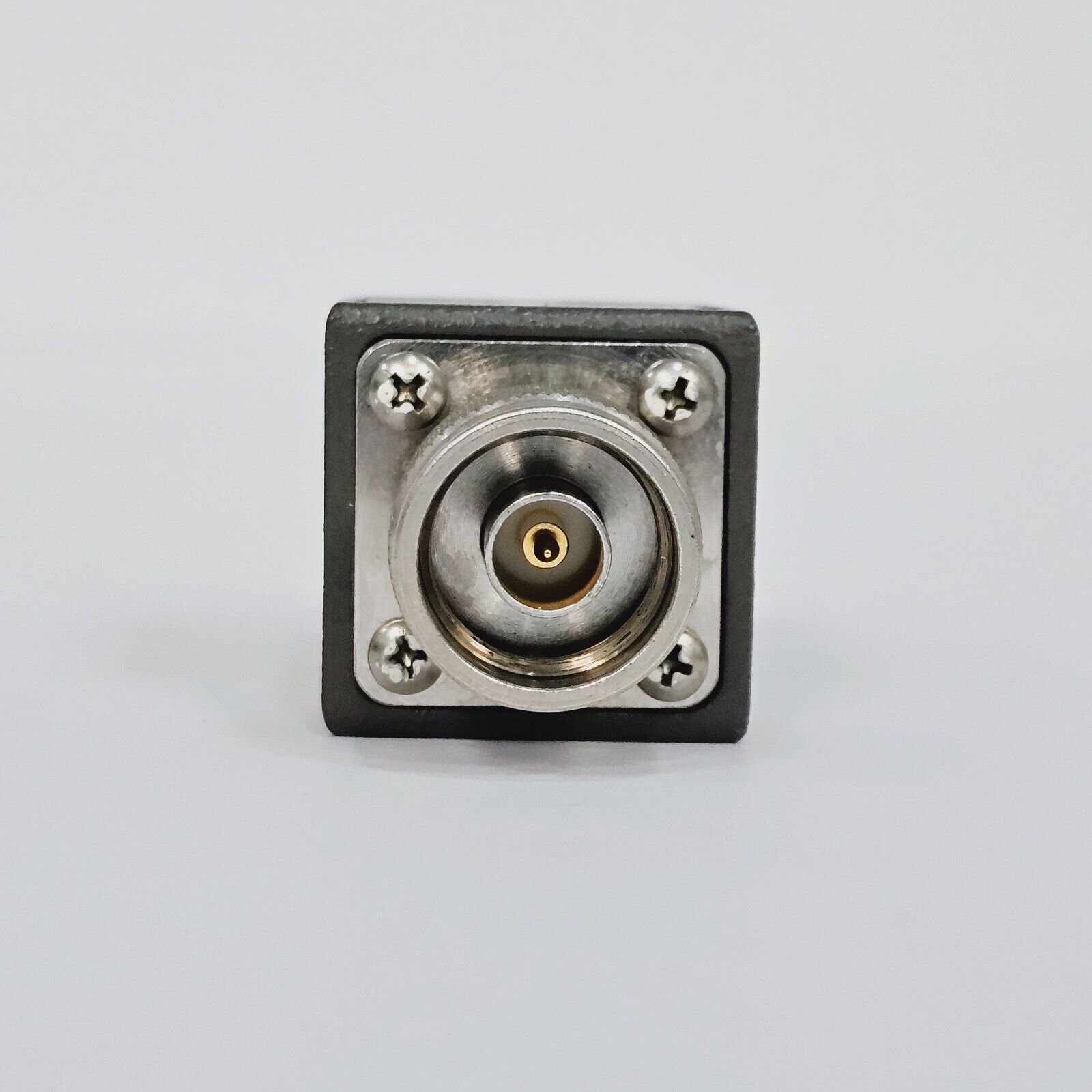

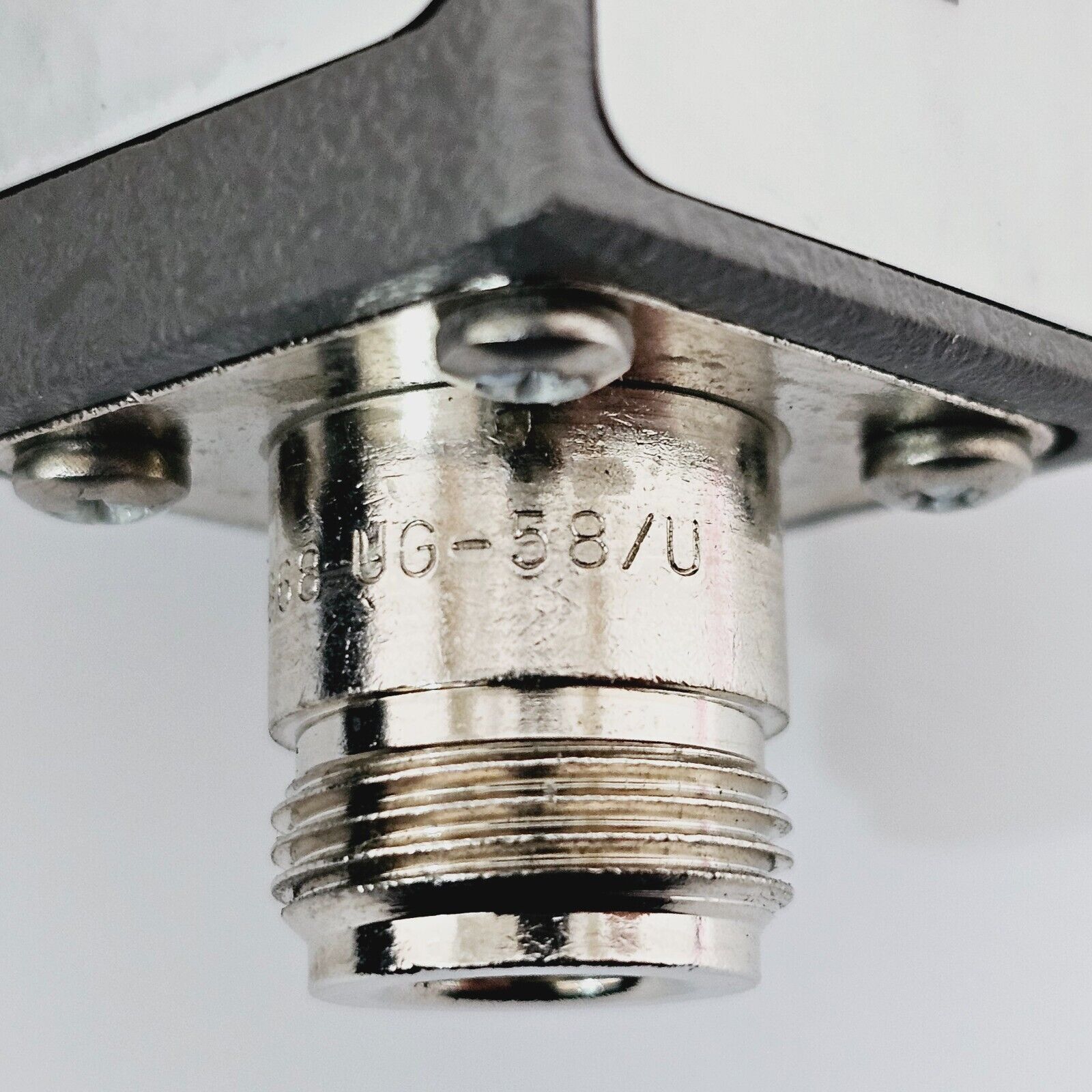

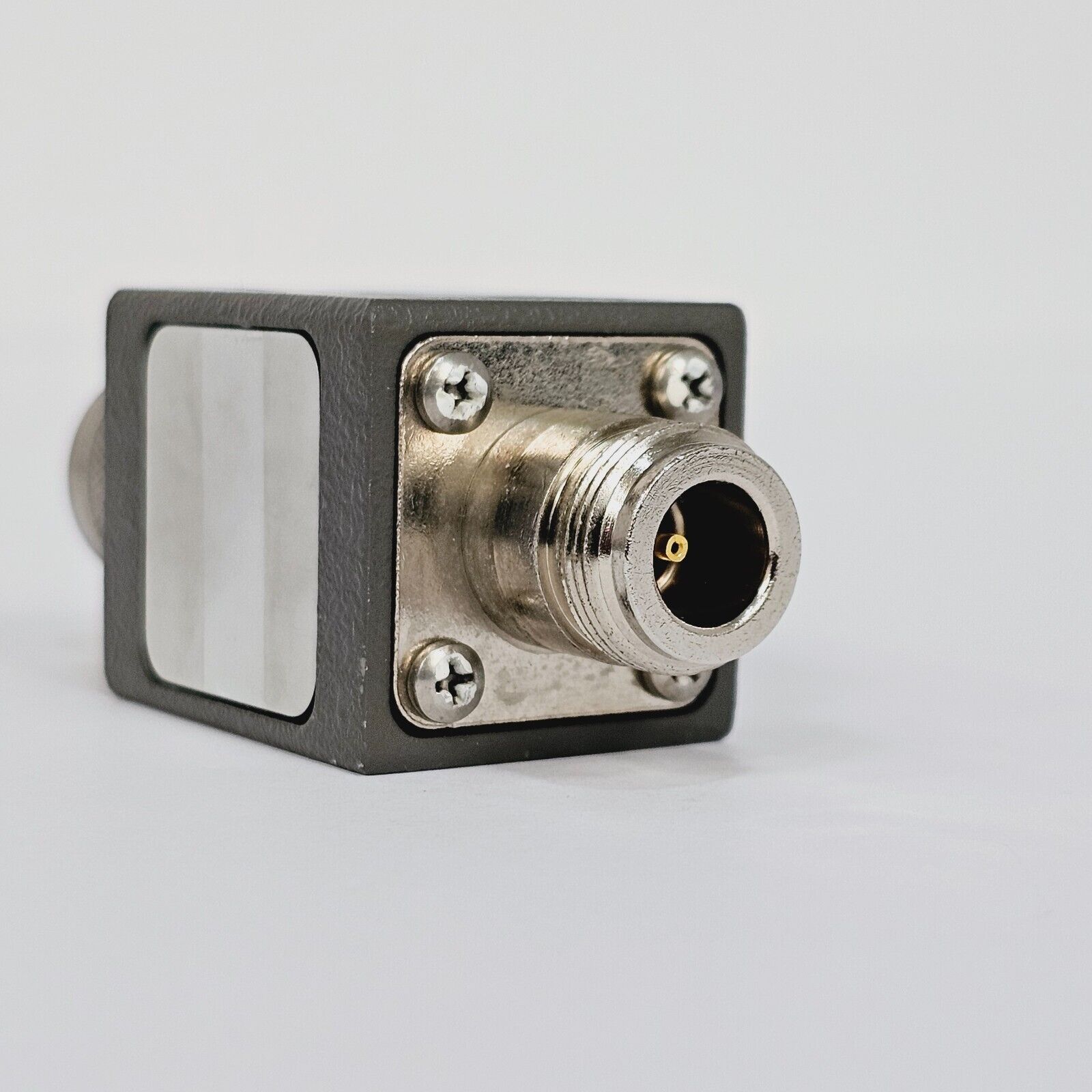

Connector (Output): N-type Female (75 Ω)
Design: Two-resistor matching network
Country of Origin: United States
Compatibility: Anritsu Site Master, Spectrum Master, Handheld Spectrum Analyser series
Typical Applications: CATV system testing, broadcast RF measurements, satellite distribution network analysis, interfacing 50 Ω instruments to 75 Ω infrastructure
