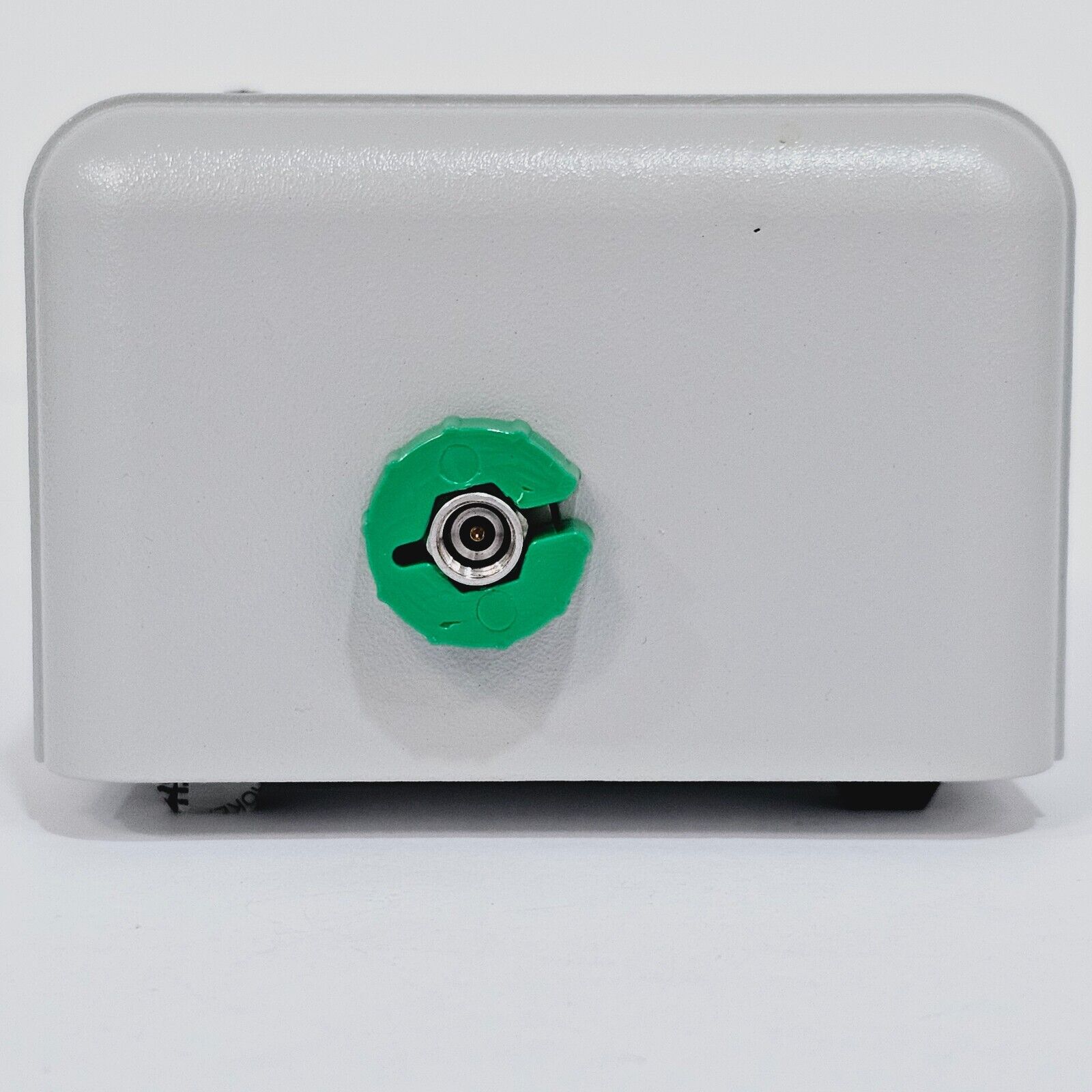

Anritsu 36582KKF 2-port AutoCal module with K-type connectors, front view showing RF ports

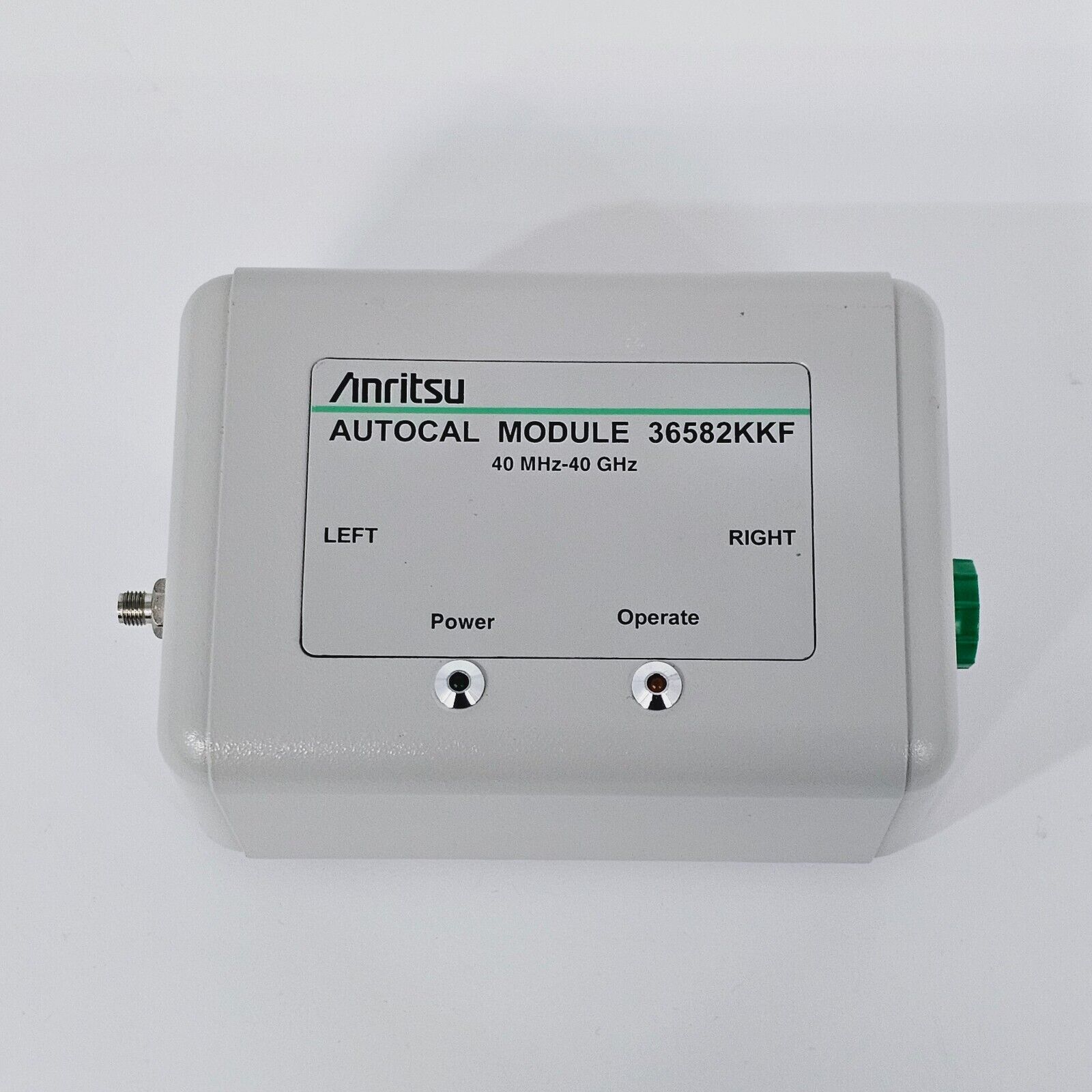

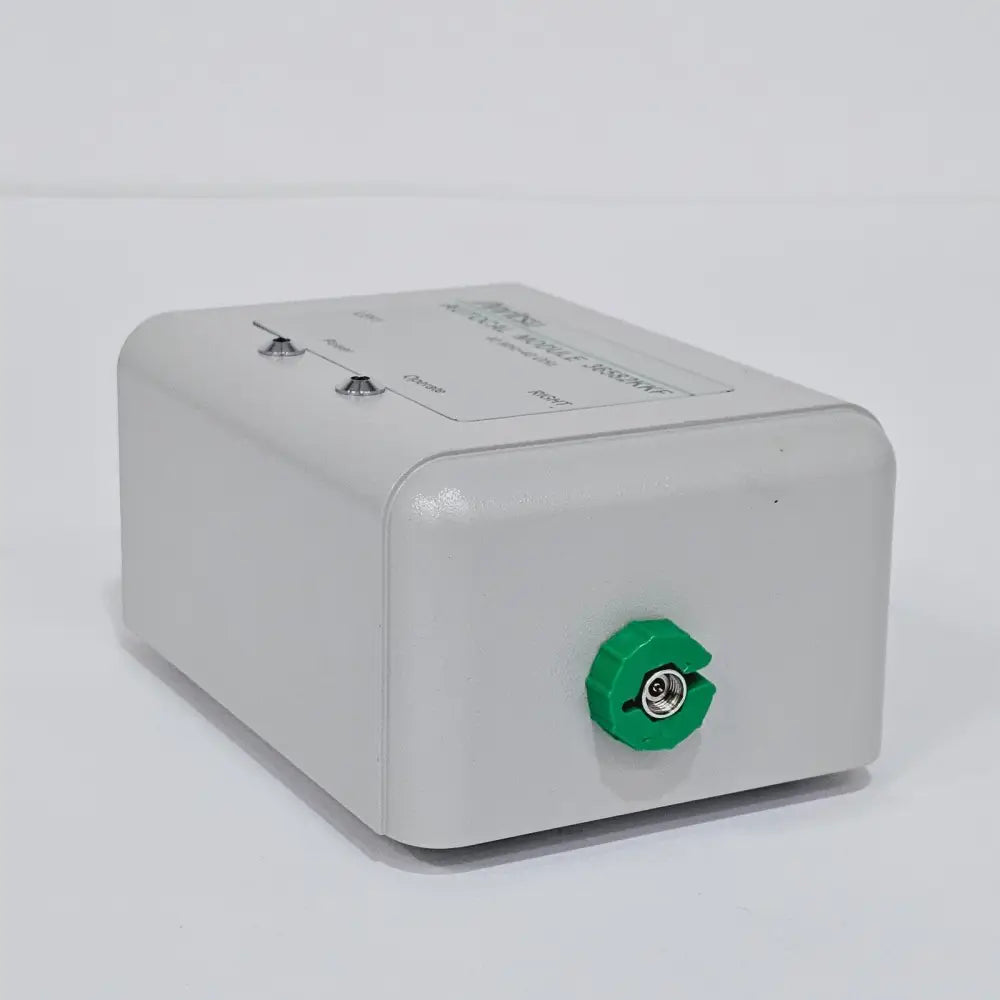

Anritsu 36582KKF mechanical AutoCal module top view showing housing and labelling

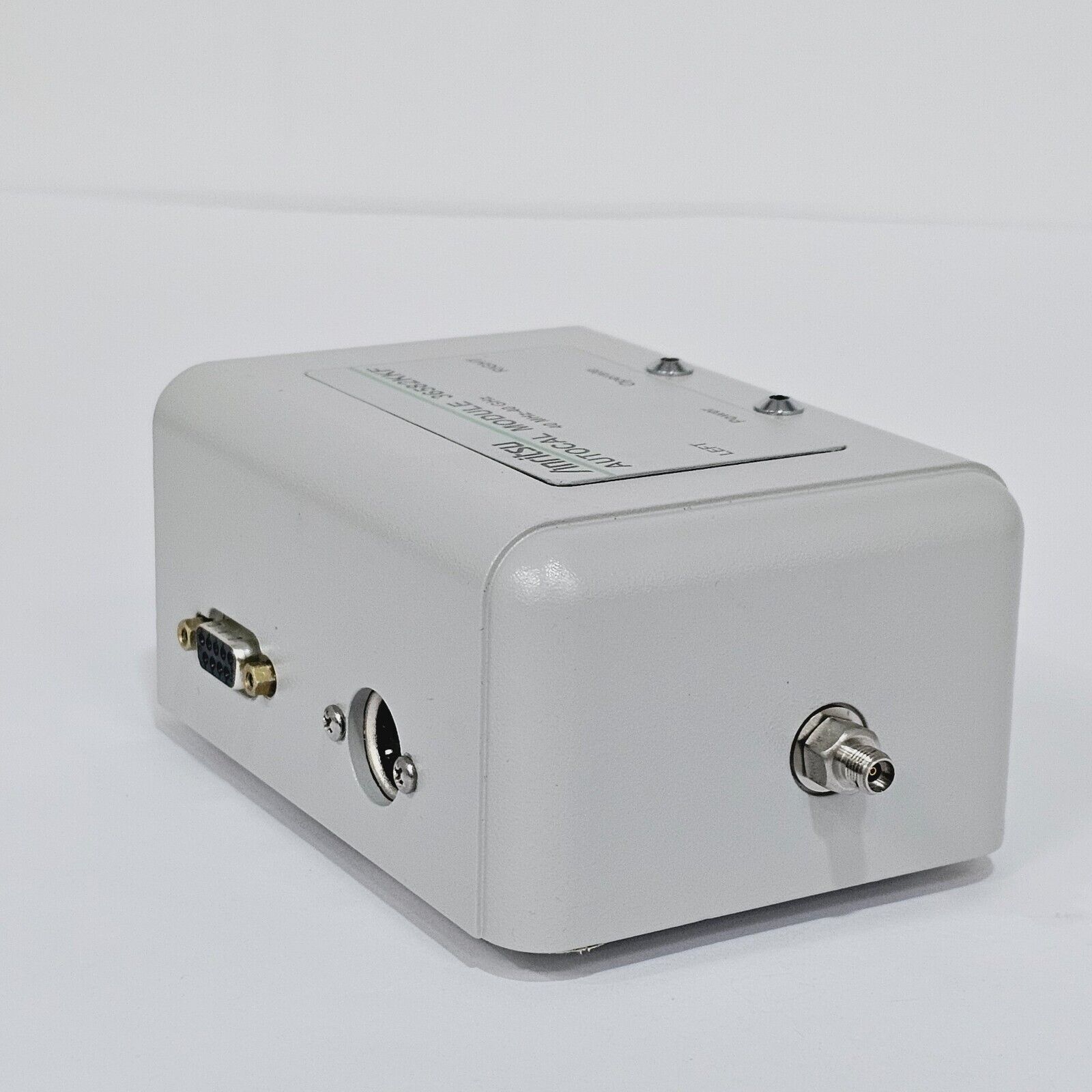

Anritsu 36582KKF 40 GHz AutoCal module rear panel detail with serial interface connector

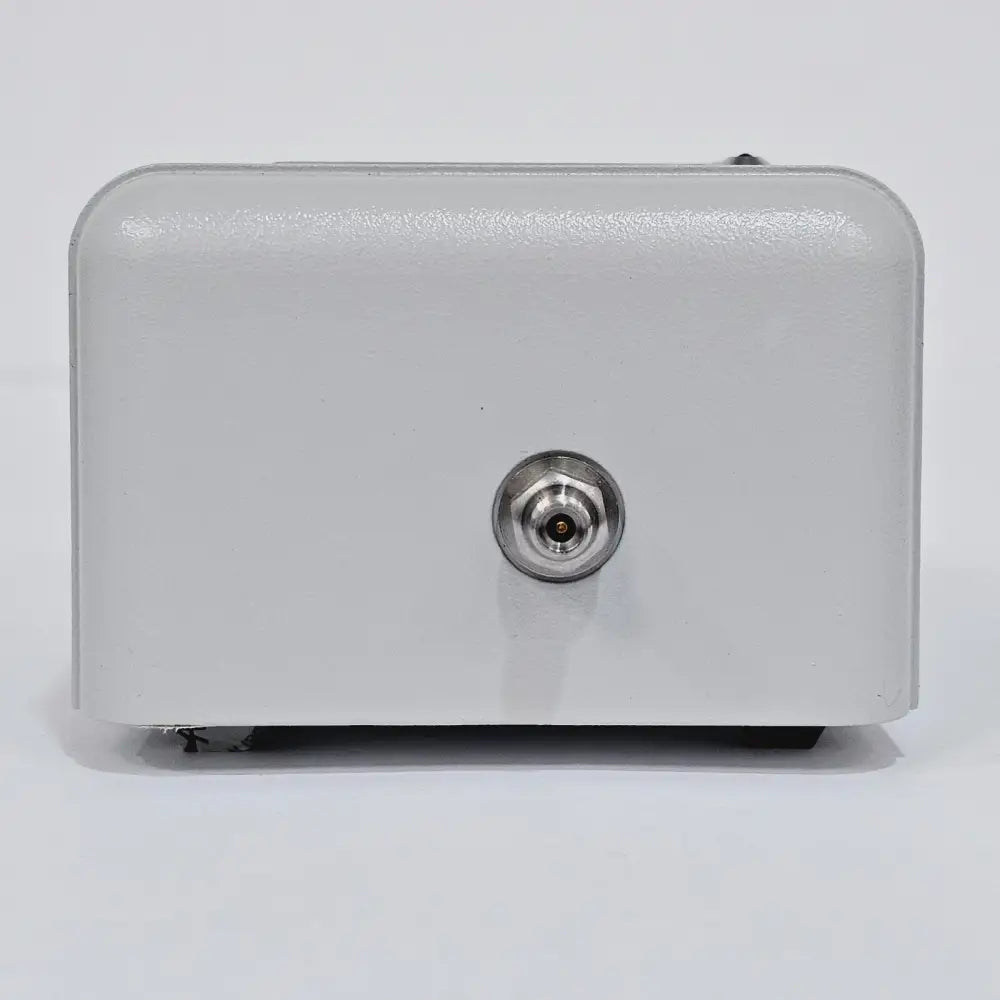

Anritsu 36582KKF AutoCal module K-type RF port connectors close-up detail

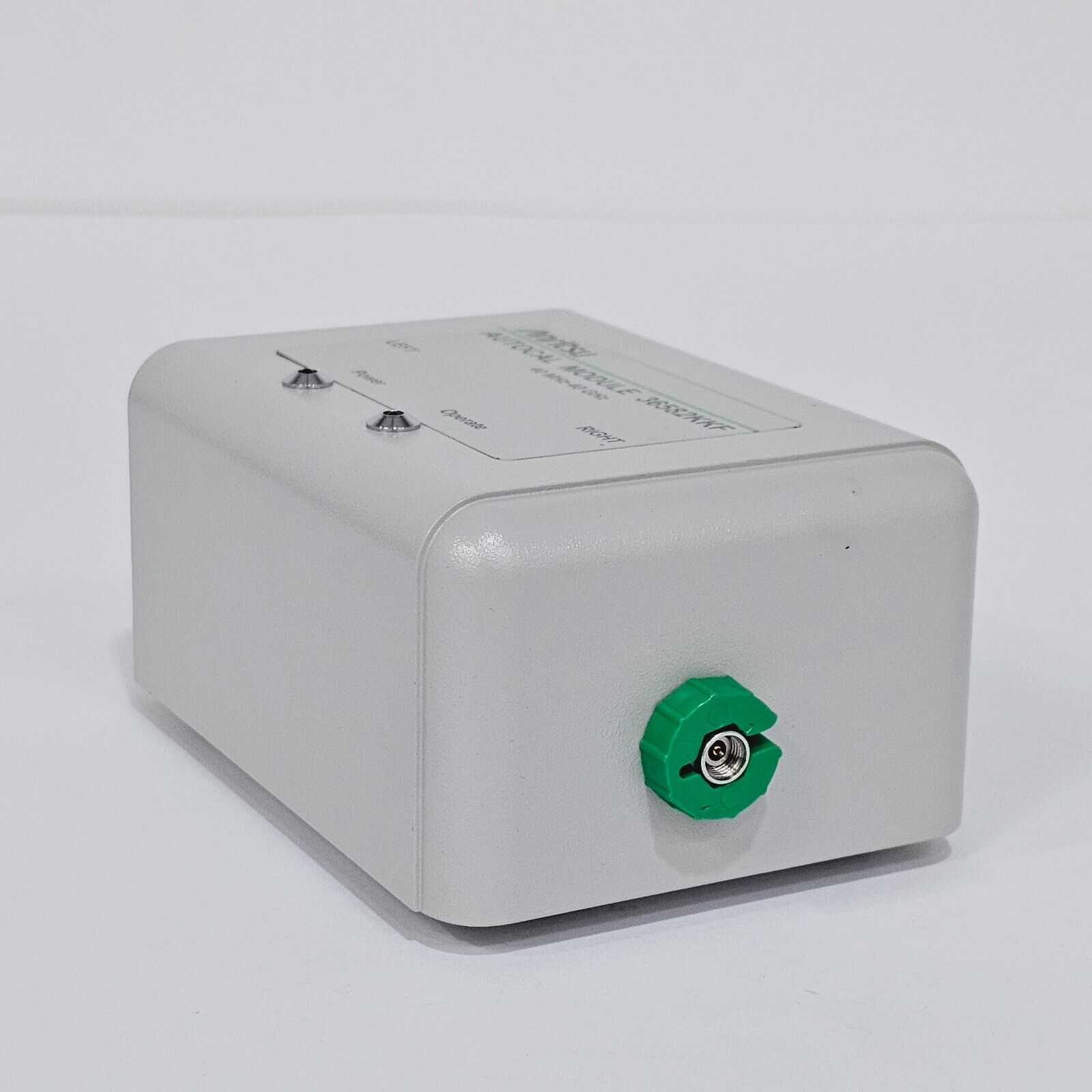

Anritsu 36582KKF VNA calibration module angled view showing compact module enclosure

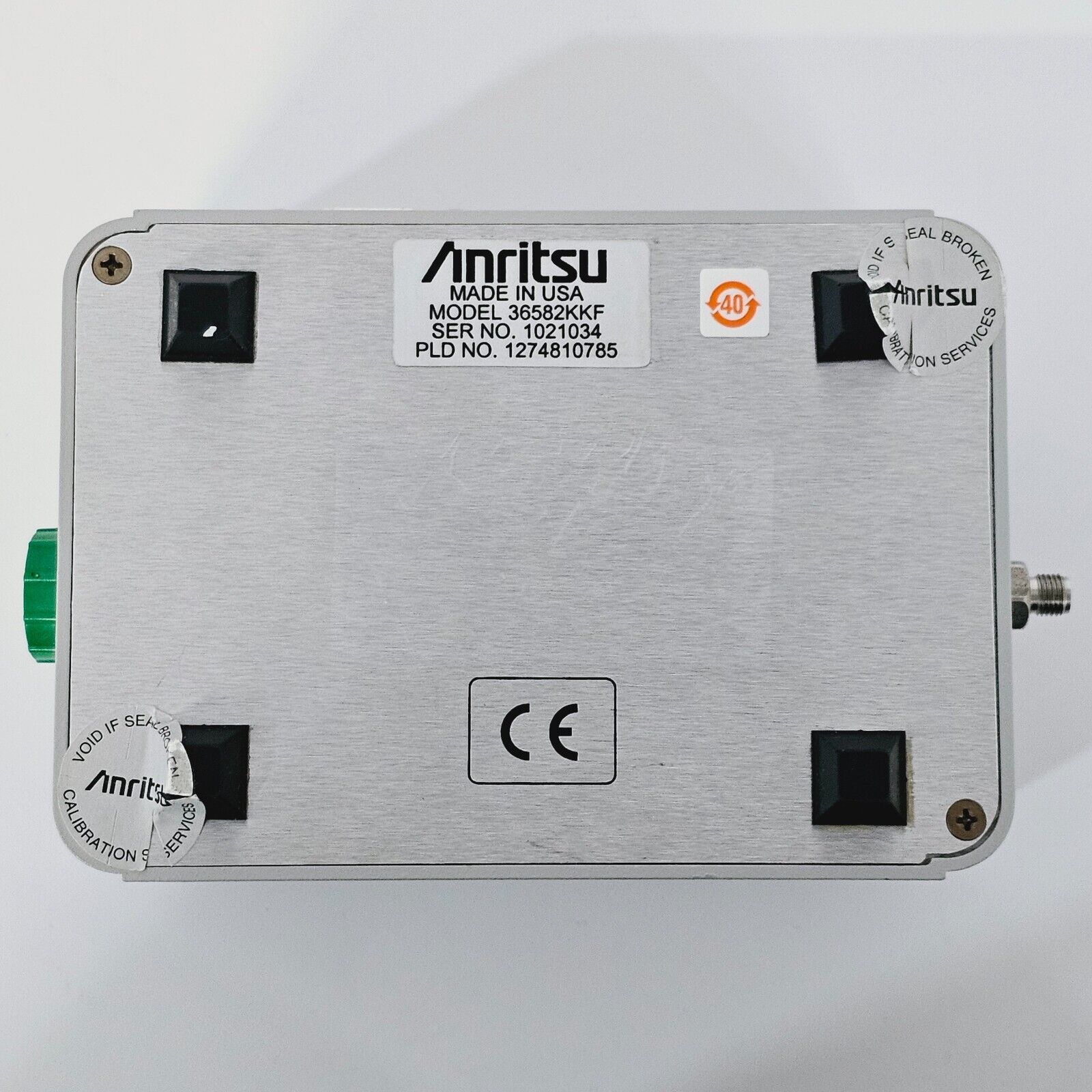

Anritsu 36582KKF 40 MHz to 40 GHz AutoCal module with model and serial number label visible

Anritsu 36582KKF mechanical AutoCal module placed alongside a 37000 series VNA test port cable

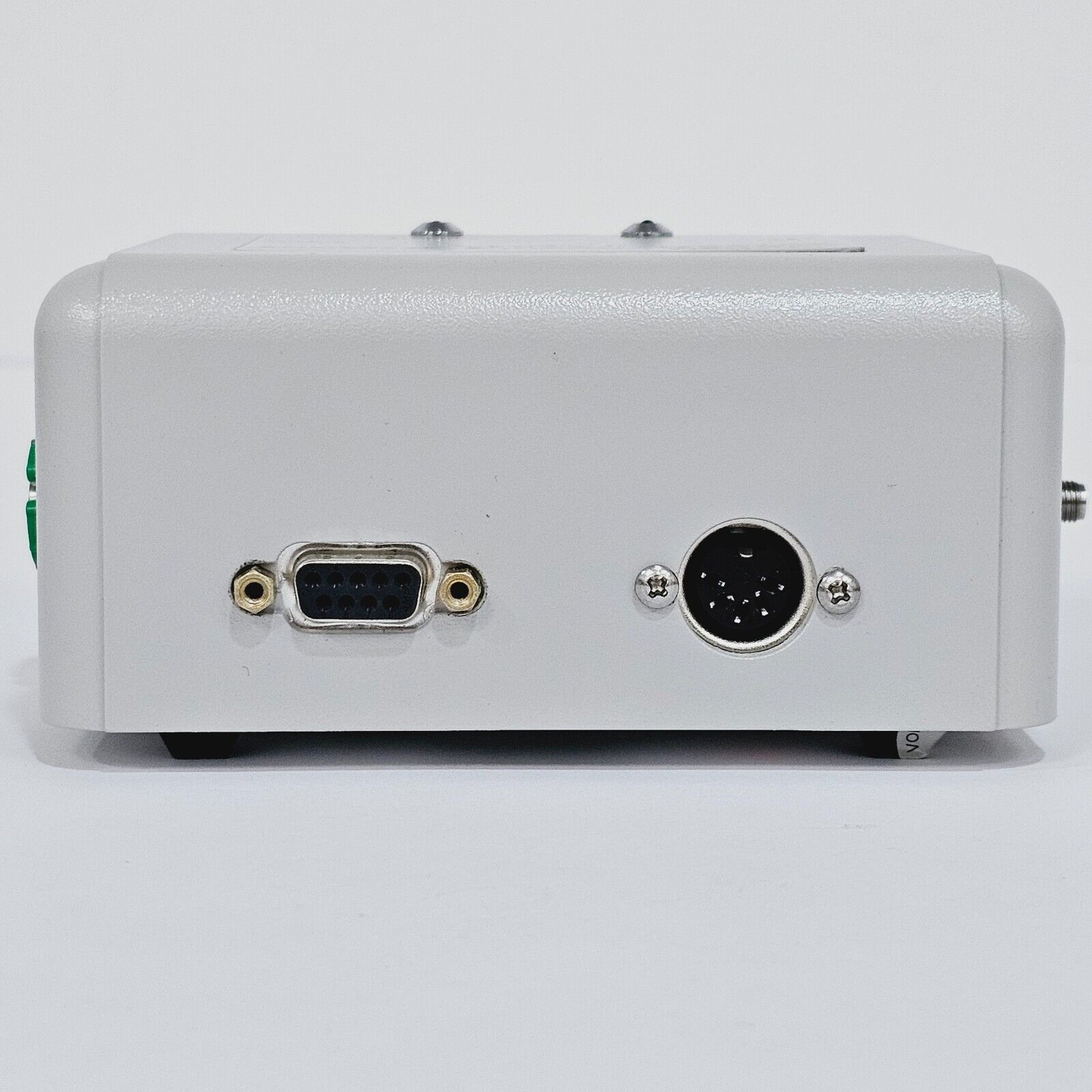

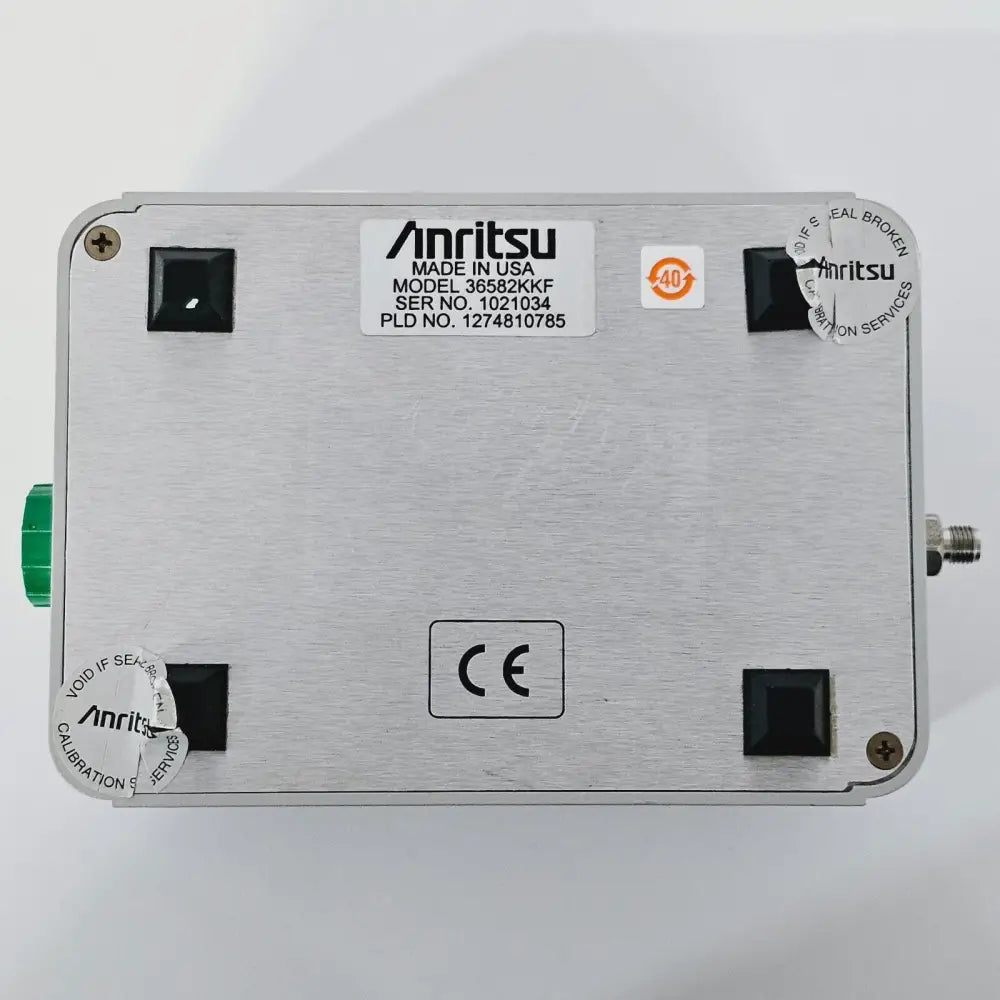

Anritsu 36582KKF AutoCal module bottom view showing connector and housing detail

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Anritsu 36582KKF 2-port AutoCal Module K Type 40 MHz - 40 GHz

Name: Anritsu 36582KKF 2-port AutoCal Module K Type 40 MHz - 40 GHz
Brand: Anritsu
SKU: 5891 6F01 ER50
Price: 505.75 GBP
Availability: OutOfStock

The Anritsu 36582KKF is a 2-port mechanical AutoCal module covering 40 MHz to 40 GHz, designed for fast, repeatable, automated calibration of Anritsu vector network analysers.
• Widest frequency coverage in the AutoCal range: 40 MHz to 40 GHz with K(m) to K(f) connectors
• Mechanical switch design includes internal isolation standards for full 12-term error-corrected calibration
• Compatible with Anritsu 37000 Series VNAs (firmware v3.23+) and MS462XX VNMS via serial or PC control

Manufacturer

Anritsu

Model

36582KKF

Condition

Used

In stock

SKU

5891 6F01

£505.75

Calibration kits
RF & Microwave

Make an Offer

Condition: Used

The Anritsu 36582KKF is a 2-port mechanical AutoCal module with K(Male) to K(Female) connectors, spanning 40 MHz to 40 GHz. It uses electro-mechanical actuators to switch internal calibration standards and includes internal port isolation standards, enabling a complete automated VNA calibration without additional manual steps.

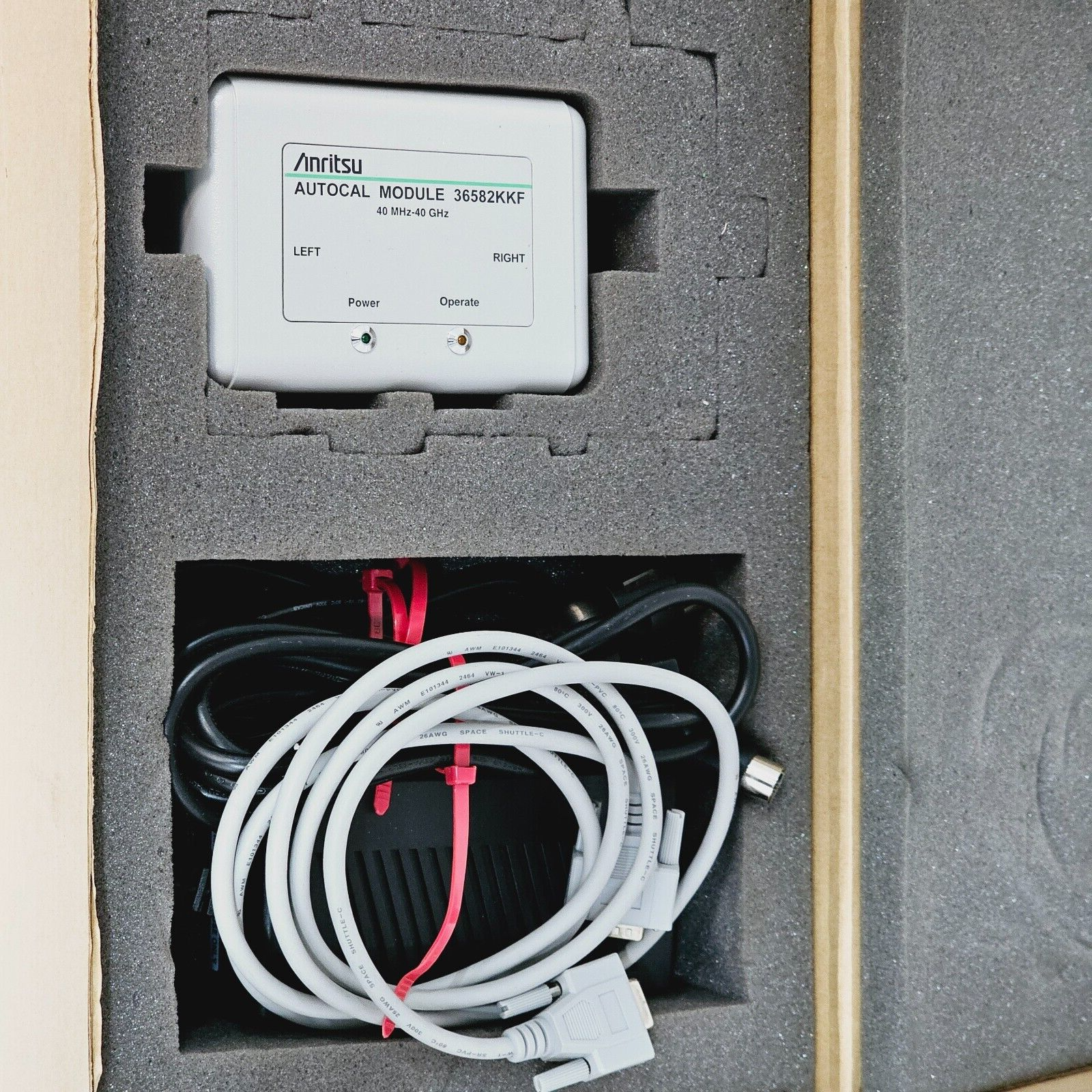

Typically includes:
• AutoCal 36582KKF module

Product Overview

Condition: Used

Typically includes:
• AutoCal 36582KKF module

Manufacturer's Description

The Anritsu 36582KKF is part of the 3658 Series 2-Port AutoCal automatic calibrator family. The AutoCal modules provide fast, repeatable, and high-quality coaxial VNA calibrations by containing precisely characterised internal calibration standards. The module is inserted between the VNA test ports and, under software or VNA control, automatically sequences through all required calibration states.

The 36582KKF is the mechanical-switch variant, using electro-mechanical actuators to exchange calibration standards. This gives it the highest frequency coverage in the AutoCal range and includes internal isolation standards, enabling full port-isolation measurement without any manual steps — unlike electronic-switch models which require a separate manual isolation measurement.

The module is compatible with Anritsu 360B and 37000 Series Vector Network Analysers equipped with a serial interface and firmware version 3.23 or later, and with any Anritsu MS462XX Vector Network Measurement System (VNMS). It can also be controlled via a PC running appropriate AutoCal software.

Specifications:
Model: 36582KKF
Frequency Range: 40 MHz to 40 GHz
Connector Type: K(Male) to K(Female)
Number of Ports: 2
Switch Type: Mechanical (electro-mechanical actuators)
Port Isolation Standards: Internal (included)
Compatible VNAs: Anritsu 37000 Series (firmware v3.23+), MS462XX VNMS, 360B Series
Control: PC with AutoCal software, VNA serial interface
Calibration Type: 2-port, full 12-term error-corrected
Verification Kit (recommended): 3668 K Connector Verification Kit
Phase-Equalised Adapter Options: 36583K, 36583L

Resources

Anritsu AutoCal 36581NNF, 36581KKF, 36582KKF User's Guide (P/N 10410-00199) — official Anritsu user guide for this module: Download PDF

Anritsu VNMS Performance Verification (PV) Software User's Guide (P/N 10410-00258) — covers 36582KKF AutoCal module verification procedures: Download PDF
