Condition: Used

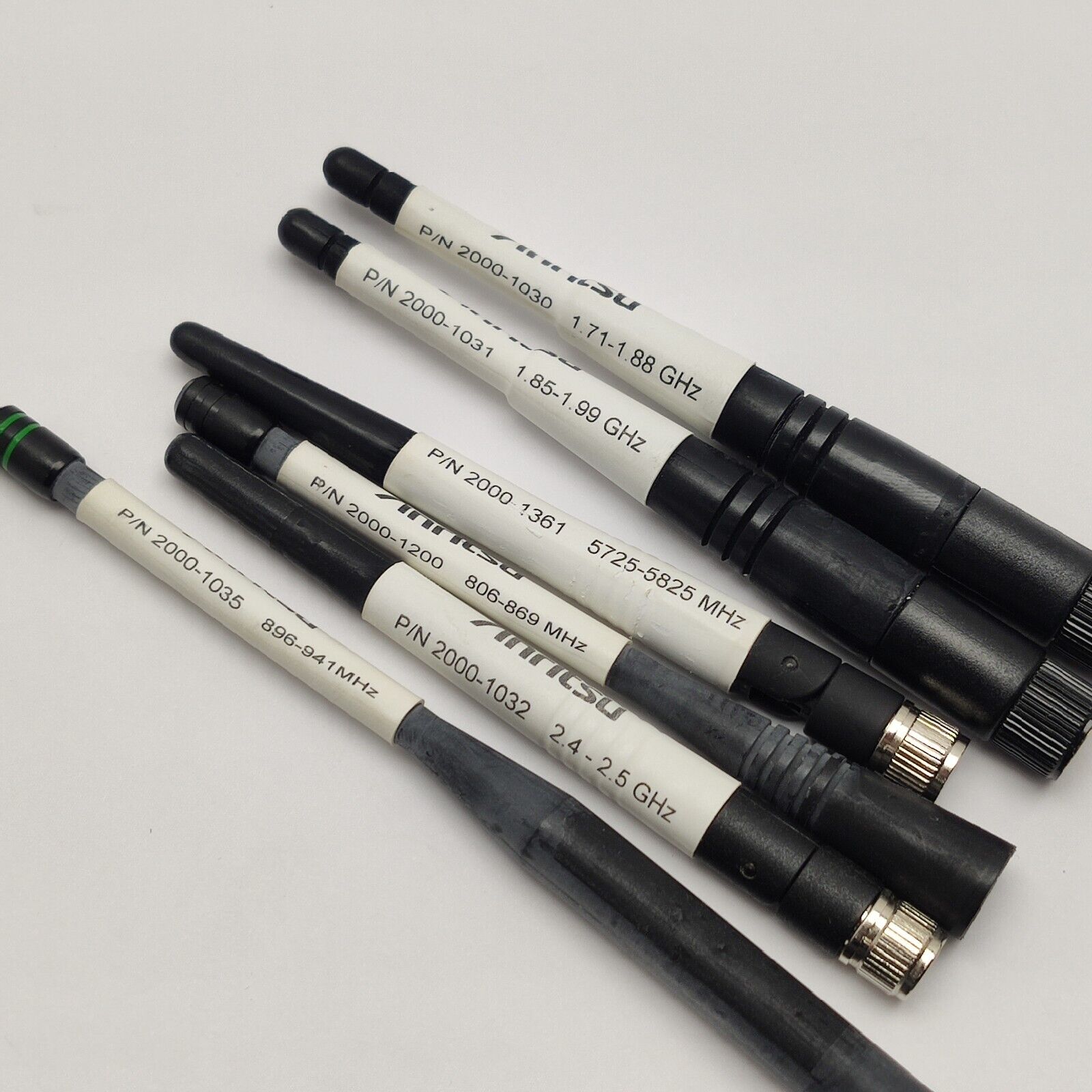

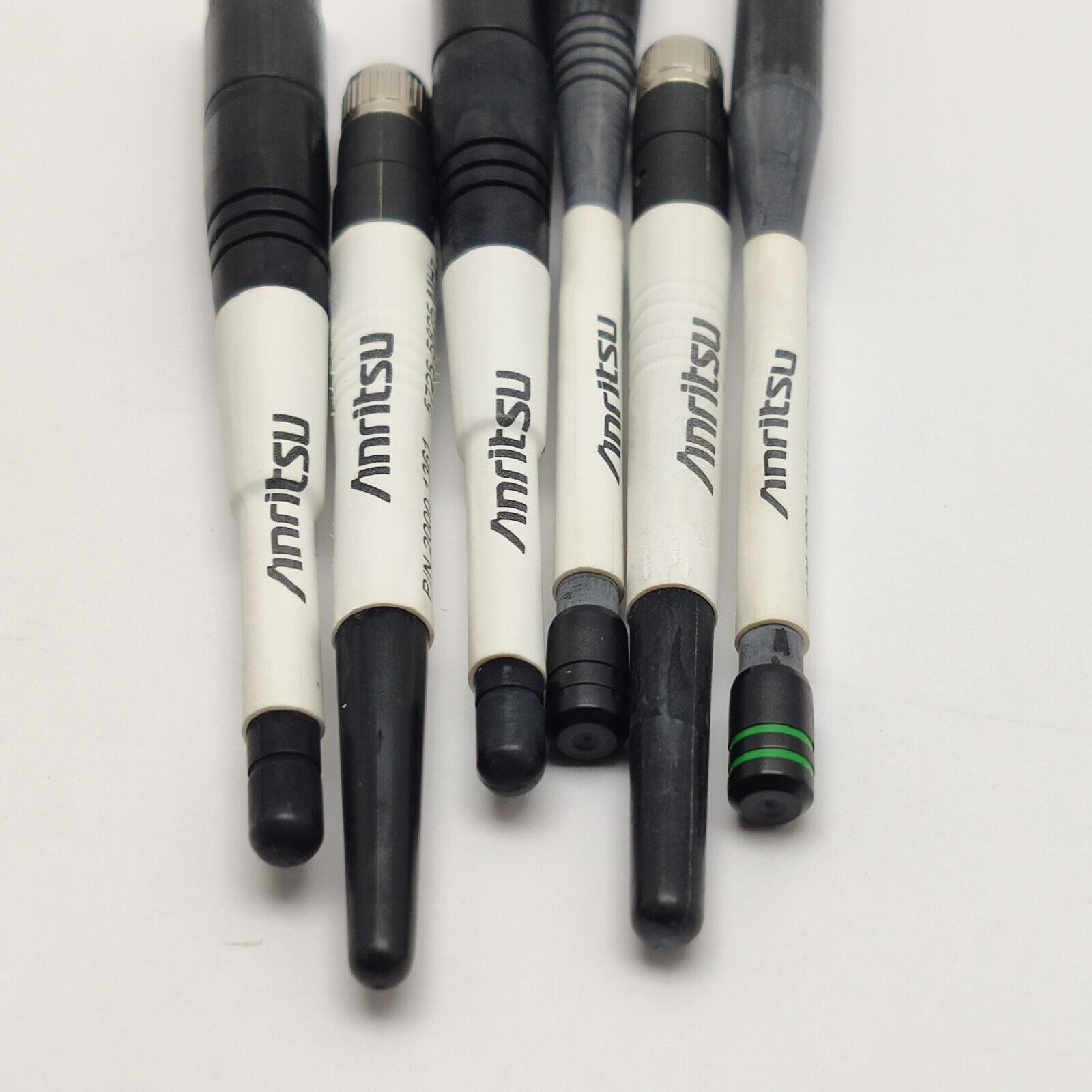

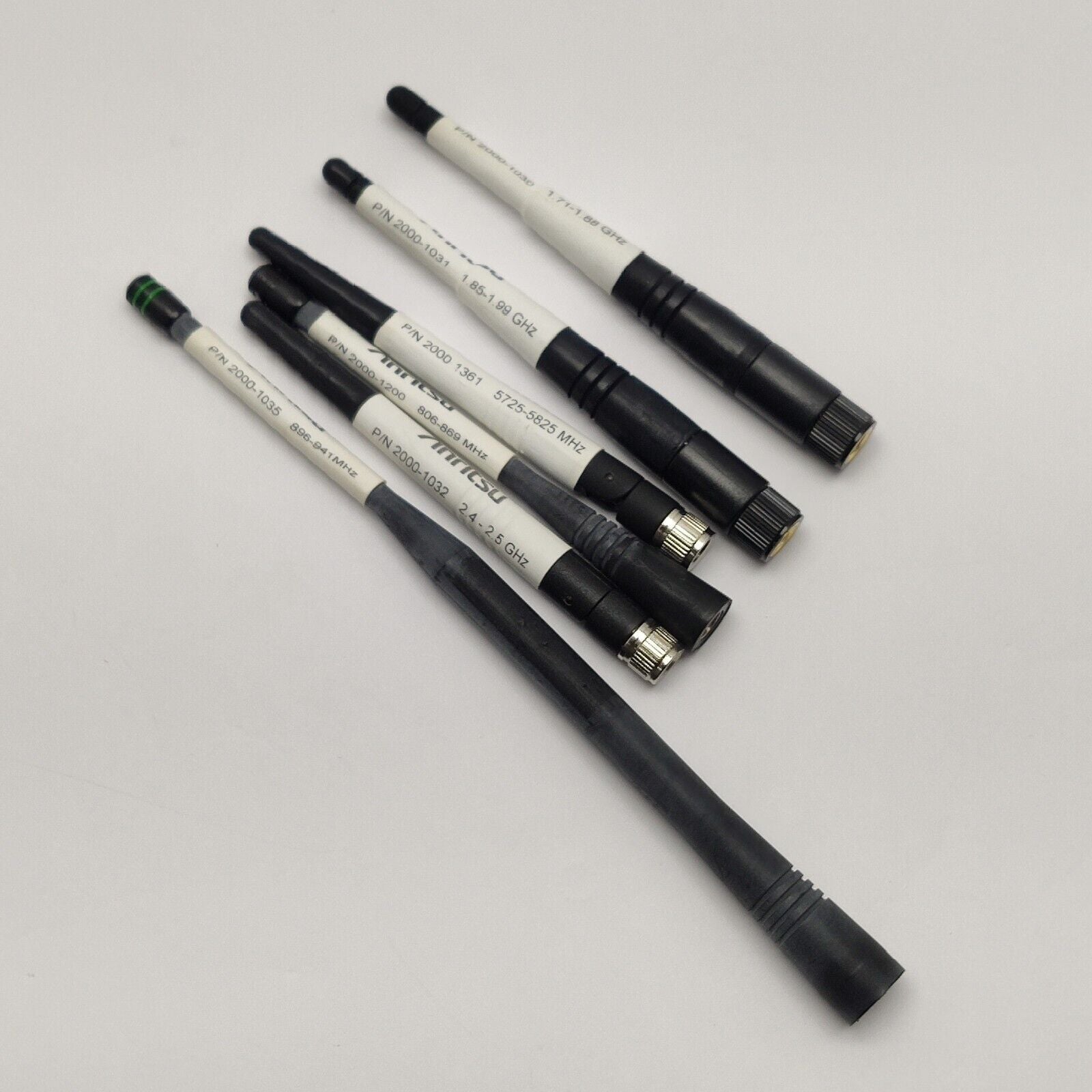

This is the Anritsu 2000ANTKIT set of six portable SMA(m) omnidirectional antennas, equivalent to the 2000-1636-R kit. Note that as multiple units are held in stock, cosmetic appearance may vary slightly between individual sets.

Included antennas (as described):
• 2000-1030 — 1.71–1.88 GHz (AWS/DCS band)
• 2000-1031 — 1.85–1.99 GHz (PCS band)
• 2000-1361 — 5725–5825 MHz (5 GHz ISM/Wi-Fi band)
• 2000-1200 — 806–869 MHz (cellular/SMR band)
• 2000-1032 — 2.4–2.5 GHz (2.4 GHz Wi-Fi/ISM band)
• 2000-1035 — 896–941 MHz (SMR/cellular band)

The Anritsu 2000ANTKIT (2000-1636-R) is a portable omnidirectional antenna kit designed for use with Anritsu handheld RF instruments including the Site Master, Spectrum Master, Cell Master, and InterferenceHunter series. The kit provides engineers and field technicians with a comprehensive set of frequency-specific antennas to cover the most commonly encountered cellular, land mobile radio, and wireless LAN frequency bands in a single convenient package.

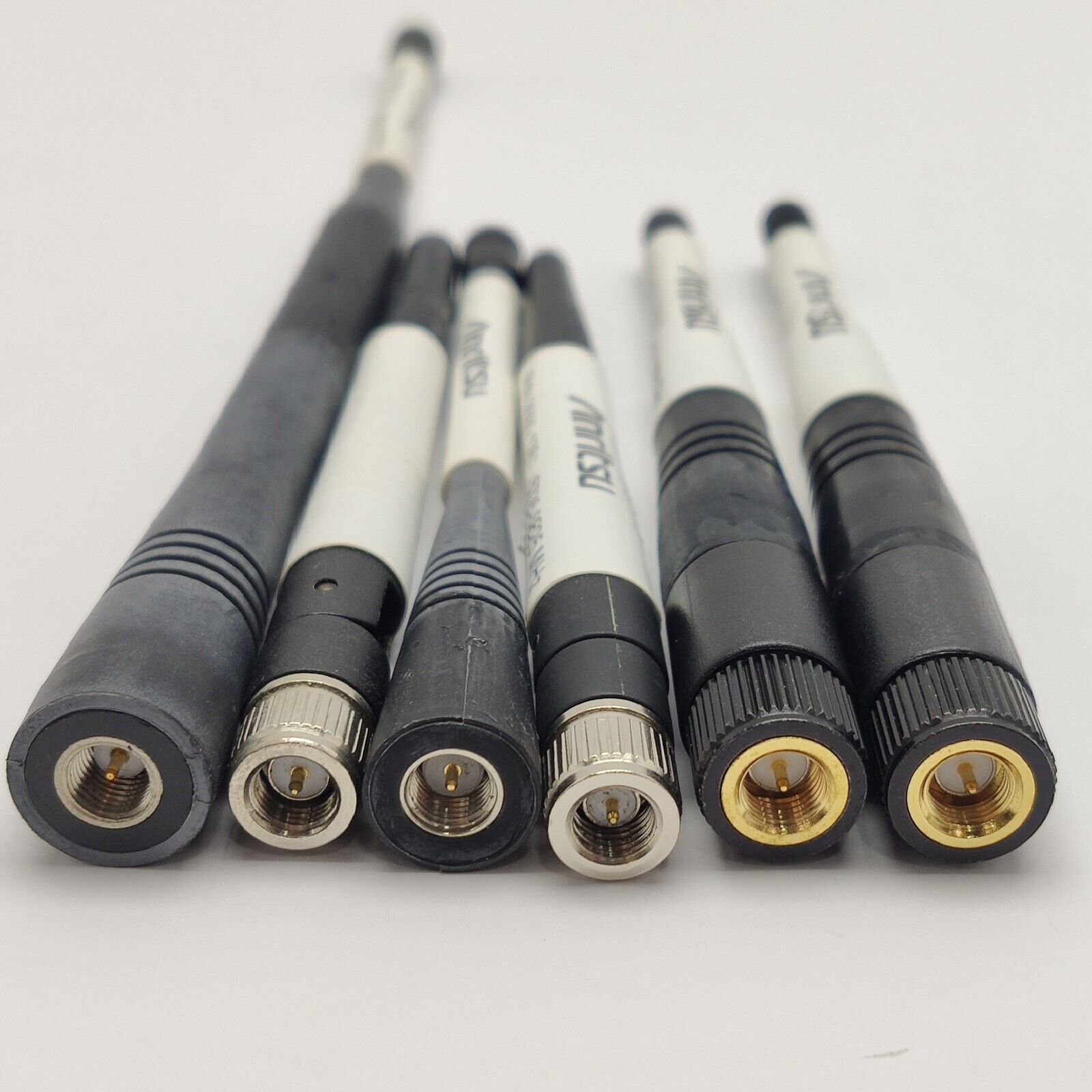

Antenna construction features ABS plastic, polyurethane, or rubberised bodies with nickel-plated brass or all-brass SMA male connectors, making the antennas suitable for rugged field environments. All antennas are omnidirectional and designed for quick swap between frequency bands during interference hunting, spectrum monitoring, signal strength mapping, and field analysis tasks.

Individual Antenna Specifications:

2000-1200-R:
Frequency Range: 806–869 MHz
Input Power: 50 W
Gain: 2.1 dBi
VSWR (max): 1.5:1
Antenna Length: 8.4 cm
Connector: SMA(m), 50 Ω

2000-1035-R:
Frequency Range: 896–941 MHz
Input Power: Receive only
Gain: 4.6 dBi
VSWR (max): 1.5:1
Antenna Length: 20.3 cm
Connector: SMA(m), 50 Ω

2000-1030-R:
Frequency Range: 1710–1880 MHz
Input Power: Receive only
Gain: 2.0 dBi
VSWR (max): 2.0:1
Antenna Length: 10.4 cm
Connector: SMA(m), 50 Ω (half-wave)

2000-1031-R:
Frequency Range: 1850–1990 MHz
Input Power: Receive only
Gain: 2.0 dBi
VSWR (max): 2.0:1
Antenna Length: 10.4 cm
Connector: SMA(m), 50 Ω (half-wave)

2000-1032-R:
Frequency Range: 2400–2500 MHz
Input Power: 50 W
Gain: 2.0 dBi
VSWR (max): 1.5:1
Antenna Length: 11.4 cm
Connector: SMA(m), 50 Ω (half-wave)

2000-1361-R:
Frequency Range: 2400–2500 MHz / 5000–5900 MHz
Gain: 3.0 dBi
VSWR (max): 2.0:1
Antenna Length: 7.6–10.2 cm
Connector: SMA(m), 50 Ω

Compatible Instruments: Anritsu Site Master, Spectrum Master, Cell Master, InterferenceHunter, and other SMA-equipped handheld RF analysers.
Typical Applications: Cellular network field testing, interference hunting, spectrum monitoring, signal strength mapping, Wi-Fi and ISM band analysis, land mobile radio (LMR) testing.

Anritsu Omnidirectional Antenna Kit 2000-1636-R Technical Data Sheet (includes full specs for all six antennas): Download PDF

Anritsu Spectrum Master Compact Handheld Spectrum Analyzer TDS — lists 2000-1636-R kit and individual antenna specs: Download PDF
