Condition: Used

Altera Terasic DE5-Net-AB-J Stratix V GX FPGA PCIe development card, part number TR5-F45M, offered in good working condition. Suited to high-speed data processing, low-latency trading, network processing, and signal processing applications.

Typically includes:
• DE5-Net TR5-F45M FPGA development board

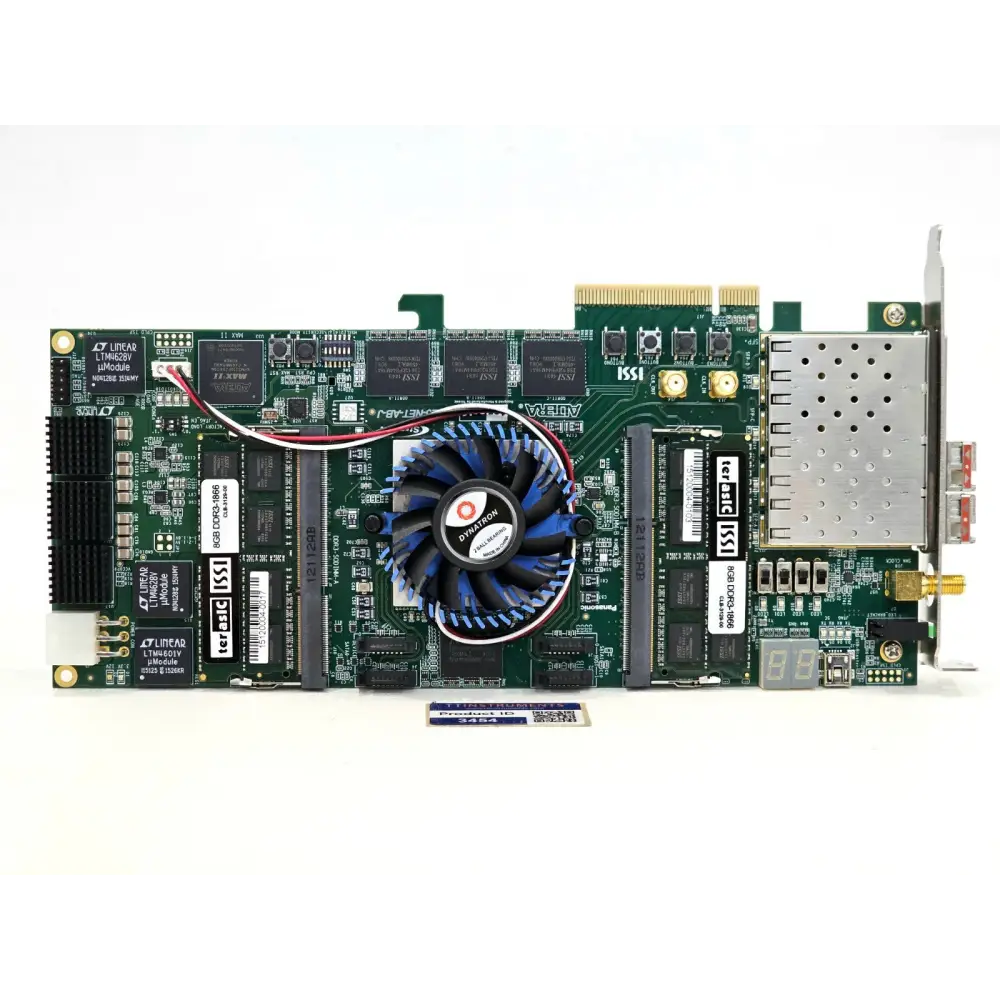

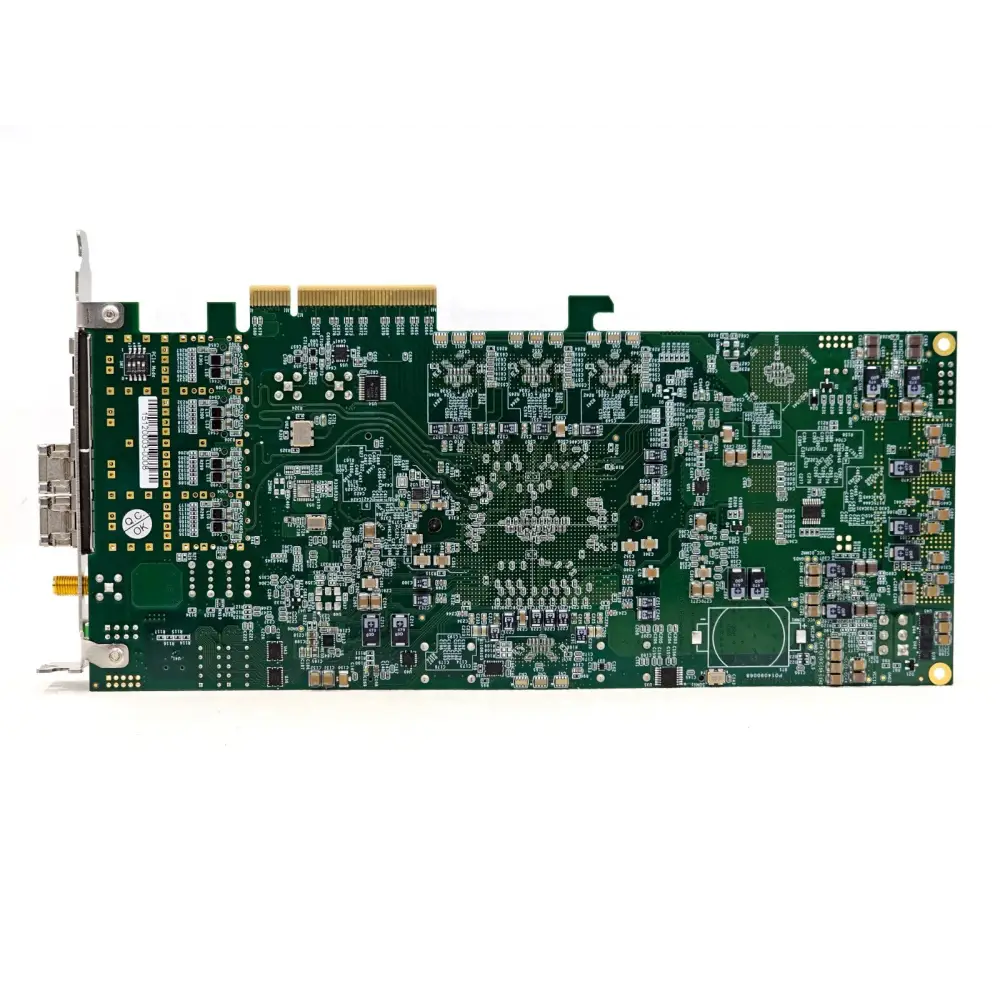

The Terasic DE5-Net is a high-end Stratix V GX FPGA development kit produced by Terasic Technologies in partnership with Altera (now Intel). It is designed for applications demanding high-bandwidth memory interfacing, ultra-low latency communication, and power efficiency. The full-height, 3/4-length PCIe card format makes it suitable for server and workstation integration.

The Stratix V GX FPGA (5SGXEA7N2F45C2) provides 622,000 logic elements (LEs), 50 Mbits of embedded memory, 48 transceivers capable of 12.5 Gbps, and 512 18-bit x 18-bit multipliers. These transceivers enable full PCIe Gen3 compliance as well as direct, PHY-less 10G SFP+ connectivity, minimising latency for network applications.

Key use cases include low-latency algorithmic trading, cloud computing acceleration, high-performance computing, data acquisition, network processing, and signal processing.

FPGA Device: Altera Stratix V GX (5SGXEA7N2F45C2)
Logic Elements: 622,000
Embedded Memory: 50 Mbits
Transceivers: 48 x 12.5 Gbps
Multipliers: 512 x 18-bit
Memory: Two independent DDR3 SO-DIMM sockets, up to 8 GB at 800 MHz or 4 GB at 933 MHz per socket

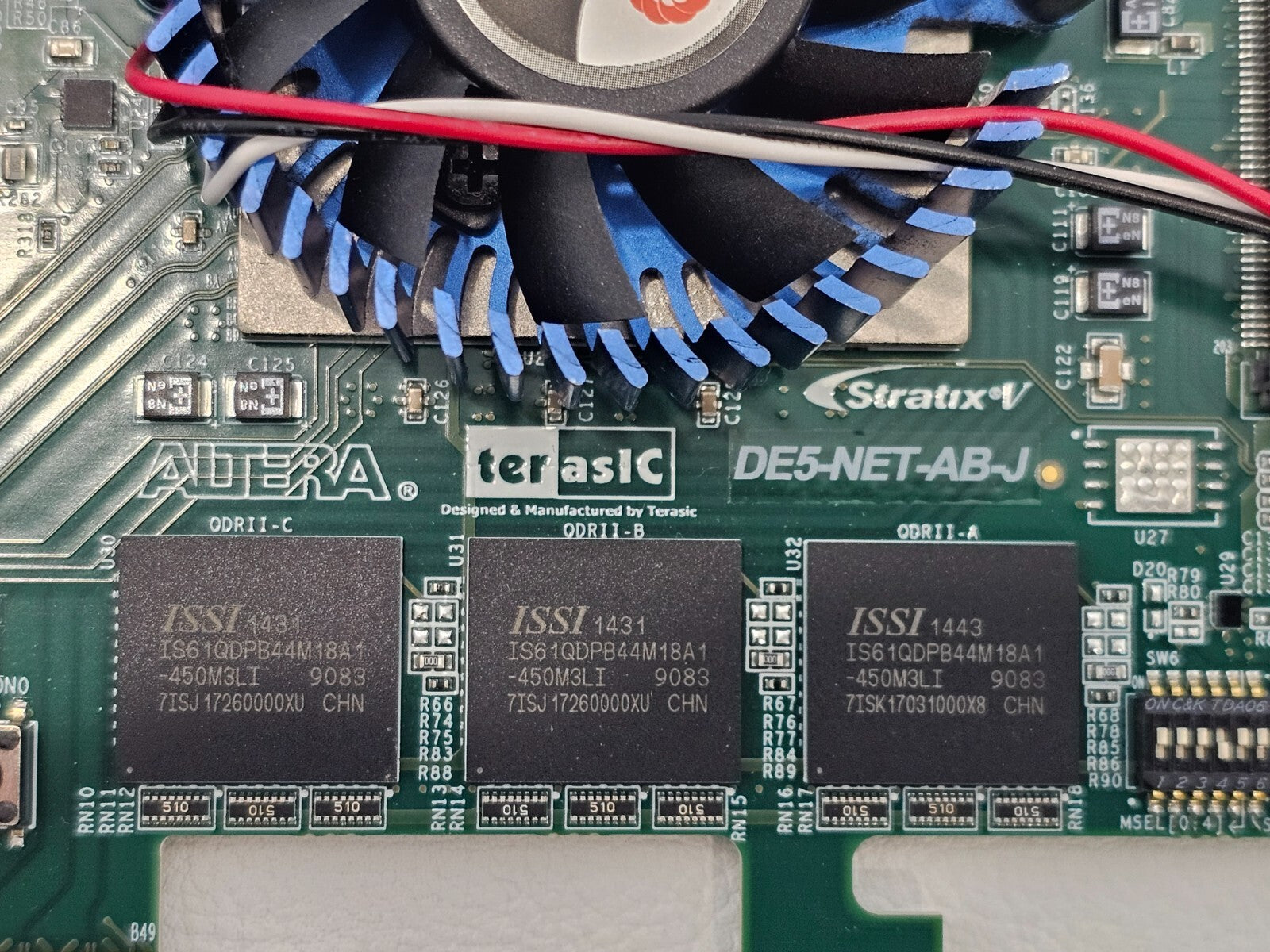

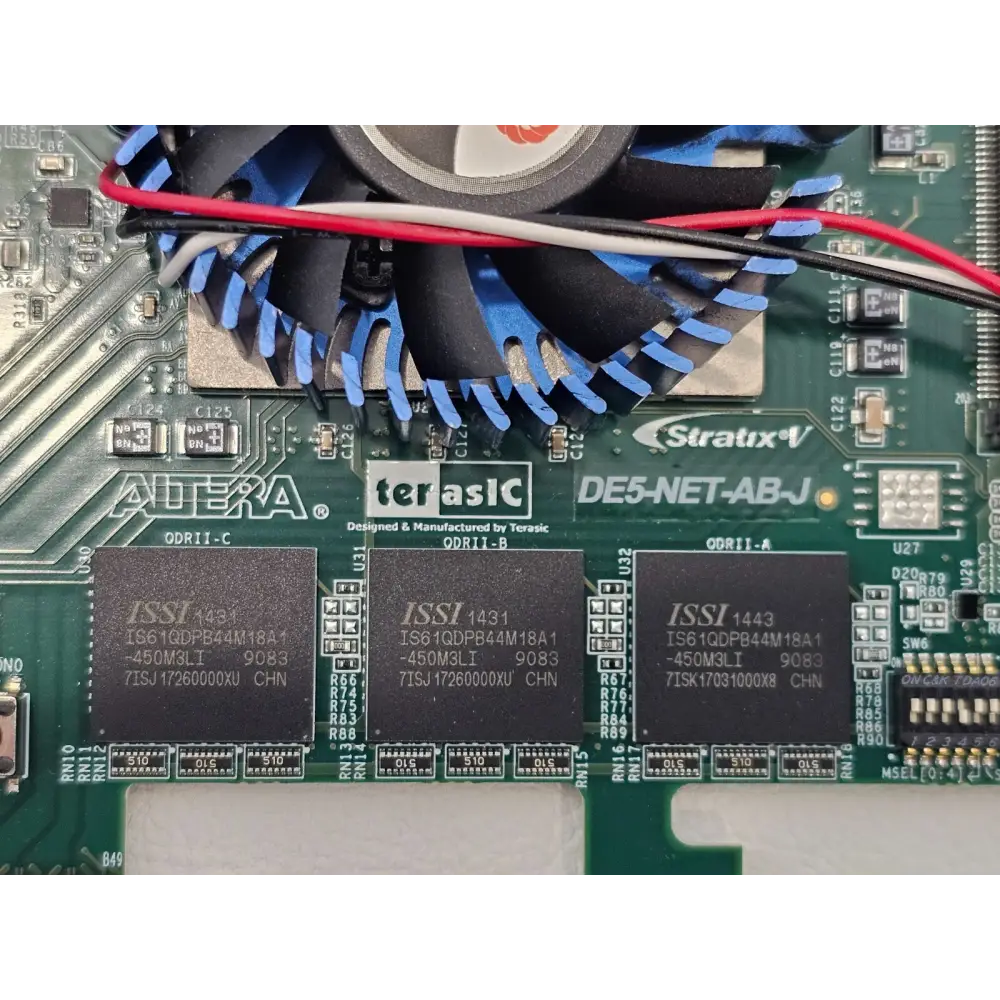

SRAM: Four independent 550 MHz QDRII+ SRAM banks, 18-bit data bus, 72 Mbit each (32 MB total)
Flash: 256 MB parallel flash
PCIe Interface: PCIe Gen1/2/3 x8 edge connector (x8 or x16 slot compatible)

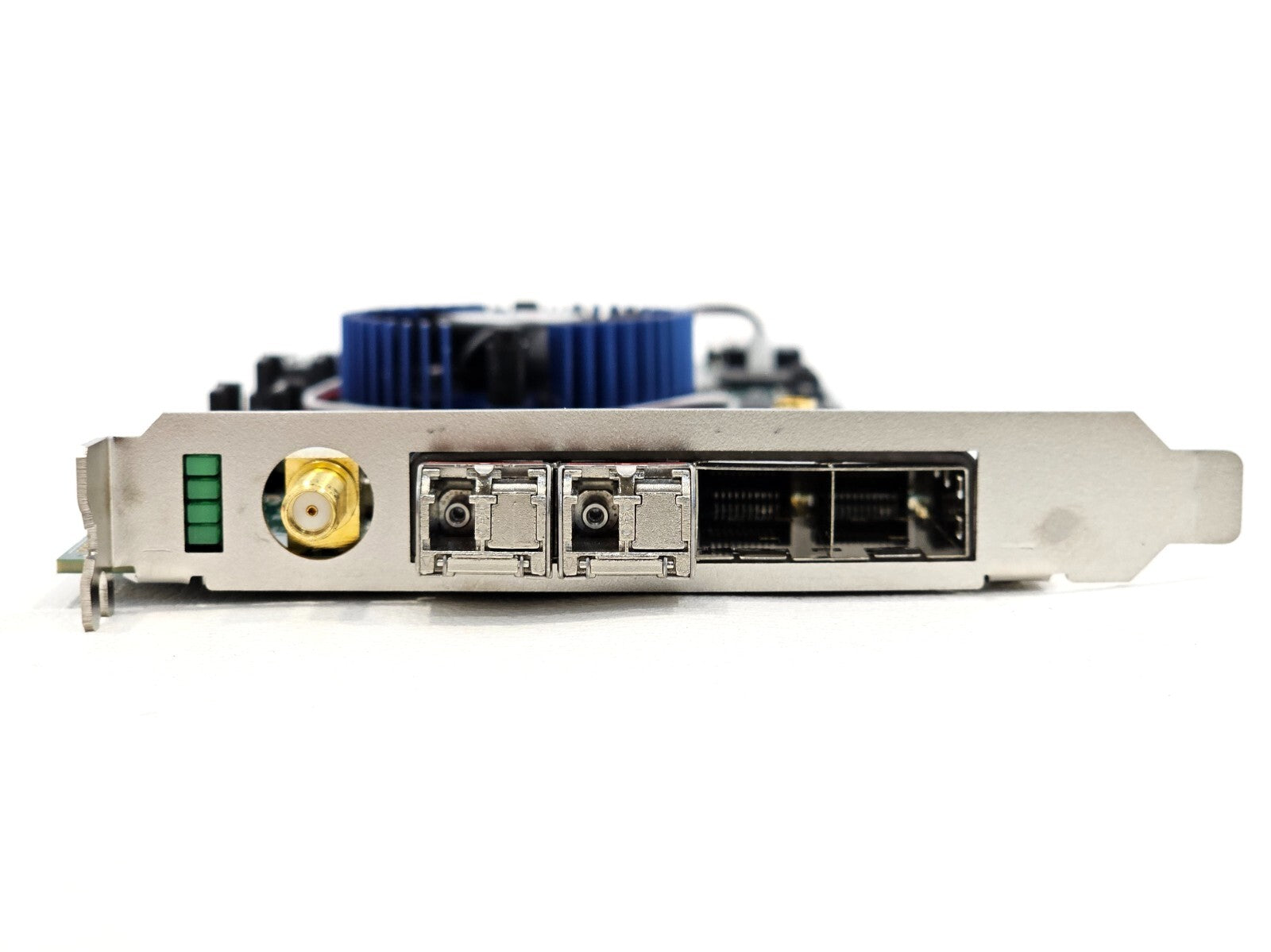

Network Ports: Four SFP+ connectors (10G Ethernet, PHY-less via integrated transceivers)
Storage: Four SATA 3.0 ports at 6 Gbps signalling rate
FPGA Programming: On-board USB Blaster II; JTAG header; fast passive parallel (FPPx32) via MAX II CPLD
Form Factor: Full-height, 3/4-length PCIe card
Power: PCI Express 6-pin 12 V DC + PCIe edge connector power
PCIe Slot Compatibility: x8 or x16 PCIe motherboard slot
Clock: 50 MHz on-board oscillator plus programmable Si570 oscillators for SFP+ and SATA reference clocks

Terasic DE5-Net User Manual (June 2018) — full technical reference and pin assignments: Download PDF
