Condition: Refurbished

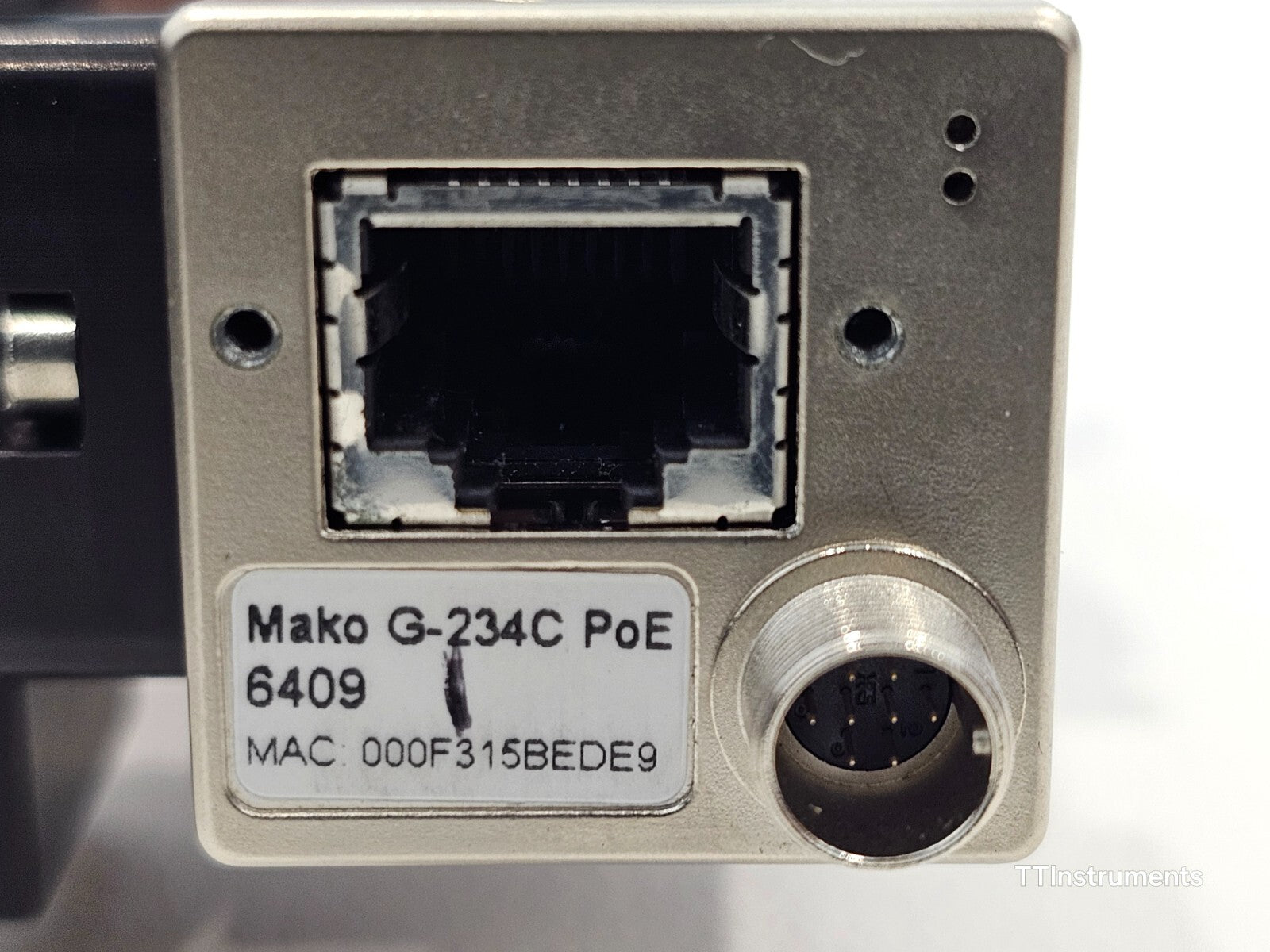

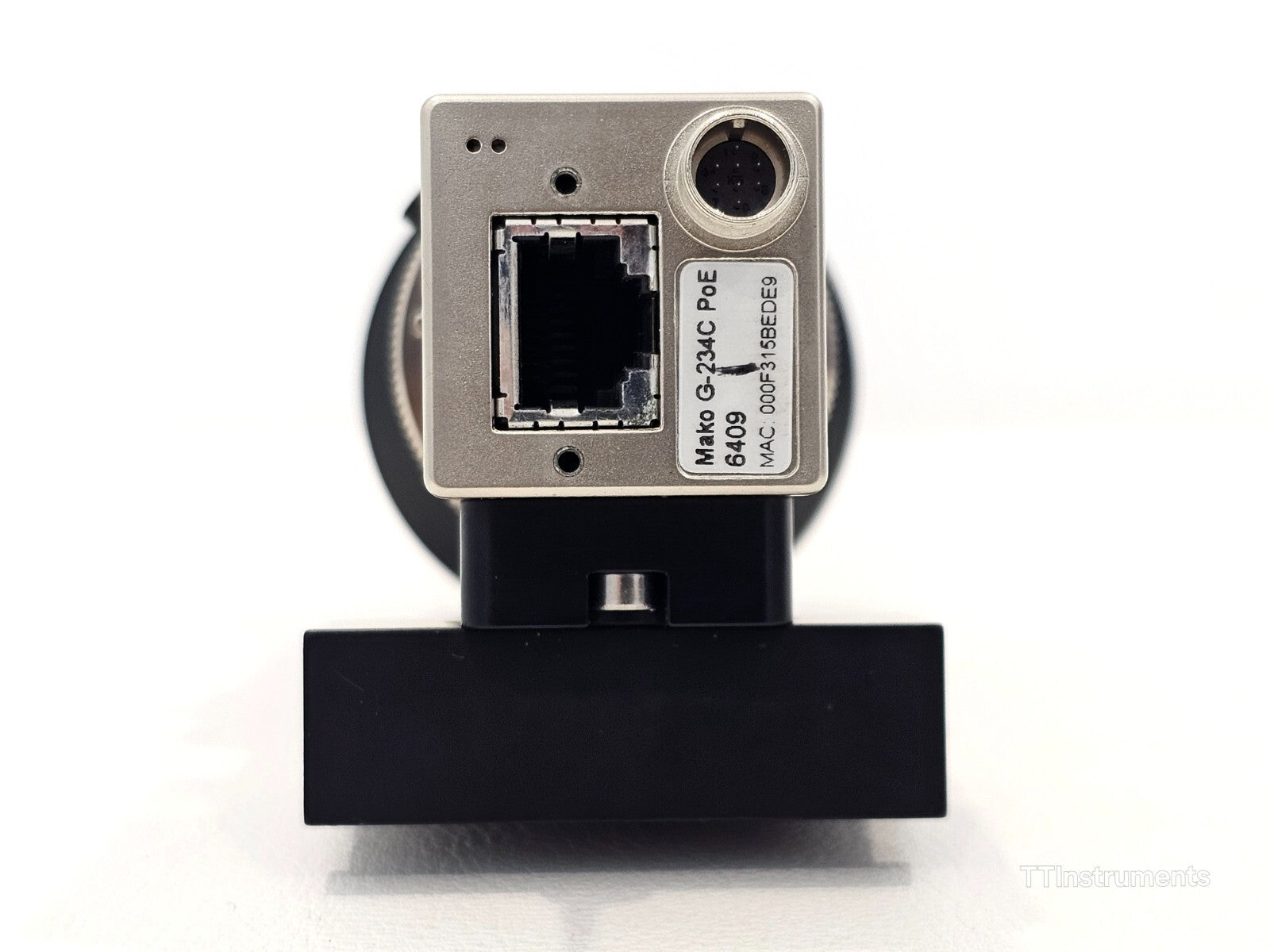

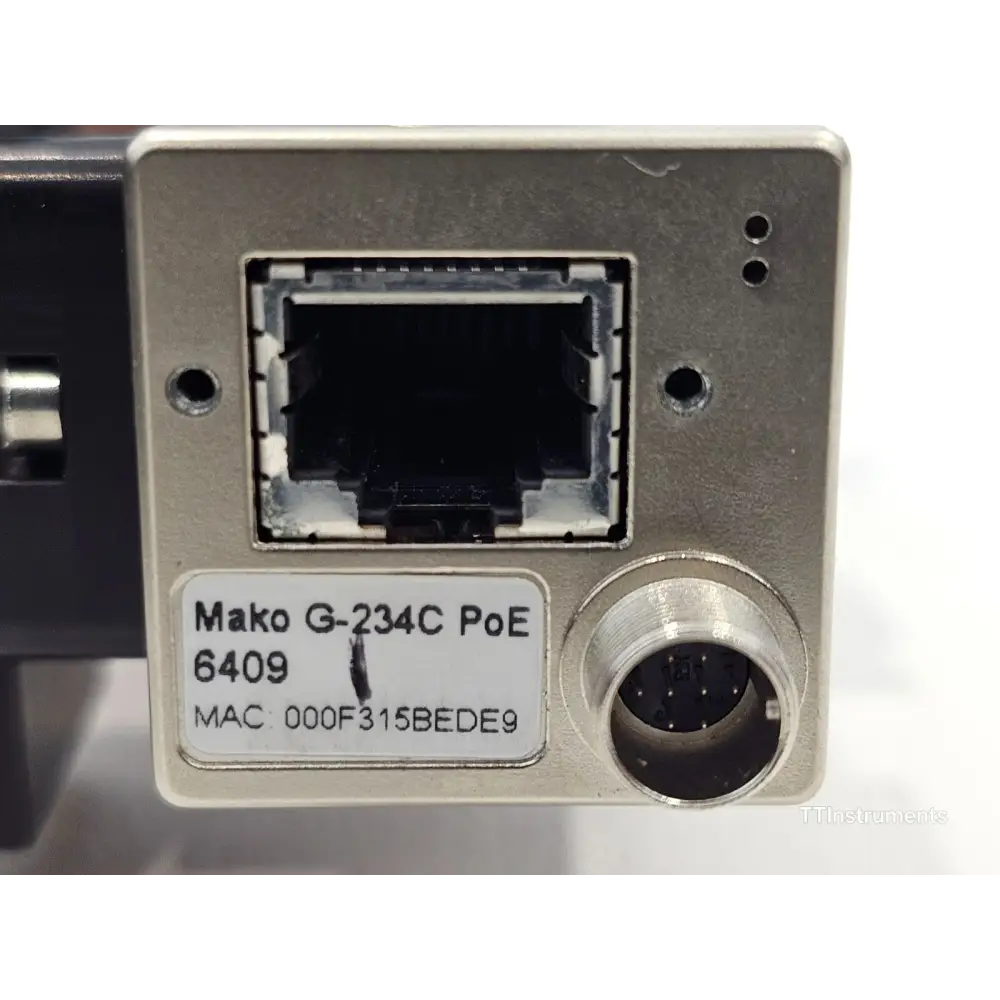

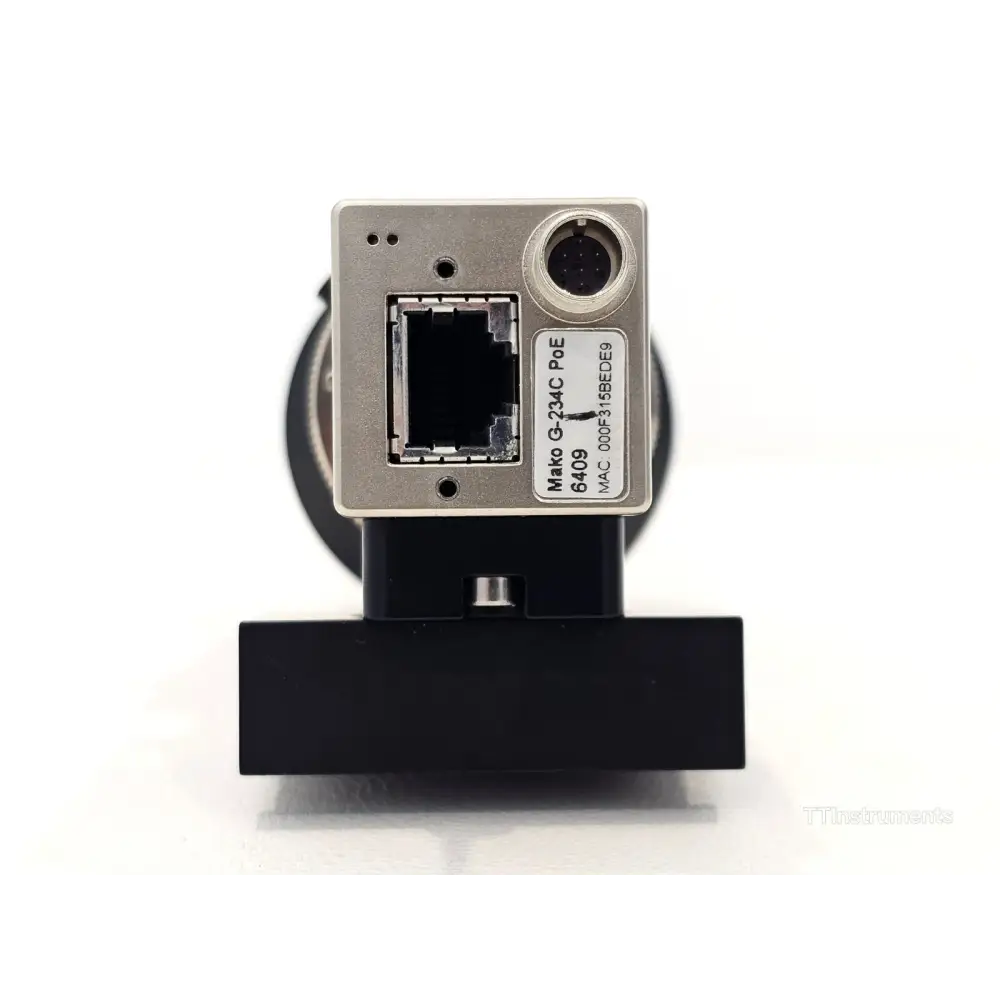

This Allied Vision Mako G-234C PoE GigE Vision colour camera (serial: 6409, MAC: 000F315BEDE9) has been seller refurbished and tested fully functional. The unit was connected via its PoE RJ45 port to a local network and video streaming was confirmed operational using Allied Vision's AcquireControl software. Some cosmetic imperfections are present but do not affect performance.

Included in the sale:

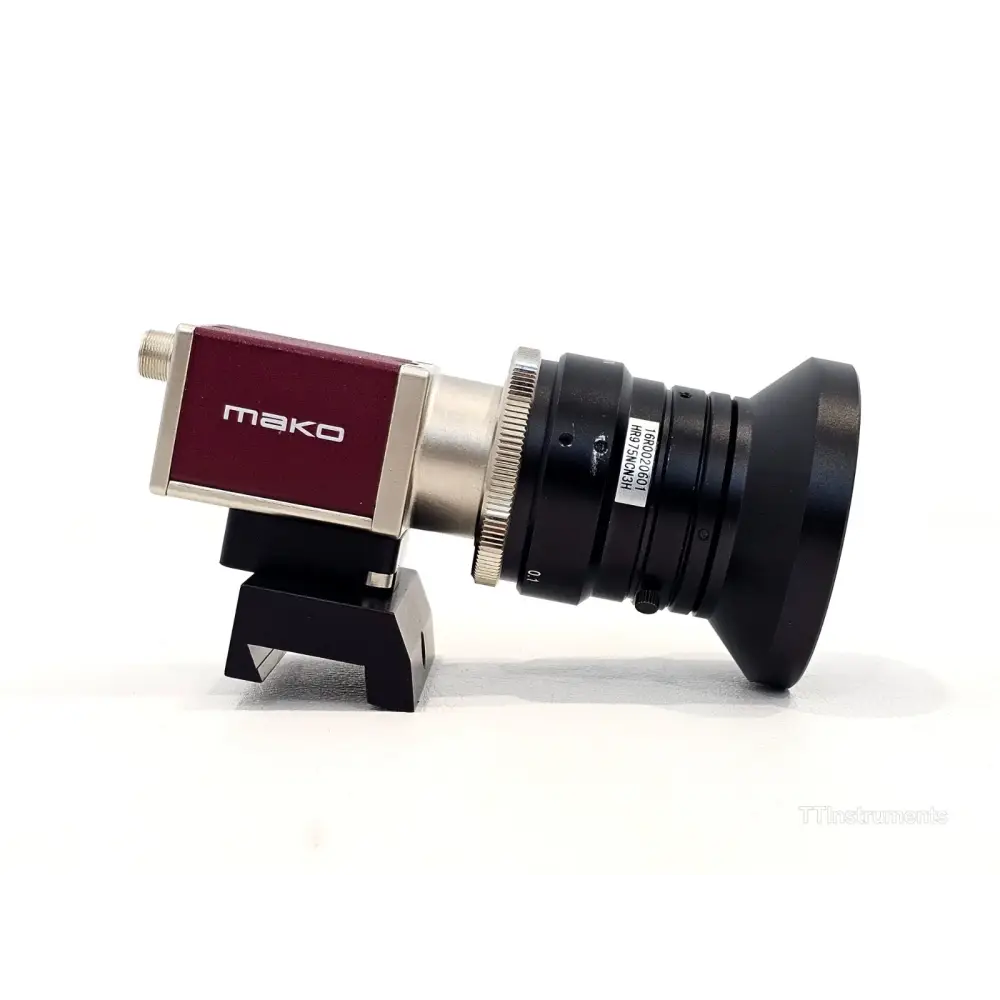

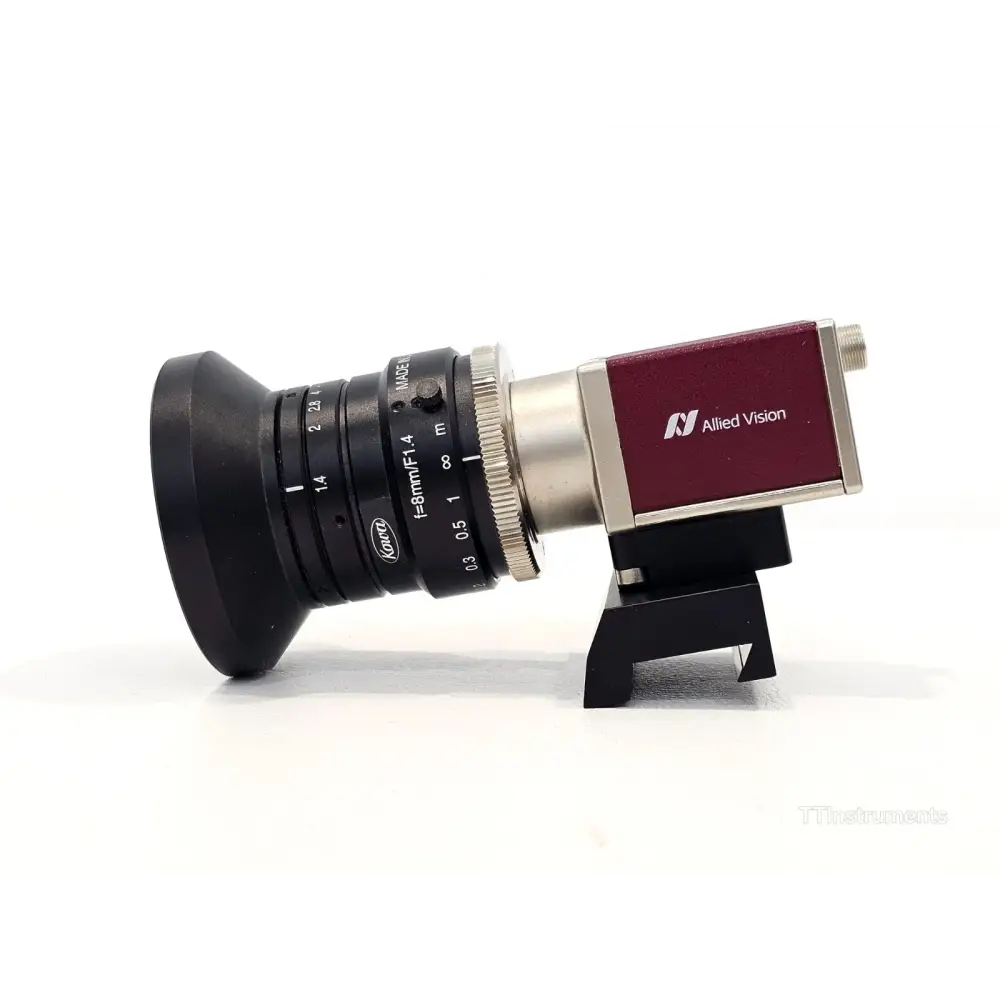

• Allied Vision Mako G-234C PoE GigE Vision camera (s/n 6409)

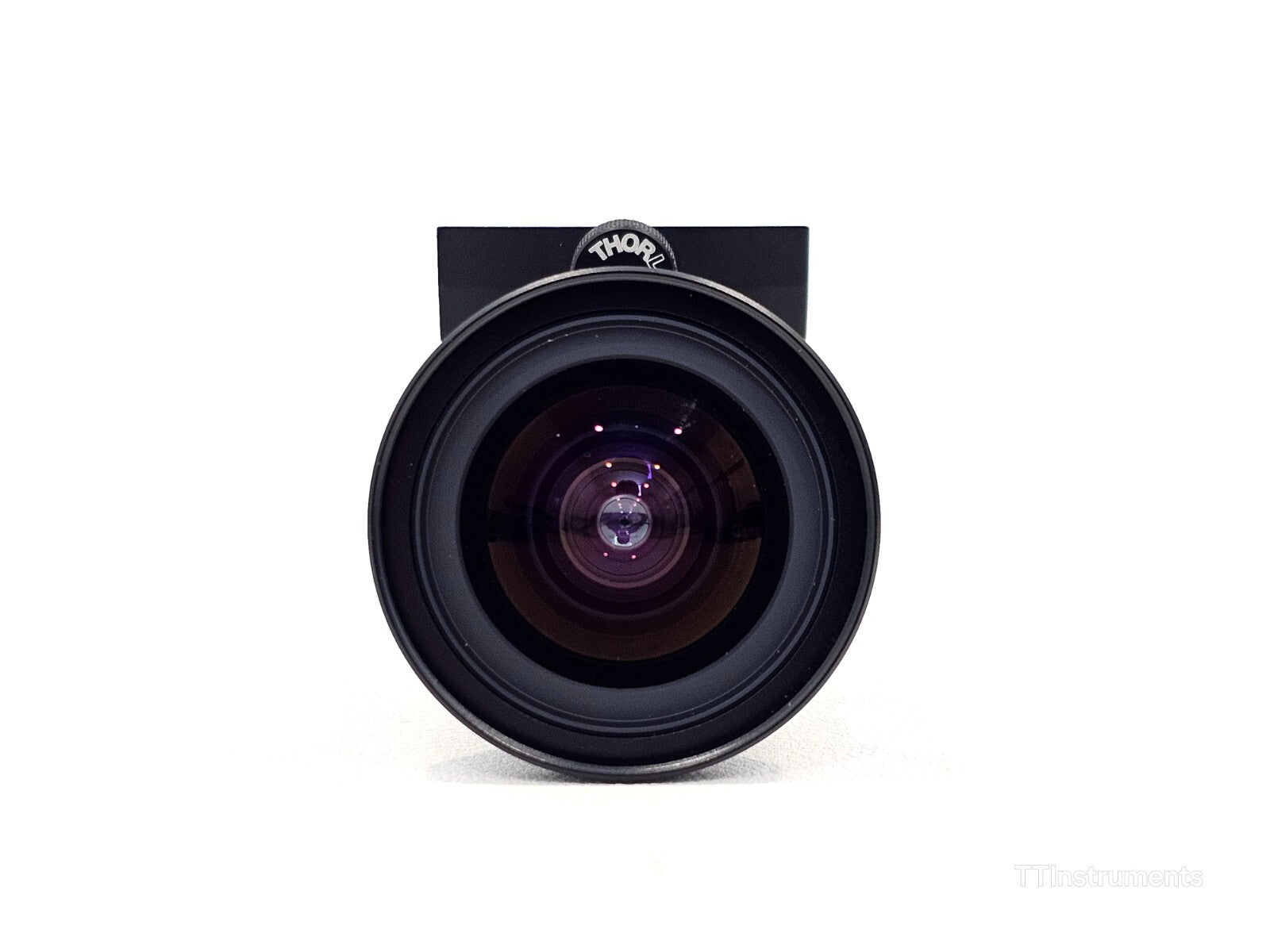

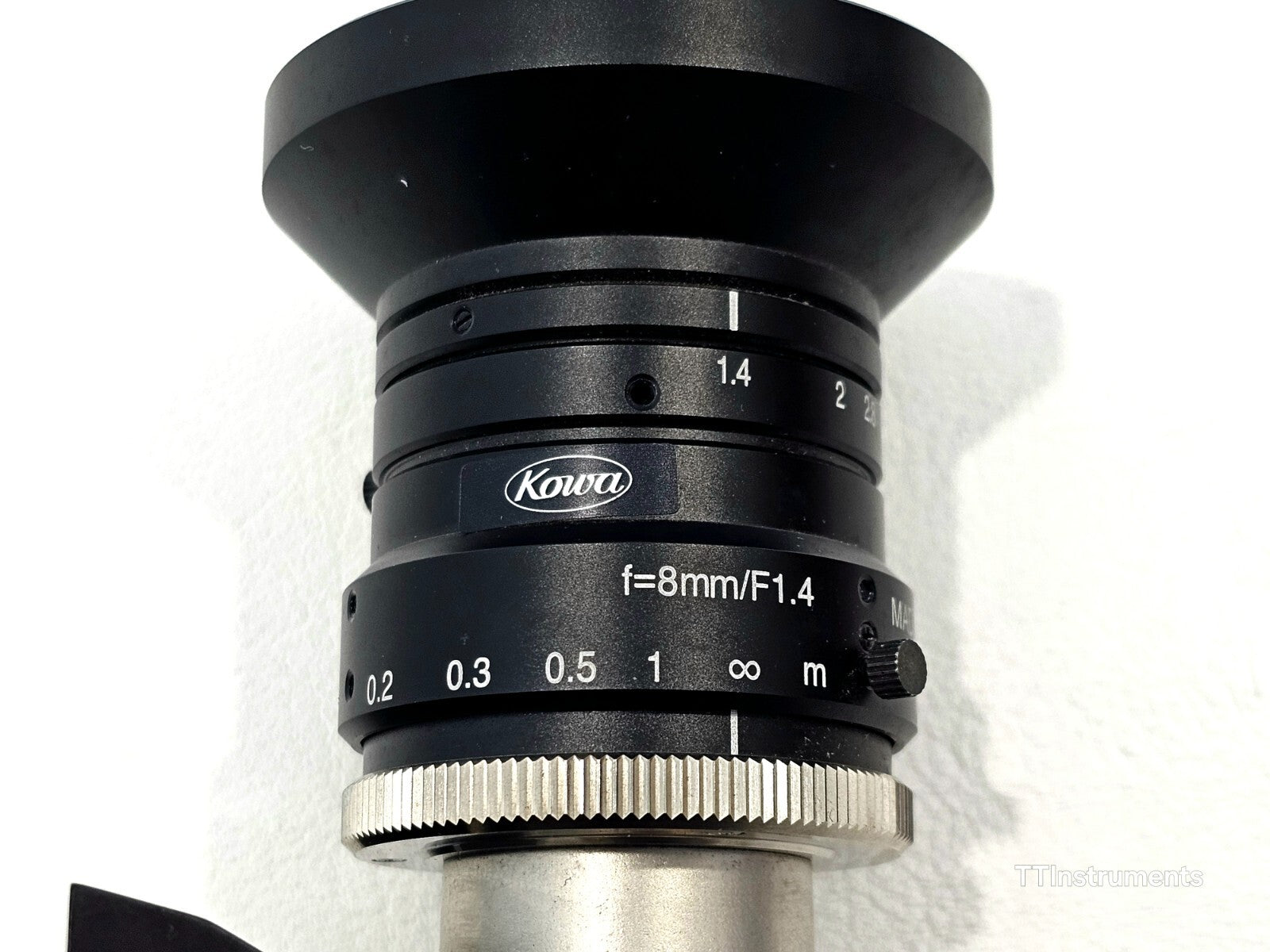

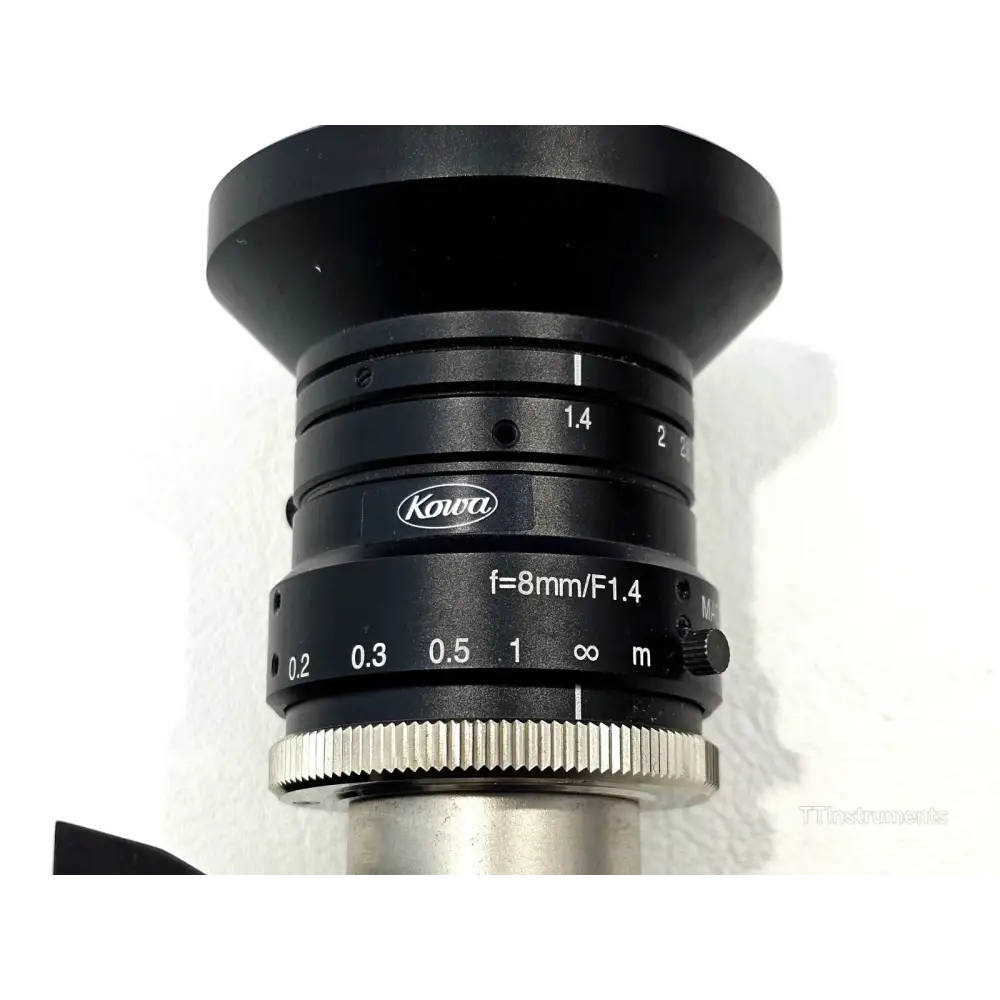

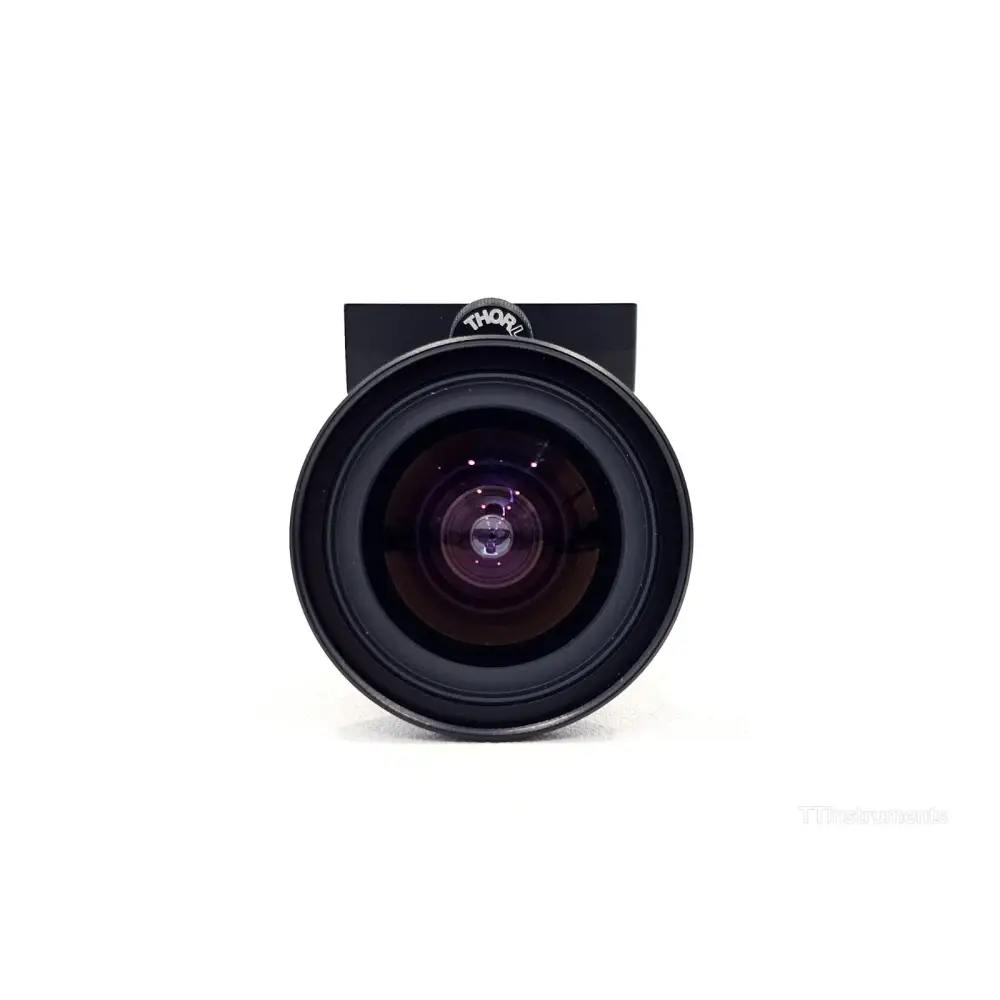

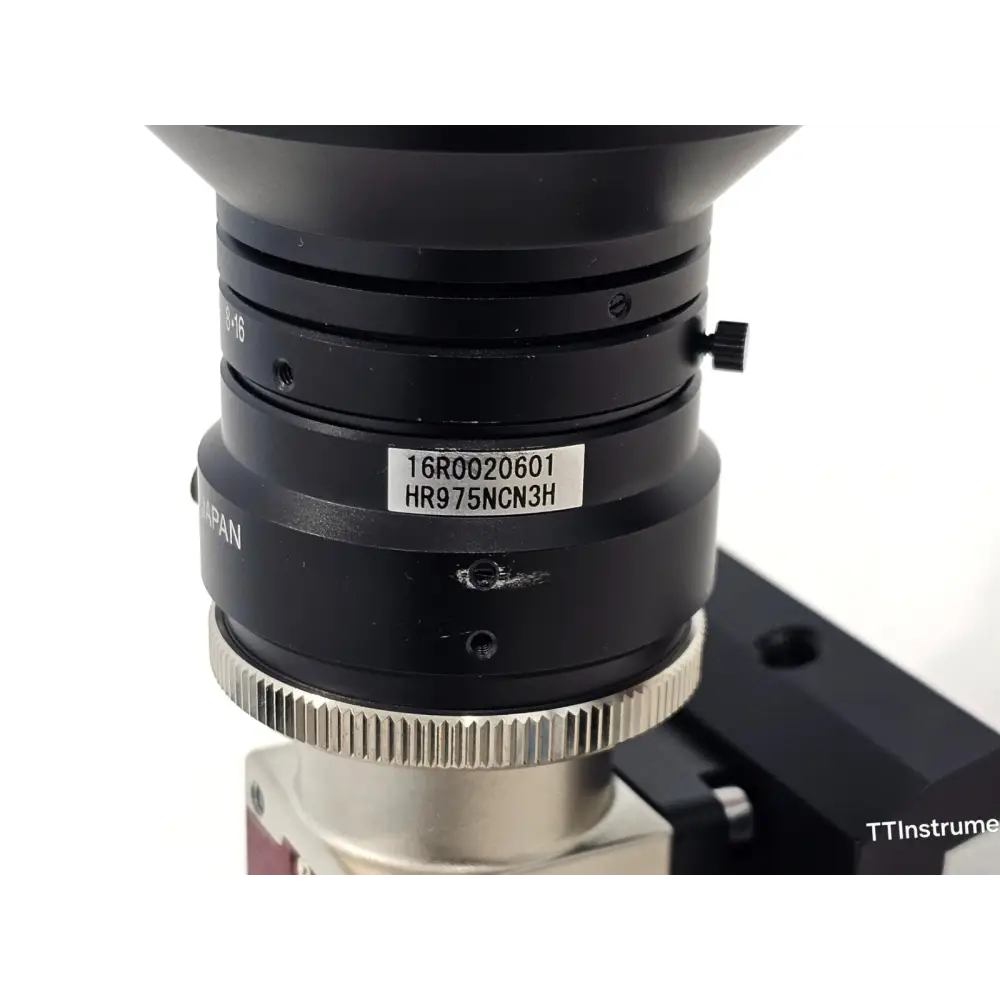

• Kowa LM8HC f=8mm/F1.4 C-Mount lens

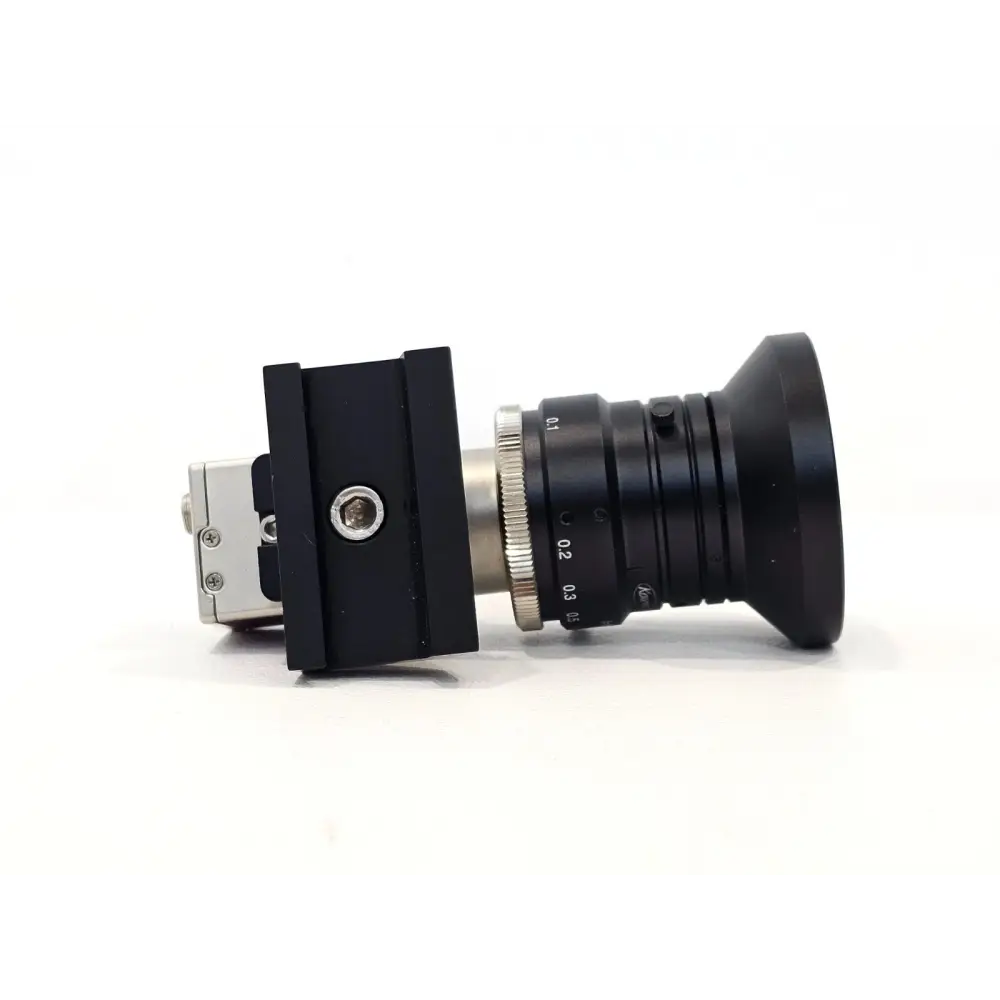

• Thorlabs quick-release rail mount/bracket
• USB drive with software (available upon request, free of charge)

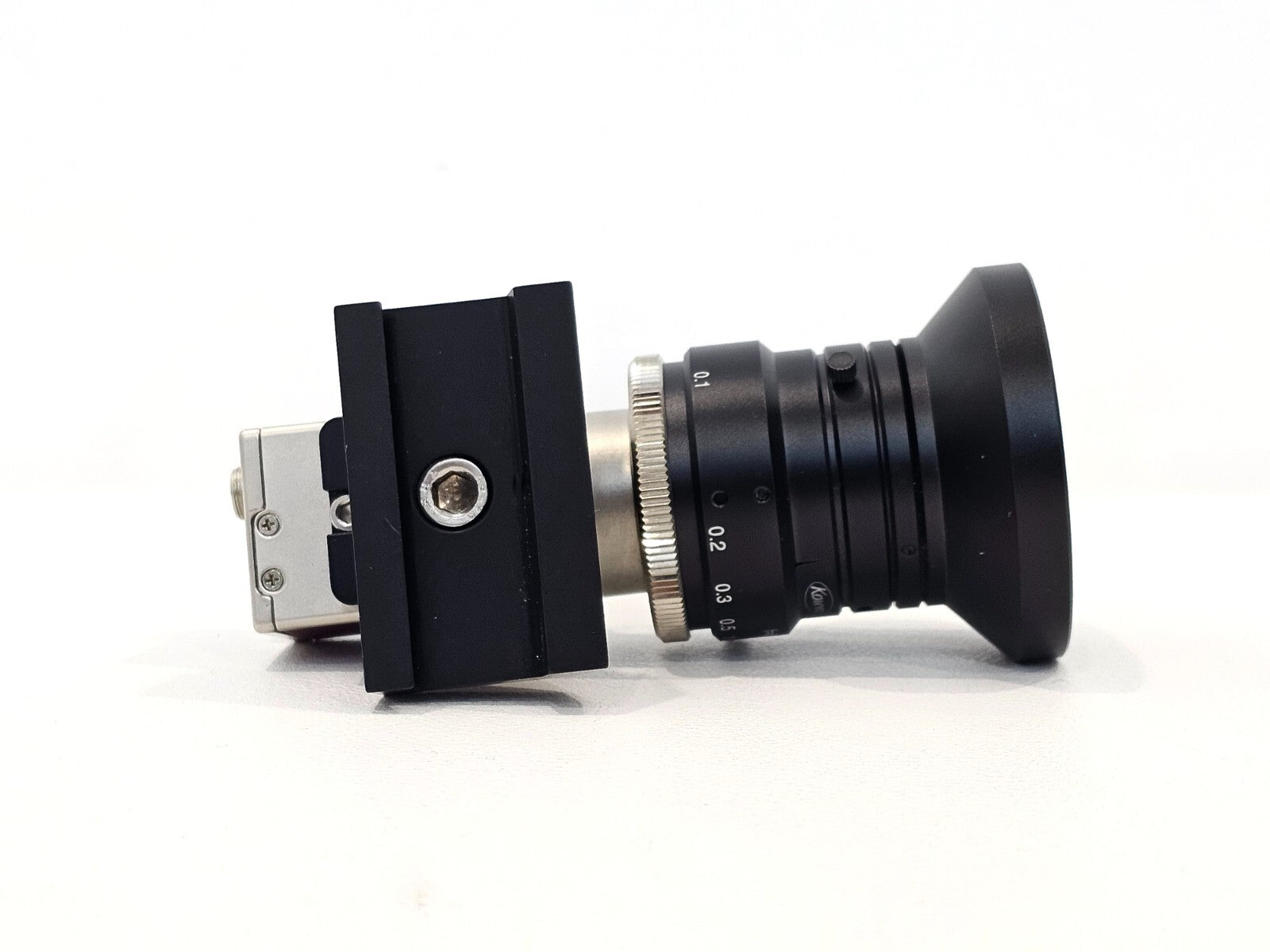

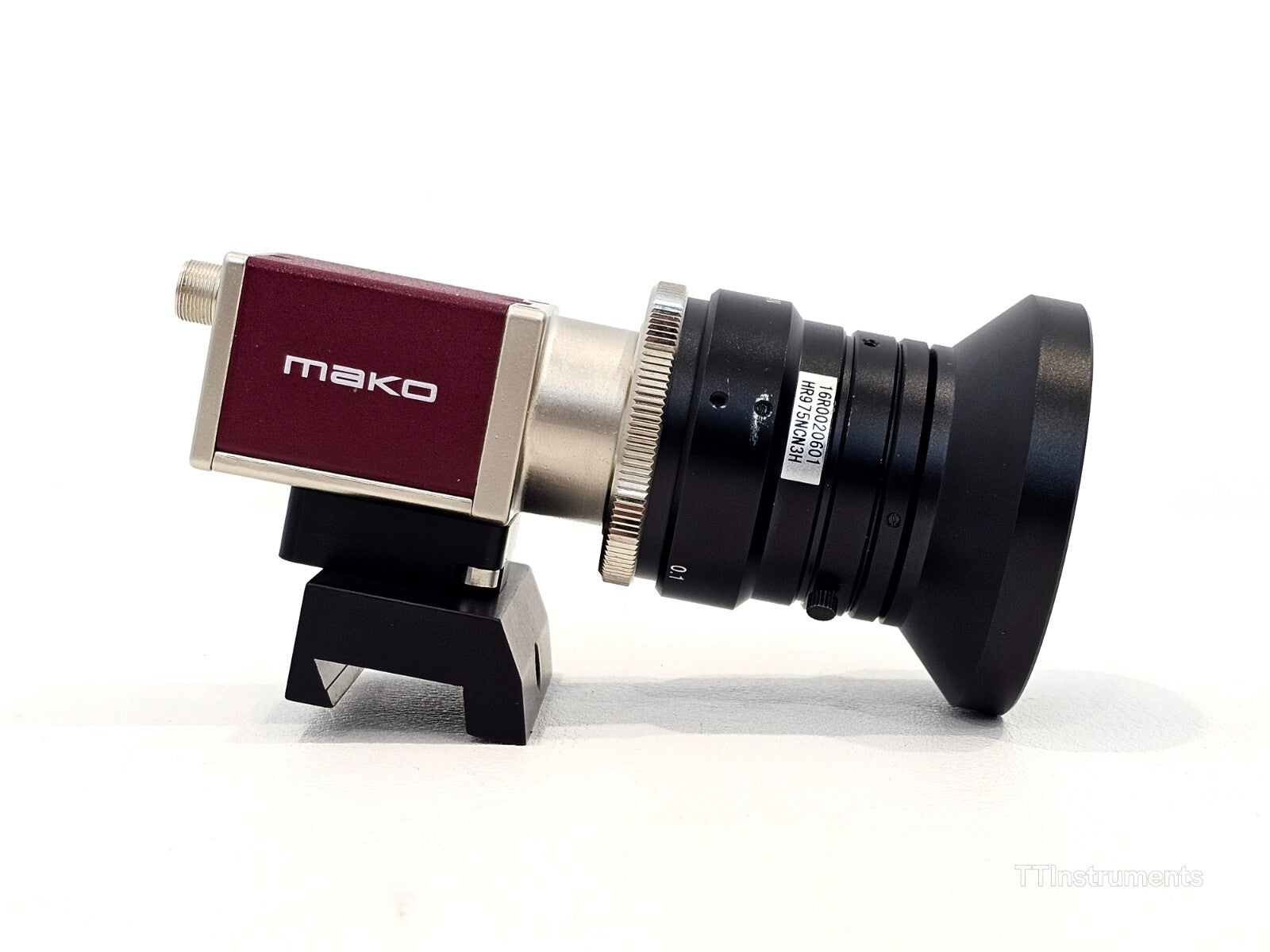

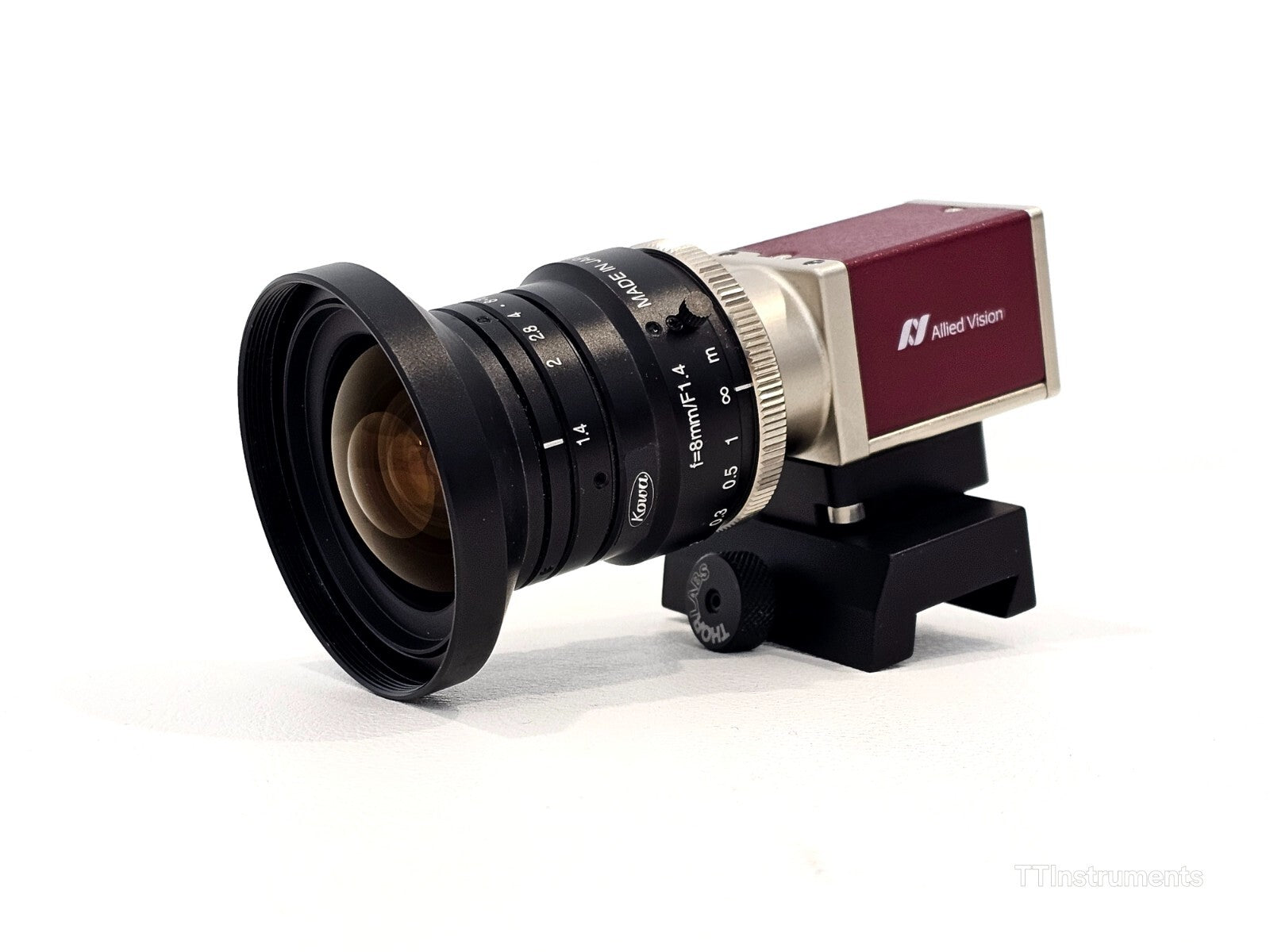

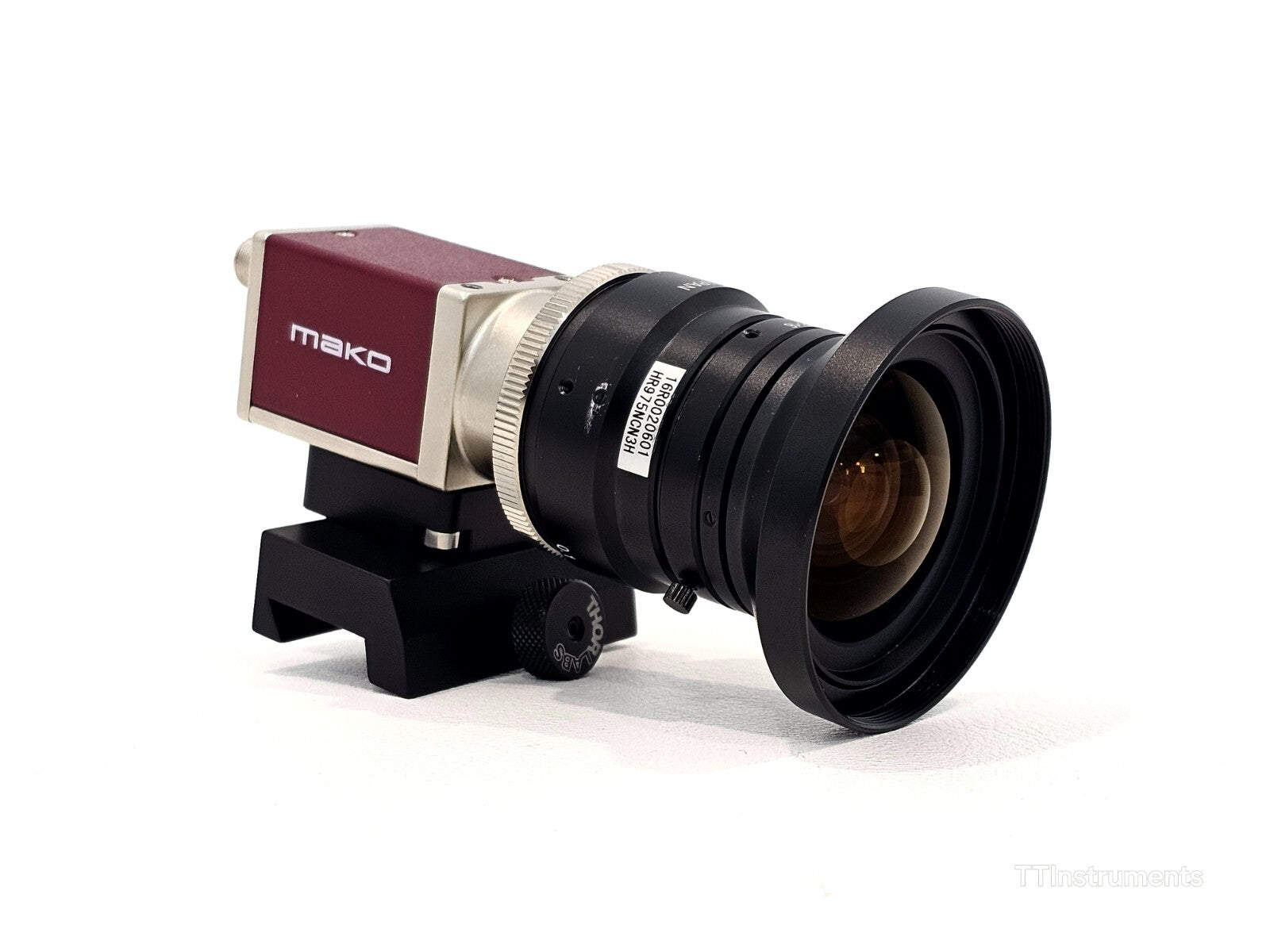

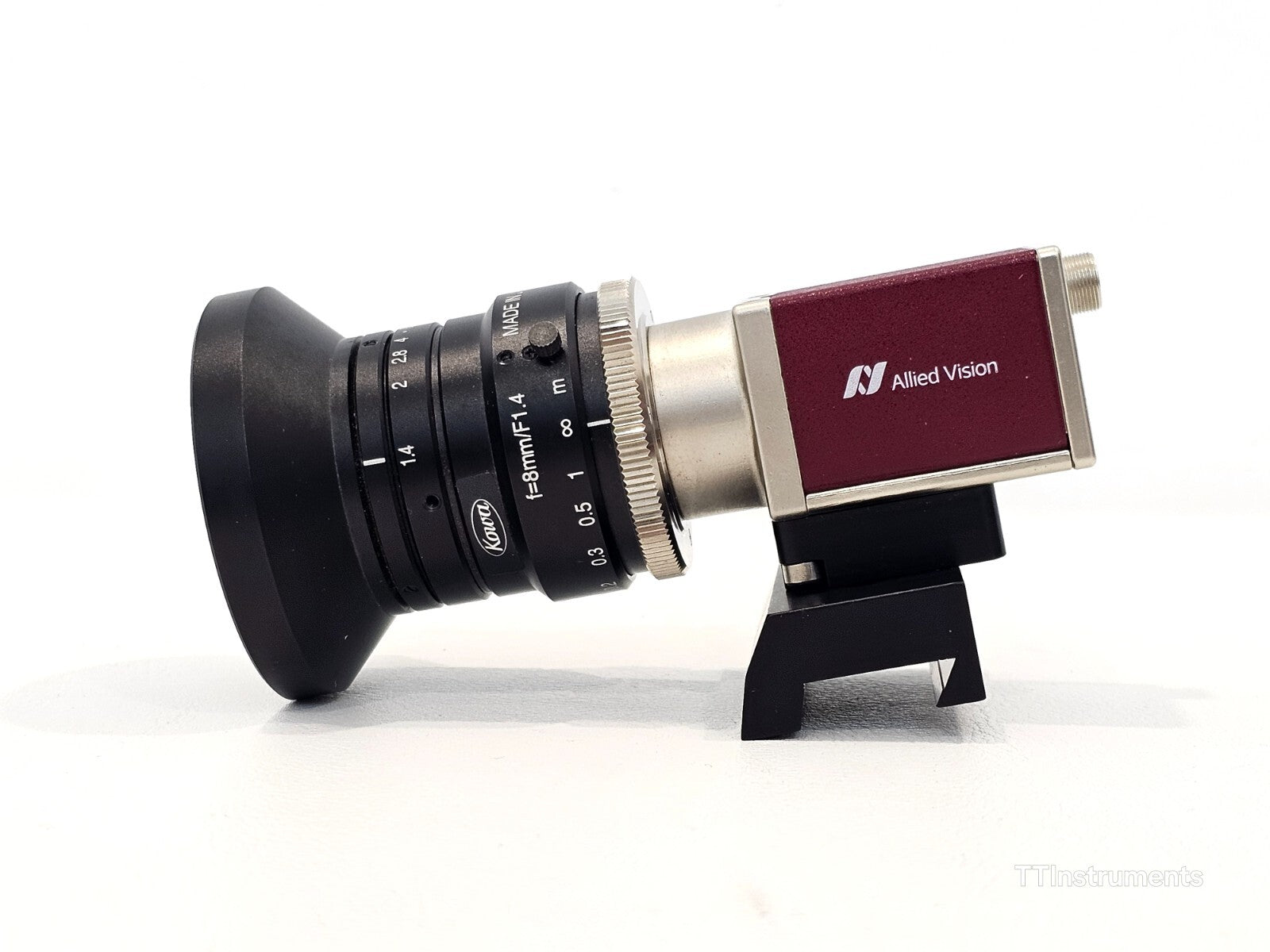

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Allied Vision Mako G-234C is a 2.35 megapixel GigE Vision compliant colour machine vision camera incorporating the Sony IMX249LQJ Exmor CMOS sensor with Pregius global shutter technology. It is part of Allied Vision's ultra-compact Mako G series, sharing the same form factor and mounting positions as many legacy analogue cameras, making it an ideal modern replacement.

At full resolution the camera delivers up to 41.5 frames per second in 10-bit readout mode, with higher frame rates achievable at reduced regions of interest. The GigE Vision interface with Power over Ethernet (PoE) support enables single-cable operation over standard CAT-5e or CAT-6 cabling up to 100 metres. The camera features a precision-aligned sensor, a 64 MB image buffer, and three opto-isolated outputs plus one opto-isolated input. IEEE 1588 Precision Time Protocol (PTP) enables synchronisation of multiple cameras on a network, and Trigger over Ethernet (ToE) Action Commands allow a single-cable trigger solution.

The Mako G-234C ships standard with a Hoya C-5000 IR cut filter and a C-Mount lens interface. Smart features include region of interest (ROI) readout, programmable exposure and white balance, bandwidth control, and defect pixel masking. The camera is compatible with Allied Vision's Vimba X SDK and major third-party machine vision libraries.

Key Specifications — Allied Vision Mako G-234C:
Sensor: Sony IMX249LQJ Exmor (Pregius)
Sensor Type: CMOS Global Shutter (Colour)
Sensor Format: Type 1/1.2 (13.4 mm diagonal)
Resolution: 1936 x 1216 pixels (2.35 MP)
Frame Rate (full res, 10-bit): 41.5 fps
Frame Rate (full res, 12-bit): 32.3 fps
Interface: GigE Vision (IEEE 802.3)
Power: Power over Ethernet (PoE) or 12–24 VDC
Power Consumption: 2.4 W @ 12 VDC; 2.8 W PoE
Lens Mount: C-Mount
I/O: 1x opto-isolated input, 3x opto-isolated outputs
Image Buffer: 64 MB
Binning: Horizontal and Vertical: 1, 2, 4, 8 factor
Pixel Formats: Mono8, BayerRG8, BayerRG12, BayerRG12Packed, YUV411Packed, YUV422Packed, RGB8Packed, BGR8Packed
Sensor Readout: 10-bit and 12-bit
Optical Filter (colour): Hoya C-5000 IR cut filter (default)
Cable Length Support: Up to 100 m (CAT-5e or CAT-6)
Compliance: GigE Vision, GenICam

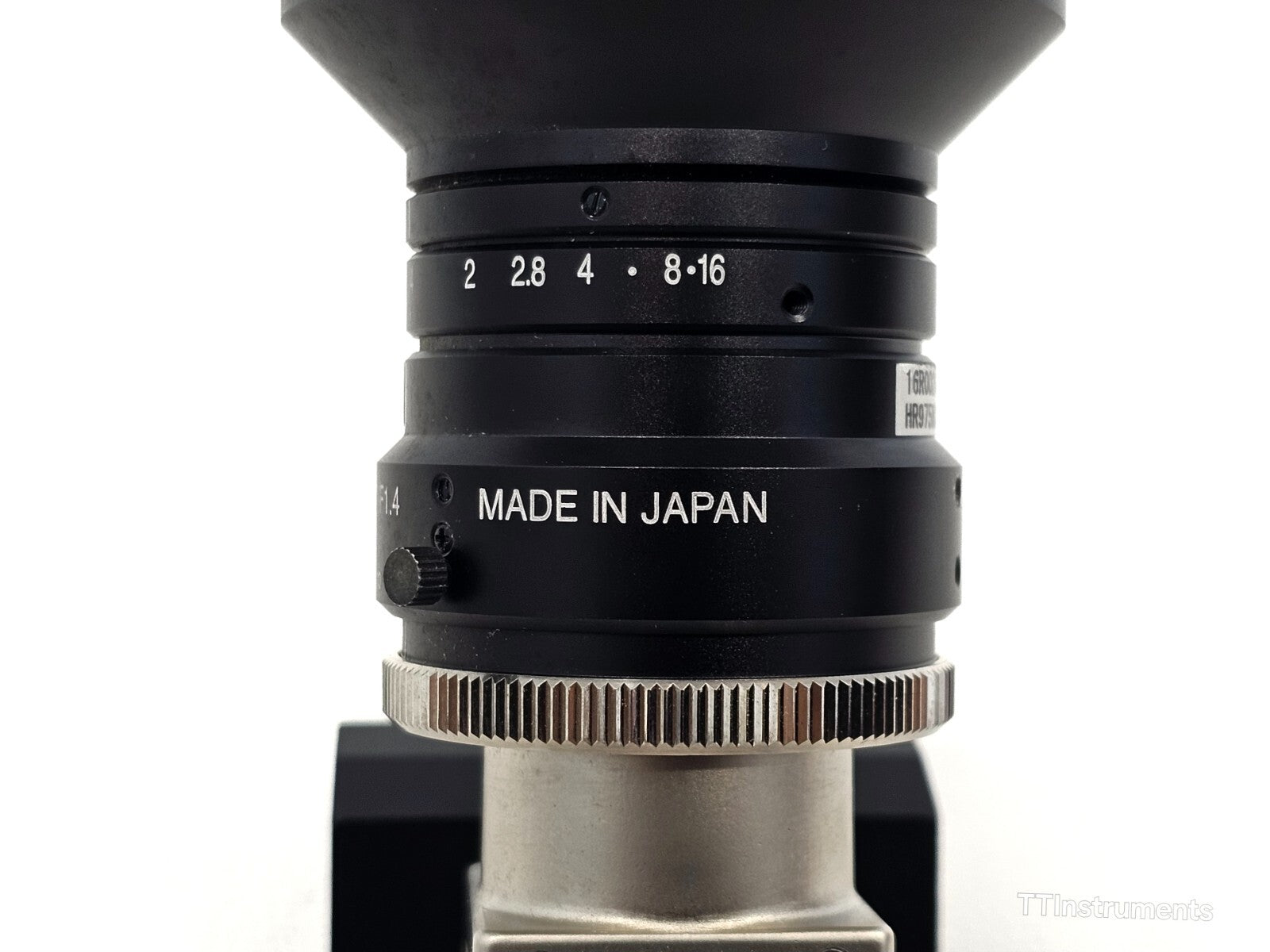

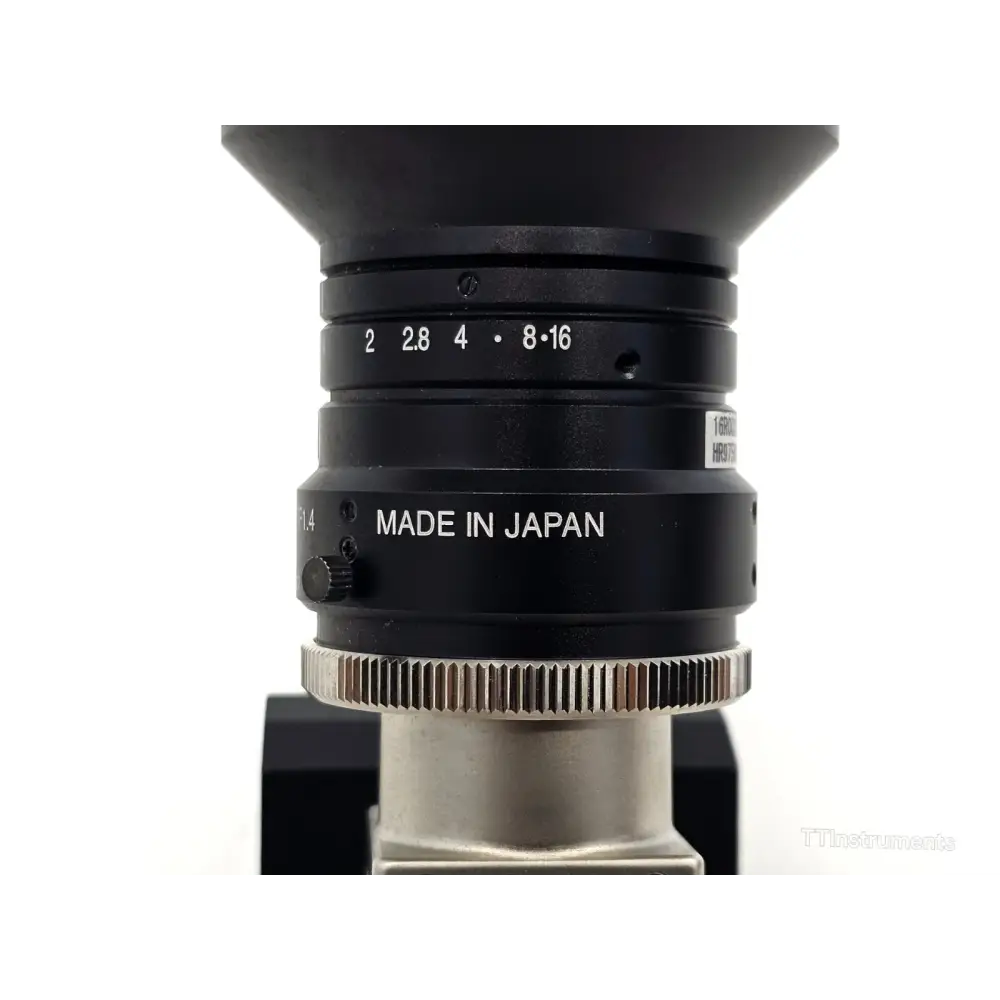

Kowa LM8HC Lens Specifications:
Focal Length: 8 mm
Aperture Range: F1.4 – F16
Aperture Control: Manual
Focus Control: Manual
Focus Range: 0.1 m – ∞
Image Format: 1" (Ø16 mm)
Angle of View (H x V x D): 79.7° x 63.0° x 92.4°
Back Focal Length: 11.2 mm (in air)
Mount: C-Mount
Filter Thread: M55 x P0.75
Dimensions (L x W): 57 mm x 58 mm
Distortion: -1.2%
Resolution: 100 lp/mm (centre) / 80 lp/mm (margin)

Use Cases: Industrial inspection, machine vision, robotics, logistics, scientific imaging, automation.

Allied Vision Mako G-234 official datasheet — key specifications and performance data: Download PDF

Allied Vision Mako G Technical User Guide (V4.7.6) — full technical manual covering all Mako G models including G-234: Download PDF

Kowa LM8HC lens datasheet — optical specifications and performance data: Download PDF
