Condition: Used

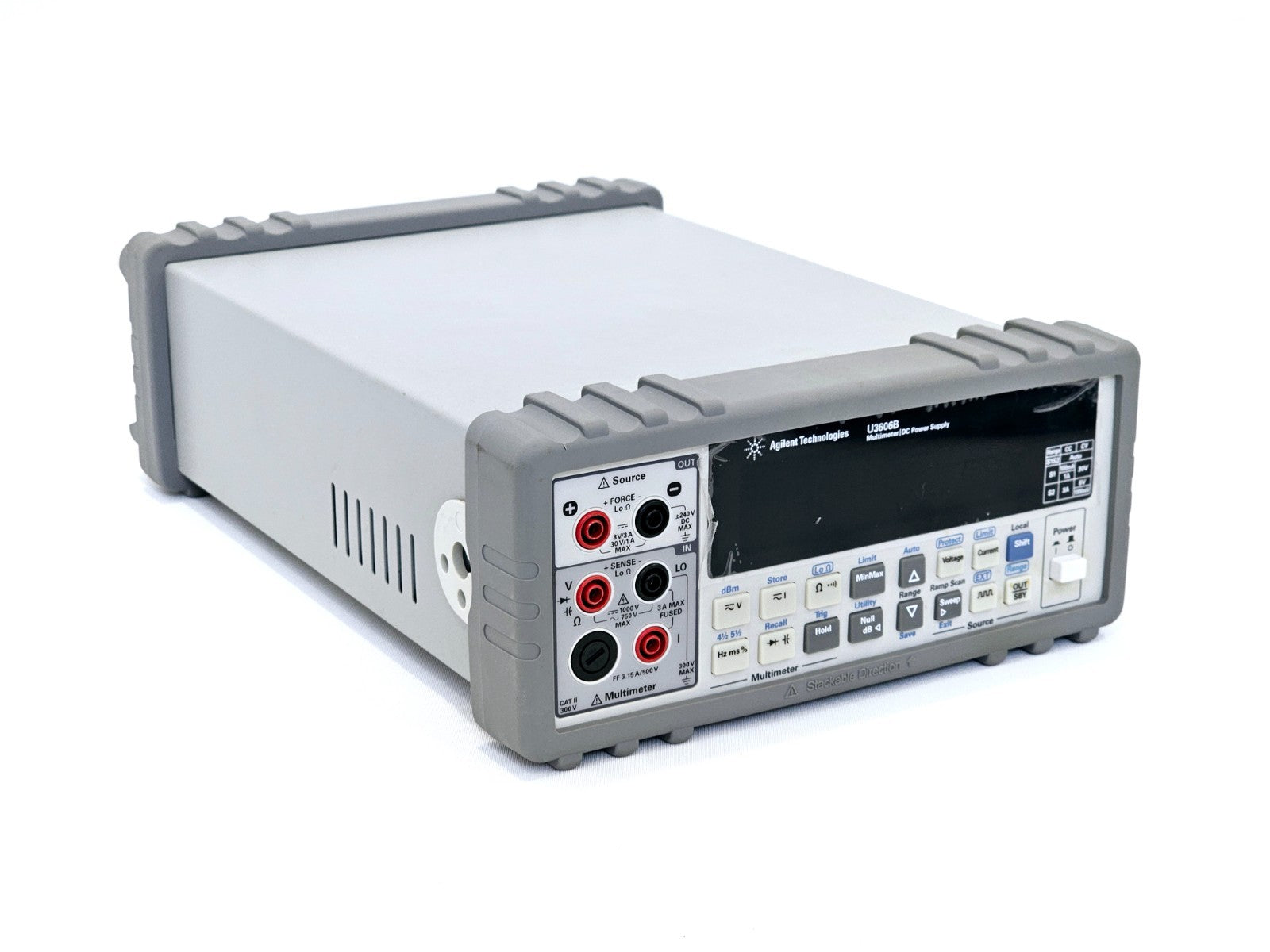

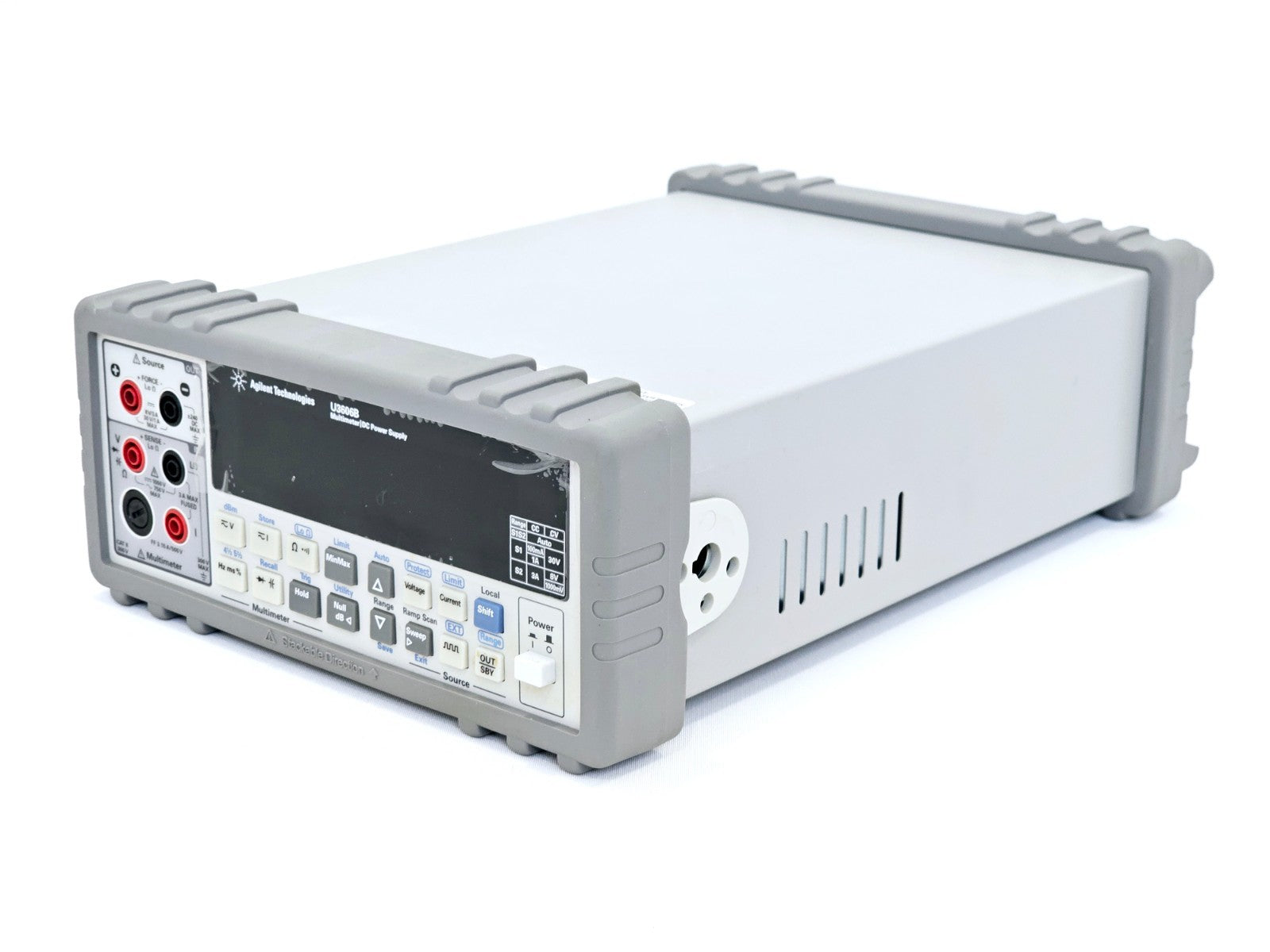

This Agilent U3606B is a used benchtop hybrid multimeter and DC power supply. It integrates both instruments in one unit, enabling simultaneous source and measure operation from the same front-panel terminals. The unit is supplied with the accessories listed below.

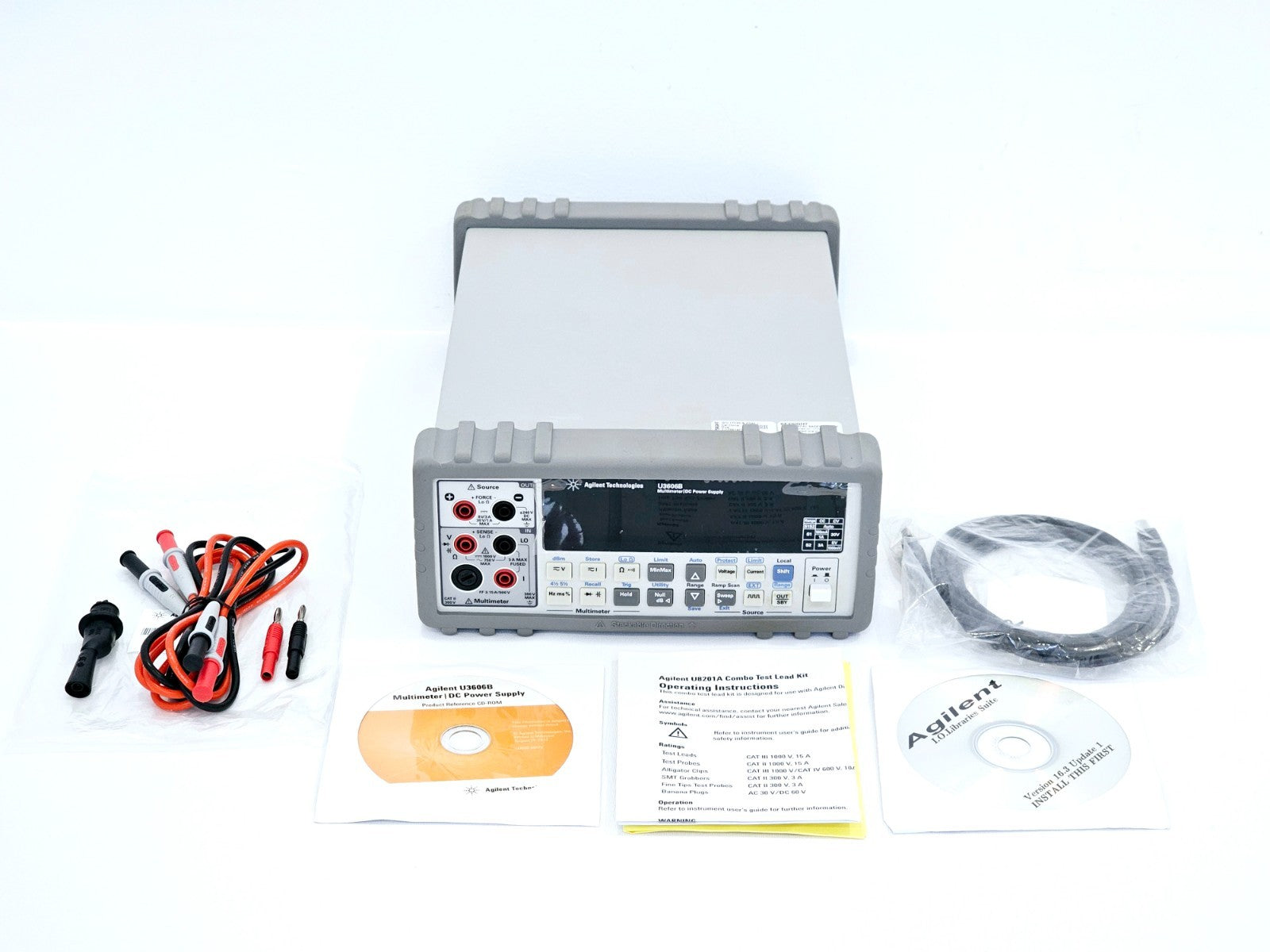

Included in the sale:
• Agilent U3606B Multimeter | DC Power Supply main unit
• Test lead set
• USB cable
• Two Agilent CDs
• Operating instructions leaflet

The Agilent (Keysight) U3606B Multimeter | DC Power Supply is a full-featured 5.5-digit benchtop instrument that combines a digital multimeter and a 30 W DC power supply in a single unit. The DMM and power supply operate simultaneously and independently, allowing users to power a device under test (DUT) while measuring voltage, current, or other parameters at the same time. The compact, lightweight design halves bench and rack space requirements compared to using two separate instruments, making it well suited to laboratory, education, semiconductor, and production test environments.

DIGITAL MULTIMETER SPECIFICATIONS
Resolution: 120,000 counts (5½ digits)
Basic DCV Accuracy: 0.025%
DC Voltage Range: 19.9999 mV to 1000 V
AC Response: True RMS
Measurement Functions: 10 (DC voltage, AC voltage, DC current, AC current, 2-wire resistance, 4-wire resistance/milliohm, frequency, continuity, diode, capacitance)
4-Wire Milliohm Range: 100 mΩ to 1000 Ω (resolution 0.001 mΩ)
Resistance Range: Up to 100 MΩ
Capacitance Range: 1 nF to 10,000 µF
Frequency Range: 2 Hz to 300 kHz
Math Functions: 8 built-in (NULL, dB, dBm, Average, Min/Max, Compare/Limit, Hold)
Measurement Rate: Up to 37 readings per second
Safety Rating: CAT I 1000 V DC / 750 V AC; CAT II 300 V

DC POWER SUPPLY SPECIFICATIONS
Output Power: 30 W
Output Ranges: 30 V / 1 A; 100 mA / 30 V; 8 V / 3 A; 1000 mV / 3 A
Line/Load Regulation: Up to 0.01% + 3 mV
Protection: Over-voltage protection (OVP) and over-current protection (OCP)
Square Wave Generator: Selectable frequencies up to 4.8 kHz, variable duty cycle and amplitude
Sweep Functions: Auto ramp and scan for multi-level DC bias testing
Remote Sensing: Built-in, ensures accurate voltage at load end

CONNECTIVITY & GENERAL

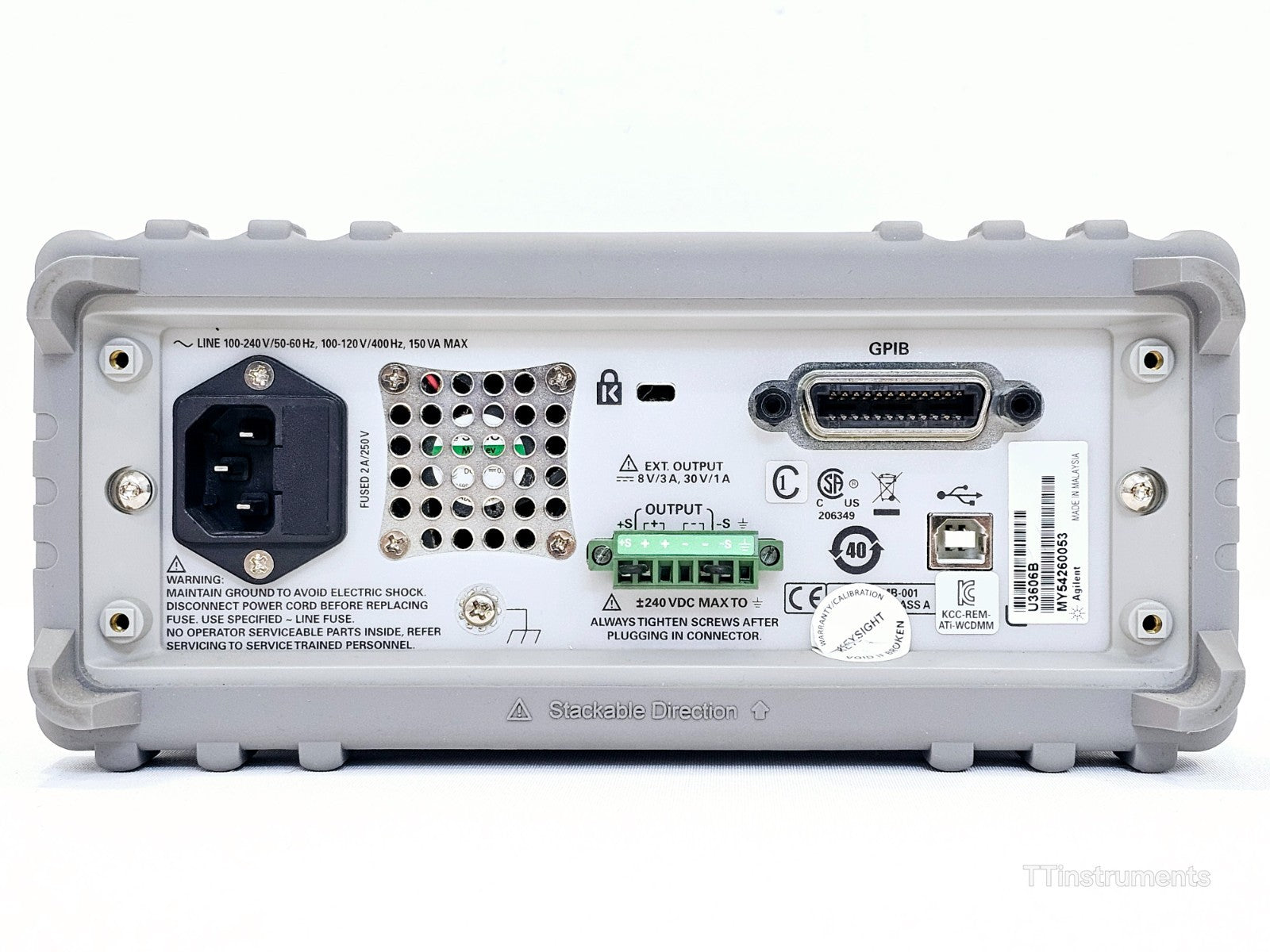

Interfaces: USB 2.0 (Type A to Type B), GPIB
Programming: SCPI compatible
Environmental: Up to 95% RH at 40°C (non-condensing); altitude up to 2000 m
Safety Compliance: IEC 61010-1:2001 / EN 61010-1:2001
Security: Kensington lock slot
Applications: Electronics design and debug, semiconductor test, education, R&D, production test, device characterisation

Keysight U3606B Multimeter | DC Power Supply — Official Datasheet (5991-2849EN): Download PDF

Agilent U3606B Multimeter | DC Power Supply — Data Sheet (Farnell, 5990-3971EN): Download PDF

Agilent U3606A and U3606B — Product Fact Sheet (Farnell): Download PDF

Keysight U3606B Multimeter | DC Power Supply — User's Guide (9018-03961): Download PDF

Keysight U3606B Multimeter | DC Power Supply — Quick Start Guide (9018-03962): Download PDF

Keysight U3606B Multimeter | DC Power Supply — Programmer's Reference (9018-03963): Download PDF

Agilent U3606B Multimeter | DC Power Supply — Service Guide (U3606-90069): Download PDF

Agilent U3606B — Application Note: Increase Test Efficiency with One-Box Supply-and-Measure Solution: Download PDF
