Condition: Used

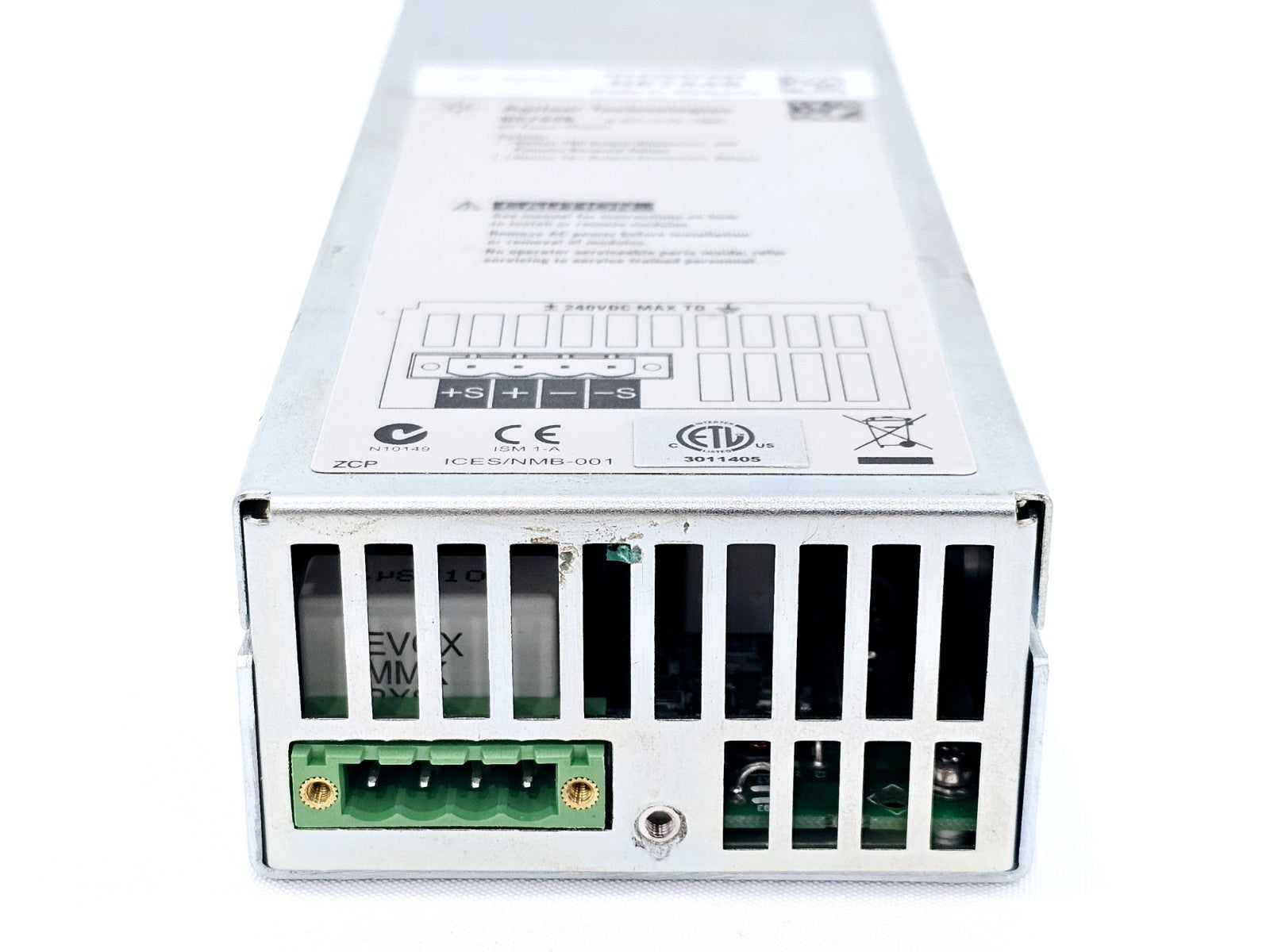

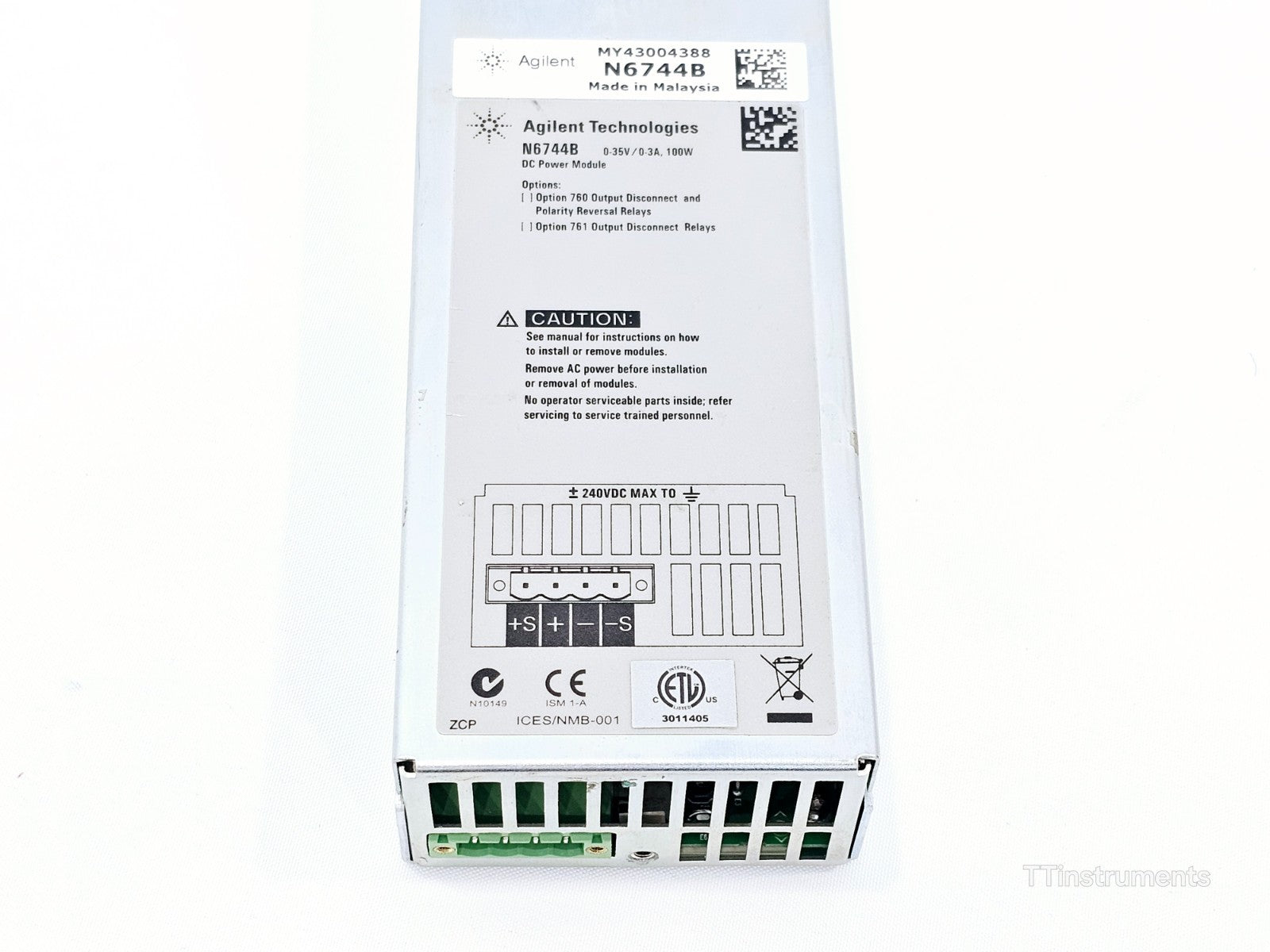

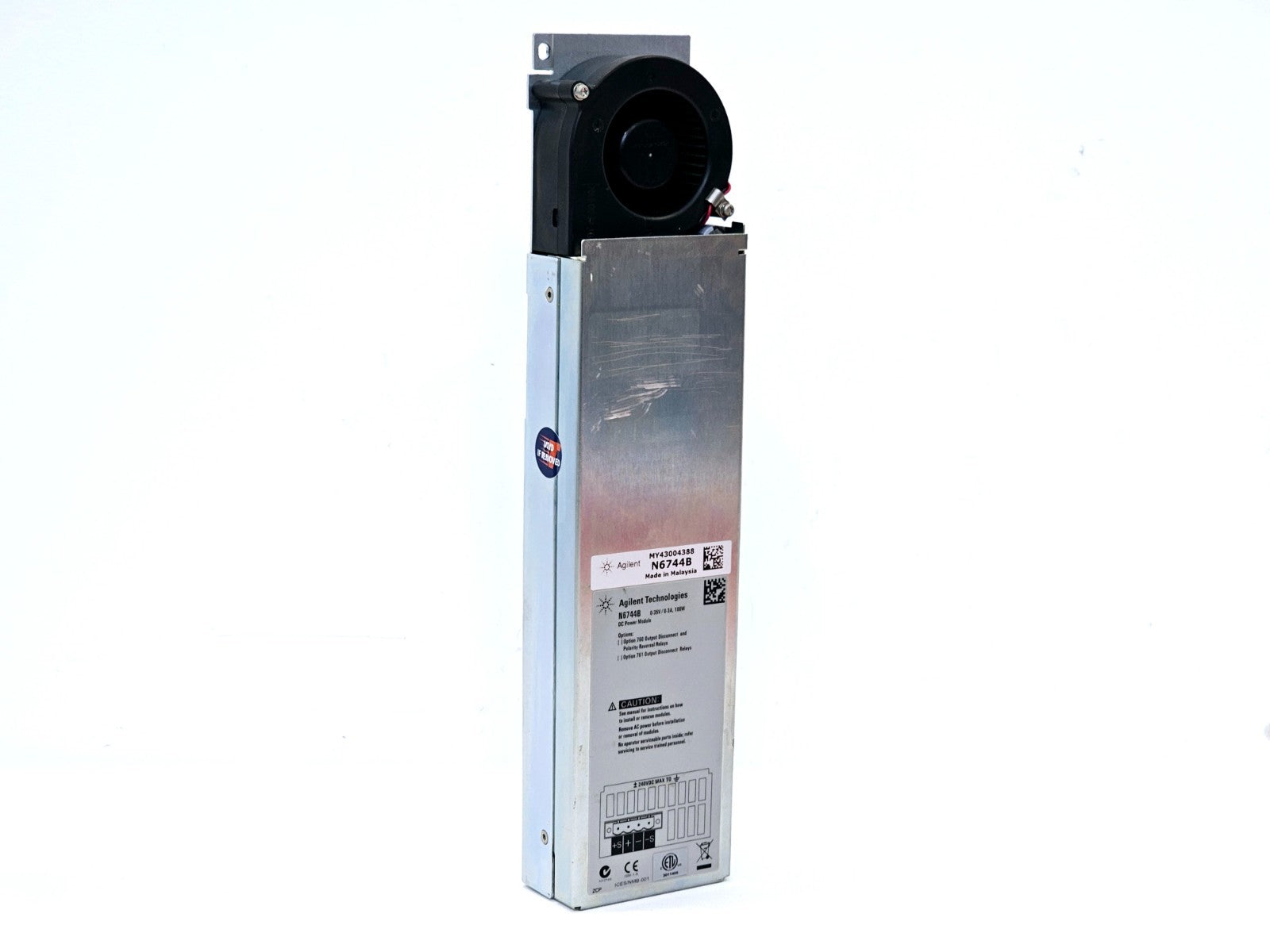

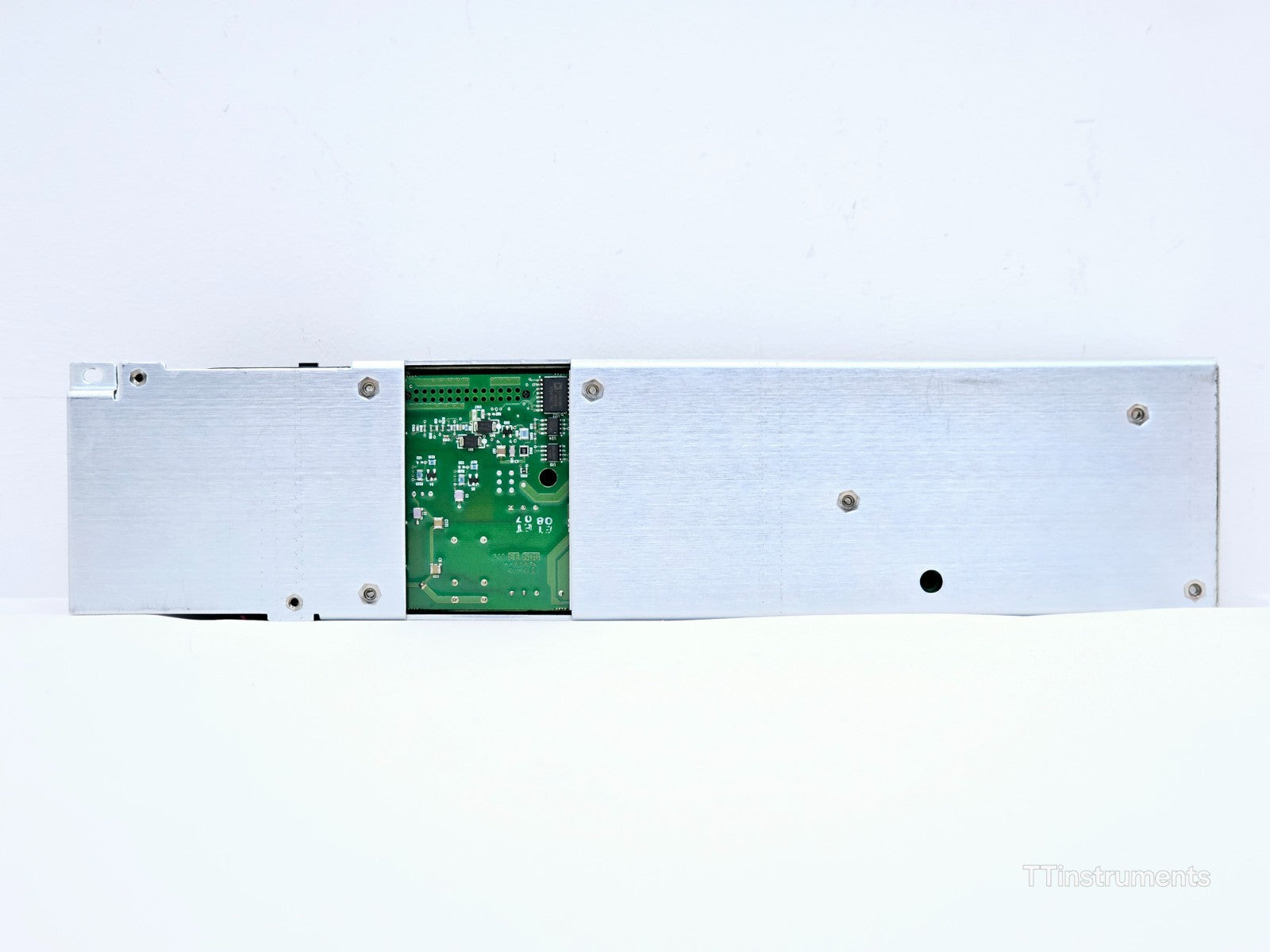

This Agilent N6744B is a tested and fully functional 100W DC power module. Cosmetic imperfections are present but do not affect performance. Supplied as a module only, ready for installation in a compatible N6700 or N6705 series mainframe.

Included in the sale:
• Agilent N6744B DC power module (main unit only)

The Agilent (Keysight) N6744B is a 100W basic-performance programmable DC power module, part of the N6700 Modular Power System family. It occupies a single slot and is compatible with the N6700B, N6701A, N6702A low-profile mainframes (for ATE and automated test environments) and the N6705 DC Power Analyzer (for R&D and bench use). The module provides stable, programmable voltage and current output alongside integrated measurement and a full suite of output protection features, making it suitable for powering devices under test (DUT) and ATE system resources such as fixture control.

Key Features:
- Programmable voltage and current output
- Integrated voltage and current measurement
- Overvoltage, overcurrent, and overtemperature protection
- Remote voltage sensing
- GPIB, LAN, and USB remote interfaces standard
- LXI Class C compliant
- Single-slot form factor
- Programmable output voltage slew rate
- SCPI command set compatible

Performance Specifications (N6744B):
Output Voltage: 0 – 35 V
Output Current: 0 – 3 A
Output Power: 100 W
Voltage Programming Accuracy: ±(0.05% of setting + 10 mV)
Voltage Measurement Accuracy: ±(0.05% of reading + 10 mV)
Current Programming Accuracy: ±(0.05% of setting + 10 mA)
Current Measurement Accuracy: ±(0.05% of reading + 10 mA)
Load Regulation (CV): <0.01% + 2 mV
Line Regulation (CV): <0.01% + 2 mV
Ripple & Noise: <1 mVrms, <10 mVpp
Remote Sense: Yes
Input Voltage Range: 100 – 240 VAC
Dimensions (W x H x D): 212 mm x 41 mm x 238 mm
Weight: 1.9 kg
Mainframe Compatibility: N6700B / N6701A / N6702A / N6705 series
Slot Requirement: 1 slot
Interfaces: GPIB, LAN (10/100 Base-T), USB 2.0
Compliance: LXI Class C, CE marked, RoHS compliant

Keysight N6700 Modular Power System Family Specifications Guide (includes N6744B performance specifications): Download PDF

Keysight Series N6700 Low-Profile Modular Power System User's Guide (covers N6744B operation): Download PDF

Keysight N6705 DC Power Analyzer User's Guide (covers N6744B module use in N6705 mainframe): Download PDF

Agilent N6744B Product Datasheet (TestEquipmentHQ hosted): Download PDF

Keysight N6700 Modular Power System Family Data Sheet: Download PDF
