Condition: Used

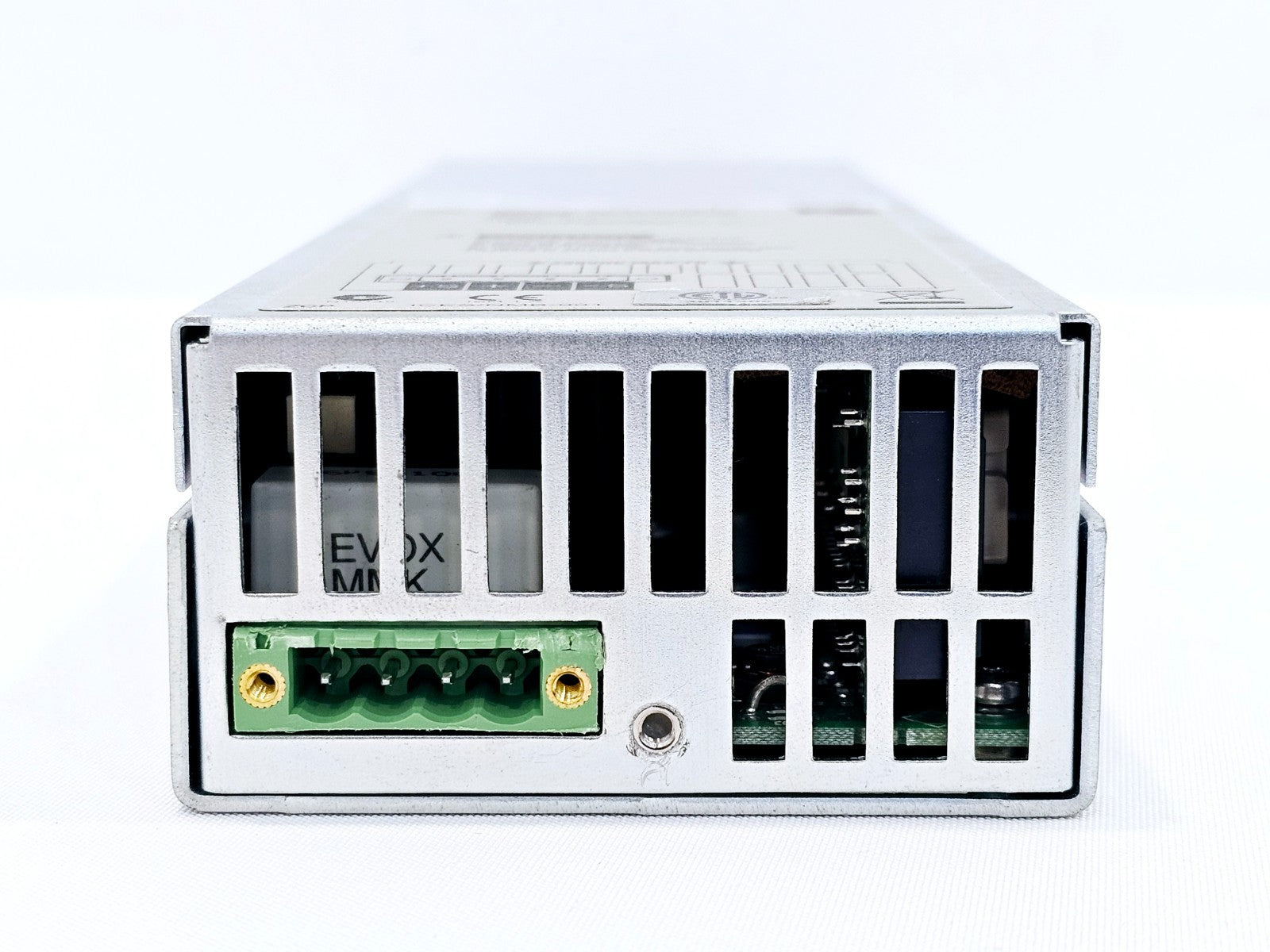

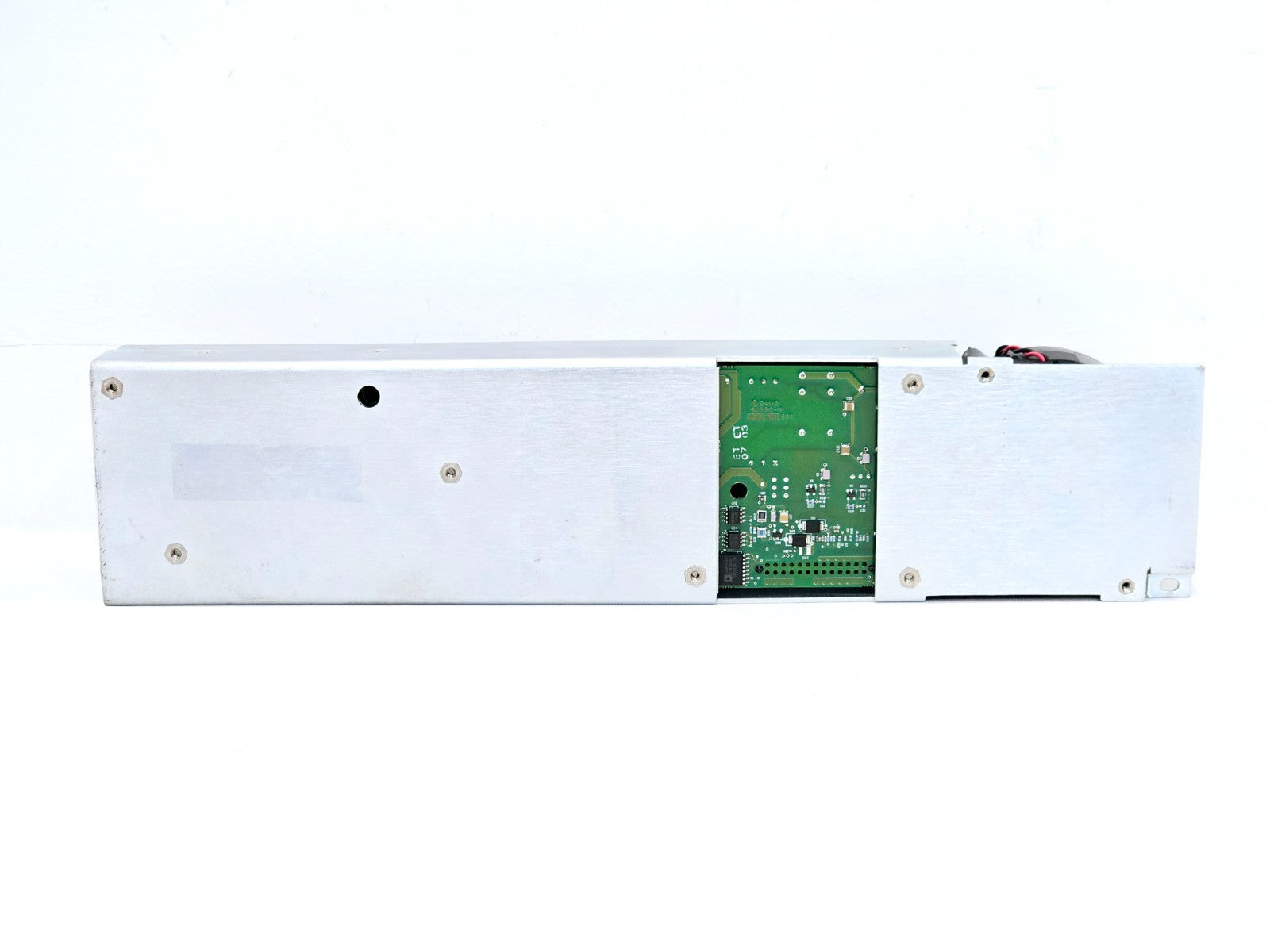

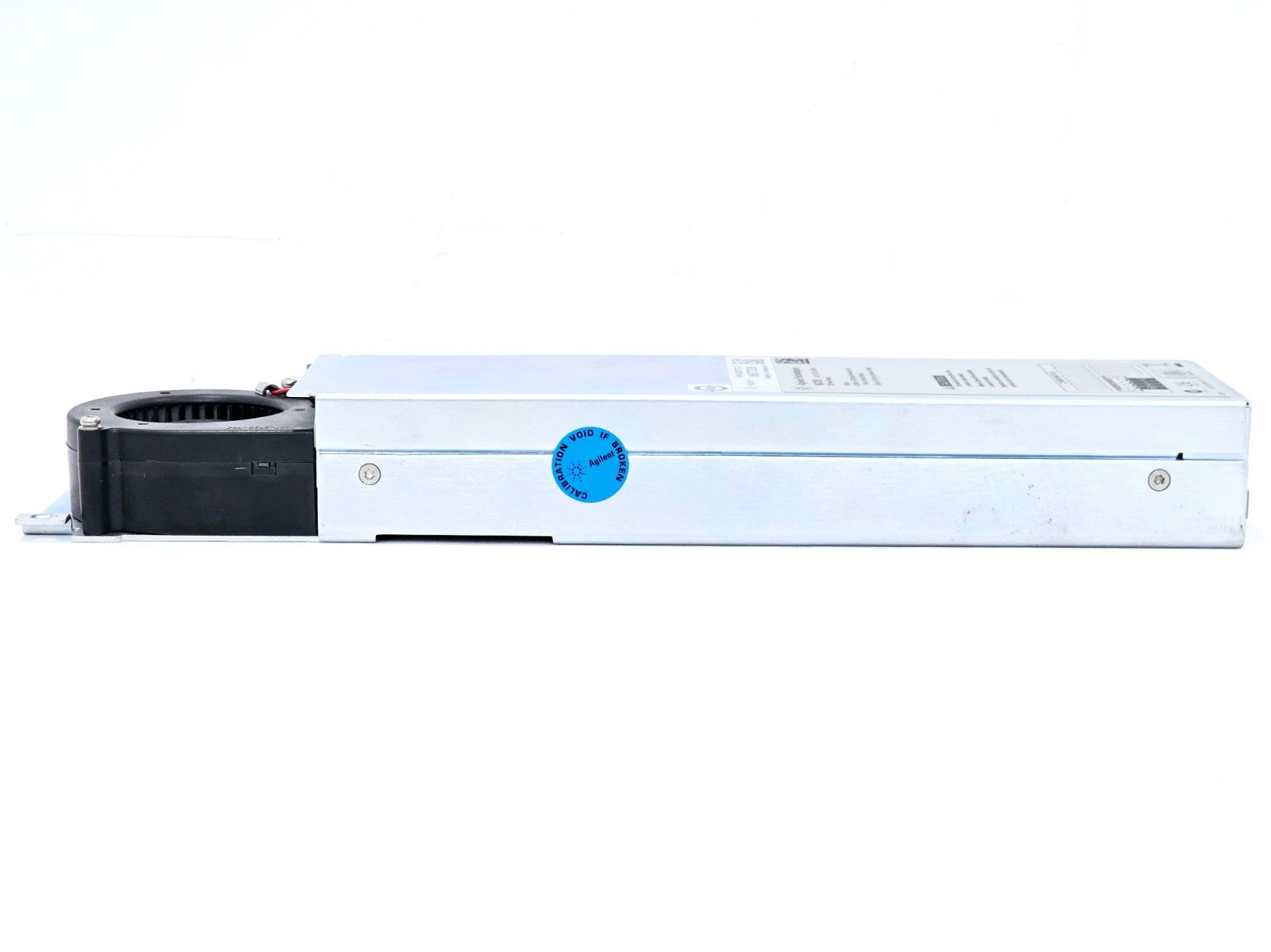

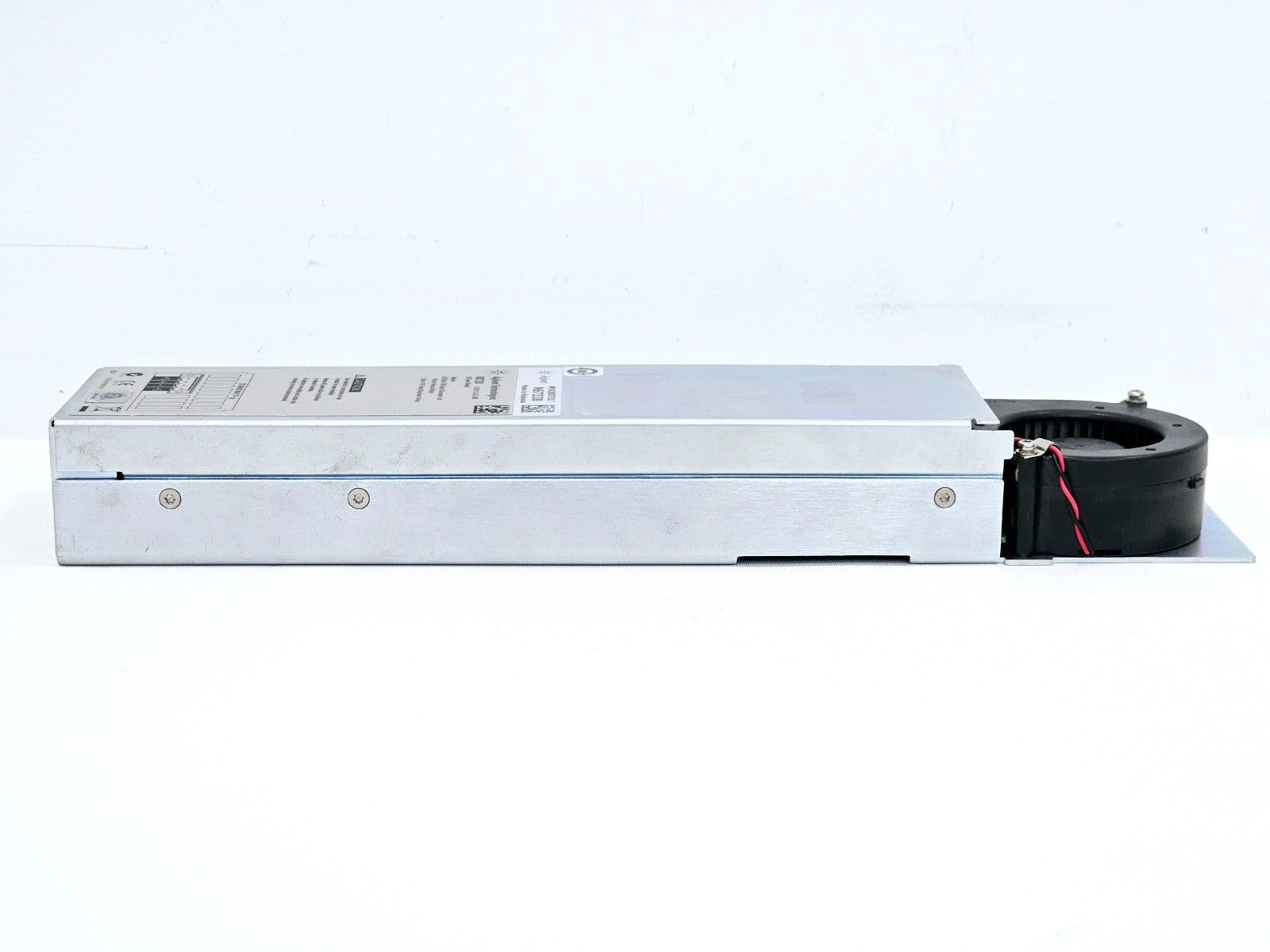

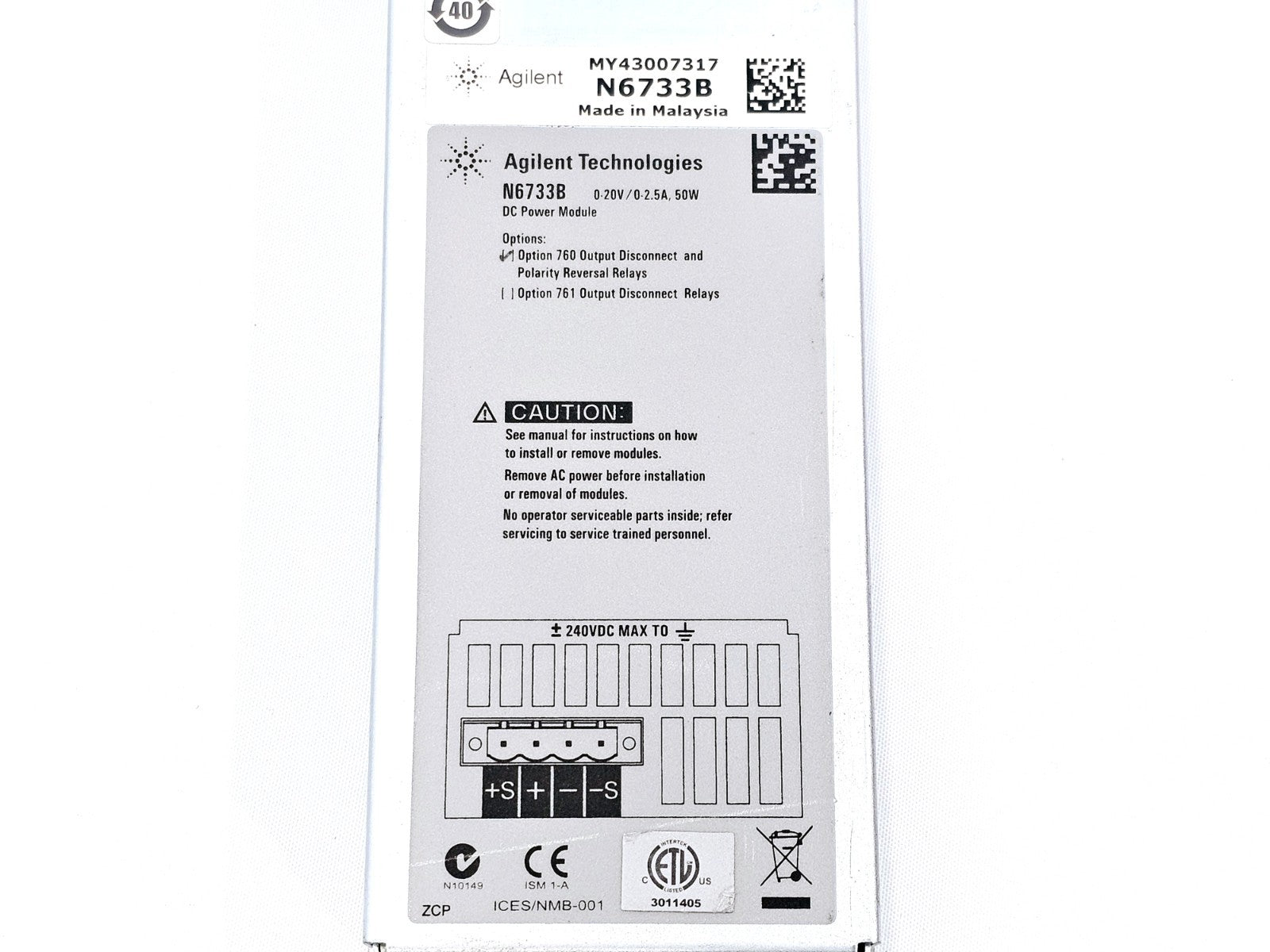

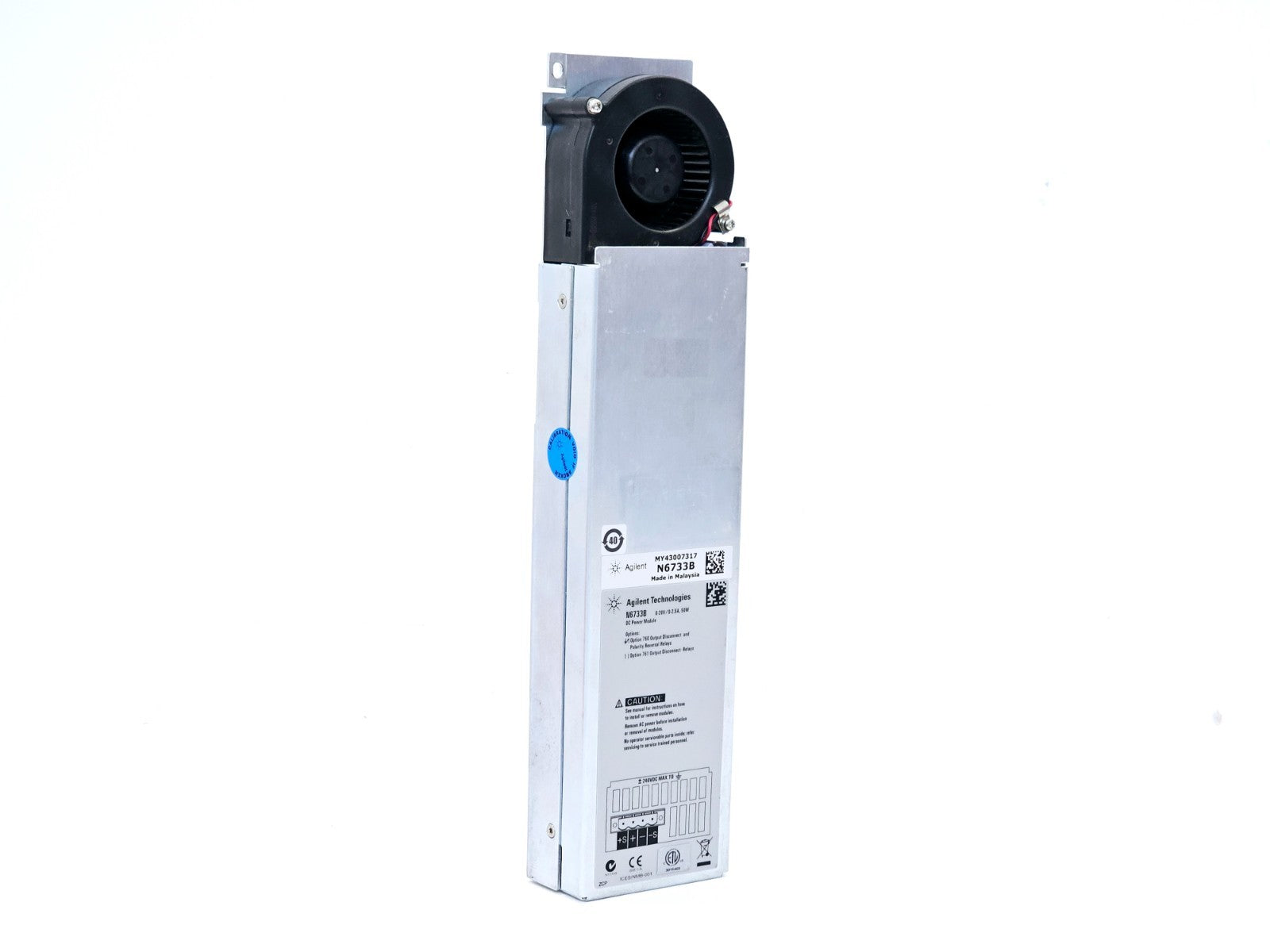

Tested and fully functional Agilent N6733B 50 W DC power module with Option 760 (output disconnect and polarity reversal relays) fitted. Cosmetic imperfections are present but do not affect performance. Supplied as a module only — requires a compatible N6700 or N6705 series mainframe.

Included in the sale:
• Main unit Agilent N6733B (DC power module only)

The Keysight (Agilent) N6733B is a basic-performance DC power module for the N6700 Low-Profile Modular Power System and N6705 DC Power Analyzer families. It occupies a single module slot and provides programmable voltage and current output with integrated measurement and protection features, making it suitable for powering devices under test (DUT) and ATE system resources such as fixture control. Up to four modules can be installed in a 1U mainframe, enabling flexible multi-output configurations.

Option 760 adds output disconnect and polarity reversal relays, allowing the output and sense terminals to be disconnected and the output polarity to be switched programmatically.

DC Output Voltage: 0 – 20 V
DC Output Current: 0 – 2.5 A
Output Power: 50 W
Slots Occupied: 1
Output Ripple and Noise (CV peak-to-peak, 20 Hz – 20 MHz): 14 mV
Output Ripple and Noise (CV rms): 3 mV
Output Ripple and Noise (CC rms): 2 mA
Programming Resolution – Voltage: 7 mV
Programming Resolution – Current: 3 mA
Load Regulation (Voltage): 9 mV
Remote Sense Capability: Up to 1 V drop per load lead compensated
Series / Parallel Operation: Supported (identically rated outputs)
Minimum Output Turn-On Delay (without relay): 32 ms
Operating Temperature: 0 – 55 °C (after 30-minute warm-up)
Interfaces (via mainframe): GPIB, USB 2.0, 10/100 Base-T Ethernet LAN
LXI Compliance: LXI Class C
Compatible Mainframes: Keysight/Agilent N6700B, N6701A, N6702A, N6705A, N6705B, N6705C series
Protection Features: Overvoltage (OVP), overcurrent (OCP), overtemperature
Option 760: Output disconnect and polarity reversal relays
Option 761: Output disconnect relays (only)
Option 054: High-Speed Test Extensions (HSTE)

Keysight N6700 Modular Power System Family Data Sheet (covers N6733B specifications): Download PDF

Keysight N6700 Modular Power System Family Technical Specifications Guide (N6733B full specs): Download PDF

Keysight N6700C Low-Profile Modular Power System User's Guide (covers N6733B operation): Download PDF

Keysight N6705 DC Power Analyzer User's Guide (covers N6733B in N6705 mainframe): Download PDF

Agilent N6733B Datasheet PDF (third-party hosted, MFG ref 5990-8643EN): Download PDF

Agilent N6700 MPS Low-Profile Modular Power System datasheet including N6733B specs: Download PDF
