Condition: Used

Keysight N5449A High Impedance Adapter in very good, like-new condition, supplied with a Keysight N2873A 500 MHz 10:1 passive probe. The adapter converts the 50 Ω AutoProbe II interface found on Infiniium V, 90000 X-Series, 90000 Q-Series, and Z-Series oscilloscopes to a 1 MΩ AutoProbe I input, enabling use of a broad range of high-impedance probes.

Included items:

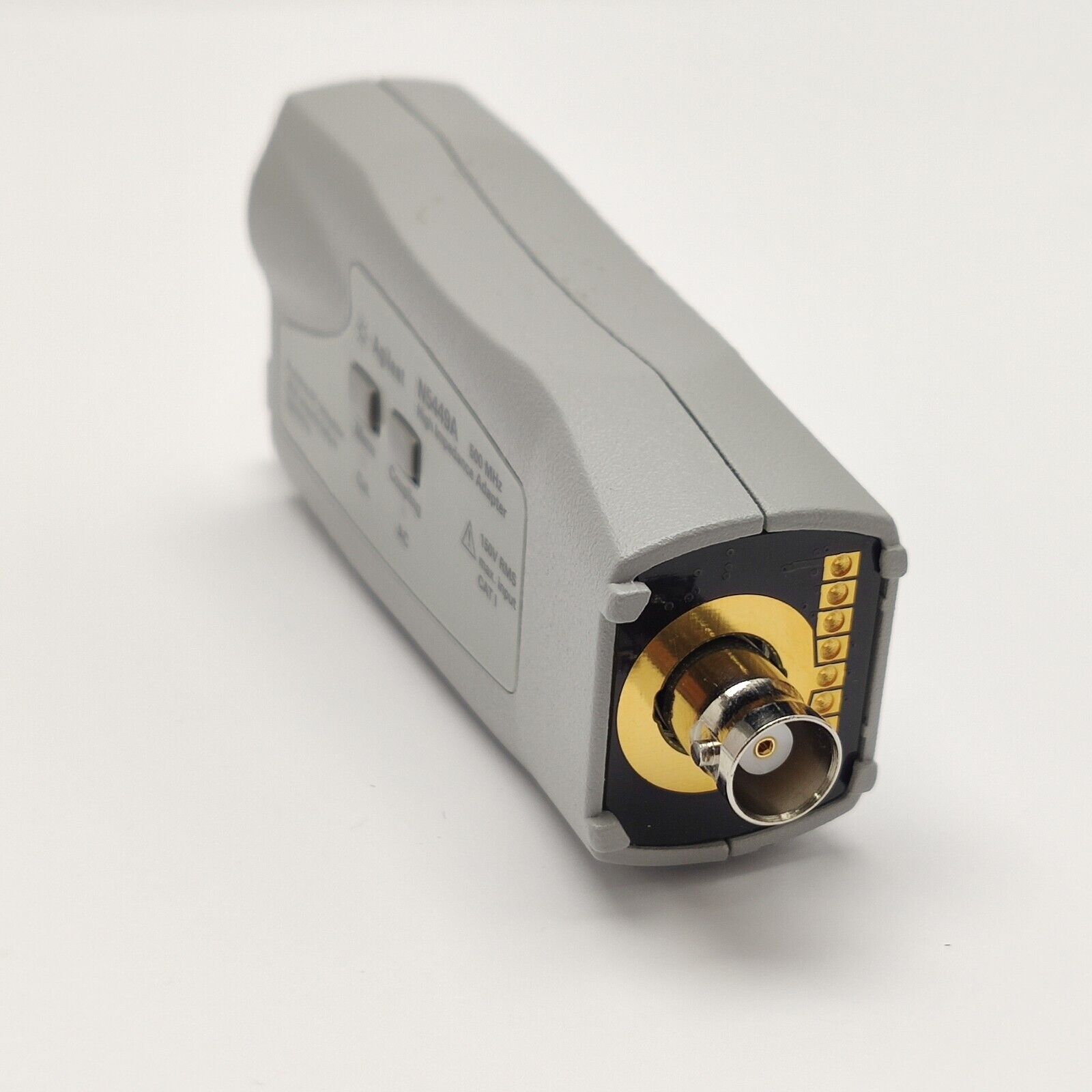

• Keysight N5449A High Impedance Adapter (SMA to BNC)
• Keysight N2873A 500 MHz 10:1 Passive Probe (1.3 m)

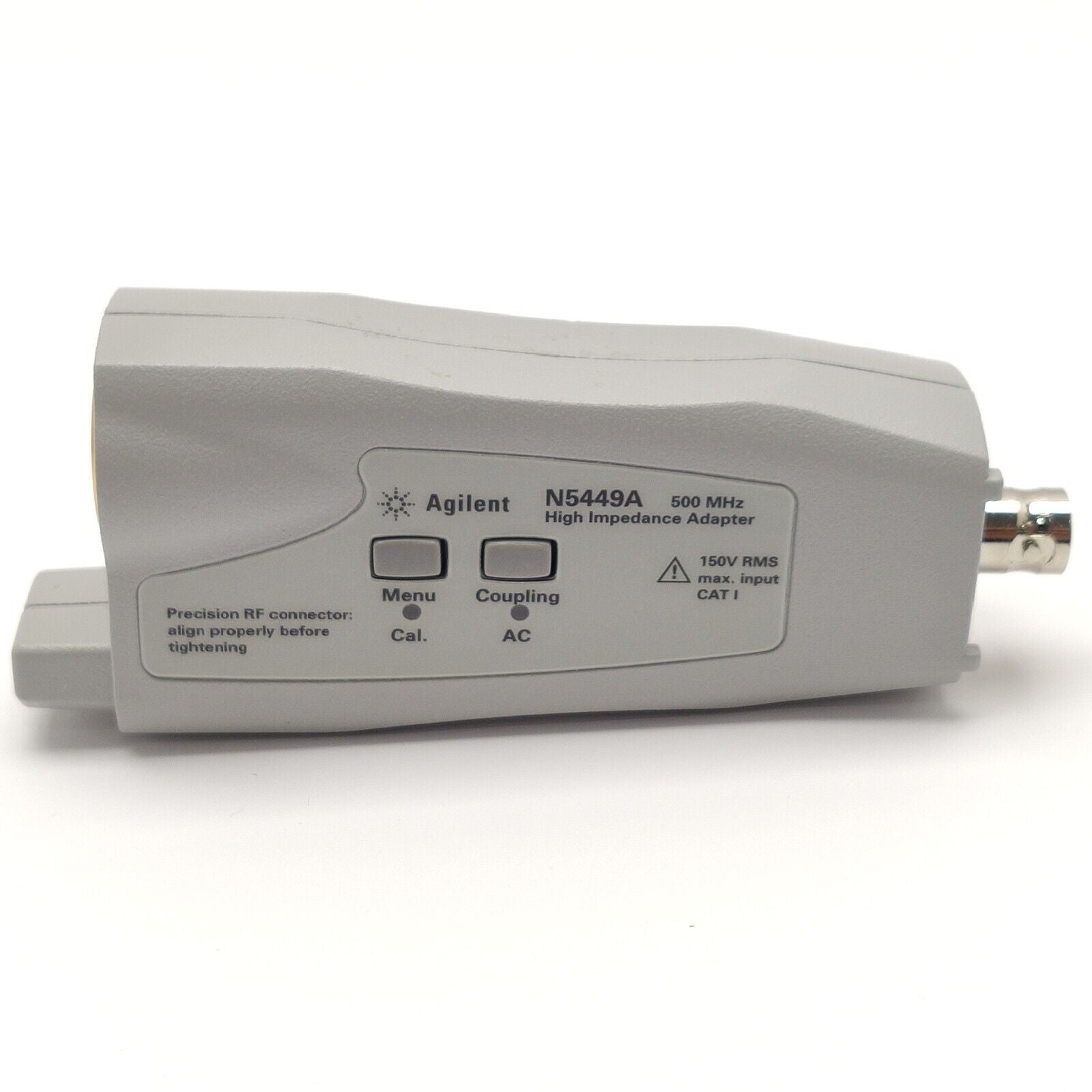

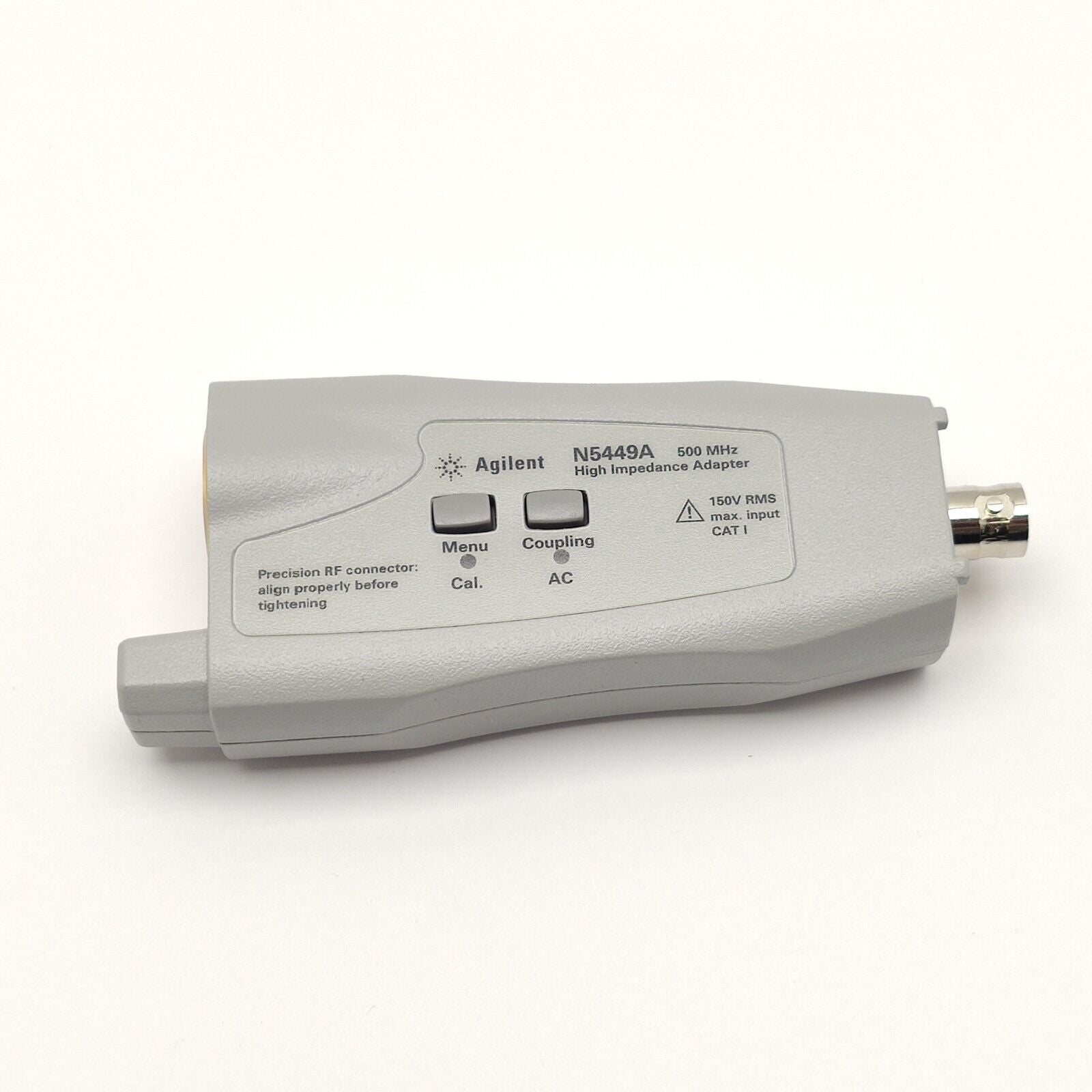

Keysight N5449A High-Impedance Adapter

The N5449A is a high-impedance adapter designed for use with Keysight Infiniium V-Series, 90000 X-Series, 90000 Q-Series, and Z-Series oscilloscopes. It allows connection of probes that require a high-impedance (1 MΩ) input to oscilloscopes equipped with a 50 Ω AutoProbe II interface, converting the port to a 1 MΩ AutoProbe I input. Compatible probes include high-impedance passive probes, the 1147B or N2893A AC/DC current probe, and the N2790A high voltage differential probe.

N5449A Specifications:

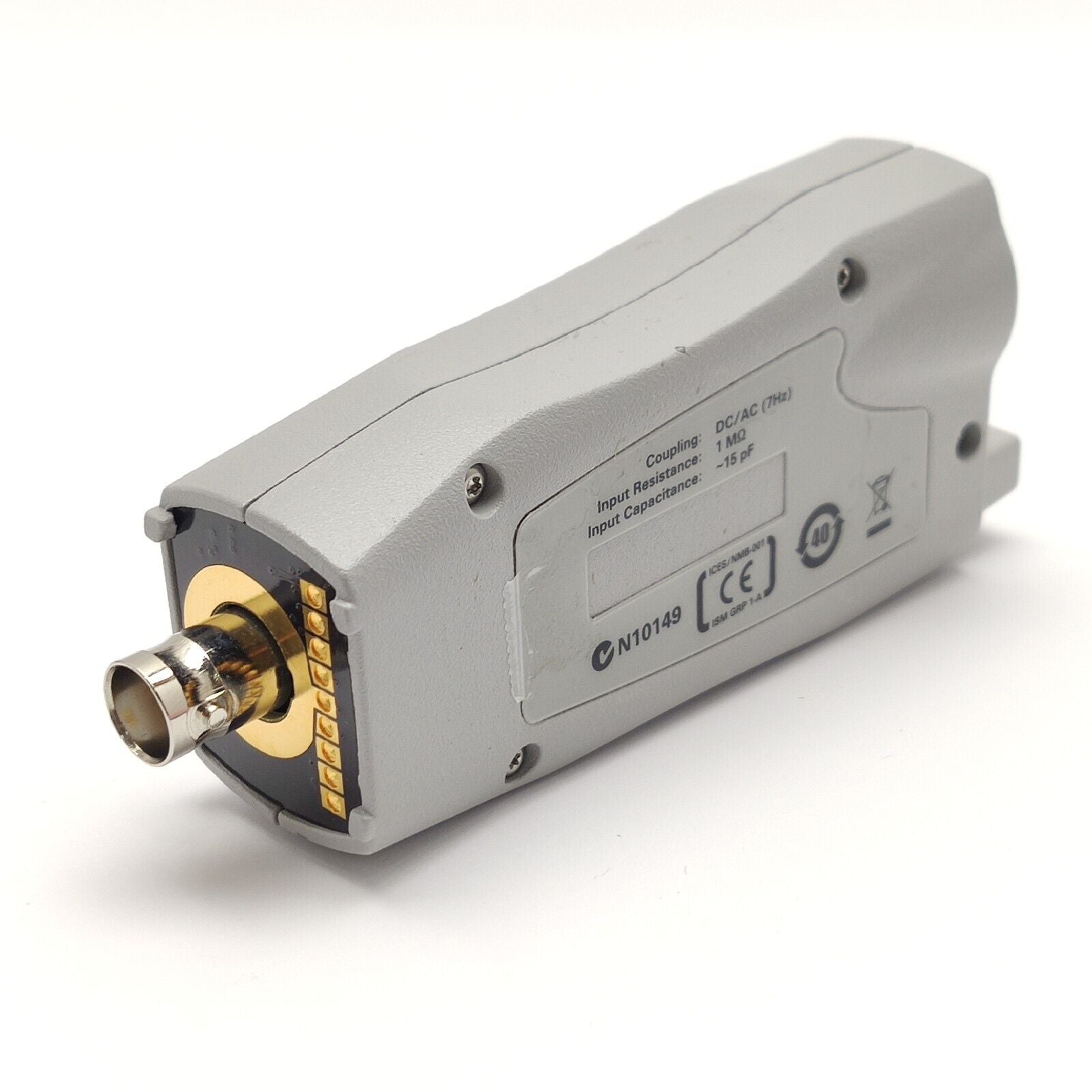

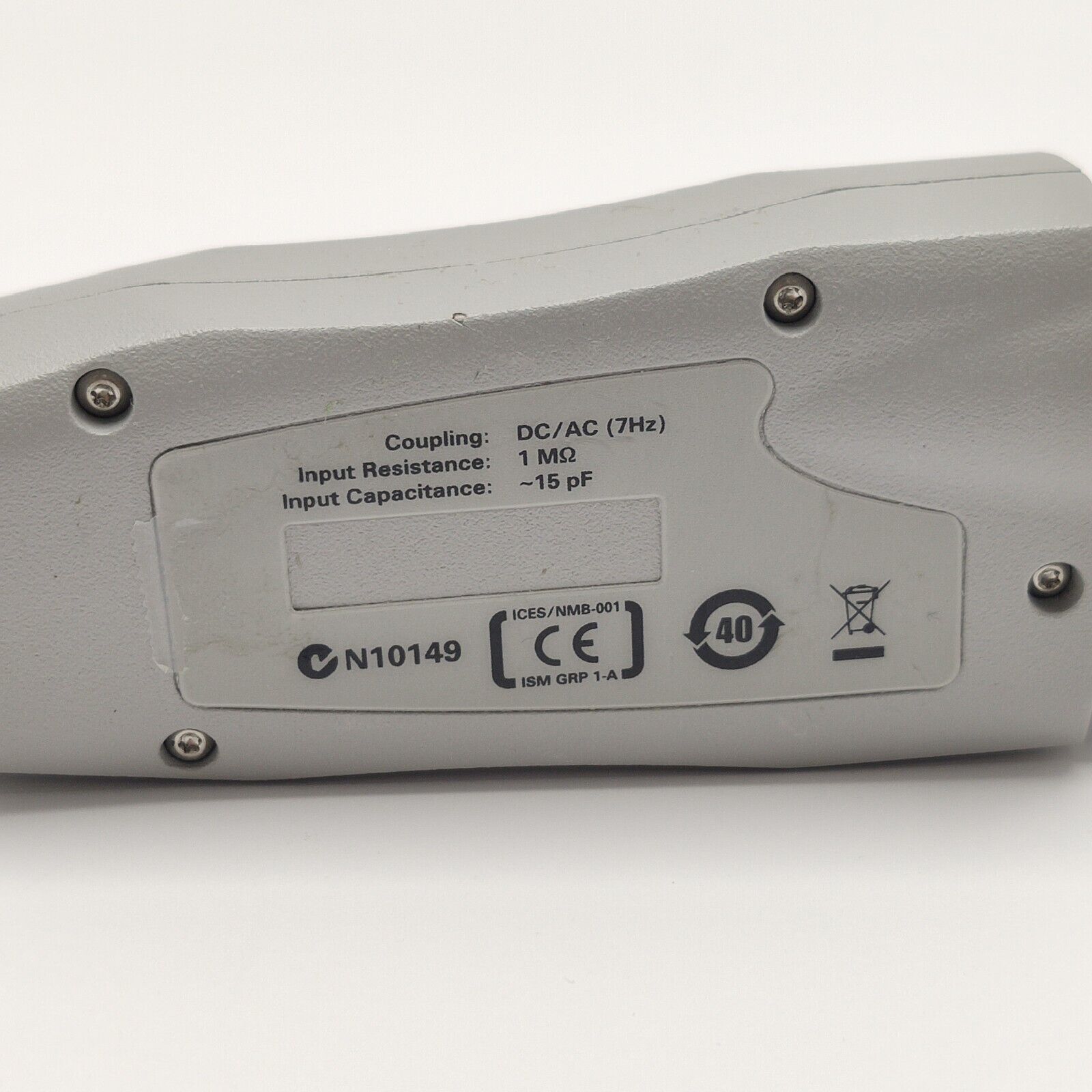

Input Impedance: 1 MΩ (AutoProbe I)
Output Impedance: 50 Ω (AutoProbe II)

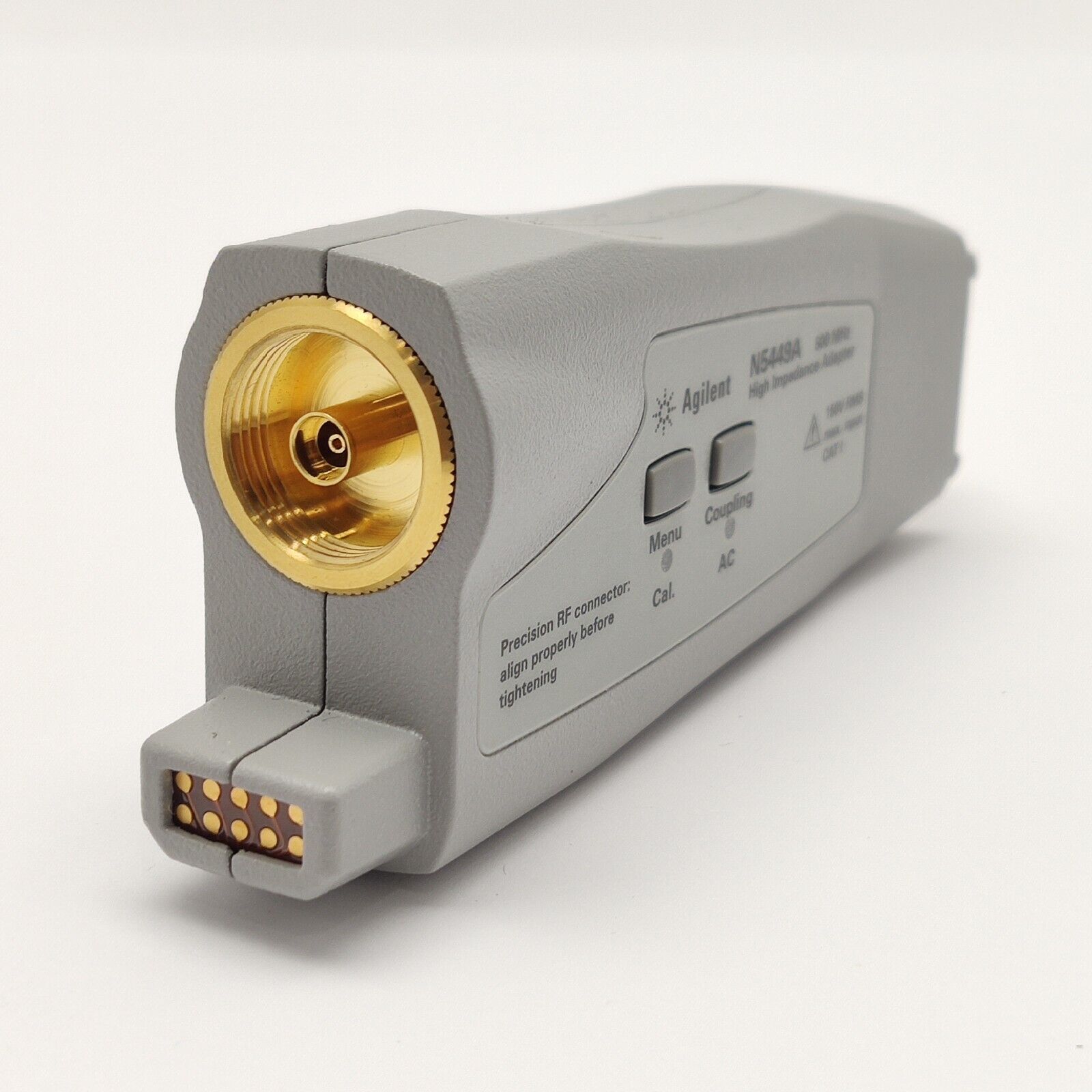

Connector Type: SMA (oscilloscope side) to BNC (probe side)
Compatible Oscilloscopes: Infiniium V-Series, 90000 X-Series, 90000 Q-Series, Z-Series

---

Keysight N2873A Passive Probe (included)

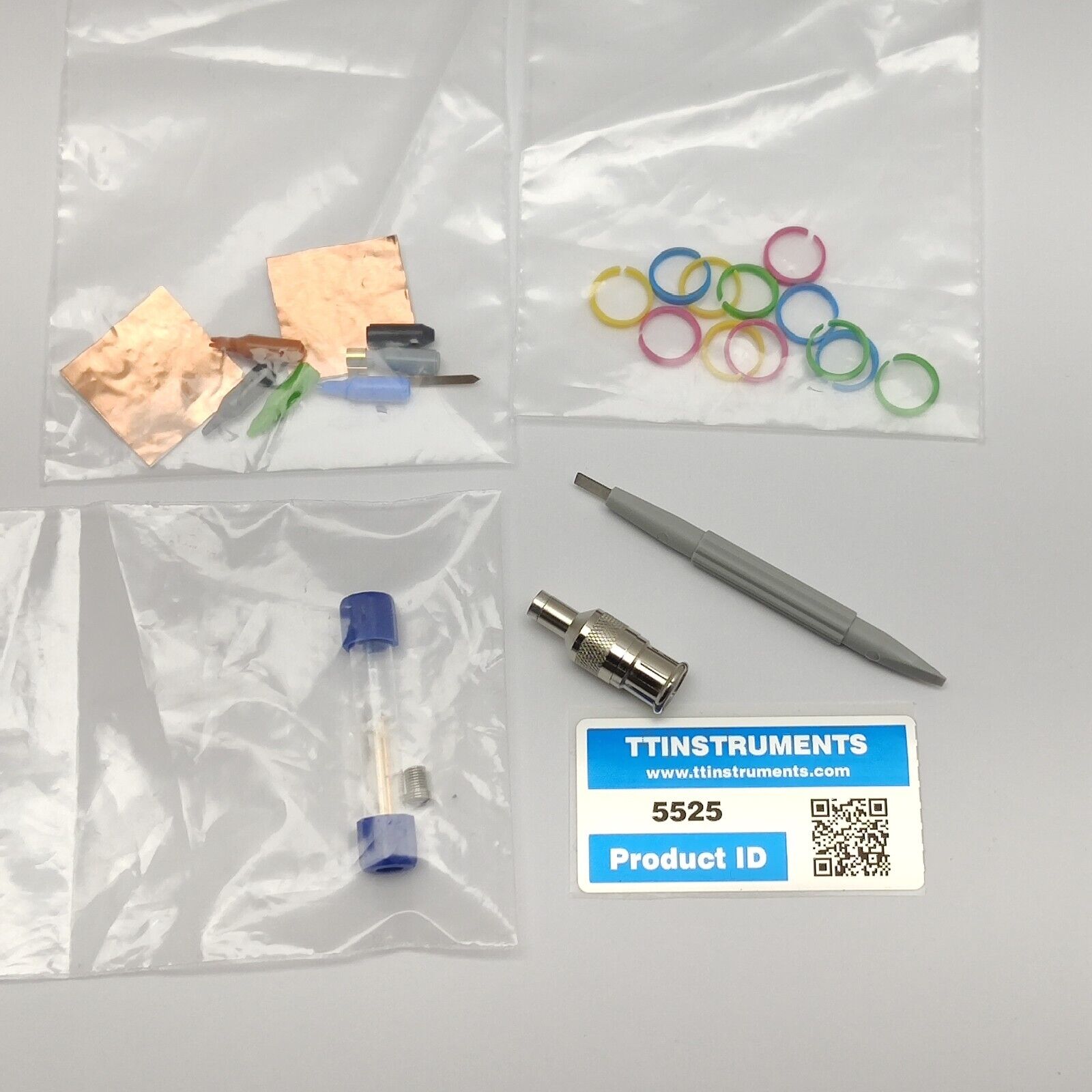

The N2873A is a 500 MHz, 10:1 passive probe from the Keysight N2870A Series. It features a compact 2.5 mm probe head diameter and low input capacitance, making it well suited for probing densely populated IC components and surface-mount devices in high-speed digital applications. The spring-loaded probe tip helps maintain contact with the device under test, and the standard flat-blade ground connector with self-adhesive copper ground pad helps minimise ground inductance. All N2870A Series probes are automatically recognised when connected to Keysight InfiniiVision and Infiniium Series oscilloscopes with 1 MΩ input.

N2873A Specifications:
Bandwidth: DC to 500 MHz
Attenuation Ratio: 10:1
Input Impedance: 10 MΩ // 9.5 pF
Compensation Range: 10–25 pF
Probe Cable Length: 1.3 m
Probe Head Diameter: 2.5 mm
Compatibility: Keysight InfiniiVision and Infiniium Series oscilloscopes with 1 MΩ input

Keysight N5449A High Impedance Adapter Quick Start Guide (User Manual): Download PDF

Keysight N2870A Series Passive Probes Data Sheet (covers N2873A): Download PDF

Keysight N2870A Series and N2894A Passive Probes User's Guide: Download PDF

Keysight Oscilloscope Probes Configuration Guide (includes N2873A and N5449A context): Download PDF
