Condition: Used

This Keysight U3606B is a used hybrid bench multimeter and DC power supply in a single unit, combining a full-featured 5.5-digit DMM with a 30 W programmable power supply. The unit is supplied with a USB interface cable and test leads.

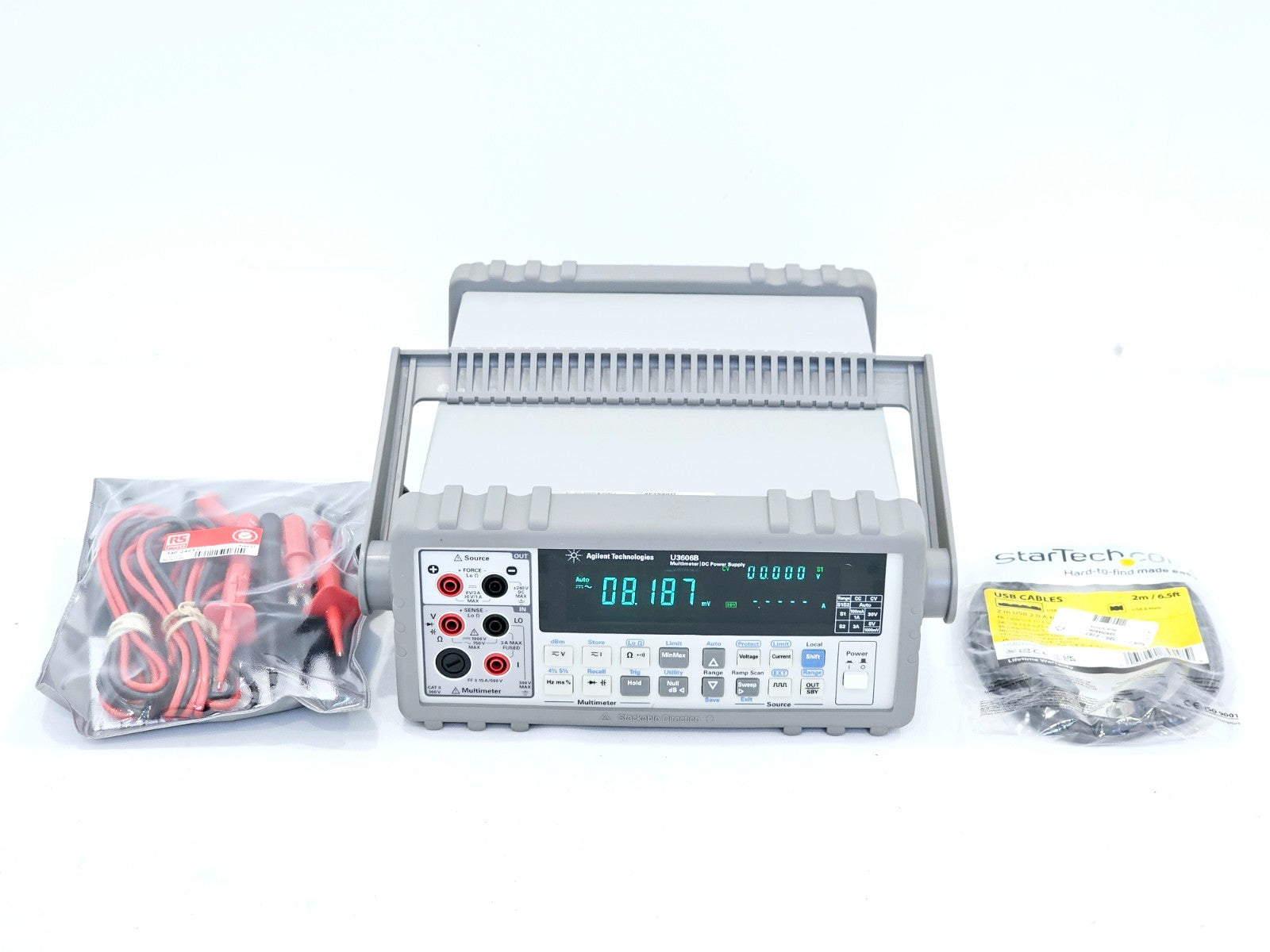

Included in the sale:
• Keysight U3606B Bench Digital Multimeter / DC Power Supply
• USB interface cable

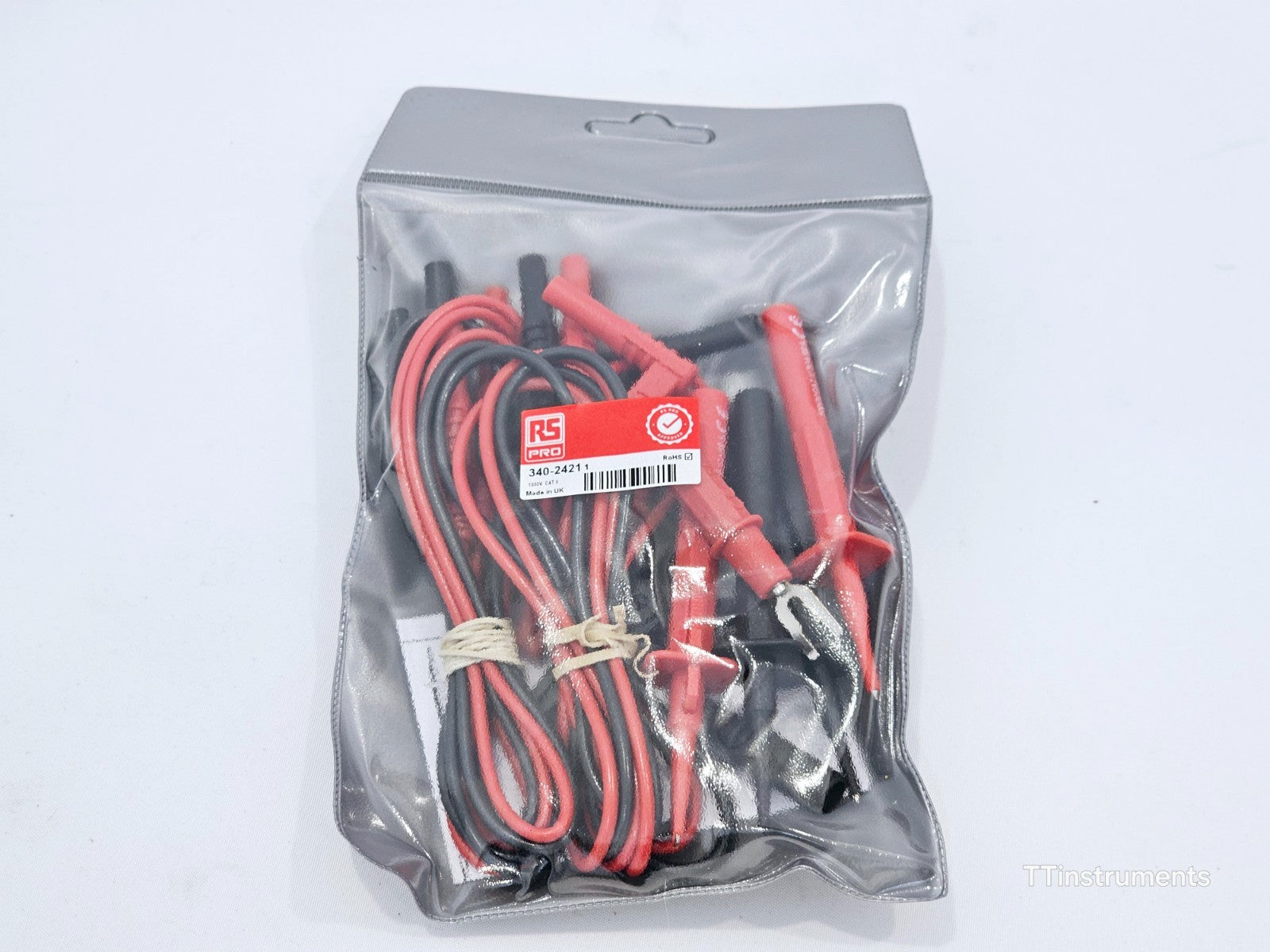

• Test leads

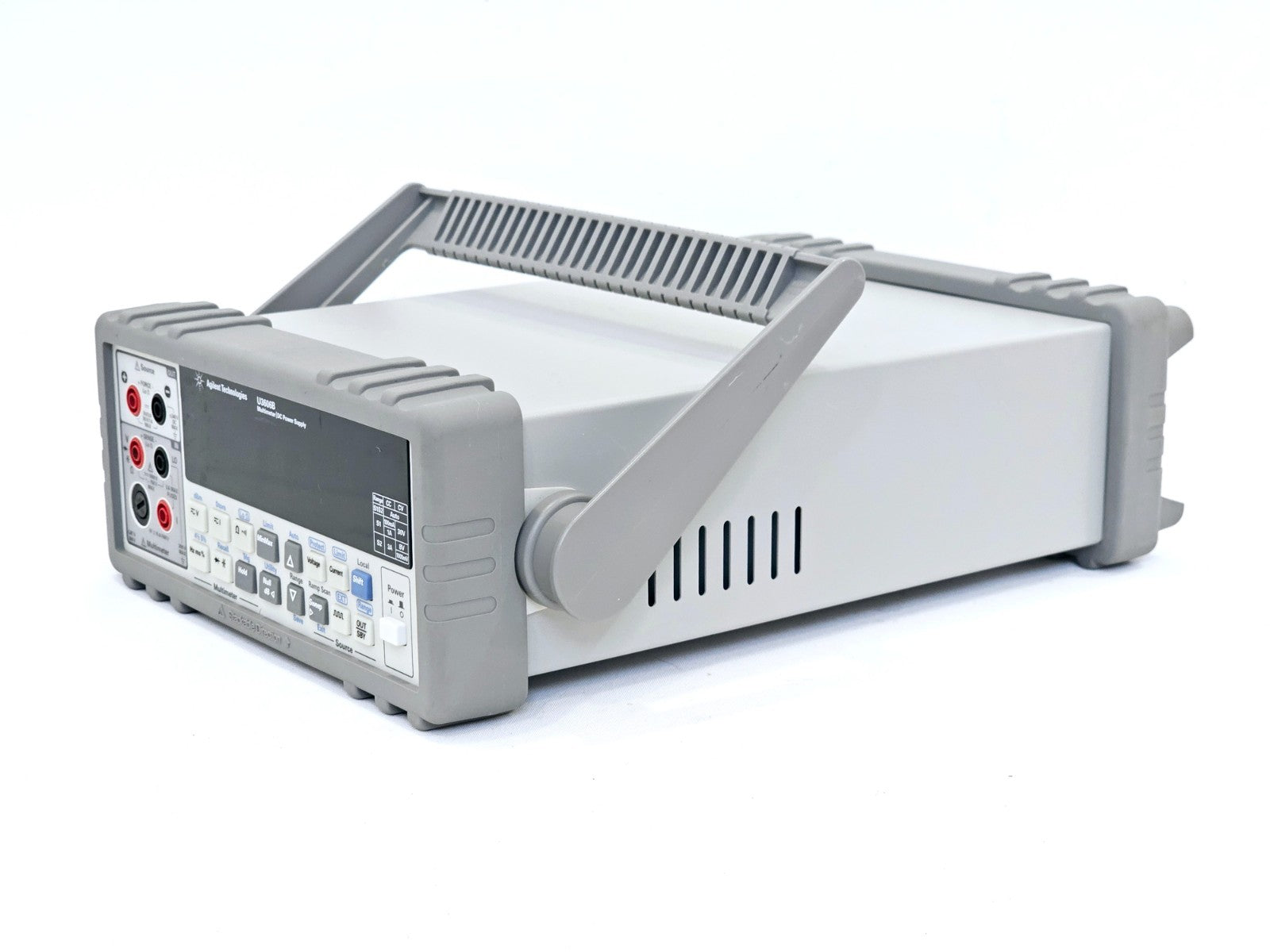

The Keysight U3606B Multimeter / DC Power Supply is a full-featured 5.5-digit (120,000 counts resolution) bench digital multimeter combined with a built-in 30 W DC power supply in a single compact enclosure. Capable of powering a device under test (DUT) while simultaneously measuring voltage and current, it enables two test functions within the same unit — reducing bench space, cabling, and cost.

The DMM section offers 10 measurement functions including DC voltage, AC voltage, DC current, AC current, 2-wire resistance, 4-wire milliohm resistance, frequency, capacitance, continuity, and diode test, along with 8 built-in math functions (Null, dBm, dB, Hold, Min/Max/Avg, Limit). The DC power supply features four output ranges and a built-in ramp, scan, and square wave generator for advanced device characterisation and digital circuit troubleshooting.

Key Features:
• Two instruments in one compact, rack-mountable enclosure
• 5.5-digit DMM with 120,000 counts resolution
• 0.025% basic DCV accuracy
• 10 DMM measurement functions including 4-wire milliohm
• 8 built-in math functions
• Reading speed up to 37 readings per second
• Built-in remote sensing for accurate supply at load end
• Over-voltage protection (OVP) and over-current protection (OCP)
• Square wave output with selectable frequencies up to 4.8 kHz, variable duty cycles and amplitudes
• Auto ramp and scan function for multilevel DC bias testing

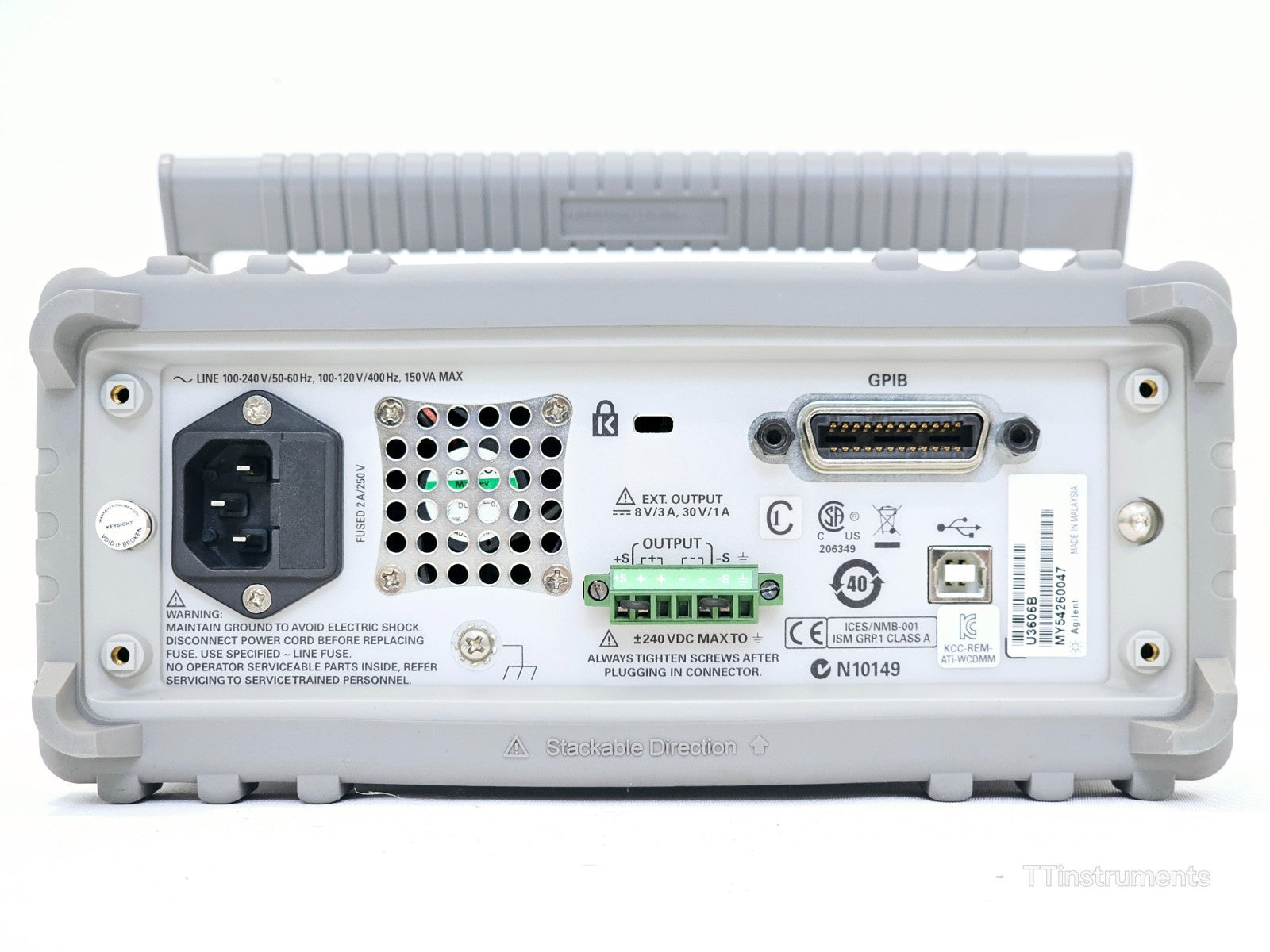

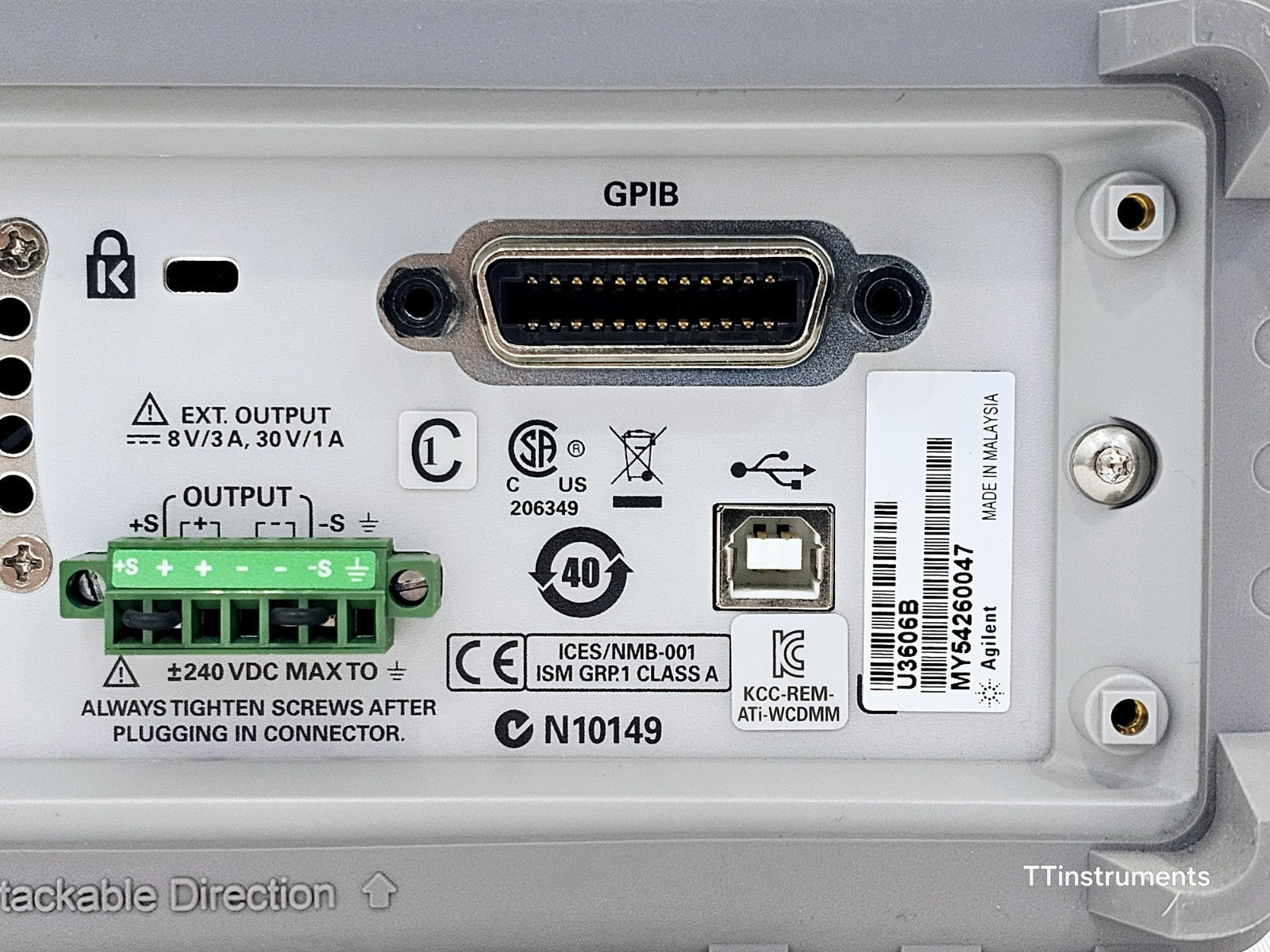

• USB 2.0 (Type A to B) and GPIB (IEEE-488) interfaces
• SCPI command set for remote PC control
• Compatible with Keysight IO Library Suite, IVI-COM, LabVIEW, and VEE
• Kensington lock slot on rear panel

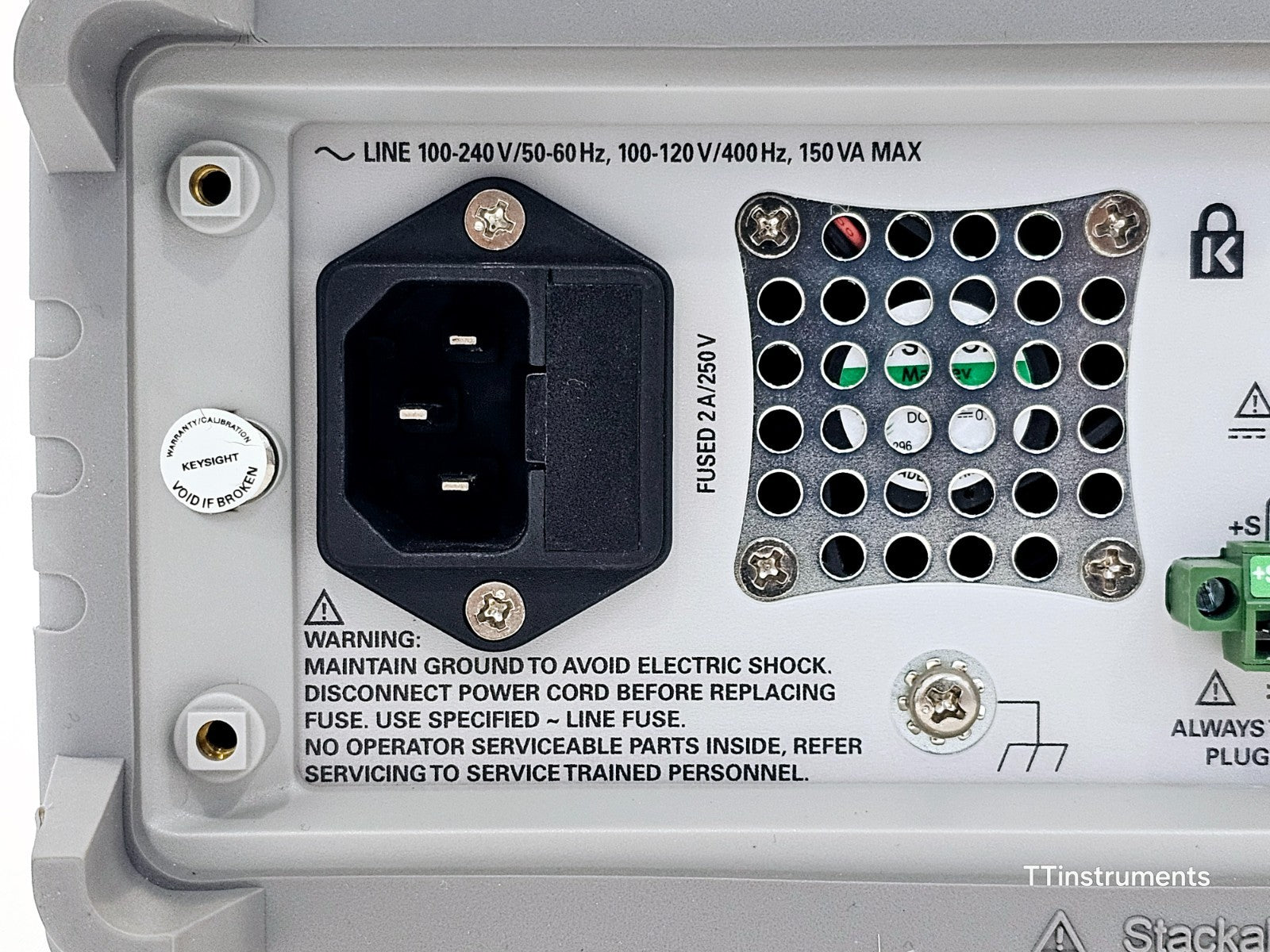

• Safety Class I instrument with protective earth terminal

DC Power Supply Specifications:
Output Power: 30 W
Output Ranges: 30 V / 1 A | 100 mA / 30 V | 8 V / 3 A | 1,000 mV / 3 A
Line/Load Regulation: Up to 0.01% + 3 mV
Protection: OVP and OCP
Square Wave Output: Up to 4.8 kHz, variable duty cycle and amplitude

Multimeter Specifications:
Resolution: 5.5 digits / 120,000 counts
Basic DCV Accuracy: 0.025%
DC Voltage Range: 19.9999 mV to 1,000 V
AC Voltage Range: 100 mV to 750 V (True RMS)
DC Current Range: 10 mA to 3 A
AC Current Range: True RMS
Resistance: 2-wire and 4-wire (100 mΩ to 100 MΩ)
Capacitance: 1 nF to 10,000 µF
Frequency: 2 Hz to 300 kHz
Safety Rating: CAT I 1000 V DC / 750 V AC, CAT II 300 V

General:
Operating Temperature: 0 °C to 55 °C
Humidity: Up to 95% RH at 40 °C (non-condensing)
Altitude: Up to 2,000 m
Interfaces: USB 2.0, GPIB (IEEE-488)
Ideal Applications: Education, commercial electronics, semiconductors, sensors, R&D

Keysight U3606B Multimeter / DC Power Supply Datasheet (5991-2849EN): Download PDF

Keysight U3606B User's Guide / User Manual (English): Download PDF

Keysight U3606B Programmer's Reference Guide (SCPI): Download PDF
