Condition: New

The Keysight N2873A is a new, unused passive probe from the N2870A Series, supplied complete with its full accessory set as standard. With a 500 MHz bandwidth, 10:1 attenuation, and compact 2.5 mm probe head, it is ready for demanding general-purpose and fine-pitch measurement tasks.

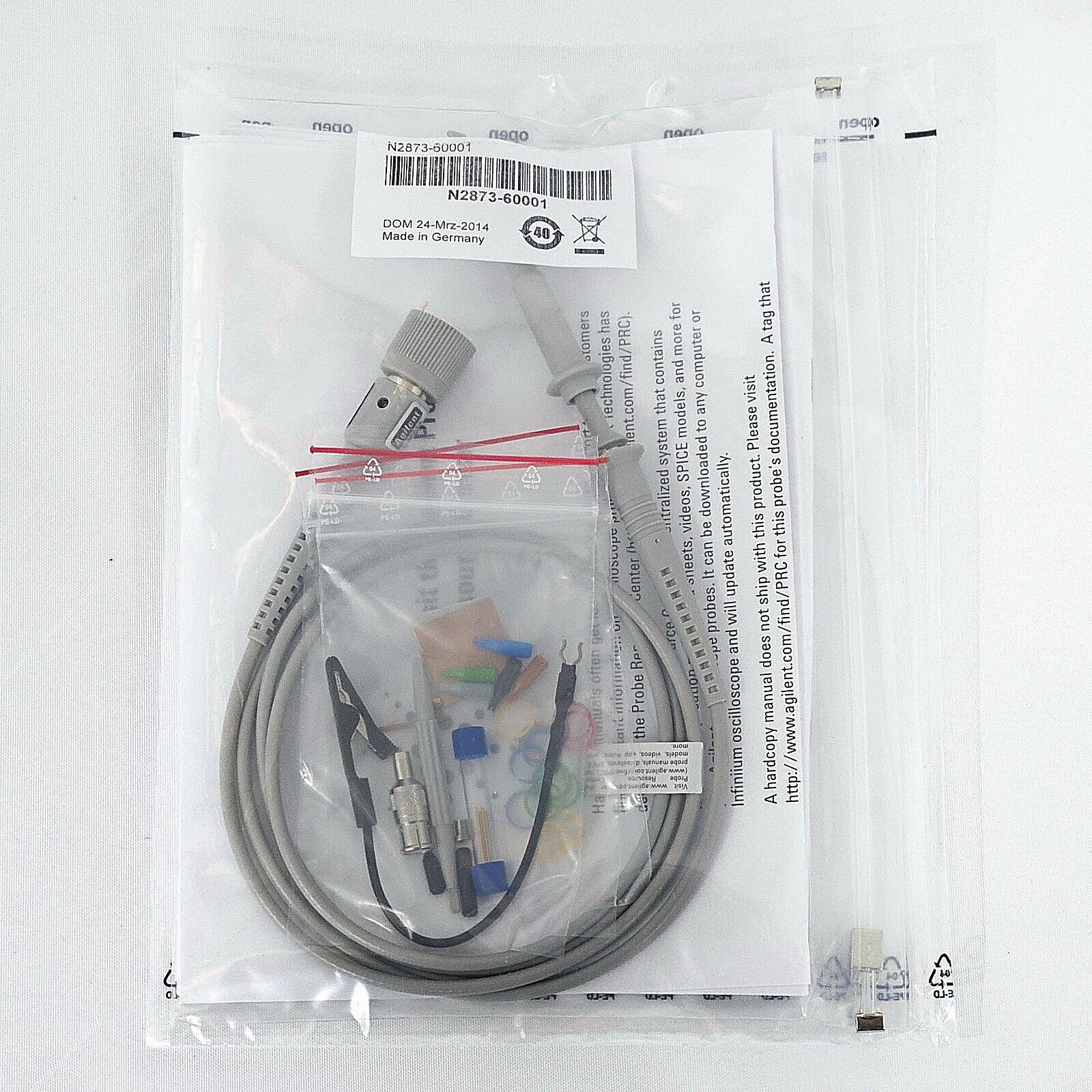

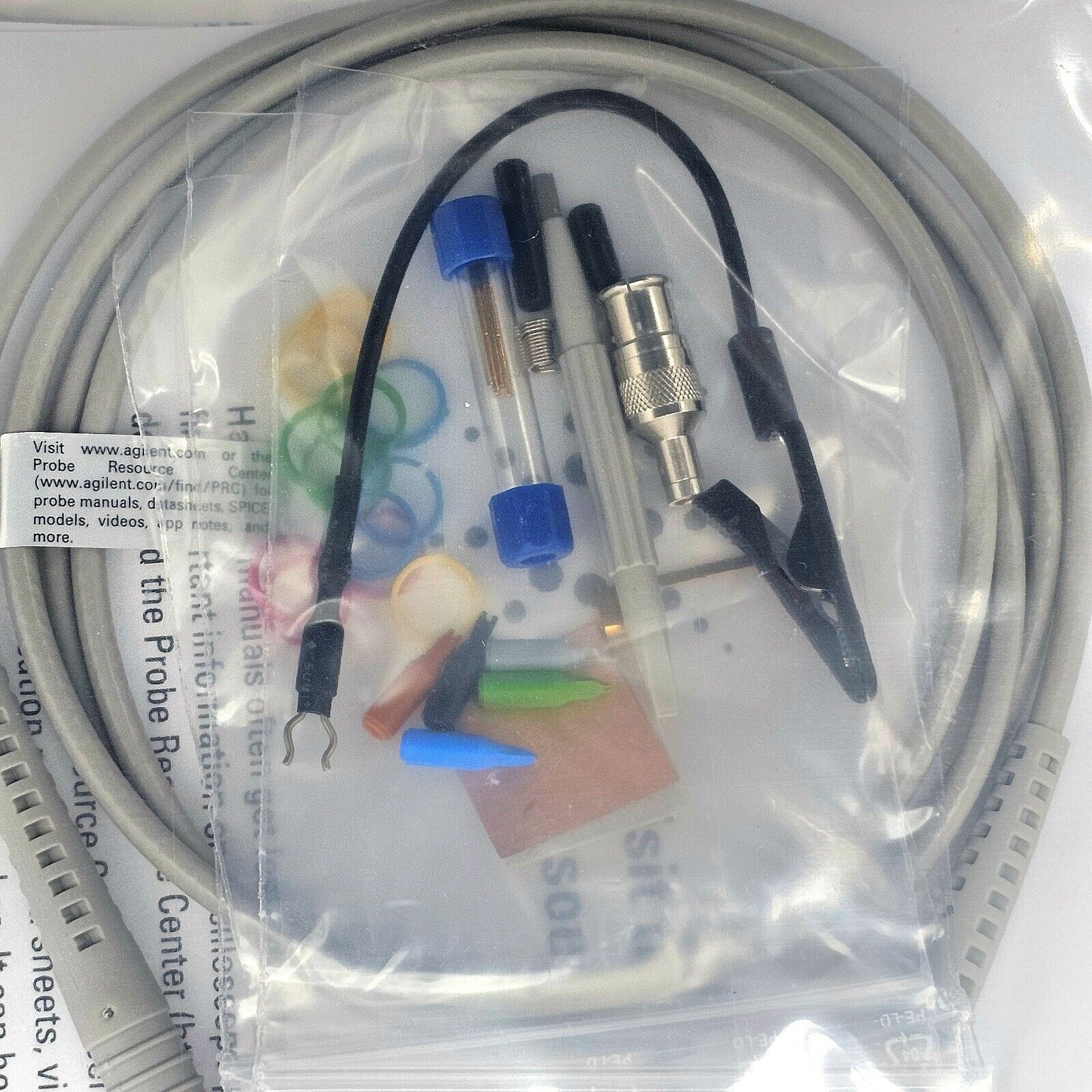

Included accessories:

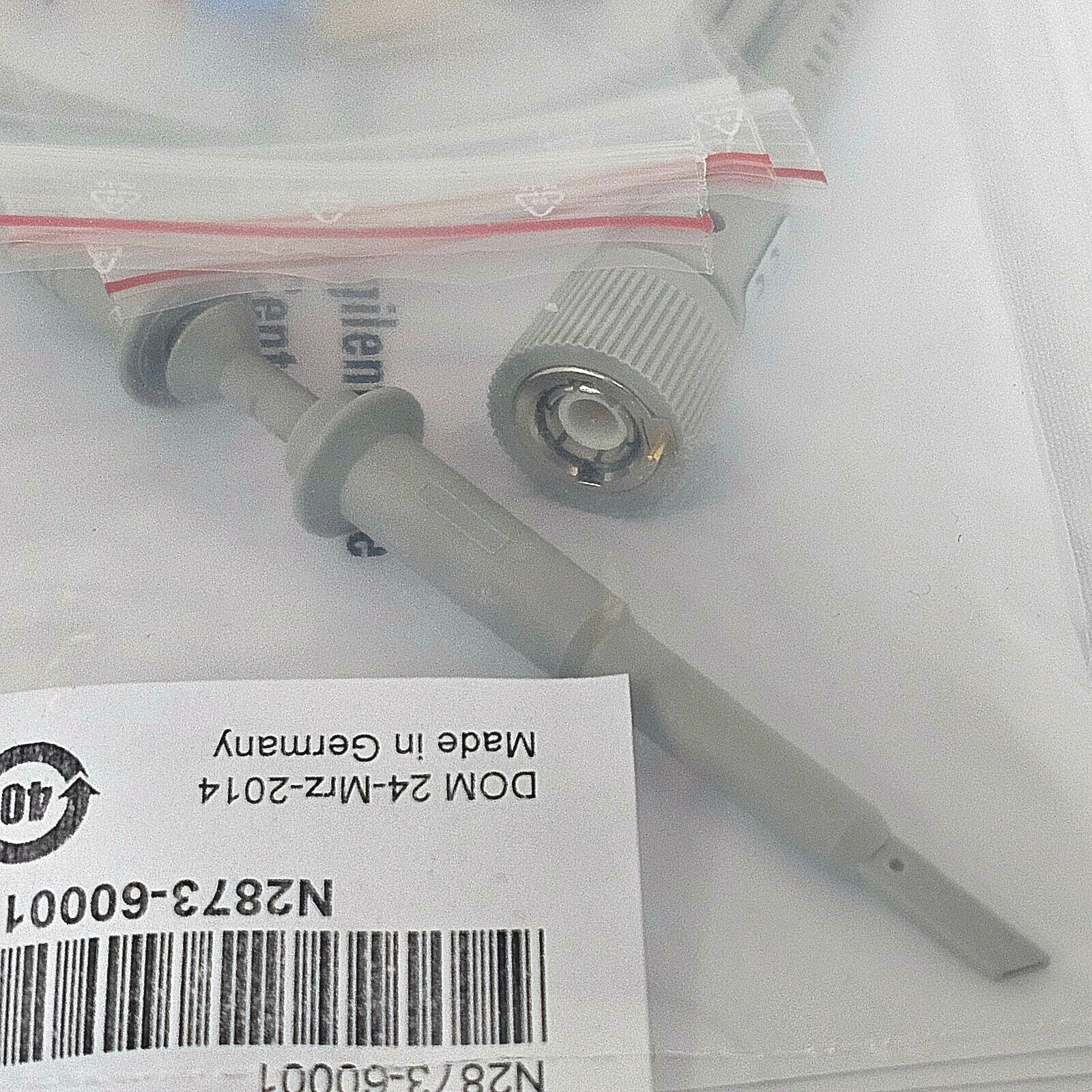

• 1 x spring-loaded probe tip (fitted)
• 2 x spare spring-loaded probe tips
• 2 x rigid probe tips
• 5 x IC caps (0.5 mm, 0.65 mm, 0.8 mm, 1.0 mm, and 1.27 mm pitch sizes)

Note: All probes in this range are supplied for use with instruments with a permanent earth connection.

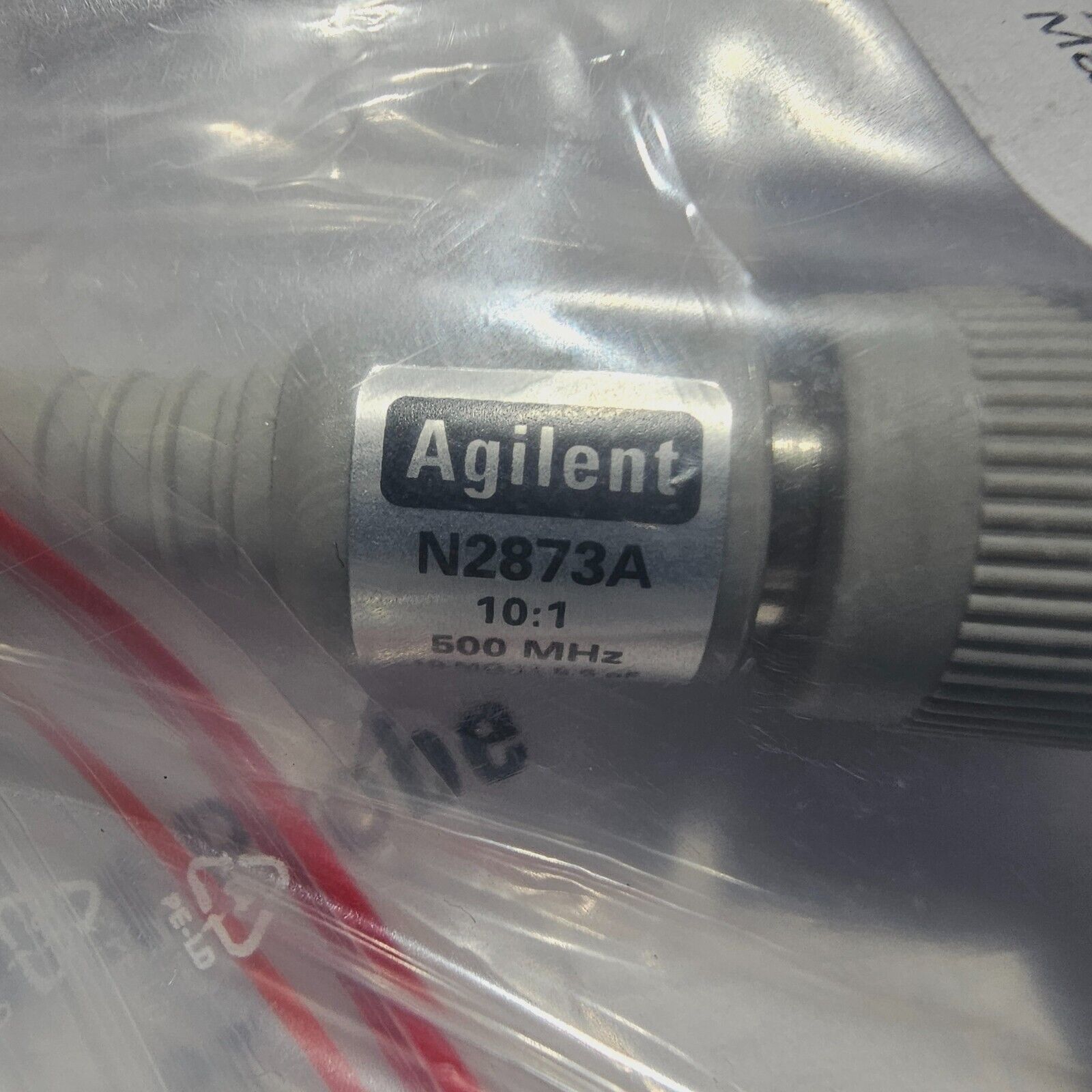

The Keysight N2873A is a passive probe from the N2870A Series, offering DC to 500 MHz bandwidth and a 10:1 attenuation ratio for general-purpose oscilloscope measurements. It features a compact 2.5 mm probe head diameter and low input capacitance, making it well suited to probing densely populated IC components and surface-mount devices in high-speed digital applications. The spring-loaded probe tip prevents slipping off the device under test, while insulating IC caps keep the tip centred on IC leads and prevent shorting of adjacent pins. A standard flat-blade ground connector and self-adhesive copper ground pads help reduce ground inductance. The probe is automatically recognised (probe ID readout) when connected to compatible Keysight InfiniiVision and Infiniium Series oscilloscopes. It ships as standard with the Keysight 9000 Series Infiniium oscilloscope.

Bandwidth: DC to 500 MHz
Attenuation Ratio: 10:1
Input Resistance: 10 MΩ (with 1 MΩ oscilloscope input)
Input Capacitance: 9.5 pF
Maximum Input Voltage: 400 V CAT I / 300 V CAT II
Oscilloscope Compensation Range: 10–25 pF
Probe Head Diameter: 2.5 mm
Cable Length: 1.3 m
Weight: 48 g
Compatibility: Keysight InfiniiVision and Infiniium Series oscilloscopes (1 MΩ input)
Series: N2870A
Probe Type: Passive
Connector: BNC with probe ID readout

Keysight N2870A Series Passive Probes and Accessories — Official Datasheet (PDF): Download PDF

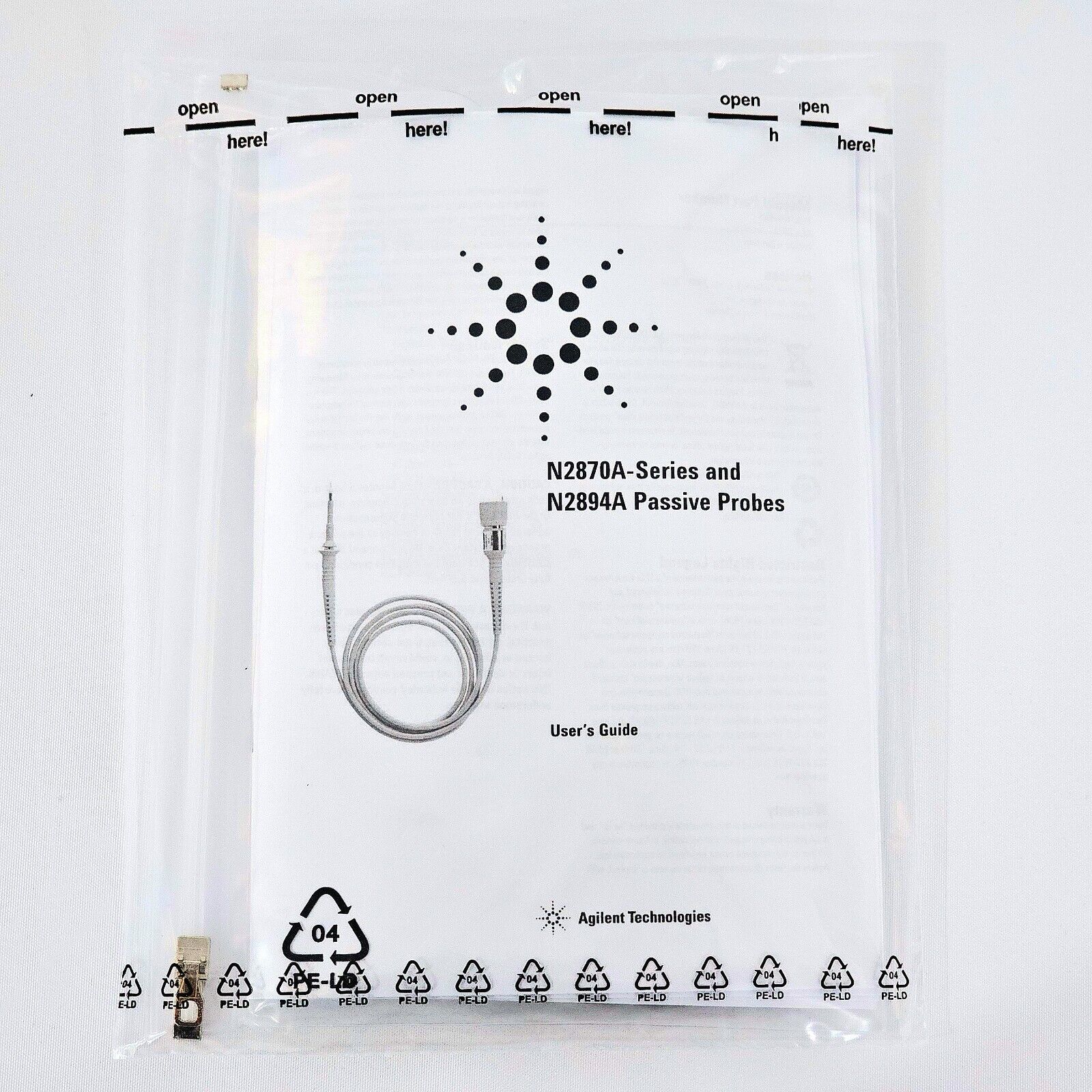

Keysight N2870A Series and N2894A Passive Probes — User's Guide (PDF): Download PDF

Keysight Passive Probe Family Overview — One-Page Reference (PDF): Download PDF
