Agilent Keysight N2802A 25 GHz InfiniiMax III Series Probe Amplifier
Model: N2802A
Condition: Used
In stock: 2
SKU: 5585 7G03
- Electronic T&M
- Offers Accepted
- Oscilloscope Probe Accessories
- Oscilloscope probes
- Oscilloscopes & Accessories
Make us an offer, name your price!
Thank you for your interest in this product! If the price of this product is slightly beyond your budget we may be able to adjust our price for you as long as your offer is close enough. Leave your details below and we will come back to you within 24 hours.
Choose options

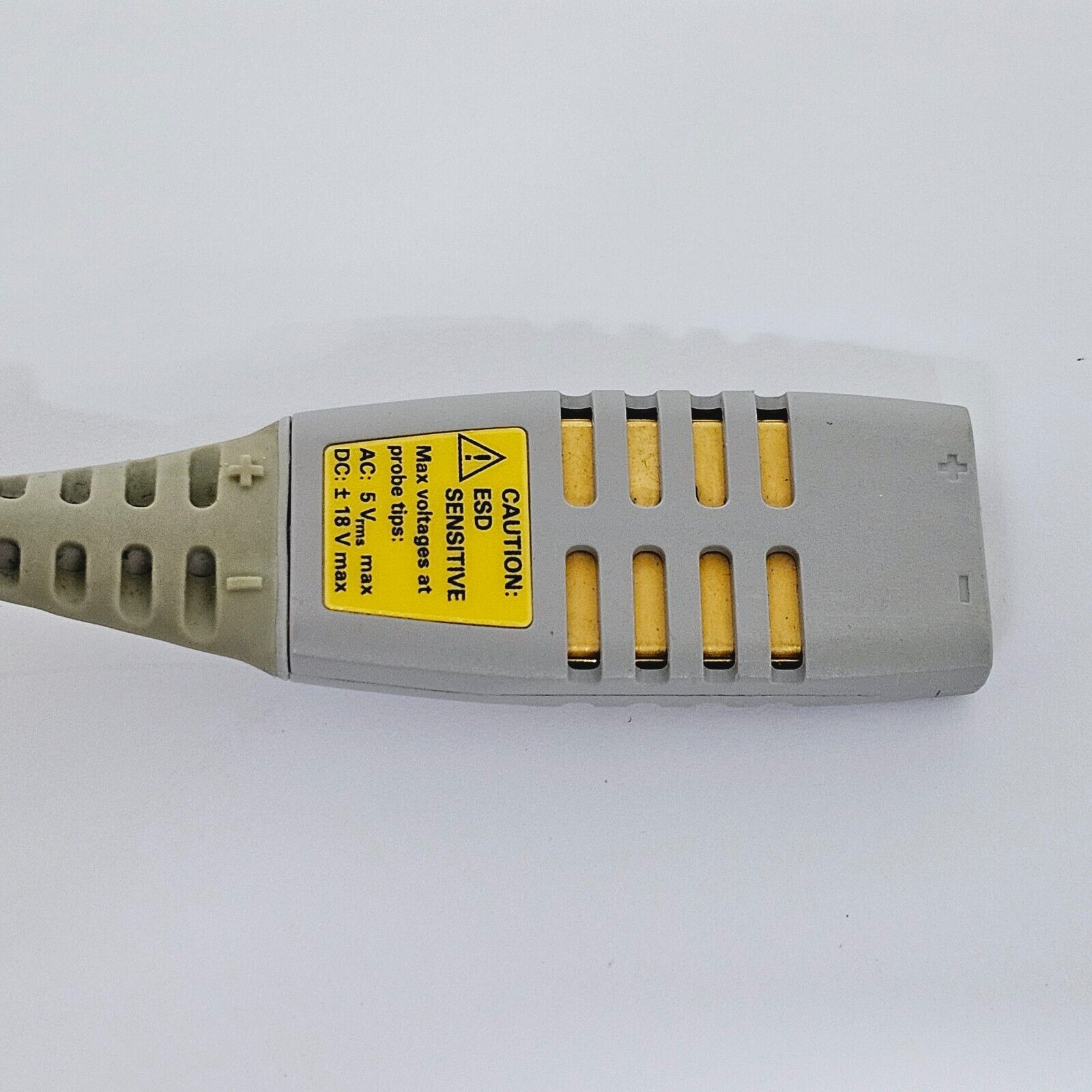

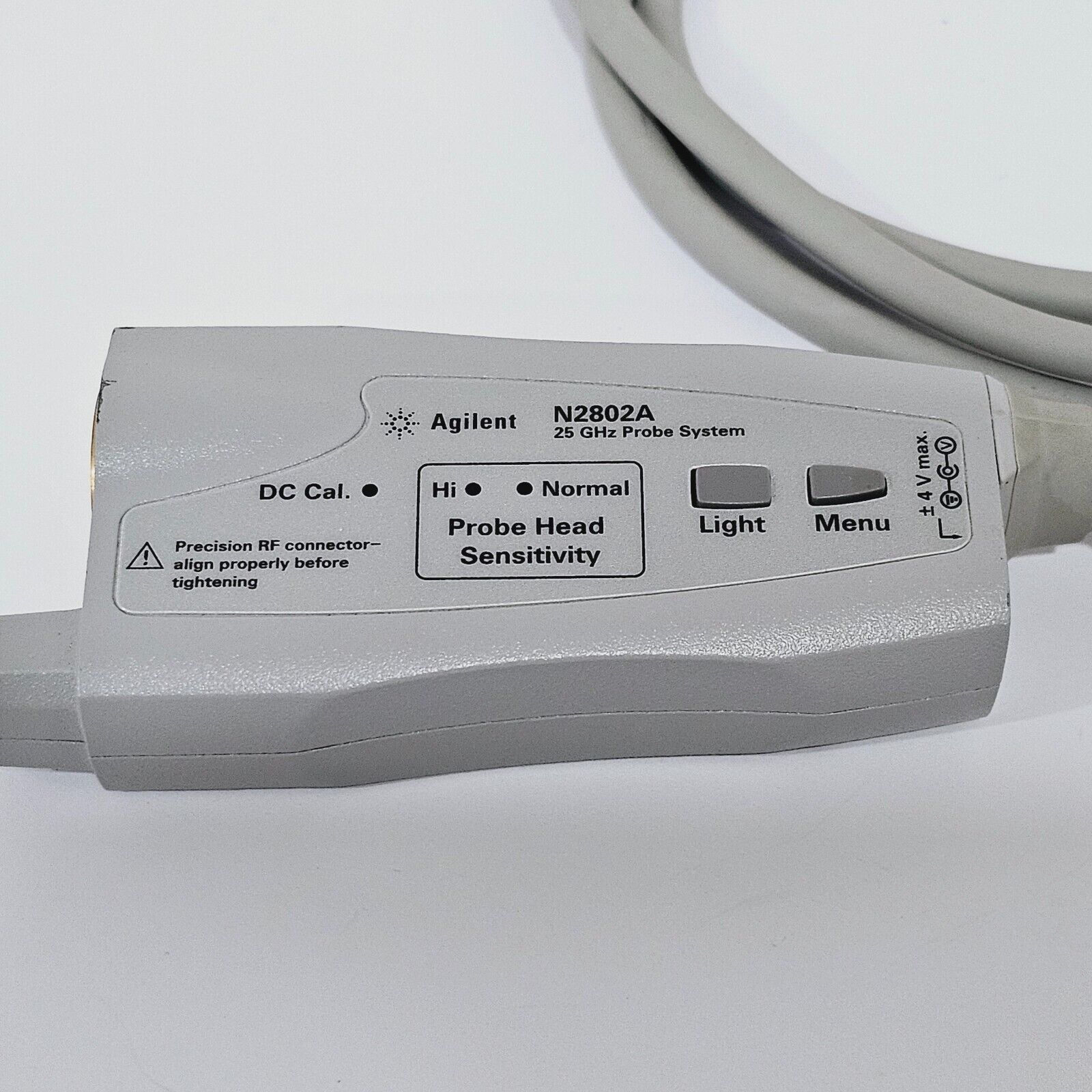

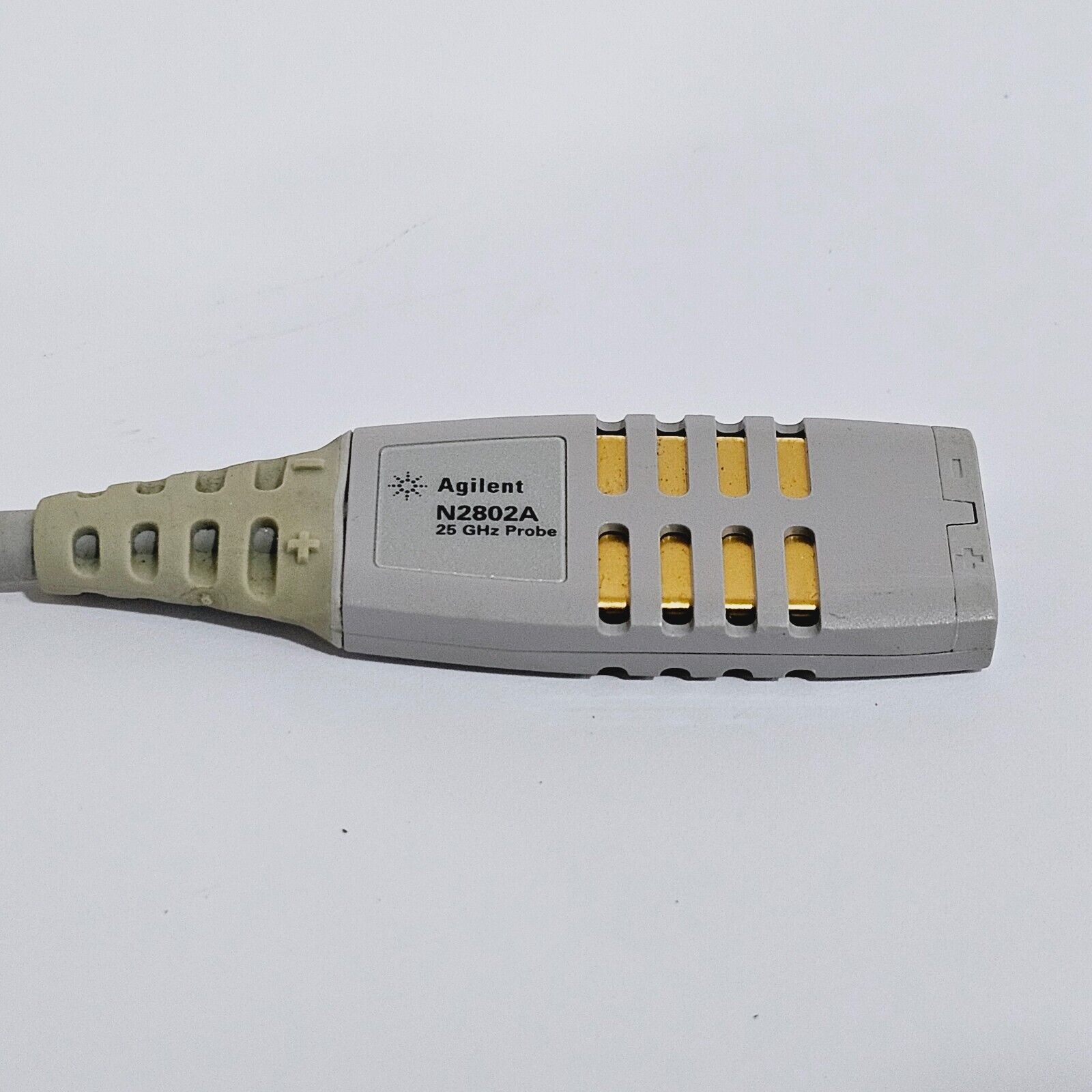

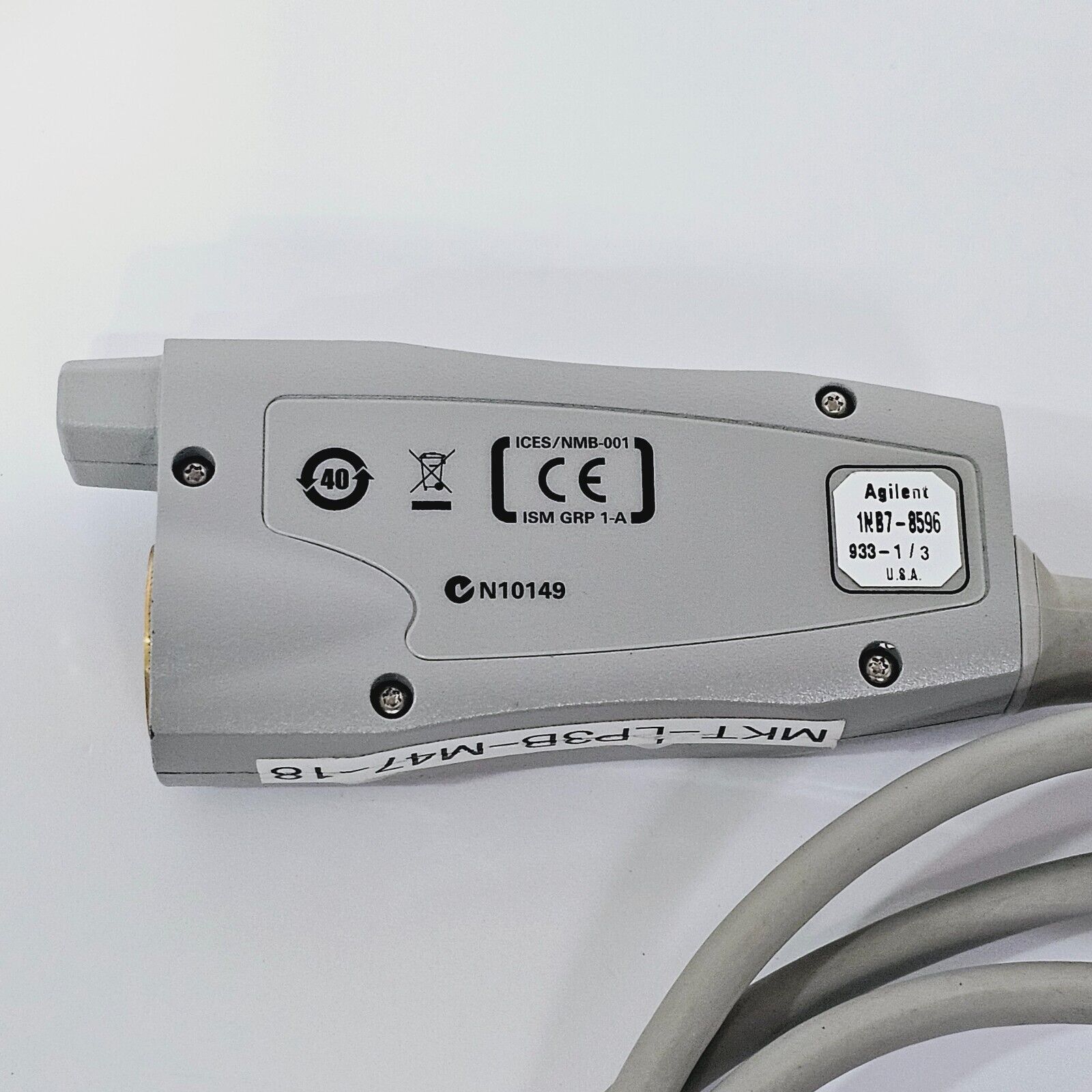

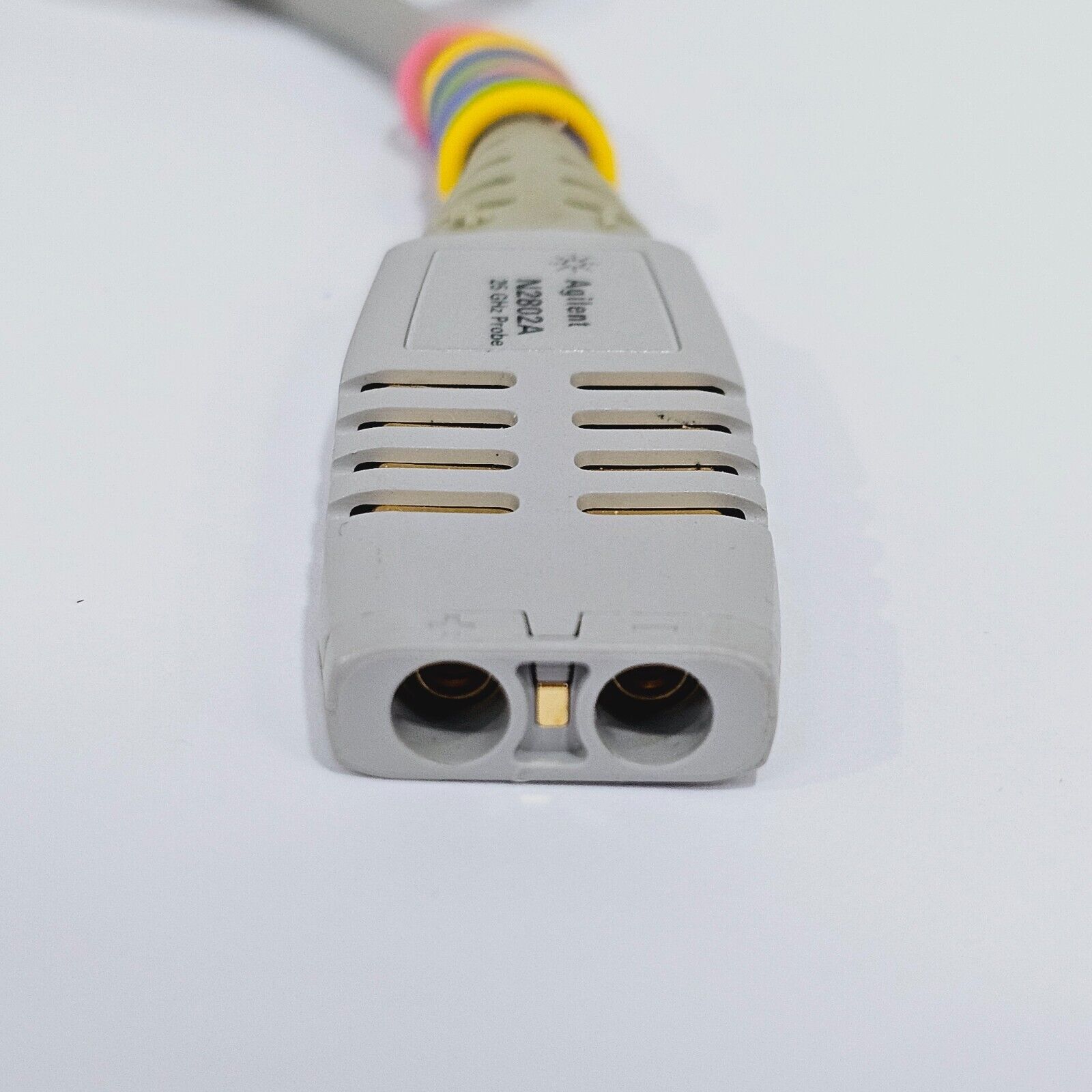

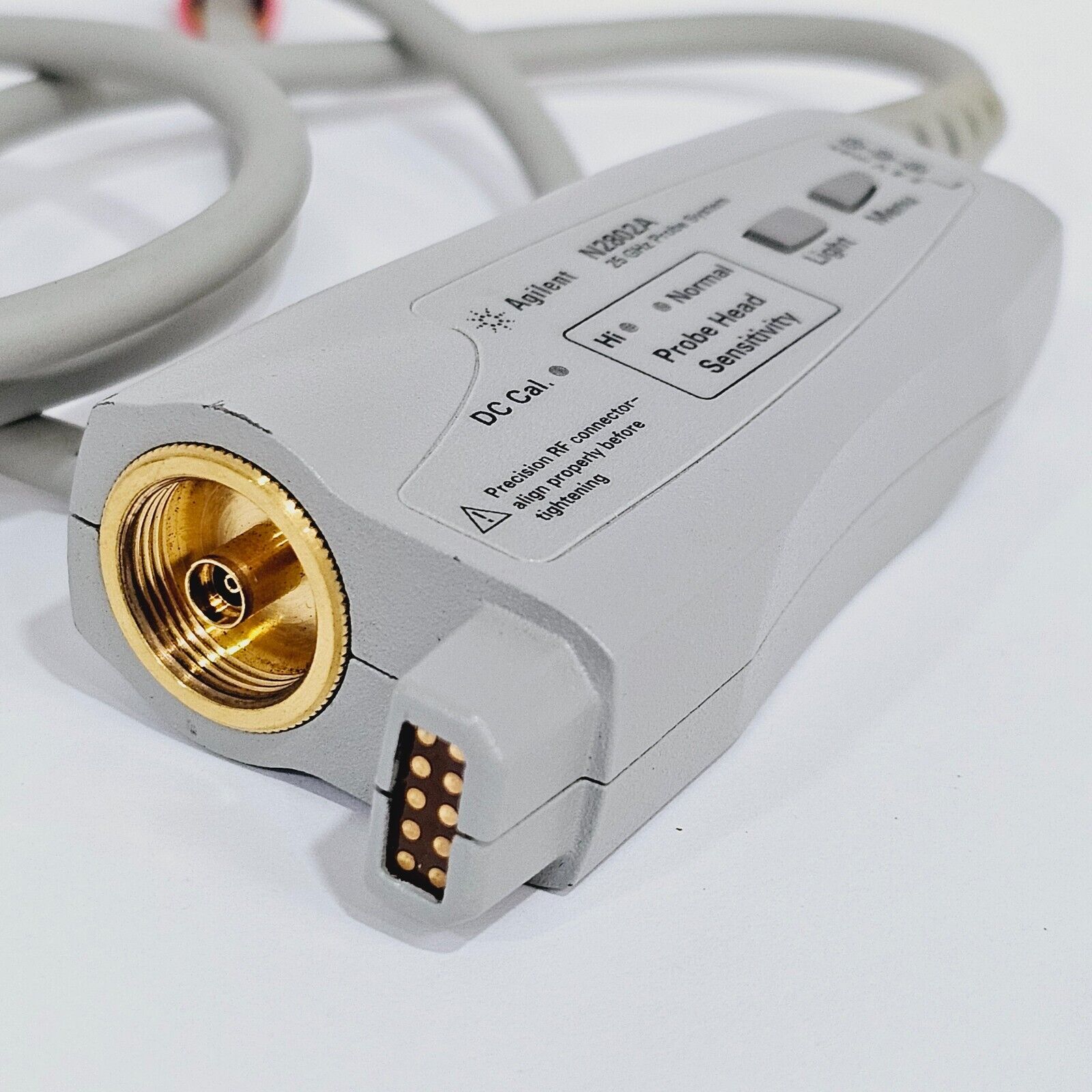

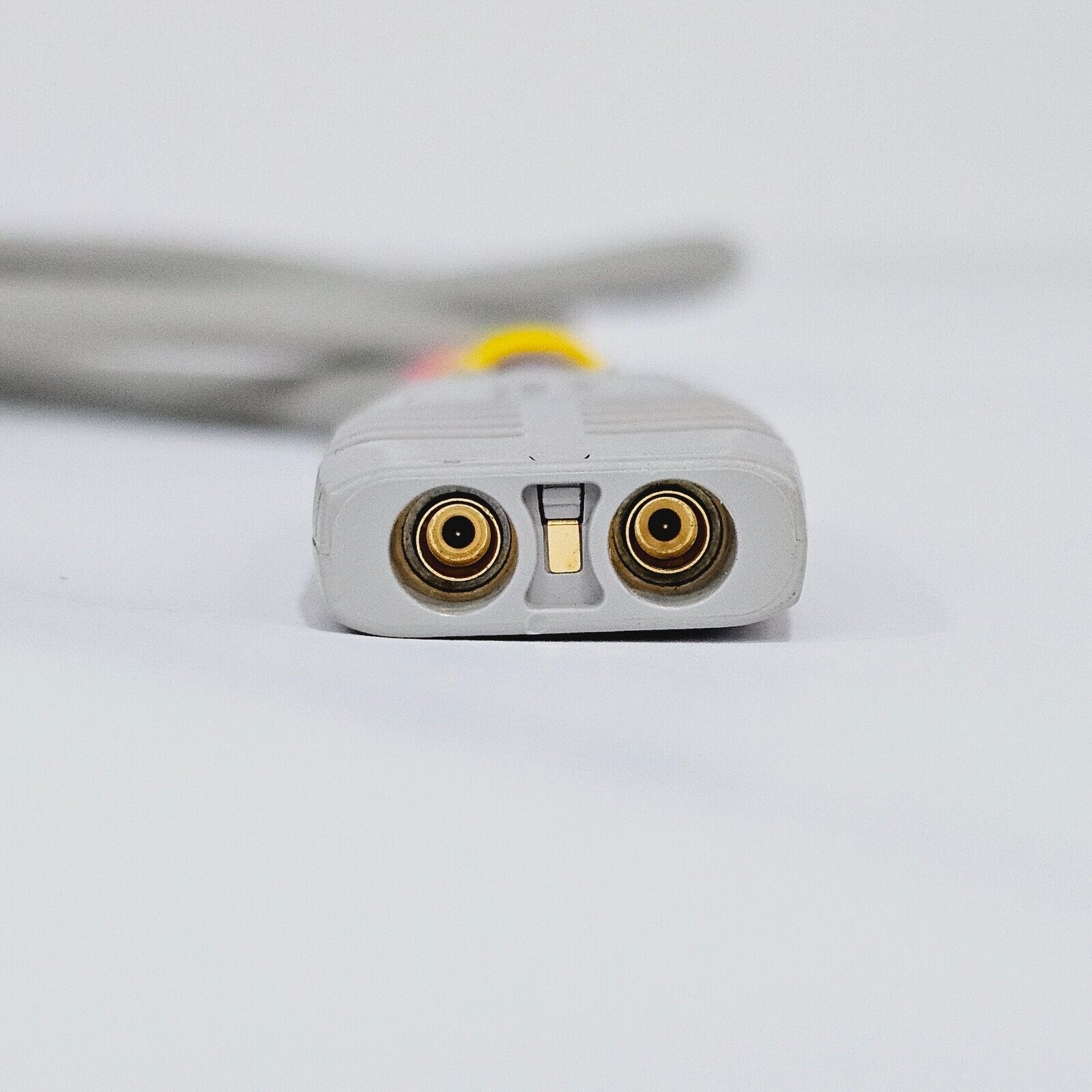

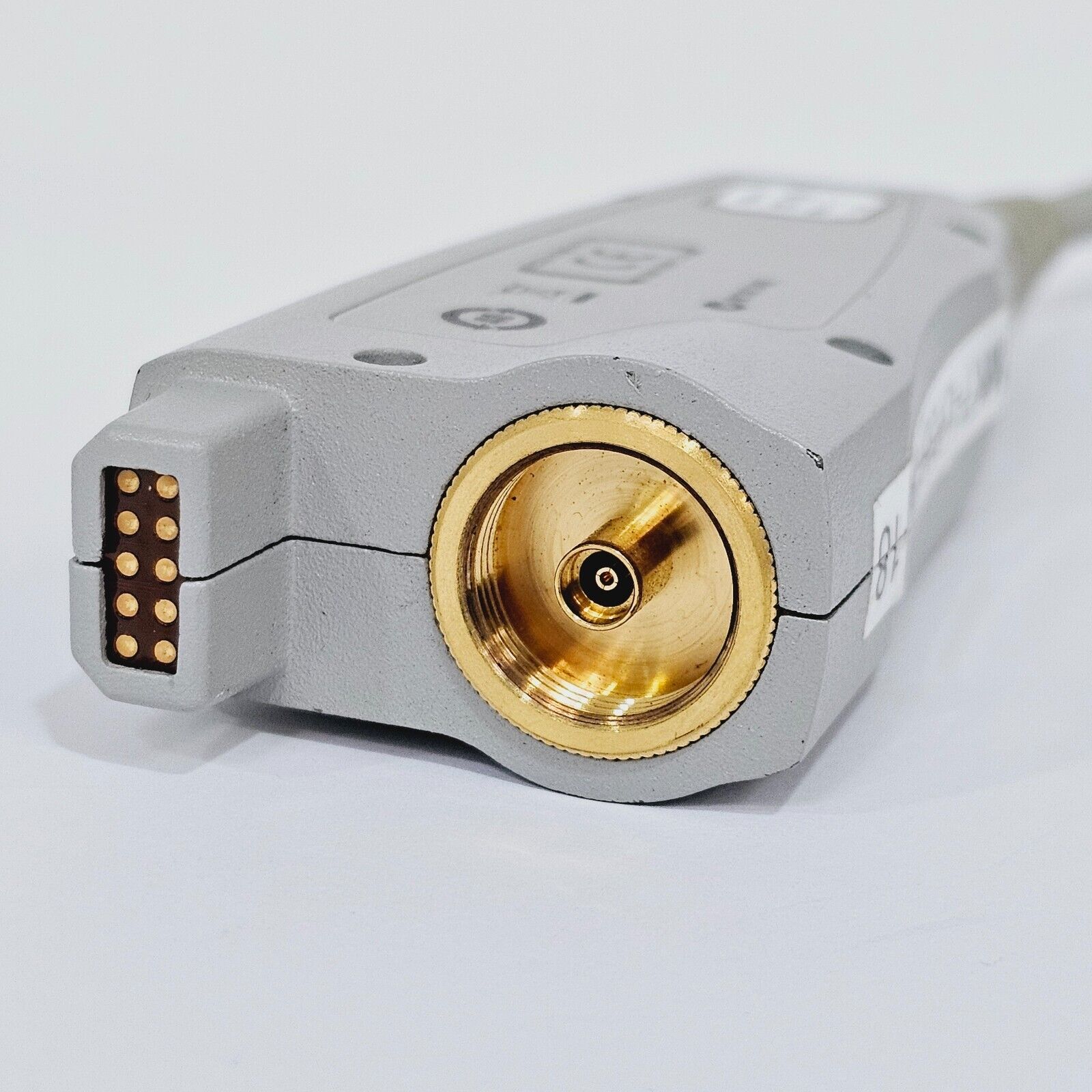

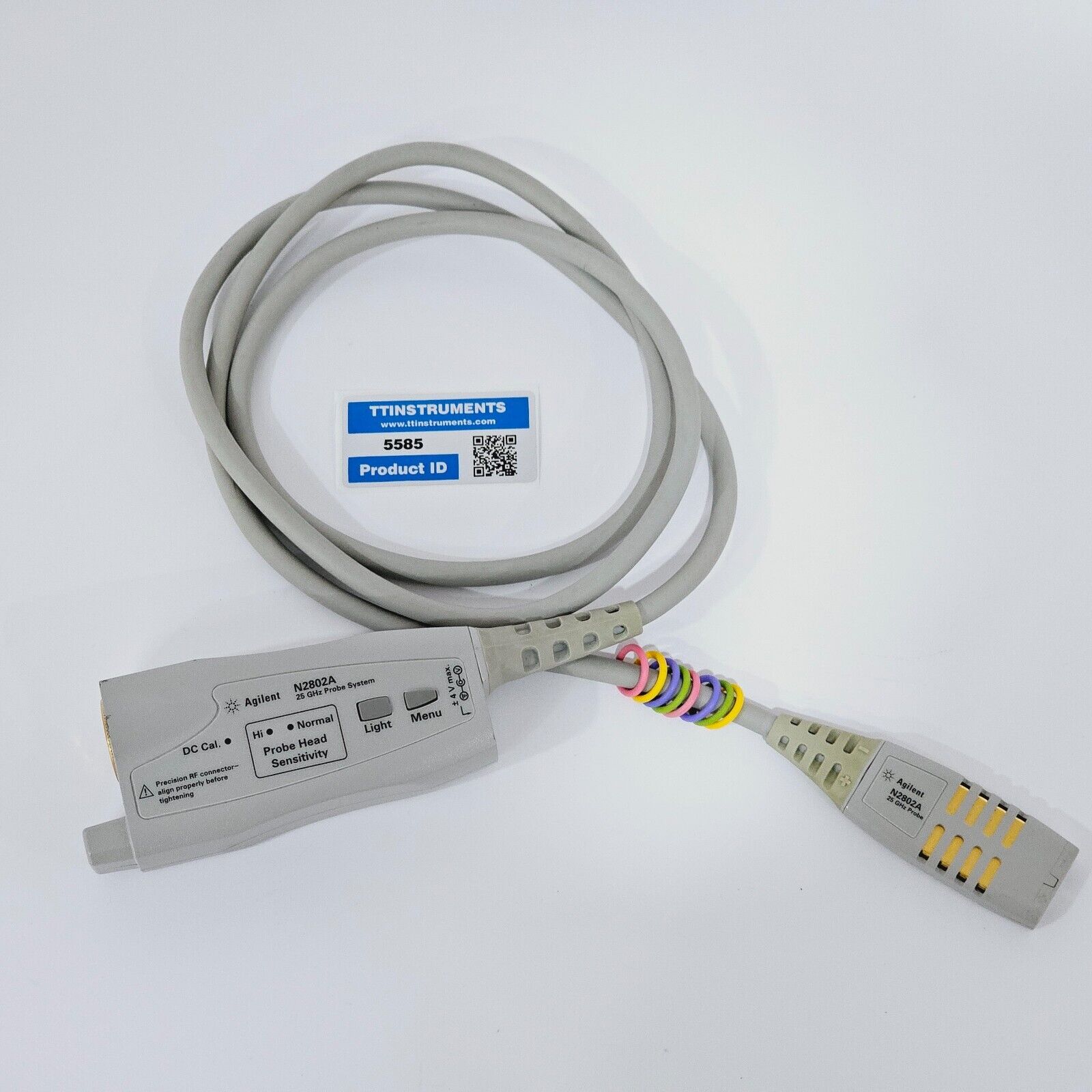

The probe is in excellent condition with barely any usage.
Note the pictures are of the actual product you will receive.
Please review the tabs titled manufacturer's description and resources for further information.
Uses a proprietary 200 GHz fT indium phosphide IC process with backside ground vias and novel thick film technology
Bandwidth:
- 25 GHz
- Tr = 17.4 psec
Range:
- DC attenuation ratio: 6:1 (3:1 with 200 Ω ZIF tip)
- Input voltage range: 1.6 Vpp (0.8 Vpp with 200 Ω ZIF tip)
- Input common mode range: ±12 V at DC to 250 Hz, ±2.5 V at >250 Hz (±6 V at DC to 250 Hz, ±1.25 V at >250 Hz with 200 Ω ZIF tip)
- Offset range: ±16 V when probing a single-ended signal
Input Impedance:
- DC input resistance: R diff = 100 kΩ ±2%, R se = 50 kΩ ±2%
- Input resistance @ >10 kHz: R diff = 1 kΩ, R se = 500 Ω
- Input capacitance: C diff = 32 fF, C se = 48 fF (with ZIF probe head)
Recommended Probe Heads:
- N5445A 30 GHz Browser Probe Head
- N5444A 30 GHz 2.92/3.4 mm SMA Probe Head
- N5439A 28 GHz ZIF probe Head
- MX0109A 26 GHz Solder-in Probe Head
Oscilloscope Connectivity:
- UXR 3.5mm oscilloscope
- UXR 1&1.85mm oscilloscope with N2852A adapter
- 90000X, Q, V, Z-series oscilloscopes
The InfiniiMax III probing system provides the highest bandwidth and incredibly low loading to allow for a completely new level of signal fidelity and accuracy. Four different InfiniiMax III probe amplifiers ranging from 16 GHz to 30 GHz are available for matching your probing solution to your performance and budget requirements. A proprietary 200 GHz fT InP (indium phosphide) IC process with backside ground vias and novel thick film technology is utilized for the InfiniiMax III probe system to accommodate your highest performance needs and is unmatched by any product in the market.
Key Features
- Full 25 GHz to the probe tip
- Industry’s lowest probe and scope system noise
- Industry’s highest fidelity and accuracy due to bandwidth and extremely low loading
- Probe amplifiers loaded with measured s-parameters for more accurate response correction
- Probe bandwidth upgradable
- Variety of probe heads for different use models with maximum usability
For the manufacturer datasheet, please click here
