Agilent Keysight Evaluation Kit for B2980 Series N1422A High Value Resistor Box
Model: N1422A
Condition: New Other
In stock: 0
SKU: 2679 6F01
- Accessories/Misc
- Electronic T&M
Choose options
Condition: New Other
This Keysight N1422A High Value Resistor Box is part of the N1299A-301 Evaluation Kit for the B2980 Series. Supplied as pictured, the kit includes the N1422A resistor box along with the cables and accessories described below.
Included items:

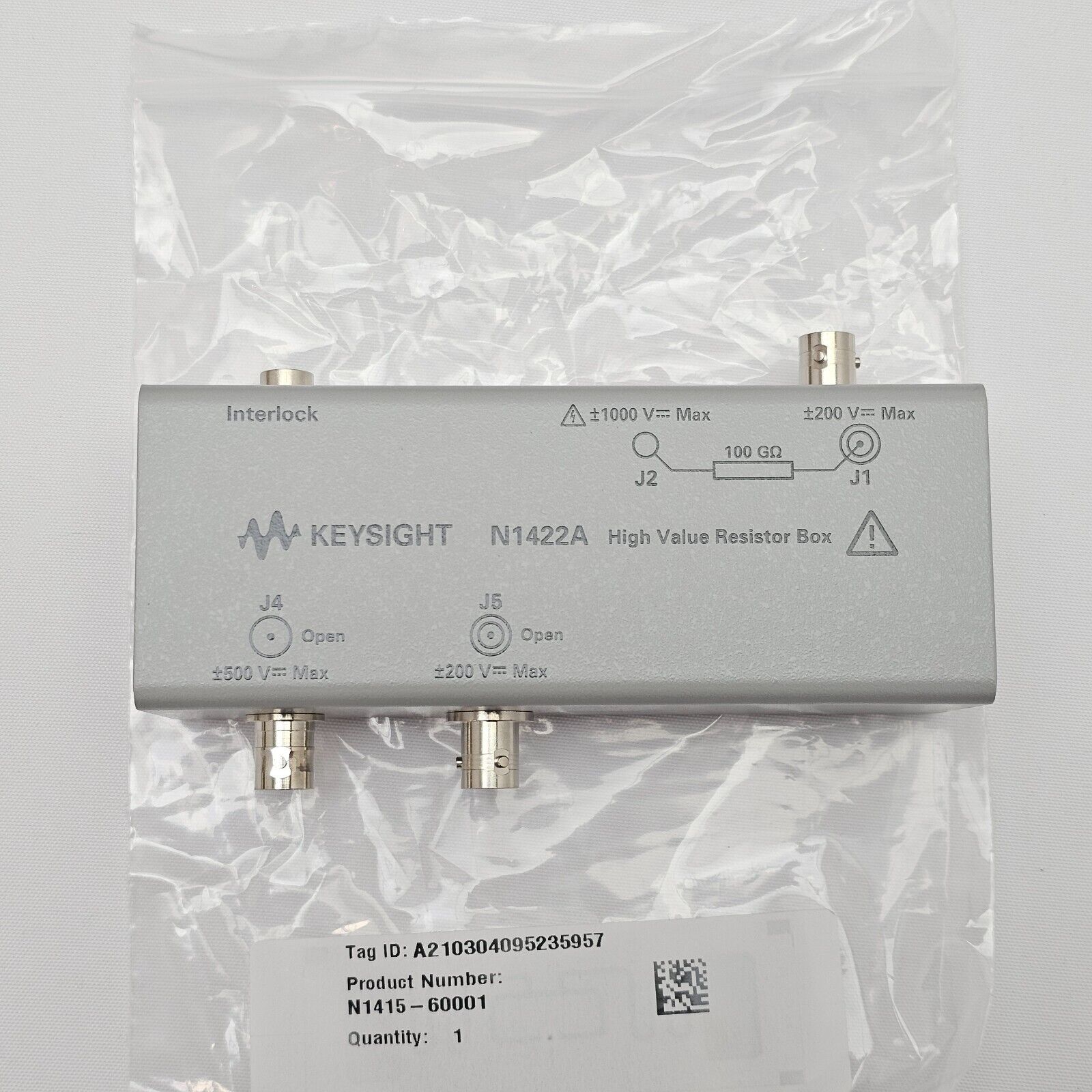

• N1422A High Value Resistor Box

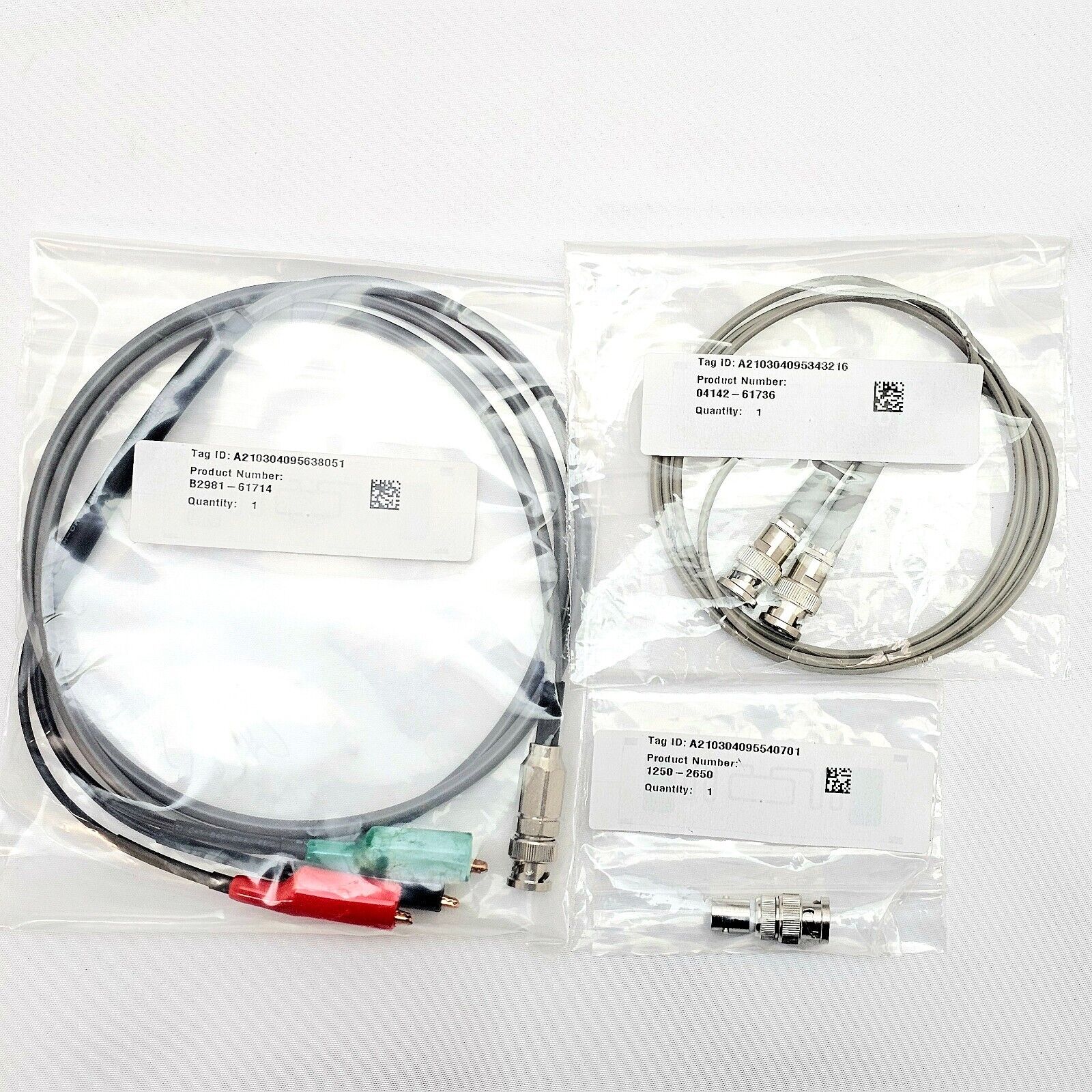

• N1415A Triax to Alligator Cable, 200 V, 1.5 m (part no. B2981-61714)

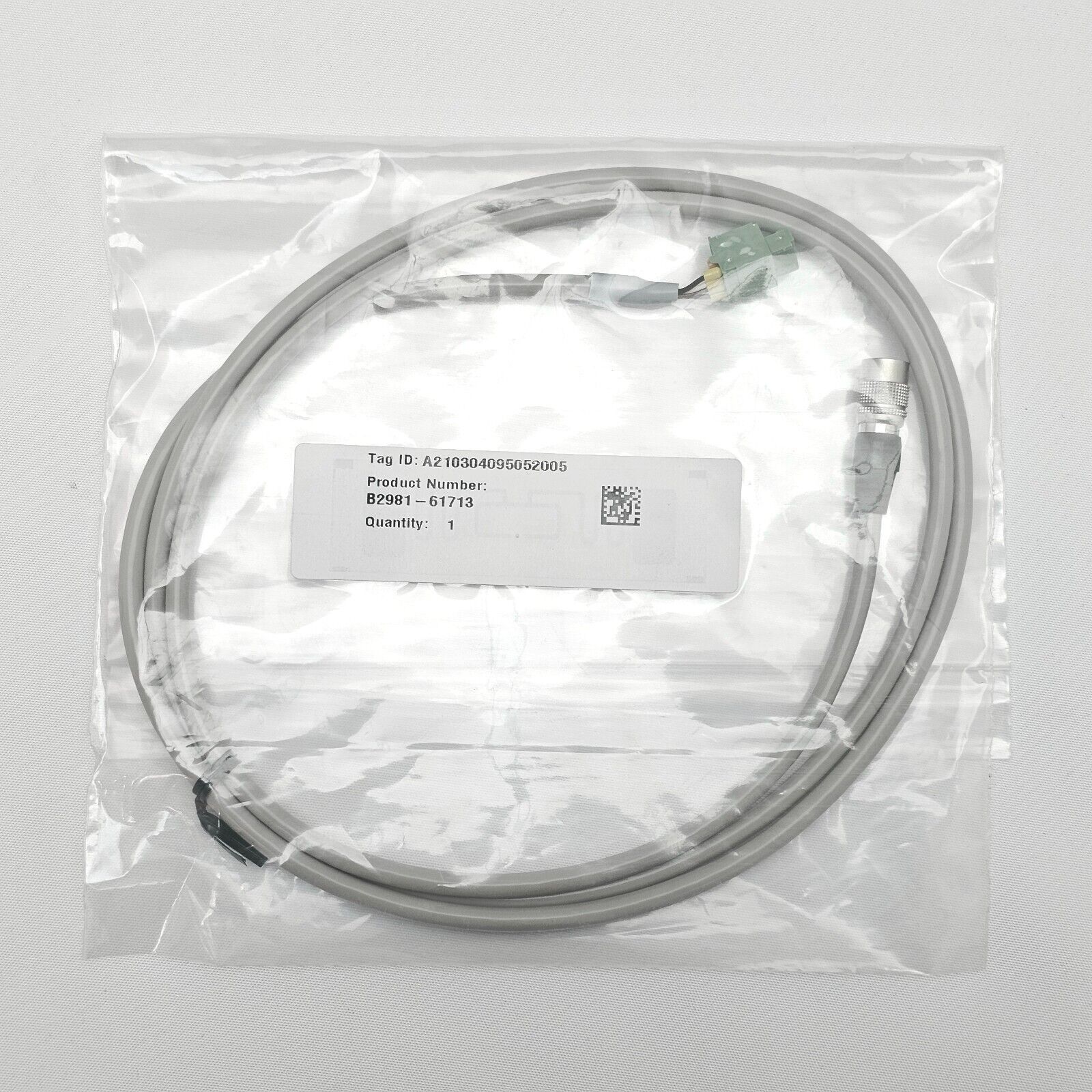

• Keysight N1411B Interlock Cable, 4-pin terminal circular plug, 3 m (part no. B2981-61713)
• Coaxial adapter/termination accessory (part no. 04142-61736 / 1250-2650)
The Keysight (Agilent) N1422A is a High Value Resistor Box supplied as part of the N1299A-301 Evaluation Kit for the B2980 Series Femto/Picoammeter and Electrometer/High Resistance Meter instruments.
The N1422A allows engineers and lab technicians to evaluate the high resistance measurement capability of the B2985B and B2987B electrometers using the onboard 100 GΩ precision resistor. When used with an external voltage source, it also enables evaluation of low-level current measurement performance of the B2981B and B2983B Femto/Picoammeters. Additional coaxial and triaxial connectors on the box allow cables to be simply terminated for a wide variety of evaluation configurations.
Key Features:
Resistance value: 100 GΩ (for high resistance measurement evaluation)
Compatible instruments: B2985B, B2987B (resistance evaluation); B2981B, B2983B (current measurement evaluation with external voltage source)
Interlock connector: Included for safe operation at bias voltages exceeding 21 V

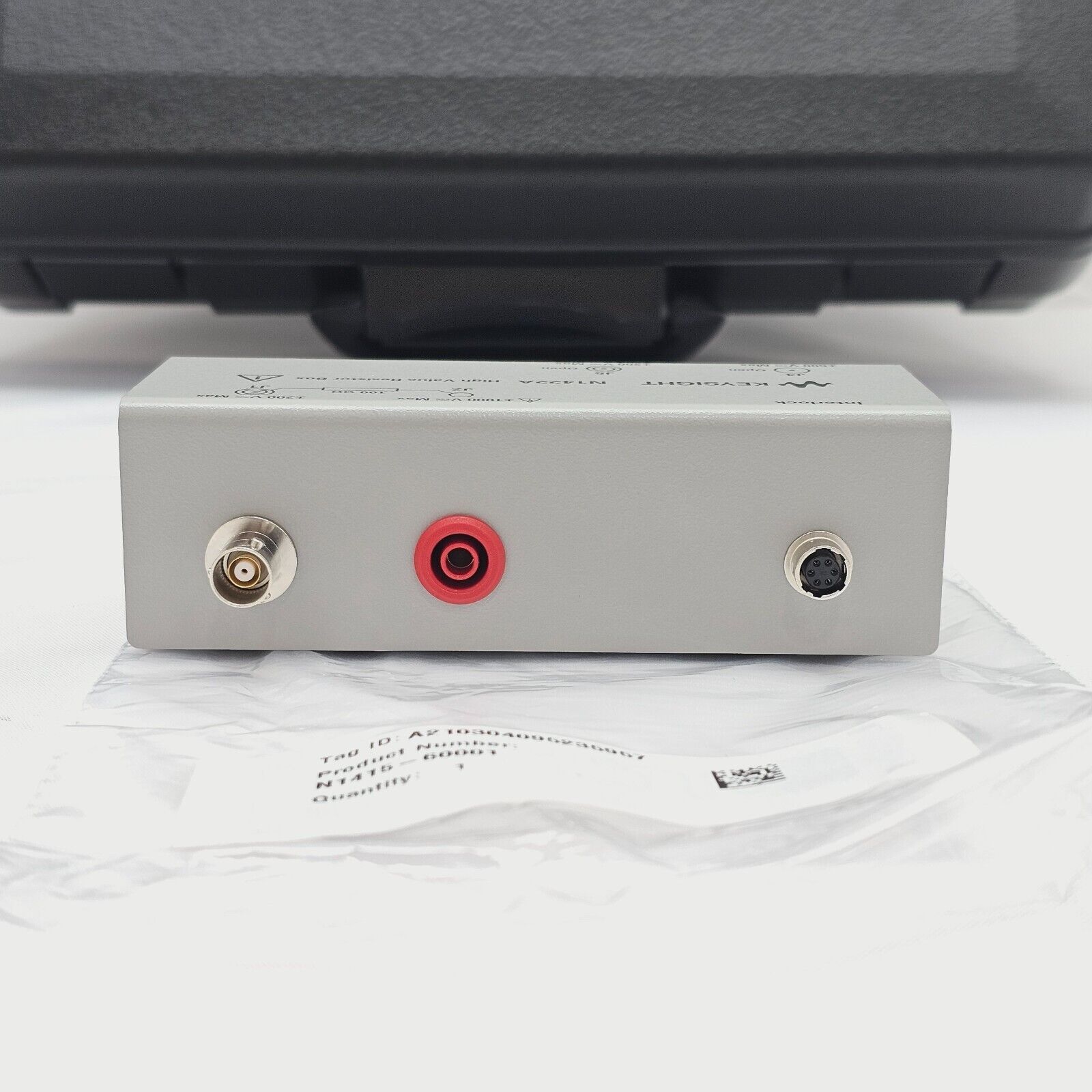

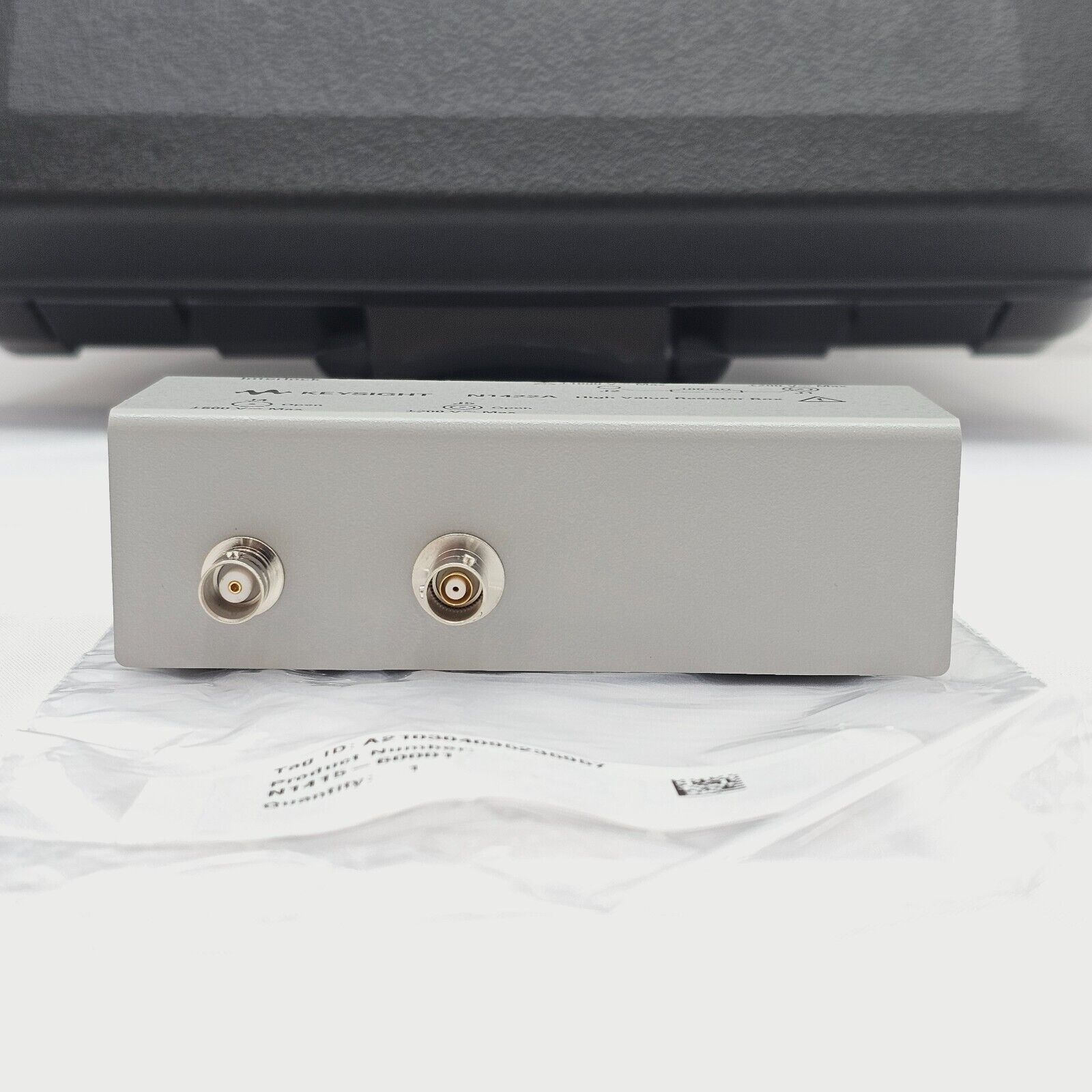

Connectors: Coaxial and triaxial connectors for cable termination and evaluation flexibility
Kit part number: N1299A-301
Part of the Keysight B2980 Series accessory ecosystem
Use Cases:
Verifying high resistance measurement capability of B2980 Series electrometers
Evaluating femto/picoammeter current measurement performance
Simplifying cable termination during system evaluation and setup
Laboratory qualification and acceptance testing of B2980 Series instruments
Keysight B2980A Series Femto/Picoammeter & Electrometer Data Sheet (includes N1422A accessory info): Download PDF
Keysight B2980A Series Configuration Guide (N1422A and N1299A-301 kit listed): Download PDF
Keysight B2980B Series User's Guide (covers B2980 instrument family compatible with N1422A): Download PDF
Product Overview
Condition: New Other
This Keysight N1422A High Value Resistor Box is part of the N1299A-301 Evaluation Kit for the B2980 Series. Supplied as pictured, the kit includes the N1422A resistor box along with the cables and accessories described below.
Included items:
• N1422A High Value Resistor Box
• N1415A Triax to Alligator Cable, 200 V, 1.5 m (part no. B2981-61714)
• Keysight N1411B Interlock Cable, 4-pin terminal circular plug, 3 m (part no. B2981-61713)
• Coaxial adapter/termination accessory (part no. 04142-61736 / 1250-2650)
Manufacturer's Description
The Keysight (Agilent) N1422A is a High Value Resistor Box supplied as part of the N1299A-301 Evaluation Kit for the B2980 Series Femto/Picoammeter and Electrometer/High Resistance Meter instruments.
The N1422A allows engineers and lab technicians to evaluate the high resistance measurement capability of the B2985B and B2987B electrometers using the onboard 100 GΩ precision resistor. When used with an external voltage source, it also enables evaluation of low-level current measurement performance of the B2981B and B2983B Femto/Picoammeters. Additional coaxial and triaxial connectors on the box allow cables to be simply terminated for a wide variety of evaluation configurations.
Key Features:
Resistance value: 100 GΩ (for high resistance measurement evaluation)
Compatible instruments: B2985B, B2987B (resistance evaluation); B2981B, B2983B (current measurement evaluation with external voltage source)
Interlock connector: Included for safe operation at bias voltages exceeding 21 V
Connectors: Coaxial and triaxial connectors for cable termination and evaluation flexibility
Kit part number: N1299A-301
Part of the Keysight B2980 Series accessory ecosystem
Use Cases:
Verifying high resistance measurement capability of B2980 Series electrometers
Evaluating femto/picoammeter current measurement performance
Simplifying cable termination during system evaluation and setup
Laboratory qualification and acceptance testing of B2980 Series instruments
Resources
Keysight B2980A Series Femto/Picoammeter & Electrometer Data Sheet (includes N1422A accessory info): Download PDF
Keysight B2980A Series Configuration Guide (N1422A and N1299A-301 kit listed): Download PDF
Keysight B2980B Series User's Guide (covers B2980 instrument family compatible with N1422A): Download PDF
