Condition: Used

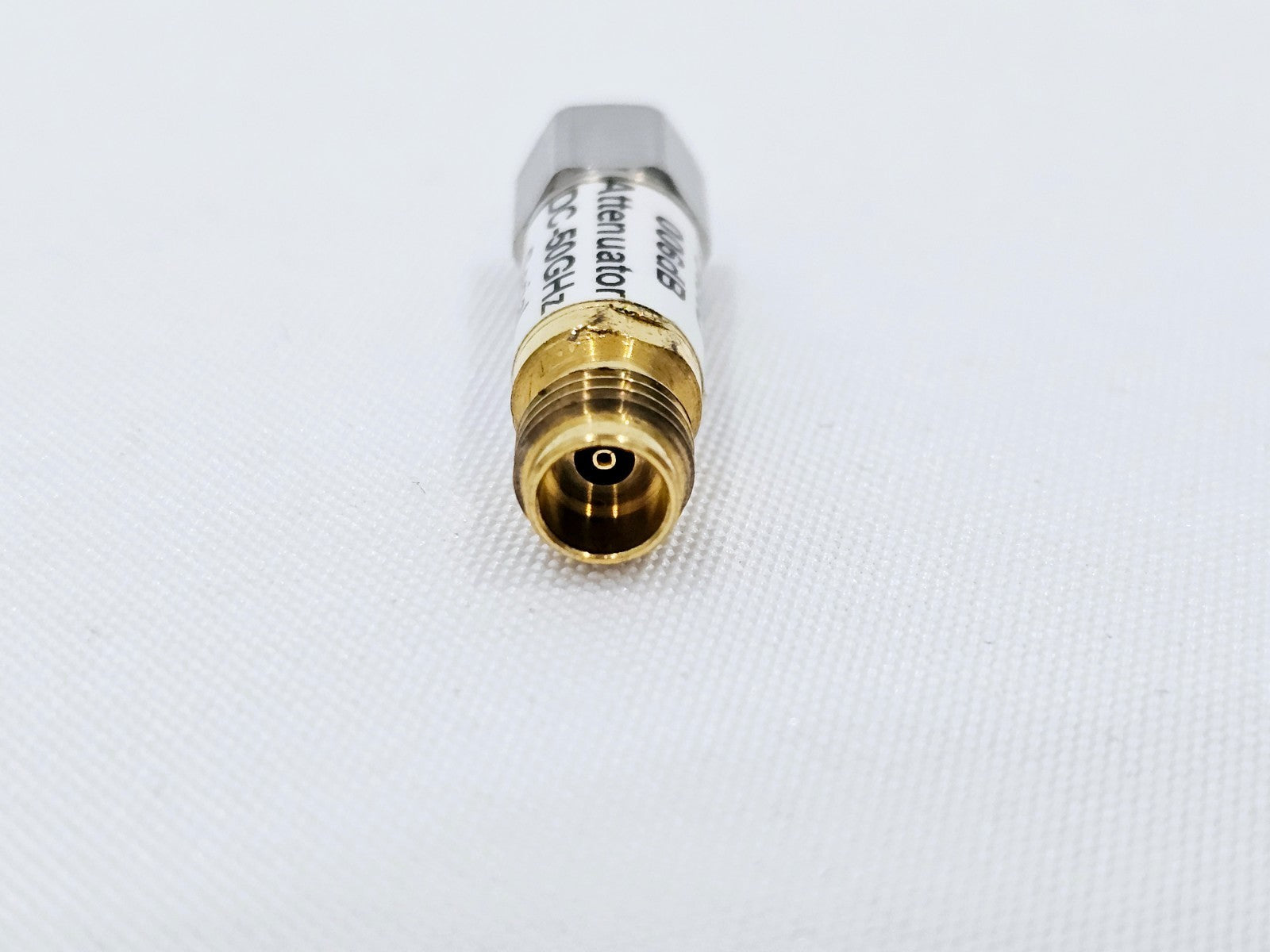

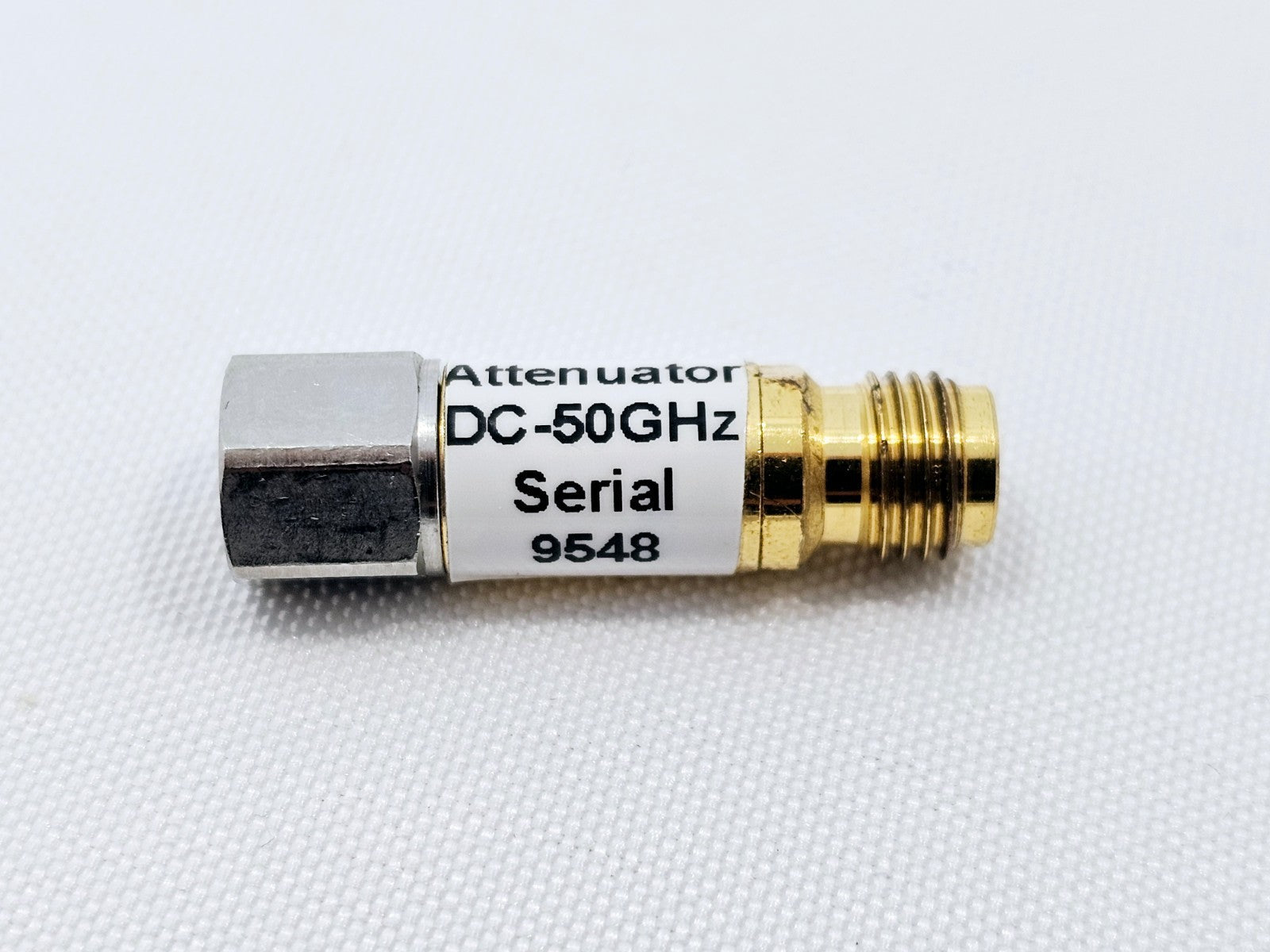

The Agilent Keysight 8490D-006 is a used, tested, and fully functional 6 dB precision fixed coaxial attenuator. Built to the same exacting standards as Keysight's lower-frequency attenuator families, it delivers reliable, repeatable performance from DC through 50 GHz via 2.4 mm connectors.

Included in the sale:

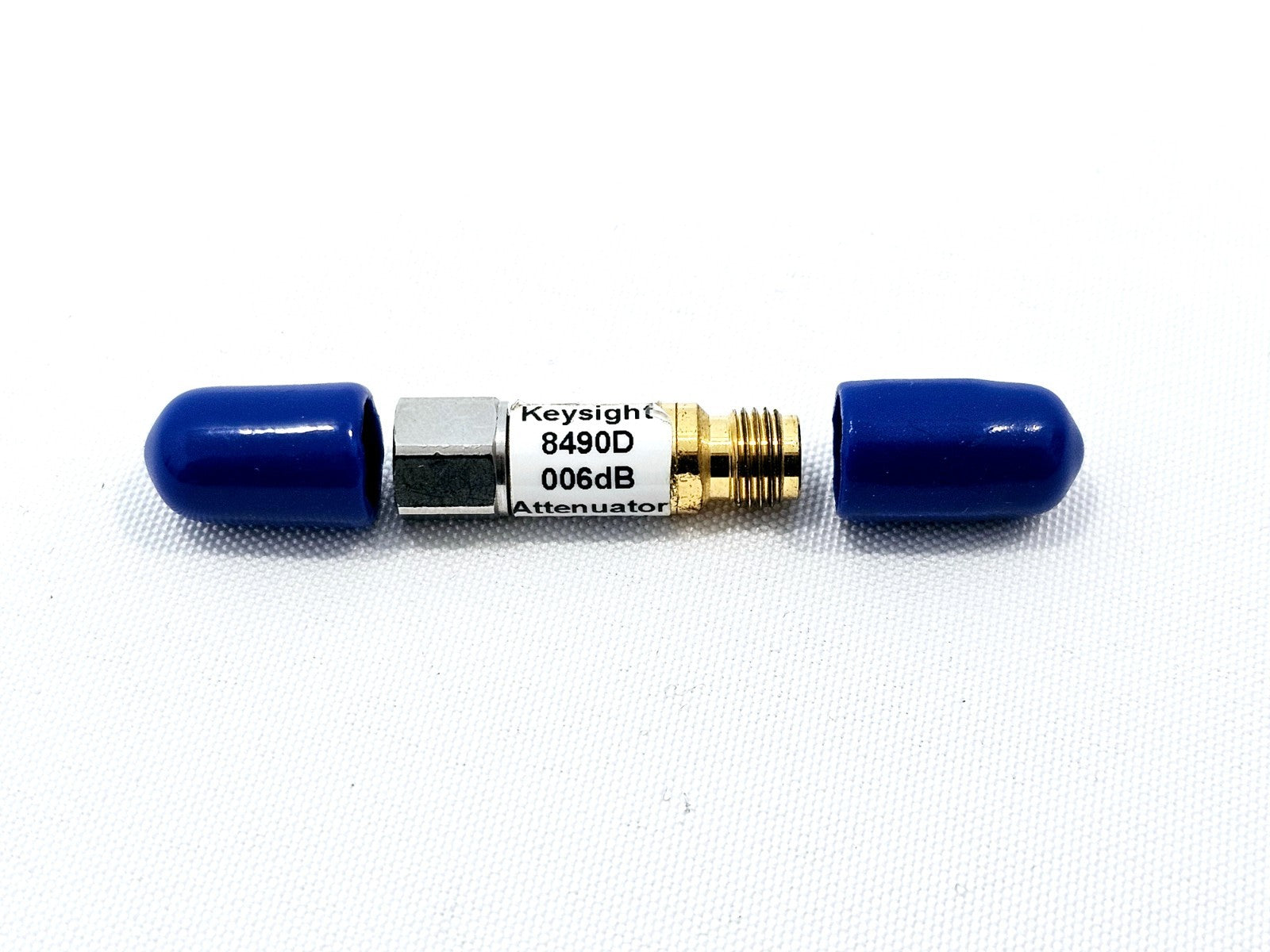

• 1x Agilent Keysight 8490D-006 6 dB Coaxial Fixed Attenuator

The Keysight Technologies 8490D is a family of precision fixed coaxial attenuators with performance specified from DC to 50 GHz. The 8490D-006 is the 6 dB variant of this family.

These attenuators use the 2.4 mm coaxial connector, which exhibits excellent electrical performance from DC to 50 GHz, making them suitable for millimetre-wave applications. Every unit is swept-frequency tested to ensure it meets published specifications across the entire frequency range, and calibration points are provided on a nameplate chart attached to each attenuator.

The 8490D family is assembled and tested with the same meticulous care as the lower-frequency Keysight 8491, 8492, and 8493 attenuator families, using Keysight precision network analysers to verify performance. Typical applications include extending the dynamic range of sensitive power metres, use as calibration standards, signal levelling, and general microwave and millimetre-wave test system integration.

Key Specifications (8490D-006):
Attenuation Value: 6 dB (nominal)
Frequency Range: DC to 50 GHz

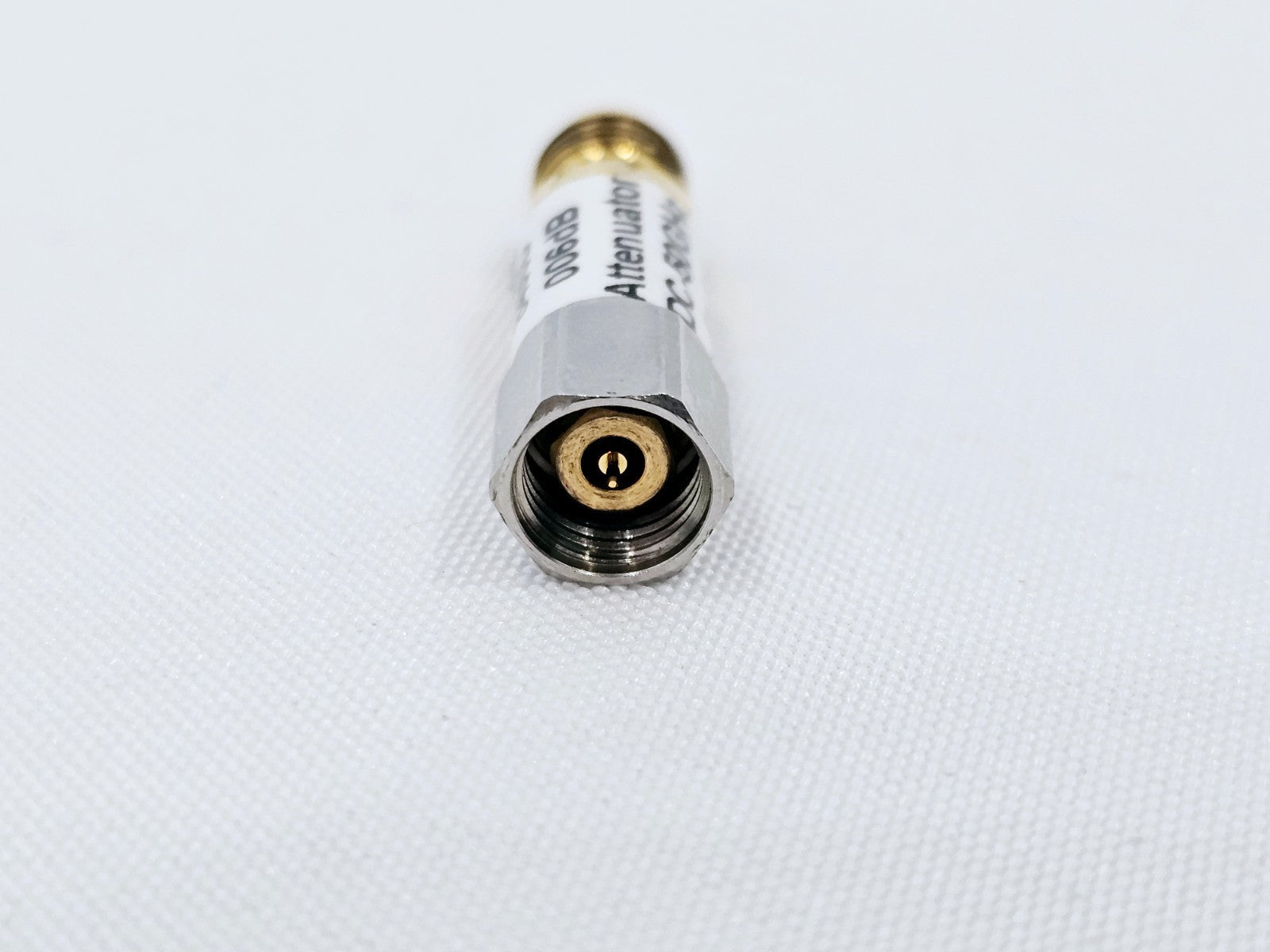

Connector Type: 2.4 mm (male/female)
Impedance: 50 ohm
Minimum Attenuation (0–50 GHz): 5.4 dB
Maximum Attenuation (0–26.5 GHz): 6.9 dB
Maximum Attenuation (26.5–50 GHz): 7.8 dB
Max SWR (0–26.5 GHz): 1.15
Max SWR (26.5–40 GHz): 1.25
Max SWR (40–50 GHz): 1.45
Maximum Input Power: 1 W average
Calibration: Swept-frequency tested; calibration data provided on nameplate chart

Keysight 8490D Coaxial Attenuators Technical Overview (datasheet, publication 5963-9931): Download PDF

Agilent RF & Microwave Attenuators Selection Guide including 8490D family specifications: Download PDF

Keysight 8490D Operating and Service Manual (via rftesolutions.com): Download PDF
