Condition: Used

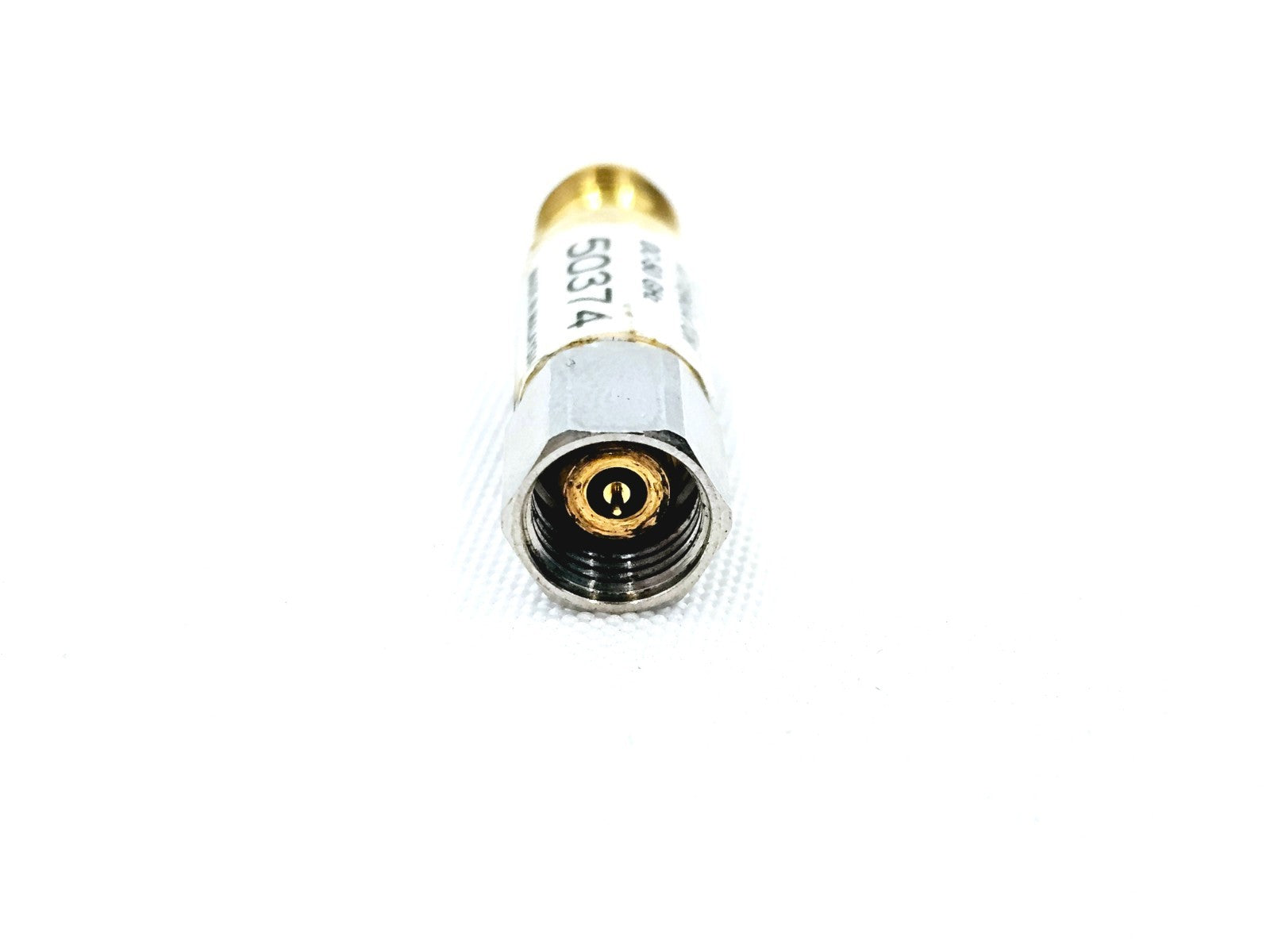

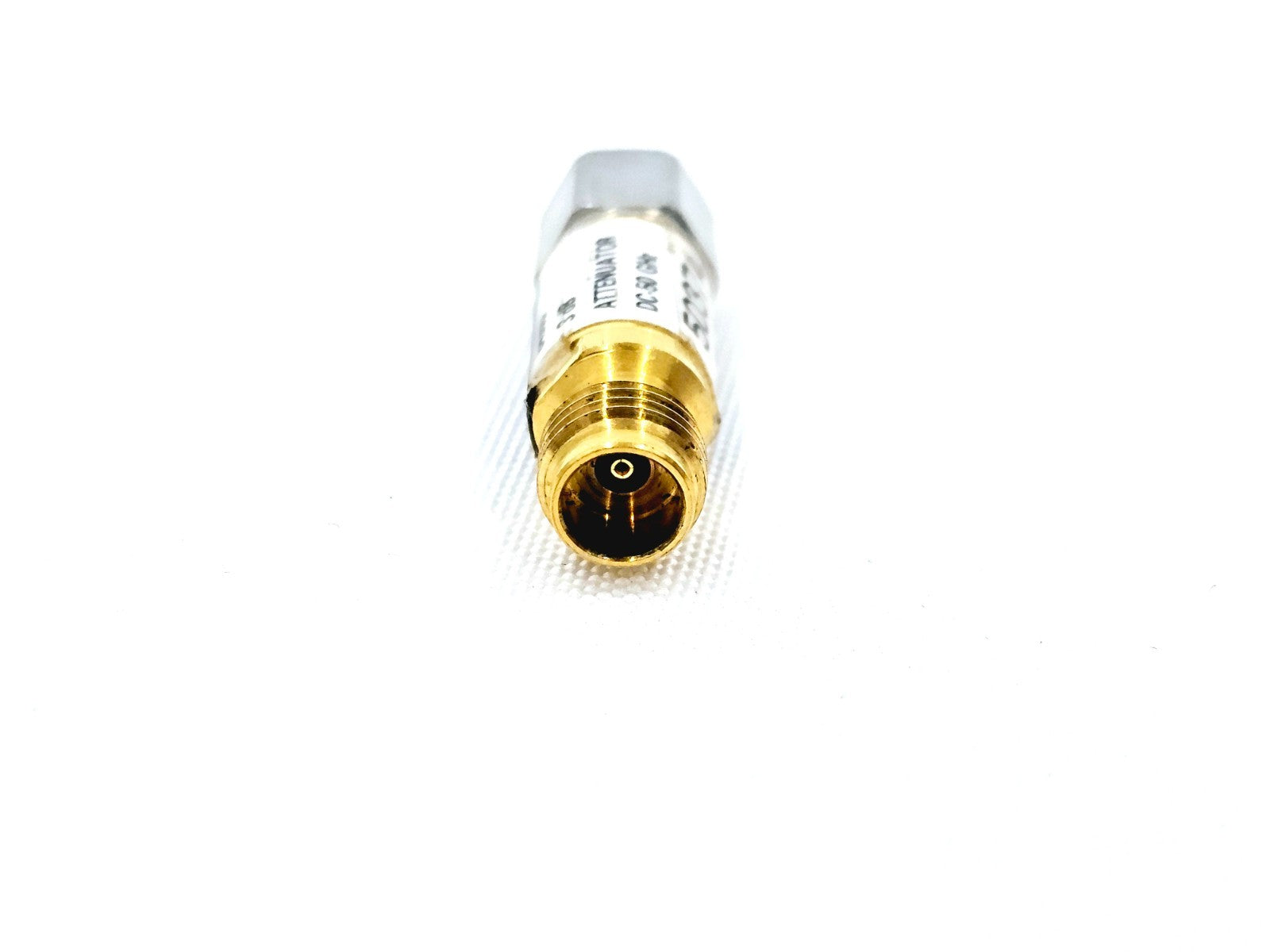

Tested and fully functional Keysight 8490D-003 precision fixed coaxial attenuator with 3 dB nominal attenuation and 2.4 mm connectors, covering DC to 50 GHz. Assembled and tested with the same meticulous care as the wider Keysight 849x attenuator family.

Included in the sale:

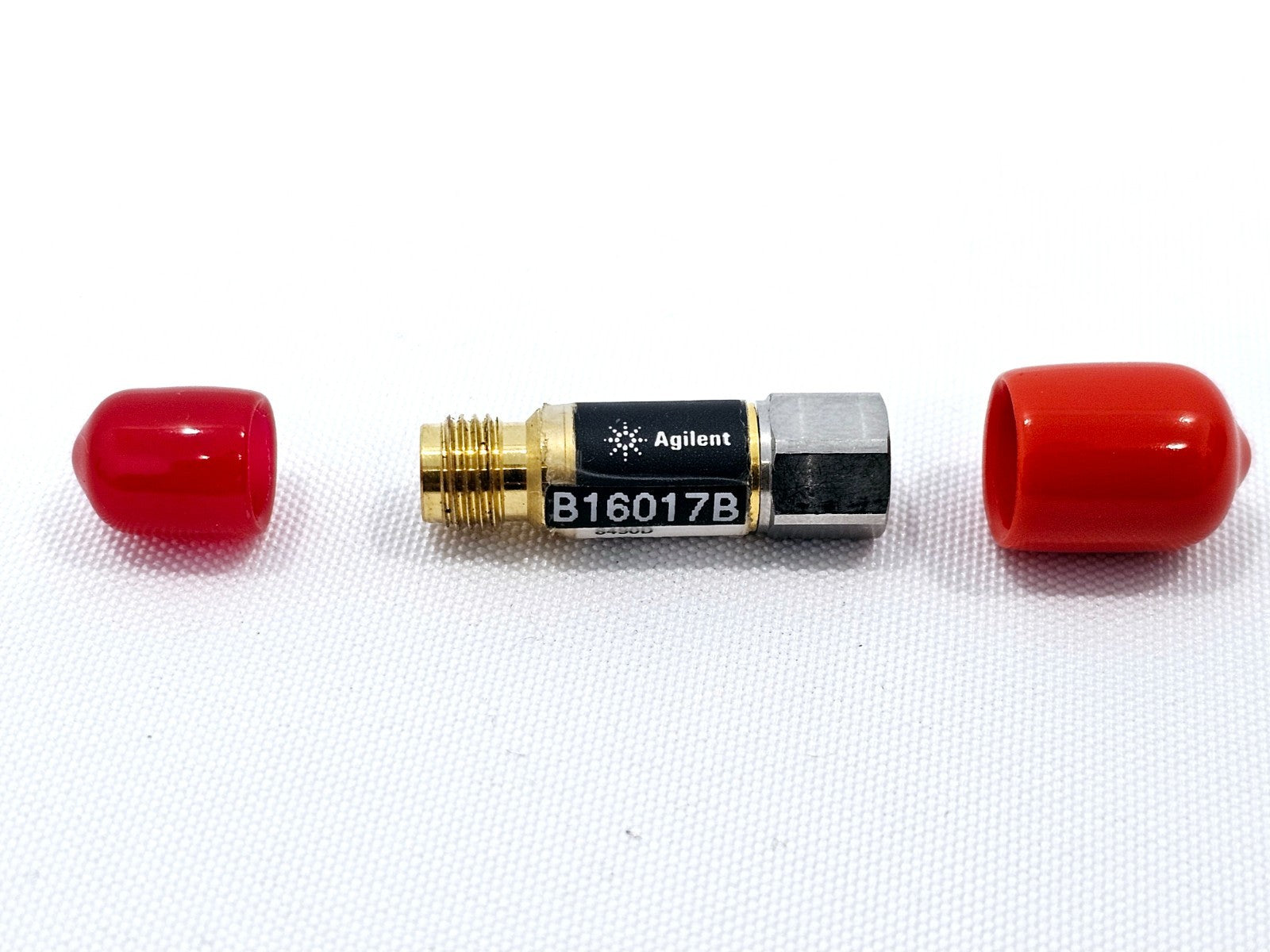

• 1x Agilent Keysight 8490D-003 Fixed Coaxial Attenuator

The Keysight 8490D family is a line of precision fixed coaxial attenuators with performance specified up to 50 GHz. These attenuators use the 2.4 mm coaxial connector, which exhibits excellent performance from DC to 50 GHz. The family is assembled and tested with the same meticulous care as the lower-frequency Keysight 8491, 8492, and 8493 attenuator families, and all units are tested on Keysight precision analysers to assure specifications are met over the full frequency range.

Each attenuator is swept-frequency tested to ensure specifications are met at all frequencies. Calibration points are provided on a nameplate chart attached to each unit.

Model: Keysight 8490D-003
Nominal Attenuation: 3 dB
Frequency Range: DC to 50 GHz
Connector Type: 2.4 mm (male/female)
Impedance: 50 Ohm
Average Power Handling: 1 W
Attenuation (min, 0 to 50 GHz): 2.5 dB
Attenuation (max, 0 to 26.5 GHz): 3.9 dB
Attenuation (max, 26.5 to 50 GHz): 4.8 dB
Max SWR (0 to 26.5 GHz): 1.15
Max SWR (26.5 to 40 GHz): 1.25
Max SWR (40 to 50 GHz): 1.45
Available Attenuation Values (family): 3, 6, 10, 20, 30, 40 dB
Applications: Signal level control, impedance matching, RF and microwave test systems, network analyser accessories, laboratory and ATE applications

Keysight RF & Microwave Coaxial Fixed Attenuators Product Fact Sheet (includes 8490D series): Download PDF

Keysight 8491A/B, 8493A/B/C and 1158x Coaxial Attenuators Technical Overview (849x family reference): Download PDF
