The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

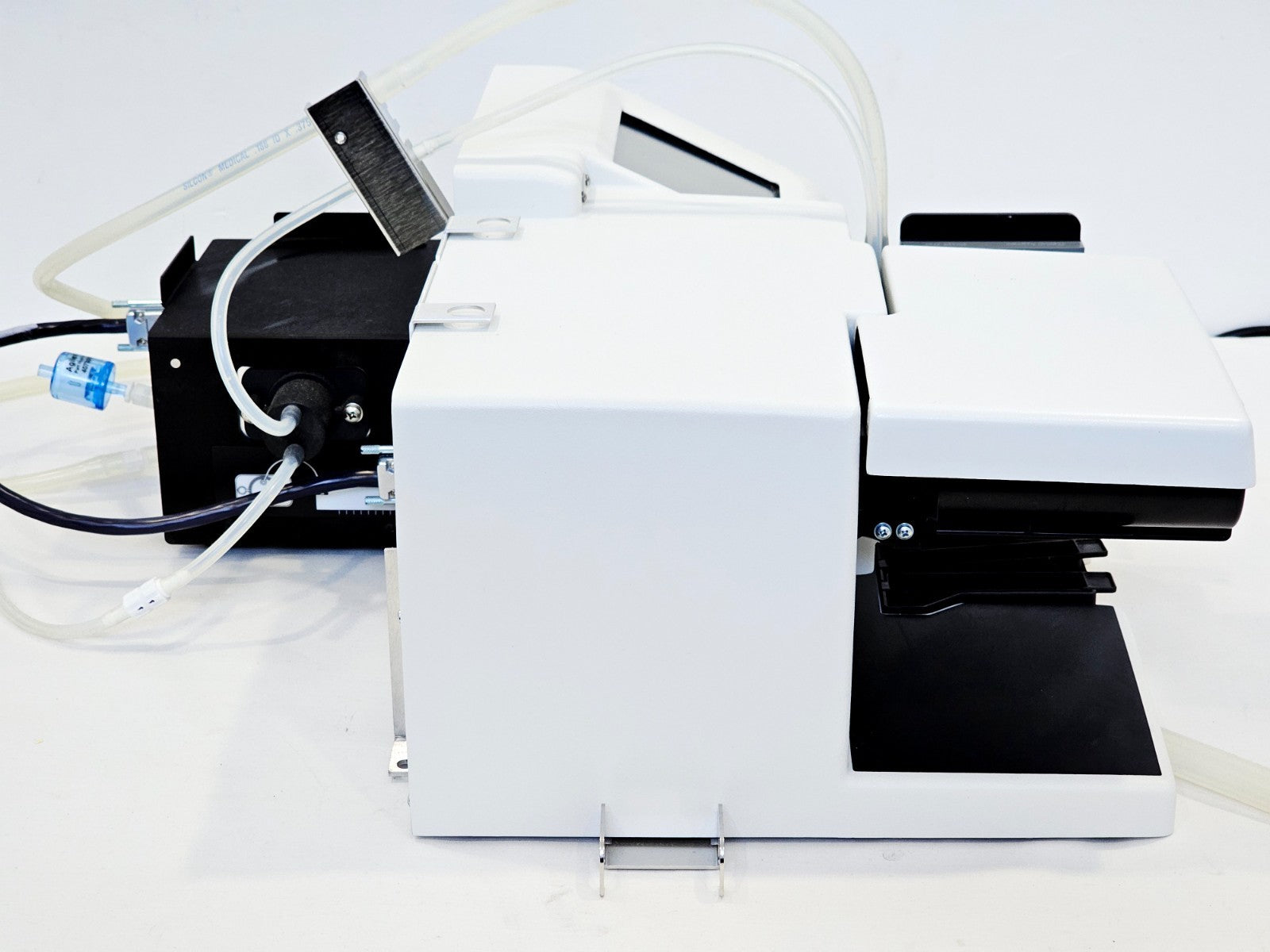

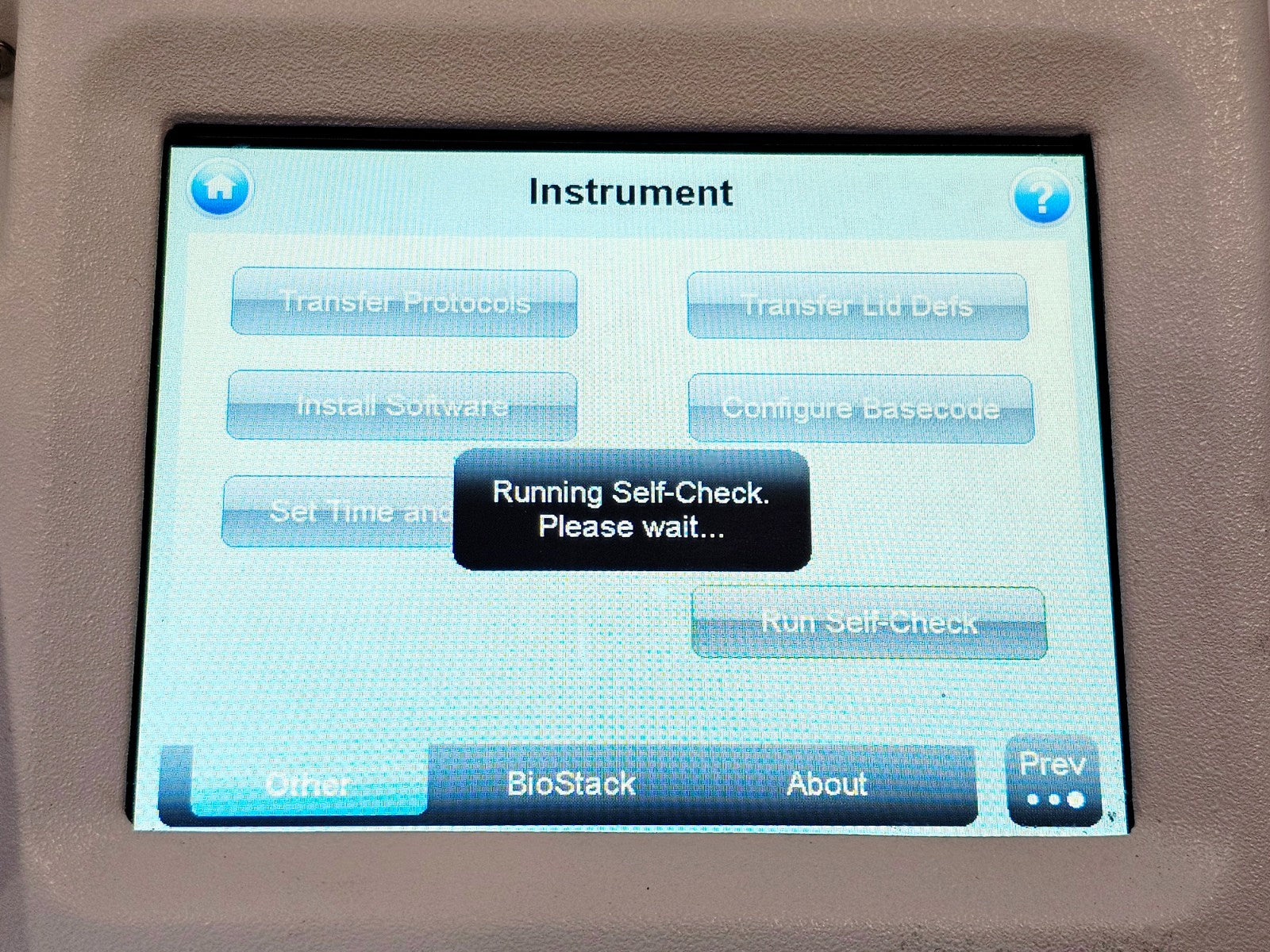

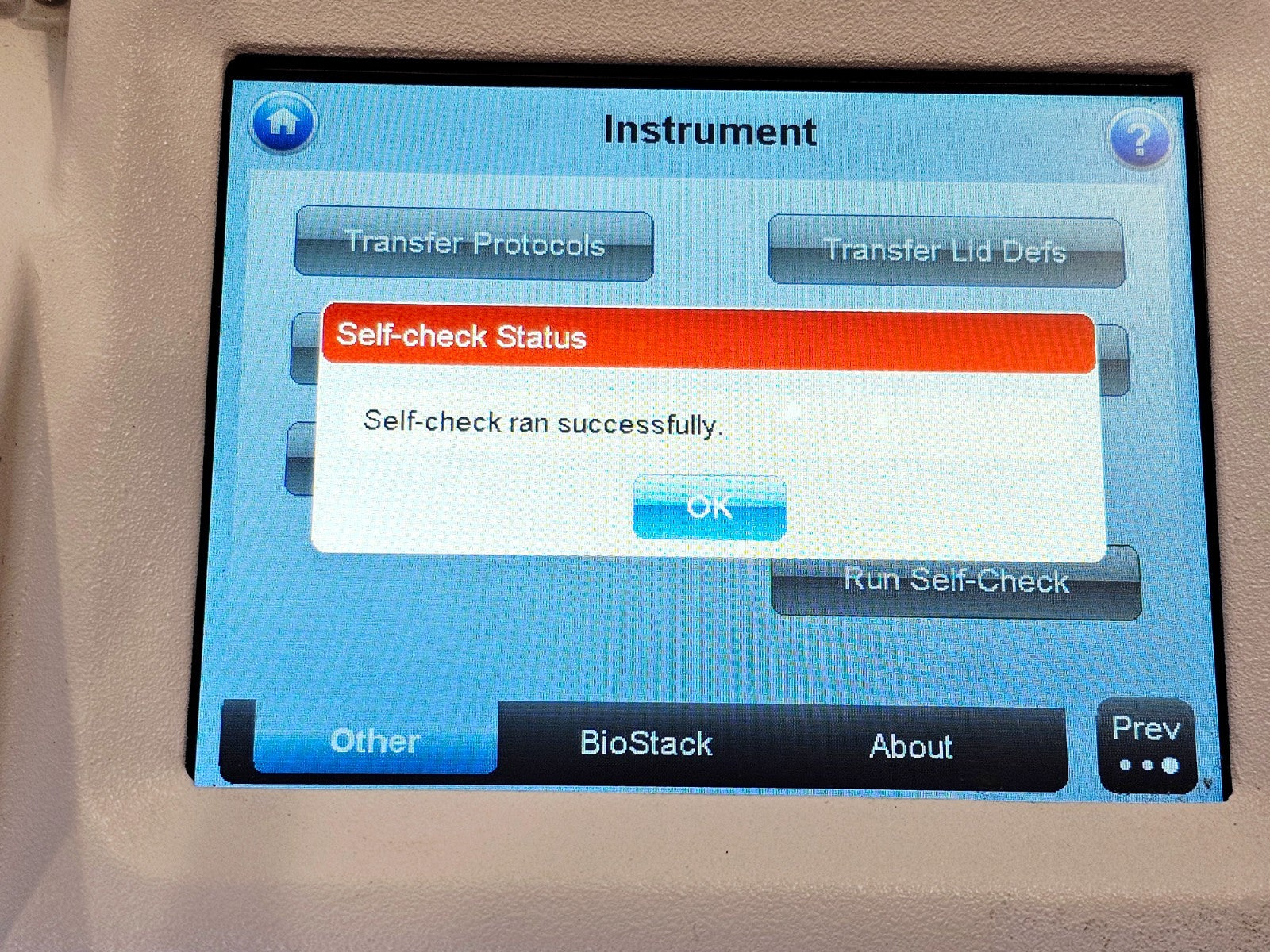

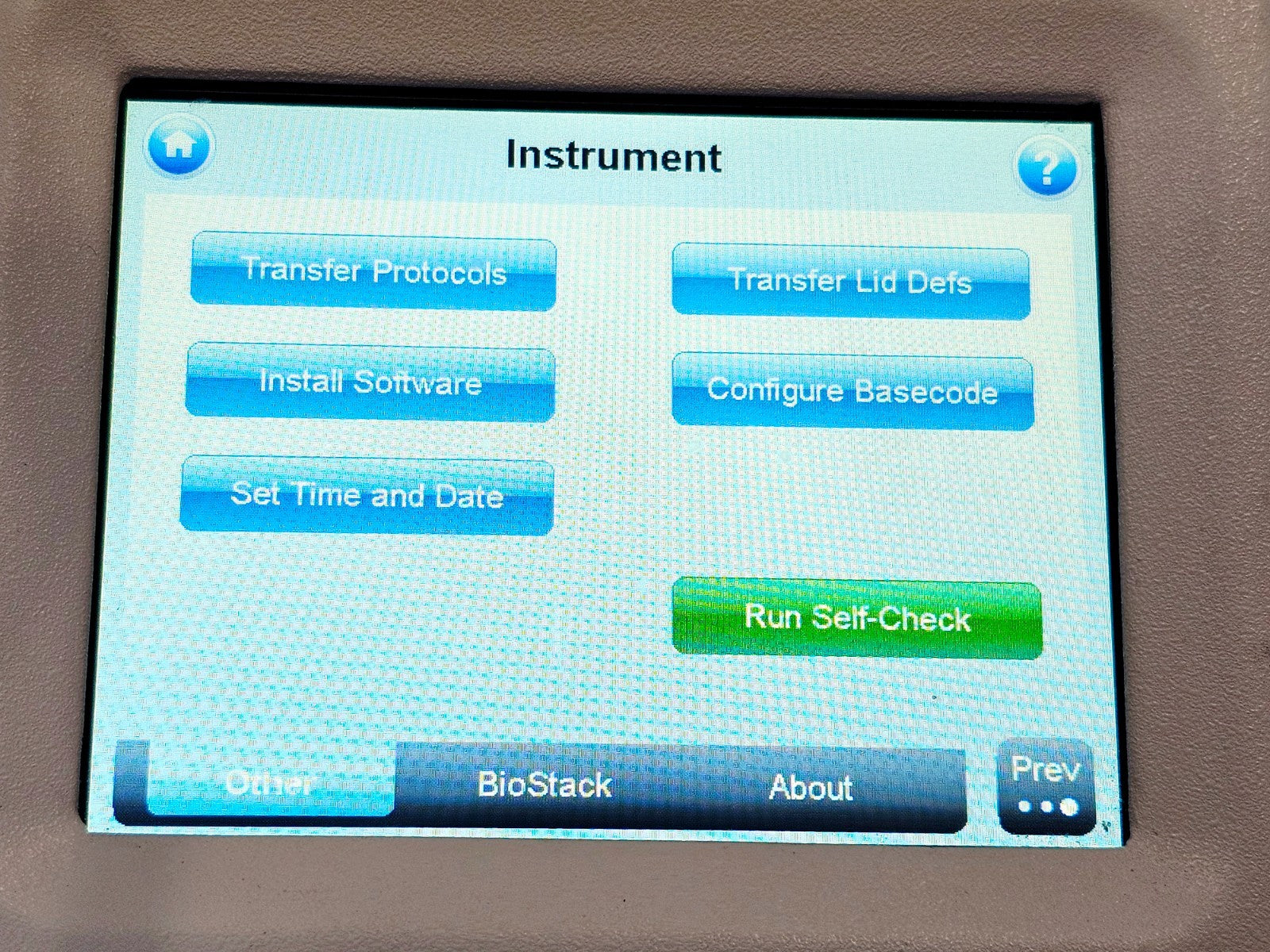

This is a used Agilent BioTek MultiFlo FX Multimode Microplate Dispenser in MFXP2 (dual-arm, BioStack-Ready) configuration, manufactured in July 2022. The unit is in very good cosmetic condition and has been tested — the instrument self-check ran successfully.

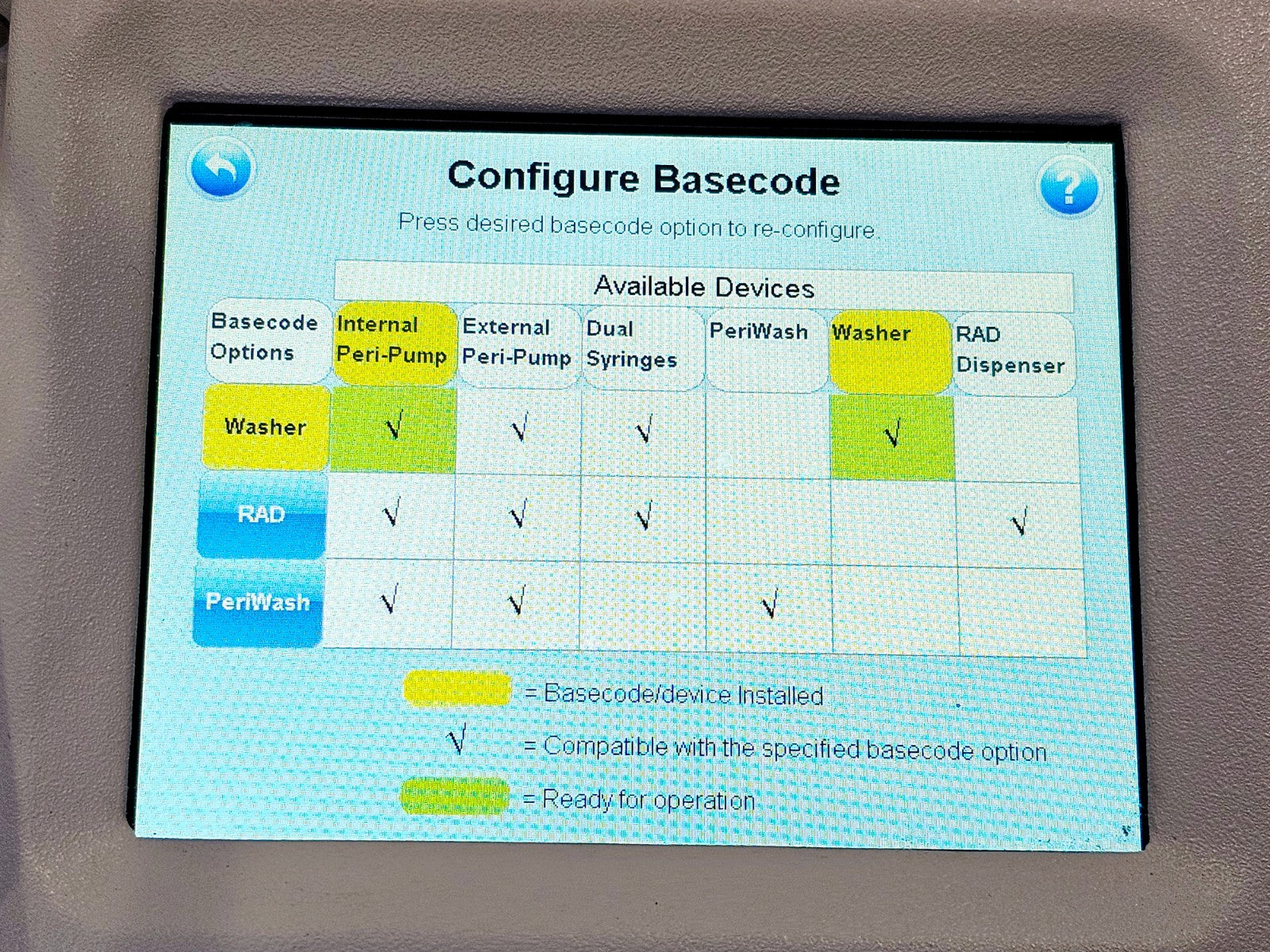

The unit is configured with the Washer basecode active. Installed and ready for operation:
• Internal Peri-Pump (primary peristaltic dispenser)

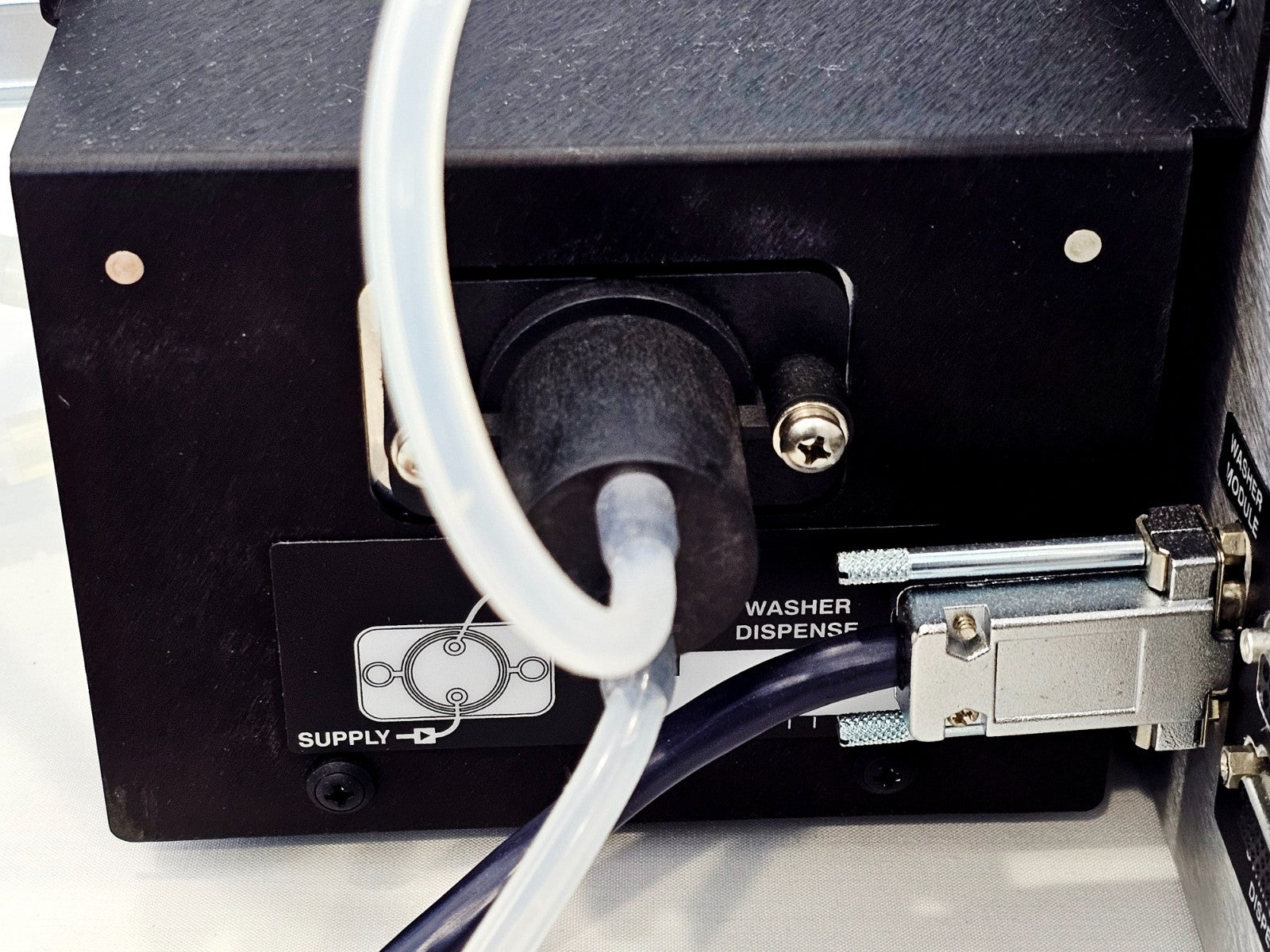

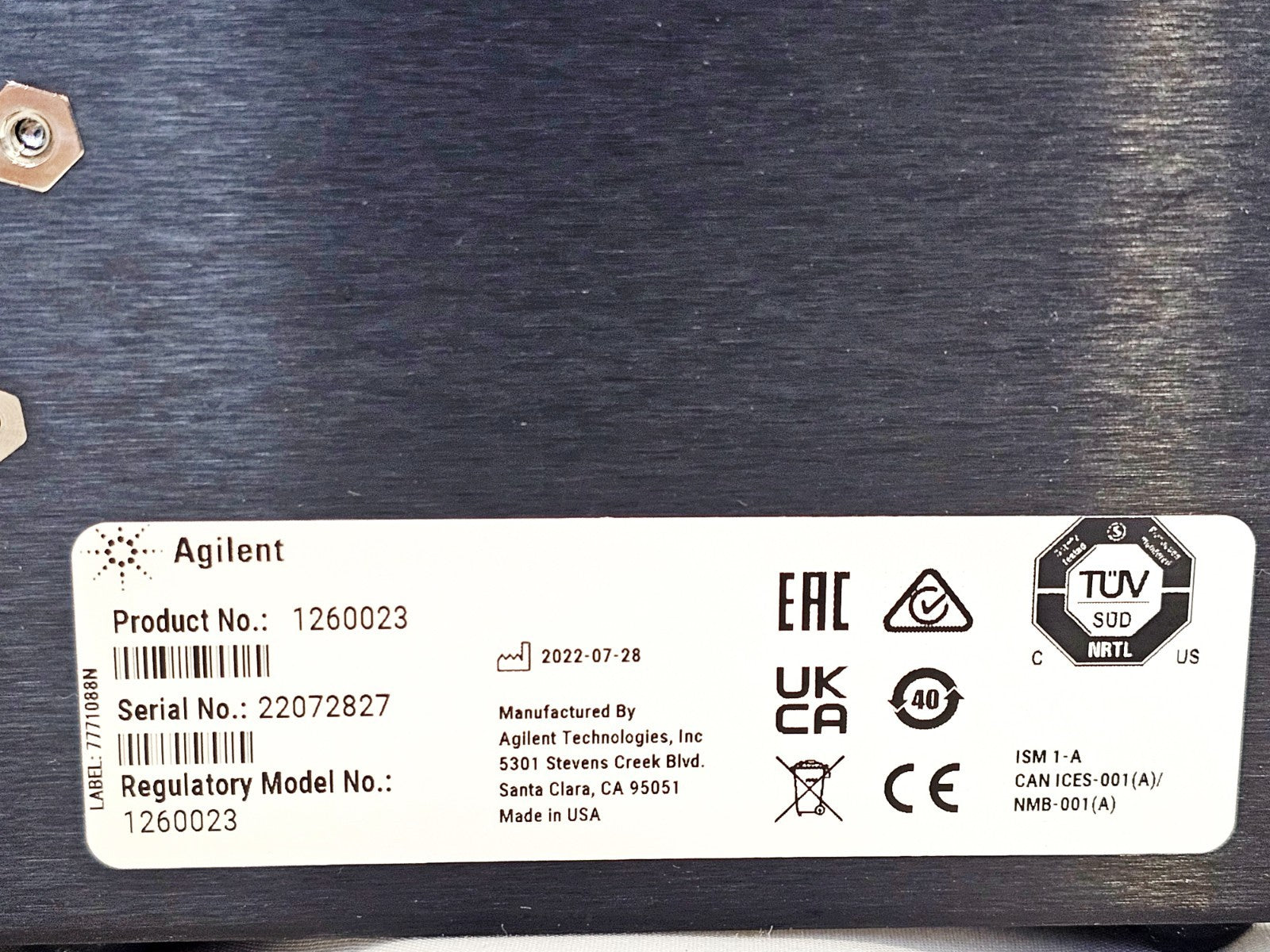

• Wash Module (Product No. 1260023) for 6- to 384-well plate washing

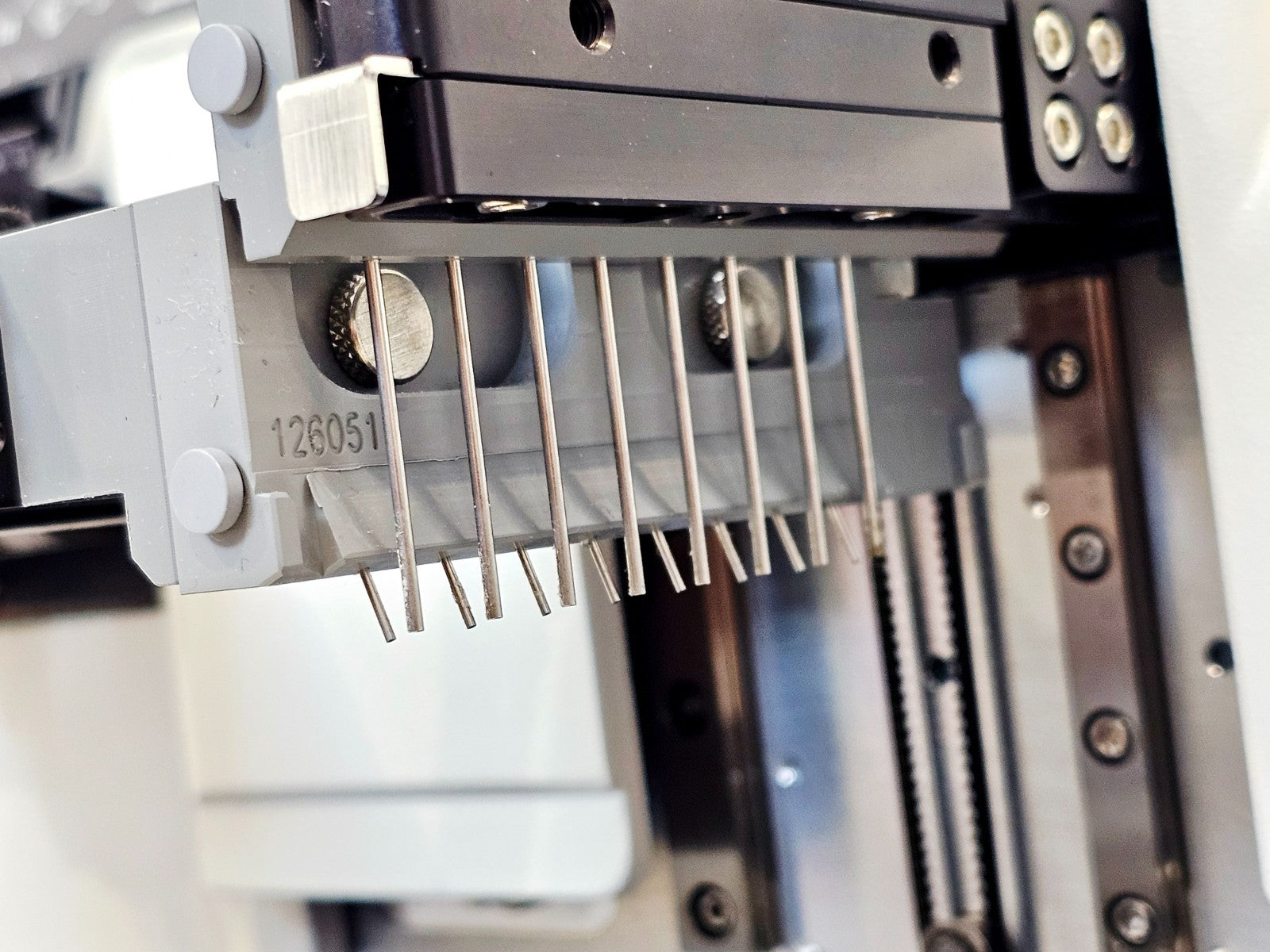

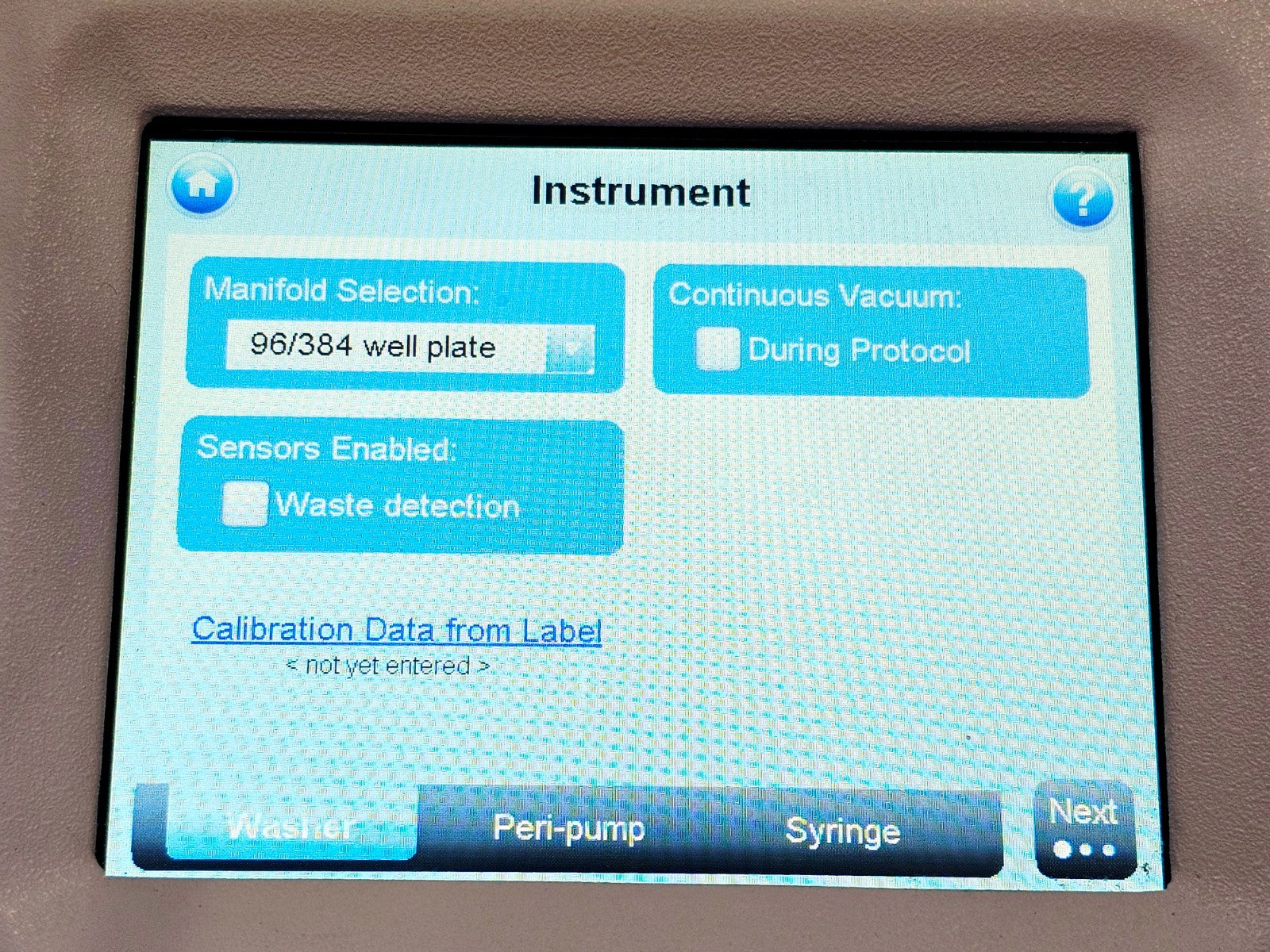

• Manifold configured for 96/384-well plates

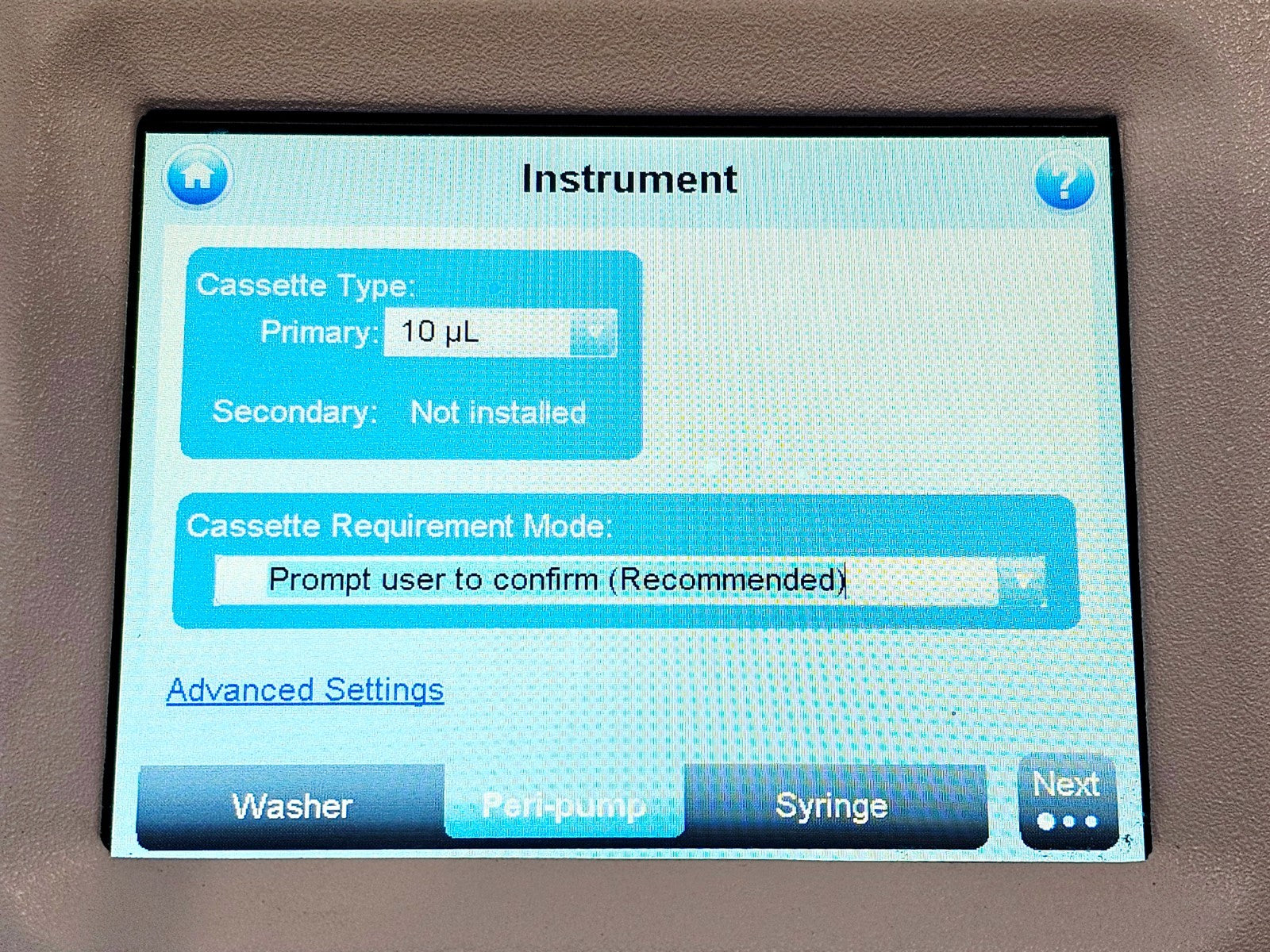

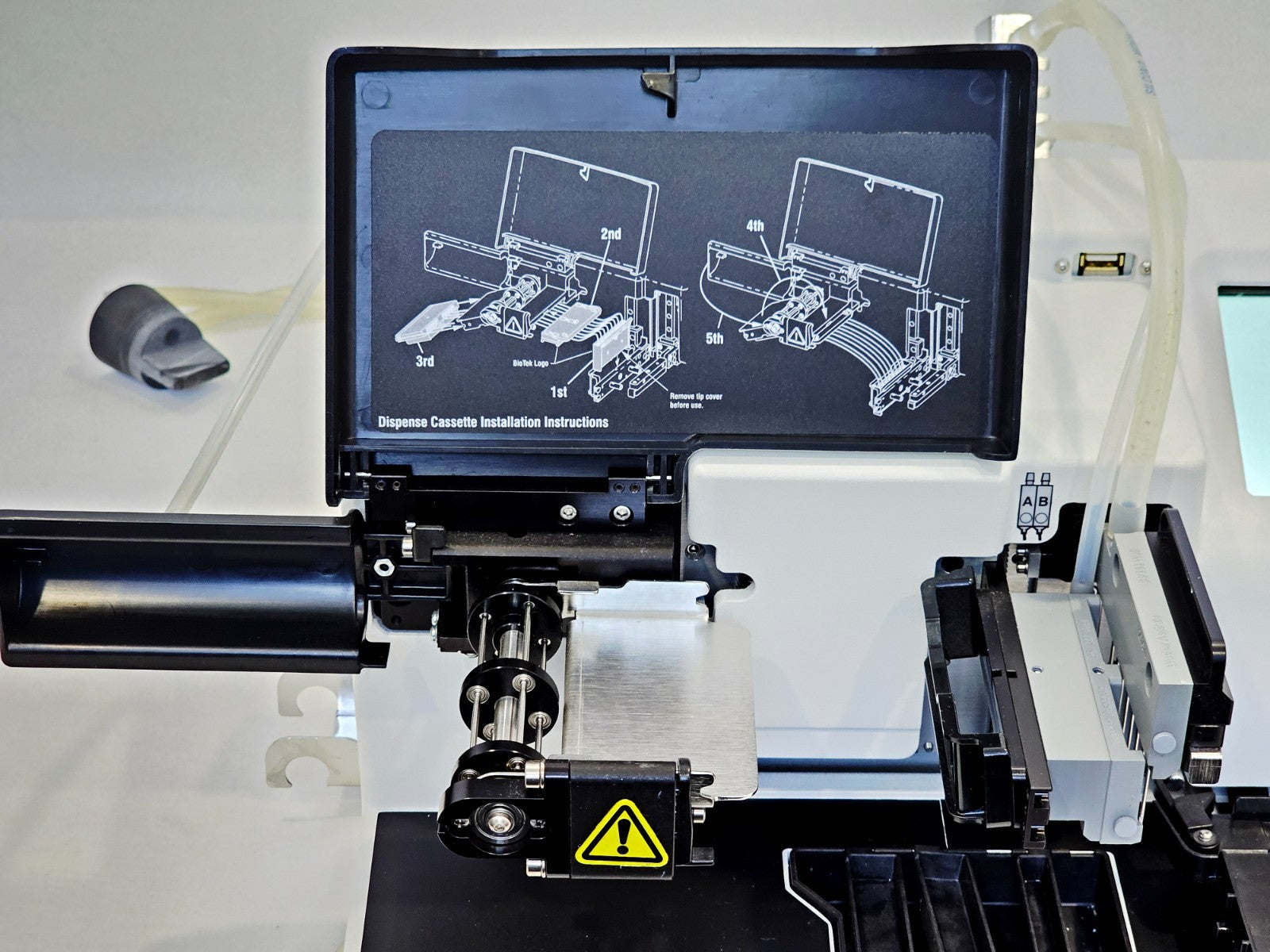

• Primary cassette type: 10 µL (secondary not installed)

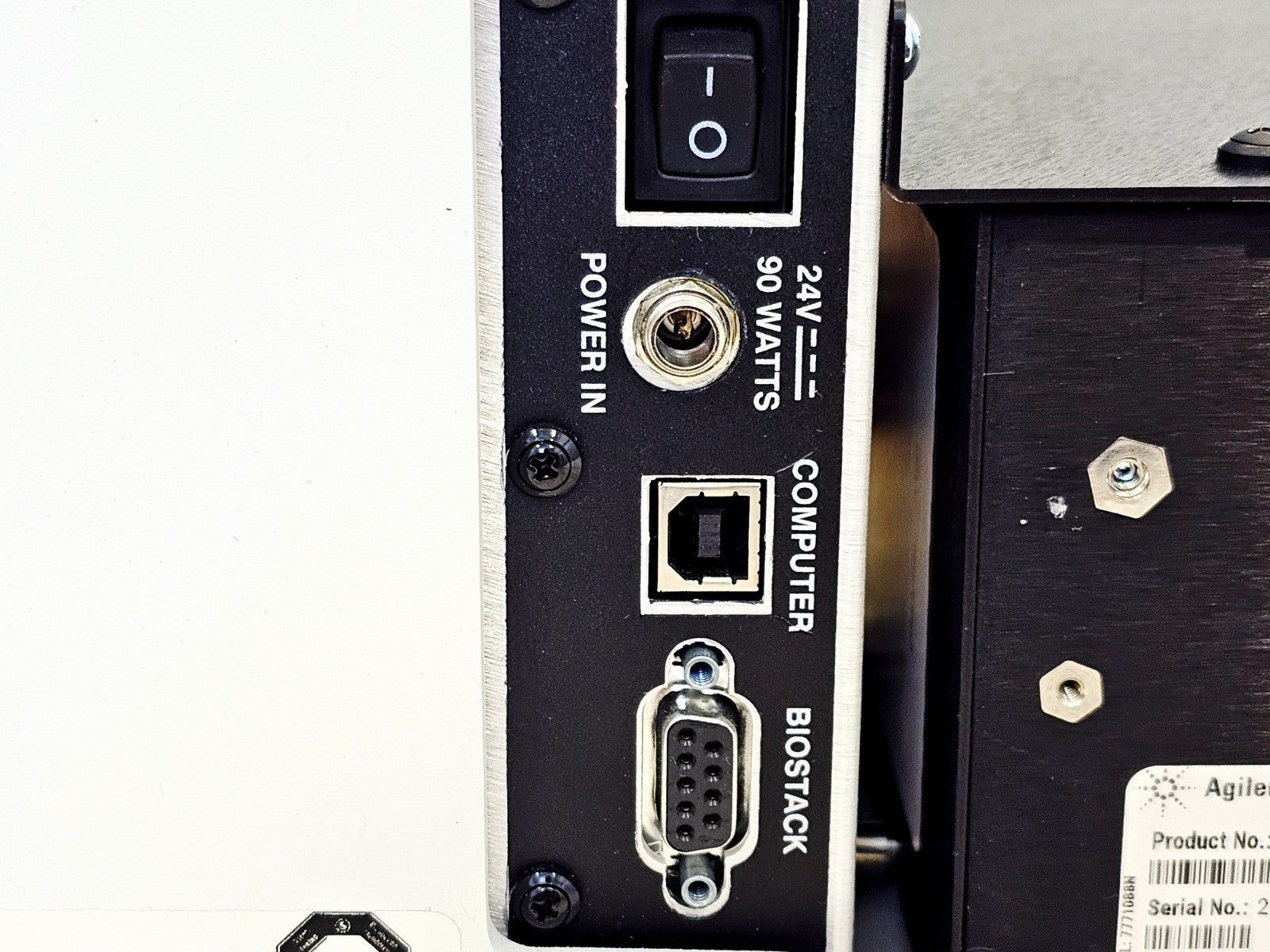

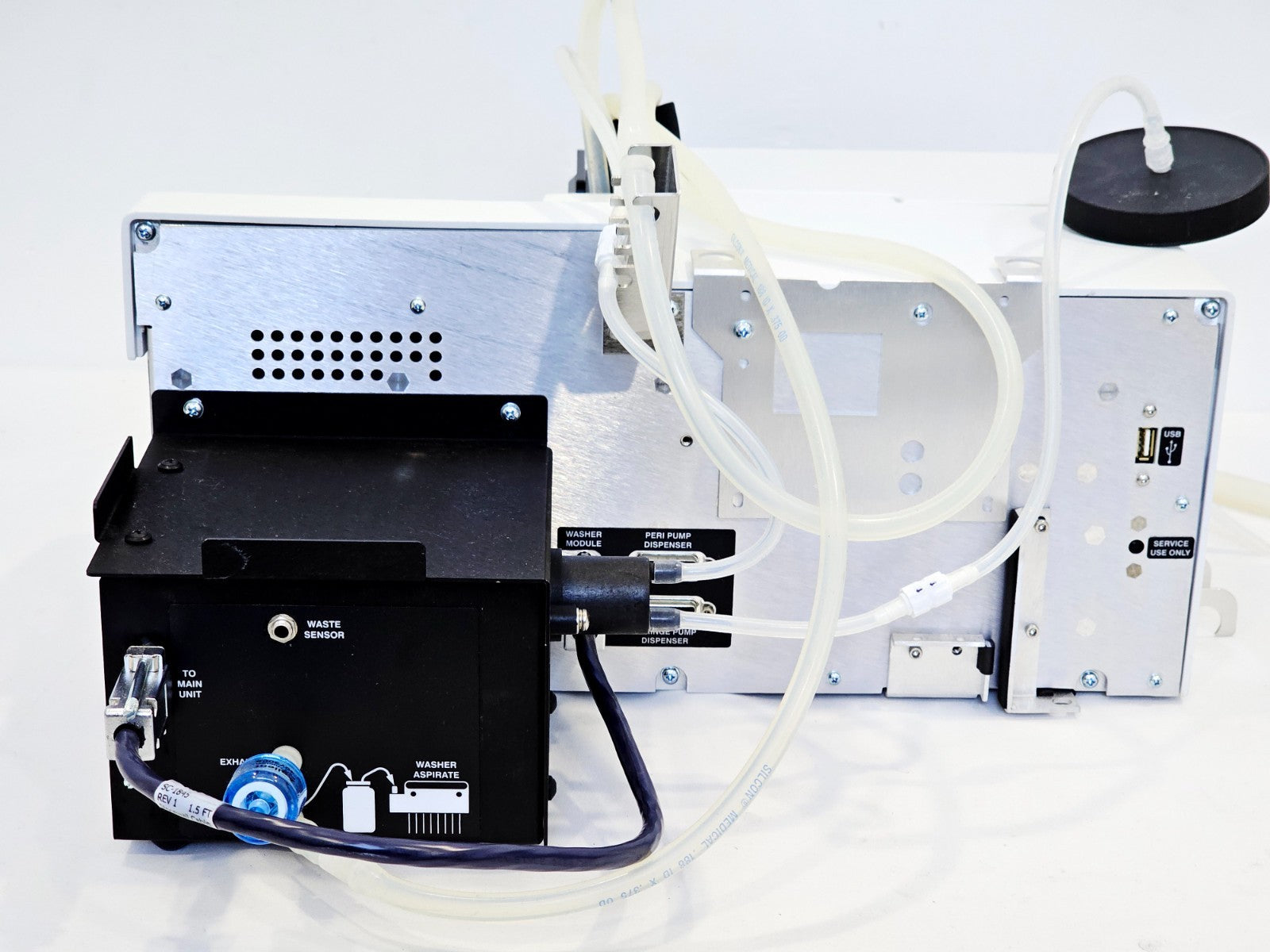

The BioStack port (DB-9) is present on the rear panel for automated plate stacker integration. USB Type-B computer port and USB Type-A port are also present for LHC software control.

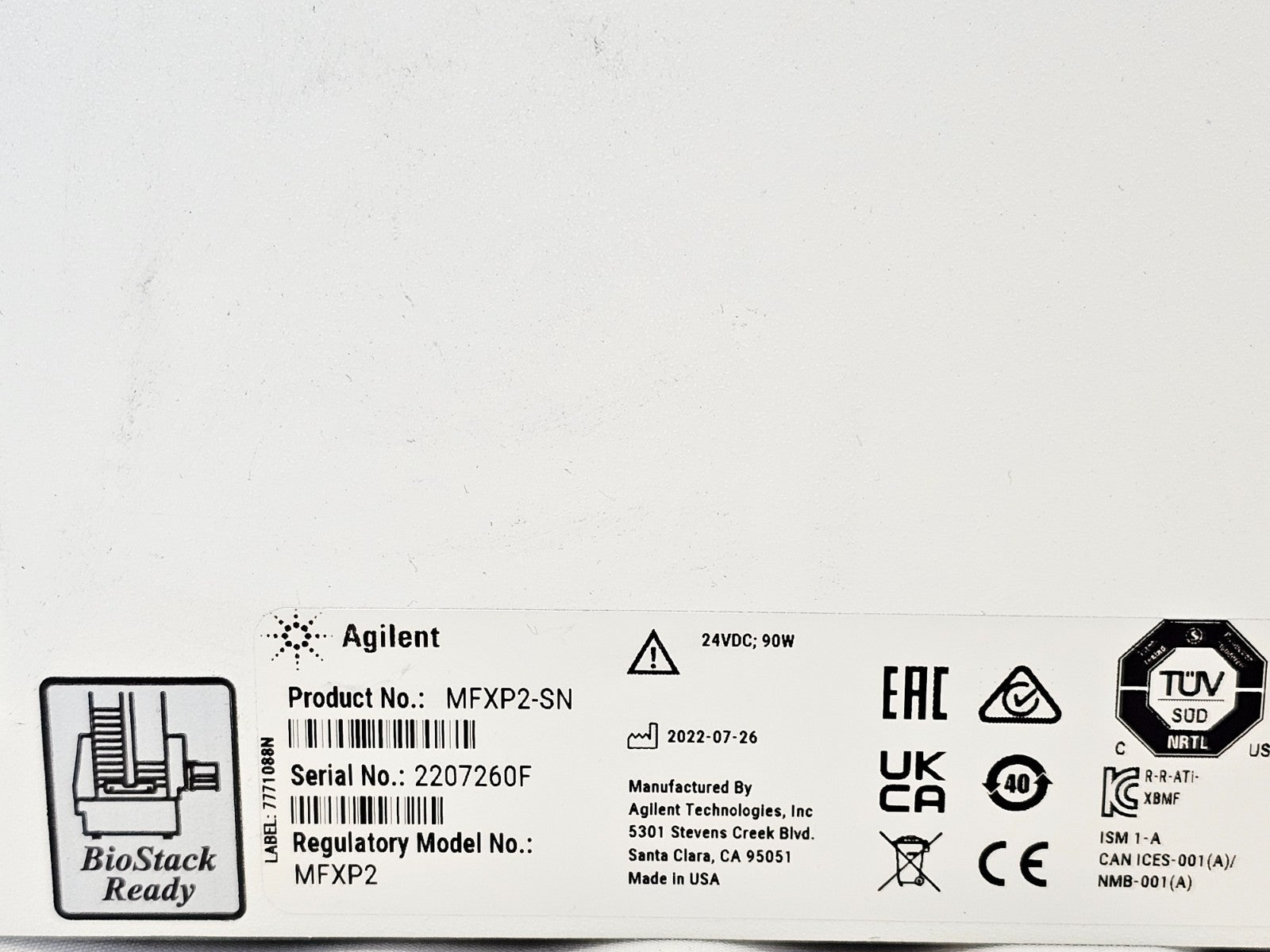

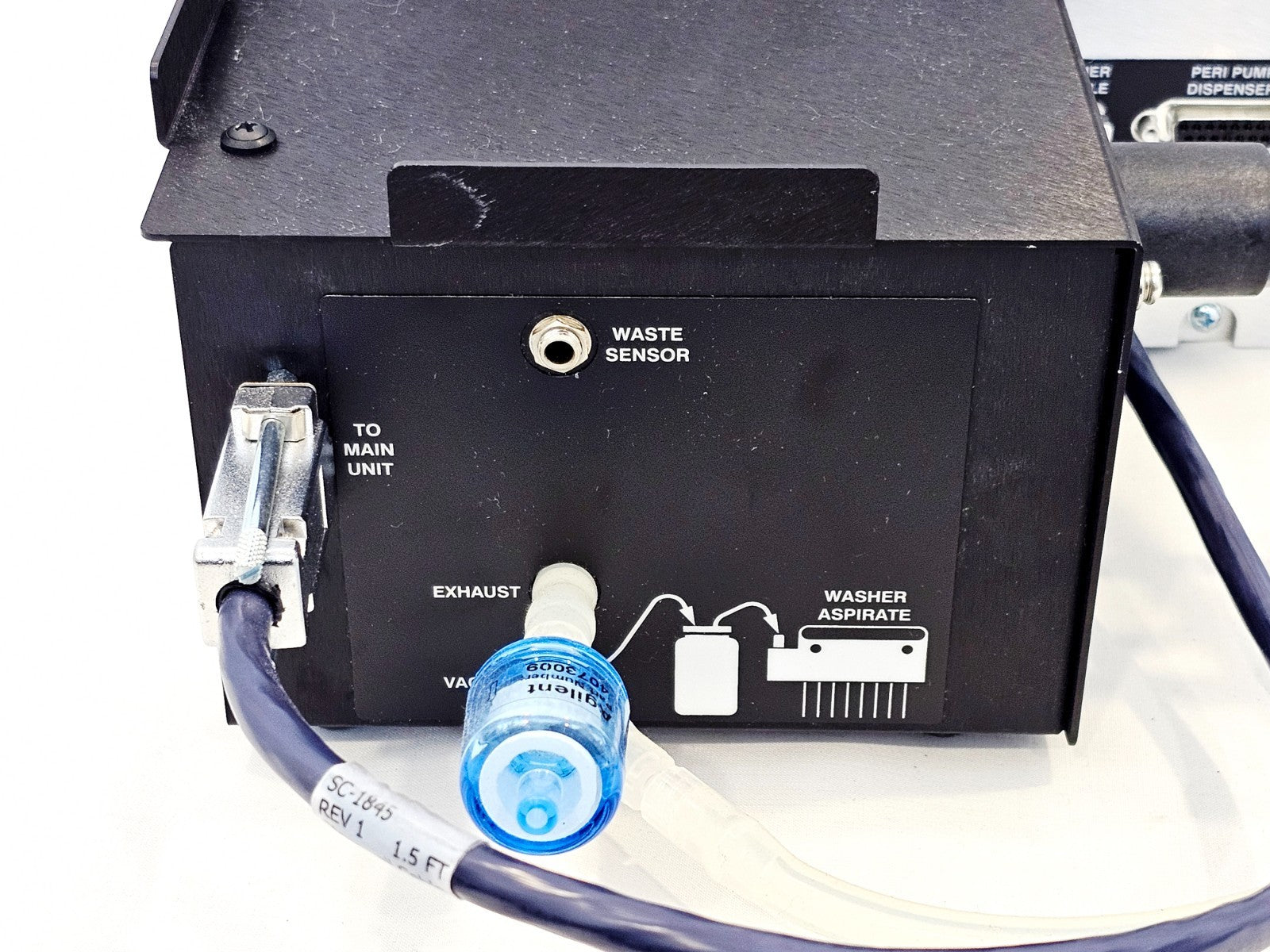

The listing includes the MultiFlo FX main unit (MFXP2-SN), the fitted Wash Module (1260023), primary peristaltic pump, 10 µL dispense cassette, standard plate carrier, reagent supply bottle, waste bottle with tubing, vacuum filter assembly, interconnecting tubing, and the 24V/90W external power supply.

Please note: dispensing cassettes are consumable items — the installed 10 µL cassette is included but buyers should verify suitability for their specific workflow volumes.

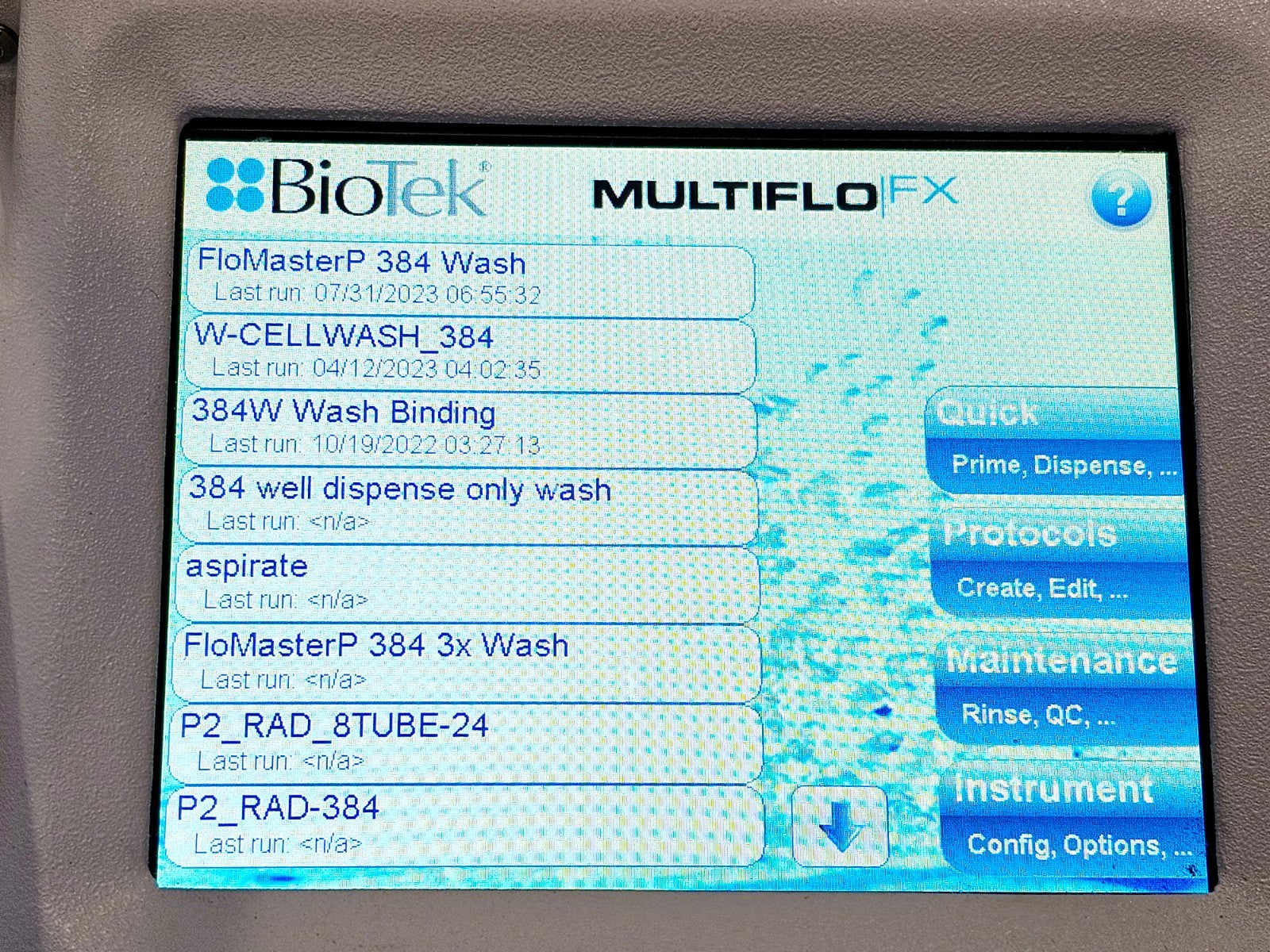

The Agilent BioTek MultiFlo FX is an automated multimode reagent dispenser designed for 6- to 1536-well microplates, combining the functionality of up to five liquid handlers into a single compact benchtop platform. Its modular architecture supports peristaltic pump dispensing, syringe pump dispensing, plate washing, Random Access Dispensing (RAD), and Automated Media Exchange (AMX) — all selectable and interchangeable via a user-friendly colour touchscreen.

Parallel Dispense technology allows up to four independent reagents to be dispensed simultaneously without carryover, using peristaltic or syringe pumps. The wash module enables combined dispensing and washing of 6- to 384-well plates on one platform. Cell-friendly angled dispense and wash tubes protect cell layers during sensitive assays. The small footprint allows use in a biosafety cabinet or integration into automated robotic systems, including BioStack, BioSpa 8, and SiLA-compliant platforms.

Applications include 2D and 3D cell culture, ELISA, bead-based assays, concentration normalisation, and automated media exchange for spheroid and suspension cell workflows.

Plate compatibility (dispense): 6- to 1536-well microplates
Plate compatibility (wash module): 6- to 384-well plates
Dispense volume range: 500 nL to 30,000 µL/well
Dispense accuracy: ±1% at working volumes; ±5% at 1 µL, ±2% at 5–10 µL
Max parallel reagents: Up to 4 (full configuration)
User interface: Colour touchscreen with on-board protocol editor
Computer control: USB; LHC software / LHC Secure (21 CFR Part 11)
Automation: BioStack, BioSpa 8, BenchCel, SiLA compatible
Power: 24 VDC, 90 W
Certifications: CE, UKCA, EAC, TÜV SÜD NRTL
Manufactured: USA

Agilent BioTek datasheet: Download PDF
