Condition: Used

This Agilent ACEA NovoCyte 2060R flow cytometer features a dual-laser (488 nm / 640 nm), 6-channel optical configuration. The unit has been tested using trial NovoExpress software and passes all self-tests. A validation sticker is affixed to the front panel indicating it has passed inspection. Licensed NovoExpress software can be obtained directly from Agilent. Note: fluidics station bottles are not included.

Included in the sale:

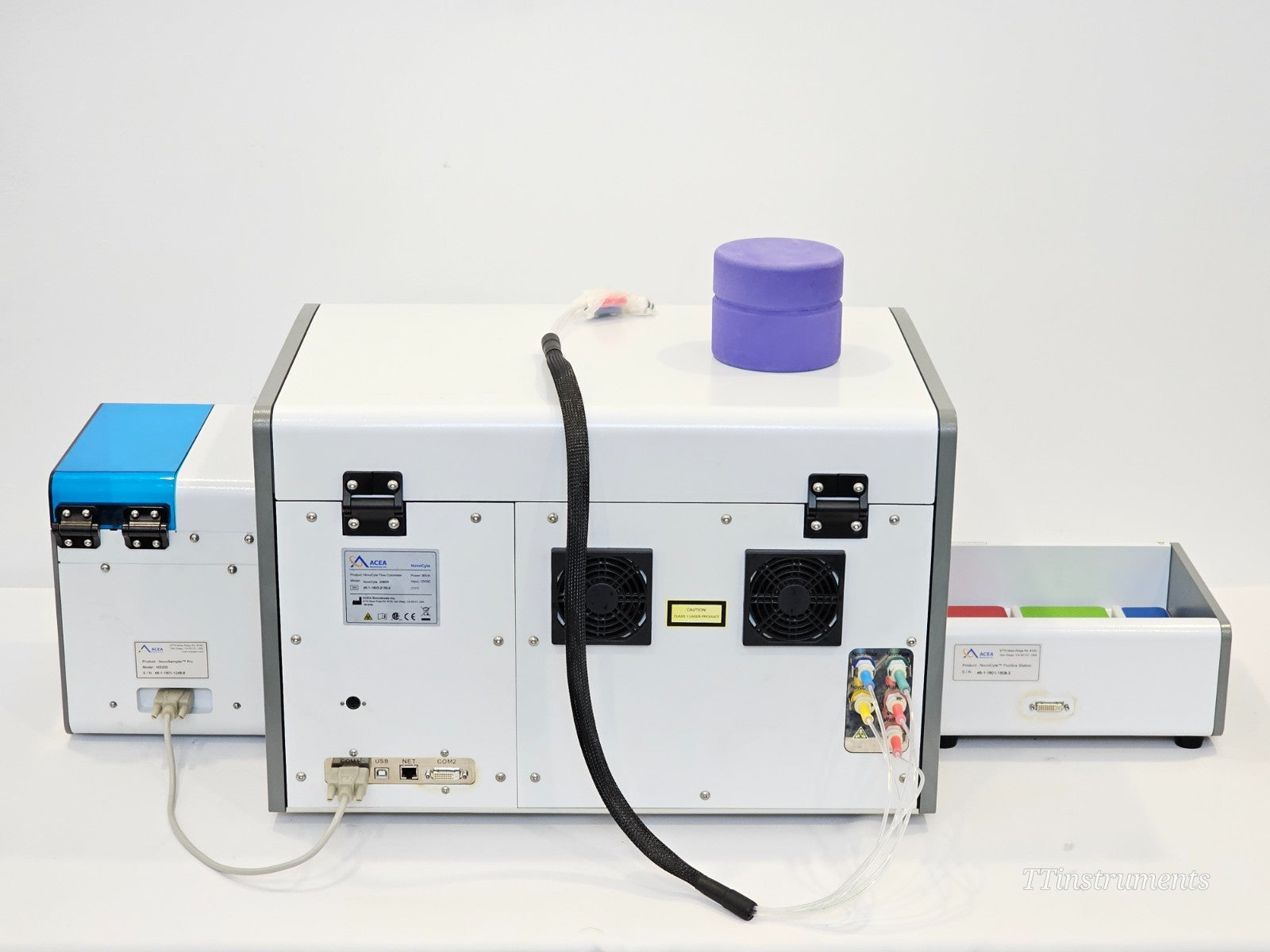

• Agilent ACEA NovoCyte 2060R Flow Cytometer (2 lasers, 6 channels)

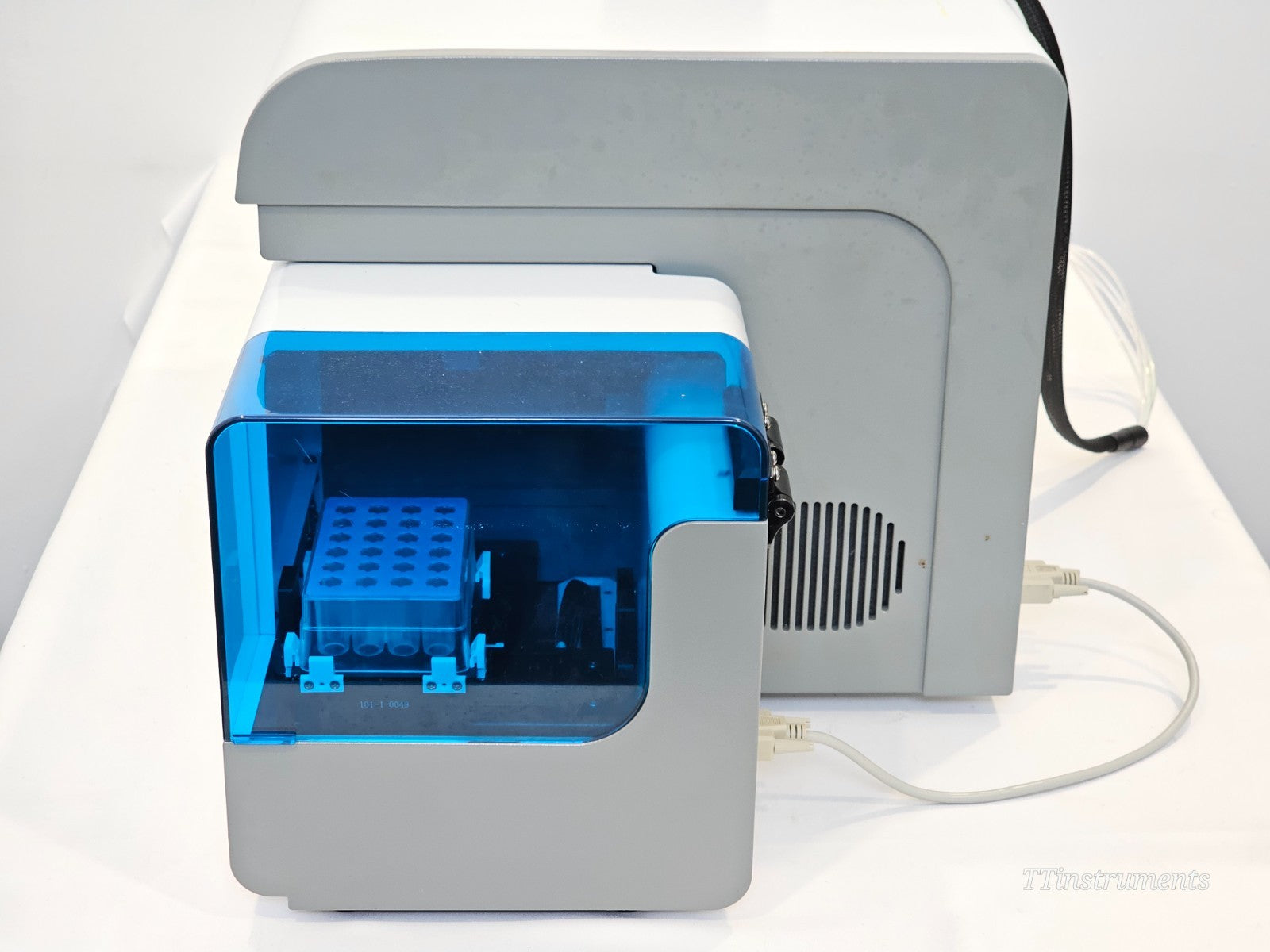

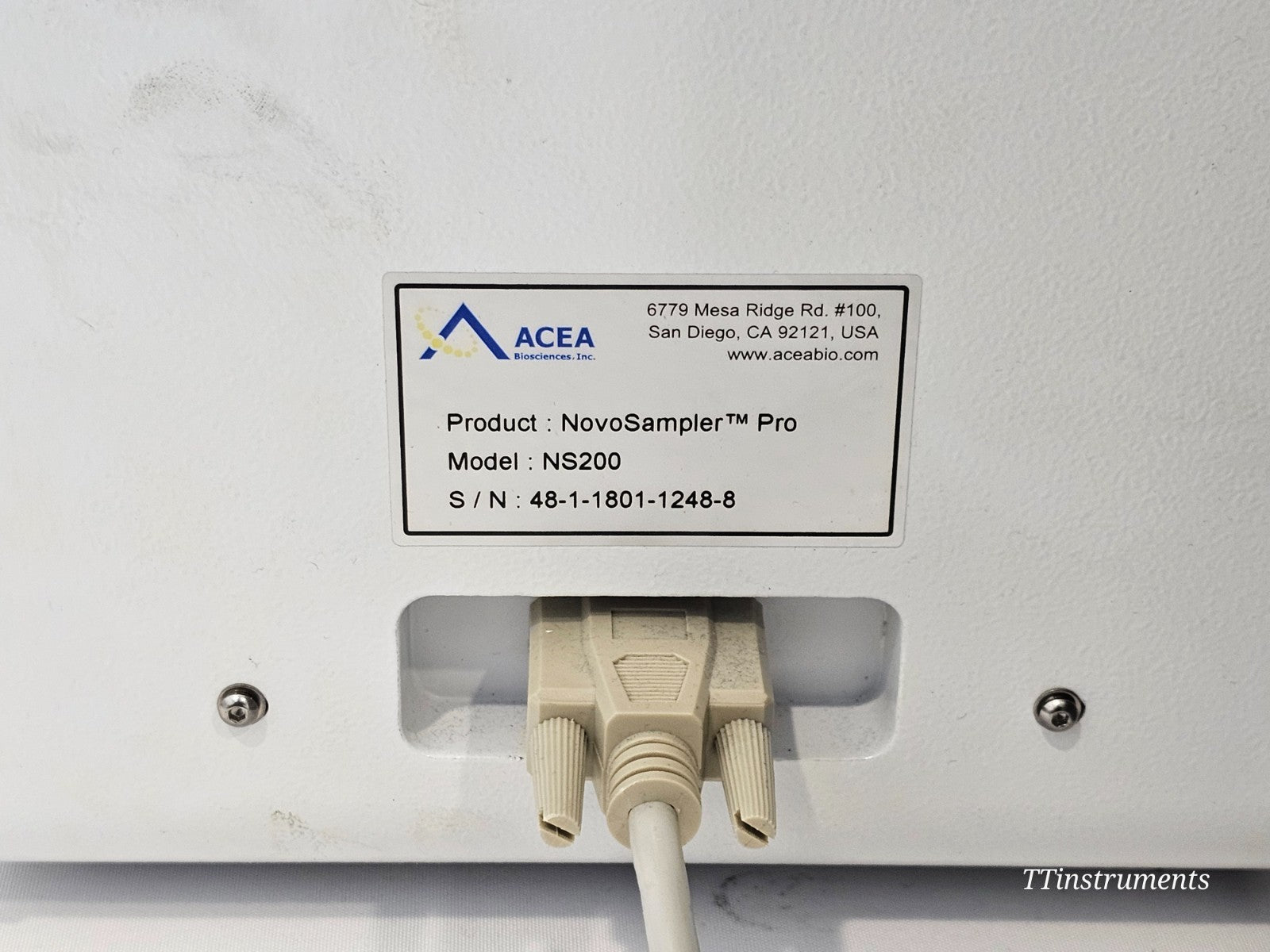

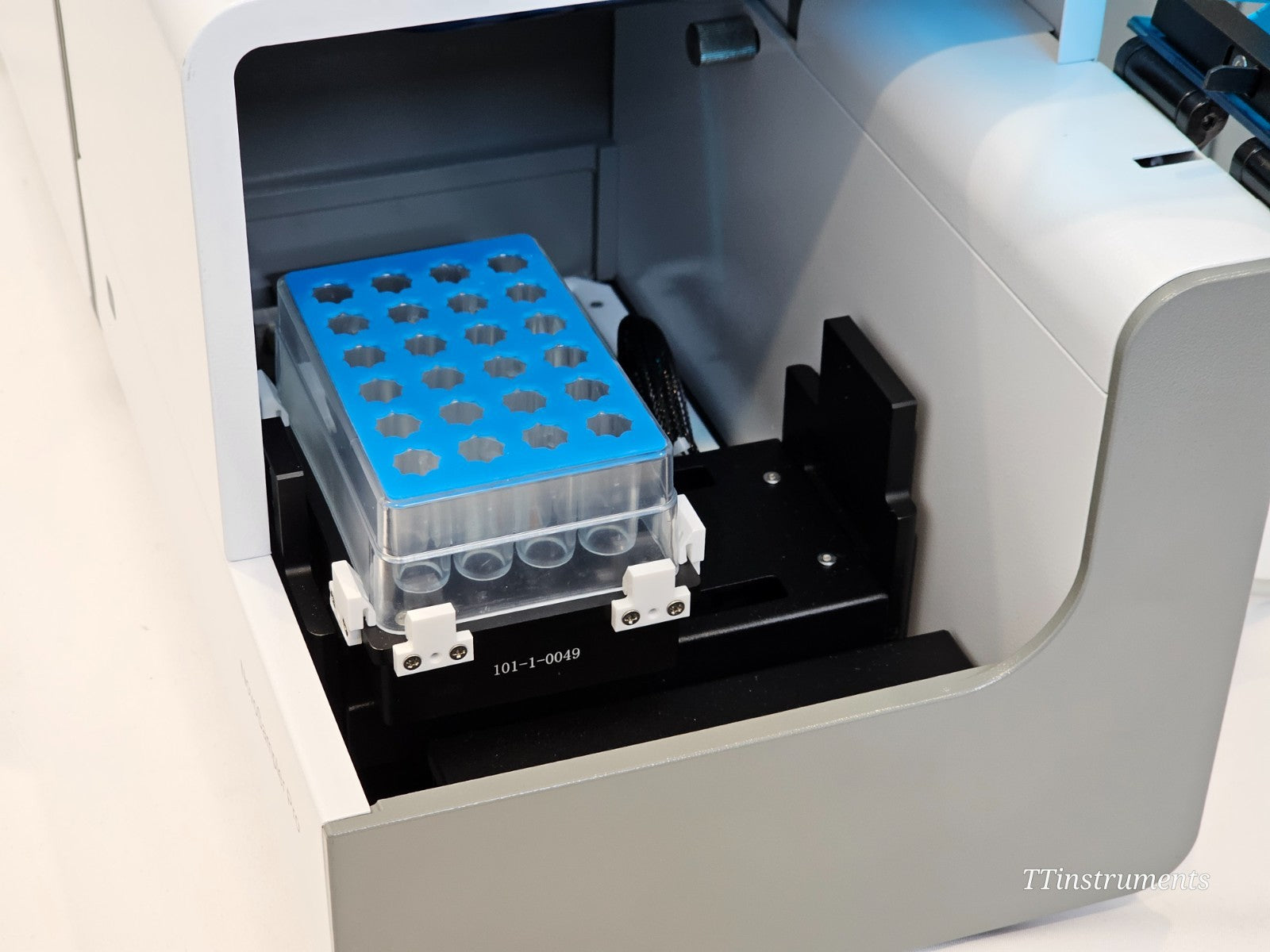

• NovoSampler Pro NS200 (with tube rack and sample plate carrier)

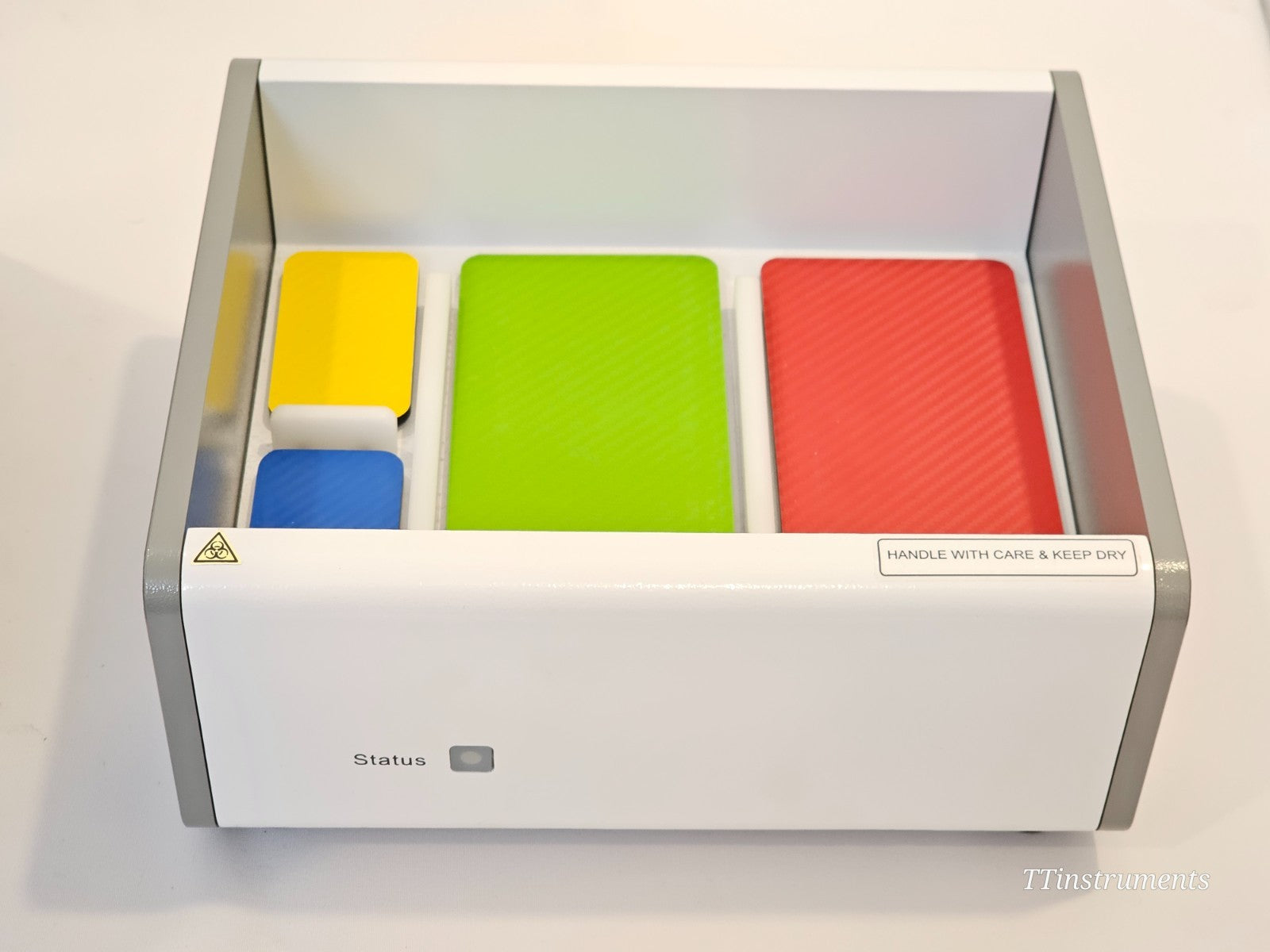

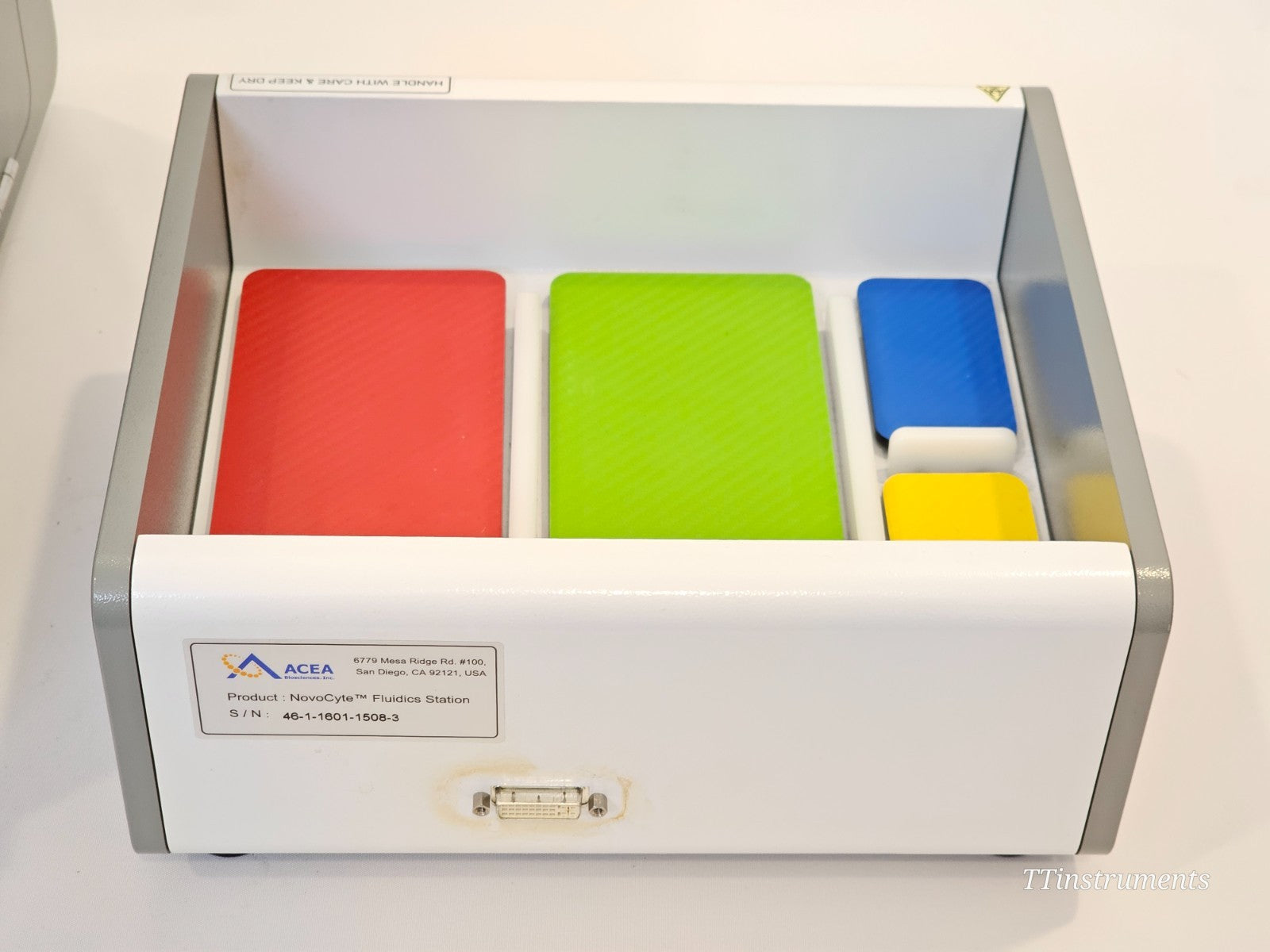

• NovoCyte Fluidics Station
• Power supply / adapter

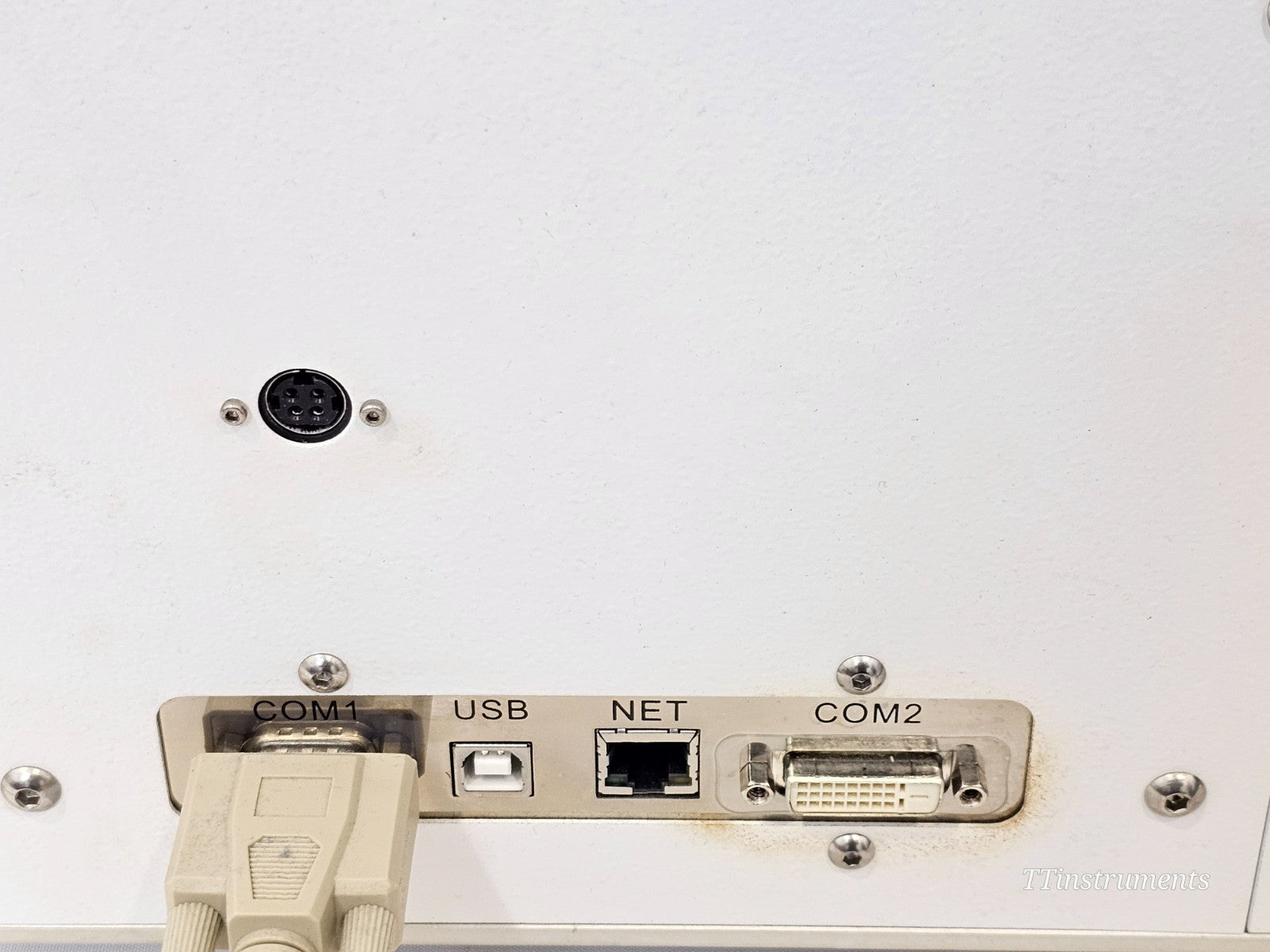

• Serial/data cables

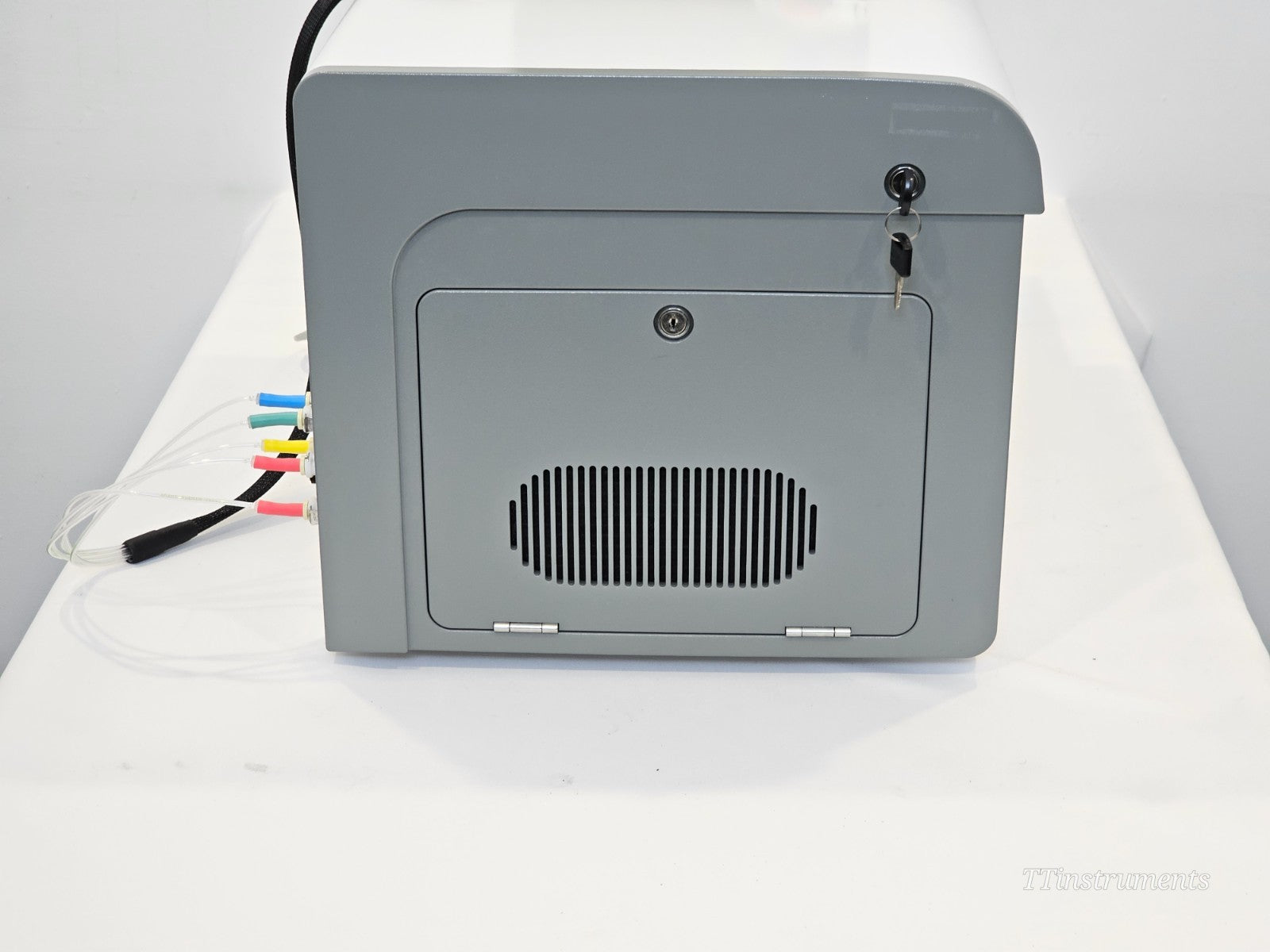

• Keys for instrument panel lock

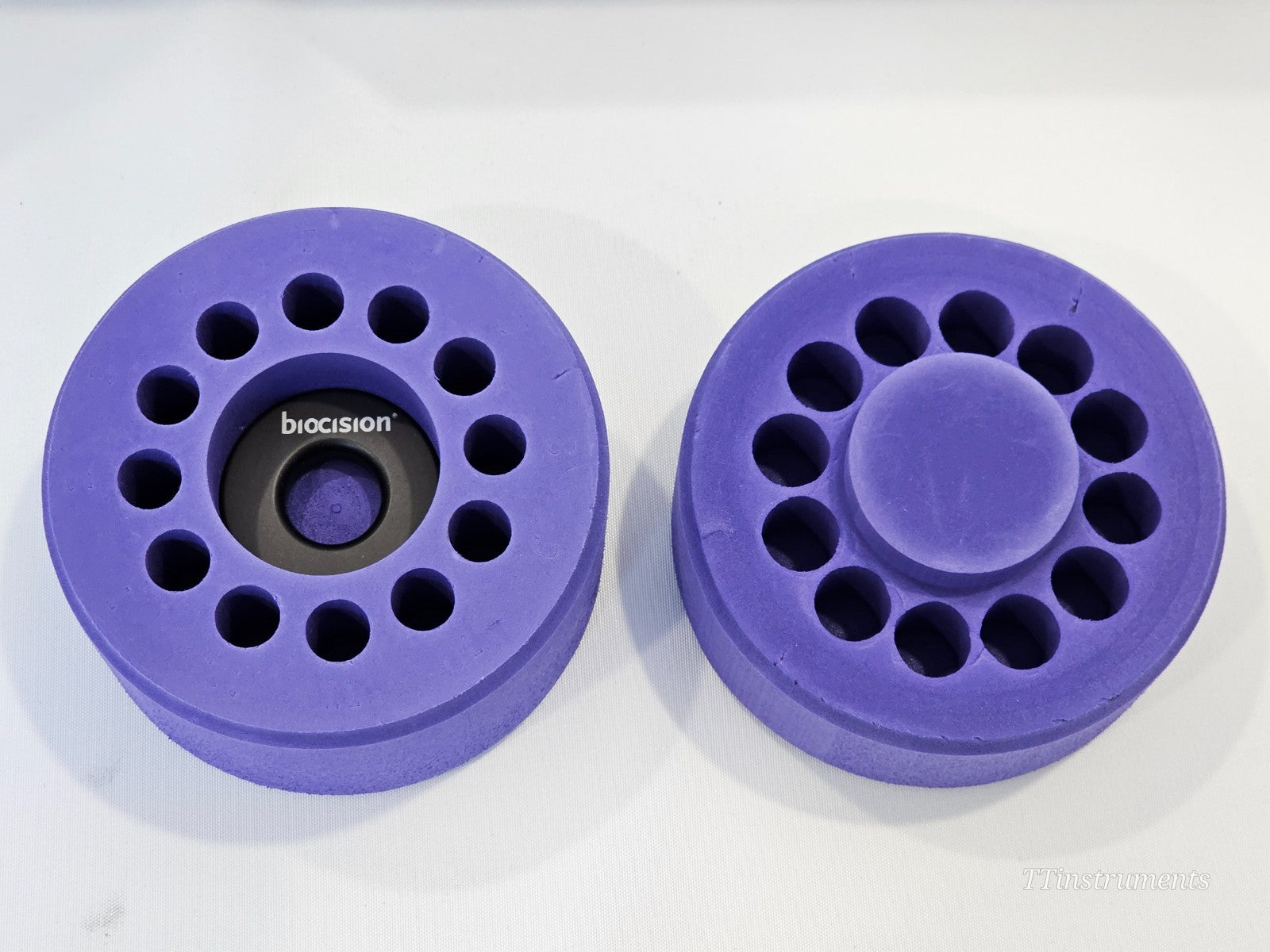

• Purple foam accessory/reagent container

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

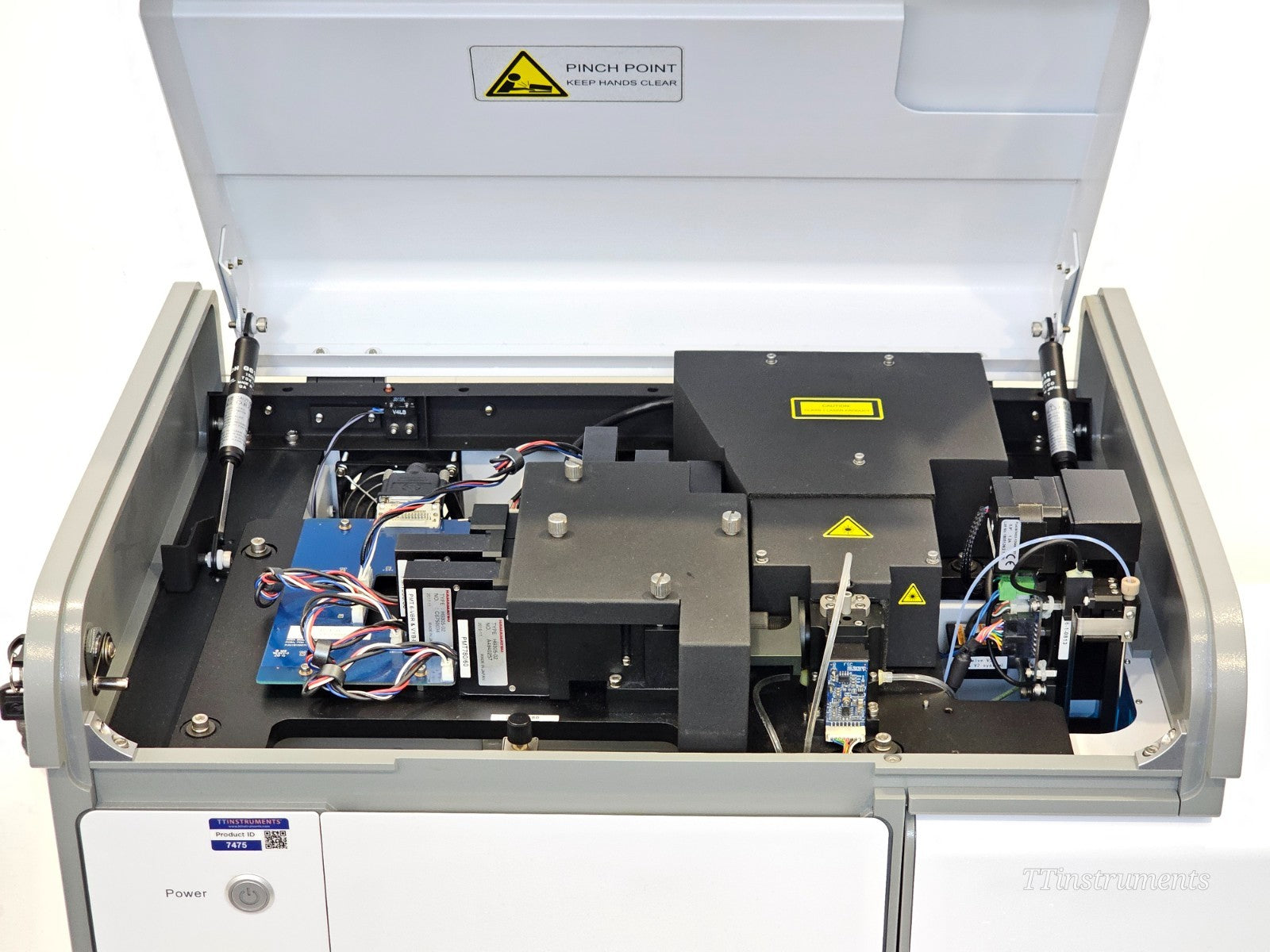

The Agilent (ACEA) NovoCyte 2060R is a benchtop flow cytometer from the NovoCyte family, configured with two lasers (488 nm and 640 nm) and four PMT detectors providing up to 6 fluorescence channels. It is designed for multicolour cell analysis in life science research, immunology, cell biology, and drug discovery applications. The instrument features a fixed optical alignment requiring no operator adjustment, a 170 x 290 µm rectangular quartz flow cell, and 24-bit detection providing a 7.2-decade logarithmic dynamic range with no need for PMT voltage adjustment.

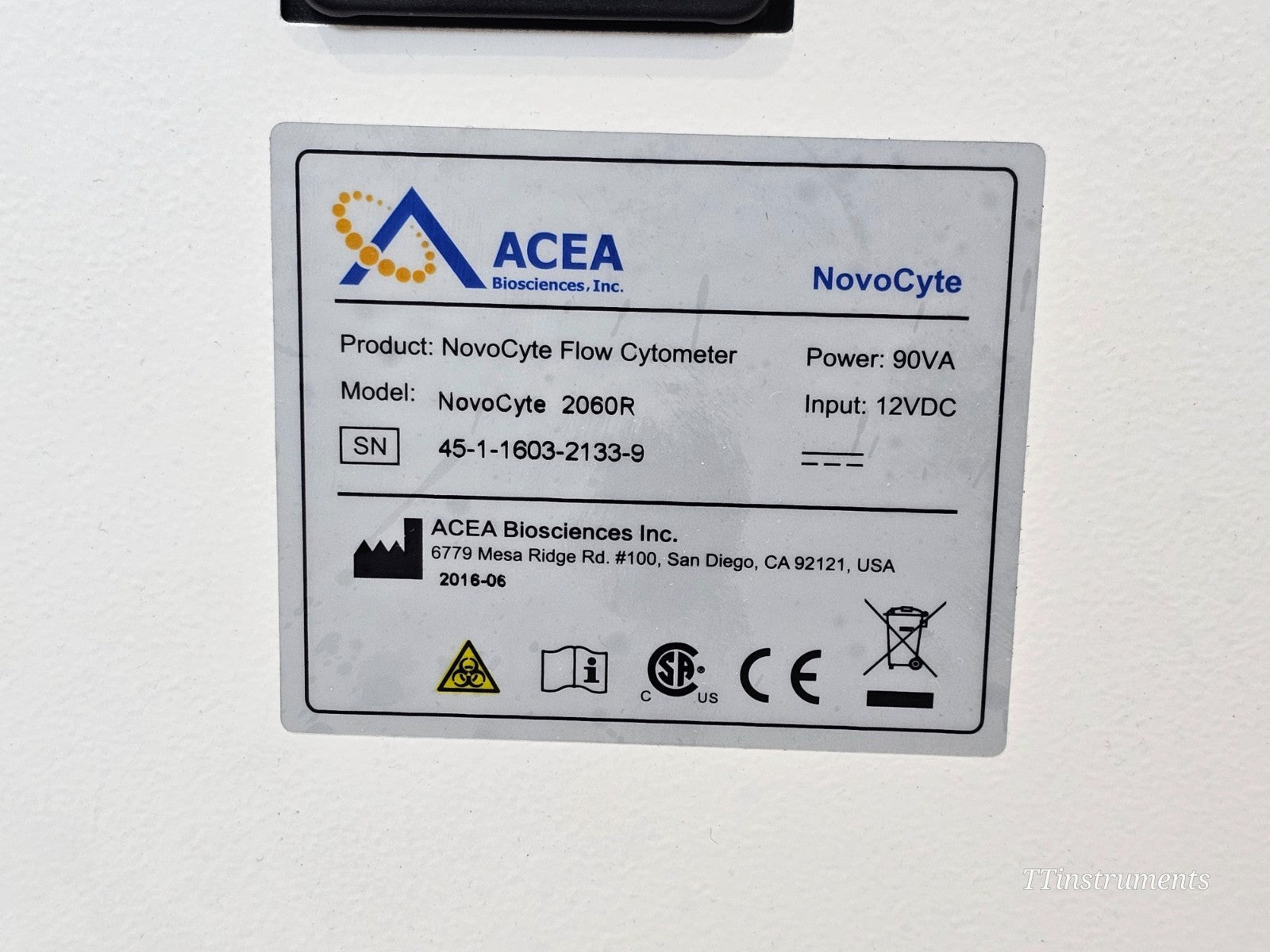

Model: NovoCyte 2060R
Lasers: 488 nm (blue), 640 nm (red)
Detectors / Filters: 530/30 nm, 572/28 nm (or 585/40 nm), 675/30 nm, 780/60 nm (4 PMTs, up to 6 FL channels depending on configuration)
Laser Configuration: Spatially separated beams with 10 x 80 µm elliptical spots
Optical Alignment: Fixed, no operator alignment required
Flow Cell: 170 x 290 µm rectangular quartz
FSC/SSC Resolution: FSC < 0.5 µm; SSC < 0.2 µm
Cell Size Range: 0.2 – 50 µm
Fluorescence Threshold Sensitivity: FITC < 75 MESF; PE < 50 MESF
Fluorescence Resolution: < 3% CV for CEN
Filters: User exchangeable
Sample Acquisition Rate: 35,000 events/second
Volumetric Absolute Count Precision: CV < 5%
Sample Flow Rate: 5 – 120 µL/min
Sheath Flow Rate: 6.5 mL/min
Sample Aspiration Volume: 10 – 100 µL
Fluid Container Capacity: 3 L sheath, 3 L waste, 500 mL cleaning, 500 mL decontamination
Carryover: < 0.1%
Fluidics Maintenance: Automated startup, cleaning, decontamination, and shutdown
Dynamic Range: 24-bit; 7.2 decades logarithmic scale; no PMT voltage adjustment required
Compensation: Full inter-beam matrix, during or post acquisition
Output Data Files: FCS 3.0; CSV; Batch Reports
Software: Agilent NovoExpress
Manual Sample Loading: 12 x 75 mm tube
Automatic Sample Loading (NovoSampler Pro): Compatible with 12 x 75 mm tubes, 1.5 & 2 mL tubes, 24-well, 48-well, and 96-well microtitre plates
Instrument Dimensions (W x D x H): 23.6 x 17.7 x 15.4 in (60 x 45 x 39 cm)
Instrument Weight: 86 lb (39 kg)
Power Requirements: 100/115/230 VAC, 50–60 Hz
Environment: Temperature 15–32°C; Relative Humidity 80% maximum
Laser Safety Class: Class I laser product per IEC/EN 60825-1
For Research Use Only. Not for use in diagnostic procedures.
