The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

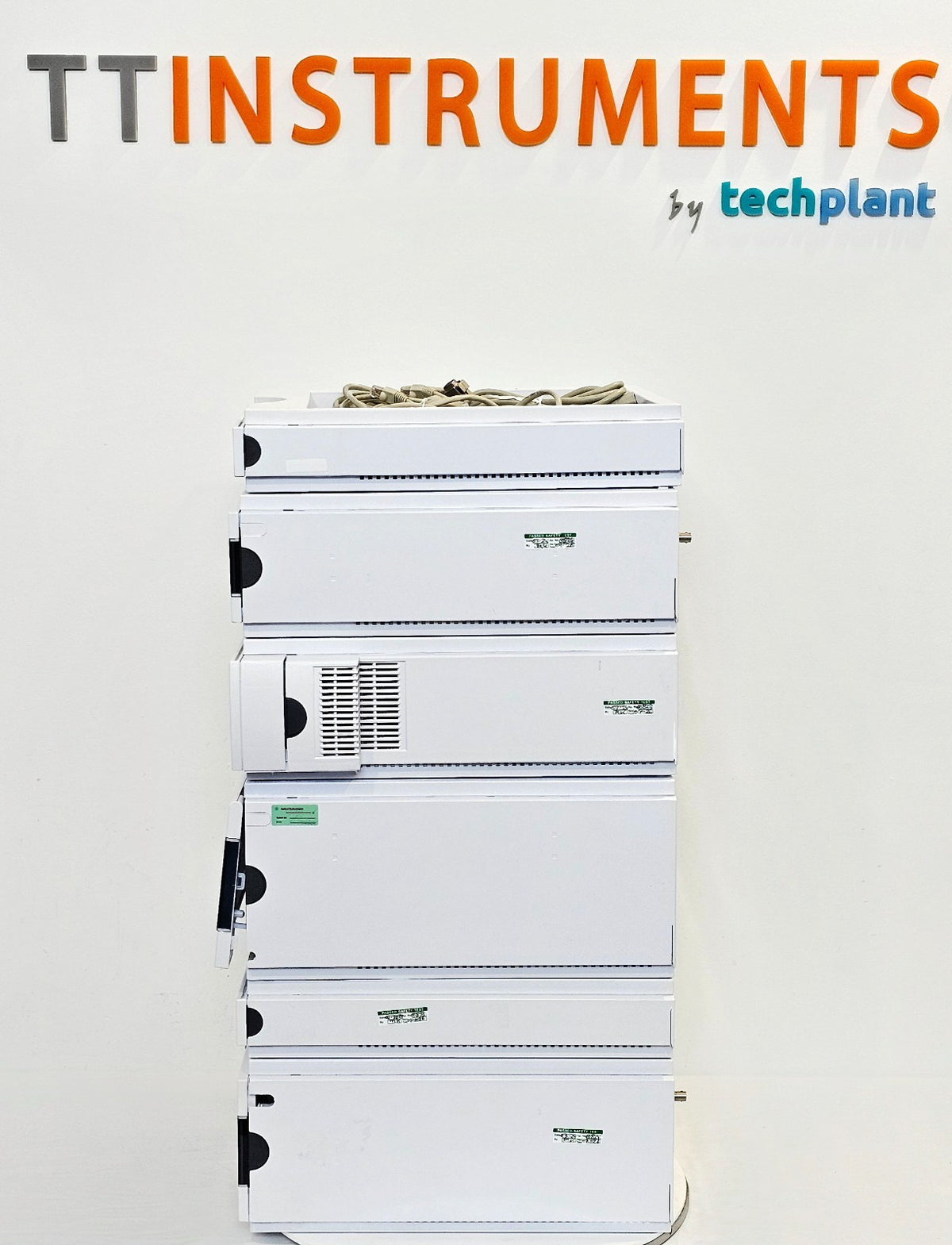

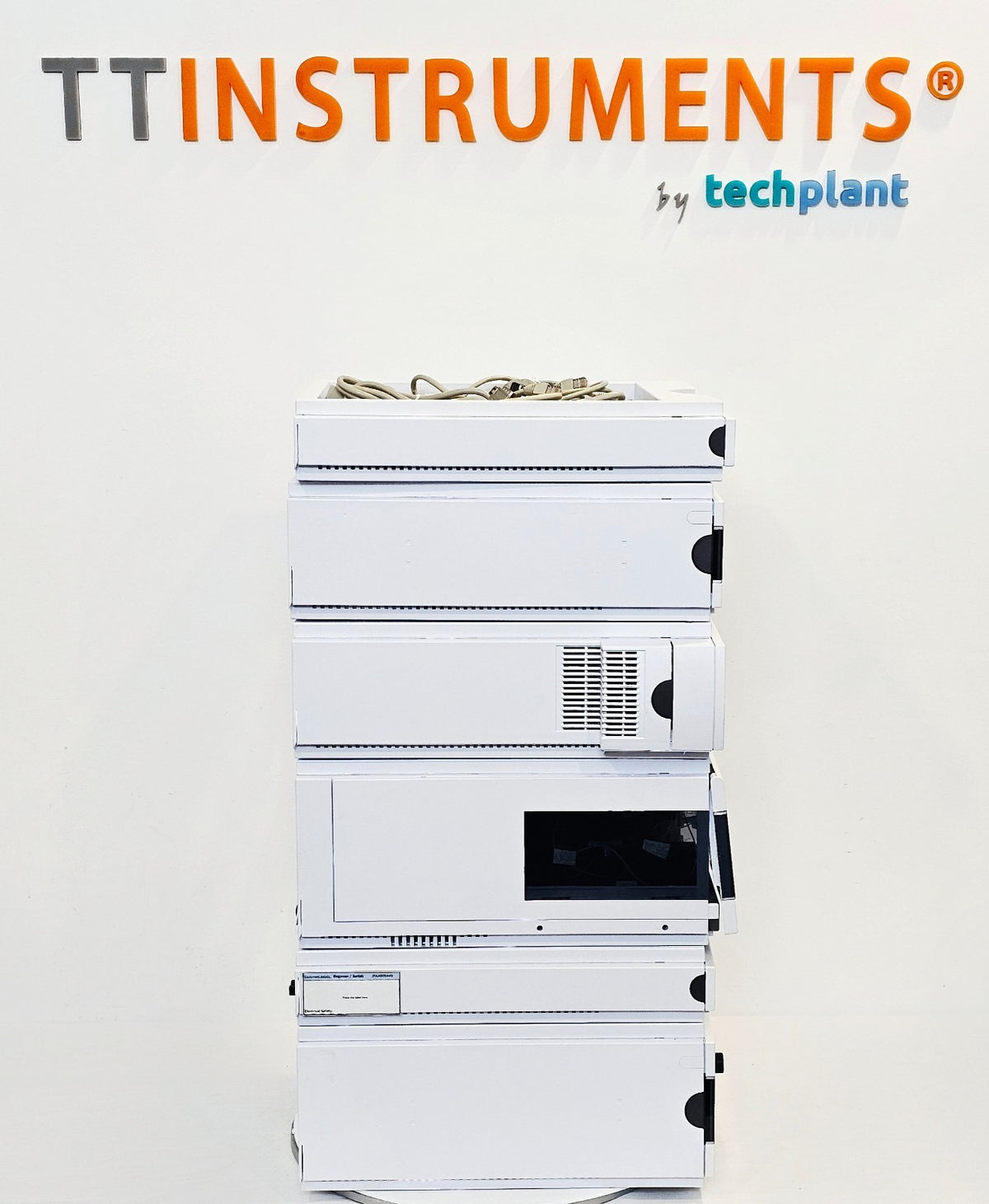

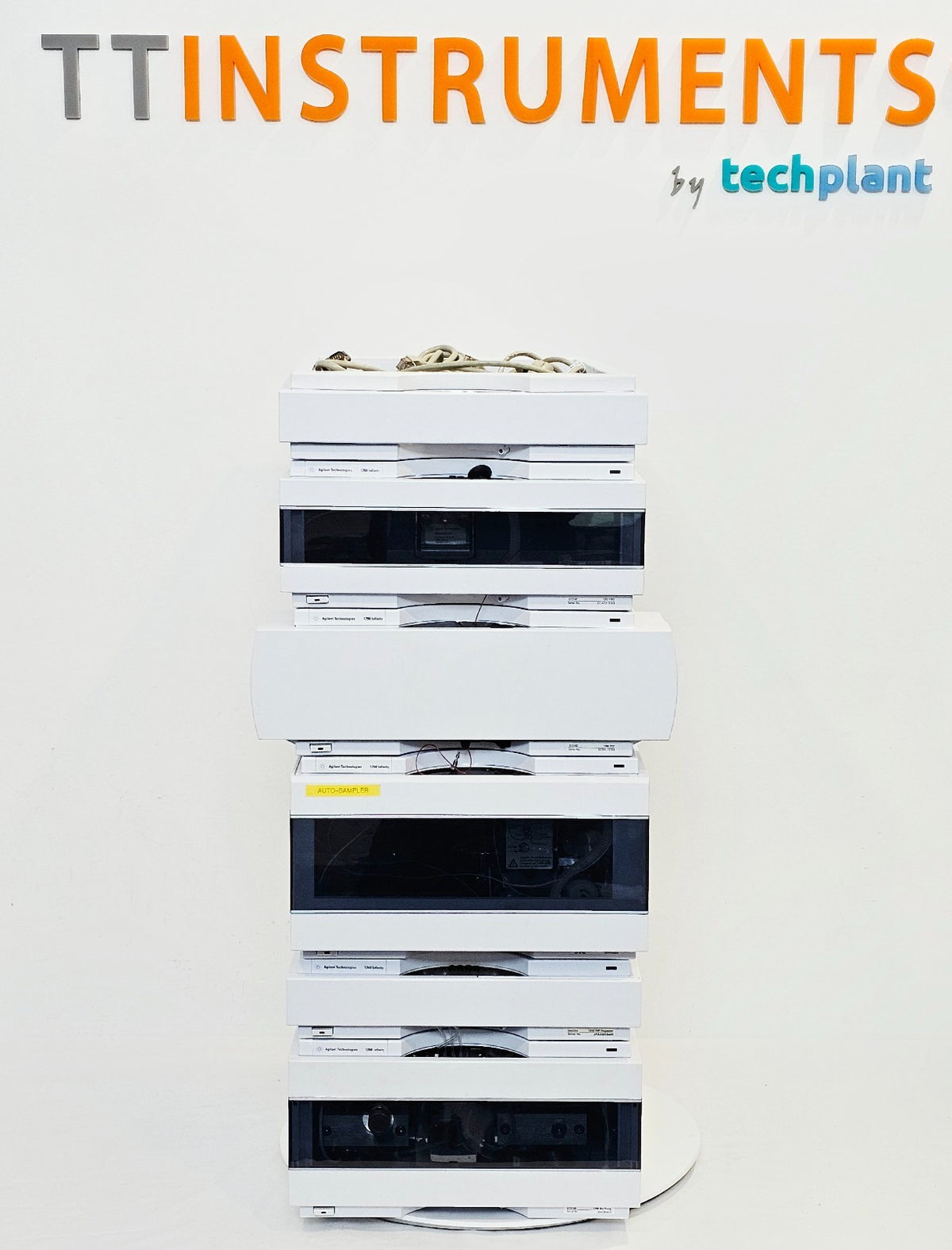

This Agilent 1260 Infinity HPLC system is in very good cosmetic condition. The complete system was fully connected and tested using Agilent Lab Advisor software, and all modules passed their self-tests successfully.

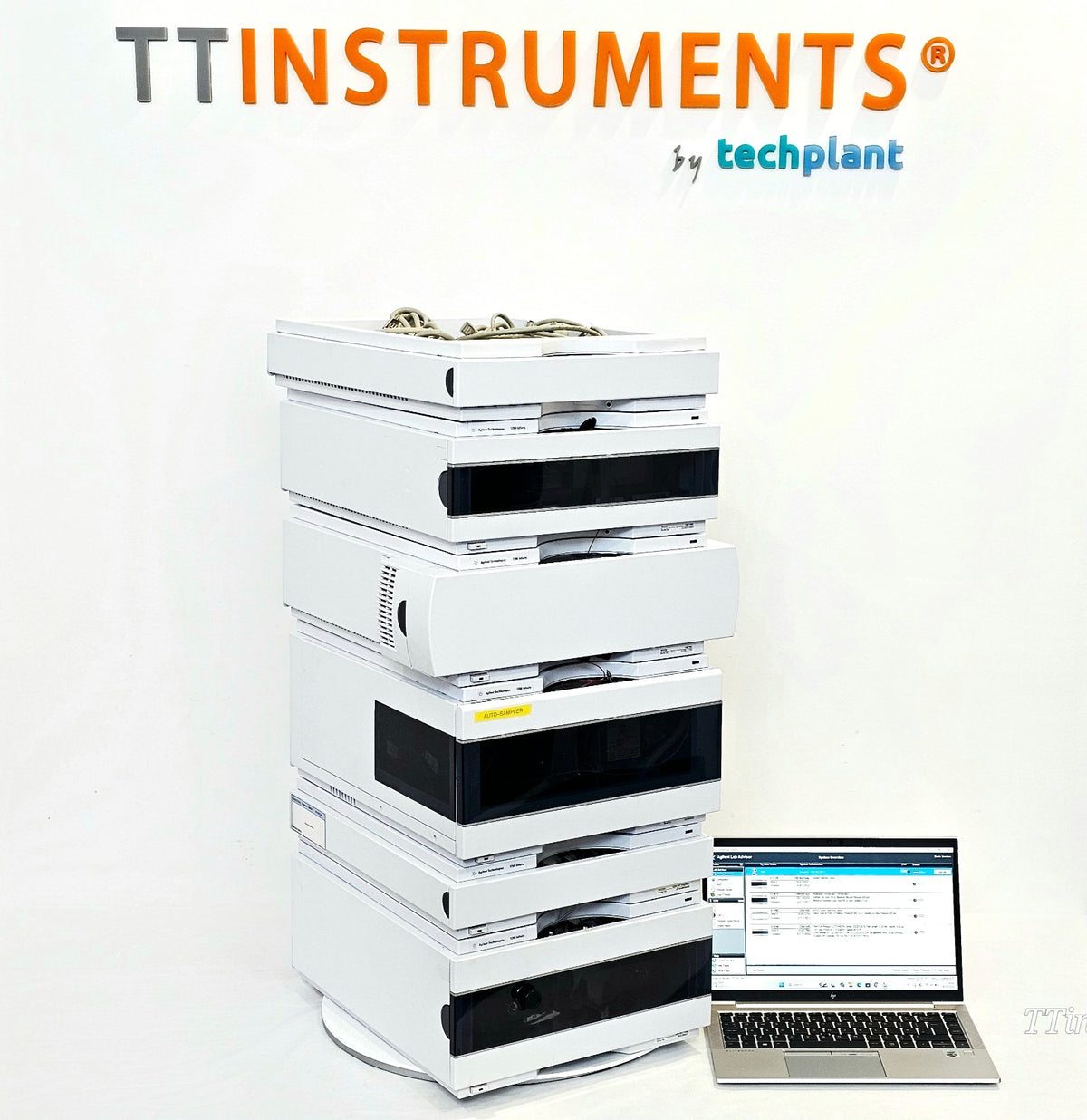

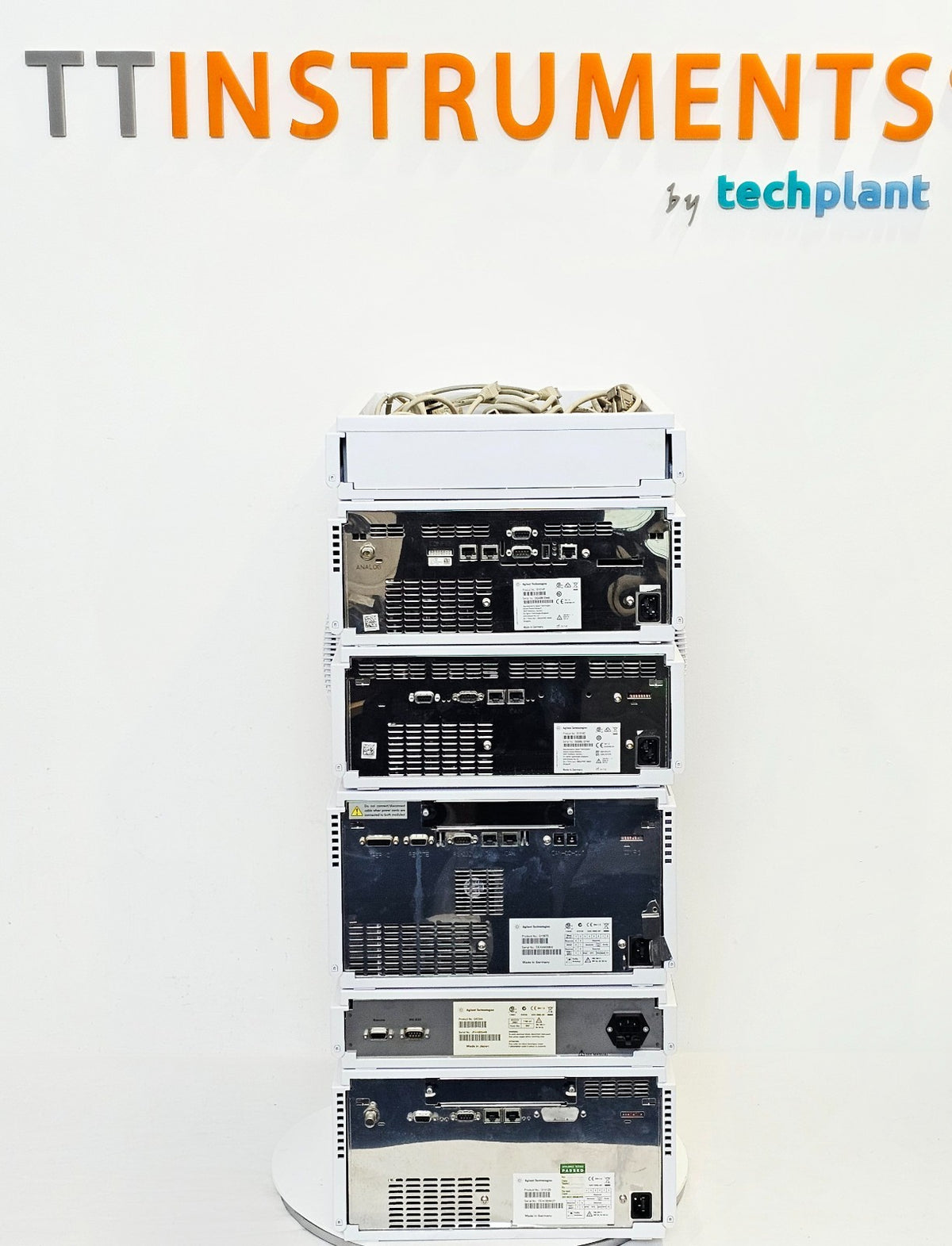

The system comprises the following modules:

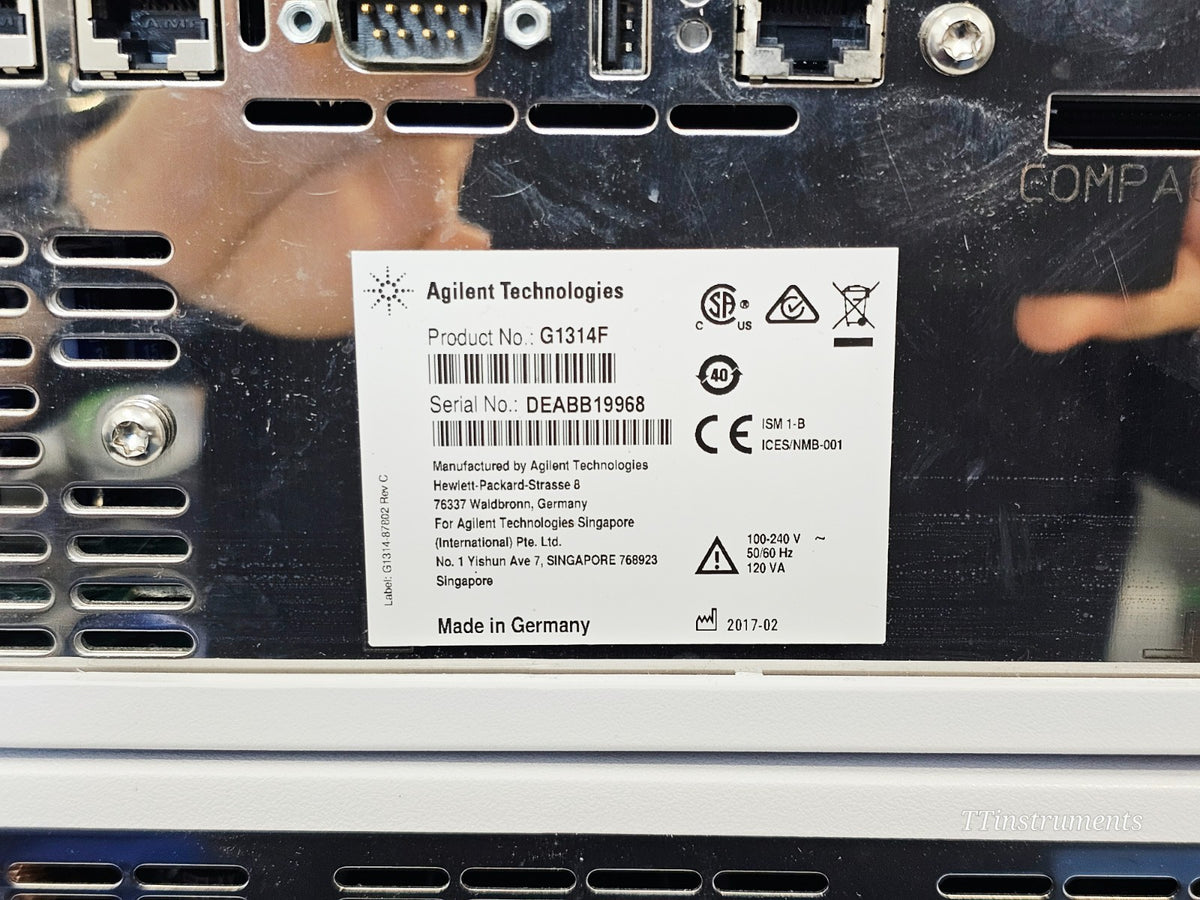

• G1314F — 1260 Infinity Variable Wavelength Detector (VWD)

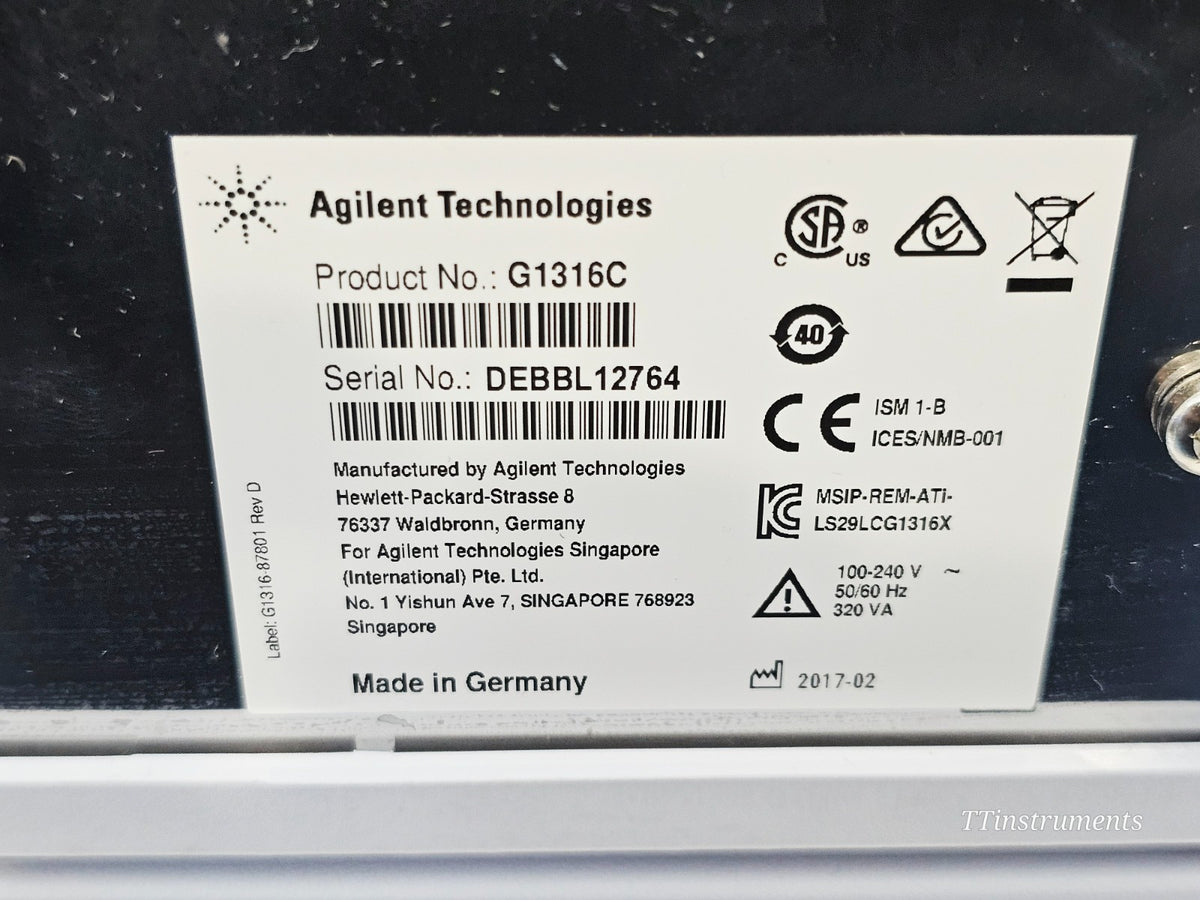

• G1316C — 1290 Infinity Thermostatted Column Compartment (TCC)

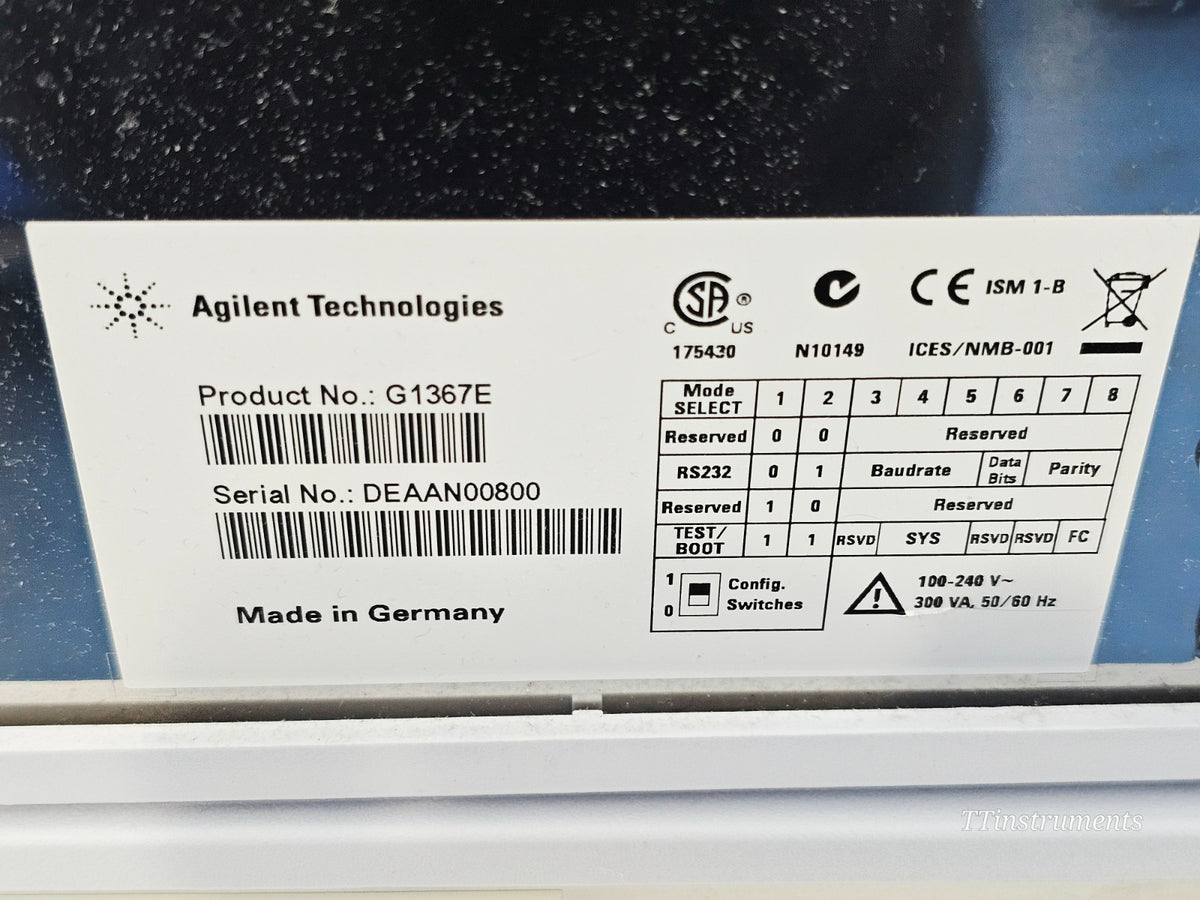

• G1367E — 1260 Infinity High Performance Autosampler (HiP ALS)

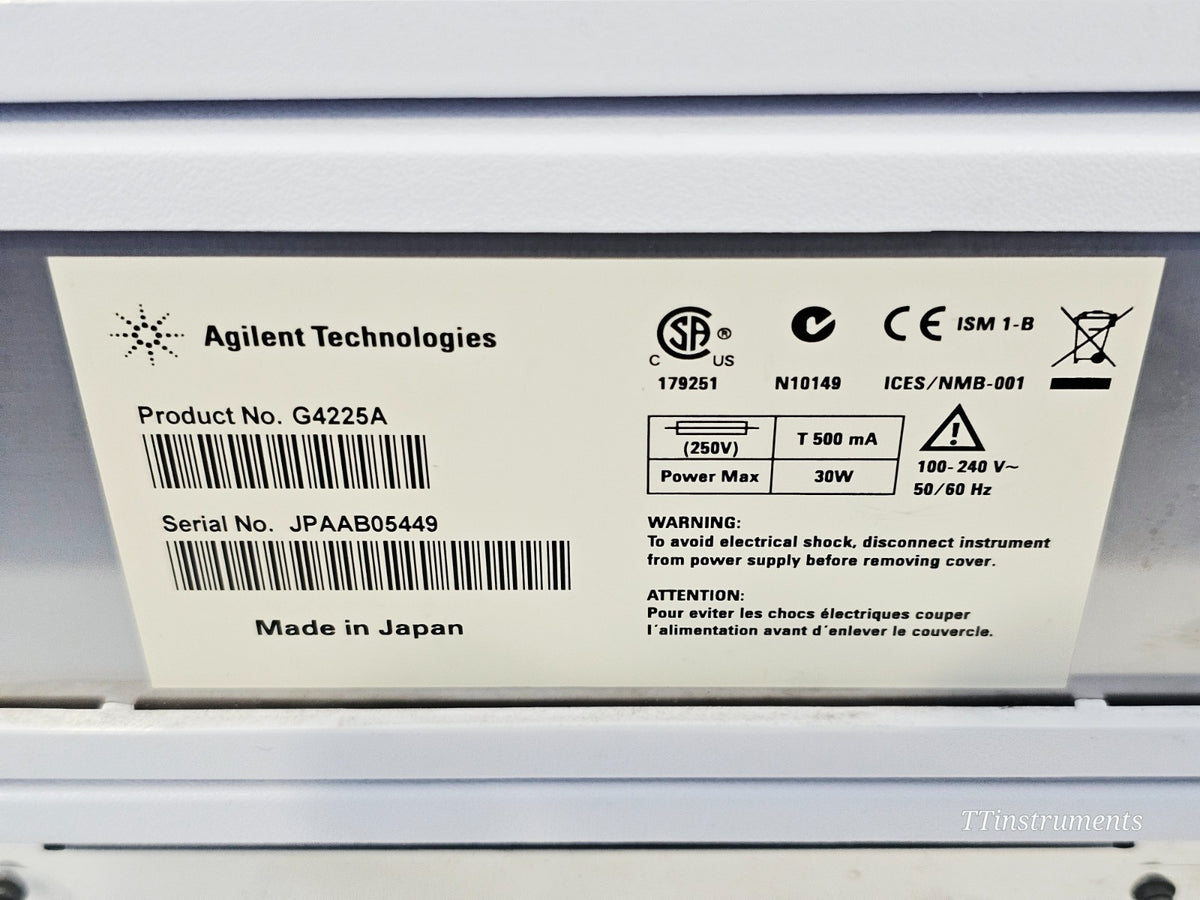

• G4225A — 1260 Infinity High Performance Degasser (HiP Degasser)

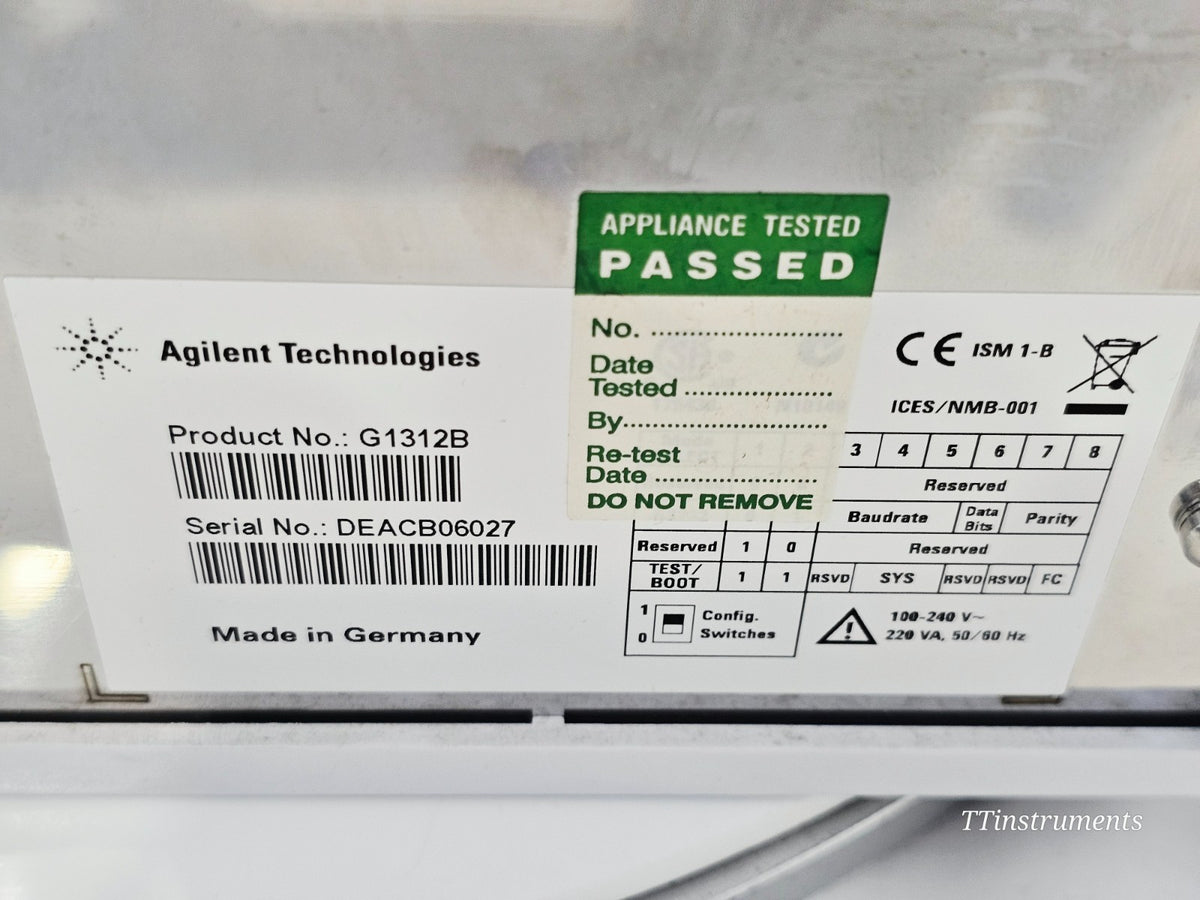

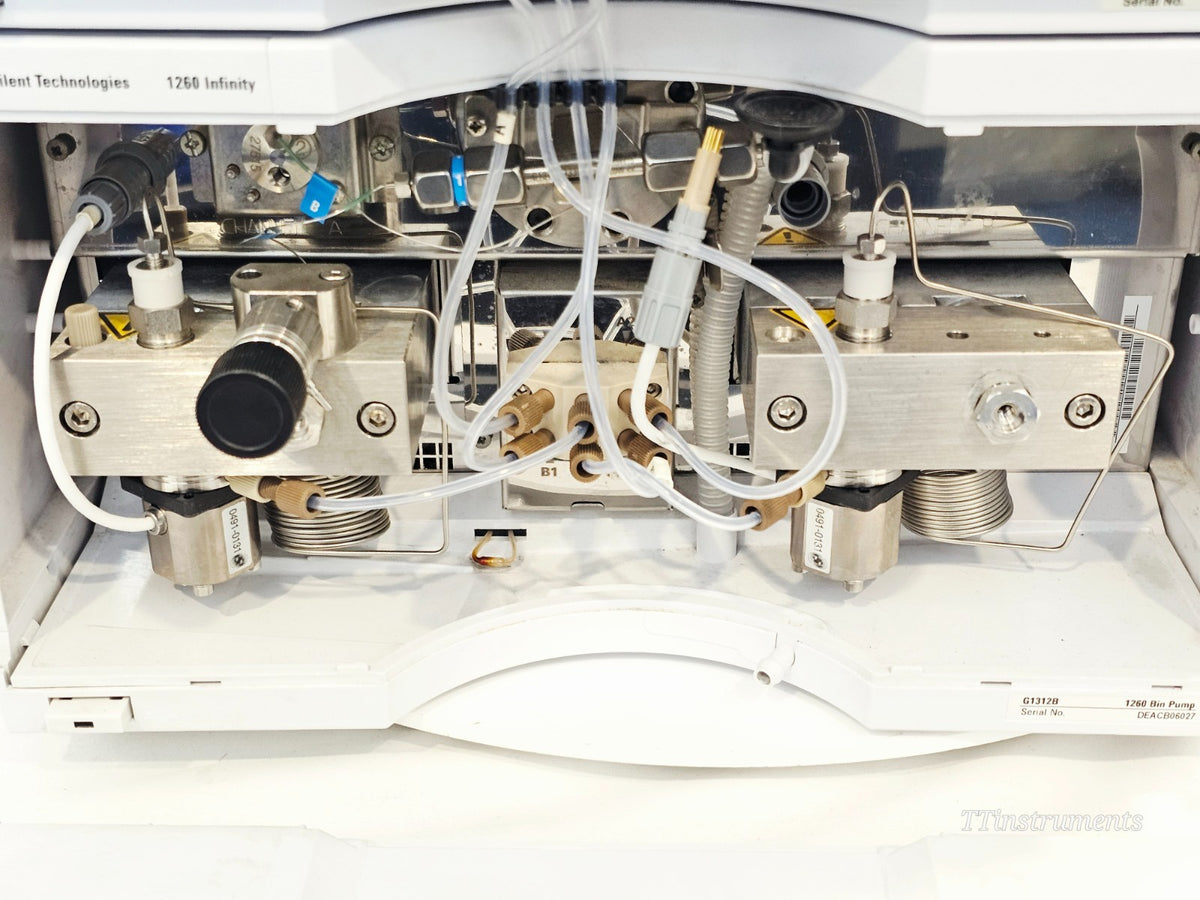

• G1312B — 1260 Infinity Binary Pump
• Agilent 1200 Series HPLC Solvent Tray

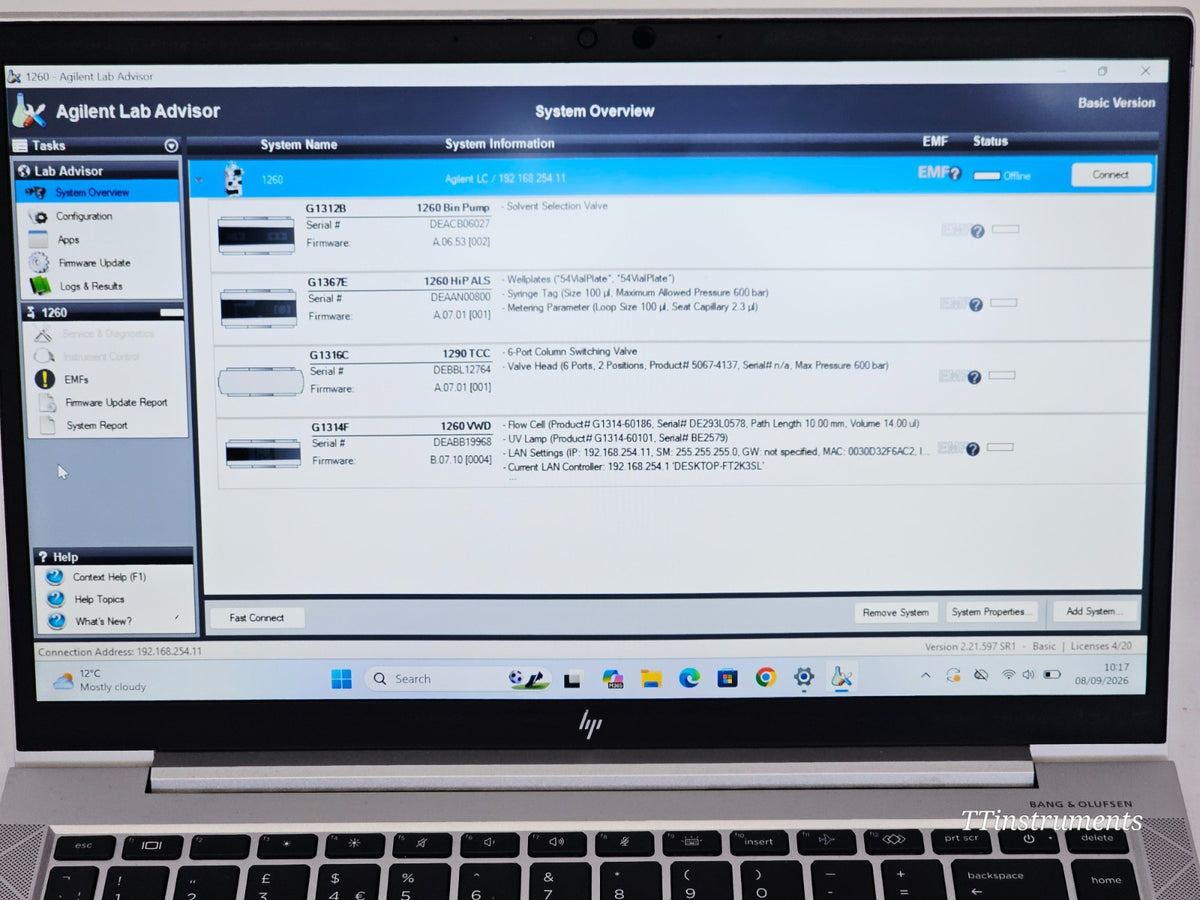

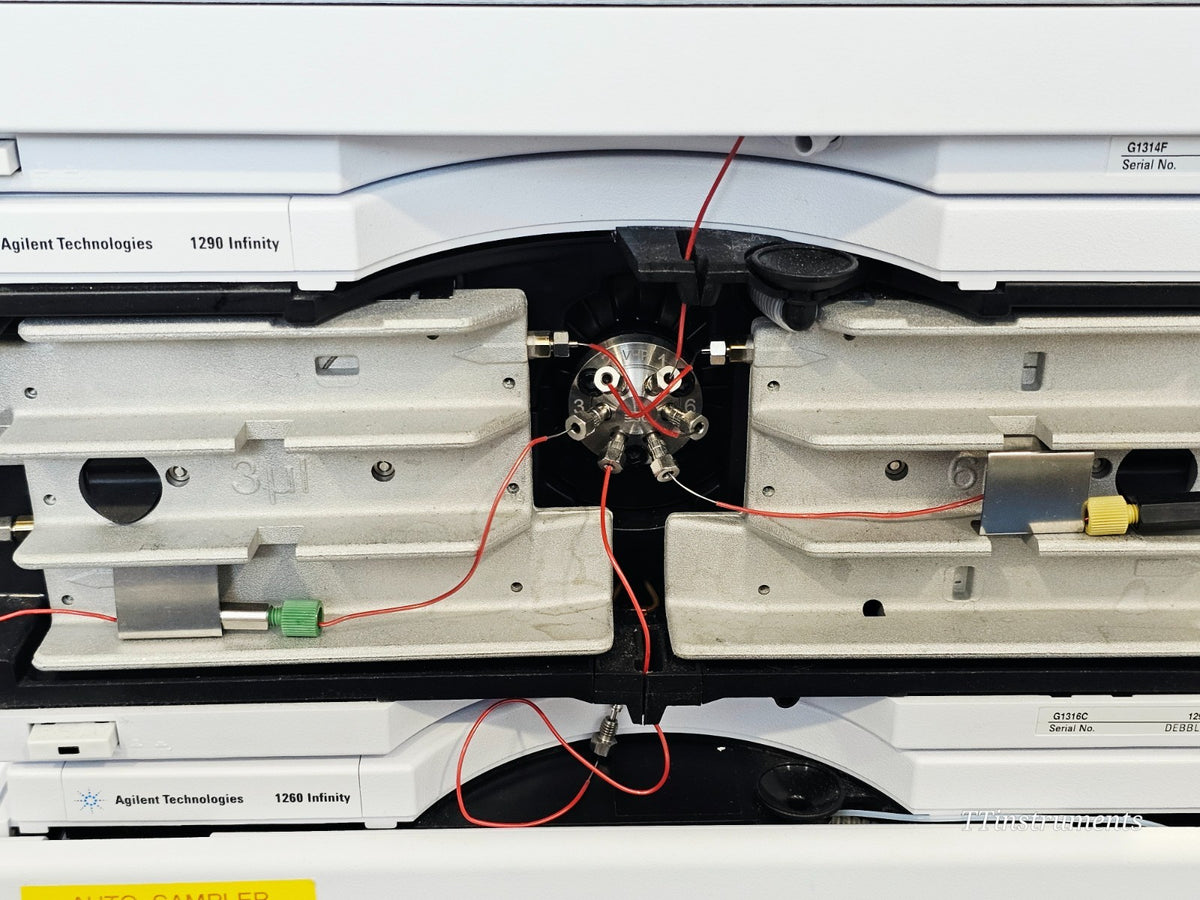

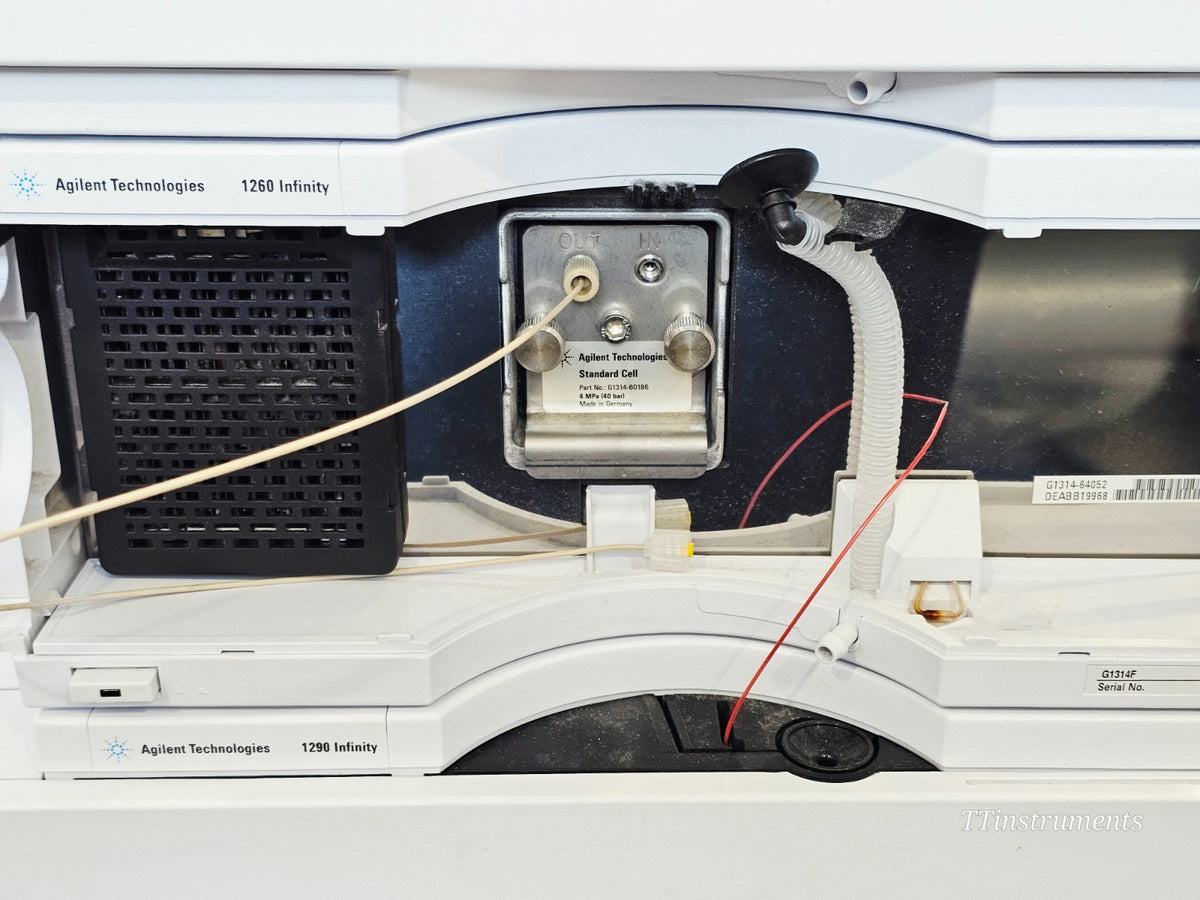

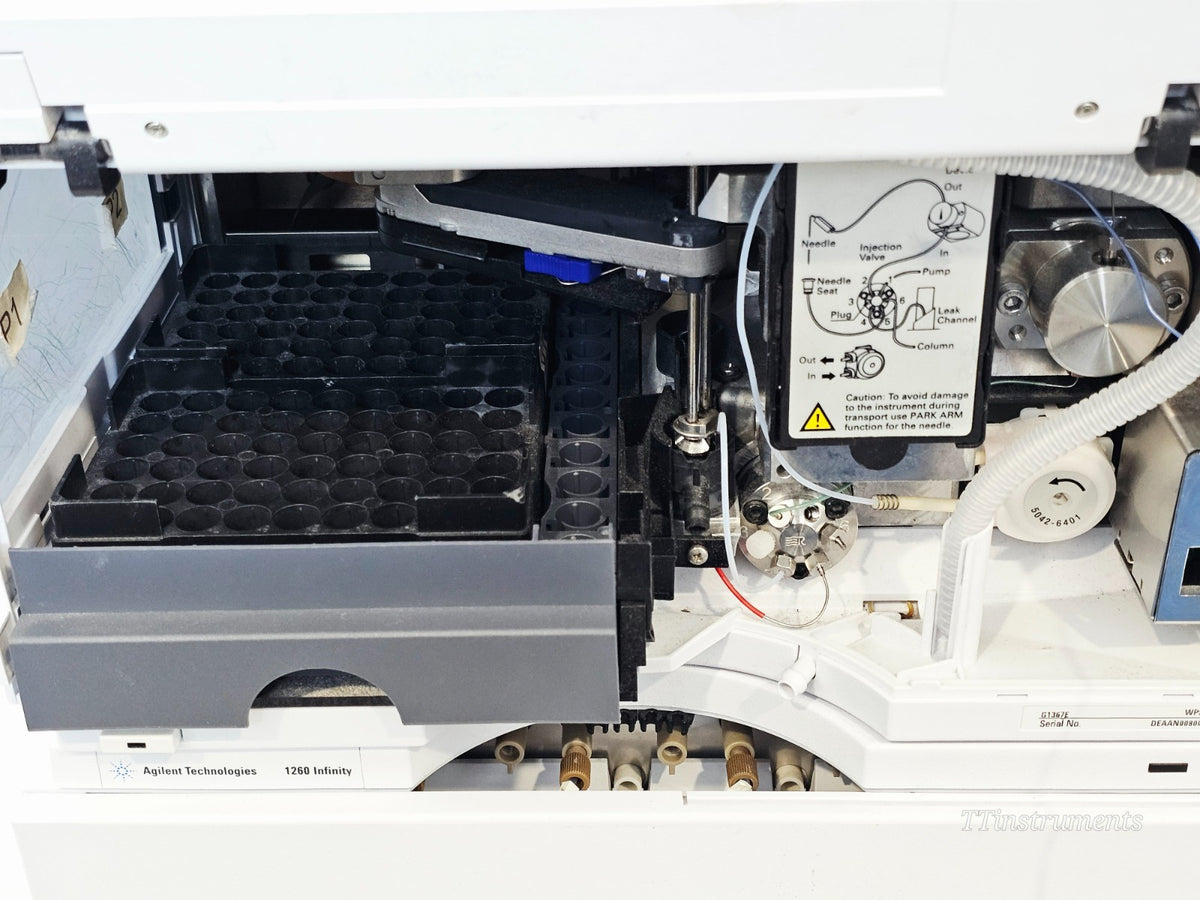

As confirmed in Agilent Lab Advisor, the G1314F VWD is fitted with the standard flow cell (Part No. G1314-60186, 10 mm path length, 14 µL volume). The G1316C TCC is fitted with a 6-port, 2-position column switching valve (Product# 5067-4137, Max Pressure 600 bar). The G1367E autosampler is configured with a 100 µL syringe, 100 µL loop, and 2.3 µL seat capillary.

The system is supplied with the following:

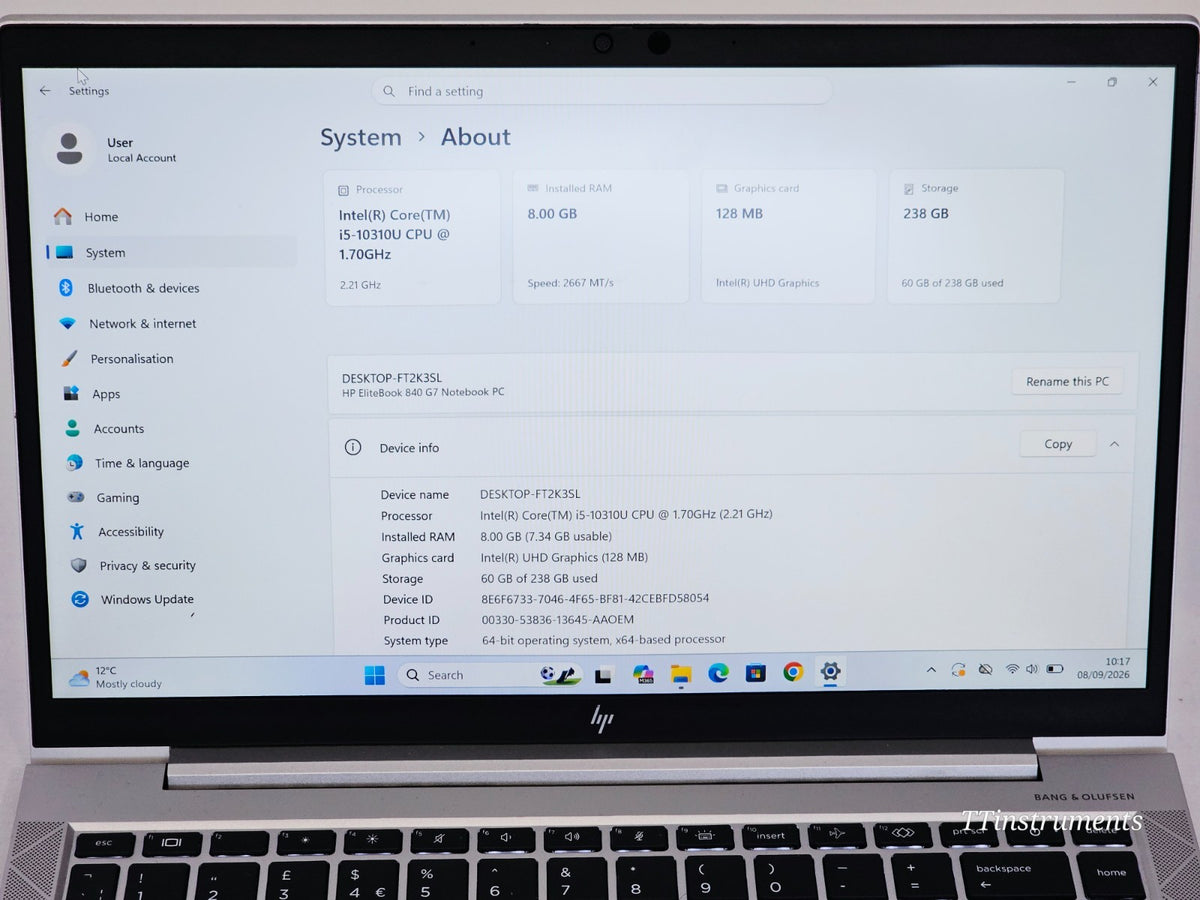

• HP EliteBook 840 G7 Notebook PC (Intel Core i5-10310U, 8 GB RAM, 238 GB SSD, Windows 11) with Agilent Lab Advisor (Basic Version) pre-installed
• Agilent 1200 Series HPLC Solvent Tray

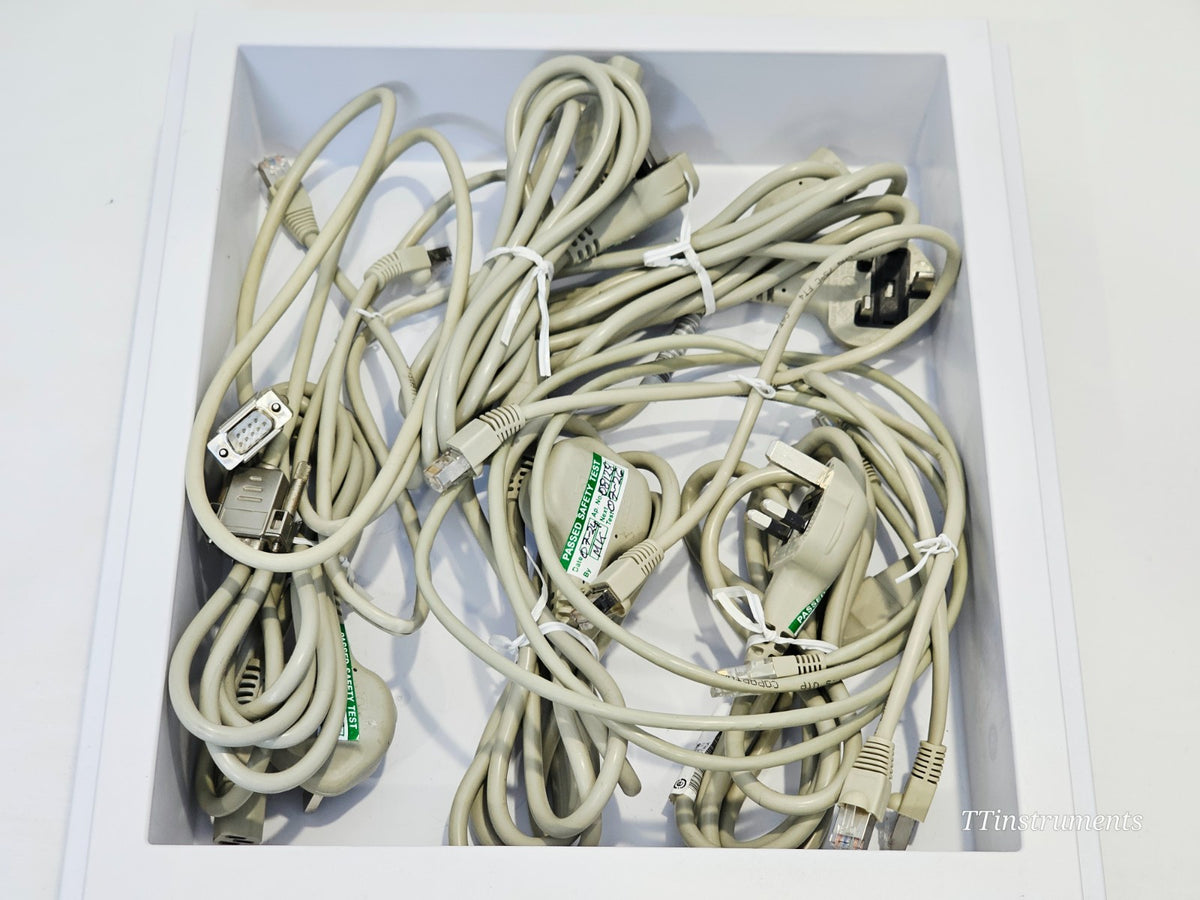

• Interconnect cables (LAN, RS-232, and power leads)

The Agilent 1260 Infinity Binary LC system is designed to provide a liquid chromatograph offering ultrafast and high-resolution separation capability while retaining full backwards compatibility for established HPLC methods. The platform is built around a modular architecture, enabling laboratories in pharmaceutical QC, research, food testing, and environmental analysis to configure a system precisely matched to their application requirements.

Key highlights:
- G1312B Binary Pump: dual piston in-series design with servo-controlled variable stroke, high-pressure binary gradient mixing up to 600 bar, flow range 0.05–5.0 mL/min with ≤0.07% RSD flow precision
- G1367E HiP Autosampler: 600 bar rated, injection range 0.1–100 µL, flow-through design for lowest carryover, supports well plates, 2 mL vials, and Eppendorf tubes, fast injection cycles
- G1316C Thermostatted Column Compartment: Peltier heating and cooling for two independent temperature zones from 10°C below ambient to 100°C, temperature precision ±0.05°C, accommodates up to three 30 cm columns, integrated 6-port column switching valve
- G1314F Variable Wavelength Detector: double-beam photometer, wavelength range 190–600 nm, short-term noise ±0.25×10⁻⁵ AU at 230 nm, built-in holmium oxide wavelength verification, RFID-enabled lamp and flow cell
- G4225A HiP Degasser: four-channel vacuum degassing, 0–10 mL/min per channel, internal volume 0.45 mL per channel

Detector wavelength range: 190–600 nm
Detector noise: ±0.25×10⁻⁵ AU at 230 nm
Detector drift: <1×10⁻⁴ AU/h at 230 nm
Pump maximum pressure: 600 bar (8,700 psi)
Pump flow range: 0.05–5.0 mL/min
Pump flow precision: ≤0.07% RSD
Autosampler injection range: 0.1–100 µL
Autosampler pressure rating: 600 bar
TCC temperature range: 10°C below ambient to 100°C
TCC temperature precision: ±0.05°C
Degasser channels: 4
Degasser flow range: 0–10 mL/min per channel

Agilent 1260 datasheet: Download PDF
