Condition: Used

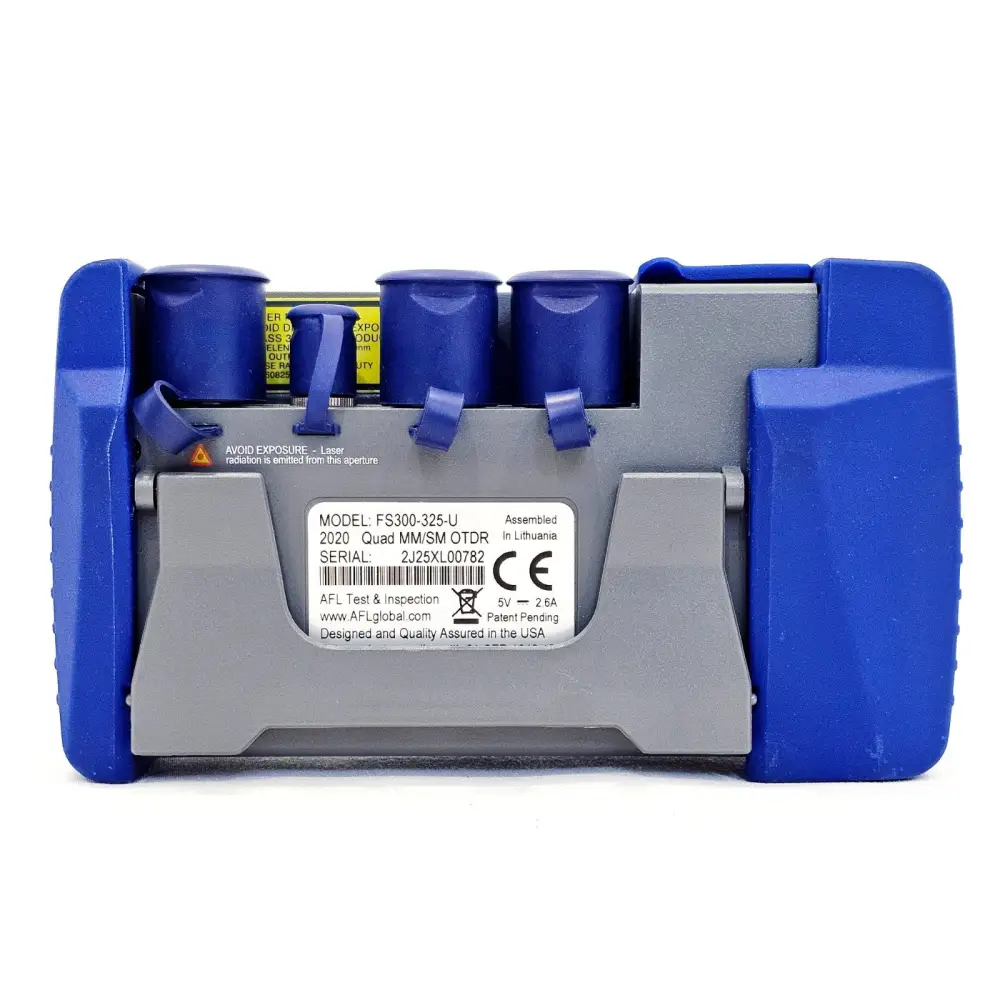

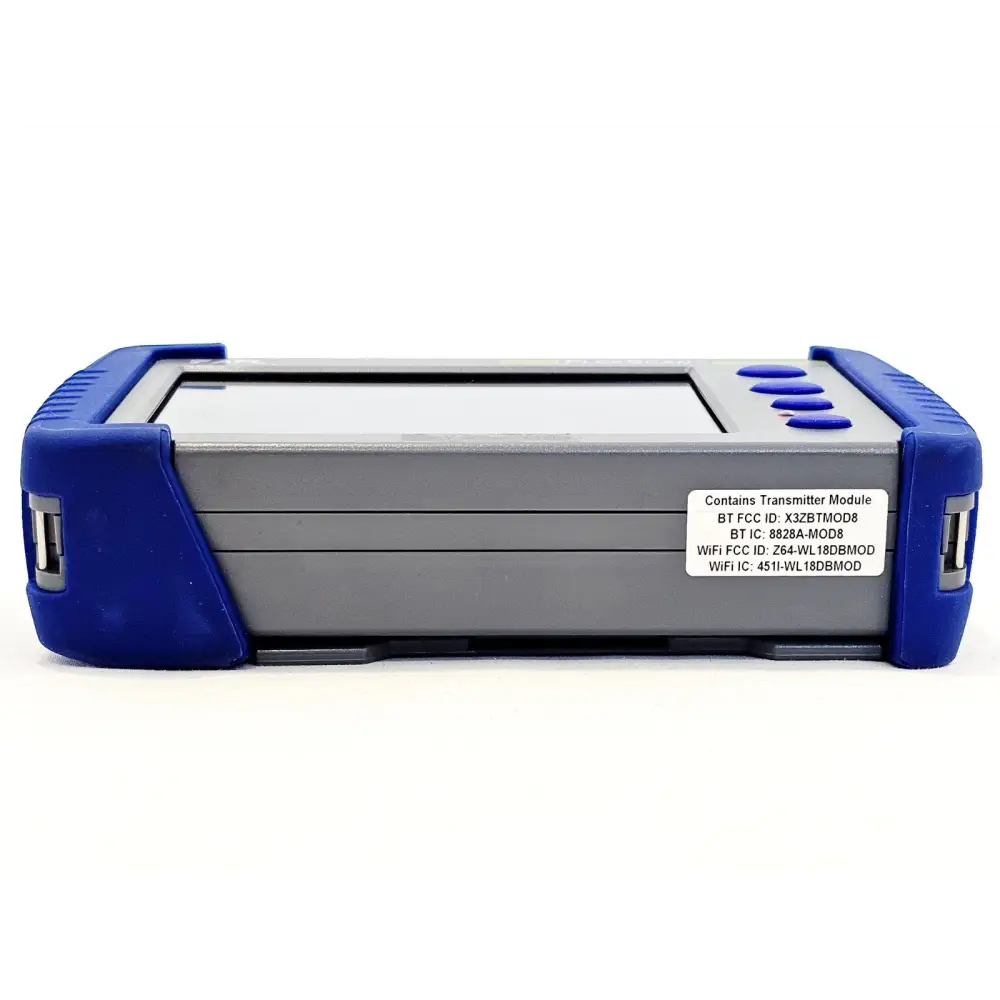

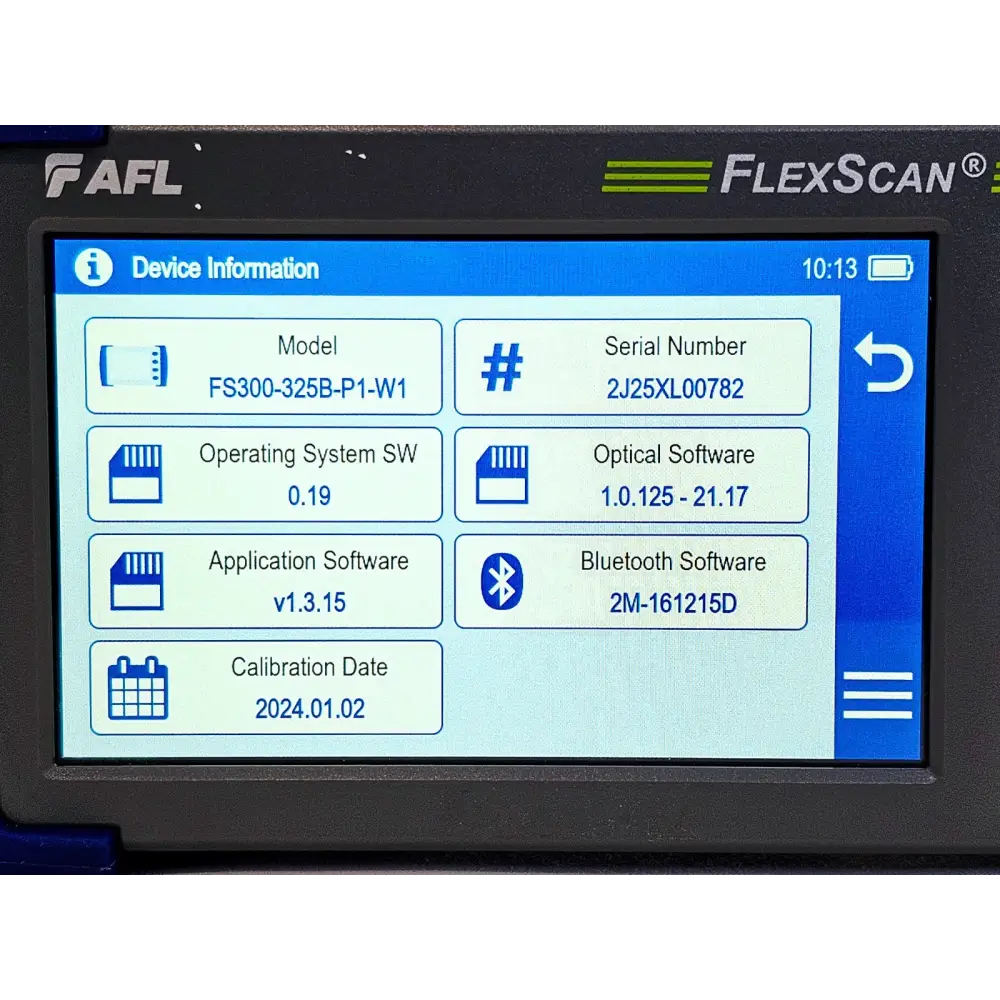

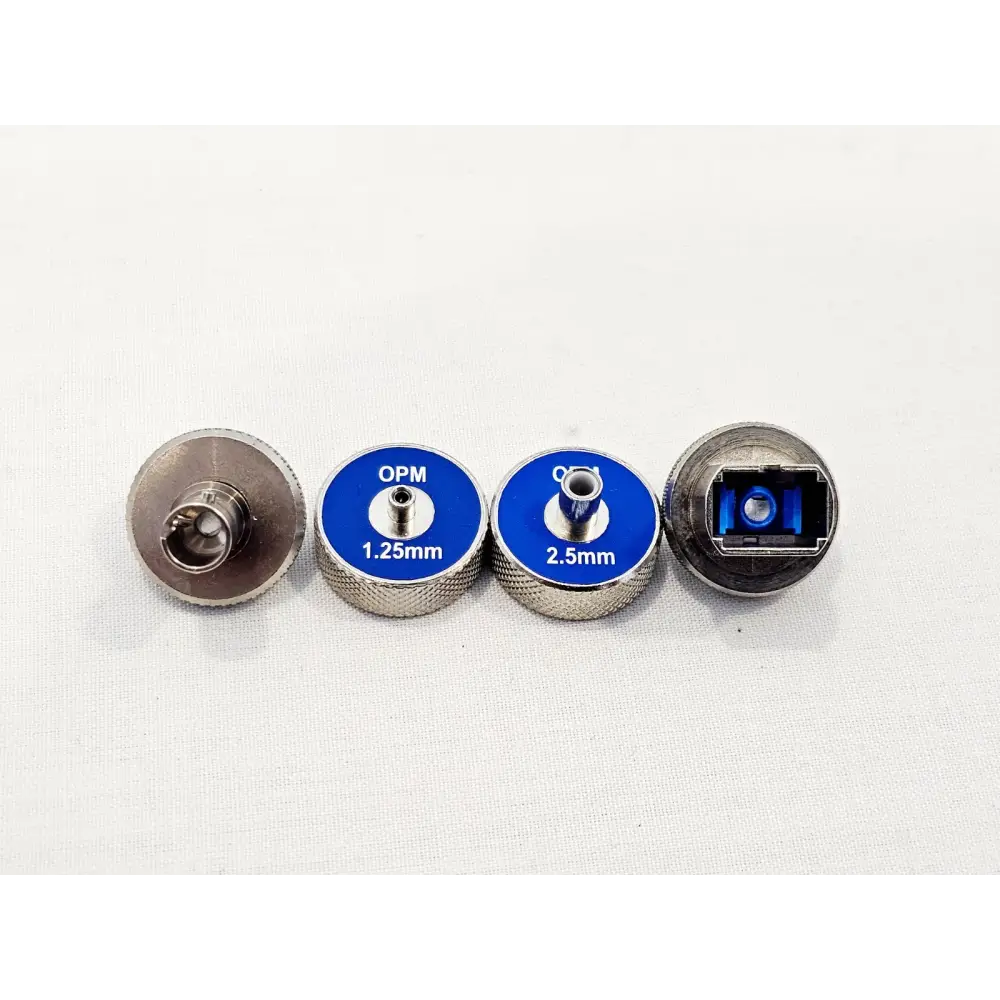

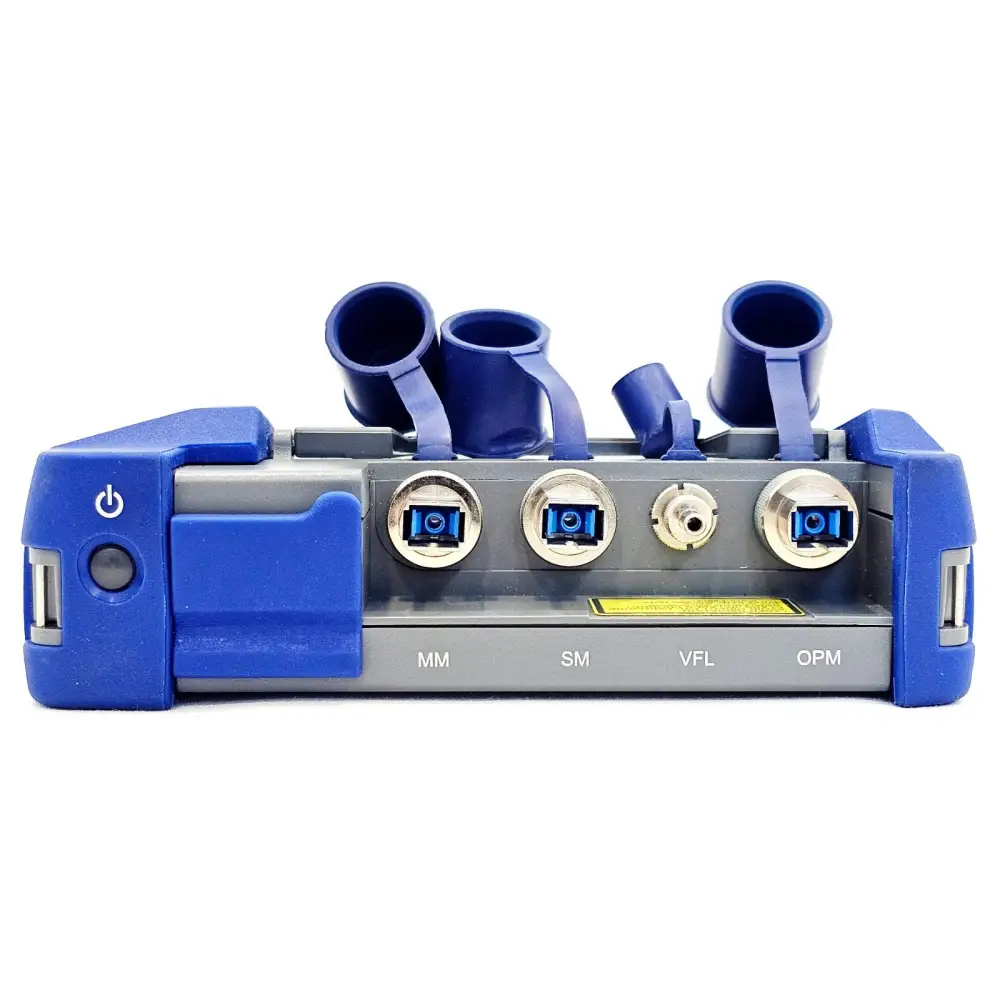

Tested and in good working condition. Manufactured March 2020 (model FS300-325-U, serial 2J25XL00782). Configured as a QUAD MM/SM OTDR with SM 1310/1550 nm (37/35 dB, SC-PC) and MM 850/1300 nm (29/27 dB, SC-PC). SmartAuto, Expert, and Real-Time OTDR modes active. Built-in optical power meter (OPM) with SC, 2.5 mm, and 1.25 mm adapters and visual fault locator (VFL, 2.5 mm connector). Bluetooth and Wi-Fi transmitter module fitted. Calibration expired January 2025 — fresh calibration can be arranged at additional cost.

Included in the sale:
• AFL FlexScan FS300-325-U Quad MM/SM OTDR unit
• Soft blue carry/shoulder bag
• USB charging cable
• SC connector port adapters/caps (x3, various)
• Quick Reference Guide (FlexScan FS300 OTDR with SmartAuto and LinkMap)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The AFL FlexScan FS300-325 is a pocket-sized Quad OTDR combining multimode (850/1300 nm) and single-mode (1310/1550 nm) testing capability in a single compact handheld unit. Designed for both novice and expert technicians, it automates test setup, shortens test time, and simplifies results interpretation across a wide range of applications including data centres, FTTH PON deployments, and point-to-point networks. The FS300-325 supports SmartAuto, Expert, and Real-Time OTDR modes, and optionally FleXpress for fast point-to-point testing. An integrated optical power meter, light source, and visual fault locator (VFL) provide a comprehensive all-in-one field solution.

--- OTDR Specifications (FS300-325 Quad) ---

Multimode OTDR:
Fiber Type: Multimode; compatible with OM1–OM5
Wavelengths: 850/1300 ±20 nm
Network Type: Point-to-point
Dynamic Range: 29/27 dB @ 850/1300 nm
Event Dead Zone: 0.7 m @ 850/1300 nm
Attenuation Dead Zone: 2.5 m
Internal Launch Fiber: ≥30 m internal MM launch fiber

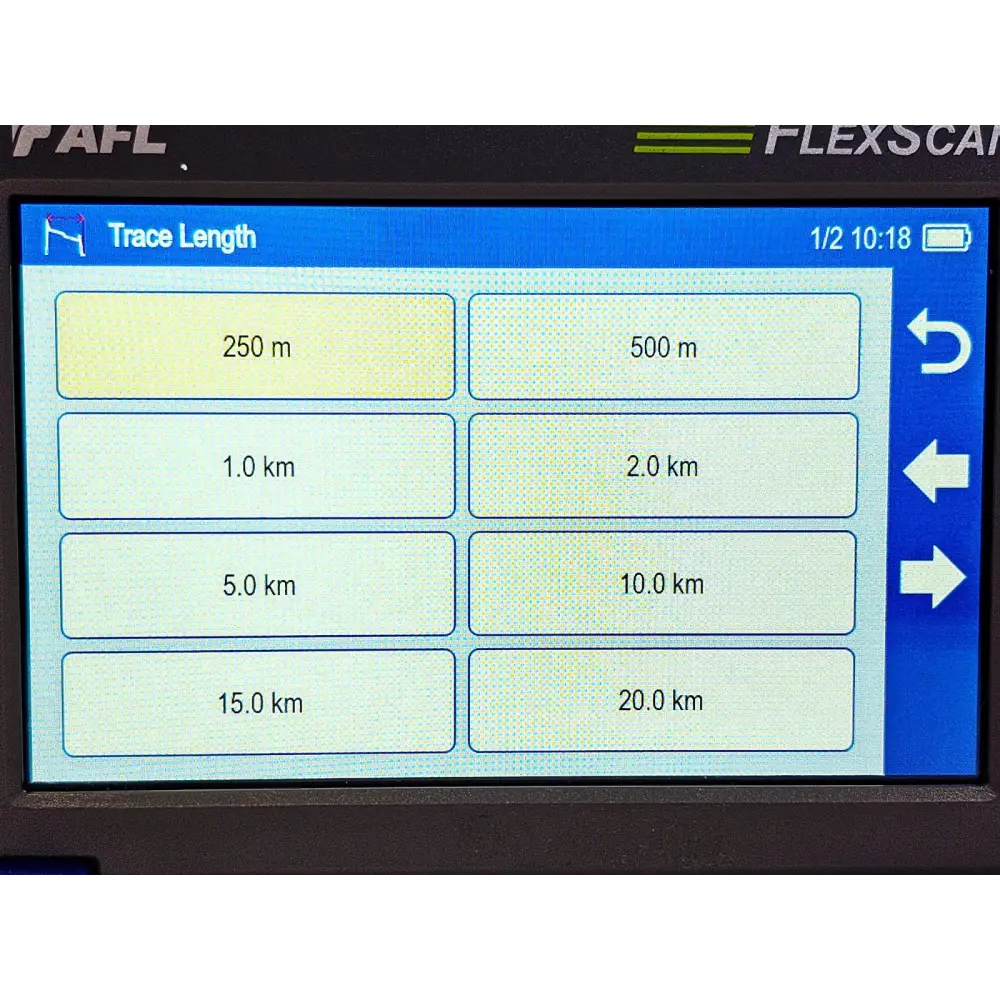

Range Settings: 250 m to 40 km

Single-mode OTDR:
Fiber Type: Single-mode; compatible with all G.65x

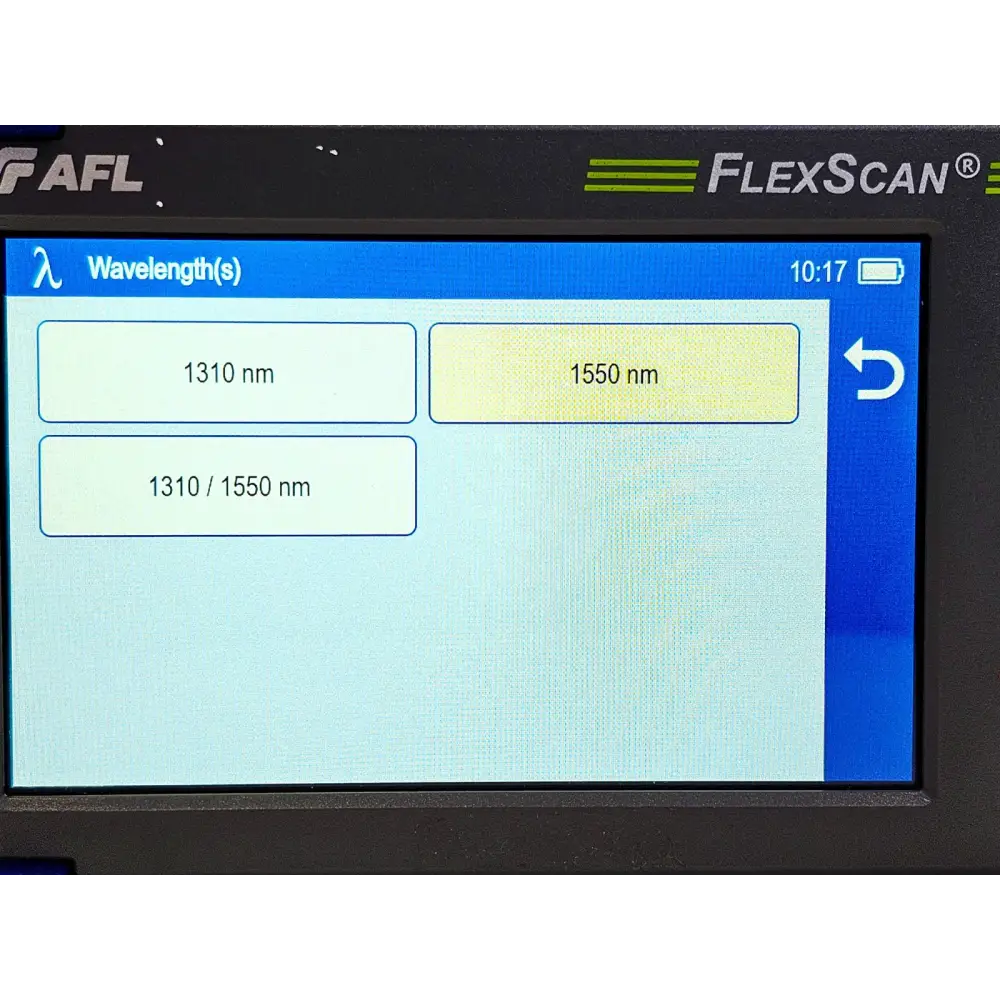

Wavelengths: 1310/1550 ±20 nm
Network Type: Point-to-point & PON up to 1:64
Dynamic Range: 37/35 dB @ 1310/1550 nm
Event Dead Zone: ≤0.7 m @ 1310/1550 nm
Attenuation Dead Zone: 2.5 m
PON Dead Zone: 30 m
Internal Launch Fiber: ≥50 m internal SM launch fiber
Range Settings: 250 m to 240 km

General OTDR:
Emitter Type: Laser
Safety Class: Class I
Connector Type: User-specified APC or UPC ferrule with interchangeable UCI adapters
Max Split Ratio: 1:64
Pulse Widths: 3, 5, 10, 30, 100, 200, 500 ns; 1, 2.5, 5, 10, 20 ms
Data Points: Up to 300,000
Data Spacing: ≥5 cm to ≤16 m
Group Index of Refraction: 1.3000 to 1.7000
Distance Uncertainty: ±(1 + 0.0025% x distance + data point spacing) m
Linearity: ±0.03 dB/dB
Loss Resolution: 0.001 dB
Reflectance Range: 1310/1550 nm: -20 to -65 dB
Reflectance Resolution: 0.01 dB
Reflectance Accuracy: ±2 dB
ORL Range: 20 to 60 dB
ORL Resolution: 0.01 dB
ORL Accuracy: ±2 dB over range 30 to 55 dB; ±4 dB over range 20–30 dB and 55–60 dB
Trace File Format: .SOR, Telcordia SR-4731 Issue 2
OTDR Results Storage: Internal or external USB memory
Internal Storage: Minimum 4 GB internal non-volatile memory (App SW + >5000 traces typical)
Real-time Refresh Rate: 1 to 4 Hz

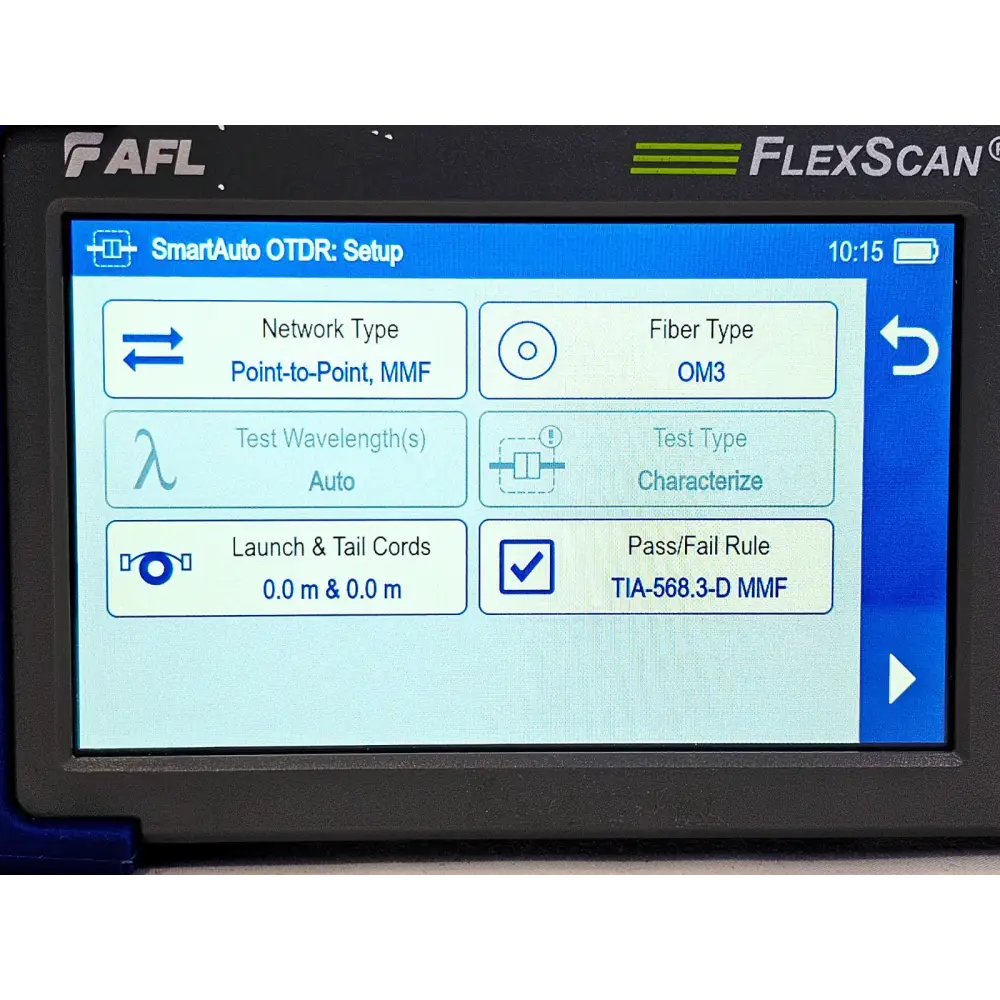

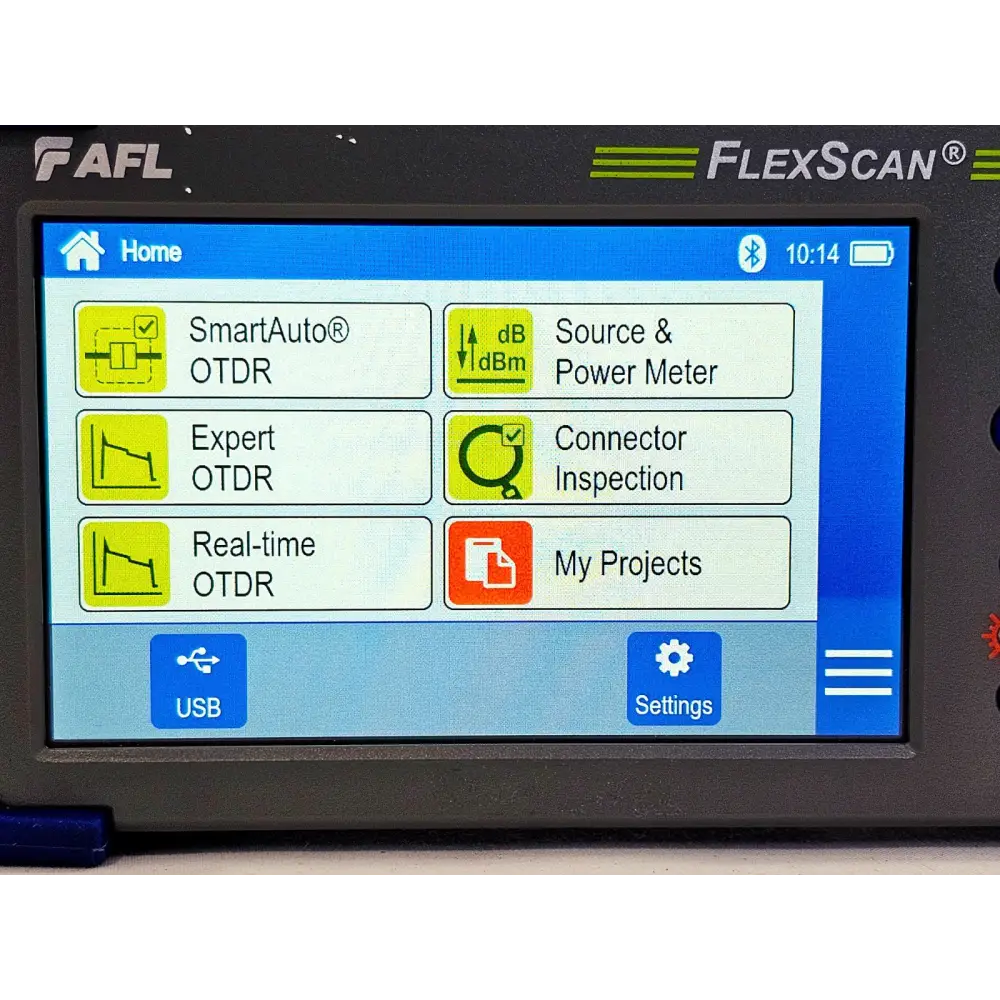

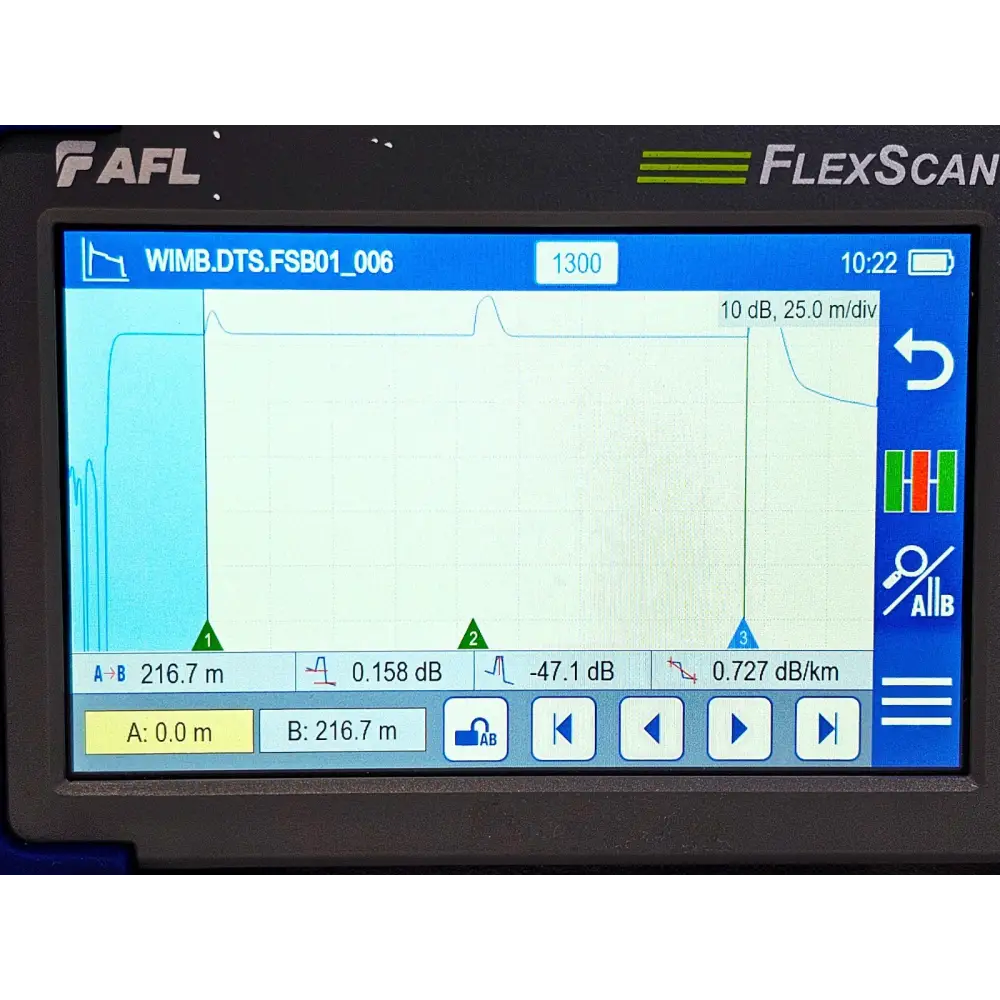

OTDR Modes: SmartAuto, Expert, Real-Time (PON & point-to-point); optionally FleXpress
Live Fiber Protection: No OTDR damage when connected to live fiber delivering +10 dBm (825–1675 nm)

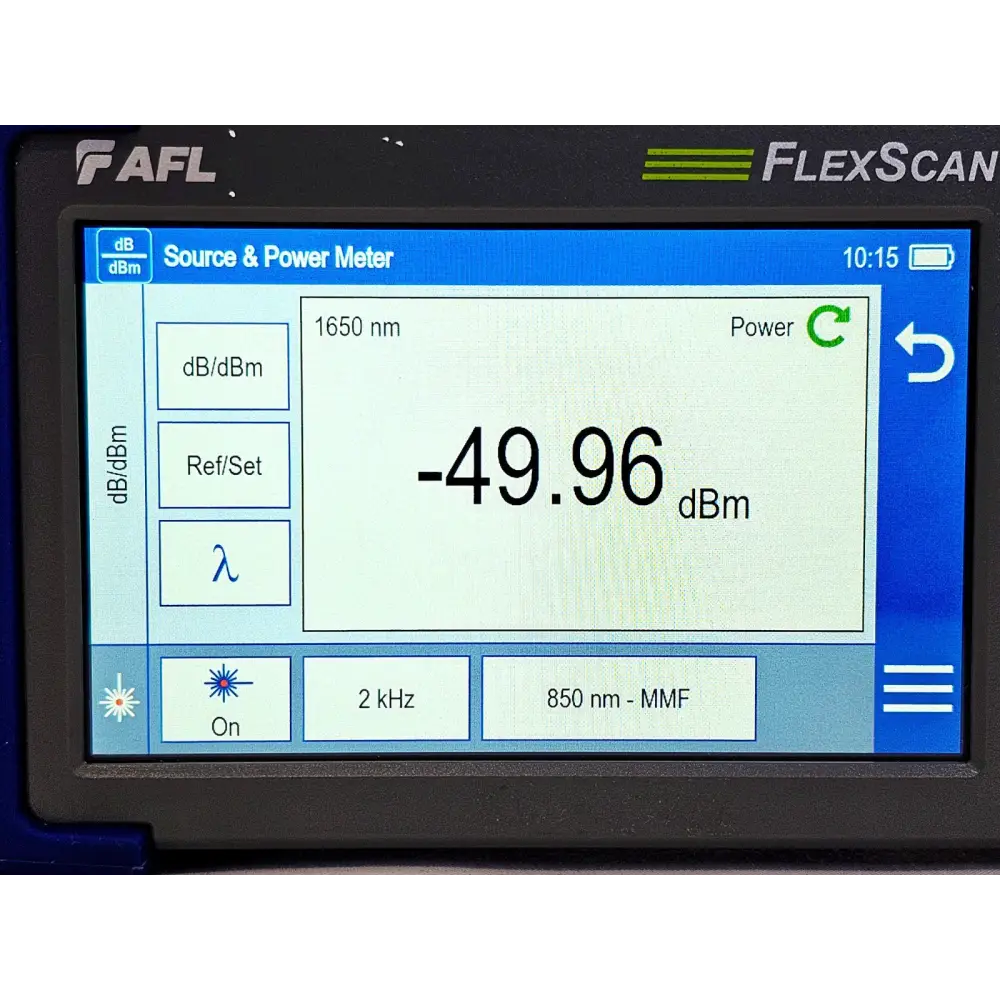

Optical Power Meter:
Calibrated Wavelengths: 850, 1300, 1310, 1490, 1550, 1625, 1650 nm
Detector Type: InGaAs PIN, 2 mm diameter
Measurement Range: +3 to -70 dBm (+3 to -65 dBm @ 850 nm)
Tone Auto-Detect: 270 Hz, 330 Hz, 1 kHz, 2 kHz
Accuracy: ±5% @ -20 dBm
Resolution: 0.01 dB
Measurement Units: Power in dBm, nW, μW, mW; Loss in dB

General:

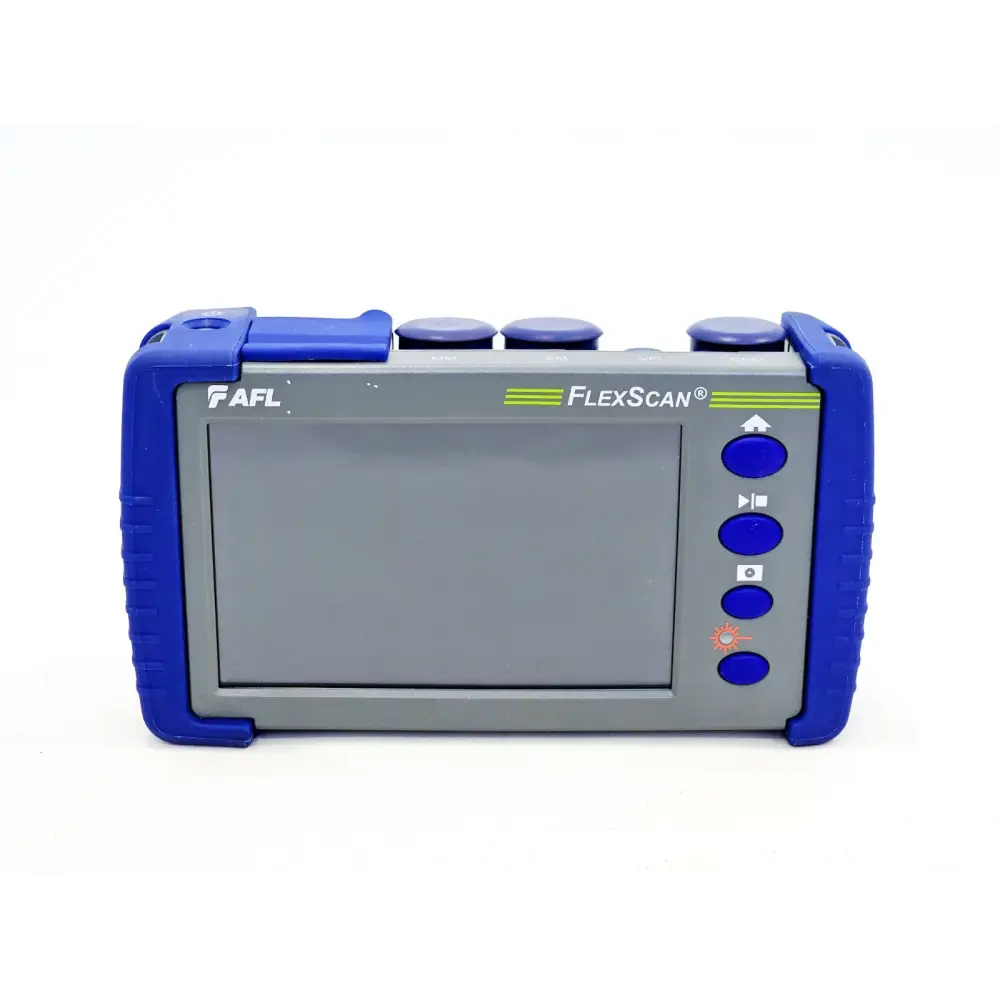

Display: 5-inch touchscreen, 800 x 480 pixels, indoor/outdoor readable
Battery Life: >12 hours
Connectivity: Bluetooth and Wi-Fi (W1 option)
Power Input: 5 V – 2.6 A
Compliance: CE, RoHS, IEC 60825-1:2014, FDA 21 CFR 1040.10 & 1040.11
Manufactured: Lithuania
