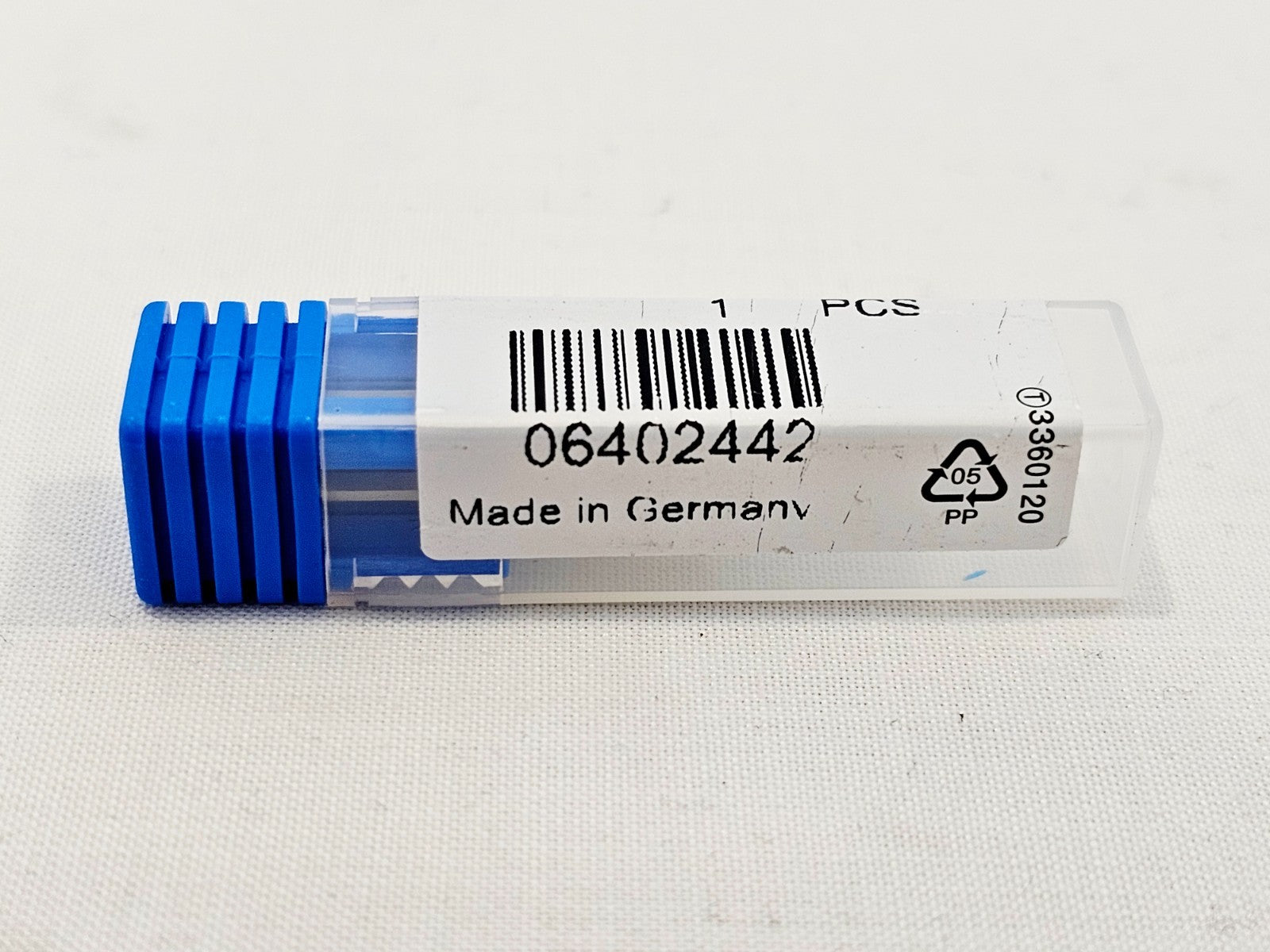

Iscar PICCO R007.0815-15 IC228 reverse label showing EDP 06402442 barcode, Made in Germany

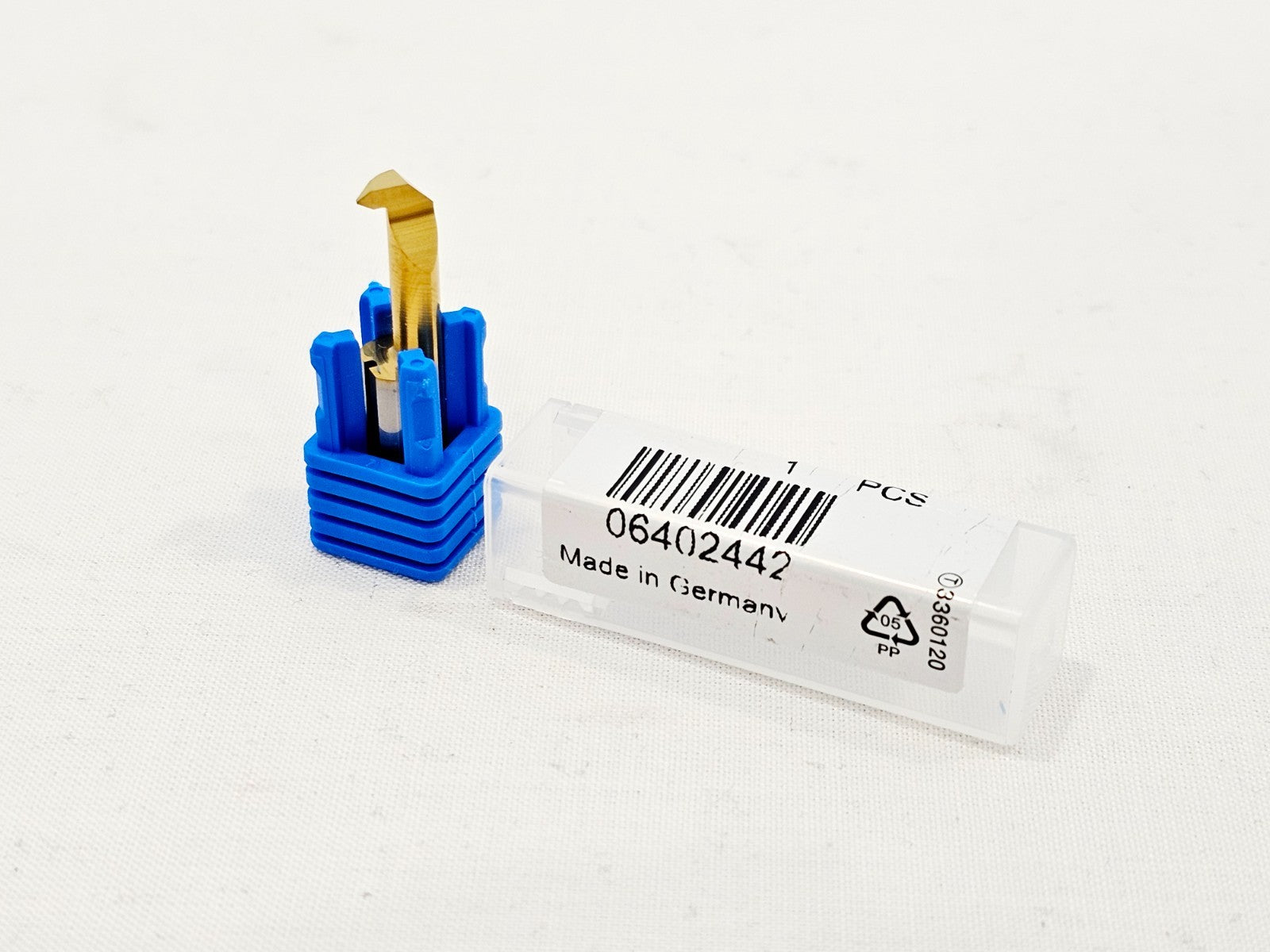

Iscar PICCO R007.0815-15 IC228 solid carbide threading bar removed from case showing TiN-coated tip

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

31x Iscar PICCO R007.0815-15 IC228 Internal Threading Bar

Name: 31x Iscar PICCO R007.0815-15 IC228 Internal Threading Bar
Brand: Iscar
SKU: 7065 7G04 PP01
Price: 212.5 GBP
Availability: InStock

The Iscar PICCO R007.0815-15 IC228 is a solid carbide internal threading bar designed for 60° full-profile thread turning in small-bore miniature machining applications.

• 60° internal thread profile for M8 x 0.8mm pitch — ideal for fine-thread miniature work
• IC228 TiN PVD-coated grade — excellent wear resistance across steel, stainless, cast iron & exotic alloys
• 7mm connection diameter, 7mm min. bore, 30mm functional length — precision performance in tight bores

Manufacturer

Iscar

Model

PICCO

Condition

New

In stock

SKU

7065 7G04

£212.50

CNC
Industrial
Newly-Listed

Make an Offer

31x Iscar PICCO R007.0815-15 IC228 Internal Threading Bar

£212.50

Condition: New

A batch of 31 brand-new, factory-sealed Iscar PICCO R007.0815-15 IC228 solid carbide internal threading bars (EDP 06402442), made in Germany. Each unit is individually packaged in its original Iscar blue protective plastic case with barcode label. Order number KA175875/3 and KA122669/4 are visible across the batch labels.

Included in the sale:
• 31 × Iscar PICCO R007.0815-15 IC228 internal threading bar, each in original individual factory packaging (as pictured)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Product Overview

Condition: New

Included in the sale:
• 31 × Iscar PICCO R007.0815-15 IC228 internal threading bar, each in original individual factory packaging (as pictured)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Manufacturer's Description

The Iscar PICCO R007.0815-15 IC228 (EDP 6402442) is a solid carbide internal threading bar from Iscar's PICCO miniature tooling family, designed for 60° full-profile internal thread turning in small-diameter bores. It is part of the PICCO R/L-60°-Thread series, offering a complete threading solution for miniature and precision turning applications on CNC lathes and Swiss-type machines.

The IC228 grade is a TiN PVD-coated tough carbide grade suited to a wide range of workpiece materials at low-to-moderate cutting speeds, including steel, stainless steel, cast iron, hard materials, and super-alloys/titanium.

Key Features:
• Solid carbide construction for maximum rigidity and vibration resistance in small-bore applications
• 60° internal thread profile — suitable for metric and unified thread forms
• TiN PVD coating (IC228) for enhanced wear resistance and consistent tool life
• Compatible with standard PICCO / MG PCO bushing-style toolholders
• Made in Germany

Technical Specifications:
Product Family: PICCO R/L-60°-Thread
EDP Number: 6402442
Grade: IC228 (TiN PVD-coated carbide)
Thread Profile Angle: 60°
Hand of Cut: Right-hand (R)
Connection Diameter — Machine Side (DCONMS): 7 mm
Front End Width (a): 6.3 mm
Functional Length (LF): 30 mm
Minimum Bore Diameter (DMIN): 7 mm
Thread Pitch: 0.8 mm (designation: 0815)
Functional Length Code: 15 mm
ISO Grade Application: P30–P50, M30–M40, K20–K50, S25–S30
Coating: TiN (PVD)
Material Compatibility: Steel (P), Stainless Steel (M), Cast Iron (K), Hard Materials (H), Super-Alloys / Titanium (S)
Country of Manufacture: Germany

Resources

Iscar Threading Handbook — comprehensive guide to Iscar threading tools, systems, and grades including PICCO series: Download PDF
