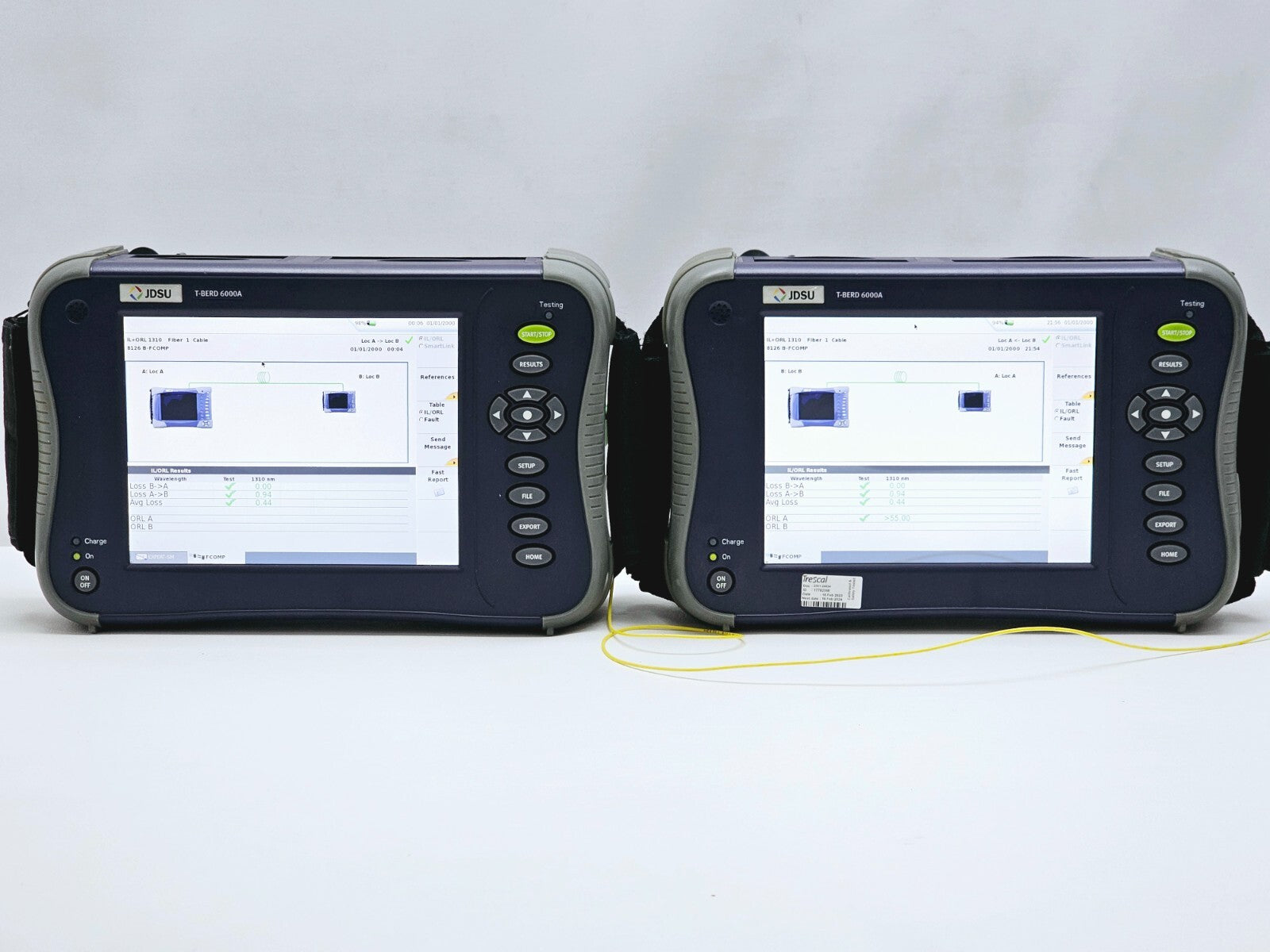

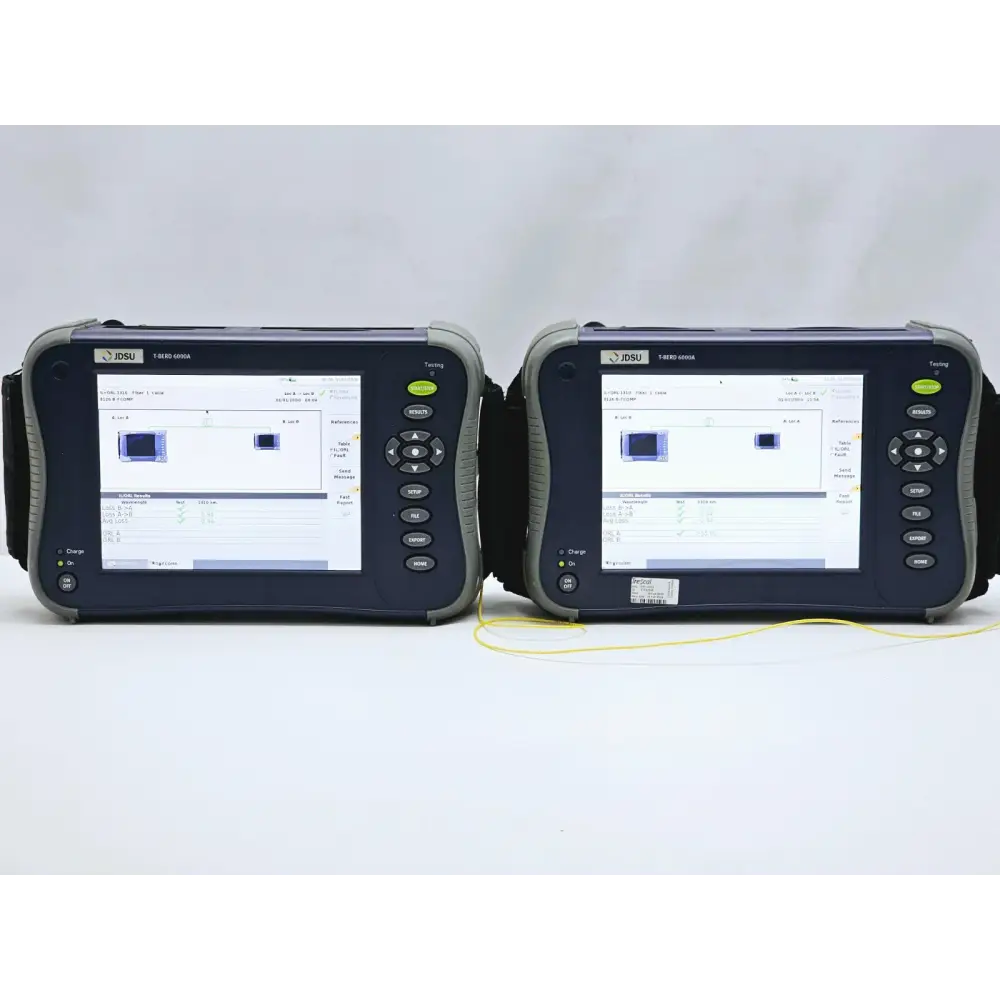

Condition: Used — Very Good. This listing is for a matched set of two Viavi MTS 6000A V2 mainframes, each fitted with a Viavi 8126B SM OTDR module loaded with FCOMP software. The pair is configured for fully automated bi-directional OTDR, insertion loss (IL), and optical return loss (ORL) testing without the need to re-connect or manually swap equipment at each fibre end. Both units are in very good used condition.

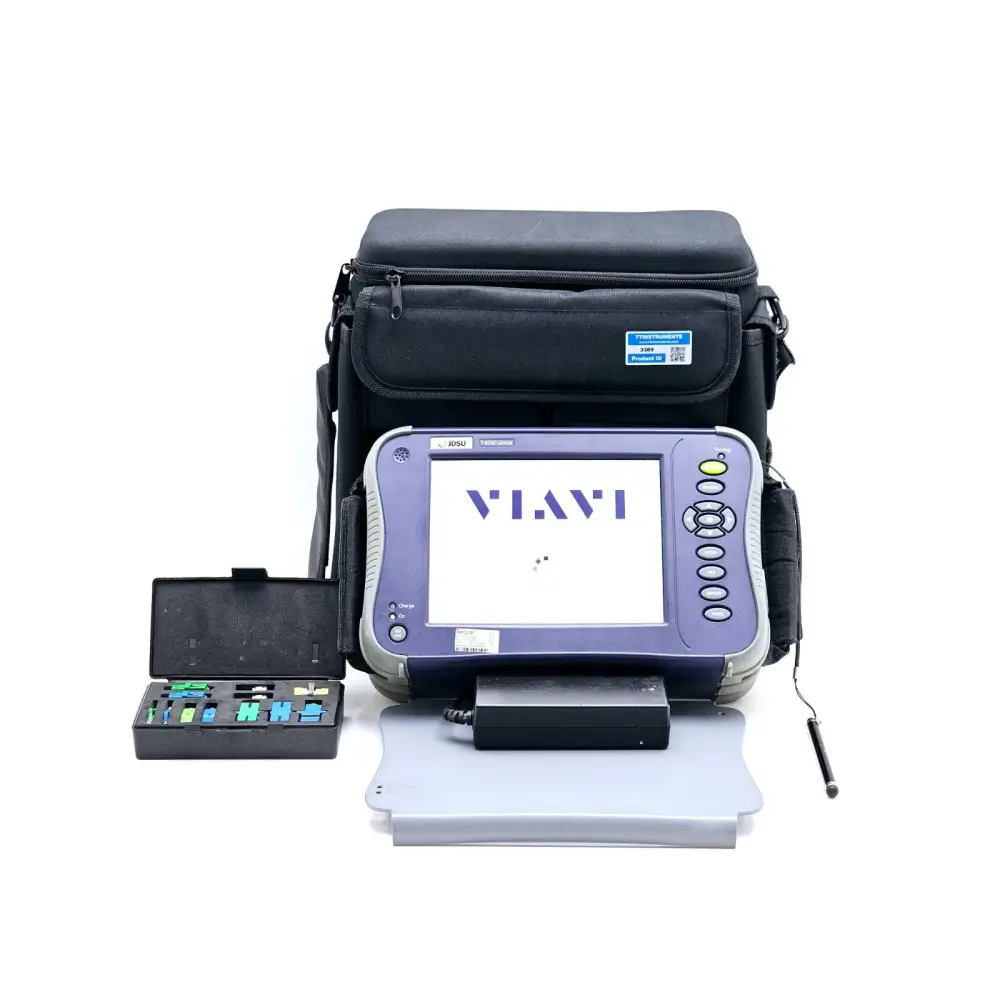

Included in the sale:

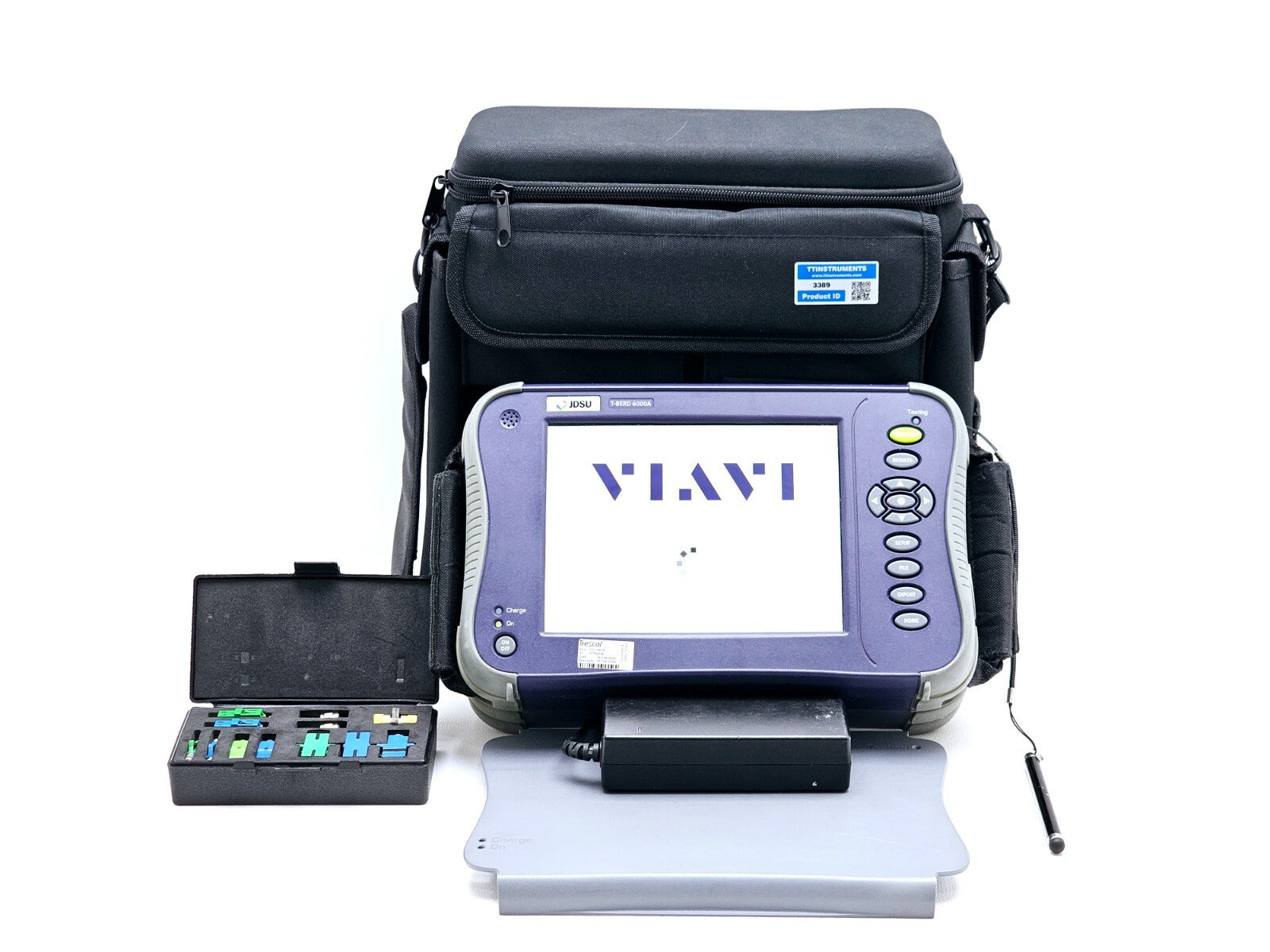

• 2x Viavi MTS 6000A V2 Touch Screen Mainframes
• 2x Viavi 8126B SM OTDR Modules with FCOMP software
• 2x AC Power Adapters
• 2x Stylus

Each 8126B module specifications:

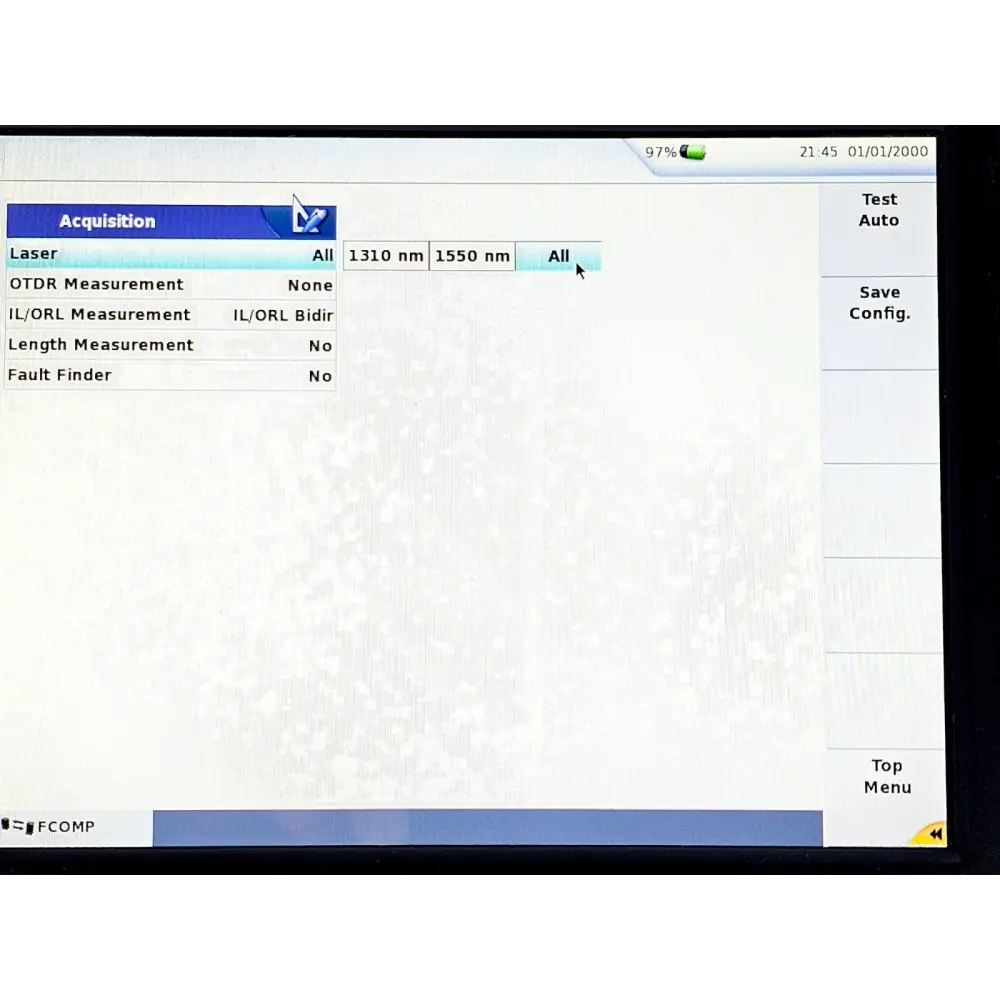

• Source wavelengths: 1310 / 1550 nm
• Dynamic range: 41 dB (1310 nm) / 40 dB (1550 nm)
• Connector: APC
• Event dead zone: 0.65 m
• Attenuation dead zone: 2 m

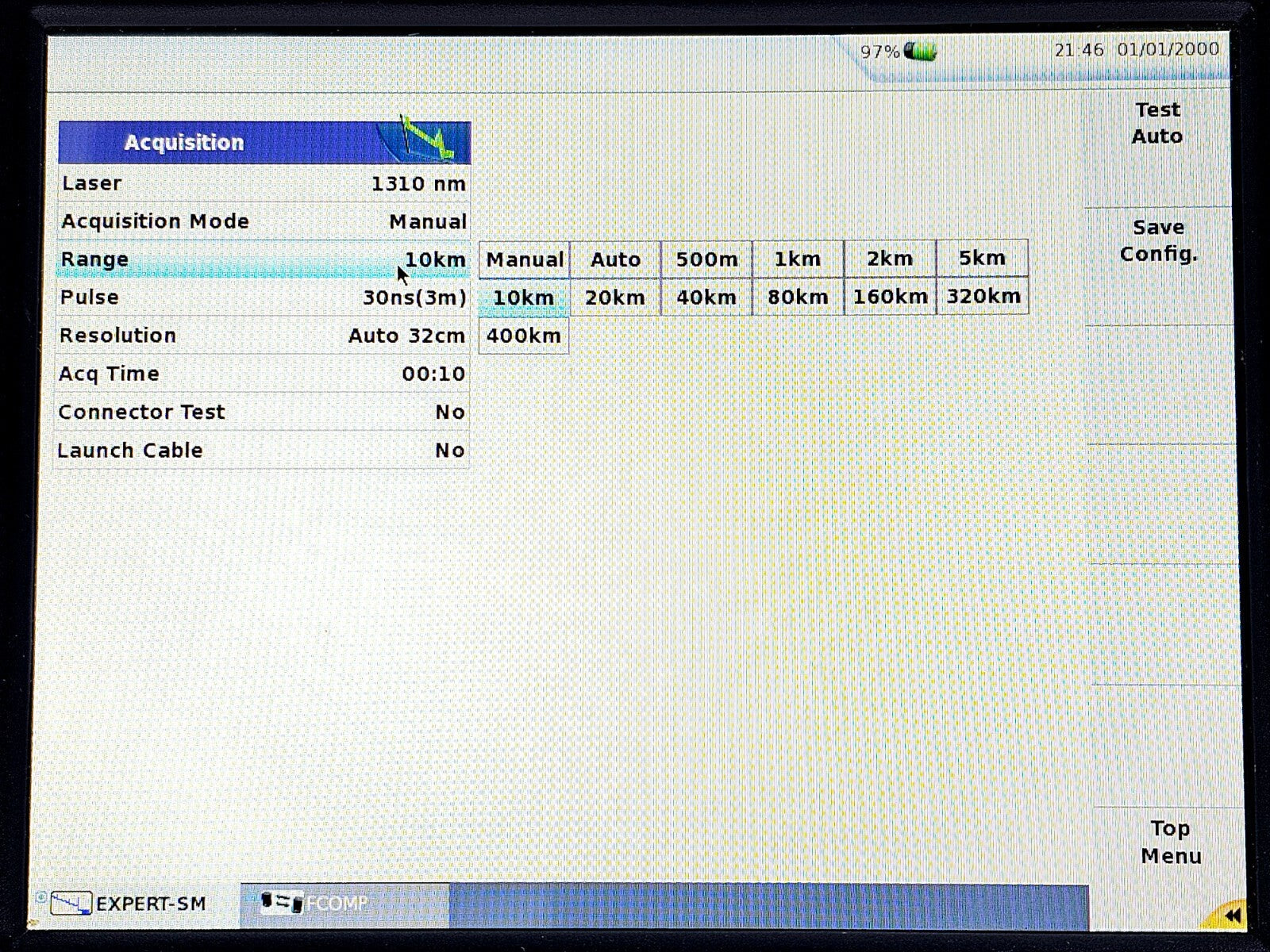

• Range: up to 400 km

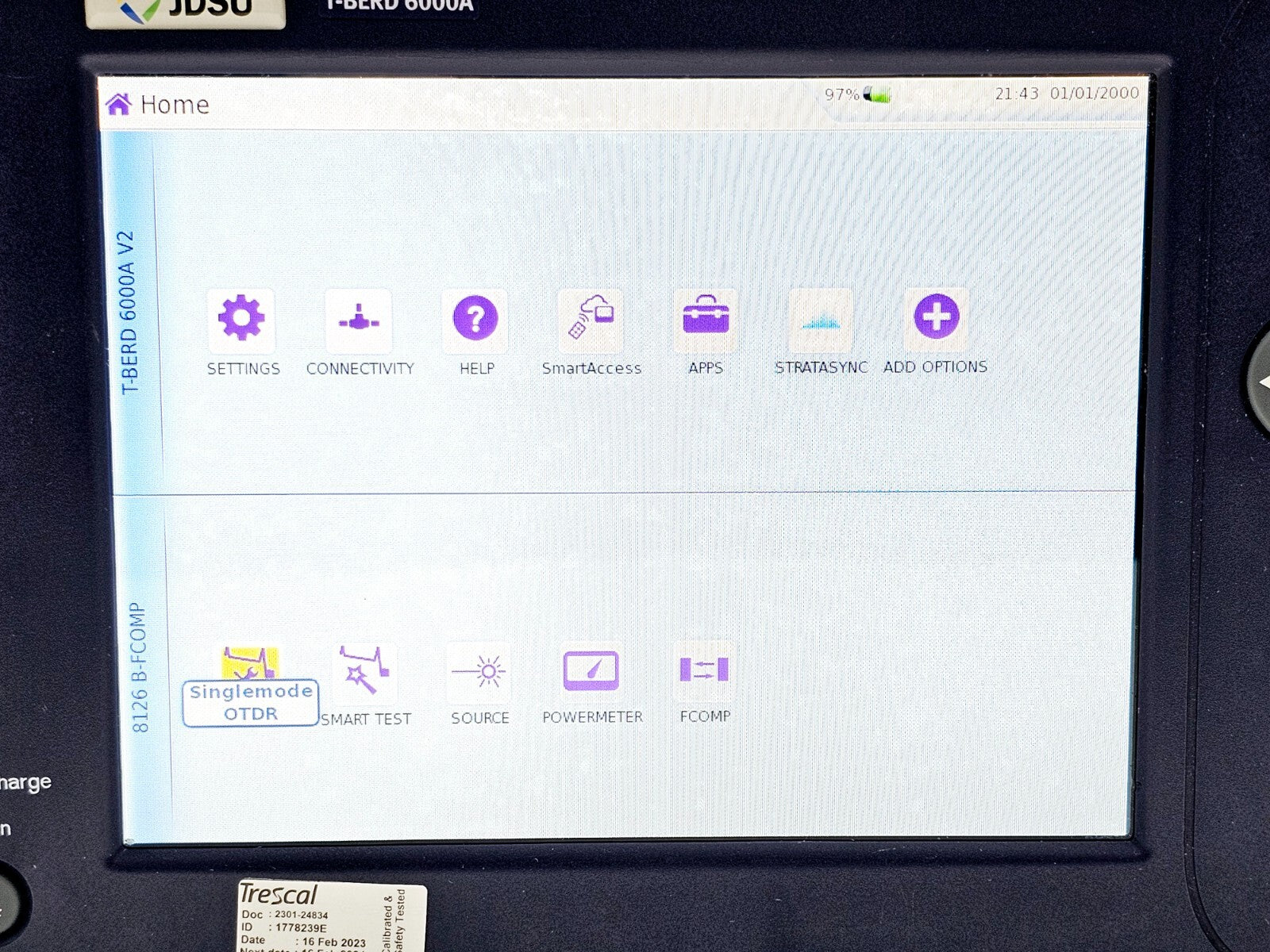

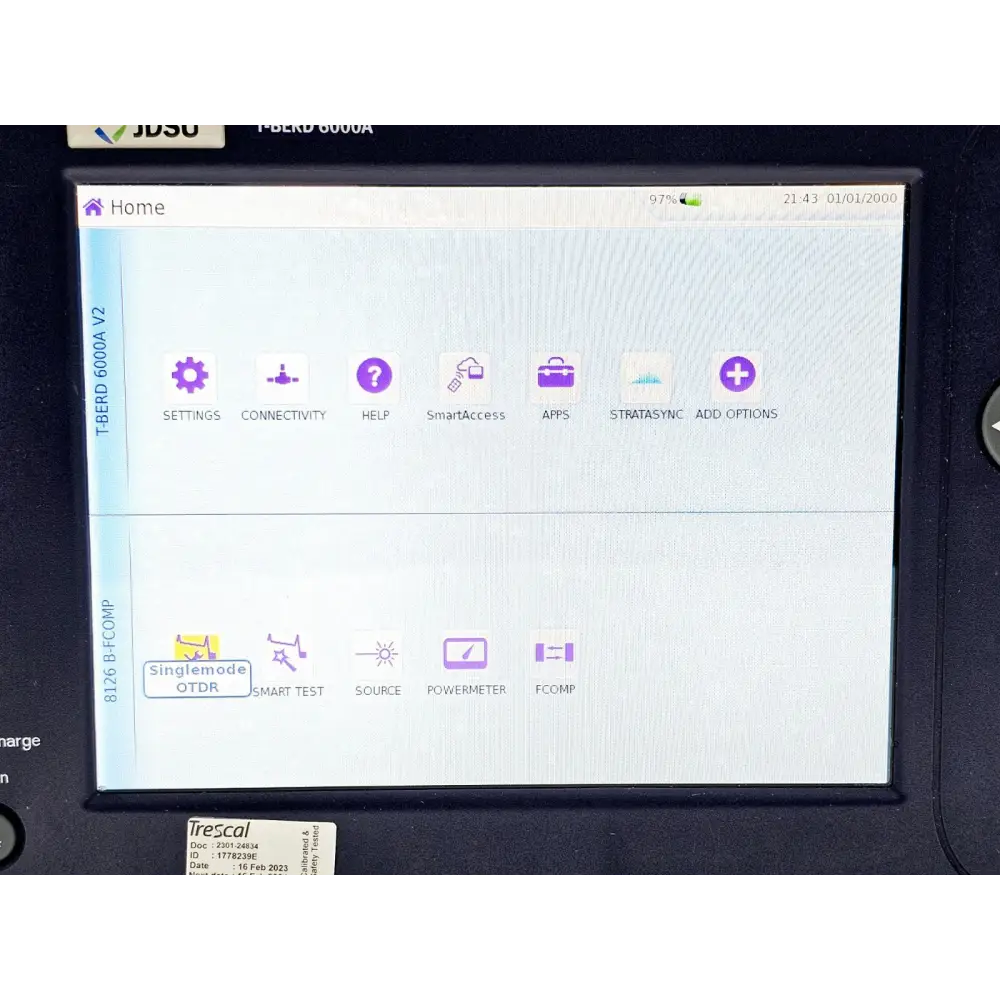

Active software options on each unit:

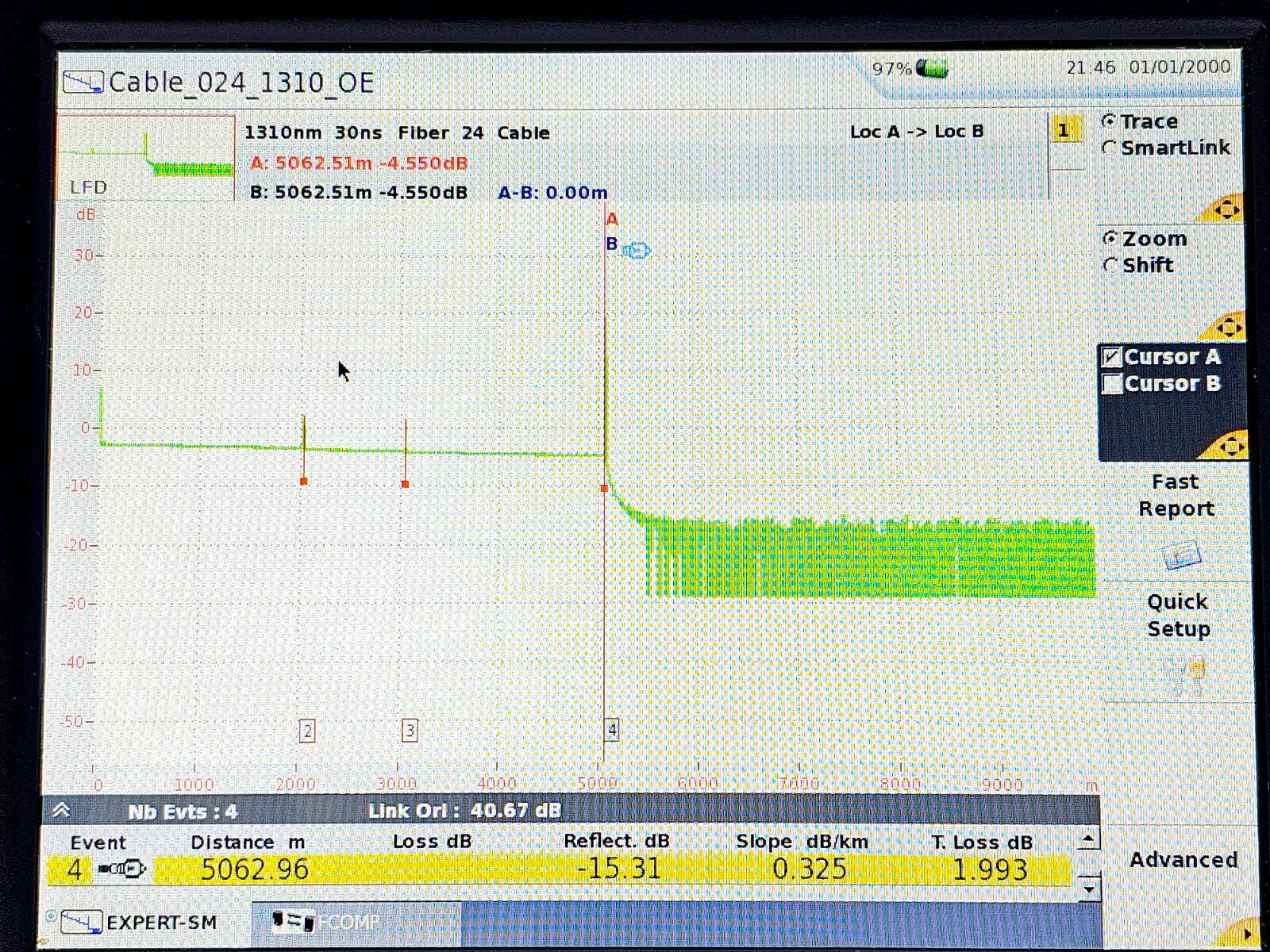

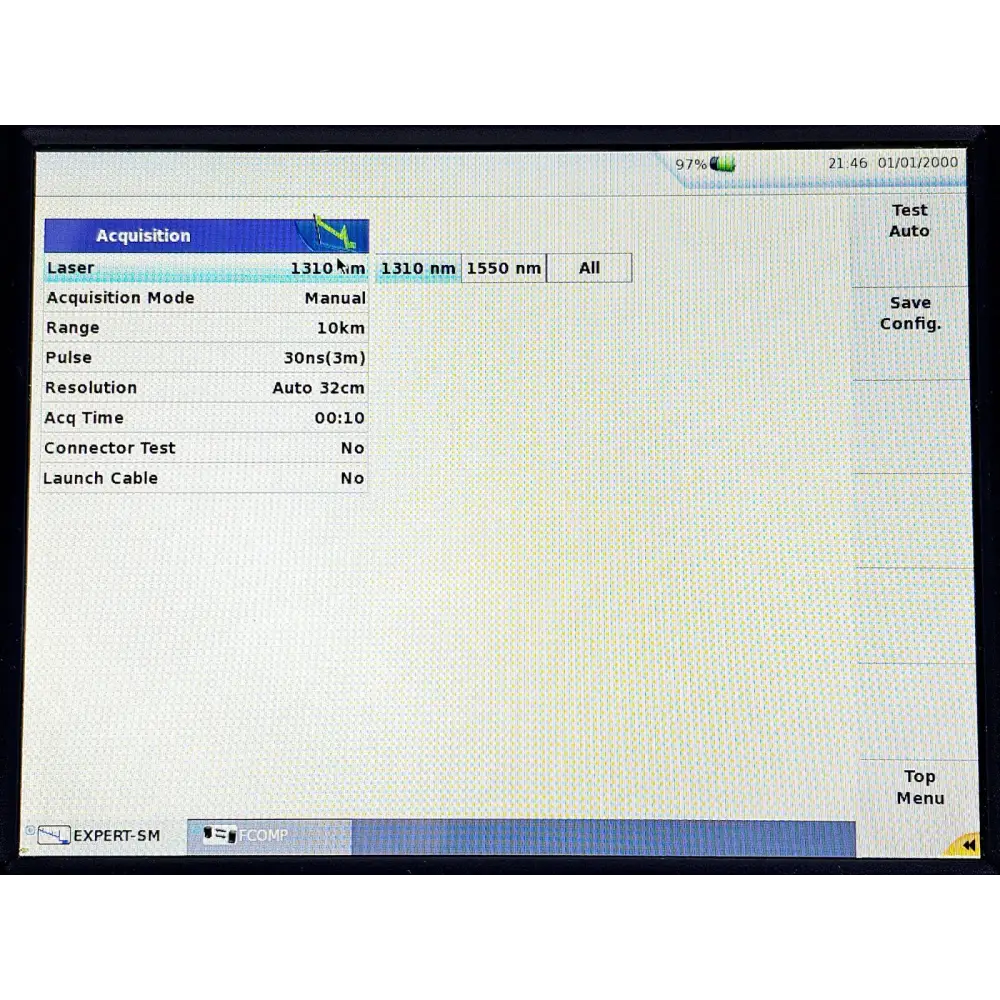

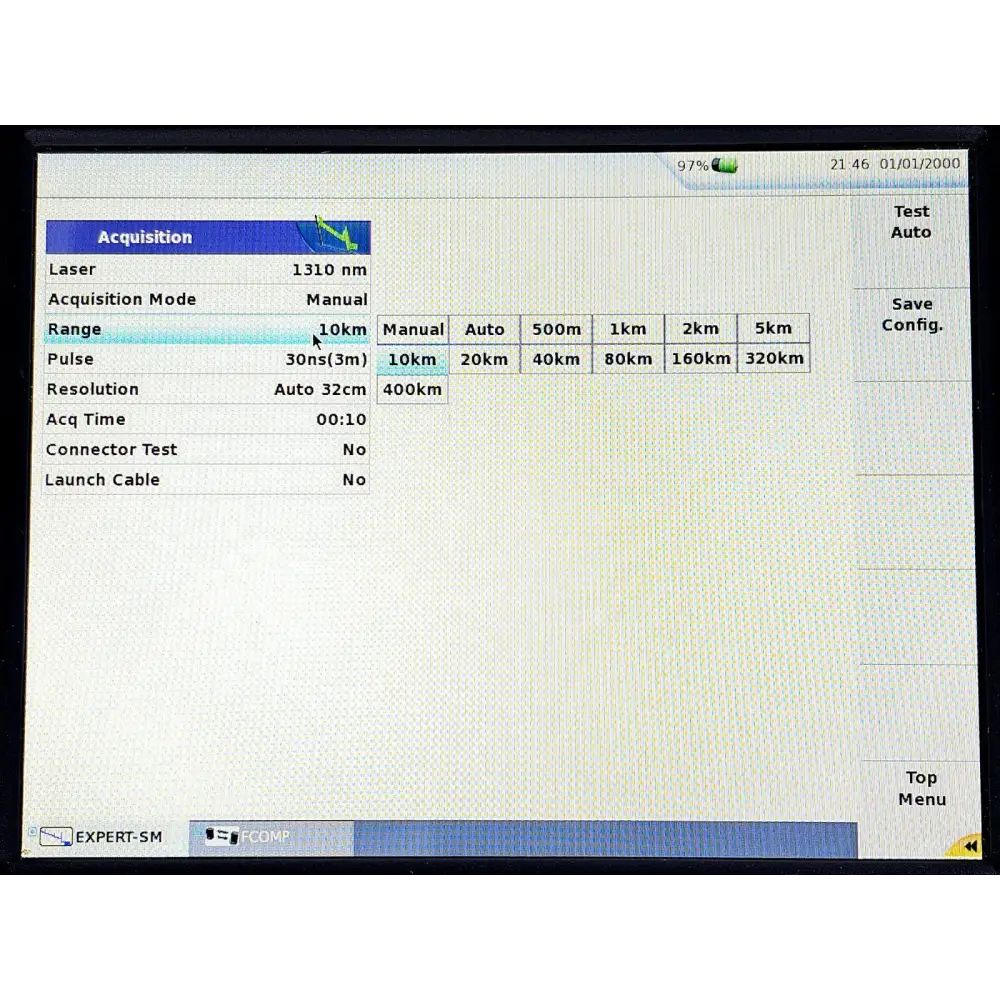

• Expert OTDR
• SMART TEST
• Source
• Power Meter

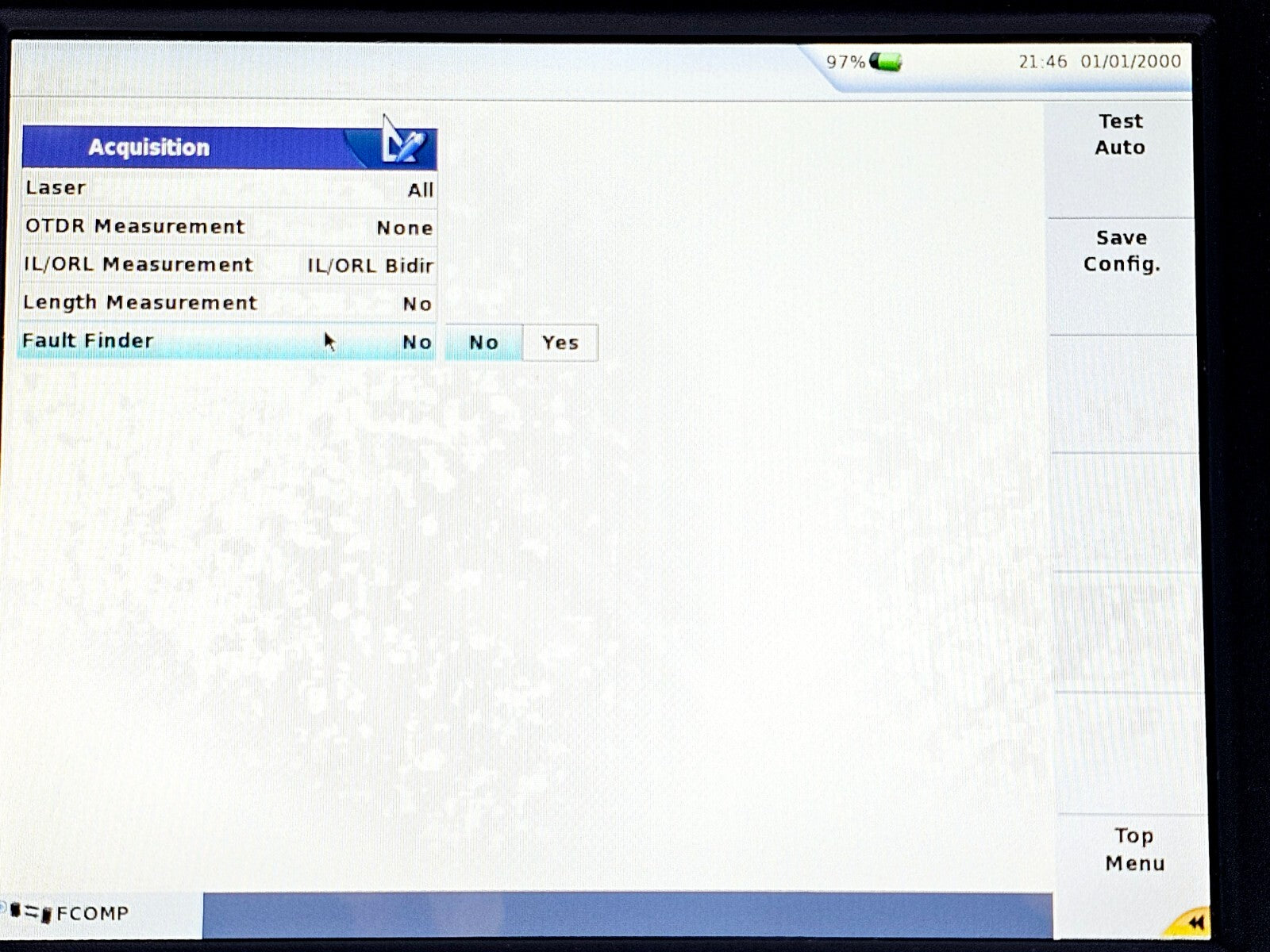

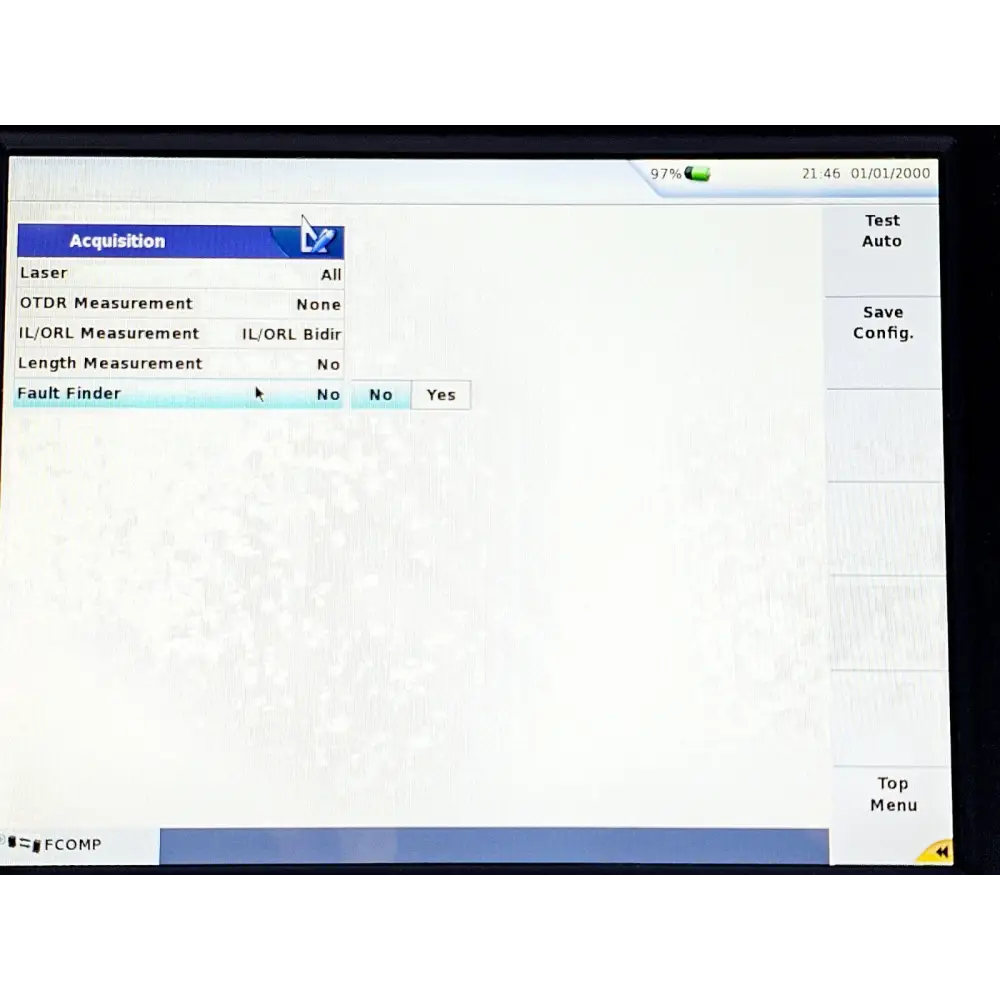

• Fiber Complete (FCOMP) — automated bi-directional OTDR, IL, and ORL

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Viavi (formerly JDSU) MTS 6000A V2 is a rugged, touch-screen, modular mainframe platform designed for field technicians and network engineers working on fibre optic infrastructure. It accepts a range of plug-in test modules and runs Viavi's field-proven software suite, making it suitable for installation, commissioning, and maintenance of both short-haul and long-haul fibre networks.

The 8126B SM OTDR module delivers high-performance single-mode fibre testing at 1310 nm and 1550 nm with industry-leading dead zone performance, enabling measurement of events very close to the launch connector — critical for testing short fibre spans in access and metro networks.

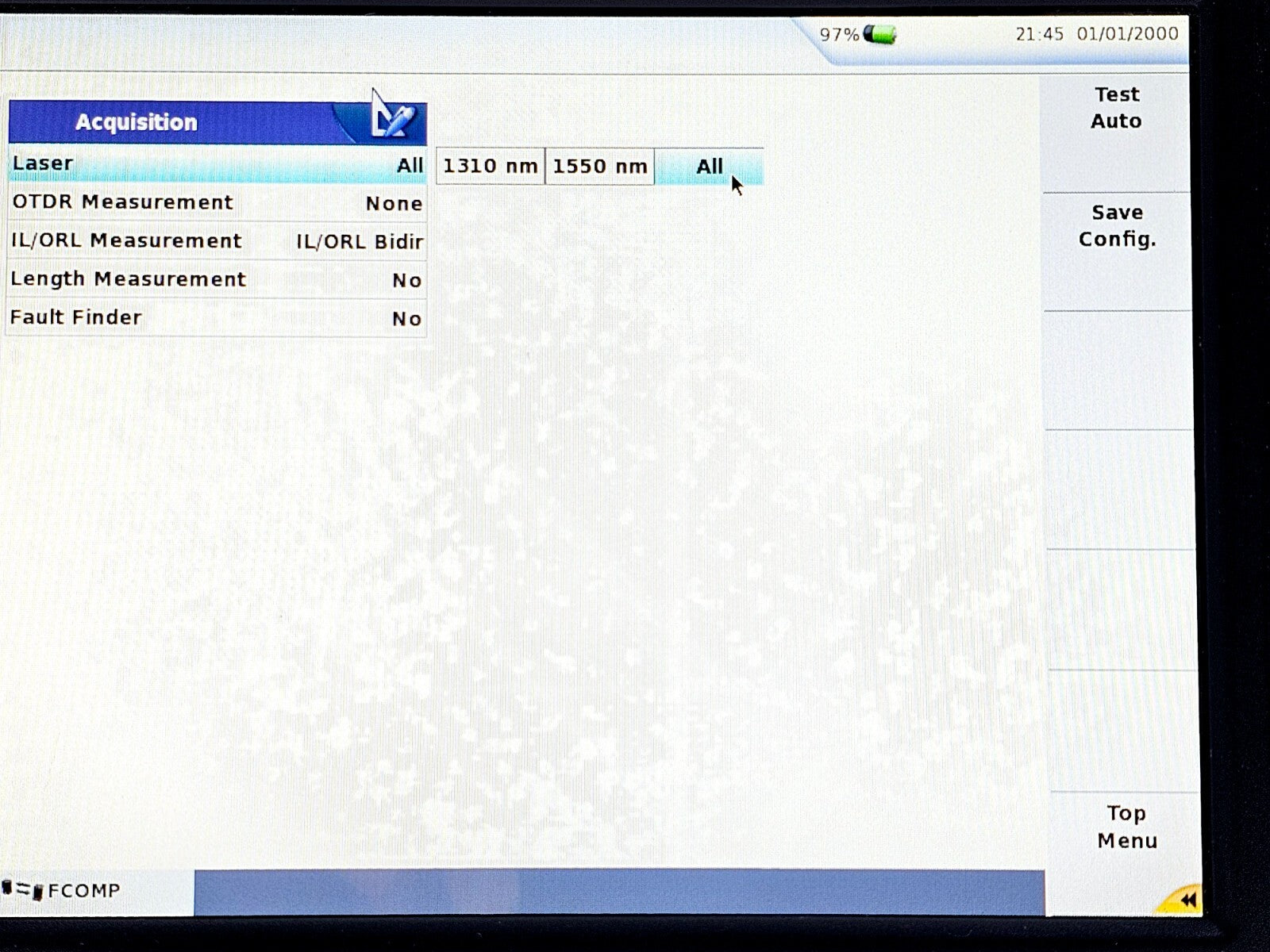

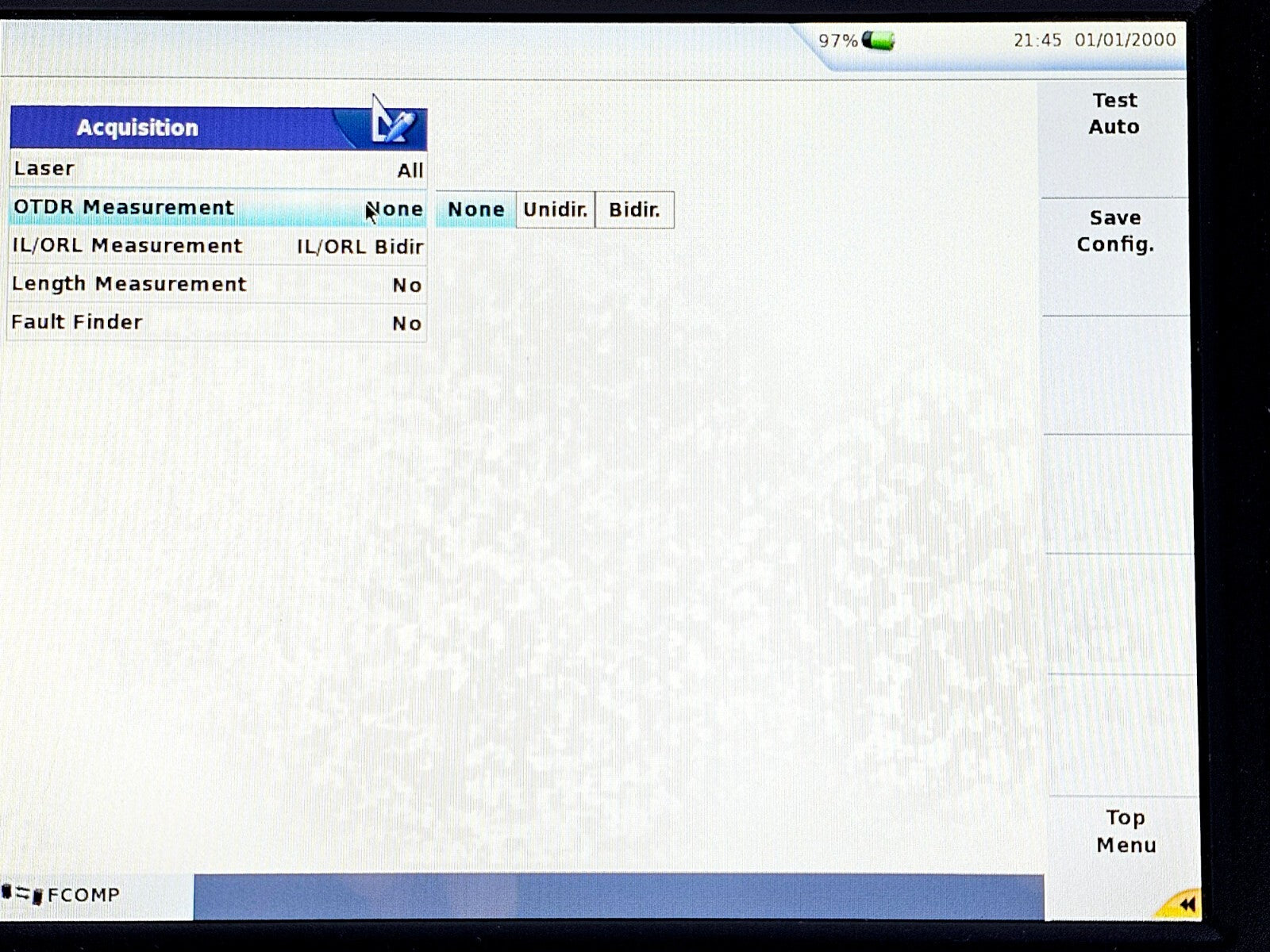

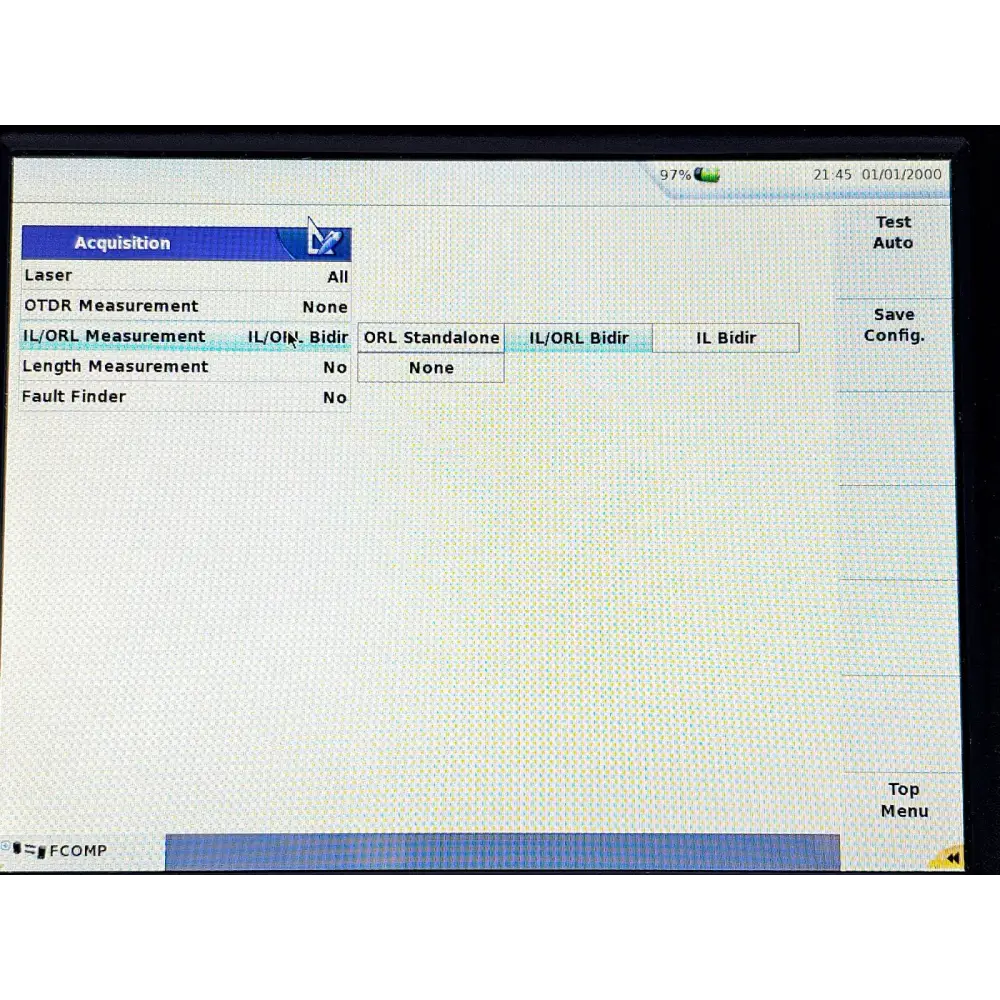

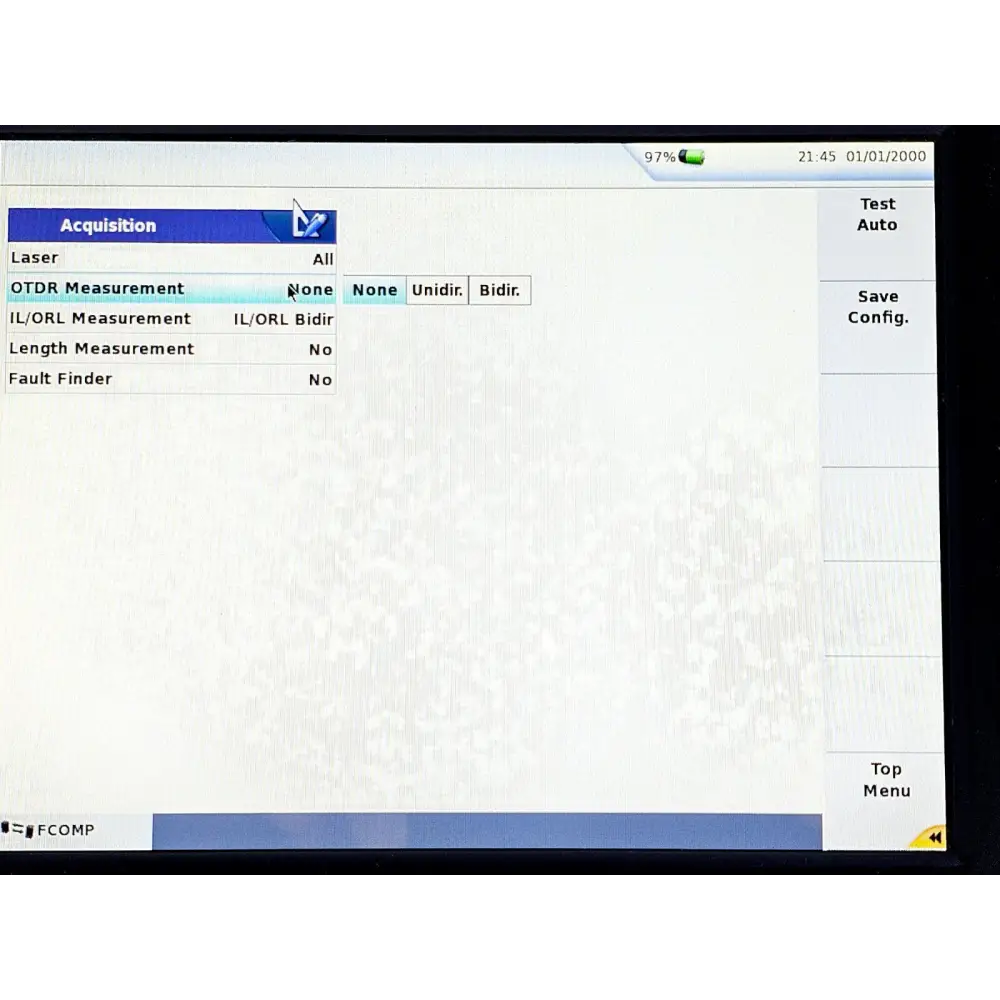

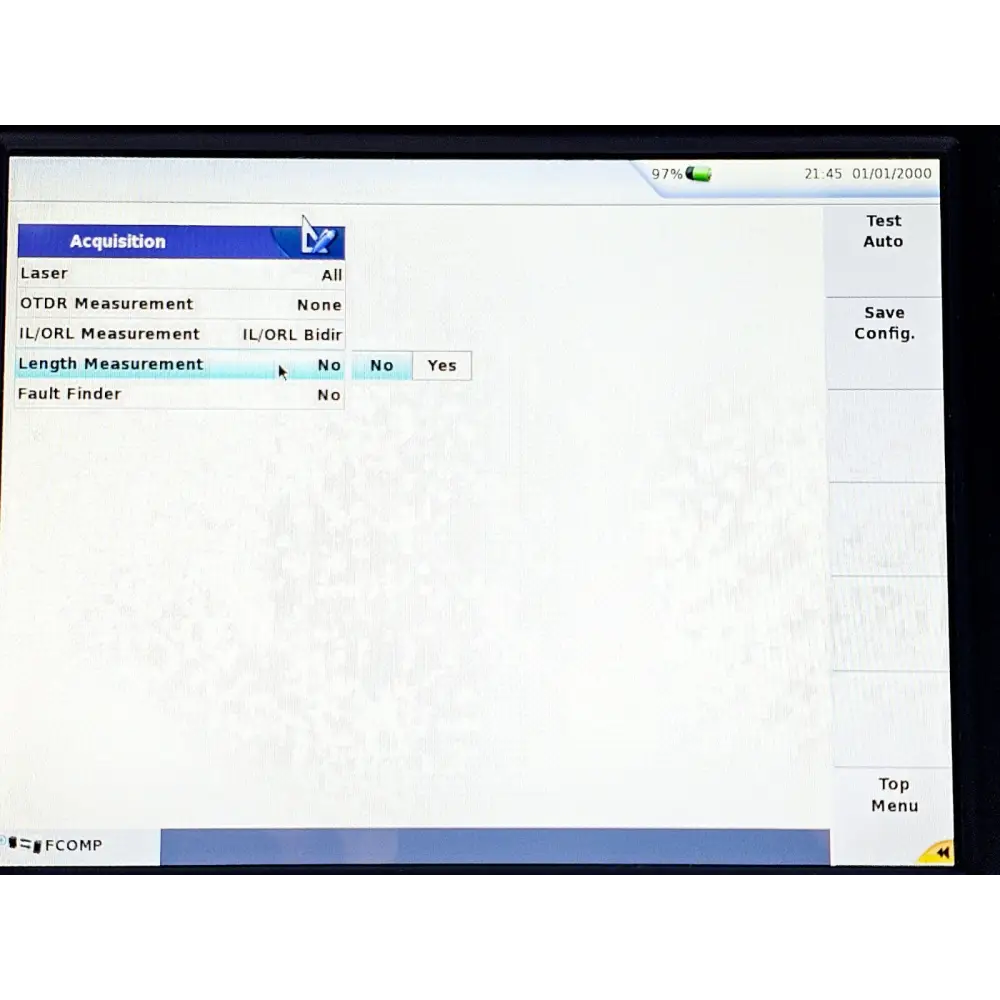

The Fiber Complete (FCOMP) software option automates the full bi-directional test workflow, calculating bi-directional averaged splice and connector loss, insertion loss (IL), and optical return loss (ORL) from a single measurement session using two instruments positioned at opposite ends of the fibre under test. Results are automatically averaged to eliminate directional bias in accordance with IEC and TIA standards.

Key Specifications (Viavi 8126B SM OTDR Module):
Wavelengths: 1310 nm / 1550 nm
Dynamic Range: 41 dB (1310 nm) / 40 dB (1550 nm)
Event Dead Zone: 0.65 m
Attenuation Dead Zone: 2 m
Maximum Range: 400 km
Connector Interface: APC
Fibre Type: Single-mode (SM)

Key Specifications (MTS 6000A V2 Mainframe):
Display: Colour touch screen
Platform: Modular — accepts OTDR, OSA, and other test modules
Connectivity: USB, Ethernet
Power: AC mains adapter / internal battery
Software: Supports Expert OTDR, SMART TEST, Source, Power Meter, Fiber Complete

Typical Applications:
Fibre acceptance testing to IEC/TIA standards
Bi-directional OTDR testing for accurate splice and connector loss measurement
Automated pass/fail testing during fibre network installation
Fault location and network troubleshooting
Insertion loss and optical return loss characterisation
