Condition: Used — In very good working condition.

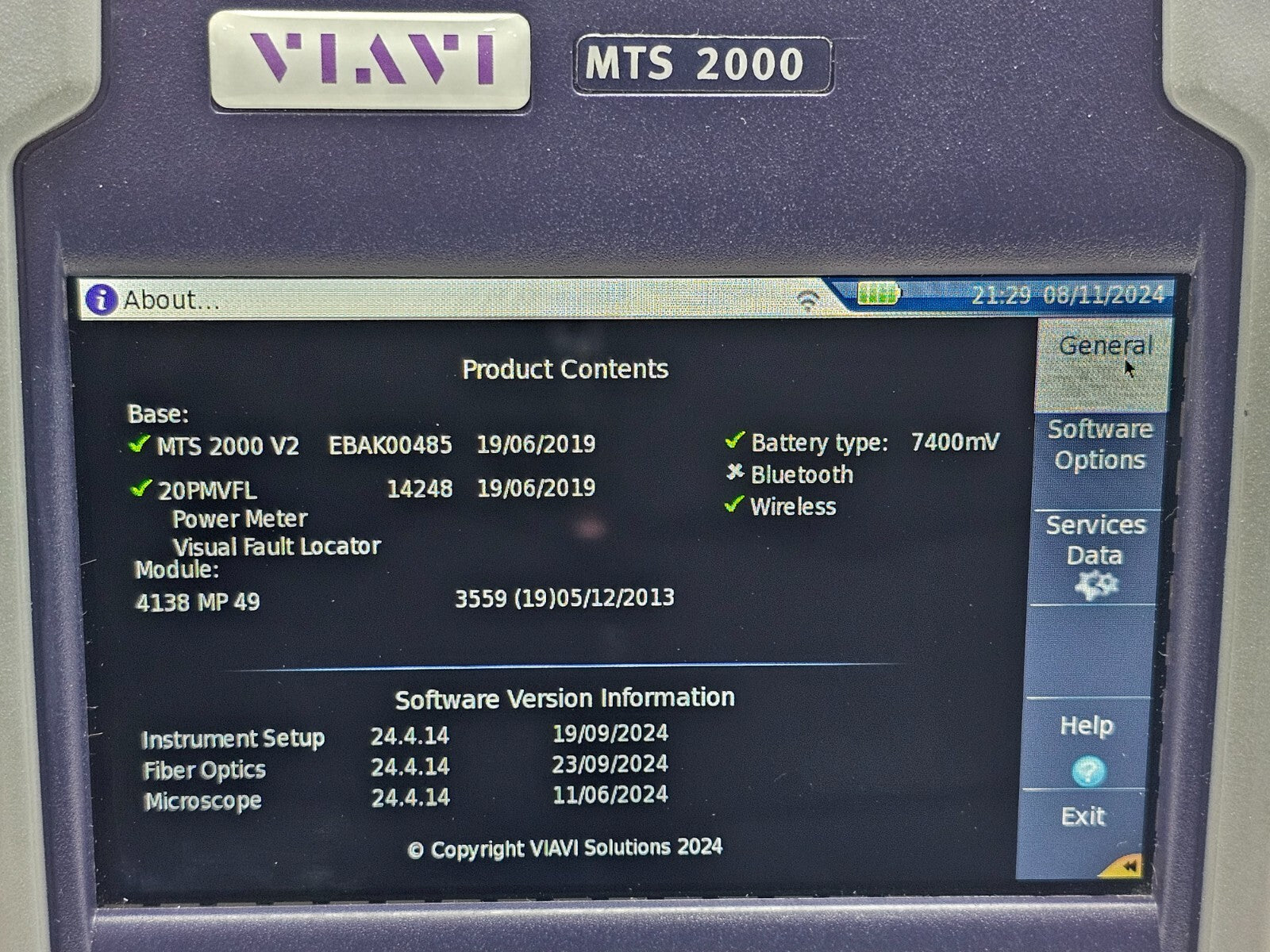

This listing comprises a matched set of two Viavi JDSU MTS 2000 V2 mainframes, each fitted with a Viavi 4138 MP49 FC-S SM OTDR module (E4138MP49), sold together specifically to enable bi-directional fibre testing via the Fiber Complete (FCOMP) software. Each mainframe includes built-in wireless, a power meter, and a visual fault locator.

OTDR Module Specification (per unit):
• Wavelengths: 1310 / 1490 / 1550 nm
• Dynamic Range: 43 / 41 / 41 dB
• Connector: SC-APC

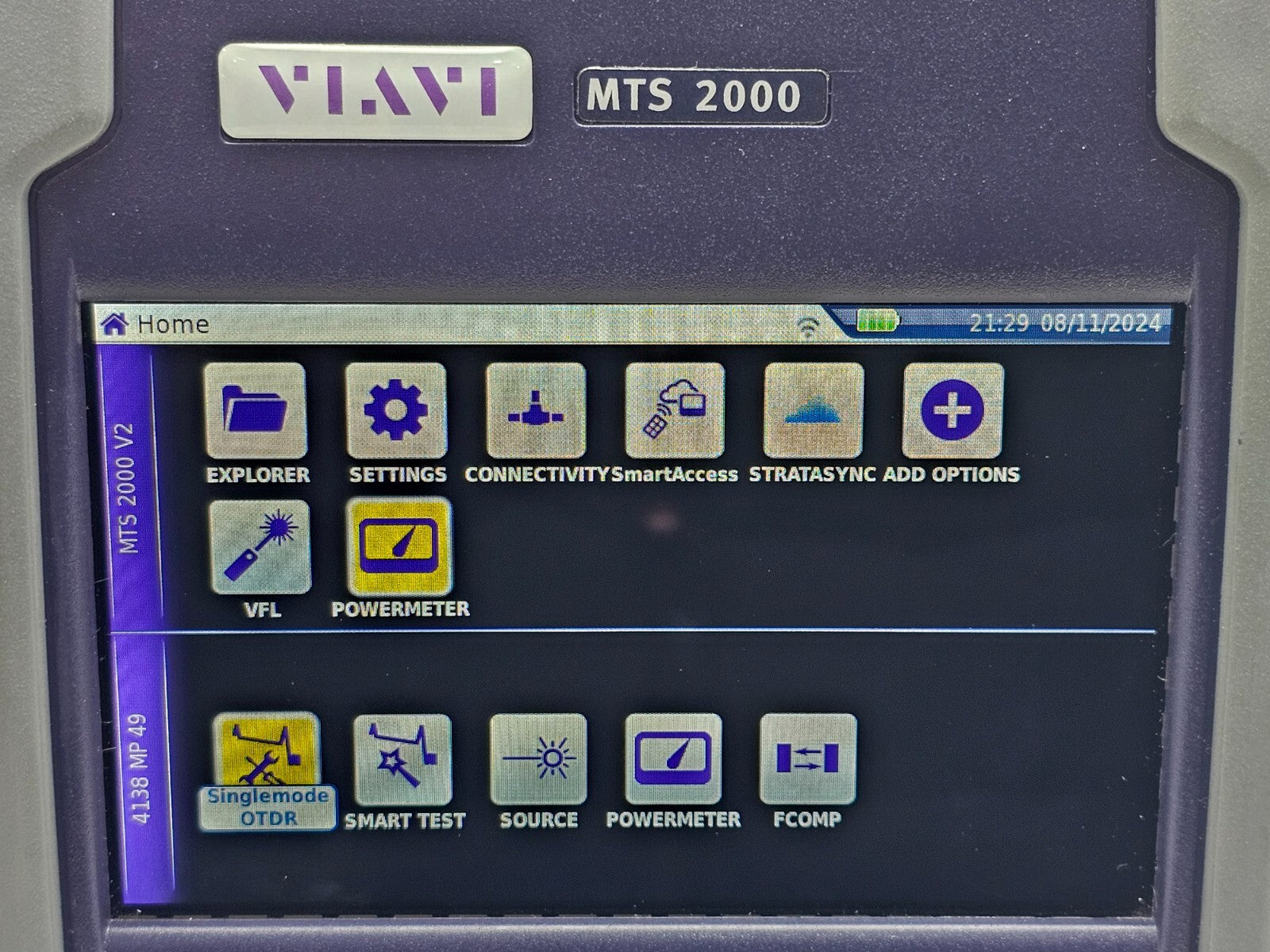

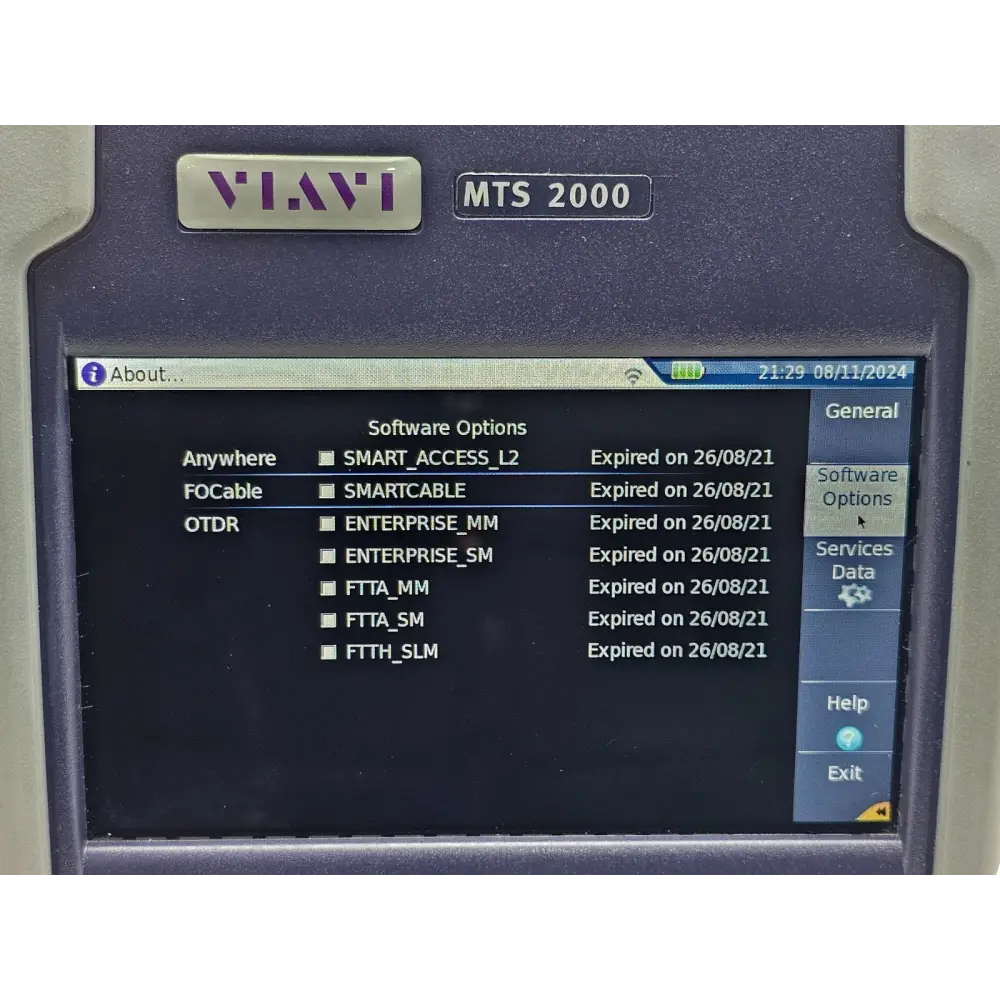

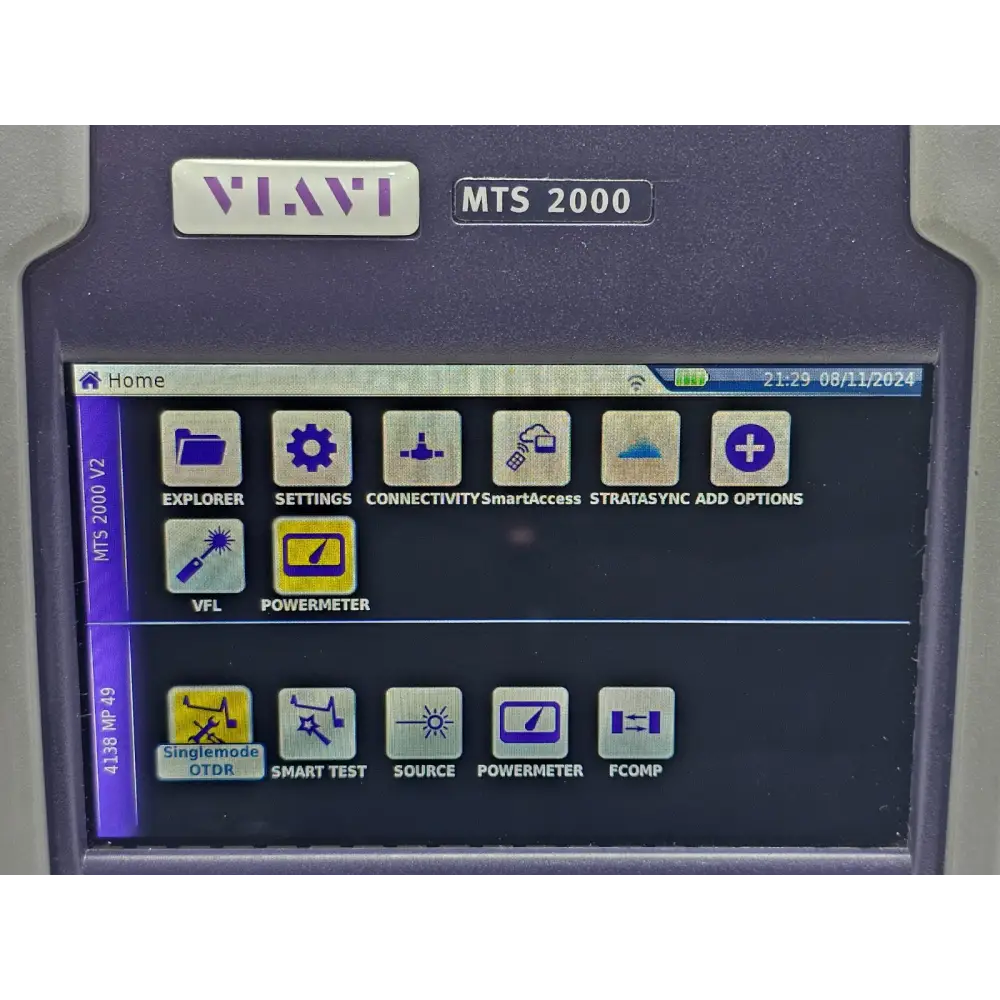

• Active Software Options: Singlemode OTDR / SMART TEST / Source / Fiber Complete (FCOMP)

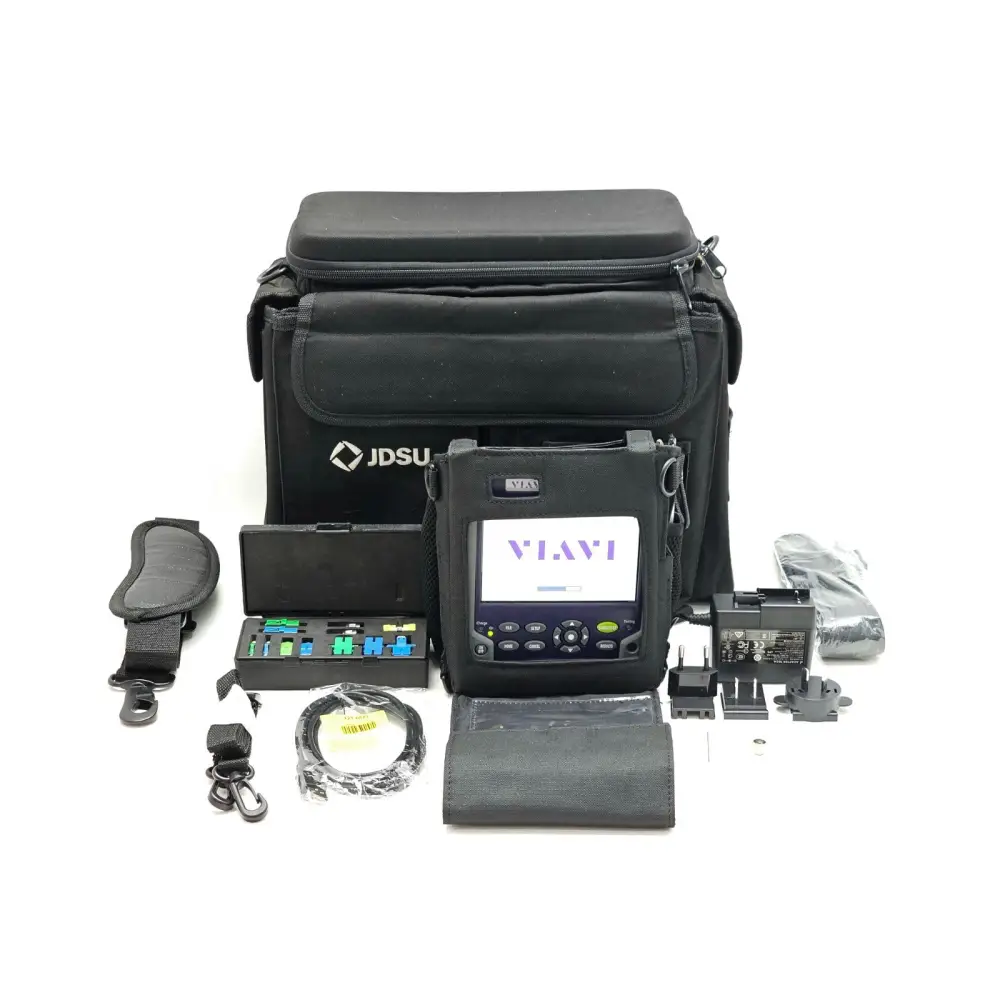

Included in the sale (x2, one per unit):

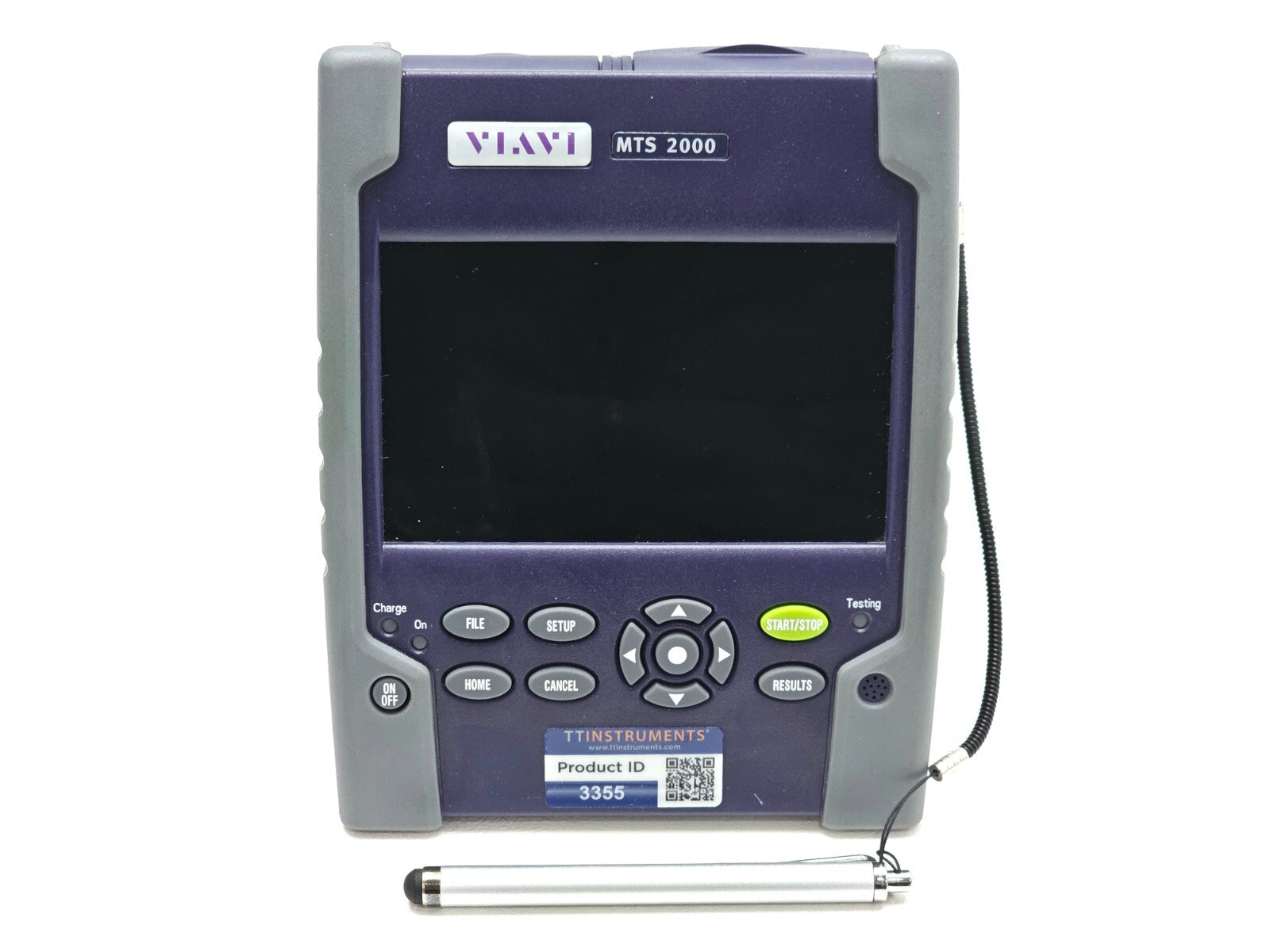

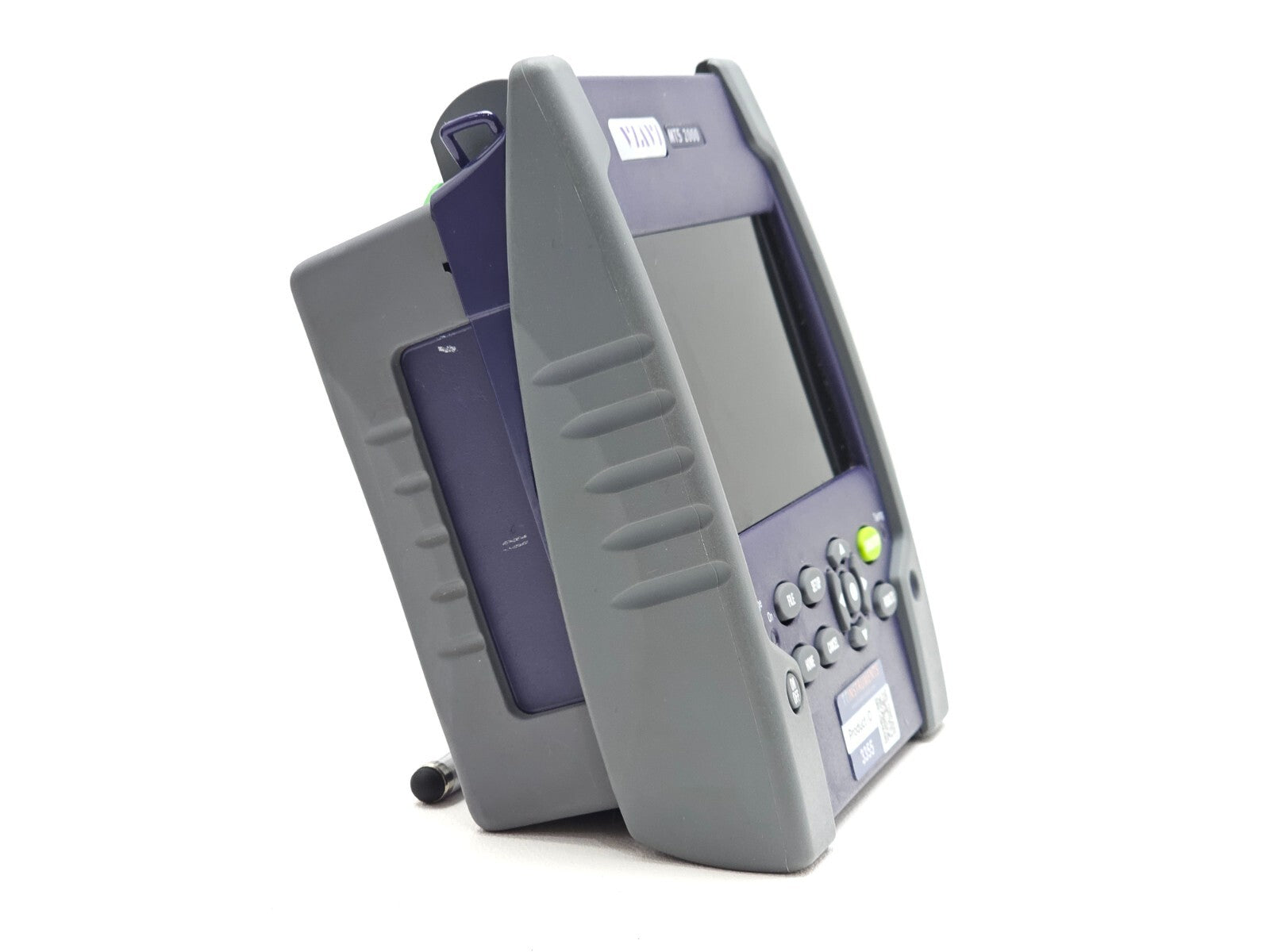

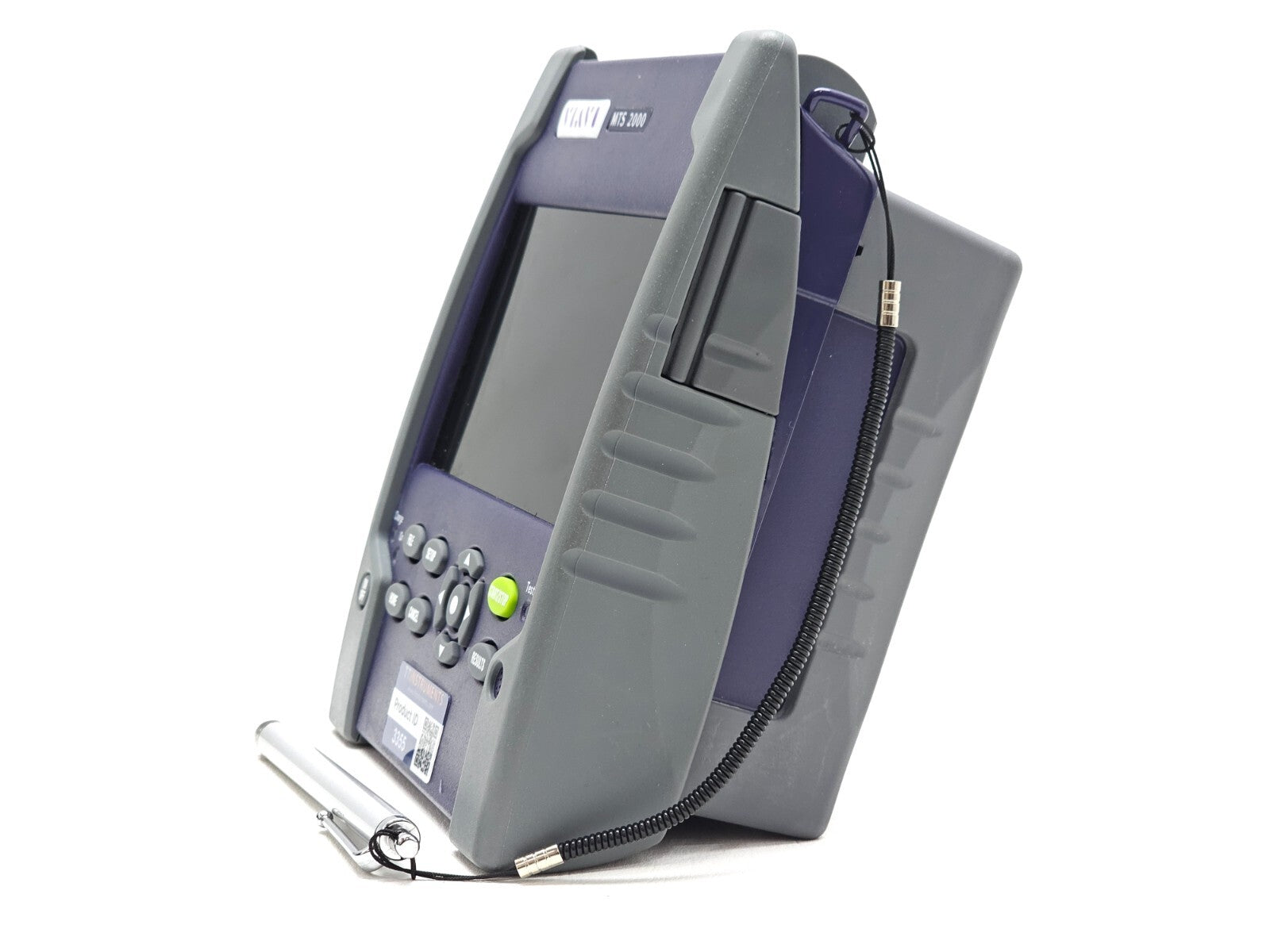

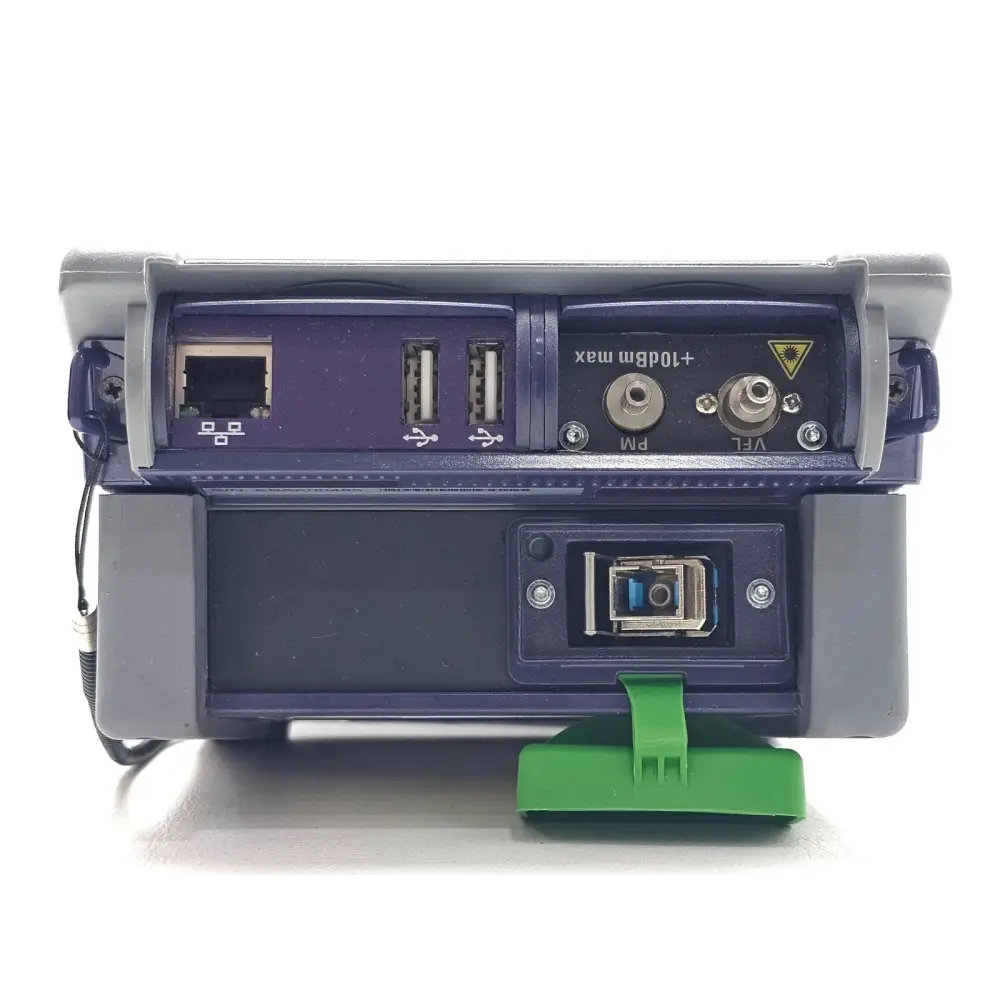

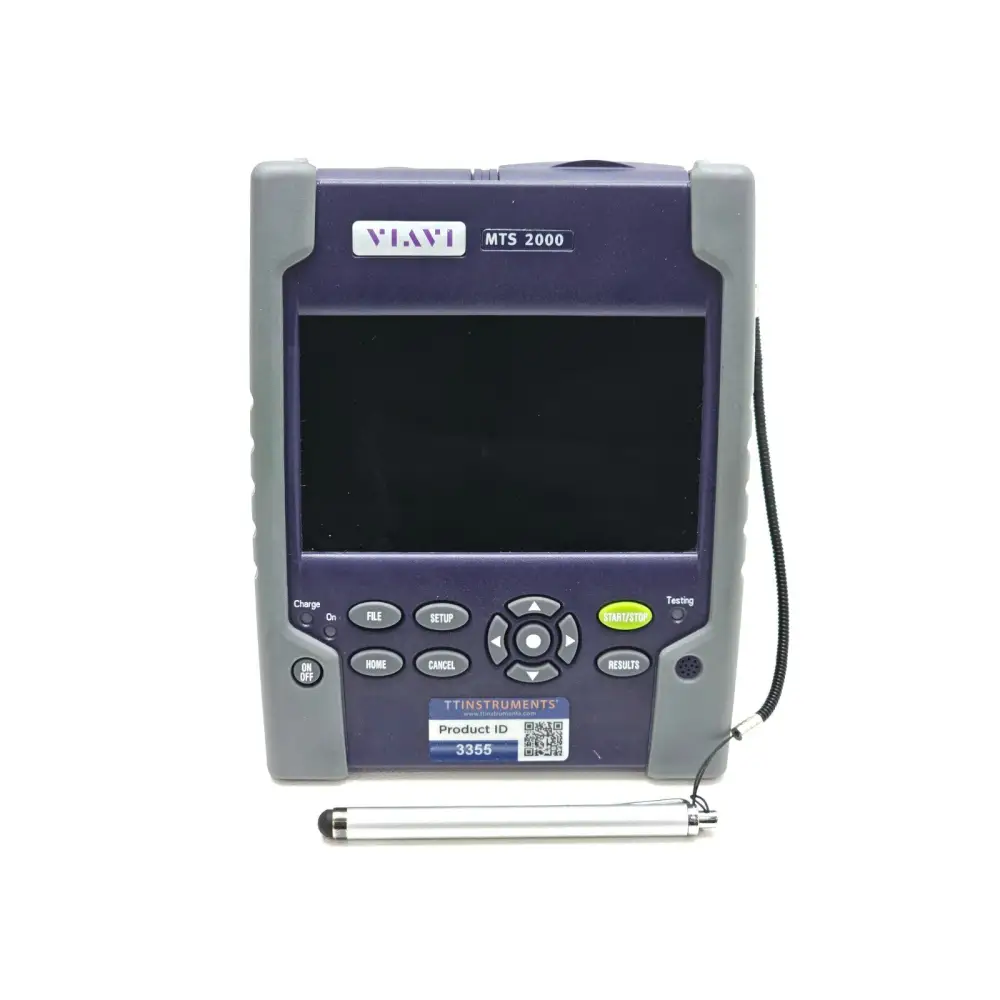

• Viavi JDSU MTS 2000 V2 mainframe (with built-in power meter, visual fault locator, and wireless)

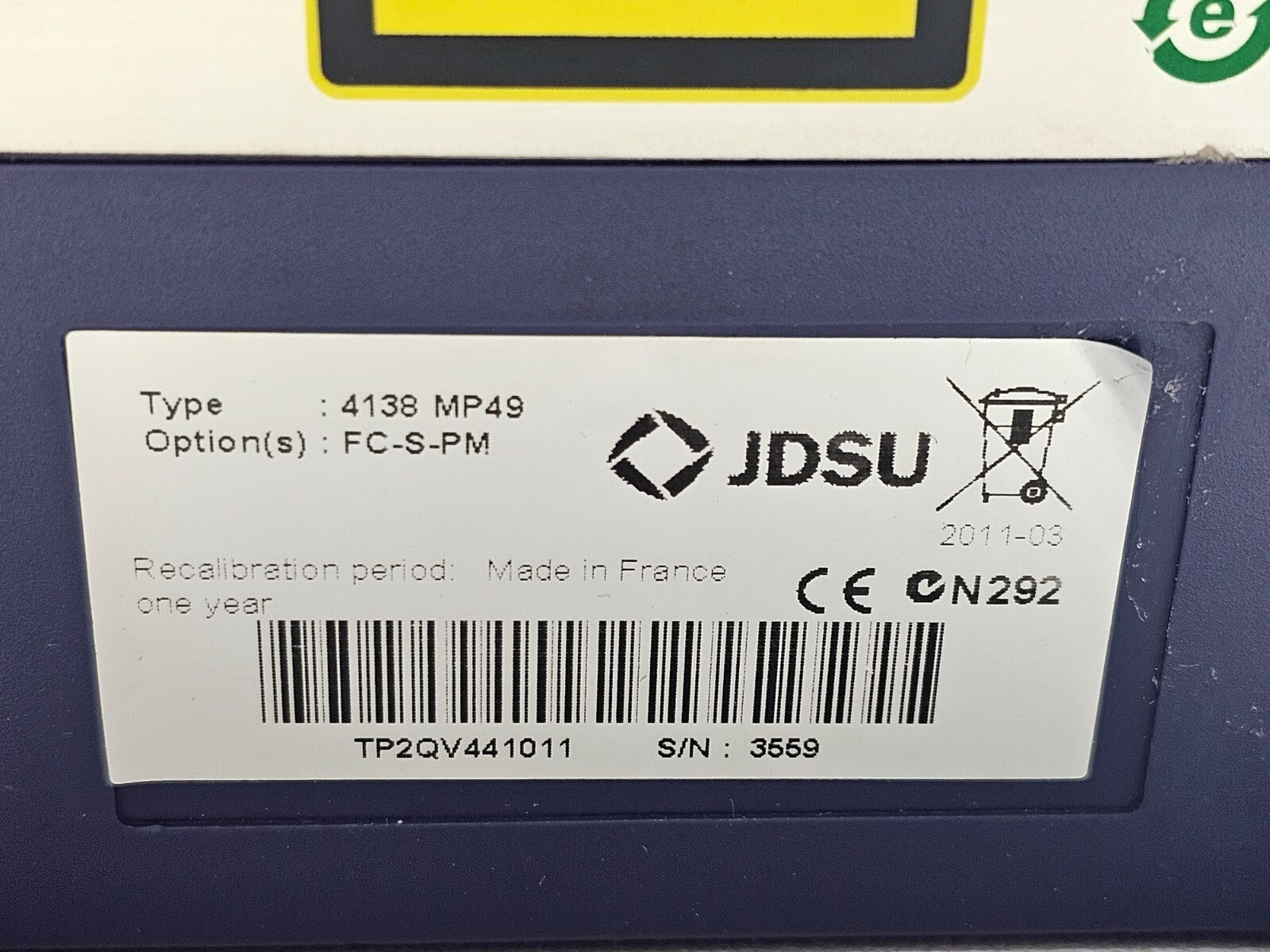

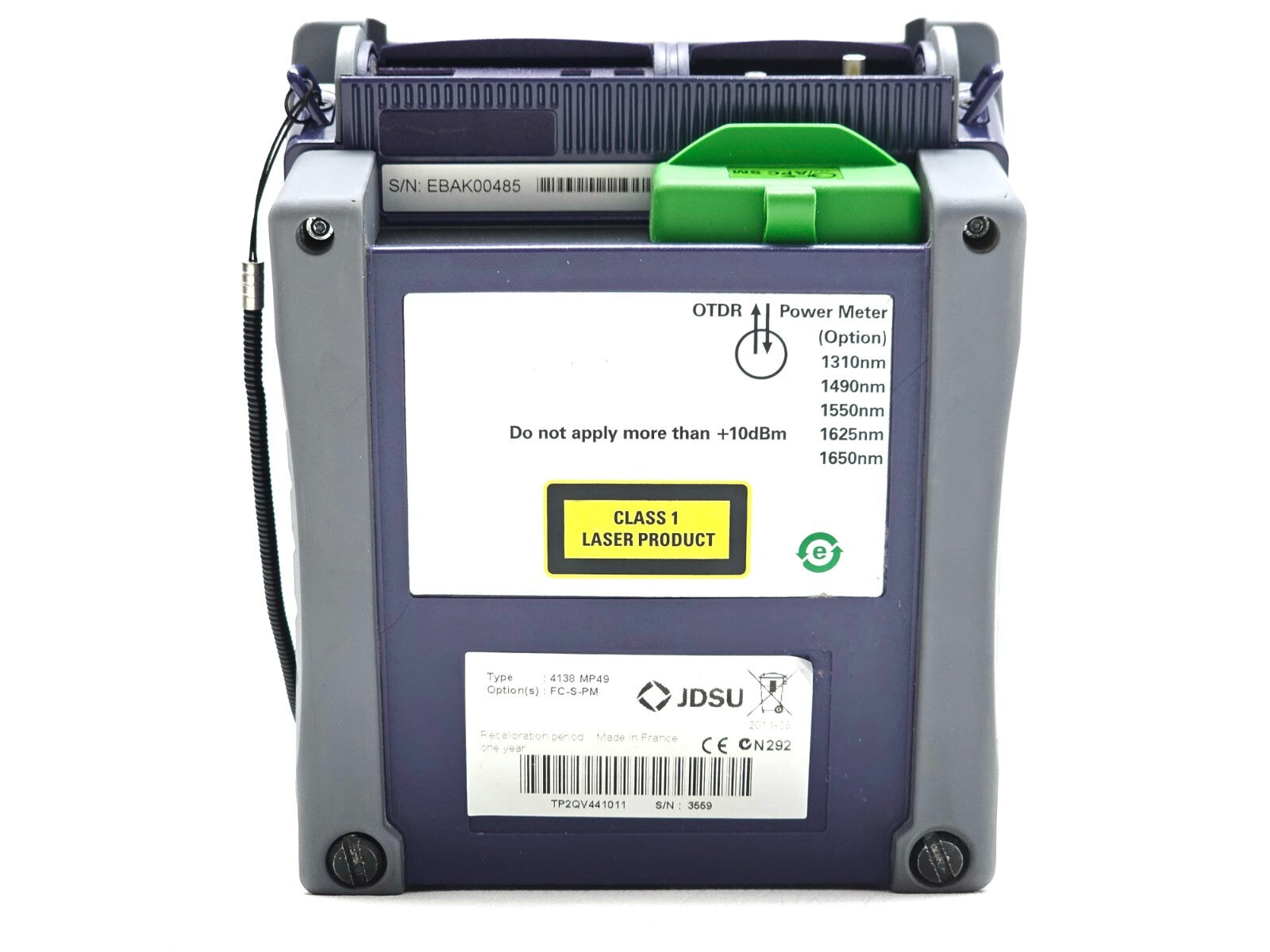

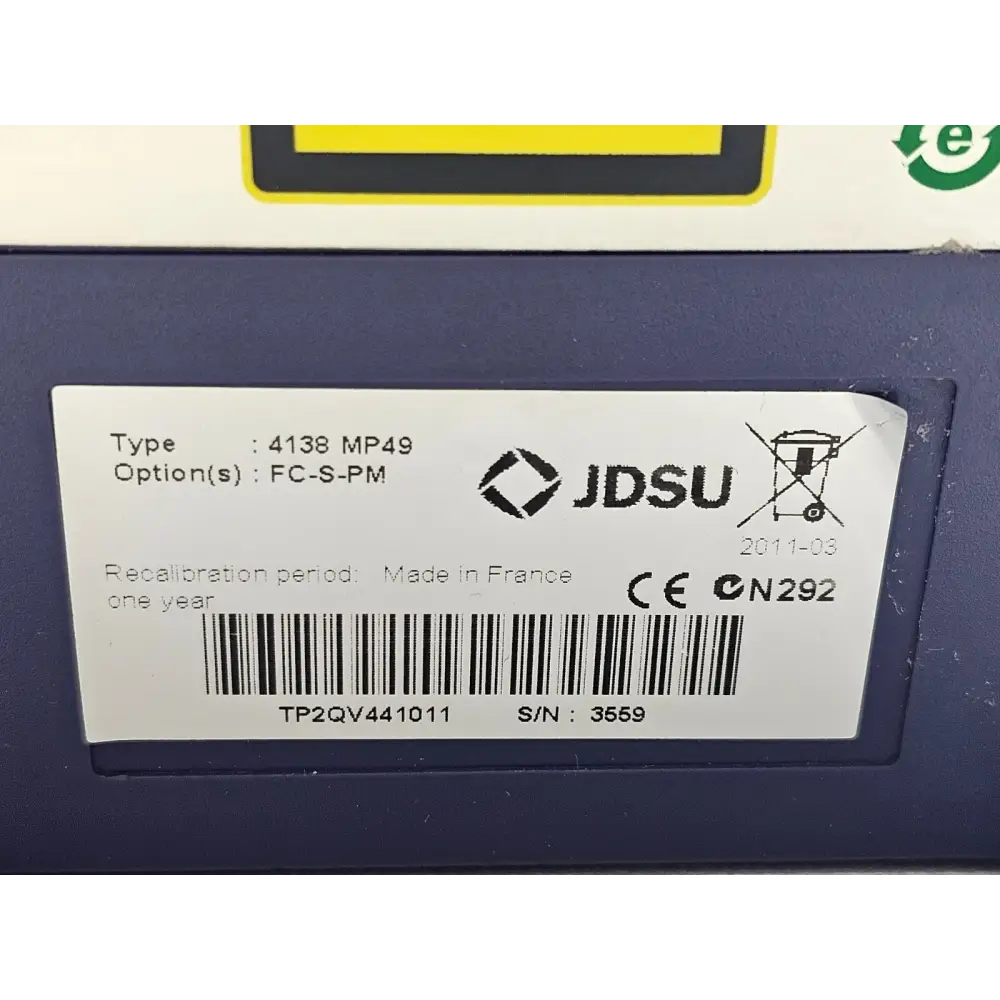

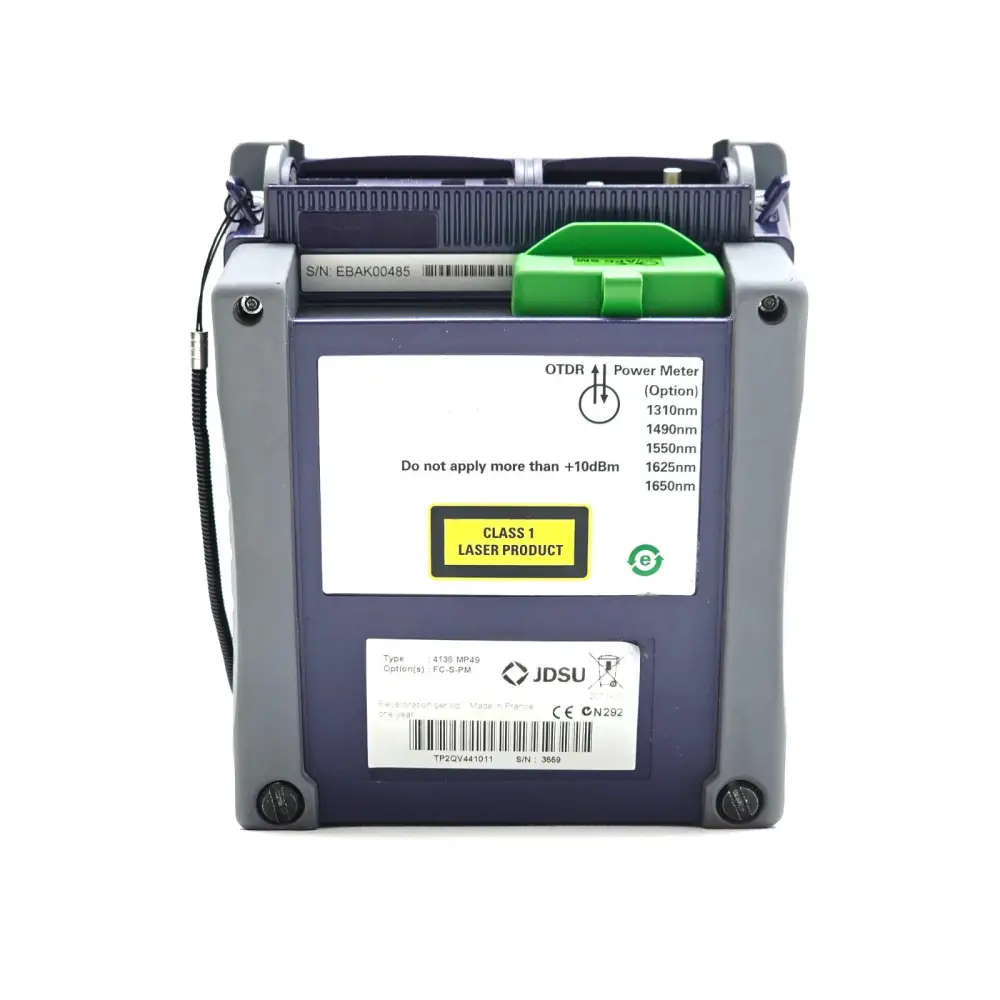

• Viavi 4138 MP49 FC-S SM OTDR Module (E4138MP49)
• AC power adapter

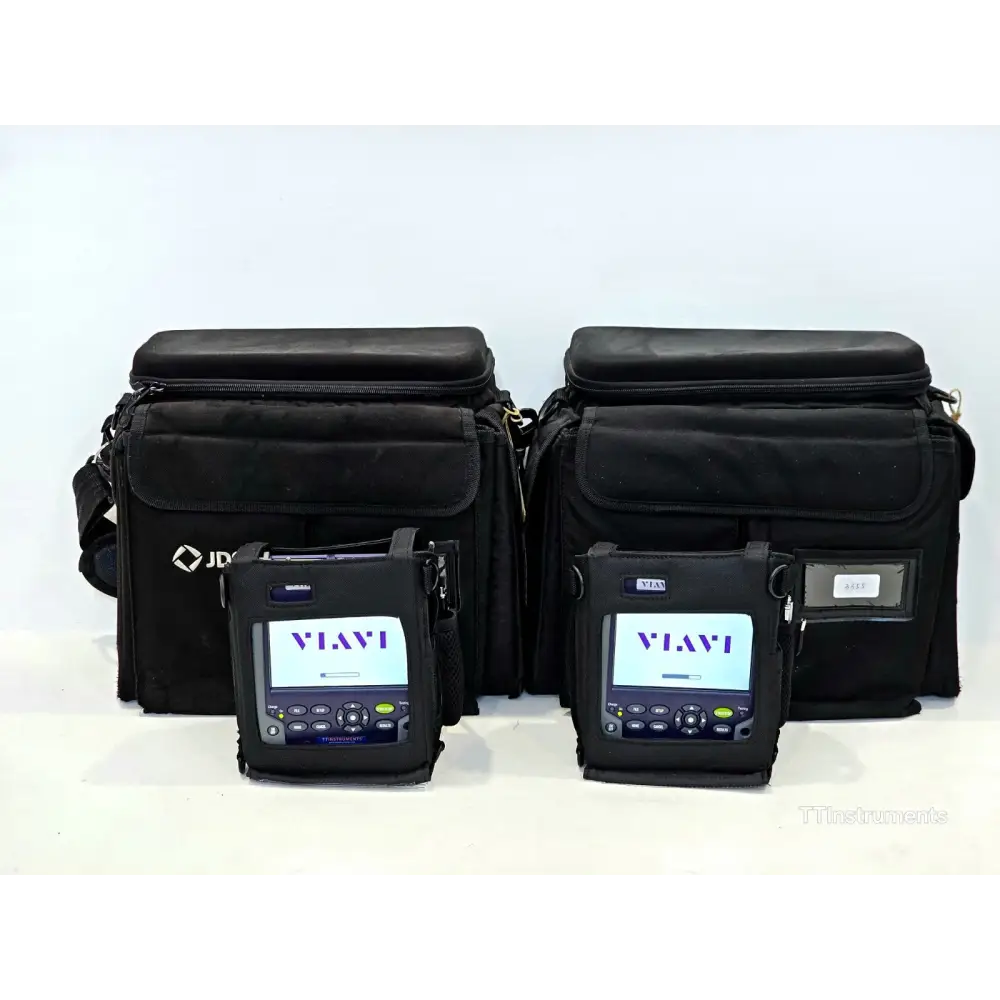

• Protective case and carry case
• Stylus

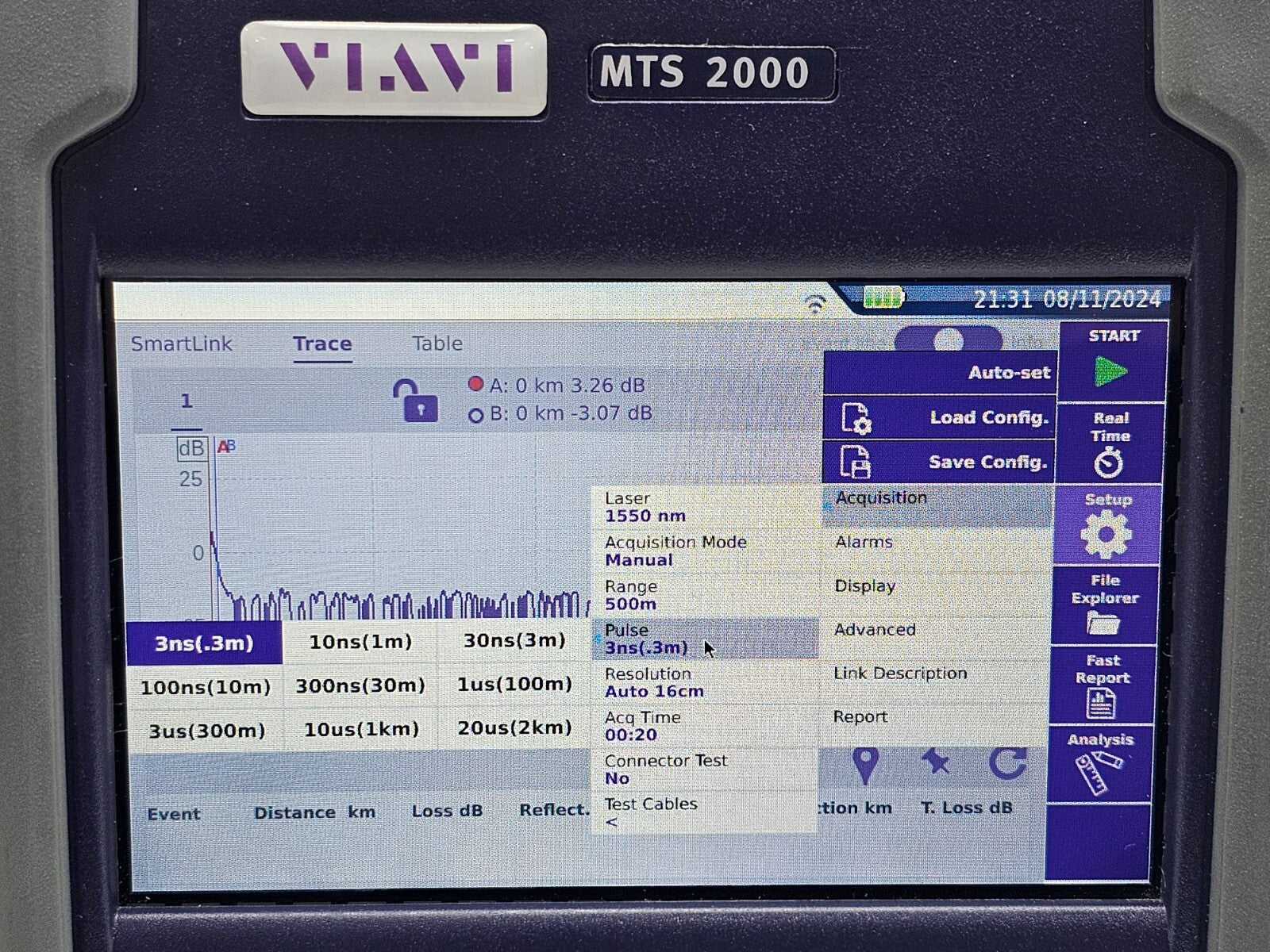

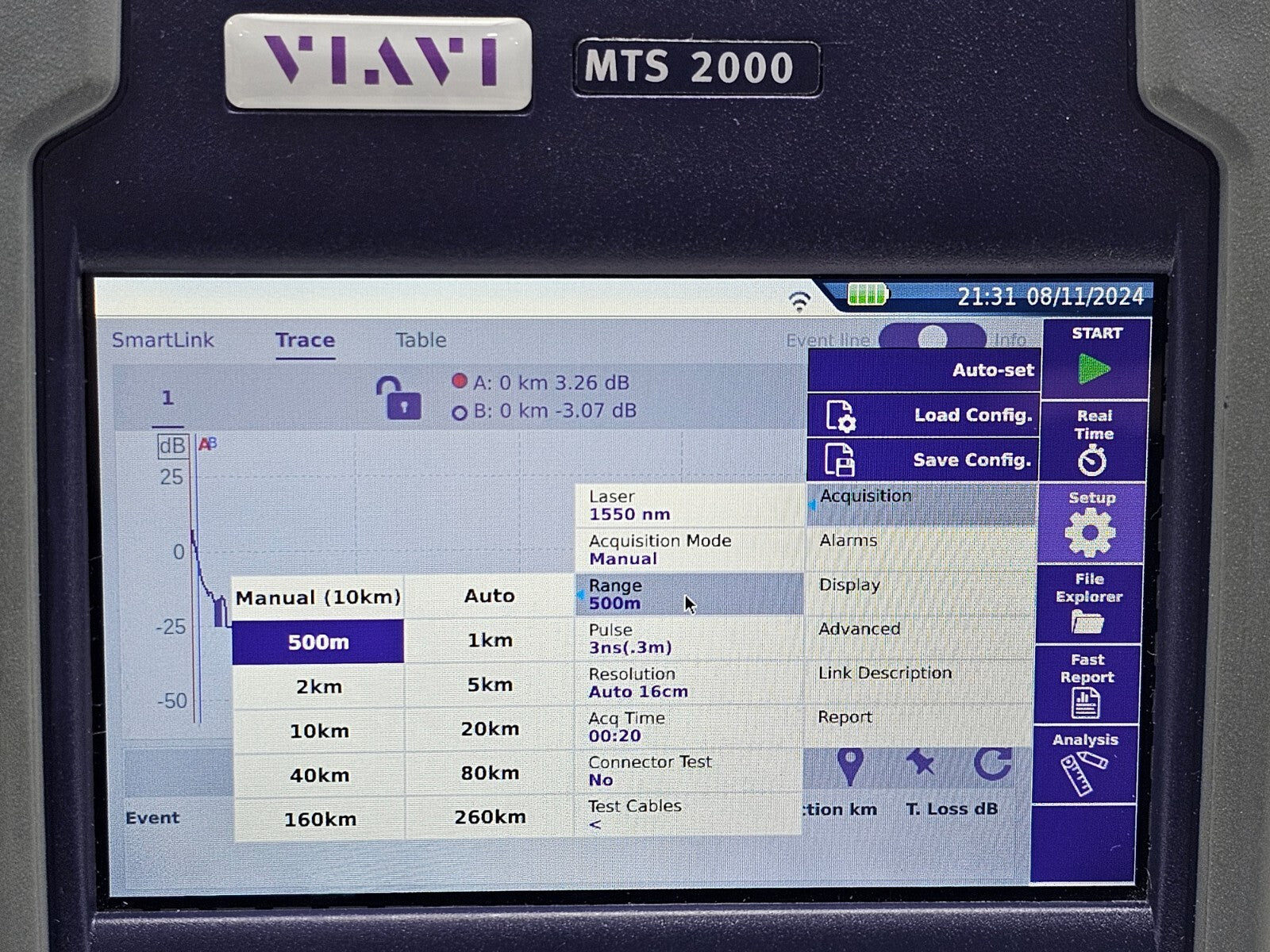

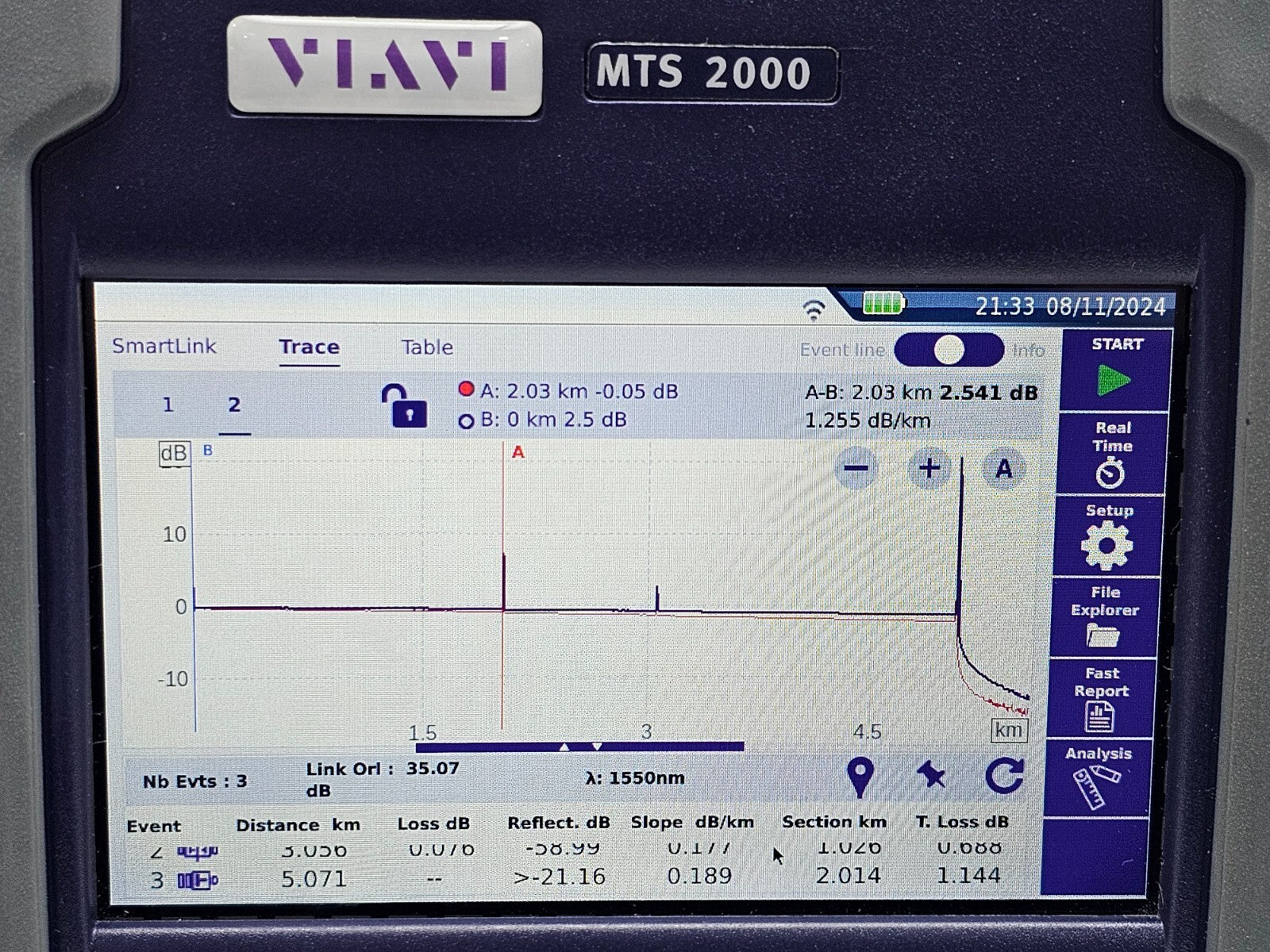

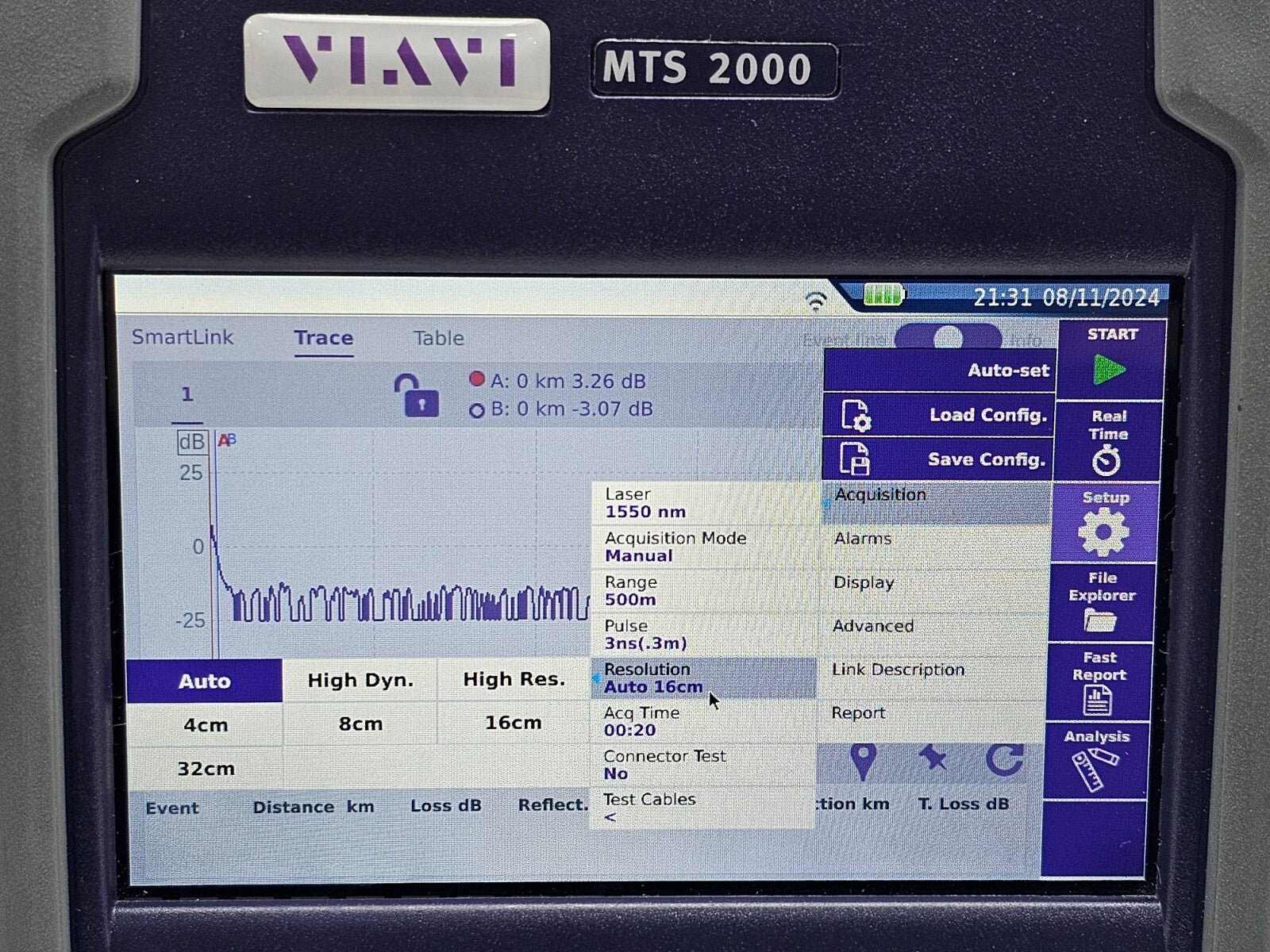

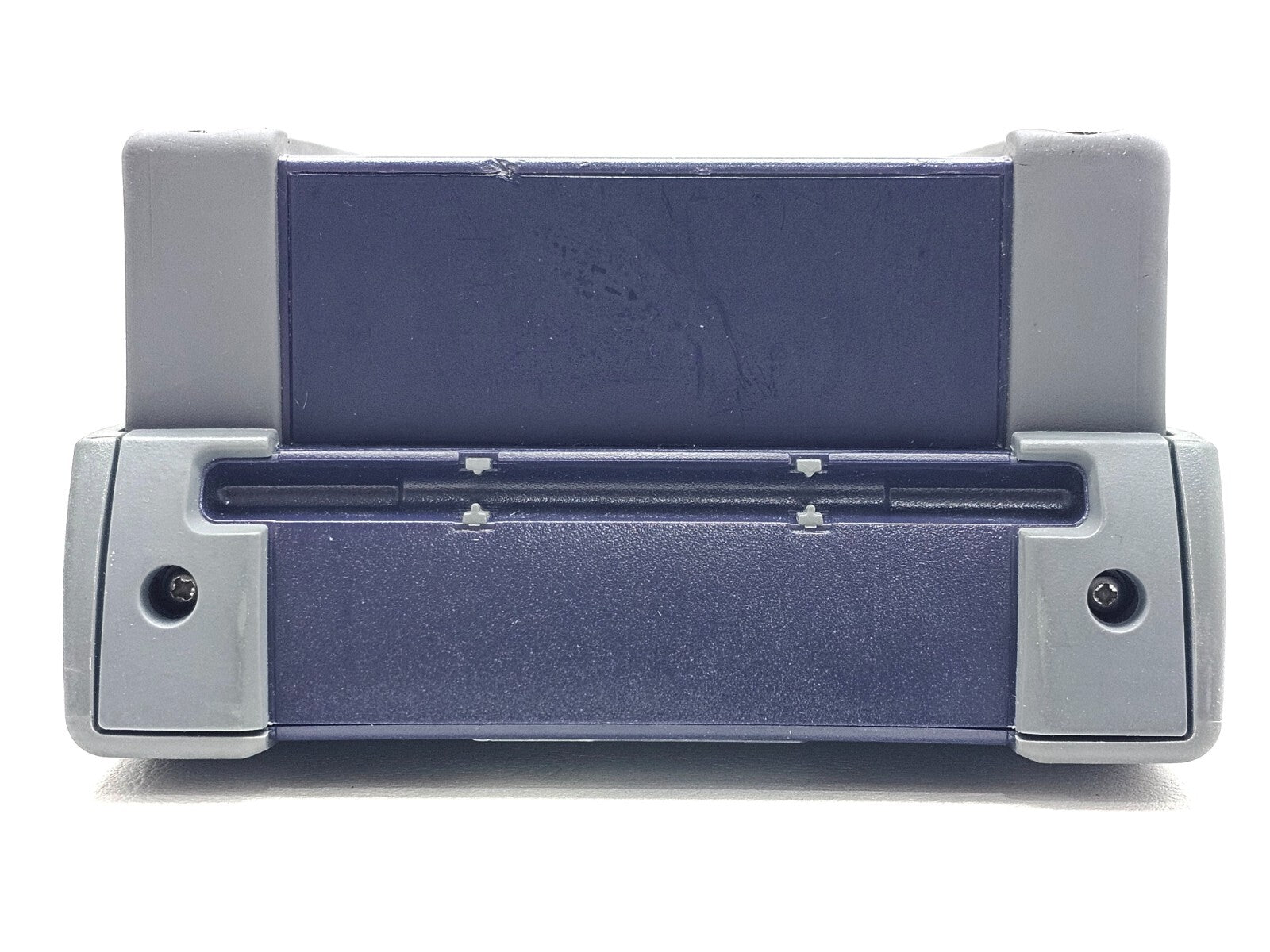

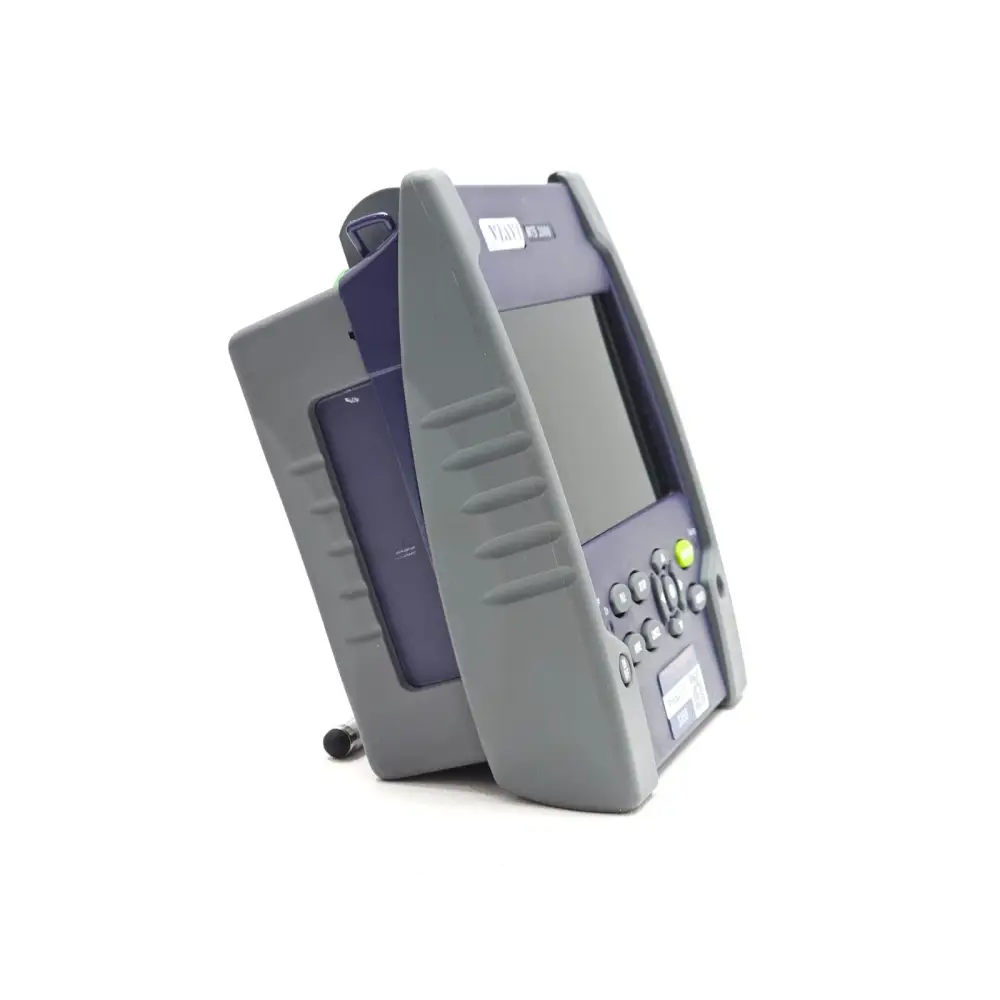

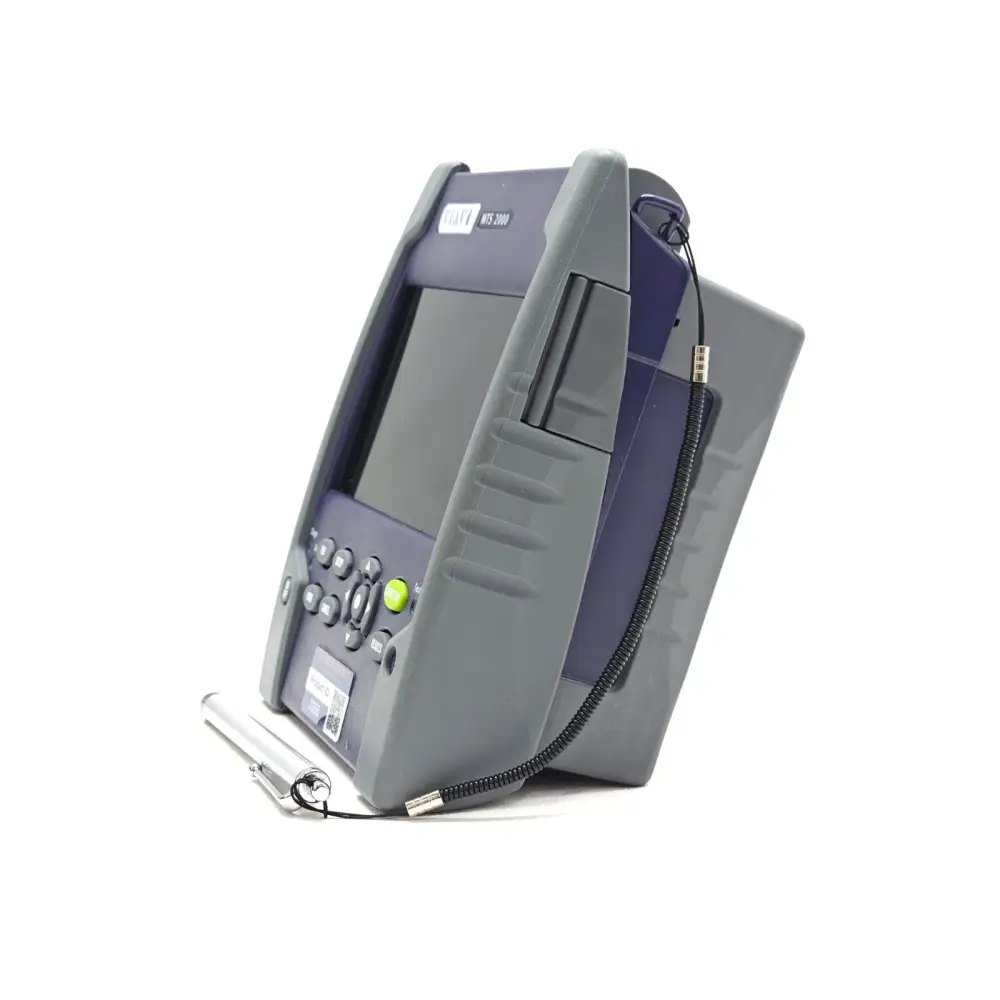

The images provided are of the actual items you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi Solutions MTS 2000 V2 is a compact, field-portable OTDR mainframe platform designed for fibre installers and service providers requiring a versatile, all-in-one test solution. The platform supports a range of plug-in OTDR and measurement modules, providing flexibility for testing access, metro, CATV, and FTTH/PON networks.

The 4138 MP49 OTDR module provides the optimum performance that fibre installers and service providers need to test metro, cable TV (CATV), and FTTH networks with high-port-count splitters. With filtered wavelengths for in-service testing, an improved dynamic range, and optimised resolution and dead zones at short pulses, the MP module is the ideal OTDR for testing PON systems with up to a 1x128 splitting ratio.

The MP module's optical performance, combined with the T-BERD/MTS platform's complete suite of features, ensures that testing is done right the first time.

Standard Testing Features:
Automatic macrobend detection
Summary results table with pass/fail analysis

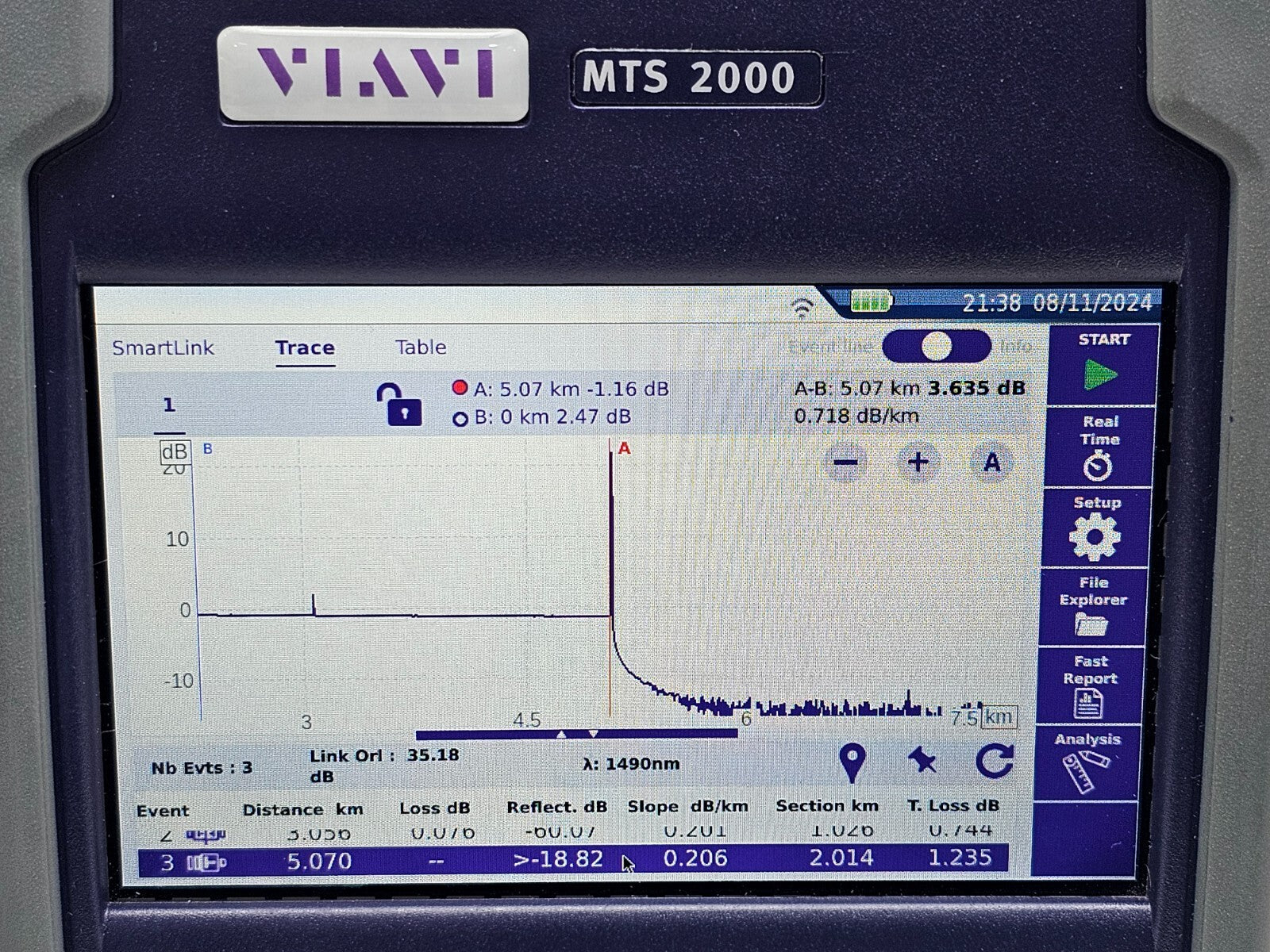

Bidirectional OTDR analysis
FastReport on-board report generation

Key Specifications — Viavi 4138 MP49 OTDR Module:
Wavelengths: 1310 / 1490 / 1550 nm
Dynamic Range: 43 / 41 / 41 dB
Acquisition Points: Up to 256,000
Connector: SC-APC
PON Compatibility: Up to 1x128 splitting ratio
Integrated CW Light Source: Yes
Integrated Power Meter: Yes
FiberComplete Compatible: Yes

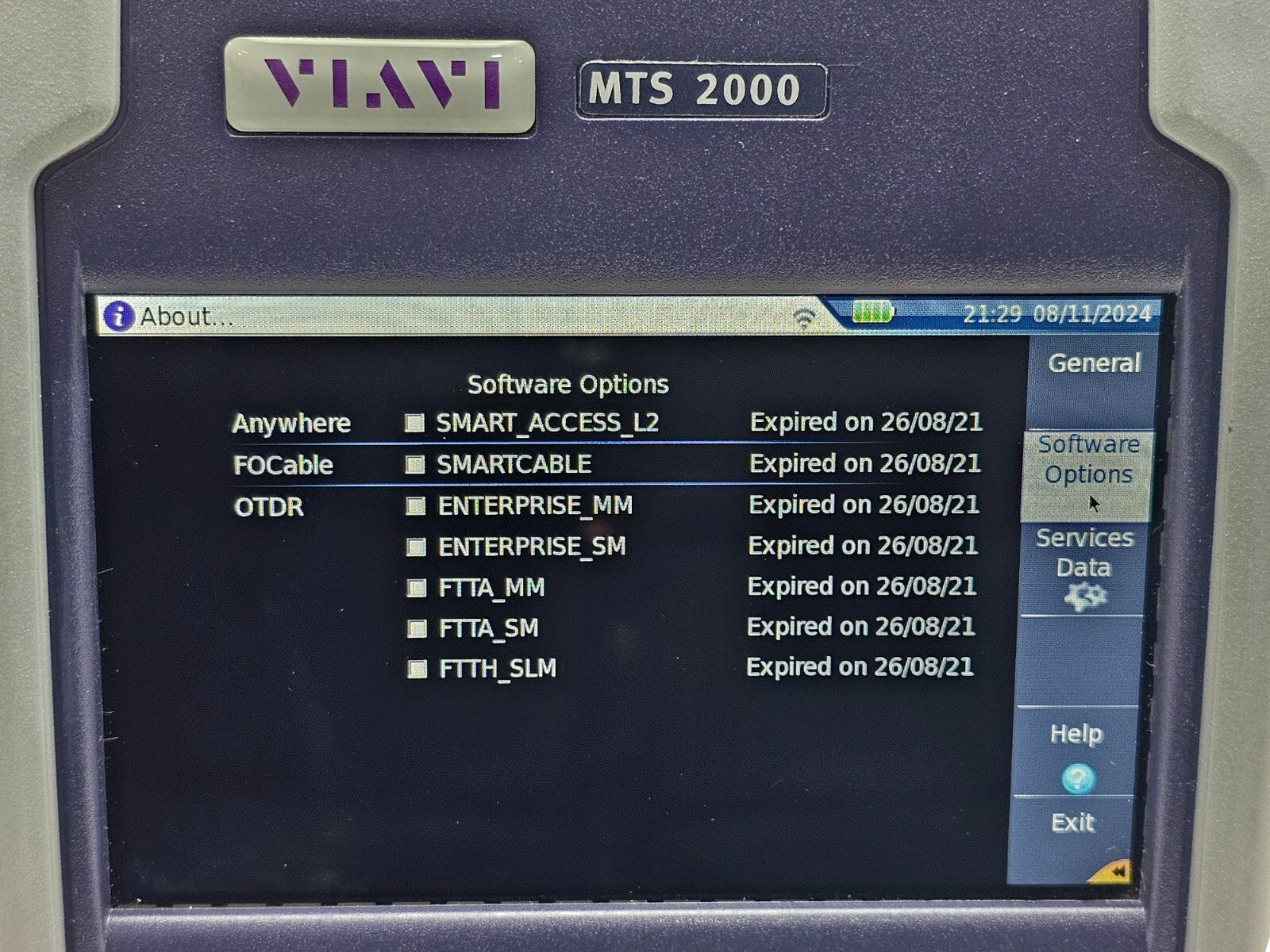

Software Ready: SLM, FTTA-SLM, FTTH-SLM intelligent optical applications
Live Fibre Detection: Instantly detects traffic when connected to live fibre

MTS 2000 V2 Mainframe Features:

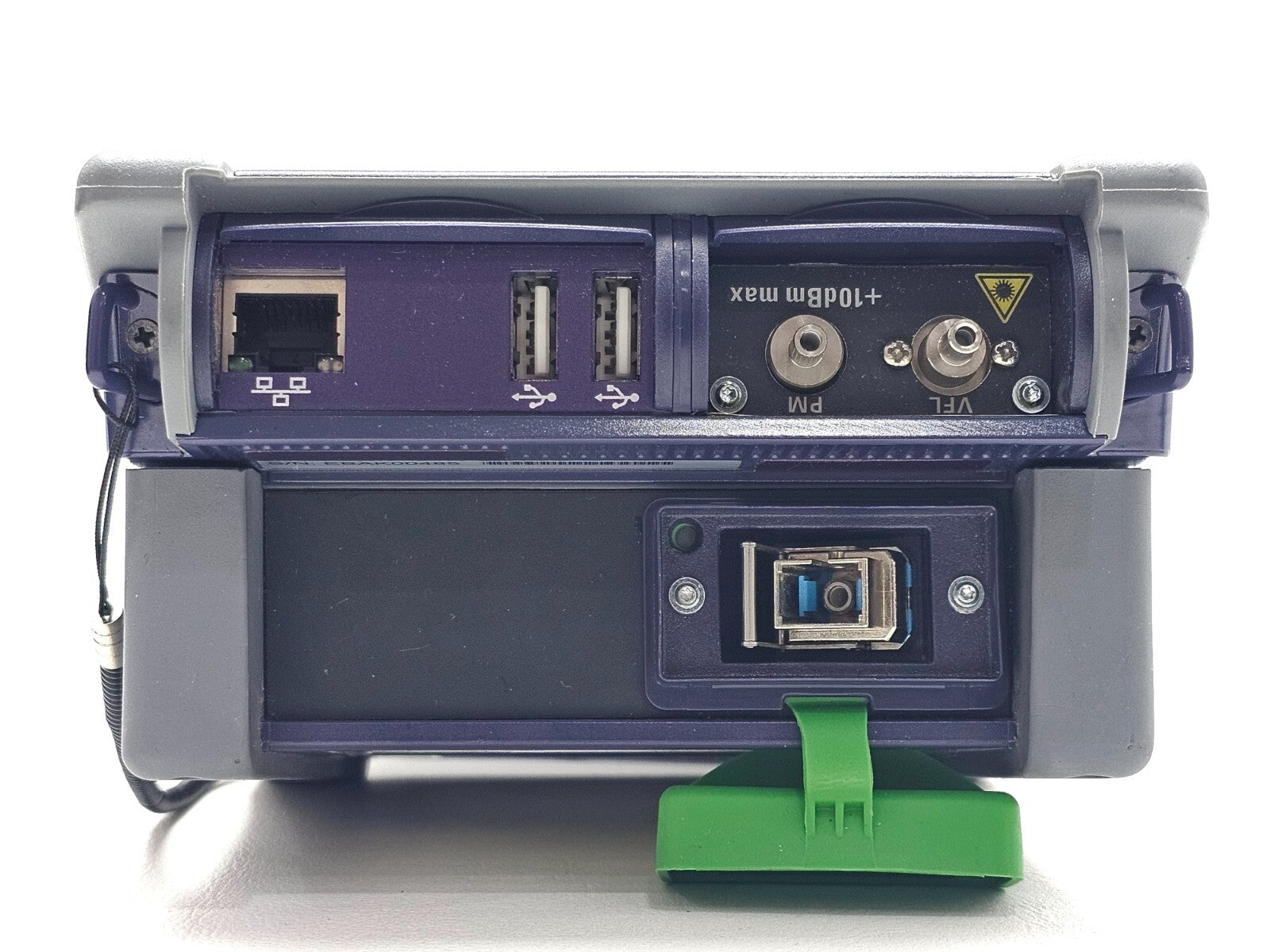

Built-in power meter and visual fault locator
Wireless connectivity
Compact, portable field design
Supports multiple plug-in test modules
