Condition: Used

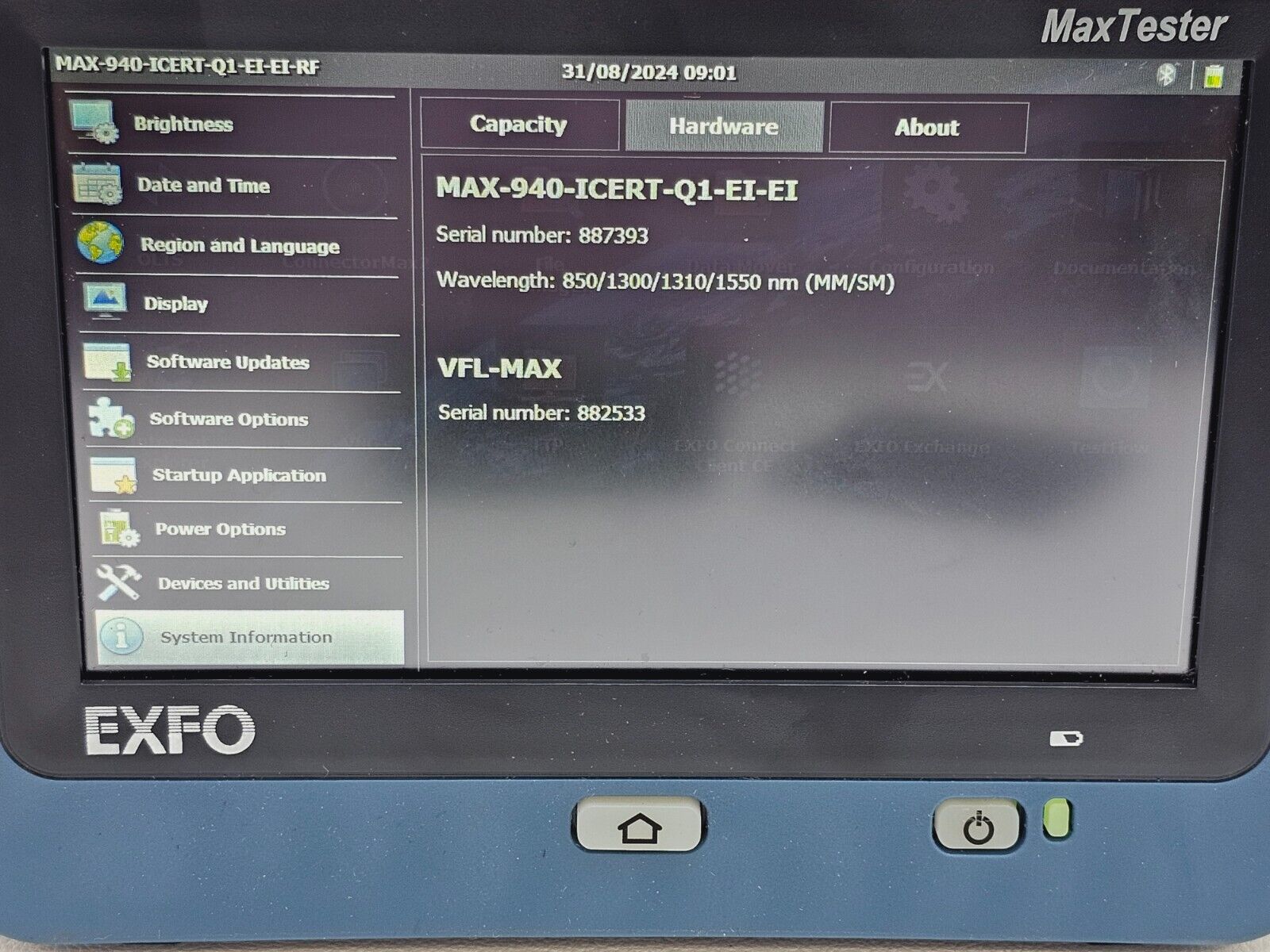

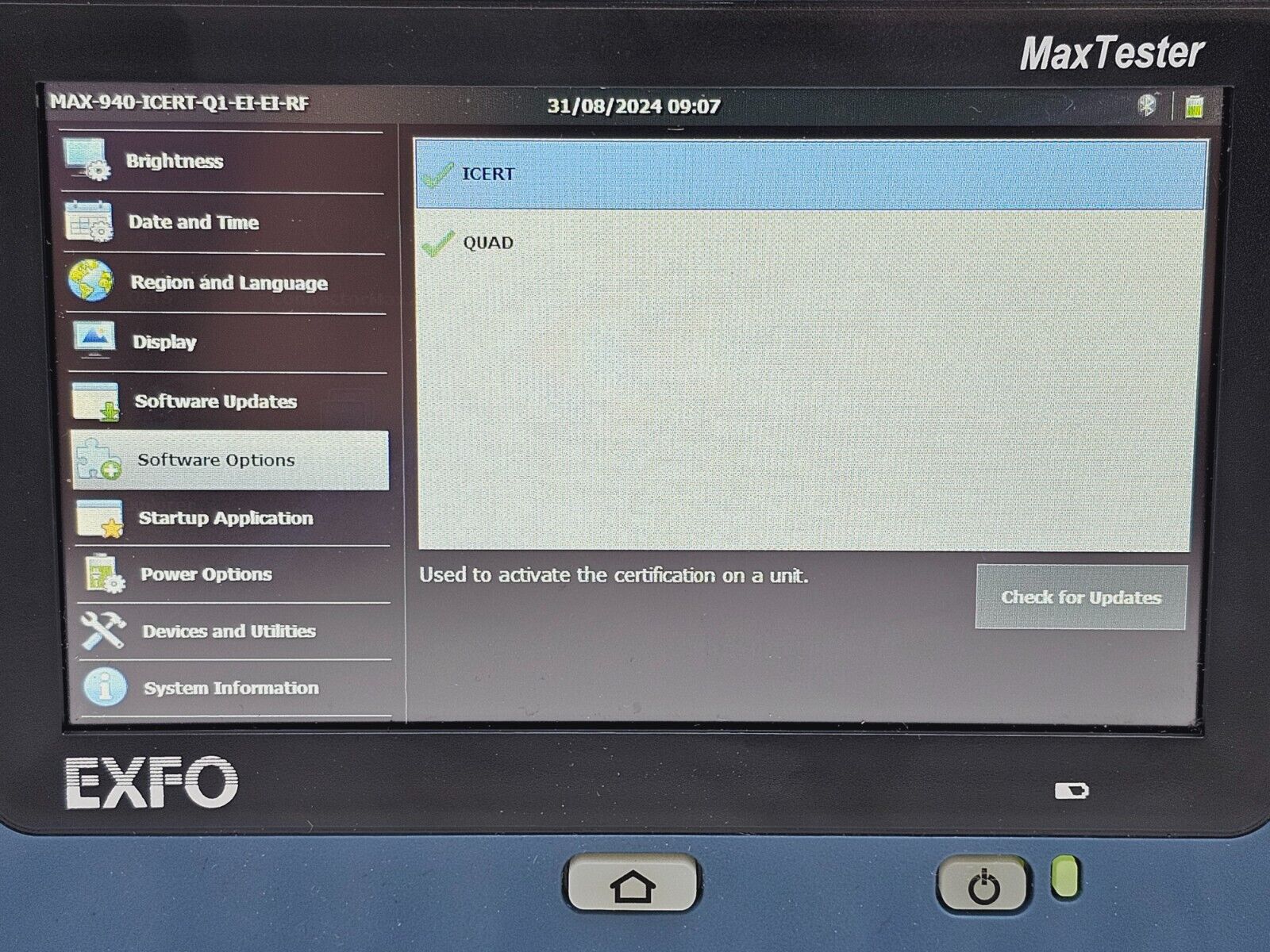

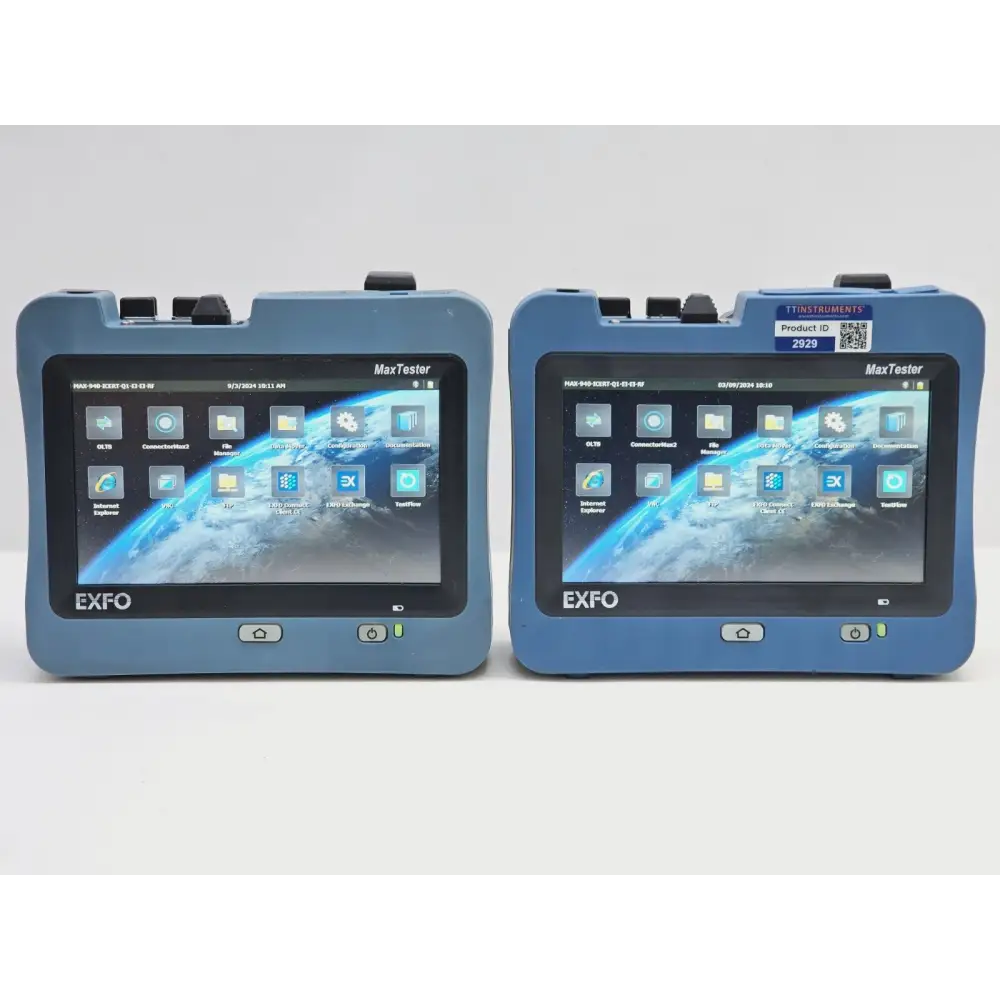

This listing is for a PAIR of EXFO MaxTester MAX-940 ICERT QUAD Fiber Certifier OLTS units — you will receive 2 testers. Both units have been fully tested and are in excellent working condition with all results within specification. These are the MAX-940 QUAD ICERT version, featuring a built-in InGaAs Power Meter and Visual Fault Locator, with PC/SC connectors. The QUAD configuration covers all four wavelengths (850/1300 nm multimode and 1310/1550 nm singlemode) enabling simultaneous SM and MM tier-1 certification.

Included in the sale:

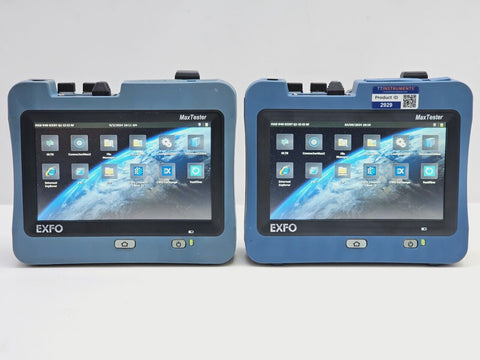

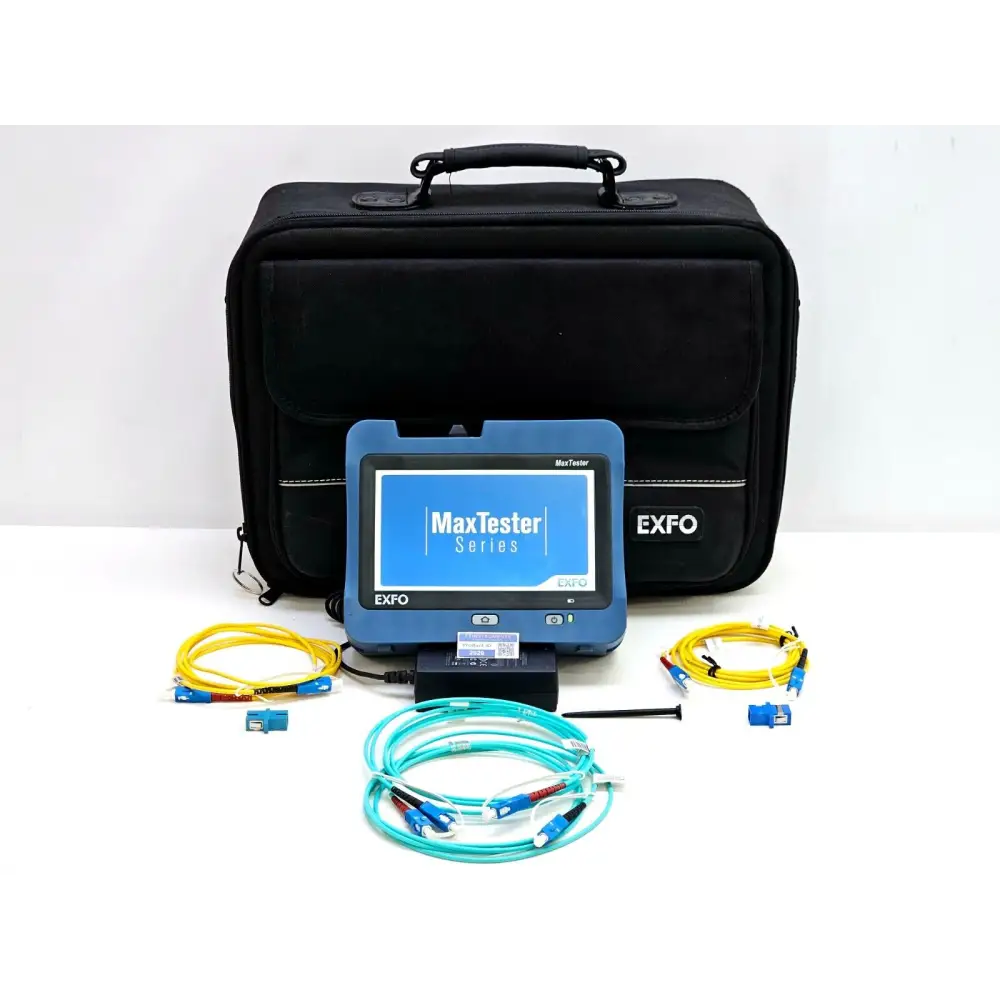

• 2x EXFO MaxTester MAX-940 ICERT QUAD units

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

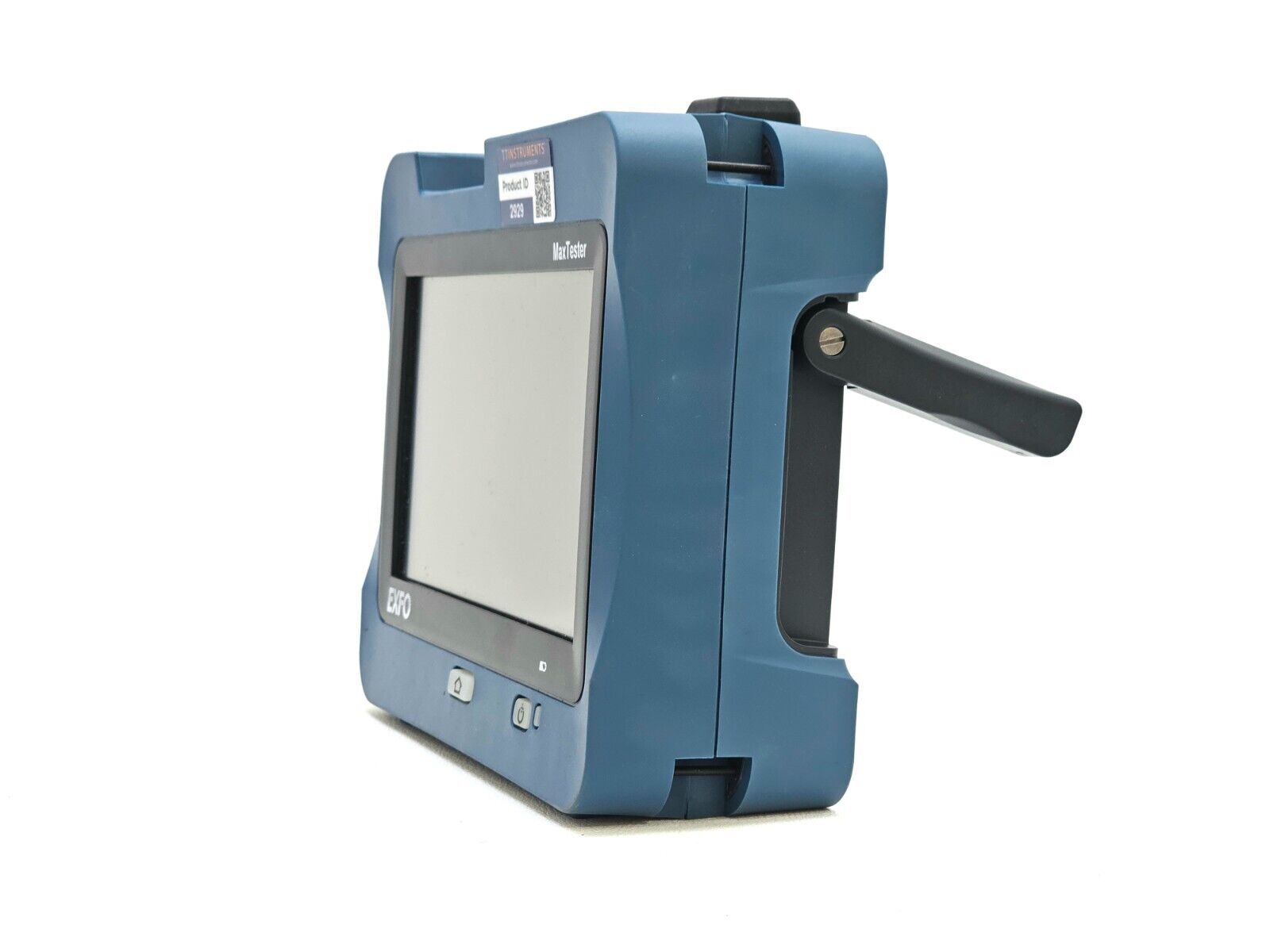

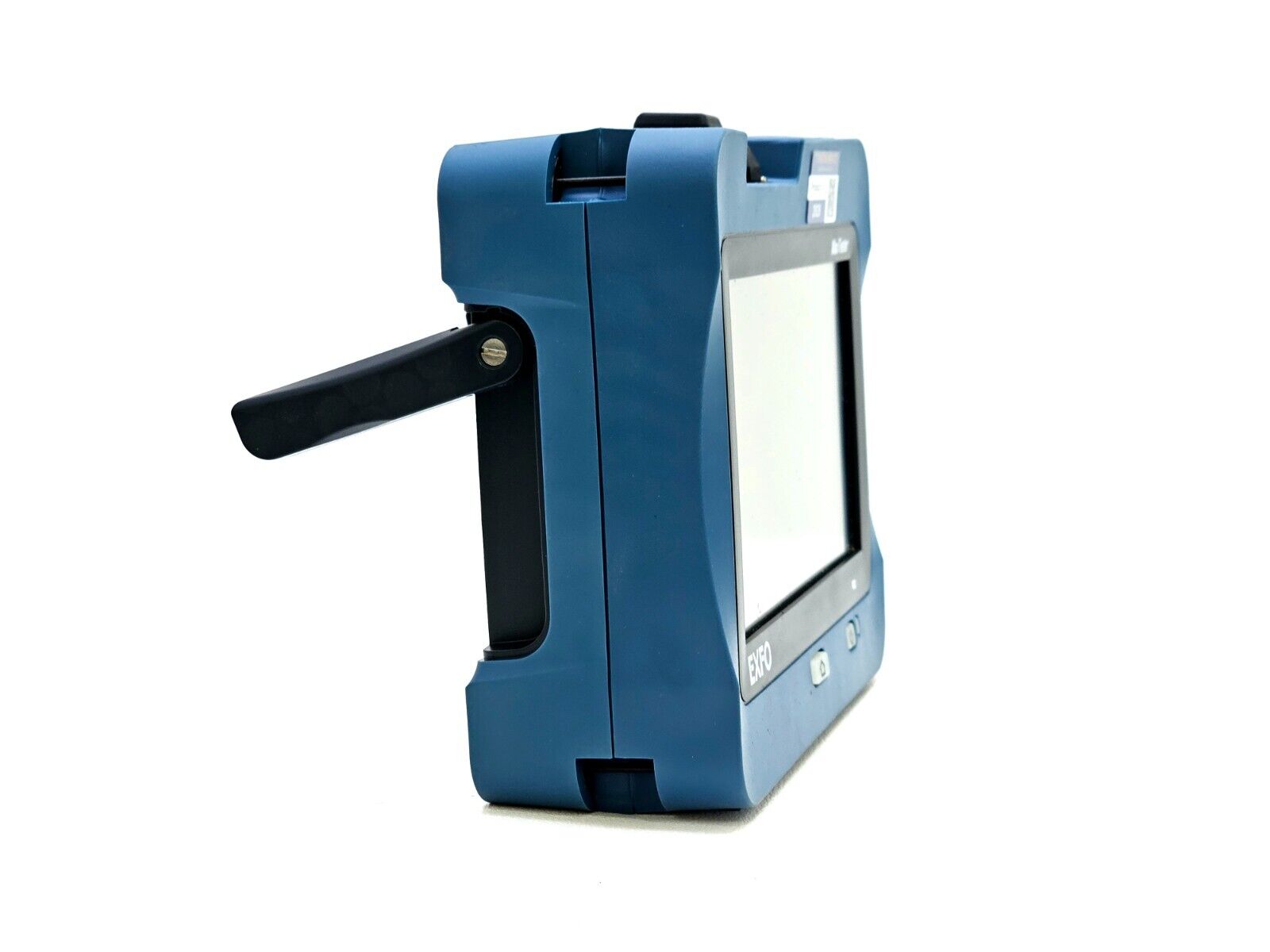

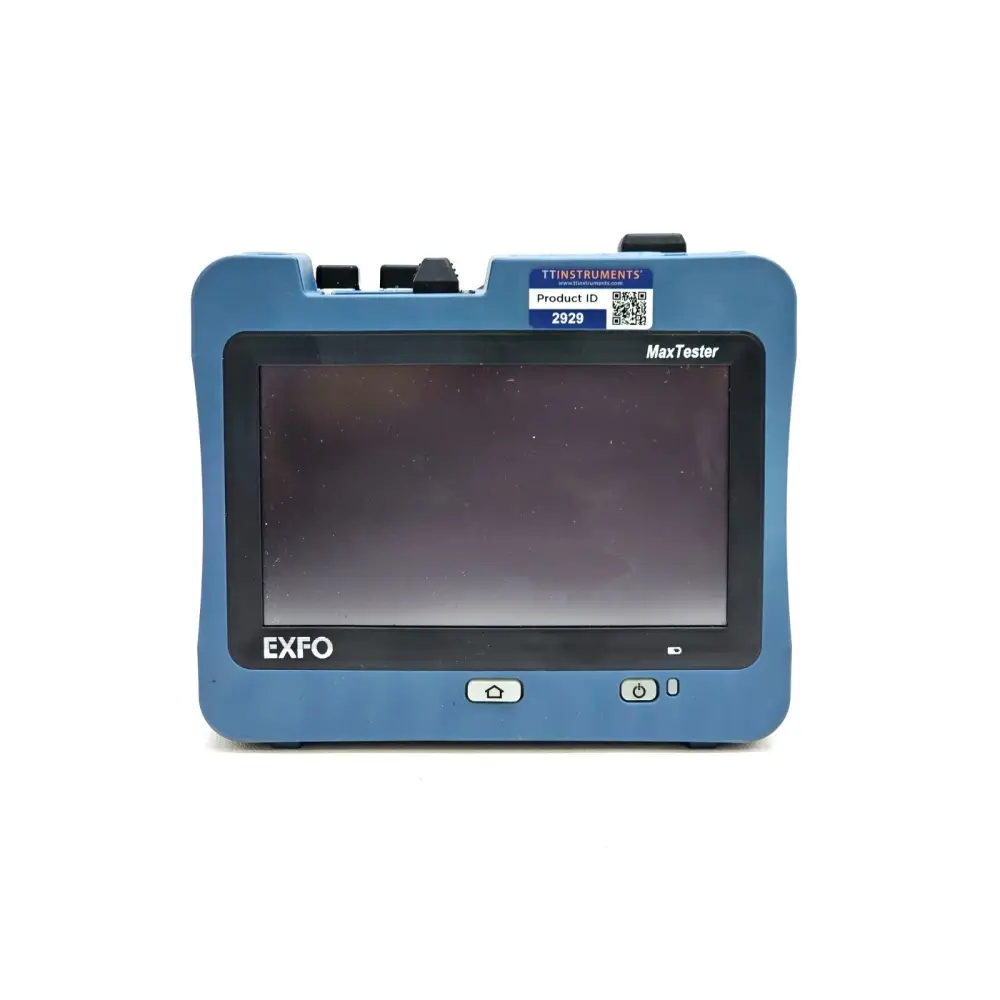

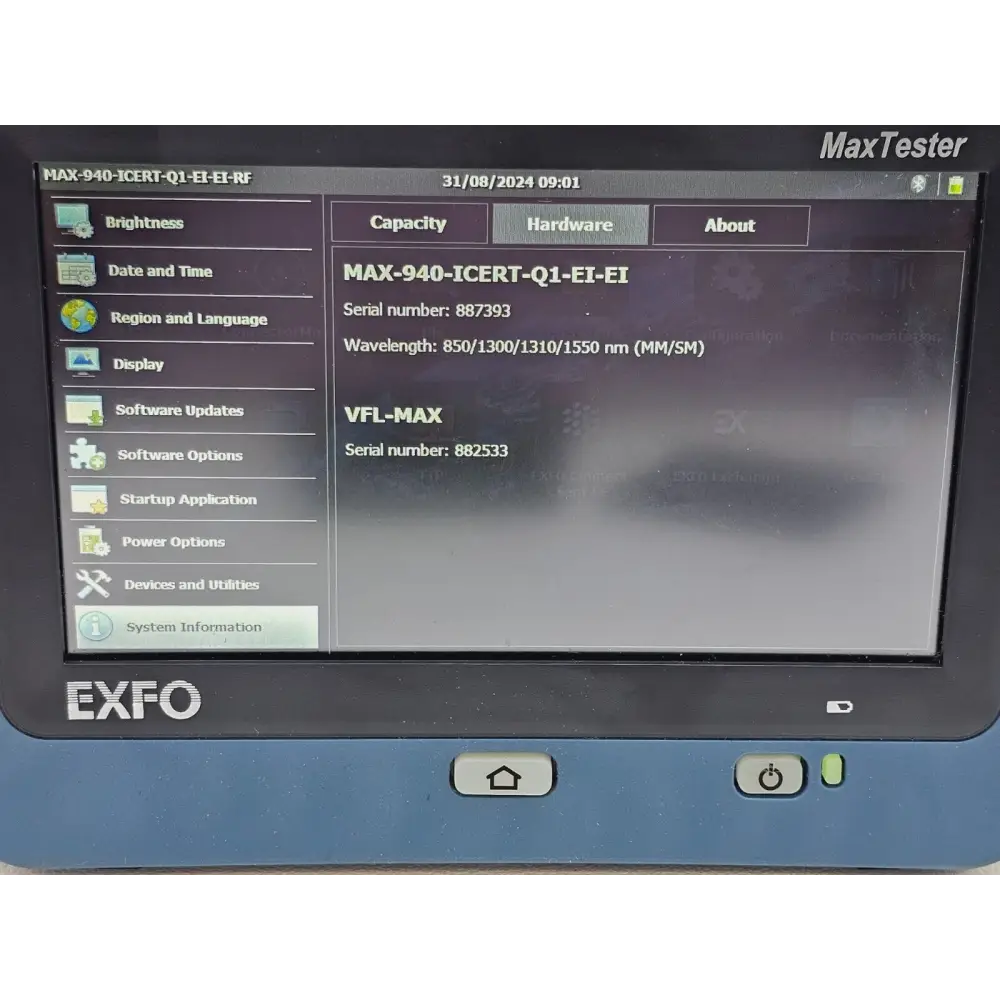

EXFO MaxTester 940 (MAX-940) — Fiber Certifier OLTS

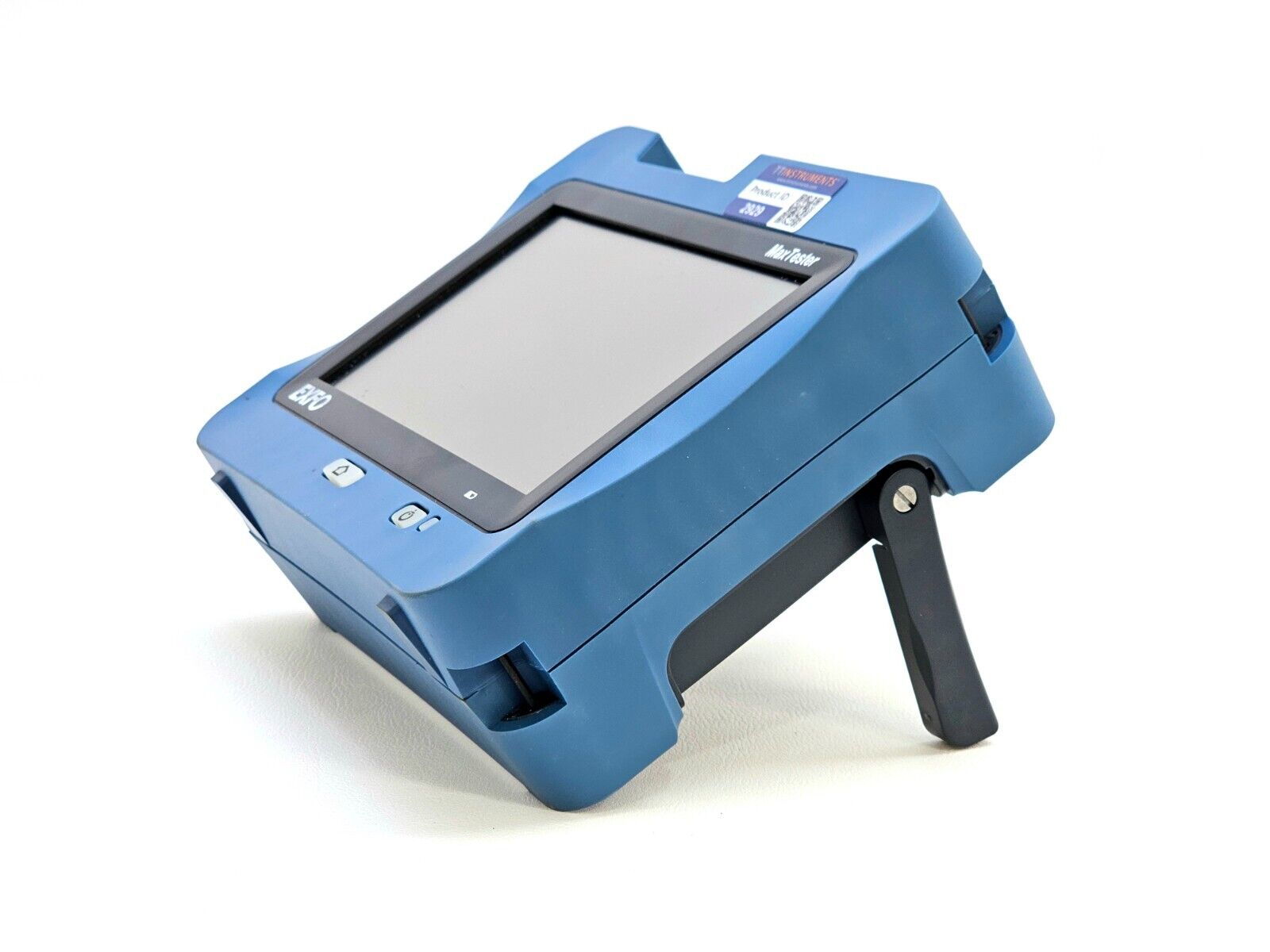

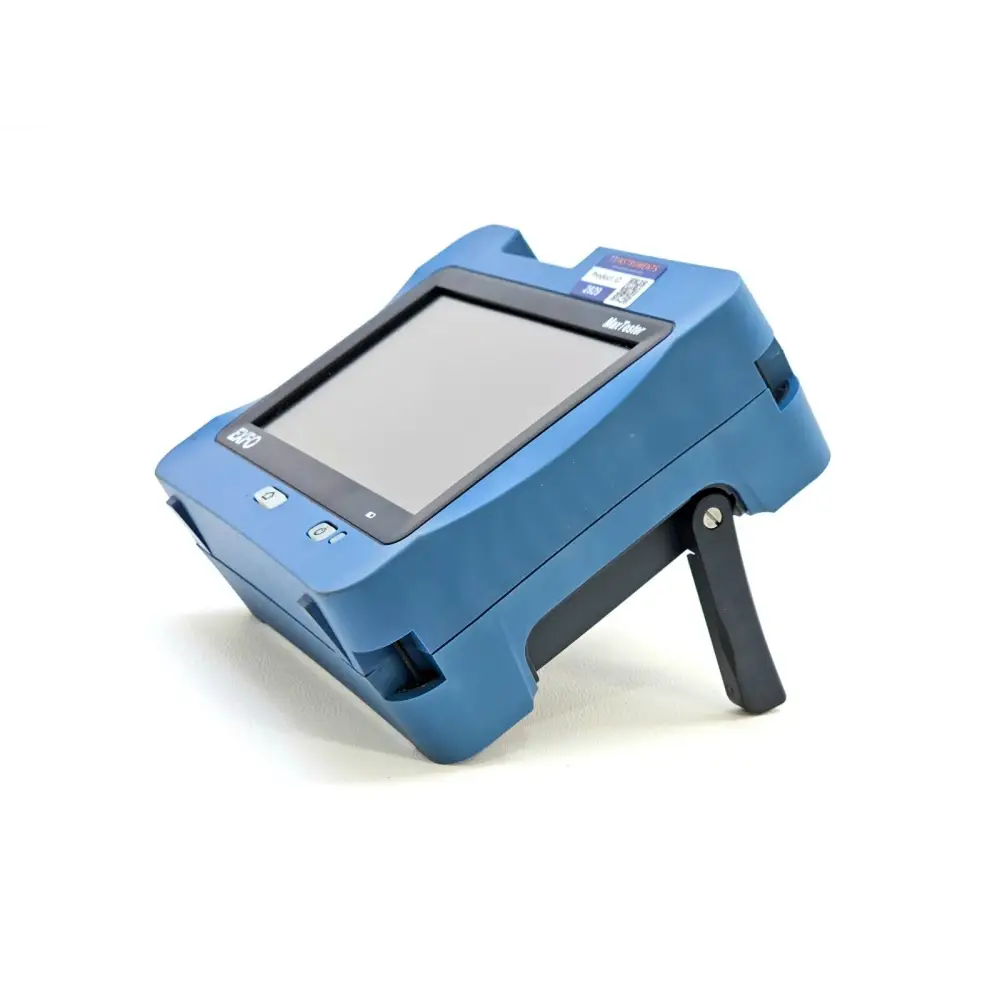

The EXFO MaxTester 940 is a fully featured Tier-1 fiber certifier with a tablet-inspired design, optimised for data centre and enterprise structured cabling certification. It is the first tablet-inspired test solution specifically designed to certify fibre cabling in data centres and enterprise networks, featuring an intuitive Windows-like user interface with icon-based functions and instant boot-up.

Full-fledged units at both ends: Both the main and remote units are full-fledged to maximise the efficiency of each technician. FasTesT results with diagnostics are displayed on both units at the end of each test. Both technicians can certify fibre connectors with a fibre inspection probe via the large touchscreens available on both units — the remote technician is no longer blind.

Onboard assistance and diagnosis: The MAX-940 provides a foolproof method against test cord reference mistakes and negative loss, thanks to its step-by-step wizard that guides technicians along the referencing and verification process as per industry standards. It goes further by diagnosing possible causes of fail results and gives guidance to fix issues.

Key Features:

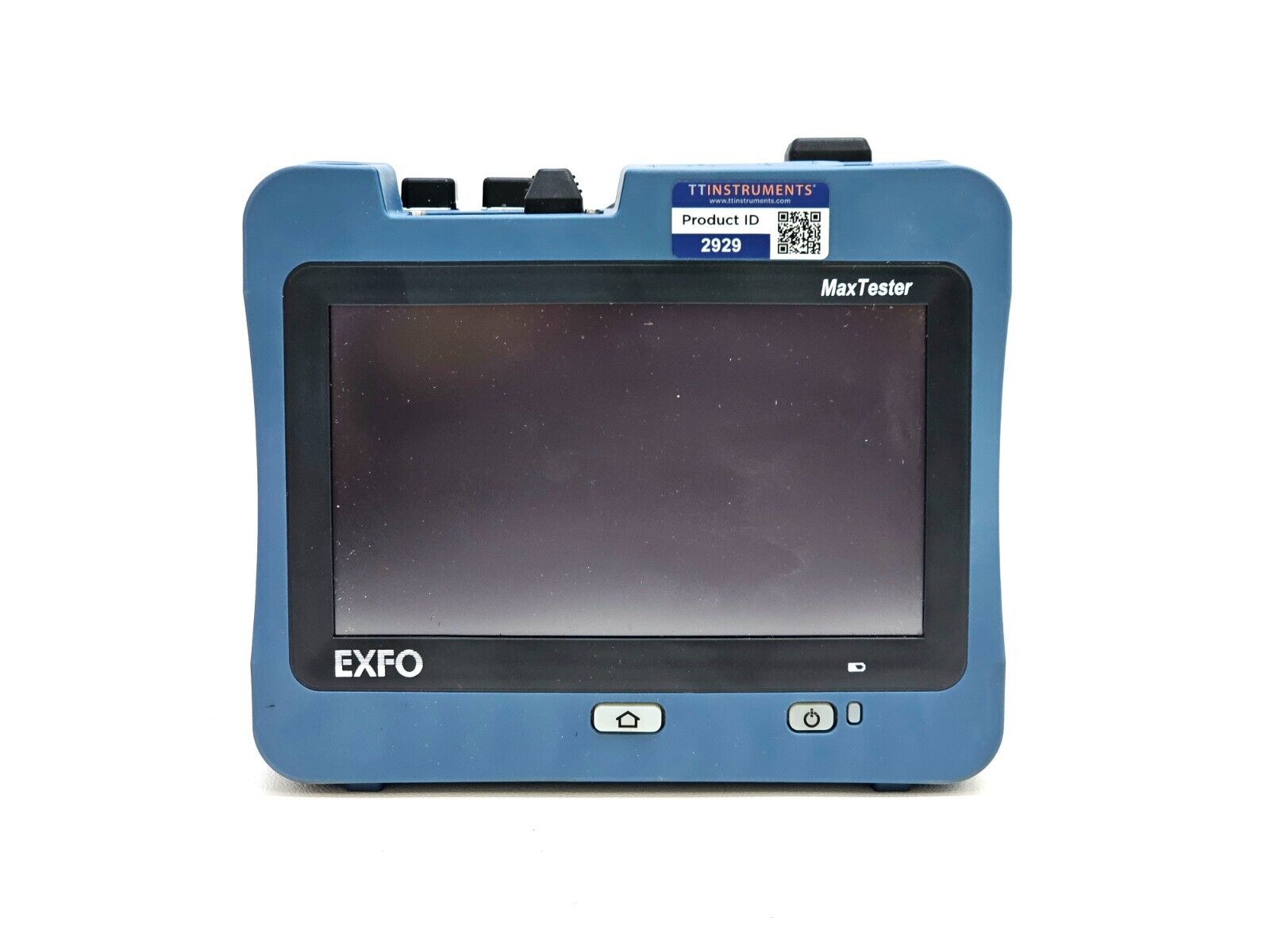

- 7-inch high-resolution touchscreen — the widest screen in the industry
- FasTesT technology: certifies two fibers at two wavelengths in 2.6 seconds
- Fully automated bidirectional FasTesT duplex measurement (SM and MM)
- Full-fledged main and remote units — results and diagnostics displayed on both units simultaneously
- Onboard assistant and diagnosis for elimination of reference errors and negative loss
- Built-in Encircled-Flux compliancy as per ANSI/TIA and ISO/IEC
- 100% automated fibre inspection: one-step process with pass/fail analysis at both ends
- Certifies to multiple industry standards simultaneously
- Onboard professional PDF reporting
- Optional Optical Return Loss measurement (MAX-945)
- Batch processing of results with FastReporter 2 software
- Best-in-class singlemode distance range of 160 km
- EXFO Connect-ready for cloud-based test asset management

Applications:
- Data centres
- Enterprise structured cabling

Specifications:
Wavelengths (MM): 850 nm / 1300 nm
Wavelengths (SM): 1310 nm / 1550 nm

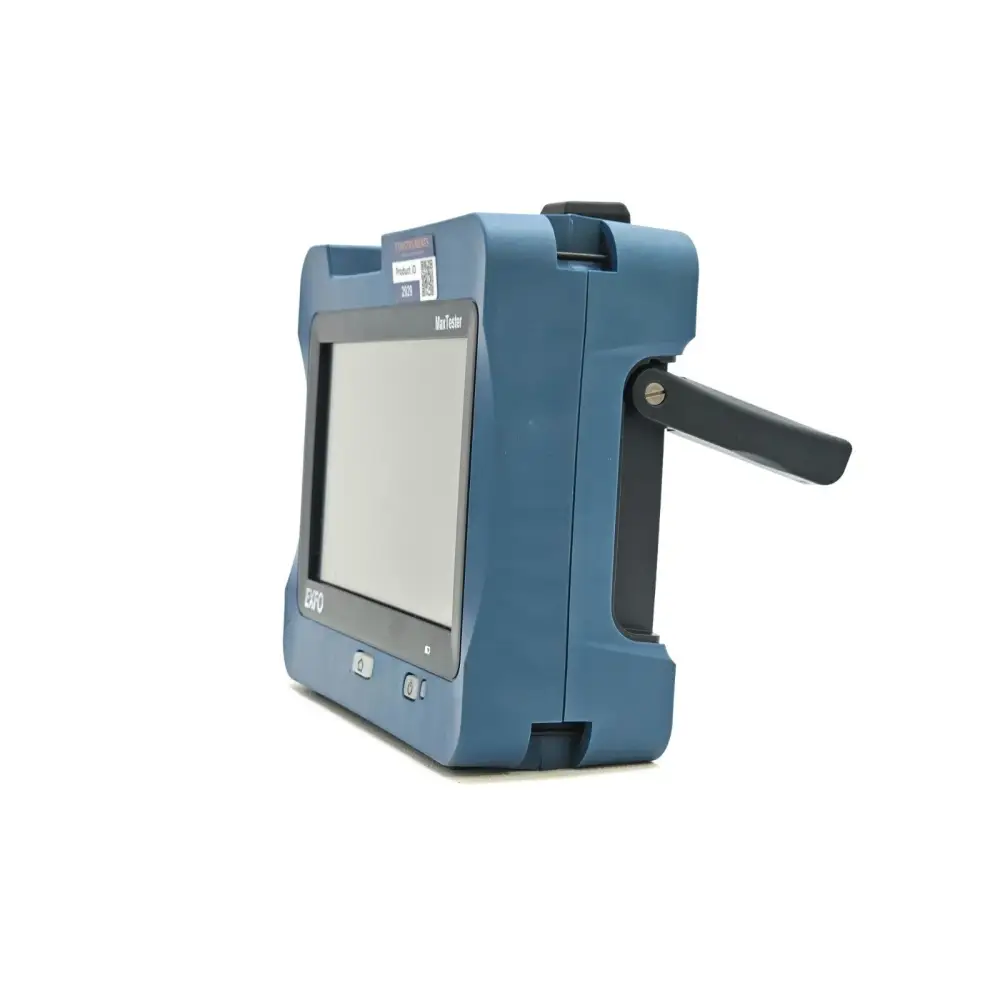

Display: 7-inch high-resolution touchscreen
Test Speed: 2.6 seconds for two fibres at two wavelengths
Singlemode Distance Range: Up to 160 km

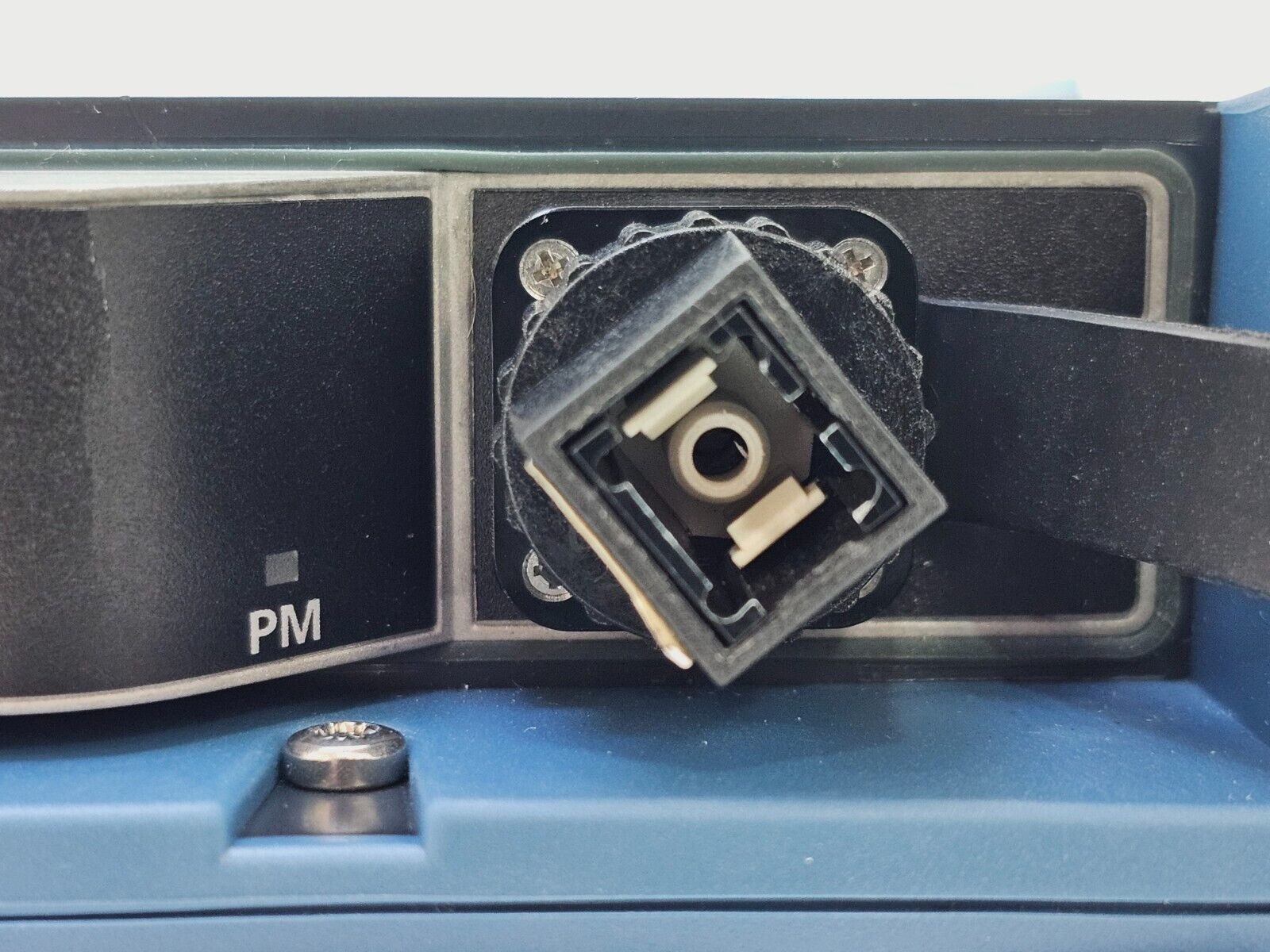

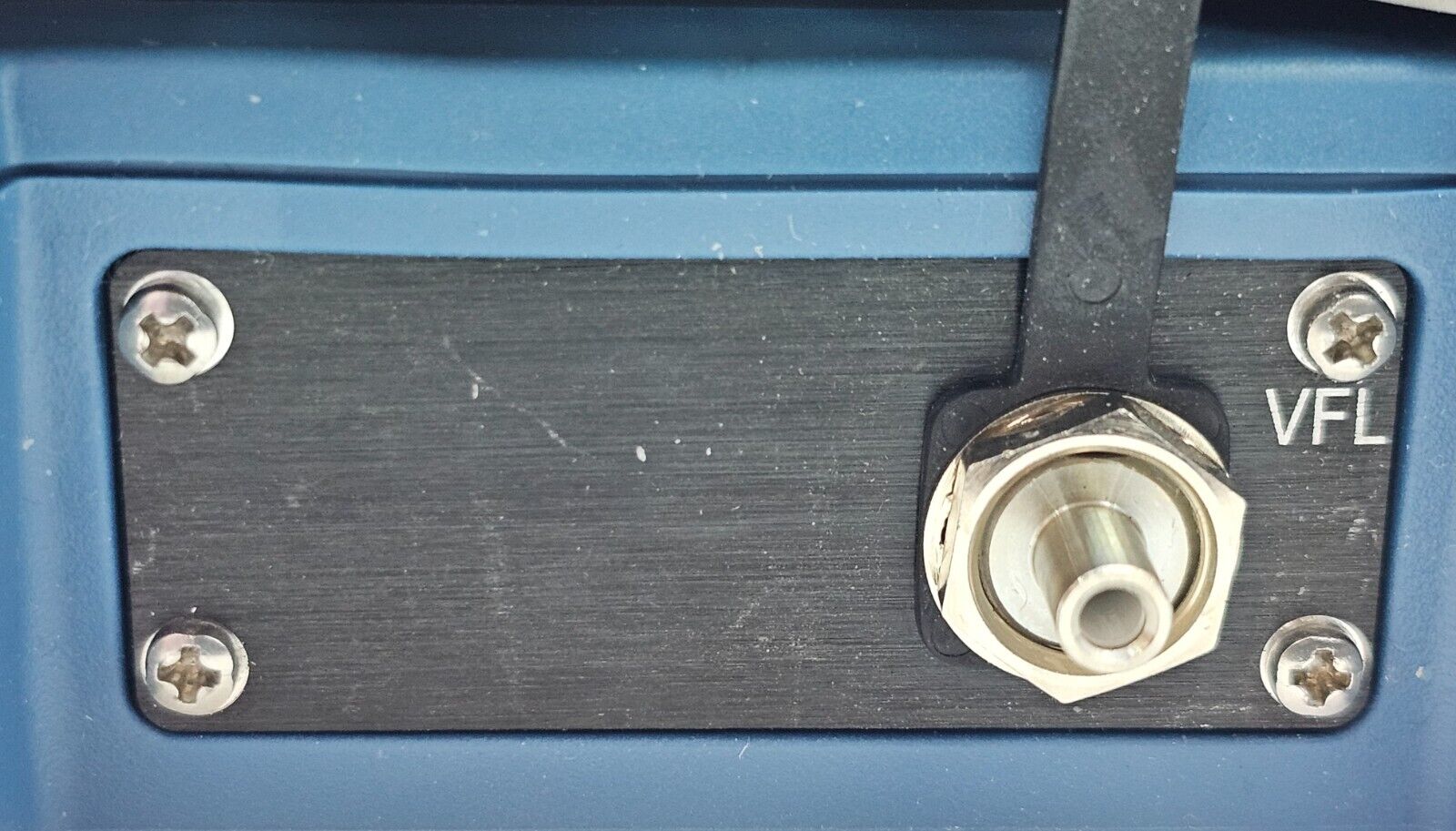

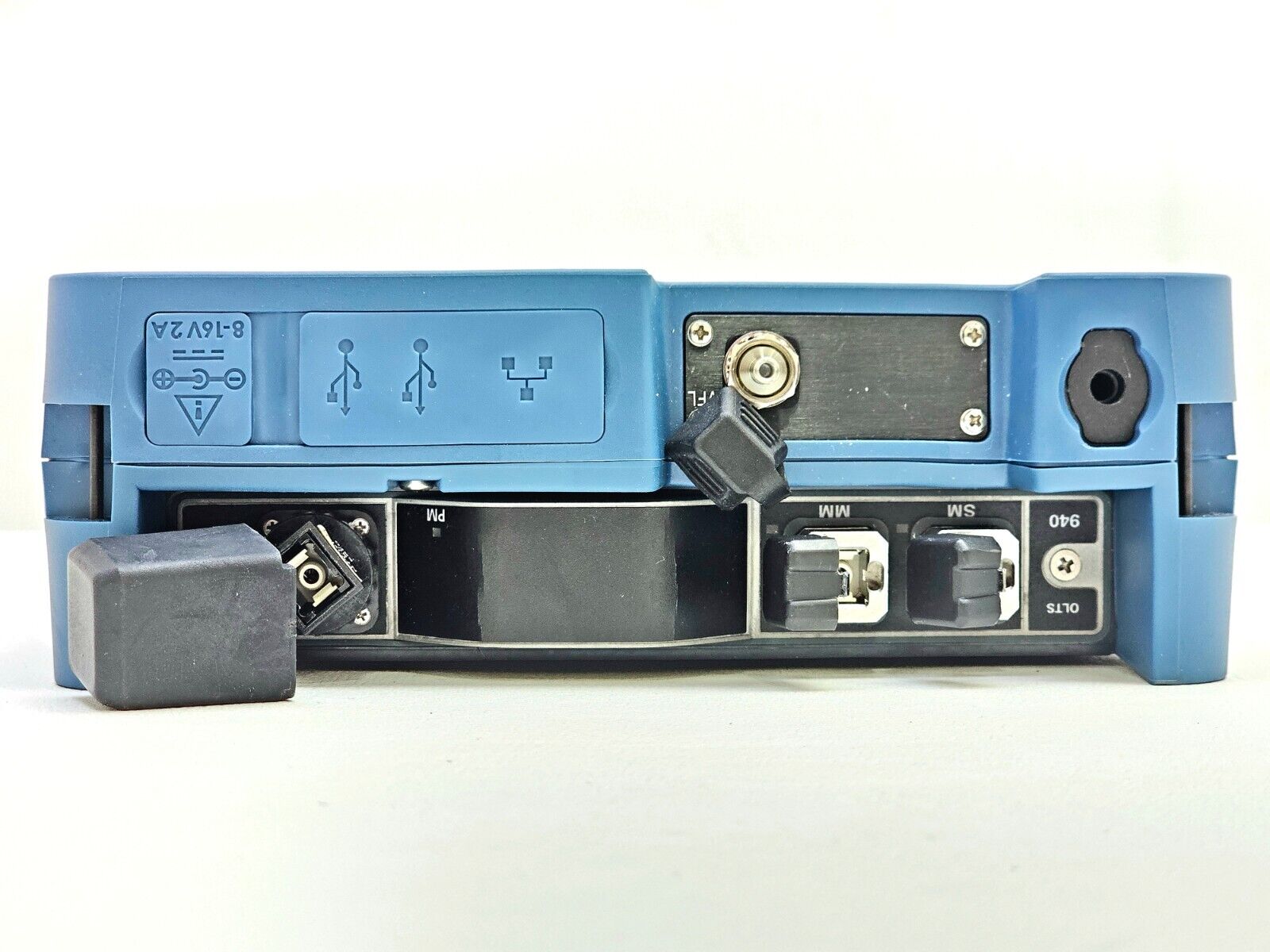

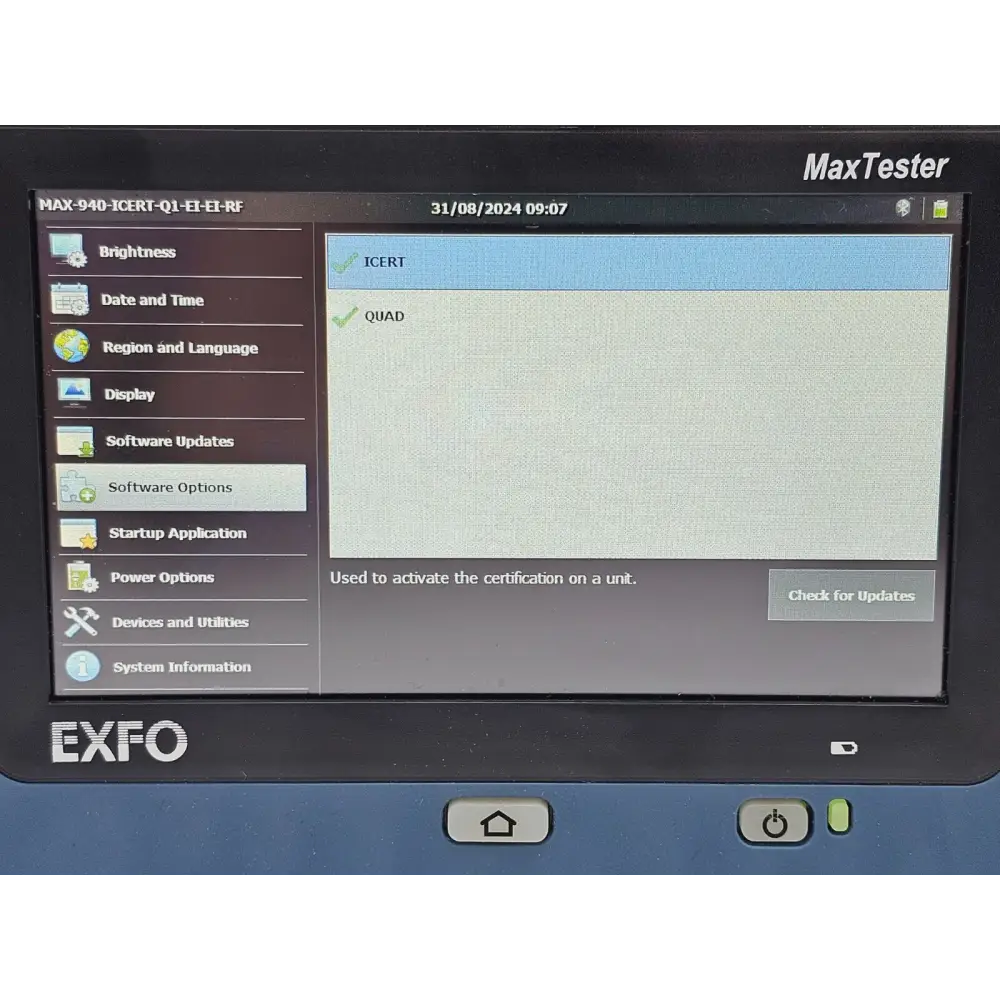

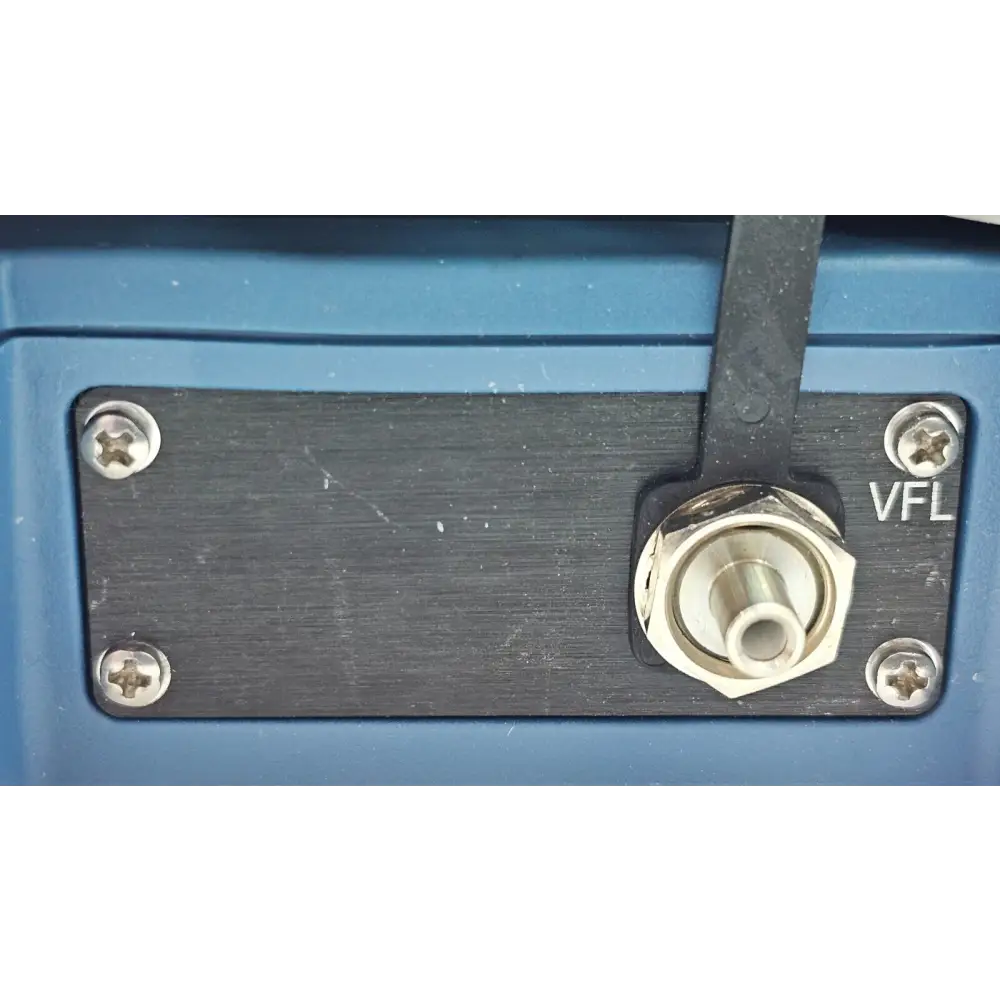

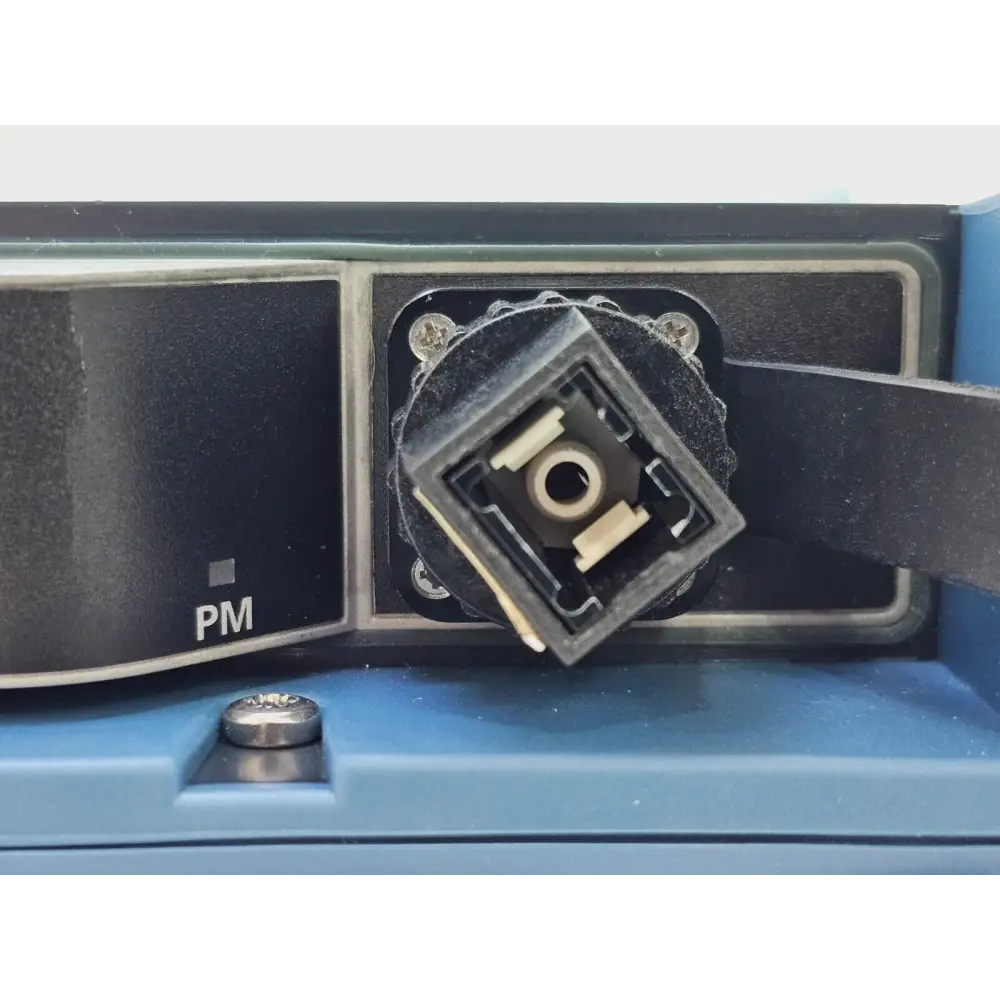

Built-in Features (ICERT QUAD): InGaAs Power Meter, Visual Fault Locator

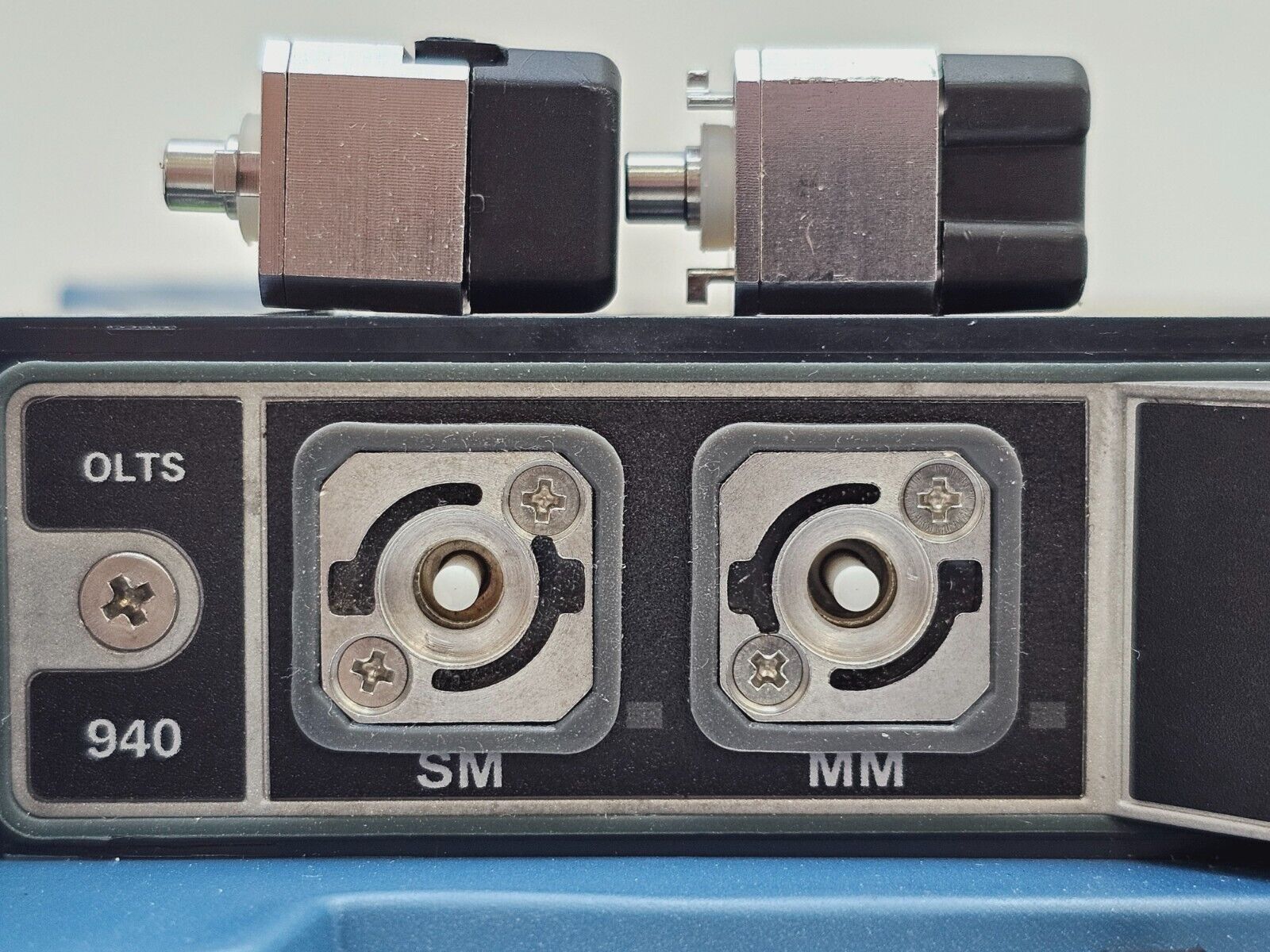

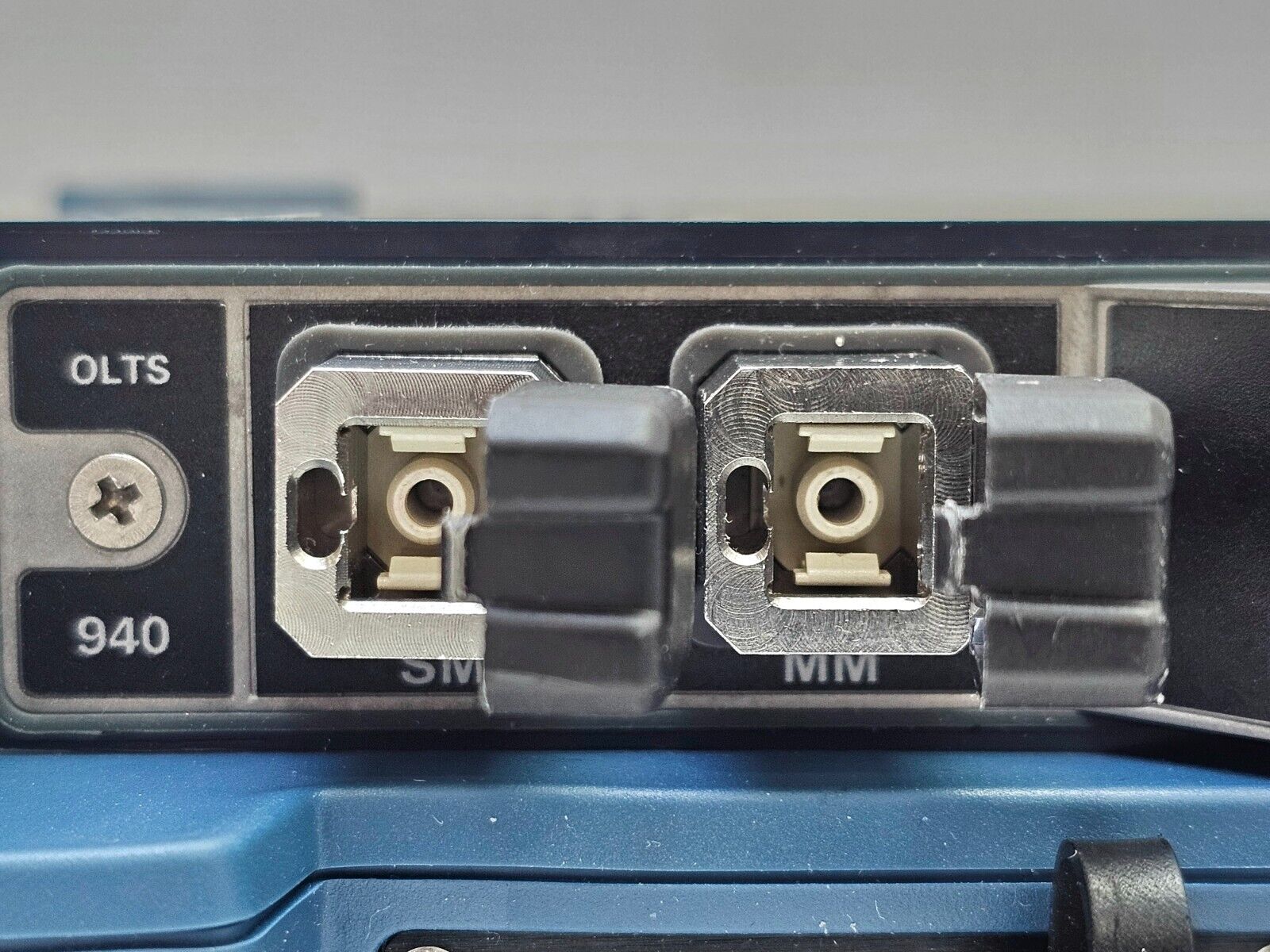

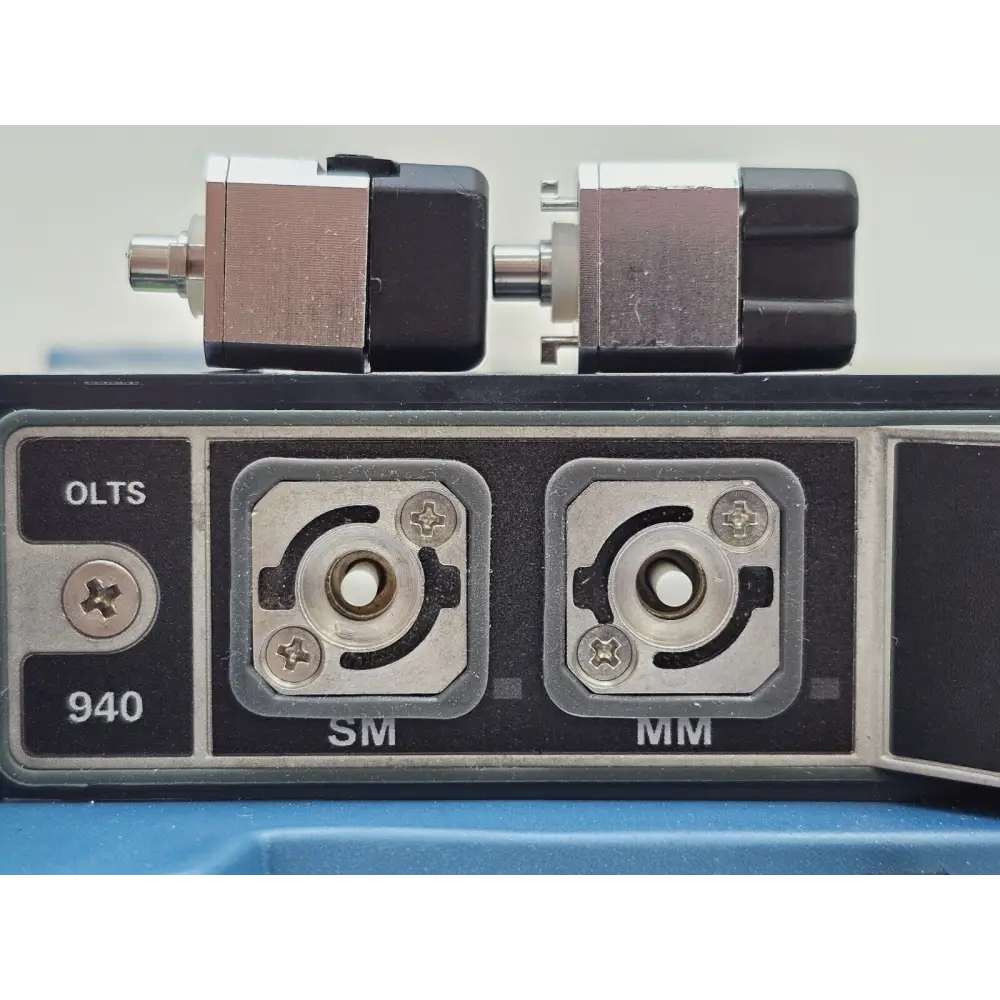

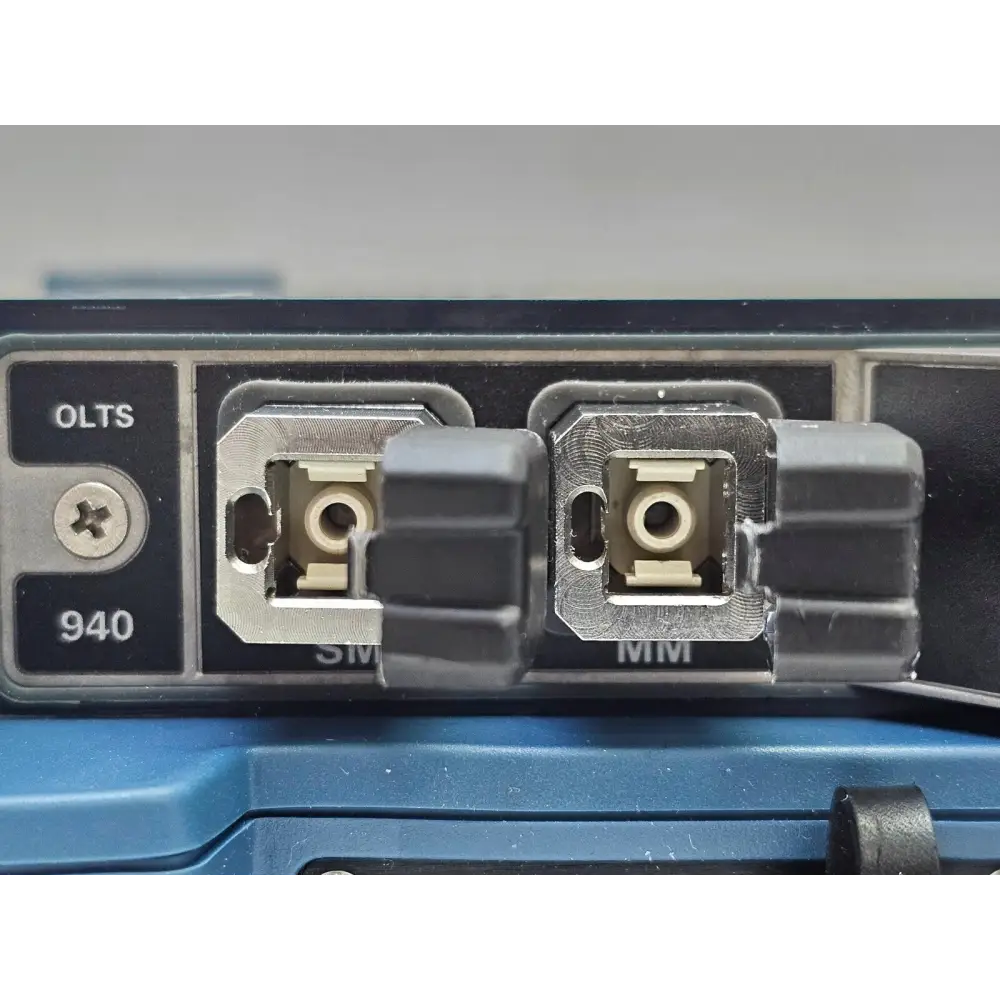

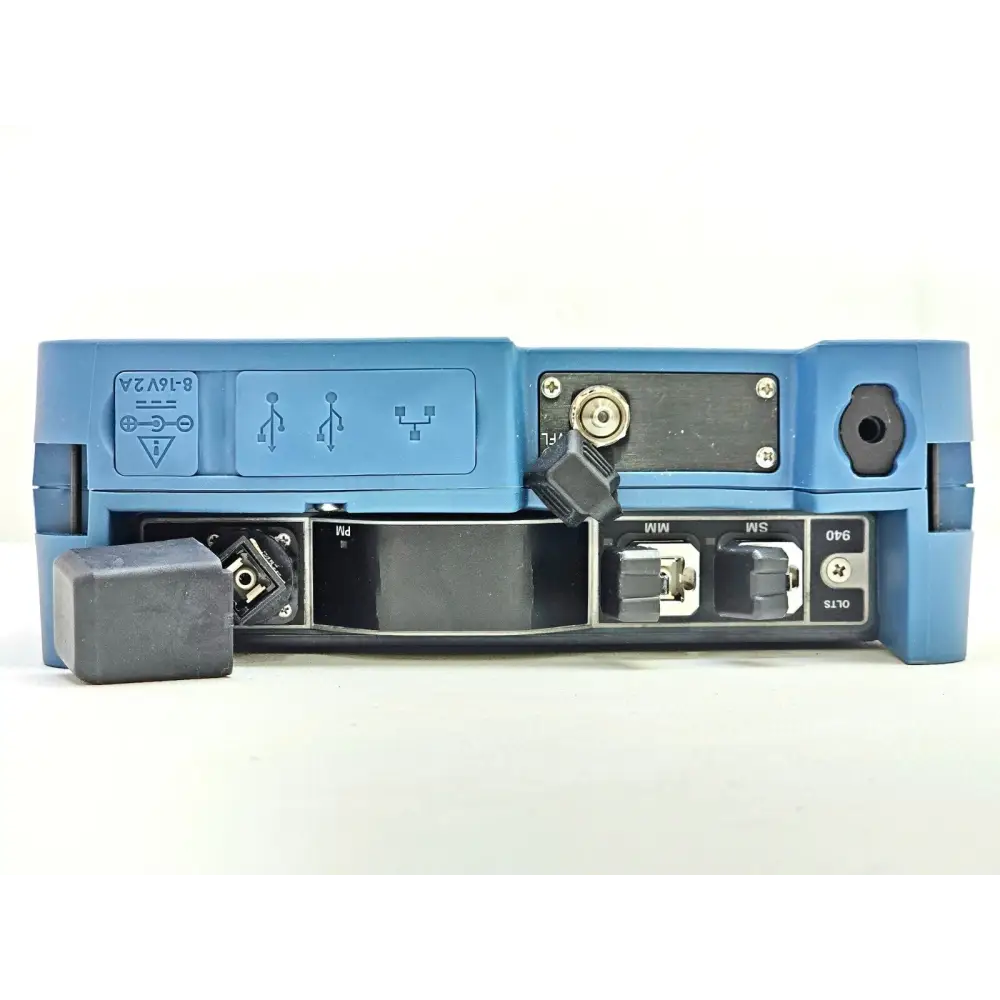

Connector Type: PC/SC
Compliance: ANSI/TIA, ISO/IEC, Encircled-Flux
Reporting: Onboard PDF, FastReporter 2 software compatible

EXFO MaxTester 940 Fiber Certifier official spec sheet (PDF): Download PDF
