Carestream DRX Revolution Mobile X-Ray System with DRX PLUS 3543C Detector 2016

For sale

• Fully functional - Please see the listing photos (tested in-house)
• Photos are of the actual item for sale

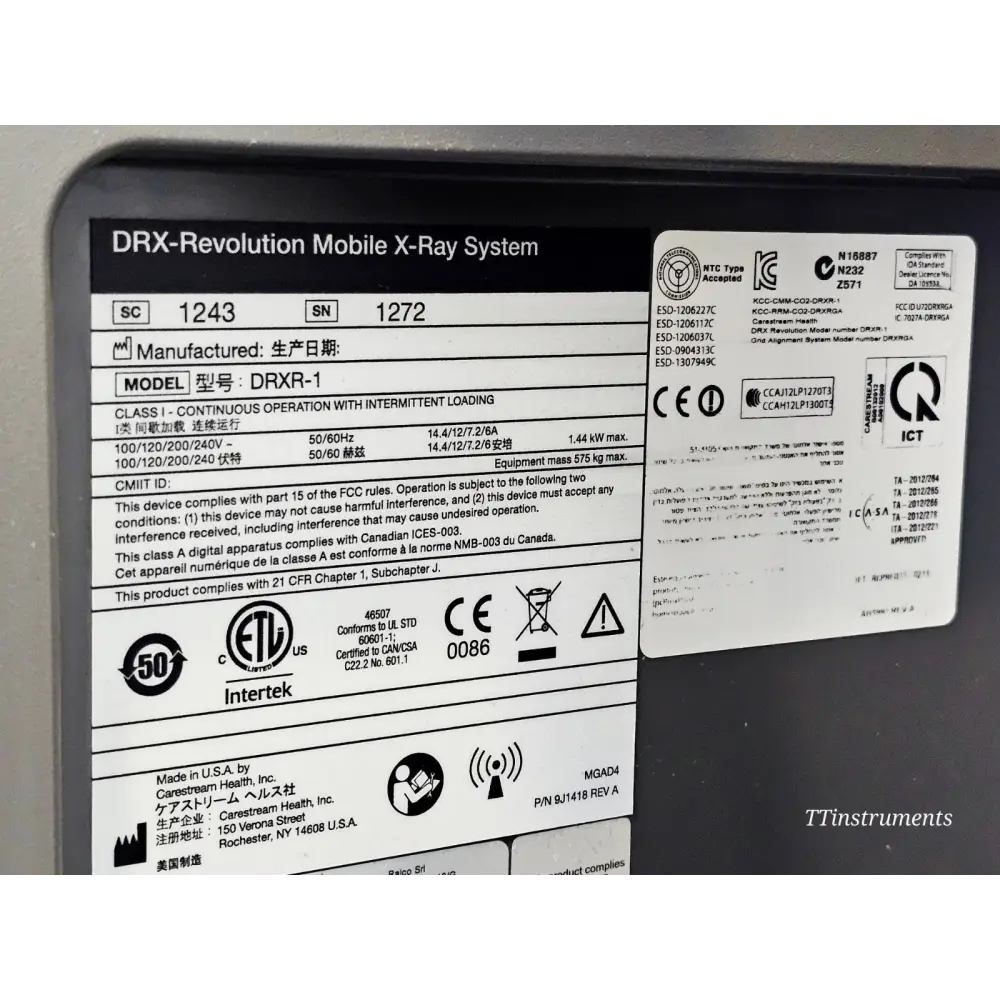

• Serial number recorded
• Warranty: [60 days]
• GUARANTEED BEST PRICE - We will match any "like for like" price online (except our own website!)

Known Issues

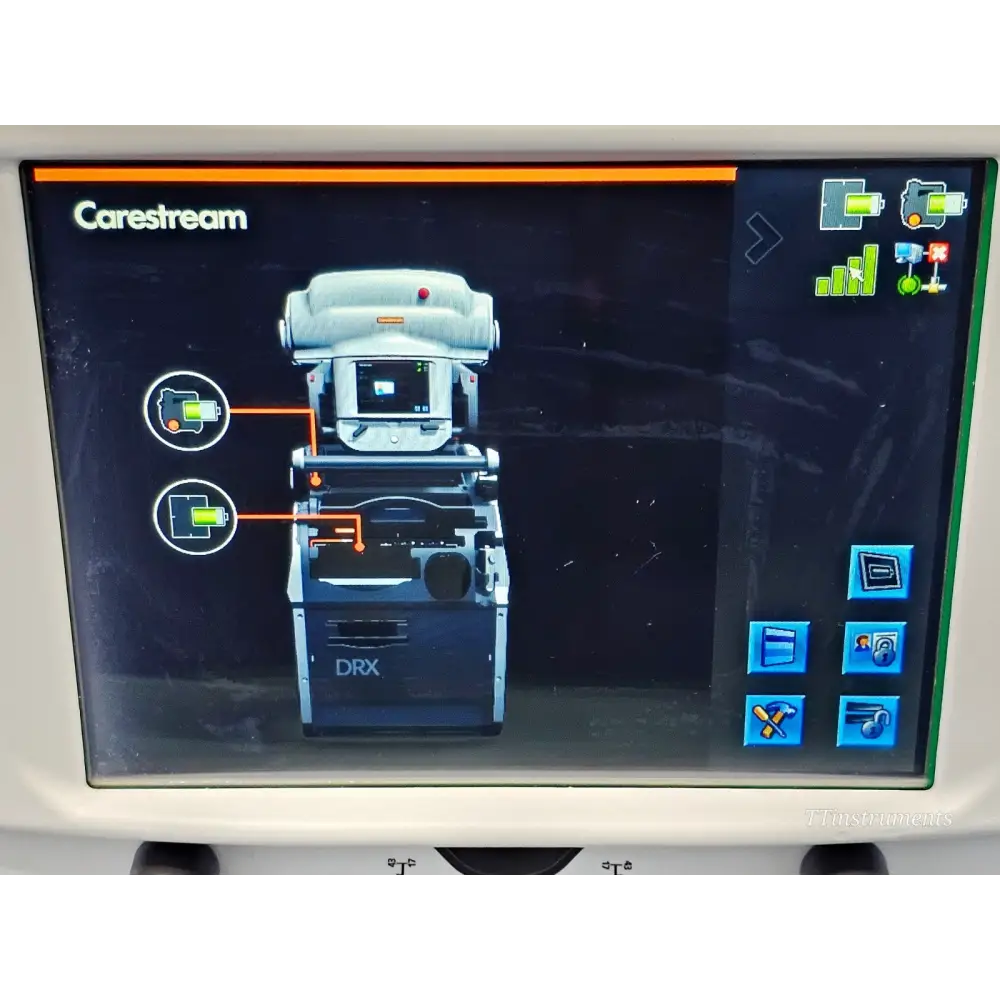

• The touchscreen for the head unit works but may need repair - the cursor intermittently snaps back to the centre of the screen

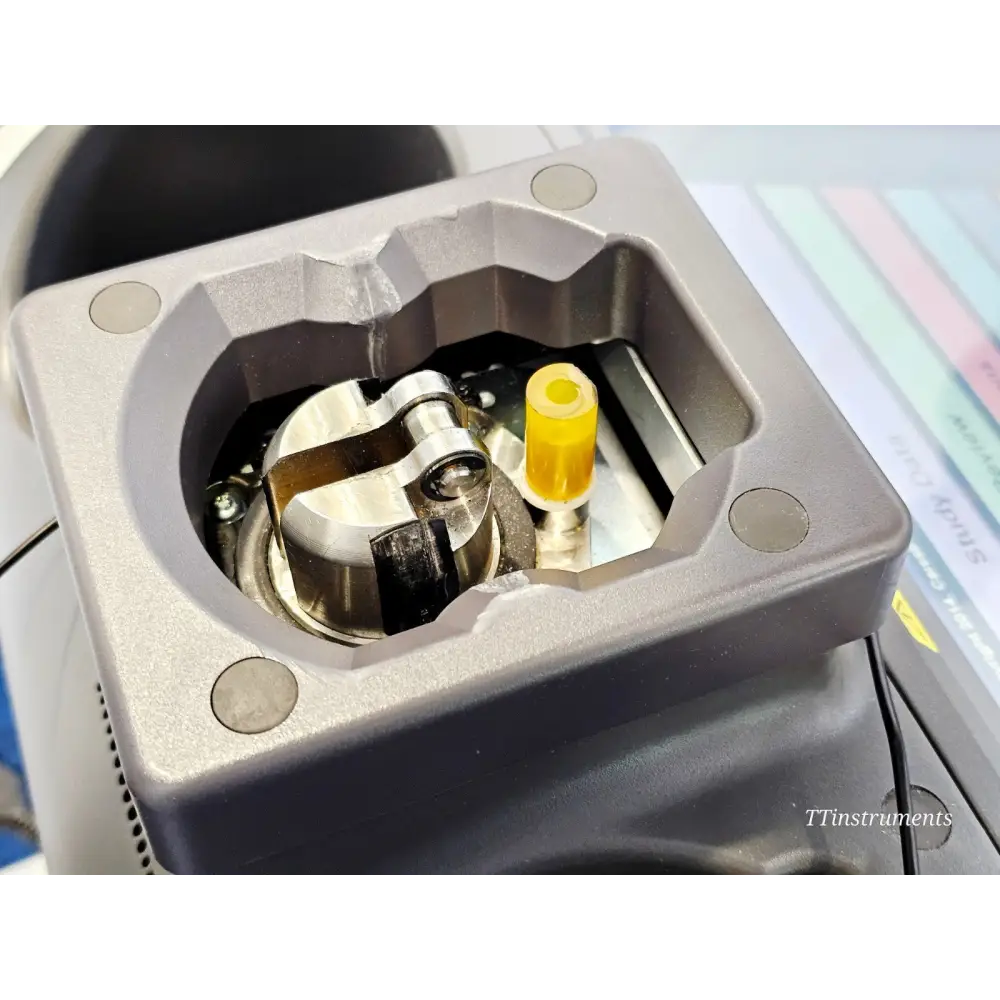

• There are a few cracks in the chassis, which are expected for a machine of this age.

What you will receive

Only the items listed here are included.

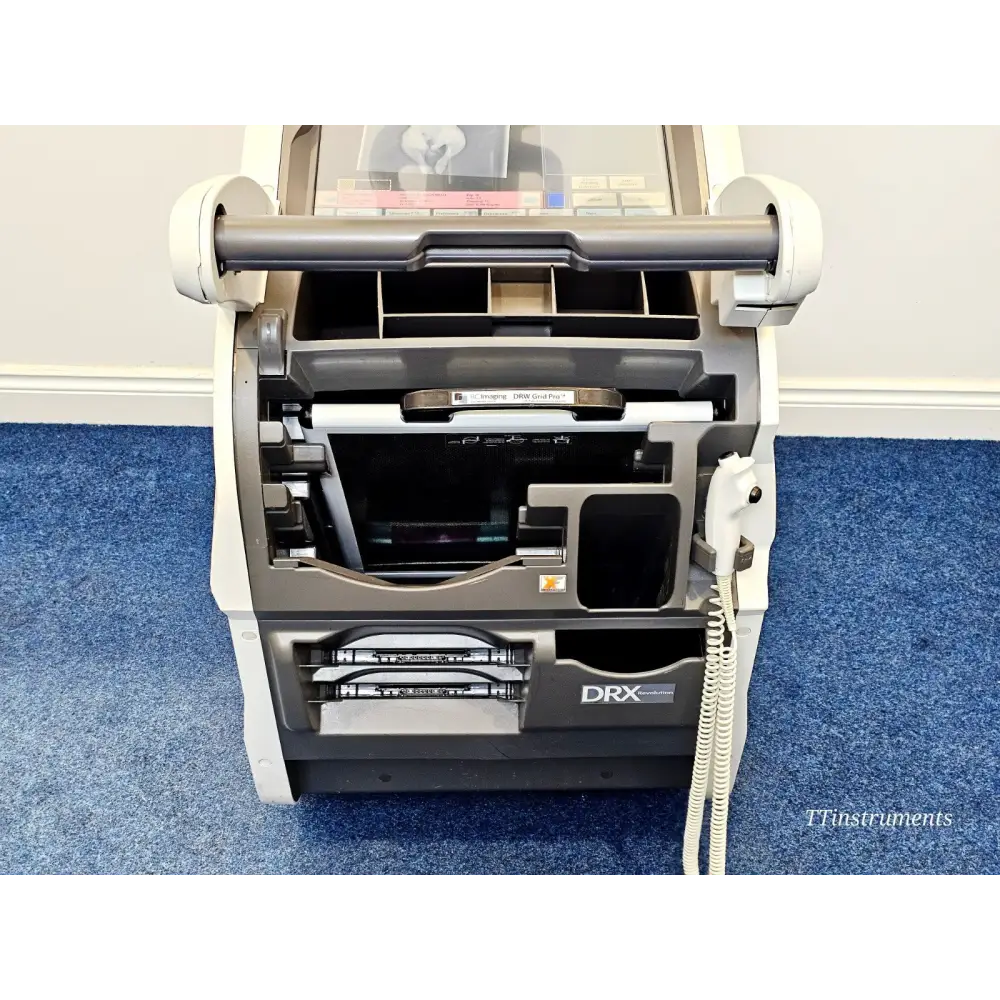

• Carestream DRXR-1 Mobile X-Ray Machine

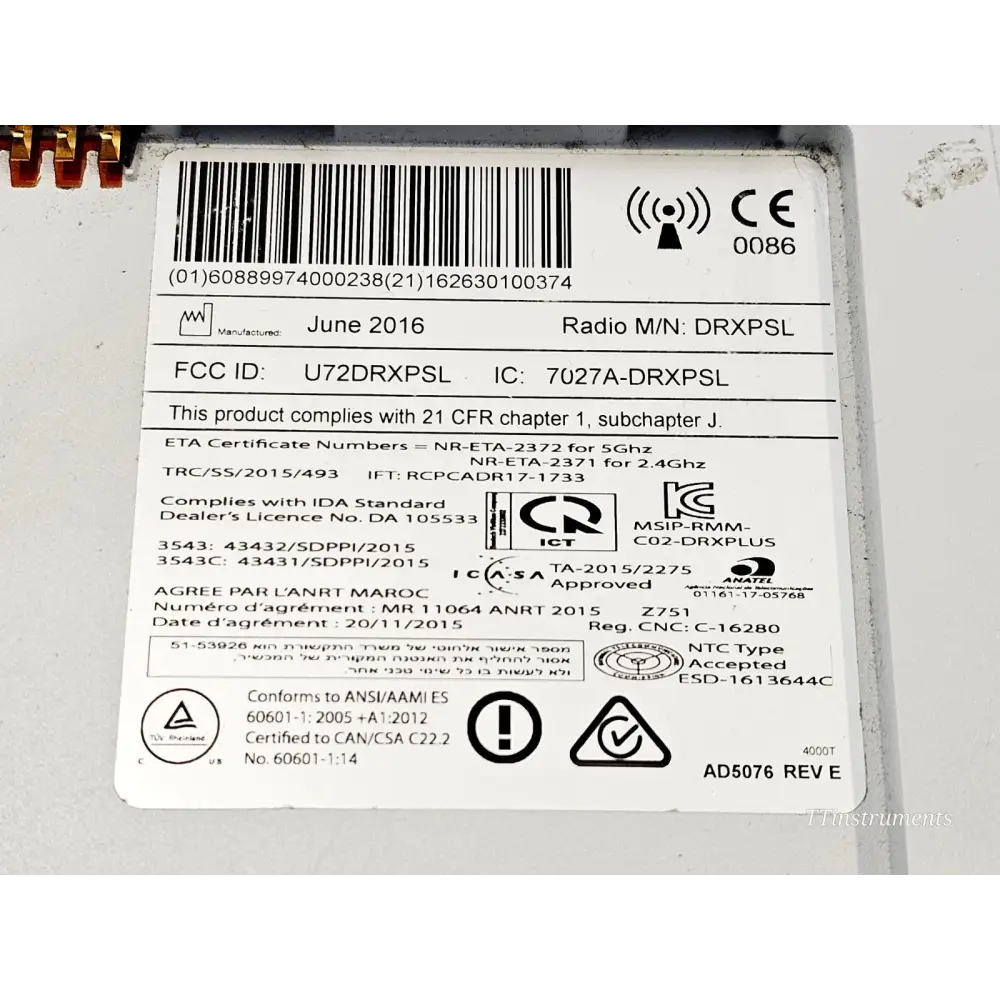

• DRX PLUS 3543C Detector - Refurbished

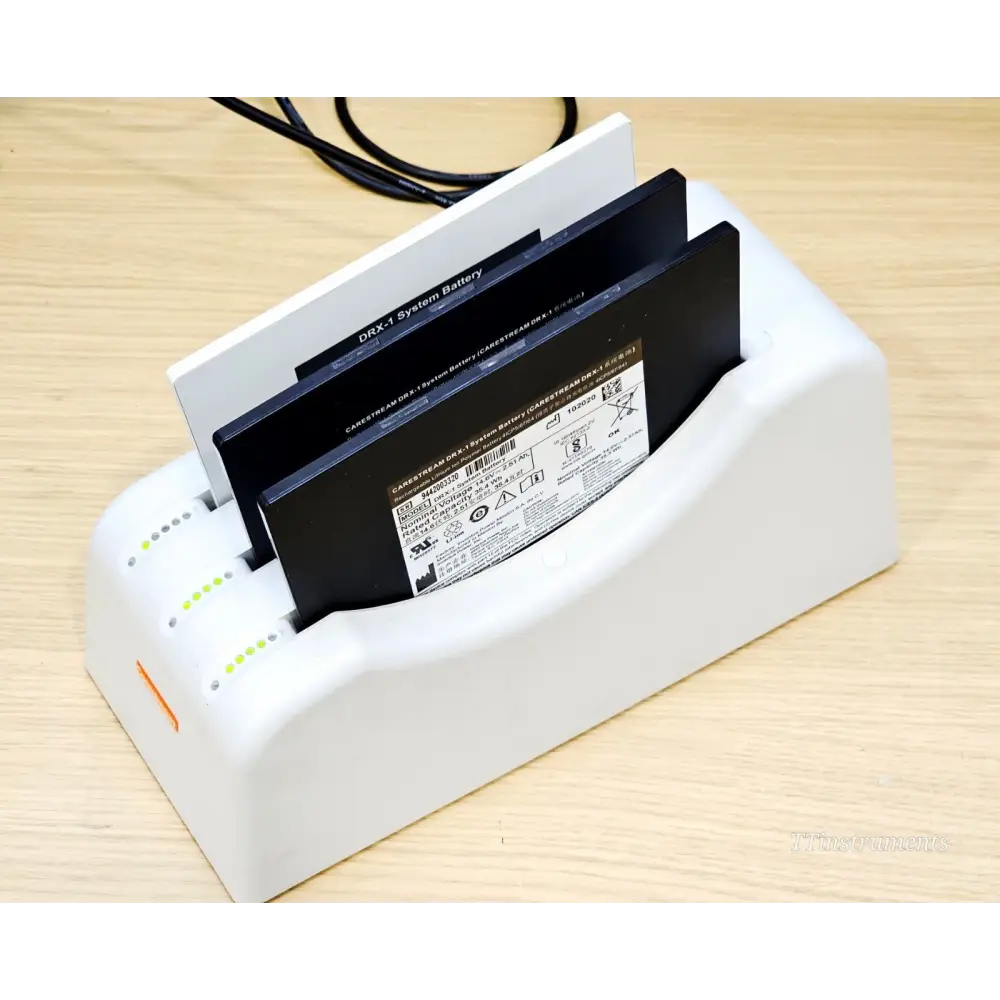

• 4x DRX-1 System Battery

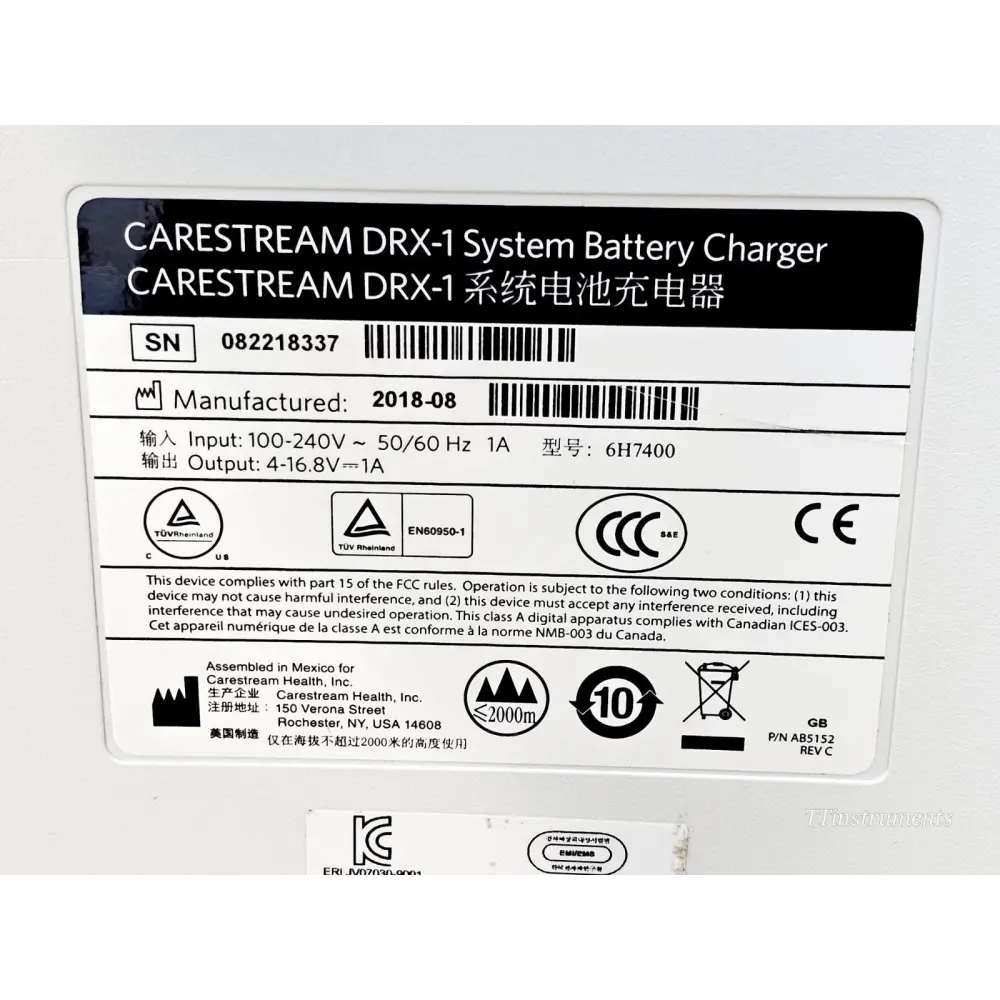

• DRX-1 Battery Charger
• Keyboard and Mouse

Testing performed in-house

• Power-on and system initialisation
• Verified communication with modules/accessories (where applicable)

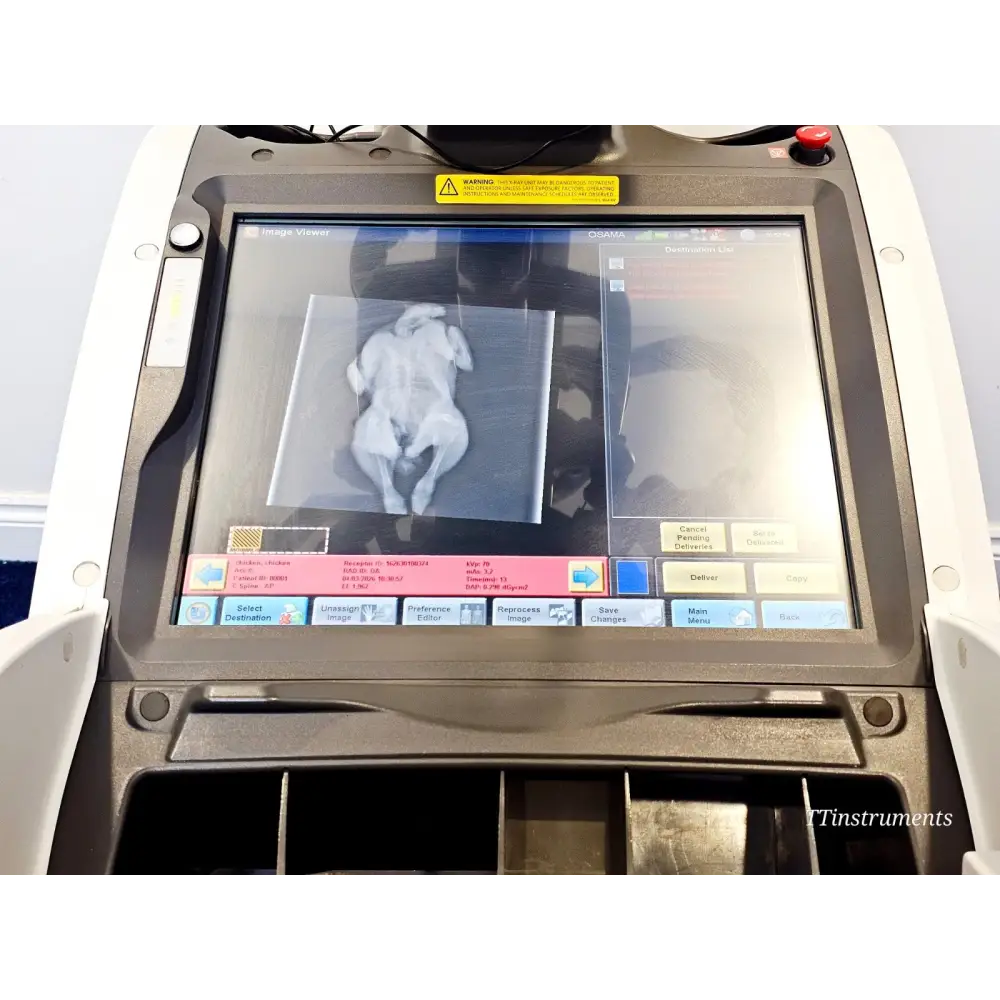

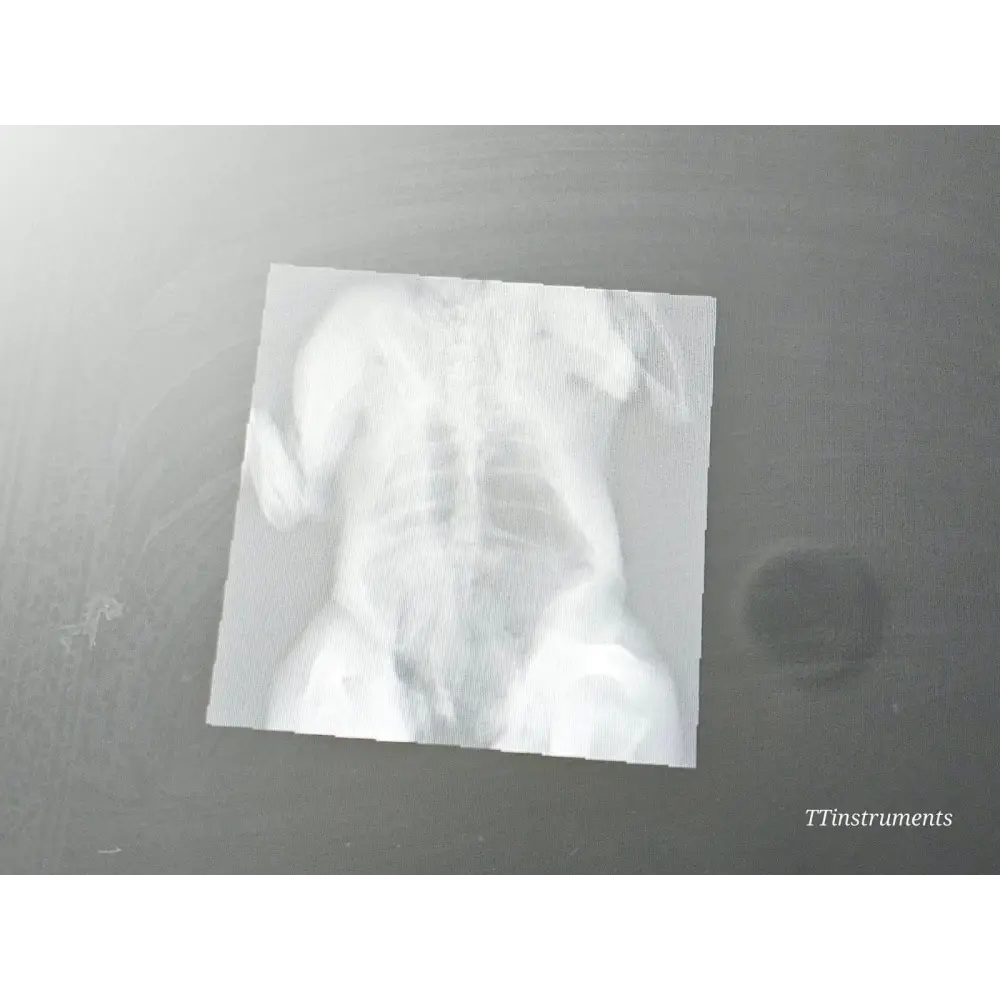

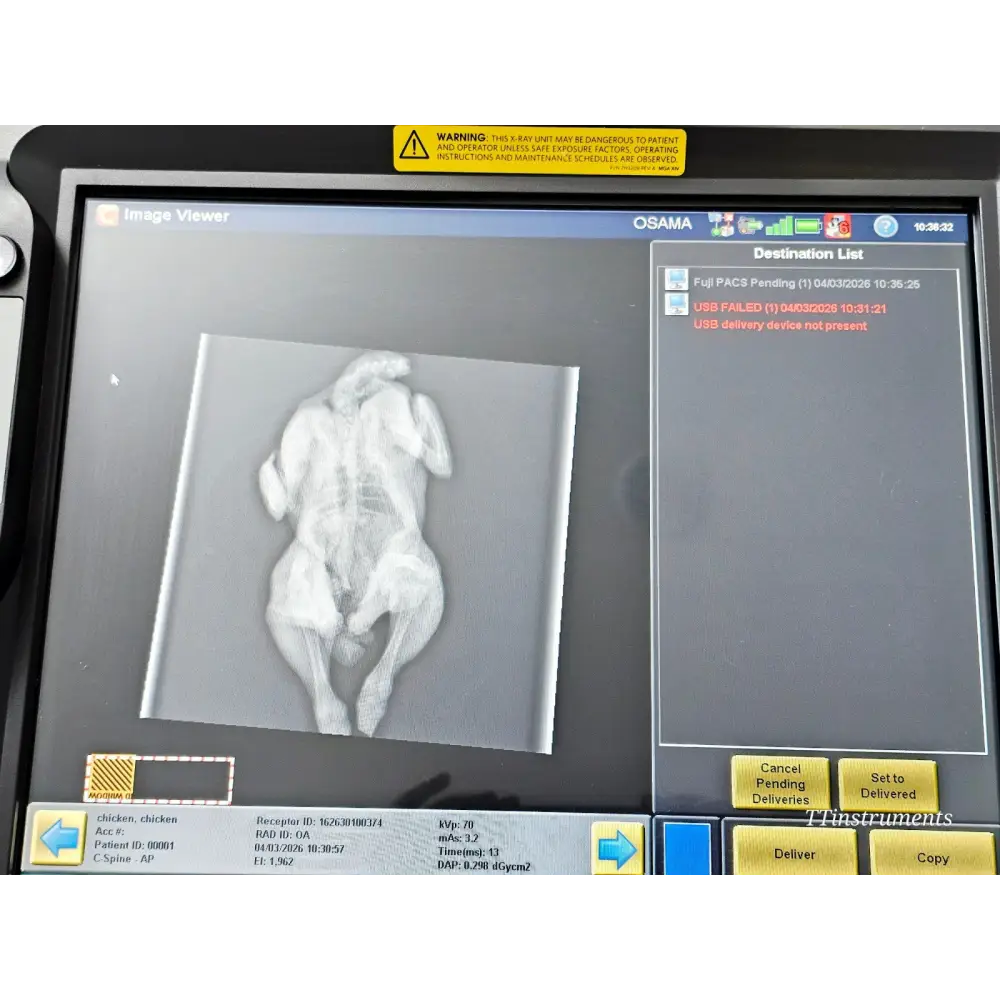

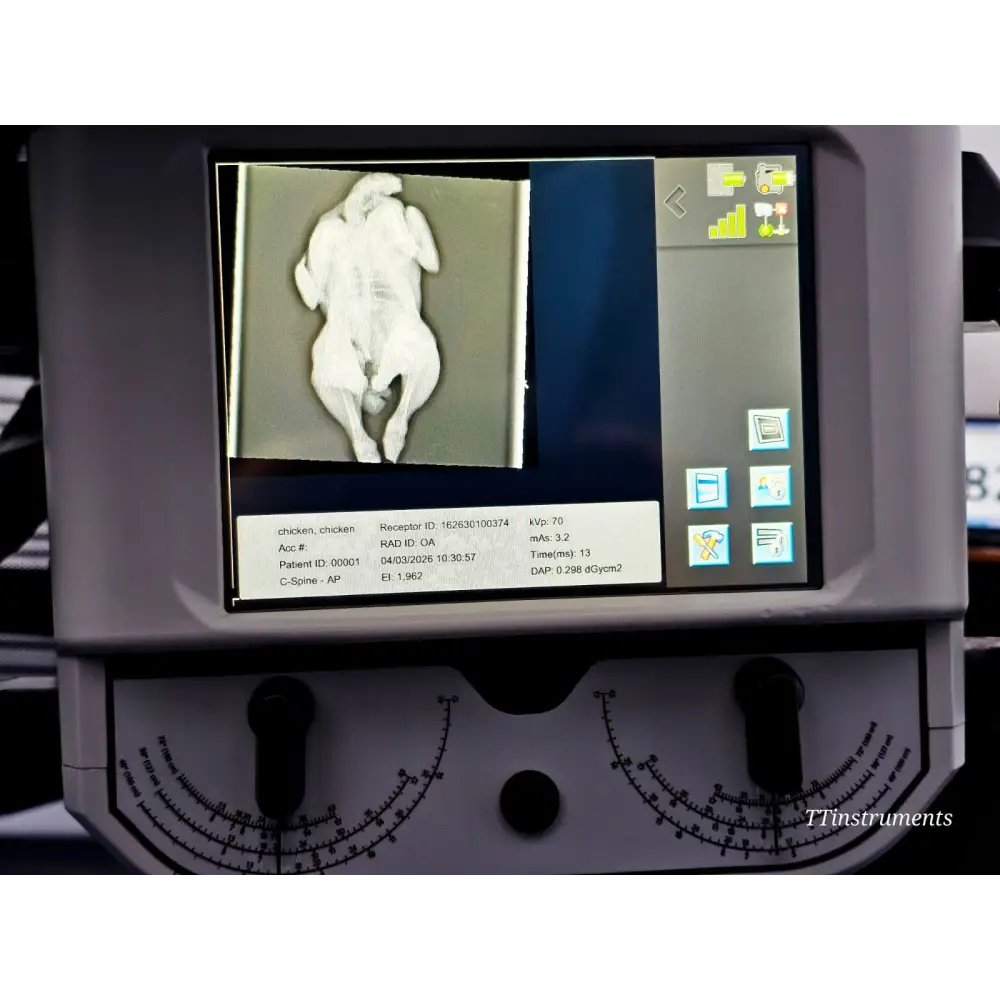

• Logged in as Radiologist and acquired an x-ray of a whole chicken (see listing images).
• Logged in as a Key Operator to set image destinations.
• Logged in as a Security Administrator to Add/Removed users.

Software and licensing

• No additional software / licences required

Service and calibration

• Can be requested from the manufacturer for an additional fee.

Packing and shipping

• Packaged to suit instrument value: On a pallet with custom crating. Secured as needed to prevent movement in transport.
• Dispatch: 2 working days
• Shipping: We handle unless you request otherwise

Warranty and returns

• DOA window: [30 days] (report promptly)
• Returns: serial must match and item returned in same condition
• Exclusions: misuse, consumables, compatibility, third-party licensing not purchased from us

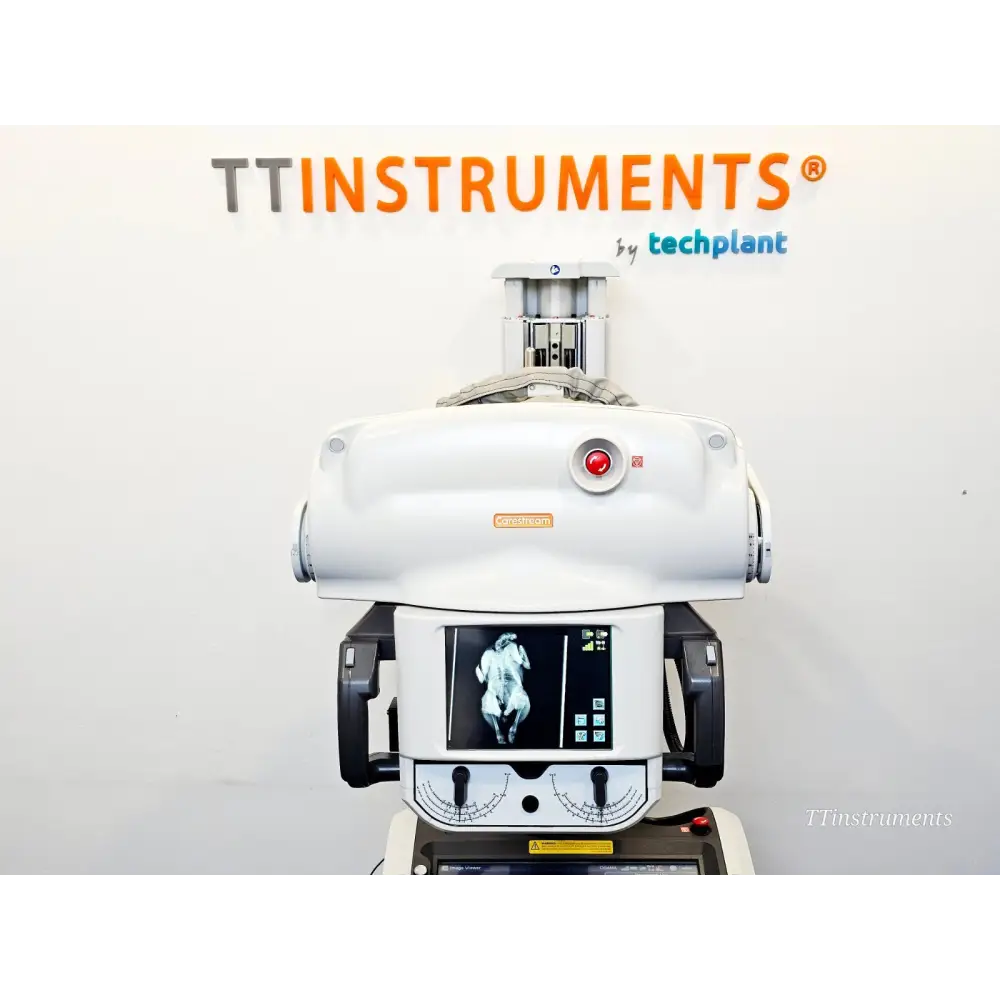

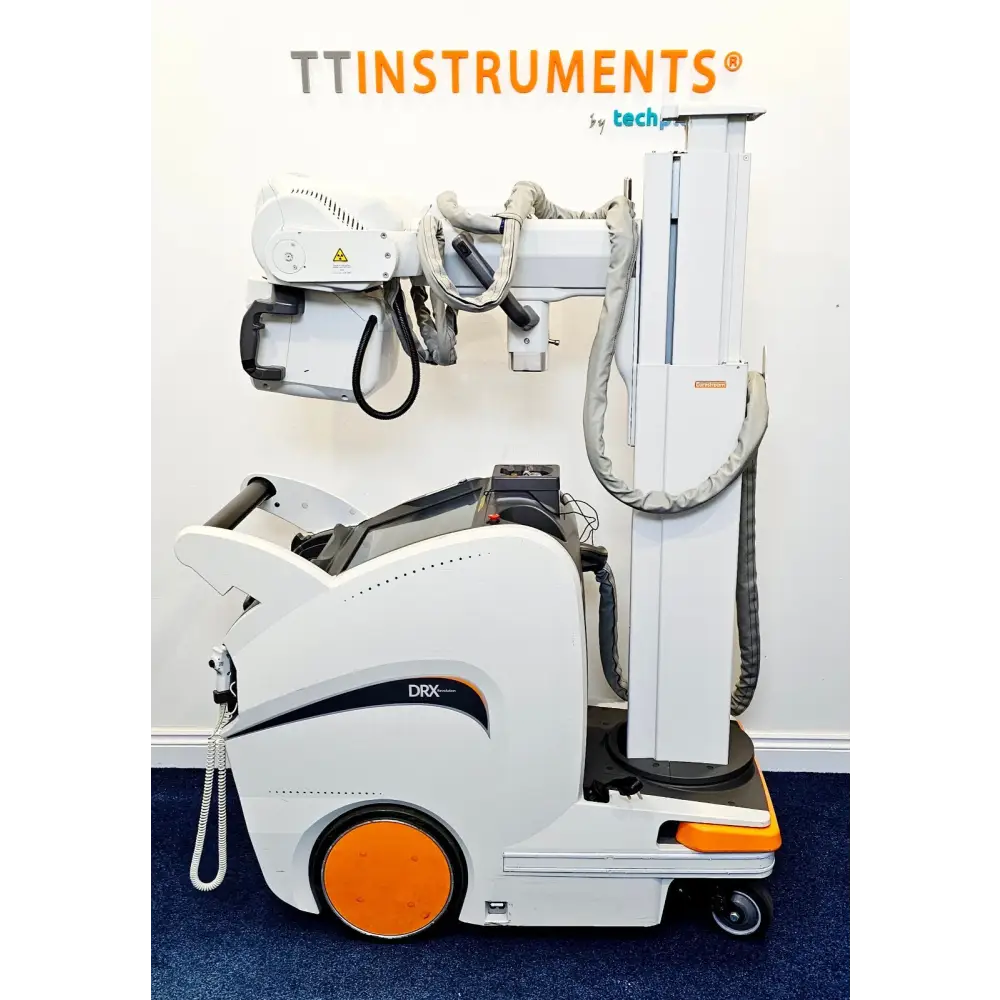

The CARESTREAM DRX-Revolution Mobile X-ray System is a fully integrated digital radiography platform designed to bring the capabilities of a fixed X-ray room directly to the patient — at the bedside, in the ICU, OR, or Emergency Department. It features the world's first fully automatic collapsible column, which shrinks the system height for clear operator visibility when navigating hallways and crowded clinical spaces. The dual motor drive enables effortless movement in forward and reverse, and the system can complete a 360-degree turn with one-handed steering.

Imaging is powered by a 32 kW high-frequency generator with a dual focal spot X-ray tube and EVP Plus image processing to deliver high-quality diagnostic images with fewer retakes. Two touchscreen displays — one at the main console and one at the tube head — create dual work zones that replicate a stationary DR room environment. The system is built around Carestream's X-Factor wireless detector platform, allowing the DRX Plus detector to be shared seamlessly across all DRX family systems.

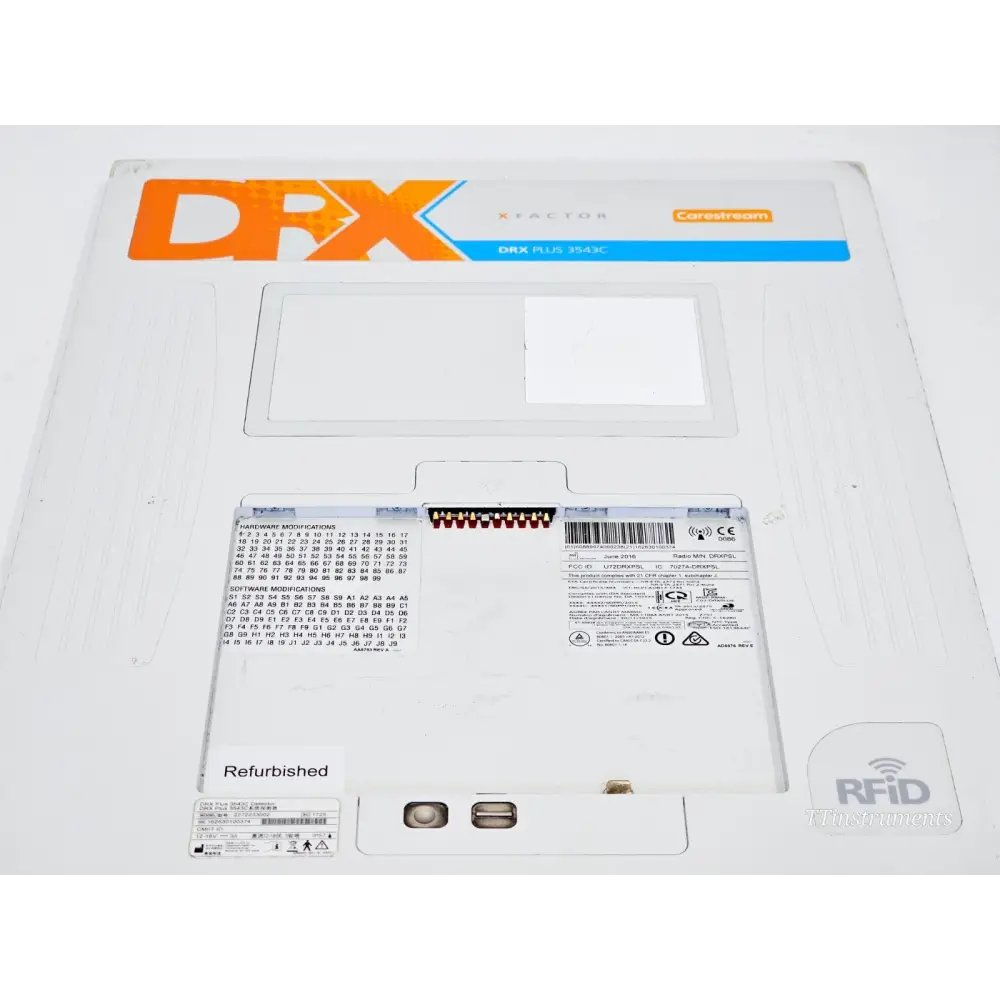

The DRX Plus 3543C detector is Carestream's third-generation wireless cassette-sized detector, featuring a deposited caesium iodide (CsI) scintillator optimised for paediatric and dose-sensitive applications. It offers higher DQE for improved image quality at lower dose, an IP57-rated enclosure for protection against dust and liquid ingress, and hot-swap battery capability for uninterrupted workflow.

System Specifications (DRX-Revolution):

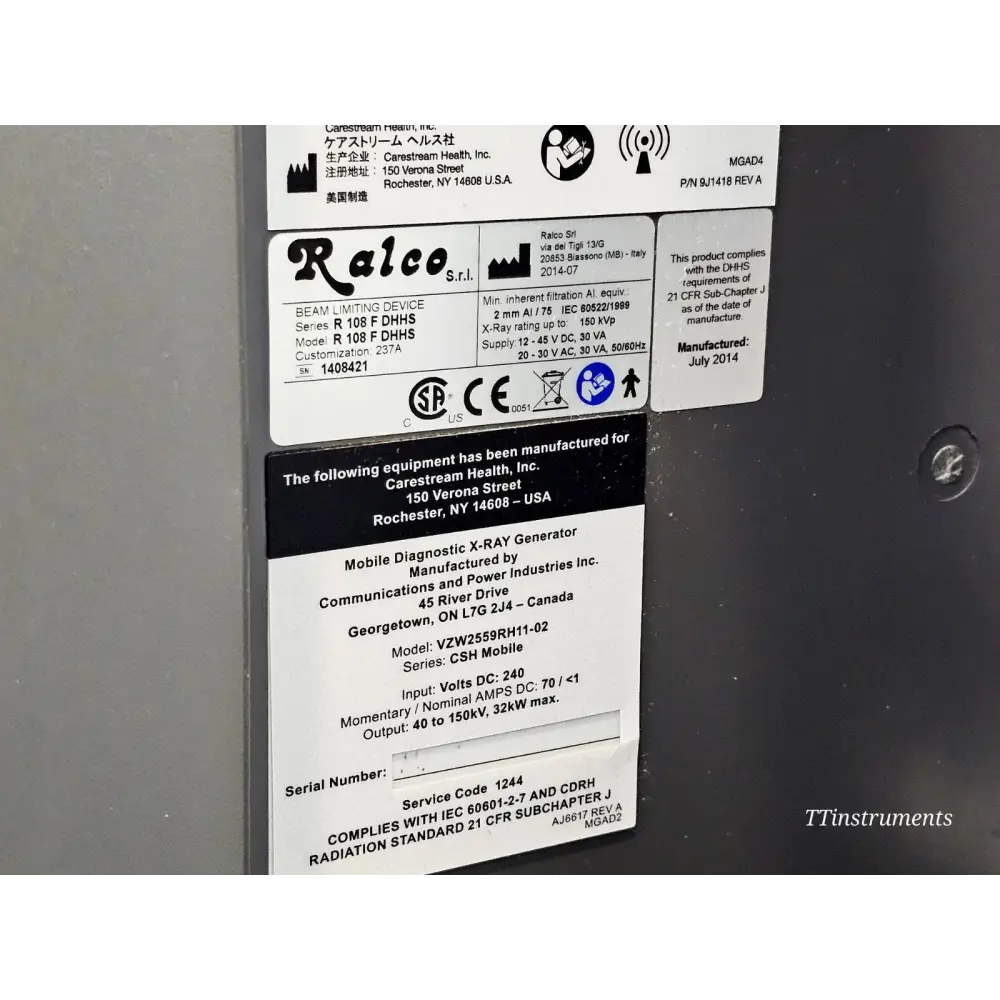

Generator Maximum Power Output: 32 kW
kVp Range: 40–150 kV
mA Range: 100–400 mA
mAs Range: 0.1–320.0 mAs
Tube Type: Dual focal spot
Image Processing: EVP Plus
Primary Display: Touch screen (main console)

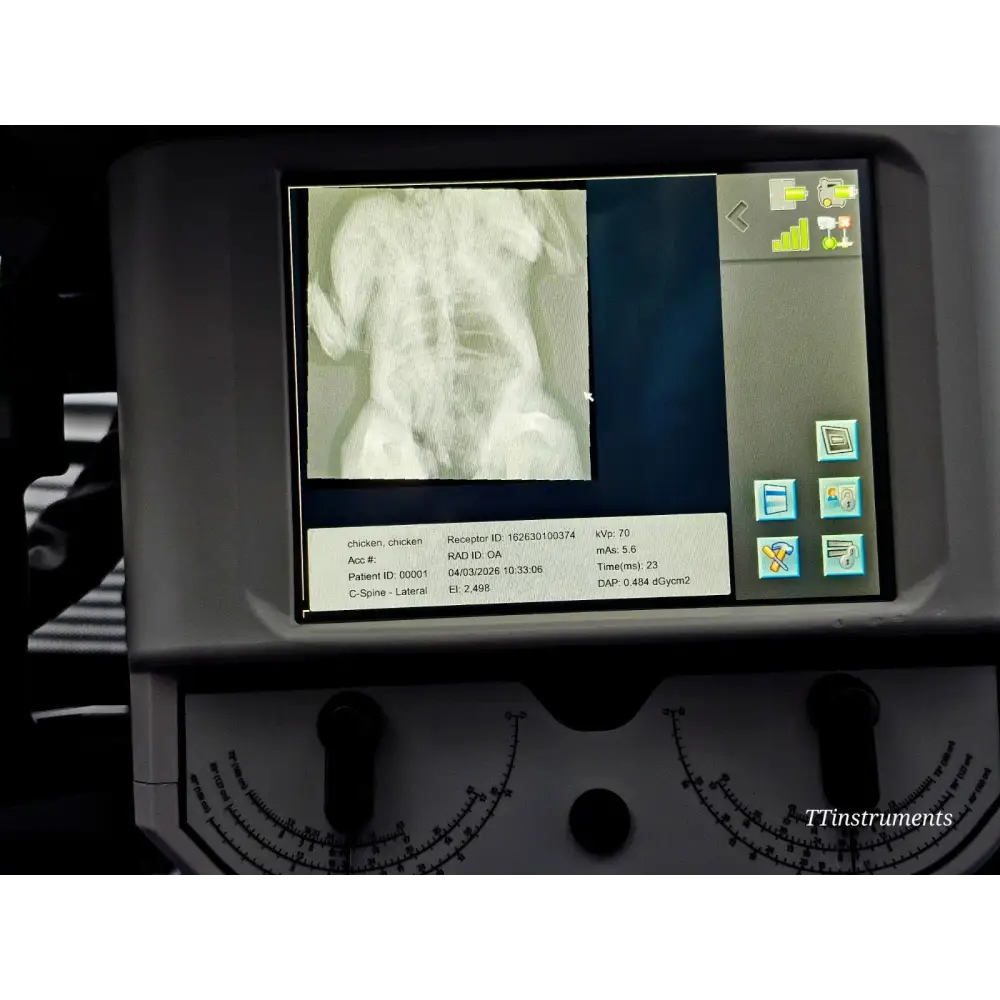

Secondary Display: Touch screen (tube head)
Maximum SID to Floor: 202.2 cm (79.6 in)
Minimum SID to Floor: 68.3 cm (26.9 in)
Tube Arm Reach: 135.1 cm (53.2 in)
Drive System: Dual motor drive

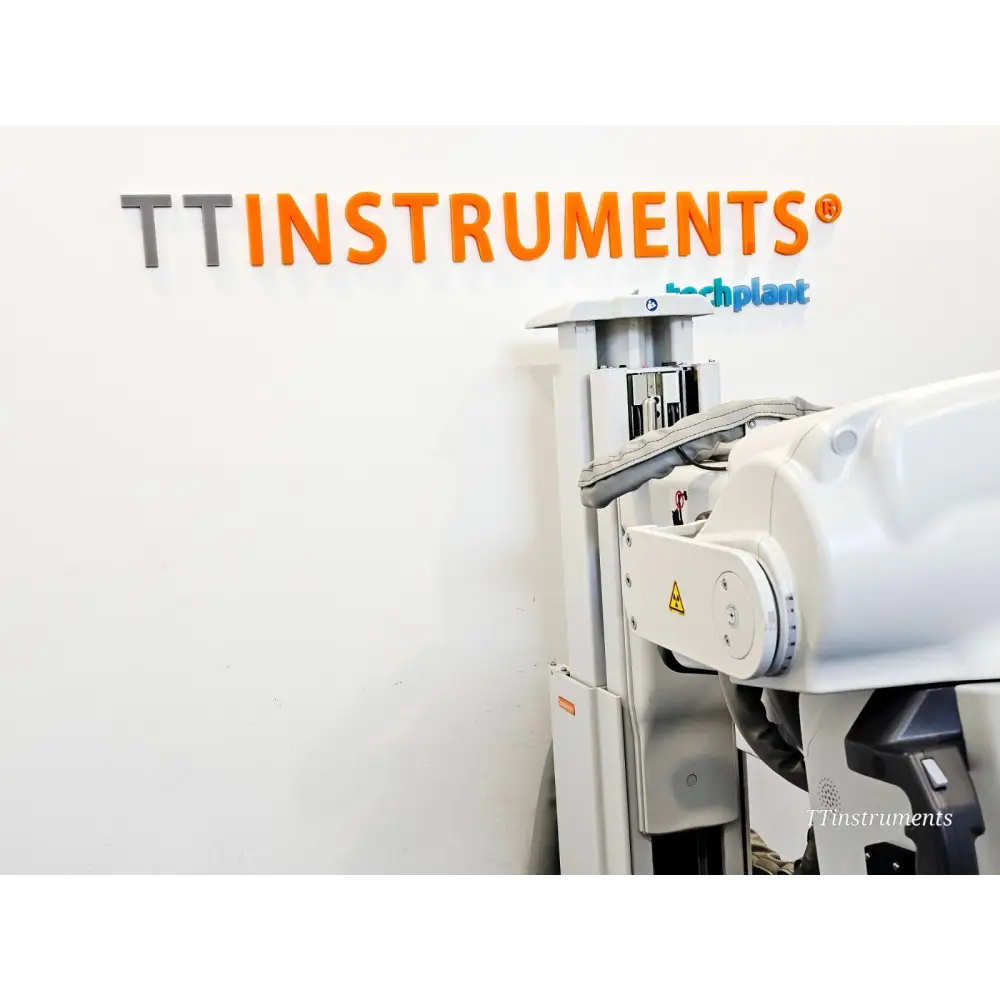

Column: Automatic collapsible
Sound Pressure Level: Less than 70 dB

DRX Plus 3543C Detector Specifications:
Detector Type: Amorphous silicon on glass — no tiling
Conversion Screen: Deposited CsI(TI)
Pixel Size: 139 x 139 µm
Resolution Limit: 3.6 cyc/mm
Usable Pixel Area: 35.0 x 42.3 cm (2520 x 3032 pixels)
Ingress Protection: IP57 (IEC 60529)
Connectivity: Wireless
Application: General radiography and dose-sensitive/paediatric imaging
Battery: Hot-swap capable lithium battery
