Condition: New

16 factory-sealed Sandvik Coromant CCMT 060204-UM 1115 carbide turning inserts from the CoroTurn® 107 series. Two packs visible — one dark-tray pack (10 inserts) and one yellow-tray pack (6 inserts), totalling 16 inserts. Part number 7510672356. Made in Japan. ISO material classifications P, M, K, N, S, H shown on the label.

Included in the sale:
• 16 × Sandvik Coromant CCMT 060204-UM 1115 carbide turning inserts (as pictured)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Sandvik Coromant CCMT 060204-UM 1115 — CoroTurn® 107 Insert for Turning

The Sandvik Coromant CCMT 060204-UM 1115 is part of the CoroTurn® 107 system, optimised for internal and external turning of small and slender components. The sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, delivering an exceptional surface finish. The screw-clamp design ensures stability and unobstructed chip flow during turning.

Grade GC1115 combines the toughness and heat resistance of fine-grain cemented carbide with the wear resistance of a PVD TiAlN coating. This allows the grade to maintain sharp edges over a longer period in cut, while optimised micro-geometries ensure high component precision at low cutting forces. GC1115 is designed for finishing to medium machining in stainless steel, and medium to roughing in heat-resistant super alloys and titanium.

Insert Specifications:
ISO Code: CCMT 06 02 04-UM
ANSI Code: CCMT 2(1.5)1-UM
Series: CoroTurn® 107
Insert Shape: 80° Rhombic (Diamond)
Included Angle: 80°
Relief Angle: 7°
Chipbreaker: UM (Universal Medium)
Grade: GC1115
Coating: PVD TiAlN
Corner Radius: 0.4 mm (0.0156 in)
Inscribed Circle Diameter: 6.35 mm (0.250 in)
Cutting Direction: Neutral (Left/Right Hand)
Number of Cutting Edges: 2
Insert Seat Size Code: 06
Made in: Japan
Part Number: 7510672356

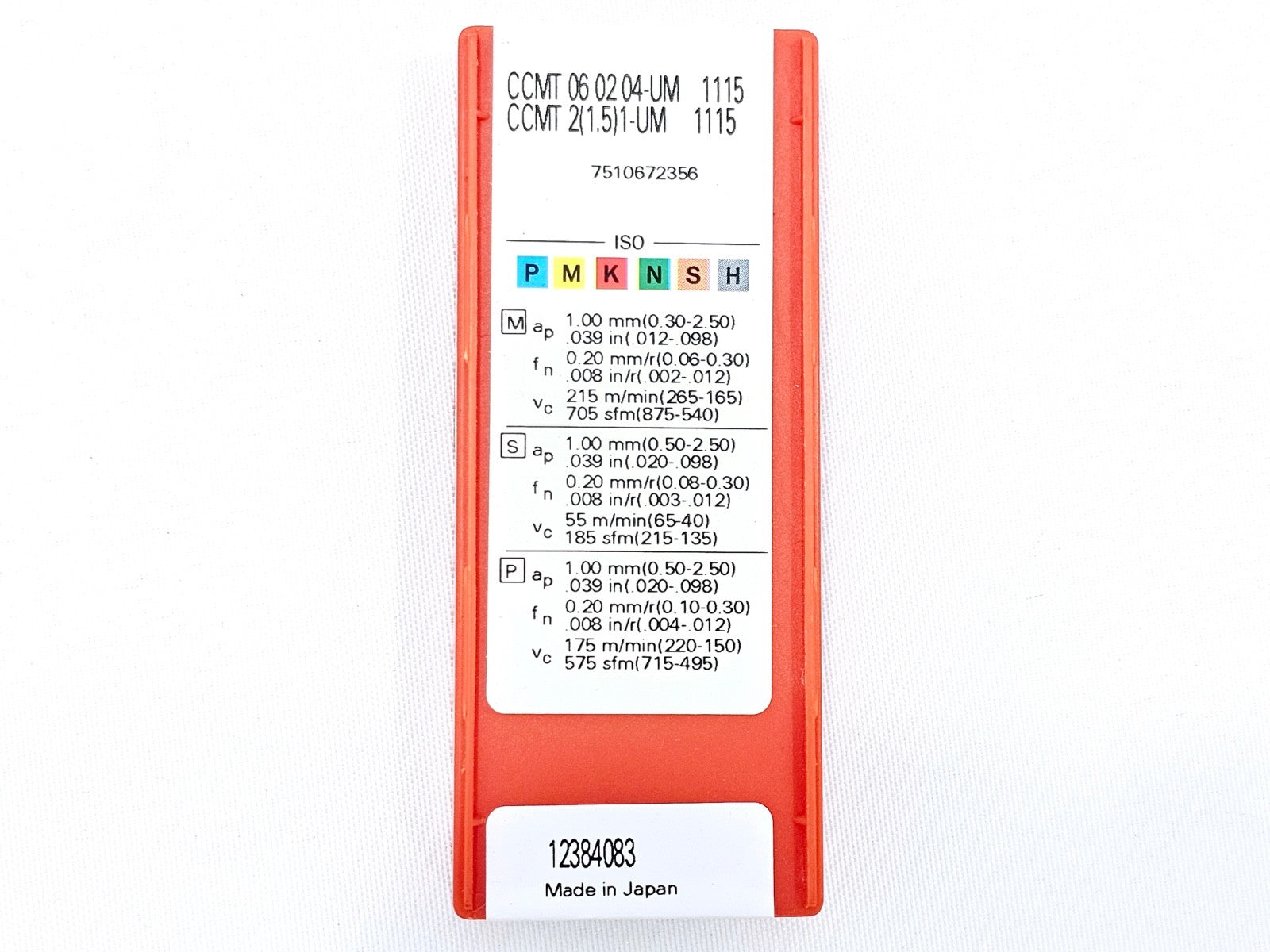

Recommended Cutting Data (from insert label):
Material M (Stainless Steel):
ap: 1.00 mm (range 0.30–2.50 mm)
fn: 0.20 mm/r (range 0.06–0.30 mm/r)
vc: 215 m/min (range 265–165 m/min)
Material S (Heat Resistant Super Alloys):
ap: 1.00 mm (range 0.50–2.50 mm)
fn: 0.20 mm/r (range 0.08–0.30 mm/r)
vc: 55 m/min (range 65–40 m/min)
Material P (Steel):
ap: 1.00 mm (range 0.50–2.50 mm)
fn: 0.20 mm/r (range 0.10–0.30 mm/r)
vc: 175 m/min (range 220–150 m/min)

ISO Application Areas: P (Steel), M (Stainless Steel), K (Cast Iron), N (Non-Ferrous), S (Heat Resistant Super Alloys), H (Hardened Materials)
