Condition: Used PLEASE CONTACT US FOR AN ACCURATE SHIPPING QUOTE. This microscope has been tested using a Lumbricus slide as shown in image 1. The included Lenovo laptop has the Pylon software installed and ready to go to view samples with the Basler monochrome camera. The camera can either be plugged directly into the laptop via the ethernet port, or into a router/network switch, which the laptop is also connected to. The software should be able to detect the camera on the network within a few seconds. In our setup, the camera was connected directly to the laptop.

Please note that you may need to configure the camera’s IP address using the Pylon IP Configuration software. It is advised that you set the IP address configuration to DHCP only to avoid IP issues. The microscope has already been set to camera mode for immediate use, however this can be changed in the TFT display settings menu if an eyepiece is added at a later stage. This sale does NOT include any eyepieces. Please note actual product may differ as we have multiple units in stock, though all are configured in the same way and cosmetically are the same too. Included in the sale:
ZEISS Axio Observer Z1 microscope
Lenovo Thinkpad T14 laptop - See photos for specification.

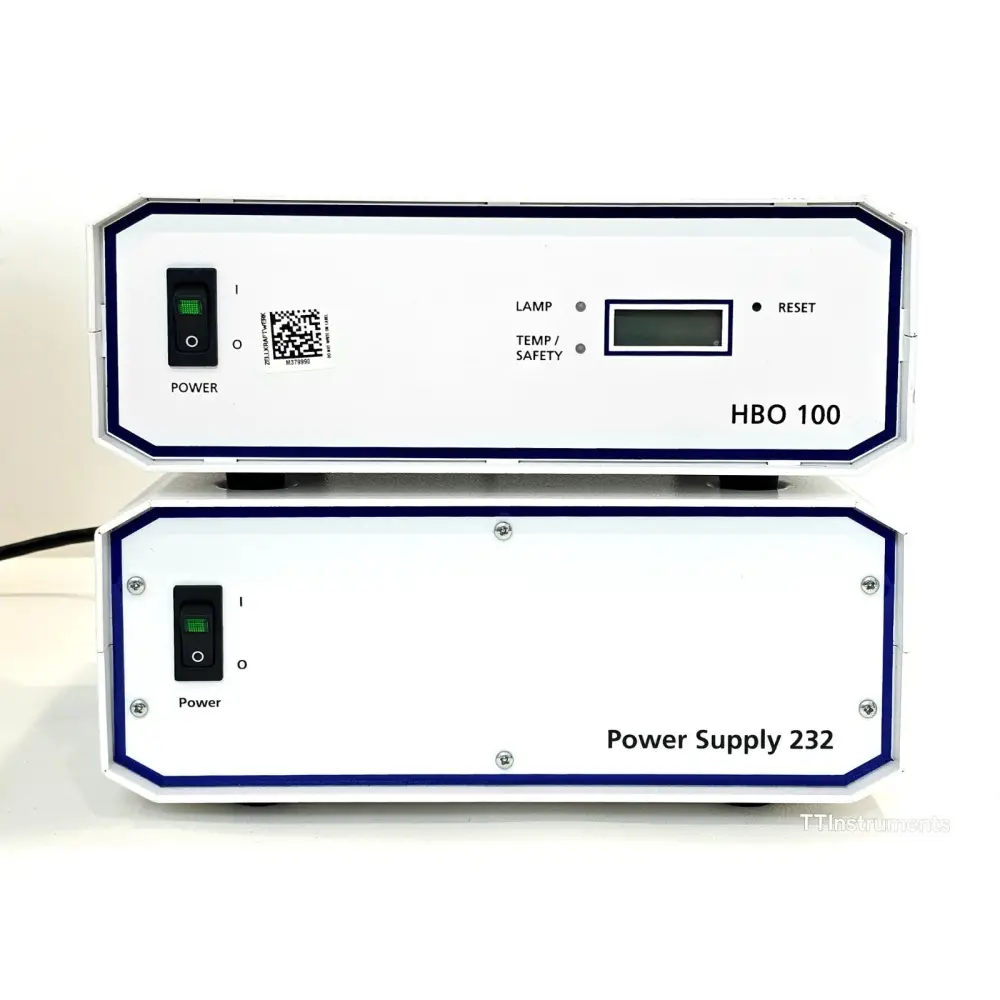

Microscope power source VP232-2
HB100 light source
HB100 power source
Basler scA1400-17gm GigE monochrome camera
ZEISS Plan-APOCHROMAT 20x/0.8 ∞/0.17 objective 420650-9901
Product description (from the manufacturer): Please refer to the manufacturer website and datasheet.

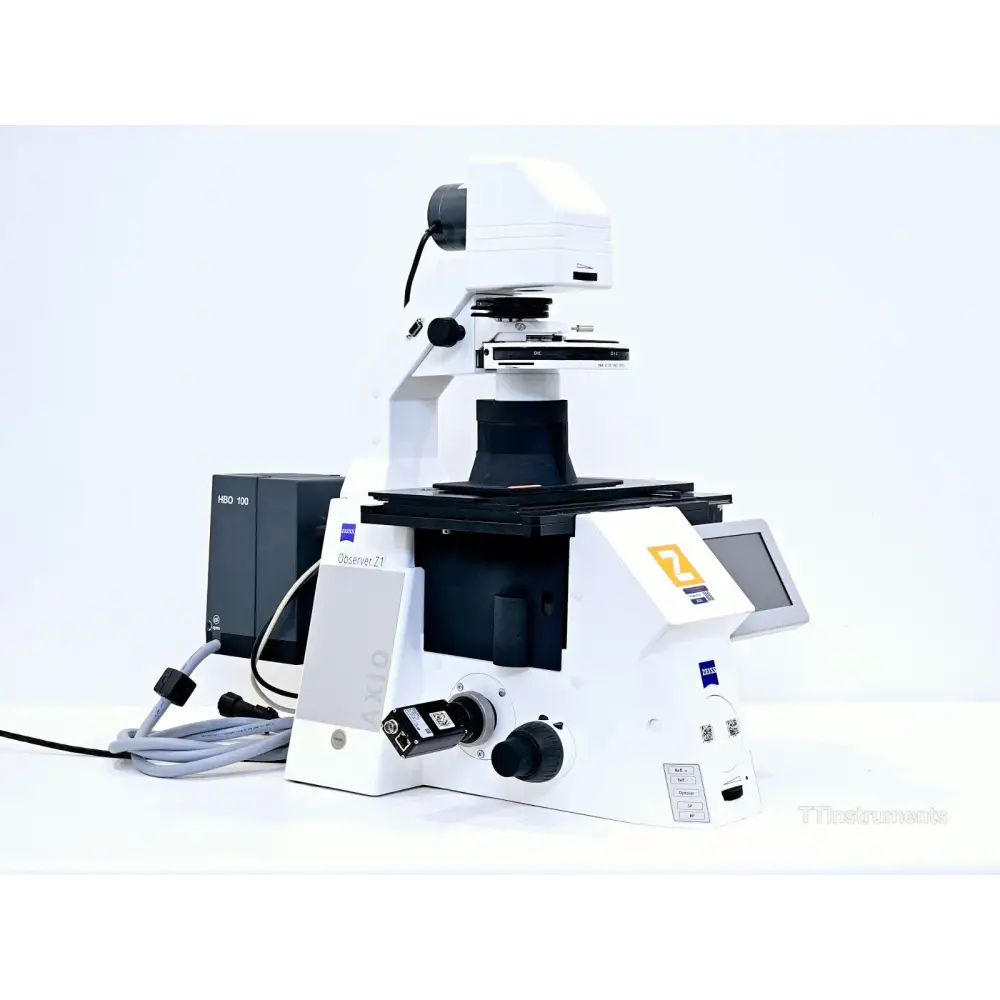

The ZEISS Axio Observer.Z1 is a fully motorised inverted microscope platform designed for demanding multimodal imaging of living and fixed specimens in life science research. It serves as an open imaging platform offering interfaces for technologies ranging from widefield transmitted light to 3D sectioning and super-resolution imaging.

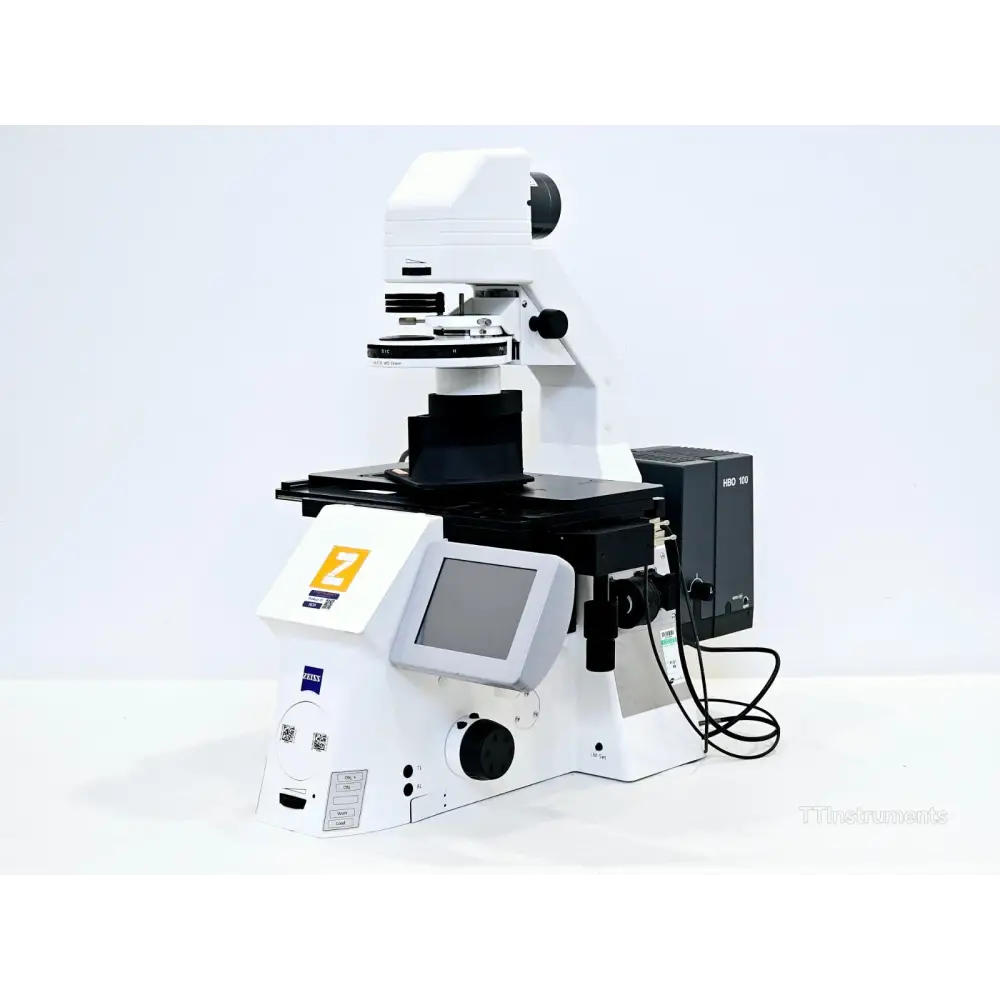

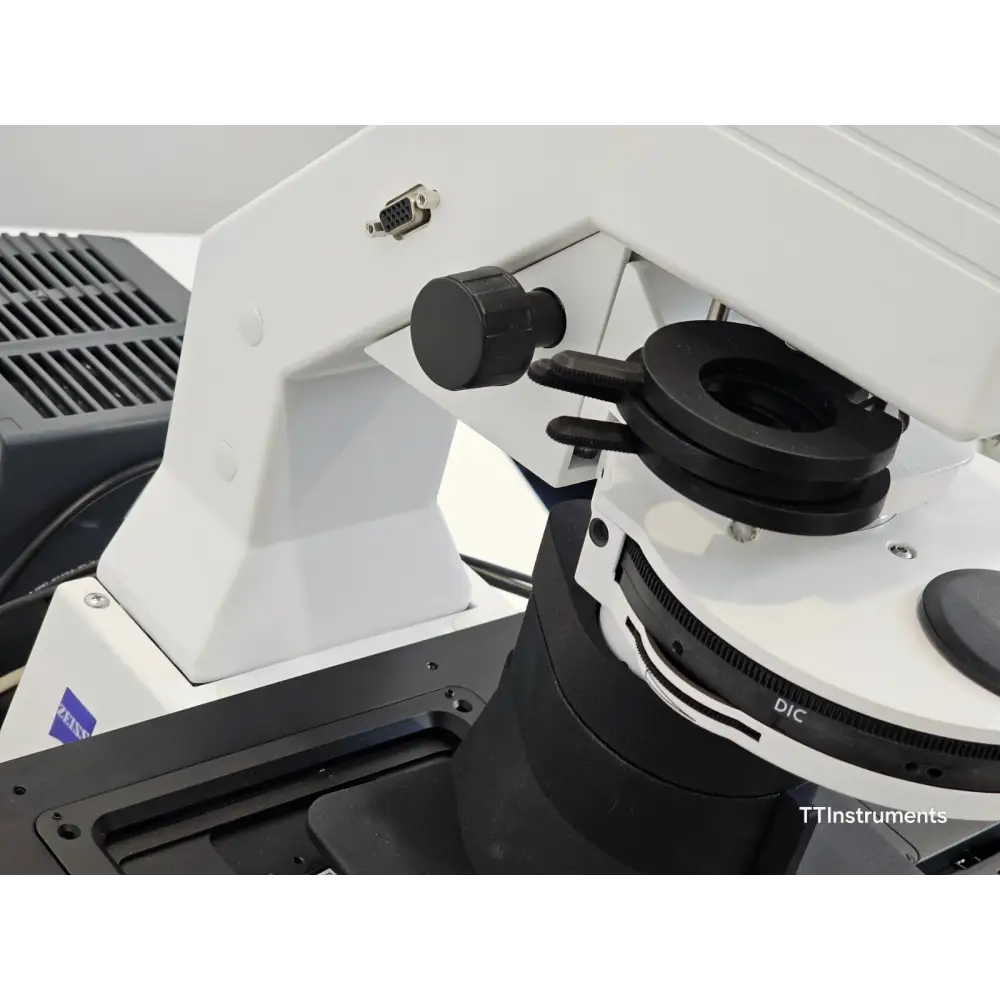

The Z1 stand features fully automated controls including a motorised objective nosepiece, motorised reflector turret (holding up to 6 filter cubes), motorised condenser, and motorised Z-focus drive, all controlled via an integrated TFT touchscreen display. The system supports phase contrast, DIC, brightfield, and epifluorescence contrast modes.

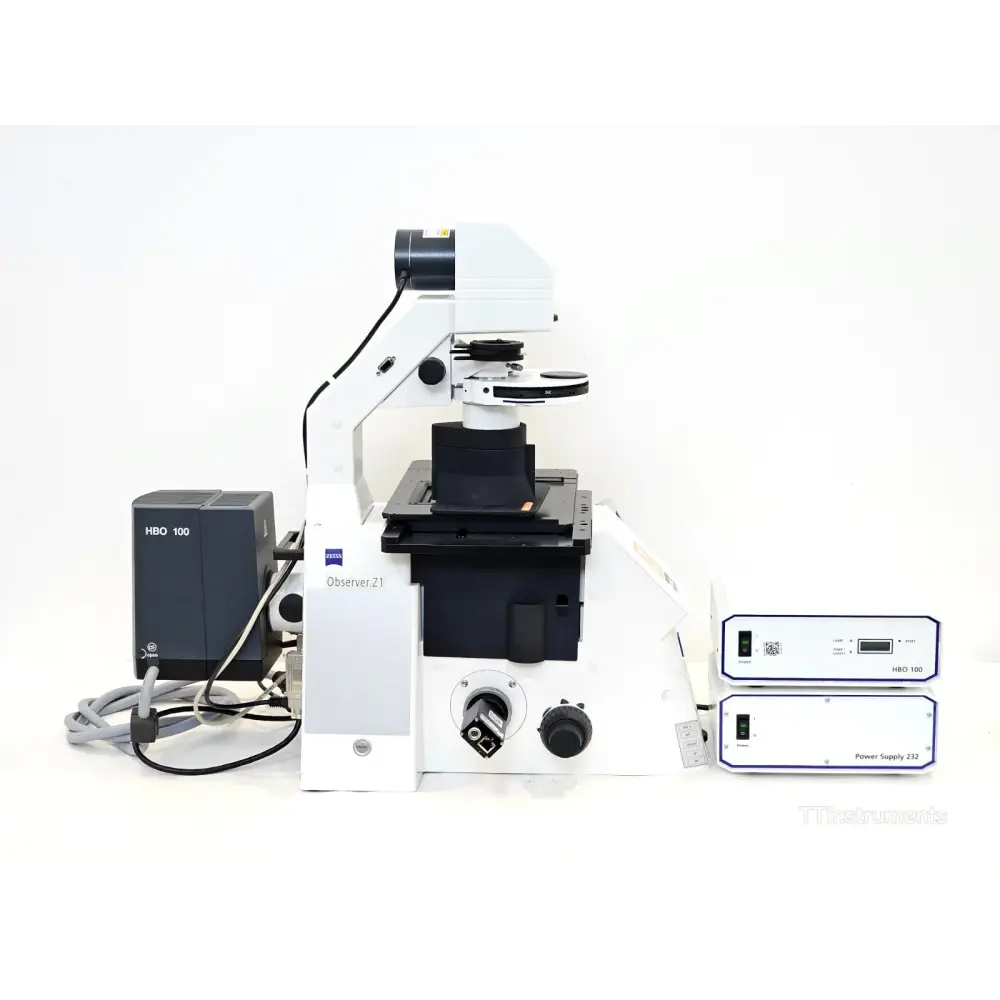

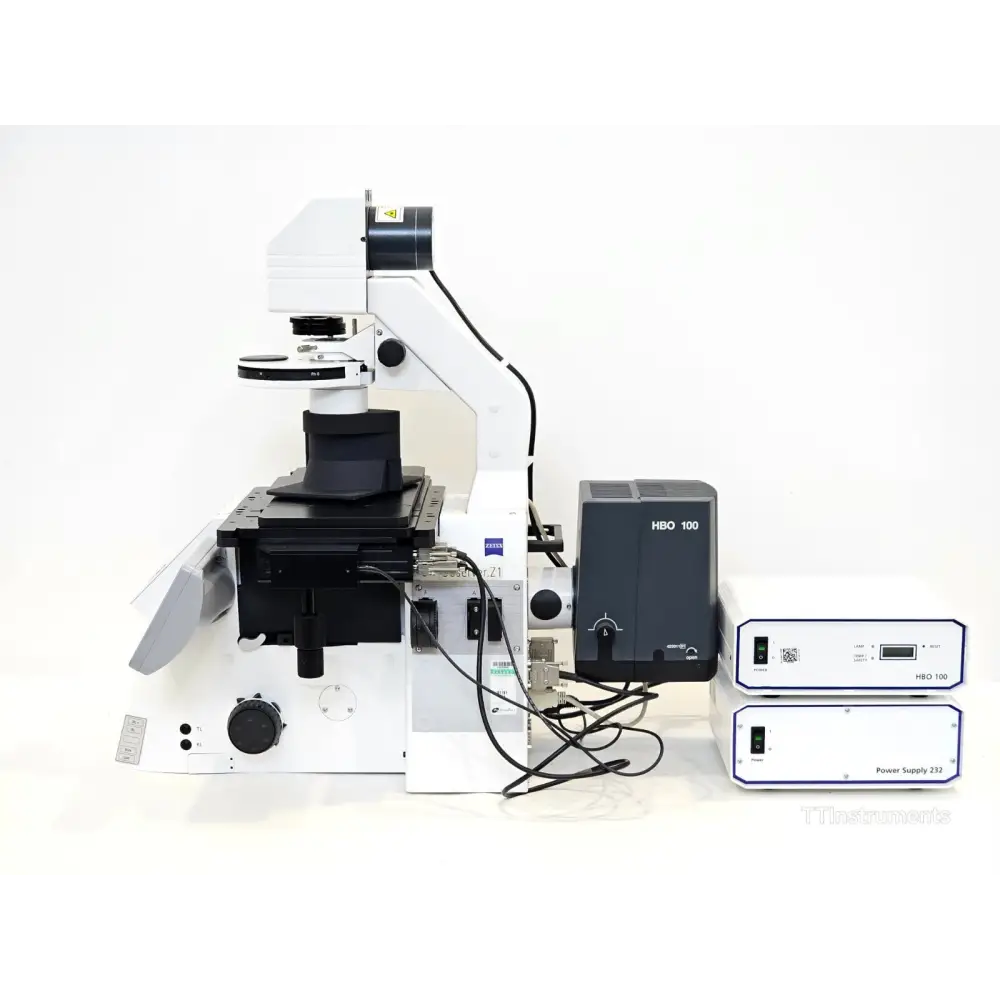

Fluorescence illumination is provided by an HBO 100 mercury arc lamp (100W), with the option to use HXP 120 or LED light sources. Transmitted light illumination is via a HAL 100 halogen lamphouse. The microscope accepts a wide range of ZEISS infinity-corrected objectives with M27 thread and is compatible with numerous camera systems via C-mount ports on both sides of the frame.

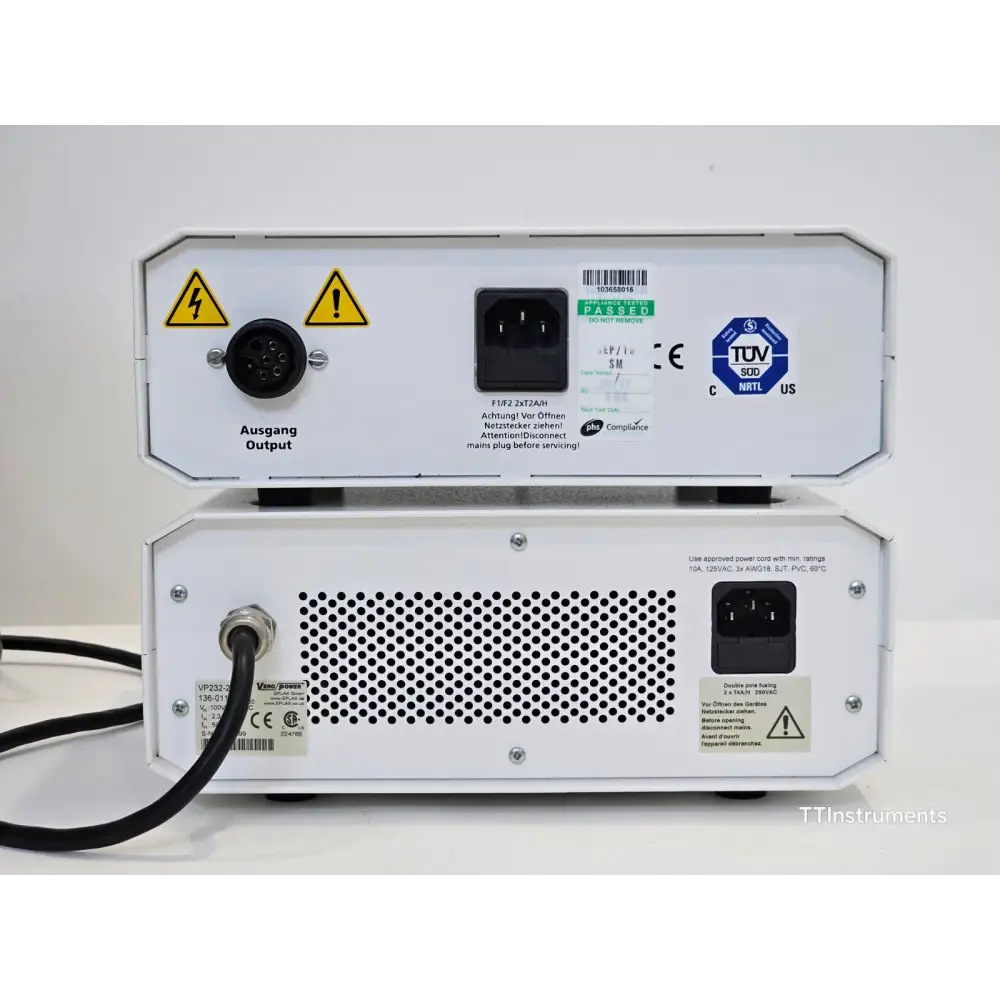

The Axio Observer.Z1 power supply (VP231/VP232) accepts 100–127 V AC or 200–240 V AC ±10%, 50/60 Hz. The HBO 100 power supply accepts 100–240 V AC, 50/60 Hz.

Key Specifications:
Microscope Type: Fully motorised inverted stand (Z1)
Contrast Methods: Brightfield, phase contrast, DIC, epifluorescence
Objective Nosepiece: Motorised, up to 6 positions
Reflector Turret: Motorised, up to 6 fluorescence filter cube positions

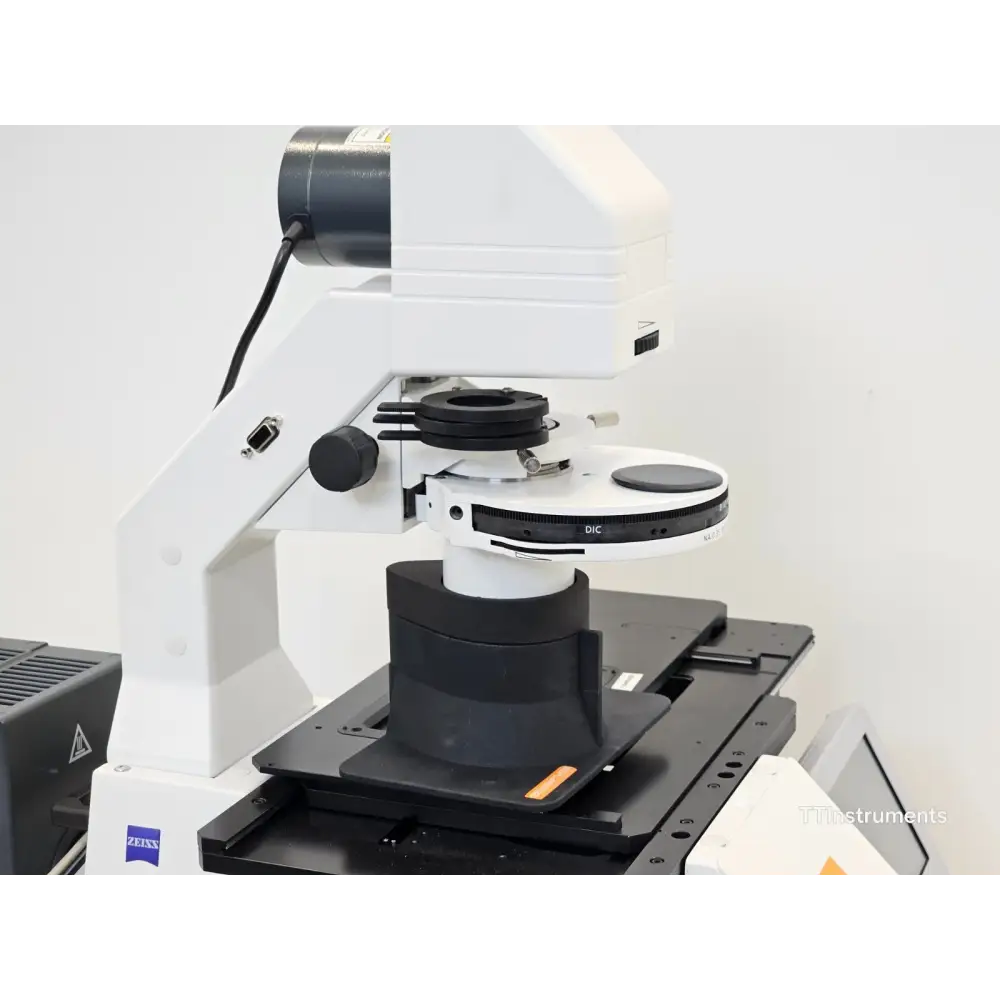

Condenser: Motorised turret condenser (LD, NA 0.55, WD 26 mm)
Focus Drive: Motorised Z-focus with fine and coarse control

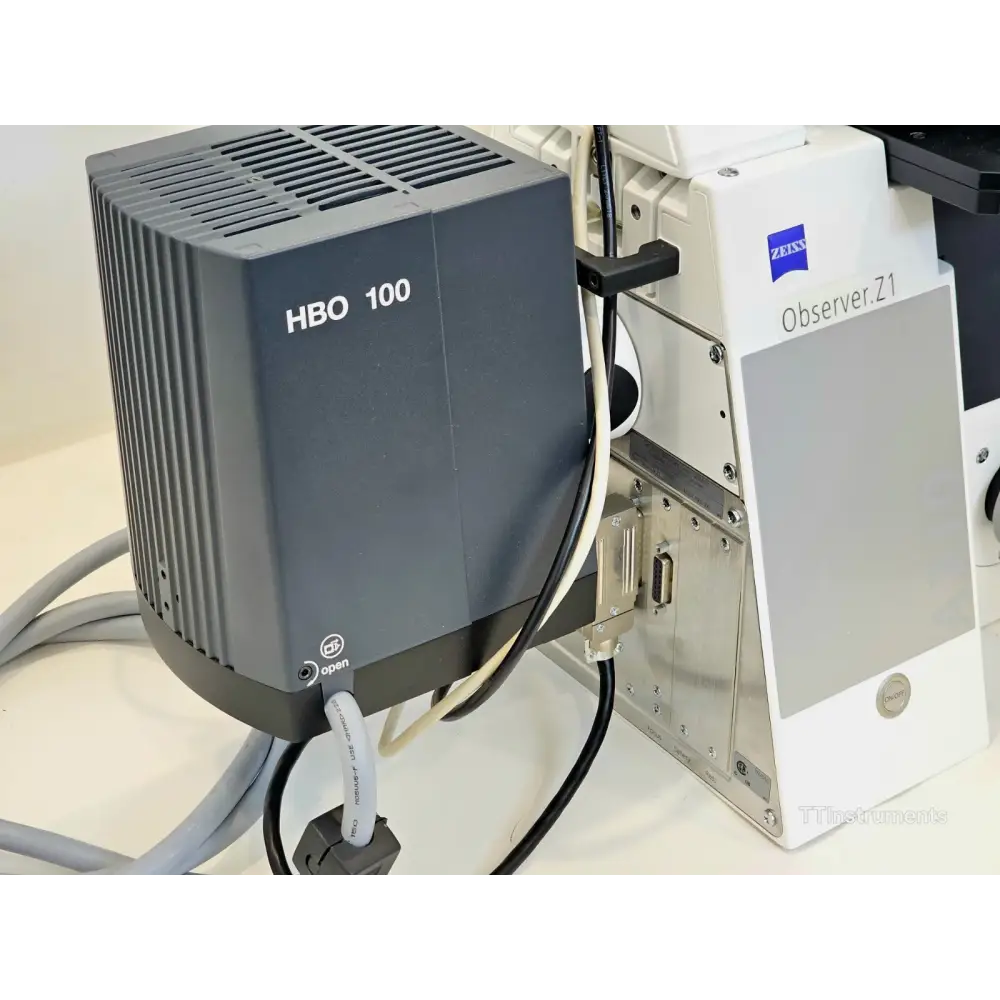

Fluorescence Light Source: HBO 100 mercury arc lamp (100 W)
Transmitted Light Source: HAL 100 halogen (100 W)

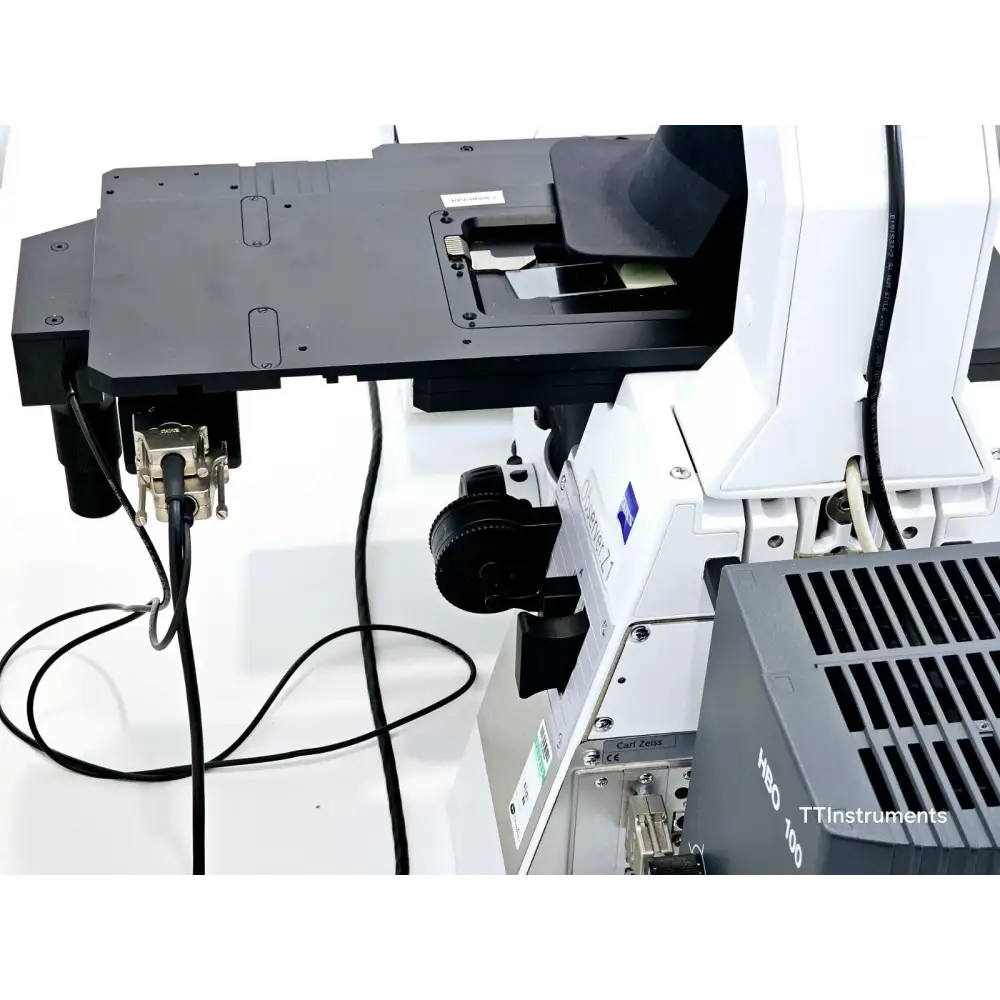

Stage: Mechanical or motorised XY stage (130 x 85 mm or 130 x 100 mm travel)
Stage Inserts: Slides, 35 mm dishes, multiwell plates
Camera Ports: Two C-mount ports (left and right sides)
Power Supply Input: 100–127 V AC or 200–240 V AC ±10%, 50/60 Hz
Control Interface: Integrated TFT touchscreen display
Objective Thread: M27 (infinity-corrected)

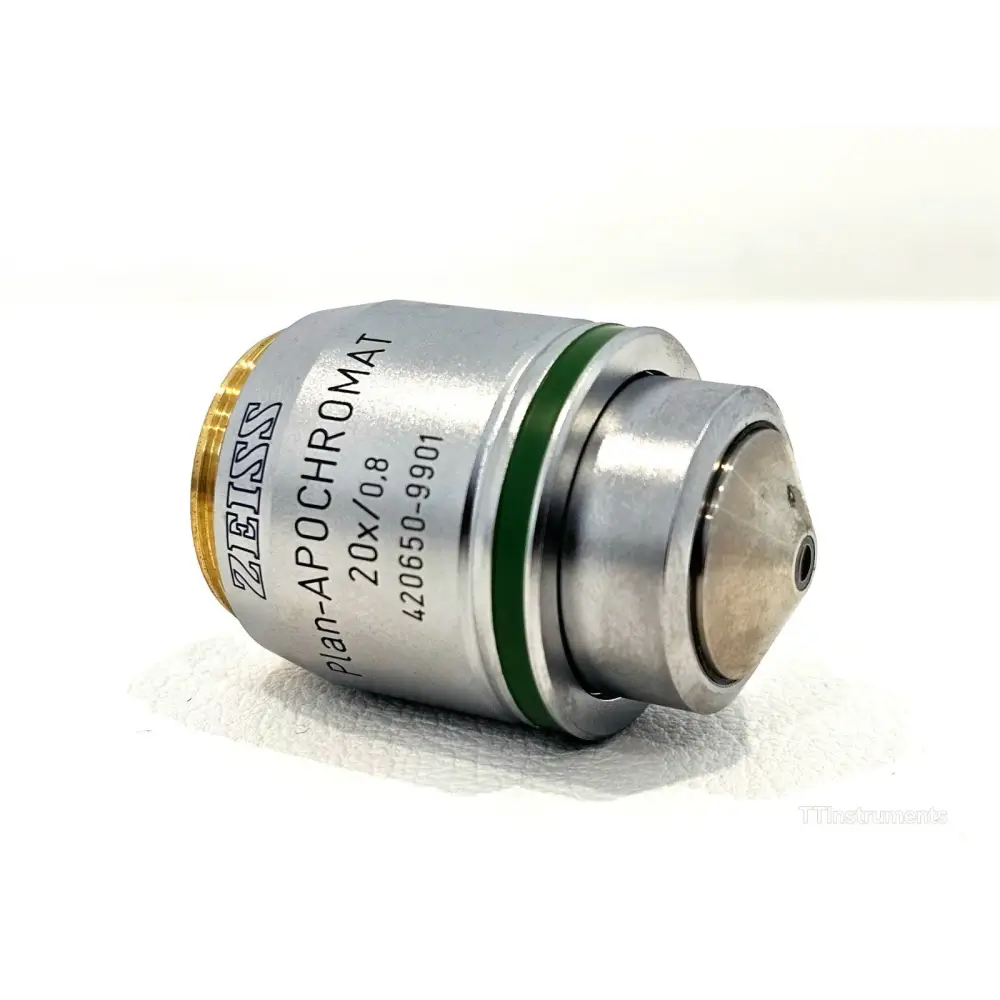

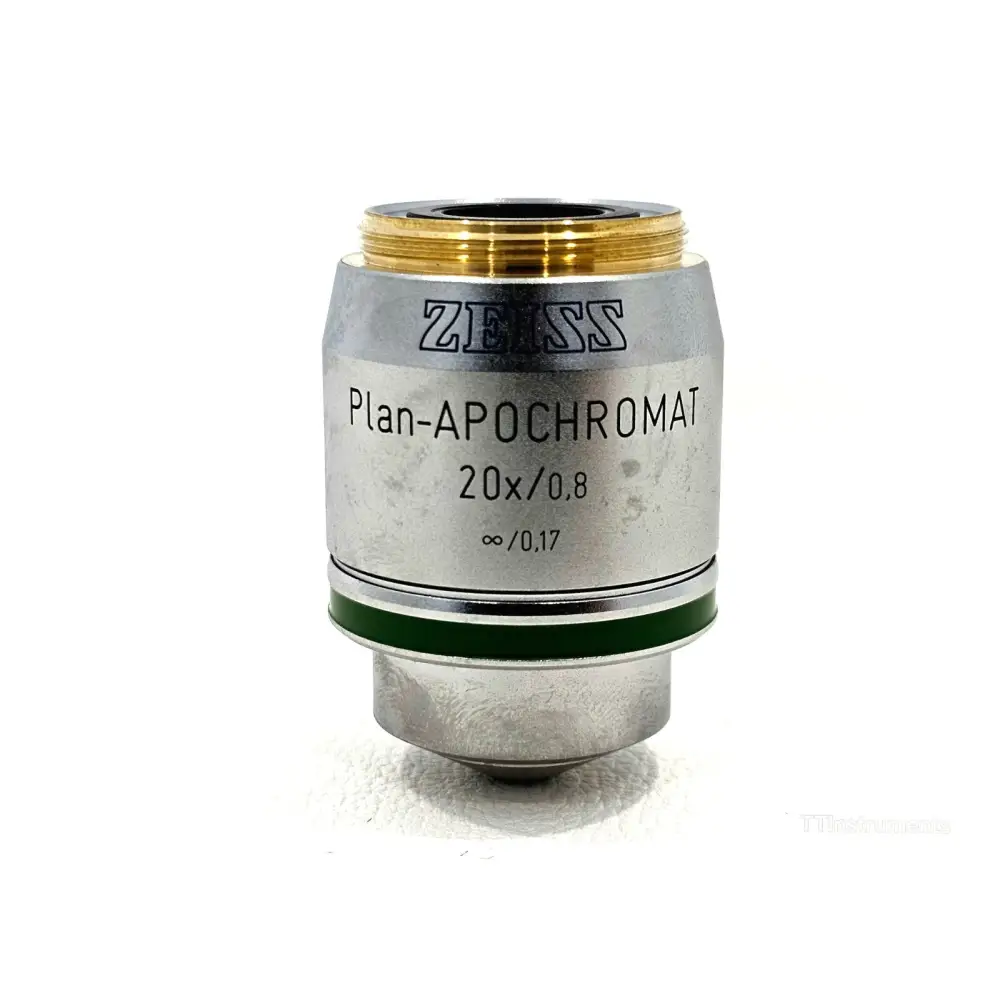

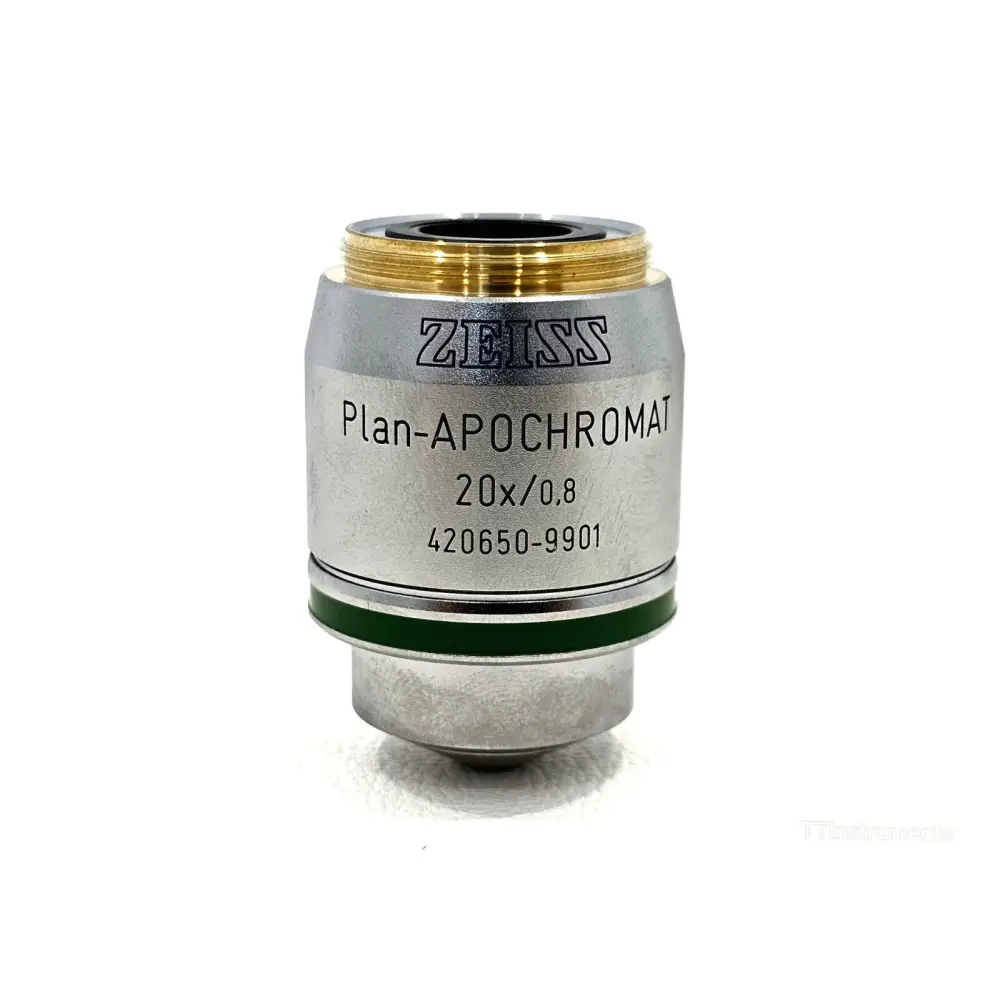

Included Objective — ZEISS Plan-Apochromat 20x/0.8 M27 (part no. 420650-9901):
Magnification: 20x
Numerical Aperture (NA): 0.8
Immersion: Dry
Working Distance (FWD): 0.55 mm
Cover Glass: 0.17 mm
Thread: M27
Correction: Plan-Apochromat (full chromatic and spherical aberration correction)

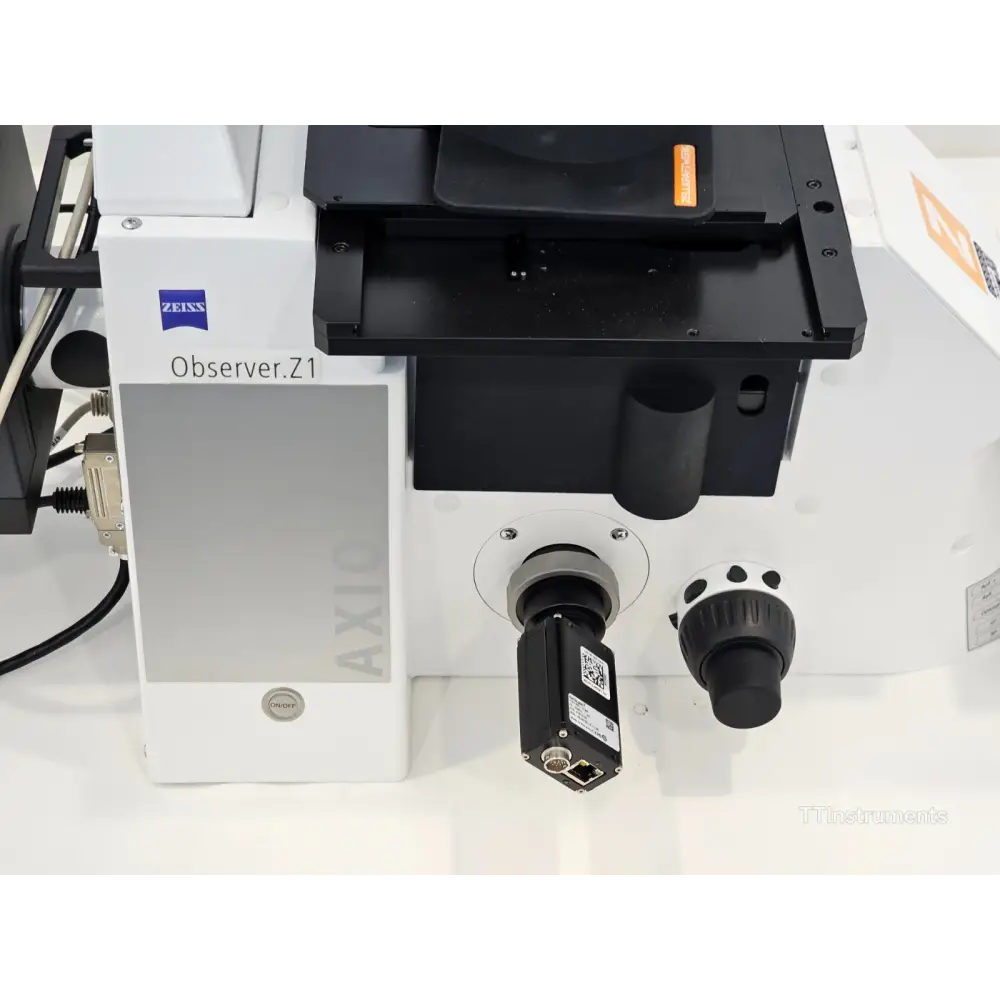

Included Camera — Basler scA1400-17gm GigE:
Sensor: 2/3" Sony ICX285 CCD
Resolution: 1392 x 1040 pixels (1.4 MP)
Frame Rate: 17 fps (full resolution)
Interface: GigE Vision (Gigabit Ethernet)
Colour: Monochrome
Mount: C-mount
Software: Basler Pylon (GenICam compliant)

Typical Applications: Live cell imaging, time-lapse microscopy, fluorescence imaging, phase contrast and DIC imaging, multiwell plate screening, histology, cell biology research.

ZEISS Axio Observer inverted microscope official operating manual (PDF): Download PDF

Basler scout GigE vision cameras user manual covering scA1400-17gm (PDF): Download PDF

ZEISS Axio Observer for Metallography — product information brochure (PDF): Download PDF
