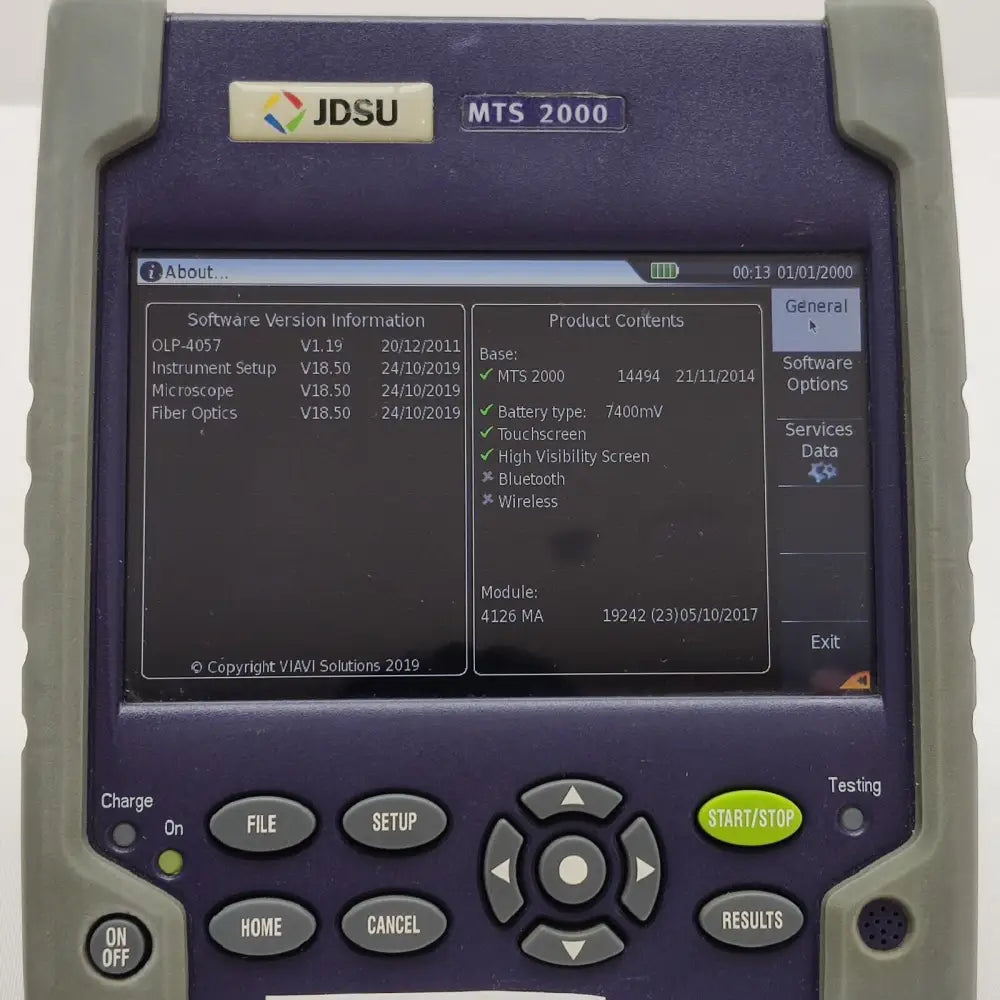

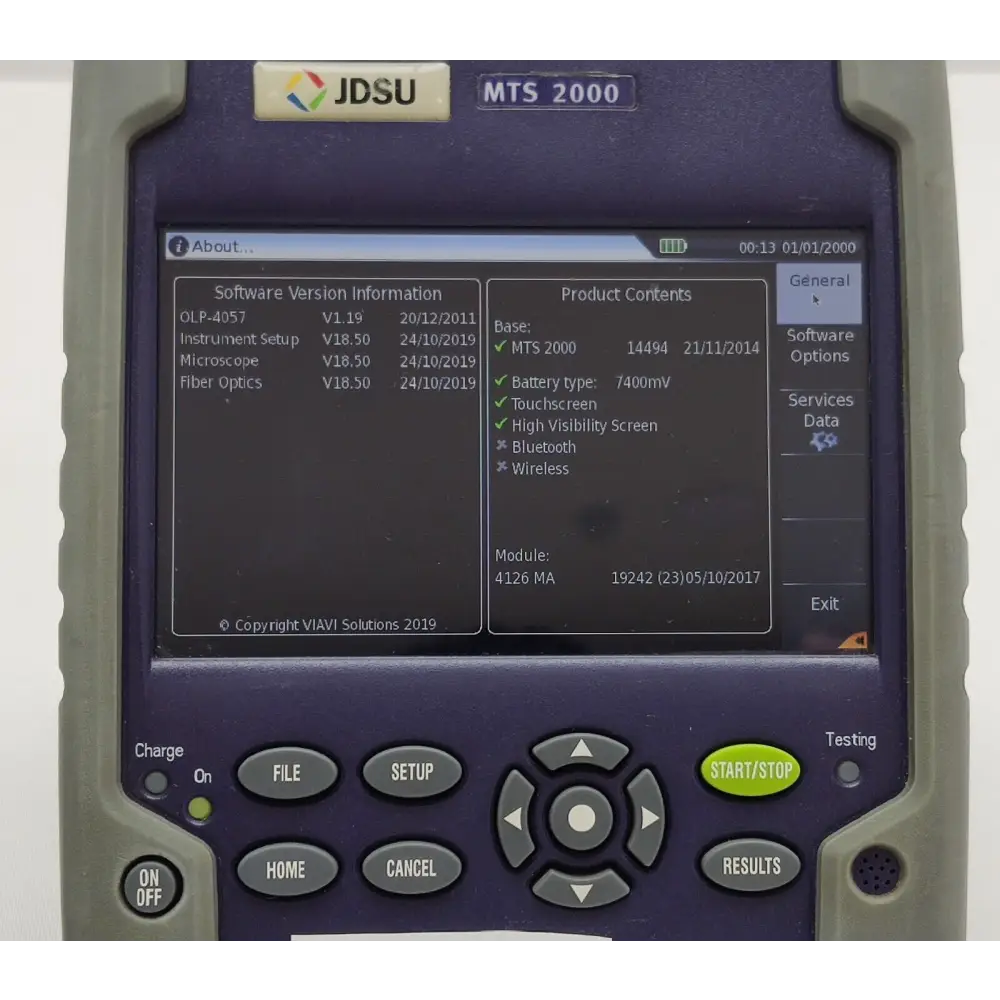

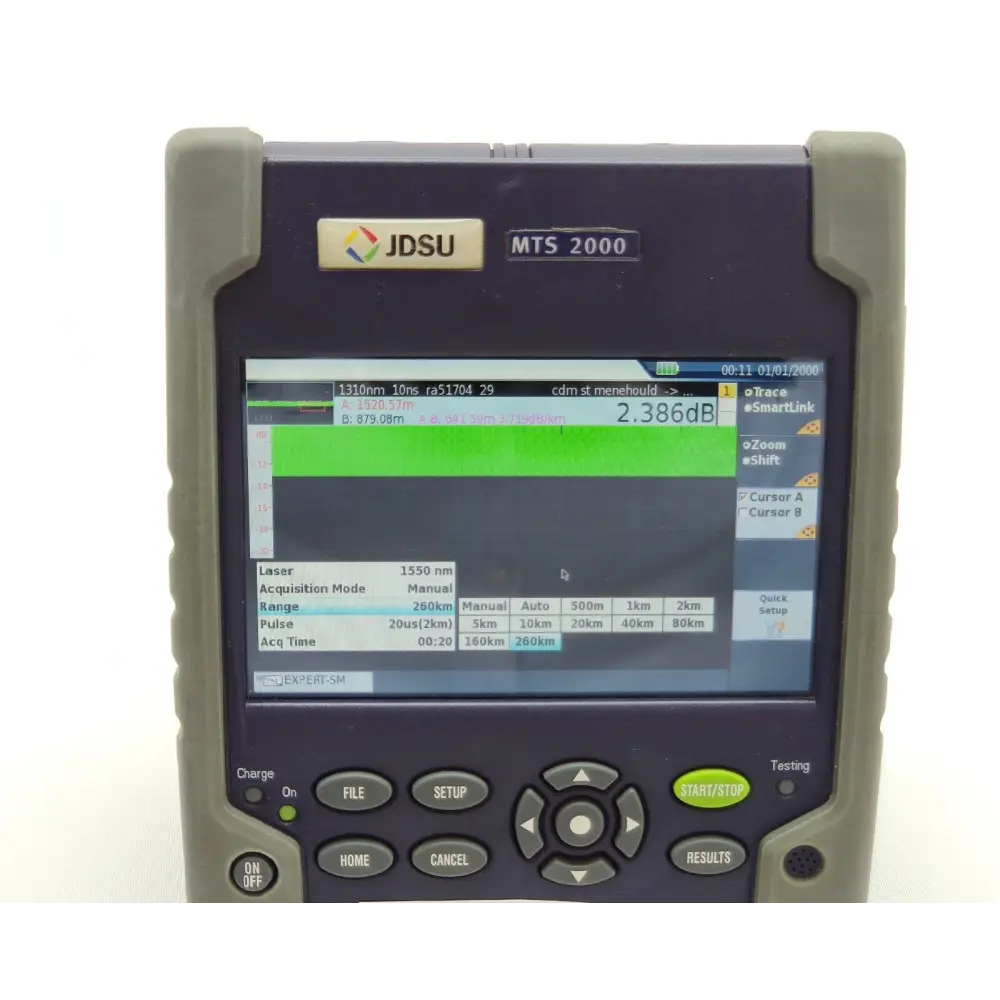

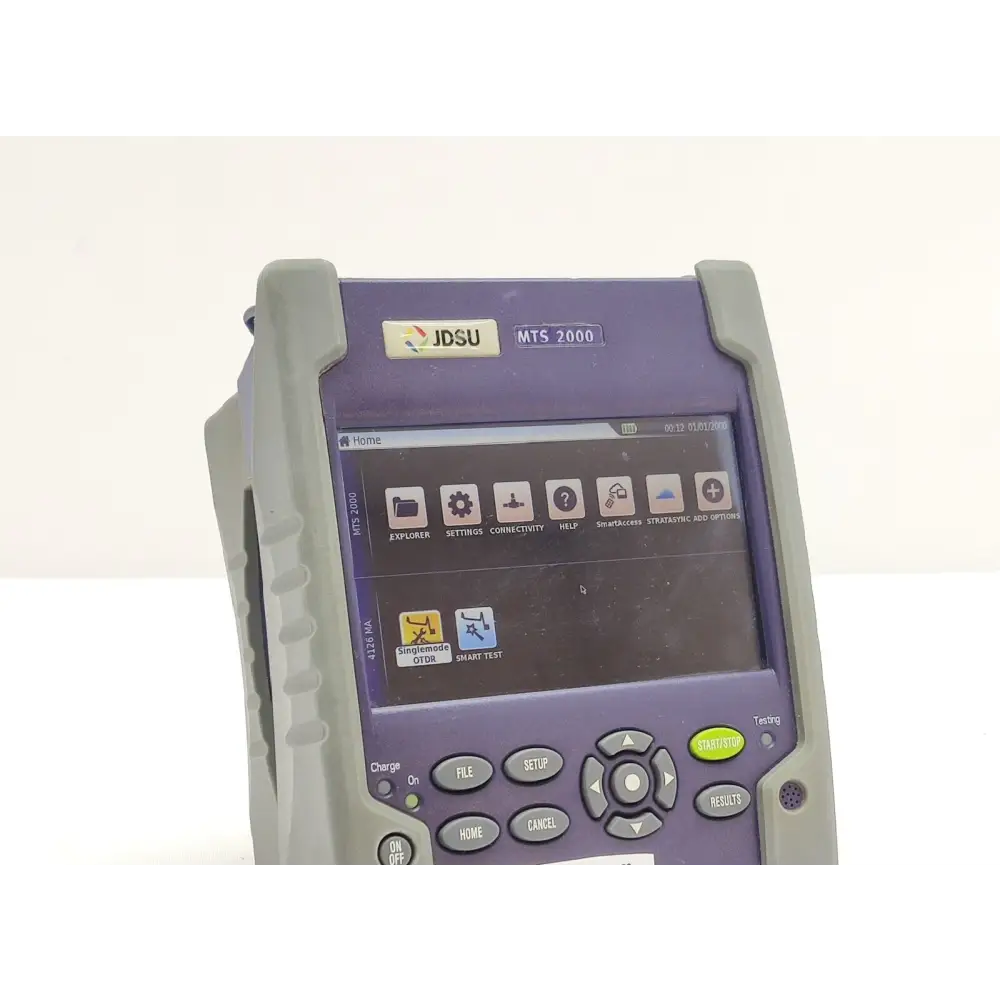

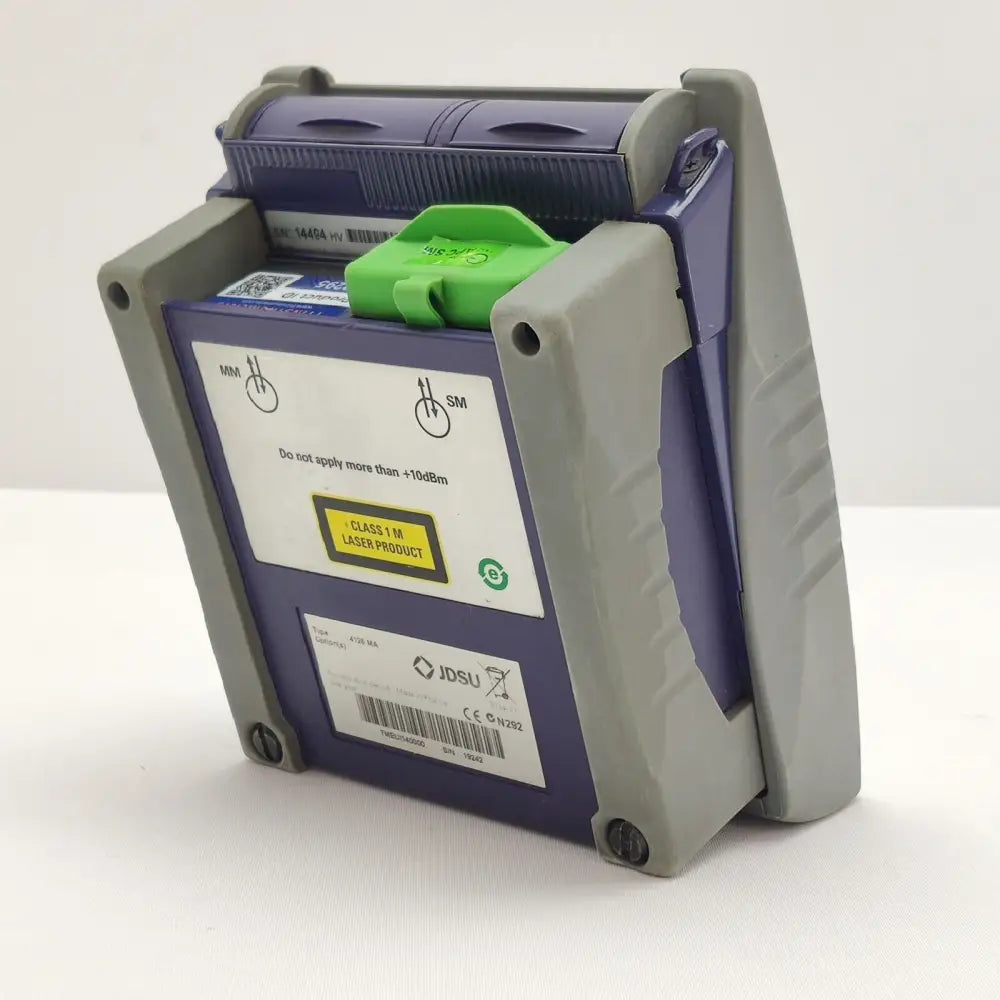

The Viavi (formerly JDSU) MTS 2000 is a compact, portable mainframe platform designed for field technicians performing optical fibre testing on FTTH, access, and metro networks. The modular design accepts a range of plug-in test modules, allowing the platform to be configured for a wide variety of measurement tasks. The mainframe features a high-visibility display with touchscreen interface, making it practical for use in varied field environments.

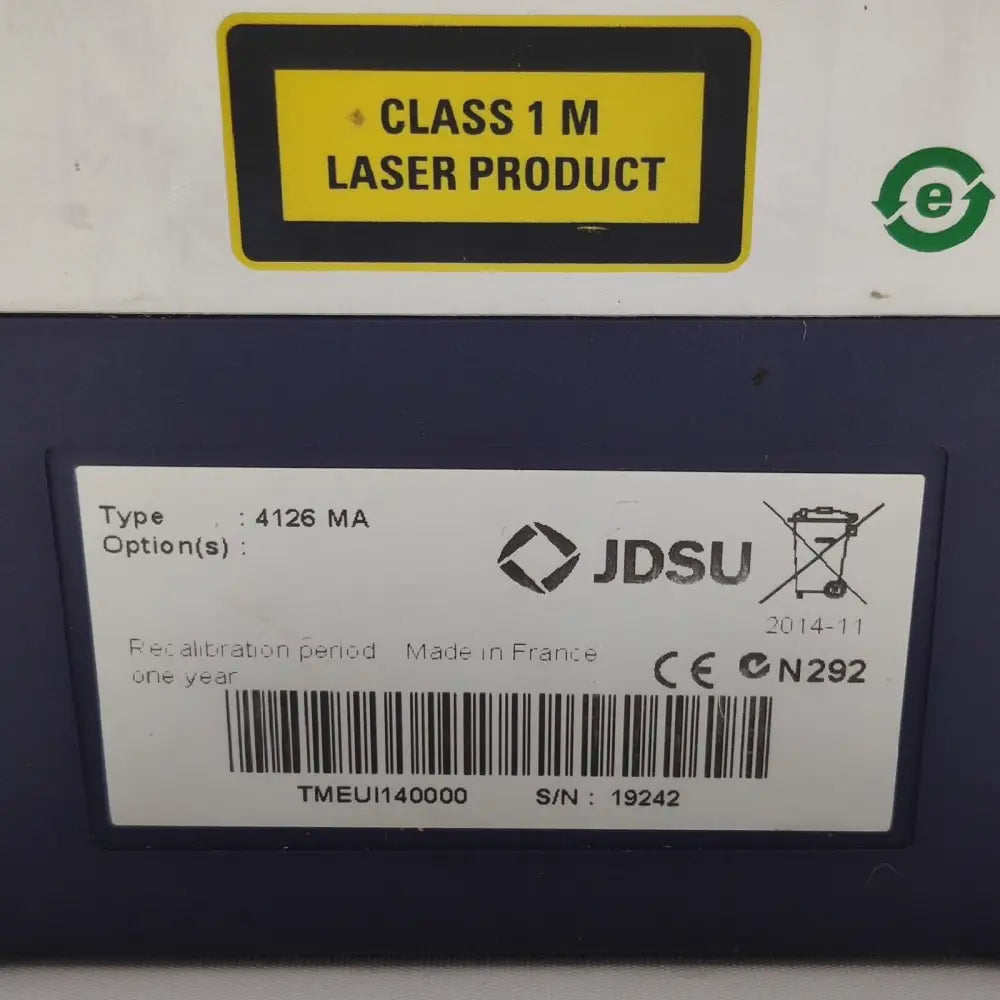

The 4126 MA single-mode OTDR module is optimised for FTTH and short/medium-haul network qualification, including networks incorporating passive optical splitters up to 1×32. Its ultra-short dead zones allow accurate fault localisation close to the instrument connector, while the high dynamic range supports testing of long-reach networks.
Key Specifications (JDSU 4126 MA SM OTDR Module):
Wavelengths: 1310 nm / 1550 nm
Dynamic Range: 37 dB (1310 nm) / 35 dB (1550 nm)
Connector: APC
Event Dead Zone: 0.9 m
Attenuation Dead Zone: 4 m
Maximum Range: 260 km
Application: FTTH, access, metro, short/medium-haul qualification
Splitter Support: Up to 1×32
The MTS 2000 platform is widely used by field engineers and network operators for commissioning, troubleshooting, and maintenance of single-mode fibre infrastructures.
