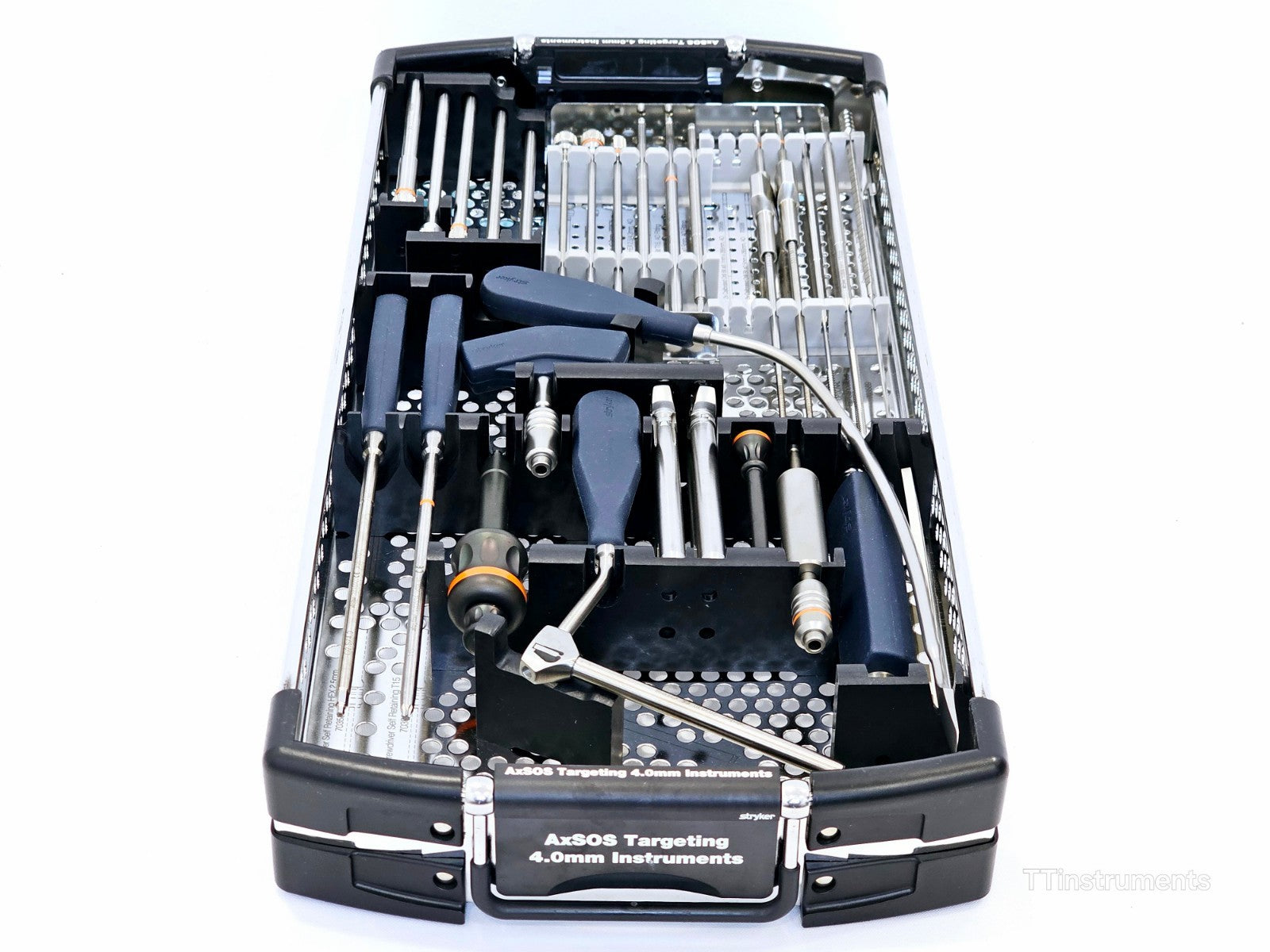

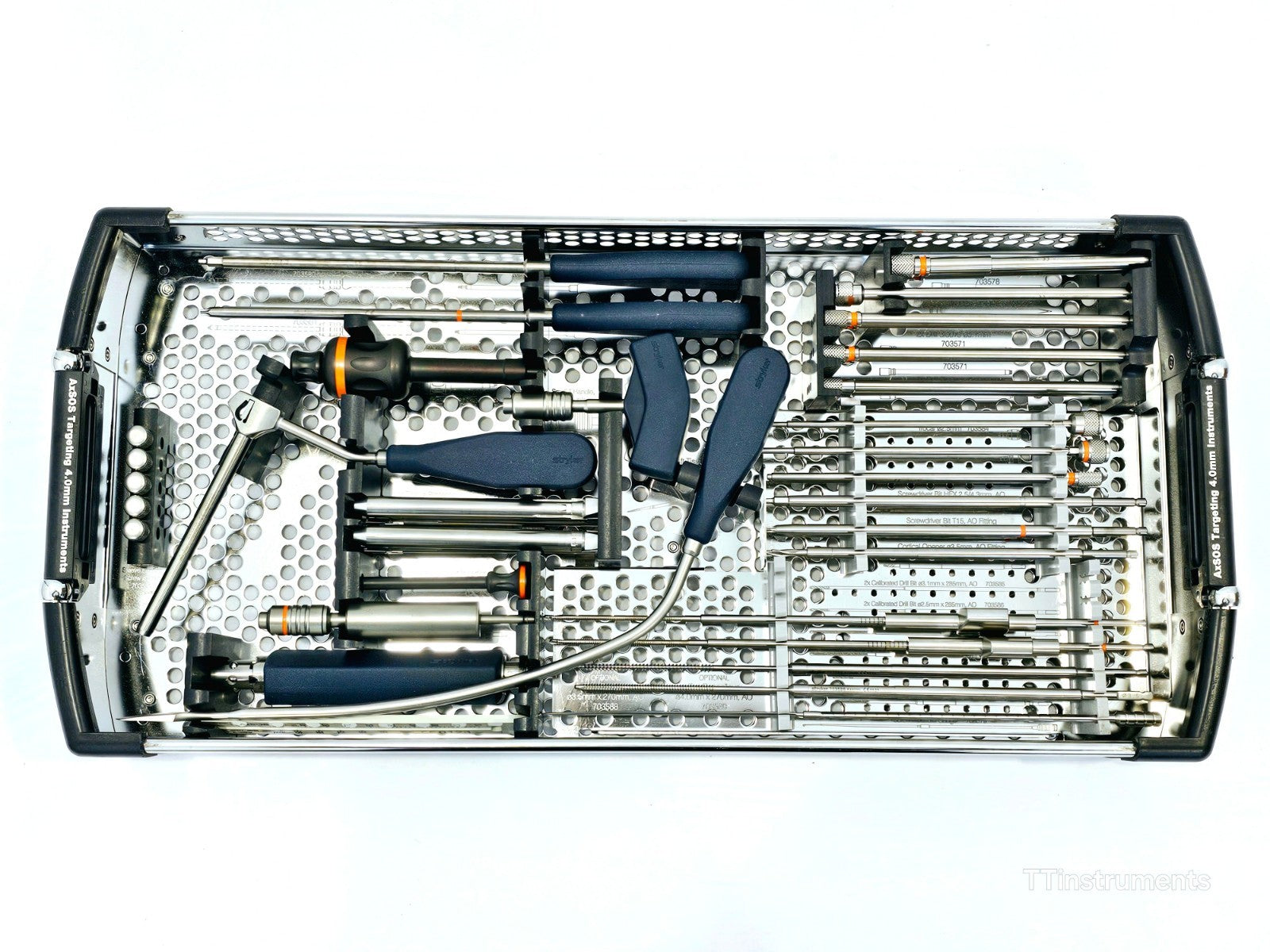

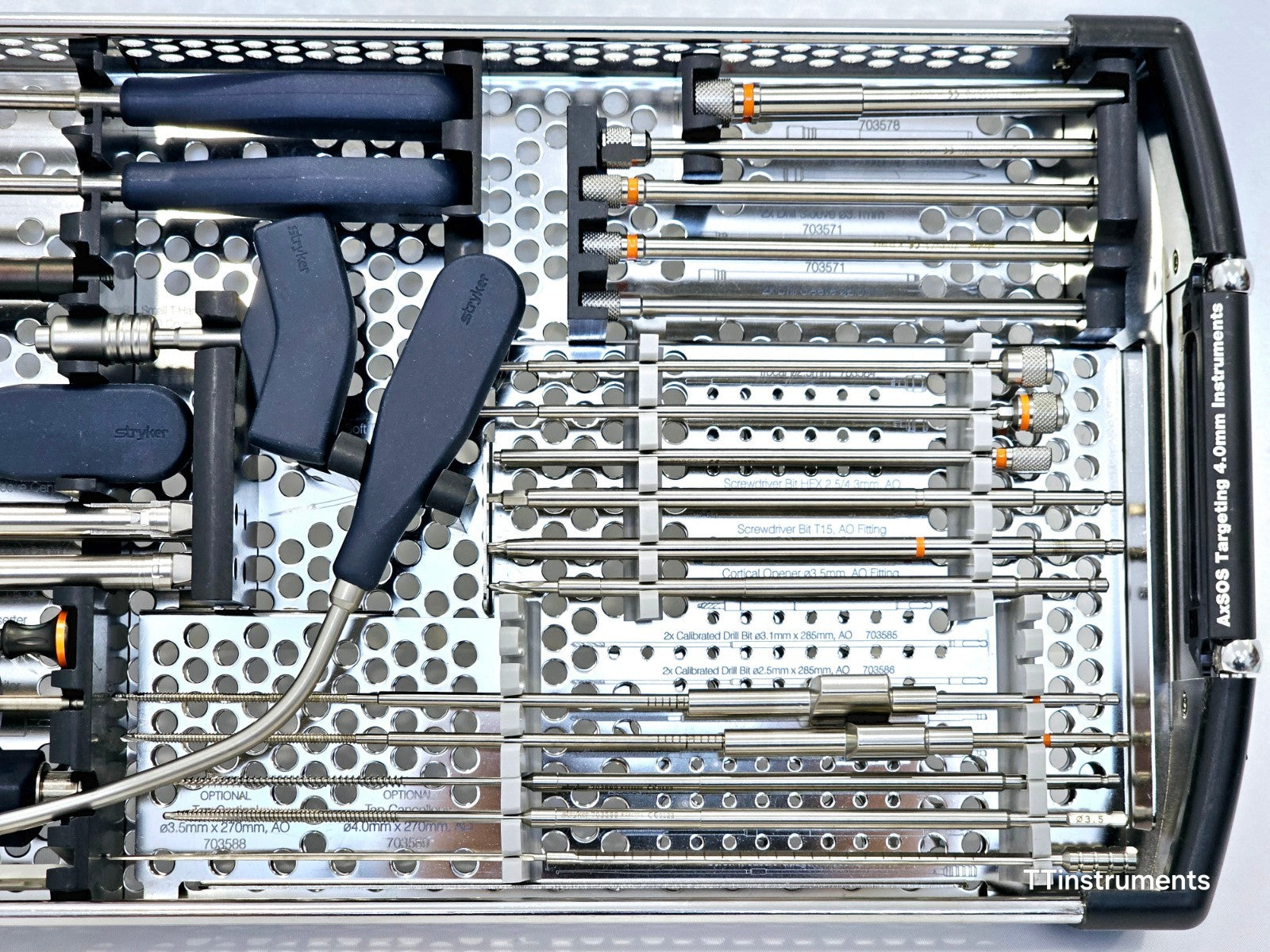

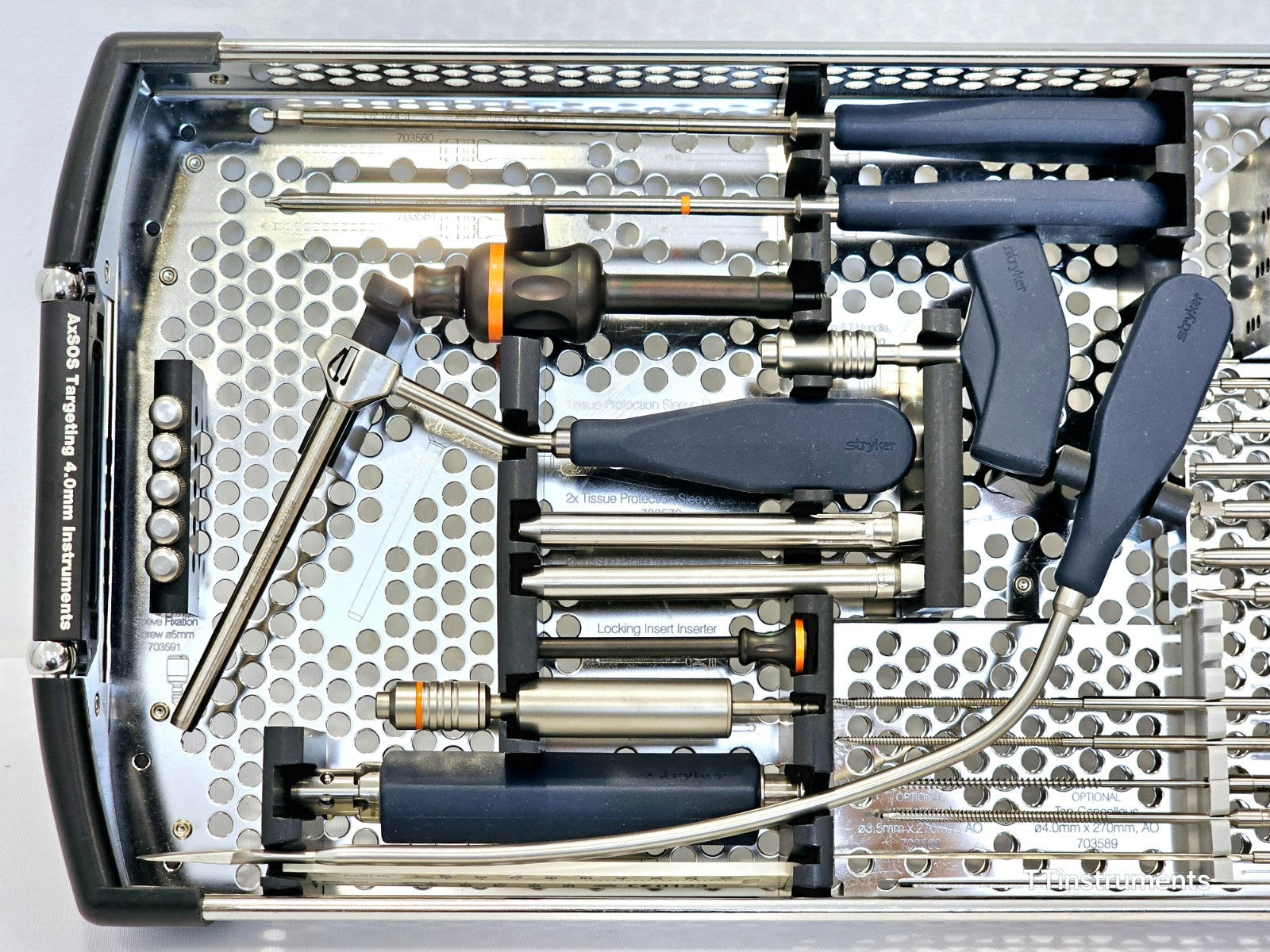

Stryker AxSOS Targeting 4.0mm Instruments Set – Used Condition: Used Included in the Sale 702782 – Soft Tissue Elevator 703592 – Screwdriver, Hex 2.5/4.3 mm 703594 – Screwdriver, T15 702767 – 4.0 Locking Insert Extractor 702427 – T-Handle, Small, AO Fitting 702920 – Tissue Protection Sleeve, Free Hand 703570 (4 pcs) – Tissue Protection Sleeve 702762 – Locking Insert Inserter 702750 – Torque Limiter, 4 Nm 702978 – Handle for Plate Insertion 703587 – Screw Scale 703591 (5 pcs) – Sleeve Fixation Screw 703578 (2 pcs) – Tissue Protection Sleeve, Aiming Block 703576 – Trocar, Sharp Tip 703571 (4 pcs) – Drill Sleeve Ø3.1 mm 703572 (2 pcs) – Drill Sleeve Ø2.5 mm 703584 – Trocar Ø2.5 mm 703577 – Trocar Ø3.1 mm 703575 – K-Wire Sleeve Ø2.0 mm 703593 – Screwdriver Bit, Hex 2.5/4.3 mm, AO Fitting 703595 (2 pcs) – Screwdriver Bit, T15, AO Fitting 703590 – Cortical Opener Ø3.5 mm, AO Fitting 703573 (2 pcs) – Frame Fixator Ø3.0 mm, AO Fitting 703589 – Tap, Cancellous Ø4.0 × 270 mm, AO Fitting 703588 – Tap, Cortical Ø3.5 × 270 mm, AO Fitting 703574 – Tap, Locking Ø4.0 × 270 mm, AO Fitting 703579 – Screw Measure Gauge Important Information The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. Do not bid on this item unless you are an authorized purchaser. If subject to FDA regulation, your status will be verified before shipping. Buyer Responsibility Any commissioning, calibration, certification, and validation required before clinical use is the buyer's responsibility. Disclaimer Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

The Stryker AxSOS Locking Plate System is designed for orthopaedic trauma surgery and is intended for long bone fracture fixation. The 4.0mm targeting instrument set provides all the necessary tools for both minimally invasive plate osteosynthesis (MIPO) and open reduction internal fixation (ORIF) surgical approaches using AxSOS 4.0mm anatomic locking plates.

The AxSOS system features a fixed-angle screw-to-plate interface providing angular stability, combined with anatomically shaped plates to accommodate the morphology of specific bone regions. The 4.0mm plate family is designed for use at periarticular and metaphyseal sites including the proximal and distal tibia, and distal radius, among others.

Manufacturer: Stryker
System: AxSOS Locking Plate System
Instrument Set Type: Targeting — 4.0mm
Indications: Diaphyseal, metaphyseal, epiphyseal, extra- and intra-articular fractures; non-unions and malunions; normal and osteopenic bone; osteotomies; periprosthetic fractures
Screw Interface: T15 torx drive (locking screws); Hex 2.5mm (non-locking/cortical screws)
Locking Screw Diameter: 4.0 mm
Torque Limiter: 4 Nm (for 4.0mm locking screws)
Drill Sleeve Diameters: Ø2.5 mm, Ø3.1 mm
Tap Types: Cancellous Ø4.0 mm, Cortical Ø3.5 mm, Locking Ø4.0 mm
Tap Length: 270 mm (AO fitting)
AO Fitting Compatibility: Compatible with standard AO power tools
Sterilisation: Compatible with standard hospital sterilisation and reprocessing protocols
Material: Stainless steel surgical instruments
Intended Users: Orthopaedic trauma surgeons and theatre staff
Regulatory Status: CE marked (where applicable)

Note: The AxSOS Targeting 4.0mm Instruments Set is intended for use by trained orthopaedic surgeons only. Any commissioning, reprocessing, or validation required before clinical use is the responsibility of the purchasing institution.
