SINERGY e-TRacKER Mk2a/b Electricity & Energy Demand Monitor Recorder
Model: Mk2a/b
Condition: Used
In stock: 0
SKU: 2991 7A01
- Accessories / Misc
- Electronic T&M
Choose options
Condition: Used

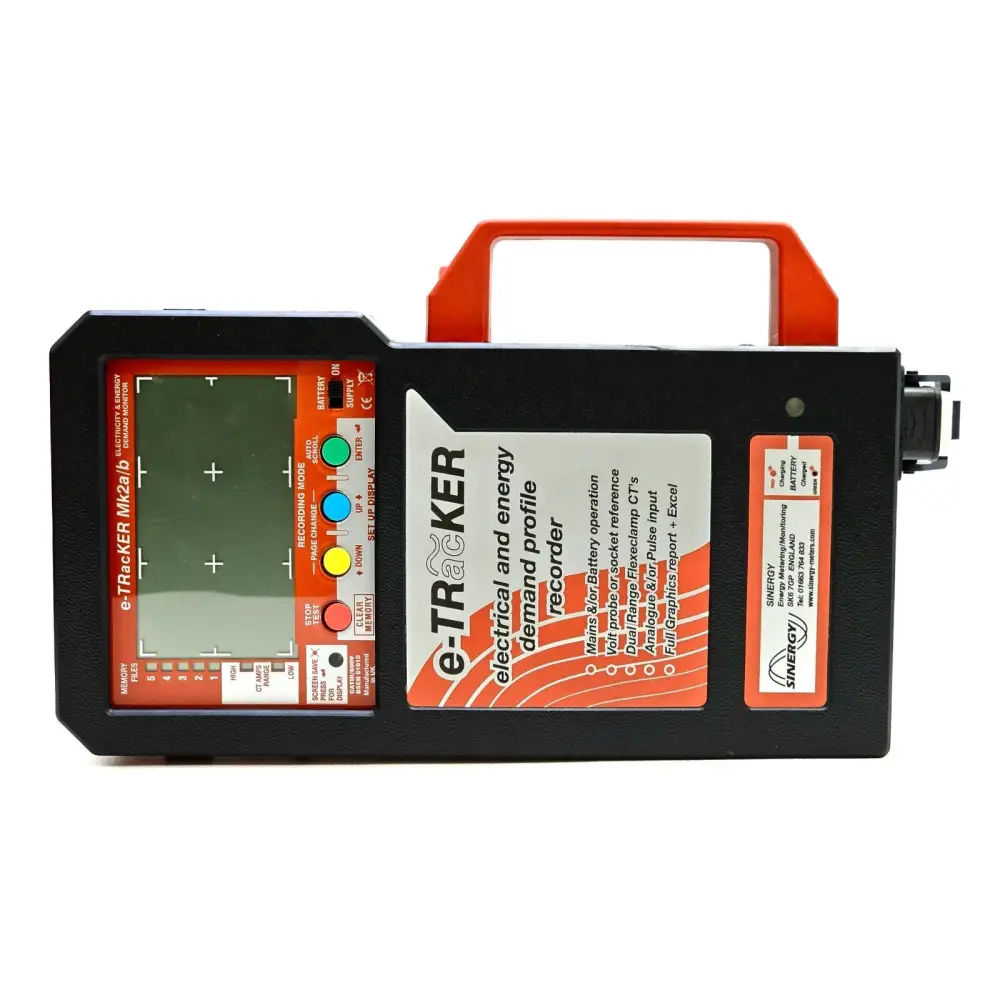

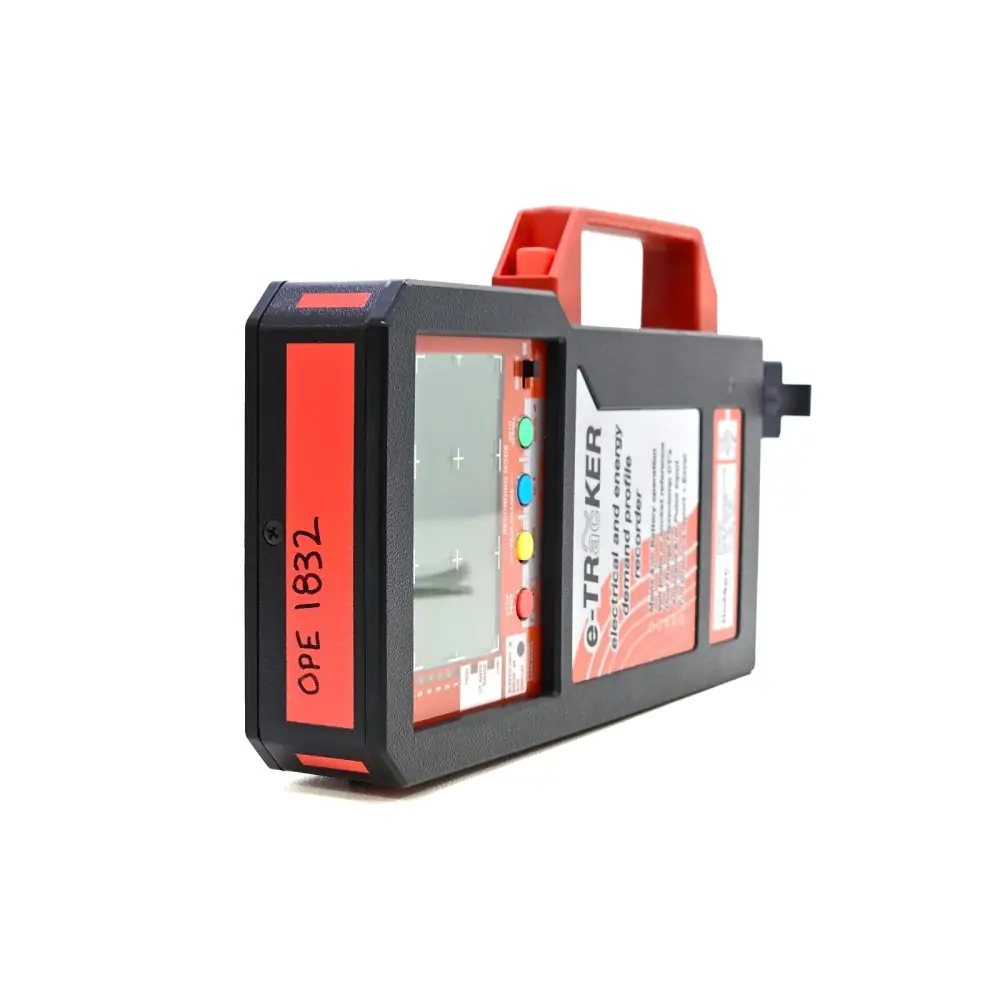

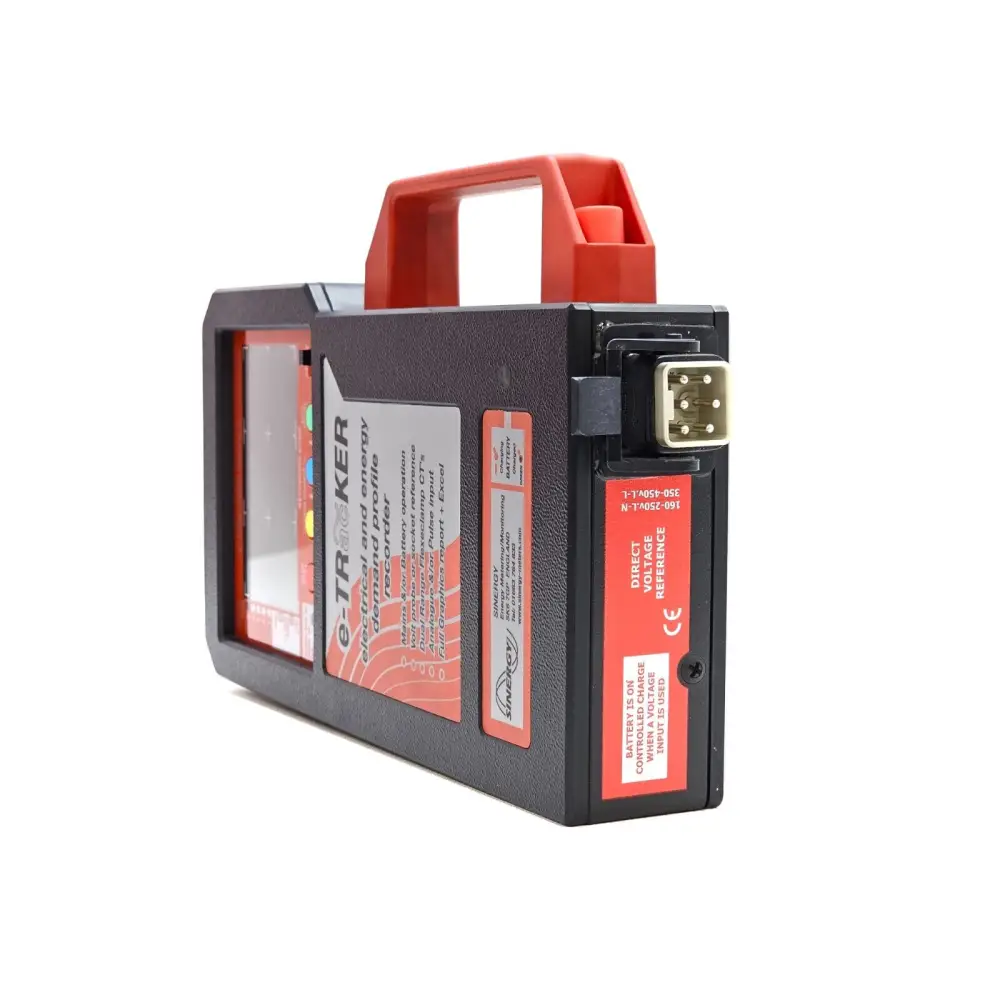

The Sinergy e-TRacKER Mk2a/b is a portable electricity and energy demand monitor and recorder. This used unit is supplied as pictured with no additional accessories included beyond what is shown.
The e-TRacKER logs kWh consumption and demand profiles over hours, days, weeks, or months, making it ideal for identifying energy waste, demand excursions, power factor issues, and current imbalance across circuits or individual loads.
Included in the sale:

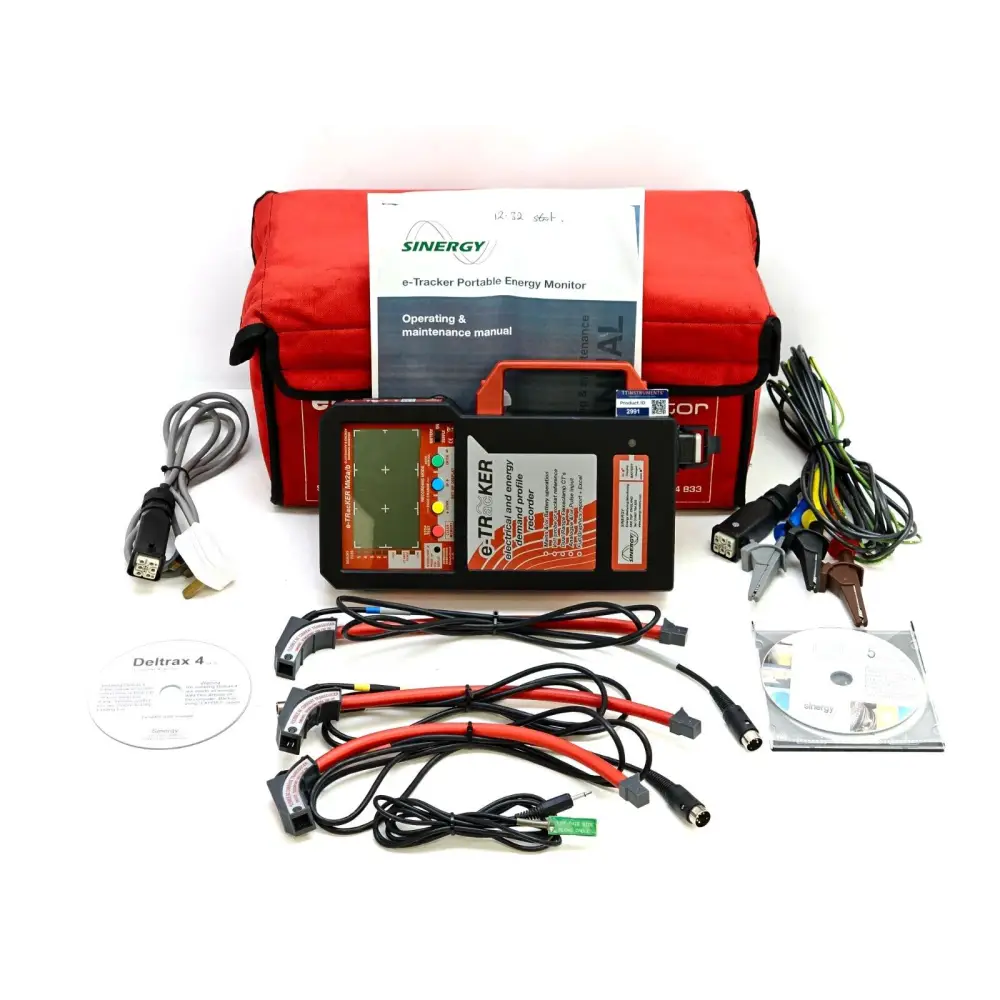

• Unit as pictured
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

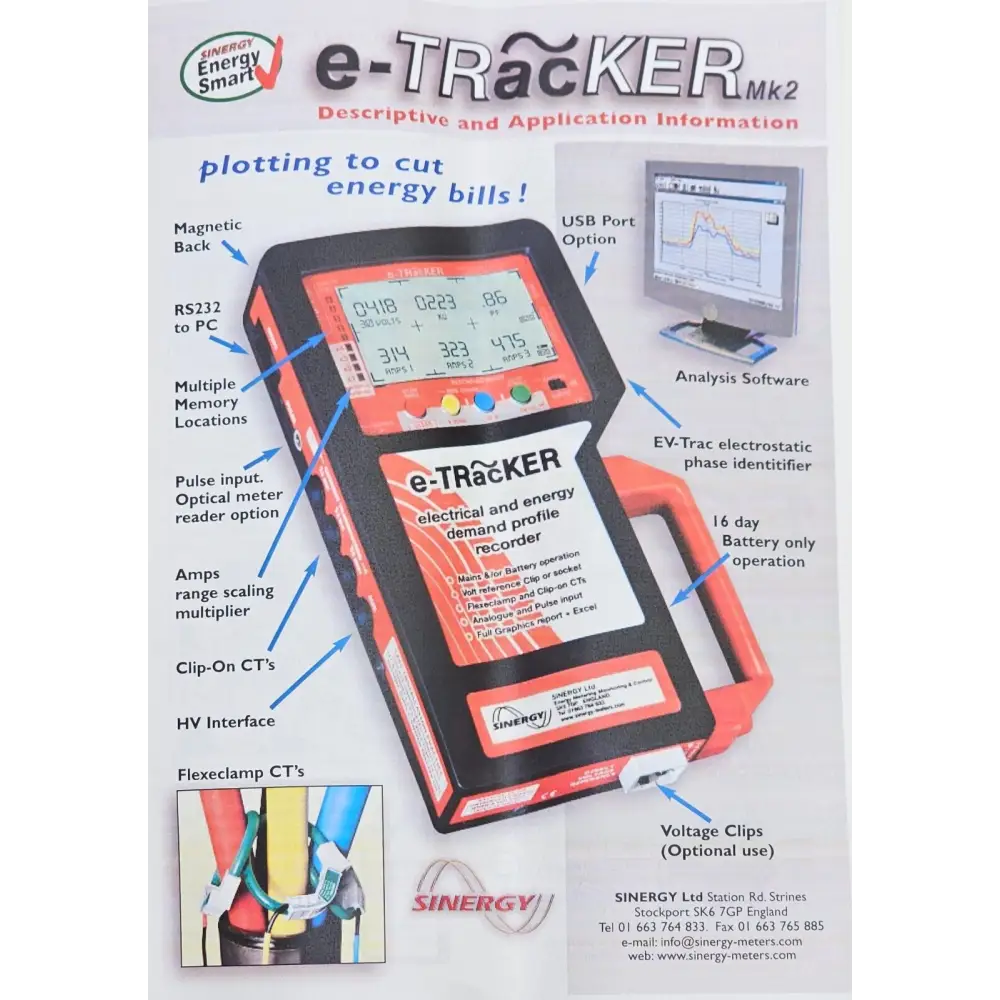

The Sinergy e-TRacKER is a portable kWh meter allowing the monitoring of incoming power supply to show the pattern of demand over an hour, day, week, or month. As a portable device, the e-TRacKER gives the flexibility to measure circuits and specific equipment without the need for a fixed sub-metering solution.
The e-TRacKER's practicality extends down to individual loads, enabling trials on manufacturing controls for parameters such as temperature, pressure, speed, or material specification. If product quality can be retained, the reduced kWh count will influence whether a manufacturing trial could be adopted permanently.

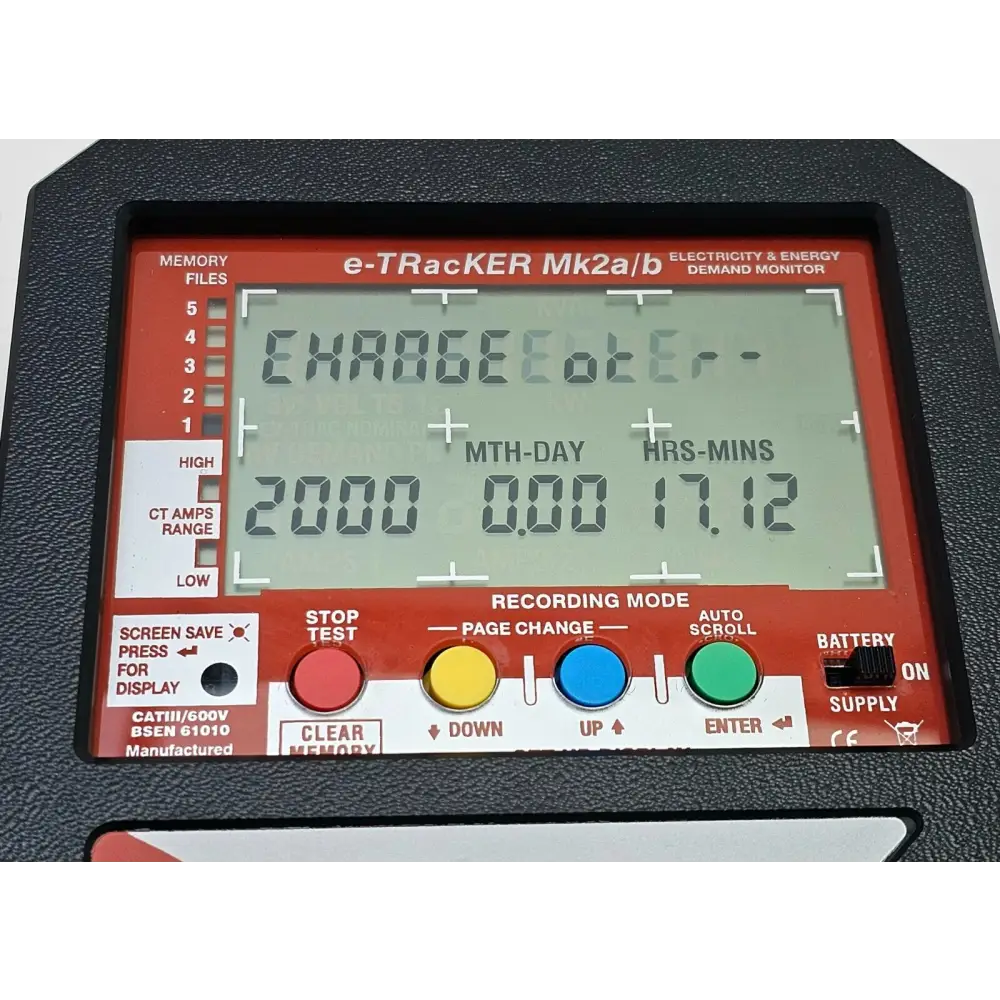

To help identify where energy is being wasted, the e-TRacKER displays average and peak demand to enable the calculation of load factor, and through measurement it creates a pattern of usage. This information helps determine causes of demand excursions and potential unauthorised consumption.
Phase current imbalance affects energy costs by increasing temperature losses on neutral or phase cables and distribution transformers. Poor power factor causes higher currents to flow for the equivalent plant energy conversion compared with unity power factor. The e-TRacKER helps determine if distribution wiring needs to be re-routed or whether departmental or machine-level power factor correction would be cost effective.
The cost of expanding production or occupancy can be drastically reduced if the e-TRacKER proves that the capacity of an existing distribution transformer and cables are being accurately utilised.
Key Features:

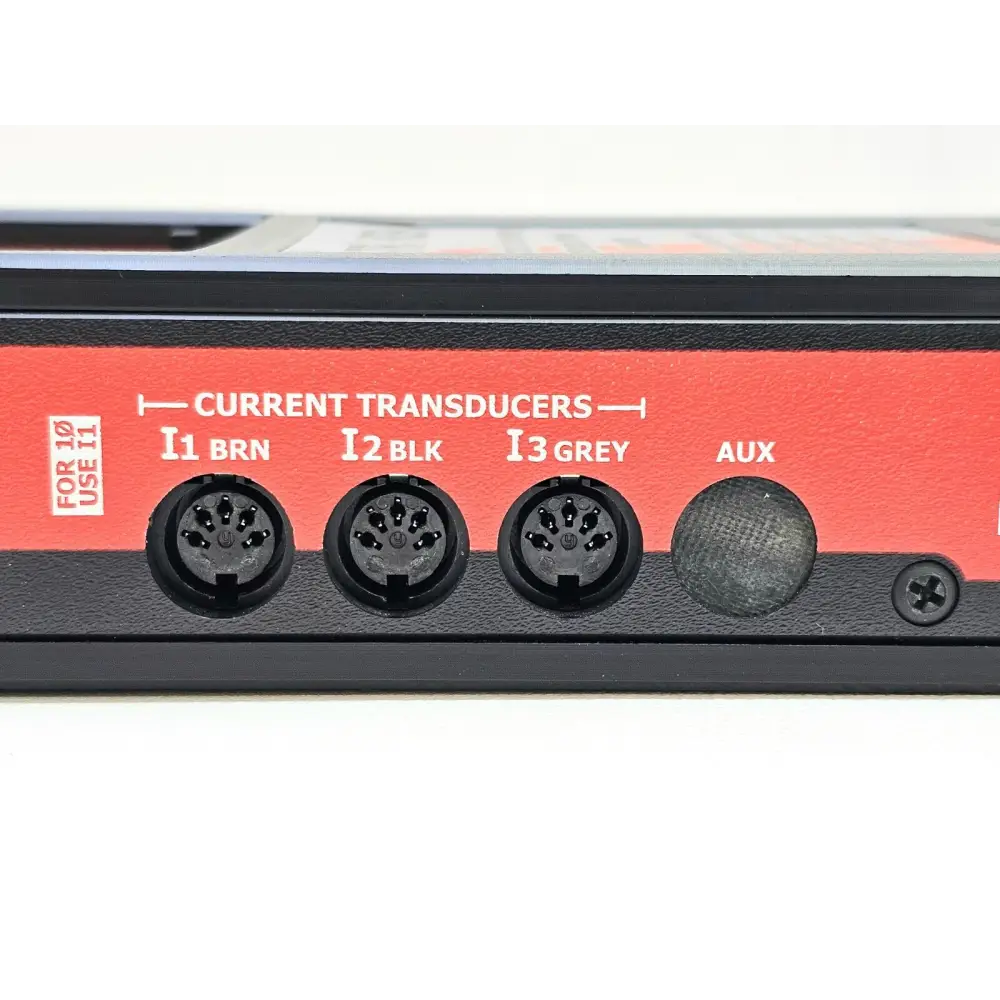

CT Compatibility: Works with a wide range of CTs including split core and bobbin types

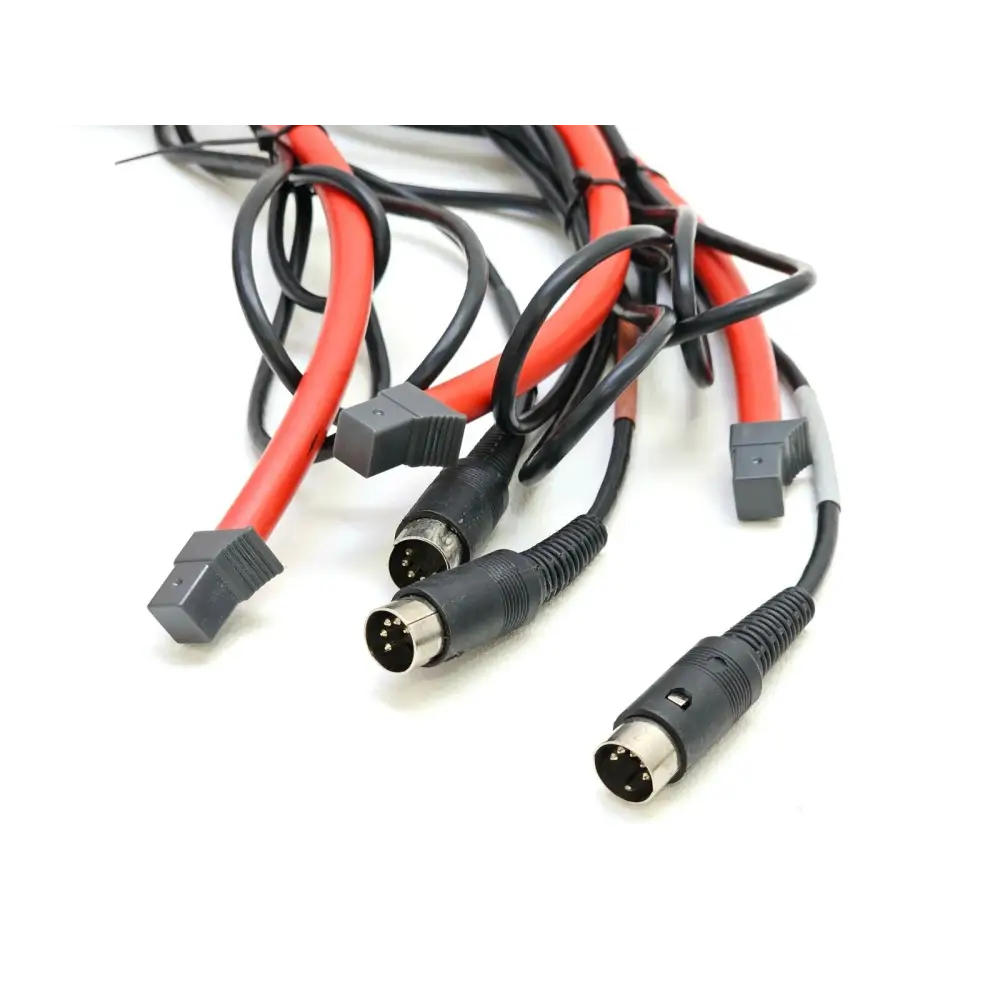

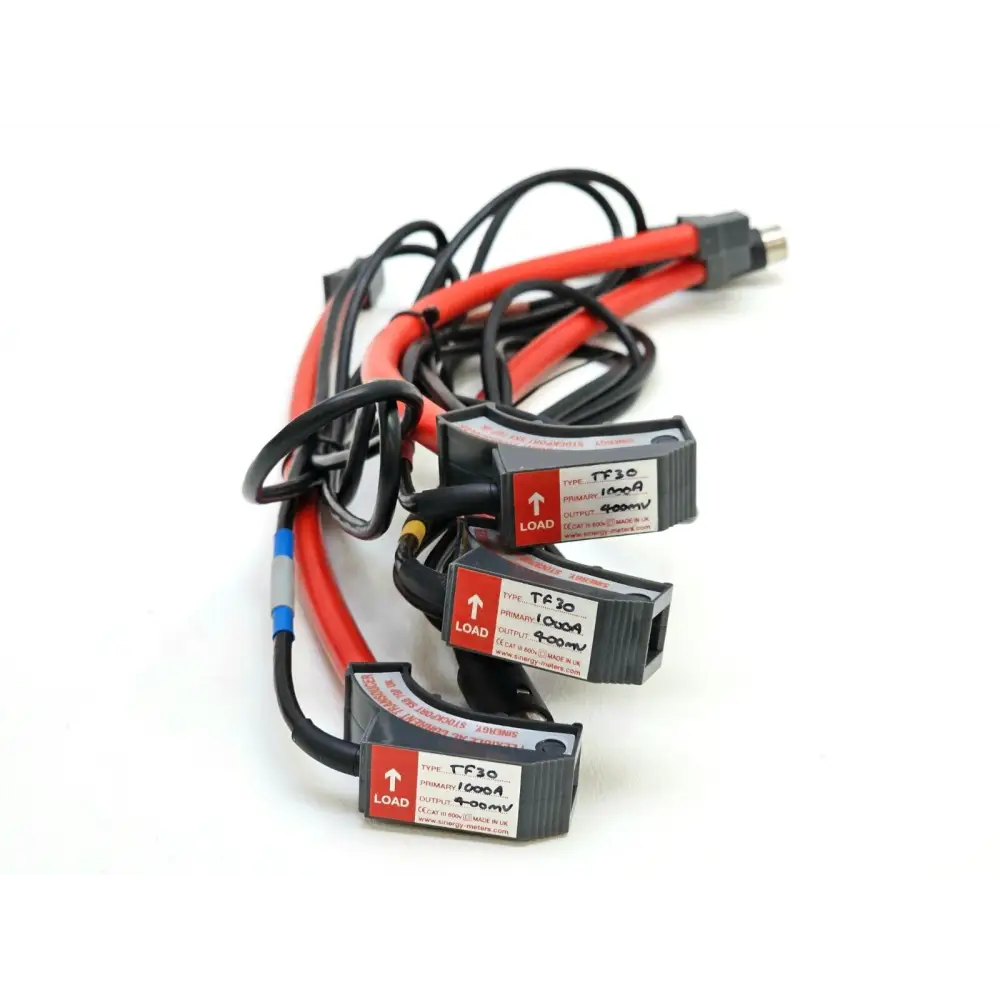

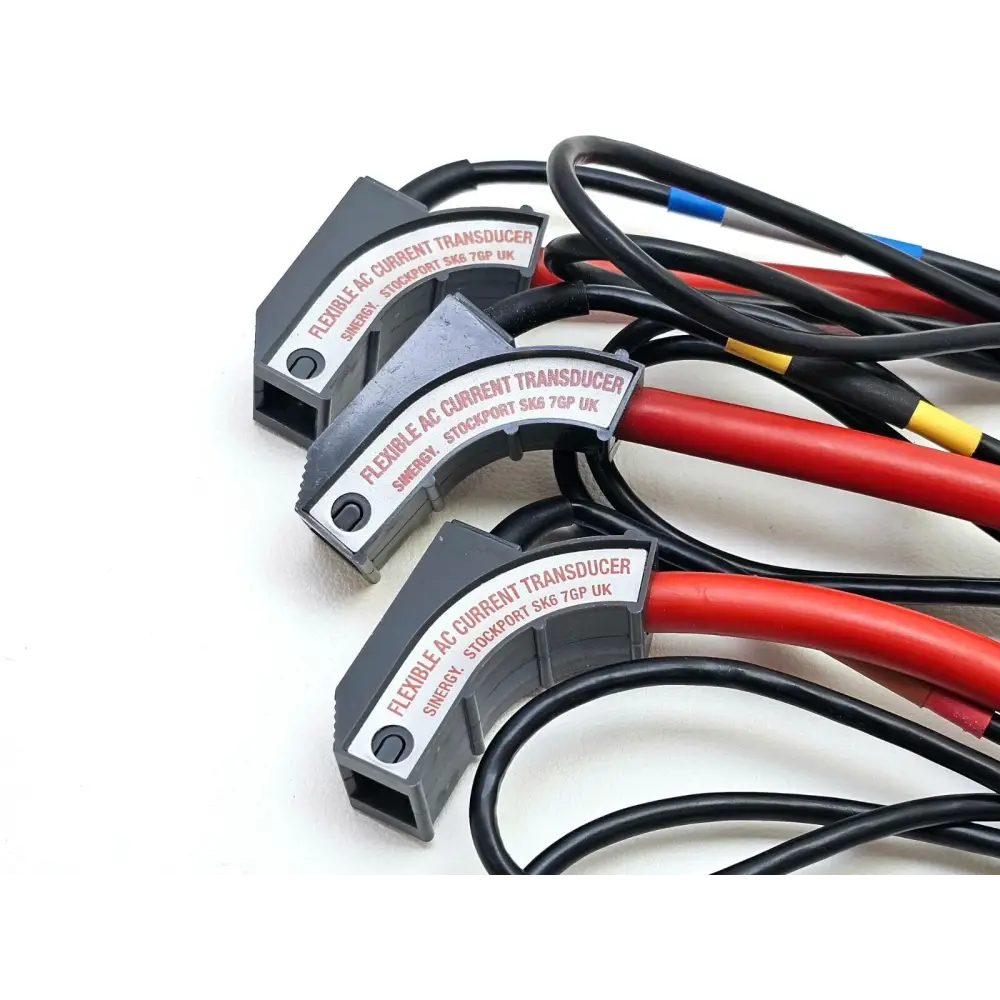

Included CTs: 3 flexeclamp CTs included for accessing hard-to-reach cables
Current Measurement Range: 10A to 2500A

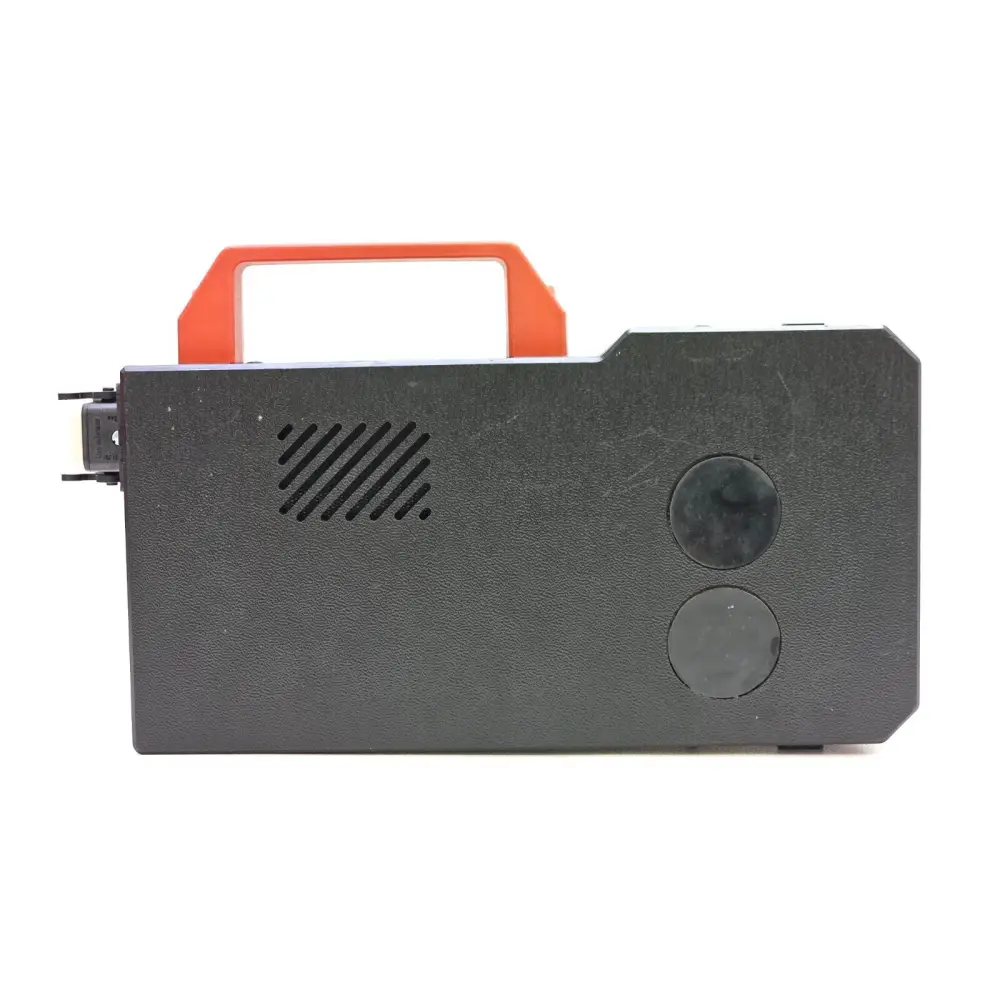

Mounting: Magnetic back for easy installation

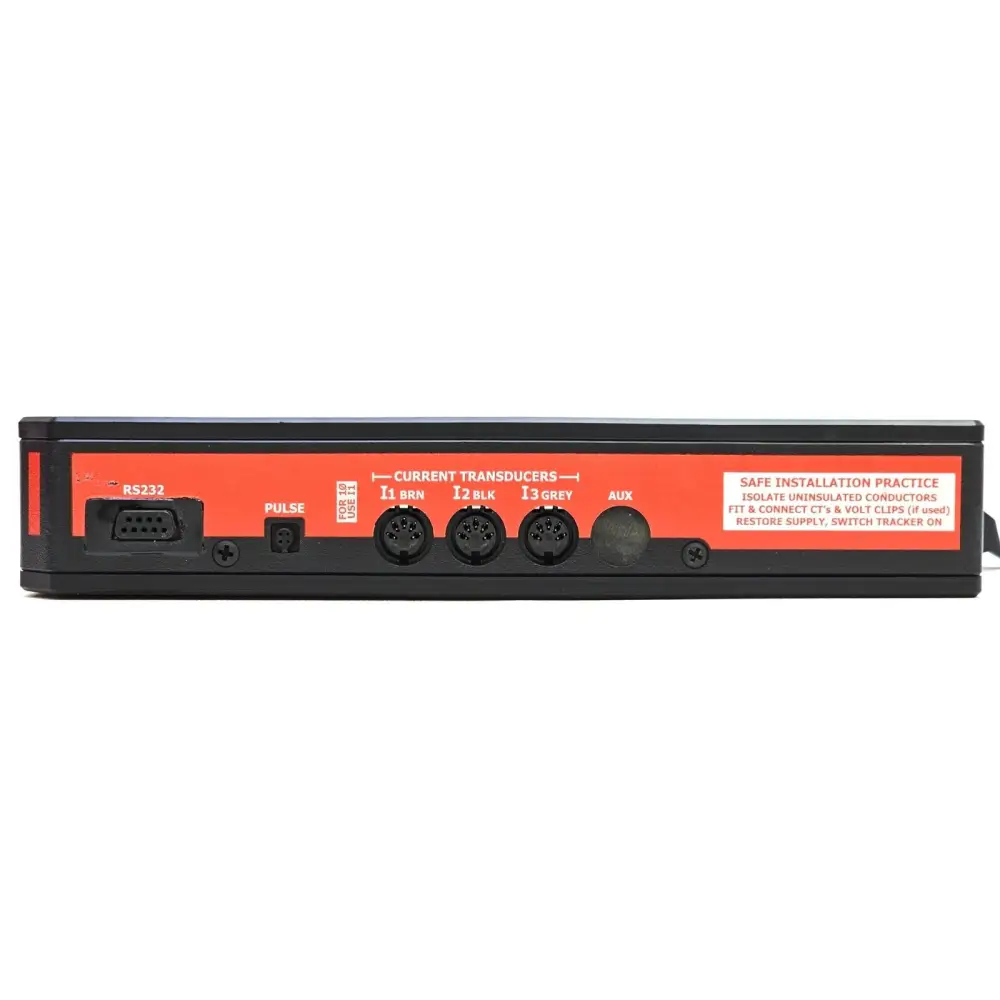

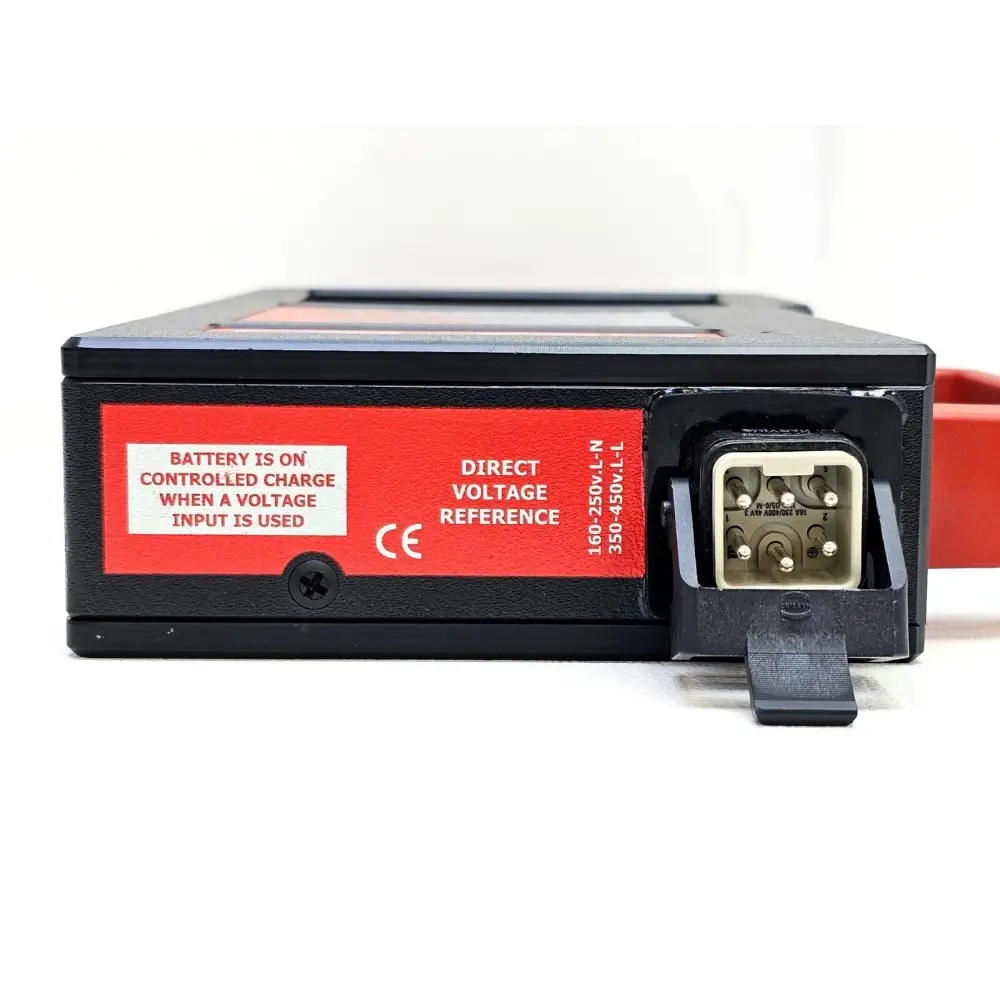

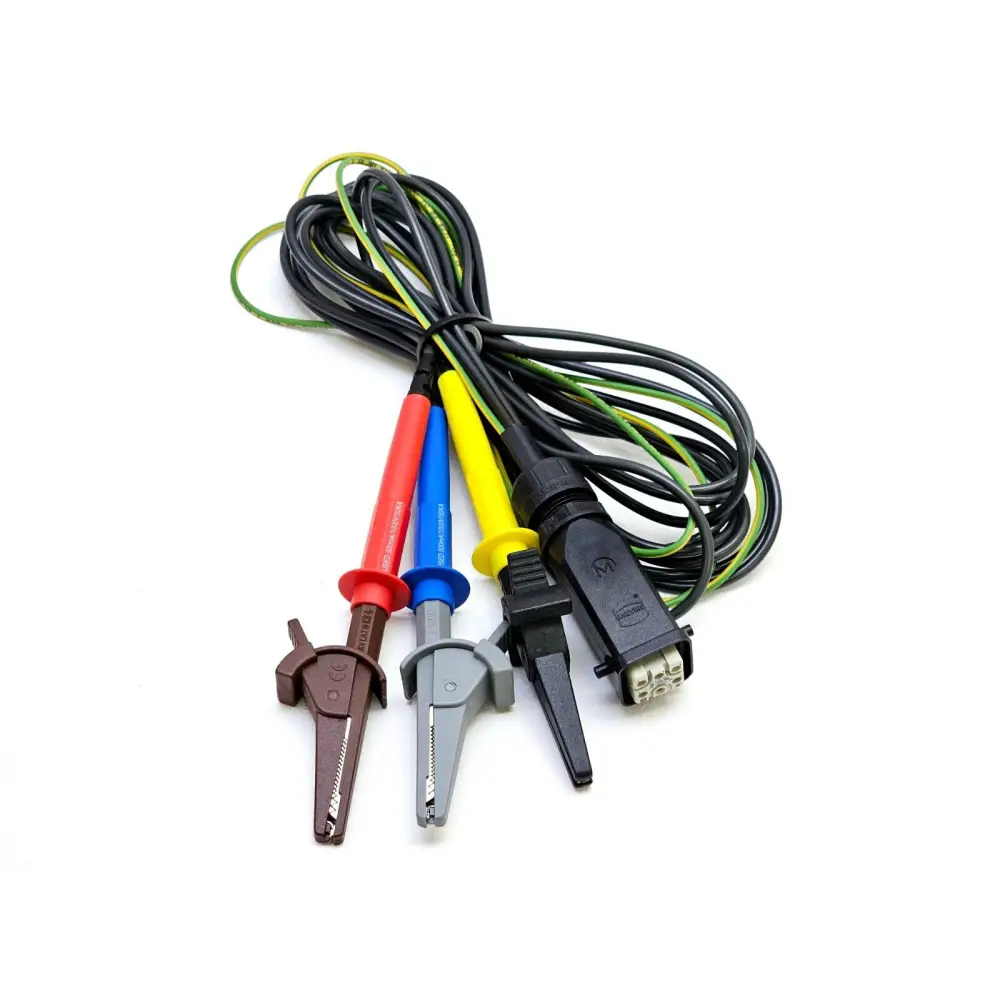

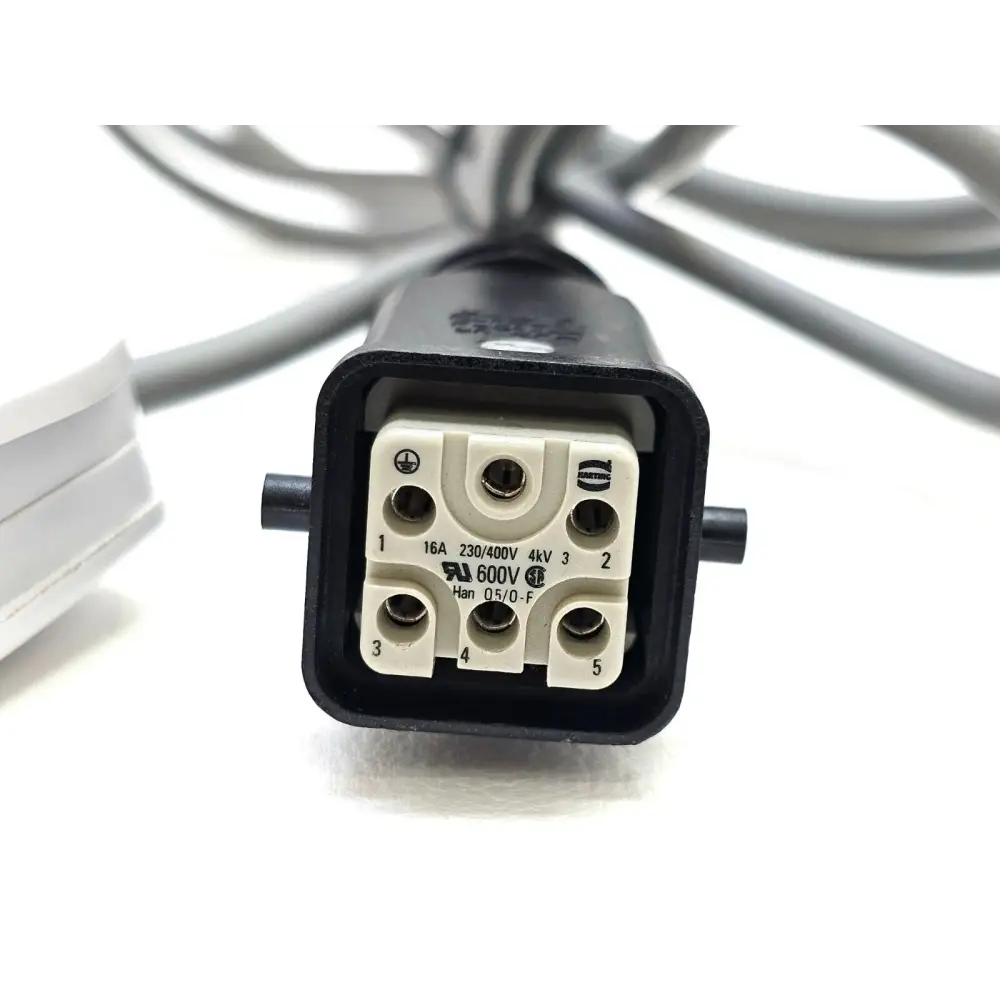

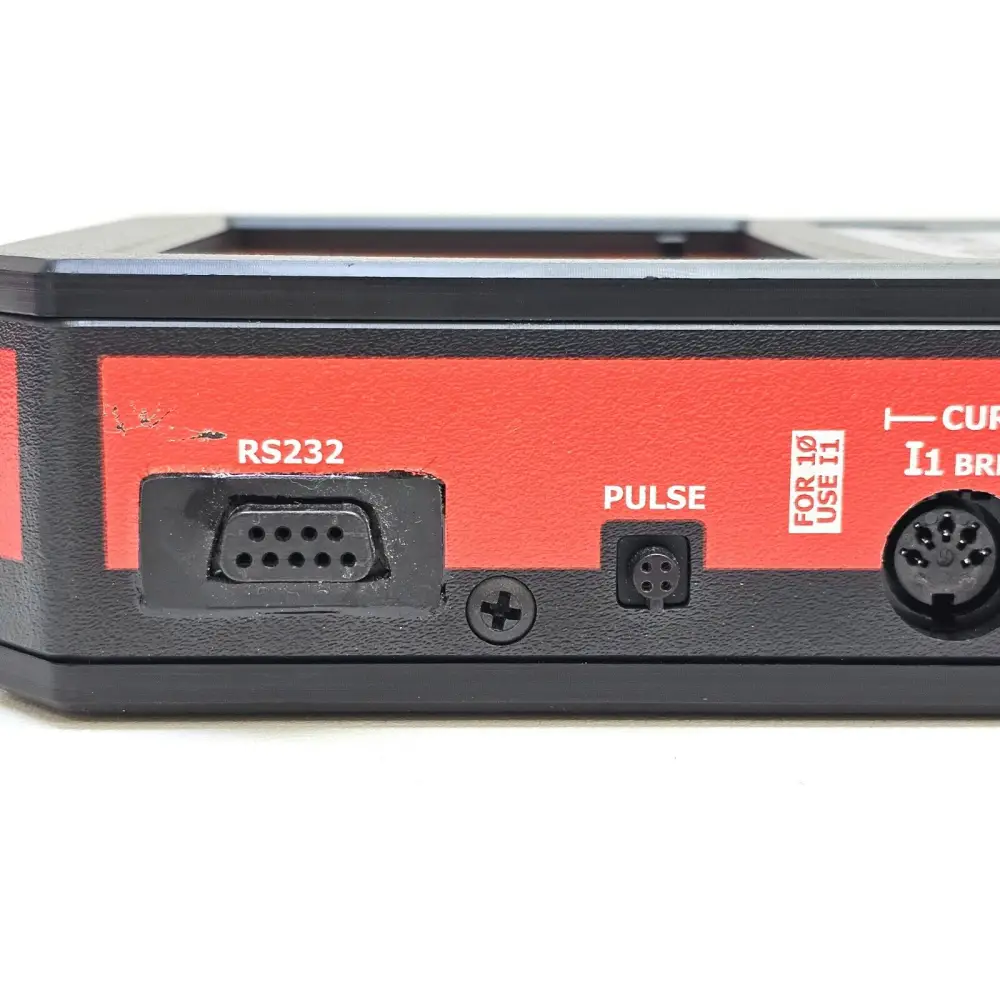

Inputs: Pulse input; optional voltage connections

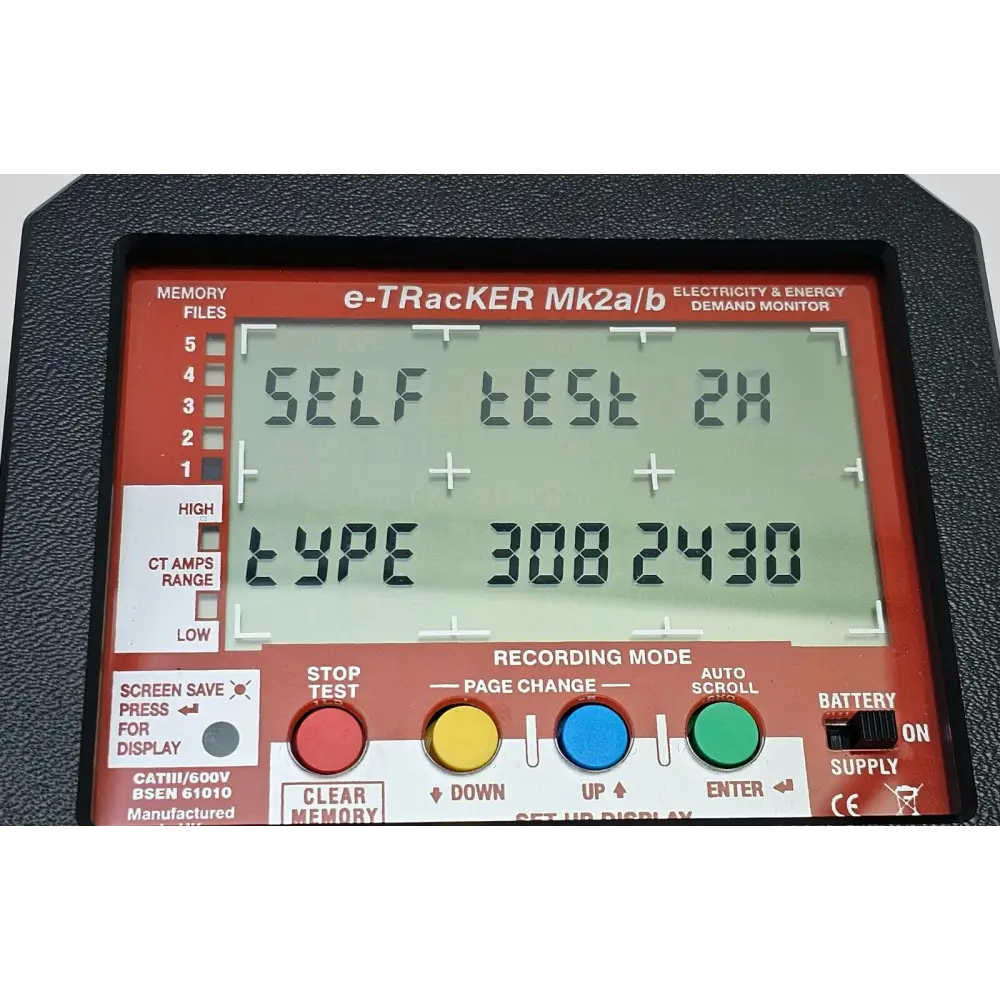

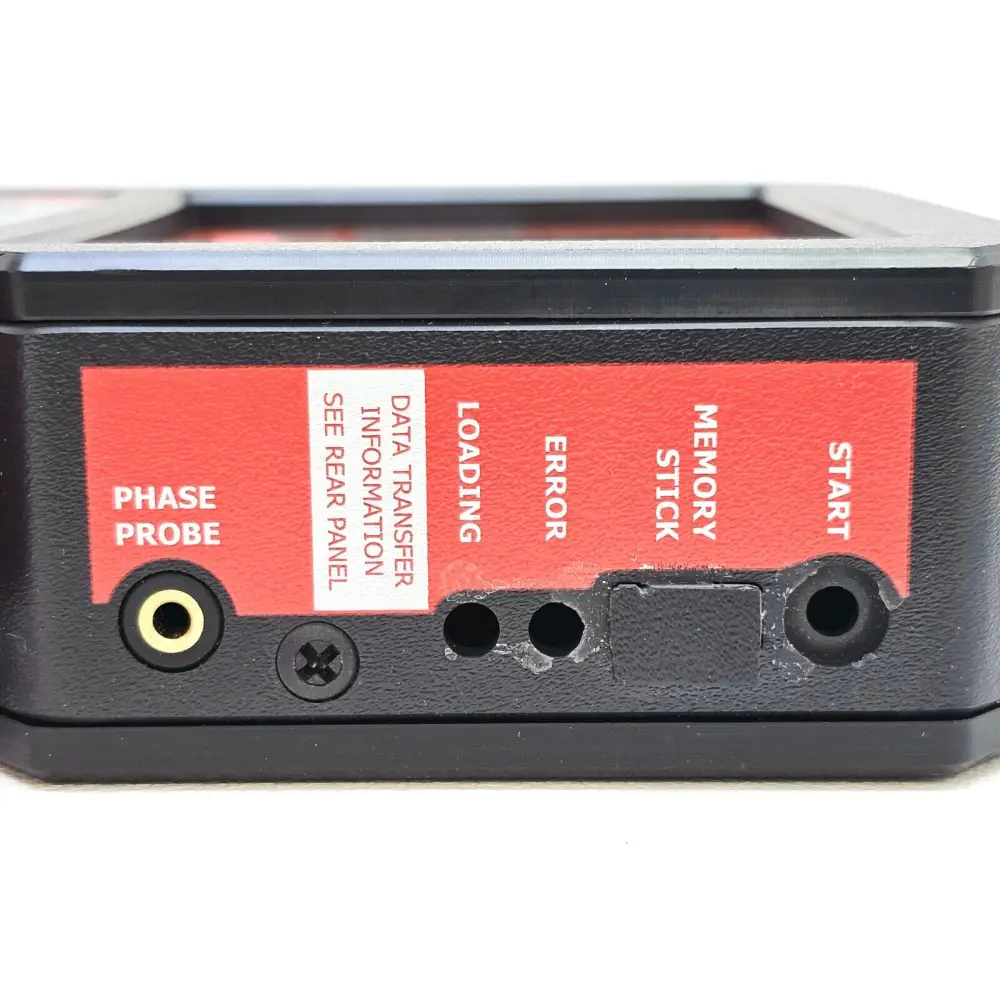

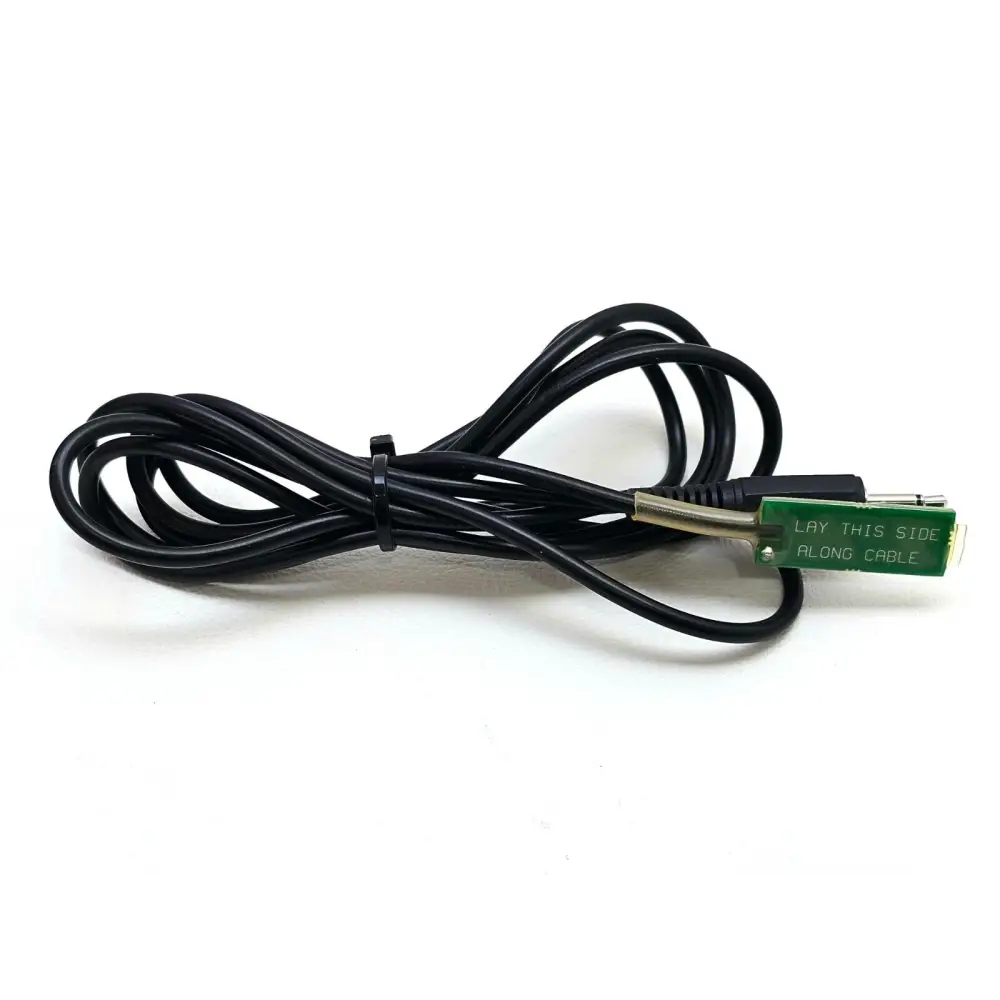

Indicators: CT amps range indicator; EV-Trac electrostatic phase identifier
Data Transfer: USB memory stick download
Battery: 4.0V / 2500mAh — up to 16 days battery life
Power Supply: Can also be run from mains supply
Optional Accessories: Optical or magnetic gas meter reader available
Product Overview
Condition: Used
The Sinergy e-TRacKER Mk2a/b is a portable electricity and energy demand monitor and recorder. This used unit is supplied as pictured with no additional accessories included beyond what is shown.
The e-TRacKER logs kWh consumption and demand profiles over hours, days, weeks, or months, making it ideal for identifying energy waste, demand excursions, power factor issues, and current imbalance across circuits or individual loads.
Included in the sale:
• Unit as pictured
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Manufacturer's Description
The Sinergy e-TRacKER is a portable kWh meter allowing the monitoring of incoming power supply to show the pattern of demand over an hour, day, week, or month. As a portable device, the e-TRacKER gives the flexibility to measure circuits and specific equipment without the need for a fixed sub-metering solution.
The e-TRacKER's practicality extends down to individual loads, enabling trials on manufacturing controls for parameters such as temperature, pressure, speed, or material specification. If product quality can be retained, the reduced kWh count will influence whether a manufacturing trial could be adopted permanently.
To help identify where energy is being wasted, the e-TRacKER displays average and peak demand to enable the calculation of load factor, and through measurement it creates a pattern of usage. This information helps determine causes of demand excursions and potential unauthorised consumption.
Phase current imbalance affects energy costs by increasing temperature losses on neutral or phase cables and distribution transformers. Poor power factor causes higher currents to flow for the equivalent plant energy conversion compared with unity power factor. The e-TRacKER helps determine if distribution wiring needs to be re-routed or whether departmental or machine-level power factor correction would be cost effective.
The cost of expanding production or occupancy can be drastically reduced if the e-TRacKER proves that the capacity of an existing distribution transformer and cables are being accurately utilised.
Key Features:
CT Compatibility: Works with a wide range of CTs including split core and bobbin types
Included CTs: 3 flexeclamp CTs included for accessing hard-to-reach cables
Current Measurement Range: 10A to 2500A
Mounting: Magnetic back for easy installation
Inputs: Pulse input; optional voltage connections
Indicators: CT amps range indicator; EV-Trac electrostatic phase identifier
Data Transfer: USB memory stick download
Battery: 4.0V / 2500mAh — up to 16 days battery life
Power Supply: Can also be run from mains supply
Optional Accessories: Optical or magnetic gas meter reader available
